Design of ethylene-vinyl acetate copolymer fiber with two-way shape memory effect

Altmetrics

Downloads

357

Views

389

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

17 September 2019

Posted:

18 September 2019

You are already at the latest version

Alerts
Abstract

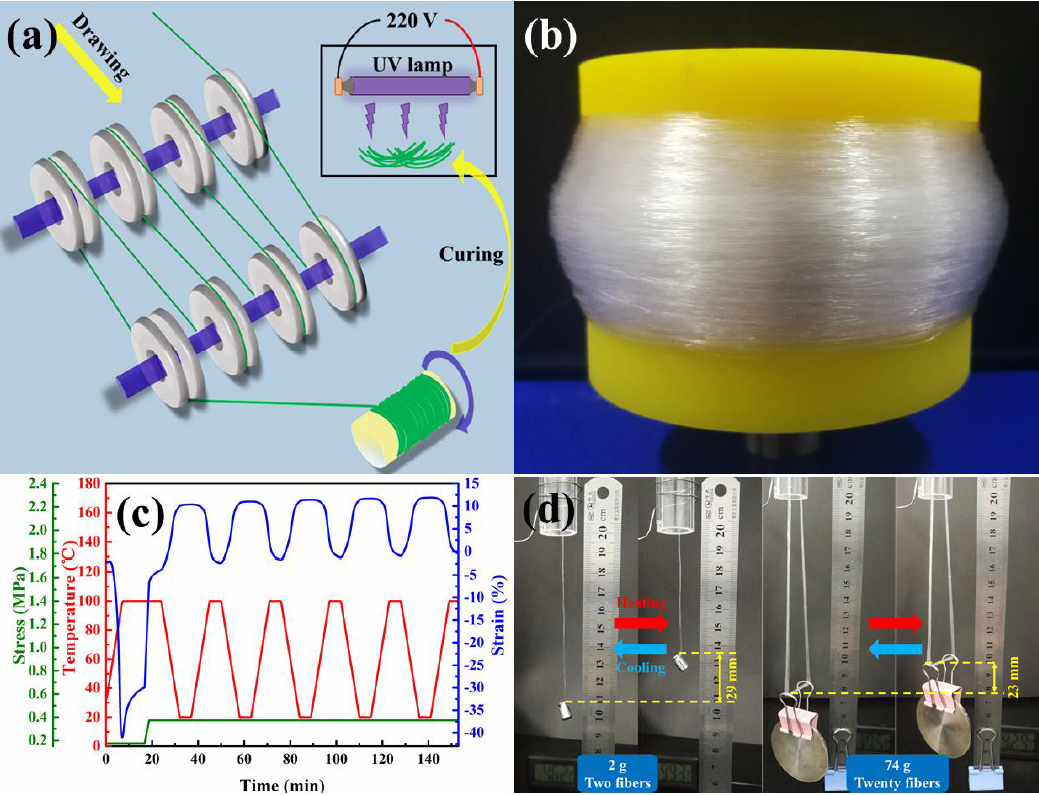

One-dimensional shape memory polymer fibers (SMPFs) have obvious advantages in mechanical properties, dispersion properties and weavability. In this work, a method for fabricating semi-crystallization ethylene-vinyl acetate copolymer (EVA) fiber with two-way shape memory effect by melt spinning and ultraviolet (UV) curing was developed. Here, the effect of crosslink density on its performance was systematically analyzed by gel fraction measurement, tensile tests, DSC and TMA analysis. The results showed that the crosslink density and shape memory properties of EVA fiber could be facilely adjusted by controlling UV curing time. The resulting EVA fiber with cylindrical structure had a diameter of 247.13 ± 10.07 μm, and its mechanical strength and elongation at break were 64.46 MPa and 114.33%, respectively. The critical impact of the crosslink density and applied constant stress on the two-way shape memory effect were analyzed. Moreover, the single EVA fiber could lift more than 143 times its own weight and achieve 9% reversible actuation strain. The reversible actuation capability was significantly enhanced by a simple winding design of the single EVA fiber, which provided great potential applications in smart textiles, flexible actuators and artificial muscles.
Keywords:
Subject: Chemistry and Materials Science  -   Polymers and Plastics
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
