A Review of Major Patents on Potential Malaria Vaccine Targets, Including Antigens from Different Stages of The Parasite Cycle

Altmetrics

Downloads

247

Views

125

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

31 December 2022

Posted:

11 January 2023

You are already at the latest version

Alerts
Abstract
Malaria is a parasitic infection that is a great public health concern and is responsible for high mortality rates worldwide. Different strategies have been employed to improve disease control, demonstrating the ineffectiveness of controlling vectors, and parasite resistance to antimalarial drugs requires the development of an effective preventive vaccine. There are countless challenges to the development of such a vaccine directly related to the parasite's complex life cycle. After more than four decades of basic research and clinical trials, the World Health Organization (WHO) has recommended the pre-erythrocytic Plasmodium falciparum (RTS, S) malaria vaccine for widespread use among children living in malaria-endemic areas. However, there is a consensus that major improvements are needed to develop a vaccine with a greater epidemiological impact in endemic areas. This review discusses novel strategies for malaria vaccine design taking the target stages within the parasite cycle into account. The design of the multi-component vaccine shows considerable potential, especially as it involves transmission-blocking vaccines (TBVs) that eliminate the parasite's replication towards sporozoite stage parasites during a blood meal of female anopheline mosquitoes. Significant improvements have been made but additional efforts to achieve an efficient vaccine are required to improve control measures. Different strategies have been employed, thus demonstrating the ineffectiveness in controlling vectors, and parasite resistance to antimalarial drugs requires the development of a preventive vaccine. Despite having a vaccine in an advanced stage of development, such as the RTS, S malaria vaccine, the search for an effective vaccine against malaria is far from over. This review discusses novel strategies for malaria vaccine design taking into account the target stages within the parasite’s life cycle.
Keywords:
Subject: Biology and Life Sciences  -   Parasitology

1. Introduction

Malaria is an infectious disease caused by Plasmodium spp. parasites, transmitted by bites from infected female Anopheles mosquitoes. According to the World Health Organization (WHO), in 2020, there were an estimated 241 million cases of malaria in 85 countries, as compared to 2019 when 227 million reported cases in 2019. In 2020, the disease killed around 627,000 people, an increase of 12% as compared to 2019 [1,2]. To control the disease more effectively, different strategies have been employed to control the disease, but the ineffectiveness in controlling vectors and parasite resistance to antimalarial drugs suggest that the development of a vaccine as a preventive measure could be important [3]. Currently, the main pillars for the management of malaria are rapid diagnostic tests and artemisinin derivatives for treatment. However, these strategies have not been enough to maintain a downward trend in malaria incidence and mortality. Recent findings in the pathophysiology of malaria have highlighted the importance of the host's response to the infection [4].
Plasmodium vivax, Plasmodium falciparum, Plasmodium malariae, and Plasmodium ovale are among the species that commonly affect humans. P. falciparum is responsible for the most severe form of disease and death and is more prevalent in Africa. The second most common species is P. vivax, found in South and Southeast Asia, Central and South America, and some countries in Europe and North Africa [2]. The cycle begins with the pre-erythrocytic phase in which the mosquito performs the blood meal by inoculating sporozoites in human host’s bloodstream. Sporozoites actively reach the peripheral vascular system and migrate to the liver where they replicate in hepatocytes, forming merozoites that are released into the bloodstream. Merozoites invade red blood cells (RBCs), initiating the erythrocytic phase, and develop through the ring, trophozoite, and schizont stages before forming new merozoites that are released at the exit of the schizonts and reinfect new RBCs. A small number of the blood-stage parasites develop in sexual stages called gametocytes, which reach the dermis where they are captured by another mosquito. After fertilization and sporogonic development in the gut of the mosquito, infectious sporozoites are formed and reach the salivary glands to be transmitted to another host [5,6]. Intervention strategies, including vaccines, are predicted to be most effective if targeted to specific stages of the parasite's life cycle and/or directed to proteins expressed in those stages [7]. Several technologies involving the development of malaria vaccines using different formulations with Plasmodium antigens or immunogenic fragments have been reported (US5112749A, US20160038580A1, EP1544211A1, US20190374629A US20040137512). Due to the complexity of the Plasmodium biological cycle, most vaccines reported against malaria have more than one target antigen. This review reports the patent landscape for malaria vaccines using different target stages.

2. Search strategy and selection criteria

The following patent databases were consulted: European Patent Office (Espacenet - https://worldwide.espacenet.com), United States Patent and Trademark Office (USPTO - https://www.uspto.gov/patents-application-process), United States Latin America (LATIPAT - https://lp.espacenet.com/), and Patentscope -Search International and National Patent Collections (WIPO - https://patentscope.wipo.int). The keywords used were: "malaria vaccine" AND "pre-erythrocytic" OR "sexual" OR "blood". The titles and abstracts from pre-selected articles were read and evaluated by two independent researchers.The Materials and Methods should be described with sufficient details to allow others to replicate and build on the published results. Please note that the publication of your manuscript implicates that you must make all materials, data, computer code, and protocols associated with the publication available to readers. Please disclose at the submission stage any restrictions on the availability of materials or information. New methods and protocols should be described in detail while well-established methods can be briefly described and appropriately cited.
Research manuscripts reporting large datasets that are deposited in a publicly available database should specify where the data have been deposited and provide the relevant accession numbers. If the accession numbers have not yet been obtained at the time of submission, please state that they will be provided during review. They must be provided prior to publication.
Interventionary studies involving animals or humans, and other studies that require ethical approval, must list the authority that provided approval and the corresponding ethical approval code.

3. Results

In the end, a total of 44 patents in the Patentscope, 14 patents in the Espacenet, 15 patents in the USPTO, and 22 patents in LATIPAT were identified (Figure 1). The Abstracts were read and the selected patents are described in this review. The selected inventions are described in Table 1 according to the three stages that define a possible candidate for a vaccine against malaria: the pre-erythrocytic stage, the blood stage, and the sexual stage, in which the target is the form of sexual or gametocyte parasites (Figure 2). This review takes a close look at the technologies for developing malaria vaccines according to published papers, especially those covering patents.

3.1. Challenge of Developing a Malaria Vaccine

Although the development of malaria vaccines began more than thirty years ago, there is no commercially available vaccine. Currently, with the appearance of COVID- 19, there has been a significant decline in the use of long-lasting insecticide nets, indoor residual spraying, seasonal malaria chemoprophylaxis campaigns, access to rapid diagnostic tests, and effective malaria treatment, all of which can have a consequential impact on the mortality rate [8,9]. There are numerous challenges to be faced with developing a malaria vaccine that are directly related to the parasite’s immunobiology. The genome of P. falciparum is highly complex and is distributed on fourteen chromosomes that express more than 5,000 separate genes [10]. The genetic diversity most likely contributes to the parasite's ability to adapt to the immune systems of its human and mosquito hosts [11]. In addition, other difficulties have hindered the development of a vaccine, such as the substantial specificity of the phase of expression of the antigen by Plasmodium parasites, meaning vaccines that are candidates for one stage of the life cycle are unlikely to have an effect on another stage [12]. Finally, the target species P. falciparum and P. vivax are not able to infect small animals or Old World macaques, thus excluding the most widely used animal models for a direct evaluation of the vaccine [13].
Other malaria parasites infect these species, such as Plasmodium berghei, an important rodent malaria model [14,15], and Plasmodium chabaudi, Plasmodium yoelii, and Plasmodium vinckei, which naturally infect mice [16]. Although non-human primates are a valuable resource for testing vaccine candidates, they are not found naturally infected but can be easily infected with P. falciparum or P. vivax, such as Aotus genus, largely used in malaria research [17], and Rhesus macaques infected with P. falciparum, also used as models to assess cerebral malaria [18]. Although mice and non-human primates afford many advantages for the study of malaria, they differ substantially from human parasites [20]. Some limitations have to be considered, such as the lack of immunological tools to assess the immune response of non-human primates and the mistranslation of antigens that are protective in mouse models for human malaria, indicating a pressing need to improve experimental models [13].
The most advanced candidate to-date is the pre-erythrocytic P. falciparum (RTS, S) vaccine (trade name Mosquirix) [19]. The most notable results described for RTS, S vaccine were: (i) 34% efficacy with significant protection against natural P. falciparum infection [20], (ii) safety and immunogenic in infants [21], and (iii) a three-dose vaccination with RTS, S was protective against clinical malaria [22].
On April 24, 2017, WHO announced plans to make the RTS, S vaccine available in Ghana, Kenya, and Malawi through the countries’ national immunization programs [13]. Two years later, the pilot studies were underway. The vaccine manufacturer, GlaxoSmithKline, is providing up to 10 million doses of the vaccine, the countries’ ministries of health will lead the vaccine introduction through their national immunization programs, and WHO will provide scientific and technical leadership [23]. The vaccine formulation contains the most important surface resistance, the circumsporozoite protein (CS), which consists of an N-terminal region (RI) linked to the heparin sulfate proteoglycan, an intermediate region containing a tetraamino acid repeat (NPNA), and a GPI-anchored C-terminal region containing a thrombospondin-like domain (RII). The CS protein region included in the RTS, S vaccine contains the last 16 NPNA repeats and the entire flank C terminal. The hepatitis B virus surface antigen particle system (HBsAG) is used as a matrix carrier for RTS, S, which is 25% fused to the CSP segment [24]. The most recent study involving the RTS, S vaccine aimed at investigating the role of antibody isotypes other than IgG, which may also contribute to vaccine efficacy. Induction of peripheral blood IgA responses against vaccine antigens was observed, thus demonstrating the contribution of this immunoglobulin response to vaccine efficacy [25].
The second most advanced stage vaccine is the inactivated sporozoite vaccine from P. falciparum, PfSPZ [26]. In 2002, Sanaria Inc. was created to develop and market a sporozoite-based vaccine. The organization first developed the PfSPZ vaccine in 2003 [27], consisting of an intravenous vaccine with the radiation-attenuated Plasmodium falciparum parasite. The P. falciparum sporozoites were obtained manually by dissecting the mosquitos’ salivary glands [28], representing a challenge when it comes to the vaccine’s large-scale production. They were then irradiated and preserved to develop metabolically active and non-replicative (attenuated), aseptic, and purified sporozoites [28]. The first clinical trial of the PfSPZ vaccine involving a sample of eighty adults, in 2011, demonstrated that the vaccine administered by subcutaneous or intradermal means was safe and well tolerated, in addition to triggering a low immunogenicity and efficacy performance [29].
There is general consensus that generating enough antibodies to block infection is a key challenge for induction protection in malaria vaccines [30]. Another recently discovered hurdle is epitope masking as an obstacle to antibody boosting after repeated administration of the attenuated P. falciparum sporozoite vaccine [31]. The authors showed that antibody titers to a key target, the repeat region of the P. falciparum circumsporozoite protein (PfCSP), plateaued after two immunizations in a clinical trial of the PfSPZ vaccine. It was determined that recall responses were inhibited by antibody feedback, potentially through epitope masking of the immunodominant PfCSP repeat region [31,32]. McNamara et al. report that delaying a third dose until the vaccine antibody levels have dropped can alleviate cell suppression. Therefore, studies to evaluate the immunogenicity of the RTS, S vaccine were conducted with a fractional and delayed third dose of the formulation. The results suggested that the use of a fractional third dose of RTS, S (one-fifth dose volume), and changing the administration schedule from 0, 1, and 2 months to 0, 1, and 7 months resulted in very high levels of protection in adults [33,34]. These findings raised the hope of identifying the epitopes and corresponding antibodies involved in masking, B cell suppression, and impaired vaccine responses. Despite the advances, there is still a strong desire to find a highly effective vaccine against malaria. The question remains as to how effective and safe malaria vaccines can work to benefit those communities ravaged by malaria. Furthermore, there are challenges yet to be overcome regarding the development of such a vaccine, such as the extremely complex genome of P. falciparum and the limitations imposed by animal models. Scientists look forward to the discovery of new antigens and the improvement of platforms to expand the existing portfolio of vaccine candidates.

3.2. Pre-erythrocytic stage

Sporozoites travel through the blood in the pre-erythrocytic stage and infect hepatocytes which then undergo schizogony, the multiplication stage that precedes the invasion of red blood cells [35]. The main objective for developing a vaccine against the pre-erythrocytic stage is to inhibit hepatocyte infections and the development of the hepatic parasite, thus limiting the invasion of red blood cells [36]. Importantly, protection of sporozoites from malaria may depend on a fine balance of both innate and adaptive immune responses present in the pre-erythrocytic stages [37]. It is widely recognized that an effective, long-lasting malaria vaccine will need to induce robust antibody and T cell responses. Antibody responses to pre-erythrocytic stage antigens have been observed [38] and protected individuals may have titers of higher antibodies [39]. Regarding the adaptive immune response, it has already been reported that CD4+ T cells play a critical role in the response to the pre-erythrocytic stage of malaria [40,41]. Furthermore, the CD8+ T cells are recognized as the primary effector cells against the pre-erythrocytic stages, as observed in non-human primates [42].
Gardner et al. sequenced the P. falciparum genome [10]. The availability of the complete sequences of the Plasmodium genome allowed the development of live parasites attenuated by more precise and better defined genetic manipulations. It was the strategy used in the patent US5112749A (Table 1), referring to a vaccine in which the immunogen is an attenuated entero-invasive bacterium that expresses a parasite epitope to elicit a protective immune response (humoral and / or cell-mediated) against Plasmodium infections. The epitope to be expressed is one of the CS proteins of the Plasmodium genus. The ability of the recombinant bacteria to trigger the production of antibodies against CS proteins was demonstrated in the invention, thus confirming the antigenicity of recombinant strains. The challenge was performed with P. berghei sporozoites by injection in the tail vein of mice and 80% of the immunized animals were protected. US 20160038580 A1 (Table 1) also provides a new nucleotide sequence and other constructs used for the expression of recombinant P. falciparum CS proteins in bacterial cells, such as Escherichia coli. The approach is also used in the AU2004309380B2 invention (Table 1), which relates to live genetically modified Plasmodium organisms and their use as immuno-effectors for vaccination purposes. The upregulated genes in infective sporozoites 3 and 4 (UIS3 and UIS4) are considered as essential for the early development of the liver stage [43]. This technology provides the first living, genetically modified Plasmodium organisms, the sporozoites UIS3 (-) and UIS4 (-), which infect hepatocytes, but are no longer able to establish infections in the blood stage and, therefore, do not lead to disease.
Despite these promising results, there are some disadvantages in using attenuated microorganisms as represented by need for the attenuation of P. falciparum. It has been shown that radiation required to generate an effective attenuated sporozoite must be precisely adjusted to meet minimum requirements [44]. Moreover, the attenuation process must also be precisely adjusted since the sporozoites exposed to high radiation levels do not induce protection, while parasites exposed to low levels induce infections [44]. Likewise, infections with different genetically attenuated Plasmodium sporozoites have been reported [45]. Since a single sporozoite in full development in the liver can give rise to blood infection and malaria symptoms, a vaccination based on the attenuation of P. falciparum sporozoites presents safety concerns that cannot be ignored [45].
An alternative strategy for the development of a malaria vaccine, based on the use of rodent Plasmodium parasites as a non-pathogenic vector for human immunization, was presented by the AU2013250814B2 invention (Table 1). It has been shown that P. berghei is capable of infecting human hepatocytes, which is necessary for the ideal presentation of the antigen, while at the same time being unable to cause an infection in the blood stage, thus ensuring the vaccine’s safety. The P. berghei mutant that expresses CS by P. falciparum (PbCSpf) was used and shown to maintain the primary characteristics of its wild-type counterpart while triggering a specific protective immune response against the P. falciparum challenge. This strategy opens other avenues for the design and production of additional vaccine candidates based on the same principle. While the development of a live vaccine could raise concerns regarding safety requirements, in addition to scale-up in the vaccine production, the EP1544211A1 invention (Table 1) describes a new P. falciparum liver sporozoite antigen referred to as Liver Stage Antigen-5 (LSA-5). This protein is highly antigenic and the prevalence of antibodies in individuals living in endemic areas is extremely high (roughly 90%). Immunization with LSA-5 induced protection against both challenges of P. yoelii (in mice) and P. falciparum (in Aotus monkeys). The results suggest that LSA-5 could be an important antigen candidate for an anti-malaria subunit pre-erythrocytic vaccine.

3.3. Blood Stage

The invasion of erythrocytes by P. falciparum involves a complex cascade of protein-protein interactions between the parasite's ligands and the host's receptors [46]. The Reticulocyte-binding proteins homologous of P. falciparum family (PfRh) are involved in binding and initiating invasive merozoite entry into erythrocytes [47]. In the invention WO2013108272A3 (Table 1), the authors described a receptor blocking vaccine based on a combination of new erythrocyte-binding merozoite antigens that includes the PfRH (PfRH1, PfRH2a, PfRH2b, PfRH2b, PfRH4, and PfRH5). The vaccine targets erythrocyte-binding domains, blocking its interaction with its receptors and, therefore, inhibiting erythrocyte invasion. Another invention, US20190374629A (Table 1), provides a vaccine composition in which the PfRH5 antigen triggered antibody production resulting in at least 50% growth inhibitory activity (GIA) against a plurality of Plasmodium parasite blood-stage genetic strains. In particular, the invention provides rationally engineered modified PfRH5 antigens to produce improved stability and expression profiles while maintaining immunogenicity. The effectiveness of the modified PfRH5 antigens can be given in terms of their GIA, displaying up to 90% against blood-stage Plasmodium parasites. The inventors of US20140186402A1 (Table 1) provide an immunogenic composition for its use as a blood-stage malaria vaccine. The method consists of isolated or purified merozoites, or red blood cells infected with merozoites, treated with centanamycin or tafuramycin A in a mice model. A single dose of the composition is enough to protect against Plasmodium chabaudi and Plasmodium vinckei, without the need for an adjuvant.
In the US20080026010 invention (Table 1), the authors describe the administration of a malaria parasite (P. vivax, P. malariae, P. ovale, and P. falciparum) with a modified gene to prevent infection in the host's red blood cells. The P. falciparum depends on the acquisition of purines from the host for its survival in human erythrocytes [48]. Purine recovery by the parasite requires specialized transporters in the parasite's plasma membrane (PPM) [48]. The invention deals with transgenic parasites without the PPM transporter. These attenuated strains can be grown and propagated in vitro under controlled conditions that require higher physiological concentrations of nutrients than those essential for the parasite.
Alternatively, the use of a synthetic malaria vaccine instead of live parasites is described in the patent US4957738 (Table 1). This invention is a synthetic hybrid protein copolymer, used as a vaccine in humans against the P. falciparum asexual stages. The mixture of peptide compounds was injected into Aotus trivirgatus monkeys, inducing high antibody titers against the peptides and reacting with the P. falciparum parasite. The Colombian A. trivirgatus monkeys were immunized and challenged intravenously with blood cells infected with 5 × 106 P. falciparum parasites obtained from an infected A. trivirgatus donor monkey. No parasites were detected in blood smear samples up to 90 days after challenge. The vaccine was also tested on human volunteers who were vaccinated two or three times with the synthetic protein copolymer. The volunteers were exposed to an experimental intravenous inoculation of red blood cells infected with one million fresh live ringed P. falciparum particles, resistant to grade chloroquine and with complete sensitivity to sulfadoxine and pyrimethamine, as are most wild Colombian strains. The composition was shown to induce complete and self-limited protection; three of the five vaccinated volunteers had mild infections with continual decrease in parasite count and full recovery on day 21. This synthetic hybrid protein, referred to as SPf 66, provides the first safe synthetic vaccine against the asexual stages. Moreover, a recombinant protein SE36, with 47 kDa, expressed in E. coli, was described in the invention US20040137512 as a highly effective formulation to prevent the P. falciparum growth in the blood considering human IgG3 antibodies are able to specifically bind to SE36 protein, thus blocking parasite growth.

3.4. Sexual Stage

Another type of approach targets vector control and parasite transmission strategies through the development of transmission blocking vaccines (TBVs) [49]. In this approach, the parasite's transmission is interrupted by the host's immune response to the parasite's targeted proteins, such as pre-fertilization and post-fertilization antigens [50,51]. This type of vaccine aims to produce antibodies against the parasite and/or vector that will then interfere with the survival or virulence of the pathogen [52]. Thus, after the vector feeds on the infected and vaccinated host, the transmission of the pathogen is expected to be blocked [53]. The objective in malaria TBS is to prevent an individual from becoming infected with Plasmodium parasites by the Anopheles vector. As a result, the spread of malaria is expected to decline with reduction of the disease. The specific antibodies generated in the human host are passively ingested together with parasites when mosquitoes take a blood meal and will bind to the parasites, thereby preventing the progression of their sporogonic development [53]. Once inside the mosquito midgut, gametocytes rapidly emerge from the intracellular red blood cell environment to prepare for fertilization and are directly exposed to hostile immune components of the ingested blood [54]. Biologically, the sporogonic cycle is the most vulnerable part of the lifecycle because parasite numbers are very low, which makes this an attractive target for interventions [55].
The specific antigenic target, the surface antigen of P. falciparum 48/45 (Pfs48/45), was described as expressed by gametocytes [56] on the surface of the parasites’ sporogonic (macrogametes) stages. Pfs48/45 plays a key role in male gamete fertility and zygote formation, e.g., parasite fertilization [57], and the antibodies target conformational epitopes of Pfs48/45 that prevent fertilization [58]. This approach is present in the invention DK2763694T3, which describes a method of producing a cysteine-rich protein (CYRP) vaccine produced in bacteria derived from Pfs48/45 from P. falciparum. The WO2010036293A1 patent (Table 1) also describes the efficient and successful expression of the pre-fertilization antigen Pfs48/45 in high yields and appropriate conformation. A similar approach is described in the CN104736710A and US20150191518A1 inventions. In the CN104736710A patent, the authors used the P. falciparum P47 (Pfs47) or P. vivax P47 (Pfs47) surface antigens. The inventors proposed these proteins for blocking or reducing the infection by P. falciparum or P. vivax in A. gambiae or other anopheline mosquitoes and, thus, preventing the parasite transmission. In US20150191518A1 (Table 1), the authors reported a formulation capable of inhibiting the P. falciparum development inside the mosquito. This formulation includes a gamete surface protein, the P. falciparum gliding-associated protein 50 (PfGAP50). The inventors discovered that the emerging gametes of P. falciparum bind the complement regulator factor H (FH) following transmission to the mosquito to protect against the complement-mediated lysis by the blood meal [59]. PfGAP50 could be a candidate for TBVs since antibodies against PfGAP50 inhibit FH-mediated complement evasion of P. falciparum, resulting in the destruction of the malaria parasite by the human complement of the blood meal. Anopheles stephensi were artificially fed with neutral mouse antiserum and mouse Anti-PfGAP50 and the presence of the anti-PfGAP50 antibody reduced transmission rates by 68%.
Malaria transmission blocking vaccines are advancing in clinical trials [60,61] and strategies for their introduction must be prioritized. Malaria TBVs are sometimes referred to as "altruistic" vaccines because they require herd immunity to reduce the incidence of malaria infection rates in the community, so this approach involves educational logistics and ethical challenges [62]. The benefits and implementation strategies of TBVs will need to be understood in advance, given that policies and actions must be coordinated among the stakeholders in many levels [63]. Therefore, if the TBVs are to succeed, the public will need to be aware of the importance of being immunized, not to mention that a large investment will be needed in the immunization policy.

3.5. Multicomponent and/or Various Stage Vaccines

Notably, one of the major challenges to developing a malaria vaccine is the parasite's complex life cycle and its various stages of development. The first barrier that the malaria vaccine needs to control is the pre-erythrocytic phase, which requires protection against the infectious (sporozoite) form injected by mosquito and inhibits the development of parasites in the liver [64]. However, if some parasites escape the first barrier, a second one needs to act against the parasite blood stage (merozoite) to avoid multiplying within the erythrocytes [65]. Additionally, a third barrier needs to prevent the sexual phase and interrupt the transmission cycle by inhibiting the development of the parasites, since they are ingested by the mosquito along with the antibodies produced in response to the vaccine [52]. The third barrier (sexual parasite stages: gametocytes) concerns the transmission-blocking vaccines that may be involved as part of the multi-component or multi-stage vaccine strategy. This approach aims to eliminate the parasite and, at the same time, prevent the parasite's resistance to anti-pre-erythrocytic or erythrocytic treatment, which is the focus of the inventions described below.
The idea to provide an additional immune response to the first, second, and third barriers against the Plasmodium infection was described in invention EP2923709A1 (Table 1). This technology involves new malaria vaccines composed of different recombinant proteins, in particular recombinant fusion proteins comprising several different antigens of the P. falciparum from the pre-erythrocytic, blood, and sexual stages. The pre-erythrocytic antigens consist of the PfCelTOS, PfCSP, and PfTRAP antigens; the blood stage antigens comprise at least one or more variants of Apical membrane antigen 1 (PfAMA1) or fragments thereof; and the iii sexual stage antigens include the ookinete antigen Pfs25 and/or the gamete/gametocyte surface protein Pf230C0 or variants or fragments thereof. The combination of recombinant proteins and fusion proteins outlined in this patent trigger a protective immunity that blocks infection, in addition to preventing the spread of the disease and interrupting the transmission of parasites. Rabbits were immunized and antibodies to rabbit antisera were purified by protein A chromatography. Sporozoite binding/invasion inhibition assays were performed to assess the ability of antisera directed against P. falciparum antigens to block the attachment and invasion of P. falciparum NF54 sporozoites to liver cells. The result was a 30% inhibition. Furthermore, there was an 80% inhibition in the GIA assay. Finally, membrane feeding assays were performed to assess the ability of antisera directed against P. falciparum antigens to block the transmission of P. falciparum NF54 from human to mosquito, and the transmission-blocking rates were between 80% and 100%. Using a similar approach, the authors of the invention CA2910322A1 (Table 1) proposed new recombinant fusion proteins against P. falciparum containing two or more different surface proteins introduced in at least two stages of the parasite's life cycle. Immunofluorescence tests have confirmed that the induced antibodies bind specifically to native Plasmodium antigens. Further, functional tests showed specific parasite inhibition at each stage of the Plasmodium life cycle in a 30-100% range. Similarly, the EP2992895 invention relates to mixtures of recombinant proteins suitable as a human vaccine against the parasite P. falciparum comprising antigens derived from P. falciparum surface proteins of the pre-erythrocytic, blood and sexual stages of the parasite’s life cycle. This formulation contains TSR domain of the pre-erythrocytic antigen of P. falciparum CS protein, blood phase antigen of the apical membrane antigen (Pf AMA1), merozoite surface protein Pf Msp1-19, and peptides derived from Pf Rh5 and Pocs 25 antigen (EP2992895). Furthermore, the WO2017142843 invention (Table 1) provides polypeptides useful as antigens that are expressed in both the pre- and erythrocytic stages. The antigens can be used to induce cellular and humoral immune responses by administering the antigens in vaccine formulations or expressing the antigens using nucleic acid expression systems administered as a vaccine formulation. Notably, the polypeptides useful as antigens are the first pre-erythrocytic antigens of Plasmodium that induce sterile protection (100%) in mice against an infectious sporozoite challenge from P. yoelii.

4. New approaches

The new pandemic of coronavirus disease (COVID-19) caused by the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) presents new challenges to public health programs worldwide [66]. In countries heavily affected by malaria, COVID-19 could result in many years of hard-won gains being reversed [9]. The use of nanotechnology is a global trend for emerging vaccines. Nanoparticle glycoengineering has emerged as a powerful vaccine design tool [67] Synthetic glycosylation is fully characterized and stable and does not induce an unnecessary immune response to an antibody-based targeting moiety. Wilson et al described a new synthetic glycoadjuvant, Man-TLR7, which is a random copolymer composed of monomers that either target dendritic cells (DCs) through mannose-binding receptors or activate DCs by means of Toll-like receptor 7 (TLR7). When conjugated with antigens, it elicits robust humoral and cellular immunity [68]. There was a significant increase in Plasmodium falciparum T-cell specific circumsporozoite protein (CSP) responses, expansion in the amplitude of the αCSP IgG response, and increased inhibition of sporozoite invasion in hepatocytes with CSP-p (Man-TLR7), as compared with CSP, formulated with MPLA/QS-21 -loaded liposomes, the adjuvant used in the most clinically advanced malaria vaccine [68].
Another recent advance has renewed prospects for the accelerated discovery of key malaria antigens, optimization of protein synthesis platforms through high-throughput immune screening approaches, reverse vaccinology, structural immunogen design, lymphocyte repertoire sequencing, and the use of artificial intelligence [69]. The wheat germ cell-free system (WGCFS) offers a eukaryotic alternative for expressing plasmodial proteins with wide application in malaria studies [70]. It was reported that malaria proteins produced by WGCFS have higher immunoreactivity to human immune sera as opposed to identical proteins produced in E. coli cell-free systems [71]. The disadvantage is that the WGCFS system lacks post-translational glycosylation mechanisms to produce glycoproteins, which play an important role in the vaccine-related immune response. Alternatively, glycoengineering could be used in cell-free glycoprotein synthesis (CFGpS), which perfectly integrates protein biosynthesis with asparagine-linked protein glycosylation [72]. Post-translational modifications are very important to consider when designing vaccines as they can be incorporated into T-cell epitopes, contrary to a classical dogma, in addition to enhancing humoral responses [73]. The presence or absence of small glycans on Plasmodium surface proteins, such as CSP, has the potential to influence the humoral response to a vaccine, such as RTS, S. For example, glycosylation may increase glycoprotein endocytosis by antigen-presenting cells and protect against excessive proteolysis of glycopeptides within the endolysosome by steric occlusion [74].
Immuno-profiling and reverse vaccinology approaches are essential to accelerating research and the development of new vaccine targets. A key message learned from these pioneering approaches is that it is crucial to select an expression system with the ability to produce many correctly folded recombinant malaria proteins without artificial glycosylation [70]. The development of a highly effective vaccine against malaria faces many challenges, including those associated with the identification of vaccine targets. The free expression of wheat germ cell-free systems can assist in testing hypotheses leading up to the development of a truly efficacious malaria vaccine.

5. Conclusion

As this review has made clear, the complexity of the malaria parasite cycle makes the development of a malaria vaccine a very difficult task. The parasite manages to circumvent the immune defenses by continuing the cycle. An approach to limit the immune system’s evasion mechanism by the Plasmodium is required to obtain a highly effective malaria vaccine. In this sense, the multi-component vaccine strategy based on blocking the Plasmodium infection shows great potential since it considers acting at three levels: (i) the pre-erythrocytic stage, (ii) the Blood stage, and (iii) the Sexual stage. As expected, the integrative approach using distinct Plasmodium antigens to limit each parasite’s life cycle could increase the malaria vaccine’s protection rate. The use of new technologies, such as nanoparticle glycoengineering, could play an important role in the development of emerging vaccines, such as a malaria vaccine. Concerns over the restricted experimental models used to analyze the anti-malaria vaccine candidates limit the global effort to develop an effective formulation that can be produced on a large scale. Considerable progress has been made in recent years in developing an effective vaccine against malaria. However, with the emergence of COVID-19 and efforts aimed at containing the pandemic, this cannot be allowed to restrict further advances toward making an effective vaccine commercially available.

Author Contributions

RM wrote the manuscript. AAG, DO, HR, DS, DL, AV, ASG, MAC-F, DS-L, WOD and RCG reviewed the manuscript. ASG, MAC-F, DS-L, WOD and RCG drafted and critically evaluated the manuscript.

Acknowledgments

This research was financially supported through grants from the Coordination for the Improvement of High Higher Education Personnel, Brazil (CAPES), and the National Council for Scientific and Technological Development (CNPq). The authors would also like to thank the CNPq for awarding a fellowship to ASG, WOD, RCG.

Conflict of Interest Statement

The authors declare no conflict of interest.

References

  1. WORLD MALARIA REPORT 2009/WHO- World Health Organization. WHO Library Cataloguing-in-Publication Data. World Malaria Report 2009. World Health Organization, 78 p. ISBN 978 92 4 156390 1. Accessed September 17, 2019.
  2. WORLD MALARIA REPORT 2018/WHO- World Health Organization. WHO Library Cataloguing-in-Publication Data. World Malaria Report 2018. World Health Organization, 210 p. ISBN 978 92 4 156565 3. Accessed September 17, 2019.
  3. Herrera S, Corradin G, Arévalo-Herrera M. An update on the search for a Plasmodium vivax vaccine. Trends in Parasitology 2007;23:122–8. [CrossRef]
  4. Varo R, Chaccour C, Bassat Q. Update on malaria. Medicina Clínica 2020;155:395–402. [CrossRef]
  5. Nilsson SK, Childs LM, Buckee C, Marti M. Targeting Human Transmission Biology for Malaria Elimination. PLoS Pathog 2015;11:e1004871. [CrossRef]
  6. Meibalan E, Marti M. Biology of Malaria Transmission. Cold Spring Harb Perspect Med 2017;7. [CrossRef]
  7. Ramaprasad A, Pain A, Ravasi T. Defining the protein interaction network of human malaria parasite Plasmodium falciparum. Genomics 2012;99:69–75. [CrossRef]
  8. Coker M, Folayan MO, Michelow IC, Oladokun RE, Torbunde N, Sam-Agudu NA. Things must not fall apart: the ripple effects of the COVID-19 pandemic on children in sub-Saharan Africa. Pediatr Res 2021;89:1078–86. [CrossRef]
  9. Sands, P. HIV, tuberculosis, and malaria: how can the impact of COVID-19 be minimised? The Lancet Global Health 2020;8:e1102–3. [CrossRef]
  10. Gardner MJ, Hall N, Fung E, White O, Berriman M, Hyman RW, et al. Genome sequence of the human malaria parasite Plasmodium falciparum. Nature 2002;419:498–511. [CrossRef]
  11. Ballou, WR. Malaria vaccines in development. Expert Opinion on Emerging Drugs 2005;10:489–503. [CrossRef]
  12. Hill AVS. Vaccines against malaria. Phil Trans R Soc B 2011;366:2806–14. [CrossRef]
  13. Teixeira C, Gomes R. Experimental models in vaccine research: malaria and leishmaniasis. Braz J Med Biol Res 2013;46:109–16. [CrossRef]
  14. Ramjanee S, Robertson JS, Franke-Fayard B, Sinha R, Waters AP, Janse CJ, et al. The use of transgenic Plasmodium berghei expressing the Plasmodium vivax antigen P25 to determine the transmission-blocking activity of sera from malaria vaccine trials. Vaccine 2007;25:886–94. [CrossRef]
  15. Vincke, IH. Experimental transmission of Plasmodium berghei. Indian J Malariol 1954;8:257–62.
  16. Carlton JM, Hayton K, Cravo PV, Walliker D. Of mice and malaria mutants: unravelling the genetics of drug resistance using rodent malaria models. Trends Parasitol 2001: 17: 236-242. [CrossRef]
  17. Stowers AW, Cioce V, Shimp RL, Lawson M, Hui G, Muratova O, et al. Efficacy of Two Alternate Vaccines Based on Plasmodium falciparum Merozoite Surface Protein 1 in an Aotus Challenge Trial. Infect Immun 2001;69:1536–46. [CrossRef]
  18. Webster K, Collins WE, Aikawa M, Brown A, Smith CD, Tegoshi T, et al. A Primate Model for Human Cerebral Malaria: Plasmodium coatneyi-Infected Rhesus Monkeys. The American Journal of Tropical Medicine and Hygiene 1992;46:391–7. [CrossRef]
  19. Frimpong A, Kusi KA, Ofori MF, Ndifon W. Novel Strategies for Malaria Vaccine Design. Front Immunol 2018;9:2769. [CrossRef]
  20. Bojang KA, Milligan PJ, Pinder M, Vigneron L, Alloueche A, Kester KE, et al. Efficacy of RTS,S/AS02 malaria vaccine against Plasmodium falciparum infection in semi-immune adult men in The Gambia: a randomised trial. The Lancet 2001;358:1927–34. [CrossRef]
  21. Aponte JJ, Aide P, Renom M, Mandomando I, Bassat Q, Sacarlal J, et al. Safety of the RTS, S/AS02D candidate malaria vaccine in infants living in a highly endemic area of Mozambique: a double blind randomised controlled phase I/IIb trial. The Lancet 2007;370:1543–51. [CrossRef]
  22. Olotu A, Fegan G, Wambua J, Nyangweso G, Leach A, Lievens M, et al. Seven-Year Efficacy of RTS,S/AS01 Malaria Vaccine among Young African Children. N Engl J Med 2016;374:2519–29. [CrossRef]
  23. Adepoju P. RTS, S malaria vaccine pilots in three African countries. The Lancet 2019;393:1685. [CrossRef]
  24. Crompton PD, Pierce SK, Miller LH. Advances and challenges in malaria vaccine development. J Clin Invest 2010;120:4168–78. [CrossRef]
  25. Suau R, Vidal M, Aguilar R, Ruiz-Olalla G, Vázquez-Santiago M, Jairoce C, et al. RTS,S/AS01E malaria vaccine induces IgA responses against CSP and vaccine-unrelated antigens in African children in the phase 3 trial. Vaccine 2021;39:687–98. [CrossRef]
  26. Duffy, P.E., Patrick Gorres, J. Malaria vaccines since 2000: progress, priorities, products. npj Vaccines 5, 48 (2020). [CrossRef]
  27. Sanaria – Foundation for mission statement. http://www.sanaria.com/index.php?s=38, acessado dia 27 de junho de 2021.
  28. Hoffman SL, Billingsley PF, James E, Richman A, Loyevsky M, Li T, et al. Development of a metabolically active, non-replicating sporozoite vaccine to prevent Plasmodium falciparum malaria. Human Vaccines 2010;6:97–106. [CrossRef]
  29. Epstein JE, Tewari K, Lyke KE, Sim BKL, Billingsley PF, Laurens MB, et al. Live Attenuated Malaria Vaccine Designed to Protect Through Hepatic CD8+ T Cell Immunity. Science 2011;334:475–80. [CrossRef]
  30. Plotkin, SA. Vaccines: Correlates of Vaccine-Induced Immunity. CLIN INFECT DIS 2008;47:401–9. [CrossRef]
  31. McNamara HA, Idris AH, Sutton HJ, Vistein R, Flynn BJ, Cai Y, et al. Antibody Feedback Limits the Expansion of B Cell Responses to Malaria Vaccination but Drives Diversification of the Humoral Response. Cell Host & Microbe 2020;28:572-585.e7. [CrossRef]
  32. Coelho CH, Duffy PE. Unwanted Feedback: Malaria Antibodies Hinder Vaccine Boosting. Cell Host & Microbe 2020;28:504–6. [CrossRef]
  33. Moon JE, Ockenhouse C, Regules JA, Vekemans J, Lee C, Chuang I, et al. A Phase IIa Controlled Human Malaria Infection and Immunogenicity Study of RTS,S/AS01E and RTS,S/AS01B Delayed Fractional Dose Regimens in Malaria-Naive Adults. The Journal of Infectious Diseases 2020;222:1681–91. [CrossRef]
  34. Regules JA, Cicatelli SB, Bennett JW, Paolino KM, Twomey PS, Moon JE, et al. Fractional Third and Fourth Dose of RTS,S/AS01 Malaria Candidate Vaccine: A Phase 2a Controlled Human Malaria Parasite Infection and Immunogenicity Study. J Infect Dis 2016;214:762–71. [CrossRef]
  35. Vaughan AM, Aly ASI, Kappe SHI. Malaria Parasite Pre-Erythrocytic Stage Infection: Gliding and Hiding. Cell Host & Microbe 2008;4:209–18. [CrossRef]
  36. Roestenberg M, McCall M, Hopman J, Wiersma J, Luty AJF, van Gemert GJ, et al. Protection against a malaria challenge by sporozoite inoculation. N Engl J Med 2009;361:468–77. [CrossRef]
  37. Abuga KM, Jones-Warner W, Hafalla JCR. Immune responses to malaria pre-erythrocytic stages: Implications for vaccine development. Parasite Immunol 2021;43. [CrossRef]
  38. Fidock DA, Pasquetto V, Gras H, Badell E, Eling W, Ballou WR, et al. Plasmodium falciparum sporozoite invasion is inhibited by naturally acquired or experimentally induced polyclonal antibodies to the STARP antigen. Eur J Immunol 1997;27:2502–13. [CrossRef]
  39. John CC, Tande AJ, Moormann AM, Sumba PO, Lanar DE, Min XM, et al. Antibodies to Pre-erythrocytic Plasmodium falciparum Antigens and Risk of Clinical Malaria in Kenyan Children. J INFECT DIS 2008;197:519–26. [CrossRef]
  40. Reece WHH, Pinder M, Gothard PK, Milligan P, Bojang K, Doherty T, et al. A CD4+ T-cell immune response to a conserved epitope in the circumsporozoite protein correlates with protection from natural Plasmodium falciparum infection and disease. Nat Med 2004;10:406–10. [CrossRef]
  41. White MT, Bejon P, Olotu A, Griffin JT, Riley EM, Kester KE, et al. The Relationship between RTS,S Vaccine-Induced Antibodies, CD4+ T Cell Responses and Protection against Plasmodium falciparum Infection. PLoS ONE 2013;8:e61395. [CrossRef]
  42. Weiss WR, Jiang CG. Protective CD8+ T lymphocytes in Primates Immunized with Malaria Sporozoites. PLoS ONE 2012;7:e31247. [CrossRef]
  43. Tarun AS, Dumpit RF, Camargo N, Labaied M, Liu P, Takagi A, et al. Protracted Sterile Protection with Plasmodium yoelii Pre-erythrocytic Genetically Attenuated Parasite Malaria Vaccines Is Independent of Significant Liver-Stage Persistence and Is Mediated by CD8 + T Cells. J INFECT DIS 2007;196:608–16. [CrossRef]
  44. Oakley MS, Verma N, Zheng H, Anantharaman V, Takeda K, Gao Y, et al. Molecular Markers of Radiation Induced Attenuation in Intrahepatic Plasmodium falciparum Parasites. PLoS ONE 2016;11:e0166814. [CrossRef]
  45. Annoura T, Ploemen IHJ, van Schaijk BCL, Sajid M, Vos MW, van Gemert G-J, et al. Assessing the adequacy of attenuation of genetically modified malaria parasite vaccine candidates. Vaccine 2012;30:2662–70. [CrossRef]
  46. Sisquella X, Nebl T, Thompson JK, Whitehead L, Malpede BM, Salinas ND, et al. Plasmodium falciparum ligand binding to erythrocytes induce alterations in deformability essential for invasion. ELife 2017;6:e21083. [CrossRef]
  47. Chen L, Lopaticki S, Riglar DT, Dekiwadia C, Uboldi AD, Tham W-H, et al. An EGF-like Protein Forms a Complex with PfRh5 and Is Required for Invasion of Human Erythrocytes by Plasmodium falciparum. PLoS Pathog 2011;7:e1002199. [CrossRef]
  48. El Bissati K, Zufferey R, Witola WH, Carter NS, Ullman B, Ben Mamoun C. The plasma membrane permease PfNT1 is essential for purine salvage in the human malaria parasite Plasmodium falciparum. Proceedings of the National Academy of Sciences 2006;103:9286–91. [CrossRef]
  49. Graciano RCD, Ribeiro JAT, Macêdo AKS, de S. Lavareda JP, de Oliveira PR, Netto JB, et al. Recent Patents Applications in Red Biotechnology: A Mini-Review. BIOT 2019;13:170–86. [CrossRef]
  50. Sauerwein RW, Eling WMC. Sexual and Sporogonic Stage Antigens. In: Perlmann P, Troye-Blomberg M, editors. Chemical Immunology and Allergy, vol. 80, Basel: KARGER; 2002, p. 188–203. [CrossRef]
  51. Saxena AK, Wu Y, Garboczi DN. Plasmodium P25 and P28 Surface Proteins: Potential Transmission-Blocking Vaccines. Eukaryot Cell 2007;6:1260–5. [CrossRef]
  52. Pradel, G. Proteins of the malaria parasite sexual stages: expression, function and potential for transmission blocking strategies. Parasitology 2007;134:1911–29. [CrossRef]
  53. Coutinho-Abreu IV, Ramalho-Ortigao M. Transmission blocking vaccines to control insect-borne diseases: a review. Mem Inst Oswaldo Cruz 2010;105:1–12. [CrossRef]
  54. Eksi S, Czesny B, van Gemert G-J, Sauerwein RW, Eling W, Williamson KC. Malaria transmission-blocking antigen, Pfs230, mediates human red blood cell binding to exflagellating male parasites and oocyst production. Mol Microbiol 2006;61:991–8. [CrossRef]
  55. Nikolaeva D, Draper SJ, Biswas S. Toward the development of effective transmission-blocking vaccines for malaria. Expert Rev Vaccines 2015;14:653–80. [CrossRef]
  56. Carter R. Transmission blocking malaria vaccines. Vaccine 2001;19:2309–14. [CrossRef]
  57. Van Dijk MR, Janse CJ, Thompson J, Waters AP, Braks JA, Dodemont HJ, et al. A central role for P48/45 in malaria parasite male gamete fertility. Cell 2001;104:153–64. [CrossRef]
  58. Roeffen W, Teelen K, van As J, vd Vegte-Bolmer M, Eling W, Sauerwein R. Plasmodium falciparum: Production and Characterization of Rat Monoclonal Antibodies Specific for the Sexual-Stage Pfs48/45 Antigen. Experimental Parasitology 2001;97:45–9. [CrossRef]
  59. Simon N, Lasonder E, Scheuermayer M, Kuehn A, Tews S, Fischer R, et al. Malaria Parasites Co-opt Human Factor H to Prevent Complement-Mediated Lysis in the Mosquito Midgut. Cell Host & Microbe 2013;13:29–41. [CrossRef]
  60. Talaat KR, Ellis RD, Hurd J, Hentrich A, Gabriel E, Hynes NA, et al. Safety and Immunogenicity of Pfs25-EPA/Alhydrogel®, a Transmission Blocking Vaccine against Plasmodium falciparum: An Open Label Study in Malaria Naïve Adults. PLoS ONE 2016;11:e0163144. [CrossRef]
  61. Sagara I, Healy SA, Assadou MH, Gabriel EE, Kone M, Sissoko K, et al. Safety and immunogenicity of Pfs25H-EPA/Alhydrogel, a transmission-blocking vaccine against Plasmodium falciparum: a randomised, double-blind, comparator-controlled, dose-escalation study in healthy Malian adults. The Lancet Infectious Diseases 2018;18:969–82. [CrossRef]
  62. Coelho CH, Rappuoli R, Hotez PJ, Duffy PE. Transmission-Blocking Vaccines for Malaria: Time to Talk about Vaccine Introduction. Trends in Parasitology 2019;35:483–6. [CrossRef]
  63. Standaert B, Rappuoli R. 3. How comprehensive can we be in the economic assessment of vaccines? Journal of Market Access & Health Policy 2017;5:1336044. [CrossRef]
  64. Duffy PE, Sahu T, Akue A, Milman N, Anderson C. Pre-erythrocytic malaria vaccines: identifying the targets. Expert Review of Vaccines 2012;11:1261–80. [CrossRef]
  65. Belachew EB. Immune Response and Evasion Mechanisms of Plasmodium falciparum Parasites. Journal of Immunology Research 2018;2018:1–6. [CrossRef]
  66. Lai C-C, Shih T-P, Ko W-C, Tang H-J, Hsueh P-R. Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) and coronavirus disease-2019 (COVID-19): The epidemic and the challenges. International Journal of Antimicrobial Agents 2020;55:105924. [CrossRef]
  67. Singh A. Eliciting B cell immunity against infectious diseases using nanovaccines. Nat Nanotechnol 2021;16:16–24. [CrossRef]
  68. Wilson DS, Hirosue S, Raczy MM, Bonilla-Ramirez L, Jeanbart L, Wang R, et al. Antigens reversibly conjugated to a polymeric glyco-adjuvant induce protective humoral and cellular immunity. Nature Mater 2019;18:175–85. [CrossRef]
  69. Kanoi BN, Nagaoka H, Morita M, Tsuboi T, Takashima E. Leveraging the wheat germ cell-free protein synthesis system to accelerate malaria vaccine development. Parasitology International 2021;80:102224. [CrossRef]
  70. Tsuboi T, Takeo S, Iriko H, Jin L, Tsuchimochi M, Matsuda S, et al. Wheat Germ Cell-Free System-Based Production of Malaria Proteins for Discovery of Novel Vaccine Candidates. Infect Immun 2008;76:1702–8. [CrossRef]
  71. Rui E, Fernandez-Becerra C, Takeo S, Sanz S, Lacerda MV, Tsuboi T, et al. Plasmodium vivax: comparison of immunogenicity among proteins expressed in the cell-free systems of Escherichia coli and wheat germ by suspension array assays. Malar J 2011;10:192. [CrossRef]
  72. Jaroentomeechai, T., Stark, JC, Natarajan, A. et al. Single-pot glycoprotein biosynthesis using a cell-free transcription-translation system enriched with glycosylation machinery. Nat Commun 9, 2686 (2018). [CrossRef]
  73. Avci FY, Li X, Tsuji M, Kasper DL. Carbohydrates and T cells: A sweet twosome. Seminars in Immunology 2013;25:146–51. [CrossRef]
  74. Goddard-Borger ED, Boddey JA. Implications of Plasmodium glycosylation on vaccine efficacy and design. Future Microbiology 2018;13:609–12. [CrossRef]
Preprints 66860 g001

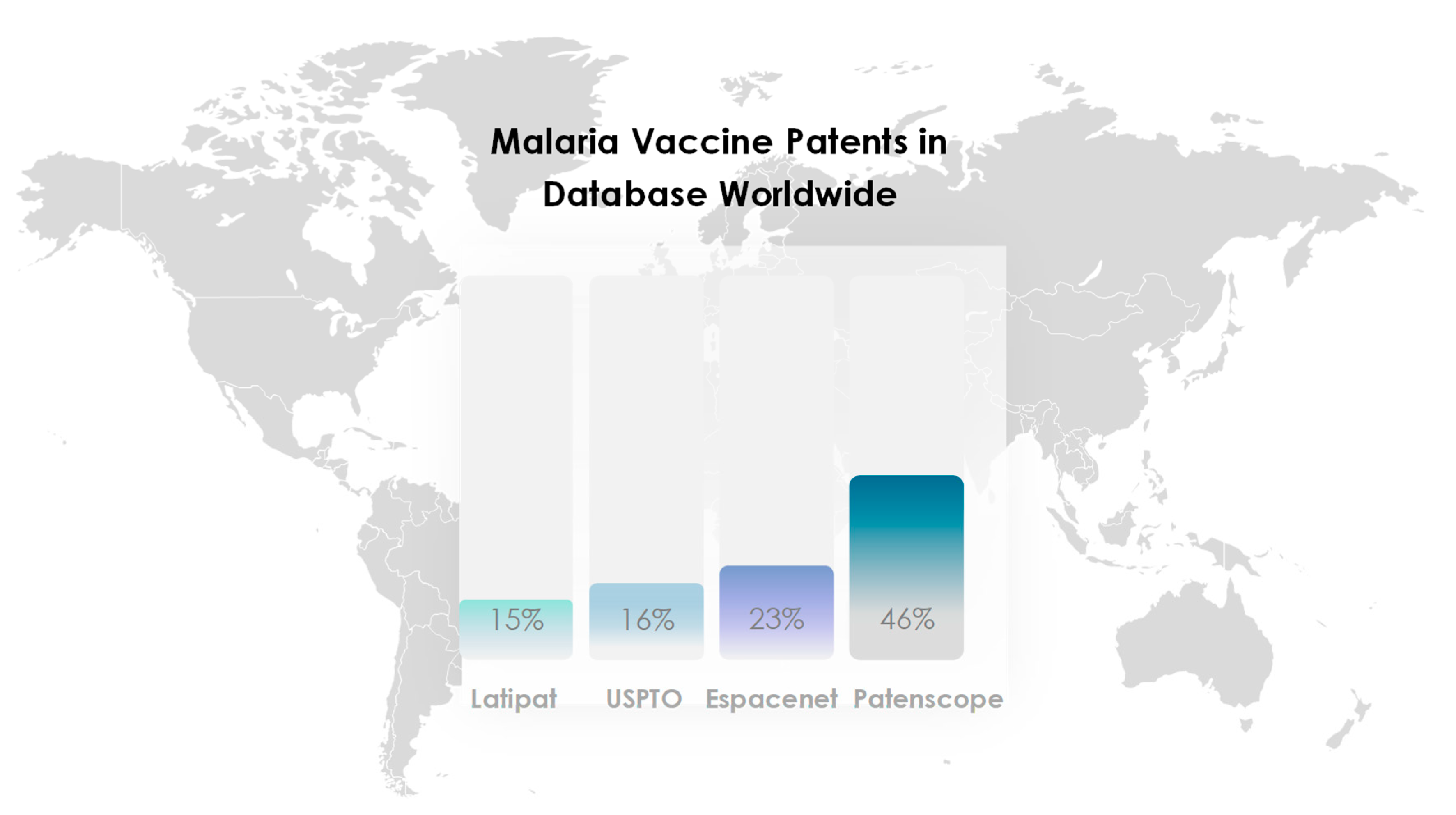

Figure 1. Current status of malaria vaccines found in the patent database. Data were collected through research at the European Patent Office (Espacenet), United States Patent and Trademark Office (USPTO), United States Latin America (LATIPAT), Patentscope -Search International and National Pattent Collections (WIPO).
Figure 1. Current status of malaria vaccines found in the patent database. Data were collected through research at the European Patent Office (Espacenet), United States Patent and Trademark Office (USPTO), United States Latin America (LATIPAT), Patentscope -Search International and National Pattent Collections (WIPO).
Preprints 66860 g001
Preprints 66860 g002

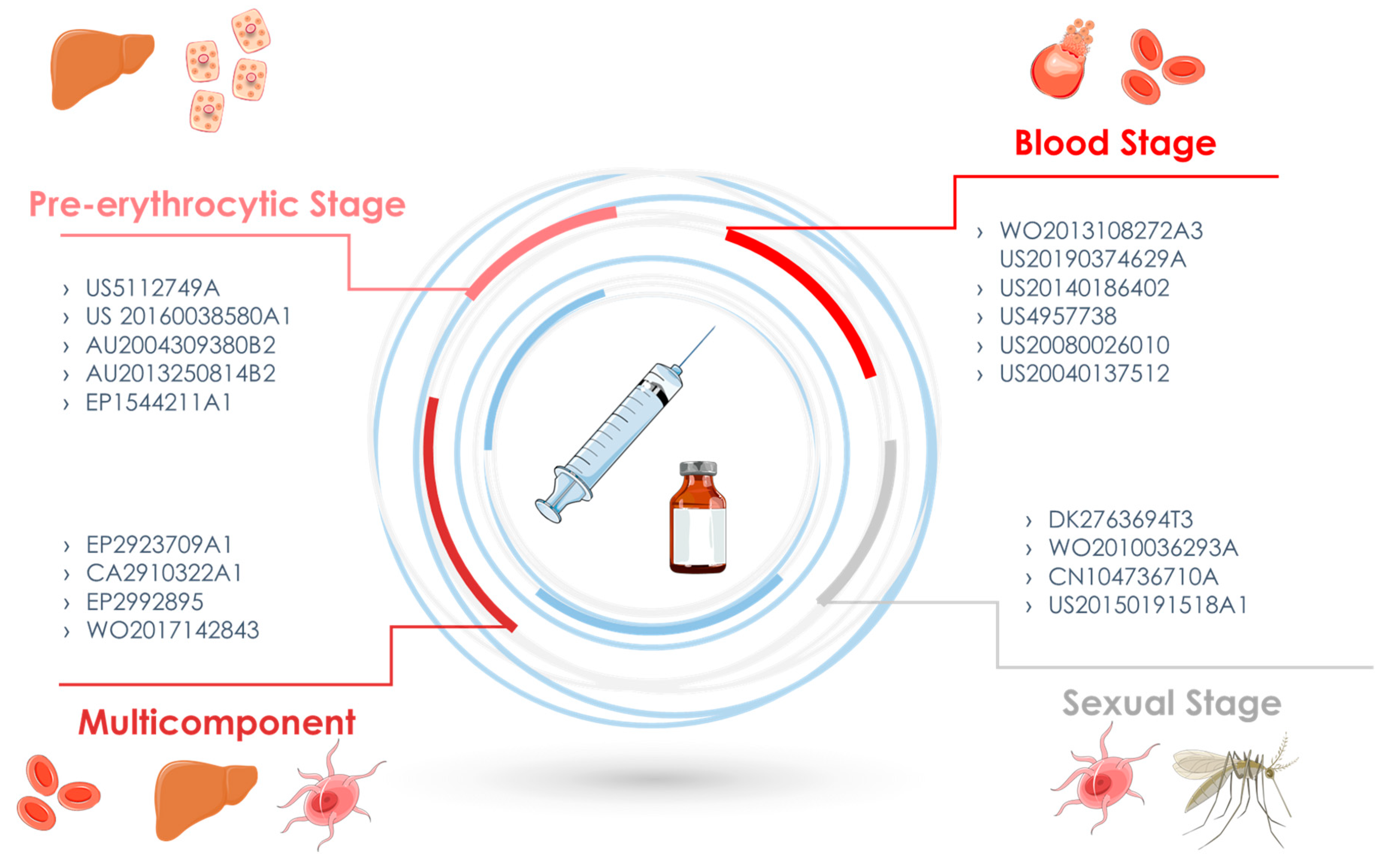

Figure 2. Malaria vaccine inventions according to the target phase, pre-erythrocytic phase, blood phase, sexual phase or multiple stages.
Figure 2. Malaria vaccine inventions according to the target phase, pre-erythrocytic phase, blood phase, sexual phase or multiple stages.
Preprints 66860 g002

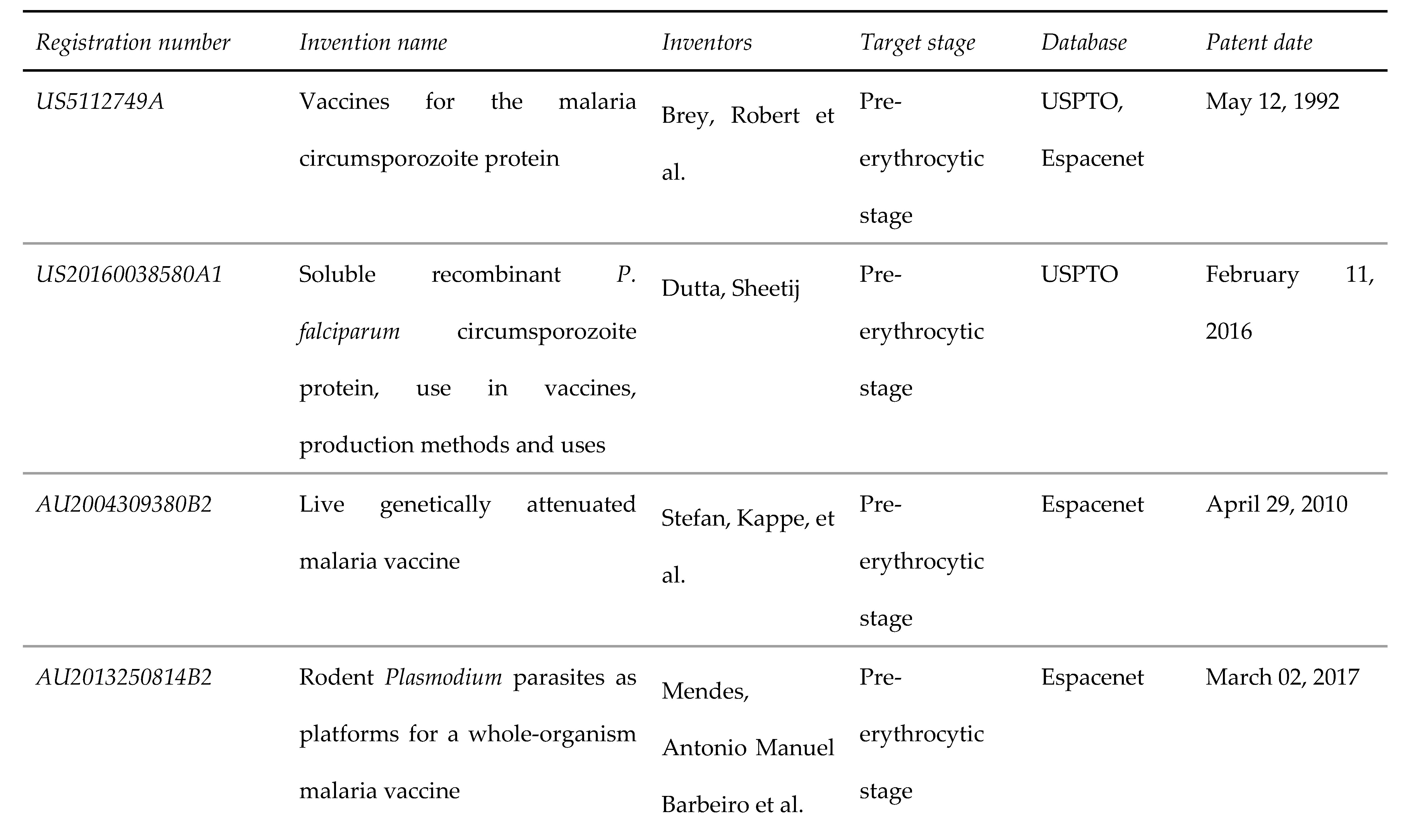

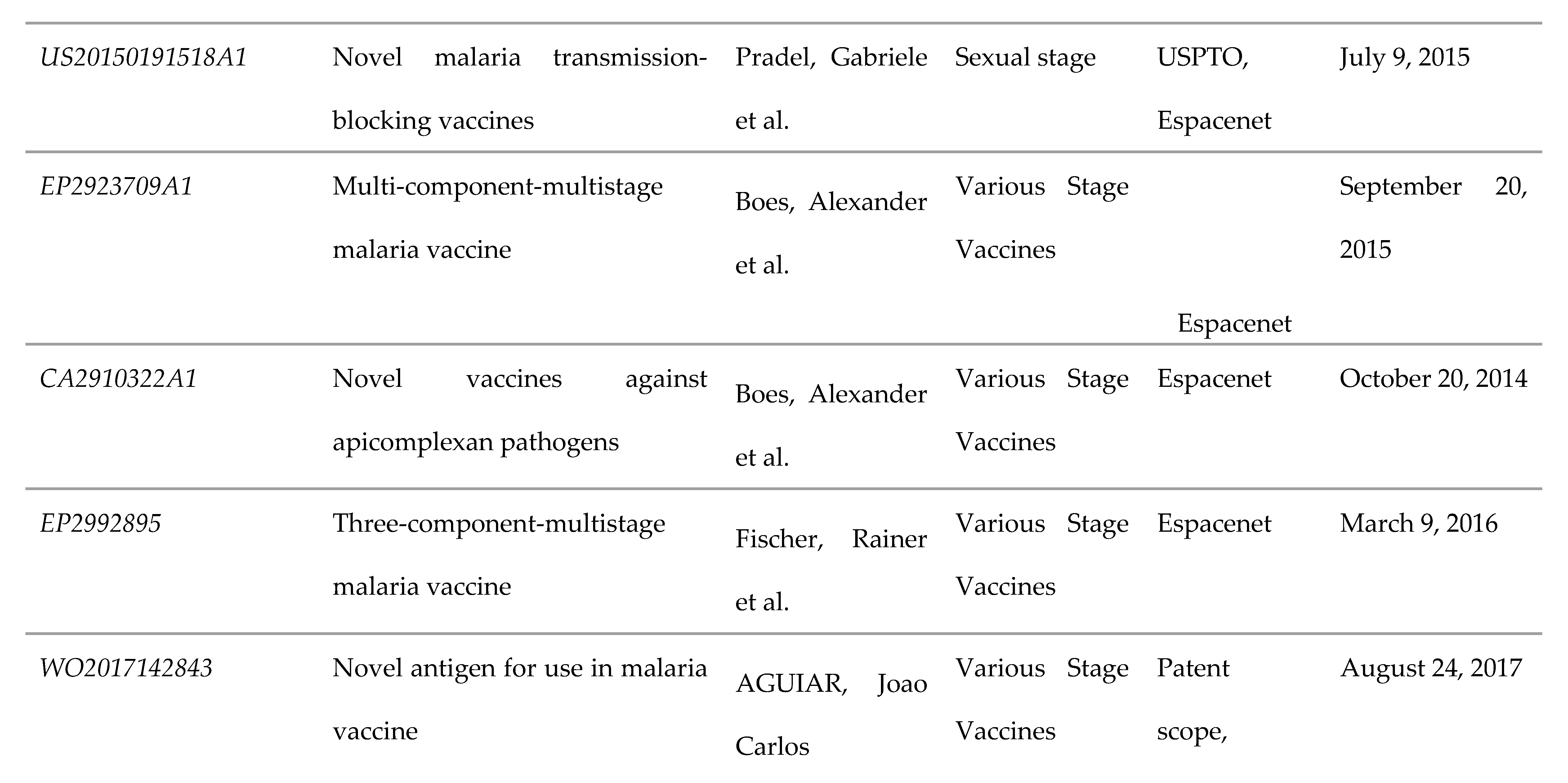

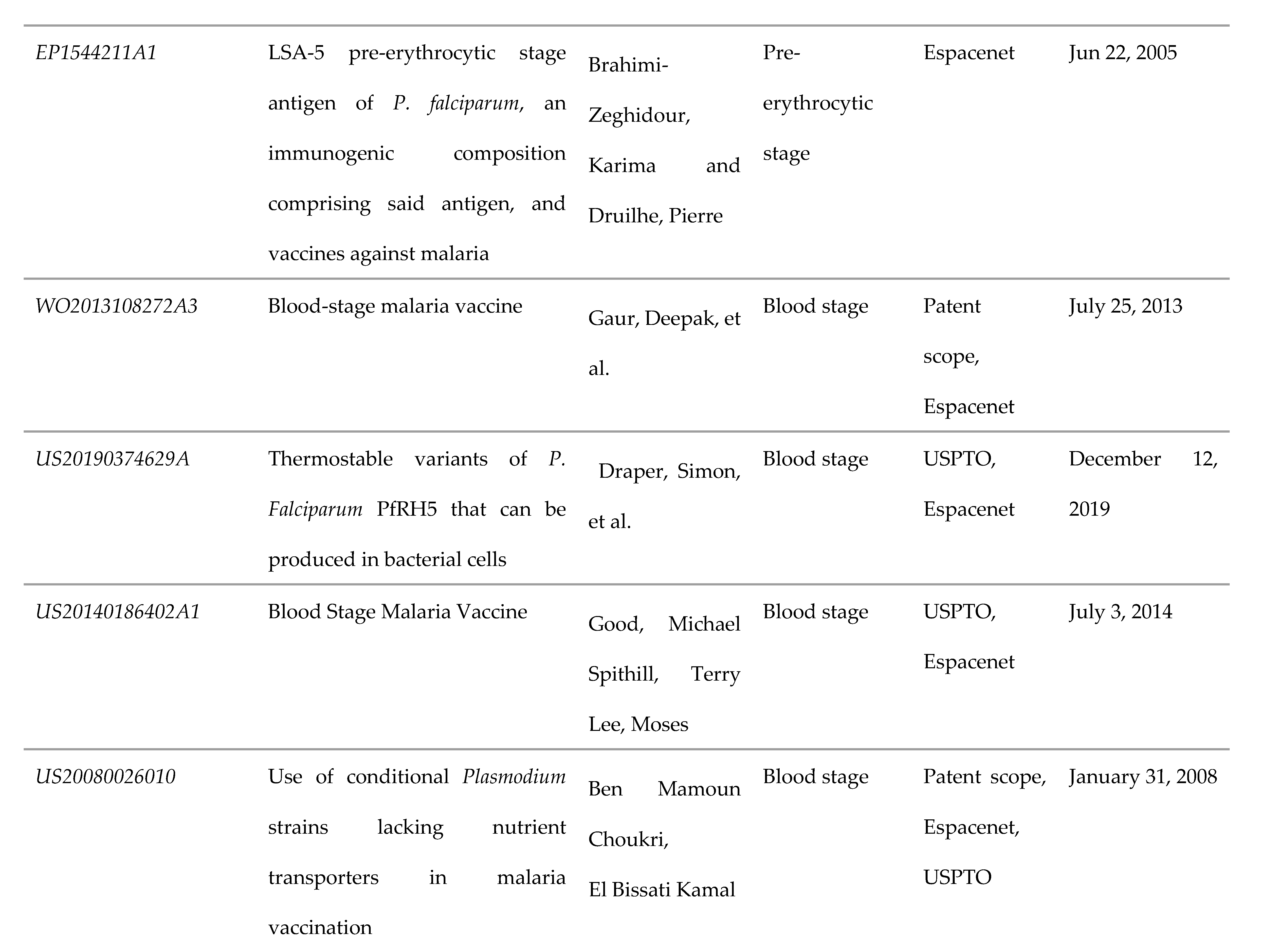

Table 1. Patents found in the patent databases: European Patent Office (Espacenet), United States Patent and Trademark Office (USPTO), United States Latin America (LATIPAT), and Patentscope -Search International and National Patent Collections (WIPO).
Table 1. Patents found in the patent databases: European Patent Office (Espacenet), United States Patent and Trademark Office (USPTO), United States Latin America (LATIPAT), and Patentscope -Search International and National Patent Collections (WIPO).
Preprints 66860 i001
Preprints 66860 i002
Preprints 66860 i003
Preprints 66860 i004
