Abstract

Optical fiber sensors based on tapered optical fiber (TOF) structure have attracted a considerable amount of attention from researchers due to the advantages of simple fabrication, high stability, diverse structures, and have great potential for applications in many fields such as physics, chemistry and biology. Compared with ordinary optical fibers, TOF with their unique structural characteristics significantly improve the sensitivity and response speed of fiber-optic sensors and broaden the application range. This review presents an overview of the latest research status and characteristics of fiber-optic sensors and TOF sensors. Then the working principle of TOF sensors, fabrication schemes of TOF structures, novel TOF structures in recent years, and the growing emerging application areas are described. Finally, the development trends and challenges of TOF sensors are prospected. The objective of this review is to convey novel perspectives and strategies for the performance optimization and design of TOF sensors based on fiber-optic sensing technologies.

Keywords:

Subject: Physical Sciences - Optics and Photonics

1. Introduction

In the 1960s, a waveguide made of quartz was used for the first time to transmit optical signals, that became known as optical fibers. Corning has developed low-loss optical fibers that can transmit optical signals over long distances. This led to a period of rapid development of fiber-optic communication. Subsequently, fiber-optic sensing came into being. Compared with traditional electrical sensors, fiber-optic sensing uses optical signals as the modulation and transmission carrier, which makes it has many unique advantages [1,2,3,4], such as strong resistance to electromagnetic interference in the transmission process, thus it can play a very significant role in the power system [5,6]; strong corrosion resistance, which can be measured for highly corrosive analytes [7]; it has a compact structure, which can be made according to the needs of the size of very small fiber optic sensors [8]. Simultaneously, several studies have highlighted the advantages of simple fiber optic materials, cheap cost, and broad scale utilization [9,10]. With its own inimitable characteristics, fiber-optic sensors have broad application prospects in a variety of sectors, including environmental monitoring, civil engineering, biomedicine, industrial production, aerospace, energy development, and food safety [11,12,13,14,15,16,17].

Optical fibers have excellent resistance to interference from the external environment, which enables them to be highly reliable and stable, and to a certain extent expands their application fields. In order to achieve the sensing function and increase the sensitivity, Special processing procedures are frequently used to modify the geometry of the fiber in order to disrupt the original total reflection transmission mode. Processing methods include taper pulling, core-offset splicing, laser etching and side grinding and polishing [8,18,19,20,21,22,23].

Through advanced optical fiber processing equipment and fabrication techniques, more and more special fiber structures are coming onto the stage of fiber sensing, such as tapered optical fiber (TOF) structure [17], D-shaped structure [24], U-shaped structure [25], S-shaped structure [26], fiber grating structure [27], heterocore structure [28], core-offset structure [29,30], and microsphere structure [31]. These special fiber structures can effectively excite the enhanced evanescent field and expose to and interact with the surrounding medium, thus promoting the interaction between light and sensing materials and achieving higher sensing sensitivity. Among them, the TOF structure has a smaller radius of the waist taper region, that can generate a larger local electric field in the tapered region, thus generating a higher power evanescent field. The high-power evanescent field has the ability to detect subtle changes on the fiber surface, including biomolecules, temperature, pressure, chemical ions and gases. This results in a higher level of sensitivity and an improved limit of detection (LOD) for the sensor [32,33,34,35]. As a result, optical fiber sensors with TOF structures have numerous applications in a variety of domains [36,37].

The TOF sensor also has many other distinguishing features. First, it is compact and can be flexibly installed for measurement and detection in various environments [38]. Secondly, TOF does not require complex processing and expensive materials, and the preparation cost is relatively low [39]. In addition, TOF processing accuracy is high, and the preparation process is relatively easy to control with high reproducibility. At the same time, TOF has a large surface area at the tapered structure, which can better contact with the analyte, thus improving the sensing effect [40]. Futhermore, the TOF sensor design is flexible and can realize different functions of the sensor by changing its angular structure, sensing medium, and sensing layer. The optical fiber processed by pulling the taper expands the abrupt field when light is transmitted in the fiber, increases the contact area with the external environment, significantly improves the sensitivity and response speed of the fiber optic sensors, and shortens the size of the fiber-optic sensor [41,42]. The preparation methods of TOF probes include arc discharge technology [43], laser processing technology [44], chemical etching technology [45], etc. TOF structures are commonly found in the following configurations: single tapered structure [46], nano-tapered fiber [47], grating tapered structure [48], multi-tapered cascade structure [49], taper tip [50], and so on. Internal beam splitting and optical path coupling will occur as a result of the change in fiber geometry. Moreover, the evanescent field near the tapered fiber will cause the light to diffuse into the surrounding environment as well as change the beam splitting and coupling ratio of the tapered fiber. The fiber-optic sensor with tapered structure of can determine the refractive index (RI), curvature, strain and other physical quantities of the surrounding environment. In conclusion, based on the characteristics and advantages of TOF sensors, it will provide a broader development space and a new platform for optical fiber sensor research.

In this review, the sensing mechanism and fabrication approaches of TOF sensors are summarized, and the application and development of TOF sensing technology for practical scenarios from physical, chemical, and biological aspects are comprehensively analyzed. Figure 1 depicts the primary content of this review. The development of TOF fiber-optic sensors has been realized for physical, chemical, and biological applications. In the future, as TOF sensor preparation technology and optical sensing technology continue to develop, the TOF sensor is expected to deepen and expand into more application fields.

2. Theoretical Mechanism for Sensing

TOF as an optical sensor configuration, because of its simple fabrication, low cost and good stability, progressively evolved into one of the most extensively used fiber-optic devices [55].Its sensing approach is based primarily on light propagation characteristics in the tapered area and interaction with the external environment [56]. By changing the radius of the fiber, the original ratio of the fiber core to the cladding is changed. That is mainly used to excite the higher order modes of light transmission in the fiber [57], allowing the interaction between the optical field inside the fiber and external physical parameters, chemical substances and biological molecules for sensing purposes. This section will elucidate on the fundamental structure of TOF, including the evanescent waves (EWs) sensing theory, the surface plasmon resonance (SPR)/ localized surface plasmon resonance (LSPR) sensor mechanism, in-line Mach-Zehnder interferometer (MZI)sensing theory, and the grating principle.

2.1. Basic Structure of TOF

Figure 2 illustrates the basic structure of a TOF and how light propagates through the TOF structure. The schematic of TOF structure is composed of single-mode fiber (SMF) tapered to form three components, consisting of a general fiber region, a transition region and a tapered waist region (sensing region), in a centrosymmetric structure. The core and cladding diameter of the transition area decreases linearly and slowly, while the sensing region remains a cylindrical shape with uniform diameter. By controlling the parameters of the tapered structure, such as the diameter and length of the sensing region and the transition region mutation angle, different tapered fibers with different sensing characteristics can be realized for different application situations.

2.2. Evanescent Waves Sensing Principle of TOF

Light transmitted through the fiber core follows the principle of total internal reflection (TIR) [13]. In other words, light transmission in optical fibers is governed by Snell’s law, which reveals at the equation level the refraction phenomenon when light propagates from one medium to another, namely [58]:

n_{1} s i n θ_{1} = n_{2} s i n θ_{2}

(1)

Here

n_{1}

and

n_{2}

are the RI of the incident and transmitted media, respectively, and

θ_{1}

and

θ_{2}

are the angles of incidence and refraction. In addition,

θ_{2}

increases with the increase of

θ_{1}

. When

θ_{2}

is 90°, the refracted light disappears, and the condition of total reflection is satisfied. At this time, the beam is transmitted inside the core, which is known as TIR [59]. According to the TIR principle, when the angle of incidence is greater than the critical angle, the light can be transmitted without loss [60]. However, this is not the case, when the light at the core-cladding interface of the fiber occurs in total reflection, there will also be part of the energy leakage into the cladding, the field strength is very weak and exponential decay, so the attenuation field is called the evanescent field [61]. The evanescent field is the optical field outside the core, plays an important role in fiber bending sensing, and different modes of fiber transmission have different evanescent fields. Figure 2 demonstrates that in the general region of the fiber, the light propagation is confined within the fiber core due to the TIR principle. In SMF, the original TIR propagation pattern is changed during the gradual thinning of the transition area, and the evanescent field is greatly enhanced in the thinning cross-section region. In this case, the evanescently departing field formed near the tapered area can be used to enhance the SPR/LSPR effect. In the TOF sensing region, the transmitted light waves are penetrated into the cladding for a certain distance and then returned to the core [62]. The field through the core interface is referred as the evanescent field. The propagation direction of the EWs is perpendicular to the fiber axis and decays exponentially [63,64]. The mathematical formula for the field strength of the evanescent field can be expressed as:

E = E_{0} \exp (- \frac{δ}{d_{p}})

(2)

Here

δ

denotes the distance from the dividing interface and

E_{0}

denotes the field strength on the dividing surface. The longitudinal distance through the cladding of the EWs, i.e., the penetration depth

d_{p}

, is defined in Equation (3) [65] (

d_{p}

is also the depth when the energy of the evanescent field is reduced to 1/e of the energy at the interface).

d_{p} = \frac{λ}{2 π \sqrt{{{(n}_{c o} s i n α)}^{2} - {n_{c l}}^{2}}}

(3)

where

λ

is the incident light wavelength,

α

is the angle of incidence of light at the interface between the fiber core and the cladding, and

n_{c o}

and

n_{c l}

are the RI of the fiber core and the cladding, respectively.

The dp is dependent on the change in the surrounding RI, so the TOF sensor can detect information about biomolecular analytes by detecting changes in the sensitive RI. The greater the dp of the EWs, the more its energy leakage interacts with the external environment. Therefore, increasing the sensitivity of the sensor can be achieved by increasing the dp of the EWs. The advantage of tapered fiber is that it breaks the inherent TIR transmission mode, has a larger mode field, wider spectral range, and is more conducive to the excitation of surface EWs. As a sensing element, tapered fiber has a strong evanescent field near its tapered region, that is more susceptible to modulation by the external environment, making it very promising for high-sensitivity measurements, and its small size is also one of its distinctive advantages [66].

2.3. SPR/LSPR Sensor Mechanism Based on TOF

The SPR/LSPR phenomenon occurs between the surface of the metal film/nanoparticles (NPs) where the sensor has a specific molecular recognition element and the vacuum/air or liquid medium. When the analyte molecule binds to the enzyme/antibody of the sensor, it alters the surface of either the fiber-coated metal film or nanoparticles. This alteration causes a shift in the position of the SPR spectral peak, which is caused by a change in RI on the metal surface [67].

LSPR and SPR are both sensing techniques based on the plasmon resonance principle. Their basic principles can be described by the Maxwell equation [68] and the Kretschmann configuration [69]. Unlike the SPR phenomenon, which utilizes metal film excitation to detect the presence and concentrations of chemicals and biomolecules in analytes, LSPR uses NP excitation to detect the presence and concentrations of chemicals and biomolecules in analytes.

SPR sensing is a technique that uses the surface plasmon resonance phenomenon of metals for sensing. In SPR biosensors, a bio-recognition element (e.g., enzyme/antibody/DNA probe, etc.) is immobilized on the surface of a metal film. When the target analyte binds to the biometric element, it causes a change in the RI of the metal film surface, that changes the resonance angle and the intensity of the reflected light from the SPR phenomenon. By measuring this change in resonance peak and reflected light intensity, the concentration and characteristics of the molecule to be measured can be quantified [70]. With the advantages of fast, sensitive, real-time and label-free detection, SPR biosensors have become advanced and powerful tools for characterizing and quantitatively analyzing biological properties [71]. Although fiber-optic SPR sensors are highly sensitive, the conditions for excitation of SPR are complex and the direct detection of low molecular weight analytes at low concentrations is challenging.

LSPR sensor is technology that use the localized plasmon resonance phenomenon of NPs for sensing. In LSPR sensors, the size and shape of the NPs affect the different wavelengths of the absorbed and scattered light, thus influencing the excitation efficiency of the LSPR phenomenon [72]. When a target analyte binds to a ligand on the surface of metal-NPs, it causes a change in the RI around the NPs, resulting in a shift and change in the LSPR spectral resonance peak of the metal-NPs. The detection purpose is achieved by monitoring this change in the position of the resonance peak. Tapered structure is one of the most popular fiber-optic probe structures in the field of LSPR fiber optic sensing.

SPR/LSPR is an optical phenomenon that occurs in metal thin films/NPs (e.g., gold, silver) [73]. When leaked light from the fiber interacts with free electrons in the metal film/NPs on the fiber surface, the electrons collectively oscillate at a specific frequency, resulting in (localized) SPR. In the case of the LSPR phenomenon, the resonance wavelength of the LSPR spectrum can be expressed as [74]:

λ_{r e s} = λ_{w} \sqrt{2 n_{e}^{2} + 1}

(4)

The wavelength corresponding to the bulk metal plasma frequency is denoted by

λ_{w}

, while the RI of the surrounding environment is represented by

n_{e}

. When the RI of the dielectric on the surface of the metal layer is changed, a new resonance of the incident light at another angular frequency occurs. This can be expressed macroscopically as a change in the resonance wavelength. The amount of change in resonance wavelength can be expressed by the Equation (5) [75].

Δ λ_{r e s} = S Δ n_{d} [1 - e x p (- \frac{2 d}{l_{d}})]

(5)

Here

S

denotes the bulk RI response of NPs,

Δ n_{d}

is the amount of change in the surrounding environment’s RI,

d

represents the effective adsorption layer thickness and

l_{d}

is the attenuation length of the characteristic electromagnetic field.

In recent years, SPR/LSPR-based fiber optic sensors have made remarkable progress in biosensing, environmental monitoring, chemical analysis and other fields. On the one hand, as nanomaterials and nanotechnology advance, the sensitivity and selectivity of SPR/LSPR-based sensors make improvements. On the other hand, the multifunctionality of sensors is also realized with the introduction of multiple recognition elements.

2.4. In-Line MZI Theory Based on TOF

Fiber-optic MZI is an important interferometric structure in fiber-optic interferometer, which has received a lot of attention due to its optical filtering characteristics, low fabrication cost and high accuracy. The TOF structure constitutes an inline MZI configuration and is often used for sensing purposes because of its stability, compactness and high accuracy [38].

When light is transmitted to the taper region of an SMF TOF sensor, the bundling ability of the cladding is weakened due to its thinning diameter, and a small portion of the light leaks to the externally of the core, while the higher-order mode in the cladding is excited and transmitted in the fiber at the same time as the fundamental mode in the core. After passing through the taper area, the two light channels have a phase difference, and interference occurs when they are ultimately coupled back into the fiber core. The sensor’s output light intensity can be calculated using the interference principle. From the interference principle, the output light intensity of the sensor can be determined as [76]:

I_{o} = I_{1} + I_{2} + 2 \sqrt{I_{1} I_{2}} c o s ∆ φ

(6)

I_{1}

and

I_{2}

are the light intensities of the higher-order modes in the cladding and the fundamental mode in the core, respectively, and

∆ φ

is the phase difference generated by the two light paths, that is defined by the mathematical formula [77]:

Δ φ = \frac{2 π {Δ n}_{e f f} L}{λ}

(7)

{Δ n}_{e f f}

is the effective RI difference between the higher-order mode and the fundamental mode,

λ

is the wavelength of the incident light, and

L

is the effective interference length. When external parameters (temperature, pressure, deformation) are inflicted on the fiber, the phase difference between the two modes is induced to change. The equation reveals that a change in

{Δ n}_{e f f}

L

causes a variation in the phase difference, which affects the position of the wavelength of the interference spectrum. Thus, the external environmental parameters can be determined by monitoring the shifts of the interference spectrum.

Hence, the mathematical formula for the free spectral range (FSR) of the interference spectrum can be approximately defined as [78]:

F S R \approx \frac{λ^{2}}{Δ n_{e f f} L}

(8)

The mode interference principle of TOF has the advantages of high sensitivity, fast response time and high reliability, and is extensively used for measurement and sensing in biological, chemical and physical fields.

2.5. Grating Sensing Principle of TOF

Tapered fiber grating is a novel category of optical waveguide device with a diameter in the micron or nanometer range, which combines the evanescent field transmission characteristics of a tapered fiber with the wavelength-selective optical properties of a fiber grating. The fast response, high reliability and small size are also the factors that have contributed to its popularity. Tapered fiber grating is formed by engraving a uniform fiber Bragg grating (FBG) or long-period fiber grating (LPFG) on a taper fiber, that has unique spectral and dispersion characteristics [79]. The grating is cost-effective, and a single grating can achieve multiparameter measurements with higher accuracy and simplified sensor construction.

In a tapered fiber grating sensor, reflective gratings are periodically inscribed in the tapered region of the fiber. These gratings split the light beam passing through the fiber into different frequencies and split the reflected beam into different angles. When FBG sensors are subjected to external physical quantities, such as temperature, pressure, strain, etc., this causes a change in the RI of the grating, which in turn causes a change in the wavelength or intensity of the incident light. Therefore, the sensing purpose can be achieved by measuring the wavelength shift or intensity change of the transmitted light.

FBG is a grating structure realized by changing the propagation path of light waves in optical fibers, and its underlying principle is based on Bragg scattering. Interference occurs when a light wave encounters a periodic change with RI in a medium, resulting in reflection or transmission of the light wave at a specific wavelength, which is referred to as Bragg scattering. In fact, the Bragg grating requires certain conditions to be satisfied, namely the Bragg condition [80].

λ_{b} = 2 n_{e f f} Λ_{b}

(9)

λ_{b}

n_{e f f}

, and

Λ_{b}

respectively refer to the reflection peak wavelength, effective RI of the medium, and period of the gratings. When an FBG sensor is affected by external physical parameters, chemical substances or biological molecules in the environment, it will cause a change in the effective RI of the medium. This leads to a shift in

λ_{b}

. Therefore, information about various external parameters can be obtained by monitoring changes in

λ_{b}

. FBG sensors have advantages such as fast response speed, high reliability and accuracy. They are widely used for measuring and monitoring physical, chemical and biological parameters as well as analyzing substances.

Unlike FBG, LPFG core and cladding modes have the same transmission direction, lower insertion loss and less backward reflection. In accordance with the phase-matching condition, coupling wavelength for linear polarization mode can be described as [81]:

λ_{l} = (n_{e f f}^{c o} - n_{e f f}^{c l}) Λ_{l}

(10)

Here,

n_{e f f}^{c o}

and

n_{e f f}^{c l}

denote the effective RI of the core and cladding, respectively.

Λ_{l}

represents the period of the LFPG. Previous studies have indicated that LPFG structures exhibit highly sensitive to RI in the environment surrounding the optical fiber. Based on this property, LPFG has been applied in physical, chemical, and biological sensors [82].

Combining FBG with TOF structures, this not only takes advantage of the geometry of TOF structures, but also incorporates the properties of gratings simultaneously [83]. This structure provides a new fabrication strategy for sensor development.

3. Fabrication Method of TOF

Different fabrication methods can be used to manufacture TOF depending on the fabrication requirements of the tapered fiber and the limitations of the equipment. The common fabrication methods include arc discharge technology, laser processing technology, and chemical etching technology. The methods and characteristics of these technologies are summarized in this section.

3.1. Arc Discharge Technology

Arc discharge technology is a processing technique that allows controlled electrodes to periodically heat the fiber layer to a molten state by freely adjusting the discharge power and precisely limiting the discharge time. Compared with the hydroxide flame heating method, the arc discharge technique is able to form a highly uniform high-temperature area around the optical fiber to heat it up, enabling faster softening of the fiber and greatly improving processing efficiency. This method can produce high quality, well-shaped optical fiber structures in a shorter period of time.

3.2. Laser Processing Technology

Laser processing technique is a typical approach for manufacturing TOFs. The fundamental concept is to employ the laser’s high energy and precision to locally erode the fiber surface for constructing a TOF structure. The laser beam is specifically focused on the fiber surface via a lens, causing the material on the fiber surface to melt or peel, resulting in a reduction in fiber diameter and shape modulation. This technology has applications for fabricating TOF of diverse shapes and diameters because of its superior precision, controllability, and reproducibility.

3.3. Chemical Etching Technology

Chemical etching is a common method for TOF fabrication, which involves etching the fiber surface through a chemical reaction [84]. The taper angle of the TOF can be controlled by varying the time the fiber is treated in the chemical reagent. The size of the taper angle can affect the efficiency of light transmission in the fiber. The fabrication process has simple equipment and low cost, but it is difficult to control the taper angle and the diameter of TOF precisely. The chemical reaction conditions and operation process need to be strictly controlled to ensure the quality of the fabricated TOF [85].

Overall, each of the above techniques for fabricating TOF has its own advantages and disadvantages, and the most suitable manufacture method needs to be selected according to the specific application requirements and experimental conditions. Figure 3 presents some process schematics for TOF probe fabricating.

4. Applications of TOF Sensors

TOF sensors can monitor temperature, pressure, strain, chemical substances and RI by utilizing the transmission characteristics of light to measure various parameters of the surrounding environment. This review focuses on the application and research progress of TOF sensors in these fields and summarizes their advantages and development prospects to provide reference and guidance for subsequent research and applications.

4.1. Physical Applications of TOF Sensors

A surrounding RI (SRI) sensor on the basis of tapered channel-assisted multicore fiber (TAMCF) was first presented by AL-Mashhadani et al. [51]. The sensor with SMF-TAMCF-SMF structure was fabricated by connecting a section of TAMCF with two SMFs through an arc discharge technique, and the schematic of the structure is displayed in Figure 4A(a). TAMCF has seven cores, each of which is surrounded by a separate cladding and groove layer. Due to its unique fiber optic structure, it has multiple applications in various fields of sensing. Figure 4A(b) shows the experimental setup for sensing. The tapered sensor’s sensitivity was evaluated in various SRI ranges using a variety of honey/water mixtures as SRI standard samples. In the RI range of 1.4430-1.4442, the sensitivity is 35089.28 nm/RIU, which is much higher than other MCF-based RI sensors. The SRI sensitivity increases as the TAMCF waist length expands. As shown in Figure 4A(c), the fabricated tapered sensor has high SRI sensitivity and good linearity, which can flexibly and precisely detect small changes in SRI. The sensor’s advantages include high sensitivity, ease of preparation, and versatility. This paper describes a straightforward and efficient way for creating a high-performance SRI sensor based on TAMCF, that offers potential for development in the biosensing and environmental monitoring domains.

Shao et al. [52] developed a new fiber sensor that can measure both temperature and magnetic field using micro-tapered long-period grating (MTLPG) and magnetic fluid (MF). The TLPG is created by periodic exposure with a CO₂ laser, combining the advantages of TOF and LPG. Figure 4B(a) shows the probe fabrication process, where SMF is tapered to a diameter of 20 µm by fusion splicer to obtain T-SMF. A slenderer micro-taper is formed in the waist region of T-SMF due to differences in motor movement speed and softening of the fiber. Then, CO₂ laser moves along its axis for periodic exposure to achieve the target structure.The MTLPG comprises a tapered SMF wrapped around its surface with an MF layer whose RI varies with temperature and magnetic field affecting transmission spectrum. Simultaneous measurement of temperature and magnetic field can be achieved by monitoring wavelength shift of two resonance peaks in transmission spectrum as shown in Figure 4B(b),B(c), respectively. The results show that MTLPG has high sensitivity, fast response time, and good stability at low cost making it ideal for detecting temperature (-0.52 nm/°C sensitivity from 25-75°C range) or magnetic fields (23.72 nm/mT sensitivity from 8-16 mT range) under various circumstances as a dual-parameter TOF sensor.

Bakhshi et al. [53] proposed a MF detection method based on a TOF sensor, which utilizes a composite coating of graphene oxide (GO) and iron oxide (Fe₃O₄) to enhance the magnetic-optical effect. Figure 4C(a) shows the schematic of the TOF structure, which is formed by locally heating the optical fiber to make it thinner during the tapered process to form the TOF. By adjusting the heating power and moving speed, the temperature and position of the heating can be precisely controlled to achieve uniform thinning of the fiber-optic. Figure 4C(b,c) shows the diagram of the device for measuring the magnetic field, and the sensor is highly linear in the magnetic field range of 1-60 mT, respectively. Furthermore, the effect of parameters such as TOF length and diameter on sensor performance was investigated. After optimizing the analysis, it was discovered that the sensor’s sensitivity reached 320 pW/mT when the TOF length was 11 mm and the diameter was 3.3 m. This sensor offers a cost-effective solution to achieve high-performance magnetic field detection utilizing TOF.

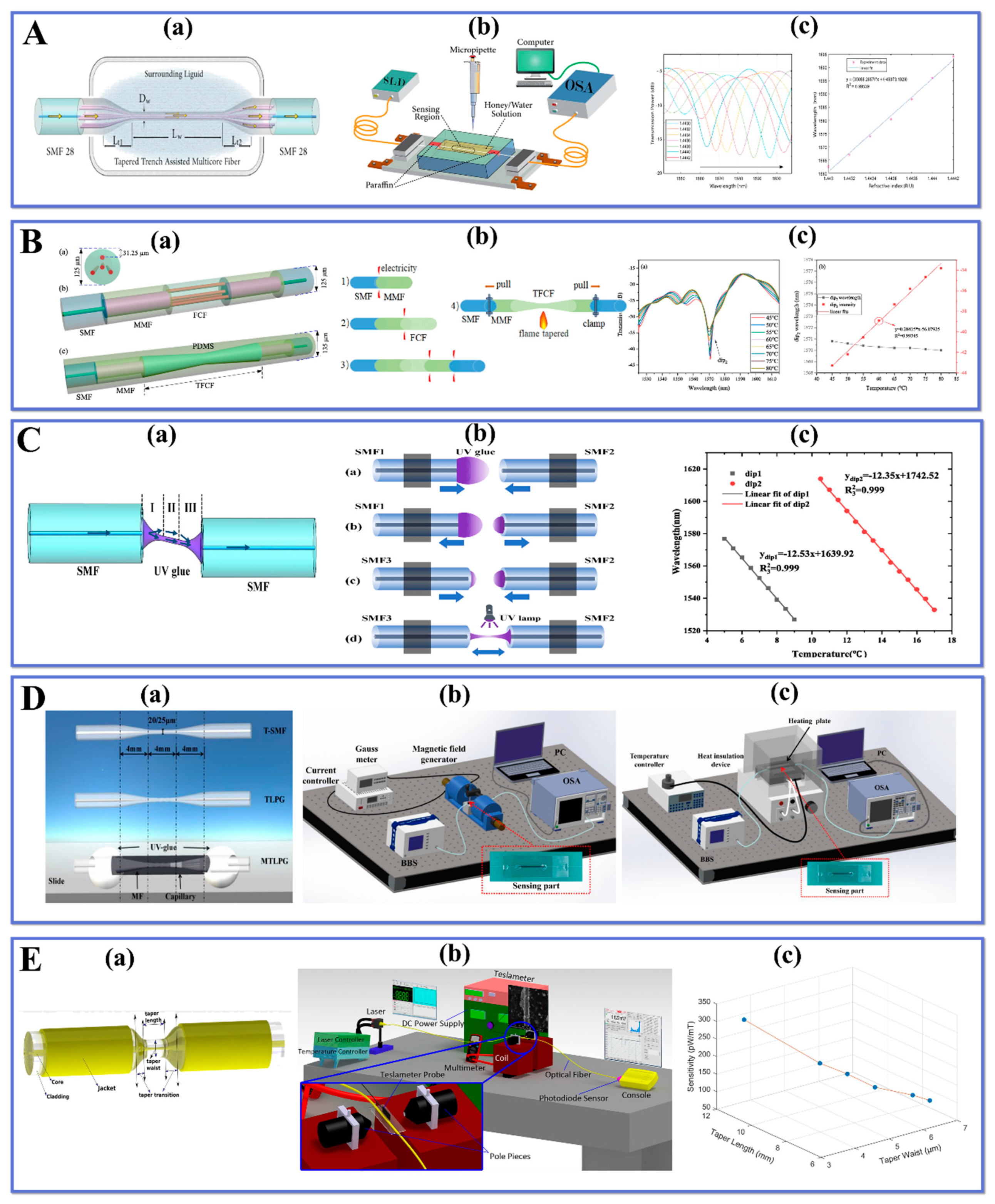

Figure 4. Schematic diagrams of A. (a) SMF28–tapered TAMCF–SMF28 structure and (b) Experimental setup for SRI sensing, (c) measured transmission spectrum and linearity plot results. Reprinted with permission from Optical Fiber Technology, Copyright 2019, Elsevier [51]; schematic diagrams of B. (a) FCF cross section, MMF-FCF-MMF structure, T-MFM-F structure coated with PDMS and (b) fabrication process of T-MFM-T structure, (c) interference spectra of the T-MFM-F sensor and the relationship between wavelength and temperature. Reprinted with permission from Optics and Lasers in Engineering, Copyright 2023, Elsevier [52]; schematic diagrams of C. (a) taper-shaped UV glue structure and (b) fabrication process of taper-shaped UV glue, (c) the relationship between wavelength and temperature. Reprinted with permission from Optical Fiber Technology, Copyright 2022, Elsevier [53]; schematic diagrams of D. (a) preparation process MTLPG structure, (b) experimental setup of magnetic field sensor, (c) temperature sensing device. Reprinted with permission from Optical Fiber Technology, Copyright 2021, Elsevier [86]; schematic diagrams of E(a) TOF-based structure and (b) experimental setup of magnetic field sensor, (c) sensitivity in relation to TOF ‘s length and diameter. Reprinted with permission from Optical Fiber Technology, Copyright 2022, Elsevier [87].

Chen et al. [86] presented a polydimethylsiloxane (PDMS) fiber optic sensor based on the taper-MMF-FCF-MMF (T-MFM-F) structure to be capable of accurate temperature measurement. The schematic diagram and fabrication process of T-MFM-F are shown in Figure 4D(a,b). In the field of temperature sensing, PDMS has superior thermal and optical properties compared to other materials, which can enhance its sensitivity to temperature. By applying PDMS to TOF, not only the sensitivity of the sensor is significantly improved, but also the structural strength of the fiber is improved. The results are shown in Figure 4D(c). The sensor has high sensitivity and linearity in the temperature range of 45-80°C with a sensitivity of 0.046 dB/°C. It also has good repeatability and stability. The sensor has the advantages of simple structure, easy fabrication and compact size, and can be used in various temperature measurement and monitoring situations.

Liu et al. [87] developed a highly sensitive temperature sensor based on MZI interference with asymmetric tapered UV light irradiation. The sensor utilizes the high RI and low loss of UV optical fiber and the interference effect of asymmetric tapered structure to prepare a special shape of optical fiber sensor and achieve temperature measurement by measuring the interference signal of the sensor at different temperatures. The probe structure consists of two SMFs and an asymmetric tapered UV adhesive connection, and its schematic diagram and fabrication process are shown in Figure 4E(a,b). Experimental results show that the sensor has a temperature sensitivity of 11 nm/°C, and can continuously monitor temperature changes in the response range of 5 °C to 17 °C. Therefore, it can be used for high-precision temperature measurement and sensing applications and has promising applications in the field of temperature measurement.

Table 1. Applications of TOF-based sensors in physical parameter detection.

Measured parameter	Fiber Structure	Sensing principle	Linear detection range	Sensitivity	LoD	Ref
Acoustic Vibration	Tapered-Tip Fiber	Radiated modes interference	10 – 50 kHz	15.7 V/nm	0.1 nm	[88]
Humidity	Tapered dual side-hole fiber	Mach-Zehnder interferometer	30.3% – 60.1% RH	-0.142 nm/% RH	n.r.^a	[89]
Liquid level	Single-mode taper-thin core taper single-mode fiber	Mach-Zehnder interferometer	0 – 15 mm	1.2416 nm/mm	n.r.^a	[90]
Load	Fiber tapered-loop probe	SPR	0 – 20 kPa	1.473 nm/kPa	n.r.^a	[91]
Magnetic Field	Tapered small core fiber	Modes interference	n.r.^a	0.46 nm/mT	n.r.^a	[92]
RI/temperature	MMF-TSMF-MMF	Mach-Zehnder interferometer	1 – 1.001849 25 - 80°C	-3244.22 nm/RIU -35.18 pm/°C	n.r.^a	[93]
RI	Tapered SMF	Mach-Zehnder interferometer	1.332 – 1.384 1.384 – 1.4204 1.4204 – 1.4408	415 nm/RIU 1103 nm/RIU 4234 nm/RIU	n.r.^a	[94]
RI	U-shape tapered plastic optical fiber	SPR	1.335 – 1.41	1534.53 nm/RIU	n.r.^a	[95]
Temperature	Taper-Like Etched Multicore Fiber	Mach-Zehnder interferometer	24 – 130°C	89.19 pm/°C	n.r.^a	[96]
Temperature	Micro Taper In-Line Fiber	Mach-Zehnder interferometer	89 – 950°C	0.113 nm/°C	n.r.^a	[97]

^a not reported.

4.2. Chemical Applications of TOF Sensors

Kang et al. [98] reported a dopamine-functionalized GO for the preparation of a highly sensitive LPFG chemosensor with application to the detection of cobalt ions. The study was conducted by modifying the GO with dopamine compounds, resulting in a homogeneous and stable coating of GO on the probe, which provides binding sites for cobalt ions. The surface functionalization of the probe is depicted in Figure 5A(a). micro-tapered LPFG was fabricated by CO₂ laser using single-mode fiber. The micro-tapered LPFG has a diameter of 110 μm, which has a higher mechanical strength than the small diameter TOF and is well suited for sensing experiments in complex environments. The experimental setup for Co²⁺ ion detection is shown in Figure 5A(b), and the spectral detection of cobalt ions in the concentration range of 1 ppb -10⁷ ppb was performed. The results are illustrated in Figure 5A(c). The maximum resonance wavelength shift was 0.85 nm with increasing cobalt ion concentration. The high sensitivity of 2.4 × 10^-3 dB∙ppb^-1 was obtained at a PDA concentration of 0.05 g∙L^-1 by using a PDA-GO functionalized probe. The proposed PDA-GO functionalized sensing probe has excellent performance for efficient detection in low concentration cobalt ion environments, providing a new platform in the field of biological and chemical sensing.

Mercury ion (Hg²⁺) is a toxic heavy metal that has serious harmful effects on human and environment. Therefore, fast, accurate and convenient sensors are needed for quantitative and qualitative detection of Hg²⁺. Liu et al. [99] designed a smartphone based optical fiber fluorescence sensor (SOFFS) for remote and on-site quantitative detection of Hg²⁺ in water. The schematic of the sensor experimental apparatus is demonstrated in Figure 5B(a). According to the procedures in Figure 5B(b), quantum dots are modified on the fiber surface by layer-by-layer reaction. SOFFS utilizes a fluorescent probe to achieve selective recognition and fluorescence burst of Hg²⁺ by specific ligand reaction with Hg²⁺. In addition, the study designed a smartphone application as shown in Figure 5B(c) for automatic and accurate quantification of fluorescence burst and thus measurement of Hg²⁺ concentration. The optimized combinatorial tapered fiber optic probe in SOFFS was able to effectively detect Hg²⁺ in the detection range of 1 nM-1000 nM with the LOD of 1 nM. The fiber optic probe was fabricated with good quality and high reproducibility, and the results demonstrate that SOFFS has good selectivity in Hg²⁺ sensing. In addition, SOFFS is a potential tool for small size portable, low cost and high efficiency water quality monitoring. It can measure Hg²⁺ quickly and with excellent selectivity, high accuracy and sensitivity, proving its potential value in environmental monitoring.

Wei et al. [100] developed a new sensor for detecting copper ions (Cu²⁺) using twisted optical fiber SPR technology. The degree and angle of the fiber twist were adjusted to modulate the SPR response, as shown in Figure 5C(a). A nano-metal film was then coated on the cladding’s external surface to excite the fiber SPR effect at the interface between the cladding and sensing film. To detect Cu²⁺ concentration, chitosan (CS) and polyacrylic acid (PAA) were modified on the probe surface alternately through electrostatic adsorption. The sensing test device is depicted in Figure 5C(b). The sensor uses a polymer containing amino and carboxyl groups as a sensitive layer that can effectively adsorb copper ions, causing a red shift in the SPR spectrum, as illustrated in Figure 5C(c). The resonance wavelength shifts with increasing Cu²⁺ concentration within 15.7 nM - 1.57 mM range with detection sensitivity of Cu²⁺ being 3.46 nm/lgC and LOD being10.1 nM.The twisted SPR sensor based on single-mode fiber has simple fabrication, stable structure, high selectivity making it suitable for environmental and biological fields for detecting Cu²⁺.

Wang et al. [101] proposed a tapered interferometer sensor for detecting lead ion (Pb2+) concentrations using poly(dopamine-maleic acid) (PDA-MA) functional film enhancement. The microfiber was construtured by heating and uniformly stretching the SMF, which reduced the fiber diameter from 125 μm to 10 μm, resulting in a stable microfiber interferometer. PDA is an emerging material used for molecular immobilization and electrochemical sensing due to its abundant reactive groups that can self-polymerize on various surfaces to form adhesive films. The conical structure and ultra-fine diameter of this interferometer make it highly sensitive to changes in refractive index caused by adsorption of carboxyl groups with lead ions, resulting in a macroscopic shift of the wavelength in the interference spectrum. Experimental results show that the sensor can detect lead ion concentration within a range of 10^-14-10^-6 M with high sensitivity (1.85×108 nm/M) and low LOD (0.1678 ppb). This simple and inexpensive sensor exhibits good stability and specificity, indicating feasibility for developing fiber-optic micrometer sensors with high accuracy for optical environmental pollution research purposes. Figure 5C(a,b) present schematics of the process of PDA-MA functionalization and experimental setup for Pb2+ concentration detection while Figure 5C(c) shows the results obtained from experiments conducted on this sensor design.

Teng et al. [102] constructed a high-performance fiber-optic sensor species for online detection of Pb²⁺ using black phosphorus and TOF structure. The TOF sensor with high surface-enhanced Raman scattering (SERS) effect can achieve rapid detection of Pb²⁺. Black phosphorus, a novel two-dimensional material with excellent optical and electronic properties, can be used as a SERS active substrate to enhance the detection capability of the TOF. The experimental apparatus is shown in Figure 6B(a). Pb²⁺ is electrostatically adsorbed onto the BP surface to form adsorption complexes. The accumulated complexes change the RI around the TOF, resulting in a shift of the interference wavelength. The result Figure 6B(b) reflects a significant rightward shift of the spectrum at concentrations from 0.1 to 104 ppb with the shift of 0.184 nm. And Figure 6B(c) illustrates the fitted plot of wavelength drift and P^b2+ concentration change, with a sensitivity of 0.03714 nm/ppb and LOD of 0.0206 ppb for Pb2+ solution concentration range of 0.1 to 105 ppb. Through multiple tests, it can be demonstrated that the sensor has good stability and specificity, with the advantages of high sensitivity and LOD. It provides a new approach for environmental safety and water quality detection.

Figure 6. Schematic diagrams of A. (a) PDA-MA film functionalized microfiber sensor and (b) experimental setup of Pb²⁺ sensing, (c) linear response of the probe to Pb²⁺ and specific detection results. Reprinted with permission from Optics & Laser Technology, Copyright 2023, Elsevier [101]; schematic diagrams of B. (a) BP integrated tapered fiber sensor equipment, (b) measured transmission spectrum and linearity plot results. Reprinted with permission from Optical Fiber Technology, Copyright 2021, Elsevier [102].

Table 2. Applications of TOF-based sensors in chemical substances detection.

Measured parameter	Fiber Structure	Sensing principle	Linear detection range	Sensitivity	LoD	Ref
Alcohol	Tapered fiber	SPR	Alcohol: 0 - 60% RI: 1.33 - 1.38	2350 nm/RIU	n.r.^a	[103]
Alcohol	Tapered MMF	Transmission intensity modulation	0 – 500 ppm	22 counts/ppm	n.r.^a	[104]
Co²⁺	Micro-tapered long period fiber	Grating sensing	1 ppb – 10⁷ ppb	2.4x10^-3 dB/ppb	n.r.^a	[98]
Cu²⁺	Tapered fiber	Mach-Zehnder interferometer	0 – 1000 µM	0.0091 nm/µM	2.20 µM	[105]
Cu²⁺	Taper in taper	Mode-mode interference	0 – 0.1 mM	78.03 nm/mM	n.r.^a	[34]
Fluoride	Tapered Fiber Probe	EWs absorption	2.08×10^-6 – 2.005×10^-4 M	n.r.^a	n.r.^a	[106]
Fluoride-ion	Taper Michelson interferometric sensor	Interference wavelength shift	0.01 – 0.10ppb	3341.23 pm/ppb	n.r.^a	[107]
Nitrate	Tapered fiber	Polyurethane selective detection	n.r.^a	5.94x10^-2 μW/ppm	n.r.^a	[108]
Pb²⁺	Tapered fiber	Interference wavelength shift	0.1 – 10⁵ ppb	0.03714 nm/ppb	0.0206 ppb	[102]
Sodium ions Manganese ions	Micro-tapered long period fiber	Grating sensing	1 – 10⁶ ppb	Sodium ions: 2.2x10^-3 dB/ppb Manganese ions: 3.2x10^-3 dB/ppb	3.2 ppb	[109]

^a not reported.

4.3. TOF-Based Gas Sensors

Tan et al. [54] proposed a dispersion turning point (DTP)-enhanced photothermal interference acetylene gas sensor based on a tapered micro-interferometer. The sensor utilizes the high sensitivity and high temperature stability near the DTP to achieve accurate measurement of the gas absorption spectrum. The structure of the conical interferometer is shown in Figure 7A(a). The sensing region features a strong evanescent field, which serves as a platform for light-gas interaction. The gas detection device is shown in Figure 7A(b), which works by passing a modulated laser beam through a fiber-optic micro-interferometer, where a portion of the light is absorbed by the gas, resulting in a photothermal effect that causes a phase change in the fiber-optic micro-interferometer. By detecting the output signal of the fiber micro-interferometer, the absorption intensity and concentration of the gas can be obtained. The design was achieved by using a microfiber interferometer with a length of 3 mm and a diameter of 2.29 μm for acetylene measurements, and a lower limit of acetylene detection of 965 ppb was achieved experimentally. By optimizing the design of the tapered interferometer, the sensitivity of the sensor detection will be greatly improved by combining a thinner waist diameter and a longer interaction length. The gas sensor has the advantages of high sensitivity, fast response, and strong resistance to environmental interference, and has a broad development prospect in important applications such as chemical or biochemical sensing and environmental monitoring.

Alkhabet et al. [110] developed a fiber optic H₂ sensor using TOF coated with palladium NPs, which can safely and efficiently detect the concentration of H₂ at room temperature. The sensing mechanism is shown in Figure 7B(a), using a multimode optical fiber as the sensing channel, enhancing the evanescent field in the fiber by tapered treatment (20 μm taper waist), and then coating the TOF with palladium NPs by drop coating method. Palladium is a metal with catalytic properties that can undergo adsorption and desorption reactions with hydrogen gas, thereby altering its resistance and RI. the experimental setup is shown in Figure 7B(b), where the sensor performance developed at room temperature was evaluated through various concentrations of H₂ gas. The evaluation showed that the Pd-coated sensor based on Pd had 63% change in absorbance response when exposed to 2.00% H₂ in synthetic air. The prepared sensor showed good selectivity for H₂ and did not respond to other gases such as ammonia (NH₃) and methane (CH₄). The experimental results are exhibited in Figure 7B(c). A simple, efficient and reproducible method for the detection of H₂ is demonstrated. The Pd-coated tapered fiber shows superior H₂ sensing at low temperatures compared to other conventional H₂ sensors. Overall, the developed sensor shows excellent sensitivity, selectivity and stability with promising applications.

Bavili et al. [111] designed a novel fiber-optic hydrogen (H₂) sensor based on a self-assembled polymer micro-cylindrical ring resonator (PMRR). The H₂ sensing mechanism is shown in Figure 7C(a). This PMRR is constructed by coating a hydrogen-sensitive composite material Pd-WO₃ on SMF and an organic polymer material PDMS with a significant heat responsiveness. The experimental devices for H₂ detection are displayed in Figure 7C(b), where the spectral shift of the optical resonance is monitored by studying the optical response of the sensor at different H₂ concentrations. This spectral shift includes changes in resonant peak frequency and intensity for detection purposes. The results of the experiments revealed that the sensor sensitivity was 140 pm/% H₂ and LOD was 60 ppm when tested in the range of 1% H₂ concentration, indicating that the sensor exhibited excellent sensitivity and selectivity in low concentration H₂ environment. This confirms that The sensor has potential applications in the detection of H₂. and can provide an effective solution for applications such as hydrogen leak monitoring and H₂ energy system safety monitoring.

Figure 7. Schematic diagram of A. (a) DTP-enhanced PTI gas detection principle, (b) experimental setup of PT gas sensing. Reprinted with permission from Sensors and Actuators B: Chemical , Copyright 2023, Elsevier [54]; B. (a) palladium and hydrogen detection principle, (b) experimental setup of H₂ sensor, Reprinted with permission from Materials Science and Engineering: B, Copyright 2023, Elsevier [54]; C. (a) H₂ sensing mechanism, (b) experimental setup of H₂ sensor. Reprinted with permission from Sensors and Actuators B: Chemical, Copyright 2020, Elsevier [111].

Zhang et al. [112] proposed a H₂ sensor on the basis of a self-assembled micro-vial type resonator, whose structure and principle are shown in Figure 8A(a). The sensor utilizes a SMF coated with a layer of hydrogen-sensitive Pd-WO₃ composite and a layer of PDMS, an organic polymer material with significant thermal response, to prepare a self-assembled micro-vial structure. The experimental system is depicted in Figure 8A(b), and the whispering gallery mode (WGM) is excited by coupling the TOF with the self-assembled micro-vials. When hydrogen is applied to the WGM resonator, hydrogen molecules penetrate the PDMS and undertake a redox reaction with Pd-WO₃. After absorbing the reaction heat, the volume and RI of the PDMS change, resulting in a wavelength shift of the WGM resonator. As a result of measuring the shift in the resonance wavelength, a low-cost hydrogen sensor is realized. According to the experimental results, the sensor has a maximum sensitivity of -3.091 nm/%. The sensor is resistant to environmental humidity and temperature fluctuations. Furthermore, the sensor is resistant to changes in humidity and temperature. It can also measure other gases using other sensitive materials, which has a wide range of applications in the field of biochemical sensing.Chua et al. [113] reported a method to grow h-MoO₃ nanorods on the surface of TOF using chemical bath deposition for the fabrication of ammonia gas sensors. The sensing mechanism is shown in Figure 8B(b). The h-MoO₃ is a semiconductor material with a layered structure and space charge layer effect, which can effectively adsorb and desorb ammonia molecules due to its high specific surface area and excellent optical properties, leading to changes in its resistivity and RI, which affect the optical fiber output light intensity. The test apparatus is shown in Figure 8B(b), where the h-MoO₃ coated on the TOF probe is directly connected to the SMA fiber and positioned in a sealed custom gas chamber. The sensing results demonstrated a stable response in the range of 100 ppm- 5000 ppm. The response time and recovery time were 210 s and 241 s, respectively, at an ammonia concentration of 500 ppm. the optical fiber showed good selectivity for ammonia with an LOD of 11 ppm. the sensor exhibited high sensitivity and fast response to ammonia at room temperature with good stability and repeatability. It provides an effective way to develop a new fiber optic ammonia sensor.

Figure 8. Schematic diagram of A. (a) sensor probe and sensing mechanism, (b) H₂ measurement system. Reprinted with permission from Sensors and Actuators B: Chemical, Copyright 2023, Elsevier [112]; Schematic diagram of B. (a) NH₃ sensing mechanism and (b) gas measurement system, (c) sensitivity curve of A2 for NH₃ and selectivity test results. Reprinted with permission from Ceramics International, Copyright 2021, Elsevier [113].

Table 3. Applications of TOF-based sensors in gas detection.

Measured parameter	Fiber Structure	Sensing principle	Linear detection range	Sensitivity	LoD	Ref
Ammonia	Etched-tapered Single Mode Optical Fiber	EWs absorption	n.r.^a	300 au/%	0.00142%	[114]
Ammonia	Taper cascade	EWs absorption	n.r.^a	0.015 nm/ppm	n.r.^a	[115]
Ammonia	Tapered microfiber	EWs absorption	n.r.^a	1.30 pm/ppm	n.r.^a	[116]
Ammonia	Fiber fusion and taper	Transmission spectrum shift	0 – 10,476 ppm	0.58 pm/ppm	n.r.^a	[117]
Ammonia	Tapered fiber	Absorbance changes	n.r.^a	26.99 AU/%	13 ppm	[118]
Butane	Tapered Fiber	EWs absorption	n.r.^a	0.4812 a.u./vol.%	n.r.^a	[119]
Formaldehyde vapor	Tapered U-Shape Plastic Optical Fiber	EWs absorption	5% – 20%	0.00543V/%	n.r.^a	[120]
Hydrogen gas	Tapered fiber	EWs absorption	0.125% – 2.00%	33.22 /vol%	n.r.^a	[121]
Hydrogen gas	Tapered fiber	EWs absorption	0.125% – 2.00%	18,645 %	n.r.^a	[110]

^a not reported.

4.4. TOF-Based Biosensors

Kang et al. [122] presented a micro-tapered long-period fiber grating (MTLPFG) pepsin sensor based on GO. GO has excellent biocompatibility and selectivity, and it has a wide application potential in the field of biosensing. As shown in Figure 9A(a), the MTLPFG sensor is processed by CO₂ laser heating technology, using computer-controlled parameters such as CO₂ laser power, taper period and fiber movement speed to control the taper process. The pepsin detection device and sensing principle of the sensor are illustrated in Figure 9A(b). In the experiment, the grating was immersed in different concentrations of sample solutions and the transmission spectra were monitored in real time. Figure 9A(c) illustrates the transmission spectra and resonance wavelength response results of GO-MTLPFG at different pepsin concentrations. The results indicated that the sensor exhibited high sensitivity in the detection range of 1-1000 ng/mL and the detection limit reached 25.79 ng/mL. In addition, the GO-MTLPFG sensor has good stability and reusability, that offers a new strategy for biosensing applications.

Wang et al. [123] proposed GO nanosheets functionalized with MTLPG sensitive optical biosensor for hemoglobin detection. In the preparation of the sensor, GO nanosheets were deposited on the probe to form GO-MTLPG by chemical bonding, and the process is displayed in Figure 9B(a). LPG is very sensitive to temperature changes, and the experimental environment was controlled at a constant temperature (23°C) to avoid experimental accuracy errors caused by temperature differences. The experimental measurement device of the sensor is shown in Figure 9B(b), which meets the requirement of detecting human hemoglobin concentration by monitoring different concentrations of hemoglobin samples. The detection of hemoglobin is achieved when the hemoglobin molecule interacts with the probe surface, resulting in a shift of the resonance wavelength. The experimental results are shown in Figure 9B(c), where the sensor exhibits the blue-shift and a decrease in resonance intensity as the concentration of the hemoglobin sample increases. The sensitivity of the sensor was -2 nm/(mg/mL) and the lowest LOD was 0.02 mg/mL. The GO-MTLPG bioprobe proposed here does not require labeling and can be detected in real-time. It exhibits excellent performance, including high sensitivity, stability, and reusability. This makes it a valuable tool for biomedical research and clinical diagnosis.

Li et al. [124] successfully designed a convex fiber-tapered seven core fiber-convex fiber (CTC) fiber optic LSPR creatinine biosensor with compact structure and high sensitivity by combining a heterocore fiber with a tapered probe structure. During the processing, CTC is mainly supported by two powerful processing equipment (i.e., FSM and CMS). The FSM electrode discharge process allows the fiber to reach a molten state at high temperature and form a convex structure under thrust. Under the unique CMS three-electrode heating, the ideal tapered structure is formed by the programmed precise control and bi-directional pulling taper mode, and the CTC structure fabrication process is shown in Figure 9C(a). Two-dimensional nanomaterials (niobium carbide MXene) and The experiments used particular creatinine enzyme functionalized sensing probes, and the experimental setup is shown in Figure 9C(b). The CTC probe was immersed in the reaction cell and the LSPR response results were recorded for different creatinine sample solutions. Figure 9C(c) exhibits the results, in which the wavelength of the resonance peak was evenly red-shifted with increasing concentration in the linear range of 0 – 2000 μM. The developed sensor’s sensitivity and LOD were 3.1 pm/μM and 86.12 μM, respectively. Moreover, a comprehensive and systematic analysis of the reusability, reproducibility, stability and selectivity of the sensor probe was carried out and satisfactory results were obtained. It was confirmed that the developed LSPR biosensor has a wide application potential in food safety detection and aquaculture.

Figure 9. Schematic diagram of A. (a) MTLPFG fabrication process and (b) measurement system and sensing mechanism, (c) measured transmission spectrum results. Reprinted with permission from Sensors and Actuators Reports, Copyright 2023, Elsevier [122]; schematic diagram of B. (a) GO nanosheets functionalization process and (b) measurement system, (c) measured transmission spectrum results. Reprinted with permission from Optical Materials, Copyright 2020, Elsevier [123]; Schematic diagram of C. (a) CTC fabrication process and (b) measurement system, (c) measured transmission spectrum and linearity plot results. Reprinted with permission from Optics Express, Copyright 2022, Elsevier.

The development of new LPF systems with increased sensitivity and stability is critical for practical applications. Xiao et al. [125] demonstrated the use of a high-order diffraction long-period grating (HOD-LPG) for prostate-specific antigen (PSA) detection. Figure 10A(a) shows how the HOD-LPG is biofunctionalized via a multitude of biochemical processes that allow for the detection of minor changes produced by selective recognition of PSA antigens under buffered circumstances. Figure 10A(b) depicts the schematic of HOD-LPG fabrication, that can be separated into two steps: the tapering step and the point-to-point grating inscription. The SMF is tapered into a tapered structure using an FSM machine. This step consists of fixing the fiber on a fixture and moving it along the fiber axis at a certain motor-driven speed. By controlling the arc discharge power and motor-driven speed, a specific ultra-fine tapered fiber structure can be obtained. In the second fabrication step, a portion of the TOF is tapered periodically by setting the grating pitch for point-to-point arc discharge. The experimental results are shown in Figure 10A(c), which exhibits a linear response in the concentration range of 5-500 ng/ml, reaching the LOD of 9.9 ng/ml. The proposed sensor, with its established high repeatability and great specificity, provides a potential tool for the early detection of prostate cancer.

Li et al. [126] proposed a dual-mode fiber optic sensor that utilizes surface-enhanced Raman scattering (SERS) and fluorescence detection in an optical fiber, as illustrated in Figure 10B(a). The sensor was fabricated through two steps: taper processing and Ag coating treatment, with half of the fiber tip surface coated with AgNPs. Initially, a certain length of multimode fiber is processed into a taper and then cut into two tips using a set program that allows good control over the shape parameters of the fiber tip, including tapered arc power and stretching speed. Subsequently, the TOF tip side was fixed with a mold and coated in a high vacuum magnetron sputter coating system to enhance and detect the Raman signal on the coated part while detecting fluorescence spectrum on the uncoated part. Figure 10B(b,c) show SERS detection test results for Rhodamine 6G aqueous solution concentrations ranging from 0.1 μM-1000 μM along with fluorescence molecular detection devices respectively. The LOD for SERS detection test was found to be 0.2×10-6 M whereas it was measured at 2.25 × 10^-6 M for fluorescence spectrum within this concentration range. The quantitative identification of target molecules was reliably obtained by combining Raman spectral features and fluorescence intensity since both modes’ detection ranges were well matched.This simple-to-fabricate endoscopic liquid biopsy has excellent performance characteristics making it easy to operate while providing reliable results; hence it holds great application prospects in disease diagnosis/prevention via in vivo detection techniques.

Figure 10. A. Schematic of (a) the biosensing process, (b) tapering SMF to a microfiber fabrication process and (c) linear response of the probe to PSA and specific detection results. Reprinted with permission from Optics Express, Copyright 2020, Optica [125]; B. schematic of (a) the dual-mode optical fiber sensor, (b) the experimental setup for SERS detection and (c) experimental setup for fluorescence molecules detection. Reprinted with permission from Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, Copyright 2023, Elsevier [126].

Table 4. Applications of TOF-based sensors in biomolecules detection.

Measured parameter	Fiber Structure	Sensing principle	Linear detection range	Sensitivity	LoD	Ref
Acetylcholine	Tapered/etched multicore fiber	LSPR	0 – 1000 μM	0.062 nm/μM	n.r.^a	[127]
Creatinine	CTC structure	LSPR	0 – 2000 µM	3.1 pm/µM	86.12 µM	[124]
Glucose	Tapered Optical Fiber	Evanescent field variations	n.r.^a	8.7×10^-3 μW/mM	0.31 μW	[128]
Glucose	Tapered fiber	LSPR	n.r.^a	(5.01 ± 0.72) ×10⁻³ /a.u.(%)	n.r.^a	[129]
Hemoglobin	Micro-tapered long-period fiber grating	Optical waves interference	n.r.^a	3.14 mg/mL	0.057 mg/mL	[130]
p-Cresol	Tapered-in-Tapered fiber	LSPR	0 – 1 mM	3.8 pm/mM	0.14 mM	[131]
Cancer Biomarkers	Reflector-Less Shallow-Tapered Optical Fiber	Optical fiber dispersion	100 fM - 10 nM	1.33 nm/RIU	16.4 pM	[132]
Triacylglycerides	Tapered Optical	EWs absorption	0 – 50 nM	0.9 nm/nM	0.23 nM	[133]
Protein	Tapered fiber	Interferometric effect	1 – 10 pM	1.02 nm/pM	n.r.^a	[134]

^a not report.

5. Novel TOF Structure

Recent years have seen the emergence of innovative tapered structures in the field of fiber optic sensor. These structures offer new opportunities for expanding and developing applications for tapered fiber optic sensors. Figure 11 illustrates several typical examples of these new TOF structures, which can be categorized based on their different shapes.

A novel simple, label-free human-shaped optical fiber structure was developed for the first time by Zhang et al. [135]. for detecting histamine concentration in food. the HTOF schematic and processing are shown in Figure 12A(a,b). By increasing the tapered processing, the structure’s tapered region is shaped to better excite the field in the sensing region and produce higher power EWs. In addition, the structure has a larger surface area, which increases the contact area of the swift wave with the environment. The results show that the sensor has good linearity for histamine in the range of 0-1000 µM with an LOD of 59.45 µM. In addition, the sensor has good reproducibility and repeatability, as well as immunity to other interfering substances. The sensor provides a novel and simple approach for developing fiber optic based LSPR biosensors for food safety and biomedical applications.

Wang et al. [136] developed a novel LSPR-based sensor for the detection of alanine aminotransferase, a closely related clinical indicator of liver injury in human blood. The sensor employs a taper-in-taper (TIT) fiber optic structure with a structural schematic and experimental apparatus as shown in Figure 12B(a,b). This is the first time such a structure has been applied to biosensing. The structure was prepared by a three-electrode semi-vacuum taper pulling technique, and TIT was used to reprocess the single-taper structure to achieve a composite multi-taper structure. The variation of the transition region breaks the original TIR propagation pattern of the fiber, which facilitates the leakage of light inside the fiber. By increasing the complexity of the transition region, this further changes the propagation constant and excites additional higher order modes to improve the sensitivity of the sensor, which is closely related to the unique structure of the transition region. The results show that the probe shows excellent linearity for the subsequently determined ALT concentration. In addition, the structure has high sensitivity and stability to determine its value for clinical application in the diagnosis of liver injury.

Mumtaz et al. [137] designed an ultrasensitive micro-strain sensor with an asymmetric fiber taper. The sensor was fabricated with a 10 μm ultra-thin asymmetric conical waist using SMF to form a Michelson interferometer. The schematic diagram of the modified structure and the experimental setup are shown in Figure 12C(a,b). The maximum strain sensitivity of the sensor is -39.77 pm/µε in the range of 0-1600 µε, and the long-term stability of the sensor for strain measurement is experimentally demonstrated. The sensor can realize the detection of small strains The sensor has the advantages of simple structure, easy fabrication, small size and low cost, and can be widely used in the field of mechanical property testing at the micro and nano scale.

Figure 12. A. Schematic of (a) the humanoid shaped optical fiber sensor, (b) CMS machine tapering and HTOF probe fabrication process. Reprinted with permission from Optics Express, Copyright 2023, Optica [135]; B. schematic of (a) the tapered-in-taper fiber sensor, (b) experiment setup for ALT detection. Reprinted with permission from Measurement, Copyright 2023, Elsevier [136]; C. schematic of (a) the asymmetric fiber sensor, (b) experiment setup for strain measurements. Reprinted with permission from Measurement, Copyright 2023, Elsevier [137].

Zhu et al. [138] introduced a tapered fiber optic sensor based on a periodic tapered structure for the detection of ascorbic acid. The probe structure and characterization diagrams are shown in Figure 13A(a,b). The innovation of this work is the fabrication of a periodic tapered structure on the fiber surface, which increases the interaction between the fiber and the external medium and improves the sensitivity of the sensor. By immobilizing AuNPs/GO and specific enzymes on the tapered structure, an effective biosensing platform is formed that can effectively adsorb and oxidize ascorbic acid. The quantitative detection of ascorbic acid concentration was achieved by measuring the change of fiber optic transmission spectra at different concentrations of the substance to be measured. It provides an effective strategy for the development of new high-performance fiber optic sensors and has potential applications in the field of rapid and accurate detection of ascorbic acid.

Li et al. [139] further optimized the tapered fiber interferometric structure using the cascade method and successfully fabricated a novel cascaded S-tapered fiber intermodal interferometric structure for detecting tyramine concentration. The dual S-tapered structure can provide more leakage EWs to enhance the light-matter interaction and to improve the sensor sensitivity. The two bending positions of the S-taper serve as two beam coupling regions. At the first bending point, the light in the fiber core is coupled to the cladding, and the fundamental mode in the fiber core and the higher-order mode in the cladding are transmitted through the S-tapered fiber to produce a certain phase difference. In addition, as shown in Figure 13B(a), the sensor takes advantage of the excellent properties of Nb₂CT_x MXene such as strong adsorption ability, large specific surface area and excellent electrical conductivity, and modifies it with AuNPs and tyrosinase on the double S-tapered fiber to form an efficient biosensing interface. The results are shown in Figure 13B(b), with a sensor detection sensitivity of 34 pm/μM, a low detection limit of 0.35 μM, and a good selectivity. We also applied the sensor to real food samples to verify its reliability and practicality. The LSPR sensor with dual S-tapered optical fibers provides a novel and effective method to provide a new implement for food safety monitoring.

Figure 13. A. Schematic of (a) the periodically fiber sensor, (b) diameter scanning results and SEM image of periodically fiber. Reprinted with permission from Optics & Laser Technology, Copyright 2020, Elsevier [138]; B. (a) experiment setup for tyramine test, (b) Test results for tyramine detection. Reprinted with permission from Applied Physics Letters, Copyright 2023, Elsevier [139].

Various shapes of TOFs have different advantages and disadvantages for fiber optic sensor applications. Therefore, when designing and developing different types of TOF structures, the requirements of the applications and the characteristics of different types of tapered fibers need to be considered. In addition, with the emergence of new structures of tapered fiber optic sensors, fiber optic sensor technology will be used in more fields. Furthermore, in combination with other sensor technologies, tapered fiber optic sensors can play an even greater role. Consequently, the future research direction not only lies in developing new structures and sensing applications, but also needs to explore the combination and integration of multiple sensing technologies to achieve more efficient and accurate measurement and detection.

6. Future Prospects

With the increasing demand in some new fields, miniaturization of fiber-optic sensors with high sensitivity has clearly become a trend for future development. TOF sensors need to be integrated and miniaturized to meet the demand for miniaturization, portability and multifunctionality of sensors. In addition, the performance of TOF sensors can be improved further. For example, the sensitivity, selectivity, stability and other properties can be further improved by optimizing the structural design of tapered optical fibers, improving the preparation process, and exploring new surface modification methods. In addition, new fiber materials and fiber structures can be explored to meet the needs of different applications and achieve better sensitivity and resolution.

For further enhancement of the sensor performance, other innovative fiber optic structures have been investigated in depth, especially the fiber configuration shown in Figure 14, including dual-periodic tapered as well as quad-periodic tapered structure, taper-in-taper and taper-in-multi-taper structure, humanoid-shaped and dual-periodic S-taper. Naturally, novel fiber structures are also being investigated, such as W-shapes and taper-in-taper with core mismatch structures, and it is reasonable to believe that these emerging fiber structures could play an important role in diverse applications

On the other hand, although TOF sensors have a broad range of application prospects, it also faces some challenges. First, achieving large-scale preparation is still a challenge, and efficient and controllable preparation processes need to be sought to meet the needs of industrial production. Secondly, the stability of tapered fiber optic sensors during long time use is also an important issue. Since the structure of tapered fiber optic sensors is relatively fragile and easily disturbed by the external environment, long-time use can lead to problems such as structural deformation or damage, thus affecting the performance of the sensor, which must to be addressed further.

In conclusion, the TOF sensor is a promising sensor with a wide range of applications, but it still confronts hurdles in the preparation process, stability, challenging environmental applications, and performance improvement. These obstacles will be further solved and broken through in future research, with the continuous growth of science and technology, and it is believed that the bright development pro-spect of TOF sensing.

7. Conclusions

In this review, the progress of development, basic principles, and fabrication methods of tapered fiber optic based sensors are discussed. It also focuses on the application of tapered fiber optic sensors in physical, chemical, gas and biological fields, including research results in stress sensing, gas sensing and biomolecule detection. These results thoroughly indicate that TOF sensors have evolved into a prospective novel sensor with a wide range of applications in various fields and promising future development prospects. On the other hand, some challenges for TOF sensors have been observed. Among them, the fabrication process and stability are the current issues that need to be overcome. To solve these challenges, more efficient and controllable fabrication processes are required to be developed to enhance the stability and durability of the sensors.

The forthcoming innovative fiber-optic structures, including W-shape and taper-in-taper with core mismatch structures, will further explore the use of fiber-optic sensors for biosensing applications. In summary, TOF sensors have high application potential and development prospects, but still face some challenges. With the continuous development and innovation of technology, we believe that TOF sensors will be applied in more fields and become an important part of the new generation of sensors. It is believed that with continuous technical innovation and application demand, TOF sensors will be more widely used and innovated.

Author Contributions

Writing—original draft preparation, W. Z., X. L. (Xianzheng Lang), X. L. (Xuecheng Liu) and S. K.; writing—review and editing, R. S., G.L., B. Z. and S. K.; project administration and funding acquisition, R. S., S. K., and B. Z; Supervison: S. K., and B. Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Double–Hundred Talent Plan of Shandong Province, China; the Special Construction Project Fund for Shandong Province Taishan Mountain Scholars; and the Natural Science Foundation of Shandong Province (ZR2020QC061; ZR202112020062).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

S. Kumar acknowledges the support of the Double-Hundred Talent Plan of Shandong Province, China.

Conflicts of Interest

The authors declare no conflict of interest.

References

Hengoju, S.; Shvydkiv, O.; Tovar, M.; Roth, M.; Rosenbaum, M.A. Advantages of Optical Fibers for Facile and Enhanced Detection in Droplet Microfluidics. Biosensors and Bioelectronics 2022, 200, 113910. [Google Scholar] [CrossRef] [PubMed]
Temkina, V.; Medvedev, A.; Mayzel, A. Research on the Methods and Algorithms Improving the Measurements Precision and Market Competitive Advantages of Fiber Optic Current Sensors. Sensors 2020, 20, 5995. [Google Scholar] [CrossRef] [PubMed]
Zhu, L.; Sun, G.; Bao, W.; You, Z.; Meng, F.; Dong, M. Structural Deformation Monitoring of Flight Vehicles Based on Optical Fiber Sensing Technology: A Review and Future Perspectives. Engineering 2022, 16, 39–55. [Google Scholar] [CrossRef]
Komanec, M.; Dousek, D.; Suslov, D.; Zvanove, S. Hollow-Core Optical Fibers. RADIOENGINEERING 2020, 29, 417–430. [Google Scholar] [CrossRef]
Pilipova, V.M.; Davydov, V.V.; Rud, V.Y. Development of a Fiber-Optic System for Testing Instruments for Monitoring Nuclear Power Plants. J. Phys.: Conf. Ser. 2021, 2086, 012160. [Google Scholar] [CrossRef]
Akram, S.; Sidén, J.; Duan, J.; Alam, M.F.; Bertilsson, K. Design and Development of a Battery Powered Electrofusion Welding System for Optical Fiber Microducts. IEEE Access 2020, 8, 173024–173043. [Google Scholar] [CrossRef]
Raju, B.; Kumar, R.; Dhanalakshmi, S.; Dooly, G.; Duraibabu, D.B. Review of Fiber Optical Sensors and Its Importance in Sewer Corrosion Factor Analysis. Chemosensors 2021, 9, 118. [Google Scholar] [CrossRef]
Zhang, S.; Peng, Y.; Wei, X.; Zhao, Y. High-Sensitivity Biconical Optical Fiber SPR Salinity Sensor with a Compact Size by Fiber Grinding Technique. Measurement 2022, 204, 112156. [Google Scholar] [CrossRef]
Kuang, R.; Ye, Y.; Chen, Z.; He, R.; Savović, I.; Djordjevich, A.; Savović, S.; Ortega, B.; Marques, C.; Li, X.; et al. Low-Cost Plastic Optical Fiber Integrated with Smartphone for Human Physiological Monitoring. Optical Fiber Technology 2022, 71, 102947. [Google Scholar] [CrossRef]
Yu, H.; Zheng, D.; Liu, Y.; Chen, S.; Wang, X.; Peng, W. Low-Cost Self-Calibration Data Glove Based on Space-Division Multiplexed Flexible Optical Fiber Sensor. Polymers 2022, 14, 3935. [Google Scholar] [CrossRef]
Al-Qazwini, Y.; Noor, A.S.M.; Yaacob, M.H.; Harun, S.W.; Mahdi, M.A. Experimental Realization and Performance Evaluation of Refractive Index SPR Sensor Based on Unmasked Short Tapered Multimode-Fiber Operating in Aqueous Environments. Sensors and Actuators A: Physical 2015, 236, 38–43. [Google Scholar] [CrossRef]
Guo, Q.; Zhu, Y.; Shan, T.; Pan, X.; Liu, S.; Xue, Z.; Zheng, Z.; Chen, C.; Yu, Y. Intensity-Modulated Directional Torsion Sensor Based on a Helical Fiber Taper. Opt. Mater. Express, OME 2021, 11, 80–88. [Google Scholar] [CrossRef]
Liyanage, T.; Lai, M.; Slaughter, G. Label-Free Tapered Optical Fiber Plasmonic Biosensor. Anal. Chim. Acta 2021, 1169, 338629. [Google Scholar] [CrossRef] [PubMed]
Li-hui, F.; Junfeng, D. Mixed Oil Detection Method Based on Tapered Fiber SPR Sensor. Optical Fiber Technology 2023, 78, 103322. [Google Scholar] [CrossRef]
Taha, B.A.; Ali, N.; Sapiee, N.M.; Fadhel, M.M.; Mat Yeh, R.M.; Bachok, N.N.; Al Mashhadany, Y.; Arsad, N. Comprehensive Review Tapered Optical Fiber Configurations for Sensing Application: Trend and Challenges. Biosensors 2021, 11, 253. [Google Scholar] [CrossRef]
Wang, P.; Zhao, H.; Wang, X.; Farrell, G.; Brambilla, G. A Review of Multimode Interference in Tapered Optical Fibers and Related Applications. Sensors 2018, 18, 858. [Google Scholar] [CrossRef]
Chen, L.; Leng, Y.-K.; Liu, B.; Liu, J.; Wan, S.-P.; Wu, T.; Yuan, J.; Shao, L.; Gu, G.; Fu, Y.Q.; et al. Ultrahigh-Sensitivity Label-Free Optical Fiber Biosensor Based on a Tapered Singlemode- No Core-Singlemode Coupler for Staphylococcus Aureus Detection. Sensors and Actuators B: Chemical 2020, 320, 128283. [Google Scholar] [CrossRef]
Zhao, Y.; Zhao, H.; Lv, R.; Zhao, J. Review of Optical Fiber Mach–Zehnder Interferometers with Micro-Cavity Fabricated by Femtosecond Laser and Sensing Applications. Optics and Lasers in Engineering 2019, 117, 7–20. [Google Scholar] [CrossRef]
Wang, F.; Pang, K.; Ma, T.; Wang, X.; Liu, Y. Folded-Tapered Multimode-No-Core Fiber Sensor for Simultaneous Measurement of Refractive Index and Temperature. Optics & Laser Technology 2020, 130, 106333. [Google Scholar]
Wen, H.-Y.; Hsu, H.-C.; Tsai, Y.-T.; Feng, W.-K.; Lin, C.-L.; Chiang, C.-C. U-Shaped Optical Fiber Probes Coated with Electrically Doped GQDs for Humidity Measurements. Polymers 2021, 13, 2696. [Google Scholar] [CrossRef]
Teng, C.; Shao, P.; Li, S.; Li, S.; Liu, H.; Deng, H.; Chen, M.; Yuan, L.; Deng, S. Double-Side Polished U-Shape Plastic Optical Fiber Based SPR Sensor for the Simultaneous Measurement of Refractive Index and Temperature. Optics Communications 2022, 525, 128844. [Google Scholar] [CrossRef]
Bai, G.; Yin, Z.; Li, S.; Jing, X.; Chen, Q.; Zhang, M.; Shao, P. Enhancement of SPR Effect and Sensing Characteristics in D-Shaped Polished Grapefruit Microstructured Optical Fiber with Silver Film. Optics Communications 2023, 530, 129204. [Google Scholar] [CrossRef]
Fu, X.; Li, D.; Zhang, Y.; Fu, G.; Jin, W.; Bi, W. High Sensitivity Refractive Index Sensor Based on Cascaded Core-Offset Splicing NCF-HCF-NCF Structure. Optical Fiber Technology 2022, 68, 102791. [Google Scholar] [CrossRef]
Soares, M.S.; Silva, L.C.B.; Vidal, M.; Loyez, M.; Facão, M.; Caucheteur, C.; Segatto, M.E.V.; Costa, F.M.; Leitão, C.; Pereira, S.O.; et al. Label-Free Plasmonic Immunosensor for Cortisol Detection in a D-Shaped Optical Fiber. Biomed. Opt. Express 2022, 13, 3259–3274. [Google Scholar] [CrossRef] [PubMed]
Wang, R.; Liu, C.; Wei, Y.; Jiang, T.; Liu, C.; Shi, C.; Zhao, X.; Li, L. Research and Application of Multi-Channel SPR Sensor Cascaded with Fiber U-Shaped Structure. Optik 2022, 266, 169603. [Google Scholar] [CrossRef]
Wu, C.-W. Magnetic Field Sensor Based on Nickel-Coated S-Shaped Long Period Fiber Grating. Opt Quant Electron 2018, 50, 357. [Google Scholar] [CrossRef]
Sun, Y.; Guo, X.; Moreno, Y.; Sun, Q.; Yan, Z.; Zhang, L. Sensitivity Adjustable Biosensor Based on Graphene Oxide Coated Excessively Tilted Fiber Grating. Sensors and Actuators B: Chemical 2022, 351, 130832. [Google Scholar] [CrossRef]
Liu, C.; Wu, P.; Shi, C.; Liu, C.; Wei, Y.; Hu, L.; Wang, R.; Jiang, T. Fiber SPR Micro Displacement Sensor Based on Heterocore Structure of Graded Index Multimode Fiber. Optics Communications 2023, 529, 129095. [Google Scholar] [CrossRef]
Zhang, W.; Wu, M.; Jing, L.; Tong, Z.; Li, P.; Dong, M.; Tian, X.; Yan, G. Research on In-Line MZI Optical Fiber Salinity Sensor Based on Few-Mode Fiber with Core-Offset Structure. Measurement 2022, 202, 111857. [Google Scholar] [CrossRef]
Liu, X.; Singh, R.; Li, M.; Li, G.; Min, R.; Marques, C.; Zhang, B.; Kumar, S. Plasmonic Sensor Based on Offset-Splicing and Waist-Expanded Taper Using Multicore Fiber for Detection of Aflatoxins B1 in Critical Sectors. Opt. Express 2023, 31, 4783. [Google Scholar] [CrossRef]
Kumar, S.; Singh, R.; Zhu, G.; Yang, Q.; Zhang, X.; Cheng, S.; Zhang, B.; Kaushik, B.K.; Liu, F.-Z. Development of Uric Acid Biosensor Using Gold Nanoparticles and Graphene Oxide Functionalized Micro-Ball Fiber Sensor Probe. IEEE Transactions on NanoBioscience 2020, 19, 173–182. [Google Scholar] [CrossRef] [PubMed]
Liu, H.; Sun, Y.; Guo, J.; Liu, W.; Liu, L.; Meng, Y.; Yu, X. Temperature-Insensitive Label-Free Sensors for Human IgG Based on S-Tapered Optical Fiber Sensors. IEEE Access 2021, 9, 116286–116293. [Google Scholar] [CrossRef]
Wu, Y.; Liu, B.; Nan, T.; Wu, J.; Mao, Y.; Ren, J.; Zhao, L.; Sun, T.; Wang, J.; Han, Y.; et al. Fiber Optic Hybrid Structure Based on an Air Bubble and Thin Taper for Measurement of Refractive Index, Temperature, and Transverse Load. Optik 2021, 241, 166962. [Google Scholar] [CrossRef]
Gong, Z.; Lei, Y.; Wang, Z.; Zhang, J.; Sun, Z.; Li, Y.; Huang, J.; Chan, C.; Ouyang, X. A Taper-in-Taper Structured Interferometric Optical Fiber Sensor for Cu2+ Ion Detection. Sensors 2022, 22, 2709. [Google Scholar] [CrossRef] [PubMed]
Li, Z.; Wang, Z.; Qi, Y.; Jin, W.; Ren, W. Improved Evanescent-Wave Quartz-Enhanced Photoacoustic CO Sensor Using an Optical Fiber Taper. Sensors and Actuators B: Chemical 2017, 248, 1023–1028. [Google Scholar] [CrossRef]
Liu, Z.; Guo, C.; Yang, J.; Yuan, L. Tapered Fiber Optical Tweezers for Microscopic Particle Trapping: Fabrication and Application. Opt. Express, OE 2006, 14, 12510–12516. [Google Scholar] [CrossRef] [PubMed]
Anbalagan, T.; Haroon, H.; Zain, H.A.; Rafis, H.; Harun, S.W. Recent Progress Of Tapered Optical Fiber for Biosensing Applications. JESTR 2022, 15, 204–209. [Google Scholar] [CrossRef]
Bhardwaj, V.; Kishor, K.; Sharma, A.C. Tapered Optical Fiber Geometries and Sensing Applications Based on Mach-Zehnder Interferometer: A Review. Optical Fiber Technology 2020, 58, 102302. [Google Scholar] [CrossRef]
Stasiewicz, K.A.; Jakubowska, I.; Dudek, M. Detection of Organosulfur and Organophosphorus Compounds Using a Hexafluorobutyl Acrylate-Coated Tapered Optical Fibers. Polymers 2022, 14, 612. [Google Scholar] [CrossRef]
Liu, Y.; Liu, R.; Ai, C.; Wang, B.; Chu, R.; Wang, H.; Shui, L.; Zhou, F. Stick-Slip-Motion-Assisted Interfacial Self-Assembly of Noble Metal Nanoparticles on Tapered Optical Fiber Surface and Its Application in SERS Detection. Applied Surface Science 2022, 602, 154298. [Google Scholar] [CrossRef]
Noor, A.S.M.; Talah, A.; Rosli, M.A.A.; Thirunavakkarasu, P.; Tamchek, N. Increased Sensitivity of Au-Pd Nanolayer on Tapered Optical Fiber Sensor for Detecting Aqueous Ethanol. J. Eur. Opt. Soc.-Rapid Publ. 2017, 13, 28. [Google Scholar] [CrossRef]
Polokhin, A.A.; Shaman, Y.P.; Itrin, P.A.; Panyaev, I.S.; Sysa, A.A.; Selishchev, S.V.; Kitsyuk, E.P.; Pavlov, A.A.; Gerasimenko, A.Y. Tapered Optical Fiber Sensor Coated with Single-Walled Carbon Nanotubes for Dye Sensing Application. Micromachines 2023, 14, 579. [Google Scholar] [CrossRef] [PubMed]
Karimi-Alavijeh, H.; Taslimi, A.; Maghsoudian, M.H.; Poorghadiri, M.H.; Kazemzadeh, M. Fabrication of Low-Loss Adiabatic Optical Microfibers Using an Attainable Arc-Discharge Fiber Tapering Setup. Optics Communications 2022, 522, 128669. [Google Scholar] [CrossRef]
Hidayat, N.; Aziz, M.S.; Krishnan, G.; Johari, A.R.; Nur, H.; Taufiq, A.; Mufti, N.; Mukti, R.R.; Bakhtiar, H. Tapered Optical Fibers Using CO2 Laser and Their Sensing Performances. J. Phys.: Conf. Ser. 2023, 2432, 012013. [Google Scholar] [CrossRef]
Tang, Y.; Chen, X.; Zhang, J.; Lv, D.; Xiong, L.; Dong, X. Sensitivity-Enhanced Hot-Wire Anemometer by Using Cladding-Etched Fiber Bragg Grating. Photonic Sens 2023, 13, 230305. [Google Scholar] [CrossRef]
Martan, T.; Kanka, J.; Kasik, I.; Matejec, V. Tapered Optical Fibres for Sensing. In Proceedings of the Photonics, Devices, and Systems IV; SPIE, November 18 2008; Vol. 7138, pp. 256–261.
Sun, M.; Liu, Y.; Chen, D.; Qian, Q. Multifunctional Cu-Se Alloy Core Fibers and Micro–Nano Tapers. Nanomaterials 2023, 13, 773. [Google Scholar] [CrossRef] [PubMed]
Zhou, J.; He, X.; Yin, T.; Yang, J.; Guan, C.; Yuan, L. A Chirped Long Period Fiber Grating Sensor Based on Micro-Helix Taper. Optical Fiber Technology 2023, 78, 103289. [Google Scholar] [CrossRef]
Fu, X.; Huang, Z.; Li, Q.; Cao, X.; Wang, Y.; Fu, G.; Jin, W.; Bi, W. A Cascaded Triple Waist-Enlarged Taper Few-Mode Fiber Temperature Sensor with Beaded Structure. Optics & Laser Technology 2022, 156, 108621. [Google Scholar]
Aerts, J.T.; Andrén, P.E.; Jansson, E.T. Electrochemically Etched Tapered-Tip Stainless-Steel Electrospray-Ionization Emitters for Capillary Electrophoresis–Mass Spectrometry. J. Proteome Res. 2023, 22, 1377–1380. [Google Scholar] [CrossRef]
AL-Mashhadani, Z.A.A.; Navruz, I. Highly Sensitive Measurement of Surrounding Refractive Index Using Tapered Trench–Assisted Multicore Fiber. Optical Fiber Technology 2019, 48, 76–83. [Google Scholar] [CrossRef]
Shao, F.; Li, S.; Lu, L.; Kuai, Y.; Cao, Z.; Xu, F.; Liu, Y.; Xie, F.; Xie, K.; Yu, B.; et al. High Sensitivity and Dual Parameters Micro-Tapered-LPG Sensor. Optics and Lasers in Engineering 2023, 164, 107498. [Google Scholar] [CrossRef]
Bakhshi, A.; Jalaly, M.; Vahedi, M. The Effect of GO–Fe3O4 Hybrid Coating on the Magnetic Field Detection by a Tapered Optical Fiber Sensor. Optical Fiber Technology 2022, 74, 103134. [Google Scholar] [CrossRef]
Tan, Y.; Huang, T.; Sun, L.-P.; Jiang, S.; Liu, Y.; Guan, B.-O.; Jin, W. Dispersion Turning Point-Enhanced Photothermal Interferometry Gas Sensor with an Optical Microfiber Interferometer. Sensors and Actuators B: Chemical 2023, 385, 133690. [Google Scholar] [CrossRef]
Arjmand, M.; Saghafifar, H.; Alijanianzadeh, M.; Soltanolkotabi, M. A Sensitive Tapered-Fiber Optic Biosensor for the Label-Free Detection of Organophosphate Pesticides. Sensors and Actuators B: Chemical 2017, 249, 523–532. [Google Scholar] [CrossRef]
Korposh, S.; James, S.W.; Lee, S.-W.; Tatam, R.P. Tapered Optical Fibre Sensors: Current Trends and Future Perspectives. Sensors 2019, 19, 2294. [Google Scholar] [CrossRef]
Yang, Q.; Zhu, G.; Singh, L.; Wang, Y.; Singh, R.; Zhang, B.; Zhang, X.; Kumar, S. Highly Sensitive and Selective Sensor Probe Using Glucose Oxidase/Gold Nanoparticles/Graphene Oxide Functionalized Tapered Optical Fiber Structure for Detection of Glucose. Optik 2020, 208, 164536. [Google Scholar] [CrossRef]
Danny, C.G.; Danny Raj, M.; Sai, V.V.R. Investigating the Refractive Index Sensitivity of U-Bent Fiber Optic Sensors Using Ray Optics. J. Lightwave Technol. 2020, 38, 1580–1588. [Google Scholar] [CrossRef]
Tai, Y.-H.; Kamal, A.S.A.; Park, Y.-J.; Tsai, P.-C.; Ho, Y.-L.; Wei, P.-K.; Daiguji, H.; Delaunay, J.-J. Real-Time Monitoring of Frost/Defrost Processes Using a Tapered Optical Fiber. IEEE Sensors Journal 2021, 21, 6188–6194. [Google Scholar] [CrossRef]
Addanki, S.; Amiri, I.S.; Yupapin, P. Review of Optical Fibers-Introduction and Applications in Fiber Lasers. Results in Physics 2018, 10, 743–750. [Google Scholar] [CrossRef]
Li, L.; Zhang, Y.; Zhou, Y.; Zheng, W.; Sun, Y.; Ma, G.; Zhao, Y. Optical Fiber Optofluidic Bio-Chemical Sensors: A Review. Laser & Photonics Reviews 2021, 15, 2000526. [Google Scholar]
Chen, N.; Zhou, X.; Li, X. Highly Sensitive Humidity Sensor With Low-Temperature Cross-Sensitivity Based on a Polyvinyl Alcohol Coating Tapered Fiber. IEEE Transactions on Instrumentation and Measurement 2021, 70, 1–8. [Google Scholar] [CrossRef]
Cano Perez, J.L.; Gutiérrez-Gutiérrez, J.; Perezcampos Mayoral, C.; Pérez-Campos, E.L.; Pina Canseco, M. del S.; Tepech Carrillo, L.; Mayoral, L.P.-C.; Vargas Treviño, M.; Apreza, E.L.; Rojas Laguna, R. Fiber Optic Sensors: A Review for Glucose Measurement. Biosensors 2021, 11, 61. [Google Scholar]
Zhao, Y.; Lei, M.; Liu, S.-X.; Zhao, Q. Smart Hydrogel-Based Optical Fiber SPR Sensor for PH Measurements. Sensors and Actuators B: Chemical 2018, 261, 226–232. [Google Scholar] [CrossRef]
Yang, Y.; Ge, K.; Tao, P.; Dai, S.; Wang, X.; Zhang, W.; Xu, T.; Wang, Y.; Lin, T.-J.; Zhang, P. Mid-Infrared Evanescent Wave Sensor Based on Side-Polished Chalcogenide Fiber. Ceramics International 2023, 49, 1291–1297. [Google Scholar] [CrossRef]
Jiang, J.; Wu, R.; Liu, J.; Wu, X.; Wu, Q.; Ranjan, P.; Zhang, X.; Liu, J. S-Taper Fiber Based Moisture Sensing in Power Transformer Oil. IEEE Transactions on Instrumentation and Measurement 2023, 72, 1–8. [Google Scholar] [CrossRef]
Patil, P.O.; Pandey, G.R.; Patil, A.G.; Borse, V.B.; Deshmukh, P.K.; Patil, D.R.; Tade, R.S.; Nangare, S.N.; Khan, Z.G.; Patil, A.M.; et al. Graphene-Based Nanocomposites for Sensitivity Enhancement of Surface Plasmon Resonance Sensor for Biological and Chemical Sensing: A Review. Biosensors and Bioelectronics 2019, 139, 111324. [Google Scholar] [CrossRef]
Shalabney, A.; Abdulhalim, I. Sensitivity-Enhancement Methods for Surface Plasmon Sensors: SPR Sensors Sensitivity Enhancement. Laser & Photon. Rev. 2011, 5, 571–606. [Google Scholar]
Pandey, P.S.; Raghuwanshi, S.K.; Kumar, S. Recent Advances in Two-Dimensional Materials-Based Kretschmann Configuration for SPR Sensors: A Review. IEEE Sensors J. 2022, 22, 1069–1080. [Google Scholar] [CrossRef]
Kumar, S.; Singh, R.; Wang, Z.; Li, M.; Liu, X.; Zhang, W.; Zhang, B.; Li, G. (Invited) Advances in 2D Nanomaterials-Assisted Plasmonics Optical Fiber Sensors for Biomolecules Detection. Results in Optics 2023, 10, 100342. [Google Scholar] [CrossRef]
Wang, B.-T.; Wang, Q. Sensitivity-Enhanced Optical Fiber Biosensor Based on Coupling Effect Between SPR and LSPR. IEEE Sensors Journal 2018, 18, 8303–8310. [Google Scholar] [CrossRef]
Feng, J.; Gao, J.; Yang, W.; Liu, R.; Shafi, M.; Zha, Z.; Liu, C.; Xu, S.; Ning, T.; Jiang, S. LSPR Optical Fiber Sensor Based on 3D Gold Nanoparticles with Monolayer Graphene as a Spacer. Opt. Express 2022, 30, 10187. [Google Scholar] [CrossRef] [PubMed]
Dos Santos, P.S.S.; Mendes, J.P.; Dias, B.; Pérez-Juste, J.; De Almeida, J.M.M.M.; Pastoriza-Santos, I.; Coelho, L.C.C. Spectral Analysis Methods for Improved Resolution and Sensitivity: Enhancing SPR and LSPR Optical Fiber Sensing. Sensors 2023, 23, 1666. [Google Scholar] [CrossRef] [PubMed]
Mayer, K.M.; Hafner, J.H. Localized Surface Plasmon Resonance Sensors. Chem. Rev. 2011, 111, 3828–3857. [Google Scholar] [CrossRef] [PubMed]
Zhang, J.; Kolhatkar, G.; Ruediger, A. Localized Surface Plasmon Resonance Shift and Its Application in Scanning Near-Field Optical Microscopy. J. Mater. Chem. C 2021, 9, 6960–6969. [Google Scholar] [CrossRef]
Xia, F.; Zhao, Y.; Peng, Y. In-Line Microfiber MZI Operating at Two Sides of the Dispersion Turning Point for Ultrasensitive RI and Temperature Measurement. Sensors and Actuators A: Physical 2020, 301, 111754. [Google Scholar] [CrossRef]
Wang, Q.; Kong, L.; Dang, Y.; Xia, F.; Zhang, Y.; Zhao, Y.; Hu, H.; Li, J. High Sensitivity Refractive Index Sensor Based on Splicing Points Tapered SMF-PCF-SMF Structure Mach-Zehnder Mode Interferometer. Sensors and Actuators B: Chemical 2016, 225, 213–220. [Google Scholar] [CrossRef]
Fu, X.; Huang, Z.; Zhou, J.; Zhang, W.; Jin, W.; Fu, G.; Liu, F.; Bi, W.; Luo, Y.; Peng, G.-D. A Dual-Parameter Sensing System for Temperature and Curvature Based on Nano-EYDF and in-Line Cascaded Mach-Zehnder Interferometer. Optics & Laser Technology 2023, 163, 109353. [Google Scholar]
Xia, F.; Zhao, Y.; Zheng, H.; Li, L.; Tong, R. Ultra-Sensitive Seawater Temperature Sensor Using an FBG-Cascaded Microfiber MZI Operating at Dispersion Turning Point. Optics & Laser Technology 2020, 132, 106458. [Google Scholar]
Riza, M.A.; Go, Y.I.; Harun, S.W.; Maier, R.R.J. FBG Sensors for Environmental and Biochemical Applications—A Review. IEEE Sensors J. 2020, 20, 7614–7627. [Google Scholar] [CrossRef]
Jiao, L.; Zhong, N.; Zhao, X.; Ma, S.; Fu, X.; Dong, D. Recent Advances in Fiber-Optic Evanescent Wave Sensors for Monitoring Organic and Inorganic Pollutants in Water. TrAC, Trends Anal. Chem. 2020, 127, 115892. [Google Scholar] [CrossRef]
Gan, W.; Li, Y.; Liu, T.; Yang, Y.; Song, B.; Dai, S.; Xu, T.; Wang, Y.; Lin, T.-J.; Zhang, P. Rapid and Sensitive Detection of Ammonia in Water by a Long Period Fiber Grating Sensor Coated with Sol-Gel Silica. Opt. Express 2022, 30, 33817. [Google Scholar] [CrossRef] [PubMed]
Zhang, W.; Zhuang, W.; Dong, M.; Zhu, L.; Meng, F. Dual-Parameter Optical Fiber Sensor for Temperature and Pressure Discrimination Featuring Cascaded Tapered-FBG and Ball-EFPI. IEEE Sensors J. 2019, 19, 5645–5652. [Google Scholar] [CrossRef]
Son, G.; Jung, Y.; Yu, K. Tapered Optical Fiber Couplers Fabricated by Droplet-Based Chemical Etching. IEEE Photonics Journal 2017, 9, 1–8. [Google Scholar] [CrossRef]
Ascorbe, J.; Corres, J.M.; Matias, I.R.; Arregui, F.J. High Sensitivity Humidity Sensor Based on Cladding-Etched Optical Fiber and Lossy Mode Resonances. Sensors and Actuators B: Chemical 2016, 233, 7–16. [Google Scholar] [CrossRef]
Chen, Q.; Yang, W.; Zhang, L.; Li, C.; Guan, C.; Xiong, Y.; Yang, Y.; Li, L. The Fiber Temperature Sensor with PDMS Sensitization Based on the T-MFM Fiber Structure. Optical Fiber Technology 2021, 67, 102701. [Google Scholar] [CrossRef]
Liu, J.; Xu, M.; Abbas, L.G.; Jing, C.; Yao, W.; Zhou, Q.; Zhou, A. High-Sensitivity Temperature Sensor Based on Mach-Zehnder Interference of Asymmetric Taper-Shaped Ultraviolet Glue. Optical Fiber Technology 2022, 72, 102997. [Google Scholar] [CrossRef]
Lu, C.; Dashtabi, M.M.; Nikbakht, H.; Khoshmehr, M.T.; Akca, B.I. Sub-Nanometer Acoustic Vibration Sensing Using a Tapered-Tip Optical Fiber Microcantilever. Sensors 2023, 23, 924. [Google Scholar] [CrossRef] [PubMed]
Fu, J.; Xu, Y.; Xu, M.; Abbas, L.G.; Zhou, A. Highly Sensitive Humidity Sensor Based on Tapered Dual Side-Hole Fiber. Optik 2022, 261, 169183. [Google Scholar] [CrossRef]
Shao, M.; Han, L.; Liang, J.; Zhang, R.; Gao, H. A High-Sensitivity Liquid Level Sensor Based on Single-Mode Taper-Thin Core Taper Single-Mode Fiber Structure. Meas. Sci. Technol. 2020, 31, 105101. [Google Scholar] [CrossRef]
Wu, Q.; Zhao, Y.; Zhang, Y.; Yang, Y. High Sensitive Applied Load Measurement Using Optical Fiber Tapered-Loop Probe with SPR Effect. Optics & Laser Technology 2019, 114, 95–102. [Google Scholar]
Kumar, R. Magnetic Field Sensing Using Tapered Small-Core Optical Fibre Surrounded by Different Concentrations of Magnetic Fluid. Sensors 2022, 22, 8536. [Google Scholar] [CrossRef] [PubMed]
Li, J.; Gan, W.; Li, H.; Xu, M.; Liu, J.; Zhou, A. Temperature Compensated Highly Sensitive Refractive Index Sensor Based on Mach-Zehnder Interferometer and FBG. Optik 2021, 241, 166838. [Google Scholar] [CrossRef]
Ahsani, V.; Ahmed, F.; Jun, M.B.G.; Bradley, C. Tapered Fiber-Optic Mach-Zehnder Interferometer for Ultra-High Sensitivity Measurement of Refractive Index. Sensors 2019, 19, 1652. [Google Scholar] [CrossRef] [PubMed]
Teng, C.; Li, M.; Cheng, Y.; Peng, H.; Deng, S.; Deng, H.; Yuan, L.; Chen, M. Investigation of U-Shape Tapered Plastic Optical Fibers Based Surface Plasmon Resonance Sensor for RI Sensing. Optik 2022, 251, 168461. [Google Scholar] [CrossRef]
Mumtaz, F.; Cheng, P.; Li, C.; Cheng, S.; Du, C.; Yang, M.; Dai, Y.; Hu, W. A Design of Taper-Like Etched Multicore Fiber Refractive Index-Insensitive a Temperature Highly Sensitive Mach-Zehnder Interferometer. IEEE Sens. J. 2020, 20, 7074–7081. [Google Scholar] [CrossRef]
Liao, Y.-C.; Liu, B.; Liu, J.; Wan, S.-P.; He, X.-D.; Yuan, J.; Fan, X.; Wu, Q. High Temperature (Up to 950 °C) Sensor Based on Micro Taper In-Line Fiber Mach–Zehnder Interferometer. Applied Sciences 2019, 9, 2394. [Google Scholar] [CrossRef]
Kang, X.; Wang, R.; Jiang, M.; Li, E.; Li, Y.; Yan, X.; Wang, T.; Ren, Z. Polydopamine Functionalized Graphene Oxide for High Sensitivity Micro-Tapered Long Period Fiber Grating Sensor and Its Application in Detection Co2+ Ions. Optical Fiber Technology 2022, 68, 102807. [Google Scholar] [CrossRef]
Liu, T.; Wang, W.; Jian, D.; Li, J.; Ding, H.; Yi, D.; Liu, F.; Wang, S. Quantitative Remote and On-Site Hg2+ Detection Using the Handheld Smartphone Based Optical Fiber Fluorescence Sensor (SOFFS). Sensors and Actuators B: Chemical 2019, 301, 127168. [Google Scholar] [CrossRef]
Wei, Y.; Ran, Z.; Liu, C.; Wang, R.; Jiang, T.; Liu, C.; Shi, C.; Ren, Z.; Wang, X.; Tan, W.; et al. Twisted Fiber SPR Sensor for Copper Ion Detection. Optik 2022, 271, 170208. [Google Scholar] [CrossRef]
Wang, G.; Sun, D.; Liang, L.; Wang, G.; Ma, J. Highly Sensitive Detection of Trace Lead Ions Concentration Based on a Functional Film-Enhanced Optical Microfiber Sensor. Optics & Laser Technology 2023, 161, 109171. [Google Scholar]
Teng, P.; Jiang, Y.; Chang, X.; Shen, Y.; Liu, Z.; Copner, N.; Yang, J.; Li, K.; Bowkett, M.; Yuan, L.; et al. Highly Sensitive On-Line Detection of Trace Pb2+ Based on Tapered Fiber Integrated with Black Phosphorus. Optical Fiber Technology 2021, 66, 102668. [Google Scholar] [CrossRef]
Chauhan, M.; Singh, V.K. TiO2 Coated Tapered Optical Fiber SPR Sensor for Alcohol Sensing Application. J Opt 2023. [Google Scholar] [CrossRef]
Chauhan, M.; Singh, V.K. Tapered MMF Sensor Fabrication Using SnO2-NPs for Alcohol Sensing Application. Optical Fiber Technology 2023, 75, 103167. [Google Scholar] [CrossRef]
Yan, Y.; Fan, M.; Zhou, S.; Sun, X.; Ma, L.; Li, R.; Kost, A.R. Tapered Mach–Zehnder Interferometer Based on PbS Quantum Dots Modified by Polymers for Copper Ion Sensing. Appl. Opt., AO 2021, 60, 4807–4813. [Google Scholar] [CrossRef] [PubMed]
Venkataraj, R.; Nampoori, V.P.N.; Radhakrishnan, P.; Kailasnath, M. Chemically Tapered Multimode Optical Fiber Probe for Fluoride Detection Based on Fluorescence Quenching of Curcumin. IEEE Sensors Journal 2015, 15, 5584–5591. [Google Scholar] [CrossRef]
Jiang, Y.; Feng, W.; Yang, X. Aluminium-Doped Zinc Oxide Sensing Membrane Integrated Fiber-Optic Michelson Interferometer for Trace Fluoride-Ion Detection. J. Phys. D: Appl. Phys. 2021, 54, 475102. [Google Scholar] [CrossRef]
Yusoff, A.; Azeman, N.H.; Mohamed Kassim, M.F.; Mobarak, N.N.; Haji Badri, K.; Mahdi, M.A.; Su’Ait, M.S.; Bakar, A.A.A. Bio-Based Polycationic Polyurethane as an Ion-Selective Membrane for Nitrate Tapered Optical Fiber Sensors. IEEE Access 2019, 7, 157103–157112. [Google Scholar] [CrossRef]
Wang, R.; Kang, X.; Kong, D.; Jiang, M.; Ren, Z.; Hu, B.; He, Z. Highly Sensitive Metal Ion Sensing by Graphene Oxide Functionalized Micro-Tapered Long-Period Fiber Grating. Analyst 2022, 147, 3025–3034. [Google Scholar] [CrossRef]
M. Alkhabet, M.; H. Girei, S.; K. Salih, H.; Thabit, R.; Abdullah Issa, M.; Paiman, S.; Arsad, N.; Thamer Alresheedi, M.; A Mahdi, M.; H Yaacob, M. Room Temperature Operated Hydrogen Sensor Using Palladium Coated on Tapered Optical Fiber. Materials Science and Engineering: B 2023, 287, 116092. [CrossRef]
Bavili, N.; Balkan, T.; Morova, B.; Eryürek, M.; Uysallı, Y.; Kaya, S.; Kiraz, A. Highly Sensitive Optical Sensor for Hydrogen Gas Based on a Polymer Microcylinder Ring Resonator. Sensors and Actuators B: Chemical 2020, 310, 127806. [Google Scholar] [CrossRef]
Zhang, Y.; Wang, M.; Zhu, N.; Han, B.; Liu, Y. Optical Fiber Hydrogen Sensor Based on Self-Assembled PDMS/Pd-WO3 Microbottle Resonator. Sensors and Actuators B: Chemical 2023, 375, 132866. [Google Scholar] [CrossRef]
Chua, W.H.; Yaacob, M.H.; Tan, C.Y.; Ong, B.H. Chemical Bath Deposition of H-MoO3 on Optical Fibre as Room-Temperature Ammonia Gas Sensor. Ceramics International 2021, 47, 32828–32836. [Google Scholar] [CrossRef]
Mohammed, H.A.; Rashid, S.A.; Abu Bakar, M.H.; Ahmad Anas, S.B.; Mahdi, M.A.; Yaacob, M.H. Fabrication and Characterizations of a Novel Etched-Tapered Single Mode Optical Fiber Ammonia Sensors Integrating PANI/GNF Nanocomposite. Sensors and Actuators B: Chemical 2019, 287, 71–77. [Google Scholar] [CrossRef]
Zhao, Y.; Zhang, S.-Y.; Wen, G.-F.; Han, Z.-X. Graphene-Based Optical Fiber Ammonia Gas Sensor. Instrumentation Science & Technology 2018, 46, 12–27. [Google Scholar]
Fu, H.; Wang, Q.; Ding, J.; Zhu, Y.; Zhang, M.; Yang, C.; Wang, S. Fe2O3 Nanotube Coating Micro-Fiber Interferometer for Ammonia Detection. Sensors and Actuators B: Chemical 2020, 303, 127186. [Google Scholar] [CrossRef]
Fu, H.; You, Y.; Wang, S.; Chang, H. SnO2 Nanomaterial Coating Micro-Fiber Interferometer for Ammonia Concentration Measurement. Optical Fiber Technology 2022, 68, 102819. [Google Scholar] [CrossRef]
Girei, S.H.; Alkhabet, M.M.; Kamil, Y.M.; Lim, H.N.; Mahdi, M.A.; Yaacob, M.H. Wavelength Dependent Graphene Oxide-Based Optical Microfiber Sensor for Ammonia Gas. Sensors 2021, 21, 556. [Google Scholar] [CrossRef]
Qi, Q.; Chu, L.; Zhou, W.; Zhang, P.; Wang, X.; Dai, S.; Xu, T. A Gas-Liquid Sensor Functionalized With Graphene-Oxide on Chalcogenide Tapered Fiber by Chemical Etching. J. Lightwave Technol., JLT 2021, 39, 6976–6984. [Google Scholar] [CrossRef]
Johari, S.H.; Cheak, T.Z.; Rahim, H.R.A.; Jali, M.H.; Yusof, H.H.M.; Johari, M.A.M.; Harun, S.W. Formaldehyde Sensing Using Tapered U-Shape Plastic Optical Fiber Coated With Zinc Oxide Nanorods. IEEE Access 2022, 10, 91445–91451. [Google Scholar] [CrossRef]
Alkhabet, M.M.; Yaseen, Z.M.; Eldirderi, M.M.A.; Khedher, K.M.; Jawad, A.H.; Girei, S.H.; Salih, H.K.; Paiman, S.; Arsad, N.; Mahdi, M.A.; et al. Palladium/Graphene Oxide Nanocomposite for Hydrogen Gas Sensing Applications Based on Tapered Optical Fiber. Materials 2022, 15, 8167. [Google Scholar] [CrossRef]
Kang, X.; Wang, R.; Jiang, M.; Li, E.; Li, Y.; Wang, T.; Ren, Z. A Label-Free Biosensor for Pepsin Detection Based on Graphene Oxide Functionalized Micro-Tapered Long Period Fiber Grating. Sensors and Actuators Reports 2023, 5, 100139. [Google Scholar] [CrossRef]
Wang, R.; Ren, Z.; Kong, D.; Hu, B.; He, Z. Highly Sensitive Label-Free Biosensor Based on Graphene-Oxide Functionalized Micro-Tapered Long Period Fiber Grating. Optical Materials 2020, 109, 110253. [Google Scholar] [CrossRef]
Li, M.; Singh, R.; Soares, M.S.; Marques, C.; Zhang, B.; Kumar, S. Convex Fiber-Tapered Seven Core Fiber-Convex Fiber (CTC) Structure-Based Biosensor for Creatinine Detection in Aquaculture. Opt. Express 2022, 30, 13898–13914. [Google Scholar] [CrossRef] [PubMed]
Xiao, P.; Sun, Z.; Huang, Y.; Lin, W.; Ge, Y.; Xiao, R.; Li, K.; Li, Z.; Lu, H.; Yang, M.; et al. Development of an Optical Microfiber Immunosensor for Prostate Specific Antigen Analysis Using a High-Order-Diffraction Long Period Grating. Opt. Express, OE 2020, 28, 15783–15793. [Google Scholar] [CrossRef] [PubMed]
Li, M.; Yan, M.; Xu, B.; Zhao, C.; Wang, D.; Wang, Y.; Chen, H. A Dual-Mode Optical Fiber Sensor for SERS and Fluorescence Detection in Liquid. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy 2023, 290, 122267. [Google Scholar] [CrossRef]
Zhu, G.; Wang, Y.; Wang, Z.; Singh, R.; Marques, C.; Wu, Q.; Kaushik, B.K.; Jha, R.; Zhang, B.; Kumar, S. Localized Plasmon-Based Multicore Fiber Biosensor for Acetylcholine Detection. IEEE Trans. Instrum. Meas. 2022, 71, 1–9. [Google Scholar] [CrossRef]
Idris, S.; Azeman, N.H.; Noor Azmy, N.A.; Ratnam, C.T.; Mahdi, M.A.; A. Bakar, A.A. Gamma Irradiated Py/PVA for GOx Immobilization on Tapered Optical Fiber for Glucose Biosensing. Sensors and Actuators B: Chemical 2018, 273, 1404–1412. [CrossRef]
Aziz, M.S.; Shamsudin, M.S.; Fahri, M.A.S.A.; Syuhada, A.; Raja Ibrahim, R.K.; Bakhtiar, H.; Harun, S.W. Glucose Oxidase-Based Enzyme Immobilised on Tapered Optical Fibre for Reliability Improvement in Selective Glucose Sensing. Optik 2022, 259, 168970. [Google Scholar] [CrossRef]
Li, Y.; Du, M.; He, S.; Wang, R.; Zhang, Z.; Wang, Q. Sensitive Label-Free Hemoglobin Detection Based on Polydopamine Functionalized Graphene Oxide Coated Micro-Tapered Long-Period Fiber Grating. Optik 2023, 275, 170626. [Google Scholar] [CrossRef]
Kumar, S.; Wang, Y.; Li, M.; Wang, Q.; Malathi, S.; Marques, C.; Singh, R.; Zhang, B. Plasmon-Based Tapered-in-Tapered Fiber Structure for p-Cresol Detection: From Human Healthcare to Aquaculture Application. IEEE Sens. J. 2022, 22, 18493–18500. [Google Scholar] [CrossRef]
Shaimerdenova, M.; Ayupova, T.; Ashikbayeva, Z.; Bekmurzayeva, A.; Blanc, W.; Tosi, D. Reflector-Less Shallow-Tapered Optical Fiber Biosensors for Rapid Detection of Cancer Biomarkers. Journal of Lightwave Technology 2022, 1–10. [Google Scholar] [CrossRef]
Lu, L.; Zhu, L.; Zhu, G.; Dong, M.; Zeng, Z. ZIF-8/Lipase Coated Tapered Optical Fiber Biosensor for the Detection of Triacylglycerides. IEEE Sensors Journal 2020, 20, 14173–14180. [Google Scholar] [CrossRef]
Mansor, M.; Abu Bakar, M.H.; Omar, M.F.; Mustapha Kamil, Y.; Zainol Abidin, N.H.; Mustafa, F.H.; Mahdi, M.A. Taper Biosensor in Fiber Ring Laser Cavity for Protein Detection. Optics & Laser Technology 2020, 125, 106033. [Google Scholar]
Zhang, W.; Singh, R.; Wang, Z.; Li, G.; Xie, Y.; Jha, R.; Marques, C.; Zhang, B.; Kumar, S. Humanoid Shaped Optical Fiber Plasmon Biosensor Functionalized with Graphene Oxide/Multi-Walled Carbon Nanotubes for Histamine Detection. Opt. Express 2023, 31, 11788–11803. [Google Scholar] [CrossRef] [PubMed]
Wang, Z.; Singh, R.; Marques, C.; Jha, R.; Zhang, B.; Kumar, S. Taper-in-Taper Fiber Structure-Based LSPR Sensor for Alanine Aminotransferase Detection. Opt. Express 2021, 29, 43793–43810. [Google Scholar] [CrossRef]
Mumtaz, F.; Roman, M.; Zhang, B.; Huang, J. Assembly-Free Ultra-Sensitive Miniaturized Strain Sensor Based on an Asymmetric Optical Fiber Taper. Measurement 2023, 211, 112655. [Google Scholar] [CrossRef]
Zhu, G.; Agrawal, N.; Singh, R.; Kumar, S.; Zhang, B.; Saha, C.; Kumar, C. A Novel Periodically Tapered Structure-Based Gold Nanoparticles and Graphene Oxide – Immobilized Optical Fiber Sensor to Detect Ascorbic Acid. Optics & Laser Technology 2020, 127, 106156. [Google Scholar]
Li, G.; Singh, R.; Guo, J.; Zhang, B.; Kumar, S. Nb ₂ CT _x MXene-Assisted Double S-Tapered Fiber-Based LSPR Sensor with Improved Features for Tyramine Detection. Appl. Phys. Lett. 2023, 122, 083701. [Google Scholar] [CrossRef]

Figure 1. Schematic of the TOF sensors used in different sensing applications [51,52,53,54].

Figure 2. Schematic of basic tapered fiber structure.

Figure 3. Schematics of TOF fabricating process A. three-electrode system; B. dual-electrode tapered system; C. oxyhydrogen flame heating system. Reprinted with permission from Optics & Laser Technology, Copyright 2020, Elsevier [19]; and D. chemical etching facility.

Figure 5. Schematic diagram of A. (a) the PDA-GO-MTLPFG functionalization process and (b) experimental setup of Co²⁺ sensing, (c) transmission spectra GO-MTLPFG for Co²⁺ sensing. Reprinted with permission from Optical Fiber Technology, Copyright 2022, Elsevier [98]; schematic diagram of B. (a) SOFFS Principle and (b) QD functionalization process, (c) SOFFS hardware design. Reprinted with permission from Sensors and Actuators B: Chemical, Copyright 2019, Elsevier [99]; schematic diagram of C. (a) fabrication process of twisted fiber structure and (b) RI sensing test equipment, (c) SPR resonance spectrum and relationship of Cu²⁺ concentration and resonance wavelength. Reprinted with permission from Optik, Copyright 2022, Elsevier [100].

Figure 11. Schematic diagram of innovative TOF structures in recent years.

Figure 14. Graphs of diameter scan A. humanoid-shaped; B. taper-in-taper; C. periodic taper; D. dual-taper; E. multi-taper-in- taper; and F. schematic of double S-taper.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.

MDPI Initiatives

Important Links

Choose an area of interest and we will send you notifications of new preprints at your preferred frequency.

Disclaimer

Advances in Tapered Optical Fiber Sensor Structures: From Conventional to Novel and Emerging

Abstract

1. Introduction

2. Theoretical Mechanism for Sensing

2.1. Basic Structure of TOF

2.2. Evanescent Waves Sensing Principle of TOF

2.3. SPR/LSPR Sensor Mechanism Based on TOF

2.4. In-Line MZI Theory Based on TOF

2.5. Grating Sensing Principle of TOF

3. Fabrication Method of TOF

3.1. Arc Discharge Technology

3.2. Laser Processing Technology

3.3. Chemical Etching Technology

4. Applications of TOF Sensors

4.1. Physical Applications of TOF Sensors

4.2. Chemical Applications of TOF Sensors

4.3. TOF-Based Gas Sensors

4.4. TOF-Based Biosensors

5. Novel TOF Structure

6. Future Prospects

7. Conclusions

Author Contributions

Funding

Institutional Review Board Statement

Informed Consent Statement

Data Availability Statement

Acknowledgments

Conflicts of Interest

References

MDPI Initiatives

Important Links

Subscribe
