Preprint
Article

Autoimmune Limbic Encephalitis in Patients With Hematologic Malignancies After Haploidentical Hematopoietic Stem Cell Transplantation With Post-transplant Cyclophosphamide

Altmetrics

Downloads

144

Views

48

Comments

0

supplementary.pptx (739.29KB )

Submitted:

09 May 2023

Posted:

10 May 2023

You are already at the latest version

Alerts
Abstract
Autoimmune limbic encephalitis (LE) is a rare, but devastating complication of allogeneic hem-atopoietic stem cell transplantation (HSCT). There is currently limited evidence describing the risk factors, laboratory features, and underlying mechanisms of this neurologic adverse event. We retrospectively reviewed available clinical, imaging, and laboratory data from adult patients with hematological malignancies who underwent haploidentical HSCT with cyclophosphamide (PTCy) at Chungnam National University Hospital from June 2016 to May 2020. Patients who developed LE were compared to those who did not based on clinical assessment, serum inflam-matory biomarkers, and reconstitution of various T cell populations. Of 35 patients, four devel-oped LE. There were no differences in patient demographics, donor demographics, or treatment conditions between patients that did and did not develop LE. Overall, patients with LE had worse clinical outcomes and overall survival than those without. In addition, they tended to have higher markers of systemic inflammation in the early post-transplant period, including fever, C-reactive protein (CRP), and cytokines. Remarkably, baseline interleukin-6 levels before HSCT were found to be higher in patients who developed LE than those who did not. In addition, analysis of T cell subsets showed impaired expansion of CD25+FOXP3+ regulatory T (Treg) cells in LE compared to non-LE patients despite appropriate reconstitution of the total CD4+ T cell population. Patients that developed LE within the first 30 days of HSCT were likely to have high serum IL-6 among other inflammatory cytokines coupled with suppression of regulatory T cell differentiation. Further work is needed on the mechanisms underlying impaired Treg expansion following HSCT and potential therapies.
Keywords:
Subject: Medicine and Pharmacology  -   Hematology

1. Introduction

Allogeneic hematopoietic stem cell transplantation (HSCT) is a valuable curative therapy for hematological malignancies. Haploidentical allogeneic HSCT with high-dose post-transplant cyclophosphamide (PTCy) represents an emerging alternative option for patients with hematologic malignancies when a HLA identical sibling or a matched related donor is not available [1,2]. PTCy effectively eradicates alloreactive T cells after haploidentical stem cell infusion while hematopoietic stem cells are spared, thereby aiding in prevention of acute and chronic graft-versus-host disease (GVHD) [3,4,5]. Despite of the use of PTCy, however, patients continue to suffer from non-relapse mortality (NRM). While typical manifestations of acute GVHD and other NRM are thought to involve the skin, gastrointestinal tract, and liver, more recent reports have suggested that symptoms arising from central nervous system derangements may be a significant complication of immune therapies such as HSCT. Of these, a recent case report identified autoimmune limbic encephalitis (LE) as a complication of allogeneic HSCT [6]. LE is an inflammatory disease of the medial temporal lobes mediated by autoㅌantibodies such as antibodies to N-methyl-D-aspartate (NMDA)-type glutamate receptor (GluR) or human herpesvirus 6 (HHV-6), and has often been reported as a paraneoplastic syndrome [7,8,9]. The diagnosis of LE is often difficult due to broad range of clinical symptoms and overlapping features with other neurologic disorders, limiting the characterization on risk factors for the development of LE following allogeneic HSCT. As such, there is little data describing early changes following transplantation that precede the subacute progression of LE. Studies have shown, however, that the immediate post-transplantation course is often complicated by systemic inflammation associated with high levels of pro-inflammatory cytokines such as IL-6, TNF-α, and IFN-γ, termed cytokine-release syndrome (CRS) [6]. Imus et al. reported that 17% of patients undergoing haploidentical HSCT had severe CRS of grade 3 to 5 [10,11]. CRS has been strongly linked to not only acute GVHD but also highly morbid neurologic symptoms collectively referred to as immune effector cell associated neurologic syndrome (ICANS) [12,13]. The progression of inflammation may be related to dysfunction in regulatory T (Treg) cells. Treg cells are a highly immunosuppressive population of CD4+ T cells characterized by high and stable expression of the interleukin (IL)-2 receptor α chain (CD25) and the master transcription factor Forkhead box protein P3 (FOXP3) [14,15]. Treg cells are known to be impaired in disorders of inflammation, including autoimmune diseases and GVHD [16]. Transfer of Treg cells has been shown to alleviate GVHD symptoms in both humans and animal models [17], while other studies have suggested that the rapid expansion of Treg cells within the first month of HSCT is critical for GVHD prevention [18]. However, the mechanisms underlying potential Treg dysfunction following HSCT remain poorly understood. In this study, we retrospectively analyzed available clinical and laboratory data from 35 adult patients who were treated with haploidentical HSCT with PTCy for hematologic malignancies, of which four developed limbic encephalitis. We also examine the reconstitution kinetics of Treg cells and their subsets within the first 21 days of HSCT in order to elucidate potential mechanisms of early systemic inflammation that may contribute to the development of LE. Our findings demonstrate that current immunomodulatory therapies in haploidentical HSCT may be insufficient and encourage further investigation into means of ameliorating CRS and Treg dysfunction for the prevention of acute GVHD and early neurotoxicity.

2. Results

2.1. Patient Characteristics and Clinical Outcomes

35 total patients were analyzed retrospectively, who had been treated with haploidentical hematopoietic stem cell transplantation (HSCT) and post-transplant cyclophosphamide (PTCy). Two conditioning methods were used (n=19 myeloablating, n=16 reduced intensity) and PTCy was administered on post-transplant days 3 and 4 (Figure S1). Four patients developed autoimmune limbic encephalitis (LE) based on the diagnostic criteria proposed by Graus et al. (2017) [23]. Specifically, four patients developed subacute progression of seizures with epileptic or slow-wave activity observed on EEG and high signal intensity in bilateral medial temporal lobes on T2-weighted fluid-attenuated inversion recovery (FLAIR) MRI images (Figure 1A). There was no patient with seizure in the non-LE group. Median time to diagnosis was 25 days following haploidentical HSCT, and patients who developed LE displayed significantly shorter survival than those that did not (median OS, 1.5 months in LE vs. 11.0 months in non-ILE patients, p=0.001, Figure 1B).
Demographic and donor characteristics of patients diagnosed with and without LE are listed in Table 1, with additional clinical findings in LE patients in Table 2. Patient age, disease status, conditioning regimen, donor age and gender, stem cell dose, and infused CD3+ cell dose did not significantly differ between groups. However, patients with LE had a significant higher grade of cytokine release syndrome (CRS) [median (range); 2 (2-3) vs. 1 (0-1), p = 0.004] and hepatic veno-occlusive disease [2 (50%) vs. 3 (9.7%), p=0.030] than those without. In addition, all LE patients suffered from grade 3 to 4 acute GVHD at time of LE diagnosis and were treated with methyl-prednisolone.
Consistent with previous reports, our patients presented with fever of unknown origin (>38.0°C) within the first few days following PBSC transplant (Figure 2A) [24,25]. Non-LE patients had a median Tmax of 38.5°C that spontaneously resolved by post-transplant day 5. LE patients, however, had a significantly higher median Tmax of 39.6°C (p = 0.007) that tended to last up to post-transplant day 6, with fever recurrence on day 12-18. As a marker of inflammation, plasma C-reactive protein (CRP) levels were obtained before transplant (BT), on day of PTCy (post-transplant day 3), immediately following PTCy (post-transplant day 5), and on post-transplant day 21. While CRP levels were elevated in both groups on post-transplant days 3 and 5 relative to baseline, levels were significantly higher in LE than in non-LE patients ([median (range)] 2.29 (0.1-11.8) vs. 13.52 (11.5-15.2) at day 3, p=0.0001, 4.76 (0.1-16.8) vs. 14.02 (12.2-15.2) at day 5, p=0.0001) (Figure 2B)

2.2. Pro-Inflammatory Cytokine Levels between LE and Non-LE Patients

Given clinical evidence of systemic inflammation in the absence of infection, we hypothesized that the fever was likely a cytokine-mediated phenomenon similar to cytokine release syndrome (CRS) and examined plasma levels of pro-inflammatory cytokines IL-6, TNF-α, and IFN-γ (Figure 3). Samples were obtained from 10 non-LE and 3 LE patients before transplant (BT) and post-transplant days 3, 5, and 21. IFN-γ levels were markedly elevated in LE vs non-LE patients on post-transplant days 3 (p = 0.0093) and 5 (p = 0.0084), which normalized by day 21. Similarly, TNF-α levels were significantly higher in LE patients on days 3 (p = 0.0205) and 5 (p = 0.0310) compared to non-LE patients. Interestingly, LE patients showed significantly elevated IL-6 not only on days 3 (p < 0.001) and 5 (p < 0.001), but also at baseline (p < 0.001) compared to non-LE patients. Non-LE patients also had a notable increase in IL-6 levels from baseline to day 3, which normalized by day 5.

2.3. Flow Cytometry of Conventional and Regulatory CD4+ T Cells

Regulatory T (Treg) cells have been suggested to be critical for establishing immune tolerance in haploidentical HSCT with PTCy [26,27]. Given the CRS-like state observed in the LE patients, we investigated whether LE development was associated with improper reconstitution of donor Treg cells. Treg cells are differentiated from CD4+ T cells and classically identified by expression of transcription factor Forkhead box P3 (Foxp3), which confers suppressive activity, and CD25, which allows for rapid response to IL-2 produced by self-reactive T-cells. Using flow cytometry (Figure 4A), we isolated CD4+CD3+ cells and identified subsets based on CD25 and Foxp3 expression, with true, activated Treg cells defined as CD4+CD25hiFoxp3+ T cells. Conventional CD4+ T cells (Tconv) were defined as CD4+CD25-Foxp3- and CD4+CD25+Foxp3- T cells, with the latter consider to be the activated phenotype. The proportions of these CD4+ T cell populations were compared between LE and non-LE patients across different time points. The proportion of non-activated conventional CD4+ T cells (Figure 4B, top) were significantly lower in LE patients before transplantation (p = 0.0023) and on post-transplant day 5 (p = 0.0057), but normalized by day 21. The inverse was true of activated conventional CD4+ T cells (Figure 4B, middle), where this subset was increased in LE patients compared to non-LE patients at BT (p = 0.0029) and day 5 (p = 0.0028) but also normalized by day 21. LE and non-LE patients demonstrated no difference in CD4+Foxp3+ (Figure S2B) and CD4+CD25+Foxp3+ (Figure 4B, bottom) T cells at baseline. By post-transplant day 5, however, non-LE patients displayed significantly higher levels of Treg cells (p = 0.0076) compared to LE patients. By day 21, the proportion of Treg cells in non-LE patients had markedly increased from baseline; this expansion was not seen in LE patients.
We then performed a correlation analysis between these CD4+ subset proportions and the severity of acute graft-versus-host disease (aGVHD) in LE and non-LE patients. The frequency of CD25-Foxp3- cells within CD4+ T cells were inversely correlated with aGVHD severity at all time points (Figure 4C, top), while those of CD25+Foxp3- cells were positively correlated (Figure 4C, middle). Before transplantation, there was no obvious relationship between CD4+CD25+Foxp3+ populations and aGVHD grade. On day 5 and 21, however, lower proportions of Treg cells were consistently correlated with higher degrees of aGVHD severity (Figure 4C, bottom). CD4+Foxp3+ T cells were also inversely correlated with aGVHD grade on post-transplant days 5 and 21 (Figure S3C). Altogether, these data suggest that the patients who developed LE may have had impaired reconstitution of donor Treg cells with a concomitantly elevated proportion of activated conventional CD4+ T cells, where a lower proportion of Treg cells may lead to failed suppression of an acute graft-versus-host response.

2.4. Subsets of Conventional and Regulatory CD4+ T Cell Regulatory

Further subdivision of regulatory T cells may be achieved based on expression levels of Foxp3 and CD45RA with distinct phenotypes in suppressive capacity [28]. We defined the following CD4+ subsets: Foxp3intCD45RA+ cells (I, naïve/resting Treg cells), Foxp3hiCD45RA- cells (II, activated/effector Treg cells), Foxp3intCD45RA- cells (III, non-suppressive Treg cells), Foxp3lowCD45RA- cells (IV), Foxp3-CD45RA- cells (V, effector Tconv), and Foxp3-CD45RA+ cells (VI, naïve Tconv cells) (Figure 5A). The frequency of these subsets within CD4+ T cells were compared in LE vs non-LE patients (Figure 5B). LE patients displayed significant expansion of naïve Treg cells (subset I) between BT and post-transplant day 3; this expansion was reversed, however, by day 5 without concomitant increase in effector (subset II) or non-suppressive (subset III) Treg cells. In non-LE patients, on the other hand, the frequency of naïve Treg cells increased between post-transplant day 3 and day 5, and the subsequent drop in naïve Treg cells by day 21 was accompanied by significant expansion of effector and non-suppressive Treg cells (Figure 5B). Both effector and non-suppressive Treg cells were inversely correlated with acute GVHD severity (Figure 5C), suggesting that the absence of these populations may have contributed to an enhanced pro-inflammatory response in LE patients. Interestingly, LE patients demonstrated marked elevation of effector conventional T cells (subset V) with an associated decrease in naïve conventional T cells (subset VI) by day 21. In fact, the proportion of effector Tconv in LE patients was significantly higher than that of non-LE patients by this time point. These findings further support that enhanced activation of conventional CD4+ T cells with failed reconstitution of Treg cells may be a key mechanistic feature in post-transplant LE.

3. Discussion

In this study, we characterized early biologic markers of systemic inflammation in patients who developed limbic encephalitis among other signs of acute GVHD following haploidentical HSCT with PTCy. On clinical exam, LE patients were more likely to have severe GVHD, higher CRS grade and CRP levels, and prolonged, more extreme fevers within the first three weeks of transplant. Further investigation revealed that elevated levels of pro-inflammatory cytokines and impairment of early reconstitution of regulatory T cells may be associated with the development of more severe inflammatory adverse effects such as LE and acute GVHD. All LE patients presented with seizures within the first 30 days of transplant. As such, it was important to characterize early changes that may have contributed to the development of symptoms, particularly given the lack of human studies investigating that time frame. Early fever and high levels of CRP and inflammatory cytokines IL-6, TNF-α, and IFN-γ as seen in our LE patients in the absence of infection strongly resemble cytokine release syndrome, which may result in multiorgan dysfunction, involving the brain, lung, and kidney [6,29]. CRS is well described in recipients of chimeric antigen receptor (CAR) T cell infusion, and more recently, other tumor therapies that function by activation of immune effector cells [6,30]. Based on these previous reports, supraphysiologic cytokines are likely released by donor derived alloreactive immune effector cells as well as endogenous monocytes [31]. In support of this, levels of pro-inflammatory cytokines (Figure 3) and clinical symptoms such as fever, vasodilation, and dyspnea (Figure 2A, Table S1) were highest on post-transplant day 3 prior to administration of PTCy, which is given to suppress alloreactive T cells. Interestingly, we did not observe significant differences in CMV sero-positivity, prior transplant, HCT-CI score, or donor-recipient sex mismatch in patients that developed CRS versus those that did not as reported in a retrospective multicenter study, although this may be due to small sample size [32]. CRS, however, may be independently associated with neurotoxicity. Indeed, Imus et al. demonstrated that 13 out of 25 severe CRS patients developed encephalopathy [10]. Other studies have suggested that diffusion of cytokines and transmigration of the subsequently activated immune cells into the cerebrospinal fluid (CSF) and central nervous system (CNS) produces neurotoxicity with a high degree of mortality [33,34]. This neurotoxicity may manifest as wide range of neurologic symptoms including delirium, encephalopathy, aphasia, lethargy, agitation, and seizures, and is referred to by several titles in the literature such as cell-mediated neurotoxicity syndrome (ICANS) and CAR-related encephalopathy syndrome (CRES). Currently it is difficult to determine whether LE should be included within these syndromes, but nevertheless LE may be associated with CRS and ICANS often referred to as neurotoxicity. In its severe forms, ICANS may be associated with life-threatening features such as seizures. In most cases, CRS precedes ICANS and it is understood as an initiating factor for ICANS, although concurrent manifestation of CRS and ICANS may happen [35]. Of note, while limbic encephalitis has been reported association with human herpes virus (HHV)-6 after allogenic HSCT, all patients in this study tested negative on PCR for HHV-6 [36].
Among the studied cytokines, IL-6 is already being considered as a potential biomarker for acute GVHD following allogenic HSCT, where elevated IL-6 levels were significantly associated with worsening outcomes including severe CRS, acute GVHD, and reduced overall survival [37,38]. In our study, IL-6 levels were elevated in patients who developed LE even before HSCT (Figure 3C). It has been reported that conditioning regimens leads to host tissue damage and elevated levels of inflammatory cytokines including IL-6, which is important in the initiation phase of acute GVHD pathophysiology [39]. LE patients showed significantly elevated IL-6 not only at baseline, but also on post-transplant days 3 and 5 compared to non-LE patients. In a study with humanized NSG mice using a patient-derived leukaemic cell line, depletion of phagocytic cells prior to CAR T cell transplantation was enough to abrogate IL-6 production and CRS and, furthermore, single-cell analysis of leukocytes isolated during CRS identified monocyte lineage cells to be the source of IL-6[40]. Through its involvement on B-cell differentiation and auto-antibody production, differentiation of Th17 cells, inhibition of Treg differentiation, or differentiation of CD8+ cytotoxic T cells, IL-6 has been reported to possibly induce and enhance autoimmune neuronal tissue damage [41,42,43]. Given that IL-6 has been strongly implicated in neuroinflammation [44], IL-6 may be a promising biomarker for screening patients at greater risk of developing neurotoxic sequelae. In addition, treatment of CRS patients in blinatumomab and CAR T cell infusion trials with the IL-6 receptor antagonist tocilizumab was shown to produce rapid clinical stabilization [45,46,47,48]. Similar therapy with tocilizumab should be further studied in HSCT to prevent severe CRS and early CNS complications.
In addition to elevated IL-6, we also observed a significant decrease in frequency of Treg cells in LE patients by day 5 despite an initial expansion of naïve Treg cells on day 3, suggestive of suppressed Treg cells differentiation. IL-6 is known not only to inhibit TGF-β-induced T cell differentiation into regulatory T cells [49], but also downregulate Foxp3 expression on Treg cells [50]. Non-LE patients, on the other hand, had significant expansion of Treg cells by post-transplant day 21. Given that Treg cells are critical for suppressing inflammatory responses and have been implicated in several autoimmune diseases [51], this early lack of reconstitution of Treg cells in LE patients may have heralded the onset of acute GVHD and neurologic symptoms. Indeed, we show that reduced Treg cells frequency was associated with greater severity of acute GVHD (Figure 4C), consistent with previous reports stating that protection against GVHD depends not only on the depletion of donor alloreactive T cells but also the rapid and robust recovery of donor Treg cells to initiate and maintain alloimmune regulation [52,53,54,55,56,57]. Further studies have shown Treg cells from patients with acute GVHD exhibited multiple dysfunctions, including Foxp3 expression instability and increased apoptosis [58]. The underlying mechanism among early induction of IL-6, Treg cells suppression or dysfunction, and early neurotoxic clinical outcomes such as LE should be carefully investigated in future studies.
Despite significant associations between clinical outcomes and biologic markers that may guide future HSCT research and protocol, this study has some limitations. The small sample size, low frequency of LE occurrence, and variability between patient presentation for sample collection on specific days post-transplant may mask more significant associations. Among 31 non-LE patients, PBMC samples from 10 non-LE patients could be available for the analysis of cytokines and Treg cells. We also lacked the means for autoantibody testing at this institute, which may provide additional insight into the mechanisms of LE development in future HSCT studies.
The development of LE as severe inflammatory adverse effects after haplo-SCT may be regulated by early increased levels of pro-inflammatory cytokines such as IL-6, TNF-α, and IFN-γ and impairment of early reconstitution of regulatory T cells. The central nervous system (CNS) has been reported to be one of the nonclassical GVHD target organs that is sterile [59] and furthermore clinical manifestations of acute GVHD in the CNS consists of signs of encephalitis [60,61,62]. Following allo-HSCT in mice, the CNS was significantly infiltrated by donor T cell and allo-HSCT recipients with GVHD manifested cell death of neurons as a direct target of alloreactive T cells [63]. Interestingly, blockade of the IL-6 signaling resulted in marked inhibition of donor T cell accumulation, inflammatory cytokine gene expression, and host microglial cell expansion in brain [64]. Previous preclinical and clinical studies suggest that the CNS may be targeted by donor T cells-involved alloimmune reactions [61,63,65,66]. In addition, MHC class I protein was reported to be expressed in hippocampal neurons [67,68], which suggest that the limbic system could be damaged by alloimmune reactions based on HLA mismatch, leading to the development of LE. In our study, LE patients show frequently specific HLA types, that is HLA B*40, 02 and HLA DRB1*08, 02 (Supplementary Table S2), suggesting that patients with these HLA types might be more susceptible to the autoimmune attack of immune effector cells. Development of LE is possibly associated with alloimmune reaction to various proteins in the limbic system through auto-antibody formation of B cells, which may not be appropriately regulated because of the decreased function of Treg. These processes could be augmented by elevated pro-inflammatory cytokines such as IL-6, TNF-α, and IFN-γ.
In conclusion, patients that developed LE within the first 30 days of HSCT were likely to have high serum IL-6 among other inflammatory cytokines, coupled with suppression of regulatory T cell differentiation that may have allowed for rampant and unchecked inflammation. This association along with potential impact of anti-IL6 therapies should be validated in a larger and geographically and clinically diverse population in future multicenter studies.

4. Materials and Methods

4.1. Patients and Diagnosis of Autoimmune Limbic Encephalitis

We retrospectively analyzed adult patients (age >18 years) with refractory hematological malignancies who underwent human leukocyte antigen (HLA) haploidentical allogeneic hematopoietic stem cell transplant (HSCT) using PTCy in Chungnam National University Hospital (Daejeon, South Korea) between June 2016 and May 2020. We excluded those who received additional transplantations and those with refractory disease. PTCy was given on post-transplant days 3 and 4 at a dose of 50 mg/kg. Two conditioning regimens were used (Figure S1). In the myeloablating conditioning (MAC) regimen, 3.2 mg/kg busulfan and 25 mg/m2 fludarabine were administered on pre-transplant days -6 to -2, along with 14.5mg/kg cyclophosphamide on pre-transplant days -3 and -2. In the reduced intensity conditioning (RIC) regimen, 30 mg/m2 fludarabine was given on pre-transplant days -6 to -2, 14.5mg/kg cyclophosphamide on pre-transplant day -6 and -5, and total body irradiation (TBI) 2 Gy on pre-transplant day -1. On day 0, all patients received granulocyte colony-stimulating factor-mobilized peripheral blood stem cells (PBSCs; target CD34+ cell count, 5 x 106/kg). Tacrolimus for GVHD prophylaxis was begun on post-transplant day 5 with a target level of 5 to 15 ng/mL, along with myclophenolate mofetil (maximum dose, 3g per day in divided doses) for post-transplant days 5 to 35. Filgrastim 5ug/kg was administered from post-transplant day 5 until neutrophil recovery. LE was diagnosed by characteristic MRI findings, specifically bilateral T2-hyperintesity of the medial temporal lobes on FLAIR images in patients with neurologic symptoms [19].

4.2. Clinical Assessment

Acute GVHD was graded using the modified Seattle Glucksberg criteria and chronic GVHD by reference to the revised Seattle criteria [20,21]. CMV and EBV reactivation was defined as PCR detection of viral DNA in whole blood at least once over the course of the study. Hepatic veno-occlusive disease (VOD) was defined by the 2016 classification from the European Society of Blood and Marrow Transplantation (EBMT) [22]. CRS was classified according to American Society for Transplantation and Cellular Therapy (ASTCT) criteria [13].

4.3. Analysis of Cytokines and Treg Cells

Plasma and peripheral blood mononuclear cells (PBMC) were obtained from whole blood using lymphocyte separation medium (Corning) by density gradient centrifugation. IL-6, TNF-α, and IFN-γ were analyzed by enzyme-linked immunosorbent assay of plasma samples. For flow cytometry, PBMCs were stained with live/dead fixable stain dye (Life technologies) to distinguish live and dead cells. After PBS washing, cells were incubated with FITC-CD3 (BD Biosciences), PerCP-Cy5.5-CD4 (BD Biosciences), BV421-CD25 (BD Biosciences), APC-CD127 (Biolegend), and PE-Cy7-CD45RA (BD Biosciences). Cells were then fixed and permeabilized with Foxp3/Transcription Factor Staining Buffer Set (eBioscience) and further stained with PE-Foxp3 (BD Biosciences). As a way to consider heterogeneity of the Treg compartment and analyze the property of Treg subgroups, we introduced the CD45RA marker to discriminate between antigen experienced Treg (e.g., CD45RA-) and naïve Treg (e.g., CD45RA+) cells. T cells and its subpopulations were analyzed with a FACS BD LSR Fortessa™ X-20 flow cytometer (BD Biociences) and data were processed with FlowJo software (Tree Star, OR, USA).

4.4. Statistical Analysis

Statistical analyses of patients’ data in the tables were performed using the SPSS software ver. 26.0 (IBM Corporation, Armonk, NY, USA). Continuous variables were compared using unpaired two tailed t-test and the chi-square test was used to assess differences in the distribution of categorical variables. Overall survival was assessed using the Kaplan-Meier method. Survival rates were compared using the log-rank test. Laboratory measurement data in the figures were analyzed by the unpaired or paired two tailed t-test using GraphPad Prism v7.02 (GraphPad, La Jolla, CA, USA). A p-value <0.05 was considered to reflect significance. Spearman correlation analysis was performed to determine the linear association between acute GVHD grade and frequency of CD4 or Treg subsets. The Spearman correlation coefficient (r) was estimated and the significance of association was evaluated based on p value.

Supplementary Materials

Figure S1. Study designs for haploidentical HSCT with PTCy; Figure S2. Frequency of CD4+ T cells in LE vs non-LE patients; Figure S3. Frequency of CD4+Foxp3+ T cells in LE vs non-LE patients; Table S1. Comparison of vasodilation and dyspnea between LE and non-LE patients; Table S2. Comparison of HLA types between LE and non-LE patients.

Author Contributions

Conceptualization, J.K., I.-C.S.; Formal analysis, B.Y.H., M.-W.L., S.C., Y.J., T.T.D.P. ; Funding acquisition, I.-C.S.; Investigation, B.Y.H., M.-W.L., S.C., Y.J., T.T.D.P., S.K., J.S.K., D.-Y.J., Y.J., J.-H.P., J.K., I.-C.S.; Methodology, B.Y.H., M.-W.L., S.C., Y.J., T.T.D.P., Y.J., J.-H.P.; Project administration, S.K., J.S.K., D.-Y.J., Y.J., J.-H.P. ; Resources, S.K., J.S.K., D.-Y.J., Y.J., J.-H.P., J.K., I.-C.S. ; Supervision, J.K., I.-C.S.; Validation, S.K., J.S.K., D.-Y.J., J.K., I.-C.S. ; Visualization, B.Y.H., M.-W.L., S.C., Y.J., T.T.D.P.; Writing-original draft, B.Y.H., M.-W.L., J.K., I.-C.S.; Writing-review & editing, J.K., I.-C.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by research fund of Chungnam National University.

Institutional Review Board Statement

The study protocol was approved by the Institutional Review Board of Chungnam National University Hospital (CNUH 2018-02-032-001). All procedures followed were in accordance with the ethical standards of the responsible committee and with the Helsinki Declaration.

Informed Consent Statement

Patient consent was waived due to the retrospective nature of the analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gooley, T.A.; Chein, J.W.; Pergam, S.A.; Hingorani, S.; Sorror, M.L.; Boeckh, M.; Martin, P.H.; Sandmaier, B.M.; Marr, K.A.; Appelbaum, F.R.; Storb, R.; McDonald, G.B. Reduced mortality after allogeneic hematopoietic cell transplantation. N. Engl. J. Med. 2010, 363, 2091–2101. [Google Scholar] [CrossRef] [PubMed]
  2. ML, S.; MB, M.; Storb R; Baron F; BM, S.; DG, M., Storer B Hematopoietic cell transplantation (HCT)-specific comorbidity index: a new tool for risk assessment before allogeneic HCT. Blood 2005, 106, 2912–2919. [CrossRef] [PubMed]
  3. Bashey, A.; Zhang, X.; Sizemore, C.A. , et al. T cell replete HLA-haploidentical hematopoietic transplantation for hematologic malignancies using post-transplantation cyclophosphamide results in outcomes equivalent to those of comtemporaneous HLA-matched related and unrelated donor transplantation. J. Clin. Oncol. 2013, 31, 1310–1316. [Google Scholar] [PubMed]
  4. Luznik, L.; Fuchs, E.J. High-dose, post-transplantation cyclophosphamide to promote graft-host tolerance after allogeneic hematopoietic stem cell transplantation. Immunol. Res. 2010, 47, 65–77. [Google Scholar] [CrossRef] [PubMed]
  5. Ruggeri, A.; Y sun; Labopin, M. ; Bacigalupo, A.; Lorentino, F.; Arcese, W., et al. Post-transplant cyclophosphamide versus anti-thymocyte globulin as graft-versus-host disease prophylaxis in haploidentical transplant. Haematologica 2017, 102, 401–410. [Google Scholar] [CrossRef] [PubMed]
  6. Morris, E.C.; Neelapu, S.S.; Giavridis, T.; Sadelain, M. Cytokine release syndrome and associated neurotoxicity in cancer immunotherapy. Nat. Rev. Immunol. 2022, 22, 85–96. [Google Scholar] [CrossRef]
  7. Budhram, A.; Leung, A.; Nicolle, M.W.; Burneo, J.G. Diagnosing autoimmune limbic encephalitis. CMAJ 2019, 191, E529–E534. [Google Scholar] [CrossRef]
  8. Giordano, A.; Fazio, R.; Gelibter, S.; Minicucci, F.; Vabanesi, M.; Anzalone, N. , et al. Diagnosing autoimmune encephalitis in a real-world single-center setting. J. Neurol. 2020, 267, 449–460. [Google Scholar] [CrossRef]
  9. Kyritsis, A.P.; Markoula, S.; Alexiou, G.; Asimakopoulos, A.; Jabbour, P.; Fotopoulos, A. , et al. Diagnosis and treatment of limbic encephalitis in the cancer patient. Future Oncol. 2020, 16, 1647–1655. [Google Scholar] [CrossRef]
  10. Imus, P.H.; Blackford, A.L.; Bettinotti, M. , et al. Severe cytokine release syndrome after Haploidentical peripheral blood stem cell transplantation. Biol. Blood Marrow Transplant. 2019, 25, 2431–2437. [Google Scholar] [CrossRef]
  11. Abboud, R.; Keller, J.; Slade, M. , et al. Severe cytokine-release syndrome after T cell-replete peripheral blood haploidentical donor transplantation is associated with poor survival and anti-IL-6 therapy is safe and well tolerated. Biol. Blood Marrow Transplant. 2016, 22, 1851–1860. [Google Scholar] [CrossRef] [PubMed]
  12. Brown, B.D.; Tambaro, F.P.; Kohorst, M. , et al. Immune effector cell associated neurotoxicity (ICANS) in pediatric and young adults patients following chimeric antigen receptor (CAR) T-cell therapy: Can we optimize early diagnosis? Front Oncol 2021, 11, 634445. [Google Scholar]
  13. Lee, D.W.; Santomasso, B.D.; Locke, F.L. , et al. ASTCT consensus grading for cytokine release syndrome and neurologic toxicity associated with immune effector cells. Biol. Blood Marrow Transplant. 2019, 25, 625–638. [Google Scholar] [CrossRef] [PubMed]
  14. Fontenot, J.D.; Gavin, M.A. , AY Rudensky. Foxpe programs the development and function of CD4+CD25+ T regulatory cells. Nat. Immunol. 2003, 4, 337–342. [Google Scholar] [CrossRef] [PubMed]
  15. Morris, E.C.; Neelapu, S.S.; Giavridis, T.; Sadelain, M. Cytokine release syndrome and associated neurotoxicity in cancer immunotherapy. Nat. Rev. Immunol. 2022, 22, 85–96. [Google Scholar] [CrossRef] [PubMed]
  16. Ikegawa, S. , KI Matsuoka. Harnessing Treg homeostasis to optimize posttransplant immunity: Current concepts and future perspectives. Front. Immunol. 2021, 12, 713358. [Google Scholar] [CrossRef] [PubMed]
  17. JM, M.; M?nch N; Peter K; Freund D; Oelschl?gel U; H?lig K, et al. Automated Clinical Grade Expansion of Regulatory T Cells in a Fully Closed System. Front. Immunol. 2019, 10, 38. [Google Scholar]
  18. Ikegawa; S. ; Matsuoka, K.I. Harnessing Treg Homeostasis to Optimize Posttransplant Immunity: Current Concepts and Future Perspectives. Front. Immunol. 2021, 12, 713358. [Google Scholar] [CrossRef]
  19. Graus, F.; Titulaer, M.J.; Balu, R. , et al. A clinical approach to diagnosis of autoimmune encephalitis. Lancet Neurol. 2016, 15, 391–404. [Google Scholar] [CrossRef]
  20. Przepiorka, D.; Wisdorf, D.; Martin, P. , et al. 1994 Consensus Conference on Acute GVHD grading. Bone Marrow Transplant. 1995, 15, 825–828. [Google Scholar]
  21. Lee, S.J.; Vogelsan, G.; Flowers, M.E.D. Chronic graft-versus-host disease. Biol. Blood Marrow Transpl. 2003, 9, 215–233. [Google Scholar] [CrossRef] [PubMed]
  22. Mohty, M.; Malard, F.; Abecassis, M. , et al. Revised diagnosis and severity criteria for sinusoidal obstruction syndrome/veno-occlusive disease in adult patients: a new classification from the European Society for Blood and Marrow Transplantation. Bone Marrow Transplant. 2016, 51, 906–912. [Google Scholar] [CrossRef] [PubMed]
  23. Graus F; MJ, T. ; Balu R, et al. A clinical approach to diagnosis of autoimmune encephalitis. Lancet Neurol. 2016, 15, 391–404. [Google Scholar] [CrossRef] [PubMed]
  24. Grosso; D. ; Carabasi; M.; Filicko-O'Hara; J.; Kasner; M.; Wagner; J.L.; Colombe; Farley, C.; P.; O'Hara; W.; Flomenberg; P.; Werner-Wasik; M.; Brunner; J.; Mookerjee; B.; Hyslop; T.; Weiss; M.; Flomenberg, N. A 2-step approach to myeloablative haploidentical stem cell transplantation: a phase 1/2 trial performed with optimized T-cell dosing. Blood. 2011, 118, 4732–9. [Google Scholar]
  25. Solomon; S. R.; Sizemore; C.A.; Sanacore; M.; Zhang; X.; Brown; S.; Holland; H.K.; Morris; L.E.; Bashey, A. Haploidentical transplantation using T cell replete peripheral blood stem cells and myeloablative conditioning in patients with high-risk hematologic malignancies who lack conventional donors is well tolerated and produces excellent relapse-free survival: results of a prospective phase II trial. Biol. Blood Marrow Transplant. 2012, 18, 1859–66. [Google Scholar]
  26. Mancusi; A. ; Ruggeri; L.; Velardi, A. Haploidentical hematopoietic transplantation for the cure of leukemia: from its biology to clinical translation. Blood 2016, 128, 2616–23. [Google Scholar] [CrossRef]
  27. Kanakry; C. G.; Fuchs; E.J.; Luznik, L. Modern approaches to HLA-haploidentical blood or marrow transplantation. Nat. Rev. Clin. Oncol. 2016, 13, 132. [Google Scholar] [CrossRef]
  28. Wing; J. B.; Tanaka; A.; Sakaguchi, S. Human FOXP3+ Regulatory T Cell Heterogeneity and Function in Autoimmunity and Cancer. Immunity. 2019, 50, 302–316. [Google Scholar] [CrossRef]
  29. Abboud; Wan; Mariotti et al. Cytokine release syndrome after haploidentical hematopoietic cell transplantation: an international multicenter analysis. Bone Marrow Transplant. 2021, 56, 2763–2770. [Google Scholar] [CrossRef]
  30. Lee, D.W.; Gardner, R.; Porter, D.L. , et al. Current concepts in the diagnosis and management of cytokine release syndrome. Blood 2014, 124, 188–195. [Google Scholar] [CrossRef]
  31. Devine, S.M. Haploidentical hematopoietic cell transplantation using post-transplantation cyclophosphamide: Does graft source matter? J. Clin. Oncol. 2017, 35, 2984–2986. [Google Scholar] [CrossRef] [PubMed]
  32. Abboud, R.; Wan, F.; Mariotti, J. , et al. Cytokine release syndrome after haploidentical hematopoietic cell transplantation: an international multicenter analysis. Bone Marrow Transplant. 2021, 56, 2763–2770. [Google Scholar] [CrossRef] [PubMed]
  33. Shimabukuro-Vornhagen, A.; Godel, R.; Subklewe, M. , et al. Cytokine release syndrome. J. Immunother. Cancer 2018, 6, 56. [Google Scholar] [CrossRef] [PubMed]
  34. Sheth, V.S. , J Gauthier. Taming the beast: CRS and ICANS after CAR T-cell therapy for ALL. Bone Marrow Transplant. 2021, 56, 552–566. [Google Scholar] [CrossRef] [PubMed]
  35. Morris, E.C.; Neelapu, S.S.; Giavridis, T.; Sadelain, M. Cytokine release syndrome and associated neurotoxicity in cancer immunotherapy. Nat. Rev. Immunol. 2022, 22, 85–96. [Google Scholar] [CrossRef] [PubMed]
  36. Ichiyama, T.; Shoji, H.; Takahashi, Y. , et al. Cerebrospinal fluid levels of cytokines in non-herpetic acute limbic encephalitis: Comparison with herpes simplex encephalitis. Cytokine 2008, 44, 149–153. [Google Scholar] [CrossRef] [PubMed]
  37. Norelli; M.; Camisa; B.; Barbiera; G.; Falcone; L.; Purevdorj; A.; Genua; M.; Sanvito; F.; Ponzoni; M.; Doglioni; C.; Cristofori; P.; Traversari; C.; Bordignon; C.; Ciceri; F.; Ostuni; R.; Bonini; C.; Casucci; M.; Bondanza, A. 37. Norelli; M.; Camisa; B.; Barbiera; G.; Falcone; L.; Purevdorj; A.; Genua; M.; Sanvito; F.; Ponzoni; M.; Doglioni; C.; Cristofori; P.; Traversari; C.; Bordignon; C.; Ciceri; F.; Ostuni; R.; Bonini; C.; Casucci; M.; Bondanza, A. Monocyte-derived IL-1 and IL-6 are differentially required for cytokine-release syndrome and neurotoxicity due to CAR T cells. Nat. Med. 2018; 739–748. [Google Scholar]
  38. Greco; R. ; Lorentino; F.; Nitti; Stanghellini, L.; M.T.; Giglio; F.; Clerici; D.; Xue; E.; Lazzari; L.; Piemontese; S.; Mastaglio; S.; Assanelli; A.; Marktel; S.; Corti; C.; Bernardi; M.; Ciceri; F.; Peccatori, J. Interleukin-6 as Biomarker for Acute GvHD and Survival After Allogeneic Transplant with Post-transplant Cyclophosphamide. Front. Immunol. 2019, 10, 2319. [Google Scholar]
  39. Andrea S Henden, Geoffrey R Hill. Cytokines in Graft-versus-Host Disease. J. Immunol. 2015, 194, 4604–4612. [Google Scholar] [CrossRef]
  40. Norelli, M.; Camisa, B.; Barbiera, G.; Falcone, L.; Purevdorj, A.; Genua, M.; Sanvito, F.; Ponzoni, M.; Doglioni, C.; Cristofori, P.; Traversari, C.; Bordignon, C.; Ciceri, F.; Ostuni, R.; Bonini, C.; Casucci, M.; Bondanza, A. , Monocyte-derived IL-1 and IL-6 are differentially required for cytokine-release syndrome and neurotoxicity due to CAR T cells. Nat. Med. 2018, 24, 739–748. [Google Scholar] [CrossRef]
  41. Tadamitsu, K. Interleukin-6, from basic science to medicine--40 years in immunology. Annu. Rev. Immunol. 23, 1–21.
  42. Ogura, H.; Murakami, M.; Okuyama, Y.; Tsuruoka, M.; Kitabayashi, C.; Kanamoto, M.; Nishihara, M.; Iwakura, Y.; Hirano, T. , Interleukin-17 promotes autoimmunity by triggering a positive-feedback loop via interleukin-6 induction. Immunity 2008, 29, 4. [Google Scholar] [CrossRef]
  43. Tanaka, T.; Kishimoto, T. The Biology and Medical Implications of Interleukin-6. Cancer Immunol Res 2014, 2, 288–294. [Google Scholar] [CrossRef] [PubMed]
  44. Gust; J. ; Ponce; R.; Liles; W.C.; Garden; G.A.; Turtle, C.J. Cytokines in CAR T Cell-Associated Neurotoxicity. Front. Immunol. 2020, 11, 577027. [Google Scholar] [CrossRef] [PubMed]
  45. Abboud, R.; Keller, J.; Slade, M. , et al. Severe cytokine-release syndrome after T cell-replete peripheral blood haploidentical donor transplantation is associated with poor survival and anti-IL-6 therapy is safe and well tolerated. Biol. Blood Marrow Transplant. 2016, 22, 1851–1860. [Google Scholar] [CrossRef]
  46. Khadka, R.H.; Sakemura, R.; Kenderian, S.S. , et al. Management of cytokine release syndrome: an update on emerging antigen-specific T cell engaging immunotherapies. Immunotherapy 2019, 11, L851–L857. [Google Scholar] [CrossRef]
  47. Neelapu, S.S. Managing the toxicities of CAR T-cell therapy. Hematol. Oncol. 2019, 37, 48–52. [Google Scholar] [CrossRef] [PubMed]
  48. Hayden, P.J.; Roddie, C.; Bader, P. , et al. Management of adults and children receiving CAR T-cell therapy: 2021 best practice recommendations of the European Society for Blood and Marrow Transplantation (EBMT) and the Joint Accreditation Committee of ISCT and EBMT (JACIE) and the European Haematology Association (EHA). Ann. Oncol. 2022, 33, 259–275. [Google Scholar] [PubMed]
  49. Korn, T. , M Hiltensperger. Role of IL-6 in the commitment of T cell subsets. Cytokine 2021, 146, 155654. [Google Scholar] [CrossRef]
  50. van Loosdregt J; Fleskens V; Fu J; AB, B. ; CP, B.; CE, P.; Meerding J; CR, B.; Barbi J; Gr?ne A; AJ, S.; MM, M.; Kalkhoven E; BJ, P.; Ovaa H; Pan F; DM, Z., Coffer PJ. Stabilization of the transcription factor Foxp3 by the deubiquitinase USP7 increases Treg-cell-suppressive capacity. Immunity. 2013, 39, 259–71. [Google Scholar] [CrossRef]
  51. Dominguez-Villar; M. ; Hafler, D.A. Regulatory T cells in autoimmune disease. Nat. Immunol. 2018, 19, 665–673. [Google Scholar] [CrossRef]
  52. VH, N.; Zeiser R; DL, D. ; DS, C.; Beilhack A; CH, C., et al. In Vivo Dynamics of Regulatory T-cell Trafficking and Survival Predict Effective Strategies to Control Graft-Versus-Host Disease Following Allogeneic Transplantation. Blood 2007, 109, 2649–56. [Google Scholar]
  53. Copsel S; Wolf D; Kale B; Barreras H; CO, L. ; CS, B., et al. Very Low Numbers of CD4(+)?FoxP3(+)?Tregs Expanded in Donors Via TL1A-Ig and Low-Dose Il-2 Exhibit a Distinct Activation/Functional Profile and Suppress GVHD in a Preclinical Model. Biol. Blood Marrow Transplant. 2018, 24, 1788–94. [Google Scholar] [CrossRef] [PubMed]
  54. Bolton; H. A.; Zhu; E.; Terry; A.M.; Guy; T.V.; Koh; W.P.; Tan; S.Y.; Power; C.A.; Bertolino; P.; Lahl; K.; Sparwasser; T.; Shklovskaya, E.; Fazekas de St Groth, B. Selective Treg reconstitution during lymphopenia normalizes DC costimulation and prevents graft-versus-host disease. J. Clin. Invest. 2015, 125, 3627–41. [Google Scholar]
  55. Wolf; D. ; Bader; C.S.; Barreras; H.; Copsel; S.; Pfeiffer; B.J.; Lightbourn; C.O.; Altman; N.H.; Komanduri; K.V.; Levy, R.B. Superior immune reconstitution using Treg-expanded donor cells versus PTCy treatment in preclinical HSCT models. JCI Insight. 2018, 3, e121717. [Google Scholar] [CrossRef] [PubMed]
  56. Ganguly; S. ; Ross; D.B.; Panoskaltsis-Mortari; A.; Kanakry; C.G.; Blazar; B.R.; Levy; R.B.; Luznik, L. Donor CD4+ Foxp3+ regulatory T cells are necessary for posttransplantation cyclophosphamide-mediated protection against GVHD in mice. Blood. 2014, 124, 2131–41. [Google Scholar] [CrossRef] [PubMed]
  57. Alho; A. C.; Kim; H.T.; Chammas; M.J.; Reynolds; C.G.; Matos; T.R.; Forcade; E.; Whangbo; J.; Nikiforow; S.; Cutler; C.S.; Koreth; J.; Ho; V.T.; Armand; P.; Antin; J.H.; Alyea; E.P.; Lacerda; J.F.; Soiffer; R.J.; Ritz, J. Unbalanced recovery of regulatory and effector T cells after allogeneic stem cell transplantation contributes to chronic GVHD. Blood. 2016, 127, 646–57. [Google Scholar]
  58. X. ; Wang; Q.; Guo; W.; Pei; X.; Niu; Q.; Liu; M.; Liu; Y.; Chen; S.; Feng; S.; He; Y.; Yang; D.; Zhang; R.; Ma; Q.; Zhai; W.; Pang; A.; Wei; J.; Huang; Y.; Luo; Y.; Han; M.; Feng; X.; Jiang, E. Loss of Lkb1 impairs Treg function and stability to aggravate graft-versus-host disease after bone marrow transplantation. Cell Mol. Immunol. 2020, 17, 483–495. [Google Scholar]
  59. Zeiser, R.; Teshima, T. , Nonclassical manifestations of acute GVHD. Blood 2021, 138, 2165–2172. [Google Scholar] [CrossRef]
  60. Mariotti, J.; Penack, O.; Castagna, L. , Acute Graft-versus-Host-Disease Other Than Typical Targets: Between Myths and Facts. Transplant. Cell Ther. 2021, 27, 115–124. [Google Scholar] [CrossRef]
  61. Ruggiu, M.; Cuccuini, W.; Mokhtari, K.; Meignin, V. , Régis Peffault de Latour, Marie Robin, Flore Sicre de Fontbrune, Aliénor Xhaard, Gérard Socié, David Michonneau. Case report: Central nervous system involvement of human graft versus host disease: Report of 7 cases and a review of literature. Medicine 2017, 96. [Google Scholar] [CrossRef]
  62. Yamamoto, H.; Uchida, N.; Ishiwata, K.; Araoka, H.; Takagi, S.; Tsuji, M.; Kato, D.; Matsuhashi, Y.; Seo, S.; Matsuno, N.; Masuoka, K.; Wake, A.; Yoneyama, A.; Makino, S. , Shuichi Taniguchi. Possible graft-versus-host disease involving the central nervous system soon after cord blood transplantation. Am. J. Hematol. 2009, 84. [Google Scholar] [CrossRef]
  63. Hartrampf, S.; Dudakov, J.A.; Johnson, L.K.; Smith, O.M.; Tsai, J.; Singer, N.V.; West, M.L.; Hanash, A.M.; Albert, M.H.; Liu, B.; Toth, M. , Marcel R M van den Brink. The central nervous system is a target of acute graft versus host disease in mice. Blood 2013, 121. [Google Scholar] [CrossRef]
  64. Belle, L.; Zhou, V. , Kara L Stuhr, Margaret Beatka, Emily M Siebers, Jennifer M Knight, Michael W Lawlor, Casey Weaver, Misato Hashizume, Cecilia J Hillard, William R Drobyski, Host interleukin 6 production regulates inflammation but not tryptophan metabolism in the brain during murine GVHD. JCI Insight 2017, 2. [Google Scholar]
  65. Kaliyaperumal, S.; Watkins, B.; Sharma, P.; Furlan, S.; Ramakrishnan, S.; Giver, C.; Garcia, A.; Courtney, C.; Knight, H.; Strobert, E.; Elder, E.; Crenshaw, T.; Blazar, B.R.; Waller, E.K.; Westmoreland, S. , Leslie S Kean. CD8-predominant T-cell CNS infiltration accompanies GVHD in primates and is improved with immunoprophylaxis. Blood. 2014, 123, 1967–9. [Google Scholar] [CrossRef] [PubMed]
  66. Saad, A.G. , Edwin P Alyea 3rd, Patrick Y Wen, Umberto Degirolami, Santosh Kesari. Graft-versus-host disease of the CNS after allogeneic bone marrow transplantation, J. Clin. Oncol. 2009, 27. [Google Scholar]
  67. Goddard, C.A.; Butts, D.A. , Carla J Shatz. Regulation of CNS synapses by neuronal MHC class I. Proc. Natl. Acad. Sci. USA 2007, 104. [Google Scholar] [CrossRef]
  68. Cebrián, C.; Zucca, F.A.; Mauri, P.; Steinbeck, J.A.; Studer, L.; Scherzer, C.R.; Kanter, E.; Budhu, S.; Mandelbaum, J.; Vonsattel, J.P.; Zecca, L.; Loike, J.D.; Sulzer, D. , MHC-I expression renders catecholaminergic neurons susceptible to T-cell-mediated degeneration. Nat. Commun. 2014, 5, 3633. [Google Scholar] [CrossRef]
Preprints 73143 g001

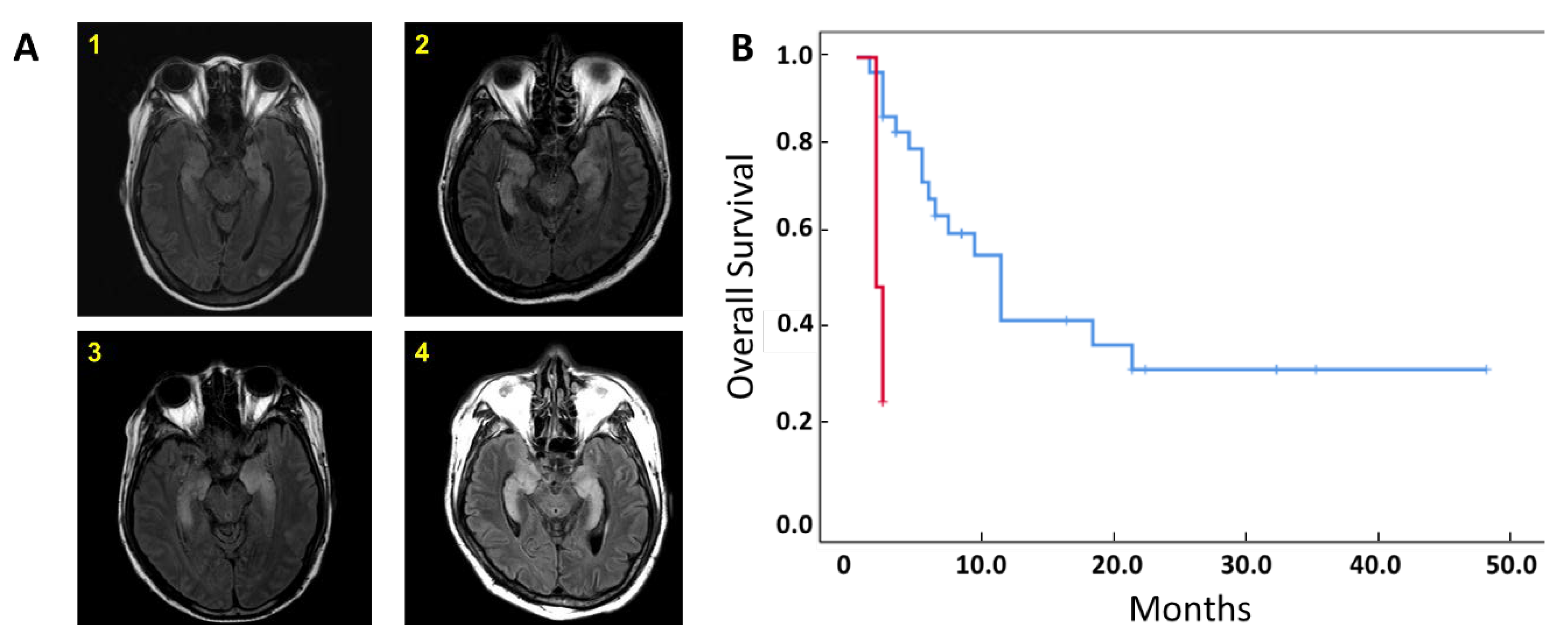

Figure 1. LE patients show characteristic MRI findings and reduced overall survival. (A) T2-weight fluid attenuated inversion recovery (FLAIR) images in LE patients (1-4) demonstrated bilateral and symmetrical high signal intensity in both medial temporal lobes, insulae, and medial frontal lobes. (B) Survival curve in patients diagnosed with (red) and without (blue) LE, Statistical difference by log-rank test (N=35, p=0.001).
Figure 1. LE patients show characteristic MRI findings and reduced overall survival. (A) T2-weight fluid attenuated inversion recovery (FLAIR) images in LE patients (1-4) demonstrated bilateral and symmetrical high signal intensity in both medial temporal lobes, insulae, and medial frontal lobes. (B) Survival curve in patients diagnosed with (red) and without (blue) LE, Statistical difference by log-rank test (N=35, p=0.001).
Preprints 73143 g001
Preprints 73143 g002

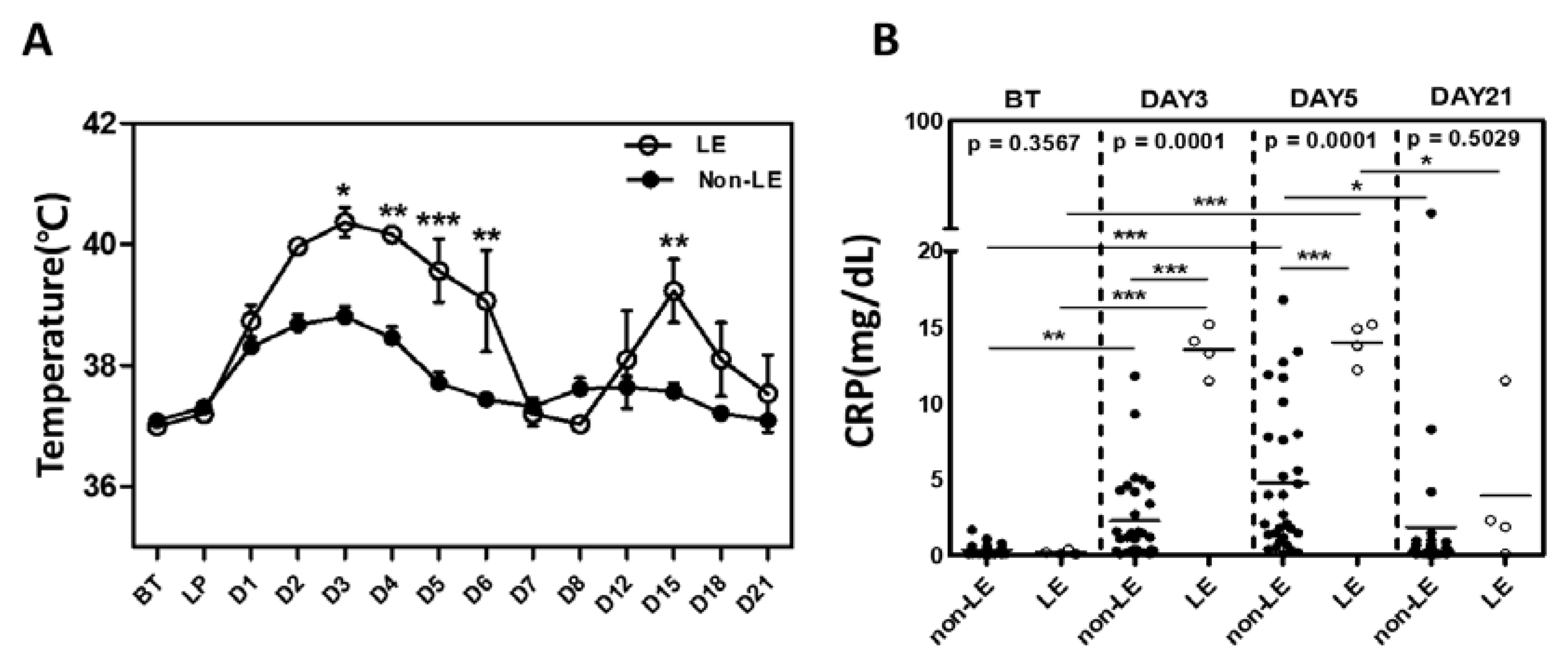

Figure 2. LE patients have significantly higher Tmax and plasma CRP levels. (A) Median Tmax in LE vs non-LE groups based on recorded patient body temperatures up to 21 days post-transplantation. (B) Plasma CRP levels before transplant (BT) and days 3, 5, and 21 after haplo-identical HSCT. N=31 non-LE patients, N=4 LE patients. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. LP = leukapheresis.
Figure 2. LE patients have significantly higher Tmax and plasma CRP levels. (A) Median Tmax in LE vs non-LE groups based on recorded patient body temperatures up to 21 days post-transplantation. (B) Plasma CRP levels before transplant (BT) and days 3, 5, and 21 after haplo-identical HSCT. N=31 non-LE patients, N=4 LE patients. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. LP = leukapheresis.
Preprints 73143 g002
Preprints 73143 g003

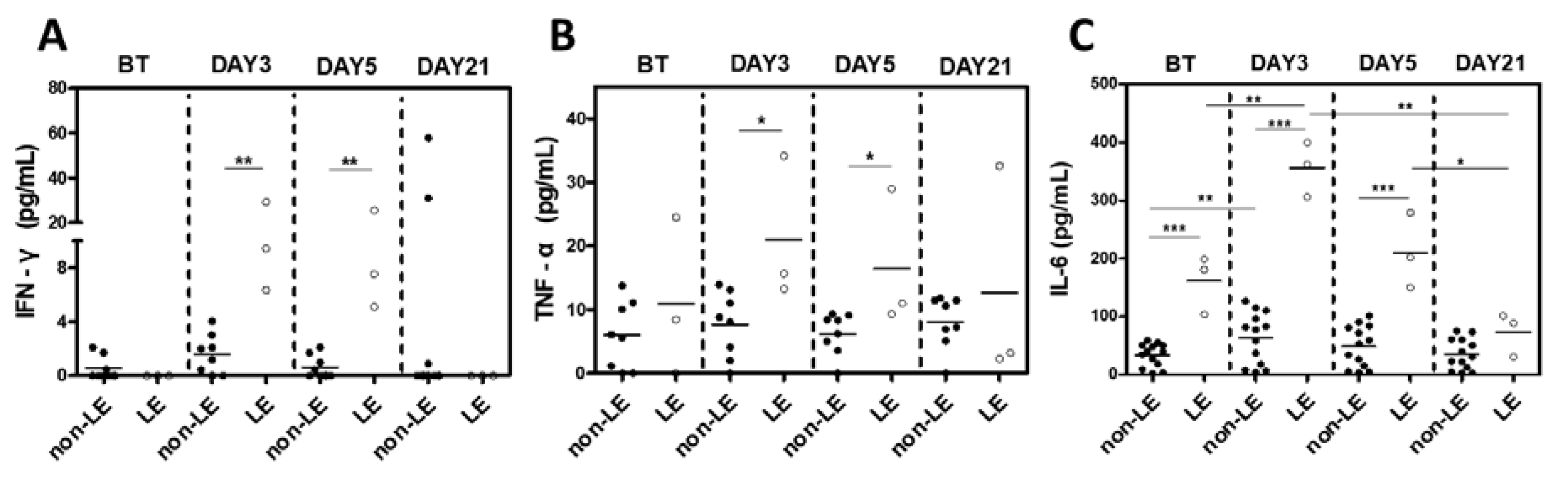

Figure 3. Plasma inflammatory cytokine levels are increased in LE patients. (A) IFN-gamma (IFN-γ), (B) TNF-alpha (TNF-α), and (C) IL-6 measured before transplant (BT) and on days 3, 5, and 21 after haplo-identical HSCT. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001.
Figure 3. Plasma inflammatory cytokine levels are increased in LE patients. (A) IFN-gamma (IFN-γ), (B) TNF-alpha (TNF-α), and (C) IL-6 measured before transplant (BT) and on days 3, 5, and 21 after haplo-identical HSCT. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001.
Preprints 73143 g003
Preprints 73143 g004aPreprints 73143 g004b

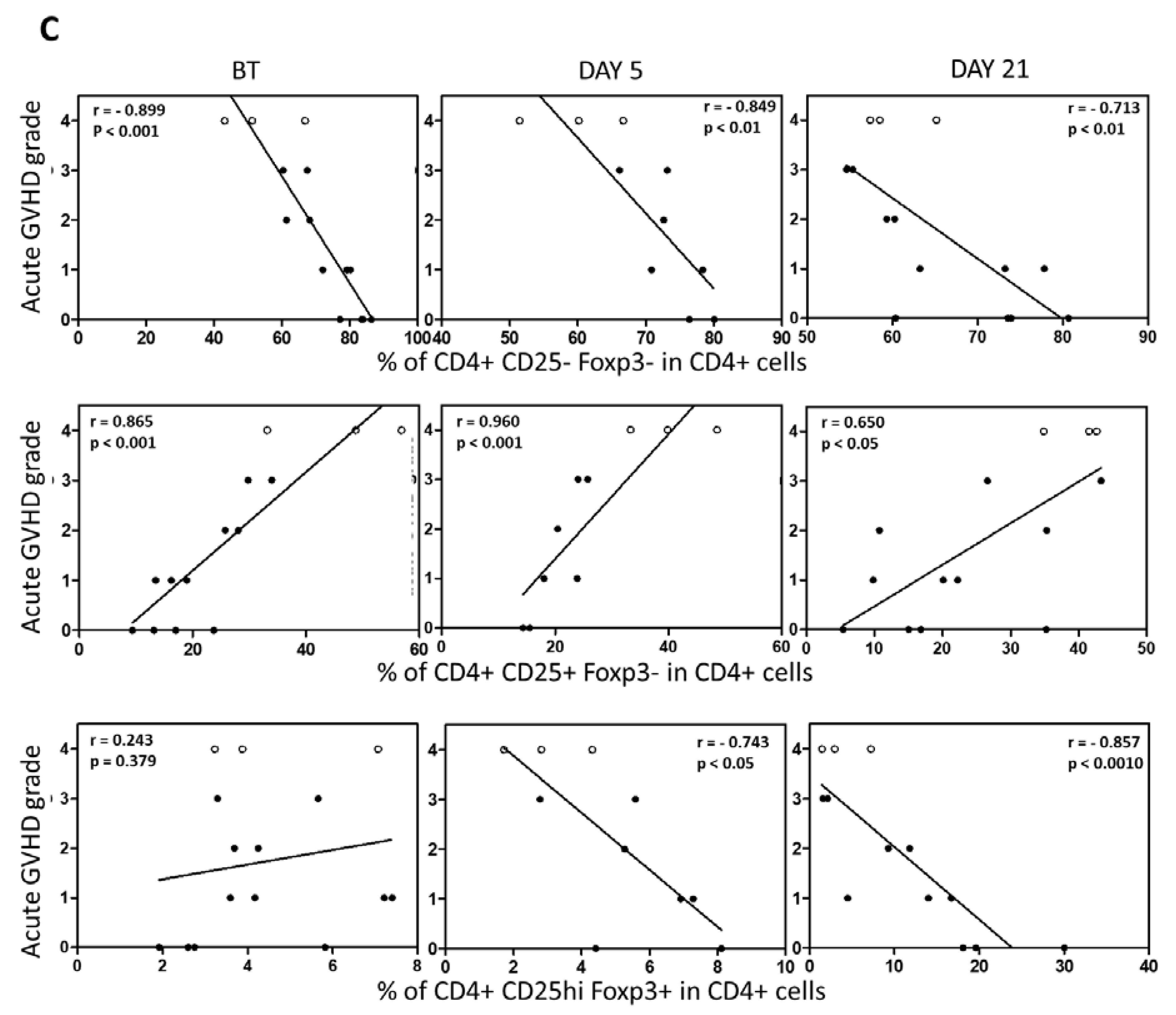

Figure 4. Proportion of Tregs are reduced in LE patients and inversely related to severity of acute graft-versus-host disease. (A) Flow cytometry gating strategy, with CD4+ T cells divided into three populations: a) CD25-Foxp3-, b) CD25+Foxp3-, c) CD25hiFoxp3+. (B) Proportions of these CD4+ subsets among CD3+ T cells were compared between non-LE and LE patients before (BT) and on days 3, 5, and 21 post-HCST. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. (C) Spearman correlation analysis between CD4+ subsets (CD25-Foxp3-, top; CD25+Foxp3-, mid; CD25hiFoxp3+, bottom) and severity of acute GVHD at three time points (BT, left; post-HCST day 5, mid; post-HCST day 21, right). Spearman correlation coefficient (r) and p value were indicated.
Figure 4. Proportion of Tregs are reduced in LE patients and inversely related to severity of acute graft-versus-host disease. (A) Flow cytometry gating strategy, with CD4+ T cells divided into three populations: a) CD25-Foxp3-, b) CD25+Foxp3-, c) CD25hiFoxp3+. (B) Proportions of these CD4+ subsets among CD3+ T cells were compared between non-LE and LE patients before (BT) and on days 3, 5, and 21 post-HCST. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. (C) Spearman correlation analysis between CD4+ subsets (CD25-Foxp3-, top; CD25+Foxp3-, mid; CD25hiFoxp3+, bottom) and severity of acute GVHD at three time points (BT, left; post-HCST day 5, mid; post-HCST day 21, right). Spearman correlation coefficient (r) and p value were indicated.
Preprints 73143 g004aPreprints 73143 g004b
Preprints 73143 g005aPreprints 73143 g005b

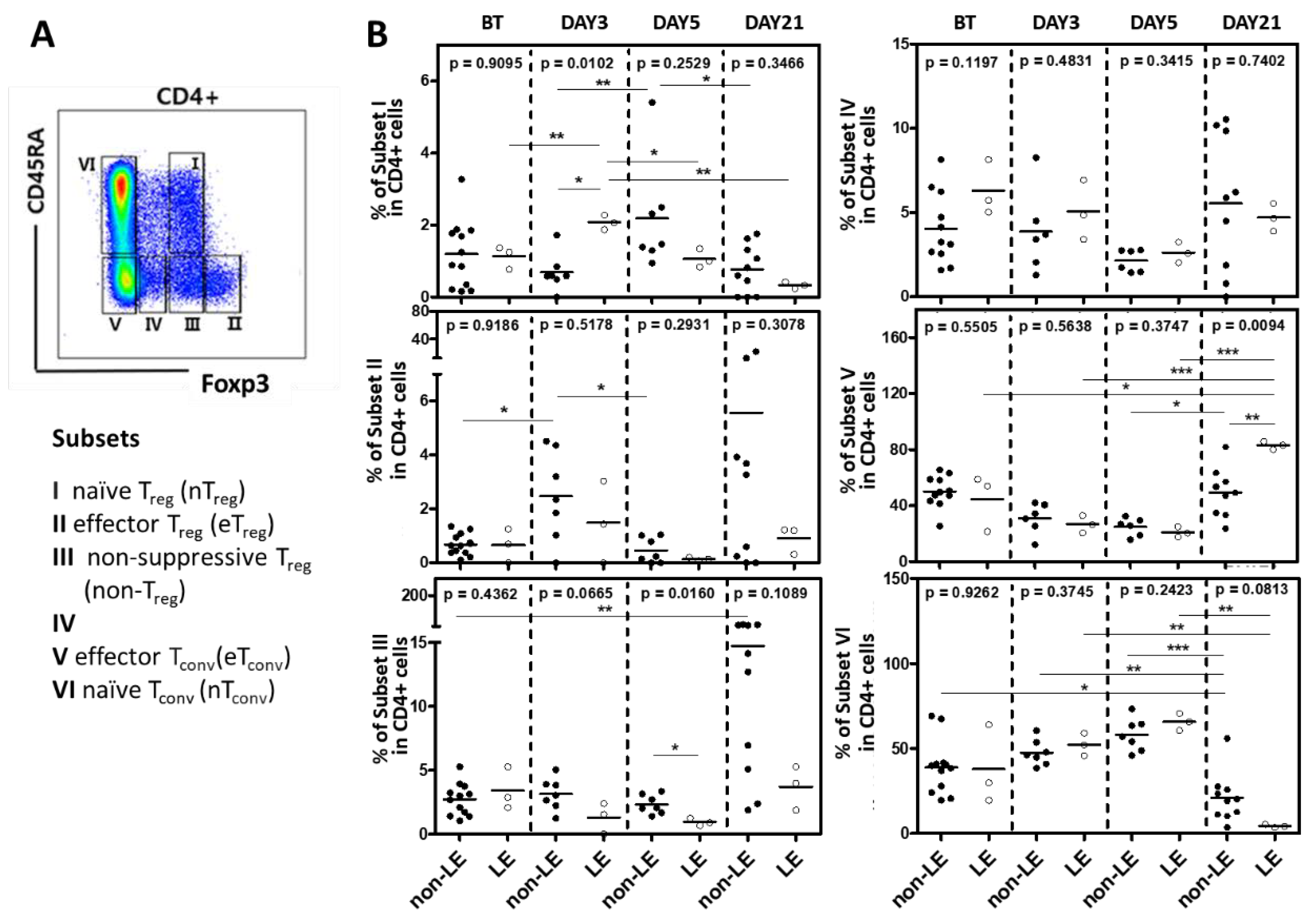

Figure 5. LE patients show concomitant increase in conventional effector T cells. (A) Flow cytometry gating strategy with division into subsets I-VI based on CD45RA and Foxp3 as indicated. (B) Proportions of subsets compared between non-LE and LE patients before transplant (BT) and on days 3, 5, and 21 post-HCST. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. (C, D) Spearman correlation analysis between severity of acute GVHD and (C) Treg subsets (I, top; II, mid; III, bottom) (C) and remaining subsets (IV, top; V, mid; VI, bottom) (D). Spearman correlation coefficient (r) and p value were indicated.
Figure 5. LE patients show concomitant increase in conventional effector T cells. (A) Flow cytometry gating strategy with division into subsets I-VI based on CD45RA and Foxp3 as indicated. (B) Proportions of subsets compared between non-LE and LE patients before transplant (BT) and on days 3, 5, and 21 post-HCST. Statistical difference by two tailed t-test. *p < 0.05, **p < 0.01, ***p < 0.001. (C, D) Spearman correlation analysis between severity of acute GVHD and (C) Treg subsets (I, top; II, mid; III, bottom) (C) and remaining subsets (IV, top; V, mid; VI, bottom) (D). Spearman correlation coefficient (r) and p value were indicated.
Preprints 73143 g005aPreprints 73143 g005b
Table 1. Patients’ characteristics (N=35).
Table 1. Patients’ characteristics (N=35).
Limbic Encephalitis All patients (N=35) P value Patients with Treg analysis (N=13) P value
Patients with LE (N=4) Patients without LE (N=31) Patients with LE (N=3) Patients without LE (N=10)
Age, median (range) 54 (28-60) 58 (42-72) 0.429* 56 (52-60) 60 (42-72) 0.533*
Gender, M:F 3, 1 14, 17 0.261§ 2, 1 4, 6 0.453§
Disease
AML
ALL
MDS
2 (50%)
2 (50%)
0 (0.0%)
19 (61.3%)
5 (16.1%)
7 (22.6%)


0.222§
2 (66.7%)
1 (33.3%)
0 (0.0%)
6 (60%)
2 (20%)
2 (20%)


0.562§
Poor Risk status♣ 4 (100%) 18 (58.1%) 0.102§ 3 (100%) 7 (70%) 0.290§
Disease status
1st CR
2nd CR
MDS
Refractory
4 (100%)
0 (0.0%)
0 (0.0%)
0 (0.0%)
19 (61.3%)
4 (12.9%)
7 (22.6%)
1 (3.2%)



0.502§
3(100%)
0 (0.0%)
0 (0.0%)
0 (0.0%)
5 (50%)
2 (20%)
2 (20%)
1 (10%)



0.466§
Conditioning
MAC
RIC
2 (50%)
2 (50%)
17 (57.8%)
14 (45.2%)

0.855§
1 (33.3%)
2 (66.7%)
6 (60%)
4 (40%)

0.453§
HCT-CI
0
1
2
3-
4 (100%)
0 (0.0%)
0 (0.0%)
0 (0.0%)
15 (48.4%)
10 (32.3%)
2 (6.5%)
4 (12.9%)



0.433§
3 (100%)
0 (0.0%)
0 (0.0%)
0 (0.0%)
6 (60%)
3 (30%)
0 (0.0%)
1 (10%)



0.370§
BMI 28 (23.4 – 29.4) 22.9 (18-27.4) 0.070* 26.9 (23.4-29.1) 23.7 (18-32) 0.197*
Donor Gender, M;F 4, 0 24, 7 0.288§ 3, 0 8, 2 0.377§
Donor Age 40 (21-60) 37.5 (50-55) 0.477* 28 (21-52) 38 (20-55) 0.559*
TNC (x 108 cells/kg) 12.5 (9.9-14.7) 11.6 (5.9-20.4) 0.858* 12.4 (9.9-12.6) 10.9 (5.9-20.4) 0.897*
CD3+cell (x108 cells/kg) 3.2 (1.7-5.1) 2.4 (1.3-4.9) 0.903* 3.0 (1.7-3.3) 2.2 (1.0-4.9) 0.837*
CD34+cell (x106 cells/kg) 5.2 (2.2-9.6) 6.7 (4.8-17.7) 0.081* 5.9 (4.5-9.6) 6.8 (4.8-17.7) 0.612*
CRS grade, median (range) 2 (2-3) 1 (0-1) 0.004§ 2 (2-2) 1 (0-1) 0.004§
VOD 2 (50%) 3 (9.7%) 0.030§ 1 (33.3%) 0 (0%) 0.026§
CMV reactivation 2 (50%) 24 (77.4%) 0.238§ 2 (66.7%) 9 (90%) 0.201§
F/U duration, mo
Median (range)		 1.7 (1.5-2.0) 5 (1 – 16) 0.096* 2.0 (1.5-2.0) 5.5 (1.0-16.0) 0.089*
♣ Poor risk include sAML, tAML, AML with poor risk group in NCCN guideline, poor cytogenetics in ALL. * unpaired two tailed t-test, § χ2 test. BMI, body mass index; CMV, cytomegalovirus; CRS, cytokine release syndrome; HCT-CI, hematopoietic stem cell transplantation-comorbidity index; MAC, myeloablating conditioning; RIC, reduced intensity conditioning; TNC, total nucleated cells; VOD, veno-occlusive disease.
Table 2. Characteristics of 4 patients with LE.
Table 2. Characteristics of 4 patients with LE.
Patients
Number		 Age Sex Disease Initial
manifestation		 Day of LE diagnosis after
HSCT		 HHV-6 status Grade of CRS CSF analysis EEG Hepatic
VOD		 Grade of
Acute GVHD
1 52 F AML Seizure 33 Negative 2 Not done Not done No 3
2 60 M AML Seizure 26 Negative 2 Not done Epileptic wave from right anterior temporal lobe Yes 4
3 28 M ALL Seizure 15 Negative 3 WBC < 5/µL Slow-wave activity with low to medium voltage Yes 4
4 56 M ALL Seizure 24 Negative 2 WBC < 5/µL Slow-wave activity with low to medium voltage No 3
CRS, cytokine release syndrome; CSF, cerebrospinal fluid; EEG, electroencephalogram; HHV-6, human herpesvirus 6; HSCT, hematopoietic stem cell transplantation; VOD, veno-occlusive disease; GVHD, graft-versus-host disease.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
