Abstract

In this work, we introduce a scalable and efficient GPU-accelerated methodology for volumetric particle advection and finite-time Lyapunov exponent (FTLE) calculation, focusing on the analysis of Lagrangian Coherent Structures (LCS) in large-scale Direct Numerical Simulation (DNS) datasets across incompressible, supersonic, and hypersonic flow regimes. LCS play a significant role in turbulent boundary layer analysis, and our proposed methodology offers valuable insights into their behavior in various flow conditions. Our novel owning-cell locator method enables efficient, constant-time cell search, and the algorithm draws inspiration from classical search algorithms and modern multi-level approaches in numerical linear algebra. The proposed method is implemented for both multi-core CPUs and Nvidia GPUs, demonstrating strong scaling up to 32,768 CPU cores and up to 62 Nvidia V100 GPUs. By decoupling particle advection from other problems, we achieve modularity and extensibility, resulting in consistent parallel efficiency across different architectures. Our methodology was applied to calculate and visualize the FTLE on four turbulent boundary layers at different Reynolds and Mach numbers, revealing that coherent structures grow more isotropic proportional to the Mach number, and their inclination angle varies along the streamwise direction. We also observed increased anisotropy and FTLE organization at lower Reynolds numbers, with structures retaining coherency along both spanwise and streamwise directions. Additionally, we demonstrated the impact of lower temporal frequency sampling by upscaling with an efficient linear upsampler, preserving general trends with only 10% of the required storage. In summary, we present a particle search scheme for particle advection workloads in the context of visualizing LCS via FTLE that exhibits strong scaling performance and efficiency at scale. Our proposed algorithm is applicable across various domains requiring efficient search algorithms in large structured domains. While this manuscript focuses on the methodology and its application to LCS, an in-depth study of the physics and compressibility effects in LCS candidates will be explored in a future publication.

Keywords:

Subject: Engineering - Aerospace Engineering

1. Introduction

The study of coherency in seemingly random velocity fields of fluid flow has long been of applied and theoretical interest to a broad community. This statement is essentially what the study of turbulence seeks to unravel. High-speed turbulence, relevant in both civilian and military domains, presents a set of unique challenges for both experimental and computational approaches. That being said, the advent of ever-more-powerful computers has made high-fidelity numerical simulations on non-trivial domains feasible. However, once high-quality data is available, efficient tooling must be leveraged to gather knowledge from the vast volumes of data usually generated by numerical simulations. This volume of data is highly dependent on the type of simulation chosen for the computational analysis of fluid flow. Broadly speaking, computational fluid dynamics (CFD) can often be divided into three categories: Reynolds-averaged Navier-Stokes (RANS), Large-Eddy Simulations (LES) and Direct Numerical Simulation (DNS), in order of increasing fidelity and computational cost. Of the three, DNS does not invoke any turbulence models; however, other models can be applied such as type of fluid being used (Newtonian or Non-Newtonian) or the molecular viscosity model used in compressible flows, for instance. Once DNS data is available, the study of coherent structures within the computational flow fields can be approached from either an Eulerian or Lagrangian perspective. Both provide different, yet valuable, insights. The Eulerian methods study a control volume with particles entering and exiting the volume. Lagrangian methods follow the individual particles across a given domain. This seemingly innocuous change of reference has rippling implications on the objectivity and nature of the achievable results. Eulerian methodologies are often employed in CFD post-processing due to the ease of implementation, high-performance achievable and intuitive results. Eulerian approaches to coherent structure detection and visualization include methods such as Q-criterion ([1]),

λ_{2}

([2]), two-point correlations ([3,4]), among others. However, one notable limitation of Eulerian methods is their lack of objectivity. The concept of Lagrangian coherent structures was first introduced by [5] and [6] as an alternate path to both detect and describe structures in turbulent flows. More recently, [7] describes LCS as manifolds formed by mass-less particle trajectories organizing the flow into different regions. Given the formulation by [5], LCS provides a mathematical framework that is: frame independent, theoretically insensitive to mesh resolution (with practical caveats) and enables the Lagrangian domain to exceed the baseline resolution by increasing particle counts. The formulation is based on the finite-time, Lyapunov exponent (FTLE) which will be introduced in more detail later in the manuscript. [8] extended the theoretical concept of material diffusion barriers to compressible flows but limited the applications to flow fields with density variations at relatively low speeds. Many applications for LCS have been put forth by [7,9] and [10]. The work presented herein is extensible to the myriad of fields where both LCS and particle advection are applicable. For instance, the LCS framework has been used in biological domains by [11,12,13]; in geophysical domains by [14,15]; and ecological flows by [16,17], among others.

Computationally speaking, Eulerian approaches lend themselves to highly efficient implementations due to regular memory access patterns and predictability. This regularity enables shared performance portability frontends capable of targeting different backends with similar performance characteristics, as pointed out by [18] and [19]. However, Lagrangian approaches require one to reason about lower level characteristics for particular hardware sets to achieve reasonable performance levels. Furthermore, extensive re-use of memory buffers is critical to avoiding incurring allocation bottlenecks. What’s more, avoiding codebase divergence while exploiting algorithmic advantages is also critical. Given the relevance of LCS to many fields, multiple implementations have been put forth in the literature. Many implementations are focused on planar LCS (i.e., 2D LCS). For instance, [10] presented a tool based on the popular Matlab environment and aptly named “LCS Tool". LCS Tool has been used in the literature as an off-the-shelf, accessible package (see [9] for a relevant example). LCS Tool is written in Matlab and is limited to a single node using shared memory parallelism within the limited number of Matlab’s internally parallel functions with large memory requirements. At the time, other implementations based on the finite-element method were also proposed such as the work by [20] where the Finite-Time Lyapunov Exponent was calculated using a discontinous Galerkin formulation. Finite Element Method (FEM) formulations can benefit from high-quality, adaptive mesh refinement which led [21] to propose an approach for efficient refinement of complex meshes for LCS calculations. [22] proposed a GPU-based LCS calculation scheme for smooth-particle hydrodynamics (SPH) data. Their approach, although efficient, was limited to a single node and lacked an efficient CPU-based counterpart. They reported speedups ranging from 33× to 67× for the GPU implementation. Moreover, due to the hardware described in [22], an efficient CPU implementation should have closed that gap to between 14× (for a typical memory bound code such as a particle advection workload) and 51× (for a purely compute-bound code), a 1.31× to 2.35× smaller gap. Typically, many scientific codes are mostly memory bound which suggest that a large gap still exists for an implementation which is efficient and scalable across both CPUs and GPUs.

In this work, we present a scalable, efficient volumetric particle advection1 and FTLE calculation code capable of calculating dynamic 3D FTLEs for large-scale DNS datasets. We will highlight implementation details for both the CPU and GPU backends of our code, where both backends share common ground and where the implementations diverged for performance reasons. As part of the implementation, we present a novel owning-cell locator method capable of efficient, constant-time cell search. We also study four DNS cases performed over flat plates at the incompressible, supersonic and hypersonic regimes by [23,24,25] to infer compressibility effects and Reynolds number dependencies on LCS. Although an in-depth discussion of the physics in the presented results is beyond the scope of the present work, we present a brief discussion of the results to highlight the practical applications of our work. A more in-depth discussion of the flow physics behind Lagrangian coherent structures in turbulent boundary layers will be explored in a future publication elsewhere.

2. Problem Overview and Algorithmic Details

2.1. Finite-Time Time Lyapunov Exponent

2.1.1. Overview - FTLE

The manifolds formed by the particle trajectories in a fluid flow are commonly referred to as Lagrangian Coherent Structure (LCS). Candidate manifolds for these LCS can be approximated discretely by various methodologies including leveraging the finite-time Lyapunov exponent (FTLE) or it’s counterpart, the finite-size Lyapunov exponent (FSLE). Both methodologies evaluate the deformation of a particle field but differ in their approach. The FSLE quantifies the amount of time it takes a pair of particles to reach a given finite distance between them. On the other hand, the FTLE integrates over a fixed, finite time regardless of the distance between neighboring particles. [26] made an assesment of both methods and pointed out advantages that FTLE has over FSLE. Nonetheless, [27] highlighted in their comparison that, with proper calibration, FTLE and FSLE can lead to similar results. In this work, we extend prior work on 2D FTLE ([9]) to a generalized, 3D representation. [7] pointed out that full, 3D LCS based on particle advection and finite-differences can be computationally challenging. This, however, assumes non-favorable scaling for both particle advection and subsequent calculations. The movement of a particle that is released at a specific time

t_{0}

and location

x_{0}

over a certain period can be described using the flow map, given the velocity field. The finite-time Lyapunov exponent (FTLE) is defined as:

F T L E_{τ} (x, t) = \frac{1}{| τ |} log (\sqrt{λ_{m a x} (C_{t_{0}}^{t} (x))})

(1)

where

λ_{m a x}

denotes the maximum eigenvalue and

C_{t_{0}}^{t} (x)

is the right Cauchy-Green (CG) strain tensor at a given spatial coordinate

x

. The right Cauchy-Green strain tensor is a mathematical quantity used to describe the deformation of a continuous body. It is defined as the product of the deformation gradient tensor and its transpose. The right CG tensor left-multiplies the transpose whereas the left CG tensor does the opposite. Furthermore, the right CG tensor is symmetric. It can be expressed as,

C_{i, j} = \frac{\partial x_{k}^{t}}{\partial x_{i}^{t_{0}}} \frac{\partial x_{k}^{t}}{\partial x_{j}^{t_{0}}},

(2)

where derivatives are taken as the change in the particle’s position (i.e., deformation) with respect to it’s original position at time

t_{0}

. Physically, the right Cauchy-Green strain tensor describes the way in which a body has been distorted or strained. It is a measure of the change in length of material lines or fibers within the body due to deformation. Specifically, the eigenvalues of the right Cauchy-Green strain tensor represent the squared stretches along the principal material directions, while the eigenvectors represent the directions of those stretches. It is demonstrable that the right Cauchy-Green strain tensor is a symmetric positive definite tensor implying real and positive eigenvalues.

High FTLE values highlight candidates for either attracting or repelling manifolds. If the particle’s trajectory is integrated forward in time, the structure is a repelling manifold. Conversely, backwards-in-time integration yields attracting barriers. Readers are referred to [6] for more details.

2.1.2. Algorithmic Details - Particle Advection

The efficient numerical treatment of particle advection is a relatively complex one as the critical path varies depending on many factors. We can simplify the problem and divide it into 5 major components:

Data Input/Output (Reading flow fields and writing particle coordinates to disk).
Flow field interpolation (interpolate between simulation flow fields to “improve" temporal resolution for the integration scheme).
Cell Locator (finding where a particle is w.r.t. the original computational domain).
Flow field velocity interpolation (calculating particle velocity based on its location within a cell).
Particle movements (advancing particles forward, or backward, in time).

Each component stresses a different segment of a computational platform. For instance, I/O is very network-sensitive (in the case of a parallel-file system) whereas velocity interpolation is very sensitive to both memory bandwidth and computational throughput (the precise balance is very dependent on the dataset due to cache effects). The cell locator portion is very interesting since it has been a major limiter in the past for many codes. Many authors have offloaded the cell locator to the CPU with a KD-Tree. Initially, we followed this approach, but it proved a major limiting factor for scalability. Moreover, porting a KD-Tree to the GPU was not the optimal choice. [28] implemented a hardware accelerated solution leveraging Nvidia’s custom Bounding Volume Heirarchy structure in RTX GPUs. This solution, although efficient, is not vendor nor hardware independent. For our solution, we drew inspiration from multi-grid methods in numerical linear algebra and efficient, tree-traversal schemes. We apply a queue-less, multi-Level, Best-First Search (QL-MLBFS). Let’s expand on each term, the multi-level nature of our approach draws inspiration from multi-grid methods by introducing multiple coarser meshes. These coarser meshes are used to narrow down the location of a particle by “refining" only in the vicinity of a particle’s location. The coarsening factor is defined as

⌊ {log}_{2} (N / 2) ⌋

which enables efficient power-of-two mesh coarsening. However, GPUs have scarce memory pools and lack device-side global memory allocations. Therefore, we provide the illusion of mesh coarsening through strided memory views. On the device, each thread has a “view" of the global mesh focused on the current coarsening level and local neighborhood. To highlight the benefits of this multi-level approach, a mesh with dimensions

990 \times 250 \times 210

(52M nodes) will have a coarsening factor of 64 which leads to a top-level mesh of

14 \times 2 \times 2

(56 nodes). This is a factor of

928, 125 \times

. The best-first search is directly inspired from the traditional BFS methodology as illustrated by [29]. However, we exploit the structured spatial structure to remove the typical priority queue in the original BFS method. Coupling the two approaches and leveraging knowledge of the underlying structured mesh enables highly efficient cell locators. For a 52M node mesh, only 440 node evaluations are required, a factor of

118, 125 \times

less than brute-force search. A naïve octree would require ∼512 comparisons in the worst case (∼64 in the best case). We achieve comparable efficiency for a relatively large domain with improved efficiency for smaller meshes. One very notable improvement is the lack of auxiliary data structures to hold the multiple levels. We highlight the pseudocode for our approach in Algorithm 1.

We can describe the scaling behavior of the proposed algorithm using the big-Oh notation. Big-Oh is a mathematical notation used to describe the asymptotic behavior of a function. It is often used in computer science and mathematics to describe the performance of algorithms and the complexity of problems. In general, big-Oh notation provides a way to compare the growth rates of different functions and to determine which functions grow faster than others as the input size increases. The scalable search algorithm for identifying the owning cell improves from the naïve

O (N_{p} N_{c}^{3})

3D search algorithm to a

O (N_{p} {log}_{8} (N_{c}))

. Given that

N_{p}

(particle count) and

N_{c}

(cell count) are uncoupled, we can theoretically approach the limit for

N_{p} > > {log}_{8} (N_{c})

which suggests a linear scaling in the number of particles. This is highly favorable considering that the naïve algorithm is

O (N^{4})

for

O (N_{p}) \approx O (N_{c})

Algorithm 1 Multi-Level, Best-First Search (ML-BFS)

$x_{p}, y_{p}, z_{p}$ ← Particle Coordinates
$N_{x}, N_{y}, N_{z}$ ← Logical Dimensions
$N \leftarrow min (N_{x}, N_{y}, N_{z})$
$G \leftarrow ⌊ {log}_{2} (N / 2) ⌋$
$Δ_{c}, Δ_{b} \leftarrow$ Very Large Float (for example, $10^{38}$ )
$i, i_{b}, j, j_{b}, k, k_{b} \leftarrow G$
while $i < N_{x} - G$ do
while $j < N_{y} - G$ do
while $k < N_{z} - G$ do
$Δ_{c} \leftarrow \sqrt{{(x_{i, j, k} - x_{p})}^{2} + {(y_{i, j, k} - y_{p})}^{2} + {(z_{i, j, k} - z_{p})}^{2}}$
if $Δ_{c} < Δ_{b}$ then
$Δ_{b}, i_{b}, j_{b}, k_{b} \leftarrow Δ_{c}, i, j, k$
end if
$k \leftarrow k + G / 2$
end while
$j \leftarrow j + G / 2$
end while
$i \leftarrow i + G / 2$
end while
while $G > 1$ do
$i, j, k \leftarrow i_{b} - G, j_{b} - G, k_{b} - G$
while $i_{b} - G \leq i < i_{b} + G$ do
while $j_{b} - G \leq j < j_{b} + G$ do
while $k_{b} - G \leq k < k_{b} + G$ do
$Δ_{c} \leftarrow \sqrt{{(x_{i, j, k} - x_{p})}^{2} + {(y_{i, j, k} - y_{p})}^{2} + {(z_{i, j, k} - z_{p})}^{2}}$
if $Δ_{c} < Δ_{b}$ then
$Δ_{b}, i_{b}, j_{b}, k_{b} \leftarrow Δ_{c}, i, j, k$
end if
$k \leftarrow k + G / 2$
end while
$j \leftarrow j + G / 2$
end while
$i \leftarrow i + G / 2$
end while
$G \leftarrow ⌊ G / 2 ⌋$
end while

Once the owning cell is identified, the particle’s velocity at an arbitrary natural coordinate n inside the owning cell is approximated using a trilinear interpolation scheme as follows:

U_{n} = c_{0} + c_{1} Δ x + c_{2} Δ y + c_{3} Δ z + c_{4} Δ x Δ y + c_{5} Δ y Δ z + c_{6} Δ x Δ z + c_{7} Δ x Δ y Δ z,

(3)

where the equation coefficients can be expressed in terms of the natural coordinates of the owning cell where each dimension varies from

[0, 1]

(denoted by the subscripts,

x y z

, below). Hence, the coefficients are succinctly expressed as:

\begin{matrix} c_{0} & = U_{000} \\ c_{1} & = U_{100} - U_{000} \\ c_{2} & = U_{010} - U_{000} \\ c_{3} & = U_{001} - U_{000} \\ c_{4} & = U_{110} - U_{010} - U_{100} + U_{000} \\ c_{5} & = U_{011} - U_{001} - U_{010} + U_{000} \\ c_{6} & = U_{101} - U_{001} - U_{100} + U_{000} \\ c_{7} & = U_{111} - U_{011} - U_{101} - U_{110} + U_{100} + U_{001} + U_{010} - U_{000} \end{matrix}

This is essentially a vector-matrix product followed by a vector dot product; roughly 44 floating point operations on 3-14 data elements depending on cell coordinate/velocity re-use and counting the normalization of the cell coordinate. Arithmetic intensity is defined as a measure of floating-point operations (FLOPs) performed with respect to the amount of memory accesses (Bytes) needed to support those operations. The calculated variability of arithmetic intensity (i.e., 0.78-3.67 FLOPs per Bytes) highlights the significant uncertainty possible depending on the flow fields’ characteristic since many clustered particles could lead to a very high degree of data reuse whereas a sparse placing of particles leads to low data reuse. For clustered particles, efficient memory access can lead to a mostly compute-bound interpolation kernel whereas divergent particle trajectories can lead to a memory-bound kernel. This shows the vast complexities found in scientific computing workloads that are rarely described by simplistic categories and labels. On the contrary, the owning cell search algorithm is almost exclusively a memory bound kernel. As such, the end to end kernel can morph from being memory bandwidth starved to being compute bound and vice versa.

To avoid excessive floating point rounding errors when performing the interpolation step on small cells, we project all cells to a natural coordinate system regardless of their orientation or their volume. This ensures all interpolation is performed in the

[0, 1]

range (note the subindex for each term highlighting their natural coordinate within the unit cube) where floating point precision is greatest and limits excessive errors that would be introduced on small cells with the multiple calculations involved in the trilinear interpolation step (

{Δ x, Δ y, Δ z | Δ x \in [0, 1] & Δ y \in [0, 1] & Δ z \in [0, 1]}

). To ensure stability when a particle is near (or at) the border of a skewed cell,

U_{n}

is clipped to within the minimum and maximum velocities in the owning cell.

With the purpose of reducing memory requirements, we opted for an explicit Euler integration scheme. Further, to reduce storage requirements, we provide the ability to interpolate between available flow fields. The interpolation scheme uses just two flow fields. We tested higher order interpolators which yielded minimal quality enhancements over a first order interpolation scheme. This is very likely due to multiple factors. Firstly, the time step is sufficiently small so as to minimize the errors introduced by a first order approximation. We typically apply a time step roughly

4 - 50 \times

smaller than the DNS time step depending on the computational cost and the desired quality. Secondly, the benefits of interpolation are mainly found in the temporal upsampling potential of reducing the data loading requirements. If a low resolution input is used, a higher order scheme can introduce unphysical behavior between time steps. Further, one cannot simply guarantee that a generic high-order temporal interpolation scheme is bounded and conservative. Using a small enough time step and a linear scheme alleviates many of the concerns usually associated to these and also provides computational advantages due to reductions in data movements and higher arithmetic intensity relative to data transfers to/from the device. The interpolation scheme invokes the following formulation:

u (t) = \frac{u_{1} - u_{0}}{t_{1} - t_{0}} (t - \frac{t_{1} + t_{0}}{2}) + \frac{u_{1} + u_{0}}{2} .

(4)

The interpolation scheme assumes a linear variation between two time steps. A second order approach implementation mostly generated similar results. By assuming linearity, we guarantee the results are bounded even when strong variations occur in a highly unsteady fluid flow. These strong variations are ubiquitous in high-speed, wall-bounded flow. Although more sophisticated interpolation and integration schemes exist, a simple yet highly efficient implementation has thus far yielded excellent results with strong computational scaling potential.

2.1.3. Algorithmic Details - Right Cauchy-Green Tensor & Eigenvalue Problem

One can quickly realize that the right Cauchy-Green (CG) strain tensor would require 9× more memory than the displacement field if the underlying software solution were to store each entry for every particle. This would quickly grow infeasible as the scaling would be linear in the number of particles with a large proportionality constant. Ideally, we would want the proportionality constant to be as close to unity as possible to ensure large-scale execution on limited memory platforms such as the Nvidia Tesla P100 GPU which is limited to 16 GBs. Furthermore, beyond merely an enabling quality, it is also a scalability requirement allowing more particles on a single compute element. Our approach was to fuse the calculation of the right CG tensor and the eigenvalue calculation phase of the FTLE calculation. This requires only 36 to 72 bytes (depending on single or double precision requirements) of private memory per thread of execution, which often exceeds 100,000 threads of execution on a GPU and it is just exceeding 50 to 60 on modern CPUs. For context, a V100 at maximum occupancy would require just 5.625-11.25 MiBs independent of the number of particles (2.3 to 4.6 KB on a 64 core CPU). This is in stark contrast to the 15-30 GBs that one of the large datasets presented herein (at large Reynolds numbers) would require (2538× higher memory requirements). Once the right CG tensor is calculated on an execution thread, the execution path proceeds to calculating the maximum eigenvalue for the given strain tensor. It is at this point where our CPU and GPU implementations diverge, library function calls are much more complicated on GPUs which motivated our custom implementation of a relatively simple power iteration method [30]. The power iteration method is an iterative algorithm for finding the dominant eigenvalue and the corresponding eigenvector of a symmetric positive definite matrix of real numbers. The steps can be summarized as:

Choose an initial guess for the eigenvector $x_{0}$ (preferably with unit length).
Compute the product of the matrix A and the initial guess vector $x_{0}$ to get a new vector $x_{1}$ .
Normalize the new vector $x_{1}$ to obtain a new approximation for the eigenvector with unit length.
Compute the ratio of the norm of the new approximation of the eigenvector and the norm of the previous approximation. If the ratio is less than a specified tolerance, then terminate the iteration and return the current approximation of the eigenvector as the dominant eigenvector. Otherwise, continue to the next step.
Set the current approximation of the eigenvector to be the new approximation, and repeat steps 2-4 until the desired accuracy is achieved.

The power iteration method works well for symmetric positive definite matrices because these matrices have real and positive eigenvalues, and the eigenvectors corresponding to the dominant eigenvalues converge to a single eigenvector regardless of the initial guess. The rate of convergence of the power iteration method depends on the ratio of the largest eigenvalue to the second-largest eigenvalue, and can be slow if the ratio is close to one. The power iteration is currently sufficient for our needs and computational budget; however, we are aware of more intricate methodologies that could be implemented if required, such as the QR algorithm.

2.2. Direct Numerical Simulation: The Testbed Cases

This section describes the principal aspects of the testbed cases used for validation and assessment of the proposed particle advection methodology. [23,24,25] provide foundational background of presently employed DNS databased in terms of governing equations, boundary conditions, initialization, mesh suitability, resolution check and validation. We are resolving spatially-developing turbulent boundary layers (SDTBL) over flat plates (or zero-pressure gradient flow) and different flow regimes (incompressible, supersonic and hypersonic). Particularly for incompressible SDTBLs, two very different Reynolds numbers are considered, being the high-Reynolds case about four times larger than its low-Reynolds case counterpart. The purpose is to examine the LCS code’s performance under distinct numbers of mesh points, while somehow assessing Reynolds dependency on Lagrangian coherent structures. The employed DNS database in the present article were obtained via the inlet generation methodology proposed by [31]. The Dynamic Multiscale Approach (DMA) was recently extended to compressible SDTBL in [25] and [24] for DNS and LES approaches, respectively. It is a modified version of the rescaling-recycling technique by [32]. Extensions to compressible boundary layers have also been proposed by [33,34] and [35]. However, the present inflow generation technique does not use empirical correlations to connect the inlet friction velocity to the recycle friction velocity, as later described. A schematic of the supersonic computational domain is shown in Figure 1 where iso-contours of instantaneous static normalized temperature can be observed. The core idea of the rescaling-recycling method is to extract “on the fly” the flow solution (mean and fluctuating components of the velocity, temperature and pressure fields for compressible flows) from a downstream plane (called “recycle"), to apply scaling laws (transformation), and to re-inject the transformed profiles at the inlet plane, as seen in Figure 1. The purpose of implementing scaling laws to the flow solution is to reduce the streamwise in-homogeneity of the flow. The Reynolds decomposition is implemented for instantaneous parameters, i.e. a time-averaged plus a fluctuating component:

u_{i} (x, t) = U_{i} (x, y) + u_{i}^{'} (x, t)

(5)

t (x, t) = T (x, y) + t^{'} (x, t)

(6)

p (x, t) = P (x, y) + p^{'} (x, t)

(7)

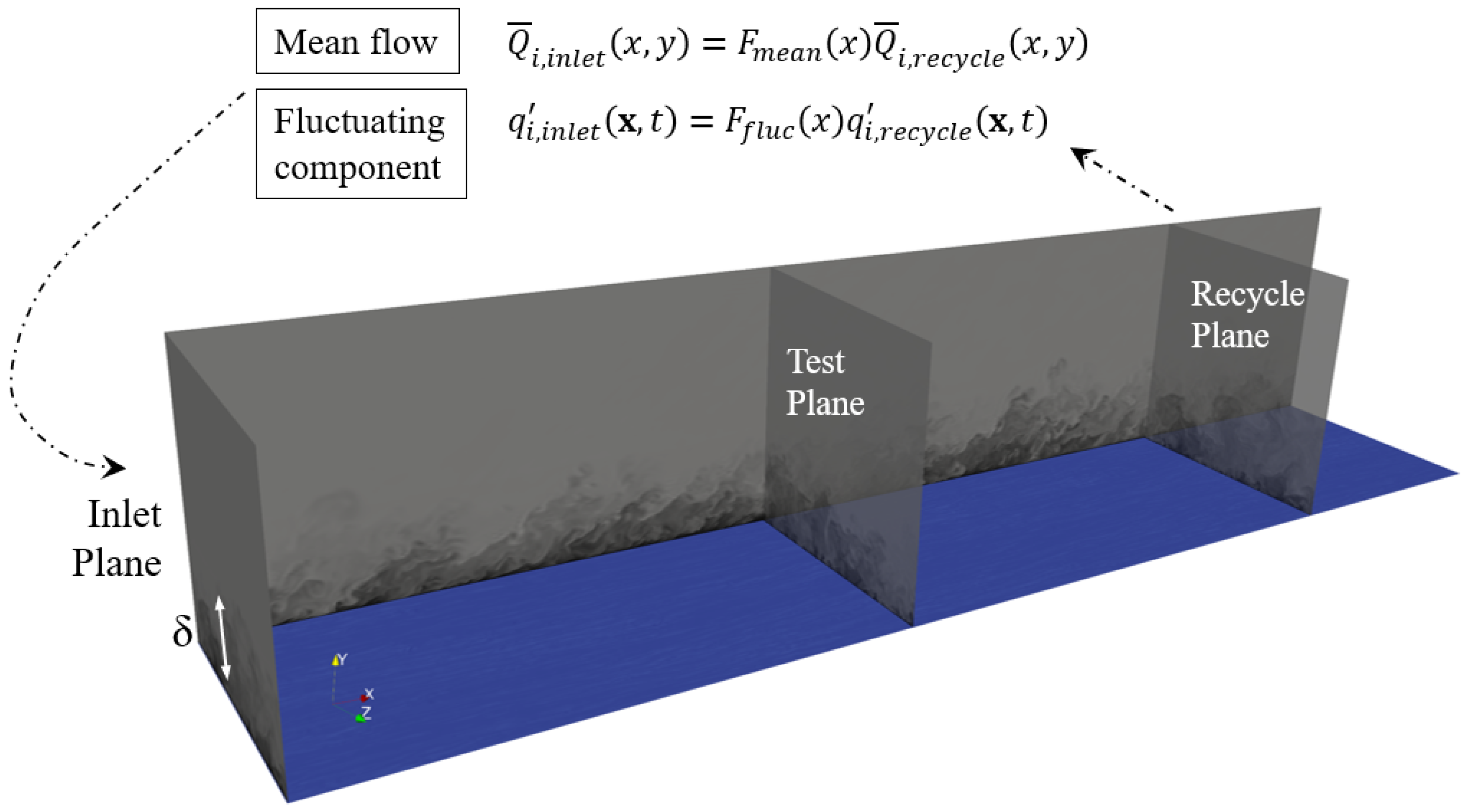

The re-scaling process of the flow parameters in the inner region ([31]) involves the knowledge of the ratio of the inlet friction velocity to the recycle friction velocity (i.e.,

λ = u_{τ, i n l} / u_{τ, r e c}

). Here, the friction velocity is defined as

u_{τ}

= \sqrt{τ_{w} / ρ}

, where

τ_{w}

is the wall shear stress and

ρ

is the fluid density. Since the inlet boundary layer thickness,

δ

, must be imposed according to the requested inlet Reynolds number, prescribing also the inlet friction velocity would be redundant. [32,33] and [34] solved this issue by making use of the well-known one-eighth power law that connects the friction velocity to the measured momentum thickness in zero-pressure gradient flows; thus,

u_{τ, i n l} / u_{τ, r e c} = {(δ_{2, i n l} / δ_{2, r e c})}^{- 1 / 8}

. Since this empirical power (-1/8) was originally proposed for incompressible flat plates at high Reynolds numbers ([36]), it could be strongly affected by some compressibility effects and low to moderate Reynolds numbers, as the cases considered here. Therefore, we calculated “on the fly” this power exponent,

γ_{δ 2}

, by relating the mean flow solution from a new plane (so-called the “Test" plane, as seen in Figure 1) to the solution from the recycle plane as follows:

γ_{δ 2} = \frac{l n (u_{τ, t e s t} / u_{τ, r e c})}{l n (δ_{2, t e s t} / δ_{2, r e c})} .

(8)

Table 1 exhibits the characteristics of the evaluated four DNS databases of flat plates in the present LCS study: two incompressible cases (at low and high Reynolds numbers), a supersonic case (

M_{\infty}

= 2.86), and a hypersonic case (

M_{\infty}

= 5). Numerical details are reproduced here for readers’ convenience. The Mach number, normalized wall to freestram temperature ratio, Reynolds number range, computational domain dimensions in terms of the inlet boundary layer thickness

δ_{i n l}

(where

L_{x}

L_{y}

and

L_{z}

represent the streamwise, wall-normal and spanwise domain length, respectively) and mesh resolution in wall units (

Δ x^{+}

Δ y_{m i n}^{+}

Δ y_{m a x}^{+}

Δ z^{+}

) can be seen in Table 1. The momentum thickness Reynolds number is defined as

R e_{δ 2} = ρ_{\infty} U_{\infty} δ_{2} / μ_{w}

, and it was based on the compressible momentum integral thickness (

δ_{2}

), fluid density (

ρ_{\infty}

), freestream velocity (

U_{\infty}

) and wall dynamic fluid viscosity (

μ_{w}

). On the other hand, the friction Reynolds number is denoted as

δ^{+} = ρ_{w} u_{τ} δ / μ_{w}

. Here,

u_{τ} = \sqrt{τ_{w} / ρ_{w}}

is the friction velocity, and

τ_{w}

is the wall shear stress. Subscripts ∞ and w denote quantities at the freestream and at the wall, respectively. Notice that the high Reynolds number case is approximately four times larger than that of the low Reynolds number case for incompressible flow.

For the low Reynolds number case (i.e., Incomp. low), the number of mesh points in the streamwise, wall-normal and spanwise direction is 440 × 60 × 80 (roughly a 2.1-million point mesh). Whereas, the larger Reynolds number cases are composed by 990 × 250 × 210 grid point (roughly a 52-million point mesh). The small and large cases were run in 96 and 1200 processors, respectively, in the Cray XC40/50-Onyx supercomputer (ERDC, DoD), HPE SGI 8600-Gaffney and HPE Cray EX-Narwhal machines (NAVY, DoD).

The present DNS databases were obtained by using a highly accurate, very efficient, and highly scalable CFD solver called PHASTA. The flow solver PHASTA is an open-source, parallel, hierarchic (2^nd to 5^th order accurate), adaptive, stabilized (finite-element) transient analysis tool for the solution of compressible [37] or incompressible flows [38]. PHASTA has been extensively validated in a suite of DNS under different external conditions ([24,39,40]). In terms of boundary conditions, the classical no-slip condition is imposed at the wall for all velocity components. Adiabatic wall conditions were prescribed for both compressible cases. For the supersonic flow case at Mach 2.86, the ratio

T_{w} / T_{\infty}

is 2.74 (in fact, quasi-adiabatic), where

T_{w}

is the wall temperature and

T_{\infty}

is the freestream temperature. While the

T_{w} / T_{\infty}

ratio is 5.45 for

M_{\infty}

equals to 5. In the incompressible case, temperature is regarded as a passive scalar with isothermal wall condition. In all cases the molecular Prandtl number is 0.72. The lateral boundary conditions are handled via periodicity; whereas, freestream values are prescribed on the top surface. Figure 2 shows the streamwise development of the skin friction coefficient [

C_{f}

2 {(u_{τ} / U_{\infty})}^{2} ρ_{w} / ρ_{\infty}

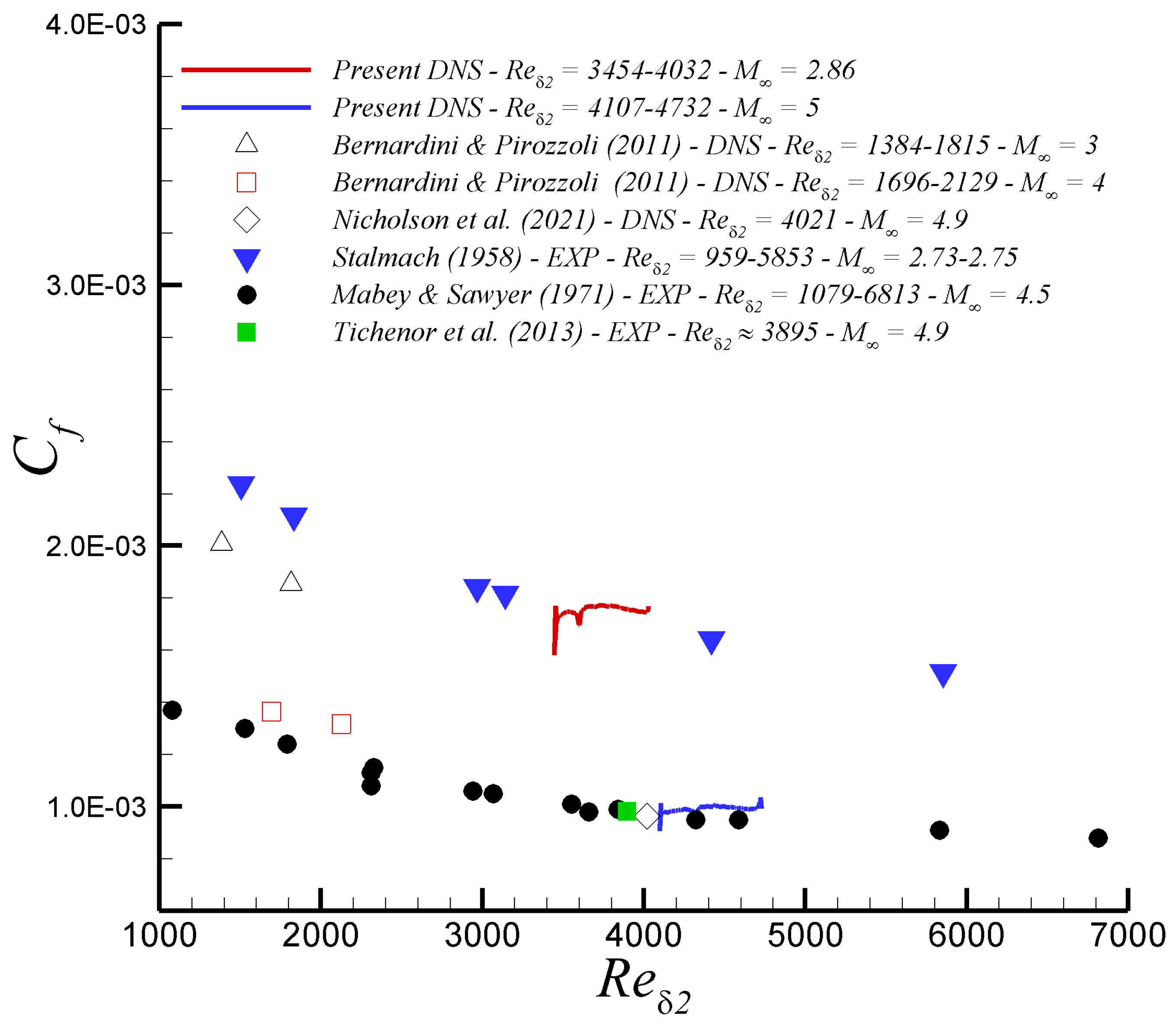

] of present DNS compressible flow data at Mach 2.86 and 5. It is worth highlighting the good agreement of present Mach-2.86 DNS data with experiments at similar wall thermal conditions, Reynolds and Mach numbers from [41], exhibiting a similar slope trend in

C_{f}

as a function of

R e_{δ 2}

. It can be seen an inlet “non-physical” developing section in the

C_{f}

profile, which extends for barely 2.5-3

δ_{i n l}

’s, indicating the good performance of the turbulent inflow generation method employed. Moreover, the inflow quality assessment performed in [23] via the analysis of spanwise energy spectra of streamwise velocity fluctuation profiles (i.e.,

E_{u u}

) at multiple inlet streamwise locations and at

y^{+} = 1, 15

and 150 indicated a minimal development region of 1

δ_{i n l}

based on

E_{u u}

. In addition, skin friction coefficient experimental data by [42] and [43] as well as DNS value from [44] at Mach numbers of 4.5 and 4.9 over adiabatic flat plates were also included. It is observed a high level of agreement with present hypersonic DNS results, and maximum discrepancies were computed to be within 5%. Furthermore, DNS data from [45] are also added at Mach numbers of 3 and 4; but at much lower Reynolds numbers.

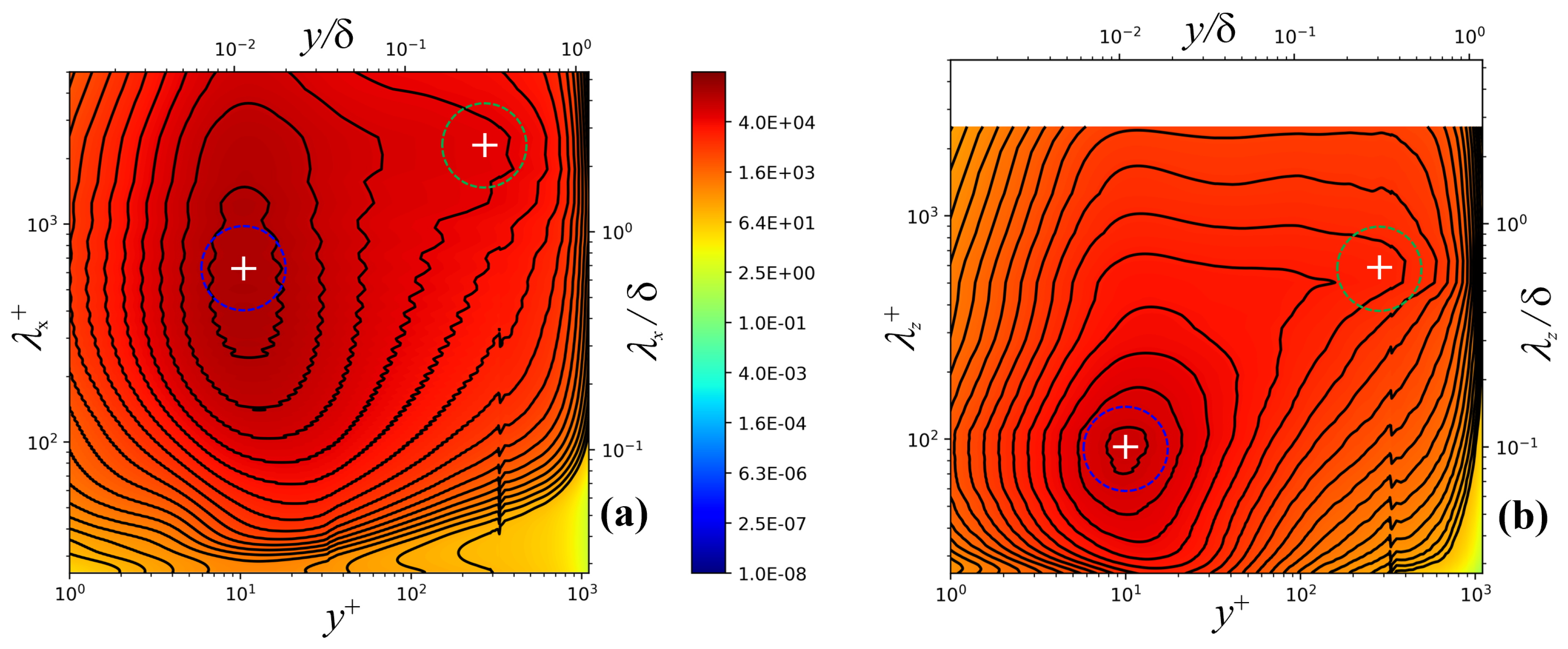

Figure 3 shows the pre-multiplied energy spectra along the (a) streamwise (

k_{x} E_{u u}

) and (b) spanwise (

k_{z} E_{u u}

) directions in inner units at a Mach number of 2.86 at

δ^{+}

= 909. The supplied information by pre-multiplied energy spectra can be used to determine the streamwise and spanwise wavelengths of the most energetic coherent structures at different boundary layer regions. In both directions, primary energy peaks are evident in the buffer region around

12 < y^{+} < 15

(see white crosses encircled by blue dashed lines) which are associated with spanwise wavelengths of the order of 100 wall units (or 0.1

δ

) and streamwise wavelengths of the order of 700 wall units. This inner peak at

λ_{x}^{+} \approx

700 (or 0.7

δ

) is the energetic “footprint” due to the viscous-scaled near-wall structure of elongated high- and low-speed regions, according to [46]. As expected, the turbulent structures associated with streamwise velocity fluctuations are significantly longer in the streamwise direction, showing an oblong shape with an aspect ratio of roughly 7. Furthermore, it is possible to observe weak but still noticeable secondary peaks with spanwise wavelengths of the order of

λ_{z}^{+} \approx

600 (or

λ_{z} \approx

0.7

δ

) and streamwise wavelengths with

λ_{x}^{+} \approx

3000 (or 3

δ

’s). These outer peaks of energy are much less pronounced than the inner peaks due to the absence of streamwise pressure gradient (zero-pressure gradient flow) and the moderate Reynolds numbers modeled. Present spanwise pre-multiplied power spectra,

k_{z} E_{u u}

, as seen in Figure 3 (b), shows a high similarity with pre-multiplied spanwise energy spectra of streamwise velocity fluctuations from [47] in their fig. 2b at

R e_{τ}

= 1116 (also known as

δ^{+}

). They also performed DNS of a spatially-developing turbulent boundary layer at the supersonic regime (Mach 2). It was also reported in [47] a secondary peak associated with spanwise wavelengths of

λ_{z} \approx

0.8

δ

. According to [47], the outer secondary peaks are the manifestation of the large scale motions in the logarithmic region of the boundary layer, whose signature on the inner region is noticeable under the form of low wavenumber energy “drainage” towards the wall.

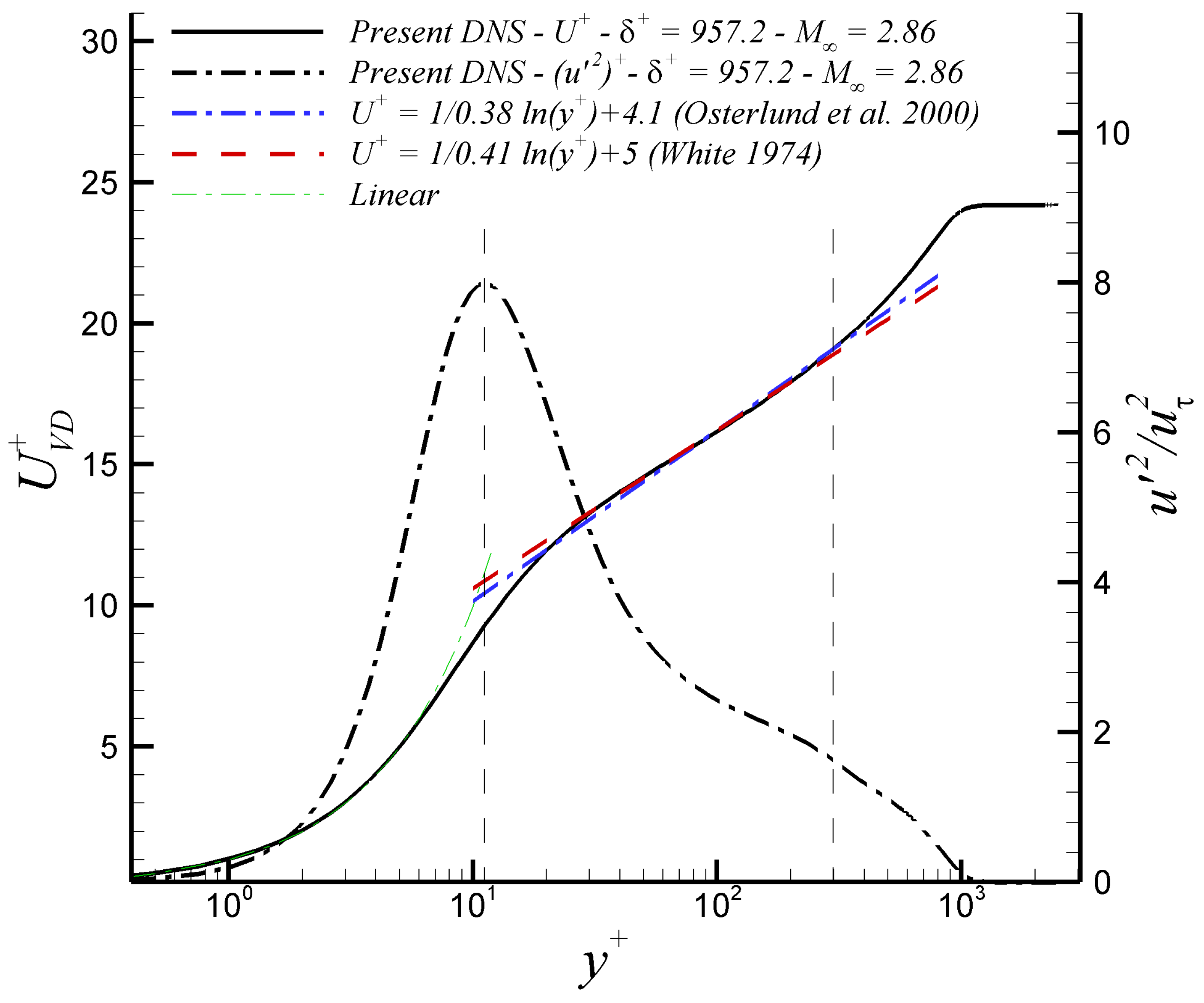

Figure 4 depicts the mean streamwise velocity by means of the Van Driest transformation (

U_{V D}^{+}

) and the streamwise component of the Reynolds normal stresses

{(u^{'} u^{'})}^{+}

in wall units. Additionally, three different logarithmic laws of

U_{V D}^{+}

have been included. For this high values of

δ^{+}

, the log region extends significantly (about 380 wall units in length). It seems our predicted values of

U_{V D}^{+}

slightly better overlap with the logarithmic function

1 / 0.41 l n (y^{+}) + 5

as proposed by [48] by the end of the log region (and beginning of the wake region). On the other hand, the log law as proposed by [49] (with a

κ

value of 0.38 and an integration constant, C, of 4.1) exhibits an excellent match with our DNS results in the buffer region (i.e., around

y^{+} \approx

20-30). The inner peak of

{(u^{'} u^{'})}^{+}

occurs at approximately

y^{+} = 15

and an outer “hump” can be detected for the supersonic case at roughly

y^{+} = 200 - 300

, consistent with the presence of the outer peak of the pre-multiplied spanwise energy spectra of streamwise velocity fluctuations.

2.3. Computing Resources

We leveraged a wide range of computational architectures and networks to test the performance portability and scalability of our proposed solution. The computational resources included: Onyx, Narwhal, Anvil and Chameleon.

2.3.1. Cray XC40/50 - Onyx

Onyx utilizes a Dragonfly topology on Cray Aries and is powered by Intel E5-2699v4 Broadwell CPUs, Intel 7230 Knights Landing CPUs, and Nvidia P100 GPUs. The compute nodes are designed with dual sockets, each containing 22 cores, and are enabled with simultaneous multithreading2. This allows the hardware threads to switch contexts at the hardware level by sharing pipeline resources and duplicating register files on both the front end and back end. The compute nodes are equipped with 128 GB of RAM, with 121 GB being accessible.

2.3.2. HPE Cray EX (formerly Cray Shasta) - Narwhal

Narwhal is a supercomputer capable of processing up to 12.8 petaflops. Each compute node on Narwhal contains two AMD EPYC 7H12 liquid-cooled CPUs based on the Zen 2 core architecture, with 128 cores and 256 threads, as well as 256 GB of DDR4 memory. There are a total of 2150 regular compute nodes on Narwhal, and the maximum allocation size is limited to 256 nodes. Additionally, there are 32 nodes with a single V100 GPU, and 32 nodes with dual V100 GPUs. The compute nodes are connected to each other using an HPE Slingshot 200 Gbit/s network, which directly links the parallel file systems (PFS).

2.3.3. Anvil

We also conducted a smaller scale study using the CPU partition of the Anvil system at Purdue University. Built in collaboration with Dell EMC and Intel, it is designed to support a wide range of scientific and engineering research applications. The supercomputer is based on the Dell EMC PowerEdge C6420 server platform and is powered by the second-generation Intel Xeon Scalable processors. Anvil has a total of 1,008 compute nodes, each containing 48 cores and 192 GB of memory. The nodes are interconnected with a high-speed Intel Omni-Path network that provides a maximum bandwidth of 100 Gbps. Anvil is also equipped with 56 Nvidia V100 GPUs for accelerating scientific simulations and deep learning workloads. Details on the Anvil system were well summarized by [50].

2.3.4. Chameleon A100 Node

We also tested scaling on more modern A100 GPUs provided by the Chameleon infrastructure, [51]. The A100 node used features 2 Intel Xeon Platinum 8380 totaling 80 cores (160 threads) and 4 A100 GPUs with 80 GBs of HBM 2e memory. The node also has 512 GBs of DDR4 memory and 1.92 TBs of local NVMe storage.

2.3.5. Fair CPU and GPU Comparisons

Comparing CPUs and GPUs can quite easily become a misguided venture if not carefully guided by factual evidence and architectural distinctions. Although an in-depth comparison of CPU and GPU hardware is far beyond the scope of this work, we will summarize key distinctions between a general CPU architecture and a general GPU architecture. We will also establish the common ground between CPU and GPU architecture elements to be used in our comparisons.

CPU architectures have historically pursued low latency of an individual operation thread as their main goal. On the other hand, GPU devices favor high-throughput by sacrificing the latency of an individual execution thread to enable processing a larger number of work items. GPU vendors tend to market ALU count (or SIMD FP32 vector lanes) as the “core count" for a device; however, this is misleading as the actual architecture unit resembling a “core" in a CPU device would be what Nvidia notes as a Streaming Multiprocessor (SM)3. To sustain a larger number of work items in flight, a GPU features a larger global memory bus width and typically has higher bandwidth requirements. Comparing the “per core" memory bandwidth shown in Table 2, one could erroneously assume large advantage of modern GPUs over contemporaneous CPUs. Notwithstanding, upon closer examination and accounting for vector widths in each device, a smaller gap is seen with the V100 actually having the lowest memory bandwidth per vector lane. Further complicating matters, shared cache bandwidth is a complex topic since it is often tied to core and fabric clockspeeds. These and other aspects are studied in further detail by [52] and [53]. Once again, this is not the whole picture. Accounting for register file sizes, one can note that modern GPUs boast zero-overhead context switching between multiple threads of execution whereas modern x86 CPUs have at most two sets of hardware registers allowing for zero-overhead context switching between two threads of executions. This factor allows a large number of threads in flights in modern GPUs which explains their resilience to high latency memory operations regardless of their roughly equal memory bandwidth per vector lane. This architectural advantage is often the differentiating factor at scale for a throughput oriented device as a GPU. Furthermore, the programming models supported by GPUs expose the parallelism supported by the device transparently whereas historical high-level languages used in CPU programming are challenging when it comes to fully utilizing multi-core CPUs, their SIMD units and available instruction-level parallelism. All of these factors typically compound and yield simpler, yet faster, code on GPUs even when devices are comparable on many fronts. A high-level overview of the computational devices used in this work is presented in Table 2.

2.3.6. Software

We implemented the proposed approach using Python as a high-level implementation language. However, achieving high-performance and targeting multi-core CPUs and GPUs using plain Python is not possible at the moment. To achieve high-performance on numerical codes, many libraries have been published targeting the scientific programming community. Perhaps the most popular numerical library for Python, NumPy by [54] provides a multi-dimensional array and additional functionality that enables near-native performance by targeting pre-compiled loops at the array level. Another relatively recent innovation in the Python ecosystem is the Numba JIT compiler by [55]. Numba enables compiling Python to machine code and achieve speeds typically only attainable by lower-level, compiled languages such as C, C++ or FORTRAN. Numba has been used across many scientific domains as both a tool to accelerate codebases and as a platform for computational research as puth forth by authors such as: [56,57,58,59,60,61,62,63,64,65,66,67,68,69,70]. Numba is essentially a front-end to LLVM which was originally proposed as a high-performance compiler infrastructure by [71]. Numba offers both CPU and GPU programming capabilities which facilitates sharing components not tied to specific programming model details.

Numba’s parallel CPU backend also provides a higher level of abstraction over multiple threading backends. In particular, it allows for fine grain selection between OpenMP, [72], and TBB, [73]. Given the lack of uniformity in Lagrangian workloads after multiple timesteps, TBB’s ability to dynamically balance workloads while accounting for locality and affinity offers higher performance for our particular use case. That being said, the implementation can be changed by setting a command line argument at program launch. Also, with more exotic architectures featuring hybrid core designs or where certain execution resources can boost higher than others, TBB removes two issues with many parallel systems limiting scaling in heterogeneous systems, unbalanced workload or large core counts: 1) it does not have a central queue thus removing that bottleneck, and 2) it enables workers to steal work from the back of other workers’ queue.

3. Results and Discussion

In this section, we will drill in on the scaling behavior for the presented algorithm and implementation for particle advection. We will compare the performance across both CPUs and GPUs. We will also explore different normalization schemes to provide a fair comparison between these architectures. We also explore the impact of a network-accessed, parallel filesystem contrasted against a local, high-performance NVMe device.

3.1. Performance Scaling Analysis

To begin our high-level exploration, we present multiple scaling plots in Figure 5. To efficiently utilize HPC resources, it is critical to scale out efficiently (i.e., to minimize serial bottlenecks). Figure 5a-b showcase the strong scaling performance of the approach put forth in this work. We scaled out to 32768 CPU cores and up to 62 Nvidia V100 GPUs (4960 GPU SM cores or an equivalent 317440 CUDA cores); consequently, the total number of CPU threads tested were roughly 32K whereas the peak number of GPU threads reached roughly 10M (GPU) threads (2048 threads per Volta SM core arranged in blocks of 64 threads for a total of 32 thread blocks per SM), or 310× more threads on a GPU (GPU threads are lightweight threads compared to the heavier OS-managed threads on CPUs). Figure 5a also highlights the extent that inefficiencies in the software stack or hardware resources below the application can end up degrading the performance at scale. This is clearly visible in Onyx were a large number of IO/network requests dominate the startup/termination times of the application, and actual runtime scales almost linearly. Beyond the impact of having a linear strong scaling behavior, scaling to large particle-count is an equally important aspect as larger datasets and more challenging scientific inquiries demand higher resolutions. Figure 5c characterizes the scaling behavior of our implementation on a fixed node-count (i.e., fixed computational resources) from 50M particles out to over 8B particles (given enough memory was available) across 16 compute nodes. One other interesting tidbit worth highlighting is the dominance of network latency in large-scale, parallel filesystems (PFS). Figure 5c showcases how a powerful GPU is essentially idle when waiting for data from the PFS (for both the P100 and V100 results). [59] reported a similar behavior for small problem sizes on a parameter estimation workload. Interestingly, they reported this behavior up to a 9M element matrix (3000×3000) whereas we found the onset of this behavior at approximately 13M particles. Consequently, a good rule of thumb is roughly 10M work elements per GPU. This is the incarnation of Amdahl’s Law where the GPU is essentially acting as an infinitely fast processor where the critical path lies on IO, sequential-routines, the network and the PFS. This is further confirmed by the A100 results where data resided on a local NVMe drive. Once sufficient work is available, the pre-fetch mechanism first introduced in [18] and [19] is capable of hiding the latency to great effect. In general, our proposed approach is very scalable in both particle count and strong scaling via problem decomposition. As processors continue to improve, multi-level approaches and latency-hiding mechanisms will continue growing in relevance to fully utilize the available computational resources.

Recall that we outlined in Section 2.1.2 the computational complexity scaling for the particle tracking algorithm in terms of cell-count and particle-count. For a large number of particles

N_{p}

and cells

N_{c}

, the term

N_{p} {log}_{8} (N_{c})

can be approximately modeled as linear scaling in

N_{p}

. This is because, as

N_{c}

increases, the growth rate of

{log}_{8} (N_{c})

is much slower compared to the linear growth of

N_{p}

. As a result, the overall function appears to scale linearly with

N_{p}

, even though there is a logarithmic dependence on

N_{c}

. This favorable scaling will prove very powerful as larger datasets are tackled and to enable higher resolution LCS visualizations in smaller datasets. What’s more by using

N_{p} > > N_{c}

the overall particle advection scheme is mostly dominated by velocity interpolation and temporal integration (source of the

N_{p}

term) rather than by volumetric particle search (source of the

{log}_{8} (N_{c})

term). Also, for any given domain, increasing the particle count results in a linear increase in the number of particles due to the decoupled scaling characteristics of the algorithm on the size of the domain and particle count. This conclusion is clearly seen in Figure 5c where once fixed latency costs are hidden by the pre-fetcher, a linear scaling is indeed seen. As will be discussed later in the manuscript, we tested our implementation against a 24.6× smaller DNS dataset to validate the favorable scaling in the number of cells. Although the High Re dataset used in this work is almost 25x larger than the lower Re counterpart, the overall runtime is only 41% higher when accounting for particle count differences and flow field count differences to achieve similar integration

t^{+}

and particle count. That is a mere 15% difference of what is predicted from the big-Oh analysis. That 15% is attributable to inefficiencies reading 45% more flow fields4 and other factors unaccounted in our big-Oh approximations.

We will discuss in more detail the architectural advantages in relation to the results below, but an initial overview of the remaining scaling results in Figure 5 highlight the virtues of an architecture built fundamentally for throughput and explicit parallelism. Each GPU SM offers higher per-clock throughput which translates to a palpable advantage on embarrassingly parallel workloads. On the other hand, CPUs can also take advantage of parallel workloads. As such explicitly developing parallel algorithms enables improved performance rather than porting an implicitly parallel workload to an explicitly parallel device. However, Figure 5d also highlights the dangers of naïvely comparing CPUs and GPUs without accounting for their architectural similarities and differences. Figure 5d shows the same results presented in Figure 5b but scales the horizontal axis to account for SIMD vector lanes in both CPUs and GPUs. After this linear transformation, the overall performance advantage of GPUs (still present) is not as abysmal as in Figures 5a and 5b. This smaller gap accentuates the convergence of CPUs and GPUs towards ever more similar design elements. SIMD units in CPUs are akin to CUDA cores in Nvidia GPUs albeit with slightly different limitations and programming models. Nonetheless, they serve the same purpose, applying the same instructions (more or less) to multiple data streams. As such, formulating algorithms to reduce synchronization or serialization points enables a more transparent scaling potential as more parallelism becomes available in future hardware.

Figure 5e shows the particle throughput per timestep over 16 nodes. As was alluded to in the discussion, once sufficient work is available, the throughput stabilizes to a plateau. Of the devices used to study the particle throughput and the performance scaling, the GPU accelerators achieve the highest throughput as compared to available CPU devices. A single V100 GPU achieves a throughput of 105M particles per second (1.7B particles per second over 16 V100 GPUs; 1.3M particles per GPU SM). Comparatively, 32 EPYC 7H12 CPUs (2048 cores) achieve a total throughput a 426M particles per second (13M particles per second per 7H12 socket; 203K particles per second per Zen 2 core). Without accounting for clockspeeds, the overall throughput of a Volta SM core is 6.4× than a Zen 2 core. Upon accounting for clockspeeds (as seen in Figure 5f), the clock for clock performance of a GPU SM is still greater than that of a CPU core. Interestingly, the improvements across both CPU and GPU generations are much more incremental than revolutionary accounting for SM count and clockspeeds in Figure 5f. However, given the magnitudes of modern processor clockspeeds, a single V100 GPU can process a particle in roughly 9.8 ns (in parallel to many other particles); however, analyzing a single SM yields roughly 900 ns. We could continue to modify the results to analyze the per SIMD partition performance yielding “worst" results. Consequently, application developers ought to be careful when presenting scaling data and avoid implicit biases against a (or in favor of) given vendor.

Thus far, we have focused our discussion on a single, relatively large DNS simulation. However, smaller scale simulations deserve special attention due to peculiarities pertaining to their latency-sensitive nature during post-processing. To investigate this issue, we ran the same particle advection workload across a series of lower

R e

DNS flow fields on 16 Nvidia V100 GPUs. The sensitivity to network IO was isolated by introducing two underlying DNS sampling frequencies. The high frequency (HF) samples were stored at the DNS timestep resolution and internally interpolated to achieve a time step 50× smaller than the DNS timestep. Conversely, the lower frequency (LF) sample was sampled at a tenth of the DNS resolution with a 500× upsample via interpolation applied to achieve an equal integration timestep. The physical implications of these two approaches will be discussed in Section 3.2.3. Due to the lower amount of work at low particle counts, performance is actually worst at very low particle counts than for subsequent increases due to high data transfer overheads and synchronization penalties. By reducing the underlying number of actual flow fields and producing approximations inside the GPU via interpolation, we essentially cut data movements to just 10% significantly improving the performance as seen in Figure 6a. Analogous to what we discussed for Figure 5e, Figure 6b exhibits a similar plateau at just over 1.5 billion particles processed per second on each time step. The data transfer overhead is still seen in both figures by the small difference in the asymptotic limit of both cases. The peak throughput for the LF case settles at 9% over the HF peak throughput owing to data transfer overhead. That being said, saturating the device and hiding transfer overheads can be achieved at a lower particle count than when a larger underlying flow field is being used. This can be justified noting the particle search approach being used where more data is being re-used and cached in the multi-level scheme than for the higher Re case. A single low Re flow field occupies 25 MBs whereas an equivalent field for the higher Re case occupies 623 MBs (note that the L1+L2 cache capacity of a V100 comes in at approximately 16 MBs). The peak throughput for the low Re case is achieved at roughly 16M-32M particles whereas the High Re case requires 500M-2,000M particles (15-125× more than the lower Re case). In general, achieving peak throughput requires at least an order of magnitude more particles than number of vertices in the underlying flow fields to allow the pre-fetcher enough slack to hide the network latency penalty when reading from the parallel filesystem. It ends up being a “free" resolution improvement as noted in Figure 5e and Figure 6a with a fixed runtime until the device is properly utilized.

Evaluating the particle advection approach and its performance portability requires testing across a wide variety of architectures. Historically, certain algorithms have been better suited for GPUs whereas others are more efficient on CPUs. However, in recent times, CPUs and GPUs have continued to evolve into highly parallel architectures with many elements in common. Take, for instance, a relatively modern Nvidia GPU, the V100. The V100 has 80 SM cores (the architectural unit closest to a CPU core) with each core having 4 partitions with 3×512-bit SIMT units (one single precision floating point, one double precision floating point and one integer SIMT unit per partition). A modern AMD server CPU like 7H12 or 7763 both have 64 cores with 2×256-bit SIMD units which equals the total length of the floating point pipeline on a single SM partition in the aforementioned V100 GPU (although 4 scalar integer ALUs are present in Zen 2/3 which, to be fair with our GPU comparison, leads to a 128-bit lane-width assuming 32-bit integer operations). Clock for clock, a GPU SM is capable approximately 4-9.6x the computational throughput ranging from raw FP32 throughput to a perfectly balanced (FP32 and FP64 float/integer) and scalable workload. That being said, a GPU SM has a far larger register file enabling zero-overhead context-switching. This makes the GPU far more latency-tolerant. These factors enable a highly scalable programming model on GPUs whereas achieving scalable throughput on CPUs requires much more fine-tuning. Accounting for clockspeeds and core counts, we should expect to see a speed-up of approximately 4.25x of a single Tesla V100 over an EPYC 7H12. We measured an empirical speed-up based on the strong scaling workload at 3.9x average (3.3x minimum and 5x maximum) or 92% of our theoretical estimate based on raw throughput as seen in Figure 5e-f. It is worth noting that the simpler analysis of bandwidth and compute throughput suggested a less aggressive 2.3x to 2.7x performance improvement which leaves another 57% improvement in algorithmic performance on the table without considering the combined integer/floating point throughput of modern architectures. This analysis would suggest the improvements of an A100 GPU are roughly 38%-60% over a V100 GPU (from throughput to bandwidth improvements). Analyzing A100’s performance for our particle advection implementation showcases a 79% improvement when comparing a single V100 vs a single A100 GPU (see Figure 5c). Out of this 79%, the additional SM’s and higher clockspeeds yield a 38% improvement whereas architectural enhancements contribute a 30% improvement. Clock for clock, we found the A100 to be 28% faster in our testing. These results are inline with the 60% “per-SM" memory bandwidth improvement and 35% increment in SM count. These additional bandwidth improvements are also “reachable" given the vastly improved cache in A100. The per FP32 lane performance is shown in Figure 5d where CPU lanes are calculated based on the SIMD pipeline widths and GPU lanes are taken as the CUDA core count (Nvidia’s marketing term for FP32 ALU). The performance gap is significantly reduced when comparing against the FP32 vector lane count which yields a fairer comparison point normalizing against the baseline throughput unit. However, we assess that algorithmic and implementation improvements could still yield another 20% improvement in achievable performance. A100 offers a vastly larger cache subsystem unlike prior GPU generations which likely necessitates fine-tuning. This highlights the importance of a multi-faceted analysis when evaluating potential performance improvements. Also, our particle advection codebase is highly scalable with additional memory bandwidth and throughput. Given the every improving hardware landscape, our proposed implementation should be performance portable across multiple hardware generations. Hence, we believe that domain experts should consider additional avenues of exploiting the concurrent execution of floating point and integer calculations given the potential doubling in throughput on modern architectures in addition to the more traditional improvements associated with memory bandwidth utilization.

We leverage the fact that modern CPU architectures in HPC systems continue to converge with GPUs and share a common approach (albeit implemented in different programming models). Algorithm 1 forms the foundation of our particle advection implementation on both CPU and GPU. As seen in Figure 5a and 5b, we achieve strong scaling across both CPU and GPU nodes and across various generations. We do observe a degradation in strong scaling performance at higher node counts for the Onyx and Narwhal systems when using CPU-only node configurations. We assess that this breakdown is a limitation of the filesystem rather than a limitation of the actual implementation. This is further reinforced by the results in the Anvil system. Although not shown, the system is capable of targeting both CPUs and GPUs in a hybrid approach through the same LLVM compiler infrastructure. This hybrid approach currently targets a static work scheduler and requires user guided fine tuning to estimate an appropriate work sharing strategy. Looking towards possible optimization avenues, a more automated and dynamics approach would enable a fully automated backend that fully utilizes the available hardware.

The right CG tensor and the maximum eigenvalue calculation currently represent a minimal portion of the overall runtime. However, we measure the performance on a single P100 GPU at 204K eigenvalues per second for a 415M particle system representing roughly 33 minutes to calculate the finite-time Lyapunov exponent for each particle from the displacement field (∼3% of the total runtime). A V100 offers a higher throughput for the eigenvalue solver and the integration scheme as seen above. It achieves 711K eigenvalues per second for a 67M particle system (representing roughly the same percentage of the total program runtime). The major limitation is the nature of the eigenvalue problem at hand where we have to solve one small eigenvalue problem per particle. Many high-performance implementations are tuned for large sparse problems. Tuned batched implementations exist but require submitting the batched buffers as a whole. Given our trade-off between available memory footprint requirements and performance, our streaming approach is a sensible solution.

3.2. Case Study

To prove the applicability and usefulness of the proposed approach, we applied our methodology to three previously obtained DNS datasets ([23]) to assess the compressibility effects on Lagrangian coherent structures over moderately-high Reynolds number turbulent boundary layers at three flow regimes, ranging from incompressible, supersonic and hypersonic; already described in Table 1. As discussed in [9], a time convergence analysis was performed at different integration times, i.e. at

t^{+} =

10, 20 and 40, where

t^{+} = u_{τ}^{2} t / ν

. It was observed more defined material lines as the integration time was increased. Following [9], the results shown henceforth are based on a backward/forward integration finite time of

t^{+} = \pm 40

. Firstly, we showcase the ability to perform LCS analysis at scale (hundreds of millions to billions of particles). Figure 7, Figure 8 and Figure 9 shows FTLE contours in incompressible, supersonic, and hypersonic regime, respectively. Furthermore, isometric views are depicted for attracting manifolds (top) and repelling manifolds (bottom) by performing backward or forward integration of particle advection, respectively. The DNS mesh is composed by approximately 52 million grid points, whereas 416 million particles were evaluated in all cases. In Figure 7a, the incompressible attracting FTLEs depict the presence of hairpin vortices, consistent with results by [74] and [75]. Hairpin vortices have been broadly accepted as the building blocks of turbulent boundary layers [76]. Furthermore, one can observe that attracting LCS ridges (blue contours) reproduce inclined streaky structures with the upstream piece stretching towards the near-wall region, almost attached to it, while the downstream part is elongating into the outer region due to viscous mean shearing, [75] and [9]. In other words, these lateral images of attracting FTLE manifolds depict inclined quasi-streamwise vortices (or hairpin legs) and heads of the spanwise vortex tube located in the outer region. In some streamwise locations, hairpin heads can rise up into the log or wake layer (not shown), i.e. 30 <

y^{+}

< 700, due to turbulent lift-up effects. In addition, hairpins are rarely found isolated but in groups or packets. [77] identified Lagrangian coherent structures via finite-time Lyapunov exponents in a flat-plate turbulent boundary layer from a two-dimensional velocity field obtained by time-resolved 2D PIV measurement. They stated that hairpin packets were formed through regeneration and self-organization mechanisms. Moreover, [78] have reported a high level of correlation between attracting FTLE manifolds and ejection events (or Q2 events) in supersonic turbulent boundary layers. As an hairpin vortex moves downstream, it generates an ejection of low-speed fluid (i.e., Q2 event), which encounters zones of higher speed fluids resulting in shear formation and, consequently, increased drag. It can also be seen “kinks” in some hairpin vortex legs (attracting FTLE’s contours) due to viscous interaction within hairpin vortices. Repelling manifolds via forward temporal integration have been also computed and visualized in Figure 7b. Different from attracting material lines, repelling barriers are mostly concentrated in the very near-wall region. Notice the large values of repelling FTLE values (intense red) very close to the wall. However, they are also clearly observed in the buffer/log region with lower intensity, intersecting hairpin legs in regions where ejections are commonly present.

3.2.1. Compressibility Effects

Prior description of features of attracting/repelling manifolds in incompressible turbulent boundary layers are fully extensible to supersonic and hypersonic flat-plate turbulent boundary layers. Two main compressibility effects can be highlighted: (i) coherent structures grow more isotropic proportional to the Mach number, (ii) the inclination angle of the structures also varies along the streamwise direction. The increased isotropic character is perhaps the most interesting of both. The incompressible coherent structures are relatively weak in nature and mostly confined to the near-wall region with the presence of more evident “valley” between “bulges”. This is in stark contrast with the hypersonic coherent structures and shear zones that are apparent farther from the wall. Conversely, the prevalence of the structures farther away from the wall does not convey the complexity of the phenomenon. Although these structures and shear layers are more prevalent farther from the wall, they seem much more isotropic (but less organized) and contained in smaller clusters. This effect has been reported in the past in Eulerian statistics by [3] and Lagrangian statistics by [9].

3.2.2. Reynolds Number Dependency Effects

Aside from the relatively moderate compressibility effects on LCS, we did observe a stronger dependency on the Reynolds number, as expected. The structures are far more anisotropic and organized at lower Reynolds numbers, as seen in Figure 10. Structures at lower Reynolds numbers extend significantly along the streamwise direction whereas structures at higher Reynolds numbers tend to be shorter in general with smaller coherency spans. At lower Reynolds numbers, the presence of hairpin vortex packets (or horseshoes) is more evident. These are observable by grouped regions of high coherency in the attracting FTLE ridges.

The isometric view shown in Figure 11 illustrates that the increased coherency in the lower Reynolds case extends significantly in the spanwise direction, as well. This also confirms the increased anisotropy. We hypothesize that the increased fluid organization at lower Reynolds numbers is attributable to an decreased dominance of the inertial forces. The viscous interactions offer a “stabilizing" effect on the coherent structures and elongate their coherency.

3.2.3. Temporal Interpolation and Particle Density Influence

The temporal interpolator presented in equation 4 provides a mechanism to reduce storage requirements. To assess the quality of our interpolation mechanism, we showcase results sampled at different temporal resolutions (an order of magnitude difference) for the incompressible low-Reynolds-number case. The results are shown in Figure 12. Note that both particle advection integration tests (and using the proposed interpolation scheme) were executed at a timestep that was 20× smaller than that of the DNS timestep. In general, structures are well preserved with the only features slightly degraded contain high frequencies which inherently depend on high frequency sampling, and the interpolation scheme preserves the stability of the integration process.

To validate the higher frequency features, we hypothesize that more “energy" (or intensity) is concentrated into the same volume hence the structures are more well-defined as both particle count grows and as underlying flow fields are sampled at a higher rate. To test our hypothesis, we follow an approach analogous to that of a power (energy) spectra to calculate the density of the FTLE’s intensity. We present a normalized view of this spectral analysis in Figure 13. As we had alluded, the FTLE’s intensity grows and is concentrated into smaller regions which yields higher magnitudes in the

L_{2}

-norm of the spectra as particle count grows and at higher temporal sampling frequencies. Interestingly, both curves follow almost a quadratic tendency. This is slightly more obfuscated but can be visually confirmed by closely inspecting Figure 14 and Figure 15. Although higher temporal sampling frequency yields more well-defined results, increasing the number of particles results in similarly high fidelity results at higher particle counts. That being said, some features are inherently tied to the presence of higher temporal frequencies and are difficult, if not impossible, to recover without fully accounting for these in the underlying flow fields.

4. Conclusion

We have highlighted a notable gap in efficient and scalable algorithms for particle advection workloads. In particular, this manuscript focused on the issue as pertaining to Lagrangian coherent structures which provide an objective framework for studying complex patterns in turbulent flows. Although the end goal is the calculation of the finite-time Lyapunov exponent, we argue that the particle tracking and time integration is the most time-intensive task. Although others have argued for implementations based on the FEM, we argued for the simplicity and portability of a well-designed implementation based on traditional particle advection. By decoupling the individual problems, we achieved a high degree of modularity and extensibility. To tackle the particle advection problem, we drew inspiration from multiple fields including classical search algorithms and modern multi-level approaches in numerical linear algebra. The fundamental algorithms lack any domain-specific knowledge but augmentations were introduced to enhance the baseline performance by exploiting the inherent structure in structured CFD meshes.

The proposed algorithm was implemented for both traditional multi-core CPUs and Nvidia GPUs using the Numba compiler infrastructure and Python programming language. We demonstrated strong scaling up to 32768 CPU cores and up to 62 Nvidia V100 GPUs (4960 GPU SM cores or an equivalent 317440 CUDA cores). As part of our scaling study, we demonstrated the particular features of both CPU and GPU architectures that benefit particle advection in an unsteady flow field. Particle advection is foundational to many CFD workloads including Lagrangian Coherent Structures. We argued that decoupled scaling in the number of particles vs cells in the simulation’s domain is required to achieve high resolution visualizations. We showcased the linear scaling in the number of particles and a highly favorable scaling in the number cells suggesting our approach can scale to tackle larger problems. Both, the CPU and GPU backends, exhibit excellent parallel efficiency scaling out to thousands of CPU (or GPU) cores.

To demonstrate the applicability of our particle advection scheme, we presented a case study calculating and visualizing the finite-time Lyapunov exponent on four turbulent boundary layers at different Reynolds and Mach numbers to assess compressibility effects and Reynolds number dependency on the LCS candidate structures. The main compressibility effects were an increase of the isotropic character of attracting and repelling manifolds as the Mach number increases. Conversely, we saw an increased anisotropy and FTLE organization at lower Reynolds numbers with structures retaining their coherency along both spanwise and streamwise directions. We also observed structures tended to be less contained to the near-wall region at higher Mach numbers. We also highlighted the impact of lower temporal frequency sampling in the source flow fields by upscaling with an efficient linear upsampler. The general trends were well preserved with (as expected) high frequency features being absent from the downsampled data. However, the quality is acceptable with just 10% of the required storage. Nonetheless, this manuscript is focused on the methodology, and an in-depth study of the physics and compressibility effects in LCS candidates is beyond the scope of this work.

In summary, we presented a highly efficient particle search scheme in the context of particle advection workloads. The motivating application revolves around visualizing Lagrangian coherent structures via the finite-time Lyapunov exponent. We presented a thorough computational complexity analysis of the algorithm and presented empirical evidence highlighting the strong scaling performance and efficiency at scale. Although focused on LCS for the purpose of this manuscript, the proposed particle advection algorithm builds on a search scheme applicable across many domains requiring efficient search algorithms in large structured domains. The proposed search scheme is highly scalable to larger domains due to its coarsening, multi-level methodology and scales linearly in the number of particles once sufficient work is available to saturate the computational element.

Acknowledgments

This material is based upon work supported by the National Science Foundation under grants #2314303, #1847241, HRD-1906130, DGE-2240397. This material is based on research sponsored by the Air Force Office of Scientific Research (AFOSR), under agreement number FA9550-23-1-0241. This work was supported in part by a grant from the DoD High-Performance Computing Modernization Program (HPCMP). A subset of the results presented in this paper were obtained using the Chameleon testbed supported by the National Science Foundation.

References

Hunt, J.C.R.; Wray, A.A.; Moin, P. Eddies, streams, and convergence zones in turbulent flows. In Proceedings of the Studying Turbulence Using Numerical Simulation Databases, 2, 1988; pp. 193–208.
Jeong, J.; Hussain, F. On the identification of a vortex. Journal of Fluid Mechanics 1995, 285, 69–94. [Google Scholar] [CrossRef]
Lagares, C.; Araya, G. Compressibility effects on high-Reynolds coherent structures via two-point correlations. AIAA AVIATION 2021 FORUM 2021. [Google Scholar] [CrossRef]
Araya, G.; Lagares, C.; Santiago, J.; Jansen, K. Wall temperature effect on hypersonic turbulent boundary layers via DNS. AIAA SciTech 2021. [Google Scholar]
Haller, G.; Yuan, G. Lagrangian coherent structures and mixing in two-dimensional turbulence. Physica D 2000, 147, 352–370. [Google Scholar] [CrossRef]
Haller, G. Distinguished material surfaces and coherent structures in three-dimensional fluid flows. Physica D: Nonlinear Phenomena 2001, 149, 248–277. [Google Scholar] [CrossRef]
Haller, G. Lagrangian Coherent Structures. Ann. Rev. Fluid Mechanics 2015, 47, 137–162. [Google Scholar] [CrossRef]
Haller, G.; Karrasch, D.; Kogelbauer, F. Barriers to the Transport of Diffusive Scalars in Compressible Flows. SIAM Journal on Applied Dynamical Systems 2020, 19, 85–123. [Google Scholar] [CrossRef]
Saltar, G.; Lagares, C.; Araya, G. Compressibility and Reynolds number effect on Lagrangian Coherent Structures (LCS). AIAA AVIATION 2022 Forum 2022. [Google Scholar] [CrossRef]
Onu, K.; Huhn, F.; Haller, G. LCS Tool: A computational platform for Lagrangian coherent. Journal of Computational Science 2015, 7, 26–36. [Google Scholar] [CrossRef]
Töger, J.; Kanski, M.; Carlsson, M.; Kovacs, S.; Söderlind, G.; Arheden, H.; Heiberg, E. Vortex Ring Formation in the Left Ventricle of the Heart: Analysis by 4D Flow MRI and Lagrangian Coherent Structures. Annals of Biomedical Engineering 2012, 40. [Google Scholar] [CrossRef]
Shadden, S.; Astorino, M.; Gerbeau, J. Computational analysis of an aortic valve jet with Lagrangian coherent structures. Chaos 2010, 20. [Google Scholar] [CrossRef] [PubMed]
Koh, T.Y.; Legras, B. Hyperbolic lines and the stratospheric polar vortex. Chaos 2002, 12, 382–394. [Google Scholar] [CrossRef] [PubMed]
Beron-Vera, F.J.; Olascoaga, M.; Goni, G. Oceanic mesoscale eddies as revealed by Lagrangian coherent structures. Geophysical Research Letters 2008, 35. [Google Scholar] [CrossRef]
Beron-Vera, F.J.; Olascoaga, M.J.; Brown, M.G.; Rypina, I.I. Invariant-tori-like Lagrangian coherent structures in geophysical flows. Chaos 2010, 20. [Google Scholar] [CrossRef]
Peng, J.; Dabiri, J. Transport of inertial particles by Lagrangian coherent structures: application to predator–prey interaction in jellyfish feeding. Journal of Fluid Mechanics 2009, 623, 75–84. [Google Scholar] [CrossRef]
Tew Kai, E.; Rossi, V.; Sudre, J.; Weimerskirch, H.; Lopez, C.; Hernandez-Garcia, E.; Marsac, F.; Garçon, V. Top marine predators track Lagrangian coherent structures. Proceedings of the National Academy of Sciences 2009, 106, 8245–8250. [Google Scholar] [CrossRef] [PubMed]
Lagares, C.; Rivera, W.; Araya, G. Aquila: A Distributed and Portable Post-Processing Library for Large-Scale Computational Fluid Dynamics. In AIAA Scitech 2021 Forum; 2021. [Google Scholar] [CrossRef]
Lagares, C.; Rivera, W.; Araya, G. Scalable Post-Processing of Large-Scale Numerical Simulations of Turbulent Fluid Flows. Symmetry 2022, 14. [Google Scholar] [CrossRef]
Nelson, D.A.; Jacobs, G.B. DG-FTLE: Lagrangian coherent structures with high-order discontinuous-Galerkin methods. Journal of Computational Physics 2015, 295, 65–86. [Google Scholar] [CrossRef]
Fortin, A.; Briffard, T.; Garon, A. A more efficient anisotropic mesh adaptation for the computation of Lagrangian coherent structures. Journal of Computational Physics 2015, 285, 100–110. [Google Scholar] [CrossRef]
Dauch, T.; Rapp, T.; Chaussonnet, G.; Braun, S.; Keller, M.; Kaden, J.; Koch, R.; Dachsbacher, C.; Bauer, H.J. Highly efficient computation of Finite-Time Lyapunov Exponents (FTLE) on GPUs based on three-dimensional SPH datasets. Computers & Fluids 2018, 175, 129–141. [Google Scholar] [CrossRef]
Lagares, C.; Araya, G. Power spectrum analysis in supersonic/hypersonic turbulent boundary layers. AIAA SCITECH 2022 Forum 2022. [Google Scholar] [CrossRef]
Araya, G.; Lagares, C. Implicit Subgrid-Scale Modeling of a Mach 2.5 Spatially Developing Turbulent Boundary Layer. Entropy 2022, 24. [Google Scholar] [CrossRef] [PubMed]
Araya, G.; Lagares, C.; Jansen, K. Reynolds number dependency in supersonic spatially-developing turbulent boundary layers. 2020 AIAA SciTech Forum (AIAA 3247313) 6 - 10 January, Orlando, FL. 2020.
Karrasch, D.; Haller, G. Do Finite-Size Lyapunov Exponents detect coherent structures? Chaos 2013, 23, 1–11. [Google Scholar] [CrossRef] [PubMed]
Peikert, R.; Pobitzer, A.; Sadlo, F.; Schindler, B. A comparison of Finite-Time and Finite-Size Lyapunov Exponents. In Topological Methods in Data Analysis and Visualization III; Springer International Publishing Switzerland, 2014. [Google Scholar]
Wang, B.; Wald, I.; Morrical, N.; Usher, W.; Mu, L.; Thompson, K.; Hughes, R. An GPU-accelerated particle tracking method for Eulerian–Lagrangian simulations using hardware ray tracing cores. Computer Physics Communications 2022, 271, 108221. [Google Scholar] [CrossRef]
Russell, S.; Norvig, P. Artificial Intelligence: A Modern Approach, 3 ed.; Prentice Hall, 2010. [Google Scholar]
Demmel, J.W. Applied Numerical Linear Algebra; SIAM, 1997. [Google Scholar] [CrossRef]
Araya, G.; Castillo, L.; Meneveau, C.; Jansen, K. A dynamic multi-scale approach for turbulent inflow boundary conditions in spatially evolving flows. Journal of Fluid Mechanics 2011, 670, 518–605. [Google Scholar] [CrossRef]
Lund, T.; Wu, X.; Squires, K. Generation of turbulent inflow data for spatially-developing boundary layer simulations. Journal of Computational Physics 1998, 140, 233–258. [Google Scholar] [CrossRef]
Urbin, G.; Knight, D. Large-Eddy Simulation of a supersonic boundary layer using an unstructured grid. AIAA Journal 2001, 39, 1288–1295. [Google Scholar] [CrossRef]
Stolz, S.; Adams, N. Large-eddy simulation of high-Reynolds-number supersonic boundary layers using the approximate deconvolution model and a rescaling and recycling technique. Physics of Fluids 2003, 15, 2398–2412. [Google Scholar] [CrossRef]
Xu, S.; Martin, M.P. Assessment of inflow boundary conditions for compressible turbulent boundary layers. Physics of Fluids 2004, 16, 2623–2639. [Google Scholar] [CrossRef]
Schlichting, H.; Gersten, K. Boundary-Layer Theory; Springer Berlin Heidelberg, 2016. [Google Scholar]
Whiting, C.H.; Jansen, K.E.; Dey, S. Hierarchical basis in stabilized finite element methods for compressible flows. Comp. Meth. Appl. Mech. Engng. 2003, 192, 5167–5185. [Google Scholar] [CrossRef]
Jansen, K.E. A stabilized finite element method for computing turbulence. Comp. Meth. Appl. Mech. Engng. 1999, 174, 299–317. [Google Scholar] [CrossRef]
Araya, G.; Castillo, C.; Hussain, F. The log behaviour of the Reynolds shear stress in accelerating turbulent boundary layers. Journal of Fluid Mechanics 2015, 775, 189–200. [Google Scholar] [CrossRef]
Doosttalab, A.; Araya, G.; Newman, J.; Adrian, R.; Jansen, K.; Castillo, L. Effect of small roughness elements on thermal statistics of a turbulent boundary layer at moderate Reynolds number. Journal of Fluid Mechanics 2015, 787, 84–115. [Google Scholar] [CrossRef]
Stalmach, C. Experimental Investigation of the Surface Impact Pressure Probe Method Of Measuring Local Skin Friction at Supersonic Speeds. Bureau of Engineering Research, University of Texas 1958. [Google Scholar]
Mabey, D.; Sawyer, W. Experimental Studies of the Boundary Layer on a Flat Plate at Mach Numbers from 2.5 to 4.5. Aerodynamics Department, R.A.E., Bedford. 1976, Reports and Memoranda No. 3784. [Google Scholar]
Tichenor, N.R.; Humble, R.A.; Bowersox, R.D.W. Response of a hypersonic turbulent boundary layer to favourable pressure gradients. Journal of Fluid Mechanics 2013, 722, 187–213. [Google Scholar] [CrossRef]
Nicholson, G.; Huang, J.; Duan, L.; Choudhari, M.M.; Bowersox, R.D. Simulation and Modeling of Hypersonic Turbulent Boundary Layers Subject to Favorable Pressure Gradients due to Streamline Curvature. AIAA Scitech 2021 Forum, 2021. [CrossRef]
Bernardini, M.; Pirozzoli, S. Wall pressure fluctuations beneath supersonic turbulent boundary layers. Phys. Fluids 2011, p. 085102. [Google Scholar] [CrossRef]
Hutchins, N.; Marusic, I. Large-scale influences in near-wall turbulence. Phil. Trans. R. Soc. 2007, 365, 647–664. [Google Scholar] [CrossRef]
Bernardini, M.; Pirozzoli, S. Inner/outer layer interactions in turbulent boundary layers: A refined measure for the large-scale amplitude modulation mechanism. Physics of Fluids 2011, 23, 061701. [Google Scholar] [CrossRef]
White, F.M. Viscous Fluid Flow; McGraw-Hill Mechanical Engineering, New York, 2006. [Google Scholar]
Osterlund, J.M.; Johansson, A.V.; Nagib, H.M.; Hites, M.H. A note on the overlap region in turbulent boundary layers. Physics of Fluids 2001, 12. [Google Scholar] [CrossRef]
Song, X.C.; Smith, P.; Kalyanam, R.; Zhu, X.; Adams, E.; Colby, K.; Finnegan, P.; Gough, E.; Hillery, E.; Irvine, R.; et al. Anvil - System Architecture and Experiences from Deployment and Early User Operations. In Proceedings of the Practice and Experience in Advanced Research Computing; Association for Computing Machinery: New York, NY, USA, 2022. PEARC ’22. [Google Scholar] [CrossRef]
Keahey, K.; Anderson, J.; Zhen, Z.; Riteau, P.; Ruth, P.; Stanzione, D.; Cevik, M.; Colleran, J.; Gunawi, H.S.; Hammock, C.; et al. Lessons Learned from the Chameleon Testbed. In Proceedings of the 2020 USENIX Annual Technical Conference (USENIX ATC ’20); USENIX Association, 2020. [Google Scholar]
Alappat, C.L.; Hofmann, J.; Hager, G.; Fehske, H.; Bishop, A.R.; Wellein, G. Understanding HPC Benchmark Performance on Intel Broadwell And Cascade Lake Processors. In Proceedings of the High Performance Computing: 35th International Conference, ISC High Performance 2020, Frankfurt/Main, Germany, June 22–25, 2020, Proceedings; Springer-Verlag: Berlin, Heidelberg, 2020; pp. 412–433. [Google Scholar] [CrossRef]
Velten, M.; Schöne, R.; Ilsche, T.; Hackenberg, D. Memory Performance of AMD EPYC Rome and Intel Cascade Lake SP Server Processors. In Proceedings of the Proceedings of the 2022 ACM/SPEC on International Conference on Performance Engineering; Association for Computing Machinery: New York, NY, USA, 2022. ICPE ’22. pp. 165–175. [Google Scholar] [CrossRef]
Harris, C.R.; Millman, K.J.; van der Walt, S.J.; Gommers, R.; Virtanen, P.; Cournapeau, D.; Wieser, E.; Taylor, J.; Berg, S.; Smith, N.J.; et al. Array programming with NumPy. Nature 2020, 585, 357–362. [Google Scholar] [CrossRef]
Lam, S.K.; Pitrou, A.; Seibert, S. Numba: A LLVM-Based Python JIT Compiler. In Proceedings of the Proceedings of the Second Workshop on the LLVM Compiler Infrastructure in HPC; Association for Computing Machinery: New York, NY, USA, 2015. LLVM ’15. [Google Scholar] [CrossRef]
Oden, L. Lessons learned from comparing C-CUDA and Python-Numba for GPU-Computing. In Proceedings of the 2020 28th Euromicro International Conference on Parallel, Distributed and Network-Based Processing (PDP), 2020; pp. 216–223. [Google Scholar] [CrossRef]
Crist, J. Dask & Numba: Simple libraries for optimizing scientific python code. In Proceedings of the 2016 IEEE International Conference on Big Data (Big Data), 2016; pp. 2342–2343. [Google Scholar] [CrossRef]
Betcke, T.; Scroggs, M.W. Designing a High-Performance Boundary Element Library With OpenCL and Numba. Computing in Science & Engineering 2021, 23, 18–28. [Google Scholar] [CrossRef]
Siket, M.; Dénes-Fazakas, L.; Kovács, L.; Eigner, G. Numba-accelerated parameter estimation for artificial pancreas applications. In Proceedings of the 2022 IEEE 20th Jubilee International Symposium on Intelligent Systems and Informatics (SISY), 2022; pp. 279–284. [Google Scholar] [CrossRef]
Almgren-Bell, J.; Awar, N.A.; Geethakrishnan, D.S.; Gligoric, M.; Biros, G. A Multi-GPU Python Solver for Low-Temperature Non-Equilibrium Plasmas. In Proceedings of the 2022 IEEE 34th International Symposium on Computer Architecture and High Performance Computing (SBAC-PAD), 2022; pp. 140–149. [Google Scholar] [CrossRef]
Silvestri, L.G.; Stanek, L.J.; Choi, Y.; Murillo, M.S.; Dharuman, G. Sarkas: A Fast Pure-Python Molecular Dynamics Suite for Non-Ideal Plasmas. In Proceedings of the 2021 IEEE International Conference on Plasma Science (ICOPS), 2021; pp. 1–1. [Google Scholar] [CrossRef]
Dogaru, R.; Dogaru, I. A Low Cost High Performance Computing Platform for Cellular Nonlinear Networks Using Python for CUDA. In Proceedings of the 2015 20th International Conference on Control Systems and Computer Science, 2015; pp. 593–598. [Google Scholar] [CrossRef]
Dogaru, R.; Dogaru, I. Optimization of GPU and CPU acceleration for neural networks layers implemented in Python. In Proceedings of the 2017 5th International Symposium on Electrical and Electronics Engineering (ISEEE), 2017; pp. 1–6. [Google Scholar] [CrossRef]
Di Domenico, D.; Cavalheiro, G.G.H.; Lima, J.V.F. NAS Parallel Benchmark Kernels with Python: A performance and programming effort analysis focusing on GPUs. In Proceedings of the 2022 30th Euromicro International Conference on Parallel, Distributed and Network-based Processing (PDP), 2022; pp. 26–33. [Google Scholar] [CrossRef]
Karnehm, D.; Sorokina, N.; Pohlmann, S.; Mashayekh, A.; Kuder, M.; Gieraths, A. A High Performance Simulation Framework for Battery Modular Multilevel Management Converter. In Proceedings of the 2022 International Conference on Smart Energy Systems and Technologies (SEST), 2022; pp. 1–6. [Google Scholar] [CrossRef]
Yang, F.; Menard, J.E. PyISOLVER—A Fast Python OOP Implementation of LRDFIT Model. IEEE Transactions on Plasma Science 2020, 48, 1793–1798. [Google Scholar] [CrossRef]
Mattson, T.G.; Anderson, T.A.; Georgakoudis, G. PyOMP: Multithreaded Parallel Programming in Python. Computing in Science & Engineering 2021, 23, 77–80. [Google Scholar] [CrossRef]
Zhou, Y.; Cheng, J.; Liu, T.; Wang, Y.; Deng, H.; Xiong, Y. GPU-based SAR Image Lee Filtering. In Proceedings of the 2019 IEEE 7th International Conference on Computer Science and Network Technology (ICCSNT), 2019; pp. 17–21. [Google Scholar] [CrossRef]
Dogaru, R.; Dogaru, I. A Python Framework for Fast Modelling and Simulation of Cellular Nonlinear Networks and other Finite-difference Time-domain Systems. In Proceedings of the 2021 23rd International Conference on Control Systems and Computer Science (CSCS), 2021; pp. 221–226. [Google Scholar] [CrossRef]
Alnaasan, N.; Jain, A.; Shafi, A.; Subramoni, H.; Panda, D.K. OMB-Py: Python Micro-Benchmarks for Evaluating Performance of MPI Libraries on HPC Systems. In Proceedings of the 2022 IEEE International Parallel and Distributed Processing Symposium Workshops (IPDPSW), 2022; pp. 870–879. [Google Scholar] [CrossRef]
Lattner, C.; Adve, V. LLVM: a compilation framework for lifelong program analysis & transformation. In Proceedings of the International Symposium on Code Generation and Optimization, 2004. CGO 2004., 2004; pp. 75–86. [CrossRef]
Dagum, L.; Menon, R. OpenMP: an industry standard API for shared-memory programming. Computational Science & Engineering, IEEE 1998, 5, 46–55. [Google Scholar]
Pheatt, C. Intel® Threading Building Blocks. J. Comput. Sci. Coll. 2008, 23, 298. [Google Scholar]
Green, M.; Rowley, C.; Haller, G. Detection of Lagrangian Coherent Structures in 3D turbulence. Journal of Fluid Mechanics 2007, 572, 111–120. [Google Scholar] [CrossRef]
Pan, C.; Wang, J.J.; Zhang, C. Identification of Lagrangian coherent structures in the turbulent boundary layer. Sci. China Ser. G-Phys Mech. Astron. 2009, 52, 248–257. [Google Scholar] [CrossRef]
Adrian, R. Hairpin vortex organization in wall turbulence. Phys. Fluids 2007, 19, 041301. [Google Scholar] [CrossRef]
Pan, C.; Wang, J.; Zhang, P.; Feng, L. Coherent structures in bypass transition induced by a cylinder wake. Journal of Fluid Mechanics 2008, 603, 367–389. [Google Scholar] [CrossRef]
Lagares, C.; Araya, G. High-Resolution 4D Lagrangian Coherent Structures. 75th APS-DFD November 2022 (Virtual) 2022. [Google Scholar] [CrossRef]

1	For the purpose of this work, we refer to mass-less particles simply as particles.
2	Branded as Intel Hyperthreading
3	AMD tends to refer to this unit as a Workgroup Processor (WGP) or a Compute Unit (CU) whereas Intel refers to it as a X^e-core or a slice/subslice in older integrated GPU generations.
4	We accounted for this in calculating the comparison, but given the network is involved, differences are to be expected in addition to many other factors.

Figure 1. Boundary layer schematic for the supersonic case. Contours of instantaneous temperature.

Figure 2. Validation of the skin friction coefficient for supersonic and hypersonic cases.

Figure 3. Pre-multiplied power spectra of streamwise velocity fluctuations, u’, for Mach-2.86 ZPG flow: (a) streamwise (

k_{x} E_{u u}

) and (b) spanwise (

k_{z} E_{u u}

) direction.

Figure 3. Pre-multiplied power spectra of streamwise velocity fluctuations, u’, for Mach-2.86 ZPG flow: (a) streamwise (

k_{x} E_{u u}

) and (b) spanwise (

k_{z} E_{u u}

) direction.

Figure 4. Mean streamwise velocity (Van Driest transformation) and streamwise component of the Reynolds normal stresses in wall units.

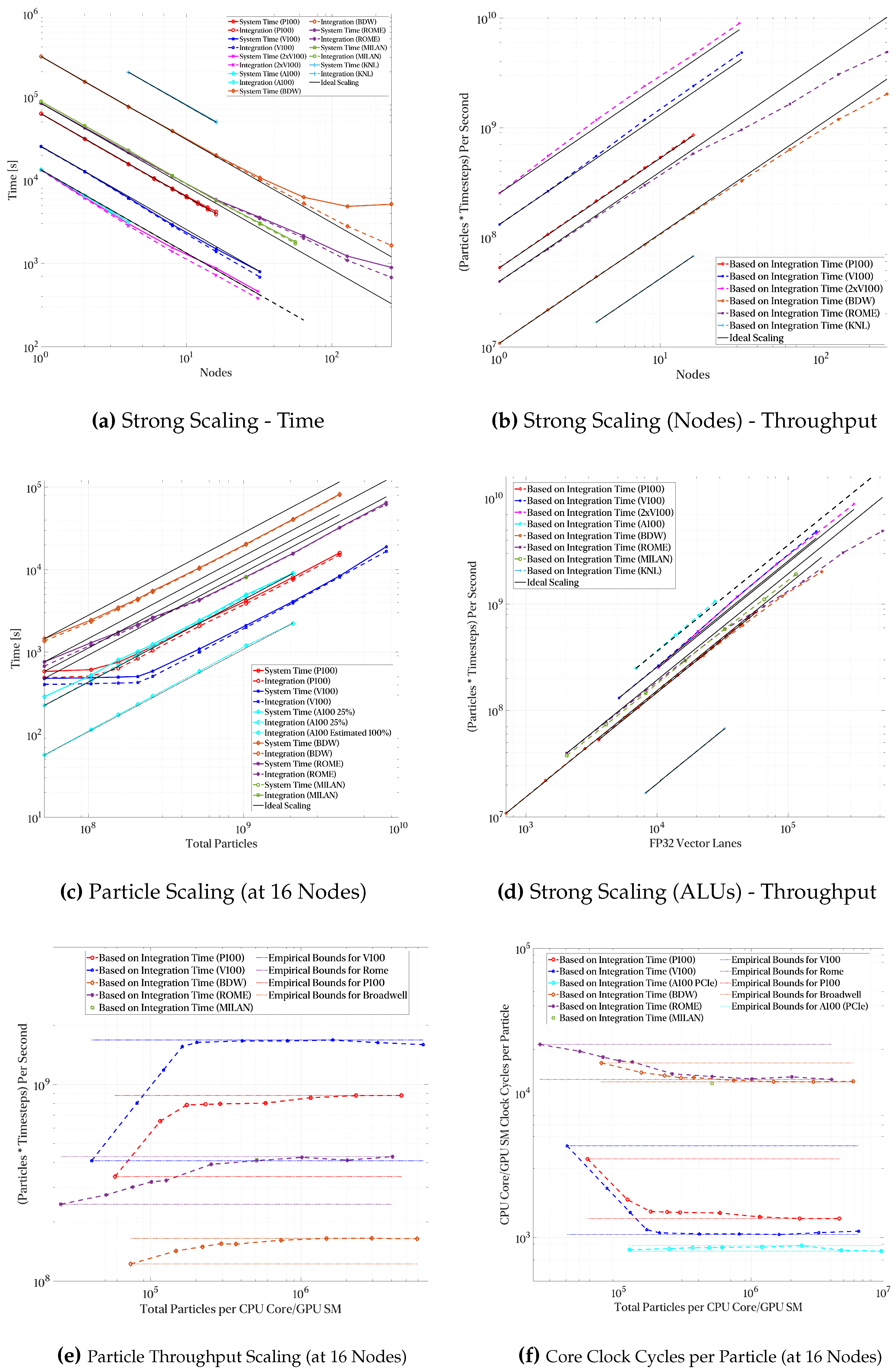

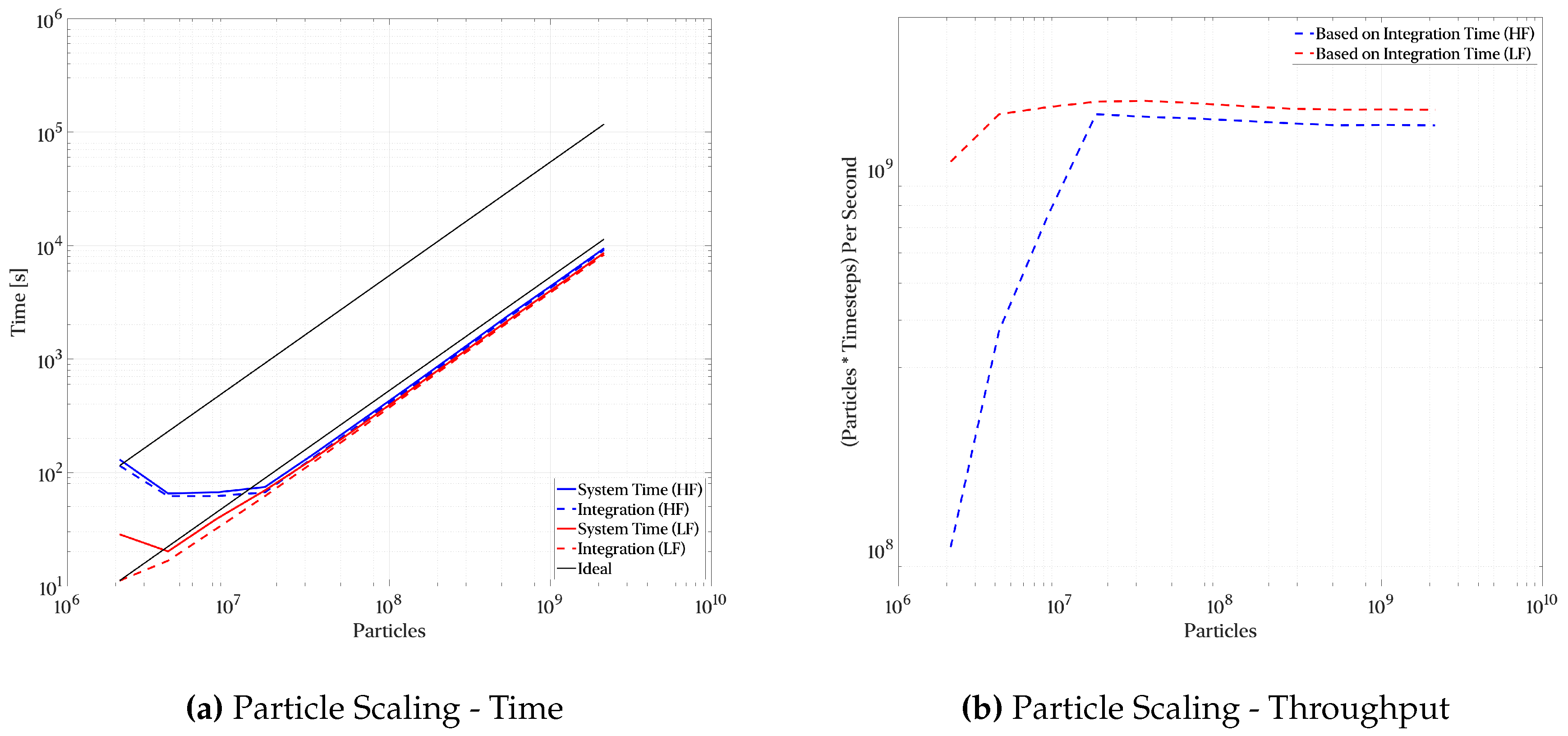

Figure 5. Performance scaling for our proposed particle advection approach on the high

R e

case. Note: A100 results are for a single node with 4 A100 GPUs.

Figure 5. Performance scaling for our proposed particle advection approach on the high

R e

case. Note: A100 results are for a single node with 4 A100 GPUs.

Figure 6. Performance scaling across 16 V100 GPUs for our proposed particle advection approach on the Low

R e

case.

Figure 6. Performance scaling across 16 V100 GPUs for our proposed particle advection approach on the Low

R e

case.

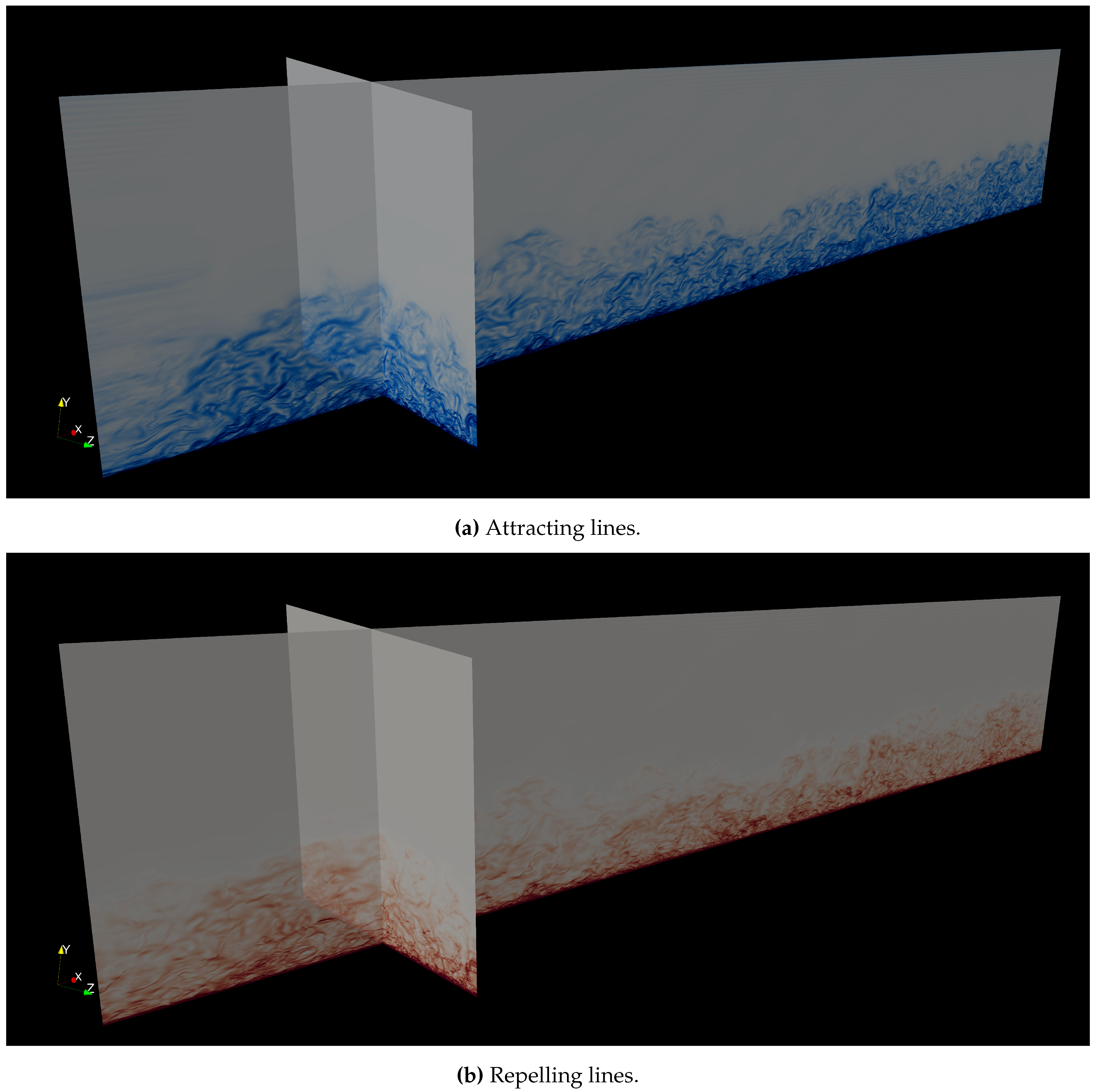

Figure 7. Isometric view of FTLE ridges for the incompressible case at high Reynolds numbers.

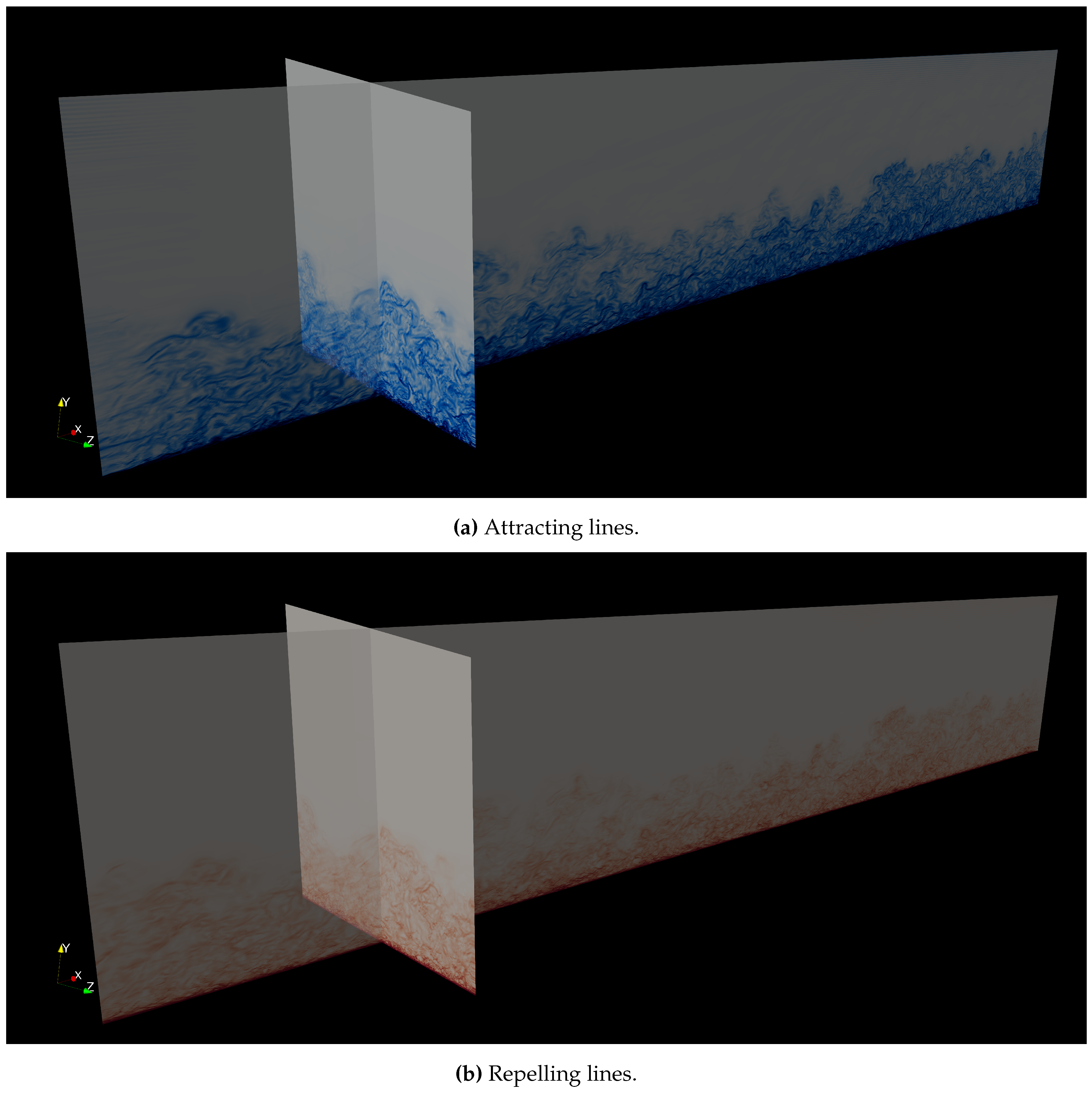

Figure 8. Isometric view of FTLE ridges for the supersonic case at high Reynolds numbers.

Figure 9. Isometric view of FTLE ridges for the hypersonic case at high Reynolds numbers.

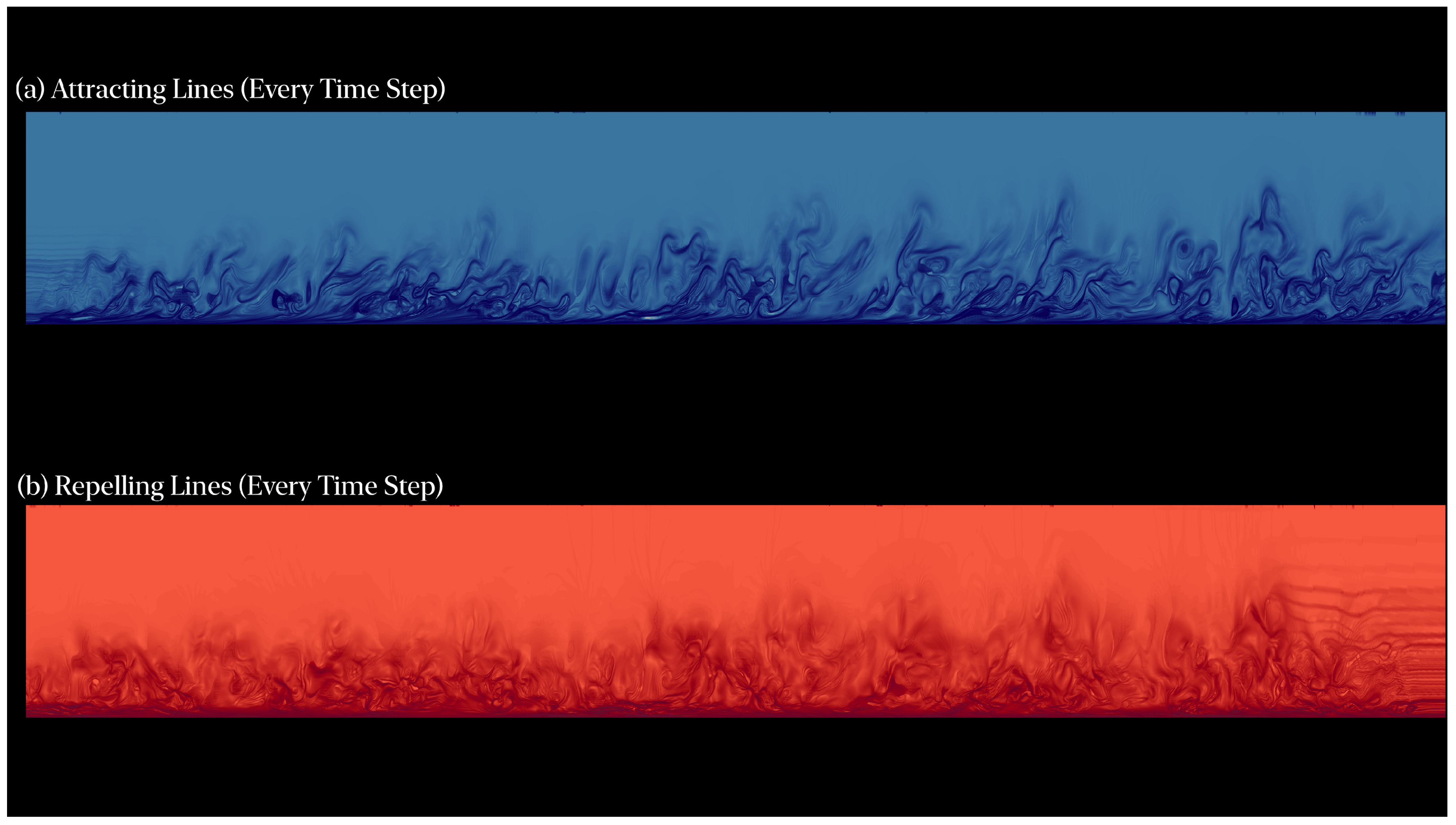

Figure 10.

(x - y)

-Plane View of FTLE Ridges for incompressible flow at low Reynolds numbers (Scaled 2:1 along the wall-normal and spanwise directions) including (a) attracting and (b) repelling FTLE ridges.

Figure 10.

(x - y)

-Plane View of FTLE Ridges for incompressible flow at low Reynolds numbers (Scaled 2:1 along the wall-normal and spanwise directions) including (a) attracting and (b) repelling FTLE ridges.

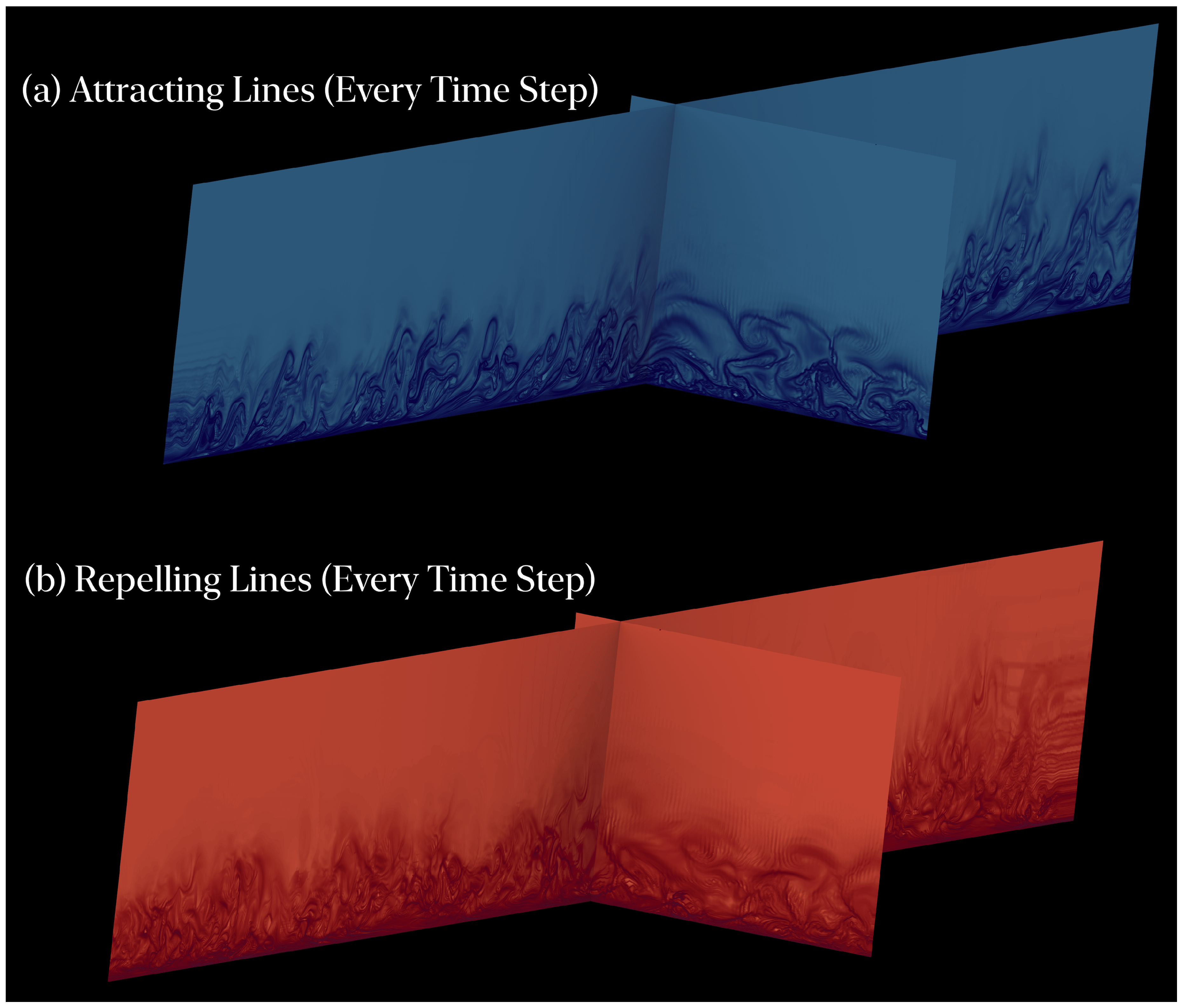

Figure 11. Isometric View of FTLE Ridges for the incompressible low Reynolds-number case (Scaled 2:1 along the wall-normal and spanwise directions) including (a) attracting and (b) repelling FTLE ridges.

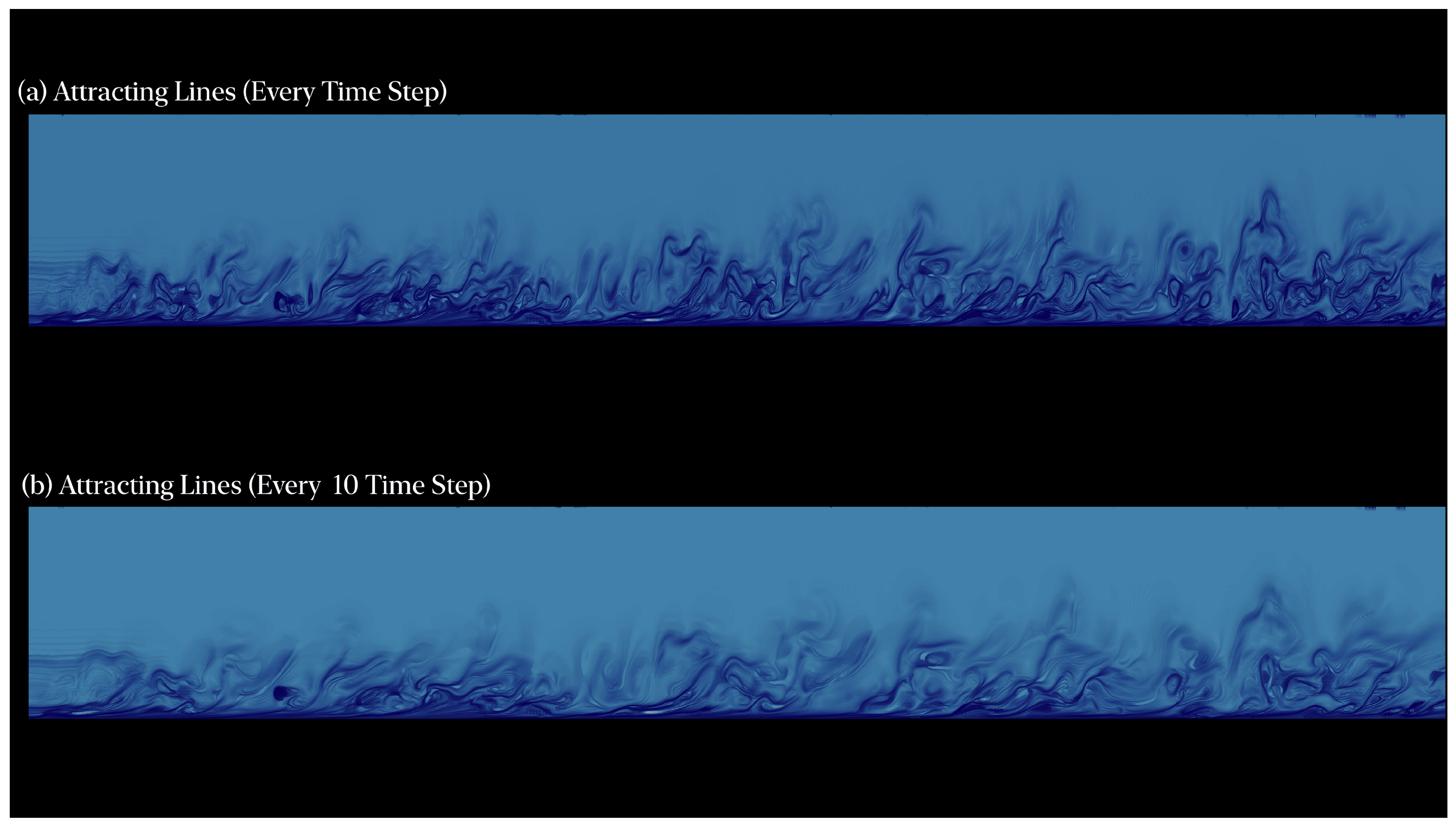

Figure 12.

(x - y)

-Plane View of FTLE Ridges for the incompressible case at low Reynolds numbers (Scaled 2:1 along the wall-normal and spanwise directions) with (a) flow fields sampled at the DNS timestep and (b) sampled every 10 DNS-timesteps.

Figure 12.

(x - y)

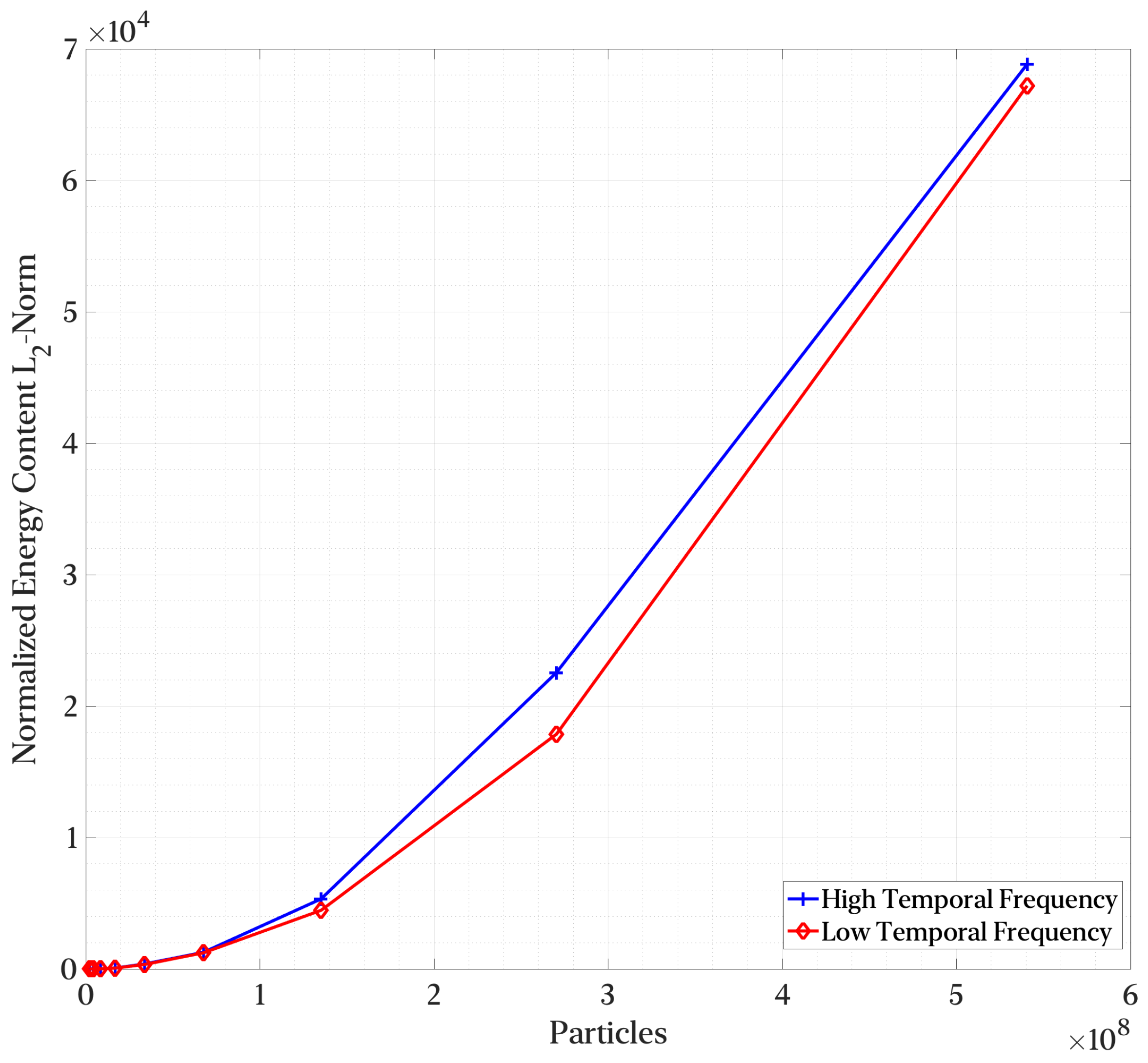

Figure 13.

L_{2}

-Norm of the 3D FTLE Spectra vs. Particle Count at Low and High Temporal Sampling Frequencies.

Figure 13.

L_{2}

-Norm of the 3D FTLE Spectra vs. Particle Count at Low and High Temporal Sampling Frequencies.

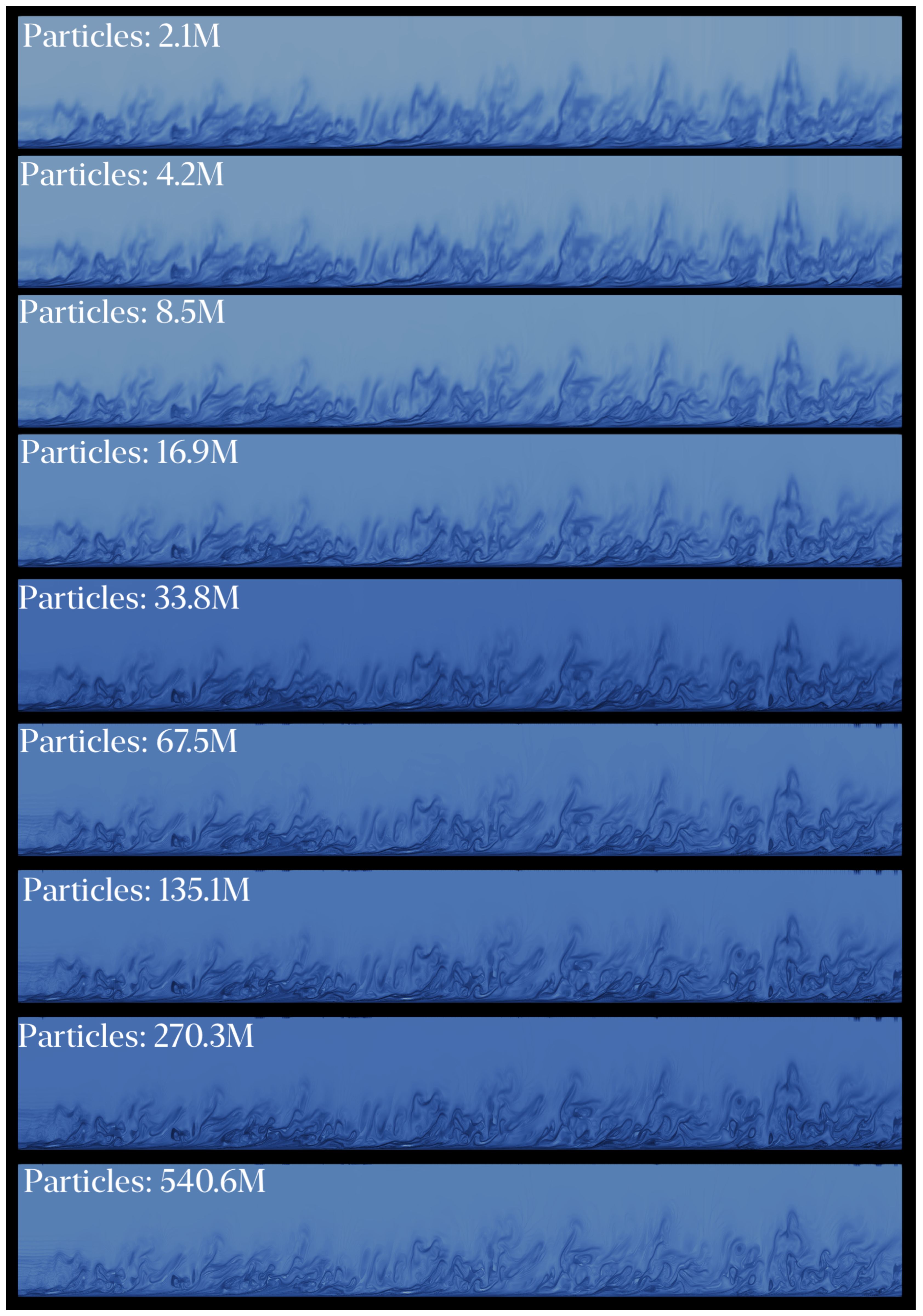

Figure 14. Attracting FTLE visualization as a function of particle count (HF: high temporal sampling frequency).

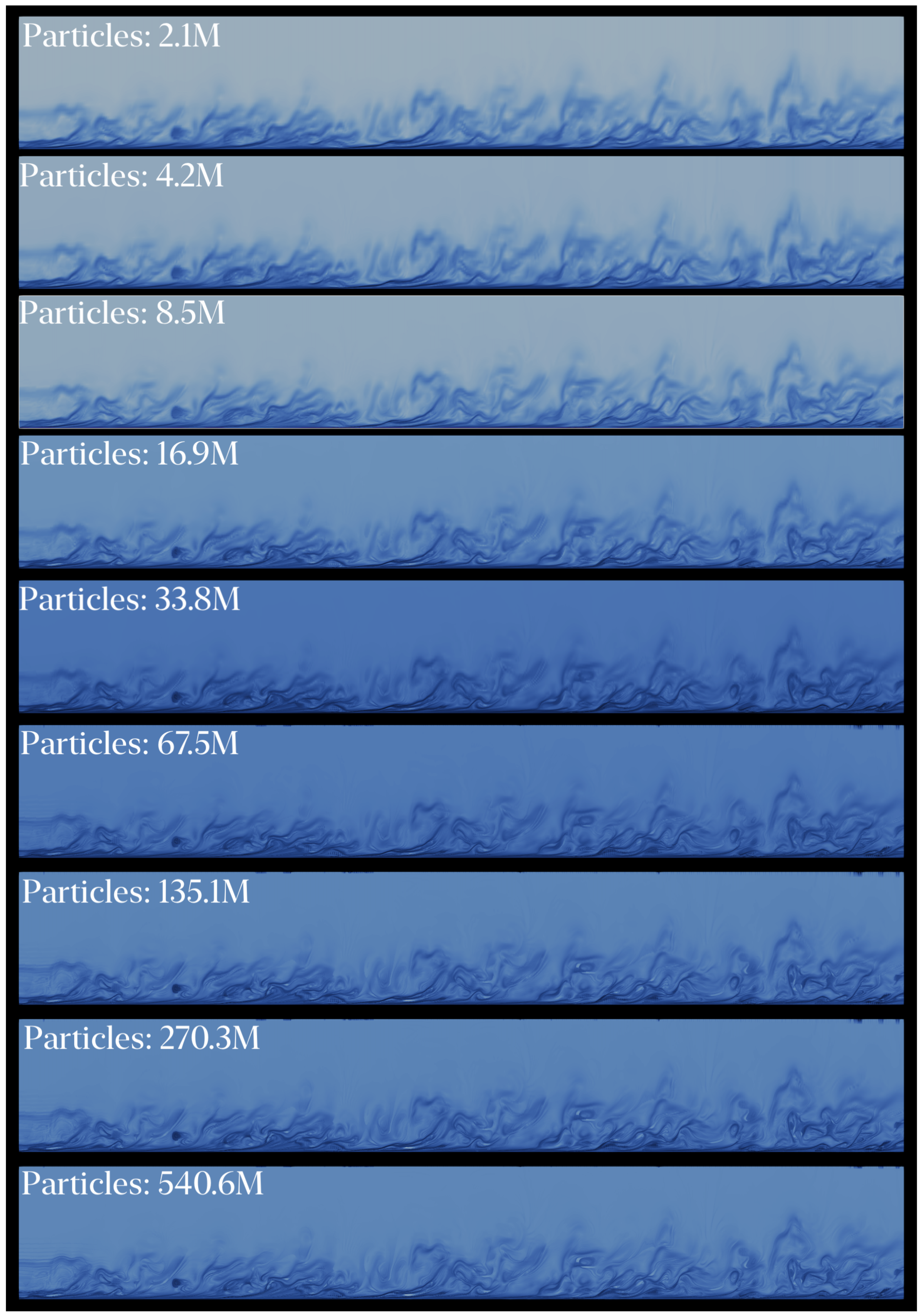

Figure 15. FTLE visualization as a function of particle count (LF: low temporal sampling frequency).

Table 1. DNS Cases.

Case	$M_{\infty}$	$T_{w} / T_{\infty}$	$R e_{δ 2}$	$δ^{+}$	$L_{x}$ × $L_{y}$ × $L_{z}$	$Δ x^{+}$ , $Δ y_{m i n}^{+}$ / $Δ y_{m a x}^{+}$ , $Δ z^{+}$
Incomp. low	0	Isothermal	306-578	146-262	$45 δ_{i n l} \times 3.5 δ_{i n l} \times 4.3 δ_{i n l}$	14.7, 0.2/13, 8
Incomp. high	0	Isothermal	2000-2400	752-928	$16 δ_{i n l} \times 3 δ_{i n l} \times 3 δ_{i n l}$	11.5, 0.4/10, 10
Supersonic	2.86	2.74	3454-4032	840-994	$14.9 δ_{i n l} \times 3 δ_{i n l} \times 3 δ_{i n l}$	12.7, 0.4/11, 12
Hypersonic	5	5.45	4107-4732	848-969	$15.2 δ_{i n l}$ × 3 $δ_{i n l}$ ×3 $δ_{i n l}$	12, 0.4/12, 11

Table 2. Computational Device Descriptions

Device Name	P100 GPU (16 GB PCIe)	V100 GPU (32 GB PCIe)	A100 GPU (80 GB PCIe)	Intel Xeon E5-2699v4	AMD EPYC 7H12	AMD EPYC 7763
Core (SM) Count	56	80	108	22	64	64
FP32 Vector Lanes (VL)	3584	5120	6912	352	1024	1024
Global Mem. Bandwidth [GB/s]	732.2	897.0	1935	76.8	204.8	204.8
Mem. Bandwidth per Core [GB/s]	13.075	11.2125	17.917	3.49	3.2	3.2
Mem. Bandwidth per VL [MB/s]	204	175	280	218	200	200
Shared Cache [KB]	4096	6144	40960	55000	256000	256000
Shared Cache Bandwidth [GB/s]	1624	2155	4956	[52]	[53]	N.P.
Base Frequency [GHz]	1.190	1.230	0.765	2.2	2.6	2.45
Boost Frequency [GHz]	1.329	1.380	1.410	3.6 (SC) 2.8 (AC)	3.3 (SC) All-core N.P.	3.5 (SC) All-core N.P.
Est. TFLOPs/s Range [Min, Max]	8.529 9.526	12.595 14.131	9.473 17.461	1.548 Variable	5.324 Variable	5.017 Variable

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.

MDPI Initiatives

Important Links

Choose an area of interest and we will send you notifications of new preprints at your preferred frequency.

Disclaimer

A GPU-Accelerated Particle Advection Methodology for 3D Lagrangian Coherent Structures in High-Speed Turbulent Boundary Layers

Abstract

1. Introduction

2. Problem Overview and Algorithmic Details

2.1. Finite-Time Time Lyapunov Exponent

2.1.1. Overview - FTLE

2.1.2. Algorithmic Details - Particle Advection

2.1.3. Algorithmic Details - Right Cauchy-Green Tensor & Eigenvalue Problem

2.2. Direct Numerical Simulation: The Testbed Cases

2.3. Computing Resources

2.3.1. Cray XC40/50 - Onyx

2.3.2. HPE Cray EX (formerly Cray Shasta) - Narwhal

2.3.3. Anvil

2.3.4. Chameleon A100 Node

2.3.5. Fair CPU and GPU Comparisons

2.3.6. Software

3. Results and Discussion

3.1. Performance Scaling Analysis

3.2. Case Study

3.2.1. Compressibility Effects

3.2.2. Reynolds Number Dependency Effects

3.2.3. Temporal Interpolation and Particle Density Influence

4. Conclusion

Acknowledgments

References

MDPI Initiatives

Important Links

Subscribe
