3. The Proposed Method

3.2. Iterative dual-channel attention fusion (iDAF)

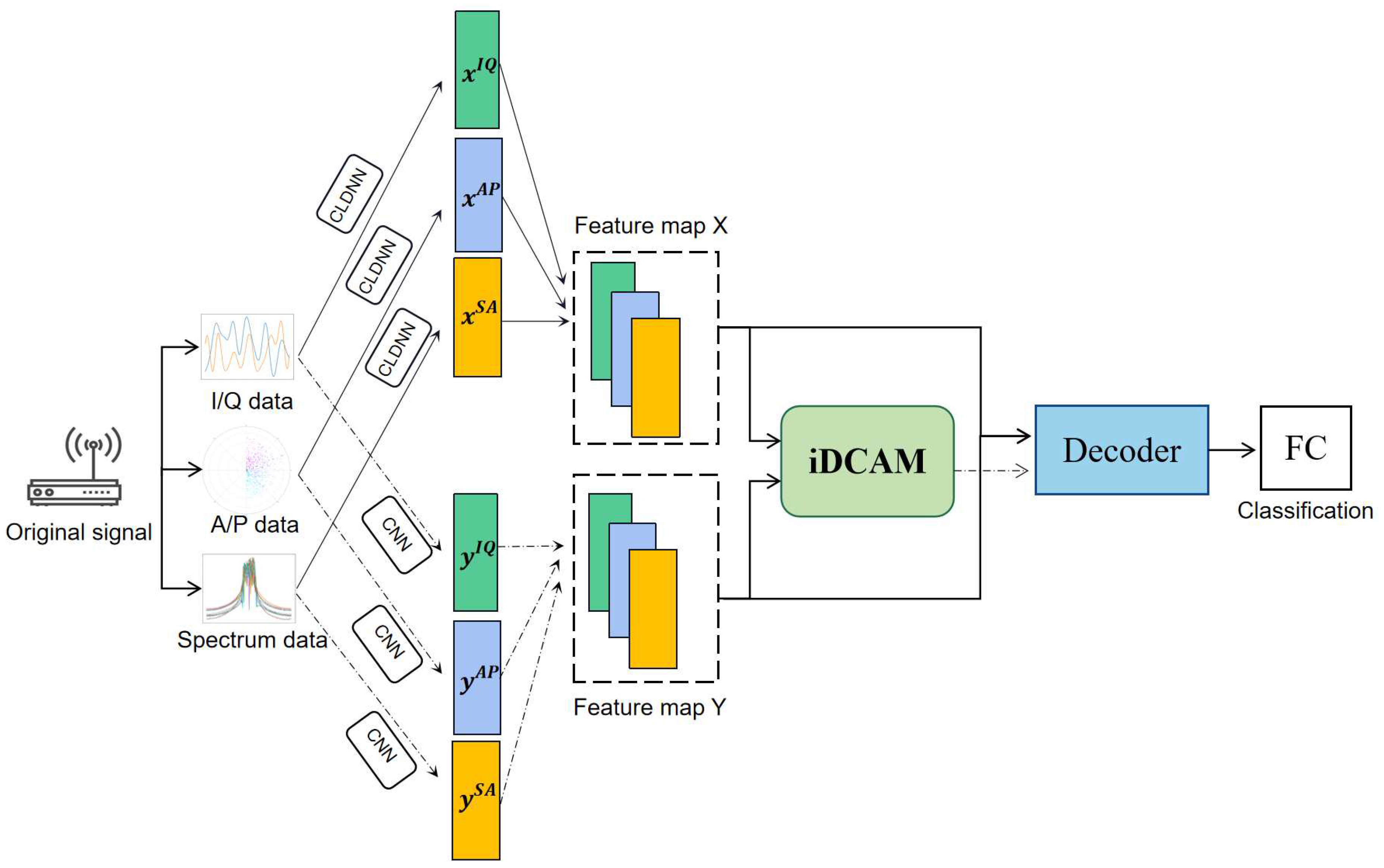

For the iDAF, we design with two data embedding layers to construct the local and global feature maps, then send it into an iterative dual-channel attention module (iDCAM) for attention weight assignment as shown in Figure 1.

3.2.1. Data embedding

The signal data consists of three modal inputs, including I/Q, A/P, and spectrum analysis. For the original signal, it is preprocessed into three modalities inputs, denoted as $h_{IQ}\in {\mathcal{R}}^{128\times 2}$, $h_{AP}\in {\mathcal{R}}^{128\times 2}$, $h_{SP}\in {\mathcal{R}}^{128\times 3}$. The preprocessed inputs $h_m$ ($m\in (IQ,AP,SP)$) represent orthogonal information, amplitude-phase domain, and spectral features respectively.

Due to the variability of multimodal features, direct fusion would ignore the properties unique to different modalities. Therefore, we capture features from both local and global feature maps. The local feature map extracts detailed high-level semantic features, and the global feature map focuses on inter-modal salient characteristics. Therefore, we construct these two feature maps separately using feature extraction networks with different-sized receptive fields.

For the local feature map X, the feature extraction network is expected to focus on local details and contextual information. Inspired by [35], we propose the local embedding layer with CNN, LSTM and DNN which is fine-tuned to extract local attention information. Firstly, preprocessed data passes through a few convolution layers to model frequency. Therefore, the long-term features are obtained by undistorted convolution (UD-Conv) layers with channel dimensions 128, 64, 32, and 16. Concretely, UD-Conv consists of a zero-padding layer of size (2,0,0,0), a convolution layer, the Relu function, and batch normalization. Using the zero-padding, two columns are added to ensure that the signal features can be transmitted with as little time-frequency information as possible. Following [36], the outputs of CNN are sent into LSTM and DNN. The LSTM layer is a bidirectional recursive model with 100 cells, which makes predictions using information both before and after the current moment in the sequence. The input is passed to the model in the original order, the incoming data in the reverse order, and finally the forward and reverse outputs are merged. The long-short time series learning capability of the LSTM identifies temporal correlations in I/Q data with inherent memory properties, and benefits learning the temporal dependencies of instantaneous amplitude and phase [15].

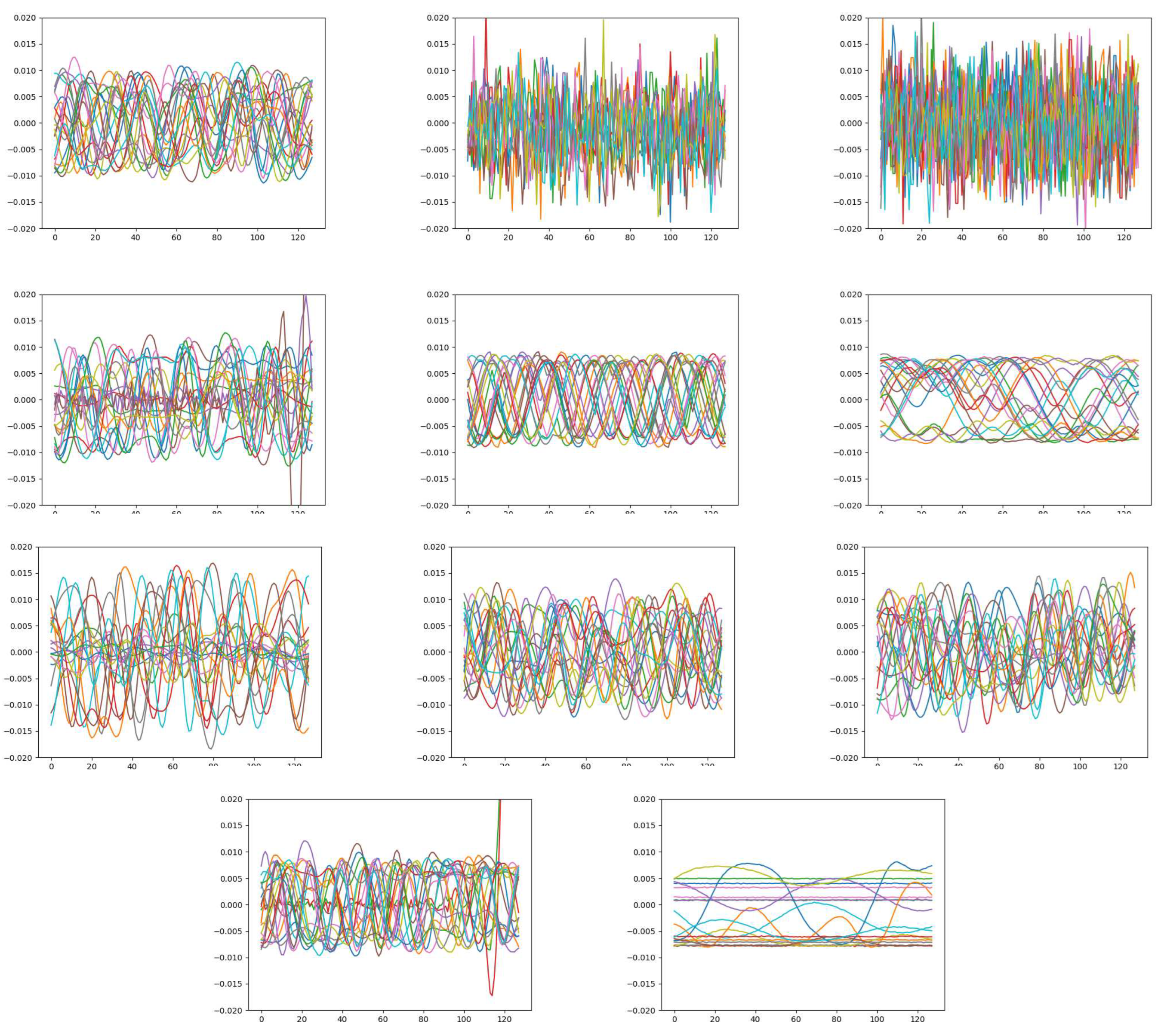

Figure 2. The IQ data plot of 11 modulations.

Figure 2. The IQ data plot of 11 modulations.

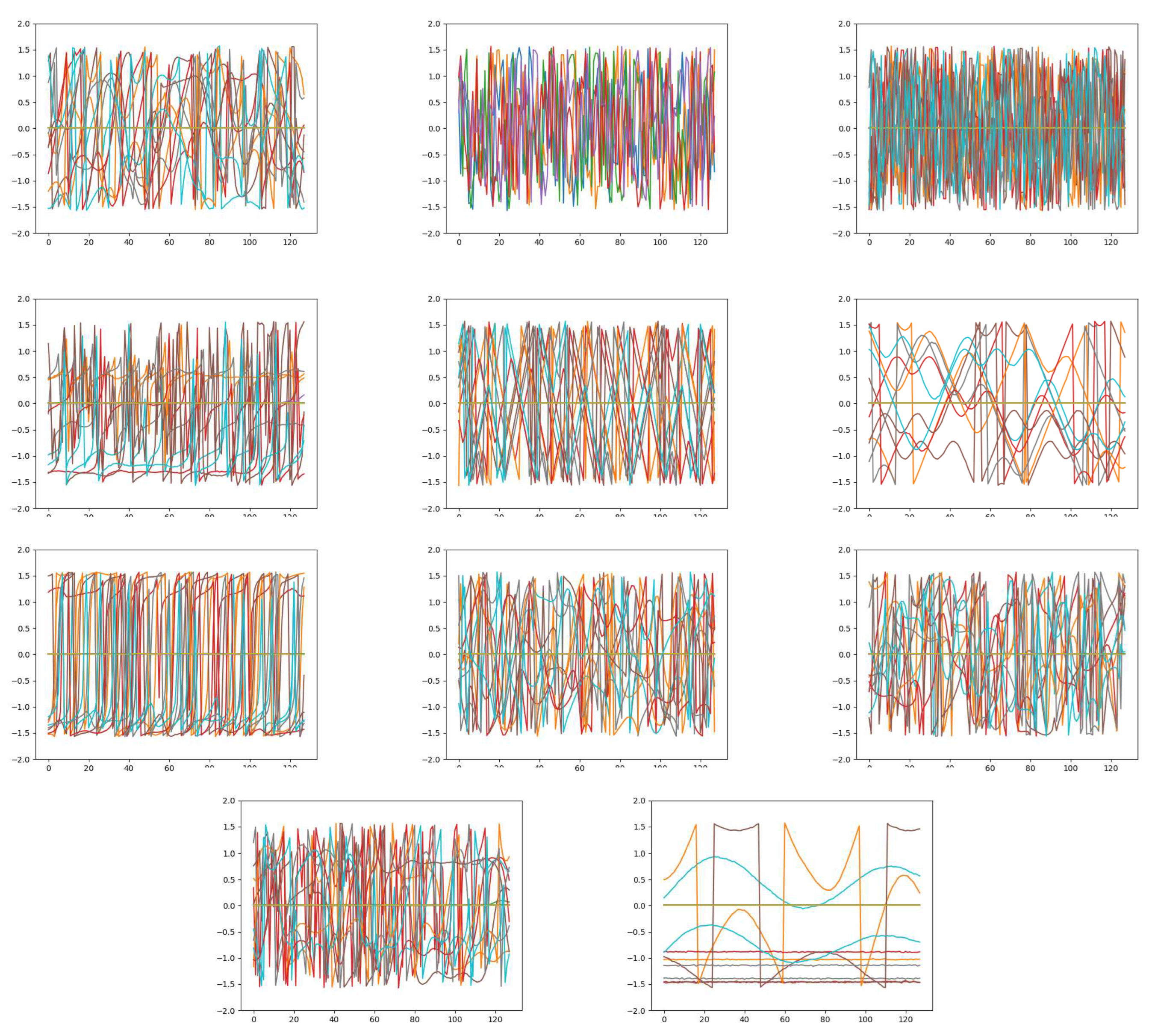

Figure 3. The AP data plot of 11 modulations.

Figure 3. The AP data plot of 11 modulations.

Figure 4. The SP data plot of 11 modulations.

Figure 4. The SP data plot of 11 modulations.

The residual mapping function is a shortcut path between different layers, which can deepen the communication between deep and shallow neural network features. Inspired by [14], the Resnet has achieved the best performance on classifying signal modulation with a 4-convolution-layer structure. After four UD-Conv layers, long-term features are extracted by the convolution layers, while short-term information may be neglected during the convolution process. Therefore, the original data containing long-short-term features are entered into LSTM together with the extracted long-term features via the residual connection. Inspired by [37], the extracting capability of CNN is combined with LSTM and DNN. As shown in Figure 5a, the learned short-term features are fed into the dense layer together with the long-term features previously extracted by CNN. The local embedding layer captures the data characteristics of each modal with unshared parameters, which is expressed as $x_m=E_x\left(h_m,{\omega }_m^{E_x}\right),(m\in (IQ,AP,SA))$, where $E_x$ represents the local embedding layer and ${\omega }_m$ indicates the local network parameters.

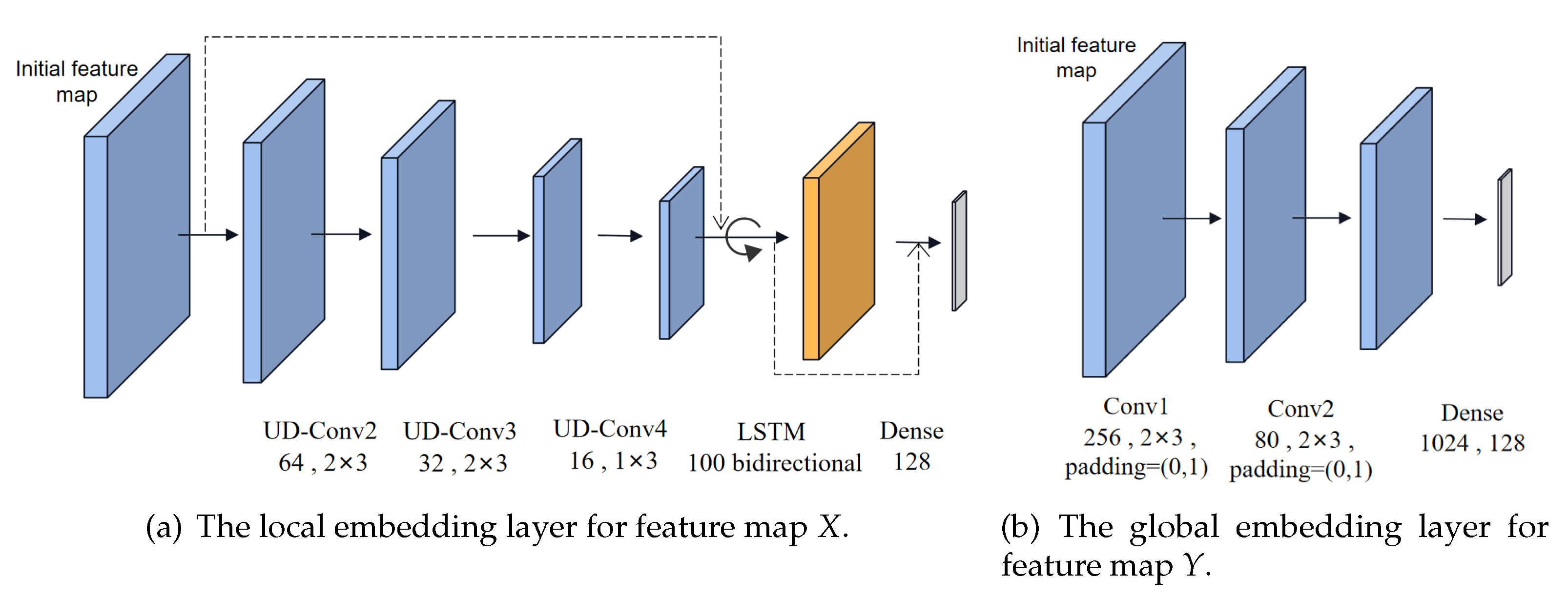

To obtain the global feature map Y, an optimized CNN with 3 convolutional layers is utilized to extract features $y_m=E_y\left(h_m,{\omega }_m^{E_y}\right),(m\in (IQ,AP,SA))$ in the global receptive field in Figure 5b.

3.2.2. Dual-scale channel attention module

After constructing the feature maps in the previous section, the feature maps are fed into an iterative multimodal attention module (iDCAM). The dual-scale channel attention module (DCAM) is a computational unit that can be constructed and superimposed for feature map transformation containing two branches.

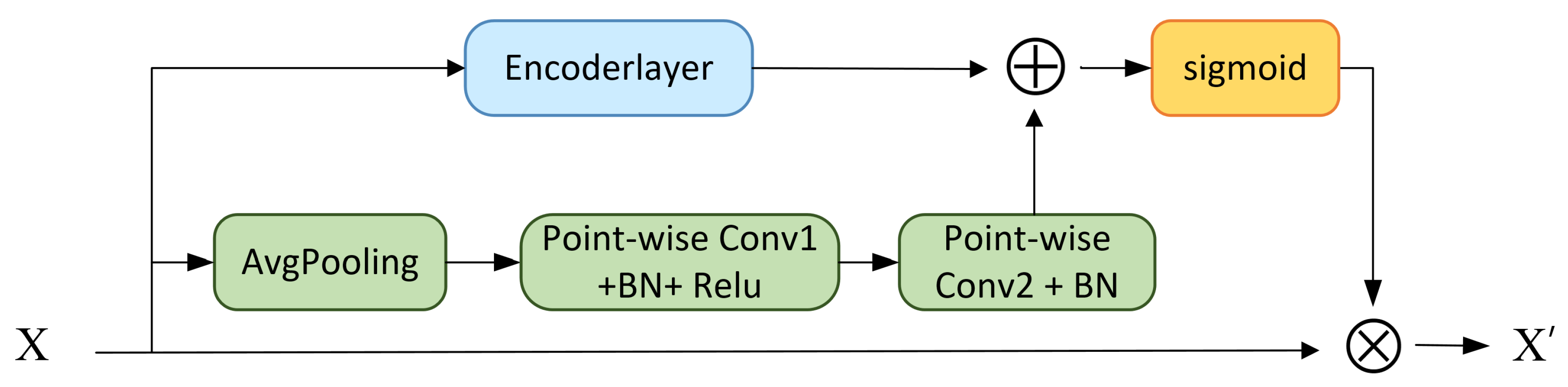

Figure 6. Architecture of the proposed Dual-scale channel attention module (DCAM).

Figure 6. Architecture of the proposed Dual-scale channel attention module (DCAM).

The branches include a local attention branch and a global attention branch, correspondingly for extracting the local identification properties and the channel variability between modalities, respectively. The local attention branch extracts the intra-modal attention through the self-attention mechanism of the Transformer, which extracts the local recognition properties of specific modality features. Meanwhile, the global attention branch increases the receptive field by pooling to obtain inter-modal global attention in the channel dimension. The feature maps are respectively fed into the dual-scale channel attention module and the following steps are performed as follows:

1) Passing through the encoder.

To capture the attention information between different modalities, the feature map is first sent into the encoder layer of the Transformer [38]. The encoder consists of a self-attention module and a feed-forward neural network. Concretely, the self-attention mechanism is able to interact with the vectors converted from different sequence tokens, giving attention information about the correlation between different modalities. The basic formula of the self-attention mechanism is first expressed as follows:

$$\begin{array}{c}\hfill \left\{\begin{array}{cc}Q& =W_{Q}x\\ K& =W_{K}x\\ V& =W_{V}x\end{array}\right.\end{array}$$

(5)

Therefore, the input x is converted to a query Q, a key K, and a value V by means of three learnable weights $W_Q$,$W_K$, and $W_V$. Here, Q is used to query the similarity of other vectors to itself and K is used for indexing for operations.

By dot-multiplying Q and K, the similarity between the two is computed, which is then converted into a weight probability distribution to get the importance of different modalities in different signal sequences as attention information. Specifically, the attention information is normalized by scaling factor and softmax.

$$\begin{array}{c}\hfill Atten(Q,K,V)=softmax\left(\frac{Q{K}_T}{\sqrt{d_k}}\right)V\end{array}$$

(6)

Finally, the output of this self-attention layer is obtained by weighting the value V which helps in the classification with the attention information and then accumulating it. Utilizing multiple self-attention layer operations, the multi-head attention layer as shown in the following equation:

$$\begin{array}{cc}\hfill G\left(X\right)=Multihead(Q,K,V)& =concat(hea{d}_1,hea{d}_2,hea{d}_n)W\hfill \end{array}$$

(7)

$$$$

(8)

$$\begin{array}{cc}\hfill hea{d}_n& =Atten(Q_n,K_n,V_n)s_{n}ftmax\left(\frac{Q_n{K}_n^T}{\sqrt{d_k}}\right)V_n\hfill \end{array}$$

(9)

2) Construct the global channel attention matrix.

First, feature mappings across spatial dimensions H × W are aggregated after a squeeze compression operation. A channel descriptor containing global attention information is generated by global average pooling, which is denoted as follows:

$$\begin{array}{c}\hfill z_i=F_{squ}\left(x_i\right)=\frac{1}{H\times W}\sum _{m=1}^H\sum _{n=1}^H{x}_i(m,n)\end{array}$$

(10)

After squeeze compression, the aggregated information is sent into two convolution layers to capture the channel dependencies.

$$\begin{array}{c}\hfill L\left(X\right)=F_{conv}\left(z\right)=B\left(Con{v}_1\left(\sigma \left(B\left(Con{v}_2\left(z\right)\right)\right)\right)\right)\end{array}$$

(11)

where $\sigma$ and B represent the Rectified Linear Unit (ReLU) function and Batch Normalization (BN), respectively. Specifically, the $Conv$ we used is the point-wise convolution, which enhances the nonlinear capabilities of the network. The kernel size of $Con{v}_1$ and $Con{v}_1$ is $1\times 1\times 1$ and $3\times 1\times 1$ respectively.

3) Matrix multiplication between the attention matrix and the original features.

$$\begin{array}{c}\hfill H^{\prime }=H\otimes W((X\oplus Y)=H\otimes \sigma (L\left(X\right)\oplus G\left(X\right)),\end{array}$$

(12)

where ⊗ represents matrix addition and ⊕ is matrix multiplication. $W\left(X\right)$ contains the summation information of local attention $L\left(X\right)$ and global attention $G\left(X\right)$ extracted through DCAM.

3.2.3. Iteritive dual-scale attentional module

The inputs are high-level feature maps X and low-level feature maps Y. X utilizes the local sensing and context-sensitive inference capabilities of CNN and LSTM to capture the discriminative properties of each modality. However, the extracted high-level features are rich in local semantic information but ignore inter-modal difference information. In contrast, Y extracts global information with a larger perceptual field, and the extracted low-level features extract the distinctiveness between different modalities from a holistic perspective. However, due to the use of fewer convolutional layers, the deep feature semantic information is difficult to mine. Therefore, due to the desire to complement the advantages of low-level features and high-level features, an iterative dual-scale attentional module (iDCAM) is designed.

Figure 7. The iterative attention mechanism iDCAM.

Figure 7. The iterative attention mechanism iDCAM.

By stacking the DCAM designed in the previous section, iDCAM assigns multimodal attention weights to different modality features.

$$\begin{array}{c}\hfill Z_i=W_i(X\oplus Y)\otimes X+(1-W_i(X\oplus Y)\otimes X,i=1,2,...k\end{array}$$

(13)

where $W(X\oplus Y)$ represents the summation information of local X and global Y.

3.2.4. Residual encoder

After passing through iDCAM, features are sent into the decoder along with the sum of intermediate features. The features are fed into the decoder after being assigned weights by iDCAM, and decoding is guided by a cross-attention mechanism using the sum of the intermediate features $x_m$ ($m\in (IQ,AP,SA)$) and $y_m$ ($m\in (IQ,AP,SA)$).
