I. Introduction
Solar-blind photodetectors [
1,
2,
3,
4] are insensitive to infrared, visible, and near-UV light, but respond to ultraviolet radiation with wavelengths below about 300 nm. These detectors are critical for a variety of applications, including:
Flame detection: Solar-blind photodetectors can be used to detect flames, which emit UV light, even in the presence of sunlight or other visible light sources. This makes them useful for fire safety applications, such as in industrial plants and aircraft.
Missile launch detection: Solar-blind photodetectors can be used to detect missile launches, which also emit UV light. This makes them useful for military and security applications.
Astronomical observation: Solar-blind photodetectors can be used to observe astronomical objects in the UV spectrum, which is not possible with traditional optical telescopes.
Ozone layer monitoring: Solar-blind photodetectors can be used to monitor the ozone layer, which absorbs UV light. This information can be used to track the depletion of the ozone layer and to predict the effects of climate change.
Solar-blind photo-devices are typically made from semiconductors with a wide band gap. This means that only high-energy UV photons can be absorbed and generate a photocurrent.
Modern aircrafts need to be equipped with warning sensors operating in the ultraviolet (UV) part of the spectrum, especially in the Ultraviolet-C (UVC) region spanning from 200 to 280 nm wavelength, because the UVC is completely absorbed by the atmospheric ozone layer and, therefore, only a UVC source of interest in the atmosphere below the ozone layer can be detected with solar blind sensors [
1,
2,
3,
4]. The low false-alarm rate of the UV sensors is due to absence of background radiation, especially in the UVC region.
An emerging semiconductor with a direct bandgap of 4.6-4.9 eV, β-Ga
2O
3 has become an attractive candidate for sensing applications in UVC region primarily due to its ultra-wide bandgap and superior radiation stability (due to wider bandgap) over GaN [
1,
2,
3,
4,
5,
6,
7,
8]. A drawback with Ga
2O
3 is the absence of robust p-type doping. All the potential acceptor dopants have large ionization energies and are not significantly ionized at room temperature. This has led to the use of p-type oxides, principally polycrystalline NiO, to form p-n heterojunctions with n-type Ga
2O
3 [
9,
10,
11,
12,
13,
14,
15,
16,
17]. The forward current transport mechanism in such junctions is typically recombination under low bias and trap-assisted tunneling under higher bias [
13,
19,
20,
21,
22,
23,
24]. Conductivity modulation has been demonstrated during switching in these heterojunctions [
25].
It has been previously shown that in p-type GaN and ZnO, electron beam or solid-state injection, using forward bias of p-n junctions, results in a significant increase of the minority carrier diffusion length [
24,
26,
27,
28]. Similar effects have been recently observed in n-type and highly resistive p-type Ga
2O
3 subjected to low energy electron beam injection in Scanning Electron Microscopes [
29,
30]. Diffusion length increase translates into experimentally demonstrated superior photovoltaic detector performance for GaN [
31] and ZnO [
32,
33], with evidence of a similar effect for β-Ga
2O
3. However, the effect of electrical injection of carriers has not been demonstrated in this material because of the lack of p-type doping capability.
This work demonstrates the impact of forward bias charge injection on photoresponse in NiO/Ga2O3 p-n heterojunctions at room temperature. The results, which are summarized below, present the proof of concept and pave the road towards device performance control in Ga2O3 solar-blind UV photodetectors.
II. Experimental
The schematic for the vertical p-n NiO/Ga
2O

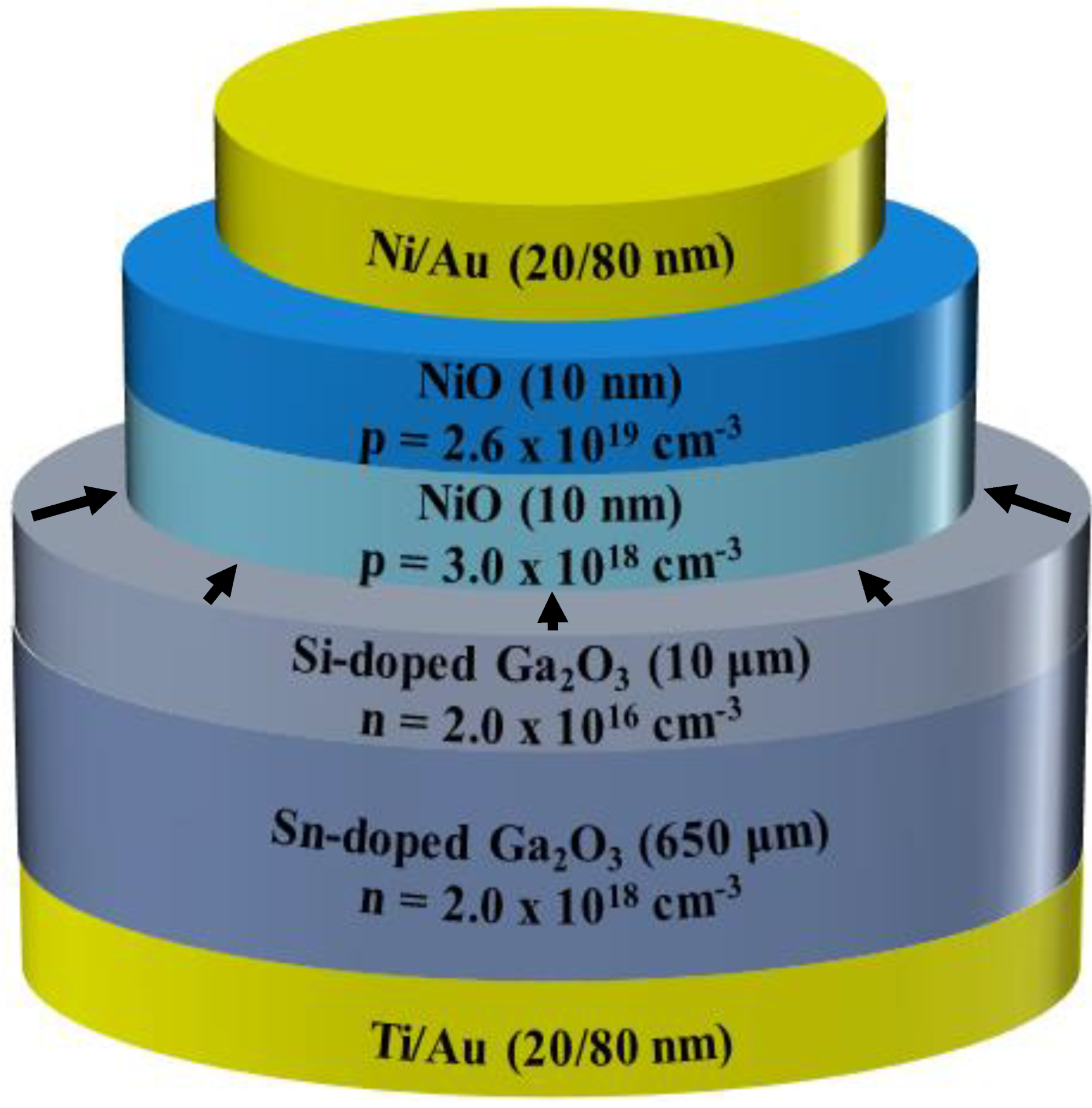

3 heterojunction is shown in
Figure 1. The epitaxial layers were grown by Halide Vapor Phase Epitaxy (HVPE) on a (001) Sn-doped (2x10
18 cm
-3) β-Ga
2O
3 single crystal substrate. These samples were purchased from Novel Crystal Technology, Japan [
34]. They consisted of a lightly doped drift layer on a conducting substrate. The drift region thickness was 10 μm, grown by halide vapor phase epitaxy (HVPE) on a (001) Sn-doped (10
19 cm
-3) β-Ga
2O
3 single crystal substrate. The NiO bilayer was deposited by rf (13.56 MHz) magnetron sputtering at a working pressure of 3 mTorr [
17,
35]. The NiO bilayer consisted of 20 nm layer, with hole concentration p = 10
18 cm
-3, and 10 nm layer, with hole concentration p = 2.6x10
19 cm
-3, which were optimized to provide high breakdown voltage and optimal current spreading, respectively. The hole concentration in the NiO bilayer was adjusted using the Ar/O
2 ratio. The structure was then annealed at 300 °C under O
2. Finally, a top contact of 20/80 nm Ni/Au (1000 µm diameter) was deposited onto the NiO bilayer. Ohmic contacts were made to the rear surface using a Ti/Au metal stack deposited by e-beam evaporation followed by annealing at 550 °C for 180 s under N
2. The front surface was subjected to UV/Ozone exposure for 15 minutes to remove contamination prior to the metal deposition. More details on the vertical p-n NiO/Ga
2O
3 heterojunction fabrication can be found elsewhere [
35].

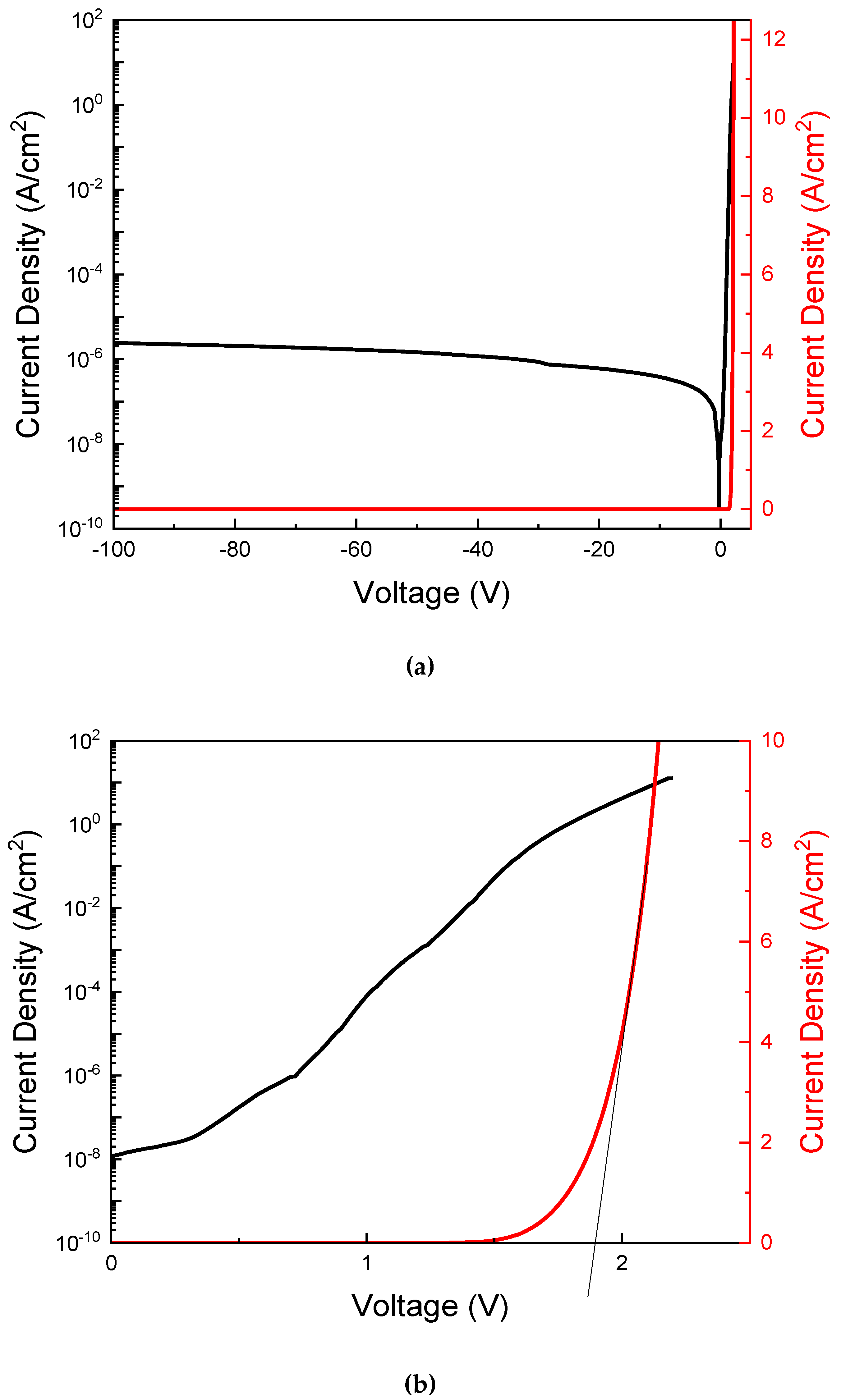

The heterojunction shows the rectification of more than 5 orders of magnitude from 2V forward to 10 V reverse bias, as shown in
Figure 2a,b. The forward turn-on voltage for the junction is ~ 1.9 V (cf.
Figure 2b) with on-resistance of 8 mΩ.cm
-2 [
35]. Under forward bias, the depletion layer is collapsed, and holes diffuse into the Ga
2O
3. Drift is the dominating carrier transport under reverse bias due to the electric field. Diffusion is more important in the neutral region. There is a slight (0.2 V) offset in the I-V curve, due to residual charges on the diode [
36]. The I-V curve in this case shows a slightly different offset when the voltage swings from different directions.
The dominant carrier transport mechanism in the heterojunction diodes (HJDs) is trap-assisted tunneling [
36]. Because the doping level for p-NiO layer in
Figure 1 is two orders of magnitude larger as compared to that of n-Ga
2O
3, the heterojunction can be treated as a one-sided abrupt junction. Therefore, the lateral and vertical extension, d, of the depletion layer at p
+-NiO/n-Ga
2O
3 interface can be calculated as d = [2ee
0(V
bi-V)/(qN
B)]
0.5, where e
0 stands for permittivity in vacuum; e is Ga
2O
3 dielectric constant; V
bi – built-in potential; V – applied external bias; q – charge of electron; N
B – bulk 10 mm-thick n-type Sn:Ga
2O
3 doping level (cf.
Figure 1). Using the values presented for a similar calculation in ref. [
29], resulted in d ~ 180 nm under zero bias. The maximum electric field strength at p-NiO/n-Ga
2O
3 interface was estimated at 0.8 MV.cm
-1, well below the maximum breakdown field of ~8 MV.cm
-1 [
37].
The I-V curves of p
+-NiO/n-Ga
2O
3 heterojunction, presented in
Figure 2a,b, were measured using a Keithley 2400 Source Meter. The measurements were carried out at room temperature. The same instrument was employed to drive a forward current of 100 mA through the structure in
Figure 1 for the total duration of 900 seconds, corresponding to the maximum charge of 90 mC. The forward current resulted in charge injection from p-NiO to n-Ga
2O
3 layers and led to the results presented in the following section of this paper.
Room temperature spectral photoresponse was measured under zero bias in the 200-300 nm spectral range using a tunable light source, comprising a stabilized deuterium UV lamp (SLS204) coupled with Horiba Triax 320 spectrometer. The latter is equipped with a grating having 2400 grooves/mm blazed at 250 nm. The output beam of monochromatic light was focused in the shape of a rectangle (fully covering the whole top contact and extending to the opposite sides of it; cf.
Figure 1) and modulated at 95 Hz frequency. The induced photoresponse signal, measured at zero-bias, was amplified using an Ithaco 393 lock-in amplifier, digitized with a Keithley 2000 digital multimeter, and recorded using a homemade software. The spectra were recorded prior to forward bias charge injection, followed by recording after 300, 600 and 900 seconds of bias.
III. Results and discussion

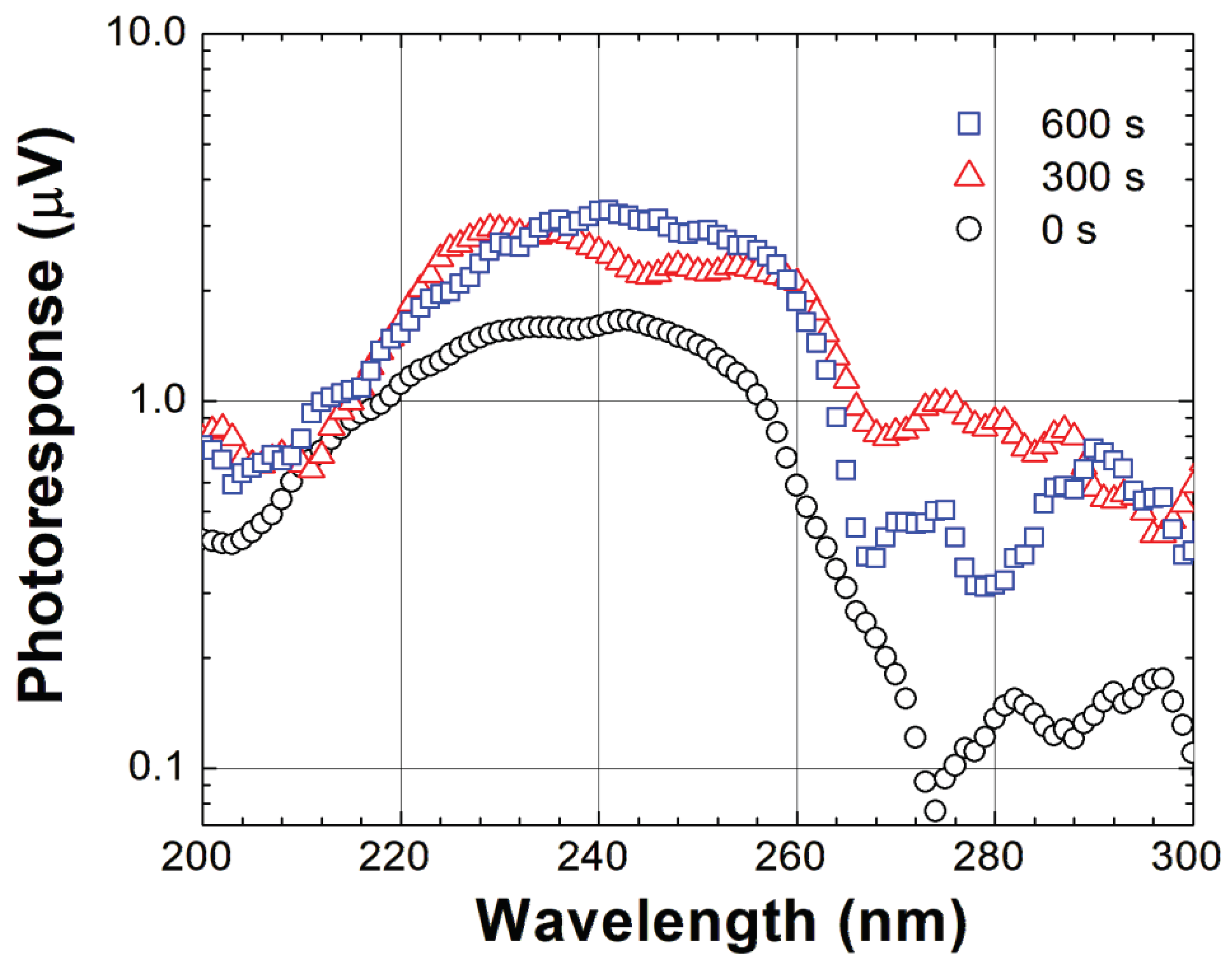

The room temperature photoresponse from the structure in
Figure 1 is presented in
Figure 3 as a function of forward bias duration. All spectra exhibit shoulders at about 255 nm, corresponding to the direct band-to-band transition in b-Gallium Oxide [
1,
2,
3,
38]. The maxima for all spectra are observed between 230 and 240 nm and likely correspond to the excitonic absorption. Similar photoresponse peaks were recently observed between 5.0 and 5.2 eV (238-248 nm wavelength range) in ref. [
39], consistent with the band structure of the monoclinic Ga
2O
3 [
38].
An increase of more than a factor of 2 in peak photoresponse was observed in
Figure 3 while injecting the total charge of 60 mC for 600 seconds. Forward bias was continued for the total time of 900 seconds; however, the pick photo-signal didn’t show an additional increase, thus indicating saturation for the effect of interest.
Ref. [
29] reports detailed studies of charge injection-induced effects in n-type b-Ga
2O
3 subjected to low-energy (10 kV) electron beam irradiation
in-situ in a Scanning Electron Microscope (SEM), which resulted in x4 increase of minority carrier (holes) diffusion length in the material at room temperature. Elongation of the diffusion length (L), measured using Electron Beam-Induced Current (EBIC) technique in the region of charge-injection, was accompanied by a simultaneous decrease of cathodoluminescence (CL) intensity from the same region, which confirms suppression of radiative recombination with increasing duration of charge injection. Because L is proportional to the square root of non-equilibrium carrier lifetime, t, and CL intensity is proportional to t
-1, both effects (L elongation and CL intensity decrease) were attributed to a lifetime increase of non-equilibrium carriers in the conduction and valence bands. Variable temperature EBIC measurements revealed a charge trap with the activation energy of 74 meV, which was responsible for the phenomena under investigation.
The experimental results, observed in
Figure 3 of this article, as well as previously obtained results for GaN and ZnO structures [
24,
26,
28,
32,
33], suggest the following:
1. Charge injection from the electron beam of SEM and forward-bias injection, reported in this work, demonstrate similarities in terms of their impact on minority carrier diffusion length in Gallium Oxide. As was already mentioned above, forward bias application to NiO/Ga
2O
3 p-n junction results in a decrease of the potential barrier (~ 1.03 V for V
bi ) at the interface of two semiconducting layers [
29]. As a result, the holes from p-NiO are injected into n-Ga
2O
3 and, likely, get captured by meta-stable traps. Although the exact energetic location for these possible traps is yet unknown, ref. [
36] recently reported a trapping level for holes in n-type Ga
2O
3 located 140 meV above the top of the valence. This level was revealed by Deep Level Transient Spectroscopy (DLTS) technique while studying hole injection via trap-assisted tunneling from p
+-NiO into n-Ga
2O
3 under forward bias. Capturing injected charge carriers on the meta-stable energetic levels, prevents recombination of light-induced non-equilibrium carriers in n-type Gallium Oxide through these levels. As a result, the non-equilibrium carriers remain in the respective valence and conduction bands of Gallium Oxide for longer times, in turn leading to larger carrier lifetime, t, and, therefore, longer diffusion length, L.
2. Although L was not directly measured for the structure, shown in Figure 1 and studied in the experiments reported here, it is logical to assume that forward bias charge injection leads to an increase of minority hole diffusion length in the 10 mm-thick n-type Ga
2O
3 epitaxial layer in agreement with the mechanism described above and in ref. [
29]. Because the concentration of majority carriers in n-Ga
2O
3 is two orders of magnitude lower, as compared to that in p-NiO, the built-in electric field, employed for non-equilibrium carrier charge separation, is mostly localized in the 10 mm-thick n-type Gallium Oxide epitaxial layer (extends ~ 180 nm from the NiO/Ga
2O
3 interface into 10 mm-thick n-Gallium Oxide [
29]). Therefore, the diffusion length for minority holes in this layer are of primary importance.
3. According to ref. [
41], which studied absorption of UV radiation (at 250 nm) in NiO/Ga
2O
3 heterojunction, more than 80% of the light, shining vertically on the Ni/Au/NiO stack (cf. Figure 1), is absorbed and, therefore, doesn’t reach the underlying 10 mm-thick n-type Gallium Oxide epitaxial layer. As a result, the only portion of 10 mm-thick Si-doped n-Ga
2O
3, which is not covered by the above Ni/Au contact and NiO bilayer, contributes to the photoresponse. Therefore, the collection of non-equilibrium photoexcited carriers in n-Ga
2O
3 is lateral, as shown by the centripetal arrows in Figure 1, meaning that the non-equilibrium minority carriers are mostly swept by the vertical portion of the NiO/Ga
2O
3 space charge region, which extends laterally (~ 180 nm) beyond the heterojunction interface.
4. Minority hole diffusion length, L, measured at room temperature in ref. [
29] for n-type Ga
2O
3 using Electron Beam-Induced Current (EBIC) technique, was reported at ~ 400 nm prior to electron beam injection. It is generally accepted that light-excited (due to illumination) non-equilibrium carriers, generated within 2L distance from the space-charge region, are capable of diffusing without recombination towards the p-n junction, where they are swept by its internal electric field, thus contributing to a photocurrent. Therefore, longer diffusion length, due to forward-bias charge injection, leads to collection of photogenerated carriers from a larger area of the structure presented in Figure 1, thus enhancing collection (by the p-n heterojunction built-in field) efficiency for minority carriers (holes), and, therefore, representing the main factor, which contributes to larger photoresponse with increasing duration of forward bias [
39].
5. It should be noted that the structure in Figure 1 is not optimized as a photo-detecting device. Therefore, instead of presenting device’s figures of merit, the relative photoresponse increase is demonstrated in Figure 3, thus serving as the proof of concept.
The dynamics of photoresponse increase as a function of forward bias duration is presented in
Figure 4. The peak photoresponse exhibits a linear increase as a function of time (injected charge) before it saturates (not shown in the figure). The nature of linear increase is related to two factors:
1. Minority carrier diffusion length depends linearly on injection duration (charge) as was previously observed for Gan, ZnO, and Ga
2O
3 [
24,
28,
29].
2. In the configuration of the structure under test, in which the charge collection occurs laterally (cf. Figure 1 and the discussion outlined above), the photoresponse depends linearly on L, as seen in Figure 4 and as explained in ref. [
42].
The inset of
Figure 4 demonstrates relaxation of the photoresponse under polychromatic illumination followed saturation (cf.
Figure 3 and the above discussion). It is critical to emphasize that while it takes only 600 seconds to induce a more than a factor of 2 increase in the peak photoresponse, it takes much longer time (up to 6000 seconds) for the signal to decay to the baseline. This serves as a proof for the metastable nature of traps involved in the phenomenon of charge injection.
Figure 4.

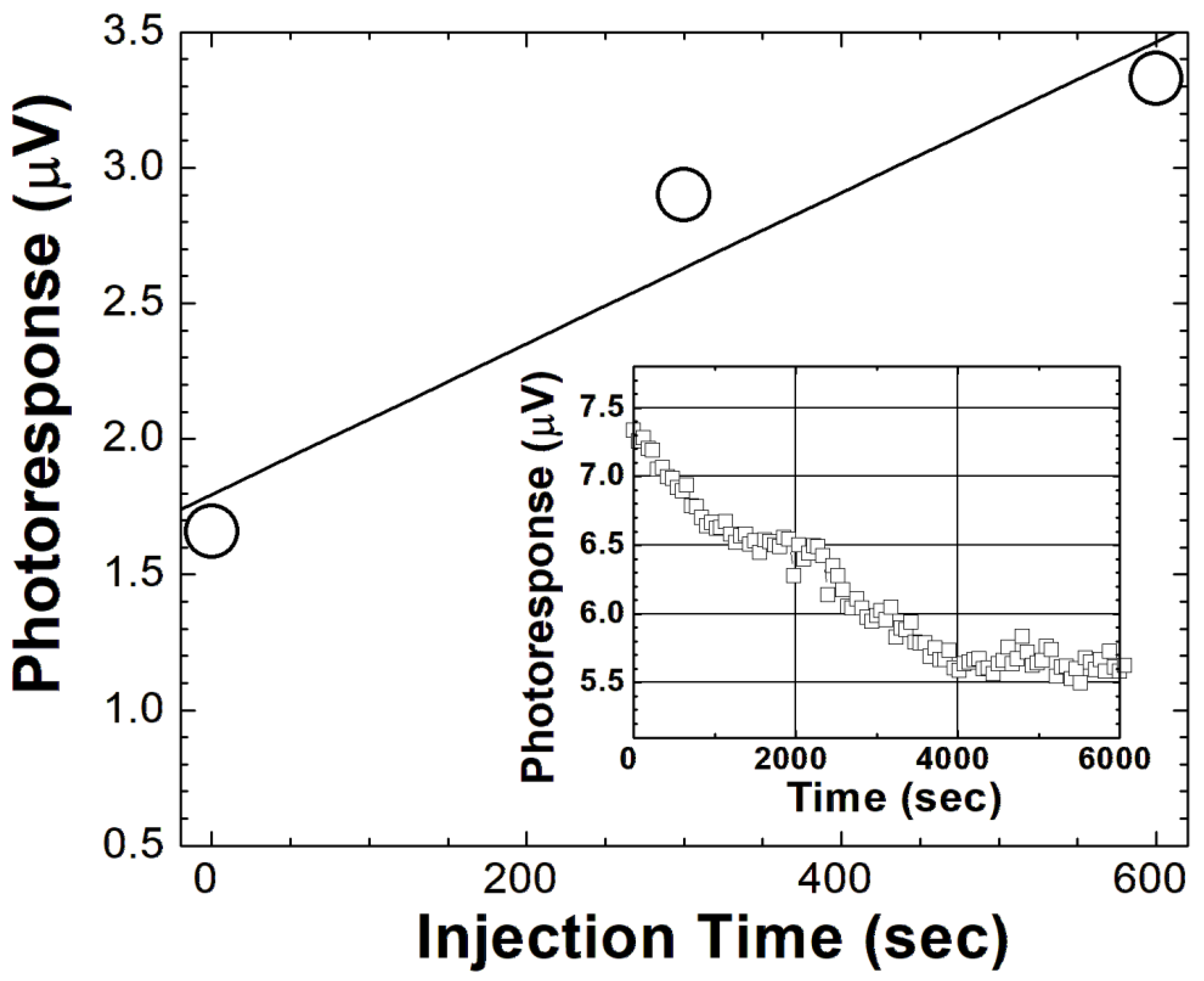

Dynamics for photoresponse enhancement (open circles) and the fit to the data. A saturation trend is observed beyond 600 seconds and is not shown on the graph. The linear fit confirms lateral charge collection as discussed in ref. [
42].
Inset: Dynamics of polychromatic photoresponse relaxation after 600 seconds of forward bias injection.
Figure 4.
Dynamics for photoresponse enhancement (open circles) and the fit to the data. A saturation trend is observed beyond 600 seconds and is not shown on the graph. The linear fit confirms lateral charge collection as discussed in ref. [
42].
Inset: Dynamics of polychromatic photoresponse relaxation after 600 seconds of forward bias injection.
