Radioisotopic U-pb Dating of the Kolchugino Group Basement (Kuznetsk Coal Basin, Siberia): Was the Change of Early-Middle Permian Floras Simultaneous at Different Latitudes in Angaraland?

Altmetrics

Downloads

135

Views

88

Comments

0

A peer-reviewed article of this preprint also exists.

supplementary.pdf (622.73KB )

Submitted:

19 November 2023

Posted:

21 November 2023

You are already at the latest version

Alerts
Abstract
The Kuznetsk Basin (Kuzbass) is one of the largest coal basins in Siberia and a reference area for the ancient Angaraland continent. The proximity of the Kuzbass and Siberian platform caused their biotic similarities in the Late Palaeozoic. However, due to biota endemism, the Kuzbass Upper Palaeozoic does not correlate directly with the International Chronostratigraphic Chart (ICC). This paper discusses radioisotopic (CA-ID-TIMS) dating of zircons from a volcanic tuff located in the Starokuznetsk Formation. This level matches the interval of the Balakhonka/Kolchugino (B/K) floral change in Kuzbass, i.e. the gradual replacement of cordaitoid-dominated wet forests (Balakhonka flora) by more arid fern-pteridosperm-cordaitoid assemblages (Kolchugino flora). New age (276.9 ± 0.4 Ma) directly correlates the Starokuznetsk Fm with the Upper Kungurian of the ICS. We compared the Kuzbass data with data of the Western Verkhoyanie, where Middle Permian ammonoids (Sverdrupites assemblage) occur in strata recording the B/K floral change. Available (ICC) and new datings indicate the lag between the B/K floral change in low (Kuzbass) and high (Verkhoyanie) latitudes of Angaraland. The B/K floral change in the Kuzbass began in the early Late Kungurian and was completed by the end of this age. In contrast, the B/K floral change in Verkhoyanie began at the end of the Late Kungurian and was completed in the Late Wordian. The delay in the floral changes at different latitudes of Angaraland suggests that existing interregional correlations need further improvement.
Keywords:
Subject: Environmental and Earth Sciences  -   Geophysics and Geology

1. Introduction

Radioisotopic uranium-lead (U-Pb) dating of individual zircon grains, including Thermal Ionisation Mass Spectrometry with Isotope Dilution and Chemical Abrasion (CA-ID-TIMS), has been successfully applied to detailed coal basin stratigraphy for more than two decades. The radioisotopic ages facilitated intra-basin correlation and direct comparison with the International Chronostratigraphic Scale of coal seams in Australia [1,2], China [3], Eastern Europe (Donetsk Basin) [4,5], North America [6], South America [7,8,9,10] and Western Europe [11,12]. This article continues to present the results of the radioisotopic dating (CA-ID-TIMS) of coal-bearing sediments of the Kuznetsk Basin, which was started several years ago [13,14].
The Kuznetsk Basin (Kuzbass), one of the largest coal basins in Siberia, lies in the northern part of the Altai-Sayan Fold Belt (Figure 1, A, B). Previously thought to be a relatively small intramontaneous depression, the Kuzbass is now recognised as a giant Late Palaeozoic fore-mountain trough, adjacent to the Siberian Platform from the south (Figure 1, C). The Kuzbass sedimentary trough is bordered by the Kuznetsk Alatau and Gornaya Shoria Caledonian fold systems from the east and south, respectively; these systems were already consolidated at that time with the Siberian Platform. In the west and north, the trough was in contact with the Hercynian mobile belts of Salair and Kolyvan-Tomsk [15,16].
The close position of the Kuznetsk Basin and Siberian Platform in the Late Palaeozoic, as shown in Figure 1D, caused floral and faunal similarities between these two areas. The specificity of the largely endemic faunal and floral assemblages of this vast area was used to define a separate Late Palaeozoic phytogeographic and biogeographic province named Angaran, Angarian or Angaraland [18,19,20,21,22,23]. At the same time, some data on the palaeogeographic distribution of plants, conchostracans, ostracods, bivalves and fishes indicate possible short-term biotic exchanges between Angaraland, Euramerica (Laurussia) and Gondwana [20,24,25,26,27,28,29,30,31,32].
Kuzbass is considered a reference area for the whole Angaraland [22,26] due to its high level of geological investigation. Detailed studies in Kuzbass began in 1914 and continued for more than a hundred years by numerous scientific groups of various industrial and academic geological organisations [33]. The Upper Palaeozoic stratigraphic framework of the Kuzbass developed during this period was based on data from thousands of prospecting and exploration wells, mine excavations, and natural outcrops. It was characterised by a high degree of stratification and detailed palaeontological and palaeobotanical validation of units – groups, formations, regional stages, etc. The Regional Stratigraphic Scheme of the Kuzbass was approved in 1979 [34]. Since its approval, it has undergone only one minor modification [35], which indicates its continuing relevance (Figure 2). The Regional Stratigraphic Scheme is implemented in geological mapping and is used in all geological surveys both in the Kuzbass and in adjacent areas, i.e., it is the base for interregional correlations within the Angaraland including the Verkhoyanie [22, 23, 26, 36, 37, etc.].
Despite its detail, the Upper Palaeozoic Regional Stratigraphic Scheme of Kuzbass does not correlate directly with the General Stratigraphic Scale of Russia (GSSR) [38], nor with the International Chronostratigraphic Chart [39] (Figure 2). The impossibility of direct correlation is related to the absence of marine fauna (e.g. conodonts, ammonoids, fusulinids, etc.) and the endemism of the continental (non-marine and terrestrial) biota of Angaraland due to its isolation from the Euramerican and Tethys regions in the Late Palaeozoic [21,22,23,29].

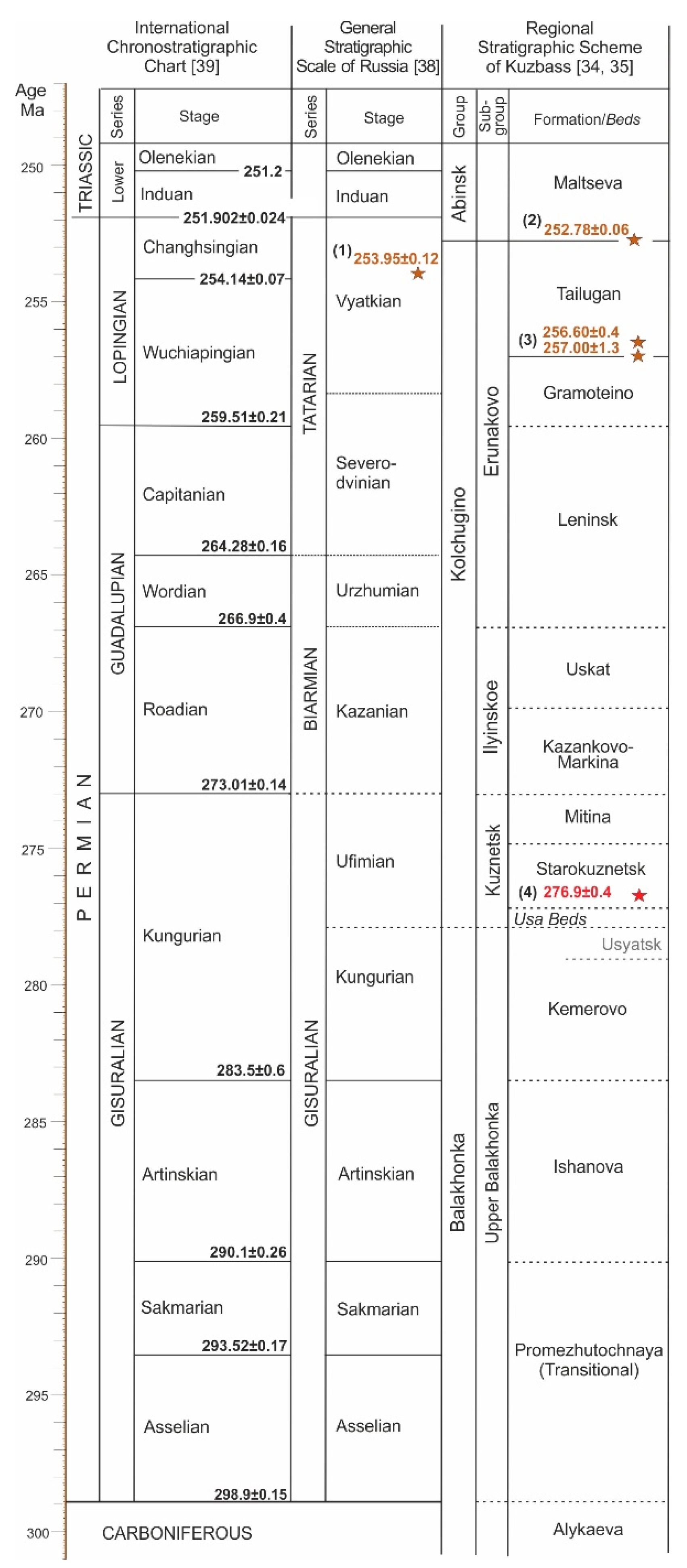

The Permian coal-bearing succession of the Kuzbass is subdivided into two thick units – the Balakhonka and Kolchugino Groups, which are stratified into subgroups, formations and beds (Figure 2). The boundary between the Balakhonka and Kolchugino Groups traditionally corresponds to the upper boundary of the Lower Permian [26 and references therein] or, more recently, to the Cisuralian-Guadalupian boundary [38,40]. The biostratigraphic evidence for this boundary is based on the change of the ‘early Permian’ Balakhonka Flora by the ‘middle Permian’ Kolchugino Flora. The Balakhonka/Kolchugino floral change has been traced throughout Angaraland and is considered to mark the boundary between the Early and Middle Permian [40 and references therein].
This paper discusses radioisotopic (CA-ID-TIMS) dating of zircons from a volcanic tuff located in the middle of the Starokuznetsk Formation (Fm) (Figure 2), exactly in the stratigraphic interval where the Balakhonka Flora is gradually replaced by the Kolchugino one. We provide new evidence for the evolution of vegetation at different latitudes in Angaraland during the Late Palaeozoic. In this context, it is particularly important to correlate the dated Kuzbass level with the reference sections of the Verkhoyanie, where beds with plant remains are intercalated with beds containing Middle Permian ammonoids [42,43]. The Verkhoyanie, located during the Late Palaeozoic on the northern margin of Angaraland (Figure 1D), contains several well-studied stratigraphic successions in which the Balakhonka/Kolchugino floral change is recorded [13,37]. These stratigraphic successions also contain the Lower Delenzhian ammonoids (Sverdrupites, Daubichites, etc.), a reliable marker of the Roadian Stage [44,45,46].
The present study demonstrates the potential of radioisotopic dating (CA-ID-TIMS) of zircons obtained from the basal part of the Kolchugino Group to establish a direct correlation with the International Chronostratigraphic Scale [39]. In addition, we attempt to answer the challenging question of whether the change of Balakhonka ("lower Permian") Flora by the Kolchugino ("middle Permian") Flora was synchronous at different latitudes of Angaraland.

2. Geological setting

The sedimentary succession of the Kuzbass was accumulated over a period of about 350 Ma – from the Early Palaeozoic to the Middle Mesozoic. The most significant subsidence, accompanied by marine basin ingression, began in the Devonian and continued into the Mississippian. Several episodes of folding in the early Pennsylvanian changed the pattern of sedimentation from marine to continental clastic and coal-bearing. Uplift of the area resulted in the denudation of previously formed sedimentary structures. The Kuzbass acquired its present geological configuration at the beginning of the Cretaceous [33].

2.1. General features of the coal-bearing succession of the Kuzbass

The upper Carboniferous and all Permian rocks consist of continental, predominantly clastic and coal-bearing sediments. Their greatest thickness (7000–8000 m) is restricted to the axial and western parts of the basin. The reference sections consist of sandstones, siltstones and mudstones, including thick coal seams and thin coal interbeds. Subordinate lenses of gravels and conglomerates mark the boundaries of the sedimentary cycles. The proportion of coal in the total succession averages between 1% and 6% (70–480 m), rising to 20–25% in some stratigraphic units.
The Permian coal-bearing succession in the Kuzbass consists of the Balakhonka and Kolchugino Groups, the boundary between which is controversial despite a long history of geological study. The boundary is controversial because, in the absence of reliable biostratigraphic markers, it is still based on the lithological criterion, i.e. on the change of the coal-bearing interval with thick productive coal seams (uppermost Balakhonka) by clastic rocks without coal beds (lowermost Kolchugino). The last shift of this boundary to the roof of the Aralicheva I coal seam took place in 1993 [35]. This facies-dependent boundary may be located at various stratigraphic levels in different regions of the Kuzbass. Local erosion in the upper part of the Balakhonka Group [47] reduces the completeness of the succession and complicates stratigraphic correlations.
The boundary between the Balakhonka and Kolchugino Groups in the Kuzbass is traditionally accepted as the boundary between the Lower (Cisuralian) and Middle (Guadalupian) Series of the Permian (Figure 3). Accordingly, the level of this boundary in the Kuzbass succession is also controversial and changes depending on the boundary between these Groups.

2.2. Sedimentary succession of the Balakhonka/Kolchugino boundary interva

The Balakhonka Group consists of clastic and coal-bearing sediments (1300–3200 m thick) belonging to the Pennsylvanian (the Lower Balakhonka Subgroup) and Cisuralian (the Upper Balakhonka Subgroup) Series. The Upper Balakhonka Subgroup (700–2000 m thickness) is composed of three Formations (Fm), of which the Kemerovo Fm completes its succession (Figure 2). Below we briefly summarise the main features of the Balakhonka/Kolchugino boundary interval.
The Kemerovo Fm (175–530 m thick) includes sandstones, siltstones and mudstones with thick productive coal seams. The reference section outcrops on the banks of the Tom River, near the city of Kemerovo (Figure 1B). The formation extends throughout the Kuzbass and in adjacent basins of the Altai-Sayan Fold Belt.
The Kemerovian regional stage corresponds to the Kemerovo Fm and is based on characteristics of fossil plants (mainly cordaitoids and sphenopsids) and invertebrates (mainly non-marine bivalves).
The plant assemblage includes sphenopsids Paracalamites decoratus (Eichwald) Zalessky, Annulina neuburgiana (Radczenko) Neuburg, Annularia (?) planifolia Radczenko, А. (?) tenuifolia Neuburg, and Phyllotheca deliquescens (Göppert) Schmalhausen, ferns Prynadaeopteris maneichensis (Zаlessky) Radczenko, and the supposed fern Sphenopteris batschatensis Zalessky. Cordaitoids are represented by leaves of Rufloria with narrow sunken stomata rows, such as Rufloria derzavinii (Nеuburg) S. Меуеn, R. multipapillata Gluch., R. tuberculosa Gluch., and R. plana Gluch., less common leaves of Cordaites, scaly leaves of Nephropsis rhomboidea Neuburg, and N. integgerima (Schmalhausen) Zalessky. Numerous seeds include Samaropsis, Carpolithus, Sylvella and Skokia.
Non-marine ostracods first appear in the coal-bearing Kuzbass succession only in the Kemerovo Fm, where only one species of the genus Tomiellina is reported. This is of some interest because in the neighbouring Minusinsk Coal Basin, non-marine ostracods (suborder Cytherocopina) are known from the Late Carboniferous [25]. The absence of ostracods in most of the Balakhonka Group is explained by the low content of calcium carbonate in the water of peat bogs and adjacent aquatic settings [24].
Non-marine bivalves include the "giant" forms of Prokopievskia Ragozin, Sinomya Betekhtina, and Ussiella Betekhtina. Giant bivalve shells are sporadic in the lower part of the Kemerovo Fm and become more abundant in its upper part [26].
The upper part of the Kemerovo Fm (75–280 m thick) consists of interbedded sandstones, siltstones and mudstones, including thick productive coal seams.
The dominant plant remains of this interval are the large-leaved cordaitoids Rufloria derzavinii (Neuburg) Meyen, Cordaites latifolius (Neuburg) Meyen, Vojnovskya minima (Chachl. et Poll.) (Neuburg) and sphenophylls with large whorls Annularia (?) tenuifolia Neuburg, А. (?) planifolia Neuburg, Paracalamites angustus Such., P. vicinalis Radczenko. Associated with the dominant groups are the ferns Pecopteris abensis Zal. and Р. martia Neuburg and bryophytes Salairia longifolia Neuburg [26,48].
Non-marine bivalves are still represented by the mass accumulations of "giant" (up to 80–100 mm) shells of Prokopievskia gigantea Rag., Pr. pseudogigantea Bet, Pr. sygmoidea Khalfin, Ussiella gigantissima (Khalfin), Sinomya sp., occurring together with Myalina-like forms, coiled shells of a Spirorbis (possibly microconchids?) and cirripede crustaceans [26].
The assemblages of "giant" non-marine bivalves Prokopievskia, Ussiella, Sinomya are widespread in the Upper Kungurian of the Tunguska Basin (Upper Burgukli Sfm) [26], Eastern Taimyr (Sokolinaya Fm) [49,50] and the Timan-Pechora Basin (Lek-Vorkuta Fm) [27]. The marker floral beds with the bryophytes Salairia longifolia, sphenophylls Paracalamites angustus, cordaitoid Vojnovskya minima and numerous seeds Skokia, specific for the upper part of the Kemerovian regional stage, have been traced throughout the Kuzbass and the adjacent areas [26,48].
Based on floral and faunal characteristics, the upper part of the Kemerovo Fm was previously established as a distinct Usyatsk Fm [51,52], and then as the Usyatskian regional stage [26]. However, these stratigraphic units were later questioned and no longer used due to "...uncertainty of their stratigraphic extent..." [35, p. 93].
The Kolchugino Group (up to 6000 m thick) roughly corresponds to the Guadalupian and Lopingian Series of the Permian System (Figure 2). The lower boundary of the Group is accepted in the roof of the upper productive coal seam (Aralicheva I coal seam) of the Balakhonka Group; the upper boundary is provisionally determined by the replacement of coal-bearing sediments by tuffogenic and clastic rocks of the Abinsk Group of predominantly Triassic age. Complete sections of the upper part of the Kolchugino Group show gradual replacement of coal-bearing sediments by volcanogenic and clastic rocks with characteristic spheroidal spalling and zeolite mineralization. As a result, the boundary between the Kolchugino and Abinsk groups is often not clearly defined.
The Kuznetsk Subgroup, whose radioisotopic dating we discuss in this paper, is the lowest unit of the Kolchugino Group and lacks productive coal seams (Figs 2, 4–5). The stratotype of the Kuznetsk subgroup is outcropping on the Tom River within the city of Novokuznetsk (Figure 3). The Kuznetsk Subgroup (700–930 m thick) consists of sandstones and siltstones with interlayers of mudstones and lenses of marls and siderites.
Initially, this stratigraphic interval was separated under the name “Empty Formation” and provisionally assigned to the Upper Permian (in the concept of the two-series division of the system). Since 1935, geologists have referred to this stratigraphic interval as the Kuznetsk Formation. Later, the Kuznetsk Fm was divided into three Subformations (Sfm), from bottom to top: the Usa, Starokuznetsk and Mitina [53]. The Usa Sfm is now recognised as the "Beds with fossil plants'' [38], the Starokuznetsk and Mitina Sfm are raised in status to Formations, while the Kuznetsk Fm is turned into a Subgroup [35] (Figures 2, 4). In the modern Regional Stratigraphic Scheme, the Kuznetsk Subgroup consists of (from bottom to top) the Usa Beds, the Starokuznetsk Fm and the Mitina Fm.
The Usa Beds (70 to 110 m thick) consist of dominant siltstones interbedded with packages of fine-grained and silty sandstones, rare mudstone interlayers and few levels with carbonate nodules (Figure 4). The lower boundary is accepted in the roof of the Aralicheva I coal seam [35,54].
The Usa Beds contain 1 to 3 lens-shaped interbeds of polymictic boulder conglomerates (up to 11 m in total thickness) occurring at different stratigraphic levels within 0–70 m interval above the Aralicheva I coal seam. Some researchers suggest that the conglomerates are regionally widespread and related to orogenic movements that caused angular unconformity. A marker package of mottled carbonate-clayey rocks, 5 to 25 m thick, overlies the conglomerates [47].
The plant assemblage is dominated by sphenopsids and cordaitoids [26,55] which co-occur with poorly preserved leaves pteridosperms of the genus Comia) (Figure 4). A characteristic feature of the Usa Beds is the co-occurrence of Balakhonka cordaitoids and Kolchugino pteridosperms. This co-occurrence indicates that the late Balakhonka Flora is beginning to be gradually replaced by early Kolchugino Flora.
Non-marine bivalves of the Usa Beds are similar to the Late Balakhonka fauna and include "giant" shells of Prokopievskia, Sinomya and Ussiella.
The Starokuznetsk Fm (280–325 m thick) consists of interbedded packages of grey fine-grained and silty sandstones, siltstones and mudstones, including numerous interlayers and lenses of concretions (siderites, phosphorites) and sporadic thin interlayers of tuffites. The lower boundary of the Fm is assumed to be 110 m above the roof of Aralicheva I coal seam. Sandstones and siltstones differ from similar rocks of adjacent intervals by an increasing quartz content [54]. The upper part of the reference section of Starokuznetsk Fm (Figure 3, 1) contains tuffs and agglomerates consisting of altered vitroclastic material. The newly dated ash bed (sample no. 19kzb-7) is located approximately in the middle part of the Starokuznetsk Fm, in the upper part of one of the mudstone intervals (Figure 4–5).
The Starokuznetsk plant assemblage contains the coexisting late Balakhonka and early Kolchugino species of cordaitoids. The first distinct occurrence of the genus Comia, which is widespread in younger Permian floras of Angaraland, is also characteristic of this assemblage. The cordaitoids consist mainly of Cordaites and Rufloria, and the former dominate. This dominance distinguishes the Starokuznetsk Fm from the Upper Balakhonka Subgroup, where the proportions of these genera are approximately equal.
The Cordaites contains late Balakhonka species, e.g. Cordaites latifolius (Neuburg) Meyen, and new early Kolchugino species appearing for the first time – C. praeincisus Gorelova, C. kuznetskianus (Gorelova) Meyen, C. gracilentus (Gorelova) Meyen, C. candalepensis (Zalessky) Meyen. A similar picture is characteristic of the genus Rufloria, which includes rare large-leaved late Balakhonka species Rufloria (Alaetorufloria) derzavinii (Neuburg) Meyen, R. (A.) meyenii Gluchova, and new early Kolchugino species, e.g. R. (A.) arta (Zalessky) Meyen.
In addition to the two genera mentioned above, the cordaitoids of the Starokuznetsk Fm include the scaly leaves of Crassinervia peltiformis Gorelova, C. pentagonata Gorelova, Nephropsis lampadiformis Gorelova, N. grandis Gorelova. Sandy sediments of the lower part of the Starokuznetsk Fm contain moderate-sized trunks with leaf cushions and leaf traces of Lophoderma tersiensis Radczenko, originally assigned to lycophytes [56] and later to cordaitoids [20,57].
Sphenophylls are the second dominating group. The more characteristic sphenophylls are Annularia planifolia Radczenko, Annulina iljinskiensis (Radczenko) Meyen, and Phyllopitys (?) sessilifolia Gorelova.
Pteridosperms contain two genera – Zamiopteris and Comia. The Zamiopteris includes two Kolchugino species Z. kuznetskiana Gorelova and Z. crassinervis Gorelova. Layers with pinnate leaves of the first appearing Kolchugino species Comia osinovskiensis Gorelova are used as correlation marker and traced within the Kuzbass and adjacent basins.
Fossil seeds also include a mixture of late Balakhonka and early Kolchugino species. The species known from the Upper Balakhonka, i.e. Skokia elongata (Tarasova) Suchov, Samaropsis prokopievskiensis Suchov and S. neuburgii f. bungurica Suchov, occur together with Samaropsis pseudotriquetra Neuburg which first appears in the Starokuznetsk Fm. Ferns and bryophytes are extremely rare.
The Starokuznetsk non-marine bivalve assemblage is very similar to that of the Kemerovo Fm and includes relict species of the late Balakhonka fauna: Ussiella (= Mrassiella) gigantissima (Khalf.), U. ussiensis (Khalf.), Prokopievskia gigantea Rag., Pr. pseudogigantea Bet., Sinomya sp. New taxa appearing for the first time in the Starokuznetsk Fm are predominantly endemic and phylogenetically related to the Balakhonka fauna, i.e. Augea elliptica Khalf., A. ovata Khalf., Zvonarevia convexa Tok., Bunguria tetragonalis Tok., B. rhomboidea Tok.
Most interesting are the cosmopolitan Redikorella Silantiev, 1994 appearing for the first time in the Starokuznetsk Fm. This genus is abundant in the Solikamskian regional stage of the East European Platform and the Urals, in the Inta Fm of the Timan-Pechora Basin, and in the upper part of the Burguklian regional stage of the Tunguska Basin [27, ref. therein], and is recently found in the Guncina Fm of the Southern Alps [58]. In the upper part of the Starokuznetsk Fm, non-marine bivalves become smaller in size, their taxonomic diversity decreases.
Non-marine ostracods are widespread in the Starokuznetsk Fm [24,59] and include representatives of the suborders Cytherocopina and Darwinulocopina. The cytherocopines dominate and contain five genera: Iniella, Kemeroviana, Tomiella, Tomiellina and Suriekovella, among which the Tomiellina are most diverse. The darwinulocopines are represented by a few species of Darwinula and Darwinuloides [54,60].
The assemblages of non-marine ostracods, comprising mainly the Siberian genera Tomiella, Tomiellina, Iniella, Kemeroviana and Suriekovella, constitute the so-called Angarian fauna [61]. The generic composition of this fauna distinguishes it from the Kazakhstanian fauna, which consists mainly of Darwinula, and from the Euramerican fauna, which unites mainly representatives of the Carbonitacea. The Angarian fauna appears for the first time in the Middle Carboniferous of the Minusinsk Coal Basin [25]. Some elements of the Angarian fauna, e.g. Iniella and Tomiella species are described from the Inta Fm (Ufimian) of the Timan-Pechora Basin [62], and from the Degali Fm (Late Permian) of the Tunguska Basin [63].
The fishes of the Starokuznetsk Fm can only be provisionally characterised, as the two taxa known from the Kuznetsk Subgroup – Holuropsis yavorskyi and Paraeurynotus chabakovi – have no precise stratigraphic and geographic setting. Both genera are known only from Permian deposits and are endemic of the Kuzbass [64,65]. Initially, these genera were assigned to families from the Lower Carboniferous of Great Britain. At present, we can assume that this assignment was erroneous. The scale morphology of P. chabakovi is very similar to that of Usolia sp. from the Kazankovo-Markina Fm [32]. The Usolia species have been described from the Ufimian of European Russia [66], where they apparently migrated from Angaraland in the same way as other Angarian fishes [32,67]. The phylogenetic relationships of H. yavorskyi are unclear.
The Mitina Fm (280–380 m thick) consists of intercalated fine-grained and silty sandstones with packages of siltstones and mudstones containing interbeds with carbonate concretions and rare tuffite interbeds. In the reference section, the lower boundary of the Mitina Fm is provisionally defined at 390–420 m above the top of the Aralicheva I coal seam [54] (Figure 4).
The Mitina plant assemblage comprises a new phase in the evolution of the Angaraland fern-pteridosperm-cordaitoids flora and corresponds to the typical Kolchugino Flora lacking late Balakhonka elements. Cordaitoids dominate together with pteridosperms (Permocallipteris, Comia) and ferns (Pecopteris).
The taxonomic composition of cordaitoids is renewed. The first appearing species include Cordaites minax (Gorelova) Meyen, C. radczenkoi (Gorelova) Meyen, C. gorelovae Meyen, scaly leaves of Crassinervia tenera Gorelova and C. ivancevia Gorelova. The subgenus Rufloria (Rufloria) first appears in the Mitina Fm and is represented by R. (R.) olzerassica (Gorelova) Meyen; this subgenus is widespread in subsequent younger Permian floras. In contrast, the R. (Alaetorufloria) occurs rarely as small-leaved forms of the species R. (A.) arta (Zal.) Meyen.
The Zamiopteris crassinervis Gorelova and Z. lanceolata (Chachlov et Pollak) Neuburg are still abundant and co-occurred with the first appeared pteridosperms Permocallipteris ivancevia (Gorelova) Nauglonykh. The fern Pecopteris pseudomartia Radczenko is common. Sphenophylls are numerous and diverse, and include Phyllopitys (?) sessilifolia Gorelova, Phyllotheca turnaensis Gorelova, Annulina iljinskiensis (Radczenko) Meyen, Paracalamites communis Gorelova. Several new species of seeds appear for the first time in the Mitina Fm, namely Tungussocarpus elongatus (Suchov) Suchov, Sylvella alata Zalessky, Cordaicarpus petrikensis Suchov, Cord. tagaryschskiensis Suchov, Samaropsis uncinata Neuburg; these species are also widespread in the younger intervals of the Permian.
The Mitina Fm contains a marker (correlative) floristic layer with the characteristic pteridosperm Permocallipteris ivancevia (Gorelova) Nauglonykh. This marker layer is traced throughout the Kuzbass (Mitinian regional stage) and the Tunguska Basin (Lower Peliatkian regional substage) [26,68].
Non-marine bivalves of the Mitina Fm comprise both genera widespread throughout Angaraland, including the Tunguska and Timan-Pechora Basins (Khosedaella, Brussiella), and cosmopolitan genera (Redikorella, Palaeomutela).
Non-marine ostracods are more diverse than the older assemblage of the Starokuznetsk Fm. The suborders Cytherocopina and Darwinulocopina are equally dominant. Within the Cytherocopina, a new genus Sinusuella appears, the genus Tomiella contains only new species, the genus Iniella is characterised by the first appearance of several species [24,60,69]. Within Darwinulocopina, the genera Darwinula and Darwinuloides consist mainly of new species, many of which are cosmopolitans, widespread in the Ufimian Stage of the East European Platform, in the Cis-Ural and Timan-Pechora Basins [62].

2.3. Volcanogenic rocks in the Kuzbass coal-bearing succession

Volcanogenic rocks are widespread in the coal-bearing succession of the Kuzbass. This is apparently due to the volcanic activity of the mobile fold belts on the periphery of the Kuznetsk sedimentary basin. At least 12 volcanogenic interbeds (first few cm to 10 m thick) of tuffs, tuffites and montmorillonite clays are described in the Kuzbass coal-bearing succession [70,71,72] and subsequently traced in the adjacent Minusinsk and Tunguska basins [73]. The mineralogy and geochemistry of volcanogenic rocks, e.g. the content of rare and radioactive elements, were studied in detail [74,75,76].
In coal seams, volcanic ash is usually transformed into tonsteins, representing cemented hard pelitic interbeds. In clastic rocks, volcanic ash is altered into plastic clays. In both cases, the interbeds of volcanic material are thin (usually the first few centimeters), predominantly kaolinitic in composition, and different from the host rocks in colour (light grey, grey, brownish, almost black), mineral composition and lack of lamination. Most tonsteins and volcanic ash contain idiomorphic zircon grains. The origin of these grains is related to the precipitation of ash cloud material produced by volcanic eruptions synchronous with the accumulation of clastic or peat sediments.
The search and study of volcanic ash interbeds enables the development of a chronostratigraphic framework for the Kuzbass coal-bearing succession based on radioisotopic dating of zircons. At present, the following radioisotopic datings of Permian sediments of the Kuzbass are available:
(a) Abinsk Group. Maltseva Fm. Radioisotopic dating of zircons from volcanic ash interbeds in the lower part of the formation indicates an 206Pb/238U age of 252.78 ± 0.06 (0.14) [0.30] Ma, 252.65 ± 0.08(0.18)[0.11] Ma and 252.33 ± 0.08 (0.20)[0.33] Ma [13], which is slightly older than the accepted dating (251.902 Ma) of the Permian-Triassic boundary [39; Figure 2]. Thus, the lowermost strata (10–40 m) of the Maltseva Fm, traditionally attributed to the Triassic [34,35] are in fact of the Late Changhsingian.
(b) Erunakovo Subgroup. Tailugan Fm. Radioisotopic dating of zircons extracted from tonsteins of coal seam 78 at the base of the Tailugan Fm indicates an 206Pb/238U age of 257,0 ± 1,3 and 256,6 ± 0,4 Ma, middle Wuchiapingian [14].
(c) Kuznetsk Subgroup. Starokuznetsk Fm. Radioisotopic dating of zircons from a volcanic ash interbed in the middle part of Starokuznetsk Fm indicates an 206Pb/238U age of 276.9 ± 0.4 Ma (MSWD = 0.5) (this paper).

3. Materials

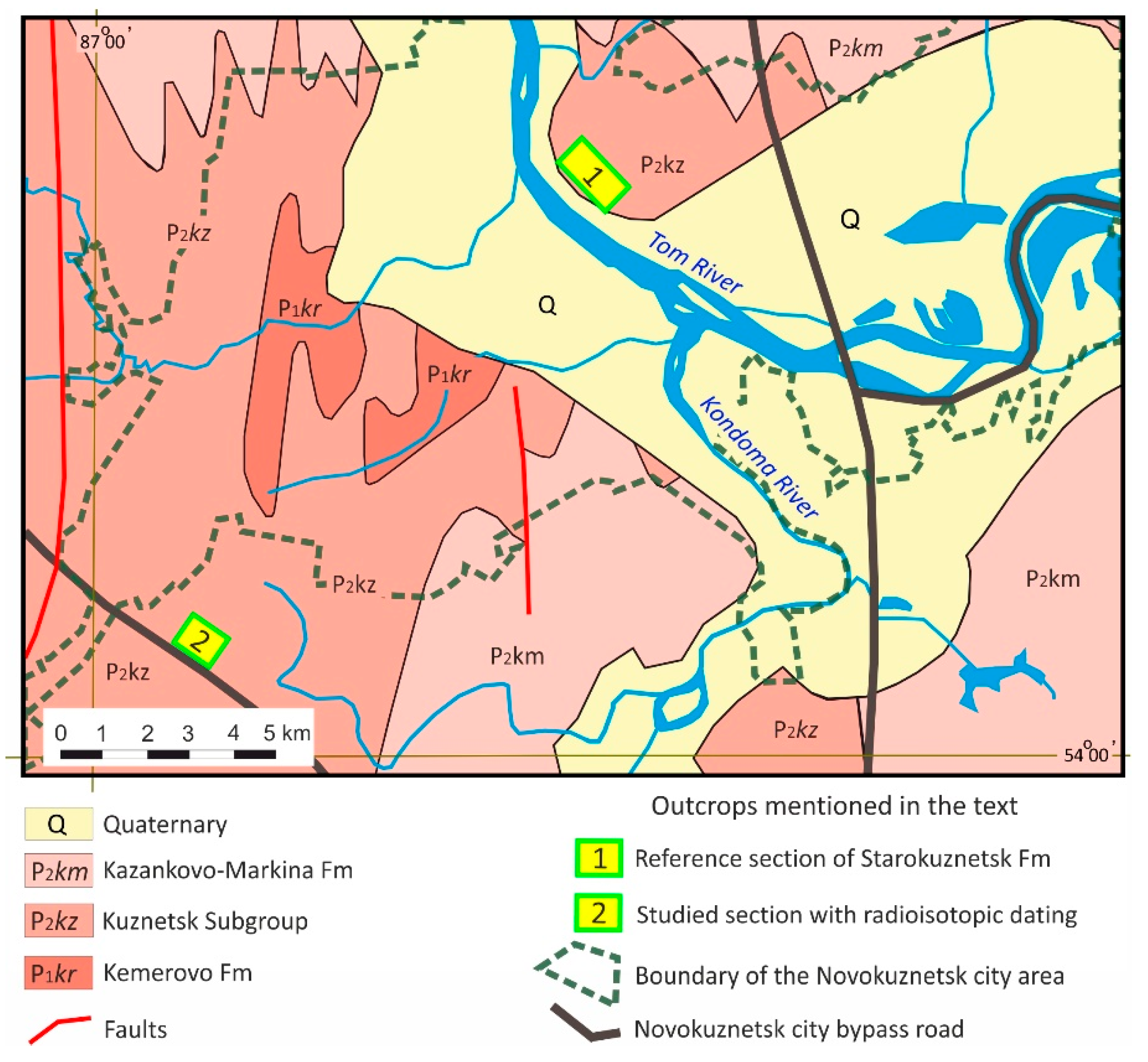

The section from which we sampled volcanic ash, which served as the material for the separation of zircon grains and their radioisotopic dating (sample no. 19kzb-7), is located near the southern boundary of the city of Novokuznetsk in the incision of the bypass road (53.711694 N, 86.957161 E) (Figure 3, loc. 2). The beds dip northwards at an angle of 60 degrees (Figure 6A). The subtle cyclicity of the section is a result of regularly recurring clays, fine- and coarse-grained siltstones and sandstones. Lenses and interbeds of carbonate concretions emphasise the cyclic pattern of the section (Figure 6B). The volcanic ash layer is lighter in colour than the host rocks and is clearly visible on the outcrop wall (Figure 6C).

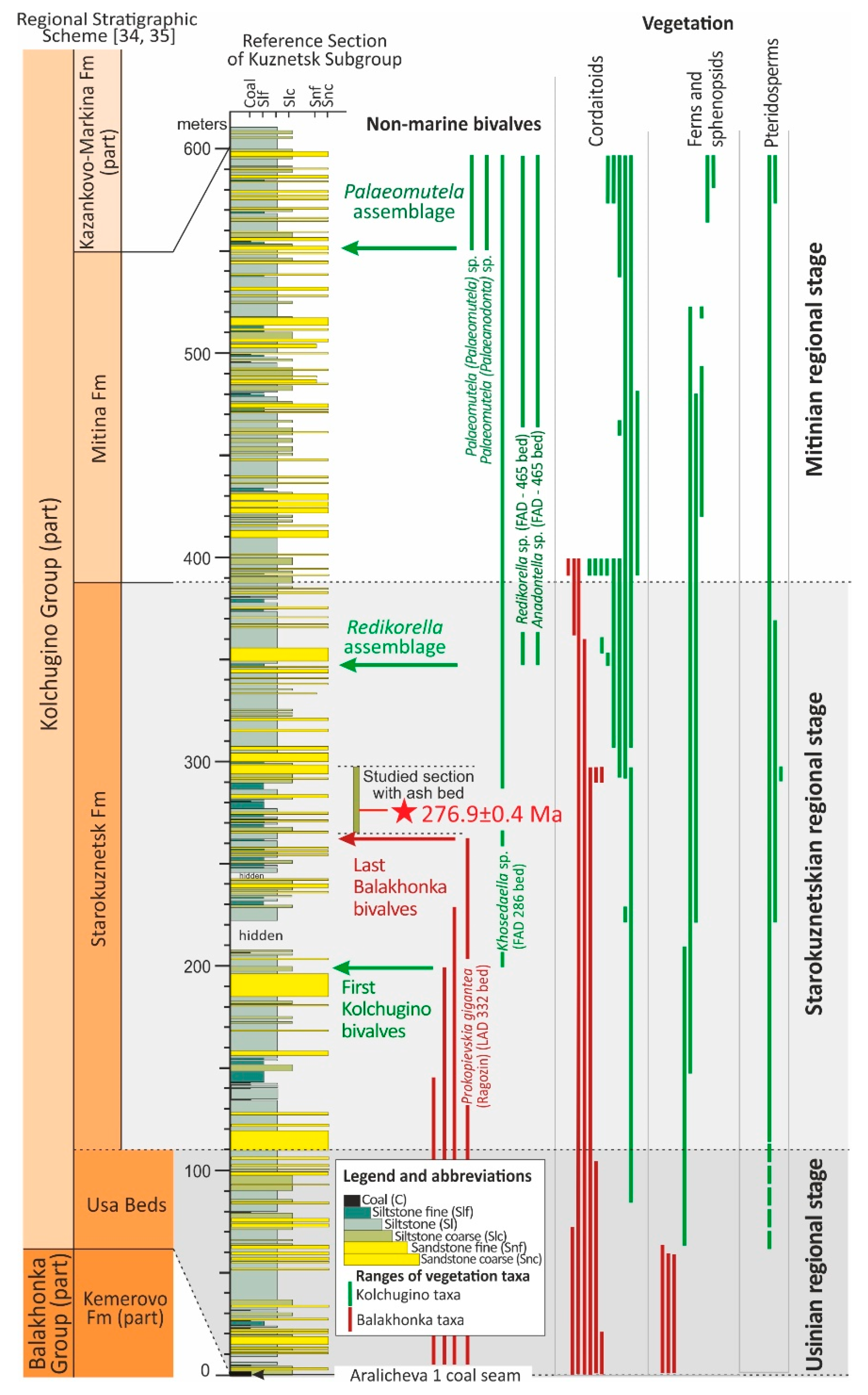

The stratigraphic position of the volcanic ash in the Starokuznetsk Fm is shown in Figure 4 and Figure 5. The weight of the sample was approximately 3 kg. The entire sample was processed for subsequent zircon grain separation.
Zircon characterisation. Zircon grains from sample no. 19kzb-7 were very small (ca. 100 µm). Many of them have rounded surfaces indicating inheritance (Figure 7). We selected zircon grains with even surfaces and sharp crystallographic edges (most idiomorphic zircon grains) to avoid xenocrystic older cores.

4. Methods

The tuff sample was processed at Kazan Federal University. The most prospective zircon grains were subsequently sent to the Isotopic Laboratory, Institute of Mineralogy, Technische Universität Bergakademie Freiberg (Germany) for precise dating by Chemical Abrasion – Isotope Dilution – Thermal Ionisation Mass Spectrometry (CA-ID-TIMS).

4.1. Sample preparation

Zircons were separated from the tuff using three standard procedures. Initially, the tuff samples were crushed to a fraction of 0.5–1.5 cm and treated with dimethyl sulfoxide ((CH3)2SO) for 48 hours at 50°C. As a result, all the tuff material turned into a clay-like pulp. The next procedure involved ultrasonic dispersion (emission frequency of 25 kHz) of the clay-like pulp with constant stirring and gradual washing of the clay fraction in a system of communicating vessels. This procedure took from 72 to 96 hours per sample. The mineral fraction with a size of 30–250 µm, obtained after washing the clay, was about 0.01% of the weight of the clay-like pulp. It was further treated in the heavy liquid GPS-V (a concentrated aqueous solution of sodium heteropolytungstate) with a maximum density of 3.00 ± 0.05 g/ml. Individual zircon grains were extracted from the heavy fraction using a ZEISS Stemi DV4 binocular microscope.

4.2. Zircon dating by Chemical Abrasion – Isotope Dilution – Thermal Ionisation Mass Spectrometry

Selected zircon grains (ca. 50 grains with most idiomorphic forms) were annealed for 96 h at 900°C, and subsequently chemically abraded for 2 h at 210°C with concentrated HF and HNO3 in a pressurized Parr dissolution vessel. We applied this short leaching time to not dissolve the small zircon grains before dating. This procedure dissolves crystal domains with strong radiation damage which are suspected to have experienced post-crystallization lead loss [77].
Afterwards, the acid together with dissolved zircon material was completely pipetted out and 3.5N HNO3 was added to the remaining zircons grains and fragments and left for 30 min at 50°C to remove surface lead. Several cleaning cycles with water combined with repeated ultrasonic treatment were conducted before single zircon fragments were selected for further processing. Single zircon grains/fragments were washed with 3.5 N HNO3 and transferred into cleaned microcapsules with a small drop of this fluid and four drops of concentrated HF. Samples were spiked with a 205Pb-233U-235U- tracer solution (ET535 at TU Bergakademie Freiberg) [78]. For final dissolution, the microcapsules were placed in pressurised Parr dissolution vessels and heated to 200°C for 48 h, followed by drying at 130°C and then re-dissolution in 6N HCl for 24 h at 200°C to transfer them into chlorides. After repeated drying, the samples were dissolved in ten drops of 3.1 N HNO3 and transferred into micro-columns for column chemistry. U and Pb were separated from the rest of the sample by anion exchange chromatography using HCl and H2O. The U and Pb containing fraction was loaded on pre-degassed rhenium filaments with a drop of silica gel [79] and measured on an IsotopX Phoenix Mass Spectrometer using a SEM Daly ion counter. The accuracy of dating results was checked by repeated measurement of zircon standards 91500 [80] and Temora 2 [81]. The published ages of Temora 2 were determined as 416.8 ± 0.3 Ma [81]. Our date of 417.3 ± 0.6 Ma [82] perfectly matches these values. The zircon standard 91500 was determined to be 1062.4 ± 0.4 Ma [80] or 1063.6 ± 0.3 Ma [83]. Our weighted mean 206Pb/238U-age of 1064.6 ± 1.3 Ma is within 0.1 % of the accepted values. Based on the results of standard dating, we presume the present CA-ID-TIMS ages to be accurate on the 0.1 % level.

5. Results of CA-ID-TIMS zircon dating

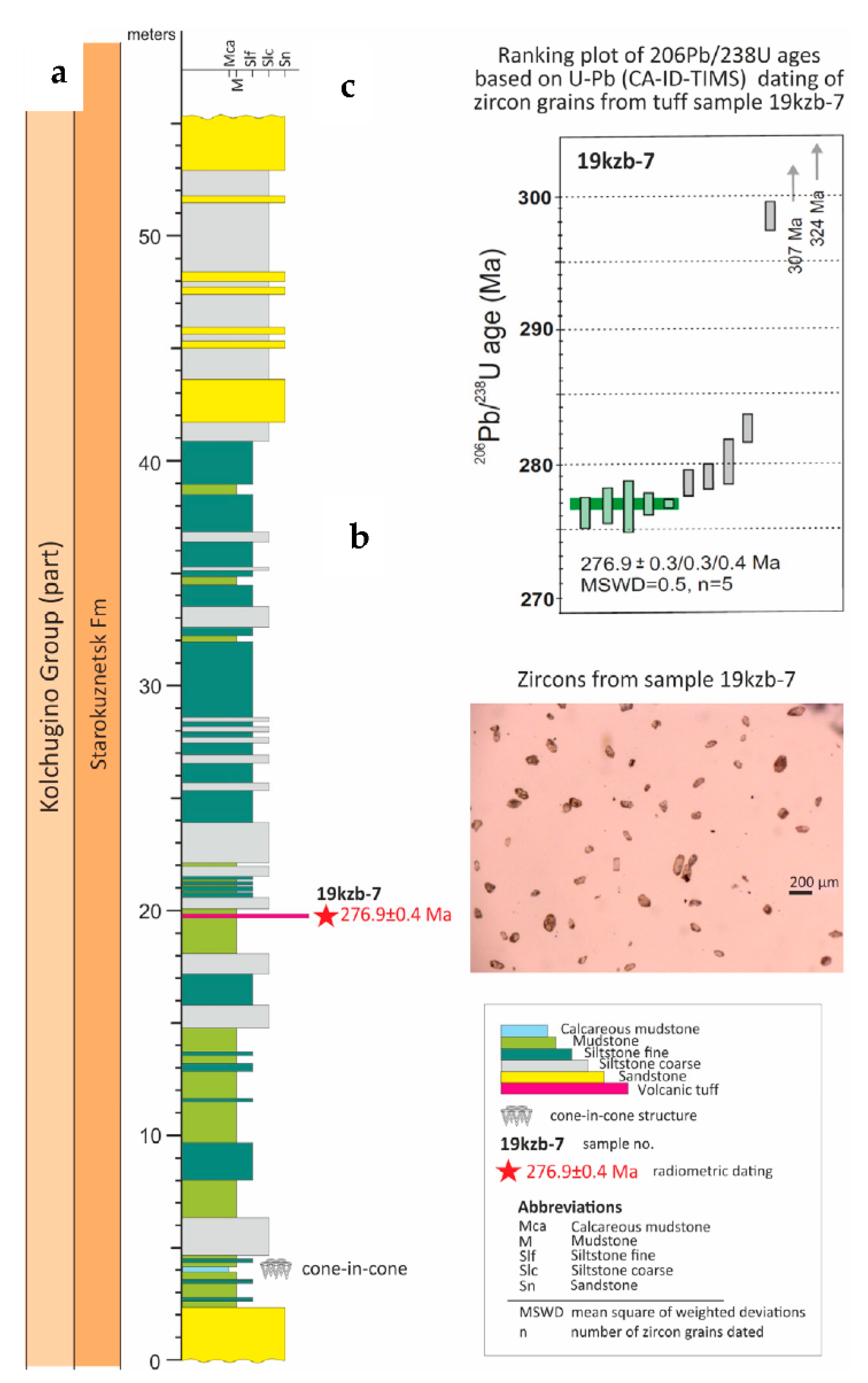

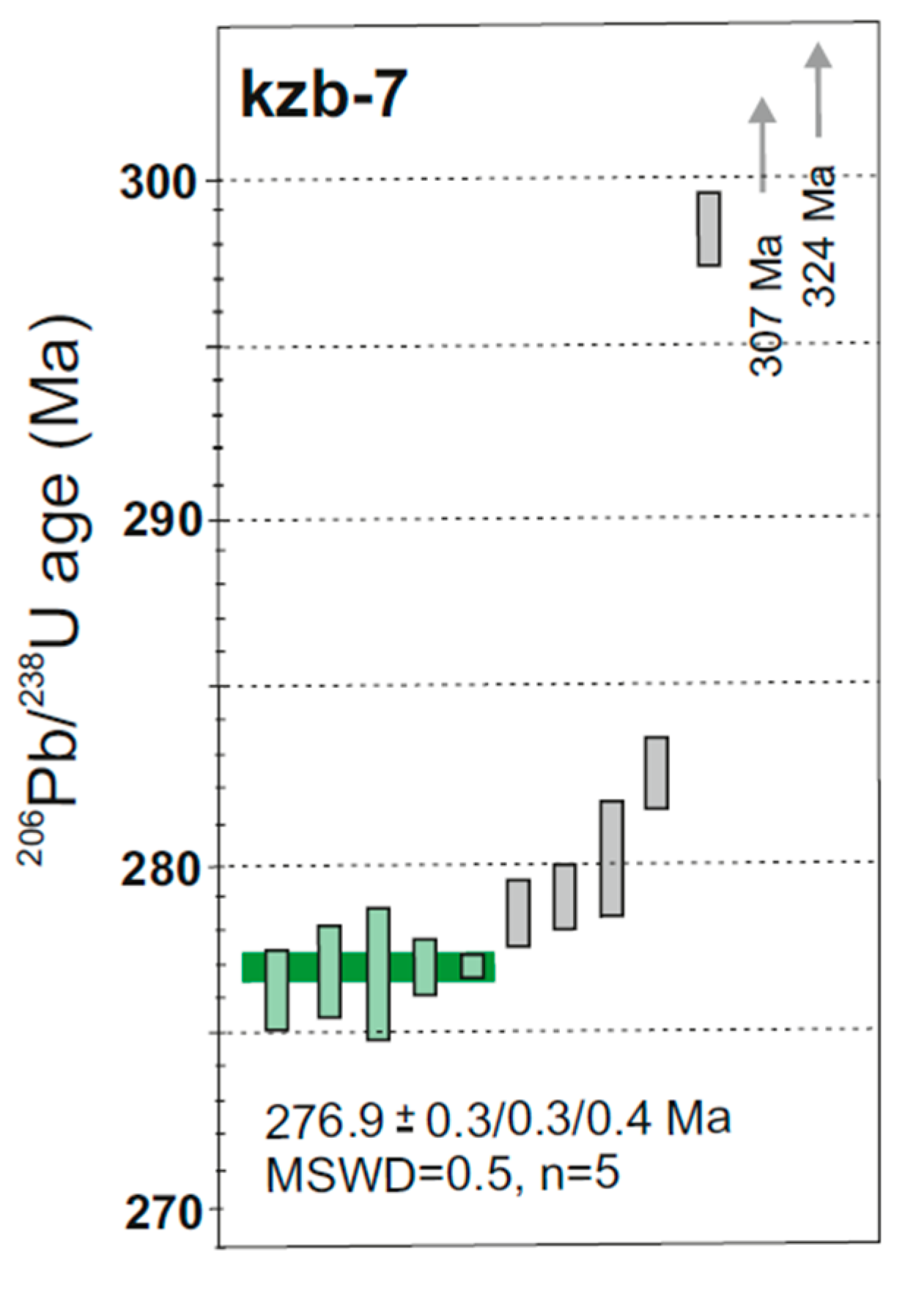

Zircon U-Pb CA-ID-TIMS isotopic results are presented in Table S1 and shown as 206Pb/238U ranked age plots in Figure X. Mean sample ages representing the crystallisation were calculated from established age clusters with the software ET Redux [84]. The error of weighted mean ages is given as ± x/y/z where x is the internal 2σ measurement error, y is the internal 2σ error plus tracer calibration uncertainty, and z additionally includes the uncertainty of the decay constant. For discussion, we use the z-error that includes the internal 2σ measurement error, the tracer calibration uncertainty, and the uncertainty of the decay constant and enables the comparison with other dating methods.
For sample 19kzb-7, even the short (2 hours) chemical abrasion (CA) removed more than 50% of the selected zircon grains so that only very small zircon fragments remained. We were able to date 12 such zircon fragments. The single zircon ages vary from 276 to 324 Ma and have a high measurement error due to the small size of left zircon fragments. Five measurements (fractions 1, 8, 9, 11, 13) form a cluster with identical ages between 276.2 and 277.0 Ma (Figure 8).
These five measurements were used to calculate a weighted mean age of 276.9 ± 0.4 Ma (MSWD = 0.5). All other zircon fragments show older ages that represent inherited components (e.g. xenocrystic cores).

6. Discussion

The newly dated ash bed from the middle part of the Starokuznetsk Fm indicates a late Kungurian age 276.9 ± 0.4 Ma of the interval where the late Balakhonka (cordaitoid) Flora is replaced by Kolchugino (fern-pteridosperm-cordaitoid) Flora (Figure 4 and Figure 5). The Balakhonka/Kolchugino floral change is confidently traced throughout Angaraland and widely used in stratigraphic correlations [40,85]. First of all, it is important to compare the newly dated Kuzbass succession with other plant-bearing sequences of Western Verkhoyanie (Figure 1 A, C–D), where beds with fossil plants are intercalated with beds containing ammonoids [42,43].

6.1. The Balakhonka/Kolchugino floral change in Western Verkhoyanie

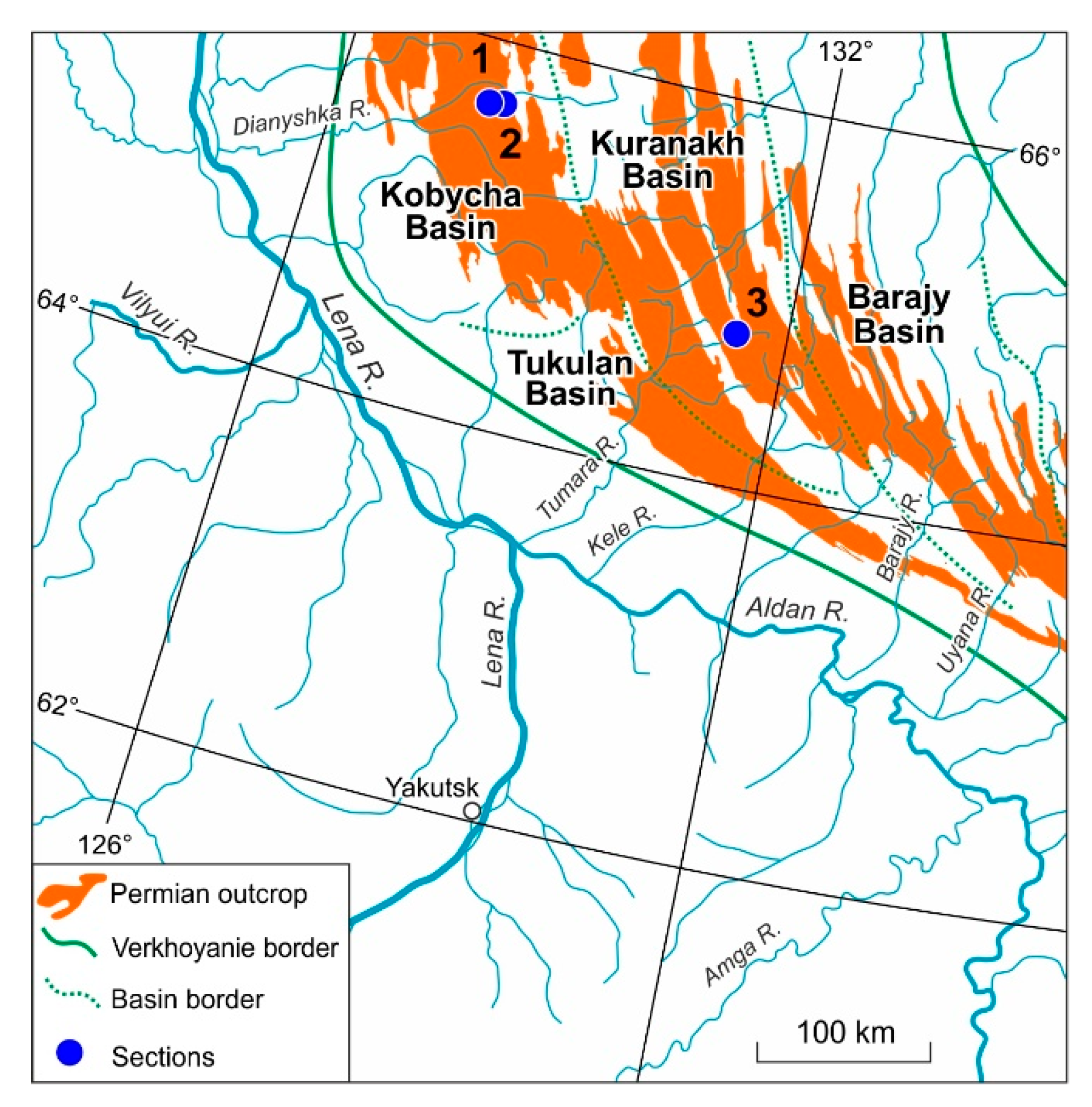

Western Verkhoyanie is a key region for resolving questions about the chronological relationship of Late Palaeozoic terrestrial flora and marine invertebrates [36]. The Balakhonka/Kolchugino floral change in Western Verkhoyanie is presented out in the sequences of the Tumarian and Delenzhian regional stages of the Kuranakh and Kobycha basins (or structural-facies zones in Russian terminology) (Figure 9).

6.1.1. Kuranakh Basin

In the second half of the last century, A.N. Tolstykh [86] studied the first collections of plant remains from the Tumarian and Delenzhian regional stages (Figure 10) of Kuranakh Basin. She compared the Upper Tumarian plant assemblage with the floras of the Kemerovo and Usyatsk Fms (Upper Balakhonka Subgroup), and the Upper Delenzhian plant assemblage with the flora of the Ilyinskoe Subgroup (Kolchugino Group) of the Kuzbass (Figure 2). Subsequently, the Lower Delenzhian regional substage containing Roadian ammonoids [44,87] was correlated with the Kuznetsk Subgroup (Kolchugino Group) of the Kuzbass [85].
Later, I.V. Budnikov performed detailed stratigraphic and sedimentological studies of the Upper Palaeozoic of Western Verkhoyanie [88] and sampled rich plant remains from the Serelichan Fm (Upper Delenzhian, Wordian) (Figure 10). This collection was studied in detail in 1992 by participants of the Palaeobotanical Colloquium on the correlation of Late Palaeozoic floras of Western Verkhoyanie, Tunguska and Kuzbass. The Colloquium decision confidently matched the Upper Delenzhian plant remains with the flora of the Kuznetsk Subgroup (Kolchugino Group) of the Kuzbass [22, Vol. 2] (pp. 95–99). At the same time, the decision of the Colloquium stated that the Balakhonka/Kolchugino floral change occurs in Western Verkhoyanie at the boundary interval of the Lower and Upper Delenzhian regional substages immediately above the Sverdrupites Beds of the Lower Delenzhian (Roadian) (Figure 10).

6.1.2. Kobycha Basin

The Balakhonka/Kolchugino floral change is best documented in the Kobycha Basin, which was further inland than the Kuranakh Basin and therefore had a more continental environment. According to the Regional Stratigraphic Scheme [43,89], the Kungurian-Capitanian interval of the Kobycha Basin consists of the Yulegir, Ambar and Kyundyudei Fms (Figure 10). These formations lack ammonoids but contain rich assemblages of plant remains and rare marine bivalves.
A rich collection of fossil plants from the strata yielding the Balakhonka/Kolchugino floral change was collected by I.V. Budnikov in the outcrop of the Malinovyi Creek on the left bank of the Dianyshka River (Figure 9, 11).
The abundance and diversity of plant remains and seeds make it possible to consider the outcrop of the Malinovyi Creek as a reference section of the Balakhonka/Kolchugino floral change in Western Verkhoyanie [22, Vol. 2] (pp. 95–99). Later, I.V. Budnikov and R.V. Kutygin [36] documented in detail another reference section located on the Pravaya Galochka Creek, 5 km east of the Malinovyi Creek section (Figures 9, 12). Plant remains from both sections were studied at different times by M.V. Durante, V.E. Sivtchikov and L.G. Porokhovnichenko [90]. Below we briefly summarise the plant diversity, including data on associated marine fauna, in the Kungurian-Wordian sequences of these reference sections.

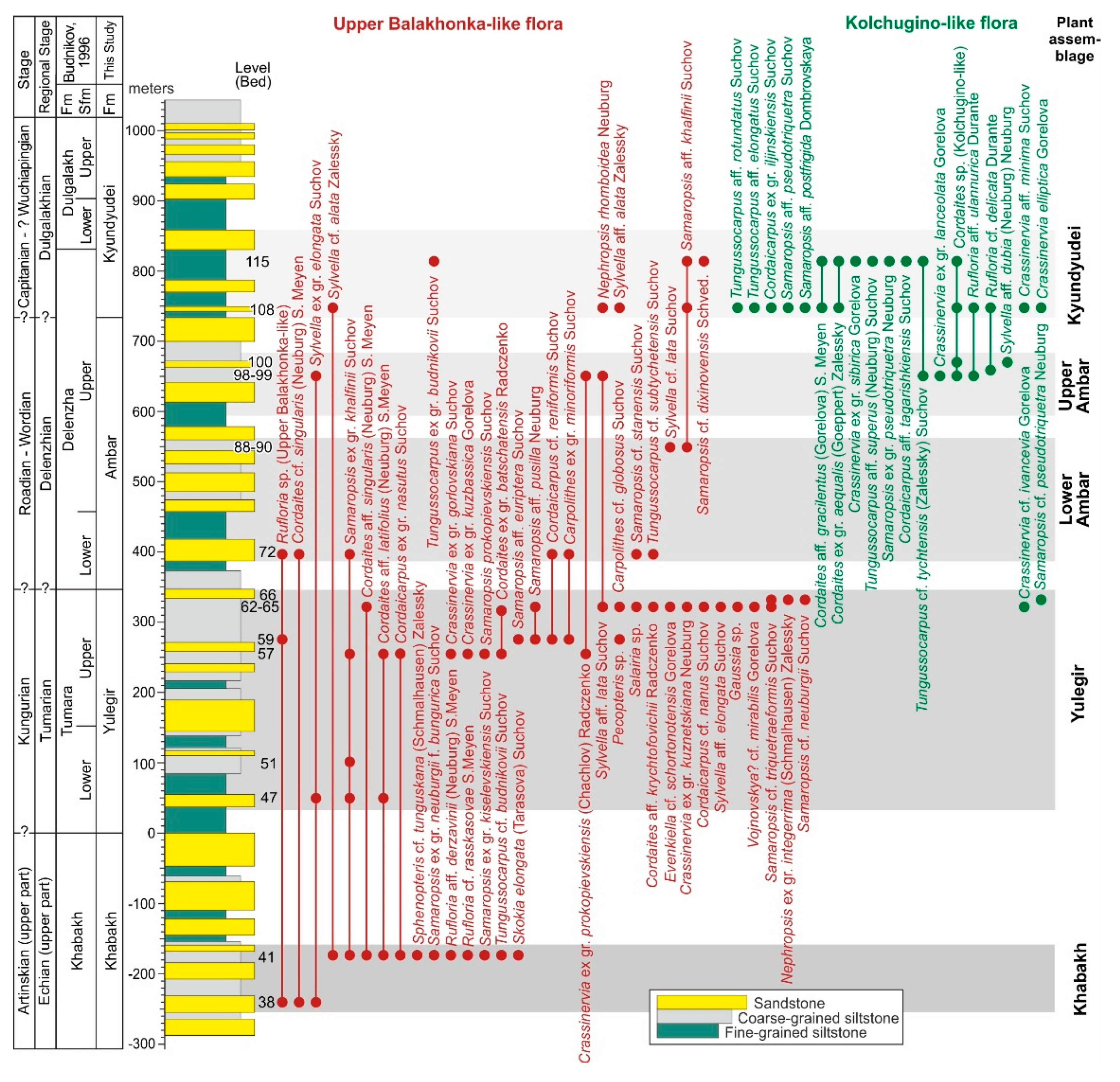

The lower part of the Yulegir Fm in the Malinovyi Creek section (Figure 11) contains plant remains identified by M.V. Durante (pers. comm., 2007) as the Balakhonka species Cordaites aff. latifolius (Neuburg) S. Meyen, Samaropsis ex gr. khalfinii Suchov, Sylvella ex gr. elongata Suchov, and as Paracalamites sp. This plant assemblage resembles the assemblage of the Khabakh Fm (Artinskian) of the same section (Figure 11). The upper part of the Yulegir Fm (upper Kungurian) (Figure 11) includes rare shoots of small-stemmed lycophytes and single megaspores. There are also single shoots of the leaf-stemmed moss Salairia sp. and possibly the first rare specimens of the Kolchugino plants Crassinervia cf. ivancevia Gorelova and Samaropsis cf. pseudotriquetra Neuburg.
The lower part of the Yulegir Fm in the Pravaya Galochka Creek (Figure 12) contains bivalves Myonia kutygini Biakov, the type specimens of which occur with the ammonoids Tumarioceras kashirzevi Andrianov in the Orol Fm of adjacent basins (Figure 10) [91,92]. This confirms that the lower part of Yulegir Fm belongs to the Lower Tumarian (lower Kungurian) regional substage (Figure 10) characterised by a rich assemblage of Kungurian ammonoids in the nearby Kuranakh basin [36,93,94].

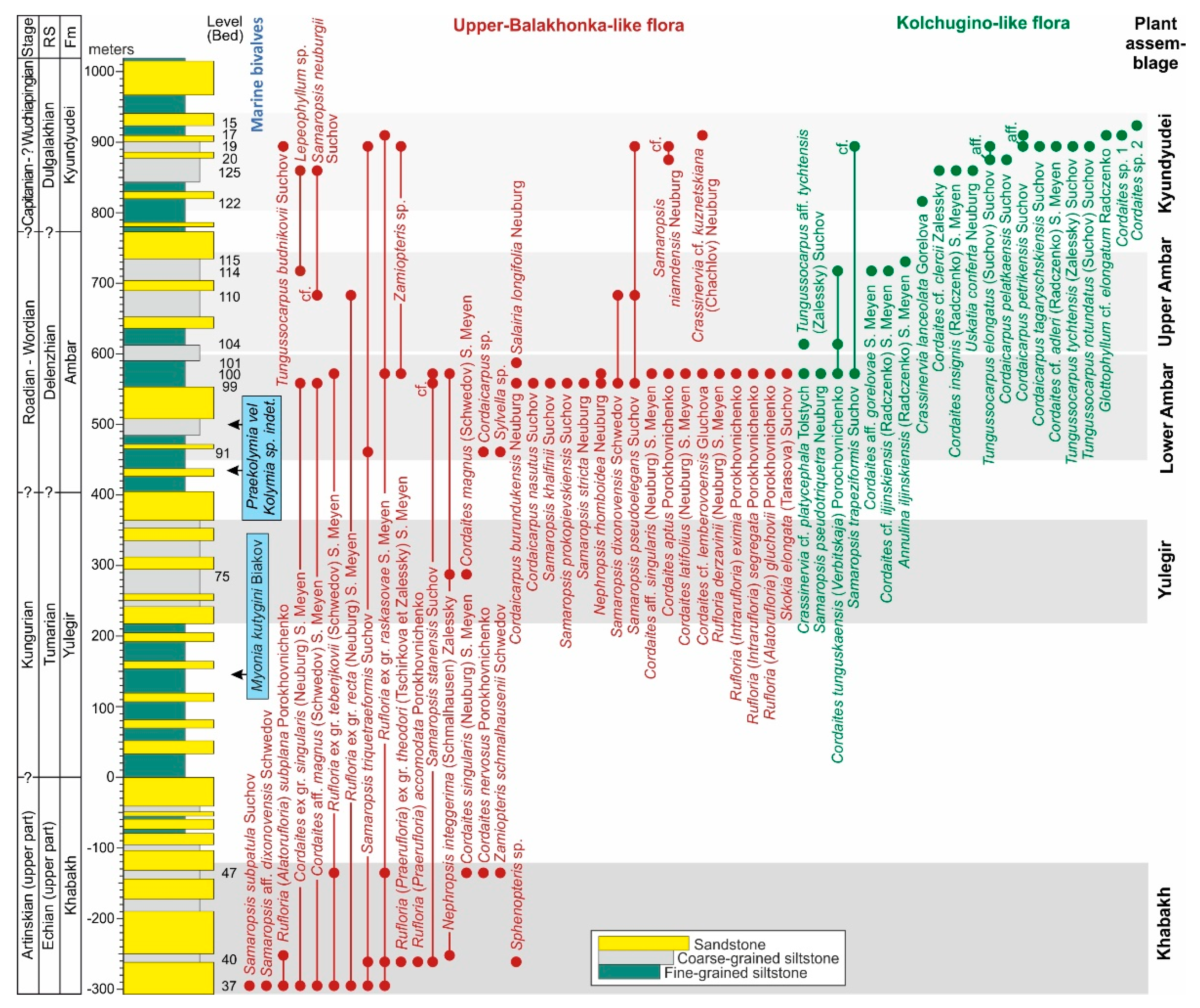

The plant remains of the Ambar Fm reveal a clear division into Lower Ambar and Upper Ambar assemblages, differentiated by the ratio of Balakhonka and Kolchugino cordaitoids, and by the diversity of Balakhonka-like and Kolchugino-like plants, which are widespread on the Siberian platform but not occurring in the Kuzbass [90].
The lower part of the Ambar Fm (Figure 12) contain numerous Inoceramus-like bivalves Aphanaia? sp., and Praekolymia vel Kolymia? sp. This interval belongs to the Lower Delenzhian regional substage (Roadian) (Figure 10) [37,43].
The Lower Ambar plant assemblage. The taxonomic composition of this assemblage significantly renewed in comparison with the older Yulegir (Kungurian) floras, but Balakhonka and Balakhonka-like cordaitoids and seeds still dominated. The most representative collection of the Lower Ambar plant assemblage comes from bed 100 of the Pravaya Galochka Creek section (Figure 12).
The cordaitoids dominate by two subgenera of Rufloria – R. (Alatorufloria) [95] and R. (Intrarufloria) [96]. The dominance and diverse composition of the R. (Alatorufloria) is characteristic. This subgenus includes three groups of taxa. The first group contains the Balakhonka species R. (Alatorufloria) deržavinii (Neuburg) S. Meyen and closely related Balakhonka-like species with specific epidermal characteristics [97]. In particular, we also include in this group abundant fragments of large and medium-sized Balakhonka-like leaves of R. (Alatorufloria) recta (Neuburg) S. Meyen, known from the Khabakh (Artinskian) flora. The second group consists of the Balakhonka-like species R. (Alatorufloria) ex gr. tebenjkovii (Schwedov) S. Meyen and closely related cordaitoids. The main element of the third group is represented by the Balakhonka-like R. (Alatorufloria) gluchovii Porokhovnichenko [90].
The subgenus R. (Intrarufloria) is represented by numerous plant remains, most of which are identified as the Balakhonka species R. (I.) ex gr. rasskasovae S. Meyen, a cordaitoid known from the Upper Balakhonka Subgroup of Kuzbass and upper part of the Burguklian regional stage of the Tunguska Basin. The Balakhonka-like species R. (I.) segregata Porokhovnichenko and R. (I.) eximia Porokhovnichenko occurring at this level are also of interest for correlation because they are widespread in the upper part of the of the Shmidt Fm of the Norilsk region of Angaraland [90].
The genus Cordaites contains mainly the transient, large-leaved Balakhonka species C. aff. singularis (Neuburg) S. Meyen, C. latifolius (Neuburg) S. Meyen and Balakhonka-like species C. cf. lemberovoensis Gluchova described for the first time from Taymyr. The large and relatively short leaves of Kolchugino-like species C. tunguskaensis (Verbitskaja) Porokhovnichenko are less common.
Leaf-stemmed mosses are represented by the widespread Balakhonka species Salairia longifolia Neuburg. The taxonomic composition of seeds is considerably renewed. Several new species appear, in particular the Balakhonka species Skokia elongata (Tarasova) Suchov and the Kolchugino species Samaropsis pseudotriquetra Neuburg, S. trapeziformis Suchov. The latter two species are typical for the lower part of the Kuznetsk Subgroup of Kuzbass [98].
The first appearance of Kolchugino and Kolchugino-like species occurs in bed 100 of the Pravaya Galochka Creek section (Figure 12). The most characteristic are Kolchugino-like Cordaites tunguskaensis (Verbitskaya) Porokhovnichenko, known from the Peliatkian regional stage of the Siberian Platform and Kolchugino seeds Samaropsis pseudotriquetra Neuburg, and S. trapeziformis Suchov, which are widespread in Kuzbass. Nevertheless, Balakhonka and Balakhonka-like taxa significantly dominate the Lower Ambar plant assemblage which can be confidently compared with the Upper Shmidt Sfm assemblage (Norilsk region) which corresponds to the upper part of the Burguklian regional stage (probably lower Roadian) of the Siberian platform (Figure 10) [99,100,101].
The Upper Ambar plant assemblage. A characteristic feature of this assemblage is the mixing of Balakhonka-like and Kolchugino-like plants, with Kolchugino-like plants predominating. These changes in taxonomic composition are recorded in layers 98–99 of the Malinovyi Creek section (Figure 11) and layer 104 of the Pravaya Galochka Creek section (Figure 12).
Cordaitoids include the Kolchugino-like species Cordaites tunguskaensis (Verbitskaja) Porokhovnichenko and the characteristic Kolchugino species C. aff. gorelovae S. Meyen and C. cf. iljinskiensis (Radczenko) S. Meyen. Associated with these cordaitoids is the first appearance of the seeds Tungussocarpus aff. tychtensis (Zalessky) Suchov, characteristic of the Kolchugino Flora.
The Upper Ambar assemblage contains scale leaves of the Kolchugino species Crassinervia lanceolata Gorelova and large leaves of Lepeophyllum sp., remains of horsetails Annulina iljinskiensis (Radczenko) S. Meyen, Phyllotheca aff. turganensis Gorelova and Paracalamites sp. Numerous seeds include Balakhonka species Skokia sp., Samaropsis cf. neuburgii Suchov, S. cf. pseudoelegans Suchov and S. cf. dixonovensis Schwedov.
The mixed taxonomic composition of the Upper Ambar assemblage dominated by Kolchugino and Kolchugino-like species is broadly compatible with the "transitional flora" known from the uppermost part of the Shmidt Fm of the Norilsk region. This enables to synchronise the Upper Ambar plant assemblage with the floras of the uppermost Burguklian and lower Peliatkian (probably upper Roadian–Wordian) regional stages of the Siberian platform (Figure 10) [99,100,101].
The Kyundyudei Fm terminates the Permian succession of the Kobycha Basin [37] and contains the so-called Kyundyudei plant assemblage, which differs from older ones (Figure 11 and Figure 12) by the coexistence of Kolchugino cordaitoids, pteridosperms and mosses with a "mixed" seeds represented by both Balakhonka and Kolchugino species. This assemblage includes large-leaved cordaitoids Cordaites cf. clercii Zalessky, C. insignis (Radczenko) S. Meyen, Cordaites cf. adleri (Radczenko) S. Meyen, pteridosperms Glottophyllum cf. elongatum Radczenko, mosses Uskatia conferta Neuburg, known from the middle and upper part of the Kolchugino Group of Kuzbass, i.e. definitely representing species of the Kolchugino Flora. Numerous seeds associated with cordaitoids are represented by the Balakhonka species Samaropsis pseudoelegans Suchov, S. aff. khalfinii Suchov, S. cf. dixinovensis Schwedov and the Kolchugino species Tungussocarpus tychtensis (Zalessky) Suchov, T. elongatus (Suchov) Suchov, Cordaicarpus aff. tagarishkiensis Suchov, C. aff. petrikensis Suchov, etc.
This unusual taxonomic composition makes it difficult to compare the Kyundyudei assemblage with other Permian floras of the Siberian platform and Kuzbass. Broadly, it can be compared with plant assemblages from the Kajerkan and lower Ambarnaja Fms (probably Capitanian) of the Norilsk region (Figure 10).
All the facts mentioned above show that the change of the Balakhonka and Kolchugino Floras in Western Verkhoyanie occurred relatively gradually throughout the entire Guadalupian (Middle Permian). At the same time, the Kolchugino Flora became clearly dominant at the boundary between the Roadian and Wordian, immediately after the appearance of the Sverdrupites ammonoid assemblage.
Recently, a high-precision U-Pb CA-IDTIMS radioisotopic age of 274.0 ± 0.12 Ma [102] was obtained for beds containing Sverdrupites harkeri (Ruzhencev) in the Plastovy Creek section located on the eastern periphery of the Okhotsk Region [103].
If the assumption is correct that the dominance of the Kolchugino Flora in Western Verkhoyanie begins only at the base of the Upper Delenzhian regional substage (Wordian), i.e. above the Sverdrupites beds, then the available U-Pb ages in the Okhotsk Region and the Kuzbass indicate some "lag" in the Balakhonka/Kolchugino floral change in Western Verkhoyanie compared to the Kuzbass.
Previously, we noted a possible diachronism in the disappearance of the genus Rufloria in the Kuzbass and Verkhoyanie [104,105]. This event in the Kuzbass occurred approximately at the beginning of the Wordian and was related to the elimination of large freshwater basins during the sedimentation of the Leninsk Fm. At the same time, the Western Verkhoyanie retained similar sedimentological settings until the end of the Permian [37,88], and Rufloria successfully inhabited these environments until the end of the Changhsingian.
Comparison of the geographically distant vegetation of the Tunguska Basin, Western Verkhoyanie, and Kuzbass is a difficult task for the Kolchugino time, because although these areas were part of Angaraland, they were at significantly different latitudes and had diverse climates [20]. The climatic differences caused disparities in the taxonomic composition of the vegetation. For instance, callipterids, ferns and pteridosperms were widespread in the Kuzbass, while they were very sparse in the Western Verkhoyanie and Tunguska Basin (Figure 13).
The first occurrence of callipterids at the base of the Kolchugino Group (Usa Beds) serves as a peculiar marker for the appearance of a new fern-pteridosperm-cordaitoid Kolchugino Flora in the Kuzbass. This stratigraphic interval still contains Balakhonka species of cordaitoids and seeds. In the Starokuznetsk Fm, the role of Kolchugino cordaitoids and callipterids gradually increases, and in the Mitina Fm, the main dominants of cordaitoids and seeds (Tungussocarpus) are represented by entirely Kolchugino species.
We observe a similar pattern of floral changes in the Ambar Fm of Western Verkhoyanie. The first species of Kolchugino-like cordaitoids appear in the Lower Ambar assemblage and begin to dominate and replace the Balakhonka-like species in the Upper Ambar assemblage (Figure 13). Seeds Tungussocarpus tychtensis (Zalessky) Suchov, the typical species of the Kolchugino Flora, can serve as a marker in correlating long-distance floras. This species is widespread in the Ilyinskoe Subgroup of the Kuzbass, in the Kyundyudei Fm of Western Verkhoyanie and in the Peliatkian regional stage of the Tunguska Basin.

6.2. The lower boundary of the Kolchugino Group in the International Chronostratigraphic Scale

The new high-precision radioisotopic data (276.9 ± 0.4 Ma) determines the age of the middle part of the Starokuznetsk Fm and for the first time directly indicates that this stratigraphic level belongs to the Upper Kungurian of the International Chronostratigraphic Scale (Figure 2 and 14). The Starokuznetsk Fm is located above the base of the Kolchugino Group, so the lower boundary of the Kolchugino Group, which coincides with the basement of the Usa Beds, is slightly older than our new radioisotopic data, but is also located in the Upper Kungurian.
According to the available biostratigraphic record, the lower boundary of the Kolchugino Group approximately corresponds to the lower boundary of the Ufimian Stage of the General Stratigraphic Scale of Russia (Figure 14). The Permian subdivisions of this scale are based on the succession of European Russia [38]. In addition to the East European Platform, this area includes the Timan-Pechora Basin, which was part of the Late Palaeozoic Angaraland. The faunal connections between Eastern Europe and the Timan-Pechora Basin through the Cis-Uralian Foredeep are reflected in similar features of the biostratigraphic record, at least for non-marine bivalves. The similar temporal succession of non-marine bivalve assemblages enables the correlation of the Ufimian stage of European Russia with the lower part of the Kolchugino Group (Figure 14).
Before 2004, i.e., before the decision on the three-member division of the Permian System, the Ufimian Stage of the East European Platform and Cis-Uralian Foredeep had an international status, and its lower boundary was considered as the global boundary between the Lower and Upper Permian [106]. Both before 2004 and at present, within the Kuzbass, the boundary between the Lower Permian and the overlying Series (Upper Permian – before 2004; Middle Permian – after 2004) is accepted in the basement of the Kuznetsk Subgroup [107]. The Balakhonka/Kolchugino floral change is considered as the main biotic marker of this boundary. The similar age of the Kuznetsk Subgroup and the Ufimian Stage is supported by biostratigraphic data of non-marine ostracods and bivalves [26,27,62].

6.2.1. Floral change at the Balakhonka/Kolchugino boundary

The change of the Late Balakhonka (cordaite) Flora by the Kolchugino (fern-pteridosperm-cordaite) Flora occurs in the stratigraphic interval comprising the Usa Beds and the Starokuznetsk Fm. This floral change is traced throughout Angaraland [85,108].
The Kolchugino Flora is more taxonomically diverse than the late Balakhonka Flora. It is characterised by further diversification of pteridosperms (Comia, Compsopteris, Permocallipteris, Glottophyllum) and ferns (Pecopteris), appearance of new species of seeds (Tungussocarpus, Sylvella, etc.), changes in the morphology of cordaite leaves. The leaves of the Kolchugino cordaitoids are small; possess denser and thicker veins, specific structure of stomatal grooves, epidermal ornamentation, etc. These characters are the basis for the establishment of new taxa in Kolchugino Cordaites and Rufloria [97,109,110].
The increase in taxonomic diversity of Kolchugino Flora and the appearance of callipterids are associated with general climate warming [111]. Changes in leave morphology of Kolchugino cordaitoids and a decrease in sphenophylls size are consistent with climate aridification [112].
Analysis of the species distribution in the Kuznetsk Subgroup (Figure 4) indicates that the change of the Balakhonka/Kolchugino Floras occurred gradually. The rise of a new Kolchugino Flora in the Kuzbass is fixed by the "transitional" plant assemblages of the Usa Beds and Starokuznetsk Fm, which contain a mixture of the late Balakhonka and early Kolchugino species. The dominating plants of the Mitina Fm consist predominantly of the first appearing species of the Kolchugino ferns, pteridosperms and cordaitoids, while the Balakhonka species are no more present.
Thus, the rise of the Kolchugino Flora involves several events: 1) the first appearance of early Kolchugino elements, 2) the pronounced diversification of Kolchugino taxa, and 3) the complete replacement of late Balakhonka taxa by Kolchugino species.

6.2.2. Non-marine bivalve change at the Balakhonka/Kolchugino boundary

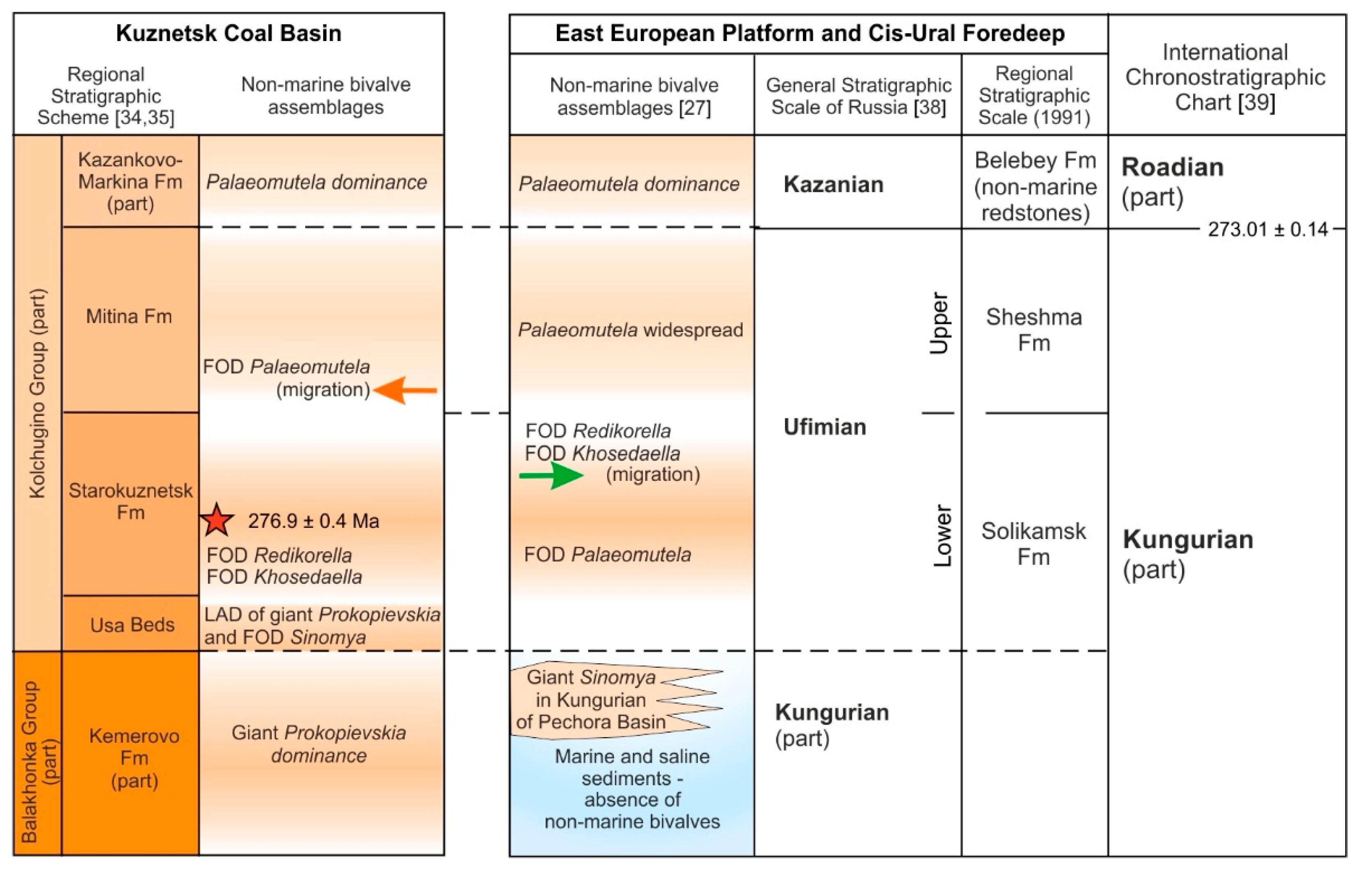

The obtained radioisotopic data (276.9 ± 0.4 Ma) indicates that on the territory of the Kuzbass Balakhonka/Kolchugino floral change occurred in the Late Kungurian. This conclusion is supported by data on non-marine bivalves (Figure 14). In particular, the giant bivalve Sinomya, which is morphologically similar to the Kuzbass giant Prokopievskia, is widespread in the sediments underlying the Ufimian Stage in the Timan-Pechora Basin [27]. The non-marine bivalves Khosedaella, Redikorella, Palaeomutela, whose first occurrence in the Kuzbass is restricted to the Kuznetsk Subgroup, are widespread in the Ufimian Stage of East European Russia and Cis-Ural. The reverse order of appearance of these genera in the Kuzbass and Eastern Europe is remarkable (Figure 14). In the Kuzbass, Khosedaella and Redikorella appear first in the succession, followed by the appearance of Palaeomutela. In Eastern Europe, Palaeomutela first appears in the lower part of the succession, followed by Khosedaella and Redikorella. Migration processes probably caused the reverse order of appearance: the genus Palaeomutela migrated from Eastern Europe to Angaraland, whereas the genera Khosedaella and Redikorella migrated from Angaraland to Eastern Europe.
For a long time it was thought that the centre of origin of Redikorella and Palaeomutela (the latter comprising two subgenera: P. (Palaeomutela) and P. (Palaeoanodonta)) was located in the Cis-Uralian Foredeep, from where these bivalves dispersed to Angaraland, Cathaysia and Gondwana [27]. Recent discoveries have broadened the understanding of the geographic radiation of Redikorella and Palaeomutela. These taxa are found in the Late Kungurian of the continental basins of the western Tethyan sector of the Variscides, suggesting that other areas may be the centre of origin for both genera [58].

6.2.3. Regional and global implications of results

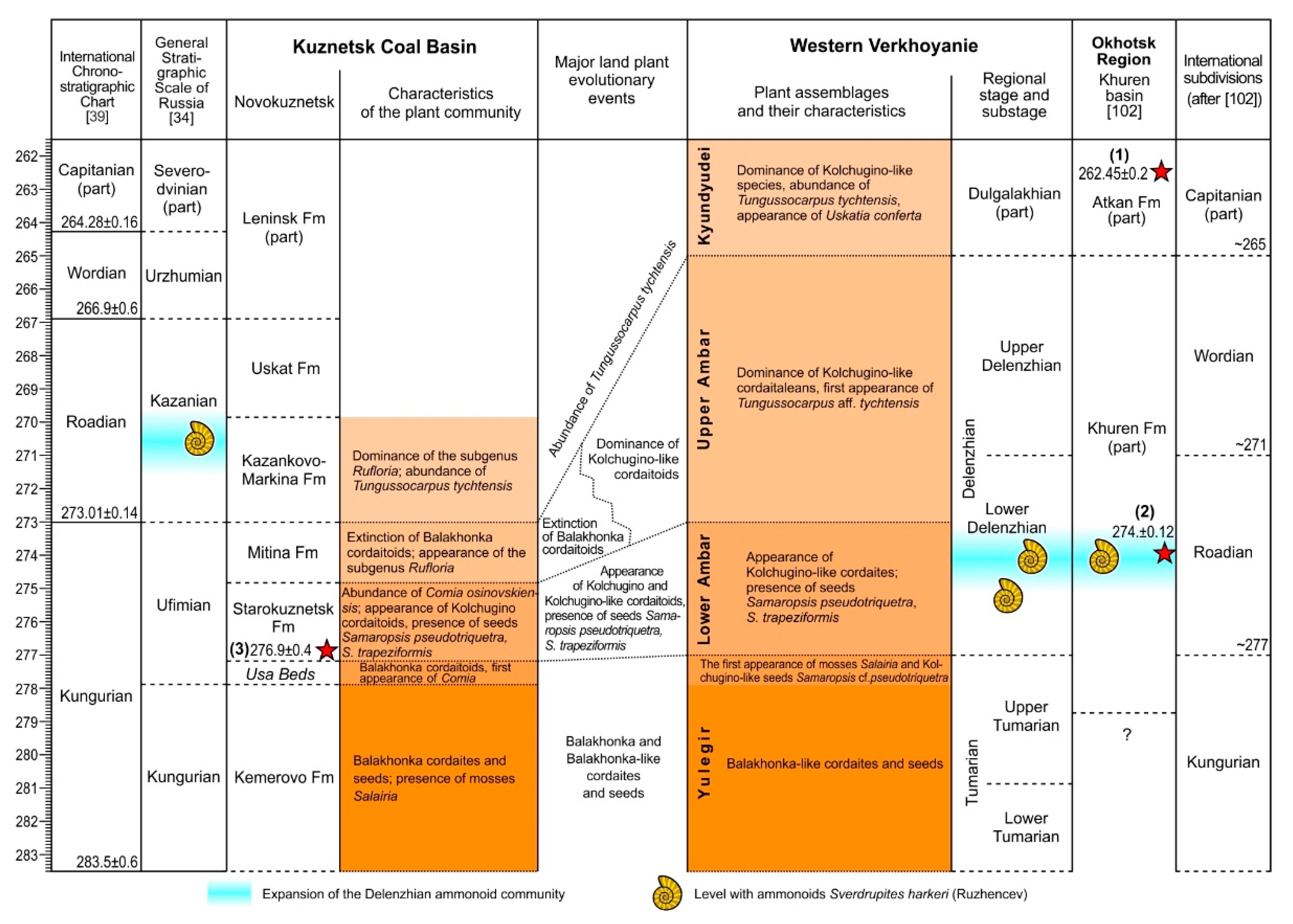

The setting of the lower boundary of the Kolchugino Group in the Upper Kungurian of the ICC raises the question of establishing a distinct unit (possibly of substage rank) in the Upper Kungurian, an unit corresponding to the Ufimian Stage of the European Russia. The lower boundary of this unit approximately coincides with the onset of the Balakhonka/Kolchugino floral change in the low latitudes of Angaraland. The biostratigraphic validity of a separate Ufimian Stage in the marine successions of northern Eurasia (Timan-Pechora Basin, Kanin Peninsula, Verkhoyanie) has been discussed in several publications [113, 114 and references therein].
Radioisotopic datings accepted in the ICC (2023) and new radioisotope data from the Kuzbass indicate the temporal difference of the Balakhonka/Kolchugino floral change in low (Kuzbass) and high (Verkhoyanie) latitudes of Angaraland (compare Figure 13 and Figure 14). The Balakhonka/Kolchugino floral change in Kuzbass was initiated in the early Late Kungurian (earlier than 277 Ma) and completed by the end of this age (Mitina Fm, Figure 2 and Figure 14). The Balakhonka/Kolchugino floral change in Verkhoyanie began at the end of Late Kungurian, continued throughout the Middle Permian, and was completed in the Late Wordian (Figure 13). The conclusion about the significant delay (in millions of years) in the onset of the Balakhonka/Kolchugino floral change in different latitudes of Angaraland contradicts the data available in numerous palaeobotanical publications by Russian specialists. Even some of the authors of the article, in particular L.G. Porokhovnichenko, do not agree with this conclusion. This suggests that interregional correlations based on fossil plants require further improvement.
Terrestrial biotic events in the Kuzbass at the end of the Kungurian fit well with regional sedimentary history and global climatic changes (Figure 15). The lower half of the Kuznetsk Subgroup, coinciding with the Balakhonka/Kolchugino floral change, is characterised by the absence of coal. This absence is probably related to aridification of the regional climate [111,112] and global warming in the Late Kungurian [115,116,117].
Global sea-level rise at this time [118] is indirectly supported by (1) modifications in the low-latitude continental landscapes of Angaraland that have caused differentiation in the vegetation; (2) and by the migration (exchange) of non-marine bivalves and ostracods between Angaraland and Eastern Europe (Euramerica).

7. Conclusions

  • For the first time, the new radioisotopic data (276.9 ± 0.4 Ma) directly correlates the middle part of the Starokuznetsk Fm with the Upper Kungurian of the International Chronostratigraphic Scale.
  • The radioisotopic age (276.9 ± 0.4 Ma) indicates that the change of Balakhonka (cordaite) and Kolchugino (fern-pteridosperm-cordaite) Floras in the Kuzbass (low latitudes of Angaraland) occurred in the Late Kungurian.
  • Within the Western Verkhoyanie (high latitudes of Angaraland), the Balakhonka/Kolchugino floral change could have occurred several million years later; this is evidenced by the fact that in this area the layers with transitional Balakhonka-Kolchugino plant assemblages are interbedded with layers containing the Lower Delenzhian ammonoids (Sverdrupites, Daubichites, etc.), a reliable marker of the Roadian Stage.
  • The morphological changes and increased diversity of the Kolchugino vegetation in the lower latitudes of Angaraland (Kuzbass and adjacent areas) are associated with global climatic warming and aridification in the Late Kungurian, which fits well with available data on global glacial events of the Permian period and corresponds to the minimum coal content in the Kuzbass coal-bearing succession.

Supplementary Materials

The following supporting information can be downloaded at the website of this paper posted on Preprints.org. Table S1: Results of U-Pb (CA-ID-TIMS) radioisotopic dating of zircon grains from the sample 19kzb-7, Starokuznetsk Formation, Kolchugino Group, Kuznetsk Basin.

Author Contributions

Conceptualization, methodology, V.V. Silantiev; field work (Kuzbass), Ya.M. Gutak, A.S. Felker, E.V. Karasev, V.V. Silantiev; field work (Verkhoyanie), R.V. Kutygin; radioisotopic CA-ID-TIMS dating, M. Tichomirowa, A. Käßner; biostratigraphic investigation, L.G. Porokhovnichenko, E.V. Karasev, R.V. Kutygin, V.V. Silantiev, A.S. Bakaev, M.A. Naumcheva, M.N. Urazaeva, V.V. Zharinova; writing—original draft preparation, V.V. Silantiev, Ya.M. Gutak, L.G. Porokhovnichenko, E.V. Karasev, R.V. Kutygin; visualization, V.V. Silantiev, E.V. Karasev; R.V. Kutygin, A.S. Felker; writing—review and editing, V.V. Silantiev, M. Tichomirowa, A.S. Felker, V.V. Zharinova; project administration, M.N. Urazaeva; funding acquisition, M.N. Urazaeva. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation project # 22-77-10045, https://rscf.ru/project/22-77-10045/. The lithostratigraphic research of R.V. Kutygin in Verkhoyanie was funded by the State assignment for Diamond and Precious Metal Geology Institute of the Siberian Branch of the Russian Academy of Sciences, Yakutsk. The biostratigraphic research of R.V. Kutygin in Verkhoyanie was supported by the Russian Science Foundation No. 22-77-10028, https://rscf.ru/en/project/22-77-10028/. The biostratigraphic research of E.V. Karasev and A.S. Bakaev was funded by the subsidy allocated to Kazan Federal University for the state assignment project № FZSM-2023-0023 in the sphere of scientific activities.

Acknowledgments

We would like to thank our students Anastasia Pituganova, Olga Akishina-Al-Qadi, Valeria Bikbayeva, Vasilina Sotnikova, Konstantin Nikashin for the help with sample processing and selection of zircon grains.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Metcalfe, I.; Crowley, J.L.; Nicoll, R.S.; Schmitz, M. High-precision U-Pb CA-TIMS calibration of Middle Permian to Lower Triassic sequences, mass extinction and extreme climate-change in eastern Australian Gondwana. Gondwana Research 2015, 28, 61–81. [Google Scholar] [CrossRef]
  2. Ayaz, S.A.; Martin, M.; Esterle, J.; Amelin, Y.; Nicoll, R.S. Age of the Yarrabee and accessory tuffs: implications for the upper Permian sediment-accumulation rates across the Bowen Basin. Australian Journal of Earth Sciences 2016, 63, 843–856. [Google Scholar] [CrossRef]
  3. Wang, J.; Shao, L.Y.; Wang, H.; Spiro, B.; Large, D. SHRIMP zircon U–Pb ages from coal beds across the Permian–Triassic boundary, eastern Yunnan, southwestern China. Journal of Palaeogeography 2018, 7, 117–129. [Google Scholar] [CrossRef]
  4. Davydov, V.I.; Crowley, J.L.; Schmitz, M.D.; Poletaev, V.I. High-Precision U-Pb Zircon Age Calibration of the Global Carboniferous Time Scale and Milankovitch Band Cyclicity in the Donets Basin, Eastern Ukraine. Geochemistry, Geophysics, Geosystems 2010, 11, Q0AA04. [CrossRef]
  5. Davydov, V.I.; Korn, D.; Schmitz, M.D. The Carboniferous period. In The Geologic Time Scale, 1st ed.; Gradstein, F.M., Ogg, J.G., Schmitz, M., Ogg, G., Eds.; Elsevier: Oxford, UK, 2012; pp. 603–651. [Google Scholar] [CrossRef]
  6. Lyons, P.C.; Krogh, T.E.; Kwok, Y.Y.; Davis, D.W.; Outerbridge, W.F.; Evans, J.H.T. Radiometric ages of the Fire Clay tonstein [Pennsylvanian (Upper Carboniferous), Westphalian, Duckmantian]: a comparison of U-Pb zircon single-crystal ages and 40Ar/39Ar sanidine single-crystal plateau ages. International Journal of Coal Geology 2006, 67, 259–266. [Google Scholar] [CrossRef]
  7. Mori, A.L.O.; de Souza, P.A.; Marques, J.C.; Lopes, R. da C. A new U-Pb zircon age dating and palynological data from a Lower Permian section of the southernmost Paraná Basin, Brazil: Biochronostratigraphical and geochronological implications for Gondwanan correlations. Gondwana Research 2012, 21, 654–669. [Google Scholar] [CrossRef]
  8. Simas, M.W.; Guerra-Sommer, M.; Cazzulo-Klepzig, M.; Menegat, R.; Schneider Santos, J.O.; Fonseca Ferreira, J.A.; Degani-Schmidt, I. Geochronological correlation of the main coal interval in Brazilian Lower Permian: Radiometric dating of tonstein and calibration of biostratigraphic framework. Journal of South American Earth Sciences 2012, 39, 1–15. [Google Scholar] [CrossRef]
  9. Cagliari, J.; Lavina, E.L.C.; Philipp, R.P.; Tognoli, F.M.W.; Basei, M.A.S.; Faccini, U.F. New Sakmarian ages for the Rio Bonito formation (Paraná Basin, southern Brazil) based on LA-ICP-MS U-Pb radiometric dating of zircons crystals. Journal of South American Earth Sciences 2014, 56, 265–277. [Google Scholar] [CrossRef]
  10. Jurigan, I.; Ricardi-Branco, F.; Neregato, R.; dos Santos, T.J.S. A new tonstein occurrence in the eastern Paraná Basin associated with the Figueira coalfield (Paraná, Brazil): Palynostratigraphy and U-Pb radiometric dating integration. Journal of South American Earth Sciences 2019, 96, 102377. [Google Scholar] [CrossRef]
  11. Ducassou, C.; Mercuzot, M.; Bourquin, S.; Rossignol, C.; Pellenard, P.; Beccaletto, L.; Ravier, E. Sedimentology and U-Pb dating of Carboniferous to Permian continental series of the northern Massif Central (France): Local palaeogeographic evolution and larger scale correlations. Palaeogeography, Palaeoclimatology, Palaeoecology 2019, 533, 109228. [Google Scholar] [CrossRef]
  12. Pellenard, P.; Gand, G.; Schmitz, M.; Galtier, J.; Broutin, J.; Stéyer, J.S. High precision U-Pb zircon ages for explosive volcanism calibrating the NW European continental Autunian stratotype. Gondwana Research 2017, 51, 118–136. [Google Scholar] [CrossRef]
  13. Davydov, V.I.; Karasev, E.V.; Nurgalieva, N.G.; Schmitz, M.D.; Budnikov, I.V.; Biakov, A.S.; Kuzina, D.M.; Silantiev, V.V.; Urazaeva, M.N.; Zharinova, V.V.; Zorina, S.O.; Gareev, B.; Vasilenko, D.V. Climate and biotic evolution during the Permian-Triassic transition in the temperate Northern Hemisphere, Kuznetsk Basin, Siberia, Russia. Palaeogeography, Palaeoclimatology, Palaeoecology 2021, 573, 110432. [Google Scholar] [CrossRef]
  14. Silantiev, V.V.; Gutak, Ya.M.; Tichomirowa, M.; Kulikova, A.V.; Felker, A.S.; Urazaeva, M.N.; Porokhovnichenko, L.G.; Karasev, E.V.; Bakaev, A.S.; Zharinova, V.V.; Naumcheva, M.A. First radiometric dating of tonsteins from coal-bearing succession of the Kuznetsk Basin: U-Pb geochronology of the Tailugan Formation. Georesursy = Georesources 2023, 25, 203–227, (In Russian with English Abstract). [Google Scholar] [CrossRef]
  15. Buslov, M.M.; Watanabe, T.; Fujiwara, Y.; Iwata, K.; Smirnova, L.V.; Safonova, I.Y.; Semakov, N.N.; Kiryanova, A.P. Late Paleozoic faults of the Altai region, Central Asia: Tectonic pattern and model of formation. Journal of Asian Earth Sciences 2004, 23, 655–671. [Google Scholar] [CrossRef]
  16. Gutak, Ya.M. Development of Structure of the West Part of the Altay-Sayan Orogen (the Mesozoic Stage). Geosfernye issledovaniya = Geosphere Research 2021, 1, 123–129. (In Russian) [Google Scholar] [CrossRef]
  17. Cao, W.; Zahirovic, S.; Flament, N.; Williams, S.; Golonka, J.; Müller, R.D. Improving global paleogeography since the late Paleozoic using paleobiology. Biogeosciences 2017, 14, 5425–5439. [Google Scholar] [CrossRef]
  18. Vakhrameev, V.A.; Dobruskina, I.A.; Zaklinskaya, E.D.; Meyen, S.V. Paleozoic and Mesozoic floras of Eurasia and phytogeography of this time; Proceedings GIN, Nauka: Moscow, USSR, 1970; 431p. (In Russian) [Google Scholar]
  19. Meyen, S.V. The Carboniferous and Permian floras of Angaraland: (a synthesis). Biological Memoirs 1982, 7, 1–109. [Google Scholar]
  20. Meyen, S.V. Carboniferous and Permian floras of the Angarides (review). In Theoretical problems of paleobotany; Meyen, S.V., Ed.; Nauka: Moscow, USSR, 1990; pp. 131–223. [Google Scholar]
  21. Meyen, S.V.; Afanasieva, G.A.; Betekhtina, O.A.; Durante, M.V.; Ganelin, V.G.; Gorelova, S.G.; Graizer, M.I.; Kotlyar, G.V.; Maximova, S.V.; Tschernjak, G.E.; Yuzvitsky, A.Z. Angara and surrounding marine basins. In The Carboniferous of the World. III. The Former USSR, Mongolia, Middle Eastern Platform, Afganistan Iran; Diaz, C.M., Wagner, R.H., Winkler Prins, C.F., Granados, L.F., Eds.; I.T.G.M.E.: Madrid, Spain; N.N.M.: Leiden, Netherlands, 1996; pp. 180–237.
  22. Budnikov, I.V. Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 1, pp. 1–122; Volume 2, pp. 1–109. (In Russian) [Google Scholar]
  23. Oshurkova, M.V. Paleoecological parallelism between the Angaran and Euramerican phytogeographic provinces. Review of Palaeobotany and Palynology 1996, 90, 99–111. [Google Scholar] [CrossRef]
  24. Neustrueva, I.Yu. Upper Permian ostracods of the Kuznetsk basin. In Continental Upper Paleozoic and Mesozoic of Siberia and Central Kazakhstan; Nauka: Moscow, Leningrad, USSR, 1966a; pp. 54–95, (In Russian).
  25. Neustrueva, I.Yu. Ostracodes of the Upper Paleozoic deposits of the Minusinsk coal basin. In Continental Upper Paleozoic and Mesozoic of Siberia and Central Kazakhstan; Nauka: Moscow, Leningrad, USSR, 1966b; pp. 40–53, (In Russian).
  26. Betekhtina, O.A.; Gorelova, S.G.; Dryagina, L.L.; Danilov, V.I.; Batyaeva, S.P.; Tokareva, P.A. Upper Paleozoic of Angarida; Zhuravleva, I.T. , Ilуina, V.I., Eds.; Nauka: Novosibirsk, USSR, 1988; 265p. (In Russian) [Google Scholar]
  27. Silantiev, V.V. Permian Nonmarine Bivalve Mollusks: Review of Geographical and Stratigraphic Distribution. Paleontological Journal 2018, 52, 707–729. [Google Scholar] [CrossRef]
  28. Silantiev, V.V.; Сandra, S.; Urazaeva, M.N. Systematics of Nonmarine Bivalve Mollusks from the Indian Gondwana Coal Measures (Damuda Group, Permian, India). Paleontological Journal 2015, 49, 1235–1274. [Google Scholar] [CrossRef]
  29. Amler, M.R.W.; Silantiev, V.V. A global review of Carboniferous marine and non-marine bivalve biostratigraphy. Geological Society London, Special Publications 2021, 512, 893–932. [Google Scholar] [CrossRef]
  30. Bakaev, A.; Kogan, I. A new species of Burguklia (Pisces, Actinopterygii) from the Middle Permian of the Volga Region (European Russia). Paläontologische Zeitschrift 2020, 94, 93–106. [Google Scholar] [CrossRef]
  31. Zharinova, V.V. New Stratigraphic Units of Beds with the Conchostracan Fauna in the Upper Permian and Lower Triassic Deposits of Eastern Europe and Siberia. Uchenye Zapiski Kazanskogo Universiteta. Seriya Estestvennye Nauki 2021, 163, 390–405. [Google Scholar] [CrossRef]
  32. Bakaev, A.S. Revision of Permian Ray-Finned Fishes from the Kazankovo-Markino Formation of the Kuznetsk Basin. Paleontological Journal 2023, 57, 335–342. [Google Scholar] [CrossRef]
  33. Yuzvitsky, A.Z. Kuznetsk coal Basin. Coal base of Russia. In Coal basins and deposits of Western Siberia (Kuznetsk, Gorlovsky, Zapadno-Sibirsky basins, deposits of the Altai Territory and the Republic of Altai); Geoinformtsentr: Moscow, Russia, 2003; Volume 2, pp. 7–46. (In Russian) [Google Scholar]
  34. Decisions of the All-Union Conference on the development of unified stratigraphic schemes for the Precambrian, Paleozoic and Quaternary systems of Central Siberia (Novosibirsk, 1979). Part 2 (Middle and Upper Paleozoic); SRIGGMRM: Novosibirsk, USSR, 1982; 129p. (In Russian) [Google Scholar]
  35. Decision of the Meeting on the stratigraphy of the Upper Paleozoic deposits of Kuzbass. Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; Budnikov, I.V., Ed.; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 2, pp. 93–94. (In Russian) [Google Scholar]
  36. Kutygin, R.V. The Permian Ammonoid Family Medlicottiidae in the Verkhoyansk Region. Paleontological Journal 2020, 54, 571–583. [Google Scholar] [CrossRef]
  37. Budnikov, I.V.; Kutygin, R.V.; Shi, G.R.; Sivtchikov, V.E.; Krivenko, O.V. Permian stratigraphy and paleogeography of Central Siberia (Angaraland) – A review. Journal of Asian Earth Sciences 2020, 196, 104365. [Google Scholar] [CrossRef]
  38. Stratigraphic Guide of Russia. Approved by the ISC Bureau on October 18, 2005. Compiled by A.I. Zhamoida et al.; VSEGEI: St. Petersburg, Russia, 2019; 96p. (In Russian) [Google Scholar]
  39. International Chronostratigraphic Chart. Available online: https://stratigraphy.org/ICSchart/ChronostratChart2023-06.pdf (accessed on 25 September 2023).
  40. Kotlyar, G.V.; Pukhonto, S.K.; Burago, V.I. International correlation of continental and marine Permian deposits of the Northeast of Russia, the Southern of the Far East, Siberia and the Pechora Ural Region. Pacific geology 2018, 37, 3–21, (In Russian with English Abstract). [Google Scholar]
  41. Davydov, V.I.; Arefiev, M.P.; Golubev, V.K.; Karasev, E.V.; Naumcheva, M.A.; Schmitz, M.D.; Silantiev, V.V.; Zharinova, V.V. Radioisotopic and biostratigraphic constraints on the classical Middle–Upper Permian succession and tetrapod fauna of the Moscow syneclise, Russia. Geology 2020, 48, 742–747. [Google Scholar] [CrossRef]
  42. Klets, A.G.; Budnikov, I.V.; Kutygin, R.V.; Biakov, A.S.; Grinenko, V.S. The Permian of the Verkhoyansk-Okhotsk region, NE Russia. Journal of Asian Earth Sciences 2006, 26, 258–268. [Google Scholar] [CrossRef]
  43. Decisions of the Third Interdepartmental Regional Conference on the Stratigraphy of the Precambrian, Paleozoic, and Mesozoic of Northeastern Russia; Koren, T. N., Kotlyar, G.V., Eds.; VSEGEI: St. Petersburg, Russia, 2009; 268p. (In Russian) [Google Scholar]
  44. Andrianov, V.N. Permian and some Carboniferous Ammonoids of Northeastern Asia; Nauka: Novosibirsk, USSR, 1985; 180p. (In Russian) [Google Scholar]
  45. Leonova, T.B. Correlation of the Kazanian of the Volga–Urals with the Roadian of the global Permian scale. Palaeoworld 2007, 16, 246–253. [Google Scholar] [CrossRef]
  46. Kutygin, R.V.; Budnikov, I.V.; Biakov, A.S.; Klets, A.G. The problem of using the modernized General Stratigraphic Scale of the Permian system in Verkhoyanie. In Upper Paleozoic of Russia: Stratigraphy and Palaeogeography; Silantiev, V.V., Sungatullina, G.M., Eds.; Kazan State University: Kazan, Russia, 2007; pp. 180–183. (In Russian) [Google Scholar]
  47. Lezhnin, A.I.; Papin, Yu.S. The role of the first regional stratigraphic scheme of Kuzbass in establishing major stages of sedimentation. In Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; Budnikov, I.V., Ed.; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 1, pp. 12–19. (In Russian) [Google Scholar]
  48. Verbitskaya, N.G. Kuzbass – key area of stratigraphy of the Upper Paleozoic of Angarida. In Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; Budnikov, I.V., Ed.; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 1, pp. 115–120. (In Russian) [Google Scholar]
  49. Lyutkevich, E.M. Pelecypods of the Permian deposits of Western Taimyr; Leningrad, USSR, 1951; 166p. (In Russian).
  50. Shvedov, N.A. Permian flora of the Yenisei-Lena region. In Proceedings of Scientific-Research Institute of Geology of Arctic; Radchenko, G.P., Ed.; Moscow, USSR, 1961; Volume 103, 151p., (In Russian).
  51. Decisions of the Interdepartmental Meeting on the Development of Unified Stratigraphic Charts of Siberia. Gosgeoltekhizdat: Moscow, USSR, 1959; 91p. (In Russian).
  52. Benediktova, R.N.; Khalfin, L.L. Current state of stratigraphic knowledge of Carboniferous and Permian deposits of Central Siberia. In Paleozoic stratigraphy of Central Siberia; Sokolov, B.S., Ed.; Nauka: Novosibirsk, USSR, 1967; pp. 155–169. (In Russian) [Google Scholar]
  53. Vyltsan, I.A. About the division of deposits of the Kuznetsk and Ilyinskoe formations of Kuzbass. In Materials on the geology of Western Siberia; Tomsk, USSR, 1962; Issue 63, pp. 171–183, (In Russian).
  54. Bogomazov, V.M.; Verbitskaya, N.G.; Zolotov, A.P.; Fadeeva, I.Z. Stratigraphy and conditions of formation of the Kolchuginsky series of Kuzbass. In Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; Budnikov, I.V., Ed.; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 1, pp. 104–115. (In Russian) [Google Scholar]
  55. Gorelova, S.G.; Menshikova, L.V.; Khalfin, L.L. Phytostratigraphy and identification of plants of the Upper Paleozoic coal-bearing deposits of the Kuznetsk basin. Part I.; Proceedings of SNIIGGIMS: Kemerovo, USSR, 1973; 168p. (In Russian) [Google Scholar]
  56. Gorelova, S.G.; Radchenko, G.P. The most important Late Permian plants of the Altai-Sayan mountain region. In Materials on the phytostratigraphy of Upper Permian deposits of the Altai-Sayan mountain region; Radchenko, G.P., Ed.; VSEGEI: Leningrad, USSR, 1962; Volume 79, pp. 39–242. (In Russian) [Google Scholar]
  57. Meyen, S.V. Materials for understanding the morphology of vegetative shoots of Angara cordaites. Paleontologicheskij zhurnal 1962, 2, 133–144. (In Russian) [Google Scholar]
  58. Silantiev, V.; Marchetti, L.; Ronchi, A.; Schirolli, P.; Scholze, F.; Urazaeva, M. Permian non-marine bivalves from the Collio and Guncina formations (Southern Alps, Italy): revised biostratigraphy and palaeobiogeography. Rivista Italiana di Paleontologia e Stratigrafia 2022, 128, 43–67. [Google Scholar] [CrossRef] [PubMed]
  59. Neustrueva, I.Yu. Dependence of the manifestation of developmental stages of freshwater ostracods from changes in the physico-geographical situation (using the example of the development of Late Permian and Early Triassic ostracods in the Kuznetsk basin). In Problems of the stages of the organic world development; Proc. XVIII session of All-Russian Paleontological Society; Nauka: Leningrad, USSR, 1978; pp. 107–113. (In Russian) [Google Scholar]
  60. Neustrueva, I.Yu. Late Permian and Early Triassic ostracods of the Kuznetsk basin (development, ecology and stratigraphic significance). PhD thesis, Leningrad State University, Leningrad, USSR, 1970, 419p. (In Russian)
  61. Neustrueva, I.Yu. Diversity of ostracod assemblages as an indicator of paleogeographical and paleoecological features of ancient lake basins (Carboniferous-Triassic). In Proceedings Research Geology Institute of SSU, Novaya seriya; Nauchnaya kniga: Saratov, Russia, 2002; Volume XI, pp. 71–82. (In Russian) [Google Scholar]
  62. Kashevarova, N.P. Age of the Inta Formation in the southwestern part of the Pechora Coal Basin based on ostracods. In New data on microfauna and stratigraphy of Paleozoic, Mesozoic and Cenozoic deposits of the USSR; Proceedings of VNIGRI: Leningrad, USSR, 1974; Issue 349, pp. 42–54, (In Russian).
  63. Mishina, E.M. Age of volcanogenic strata of the Tunguska Syneclise. Sovetskaya Geologiya 1973, 8, 133–140. (In Russian) [Google Scholar]
  64. Berg, L.S. About the new fish Holuropsis yavorskyi n. g., n. sp. (Palaeoniscoidei) from Permian deposits of the Kuznetsk basin. Bulletin of the West Siberian Geological Department 1947, 3, 53–58. (In Russian) [Google Scholar]
  65. Obruchev, D.V. Phylum Vertebrata. Vertebrates. In Biostratigraphy of the Paleozoic Sayan-Altai mountain region. Volume 3. Upper Paleozoic; Halfin, L.L., Ed.; Proceedings of SNIIGGMS: Novosibirsk, USSR, 1962; Volume 21, pp. 440–442.
  66. Minikh, A.V.; Minikh, M.G. The Ichthyofauna of the Permian of European Russia; Nauka: Saratov, Russia, 2009; 243p. [Google Scholar]
  67. Bakaev, A.S.; Kogan, I. Squamation of the Permian actinopterygian Toyemia Minich, 1990: evenkiid (Scanilepiformes) affinities and implications for the origin of polypteroid scales. Bulletin of Geosciences 2022, 97, 235–259. [Google Scholar] [CrossRef]
  68. Baranov, V.K.; Gorelova, S.G.; Sukhov, S.V. Section of coal-bearing deposits along the Kureika river in the Tunguska basin and its paleobotanical characteristics. In Late Paleozoic coal-bearing formations of Central Siberia; Proceedings of SNIIGGIMS: Kemerovo, USSR, 1970; Issue 107, pp. 138–148, (In Russian).
  69. Reshetnikova, M.A. Materials for the study of ostracods from coal-bearing deposits of the Upper Paleozoic Kuznetsk basin. In Proceedings Siberian Research Institute of Geology, Geophysics and Mineral Resources; West Siberian Publishing House: Novosibirsk, USSR, 1960; Volume 8, pp. 134–143. (In Russian) [Google Scholar]
  70. Van, A.V. The role of pyroclastic material in coal-bearing deposits of the Kuznetsk basin. Sovetskaya geologiya 1968, 4, 129–138. (In Russian) [Google Scholar]
  71. Van, A.V.; Kazanskiy, Yu.P. Volcanic material in sediments and sedimentary rocks; Nauka: Novosibirsk, USSR, 1985; 128p. (In Russian) [Google Scholar]
  72. Chernovyants, M.G. Tonsteins and their use in the study of coalbearing formations. Nedra: Moscow, Russia, 1992; 144p. (In Russian)
  73. Kazanskiy, Yu.P.; Van, A.V. Using of tephrochronology for subdivision and correlation of Upper Paleozoic deposits of Kuzbass. In Kuznetsk Basin – key region in stratigraphy of the Angarida Upper Paleozoic; Budnikov, I.V., Ed.; YuzhSibgeolkom: Novosibirsk, Russia, 1996; Volume 2, pp. 31–37. (In Russian) [Google Scholar]
  74. Arbuzov, S.I.; Volostnov, A.V.; Rikhvanov, L.P.; Mezhibor, A.M.; Ilenok, S.S. Geochemistry of radioactive elements (U, Th) in coal and peat of northern Asia (Siberia, Russian Far East, Kazakhstan, and Mongolia). International Journal of Coal Geology 2011, 86, 318–328. [Google Scholar] [CrossRef]
  75. Arbuzov, S.I.; Spears, D.A.; Vergunov, A.V.; Ilenok, S.S.; Mezhibor, A.M.; Ivanov, V.P.; Zarubina, N.A. Geochemistry, mineralogy and genesis of rare metal (Nb-Ta-Zr-Hf-Y-REE-Ga) coals of the seam XI in the south of Kuznetsk Basin, Russia. Ore Geology Reviews 2019, 113, 103073. [Google Scholar] [CrossRef]
  76. Thompson, L.N.; Finkelman, R.B.; Arbuzov, S.I.; French, D.H. An unusual occurrence of ferroan magnesite in a tonstein from the Minusinsk Basin in Siberia, Russia. Chemical Geology 2021, 568, 120131. [Google Scholar] [CrossRef]
  77. Mattinson, J.M. Zircon U-Pb chemical abrasion (“CA-TIMS”) method: Combined annealing and multi-step partial dissolution analysis for improved precision and accuracy of zircon ages. Chemical Geology 2005, 220, 47–66. [Google Scholar] [CrossRef]
  78. Condon, D.J.; Schoene, B.; McLean, N.M.; Bowring, S.A.; Parrish, R.R. Metrology and traceability of U–Pb isotope dilution geochronology (EARTHTIME Tracer Calibration Part I). Geochimica et Cosmochimica Acta 2015, 164, 464–480. [Google Scholar] [CrossRef]
  79. Gerstenberger, H.; Haase, G. A highly effective emitter substance for mass spectrometric Pb isotope ratio determinations. Chemical Geology 1997, 136, 309–312. [Google Scholar] [CrossRef]
  80. Wiedenbeck, M.; Alle, P.; Corfu, F.; Griffin, W.L.; Meier, M.; Oberli, F.; Von Quadt, A.; Roddick, J.C.; Spiegel, W. Three Natural Zircon Standards for U-TH-PB, LU-HF, Trace Element and Ree Analyses. Geostandards Newsletter 1995, 19, 1–23. [Google Scholar] [CrossRef]
  81. Black, L.P.; Kamo, S.L.; Allen, C.M.; Davis, D.W.; Aleinikoff, J.N.; Valley, J.W.; Mundil, R.; Campbell, I.H.; Korsch, R.J.; Williams, I.S.; Foudoulis, C. Improved 206Pb/238U microprobe geochronology by the monitoring of a trace-element related matrix effect; SHRIMP, ID-TIMS, ELA-ICP-MS and oxygen isotope documentation for a series of zircon standards. Chemical Geology 2004, 205, 115–140. [Google Scholar] [CrossRef]
  82. Käßner, A.; Tichomirowa, M.; Lapp, M.; Leonhardt, D.; Whitehouse, M.; Gerdes, A. Two-phase late Paleozoic magmatism (~ 313–312 and ~ 299–298 Ma) in the Lusatian Block and its relation to large scale NW striking fault zones: evidence from zircon U–Pb CA–ID–TIMS geochronology, bulk rock- and zircon chemistry. International Journal of Earth Sciences 2021, 110, 923–2953. [Google Scholar] [CrossRef]
  83. Schoene, B.; Crowley, J.L.; Condon, D.C.; Schmitz, M.D.; Bowring, S.A. Reassessing the uranium decay constants for geochronology using ID-TIMS U–Pb data. Geochim Cosmochim Acta 2006, 70, 426–445. [Google Scholar] [CrossRef]
  84. Bowring, J.F.; McLean, N.M.; Bowring, S.A. Engineering cyber infrastructure for U-Pb geochronology: Tripoli and U-Pb_Redux. Geochemistry, Geophysics, Geosystems 2011, 12(6), Q0AA19. [CrossRef]
  85. Durante, M.V. Upper Paleozoic flora and stratigraphy of Verkhoyanie. Paleobotanicheskij vremennik. Supplement to the journal “Lethaea rossica” 2013, 1, 109–111. (In Russian) [Google Scholar]
  86. Tolstych, A.N. Late Paleozoic flora of Western Verkhoyanie; Nauka: Novosibirsk, USSR, 1974; 103p. (In Russian) [Google Scholar]
  87. Kutygin, R.V. Spirolegoceratids (Ammonoidea) from Northeastern Russia. Paleontological Journal 1996, 30, 506–514. [Google Scholar]
  88. Budnikov, I.V.; Grinenko, V.S.; Klets, A.G.; Kutygin, R.V.; Sivchikov, V.E. A model of the Upper Paleozoic formation in the eastern of the Siberian Platform and its folding (patterns of sedimentation, zonation, and correlation. Otechestvennaya Geologiya = National Geology 2003, 6, 86–92. (In Russian) [Google Scholar]
  89. Masyulis, V.V.; Urzov, A.S. Scheme of a detailed subdivision of the Upper Paleozoic deposits of the central and western parts of the Kuranakh anticlinorium (Western Verkhoyanie). In Stratigraphy, palaeontology and lithology of sedimentary formations of Yakutia; Vozin, V.F., Ed.; Izdatel'stvo Yakutskogo filiala SO AN SSSR: Yakutsk, USSR, 1975; pp. 36–49. (In Russian) [Google Scholar]
  90. Porokhovnichenko, L.G. Permian flora of Western Verkhoyanie and its significance for stratigraphy of the Upper Palaeozoic deposits of Middle Siberia. Paleobotanicheskij vremennik. Supplement to the journal “Lethaea rossica” 2018, 3, 26–40. (In Russian) [Google Scholar]
  91. Kutygin, R.V. About the ammonoid sequence in the Kungurian of the Kuranakh subzone (Western Verkhoyanie). Otechestvennaya Geologiya = National Geology 2012, 5, 37–40. (In Russian) [Google Scholar]
  92. Biakov, A.S. New Bivalves of the genus Myonia (Pholadomyida, Sanguinolitidae) from Permian deposits of Northeast Russia. Paleontological Journal 2022, 56, 154–159. [Google Scholar] [CrossRef]
  93. Leonova, T.B.; Kutygin, R.V.; Shilovsky, O.P. New Data on the Composition and Evolution of the Permian Superfamily Popanocerataceae (Ammonoidea). Paleontological Journal 2005, 39, 476–486. [Google Scholar]
  94. Kutygin, R.V. Permian ammonoid associations of the Verkhoyansk Region, Northeast Russia. Journal of Asian Earth Sciences 2006, 26(3–4), 243–257. [CrossRef]
  95. Glukhova, L.V. On the taxonomy of the Genus Rufloria. Paleontological Journal 1976, 2, 116–121. [Google Scholar]
  96. Porokhovnichenko, L.G. Late Paleozoic flora of the Norilsk region and its stratigraphic significance. PhD thesis, Tomsk State University, Tomsk, Russia, 2006, 22p. (In Russian)
  97. Glukhova, L.V. Systematics, microstructure, stratigraphic distribution of Rufloria (Review). Lethaea rossica 2009, 1, 15–50. (In Russian) [Google Scholar]
  98. Sukhov, S.V. Seeds of Late Paleozoic plants of Central Siberia. In Proceedings of SNIIGGiMS; Nedra: Leningrad, USSR, 1969; Volume 64, 264p., (In Russian).
  99. Porokhovnichenko, L.G. On the phytostratigraphy of Upper Paleozoic deposits in the northwestern part of the Tunguska basin. In Paleozoic Russia: regional stratigraphy, paleontology, geo- and bioevents; VSEGEI: St. Petersburg, Russia, 2012; pp. 181–184. (In Russian) [Google Scholar]
  100. Porokhovnichenko, L.G. Paleobotanical characteristics of the reference section of the Permian Schmidtin Formation (Kayerkanskoye field, Norilsk region). Paleobotanicheskij vremennik. Supplement to the journal “Lethaea rossica” 2013, 1, 112–117. (In Russian) [Google Scholar]
  101. Porokhovnichenko, L.G. Three-member division of the Burguklinsky horizon of the Tunguska basin according to floristic complexes. In Upper Paleozoic of Russia: stratigraphy and paleogeography, Kazan Golovkinsky Stratigraphic Meeting – 2017, Kazan, Russia, 19–23 September 2017; Nurgaliev, D.K., Silantiev, V.V., Eds.; Kazan University Press: Kazan, Russia, 2017; pp. 163–164. [Google Scholar]
  102. Davydov, V.I.; Biakov, A.S.; Schmitz, M.D.; Silantiev, V.V. Radioisotopic calibration of the Guadalupian (middle Permian) series: Review and updates. Earth-Science Reviews 2018, 176, 222–240. [Google Scholar] [CrossRef]
  103. Kutygin, R.V.; Biakov, A.S. Permian Ammonoids of the Okhotsk Region, Northeast Asia. Paleontological Journal 2015, 49, 1275–1281. [Google Scholar] [CrossRef]
  104. Kutygin, R.V.; Budnikov, I.V.; Biakov, A.S.; Klets, A.G.; Grinenko, V.S. Reference section of the Dulgalakhian and Khalpirkian horizons (Upper Tatarian substage) of Western Verkhoyanie. Tikhookeanskaya geologiya 2003, 6, 82–97. (In Russian) [Google Scholar]
  105. Biakov, A.S.; Zakharov, Yu.D.; Horacek, M.; Richoz, S.; Kutygin, R.V.; Ivanov, Yu.Yu.; Kolesov, E.V.; Konstantinov, A.G.; Tuchkova, M.I.; Mikhalitsyna, T.I. New data on the structure and age of the terminal Permian strata in the South Verkhoyansk region (northeastern Asia). Russian Geology and Geophysics 2016, 57, 282–293. [Google Scholar] [CrossRef]
  106. Kotlyar, G.V.; Golubev, V.K.; Silantiev, V.V. General Stratigraphic Scale of the Permian system: Current state of affairs. In General Stratigraphic Scale of Russia: current state and ways of perfection. All-Russian meeting; GIN RAS: Moscow, Russia, 2013; pp. 187–195. (In Russian) [Google Scholar]
  107. Gutak, Ja.M.; Silantiev, V.V.; Felker, A.S. Volcanic rocks in the Permian system sections of Kuzbass. Geosfernye issledovaniya = Geosphere Research 2023, 3, 52–57, (In Russian with English Abstract). [Google Scholar] [CrossRef]
  108. Durante, M.V. The sequence of Late Paleozoic floristic complexes of Verkhoyanie. Lethaea rossica 2010, 2, 45–54. (In Russian) [Google Scholar]
  109. Meyen, S.V. Cordaites of the Upper Paleozoic of Northern Eurasia. In Proceedings of the USSR Academy of Sciences; Nauka: Moscow, USSR, 1966; Volume 150, 184p., (In Russian).
  110. Glukhova, L.V.; Menshikova, L.V. Microstructures of cordaites from the Upper Permian deposits of the Kuznetsk basin. Paleontological Journal 1980, 3, 107–117. (In Russian) [Google Scholar]
  111. Durante, M.V. Reconstruction of climatic changes in the Late Paleozoic of Angaraland (based on phytogeographic data). Stratigraphy and Geological correlation 1995, 3, 25–38. (In Russian) [Google Scholar]
  112. Gorelova, S.G. Fossil plants. In Upper Paleozoic of Angarida; Zhuravleva, I.T., Ilуina, V.I., Eds.; Nauka: Novosibirsk, USSR, 1988; 264p. (In Russian) [Google Scholar]
  113. Grunt, T.A. (Ed.) Late Permian of the Kanin Peninsula; Nauka: Moscow, Russia, 2006; 213p. [Google Scholar]
  114. Grunt, T.A. Correlations between the General Permian Stratigraphic Scale of Russia, Russian Regional Scales and Global Time Scale. In General Stratigraphic Scale of Russia: current state and ways of perfection. All-Russian meeting; GIN RAS: Moscow, Russia, 2013; pp. 214–217. (In Russian) [Google Scholar]
  115. Chen, B.; Joachimski, M.M.; Shen, S.; Lambert, L.L.; Lai, X.; Wang, X.; Chen, J.; Yuan, D. Permian ice volume and palaeoclimate history; oxygen isotope proxies revisited. Gondwana Research 2013, 24, 77–89. [Google Scholar] [CrossRef]
  116. Davydov, V.I. Warm water benthic foraminifera document the Pennsylvanian–Permian warming and cooling events — the record from the Western Pangea tropical shelves. Palaeogeography, Palaeoclimatology, Palaeoecology 2014, 414, 284–295. [Google Scholar] [CrossRef]
  117. Davydov, V.I.; Biakov, A.S.; Isbell, J.L.; Crowley, J.L.; Schmitz, M.D.; Vedernikov, I.L. Middle Permian U–Pb zircon ages of the “glacial” deposits of the Atkan Formation, Ayan-Yuryakh anticlinorium, Magadan province, NE Russia: Their significance for global climatic interpretations. Gondwana Research 2016, 38, 74–85. [Google Scholar] [CrossRef]
  118. Rygel, M.C.; Fielding, C.R.; Frank, T.D.; Birgenheier, L.P. The magnitude of late Paleozoic glacioeustatic fluctuations; a synthesis. Journal of Sedimentary Research 2008, 78, 500–511. [Google Scholar] [CrossRef]
Preprints 90887 g001
Figure 1. Locations of the studied sections: (A) overview map, (B) Kuznetsk Basin, (C) Verkhoyanie Basin: (D) Late Permian palaeogeographic map. Points with numbers: (1) Starokuznetsk Fm section with dated volcanic tuff located on the Novokuznetsk bypass road; (2) Starokuznetsk Fm reference section within Novokuznetsk city; (3) Malinovyi Creek; (4) Pravaya Galochka Creek; (5) upper reaches of the Delenzha River. The map D is created using QGIS and Gplates, with datasets available from [17].
Figure 1. Locations of the studied sections: (A) overview map, (B) Kuznetsk Basin, (C) Verkhoyanie Basin: (D) Late Permian palaeogeographic map. Points with numbers: (1) Starokuznetsk Fm section with dated volcanic tuff located on the Novokuznetsk bypass road; (2) Starokuznetsk Fm reference section within Novokuznetsk city; (3) Malinovyi Creek; (4) Pravaya Galochka Creek; (5) upper reaches of the Delenzha River. The map D is created using QGIS and Gplates, with datasets available from [17].
Preprints 90887 g001
Preprints 90887 g002
Figure 2. The Regional Stratigraphic Scheme of the Permian coal-bearing sediments of Kuzbass and its comparison with the General Stratigraphic Scale of Russia [38] and the International Chronostratigraphic Chart [39]; radioisotopic dating: (1) Davydov et al. [41]; (2) Davydov et al. [13]; (3) Silantiev et al. [14]; (4) this paper.
Figure 2. The Regional Stratigraphic Scheme of the Permian coal-bearing sediments of Kuzbass and its comparison with the General Stratigraphic Scale of Russia [38] and the International Chronostratigraphic Chart [39]; radioisotopic dating: (1) Davydov et al. [41]; (2) Davydov et al. [13]; (3) Silantiev et al. [14]; (4) this paper.
Preprints 90887 g002
Preprints 90887 g003
Figure 3. Geological map of the studied area of Kuzbass.
Figure 3. Geological map of the studied area of Kuzbass.
Preprints 90887 g003
Preprints 90887 g004
Figure 4. Reference section of the Kuznetsk Subgroup and stratigraphic position of the studied section with the dated ash bed. Generalised major biotic events are shown.
Figure 4. Reference section of the Kuznetsk Subgroup and stratigraphic position of the studied section with the dated ash bed. Generalised major biotic events are shown.
Preprints 90887 g004
Preprints 90887 g005
Figure 5. Stratigraphic position of the dated ash layer (sample 19 kzb-7) and results obtained: (a) section of the Starokuznetsk Formation on the Novokuznetsk bypass road; (b) photographs of zircon grains; (c) ranking plot of 206Pb/238U ages (CA-ID-TIMS) for individual zircon grains (according to [3]).
Figure 5. Stratigraphic position of the dated ash layer (sample 19 kzb-7) and results obtained: (a) section of the Starokuznetsk Formation on the Novokuznetsk bypass road; (b) photographs of zircon grains; (c) ranking plot of 206Pb/238U ages (CA-ID-TIMS) for individual zircon grains (according to [3]).
Preprints 90887 g005
Preprints 90887 g006
Figure 6. Location of the volcanic ash bed (sample no. 19kzb-7; white arrow) in the middle part of the Starokuznetsk Fm in the outcrop on the bypass road near the southern border of the city Novokuznetsk: (A) general view of the outcrop; (B) fine cyclicity of the succession; (C) the volcanic ash bed (sample no. 19kzb-7)
Figure 6. Location of the volcanic ash bed (sample no. 19kzb-7; white arrow) in the middle part of the Starokuznetsk Fm in the outcrop on the bypass road near the southern border of the city Novokuznetsk: (A) general view of the outcrop; (B) fine cyclicity of the succession; (C) the volcanic ash bed (sample no. 19kzb-7)
Preprints 90887 g006
Preprints 90887 g007
Figure 7. Zircons grains from the sample no. 19kzb-7.
Figure 7. Zircons grains from the sample no. 19kzb-7.
Preprints 90887 g007
Preprints 90887 g008
Figure 8. Ranking plot of 206Pb/238U dates from single grains of zircon analysed by CA-ID-TIMS; volcanic tuff, sample no. 19kzb-7; Starokuznetsk Fm. A weighted mean date is shown and represented by the grey boxes behind the error bars. Abbreviations: MSWD (mean square of weighted deviations); n - number of zircon grains dated.
Figure 8. Ranking plot of 206Pb/238U dates from single grains of zircon analysed by CA-ID-TIMS; volcanic tuff, sample no. 19kzb-7; Starokuznetsk Fm. A weighted mean date is shown and represented by the grey boxes behind the error bars. Abbreviations: MSWD (mean square of weighted deviations); n - number of zircon grains dated.
Preprints 90887 g008
Preprints 90887 g009
Figure 9. Geographical location of reference sections containing plant remains of the Balakhonka and Kolchugino Floras in Western Verkhoyanie: (1) Malinovyi Creek section, (2) Pravaya Galochka Creek section, (3) section in upper reaches of the Delenzha River.
Figure 9. Geographical location of reference sections containing plant remains of the Balakhonka and Kolchugino Floras in Western Verkhoyanie: (1) Malinovyi Creek section, (2) Pravaya Galochka Creek section, (3) section in upper reaches of the Delenzha River.
Preprints 90887 g009
Preprints 90887 g010
Figure 10. Correlation diagram showing the relationship between the upper Artinskian-Capitanian formations in Western Verkhoyanie and north-west of Siberian platform.
Figure 10. Correlation diagram showing the relationship between the upper Artinskian-Capitanian formations in Western Verkhoyanie and north-west of Siberian platform.
Preprints 90887 g010
Preprints 90887 g011
Figure 11. Distribution of plant remains in the Malinovyi Creek section of Western Verkhoyanie. The section was compiled by I.V. Budnikov in 1980 [22, Vol. 2] (pp. 95–99). The plant remains were identified by M.V. Durante (pers. comm., 2007).
Figure 11. Distribution of plant remains in the Malinovyi Creek section of Western Verkhoyanie. The section was compiled by I.V. Budnikov in 1980 [22, Vol. 2] (pp. 95–99). The plant remains were identified by M.V. Durante (pers. comm., 2007).
Preprints 90887 g011
Preprints 90887 g012
Figure 12. Distribution of plant remains and bivalves in the Pravaya Galochka Creek section of Western Verkhoyanie. The section was documented by I.V. Budnikov and R.V. Kutygin in 2006. The plant remains were identified by L.G. Porokhovnichenko [90] and bivalves – by A.S. Biakov (pers. comm.).
Figure 12. Distribution of plant remains and bivalves in the Pravaya Galochka Creek section of Western Verkhoyanie. The section was documented by I.V. Budnikov and R.V. Kutygin in 2006. The plant remains were identified by L.G. Porokhovnichenko [90] and bivalves – by A.S. Biakov (pers. comm.).
Preprints 90887 g012
Preprints 90887 g013
Figure 13. Comparison of the Kungurian – Middle Permian successions of Kuzbass, Western Verkhoyanie and Okhotsk Region (asterisks indicate radioisotopic datings by *[103]; **this study).
Figure 13. Comparison of the Kungurian – Middle Permian successions of Kuzbass, Western Verkhoyanie and Okhotsk Region (asterisks indicate radioisotopic datings by *[103]; **this study).
Preprints 90887 g013
Preprints 90887 g014
Figure 14. Comparison of the Kungurian-Roadian sediments of the Kuzbass and Eastern Europe. LAD – last appearance datum; FOD – first occurrence datum; orange arrow - migration of East European non-marine bivalves into Angaraland; green arrow – migration of Angarian non-marine bivalves into Eastern Europe.
Figure 14. Comparison of the Kungurian-Roadian sediments of the Kuzbass and Eastern Europe. LAD – last appearance datum; FOD – first occurrence datum; orange arrow - migration of East European non-marine bivalves into Angaraland; green arrow – migration of Angarian non-marine bivalves into Eastern Europe.
Preprints 90887 g014
Preprints 90887 g015
Figure 15. Gradual replacement of the late Balakhonka Flora by the Kolchugino Flora in context of coal content, global climatic and eustatic variations. The floral change coincides with climatic warming reflected by a coal-free interval. Coal content of the Kuzbass from [33]; the biogenic apatite geochemical record and low latitudes sea-water temperature from [115]; P2A, P2B, P3, P4 – the cooling events along the Western Pangea tropical shelves from [116,117]; the global eustatic sea-level variations from [118]. Radioisotopic datings highlighted by asterisks are from (1) [41]; (2) [13]; (3) [14]; (4) this article.
Figure 15. Gradual replacement of the late Balakhonka Flora by the Kolchugino Flora in context of coal content, global climatic and eustatic variations. The floral change coincides with climatic warming reflected by a coal-free interval. Coal content of the Kuzbass from [33]; the biogenic apatite geochemical record and low latitudes sea-water temperature from [115]; P2A, P2B, P3, P4 – the cooling events along the Western Pangea tropical shelves from [116,117]; the global eustatic sea-level variations from [118]. Radioisotopic datings highlighted by asterisks are from (1) [41]; (2) [13]; (3) [14]; (4) this article.
Preprints 90887 g015
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
