Mouse Exploratory Behaviour in the Open Field with and without NAT-1 EEG Device: Effects of MK801 and Scopolamine

Altmetrics

Downloads

70

Views

28

Comments

0

A peer-reviewed article of this preprint also exists.

supplementary.docx (139.55KB )

Submitted:

14 May 2024

Posted:

16 May 2024

You are already at the latest version

Alerts
Abstract
One aspect of reproducibility in preclinical research that is frequently overlooked is the physical condition in which physiological, pharmacological, or behavioural recordings are conducted. In this study, the physical conditions of mice were altered through the attachments of wireless electrophysiological recording devices (Neural Activity Tracker-1, NAT-1). NAT-1 devices are miniaturised multichannel devices with on-board memory for direct high-resolution recording of brain activity for >48 hrs. Such devices may limit the mobility of animals and affect their behavioural performance due to the added weight (total weight of approximately 3.4 g). Mice were additionally treated with saline (control), N-methyl-D-aspartate (NMDA) receptor antagonist MK801 (0.85 mg/kg), or the muscarinic acetylcholine receptor blocker scopolamine (0.65 mg/kg) to allow exploration of the effect of NAT-1 attachments in pharmacologically treated mice. We found only minimal differences in behavioural outcomes with NAT-1 attachments in standard parameters of locomotor activity widely reported for the open field test between drug-treatments. Hypoactivity was globally observed as a consistent outcome in MK801-treated subjects and hyperactivity in scopolamine groups regardless of NAT-1 attachments. These data collectively confirm the reproducibility for combined behavioural, pharmacological and physiological endpoints even in the presence of lightweight wireless data loggers. The NAT-1 therefore constitutes a pertinent tool for investigating brain activity in e.g. drug discovery, models of neuropsychiatric and/or neurodegenerative diseases with minimal effects on pharmacological and behavioural outcomes.
Keywords:
Subject: Biology and Life Sciences  -   Behavioral Sciences

1. Introduction

With advancements made in preclinical research, laboratories often align the mechanistic and functional aspects of animal behavioural outcomes to that of dynamic neuronal events. This is often performed with tethered or, more recently, wireless miniature recording systems [1,2,3,4,5,6,7,8] to allow recording of electroencephalography (EEG) in freely moving animals with minimal discomfort. In our laboratory, this includes the bilateral implantation of gold electrodes into the skull and attachment of a lightweight Neural Activity Tracker (NAT-1; Cybula, UK) device to this head-stage prior to behavioural testing. These devices have been employed for sleep-staging and global activity analysis during home cage recordings [7,8]. However, the surgical procedure and additional weight a mouse must tolerate amounts to about 3 g (multifunctional NAT-1 device including batteries), in addition to a small head stage modelled from dental cement and screw recording electrodes. The impact on the animal’s head could therefore conceivably limit locomotor skills and mobility of the animal and affect its natural explorative behaviour, and consequently, the outcomes of behavioural findings, thereby altering the apparent effects of pharmacological agents.
Compounds commonly used in preclinical in vivo research such as N-methyl-D-aspartate receptor (NMDAR) antagonist (dizocilpine; [+]-MK801) and muscarinic antagonist, scopolamine, were inoculated in mice in this study. Both compounds induce schizophrenia- [9,10,11,12] or Alzheimer-related [13,14] cognitive decline respectively and are known to induce well measurable and robust behavioural outcomes in mice including dose-dependent hyperactivity/hypoactivity [12,13,14,15,16,17,18]. Single doses of MK801 and scopolamine were prespecified based in preliminary data to allow detection of non-systematic movements in mice with/without wireless recording devices.
This exploratory study aims to: (1) evaluate potential differences in behavioural outcomes in the open field test in mice with and without surgically implanted head-stages/EEG recording devices (NAT-1); and (2) explore the behavioural effects of such attachments in pharmacologically treated mice. All exploratory behaviour obtainable from video-observed tests are presented to avoid bias; EEG recordings obtained in this study were not deemed relevant to changes in behavioural outcomes in mice and are therefore omitted. Generally, analyses of activity in the open field test confirm that despite very similar performance with or without EEG devices in vehicle treated control mice, subtle differences appeared in the drug groups that may inform of some behavioural alterations that affect outcomes other than activity.

2. Methods

2.1. Experimental Design

The study design, analysis and reporting methods in this study were conducted in line with recommendations stated in the ARRIVE 2.0 guidelines [19] and are detailed in the relevant segments below. The study design comprised of two independent experiments conducted on separate occasions. The testing days of the week, number of animals tested per day, and testing seasons were, however, similar between studies. To ensure that any differences between Experiments 1 (no NAT-1) and 2 (with NAT-1) were the result of the attachment of wireless data logging devices but not that of variations in procedural protocols or testing environment, special care was taken to ensure that the laboratory conditions, husbandry, avoidance of bias and study designs were maintained between both experiments (detailed in Table 1). Variables which differed between Experiments 1 and 2 were marked with asterisks in Table 1 and mainly pertained to the surgical procedures and NAT-1 related handling requirements performed in Experiment 2.

2.2. Animals

Twenty-nine C57BL/6J (10-11 weeks old male mice) from Charles River Laboratories (Kent, England) were obtained for Experiment 1 and 27 for Experiment 2. Mice were housed individually in standard Macrolon shoe box cages (Techniplast 1145) measuring at 369 x 165 x 132 mm, under a 12-hour light/12-hour dark cycle (lights on at 7am). Temperature and humidity were set at 20 ± 5 °C and 48 ± 5 % in both housing and experimental rooms. Animals had free access to standard rodent food chow (SDS 801190 RM3, England) and water ad-libitum. All animals were acclimatized to the facility environment and extensively handled for 2 weeks prior to the start of surgeries and/or open field testing. Mice were tail-handled to avoid detachment of the head-stages and management of severe stereotypic responses during transfer. All housing and handling of animals were in accordance with the international standards on animal welfare (EU/63/2010) and Home Office (UK) regulations.

2.3. Stereotactic Surgery and Home-Cage Recordings (Experiment 2 Only)

Animals had free access to water supplemented with carprofen Rimadyl® (5mg/kg; Zoetis, UK) and were acclimatised to soft diet (Transbreed (E), SDS 801222, England; and Solid Dirink® SDST-75, Netherlands) 48 hours prior to and after surgery. Stereotaxic surgeries were conducted as described previously (Crouch et al., 2018, 2019; Jyoti et al., 2010; Platt et al., 2011). Briefly, anaesthesia was induced with 3 % isoflurane (IsoFlo®, Zoetis) in medical grade oxygen and maintained on 1.5 % isoflurane during surgery. Mice were held in a stereotaxic frame (Stoelting, Wood Dale, Il, USA). Epidural gold-plated screw electrodes were placed at the following stereotaxic locations [20] on exposed skulls from the prefrontal cortex (2 mm anterior to bregma/close to midline), left and right hippocampus (2 mm posterior to bregma, 1.5 mm lateral to midline). Reference and ground electrodes were placed in a neutral location above the occipital plate. Electrodes were soldered and assembled into a 6-pin adaptor and fixed on to the skull by a mixture of Durelon® dental cement and tissue adhesive. The pins measured 0.40 mm (square) with spacing pitch of 1.27 mm. Once the dental cement dried, the animal was removed from the stereotaxic instrument and injected with 1.0 ml saline (intraperitoneal) and 0.2 ml buprenorphine (subcutaneous; Vetergesic®, Cera Animal Health Ltd, UK). Animals were placed on heating pads immediately after the procedure and further analgesic treatment continued for 2-3 days as appropriate. Following surgery, animals were weighed daily to monitor their recovery and were provided with a soft diet. A minimum of 7 days was allowed for recovery before the start of testing. Nine animals did not recover 48 hours post-surgery or had dislodged head-stages and were euthanised.

2.4. Drugs and Drug Formulation

(+)-MK801 maleate (CAS: 77086-22-7) and scopolamine hydrobromide (CAS: 114-49-8) were obtained from Tocris Bioscience (Bristol, UK) and diluted to 0.65 mg/kg MK801 and 0.85 mg/kg scopolamine (salt-corrected for both drugs) in 0.9% saline 24 hours prior to intraperitoneal injections. Saline was administered as vehicle-control. Reagents were administered (10 ml/kg) as a single dose, with a sterile injection needle, 30 minutes prior to behavourial testing. Assignment of all mice to different drugs were randomized (Experiment 1: n = 10 for saline, n = 9 for MK801, and n = 10 for scopolamine; Experiment 2: n = 9 per drug group) using a Williams Square design [21].

2.5. Apparatus and Testing Protocols

Upon behavioural testing, mice were aged 12-13 weeks old and weighed approximately 26.8 ± 2.0 g in the open field arena. Intraperitoneal administration of drugs and testing sequence was conducted in a blinded manner. In Experiment 2, mice were drug-treated immediately before the attachment of NAT-1 devices. NAT-1 measures 18 x 22.2 x 10.3 mm and weighs approximately 2.2 g including a zinc battery (Zinc-air, size 13, Duracell EasyTab). The total weight of the NAT-1 and head-stage (ranging between 1.1 and 1.5 g) equals approximately 3.4 g. Common to both experiments, subjects were habituated to the test room for 30 minutes, following drug inoculations.
To quantify the behavioural outcomes of using the NAT-1, we tested activity of all mice in the open field test [22,23,24]. The open field tests were conducted in a dedicated sound-attenuated room and in a square box (made up of white reflective Perspex) of 50 x 50 x 40 cm (length x width x height). Two white LED lights facing upwards from the arena and the main fluorescent room lights were switched on, giving rise to an average illumination of 320 lux. Temperature and humidity were maintained at 20 ± 5°C and 48 ± 5% respectively. An overhead camera (Imaging Source, DMK22AUCO3), 125 cm from the floor of the arena, was connected to an automated recording system (ANY-Maze v. 5.1, Stoelting) for online tracking of the animal’s centre of mass. Each mouse was placed into the centre of the open field and allowed to freely explore for 30 minutes, and the apparatus was thoroughly cleaned with odourless wet wipes between each mouse. The automatic tracking option was defaulted in ANY-Maze to allow the software to adjust tracking parameters by contrasting the apparatus background, illumination, and animal coat colour. Sampling rates were maintained at the programme’s recommended 15 frames per second (fps) for small animals. All analyses were conducted offline with the same software (ANY-Maze v. 6.1). Parameters which were widely recorded by different laboratories (see [25] for review) were explored. These included: total distance travelled in the arena, line-crossings in a 16-grid overlay; meandering (a measurement of an animal’s absolute turn angle over the total distance travelled which refers to the winding movement of animal); frequency of rotations (total of 360 degree turns to the left and 360 degree turns to the right); degree of thigmotaxis (a ratio of distance travelled in the periphery zone against the total distance travelled); and the average distance from the centre-point (to provide meaningful indications of the general location of the mice without utilizing zonal outlines). Thigmotaxis zone was defined as the zone 5 cm from the arena walls.

2.6. Exploratory Data Analyses

Representative track-plots of animals in each drug group of Experiments 1 and 2 were generated by extracting pixel values of the animal’s centre point from ANY-Maze and converting them to millimetres using a MATLAB script. The track-plots were further divided into two-time intervals (0-15 minutes and 15-30 minutes) for clarity and plotted using MATLAB (R2019a, Mathworks, USA).
Additional exploratory analyses of all outcomes obtainable from ANY-Maze were conducted to minimise and avoid hypothesis-driven selection of parameters in the open field test [26] by means of heat-mapping [27,28]. A total of 68 analysis parameters were extracted by ANY-Maze and were listed for comparison. Heat-maps were created to show all data points for the comparison of effects of NAT-1 on each drug condition. The heat-maps were generated with p-values obtained from independent two-tailed T-tests with Satterthwaite correction for heteroscedasticity and bootstrapped 1000 times with replacement (seed set at 123456). The intensities of colours on the heat-map were scaled according to the p-value threshold set at 95% confidence level. Parameters in the heat-maps were clustered for clarity. Apparatus measures (#1-20) concerning total distance and other additional information regarding activity for the entirety of the test were categorized at the top of the map. 16-grid crossings (#21), centre-point measures (#22-29) and thigmotaxic zone measures (#30-68) which are generally used as standard parameters were clustered next (Table S1). Heat-maps represent global read-outs over 30 minutes so time-dependent differences and scoring by segment of test were not considered. Immobility and freezing parameters were defaulted in ANY-Maze as 2000 milliseconds (sensitivity level set at 65%) and 1000 milliseconds (threshold levels on at 30 and off at 40) as the minimum immobility and freeze durations respectively, and no changes were made to both criteria. Parameters from head and tail tracking were not recorded.

2.7. Statistical Analysis

Parameters of interest obtained from the tracking software and calculated parameters of interest (e.g. total rotations, meandering and thigmotaxis) were first tested for normality using Lilliefors Kolmogorov-Smirnov test. The observed unpaired mean differences were reported and derived from the expected sampling error to illustrate the magnitude of differences using estimation analysis [29]. T-tests, or analysis of variance (ANOVA; for total responses parameters) with post-hoc Bonferroni’s corrections were performed for all conventional p-value analyses and bootstrapped 1000 times with replacement (seed set at 123456) to accommodate non-normally distributed outcomes [30]. Group differences were also considered negligible if effect sizes (ηp2) were less than 0.1. Only data for distance moved for the entirety of the test were further collapsed into 5-minute bins; statistical differences were evaluated using two-way ANOVA for repeated measures, with experimental groups as between-subject factors and time as within-subject factors. Statistical significance was set at 95% confidence level for conventional statistics. Outliers (with residuals more than two standard deviations away from the mean) were re-investigated for extreme experimental issues or recording errors. No convincing reasons to remove any data on this basis were found. All conventional analysis, analysis of estimates and visualisation of outcomes were performed in R (v.4.3.0; [31].

3. Results

The experimental and housing conditions for both independent experiments are detailed in Table 1; the surgical procedures and NAT-1 attachments were the only inconsistent variables between both experiments. Comparisons for each drug treatment were initially visualised in a heat-map (Figure 1); significant differences where p<0.05 thresholded and are represented in blue. Head-stage/NAT-1 attachments led to significant differences in 32 parameters for the saline-treated groups, 12 parameters for the MK801-treated groups and 14 parameters for the scopolamine-treated groups. No parameter showed a statistical significance in all comparisons between experiments for all treatments (Figure 1 and Table S1).
The explorative strategies were visualised by track-plots of representative animals in Experiments 1 and 2 (Figure 2a). Locomotor activity and spatial distribution in the open field were maintained between animals with or without NAT-1 of the same drug treatment in both the first and the second 15-minute interval of the experiment. For both experiments, scopolamine-treated animals remained in the periphery whilst the MK801-treated animals remained in a section of the arena, generally localized away from the arena walls. The saline-treated animals traversed across the centre with a greater frequency than the two drug groups and hence did not show a clear preference for an exploration zone.
The head-stage/NAT-1 attachments decreased total distance travelled by 30.6 m [95% CI -48.6, -6.04 m] and 26.9 m [95% CI -52.3, -10.4 m] in MK801-and scopolamine- treated animals respectively. Means were outside of the interval estimate, but minimally increased total distance travelled by 8.37 m [95% CI -8.09, 24.6 m] in the saline-treated group (Figure 2b). Total distance travelled analysed in 5-minute time intervals are visualised in Figure 2c. No main effect of head-stages was observed for saline-treatments, but significant reductions were yielded for MK801- (F(1,16)=6.98, p=0.018, ηp2=0.304) and scopolamine- (F(1,17)=6.26, p=0.023, ηp2=0.269) treated cohorts.
Comparison of animals with and without NAT-1 are statistically summarised in Table 2 and visualised in Figure 3. No notable differences due to NAT-1 attachments were discerned in the average distance from the centre-point (m [95% CI]: saline, -0.020 [-0.026, -0.012 ]; MK801, 0.006 [-0.041, 0.036 ]; and scopolamine, -0.080 [-0.018, 0.030]) ; Figure 3a). Line-crossings differed between experimental groups for all treatments (Figure 3b)- NAT-1 attachments induced the largest reductions in line-crossing counts in MK801- (-409 counts [95% CI, -600, -158 counts]) and scopolamine- (-362 counts [95% CI,-541, -242 counts]) treated animals, but minimally affected saline-treated mice (-28.6 counts [95% CI, -148, 86.7 counts]) .
In parameters of localization, head-stage/NAT-1 attachment in animals was estimated to decrease thigmotaxis ratio and thigmotaxis time in saline-treated animals (-0.068 [95% CI, -0.11, -0.021] and -216 s [95% CI, -295, -123 s] respectively), but not under exposure to MK801 or scopolamine (Figure 3c and d). Comparisons between Experiments 1 and 2 also confirmed minimal differences in rotations (counts [95% CI]: saline, 16.3 [5.6, 26]; MK801, -21.9 [-156.0, 87.5]; and scopolamine, -3.7 [-18.9, 7.16]) or meandering (degrees/m [95% CI]: saline, 19.5 [-63.6, 102]; MK801, 361 [-663, 2100]; and scopolamine, 44.7 [-25.6, 117]) with NAT-1 attachments in all mice (Figure 3f).
The trend of activity in MK801- and scopolamine-treated animals (relative to saline-treated mice) is robust for both experimental groups. Within-experiment analyses also showed that MK801-treated animals had decreased, global activity in the open field (relative to saline-treated animals; Table S2), independent of NAT-1 attachments. The contrary was observed for scopolamine-treated animals.

4. Discussion

The primary objective of this study was to evaluate the robustness of behavioural findings between animals with and without head-stage/NAT-1 attachments in the open field. This device differs in many respects from other implantable miniaturised telemetric EEG recording systems for mice [32,33,34,35] and is considered an advancement to many tethered recording devices (see Platt et al., 2011 for discussion). While many of these systems are widely used, a comparison between unoperated and surgically operated and subjects are not commonplace but important to define the robustness of behaviours under scrutiny. For the open field, the behavioural repertoire in saline-treated animals were shown to be generally maintained across experimental groups with minimal implications of the surgery, head-stage moulding and NAT-1 attachments. Animals treated with MK801 or scopolamine on the other hand responded to these modifications with an overall lowering of locomotor activity, with less wall hugging and more frequent visits to the centre of the arena. This suggests that despite considerable weight, NAT-1 per se is not inducing behavioural changes, but these can be visualised in the presence of drugs. Such behavioural anomalies may include stereotypy, but most obviously were reflected in hypoactivity in this study. Despite wider confidence intervals in the NAT-1 cohorts treated with either MK801- or scopolamine- treatment the magnitude of differences between drug groups and controls were in the same direction and numerically very similar, supporting the robustness of the data, and the resilience of the mice against neurosurgical intervention and weight bearing head-attached devices.
We therefore confirm that lightweight untethered head-stage/NAT-1 attachments do not impose serious limitations on locomotor activity- the primary outcome commonly assessed in the open field. However, there were variations pertaining to parameters of movement types and location-specific proxies, particularly in the thigmotaxic zone. Differences in location-specific proxies can potentially be explained by the animals’ somatosensory perception of the device on their head (‘object permanence’; [36,37]. The device may present a steric hinderance for the mobility of the animals as indicated by reductions in thigmotaxis measures in the wall zone of the arena. Other non-prespecified endpoints in this study showed variable NAT-1 attachment-dependent differences and included parameters of ethological values such as freezing or heading error, the zone which was first entered, path efficiency to zone, and corrected integrated path length. Intriguingly, drug dependent changes in these proxies were not influenced by NAT-1 attachments.
Surgical intervention in Experiment 2 is arguably the biggest differential that may contribute to irreproducibility in behavioural outcomes between groups. It is imperative to consider possible side-effects of the implanted electrodes or surgical process which may provoke changes in sleep pattern [38]; induce meningeal lymphangiogenesis and affect brain homeostasis [39]; or increased microglial activation and seizure susceptibility [40]. Weight bearing and drug treatment may further exacerbate such side-effects (see [41] for discussion). What appears crucial is that a direct comparison between unoperated and surgically operated specimens with telemetric devices should be performed for each behavioural test before subjects with EEG recording devices can be classed as ‘normal’ controls. There is still abundant room for further assessments to determine if responses remain robust in more complex behavioural paradigms or in e.g. other mouse lines or genetically modified strains. Aspect that may be addressed in the future is the effect of head-stage/NAT-1 attachments on more fine-grained behavioural fractionations using unsupervised, data-driven approaches [42,43] which require considerable hardware and software upgrades. . This may be relevant to studies exploring severe behavioural anomalies in different etiological responses as indications of anxiety [44,45,46] or epilepsy [47].
Overall, our data provide compelling evidence for by and large undisturbed behaviour in terms of spatial exploration, as all changes induced by drugs in reported parameters were similarly observed with and without NAT-1 attachment. This study confirms the robustness of behavioural responses in the context of using wireless recording devices in the open field. Data robustness per se is important as many laboratories provide EEG findings aligned with behavioural responses, such as ours [3,7,48]. Normative behaviour is critical if EEG recordings are interpreted as representative for a ‘normal’ animal.

Author Contributions

Charmaine Lim: Conceptualization, Methodology, Investigation, Formal Analysis, Data archiving, Writing – original draft; Jack Bray: Methodology, Investigation; Review; Sanna Janhunen: Conceptualization, Methodology, Review & Editing; Bettina Platt: Conceptualization, Methodology, Supervision, Review and Editing; Gernot Riedel: Conceptualization, Project administration, Supervision, Methodology, Writing – Review & Editing, Funding. All authors have read and agreed to the published version of the manuscript.

Funding

This project included funding from the Innovative Medicines Initiative 2/EFPIA, European Quality in Preclinical Data (EQIPD) consortium under grant agreement number 777364.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Review Board (or Ethics Committee) of the University of Aberdeen.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are presented in this paper and numerically will be made available on request.

Acknowledgments

We would also like to acknowledge the staff of the Medical Research Facility, University of Aberdeen, for their support with animal care, handling and behavioural experiments.

Conflicts of Interest

None to declare.

References

  1. Ahnaou, A.; Huysmans, H.; Jacobs, T.; Drinkenburg, W.H.I.M. Cortical EEG Oscillations and Network Connectivity as Efficacy Indices for Assessing Drugs with Cognition Enhancing Potential. Neuropharmacology 2014, 86, 362–377. [Google Scholar] [CrossRef] [PubMed]
  2. Crispin-Bailey, C.; Moulds, A.; Platt, B.; Hollier, G.P.; Freeman, M.J.; Fargus, A.G. A Miniaturized 4-Channel, 2KSa/Sec Biosignal Data Recorder With 3-Axis Accelerometer and Infra-Red Timestamp Function. In Proceedings of the Seventh International Conference on Sensor Technologies and Applications; 2013. [Google Scholar]
  3. Crouch, B.; Yeap, J.M.; Pais, B.; Riedel, G.; Platt, B. Of Mice and Motion: Behavioural-EEG Phenotyping of Alzheimer’s Disease Mouse Models. J. Neurosci. Methods 2019, 319, 89–98. [Google Scholar] [CrossRef] [PubMed]
  4. Dhamne, S.C.; Silverman, J.L.; Super, C.E.; Lammers, S.H.T.; Hameed, M.Q.; Modi, M.E.; Copping, N.A.; Pride, M.C.; Smith, D.G.; Rotenberg, A.; et al. Replicable in Vivo Physiological and Behavioral Phenotypes of the Shank3B Null Mutant Mouse Model of Autism. Mol. Autism 2017, 8, 26. [Google Scholar] [CrossRef] [PubMed]
  5. Drinkenburg, W.H.I.M.; Ruigt, G.S.F.; Ahnaou, A. Pharmaco-EEG Studies in Animals: An Overview of Contemporary Translational Applications. Neuropsychobiology 2015, 72, 151–164. [Google Scholar] [CrossRef]
  6. Etholm, L.; Arabadzisz, D.; Lipp, H.P.; Heggelund, P. Seizure Logging: A New Approach to Synchronized Cable-Free EEG and Video Recordings of Seizure Activity in Mice. J. Neurosci. Methods 2010, 192, 254–260. [Google Scholar] [CrossRef] [PubMed]
  7. Jyoti, A.; Plano, A.; Riedel, G.; Platt, B. EEG, Activity, and Sleep Architecture in a Transgenic AβPP Swe/PSEN1 A246E Alzheimer’s Disease Mouse. J. Alzheimers Dis. 2010, 22, 873–887. [Google Scholar] [CrossRef]
  8. Platt, B.; Drever, B.; Koss, D.; Stoppelkamp, S.; Jyoti, A.; Plano, A.; Utan, A.; Merrick, G.; Ryan, D.; Melis, V.; et al. Abnormal Cognition, Sleep, EEG and Brain Metabolism in a Novel Knock-in Alzheimer Mouse, PLB1. PloS One 2011, 6, e27068–e27068. [Google Scholar] [CrossRef] [PubMed]
  9. Rung, J.P.; Carlsson, A.; Rydén Markinhuhta, K.; Carlsson, M.L. (+)-MK-801 Induced Social Withdrawal in Rats; a Model for Negative Symptoms of Schizophrenia. Prog. Neuropsychopharmacol. Biol. Psychiatry 2005, 29, 827–832. [Google Scholar] [CrossRef]
  10. Svoboda, J.; Stankova, A.; Entlerova, M.; Stuchlik, A. Acute Administration of MK-801 in an Animal Model of Psychosis in Rats Interferes with Cognitively Demanding Forms of Behavioral Flexibility on a Rotating Arena. Front. Behav. Neurosci. 2015, 9, 75. [Google Scholar] [CrossRef]
  11. van der Staay, F.J.; Rutten, K.; Erb, C.; Blokland, A. Effects of the Cognition Impairer MK-801 on Learning and Memory in Mice and Rats. Behav. Brain Res. 2011, 220, 215–229. [Google Scholar] [CrossRef]
  12. Wu, J.; Zou, H.; Strong, J.A.; Yu, J.; Zhou, X.; Xie, Q.; Zhao, G.; Jin, M.; Yu, L. Bimodal Effects of MK-801 on Locomotion and Stereotypy in C57BL/6 Mice. Psychopharmacology (Berl.) 2005, 177, 256–263. [Google Scholar] [CrossRef] [PubMed]
  13. Cheon, S.Y.; Koo, B.-N.; Kim, S.Y.; Kam, E.H.; Nam, J.; Kim, E.J. Scopolamine Promotes Neuroinflammation and Delirium-like Neuropsychiatric Disorder in Mice. Sci. Rep. 2021, 11, 8376. [Google Scholar] [CrossRef] [PubMed]
  14. Robinson, L.; Harbaran, D.; Riedel, G. Visual Acuity in the Water Maze: Sensitivity to Muscarinic Receptor Blockade in Rats and Mice. Behav. Brain Res. 2004, 151, 277–286. [Google Scholar] [CrossRef]
  15. Mabunga, D.F.N.; Park, D.; Ryu, O.; Valencia, S.T.; Adil, K.J.L.; Kim, S.; Kwon, K.J.; Shin, C.Y.; Jeon, S.J. Recapitulation of Neuropsychiatric Behavioral Features in Mice Using Acute Low-Dose MK-801 Administration. Exp. Neurobiol. 2019, 28, 697–708. [Google Scholar] [CrossRef] [PubMed]
  16. Qi, C.; Zou, H.; Zhang, R.; Zhao, G.; Jin, M.; Yu, L. Age-Related Differential Sensitivity to MK-801-Induced Locomotion and Stereotypy in C57BL/6 Mice. Eur. J. Pharmacol. 2008, 580, 161–168. [Google Scholar] [CrossRef] [PubMed]
  17. Wegener, N.; Nagel, J.; Gross, R.; Chambon, C.; Greco, S.; Pietraszek, M.; Gravius, A.; Danysz, W. Evaluation of Brain Pharmacokinetics of (+)MK-801 in Relation to Behaviour. Neurosci. Lett. 2011, 503, 68–72. [Google Scholar] [CrossRef] [PubMed]
  18. Zuo, D.Y.; Zhang, Y.H.; Cao, Y.; Wu, C.F.; Tanaka, M.; Wu, Y.L. Effect of Acute and Chronic MK-801 Administration on Extracellular Glutamate and Ascorbic Acid Release in the Prefrontal Cortex of Freely Moving Mice on Line with Open-Field Behavior. Life Sci. 2006, 78, 2172–2178. [Google Scholar] [CrossRef] [PubMed]
  19. Percie du Sert, N.; Hurst, V.; Ahluwalia, A.; Alam, S.; Avey, M.T.; Baker, M.; Browne, W.J.; Clark, A.; Cuthill, I.C.; Dirnagl, U.; et al. The ARRIVE Guidelines 2.0: Updated Guidelines for Reporting Animal Research. PLoS Biol. 2020, 18, e3000410. [Google Scholar] [CrossRef] [PubMed]
  20. Paxinos, G.; Franklin, K.B.J. The Mouse Brain in Stereotaxic Coordinates, 2nd Edition; 2001; ISBN 978-0-12-547636-2.
  21. Wang, B.-S.; Wang, X.-J.; Gong, L.-K. The Construction of a Williams Design and Randomization in Cross-Over Clinical Trials Using SAS. J. Stat. Softw. Vol 1 Code Snippet 1 2009 2009. [Google Scholar]
  22. Robinson, L.; Spruijt, B.; Riedel, G. Between and within Laboratory Reliability of Mouse Behaviour Recorded in Home-Cage and Open-Field. J. Neurosci. Methods 2018, 300, 10–19. [Google Scholar] [CrossRef]
  23. Robinson, L.; Riedel, G. Comparison of Automated Home-Cage Monitoring Systems: Emphasis on Feeding Behaviour, Activity and Spatial Learning Following Pharmacological Interventions. J. Neurosci. Methods 2014, 234, 13–25. [Google Scholar] [CrossRef] [PubMed]
  24. Wahlsten, D. Standardizing Tests of Mouse Behavior: Reasons, Recommendations, and Reality. Physiol. Behav. 2001, 73, 695–704. [Google Scholar] [CrossRef] [PubMed]
  25. Spruijt, B.M.; Peters, S.M.; de Heer, R.C.; Pothuizen, H.H.J.; van der Harst, J.E. Reproducibility and Relevance of Future Behavioral Sciences Should Benefit from a Cross Fertilization of Past Recommendations and Today’s Technology: “Back to the Future. ” J. Neurosci. Methods 2014, 234, 2–12. [Google Scholar] [CrossRef] [PubMed]
  26. Head, M.L.; Holman, L.; Lanfear, R.; Kahn, A.T.; Jennions, M.D. The Extent and Consequences of P-Hacking in Science. PLoS Biol. 2015, 13, e1002106–e1002106. [Google Scholar] [CrossRef] [PubMed]
  27. Gehlenborg, N.; Wong, B. Heat Maps. Nat. Methods 2012, 9, 213. [Google Scholar] [CrossRef] [PubMed]
  28. Timotius, I.K.; Canneva, F.; Minakaki, G.; Moceri, S.; Plank, A.-C.C.; Casadei, N.; Riess, O.; Winkler, J.; Klucken, J.; Eskofier, B.; et al. Systematic Data Analysis and Data Mining in CatWalk Gait Analysis by Heat Mapping Exemplified in Rodent Models for Neurodegenerative Diseases. J. Neurosci. Methods 2019, 326, 108367. [Google Scholar] [CrossRef] [PubMed]
  29. Ho, J.; Tumkaya, T.; Aryal, S.; Choi, H.; Claridge-Chang, A. Moving beyond P Values: Everyday Data Analysis with Estimation Plots. bioRxiv 2018, 1–15. [Google Scholar] [CrossRef]
  30. Johnston, M.G.; Faulkner, C. A Bootstrap Approach Is a Superior Statistical Method for the Comparison of Non-Normal Data with Differing Variances. New Phytol. 2021, 230, 23–26. [Google Scholar] [CrossRef] [PubMed]
  31. R Core Team (2023). R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria.
  32. Lundt, A.; Wormuth, C.; Siwek, M.E.; Müller, R.; Ehninger, D.; Henseler, C.; Broich, K.; Papazoglou, A.; Weiergräber, M. EEG Radiotelemetry in Small Laboratory Rodents: A Powerful State-of-the Art Approach in Neuropsychiatric, Neurodegenerative, and Epilepsy Research. Neural Plast. 2016, 2016, 8213878. [Google Scholar] [CrossRef]
  33. Mansouri, M.T.; Ahmed, M.T.; Cassim, T.Z.; Kreuzer, M.; Graves, M.C.; Fenzl, T.; García, P.S. Telemetric Electroencephalography Recording in Anesthetized Mice—A Novel System Using Minimally-Invasive Needle Electrodes with a Wireless OpenBCITM Cyton Biosensing Board. MethodsX 2023, 10, 102187. [Google Scholar] [CrossRef]
  34. Papazoglou, A.; Lundt, A.; Wormuth, C.; Ehninger, D.; Henseler, C.; Soós, J.; Broich, K.; Weiergräber, M. Non-Restraining EEG Radiotelemetry: Epidural and Deep Intracerebral Stereotaxic EEG Electrode Placement. J. Vis. Exp. JoVE 2016, 54216. [Google Scholar] [CrossRef]
  35. Weiergräber, M.; Henry, M.; Hescheler, J.; Smyth, N.; Schneider, T. Electrocorticographic and Deep Intracerebral EEG Recording in Mice Using a Telemetry System. Brain Res. Protoc. 2005, 14, 154–164. [Google Scholar] [CrossRef]
  36. Pennartz, C.M.A.; Farisco, M.; Evers, K. Indicators and Criteria of Consciousness in Animals and Intelligent Machines: An Inside-Out Approach; 2019; Vol. 13; ISBN 1662-5137.
  37. Waldmann, M.R.; Schmid, M.; Wong, J.; Blaisdell, A.P. Rats Distinguish between Absence of Events and Lack of Evidence in Contingency Learning. Anim. Cogn. 2012, 15, 979–990. [Google Scholar] [CrossRef] [PubMed]
  38. Ranjbaran, Z.; Keefer, L.; Stepanski, E.; Farhadi, A.; Keshavarzian, A. The Relevance of Sleep Abnormalities to Chronic Inflammatory Conditions. Inflamm. Res. 2007, 56, 51–57. [Google Scholar] [CrossRef] [PubMed]
  39. Hauglund, N.L.; Kusk, P.; Kornum, B.R.; Nedergaard, M. Meningeal Lymphangiogenesis and Enhanced Glymphatic Activity in Mice with Chronically Implanted EEG Electrodes. J. Neurosci. 2020, 40, 2371–2380. [Google Scholar] [CrossRef]
  40. Balzekas, I.; Hernandez, J.; White, J.; Koh, S. Confounding Effect of EEG Implantation Surgery: Inadequacy of Surgical Control in a Two Hit Model of Temporal Lobe Epilepsy. Neurosci. Lett. 2016, 622, 30–36. [Google Scholar] [CrossRef]
  41. Ahuis, T.P.; Symk, M.K.; Laloux, C.; Jack, B.; Aulehner, K.; Waldron, A.-M.; Miljanovic, N.; Seiffert, I.; Dekun, S.; Boulanger, B.; et al. Evaluation of Variation in Preclinical EEG Spectral Power across Multiple Laboratories and Experiments: An EQIPD Study. PlosOne in press. 2024. [Google Scholar]
  42. Egnor, S.E.R.; Branson, K. Computational Analysis of Behavior. Annu. Rev. Neurosci. 2016, 39, 217–236. [Google Scholar] [CrossRef] [PubMed]
  43. Wiltschko, A.B.; Tsukahara, T.; Zeine, A.; Anyoha, R.; Gillis, W.F.; Markowitz, J.E.; Peterson, R.E.; Katon, J.; Johnson, M.J.; Datta, S.R. Revealing the Structure of Pharmacobehavioral Space through Motion Sequencing. Nat. Neurosci. 2020, 23, 1433–1443. [Google Scholar] [CrossRef]
  44. Blanchard, D.C.; Summers, C.H.; Blanchard, R.J. The Role of Behavior in Translational Models for Psychopathology: Functionality and Dysfunctional Behaviors. Neurosci. Biobehav. Rev. 2013, 37, 1567–1577. [Google Scholar] [CrossRef]
  45. Lister, R.G. Ethologically-Based Animal Models of Anxiety Disorders. Pharmacol. Ther. 1990, 46, 321–340. [Google Scholar] [CrossRef] [PubMed]
  46. Peters, S.M.; Pothuizen, H.H.J.; Spruijt, B.M. Ethological Concepts Enhance the Translational Value of Animal Models. Eur. J. Pharmacol. 2015, 759, 42–50. [Google Scholar] [CrossRef] [PubMed]
  47. Akman, O.; Raol, Y.H.; Auvin, S.; Cortez, M.A.; Kubova, H.; de Curtis, M.; Ikeda, A.; Dudek, F.E.; Galanopoulou, A.S. Methodologic Recommendations and Possible Interpretations of Video-EEG Recordings in Immature Rodents Used as Experimental Controls: A TASK1-WG2 Report of the ILAE/AES Joint Translational Task Force. Epilepsia Open 2018, 3, 437–459. [Google Scholar] [CrossRef] [PubMed]
  48. Crouch, B.; Sommerlade, L.; Veselcic, P.; Riedel, G.; Schelter, B.; Platt, B. Detection of Time-, Frequency- and Direction-Resolved Communication within Brain Networks. Sci. Rep. 2018, 8, 1825. [Google Scholar] [CrossRef]
Preprints 106482 g001

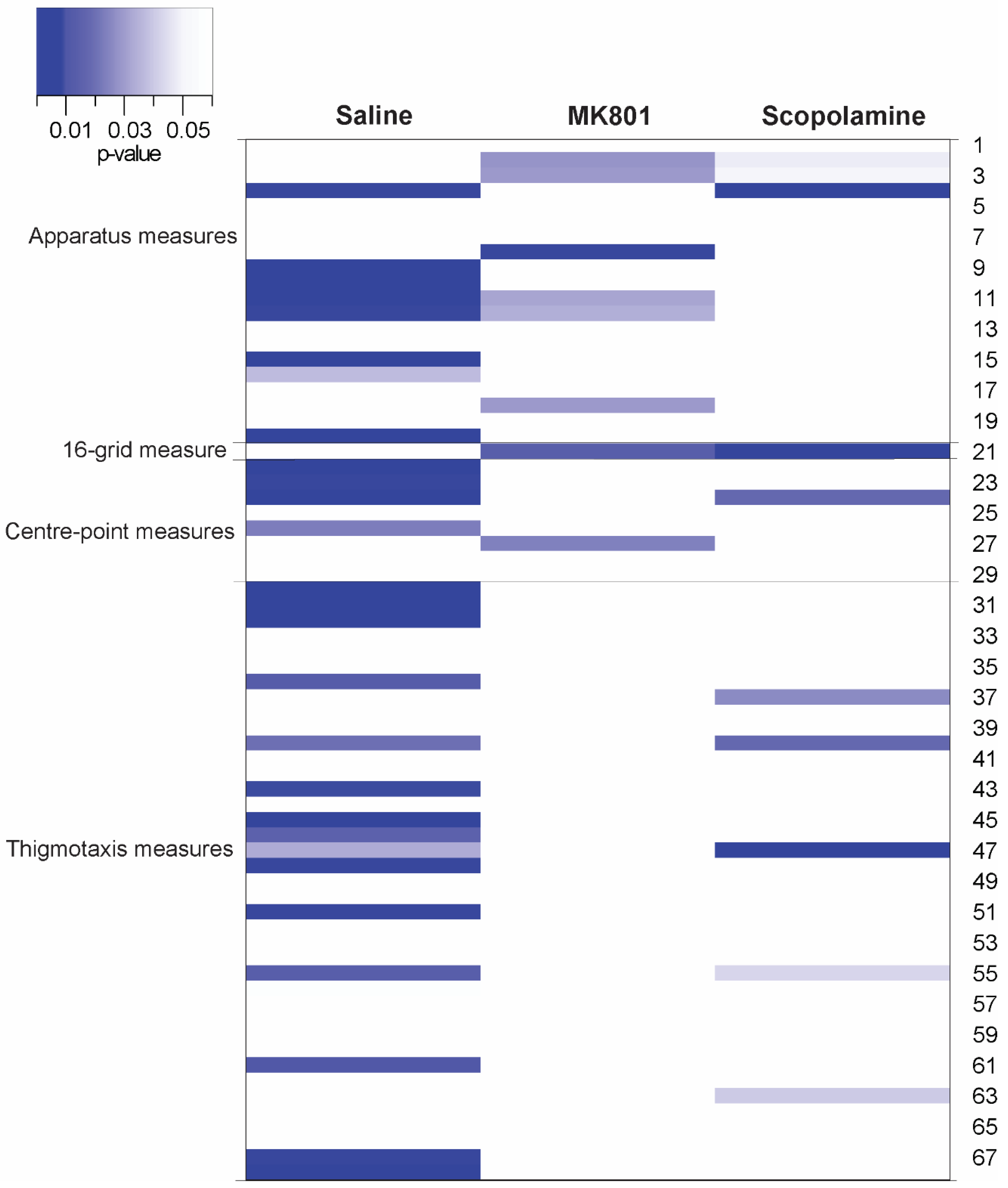

Figure 1. Heat-map comparing experiment 1 (no head-stage/NAT-1) and 2 (with head-stage + NAT-1) for each drug treatment. Parameters are clustered into apparatus measures (#1-20; commonly used in the analysis of standard parameters); 16-grid measure (#21); centre-point measures (#22-29); and thigmotaxis measures (#30-68). The intensity of colours on the heat-map was scaled accordingly with the head-stage/treatment cohorts and the parameter presenting the greatest differences of p-values between head-stage/treatment cohorts were isolated and analysed. Data presented in blue in the heat-map represents a p-value with the threshold of 0.05 in the between-experiment comparisons. The heat-map was visualized in R (v4.3.0).
Figure 1. Heat-map comparing experiment 1 (no head-stage/NAT-1) and 2 (with head-stage + NAT-1) for each drug treatment. Parameters are clustered into apparatus measures (#1-20; commonly used in the analysis of standard parameters); 16-grid measure (#21); centre-point measures (#22-29); and thigmotaxis measures (#30-68). The intensity of colours on the heat-map was scaled accordingly with the head-stage/treatment cohorts and the parameter presenting the greatest differences of p-values between head-stage/treatment cohorts were isolated and analysed. Data presented in blue in the heat-map represents a p-value with the threshold of 0.05 in the between-experiment comparisons. The heat-map was visualized in R (v4.3.0).
Preprints 106482 g001
Preprints 106482 g002
Figure 2. Behavioural responses for locomotor activity between Experiments 1 (E1) and 2 (E2). (a) Representative exploration paths of animals (with and without head-stage + NAT-1) administered with vehicle, MK801 or scopolamine recorded in the open field test and visualized by track-plots divided into time bins , 0-15 minutes and 15-30 minutes. The periphery (thigmotaxis zone) of the open field arena is demarcated by a red border, 5 cm away from the walls of the arena. Representative paths were illustrated using an in-house MATLAB (R2018a, Mathworks, USA) script. (b) Analysis of locomotor activity by cumulative distance travelled and (c) total distance travelled over 30 minutes of testing in the open field was visualised in 5-minute time bins. Individuals are represented by single data points with their respective means (gap) ± standard deviation (vertical lines) in the top axis. The shaded curve and the error in the bottom axis demonstrate the distribution of sampling error and its respective 95% confidence interval for the difference between the means. Performance of animals in E1 is represented by the 0 line in the bottom axis. Conventional statistics (independent sample t-tests) revealing a significance set at 95% (p<0.05) are annotated as text on (b). All analyses were bootstrapped at 1000 resamples, with seed set at 123456 and visualized in R (v.4.3.0). E1, with no head-stage/NAT-1; and E2with head-stage and NAT-1..
Figure 2. Behavioural responses for locomotor activity between Experiments 1 (E1) and 2 (E2). (a) Representative exploration paths of animals (with and without head-stage + NAT-1) administered with vehicle, MK801 or scopolamine recorded in the open field test and visualized by track-plots divided into time bins , 0-15 minutes and 15-30 minutes. The periphery (thigmotaxis zone) of the open field arena is demarcated by a red border, 5 cm away from the walls of the arena. Representative paths were illustrated using an in-house MATLAB (R2018a, Mathworks, USA) script. (b) Analysis of locomotor activity by cumulative distance travelled and (c) total distance travelled over 30 minutes of testing in the open field was visualised in 5-minute time bins. Individuals are represented by single data points with their respective means (gap) ± standard deviation (vertical lines) in the top axis. The shaded curve and the error in the bottom axis demonstrate the distribution of sampling error and its respective 95% confidence interval for the difference between the means. Performance of animals in E1 is represented by the 0 line in the bottom axis. Conventional statistics (independent sample t-tests) revealing a significance set at 95% (p<0.05) are annotated as text on (b). All analyses were bootstrapped at 1000 resamples, with seed set at 123456 and visualized in R (v.4.3.0). E1, with no head-stage/NAT-1; and E2with head-stage and NAT-1..
Preprints 106482 g002
Preprints 106482 g003
Figure 3. Comparison of behavioural responses for parameters of distance between Experiments 1 (E1) and 2 (E2). (a) average distance from the centre-point; (b) line-crossings; (c) thigmotaxic ratio; (d) time spent in the thigmotaxic zone; (e) total number of rotations; and (f) meandering. Individuals are represented by single data points with their respective means (gap) ± standard deviation (vertical lines) in the top axis. The shaded curve and the error in the bottom axis demonstrate the distribution of sampling error and its respective 95% confidence interval for the difference between the means. Performance of animals in E1 is represented by the 0 line in the bottom axis. Conventional statistics (independent sample t-tests) revealing significance set at 95% (p<0.05) are annotated as text on the graphs. All analyses were bootstrapped at 1000 resamples, with seed set at 123456, and visualized in R (v.4.3.0). E1 with no head-stage/NAT-1; and E2 with head-stage and NAT-1.
Figure 3. Comparison of behavioural responses for parameters of distance between Experiments 1 (E1) and 2 (E2). (a) average distance from the centre-point; (b) line-crossings; (c) thigmotaxic ratio; (d) time spent in the thigmotaxic zone; (e) total number of rotations; and (f) meandering. Individuals are represented by single data points with their respective means (gap) ± standard deviation (vertical lines) in the top axis. The shaded curve and the error in the bottom axis demonstrate the distribution of sampling error and its respective 95% confidence interval for the difference between the means. Performance of animals in E1 is represented by the 0 line in the bottom axis. Conventional statistics (independent sample t-tests) revealing significance set at 95% (p<0.05) are annotated as text on the graphs. All analyses were bootstrapped at 1000 resamples, with seed set at 123456, and visualized in R (v.4.3.0). E1 with no head-stage/NAT-1; and E2 with head-stage and NAT-1.
Preprints 106482 g003
Table 1. Details pertaining to the study designs, experimental conditions, and husbandry in Experiments 1 and 2.
Table 1. Details pertaining to the study designs, experimental conditions, and husbandry in Experiments 1 and 2.
Experiment 1 Experiment 2
Study Outcome Pharmacological studies without EEG attachments Pharmacological studies in animals with EEG attachments
Persons involved (Blinder and experimenter) 2 3
Location at which tests were conducted Sound-attenuated room Sound-attenuated room
Animals
Strain C57BL/6J (Wildtype; total n = 29) C57BL/6J (Wildtype; total n = 27)
Supplier/ Breeder Charles River Laboratories, Kent, UK Charles River Laboratories, Kent, UK
Transport By road By road
Specific pathogen free conditions Yes Yes
Age at arrival and acclimatisation to facility 10 weeks; 2 weeks of acclimatisation 9 weeks; 2 weeks of acclimatisation
Housing/ husbandry; test room conditions
Cage type Conventional shoe box cages with wire top feeders; single housing Conventional shoe box cages with wire top feeders (only 1 was moved to IVC cage); single housing
Enrichment; bedding Cardboard rolls in all cages; corncob and aspen shavings (ratio 3:1) No enrichment; corncob and aspen shavings (ratio 3:1)
Temperature, humidity 21 ± 2 °C; 50 ± 5 % 21 ± 2 °C; 50 ± 5 %
Exposure of animal to handling Two/three times a day by facility staff Two/three times a day by facility staff
Noise/background noise Background noise (music) during light phase Background noise (music) during light phase
Dark/light cycle 12:12 hours; start of light phase at 07:00, no red light during dark phase 12:12 hours; start of light phase at 07:00, no red light during dark phase
Diet Normal chow pellets (SDS CRM) and room-temperature water ad libitum Normal chow pellets (SDS CRM) and room-temperature water ad libitum
Handling of cages Cleaning once every 2 weeks; water and food changed/topped up twice a week. Cleaning once every 2 weeks; water and food changed/topped up twice a week.
Experimental: animals
Age of animal at start to experiment 12-13 weeks (at the start of testing) 10-11 weeks (at surgery) and 12-13 weeks (at the start of testing)
Transport of animals in facility Silent trolley type; cages were not blacked out or covered during transport Silent trolley type; cages were not blacked out or covered during transport
Time of testing, day of week Commencement at 10:00; testing was conducted from Monday to Thursday on the first week, and Monday to Wednesday on the second week. Commencement at 10:00; testing was conducted from Monday to Thursday on the first week, and Monday to Wednesday on the second week.
Total duration of test phase per day Approx. 5 hours (4 animals tested am, 3 tested pm) Approx. 5 hours (3 animals tested am, 3 tested pm)
Animal under diet restrictions during experimental phase No No, except during NAT-1 application and drug administration: water bottles were removed, and cage lids were overturned to prevent NAT devices from accidentally wedging onto cage-lids and food-hoppers
*Naivety to experimental paradigm and drugs Naïve to both experimental procedures and drugs Home cage EEG recording and check, 24 hours prior to open field test; naïve to drugs
Experimental: surgical protocols
*Time period between surgeries and start of experiment N.A. 2 weeks
*Total duration of surgery per day N.A. Approx. 7 hours/day (commencement at 08.00; surgeries performed only on Mondays and Tuesdays
*Anaesthetic N.A. Gas anaesthesia (isoflurane) 1.0 ml saline (intraperitoneal) and 0.2 ml buprenorphine (subcutaneous; Vetergesic®, Cera Animal Health Ltd, UK).
*Analgesia N.A. Drinking water was supplemented with Rimadyl® for 2 days before and after the surgery
*Surgical procedure N.A. 1 surgeon; 2 assistants
Experimental: design and methods/data analysis
Drug, and concentration 0.9 % saline; 0.65 mg/kg MK801; 0.85 mg/kg scopolamine. Intra-peritoneal administration of 10mg/kg of treatment. 0.9 % saline; 0.65 mg/kg MK801; 0.85 mg/kg scopolamine. Intra-peritoneal administration of 10mg/kg of treatment.
*Experimenter 1 female 2 females and 1 male
*Frequency of handling Handling during drug injections, immediately before and after test. Handling during NAT-1 applications, drug injections, immediately before and after test.
Randomisation method for allocation of animals to test groups random.org, Williams square design. random.org, Williams square design.
Blinding of experimenter to group allocation Yes. Yes.
Standardisation of animal handling across experimenters (protocol and training) Yes (1 in randomisation and blinding, 1 in drug administration and experiment) Yes (2 involved in NAT-1 device application and drug administration and randomisation, 1 in experiment)
Software used in recording and data extraction Automatic tracking software, ANY-Maze (v.5.1) Automatic tracking software, ANY-Maze (v.5.1)
Inclusion and exclusion criteria No inclusion criteria. Exclusion criteria based on analysis using Grubb’s method before re-evaluation of animal behaviour (video). No inclusion criteria. Exclusion criteria based on analysis using Grubb’s method before re-evaluation of animal behaviour (video).
Statistical analysis Bootstrapped one-way ANOVA and t-test for conventional analysis; repeated measures ANOVA for binned analysis; and estimation statistics to determine the magnitude of differences. Bootstrapped one-way ANOVA and t-test for conventional analysis; repeated measures ANOVA for binned analysis; and estimation statistics to determine the magnitude of differences.
Experimental: complexity of test arena
Test arena Square; 50 x 50 x 50 cm; white Perspex Square; 50 x 50 x 50 cm; white Perspex
Average light intensity in test arena 320 lux 320 lux
Temperature and humidity in test room 20 ± 2 °C; 48 ± 5 %; no background noise 20 ± 2°C; 48 ± 5 %; no background noise
Number of test arenas used at any given time 1 1
Cleaning agents Non-fragrant and alcohol-free wet wipes Non-fragrant and alcohol-free wet wipes
*Inconsistent experimental factors which differed between experiments.
Table 2. Summary of between-experiment comparisons for each drug treatment in pre-selected parameters. Data was obtained by bootstrapped independent T-tests (two-tailed) and mean difference was obtained using estimation analysis. All analyses were resampled 1000 times (seed starting at 123456) and obtained in R (v.4.3.0) and significance was considered where p<0.05 (highlighted in red).
Table 2. Summary of between-experiment comparisons for each drug treatment in pre-selected parameters. Data was obtained by bootstrapped independent T-tests (two-tailed) and mean difference was obtained using estimation analysis. All analyses were resampled 1000 times (seed starting at 123456) and obtained in R (v.4.3.0) and significance was considered where p<0.05 (highlighted in red).
Parameters Drug Between-experiment comparisons E2 minus E1
E1 E2 p -value Mean difference
[95% CI]
mean±SD mean±SD
Distance moved (m) Saline 131.6±20.2 139.9±19.2 0.347 8.4 [-8.1; 24.6]
MK801 70.0±25.6 39.3±23.5 0.028 -30.6 [-48.6; -6.0]
Scopolamine 182.2±20.0 155.2±26.7 0.048 -26.9 [-52.3; -10.4]
Average distance from
centre-point (cm) 		Saline 0.218±0.007 0.199±0.010 0.001 -0.020 [-0.026; -0.012]
MK801 0.155±0.030 0.161±0.050 0.782 0.006 [-0.041; 0.036]
Scopolamine 0.237±0.013 0.230±0.012 0.275 -0.008 [-0.018; 0.003]
Thigmotaxis (ratio) Saline 0.532±0.052 0.463±0.049 0.020 -0.068 [-0.11; -0.021]
MK801 0.223±0.157 0.285±0.189 0.471 0.061 [-0.1; 0.207]
Scopolamine 0.807±0.147 0.777±0.128 0.667 -0.030 [-0.131; 0.115]
Thigmotaxis (s) Saline 1266.1±96.3 1050.0±105.7 0.002 -216 [-295; -123]
MK801 545.1±379.3 699.2±445.6 0.435 154 [-199; 527]
Scopolamine 1539.8±184.5 1475.8±163.8 0.437 -64 [-192; 107]
Line-crossings Saline 1060.6±145.3 1030.0±132.49 0.442 -28.6 [-148; 86.7]
MK801 866.9±265.1 458.3±238.5 0.014 -409 [-600; -158]
Scopolamine 1374.2±154.3 1012.0±196.9 0.003 -362 [-541; -242]
Meandering (degrees/s) Saline 912.5±89.5 932.0±107.4 0.668 19.5 [-63.6; 102]
MK801 2716.4±1008.4 3077±1813.4 0.603 361 [-663.0; 2100]
Scopolamine 705.6±73.5 750.4±89.2 0.325 44.7 [-25.6; 117]
Rotation Saline 76.5±10.5 98.8±12.5 0.006 16.3 [5.6; 26]
MK801 180.1±142.7 158.2±138.3 0.758 -21.9 [-156.0; 87.5]
Scopolamine 99.8±10.6 96.1±18.2 0.623 -3.7 [-18.9; 7.16]
Thigmotaxis ratio was calculated by thigmotaxis distance divided by total distance moved; SD, standard deviation; CI, confidence intervals (upper, lower bounds); E1, Experiment 1 with no head-stage/NAT-1; and E2, Experiment 2 with head-stage/NAT-1.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
