Low Carbon Monoxide Diffusing Capacity, Patient-Reported Measures and Reduced Nailfold Capillary Density Are Associated with Interstitial Lung Disease in Systemic Sclerosis

Altmetrics

Downloads

121

Views

38

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

20 May 2024

Posted:

21 May 2024

You are already at the latest version

Alerts
Abstract
To identify factors associated with interstitial lung disease (ILD) in patients with systemic sclerosis (SSc) and build an algorithm to better define this association, for a personalized application in clinical practice. Methods. 78 SSc patients underwent HRCT to assess ILD. Demographic, clinical and laboratory variables were collected, focusing on those associated either directly or indirectly with lung involvement. The discriminant value of each variable was determined using the operating characteristic curves (ROC) and included in a model to estimate the strength of ILD association in SSc. Results. Thirty-three (42.31%) patients showed ILD on HRCT. DLco, M-Borg, GERD-Q, and capillary density were significantly associated with the presence of ILD-SSc. A model including these variables had a coefficient of determination (R2) of 0.697. DLco had an AUC of 0.861 (p<0.001) with a cut-off ≤72.3% (sensitivity 78.8%, specificity 91.1%, +LR 8.86). The m-Borg scale showed an AUC of 0.883 (p<0.001) with a cut-off >2 (sensitivity 84.8%, specificity 82.2%, +LR 4.77), GERD-Q had an AUC of 0.815 (p<0.001) with a cut-off >7 (sensitivity 72.7%, specificity 86.7%, +LR 5.45). The capillary density showed an AUC of 0.815 (p<0.001) with a cut-off ≤4.78 (sensitivity 87.9%, specificity 68.9%, +LR 2.82). Based on the pre-test probability values, these four variables were applied to Fagan's nomogram to calculate the post-test probability of this association. Conclusions. Our study identified four associated clinical factors of ILD in SSc patients. Moreover, their inclusion in an algorithm for the post-test probability, tailored to the specific patients’ characteristics, significantly increases the ability to find out the presence of SSc-ILD.
Keywords:
Subject: Medicine and Pharmacology  -   Internal Medicine

1. Introduction

Systemic sclerosis (SSc) is a chronic connective tissue disorder characterized by widespread fibrosis and impaired microcirculation [1,2]. Endothelial and fibroblast dysfunction leading to tissue hypoxia, together with altered immune responses, play key roles in disease pathogenesis (1,2). In SSc, fibrosis and vasculopathy are closely associated and result in heterogeneous multi-organ clinical manifestations with a variable prognosis [1,2].
Besides the skin, internal organs are often affected, particularly the lungs (2), representing one of the major causes of death in SSc [3,4]. SSc interstitial lung disease (SSc-ILD) is characterized by early pulmonary infiltration of inflammatory cells, mainly B cells, promoting the generation and persistence of myofibroblasts, accumulation of excess extracellular matrix and subsequent fibrosis of the lung parenchyma [2,5].
All patients with SSc are at risk of SSc-ILD. Established risk factors for SSc-ILD are respiratory symptoms, smoking history, ethnicity (native American, African heritage), male gender, diffuse cutaneous (dcSSc) subset, and anti-topo I/Scl-70 antibodies [3,6]. Although the probability seems to be higher in the early stages of the disease [3,7], a recent study regarding 826 patients with SSc-ILD from the EUSTAR database found that only 21% of patients had a disease duration < 3 years, and about half of the SSc patients had no evident risk factors for SSc-ILD [8]. Therefore, the identification of additional factors associated to SSc-ILD remain an open research question [3,7,8].
The primary tool for diagnosing SSc-ILD is high-resolution computed tomography-HRCT [6,9]. Moreover, baseline and longitudinal changes in pulmonary function tests (PFTs,) mostly forced vital capacity (FVC) and diffusing capacity of the lungs for carbon monoxide (DLco) [4,6,9] are found to be associated with SSc-ILD. Other measures directly related with ILD in SSc have been recently investigated, i.e., patient reported measures of symptoms severity and quality of life [3,10,11], and the extent of oesophageal involvement [11,12]. Furthermore, the usefulness of nailfold videocapillaroscopy (NVC) in SSc-ILD has been addressed [13,14], highlighting that abnormal NVC patterns (i.e., active and late) are linked with the presence of SSc-ILD, and emphasizing that NVC could potentially be used as a biomarker in screening algorithms for SSc-ILD [13,14]. Nevertheless, none of the available tools alone can detect SSc-ILD with appropriate sensitivity and specificity compared to HRCT [3,6,7,9].
Therefore, we aimed to identify additional factors mainly linked to the clinical/biometric interface of pulmonary tissue damage that might be associated with the presence of ILD in SSc patients, trying to build a useful algorithm for further strengthen and personalize this association in daily clinical practice.

2. Patients and Methods

The study population consisted of 78 non-consecutive outpatients with SSc, without a known diagnosis of ILD, aged≥18 years, defined by the current classification criteria [15], enrolled between January and November 2023. Written informed consent was obtained from all participants, in accordance with the Declaration of Helsinki.
Patients who were unable to undergo NVC (due to reduced visibility or amputation of the phalanges), or unable to perform PFTs, patients with a high probability of PAH according to the DETECT algorithm [16] and/or with PAH diagnosed by right heart catheterization RHC, patients with SSc overlapping with other systemic connective tissue diseases, and/or those with chronic lung diseases other than SSc-ILD, and those taking antifibrotic drugs were excluded from the study.
Study approval was obtained in the context of a cross-sectional database of patients with RP secondary to SSc (RAYnaud phenoMenON Database, RAYMOND study, n. 257-2020 ID 1650), According to the study intentions, and in agreement with the current recommendations of SSc-ILD [3,6], all patients had periodic HRCT scans to screen ILD, every 12-24 months depending on their symptoms and the clinical phenotype.

Demographic, Clinical and Laboratory Data

Basic information included age, sex, and disease duration (from first non-Raynaud symptom). Patients were classified in limited (lcSSc) and diffuse SSc (dcSSc) [17]. None fit the strict definition of SSc ‘sine scleroderma’ [17]. The modified Rodnan skin score (mRSS) was used to assess the extent of skin thickness. The score was calculated by summing the rating from all 17 areas (range 0–51) [18]. We gathered other clinical data such as oesophageal symptoms (dysphagia, reflux) and dyspnoea, antinuclear antibodies (ANA), anti-extractable nuclear antigens (anti-ENA), SSc-related (anti-centromere/CENP-B, anti-topoisomerase I/Scl70, anti-RNA polymerase III) and non-SSc related (anti-U3 RNP, anti-SSA) antibodies.

HRCT Assessment and Visual Reader-Based Disease Quantification

All HRCT examinations were performed according to a standard protocol, using a CT 64GE light Speed VCT power scanner with a rotation tube scanning time of 0.65 s. Scans were acquired in full inspiration from the apex to the lung base in supine position, at 120 kV and 300 mAs, and slice thickness and spacing of scans of 1.25 and 7 mm, respectively. Contrast media agents were not employed.
The HRCTs were evaluated independently by a radiologist (MC – consultant with 20 years of experience in the field of musculoskeletal radiology) and a rheumatologist (FS – trained in HRCT interpretation) blinded to clinical and respiratory functional findings. In case of disagreement, a third reader (AG-expert radiologist) examined the scans to obtain a final consensus decision. The intraclass correlation coefficient (ICC) of the radiologists’ agreement level on total HRCT scores, as previously calculated by the CoVR method, was 0.80 [19,20]. The lung parenchymal abnormalities were assessed according to the Warrick score [21]. A point value was assigned to each abnormality as follows: ground-glass appearance = 1, irregular pleural margins = 2, septal/subpleural lines = 3, honeycombing = 4, subpleural cysts = 5. In each patient the “severity of disease” score was obtained by adding single point values. An “extent of disease” score was obtained by counting the number of bronchopulmonary segments involved for each abnormality: one to three segments scored as 1; four to nine segments scored as 2; more than nine segments scored as 3. The severity and extent of disease were then calculated as total HRCT score (range from 0 to 30). To estimate intra-observer reliability, each reader examined all HRCTs twice, with an interval of at least four weeks.

Patient-Reported Measures

The following patient-centred measures were obtained: dyspnoea severity using the modified-Borg Dyspnoea Scale (m-Borg) by the interviewer-administered paper version [20,22], a numerical scale for assessing perceived dyspnoea (breathing discomfort) with a scale of 0 = no breathlessness at all, 0.5 = very, very slight (just noticeable), 1 = very slight, 2 = slight breathlessness, 3 = moderate, 4 = somewhat severe, 5 = severe breathlessness, 7 = very severe breathlessness, 9 = very, very severe (almost maximum) and 10 = maximum, and the Health Assessment Questionnaire-Disability Index (HAQ-DI) [20,23], which is a generic, self-administrated patient-reported outcome (PRO) instrument targeted for musculoskeletal impairment, defined as a condition-specific measure of functional status (assessing activities of daily living) [20,23]. The standard HAQ-DI is calculated as an ordinal variable, from 0 = no disability to 3 = severe disability.
Gerd-Q is a simple self-administered questionnaire consisting of six items for assessing the risk of gastroesophageal reflux disease-GERD [24]. Four of these assess symptoms and situations considered to be positive predictors for GERD: heartburn, regurgitation, sleep disturbances (caused by gastric symptoms) and taking antacids, in addition to those medically prescribed, while the remaining two assess symptoms considered to be negative predictors for reflux (nausea and epigastric discomfort). The answers refer to the frequency of symptoms over the past week, using a Likert scale of 0 to 3 for positive characteristics, and 3 to 0 for negative characteristics [25]. The maximum score that can be achieved is 18. A GERD-Q cut-off of 9 was associated with the best ratio of sensitivity and specificity for the diagnosis of gastro-esophageal reflux [25].

Pulmonary Function Tests

PFTs were performed within 2 weeks from the HRCT scan by a flow-sensing spirometer and a body plethysmograph connected to a computer for data analysis while the patient was at rest in a seated position. These tests consisted in spirometry using a computerised lung analyser (MasterScreen Diffusion, Jaeger GmbH, Höchber, Germany). FVC (% predicted value) and DLco (% predicted value, corrected for haemoglobin) were obtained. At least three measurements were taken for each variable to guarantee repeatability [20].

Nailfold Capillaroscopy

All patients underwent NVC within 3 months before/after the HRCT scan, using a videocapillaroscope with a 200x magnification optical contact probe (DinoLite Digital Microscope, Dino-Lite Europe, Almere, The Netherlands). All fingers of both hands, excluding thumbs, were examined. Four contiguous fields of 1 mm in the middle of the nailfold were captured from each finger at least [26]. The corresponding images were stored and analysed by means of Dino Capture 2.0 Software (version 1.5 14.b, AnMo Electronic Corporation). An experienced investigator (FF), blinded for the clinical data, reviewed, and rated all NVC images. For each image, the total number of capillaries/mm was counted, regardless of morphology, as described for the “scleroderma pattern” [27]: U-shaped loops, tortuous capillaries, crossed loops, ramified/bushy capillaries, bizarre loops, giant capillaries (width of limbs >50 μm), both homogenously and inhomogeneously shaped. Micro-haemorrhages and micro-thrombosis were excluded from the counting process. A consensus concerning image acquisition and analysis, scoring system, reliability of image acquisition and interpretation had already been reached by the authors (RDA, EC, FF) [26,28] (Figure 1).

Statistical Analysis

All data were entered into a Microsoft Excel database and analysed with MedCalc® version 18.6 (MedCalc Software, Ostend, Belgium). The values were expressed both as mean±standard deviation (SD) or as median (interquartile range [IQR]). A two-sample “t” test was used to compare continuous variables and the χ2 test to compare categorical variables. The relationships among the lung analysis, the readers and the PFTs results were calculated using univariate regression analysis and Pearson’s product moment correlation (Pearson r values). Furthermore, multivariate regression analyses were performed to identify factors associated with higher percentage of pulmonary fibrosis at HRCT.
We included in the multivariate models the following covariates: age, sex, disease duration, anti-topoisomerase I antibodies, mRSS, m-Borg, GERD-Q, HAQ-DI, FVC and DLco (predicted), and capillary density (number of capillary/mm). Ethnicity was not included because all the enrolled patients were Caucasians.
The results were expressed as multivariate regression coefficient (R) and square regression coefficient corrected (R2) for the number of variables entered in the analysis. This enables the calculation and the predictivity of each multivariate model according to the number of variables entered in the model itself. Significance level was set at p <0.05. The predictive performance of each variable was estimated by the area under the receiver operating characteristic curve (AUC-ROC). Youden’s index on the ROC curve analysis was used to determine the optimal cut-off point for the single variables.

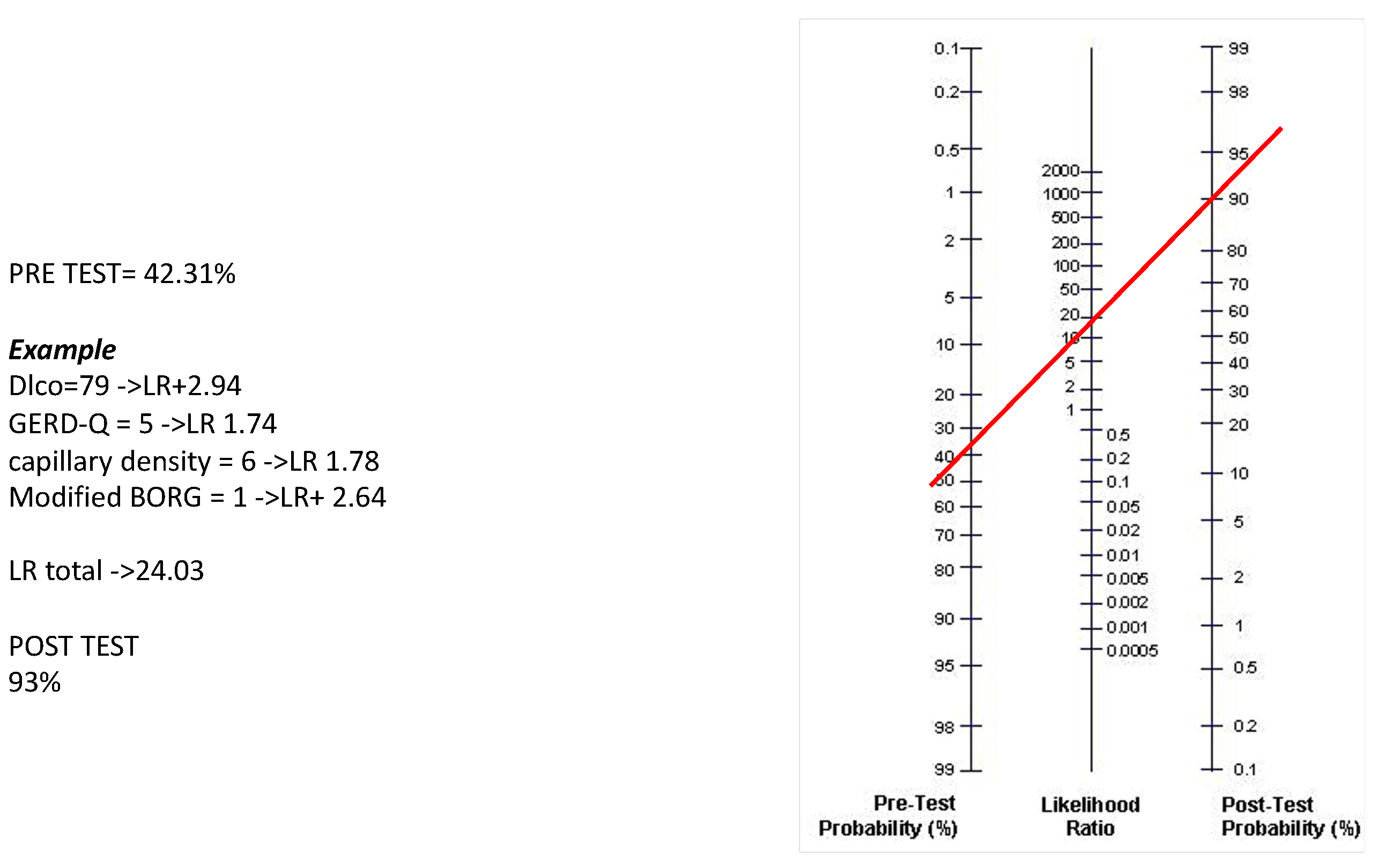

A model based on Bayes’ theorem was then constructed to determine post-test probability using the pre-test probability of illness and the product of the positive likelihood ratio (+LR) of the items. The Fagan nomogram was used to graphically represent the model. The predictive variables included in the model are those that demonstrated significance on logistic regression analysis.

3. Results

The baseline characteristics (continuous variables) of the 78 SSc patients are summarized in Table 1.
The patients’ age ranged from 22 to 76 years (mean 63.60±10.34); 88.5% were women. The mean±SD duration of the disease was 10.53±7.38 years.
Thirty-three (42.31%) patients showed on HRCT features of ILD (Warrick score >7, average total HRCT score= 11.62±7.79). The mean disease extent score was 5.64 (±3.69), the mean disease severity score was 5.97 (±4.03). Analysis of the ILD subtypes showed that UIP was found in 32 (41.0%) patients, NSIP in 21 (26.9%) patients, and unclassifiable ILD in 25 (32.1%) patients. No patient showed a diffuse alveolar damage (DAD) pattern, nor an organizing pneumonia pattern [3,19,20].
Thirty-eight (48.7%) patients were classified as having dcSSc and 40 (51.3%) patients as having lcSSc, with a mean mRSS value of 10.7±7.97. Comparison of the two groups showed that patients with dcSSc were older (65.98±10.30 vs 60.97±11.04 years; p<0.05) and with a longer disease duration (12.04±7.15 vs 9.99±8.56 years; p<0.05) than those with lcSSc. ACA were present in 35 patients (44.8%) and anti-Scl-70 in 33 (42.3%). The proportion of anti-Scl-70 was significantly higher (p=0.03) in patients with dcSSc.
The mean predicted FVC (FVC %pred) was 87.72±18.51 and the mean predicted DLco (DLco % pred) was 73.41±16.76. FVC and DLco did not differ between patients with lcSSc and dcSSc. Time interval between PFTs and HRCT was 4.9±1.6 days (range: 0–6 days).
On average, the HAQ-DI suggested a moderate functional impairment (0.96±0.45). As expected, patients with dcSSc showed higher mean HAQ-DI scores than those with lcSSc (1.12±0.39 vs 0.81±0.32; p<0.05). The mean m-Borg scale score was 2.73 (±2.22) and the Gerd-Q was 8.19 ±4.03. Finally, the mean capillary number/mm was found to be 5.44± 2.22.

3.1. Variables Associated with SSc-ILD

Table 2 reports the result of the multivariate regression analysis. DLco, M-Borg, GERD-Q, and capillary density were significantly associated with the presence of ILD-SSc at HRCT. This model had a coefficient of determination R2 of 0.697. Age, gender, disease duration, anti-topo I antibodies, FVC predicted, HAQ-DI, and mRSS were not significantly associated with ILD.

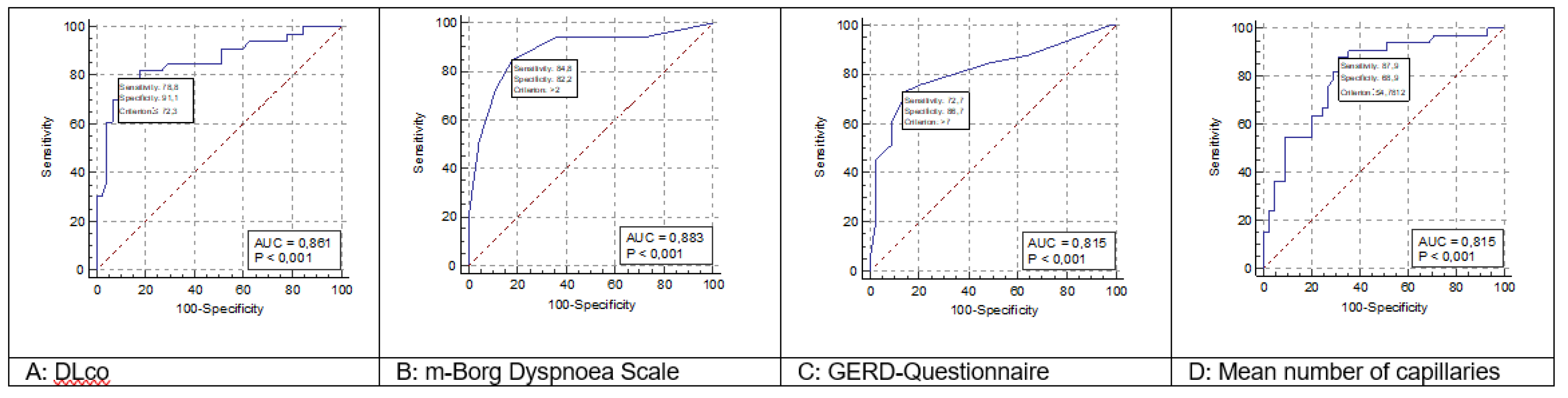

The predictive performance of each variable was estimated by the AUC-ROC analysis (Figure 2 A-B-C-D).
The DLco predicted had an AUC of 0.861 (p<0.001) and an optimal cut-off point of ≤ 72.3 (sensitivity 78.8%, specificity 91,1%, +LR 8.86) (Figure 2A) (Table A1, Appendix A). The m-Borg scale demonstrated excellent discriminative ability, with an AUC of 0.883 (p<0.001) (Figure 2B) and an optimal cut-off point of >2 (sensitivity 84.8%, specificity 82.2%, +LR 4.77) (Table A2, Appendix A). GERD-Q showed an AUC of 0.815 (p<0.001) and an optimal cut-off point >7 (sensitivity 72.7%, specificity 86.7%, +LR 5.45) (Figure 2C) (Table A3, Appendix B), and the capillary density showed an AUC of 0.815 (p<0.001) and an optimal cut-off point ≤ 4.78 (sensitivity 87.9%, specificity 68.9%, +LR 2.82 (Figure 2D) (Table A4, Appendix B).
The four variables (DLco, m-Borg, GERD-Q, and the mean capillary density/n. of capillary/mm) have been applied to the Fagan nomogram to calculate the post-test probability of having SSc-ILD. Calculation of the post-test probability is based on the pre-test probability (42.3% in our case series, which may vary depending on different local settings) and the product of the +LRs of the four items in the individual patient. Figure 3 shows an example of this calculation.

4. Discussion

Our study identified four variables indicating a significant association with SSc- ILD, namely DLco, m-Borg, GERD-Q, and capillary density. Moreover, the concomitant inclusion of the single measures obtained in a post-test algorithm, tailored to these specific patient characteristics, significantly increases the likelihood of this association.
All patients with SSc should be screened for ILD at the time of diagnosis [3,9], as SSc-ILD can be progressive, even in “lower risk” patients [7]. The estimated prevalence of ILD in SSc patients is highly variable depending on the population studied and the used methodology [3]. In a Canadian registry, 64% of 289 patients with SSc were diagnosed with ILD by HRCT, compared to 26% by physical examination and 22% by chest X-ray [29]. In a Norwegian population-based cohort of 650 patients with SSc, ILD at baseline was manifest on HRCT in half of the patients [30]. Our ILD prevalence was slightly lower (42.31%), presumably due to the single-centre design of the study and the type of the methodology used for reading out the HRCT images, carried out by a radiologist and a rheumatologist with extensive experience in ILD evaluation [19,20,21].
Experts in SSc agree that comparative analysis of PFTs at the time of diagnosis may be relevant to estimate and predict SSc-ILD outcome [3,6,9,29,31], but PFTs alone are not sufficient as a tool for detecting patients with no obvious ILD on HRCT [3,31,32,33] since they reproducibility may vary [11,31,33], and can be supplemented with additional information [30,31,32,33]. We found that a reduced DLco of 72.3% exhibits the best probability to be associated with SSc-ILD. Of note, DLco could be reduced if concomitant PAH and/or emphysema are present, but it should be mentioned that in our study, patients with a high probability of PAH according to the DETECT algorithm and/or PAH diagnosed by RHC and/or with chronic lung disease other than SSc-ILD were excluded [11,16,28,31,34].
Questionnaires assessing dyspnoea in SSc-ILD as well as quality of life are used in clinical practice [10,20,35], especially for correlation with the extent of pulmonary involvement [10,20]. In our study we found a significant ability of m-Borg in identifying patients with SSc-ILD, similarly to the DLco. Obviously, m-Borg and DLCO are linked, one being the clinical counterpart of dyspnoea and the other reflecting alveolar-capillary exchanges, which are altered in ILDs [36,37].
Some studies suggested that gastro-oesophageal reflux may play a significant role in the pathogenesis of SSc-ILD [38,39,40]. Abnormalities in oesophageal peristalsis and the reduced oesophageal sphincter pressure are believed to lead to recurring micro-aspiration of gastric acid into the respiratory tract, resulting in chronic inflammation and progressive tissue damage [39,40,41]. Results of our study provide evidence that the self-administration of Gerd-Q, a validated questionnaire addressing the symptoms of gastro-oesophageal reflux [24,25,42], can be used to assess the presence of SSc-ILD, being this association more likely when the score is >7.
Microvascular damage is one of the characteristic findings in SSc, which may occur early in the disease course. Moreover, it is thought to be strongly involved in the SSc-ILD pathogenesis [2,14,41,43]. A causal relationship between microcirculation abnormalities and pulmonary fibrosis could be found in the association of SSc-ILD with structural capillary changes detected by NVC [13,14]. Among the typical abnormalities belonging to the “scleroderma pattern” capillary loss appears to be the one most correlated with ILD, through a qualitative (“active and “late” pattern) and quantitative assessment [13,44,45,46]. In particular, a significant lower capillary density was reported in 48 patients with SSc-ILD diagnosed by HRCT [44] and, similarly, in 58 patients [45]. Our findings confirmed this association, also strengthen its value in identifying SSc-ILD when the number of capillary is lower than 5/mm. This result is greatly useful, since capillary density was found to be the parameter with highest inter-reader reliability [13,26,27] among other nailfold abnormalities, understanding that our NVC examination was obtained, as in both previous studies, using a videocapillaroscope with a 200× magnification contact lens [44,45].
It seems clear that the four measurements represent the clinical/biometric interface of the pathogenesis of pulmonary involvement, especially of the early phase of SSc (alteration of alveolar gas exchanges, chronic inflammation due to gastric micro-aspirations, chief role of autoimmune-type microcirculation damage as a primer of mesenchymal cell activation) [3,11,41,43] and appear suitable to be used as variables indicating SSc-ILD [11].
The lack of significance regarding age, gender, disease duration, mRSS and the presence of anti-topo I was similar to our previous findings (20]. The non-significant association with sex could be explained by the small number of male patients included in the study (67 F/11 M). Similarly, the lack of association with disease duration may be explained by recall bias. Further, mRSS results are not surprising, since this score has reproducibility issues [11,20]. Finally, our findings are limited by the cross-sectional design, and the sample study characteristic, needing to be validated in an external cohort.
It should be emphasized that results obtained after inclusion of the four item measurements in a post-test algorithm further increase the probability to identify patients with SSc-ILD. The inclusion of the four variables (DLco, m-Borg, GERD-Q and capillary density) was possible by using Fagan’s nomogram, which allows a prompt assessment in individual SSc patient, using the pre-test probability previous obtained. We performed simulations by entering the LR+ for the four variables into the algorithm, obtaining a higher post-test probability the more the variables differed from the normal. This calculation may be suitable to be performed using a smartphone app, following the example of that already published for Covid-19 pulmonary involvement [47]. Such a tool incorporating a set of input parameters may be usefully employed to assess the risk of lung tissue damage progression in longitudinal studies, even before evidence on HRCT [11,33].

5. Conclusions

There is a need for tools able to identify early SSc-ILD [9,11]. Our results suggest that all patients diagnosed with SSc should receive a comprehensive clinical assessment, including PFTs, assessment of respiratory symptoms and oesophageal involvement, and NVC, to ensure early identification of ILD, especially in those without clear evidence of interstitial disease at HRCT, or without the classic risk factors, or even in situations where a CT scan cannot be performed quickly, providing baseline measurements to compare with upcoming assessments [3,6,7,9]. Alongside more widespread measures in clinical practice, namely DLco and/or patient-reported questionnaires, there are increasing reports indicating that NVC, a safe and validated tool, particularly the highly reliable measurement of capillary density [48], may be incorporated in high-performance algorithms for the early detection of lung involvement in SSc [9,13,28].
Overall, a well-designed risk algorithm can help to improve clinical decision making by providing more accurate and personalized prognostic information for an early intervention in SSc- ILD [9,11,13,49] in future longitudinal studies.

Author Contributions

Conceptualization: RDA, FS ; Methodology: FF, MC, SF, AG; Software: EC, FS; Validation: RDA, FS; Formal analysis: RDA, EC, FS; Writing: RDA; All authors have read and agreed to the published version of the manuscript

Funding

This research received no external funding

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethics Committee of REGIONE MARCHE-CERM (RAYnaud phenoMenON Database, RAYMOND study, n. 257-2020 ID 1650).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data are available from the corresponding authors on request.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A

Table A1. Summary statistics of diffusing capacity for carbon monoxide-DLco performance.
Table A1. Summary statistics of diffusing capacity for carbon monoxide-DLco performance.
ROC curve
Variable DLco
Classification variable CUT-OFF ILD
Sample size 78
Positive group a 33 (42.31%)
Negative group b 45 (57.69%)
Area under the ROC curve (AUC)
Area under the ROC curve (AUC) 0.861
Standard Error a 0.0457
95% Confidence interval b 0.771 to 0.950
z statistic 7.887
Significance level P (Area=0.5) <0.0001
Youden index
Youden index J 0.6990
Associated criterion ≤72.3
Sensitivity 78.79
Specificity 91.11
Criterion values and coordinates of the ROC curve
Criterion Sensitivity 95% CI Specificity 95% CI +LR 95% CI -LR 95% CI
≤55.2 30.30 15.6 - 48.7 97.78 88.2 - 99.9 13.64 1.8 - 101.4 0.71 0.6 - 0.9
≤56 36.36 20.4 - 54.9 95.56 84.9 - 99.5 8.18 2.0 - 34.1 0.67 0.5 - 0.9
≤60 60.61 42.1 - 77.1 95.56 84.9 - 99.5 13.64 3.4 - 54.3 0.41 0.3 - 0.6
≤61 60.61 42.1 - 77.1 93.33 81.7 - 98.6 9.09 2.9 - 28.1 0.42 0.3 - 0.6
≤66 69.70 51.3 - 84.4 93.33 81.7 - 98.6 10.45 3.4 - 31.9 0.32 0.2 - 0.5
≤67 69.70 51.3 - 84.4 91.11 78.8 - 97.5 7.84 3.0 - 20.5 0.33 0.2 - 0.6
≤72.3 78.79 61.1 - 91.0 91.11 78.8 - 97.5 8.86 3.4 - 23.0 0.23 0.1 - 0.5
≤74 78.79 61.1 - 91.0 82.22 67.9 - 92.0 4.43 2.3 - 8.5 0.26 0.1 - 0.5
≤74.3 81.82 64.5 - 93.0 82.22 67.9 - 92.0 4.60 2.4 - 8.8 0.22 0.1 - 0.5
≤78.5 81.82 64.5 - 93.0 73.33 58.1 - 85.4 3.07 1.8 - 5.1 0.25 0.1 - 0.5
≤79 84.85 68.1 - 94.9 71.11 55.7 - 83.6 2.94 1.8 - 4.7 0.21 0.09 - 0.5
≤82.2 84.85 68.1 - 94.9 48.89 33.7 - 64.2 1.66 1.2 - 2.3 0.31 0.1 - 0.7
≤84.5 90.91 75.7 - 98.1 48.89 33.7 - 64.2 1.78 1.3 - 2.4 0.19 0.06 - 0.6
≤85.4 90.91 75.7 - 98.1 40.00 25.7 - 55.7 1.52 1.2 - 2.0 0.23 0.07 - 0.7
≤88 93.94 79.8 - 99.3 37.78 23.8 - 53.5 1.51 1.2 - 1.9 0.16 0.04 - 0.6
≤90.2 93.94 79.8 - 99.3 22.22 11.2 - 37.1 1.21 1.0 - 1.4 0.27 0.06 - 1.2
≤91 96.97 84.2 - 99.9 22.22 11.2 - 37.1 1.25 1.1 - 1.5 0.14 0.02 - 1.0
≤92.2 96.97 84.2 - 99.9 15.56 6.5 - 29.5 1.15 1.0 - 1.3 0.19 0.03 - 1.5
≤93 100.00 89.4 - 100.0 15.56 6.5 - 29.5 1.18 1.0 - 1.3 0.00 0.04 - 1.6
a CUTOFF ILD = 1. b CUTOFF no ILD =0. a Hanley & McNeil. 1982. b AUC ± 1.96 SE.
Table A2. Summary statistics of the modified Borg Dyspnea Scale performance.
Table A2. Summary statistics of the modified Borg Dyspnea Scale performance.
ROC curve
Variable Modified Borg Dyspnea Scale
Classification variable CUT-OFF ILD
Sample size 78
Positive group a 33 (42.31%)
Negative group b 45 (57.69%)
Area under the ROC curve (AUC)
Area under the ROC curve (AUC) 0.883
Standard Error a 0.0421
95% Confidence interval b 0.801 to 0.966
z statistic 9.098
Significance level P (Area=0.5) <0.0001
Youden index
Youden index J 0.6707
Associated criterion >2
Sensitivity 84.85
Specificity 82.22
Criterion values and coordinates of the ROC curve
Criterion Sensitivity 95% CI Specificity 95% CI +LR 95% CI -LR 95% CI
>0.5 93.94 79.8 - 99.3 28.89 16.4 - 44.3 1.32 1.1 - 1.6 0.21 0.05 - 0.9
>1 93.94 79.8 - 99.3 64.44 48.8 - 78.1 2.64 1.8 - 4.0 0.094 0.02 - 0.4
>2 84.85 68.1 - 94.9 82.22 67.9 - 92.0 4.77 2.5 - 9.1 0.18 0.08 - 0.4
>3 72.73 54.5 - 86.7 88.89 75.9 - 96.3 6.55 2.8 - 15.4 0.31 0.2 - 0.5
>4 51.52 33.5 - 69.2 95.56 84.9 - 99.5 11.59 2.9 - 46.8 0.51 0.4 - 0.7
>5 21.21 9.0 - 38.9 100.00 92.1 - 100.0 12.29 3.1 - 48.9 0.52 0.7 - 0.9
a CUTOFF ILD = 1. b CUTOFF no ILD =0. a Hanley & McNeil. 1982. b AUC ± 1.96 SE.

Appendix B

Table A3. Summary statistics of gastroesophageal reflux disease-GERD questionnaire performance.
Table A3. Summary statistics of gastroesophageal reflux disease-GERD questionnaire performance.
ROC curve
Variable GERD-Q
Classification variable CUT-OFF ILD
Sample size 78
Positive group a 33 (42.31%)
Negative group b 45 (57.69%)
Area under the ROC curve (AUC)
Area under the ROC curve (AUC) 0.815
Standard Error a 0.0528
95% Confidence interval b 0.712 to 0.919
z statistic 5.964
Significance level P (Area=0.5) <0.0001
Youden index
Youden index J 0.5939
Associated criterion >7
Sensitivity 72.73
Specificity 86.67
Criterion values and coordinates of the ROC curve
Criterion Sensitivity 95% CI Specificity 95% CI +LR 95% CI -LR 95% CI
>4 87.88 71.8 - 96.6 35.56 21.9 - 51.2 1.36 1.1 - 1.8 0.34 0.1 - 0.9
>5 84.85 68.1 - 94.9 51.11 35.8 - 66.3 1.74 1.2 - 2.4 0.30 0.1 - 0.7
>6 75.76 57.7 - 88.9 80.00 65.4 - 90.4 3.79 2.0 - 7.0 0.30 0.2 - 0.6
>7 72.73 54.5 - 86.7 86.67 73.2 - 94.9 5.45 2.5 - 11.8 0.31 0.2 - 0.6
>8 69.70 51.3 - 84.4 86.67 73.2 - 94.9 5.23 2.4 - 11.4 0.35 0.2 - 0.6
>9 60.61 42.1 - 77.1 91.11 78.8 - 97.5 6.82 2.6 - 18.1 0.43 0.3 - 0.7
>10 51.52 33.5 - 69.2 91.11 78.8 - 97.5 5.80 2.1 - 15.6 0.53 0.4 - 0.8
>11 45.45 28.1 - 63.6 97.78 88.2 - 99.9 20.45 2.8 - 147.2 0.56 0.4 - 0.8
>14 18.18 7.0 - 35.5 97.78 88.2 - 99.9 8.18 1.0 - 64.8 0.84 0.7 - 1.0
a CUTOFF ILD = 1. b CUTOFF no ILD =0. a Hanley & McNeil. 1982. b AUC ± 1.96 SE.
Table A4. Summary statistics of mean capillary density performance.
Table A4. Summary statistics of mean capillary density performance.
ROC curve
Variable Mean capillary density (number of capillary/mm2)
Classification variable CUT-OFF ILD
Sample size 78
Positive group a 33 (42.31%)
Negative group b 45 (57.69%)
Area under the ROC curve (AUC)
Area under the ROC curve (AUC) 0.815
Standard Error a 0.0492
95% Confidence interval b 0.718 to 0.911
z statistic 6.396
Significance level P (Area=0.5) <0.0001
Youden index
Youden index J 0.5677
Associated criterion ≤4.78125
Sensitivity 87.88
Specificity 68.89
Criterion values and coordinates of the ROC curve
Criterion Sensitivity 95% CI Specificity 95% CI +LR 95% CI -LR 95% CI
≤2.53125 15.15 5.1 - 31.9 97.78 88.2 - 99.9 6.82 0.8 - 55.7 0.87 0.7 - 1.0
≤2.875 24.24 11.1 - 42.3 97.78 88.2 - 99.9 10.91 1.4 - 83.0 0.77 0.6 - 0.9
≤3 36.36 20.4 - 54.9 95.56 84.9 - 99.5 8.18 2.0 - 34.1 0.67 0.5 - 0.9
≤3.375 54.55 36.4 - 71.9 91.11 78.8 - 97.5 6.14 2.3 - 16.4 0.50 0.3 - 0.7
≤3.84375 54.55 36.4 - 71.9 80.00 65.4 - 90.4 2.73 1.4 - 5.3 0.57 0.4 - 0.8
≤4.09375 63.64 45.1 - 79.6 80.00 65.4 - 90.4 3.18 1.7 - 6.0 0.45 0.3 - 0.7
≤4.34375 66.67 48.2 - 82.0 73.33 58.1 - 85.4 2.50 1.5 - 4.3 0.45 0.3 - 0.8
≤4.53125 78.79 61.1 - 91.0 71.11 55.7 - 83.6 2.73 1.7 - 4.5 0.30 0.2 - 0.6
≤4.59375 81.82 64.5 - 93.0 68.89 53.4 - 81.8 2.63 1.7 - 4.2 0.26 0.1 - 0.6
≤4.78125 87.88 71.8 - 96.6 68.89 53.4 - 81.8 2.82 1.8 - 4.4 0.18 0.07 - 0.5
≤4.875 87.88 71.8 - 96.6 64.44 48.8 - 78.1 2.47 1.6 - 3.7 0.19 0.07 - 0.5
≤5.125 90.91 75.7 - 98.1 64.44 48.8 - 78.1 2.56 1.7 - 3.8 0.14 0.05 - 0.4
≤6.0625 90.91 75.7 - 98.1 48.89 33.7 - 64.2 1.78 1.3 - 2.4 0.19 0.06 - 0.6
≤6.09375 93.94 79.8 - 99.3 48.89 33.7 - 64.2 1.84 1.4 - 2.5 0.12 0.03 - 0.5
≤7.875 93.94 79.8 - 99.3 31.11 18.2 - 46.6 1.36 1.1 - 1.7 0.19 0.05 - 0.8
≤8.09375 96.97 84.2 - 99.9 28.89 16.4 - 44.3 1.36 1.1 - 1.7 0.10 0.01 - 0.8
≤8.59375 96.97 84.2 - 99.9 6.67 1.4 - 18.3 1.04 0.9 - 1.1 0.45 0.05 - 4.2
≤8.65625 100.00 89.4 - 100.0 6.67 1.4 - 18.3 1.07 1.0 - 1.2 0.00 0.06 – 4.5
a CUTOFF ILD = 1. b CUTOFF no ILD =0. a Hanley & McNeil. 1982. b AUC ± 1.96 SE.

References

  1. Allanore, Y.; Simms, M.; Distler, O.; Trojanowska, M.; Pope, J.; Denton, C.P.; Varga, J. Systemic sclerosis. Nat Rev Dis Primers 2015, 1, 15002. [Google Scholar] [CrossRef]
  2. Truchetet, M.E.; Brembilla, M.C.; Chizzolini, C. Current concepts on the pathogenesis of systemic sclerosis. Clin Rev Allergy Immunol 2023, 64, 262–283. [Google Scholar] [CrossRef]
  3. Khanna, S.A.; Nance, J.W.; Suliman, S.A. Detection and monitoring of interstitial lung disease in patients with systemic sclerosis. Curr Rheumatol Rep 2022, 24, 166–173. [Google Scholar] [CrossRef]
  4. Salaffi, F.; Carotti, M.; Tardella, M.; Di Carlo, M.; Fraticelli, P.; Fischetti, C.; Giovagnoni, A.; Gabrieli, A. Computed tomography assessment of evolution of interstitial lung disease in systemic sclerosis: comparison of two scoring systems. Eur J Intern Med 2020, 76, 71–75. [Google Scholar] [CrossRef]
  5. Denton, C.P.; Wells, A.U.; Coghlan, J.G. Major lung complications of systemic sclerosis. Nat Rev Rheumatol 2018, 14, 511–527. [Google Scholar] [CrossRef] [PubMed]
  6. Hoffmann-Vold, A.M.; Maher, T.M.; Philpot, E.E.; Ashrafzadeh, A.; Barake, R.; Barsotti, S.; Bruni, C.; Carducci, P.; Carreira, P.E.; Castellvi, I.; et al. The identification and management of interstitial lung disease in systemic sclerosis: evidence- based European consensus statements. Lancet Rheumatol 2020, 2: e71–e83. 10.1016/S2665-9913(19)30144-4.
  7. Assassi, S.; Tumuluri, S.; Levin, R.W. Interstitial lung disease in patients with systemic sclerosis: what can we learn from the SENCIS trial? Clin Exp Rheumatol 2023, 41, 1713–1719. [Google Scholar] [CrossRef] [PubMed]
  8. Hoffmann-Vold, A.M.; Allanore, Y.; Alves, M.; Brunborg, C.; Airò, P.; Ananieva, L.P.; Czirjak, L.; Guiducci, S.; Hachulla, E.; Li, M.; et al. Progressive interstitial lung disease in patients with systemic sclerosis-associated interstitial lung disease in the EUSTAR database. Ann Rheum Dis 2021; 80, 219–227. [CrossRef]
  9. Distler, O.; Assassi, S. , Cottin, V. ; Cutolo, M.; Danoff, S.K.; Denton, C.P.; Distler, J.H.V.; Hoffmann-Vold, A.M.; Johnson, S.R.; et al. Predictors of progression in systemic sclerosis patients with interstitial lung disease. Eur Resp J 2020, 55, 1902026. [Google Scholar] [CrossRef] [PubMed]
  10. Saketkoo, L.A.; Scholand, M.B.; Lammi, M.R.; Russell, A.M. Patient-reported outcome measures in systemic sclerosis-related interstitial lung disease for clinical practice and clinical trials. J Scleroderma Relat Disord 2020, 5 (2 Suppl): 48-60. [CrossRef]
  11. Lafyatis, R.; Valenzi, E. Assessment of disease outcome measures in systemic sclerosis. Nature Reviews Rheumatology 2022, 18, 527–541. [Google Scholar] [CrossRef]
  12. Salaffi, F.; Di Carlo, M.; Carotti, M.; Fraticelli, P.; Gabrielli, A.; Giovagnoni, A. Relationship between interstitial lung diseases and oesophageal dilatation on chest high resolution computed tomography in patients with systemic sclerosis: a cross-sectional study. Radiol Med 2018, 123, 655–663. [Google Scholar] [CrossRef]
  13. Smith, V.; Vanhaecke, A.; Guerra, M.G.; Melsens, K.; Vandecasteele, E.; Paolino, S.; Cutolo, M. May capillaroscopy be a candidate tool in future algorithms for SSc-ILD: are we looking for the holy gray? A systematic review. Autoimmunity Rev 2020, 19, 102619. [Google Scholar] [CrossRef]
  14. Umashankar, E.; Abdel-Shaheed, C.; Plit, M.; Girgis, L. Assessing the role of nailfold capillaroscopy in interstitial lung disease classification: a systematic review and meta-analysis. Rheumatology 2022, 30, 61–2221. [Google Scholar] [CrossRef] [PubMed]
  15. Van den Hoogen, F.; Khanna, D.; Fransen, J.; Johnson, S.R.; Baron, M.; Tyndall, A.; Matucci-Cerinic, M.; Naden, R.P.; Medsger, T.A. jr; Carreira, P.E.; et al. 2013 classification criteria for systemic sclerosis: an American College of Rheumatology/European League Against Rheumatism collaborative initiative. Arthritis Rheum 2013, 65, 2737–2747. [Google Scholar] [CrossRef] [PubMed]
  16. Weatherald, J.; Montani, D.; Jevnikar, M.; Jais, X.; Savale, L.; Humbert, M. Screening for pulmonary arterial hypertension in systemic sclerosis. Eur Respir Rev 2019, 28, 190023. [Google Scholar] [CrossRef] [PubMed]
  17. De Angelis, R.; Ferri, C.; Giuggioli, D.; Bajocchi, G.; Dagna, L.; Bellando-Randone, S.; Zanframundo, G.; Foti, R.; Cacciapaglia, F.; Cuomo, G.; et al. Systemic sclerosis sine scleroderma: clinical and serological features and relationship with other cutaneous subsets in a large series of patients from the national registry ‘SPRING’ of the Italian Society for Rheumatology. RMD Open 2023, 9:e002890. [CrossRef]
  18. Black, C.M. Measurement of skin involvement in scleroderma. J Rheumatol 1995, 22, 1217–1219. [Google Scholar] [PubMed]
  19. Salaffi, F.; Carotti, M.; Bosello, S.; Ciapetti, A.; Gutierrez, M.; Bichisecchi, E.; Giuseppetti, G.; Ferraccioli, G. Computer-aided quantification of interstitial lung disease from high resolution computed tomography images in systemic sclerosis: correlation with visual reader base score and physiologic tests. Biomed Res Int 2015, 2015, 834262. [Google Scholar] [CrossRef] [PubMed]
  20. Salaffi, F.; Carotti, M.; Di Donato, E.; Di Carlo, M.; Ceccarelli, M.; Giuseppetti, G. Computer-Aided tomographic analysis of interstitial lung disease (ILD) in patients with systemic sclerosis (SSc). Correlation with pulmonary physiologic tests and patient-centred measures of perceived dyspnoea and functional disability. PLoS One 2016,11: e0149240. [CrossRef]
  21. Warrick, J.H.; Bhalla, M.; Schabel, S.I.; Silver, R.M. High resolution computed tomography in early scleroderma lung disease. J Rheumatol 1991; 18, 1520–1528.
  22. Borg, E.; Borg, G.; Larsson, K.; Letzter, M.; Sundblad, B.M. An index for breathlessness and leg fatigue. Scand J Med Sci Sports 2010; 20, 644-650. [CrossRef]
  23. Clements, P.; Wong, W.K.; Hurwitz, E.L.; Furst, D.E.; Mayes, M.; White, B.; Wigley, F.; Weisman, M.; Barr, W.; Moreland, L.; et al. Correlates of the disability index of the Health Assessment Questionnaire: a measure of functional impairment in systemic sclerosis. Arthritis Rheum 1999; 42, 2372–2380. [CrossRef]
  24. Jonasson, C.; Wernersson, B.; Hoff, D.; Hatlebakk, J. Validation of the GerdQ questionnaire for the diagnosis of gastro-oesophageal reflux disease. Aliment Pharmacol Ther 2013; 37, 564-572. [CrossRef]
  25. Jones, R.; Junghard, O.; Dent, J.; Vakil, N.; Halling, K.; Wernersson, B.; Lind, T. Development of the GerdQ, a tool for the diagnosis and management of gastro-oesophageal reflux disease in primary care. Aliment Pharmacol Ther 2009, 30, 1030–1038. [Google Scholar] [CrossRef] [PubMed]
  26. Gutierrez, M.; Bertolazzi, C.; Tardella, M.; Becciolini, A.; Di Carlo, M.; Dottori, M.; Grassi, W.; De Angelis, R. Inter-reader reliability in assessment of nailfold capillary abnormalities by beginners: pilot study of an intensive videocapillaroscopy training programme. J Rheumatol 2012, 39, 1248–1255. [Google Scholar] [CrossRef]
  27. Smith, V.; Herrick, A.L.; Ingegnoli, F.; Damjanov, N.; De Angelis, R.; Denton, C.P. , Distler, O, Espejo K, Foeldvari I, Frech T, et al. EULAR study group on microcirculation in rheumatic diseases and the scleroderma clinical trials consortium group on capillaroscopy. Standardization of nailfold capillaroscopy for the assessment of patients with Raynaud’s phenomenon and systemic sclerosis. Autoimmun Rev 2020, 19, 102458. [Google Scholar] [CrossRef]
  28. De Angelis, R.; Riccieri, V.; Cipolletta, E.; Del Papa, N.; Ingegnoli, F.; Bosello, S.; Spinella, A.; Pellegrino, G.; de Pinto, M.; Papa, S.; et al. Significant nailfold capillary loss and late capillaroscopic pattern are associated with pulmonary arterial hypertension in systemic sclerosis. Rheumatology 2023 Online ahead of print. [CrossRef]
  29. Steele, R.; Hudson, M.; Lo, E.; Baron, M. Canadian Scleroderma Research Group. Clinical decision rule to predict the presence of interstitial lung disease in systemic sclerosis. Arthritis Care Res 2012, 64, 519–524. [Google Scholar] [CrossRef]
  30. Hoffmann-Vold, A.M.; Fretheim, H.; Halse, A.K. ; Seip M, Bitter, H. ; Wallenius, M.; Garen, T.; Salberg, A.; Brunborg, C.; Midtvedt, O.; et al. Tracking impact of interstitial lung disease in systemic sclerosis in a complete nationwide cohort. Am J Respir Crit Care Med 2019, 200, 1258–1266. [Google Scholar] [CrossRef]
  31. Caron, M.; Hoa, S.; Hudson, M.; Schwartzman, K.; Steel, R. Pulmonary function test as outcomes for systemic sclerosis in interstitial lung diseases. Eur Respir Rev 2018, 27, 170102. [Google Scholar] [CrossRef] [PubMed]
  32. Showalter, K.; Hoffmann, A.; Rouleau, G.; Aaby, D.; Lee, J.; Richardson, C.; Dematte, J.; Agrawal, R.; Chang, R.W.; Hinccliff, M. Performance of forced vital capacity and lung diffusion cut points for associated radiographic interstitial lung disease in systemic sclerosis. J Rheumatol 2018; 45, 1572-1576. [CrossRef]
  33. Suliman, Y.A.; Dobrota, R.; Huscher, D.; Nguyen-Kim, T.D.L.; Maurer, B.; Jordan, S.; Speich, R.; frauenfelder, T.; Distler, O. Pulmonary function tests: high rate of false-negative results in the early detection and screening of scleroderma-related interstitial lung disease. Arthritis Rheumatol 2015, 67, 3256–3261. [Google Scholar] [CrossRef] [PubMed]
  34. Antoniou, K.M.; Margaritopoulos, G.A.; Goh, N.S.; Karagiannis, K.; Desai, S.R.; Nicholson, A.G.; Siafakas, N.M.; Coghlan, J.G.; Denton, C.P.; Hansell, D.M.; Wells, A.U. Combined pulmonary fibrosis and emphysema in scleroderma-related lung disease has a major confounding effect on lung physiology and screening for pulmonary hypertension. Arthritis Rheum 2016, 68, 1004–1012. [Google Scholar] [CrossRef] [PubMed]
  35. Murphy, S.L.; Chen, Y.T.; Lee, Y.C.; Carns, N.; Aren, K.; Korman, B. ; Hinchcliff, M,; Varga, J. Differences in symptom experience among patients with systemic sclerosis: a cluster analytic approach to identifying subgroups. Rheumatology 2023, 62:SI64-SI73. [CrossRef]
  36. Tashkin, D.P.; Volkmann, E.R. ; Tseng, C-H. ; Kim, H.J.; Goldin, J.; Clements, P.; Furst, D.; Kanna, D.; Kleerup, E.; Roth, M.D.; Elashoff, R. Relationship between quantitative radiographic assessments of interstitial lung disease and physiological and clinical features of systemic sclerosis. Ann Rheum Dis 2016, 75, 374–381. [Google Scholar]
  37. Khanna, D.; Clements, P.J.; Furst, D.E.; Chon, Y.; Elashoff, R.; Roth, M.D.; Stertz, M.G.; Chung, J.; Fitzgerald, J.D.; Seibold, J.R.; et al. Correlation of the degree of dyspnea with health-related quality of life, functional abilities, and diffusing capacity for carbon monoxide in patients with systemic sclerosis and active alveolitis: results from the scleroderma lung study. Arthritis Rheum 2005, 52, 592–600. [Google Scholar] [CrossRef] [PubMed]
  38. Savarino, E.; Bazzica, M.; Zentilin, P.; Pohl, D.; Parodi, A.; Cittadini, G. , Negrini, S.; Indiveri, F.; Tutuian, R.; Savarino, V.; Ghio M. Gastroesophageal reflux and pulmonary fibrosis in scleroderma: a study using pH-impedance monitoring. Am J Respir Crit Care Med 2009;179, 408–413. [CrossRef]
  39. Richardson, C.; Agrawal, R.; Lee, J.; Almagor, O. ; Nelson, R,; Varga, J. ; Cuttica, M.J.; Dematte, J.D.; Chang, R.W.; Hinchcliff, M.E. Esophageal dilatation and interstitial lung disease in systemic sclerosis: a cross-sectional study. Semin Arthritis Rheum 2016, 46, 109–114. [Google Scholar] [CrossRef]
  40. Christmann, R.; Wells, A.; Capelozzi, V.; Silver, R. Gastroesophageal reflux incites interstitial lung disease in systemic sclerosis: clinical, radiologic, histopathologic, and treatment evidence. Semin Arthritis Rheum 2010, 40, 241–249. [Google Scholar] [CrossRef] [PubMed]
  41. De Lorenzis, E.; Wasson, C.W.; Del Galdo, F. Alveolar epithelial-to-mesenchymal transition in scleroderma interstitial lung disease: Technical challenges, available evidence, and therapeutic perspectives. J Scleroderma Related Dis 2024, 9, 7–15. [Google Scholar] [CrossRef]
  42. Volkmann, E.R.; Tashkin, D.P.; Leng, M.; Kim, G.H.J.; Goldin, J.; Roth, M.D. Association of symptoms of gastroesophageal reflux, oesophageal dilatation, and progression of systemic sclerosis-related interstitial lung disease. Arthritis Care Res 2023, 75, 1690–1697. [Google Scholar] [CrossRef]
  43. Liakouli, V.; Ciancio, A.; Del Galdo, F.; Giacomelli, R.; Ciccia, F. Systemic sclerosis interstitial lung disease: unmet needs and potential solutions. Nat Rev Rheumatol 2024, 20, 21–32. [Google Scholar] [CrossRef]
  44. Caetano, J.; Paula, F.S.; Amaral, M.; Oliveira, S.; Alves, J. Nailfold videocapillaroscopy changes are associated with the presence and severity of systemic sclerosis-related interstitial lung disease. J Clin Rheumatol 2019, 25: e12-e15. [CrossRef]
  45. Guillen-Del-Castillo, A.; Simeon-Aznar, C.P.; Callejas-Moraga, E.L.; Tolosa-Vilella, C.; Alonso-Vila, S. ; Fonollosa-Pla, V,; Selva-O’Callaghan, A. Quantitative videocapillaroscopy correlates with functional respiratory parameters: a clue for vasculopathy as a pathogenic mechanism for lung injury in systemic sclerosis. Arthritis Res Ther 2018, 20, 281. [Google Scholar] [CrossRef] [PubMed]
  46. Sulli, A.; Paolino, S.; Pizzorni, C.; Ferrari, G.; Pacini, G.; Pesce, G.; Carmisciano, L.; Smith, V.; Cutolo, M. Progression of nailfold capillaroscopic patterns and correlation with organ involvement in systemic sclerosis: a 12-year study. Rheumatology 2020, 59, 1051–1058. [Google Scholar] [CrossRef] [PubMed]
  47. Salaffi, F.; Carotti, M.; Di Carlo, M.; Ceccarelli, L.; Galli, M.; Sarzi-Puttini, P.; Giovagnoni, A. Predicting severe/critical outcomes in patients with SARS-CoV2 pneumonia: development of the prediCtion seveRe/crItical ouTcome in COVID-19 (CRITIC) model. Front Med 2021, 8, 695195. [Google Scholar] [CrossRef] [PubMed]
  48. Emrani, Z.; Karbalaie, A.; Fatemi, A.; Etahadtavakol, M.; Erlandsson, B.E. Capillary density: an important parameter in nailfold capillaroscopy. Microvascular Res 2017, 109, 7–18. [Google Scholar] [CrossRef]
  49. Rahaghi, F.F.; Hsu, V.M.; Kaner, R.J.; Mayes, M.D.; Rosas, I.O.; Saggar, R.; Steen, V.D.; Strek, M.E.; Bernstein, E.J.; Bhatt, N.; et al. Expert consensus on the management of systemic sclerosis-associated interstitial lung disease. Respir Res 2023, 24, 6. [Google Scholar] [CrossRef]
Preprints 106956 g001
Figure 1. Nailfold videocapillaroscopy 200x (dimensions 1280x960). Scleroderma pattern (A-B): example of total capillary count/mm at the last row.
Figure 1. Nailfold videocapillaroscopy 200x (dimensions 1280x960). Scleroderma pattern (A-B): example of total capillary count/mm at the last row.
Preprints 106956 g001
Preprints 106956 g002
Figure 2. Receiver operating characteristic curve analysis showing the prognostic value of DLco (A), modified Borg Dyspnoea scale (B), GERD-Q, (C) and capillary density (n. of capillary/mm2) (D) on the discriminative performance for SSC-ILD disease.
Figure 2. Receiver operating characteristic curve analysis showing the prognostic value of DLco (A), modified Borg Dyspnoea scale (B), GERD-Q, (C) and capillary density (n. of capillary/mm2) (D) on the discriminative performance for SSC-ILD disease.
Preprints 106956 g002
Preprints 106956 g003
Figure 3. Example of application of the nomogram for calculation of the post-test probability. In the nomogram left axis represents the pre-test probability (42.31% in this case study), middle axis represents positive likelihood ratio, and the right axis shows post-test probability. To calculate the risk (post-test probability, %) of SSc-ILD in each patient, the positive likelihood ratio of each item in that patient have to be multiplied. The resulting positive likelihood ratio product represents the point intercepted on the middle axis.
Figure 3. Example of application of the nomogram for calculation of the post-test probability. In the nomogram left axis represents the pre-test probability (42.31% in this case study), middle axis represents positive likelihood ratio, and the right axis shows post-test probability. To calculate the risk (post-test probability, %) of SSc-ILD in each patient, the positive likelihood ratio of each item in that patient have to be multiplied. The resulting positive likelihood ratio product represents the point intercepted on the middle axis.
Preprints 106956 g003
Table 1. Baseline study cohort characteristics of systemic sclerosis-SSc patients.
Table 1. Baseline study cohort characteristics of systemic sclerosis-SSc patients.
Variables Mean SD Median 25 - 75 P
Age (years) 63.60 10.34 65.00 56.00 to 71.00
Disease duration (years) 10.53 7.38 8.00 5.00 to 16.00
Modified Rodnan Skin Score 10.70 7.97 9.00 4.00 to 16.00
HRCT extent of disease score 5.64 3.69 3.00 3.00 to 9.00
HRCT severity of disease score 5.97 4.03 4.50 3.00 to 8.00
HRCT total score 11.62 7.79 6.00 5.00 to 18.00
DLco (% predicted) 73.41 16.76 78.15 59.00 to 88.00
FVC (% predicted) 87.72 18.51 88.95 76.00 to 103.00
HAQ-DI score 0.96 0.45 0.92 0.62 to 1.12
m-Borg score 2.73 2.22 2.00 1.00 to 5.00
Gerd-Q 8.19 4.03 6.00 5.00 to 11.00
Capillary density 5.44 2.22 5.15 3.43 to 7.65
SD = standard deviation; P = percentiles; FVC = Forced Vital Capacity; DLco = Single Breath Carbon Monoxide Diffusing Capacity of the Lung; HAQ-DI = Health Assessment Questionnaire-Disability Index; m-Borg: Modified Borg Dyspnoea Scale; HRCT = High Resolution Computed Tomography. Gerd-Q = gastro-oesophageal reflux disease questionnaire.
Table 2. Summary of the results of multiple regression analysis, with regression coefficients for the variables.
Table 2. Summary of the results of multiple regression analysis, with regression coefficients for the variables.
Independent variables Coefficient Std. Error t P rpartial rsemipartial
(Constant) 13.0435
Age 0.0981 0.0851 1.153 0.253 0.1416 0.07871
Sex 0.1117 1.8317 0.061 0.951 0.0075 0.00416
Disease duration -0.1681 0.1285 -1.309 0.195 -0.1602 0.08935
Anti-topoisomerase I -0.0878 1.6181 -0.054 -0.956 0.0067 0.00370
modified Rodnan Skin Score -0.02611 0.0990 -0.264 0.792 -0.0326 0.01800
DLco (% predicted) -0.1101 0.0541 -2.035 0.045 -0.2448 0.13895
FVC (% predicted) -0.0341 0.0386 -0.885 0.379 -0.1091 0.06041
HAQ-DI score 2.6693 1.5923 1.676 0.098 0.2036 0.11442
m-Borg 1.3327 0.5202 2.562 0.012 0.3029 0.17491
GERD-Q 0.6810 0.2819 2.416 0.018 0.2870 0.16497
Capillary density -0.8847 0.4132 -2.141 0.036 -0.2567 0.14622
DLco = Single Breath Carbon Monoxide Diffusing Capacity of the Lung; Gerd-Q = gastro-oesophageal reflux disease questionnaire; HAQ-DI = Health Assessment Questionnaire-Disability Index; m-Borg: Modified Borg Dyspnoea Scale; FVC = Forced Vital Capacity.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
