Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements
Version 1
: Received: 4 August 2024 / Approved: 4 August 2024 / Online: 6 August 2024 (06:17:24 CEST)
How to cite:
Webber, J. B. W. Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements. Preprints2024, 2024080251. https://doi.org/10.20944/preprints202408.0251.v1
Webber, J. B. W. Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements. Preprints 2024, 2024080251. https://doi.org/10.20944/preprints202408.0251.v1
Webber, J. B. W. Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements. Preprints2024, 2024080251. https://doi.org/10.20944/preprints202408.0251.v1
APA Style
Webber, J. B. W. (2024). Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements. Preprints. https://doi.org/10.20944/preprints202408.0251.v1
Chicago/Turabian Style
Webber, J. B. W. 2024 "Updates on an Even More Compact Precision NMR Spectrometer and a Wider Range V-T Probe, for General Purpose NMR and for NMR Cryoporometric Nano- to Micro-pore Measurements" Preprints. https://doi.org/10.20944/preprints202408.0251.v1
Abstract

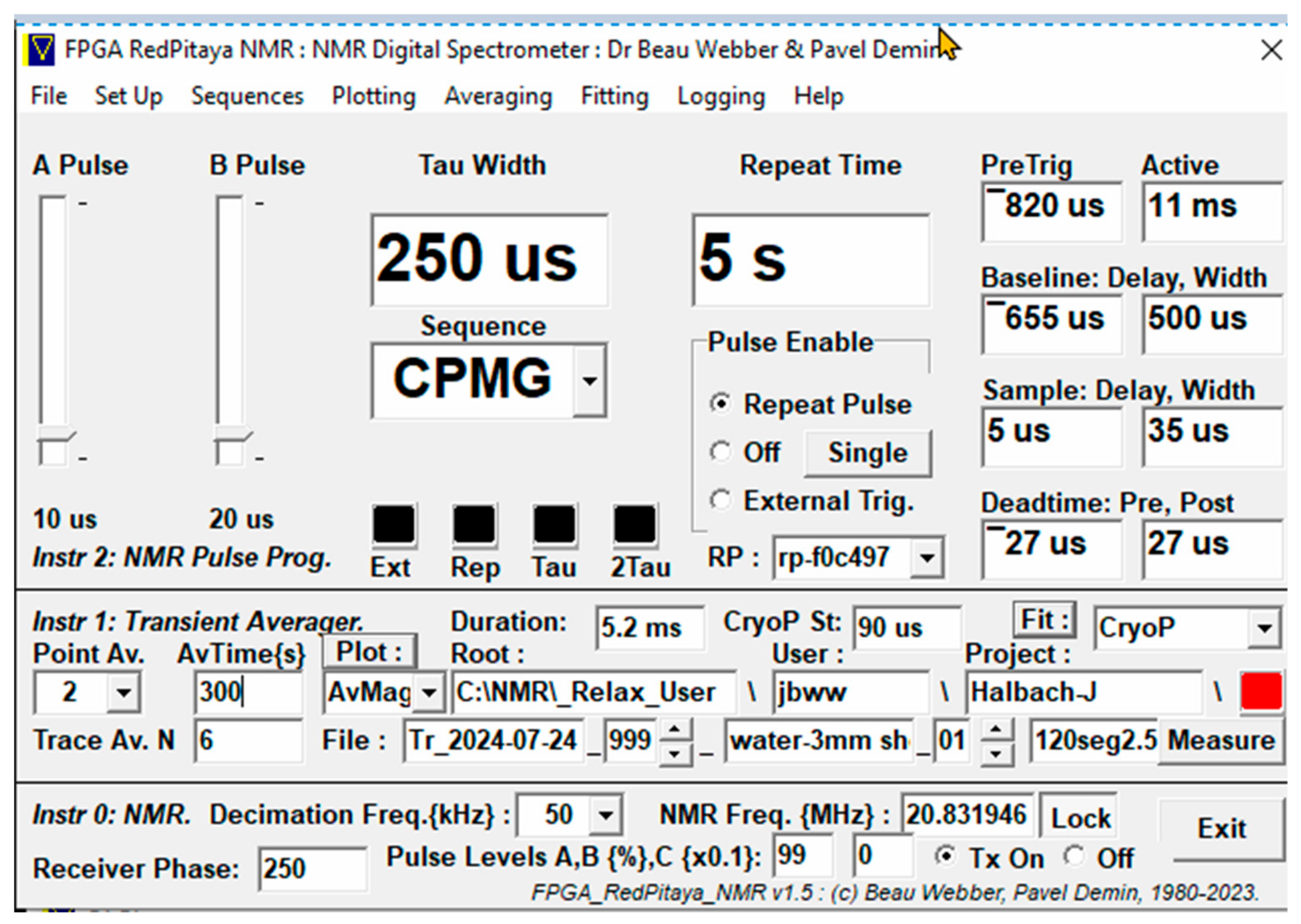

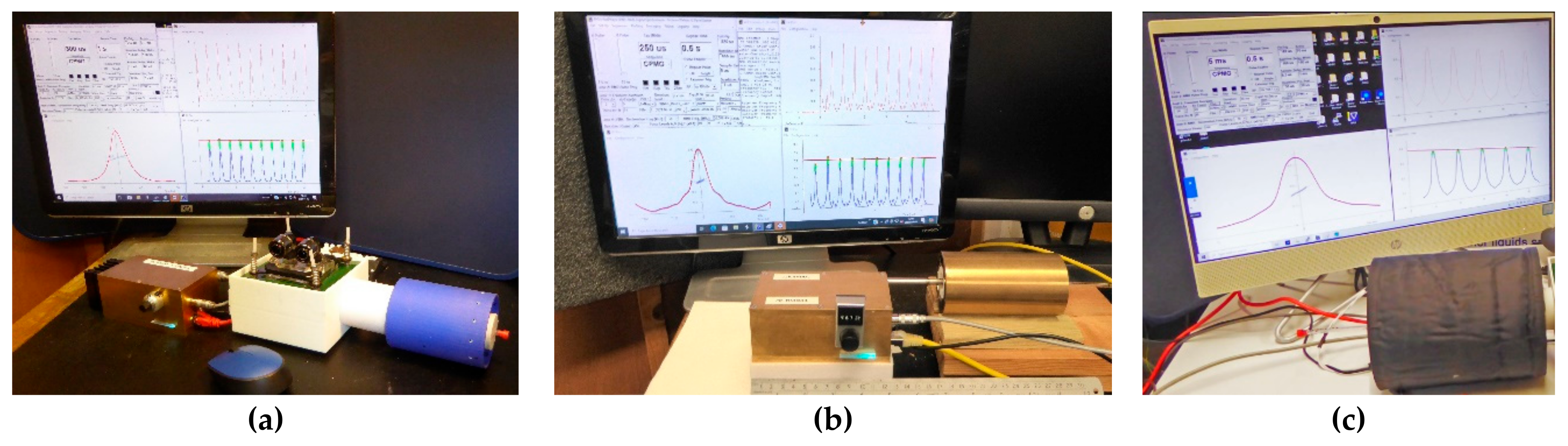

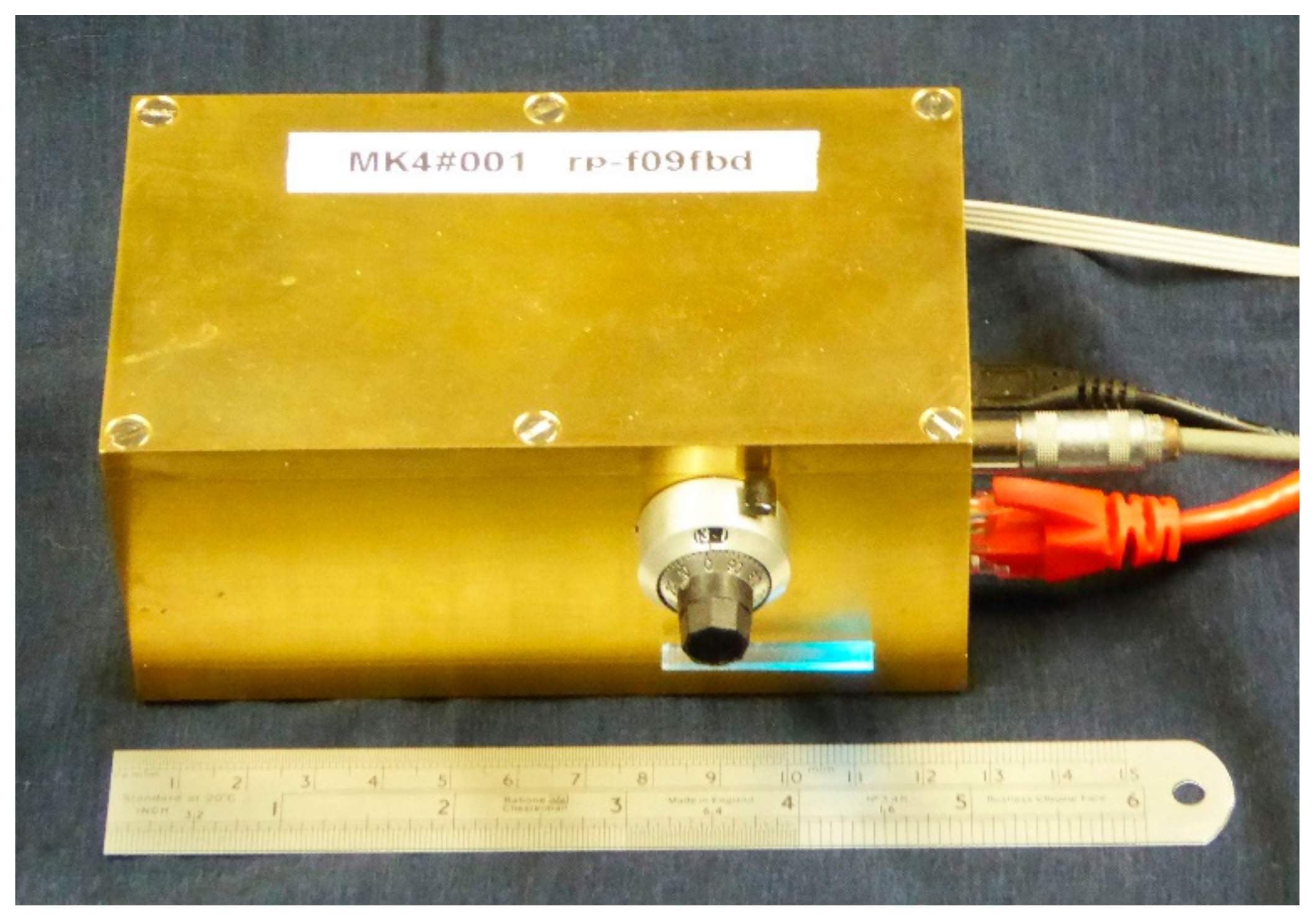

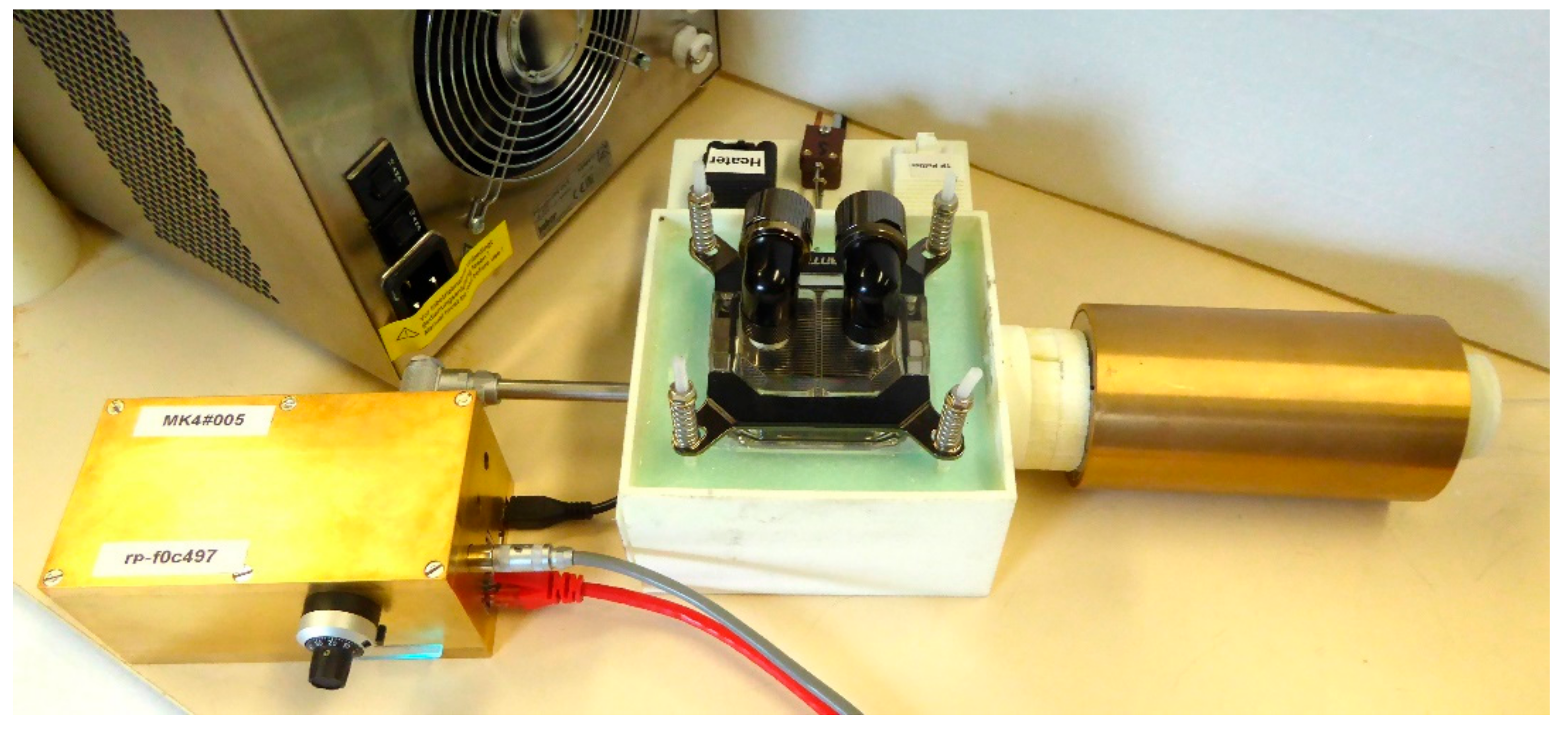

There is an increasing need for compact low-cost NMR apparatus that can be used on the laboratory bench and in the field. There are four main usage variants of usage: a) Time-Domain apparatus, particularly for physical measurements; b) Frequency Domain apparatus, particularly for chemical analysis, c) NMR Cryoporometry apparatus for measuring pore-size distributions, and d) MRI apparatus for imaging. For all of these, variable temperature capability may be vital. We have developed compact low-cost apparatus targeted at these applications. We discuss a hand-held size NMR spectrometer, and three different holdable NMR magnets, with sufficiently large internal bores for the Lab-Tools compact Peltier thermo-electric cooled variable-temperature probes. Currently the NMR Spectrometer is very suitable for a), NMR time-domain relaxation and c), NMR Cryoporometry. With a suitable high-homogeneity magnet it is also appropriate for simple use b), spectral analysis, or, with a suitable gradient set, use d), MRI. Together, the NMR Spectrometer, one of the NMR variable-temperature probes, and any of these NMR magnets make an excellent NMR Cryoporometers, as demonstrated by this paper, and previously published research. Equally, they make versatile general-purpose variable-temperature NMR systems for materials-science.
Chemistry and Materials Science, Materials Science and Technology
