Photocatalytic Ammonia Decomposition Using Dye-Encapsulated Single-Walled Carbon Nanotubes

Altmetrics

Downloads

90

Views

45

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

16 August 2024

Posted:

19 August 2024

You are already at the latest version

Alerts
Abstract
Photocatalytic ammonia decomposition to produce N2 and H2 was achieved using single-walled carbon nanotube (SWCNT) nanohybrids. Physical modification of ferrocene-dye-encapsulated CNTs by amphiphilic C60-dendron yielded nanohybrids with a dye/CNT/C60 coaxial heterojunction. Upon visible light irradiation, an aqueous solution of NH3 and dye@CNT/C60-dendron nanohybrids produced both N2 and H2 in a stoichiometric ratio of 1:3. Action spectra of this reaction clearly demonstrated that the encapsulated dye acted as the photosensitizer, with an apparent quantum yield (AQY) of 0.22% at 510 nm (the λmax of the dye). This study presents the first example of dye-sensitized ammonia decomposition and offers a new avenue for developing efficient and sustainable photocatalytic hydrogen production systems.
Keywords:
Subject: Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

To make ammonia a hydrogen carrier, its dehydrogenation reaction to produce COx-free hydrogen is highly anticipated [1]. Such ammonia decomposition is mildly endothermic, so it requires that temperatures higher than 773 K be applied with the most active Ru-based catalysts to obtain an appropriate H2 production. In this context, photocatalytic ammonia decomposition that proceed at room temperature has attracted tremendous interest [2]. However, examples of photocatalytic decomposition of aqueous ammonia solutions evolving only H2 and N2 is limited and most of them can use not visible- but UV-light. For instance, Kudo and co-workers reported Ru-loaded ZnS showed the ammonia decomposition activity upon photoirradiation, of which wavelength was less than 350 nm [3]. Although Fe-doped TiO2 [4] and MoS2/N-doped graphene hybrids [5] have been described as visible and/or near-IR responsive photocatalyst for ammonia decomposition as exceptional examples, controlling active wavelength ranges was still a not-solved-problem. In this context, a new light absorber that can introduce the photocatalytic systems to convert ammonia to H2 and N2 is highly required.
Meanwhile we have developed photocatalytic water splitting systems using carbon nanotubes (CNTs) [6,7,8,9,10,11] and dye-encapsulated carbon nanotubes [12,13,14,15] as light absorbers. Interestingly, using CNTs as a platform for making coaxial heterojunction, we fabricated coaxal nanohybrids, CNT/C60 and dye@CNT/C60, that exhibit efficient charge-separated-state generation followed by electron migration to co-catalyst to generate H2 upon visible light irradiation. From the viewpoint of visible light absorbers, dye 1 [13,16] is quite interesting, because 1 was easily encapsulated into CNT by solution process to obtain 1@CNT, of which physical modification with amphiphilic C60-dendron gave 1@CNT/C60-dendron nanohybrid (Figure 1). Endohedral dye 1 shows the outstanding stability against light irradiation and as well, photosensitizing ability for water splitting, with an apparent quantum yield (AQY) reaching nearly 10% under 510 nm light irradiation [12]. Based on this background, we decided to investigate ammonia decomposition using dye-encapsulated CNT photocatalysts. In this paper, we demonstrate the decomposition of an aqueous ammonia solution into H2 and N2 using 1@CNT/C60-dendron nanohybrid as a photocatalyst in the presence of RuCl3 under visible light irradiation at room temperature. To the best of our knowledge, this is the first example of a dye-sensitized ammonia decomposition reaction.

2. Result and Discussions

To explore dye-sensitized ammonia decomposition, we synthesized 1@CNT/C60-dendron nanohybrid with a dye/CNT/C60 coaxial heterojunction using dye 1, single-walled carbon nanotubes (CNTs), and amphiphilic C60-dendron, as previously reported (Figure 1) [12]. In a typical run, 1 and CNTs were sonicated in chloroform for 1 h to obtain dye-encapsulated CNT, 1@CNT. The obtained filtrate was repeatedly washed with chloroform to remove any dye remaining on the surface of CNTs. Afterward, 1@CNT and C60-dendron in water was sonicated for 4 h and centrifuged for 30 min (3000 G) to obtain a water dispersion of 1@CNT/C60-dendron, of which unadsorbed C60-dendron in the dispersion was removed by dialysis. Figure 2a shows photographs of the water dispersions of CNT/C60-dendron and 1@CNT/C60-dendron. It is evident that the solution turns a purplish color due to the absorption of the endohedral dye 1. Figure 2b shows the absorption spectra of CNT/C60-dendron, 1@CNT/C60-dendron, and 1. Although the wide absorption range of CNTs from visible to near-infrared masks the absorption of dye 1, the absorption band of 1 is included in the 450 - 600 nm wavelength range.
Figure 3 shows the time course of H2 and N2 production using 1@CNT/C60-dendron as a photocatalyst. Upon visible light irradiation (λ > 422 nm), 1@CNT/C60-dendron in an aqueous ammonia solution shows both H2 and N2 evolution activity, of which rates are 1.8 μmol/h and 0.67 μmol/h, respectively, in the presence of RuCl3. The production ratio of H2 to N2 was close to 3:1, suggesting that the ammonia decomposition reaction (2NH3 → N2 + 3H2) proceeded. The amounts of H2 and N2 increased linearly for 12 h, but after that a decline in activity was observed. Measuring the pH of the solution revealed that it decreased from pH 11 at the start of the reaction to pH 10 after the reaction stopped, 24 h, suggesting that the decrease in pH reduced the decomposition rate. In fact, we have observed the pH dependency of the activity where activity was decrease significantly below pH 11. We confirm that this reaction did not proceed in the dark. Hence, this process is photocatalytic reaction. Additionally, in the absence of RuCl3, the ammonia decomposition reaction did not proceed. We have reported that RuCl3 act as a hydrogen evolution cocatalyst in the water splitting system containing 1@CNT/C60-dendron. Therefore, it is considered that the Ru complex acts as a hydrogen production cocatalyst in this reaction system as well.
To identify the light absorber in the photocatalytic system, we measured the action spectra (Figure 4). Under monochromatic light irradiation (450, 510, 550, and 650 nm), the apparent quantum yield (AQY) values derived from the hydrogen production rates were 0.047% at 450 nm, 0.22% at 510 nm, 0.042% at 550 nm, and 0.0070% at 650 nm, respectively. The variation in activity with the wavelength of the irradiation light closely matches the absorption spectrum of endohedral dye 1. This indicates that the ammonia decomposition reaction is photosensitized by 1. Moreover, compared to the AQY of ZnS2, 0.21% under 340-nm-light-irradiation, 1@CNT/C60-dendron exhibits similar AQY (0.22%) under longer wavelength, 510-nm-light-irradiation.
In terms of a plausible mechanism of the dye-sensitized ammonia decomposition (NH3 → 1/2N2 + 3/2H2), it has a ΔG° of +27 kJ/mol (0.28 eV), which corresponds to the energy in the infrared region (4.43 μm). Therefore, visible light absorption of endohedral dye 1 can provide sufficient energy for this reaction. The electrons generated by photoexcitation of 1 are utilized in the H2 evolution via two-electron reduction of protons (2H+ → H2) at the co-catalyst, RuCl3, and the holes are utilized in the N2 evolution via six-electron oxidation of ammonia (2NH3 → N2 + 6H+) at the CNT-surface. Figure 5 shows the energy level diagram for this reaction. Although the CNTs are a chirality mixture, the energy levels of the HOMO and LUMO of a representative (13,8) tube are shown. The HOMO and LUMO of the dye 1 are shown as reported in the literature. The H2 evolution through photoinduced electron transfer from 1 to C60 and Ru(III) co-catalyst has already been reported in water splitting, demonstrating sufficient level of 1’s LUMO for ammonia decomposition reaction. The energy level of the photogenerated holes on 1 is +0.80 V, which is deeper than the energy level of the HOMO of the CNT (+0.35 V), suggesting that the holes migrate to the CNT and are consumed in the oxidation reaction of NH3. Considering the standard electrode potential for the nitrogen production reaction via the oxidation of ammonia (N2(g) + 6H+ + 6e– = 2NH3 (aq)) is -0.092 V, the HOMO level of the CNT is sufficiently deep to enable nitrogen production via the oxidative decomposition of ammonia.
Figure 6 shows the time course of the ammonia decomposition reaction under simulated sunlight (AM1.5). After 26 hours, the amount of hydrogen produced reached 64.7 μmol, and the amount of nitrogen produced reached 15.5 μmol. The STH (solar-to-hydrogen) efficiency calculated from these results was 0.0011% for the ammonia decomposition reaction. The pH at the start of the measurement was 11.2, and after 26 hours, when hydrogen production stopped, the pH was 10.4. The result indicated that the ammonia decomposition reaction was stopped owing to the lowering pH of the solution. But the pH of the solution was adjusted to 11.2 by adding KOH solution and irradiation was resumed, hydrogen and nitrogen production resumed, where the ratio of N2 and H2 evolution rate, 0.90 and 0.30 μmol/h, respectively, was perfectly 3:1.

3. Materials and Methods

3.1. Materials

Carbon nanotubes (CNTs), known as SO-tubes, were purchased from Meijo Nanocarbon Inc. Dye 1 was obtained from Fujifilm Wako Chemicals. All other reagents were sourced from Kanto Kagaku Co., Ltd., Sigma-Aldrich Co., and Tokyo Kasei Co., Ltd. All chemicals were used as received without further purification.

3.2. Preparation of a Stock Solution of 1@CNT/C60-Dendron

Dye 1 encapsulated CNTs (1@CNTs) and 1@CNT/C60-dendron nanohybrids were prepared according to a previously reported procedure [12]. 1@CNTs (1.0 mg) were added to an aqueous solution (10 mL) of C60-dendron (25.5 mg, 0.01 mmol) and sonicated using a bath-type sonicator (Honda Electronics Co., Ltd., VS-D100, 110 W, 24 kHz) at 17-25 °C for 4 hours. After sonication, the suspension was centrifuged at 3000 G for 30 minutes, and the black supernatant, containing 1@CNT/C60-dendron nanohybrids and excess C60-dendron, was collected. The 1@CNT/C60-dendron was purified by dialysis for 3 days using dialysis tubing (SPECTRUM RC MEMBRANES Pro 4) to remove excess C60-dendron that was not adsorbed onto the CNT surfaces. The dialysis process continued until no change in absorption at 255 nm (C60’s absorption) was observed in the UV-vis spectra of the dialysate. The resulting black-colored solution of 1@CNT/C60-dendron was then used as a stock solution.

3.3. Photocatalytic Decomposition of Ammonia Using 1@CNT/C60-Dendron

To the stock solution of 1@CNT/C60-dendron (0.75 mL), RuCl3 (6.3 mg, 30 mmol) was added and stirred for 30 minutes to load the Ru(III) co-catalyst onto the shell of 1@CNT/C60-dendron. The resulting solution of 1@CNT/C60-dendron/Ru(III) was then added to an aqueous NH3 solution (149.25 mL), prepared by mixing aqueous NH3 (1 mL, 13.8 M) with deionized water (148.25 mL). The pH of this solution was 11. The mixture was degassed for five cycles and purged with Ar in a Pyrex reactor. Under vigorous stirring, the solution was irradiated with a 300 W Xenon arc lamp (Ushio model UXL-500 W) through bandpass filters (λ = 450, 510, 550, 650, and > 422 nm: ASAHI SPECTRA CO, M.C.). After the designated reaction time, the cell containing the reaction mixture was connected to a gas chromatograph (Shimadzu, TCD, molecular sieve 5A: 2.0 m × 3.0 mm, Ar carrier gas) to measure the amounts of H2 and N2 evolved in the gas phase above the solution. The apparent quantum yield (AQY) was defined as follows: AQY = (number of H2 molecules generated × 2) / (number of photons absorbed). The AQY was evaluated by measuring the change in the power of the transmitted light using a power meter (Photo-radiometer Model HD 2302.0 coupled with an irradiance measurement probe LP 471 RAD, with an exposure window diameter of 1.6 cm) placed behind the cell, parallel to the irradiation cell face.

4. Conclusions

In conclusion, the production of nitrogen and hydrogen via dye-sensitized ammonia decomposition was successfully proceeded. By utilizing carbon nanotubes as a platform, we constructed 1@CNT/C60 coaxial heterojunctions, enabling the use of endohedral dye 1 as a photosensitizer. This approach allows for the construction of ammonia decomposition systems employing various dyes. We do not satisfy with the current values of AQY and STH. And we feel these low values might be attributed to the low efficiency of the six-electron oxidation reaction of ammonia. Now we attempt to investigate the mechanism of ammonia oxidation and improve the molecular design of endohedral dyes to enhance the activity of the dye-sensitized ammonia decomposition reaction. This research aims to pave the way for more efficient and practical systems for sustainable hydrogen production from ammonia using solar energy.

Author Contributions

Conceptualization, Y.T.; methodology, K.Y.; validation, K.M.; investigation, K.Y.; resources, K.Y.; data curation, T.T.; writing—original draft preparation, K.Y. and Y.T.; writing—review and editing, Y.T. and T.T.; supervision, project administration, and funding acquisition, Y.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Grant-in-Aid from Japan Society for the Promotion of Science (23K04519 and 24H01616 to Y.T.).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Guo, J.; Chen, P. Catalyst: NH3 as an energy carrier. Chem 2017, 3, 709–714. [CrossRef]
  2. Zhang, S.; He, Z.; Li, X.; Zhang, J.; Zang, Q; Wang, S. Building heterogeneous nanostructures for photocatalytic ammonia decomposition. Nanoscale Adv. 2020, 2, 3610–3623. [CrossRef]
  3. Iwase, A.; Ii, K.; Kudo, A. Decomposition of an aqueous ammonia solution as a photon energy conversion reaction using a Ru-loaded ZnS photocatalyst. Chem. Commun. 2018, 54, 6117–6119. [CrossRef]
  4. Obata, K.; Kishishita, K.; Okemoto, A.; Taniya, K.; Ichihashi, Y.; Nishiyama, S. Photocatalytic decomposition of NH3 over TiO2 catalysts doped with Fe. Appl. Catal., B. 2014, 160–161, 200-203. [CrossRef]
  5. Zhang, H.; Gu, Q.-Q.; Zhou, Y.-W.; Liu, S.-Q.; Liu, W.-X.; Luo, L.; Meng, Z.-D. Direct Z-scheme photocatalytic removal of ammonia via the narrow band gap MoS2/N-doped graphene hybrid catalyst upon near-infrared irradiation. Appl. Surf. Sci. 2020, 504 144065. [CrossRef]
  6. Tajima, T.; Sakata, W.; Wada, T.; Tsutui, A.; Nishimoto, S.; Miyake, M.; Takaguchi, Y. Photosensitized Hydrogen Evolution from water using a single-walled carbon nanotube/fullerodendron/SiO2 coaxial nanohybrid. Adv. Mater. 2011, 23, 5850–5754. [CrossRef]
  7. Sasada, Y.; Tajima, T.; Wada, T.; Uchida, T.; Nishi, M.; Ohkubo, T.; Takaguchi, Y. Photosensitized hydrogen evolution from water using single-walled carbon nanotube/fullerodendron/Pt(II) coaxial nanohybrids. New J. Chem. 2013, 37, 4214–4219. [CrossRef]
  8. Kurniawan, K.; Tajima, T.; Kubo, Y.; Miyake, H.; Kurashige, W.; Negishi, Y.; Takaguchi, Y. Incorporating a TiOx shell in single-walled carbon nanotube/fullerodendron coaxial nanowires: increasing the photocatalytic evolution of H2 from water under irradiation with visible light. RSC Adv. 2017, 7, 31767–31770. [CrossRef]
  9. Izawa, T.; Kalousek, V.; Miyamoto, D.; Murakami, N.; Miyake, H.; Tajima, T.; Kurashige, W.; Negishi, Y.; Ikeue, K.; Ohkubo, T.; Takaguchi, Y. Carbon-nanotube-based photocatalysts for water splitting in cooperation with BiVO4 and [Co(bpy)3]3+/2+. Chem. Lett. 2019, 48, 410–413. [CrossRef]
  10. Ishimoto, K.; Tajima, T.; Miyake, H.; Yamagami, M.; Kurashige, W.; Negishi, Y.; Takaguchi, Y. Photo-induced H2 evolution from water via the dissociation of excitones in water-dispersible single-walled carbon nanotube sensitizers. Chem. Commun. 2018, 54, 393–396. [CrossRef]
  11. Yamagami, M.; Tajima, T.; Zhang, Z.; Kano, J.; Yashima, K.; Matsubayashi, T., Nguyen, H. K.; Nishiyama, N.; Hayashi, T.; Takaguchi, Y. Hot electron extraction in SWCNT/TiO2 for photocatalytic H2 evolution from water. Nanomaterials 2022, 12, 3826. [CrossRef]
  12. Murakami, N.; Miyake, H.; Tajima, T.; Nishikawa, K.; Hirayama, R.; Takaguchi, Y. Enhanced photosensitized hydrogen production by encapsulation of ferrocenyl dyes into single-walled carbon nanotubes. J. Am. Chem. Soc. 2018, 140, 3821–3824. [CrossRef]
  13. Takaguchi, Y.; Miyake, H.; Izawa, T.; Miyamoto, D.; Sagawa, K.; Tajima, T. Molecular design of benzothiadiazole-based dyes for working with carbon nanotube photocatalysts. Phosphorus Sulfur Silicon Relat. Elem. 2019, 194, 707–711. [CrossRef]
  14. Tajima, T.; Yamagami, M.; Sagawa, R.; Miyake, H.; Takaguchi, Y. Dye-sensitized H2 evolution from water facilitated by photoinduced electron transfer between molecules on the inside and the outside of a carbon nanotube. J. Appl. Phys. 2021, 129, 014303. [CrossRef]
  15. Watanabe, H.; Ekuni, K.; Okuda, Y.; Nakayama, R.; Kawano, K.; Iwanaga, T.; Yamaguchi, A.; Kiyomura, T.; Miyake, H.; Yamagami, M.; Tajima, T.; Kitai, T.; Hayashi, T.; Nishiyama, N.; Kusano, Y.; Kurata, H.; Takaguchi, Y.; Orita, A. Composite formation of anthrylene- and ferrocenoyl-substituted phenyleneethynylenes with single-wall carbon nanotubes (SWCNTs). Bull. Chem. Soc. Jpn. 2023, 96, 57–64. [CrossRef]
  16. Miyake, H.; Tajima, T.; Takaguchi, Y. Synthesis and light-absorption characteristics of thiophene derivatives bearing ferrocenylthiocarbonyl groups. Chem. Lett. 2017, 46, 48–50. [CrossRef]
Preprints 115396 g001

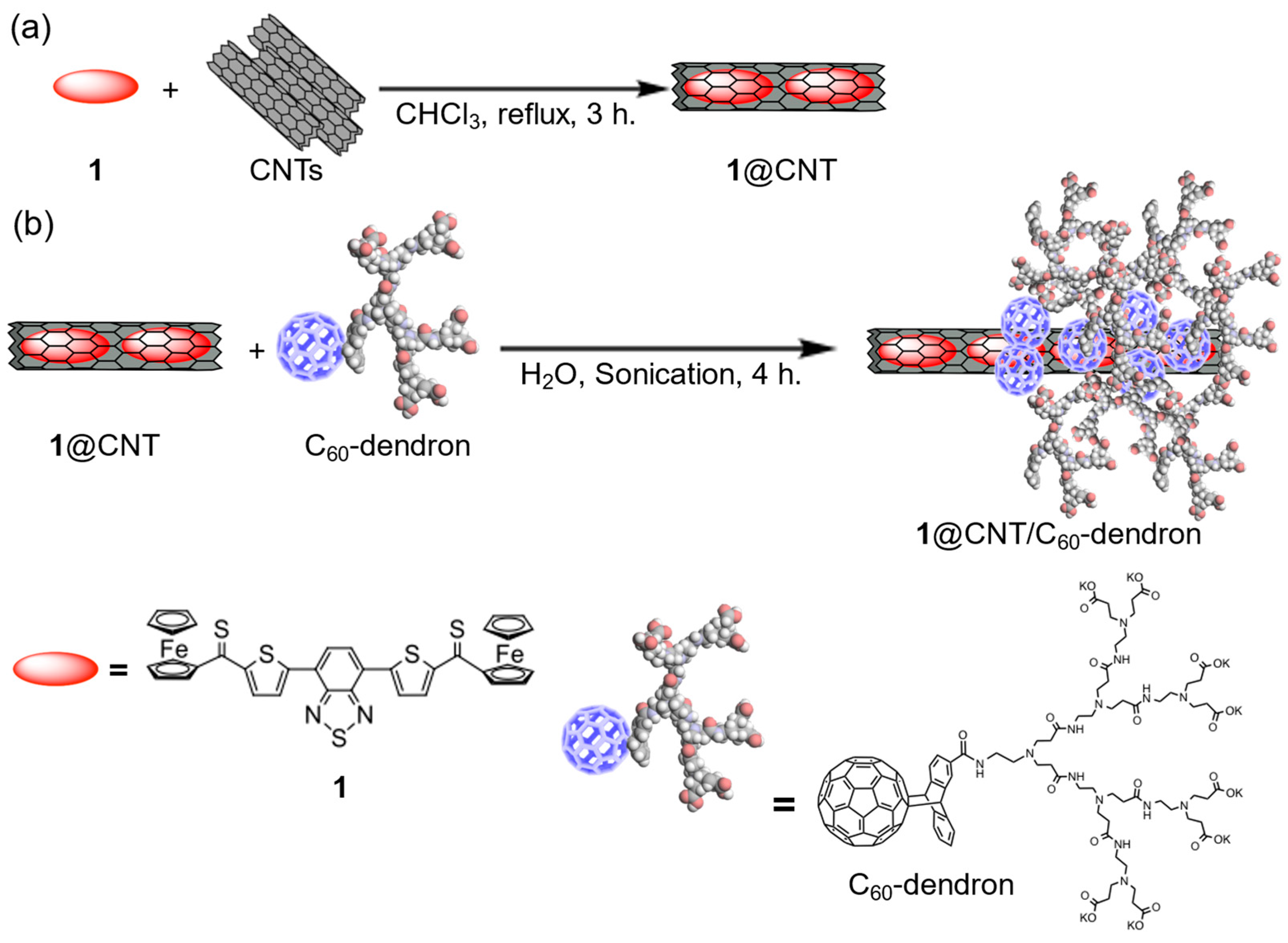

Figure 1. Fabrication of 1@CNT/C60-dendron acting as a photocatalyst.
Figure 1. Fabrication of 1@CNT/C60-dendron acting as a photocatalyst.
Preprints 115396 g001
Preprints 115396 g002

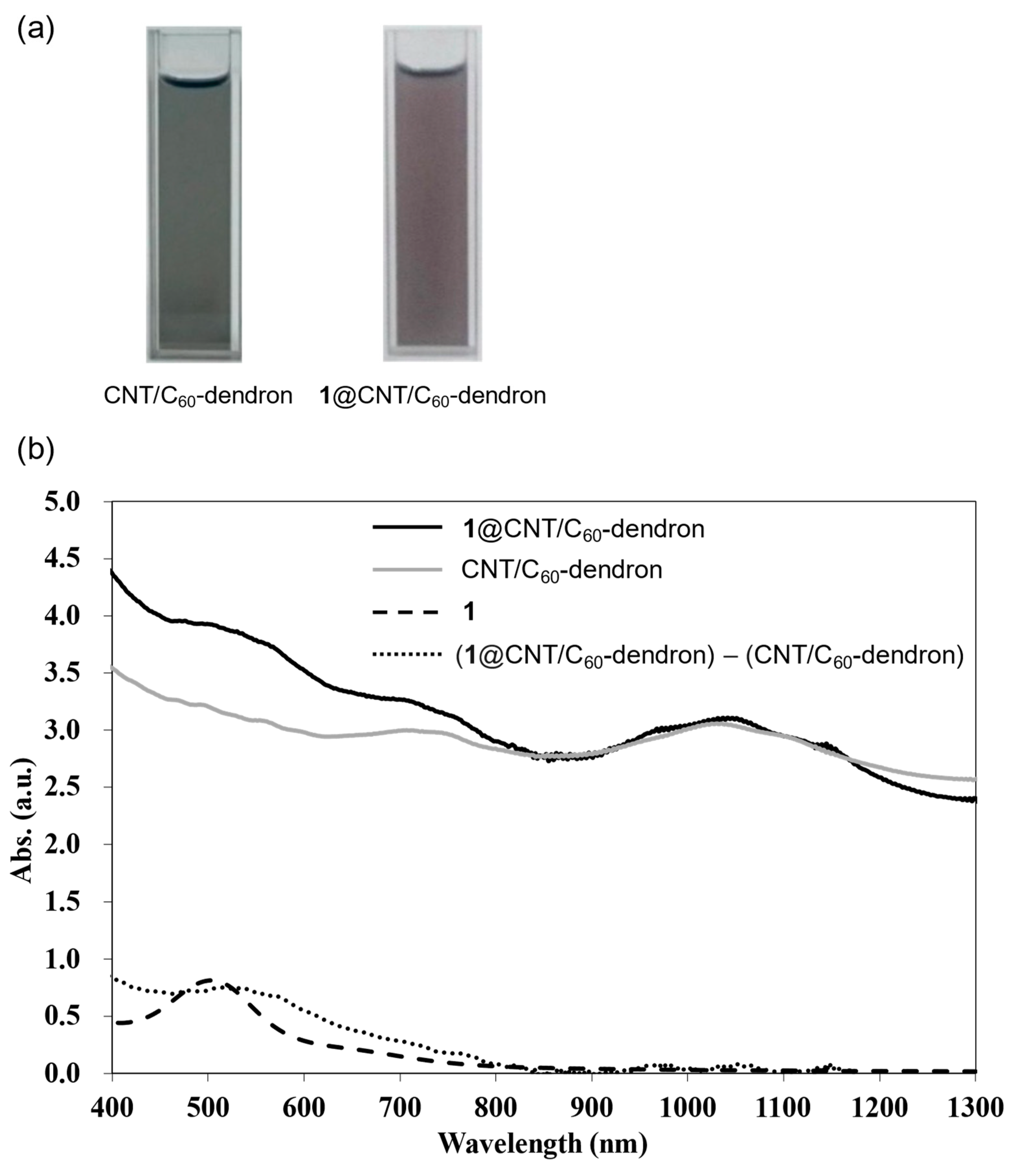

Figure 2. (a) Photograph of a water-dispersion of CNT/C60-dendron (left) and 1@CNT/C60-dendron (right), (b) absorption spectra of dye 1, CNT/C60-dendron, and 1@CNT/C60-dendron in water.
Figure 2. (a) Photograph of a water-dispersion of CNT/C60-dendron (left) and 1@CNT/C60-dendron (right), (b) absorption spectra of dye 1, CNT/C60-dendron, and 1@CNT/C60-dendron in water.
Preprints 115396 g002
Preprints 115396 g003

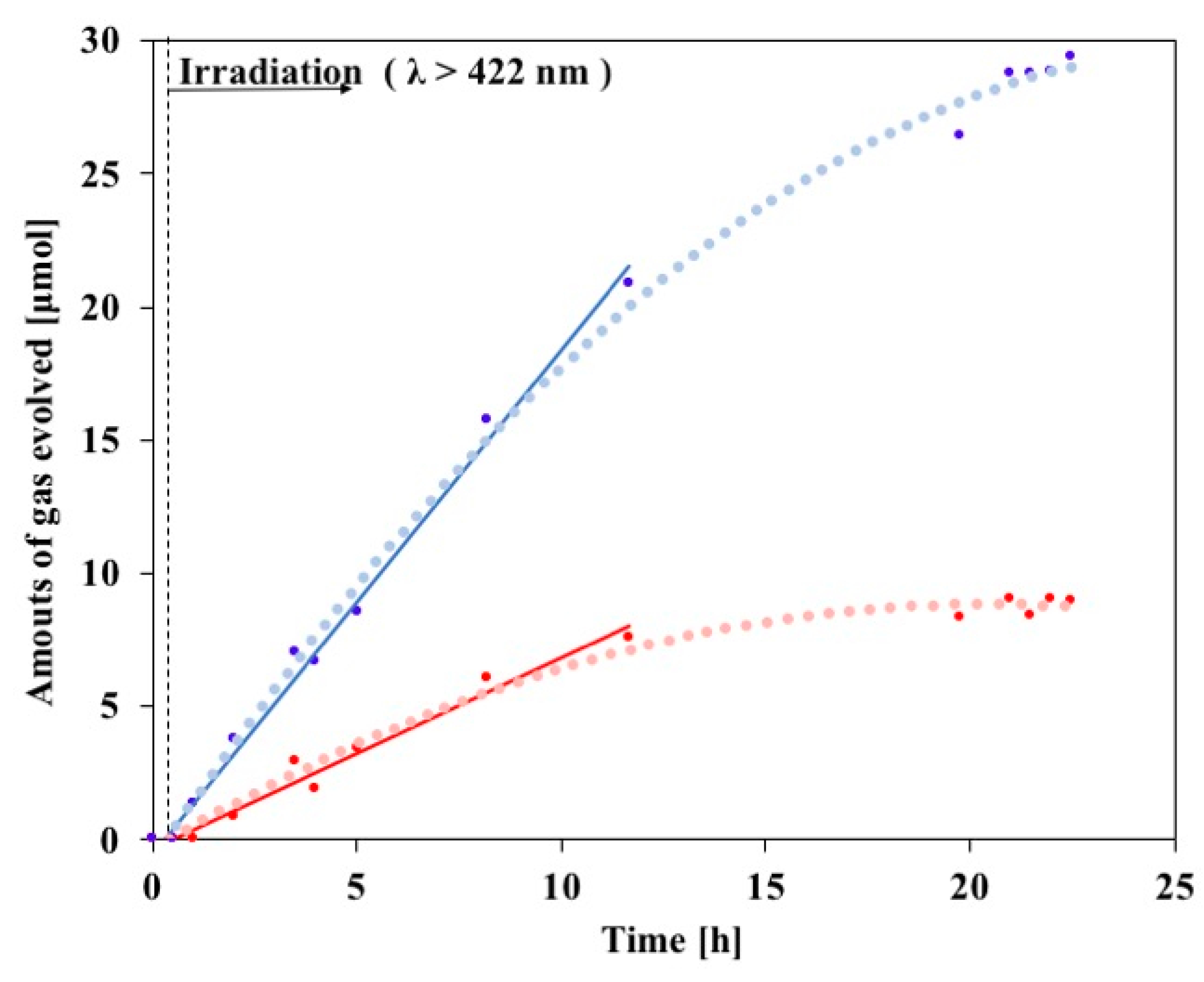

Figure 3. Time course of the H2 (blue) and N2 (red) evolution using 1@CNT/C60-dendron photocatalyst under irradiation with visible light (300W-Xe; λ > 422 nm, 3000 Wm2).
Figure 3. Time course of the H2 (blue) and N2 (red) evolution using 1@CNT/C60-dendron photocatalyst under irradiation with visible light (300W-Xe; λ > 422 nm, 3000 Wm2).
Preprints 115396 g003
Preprints 115396 g004

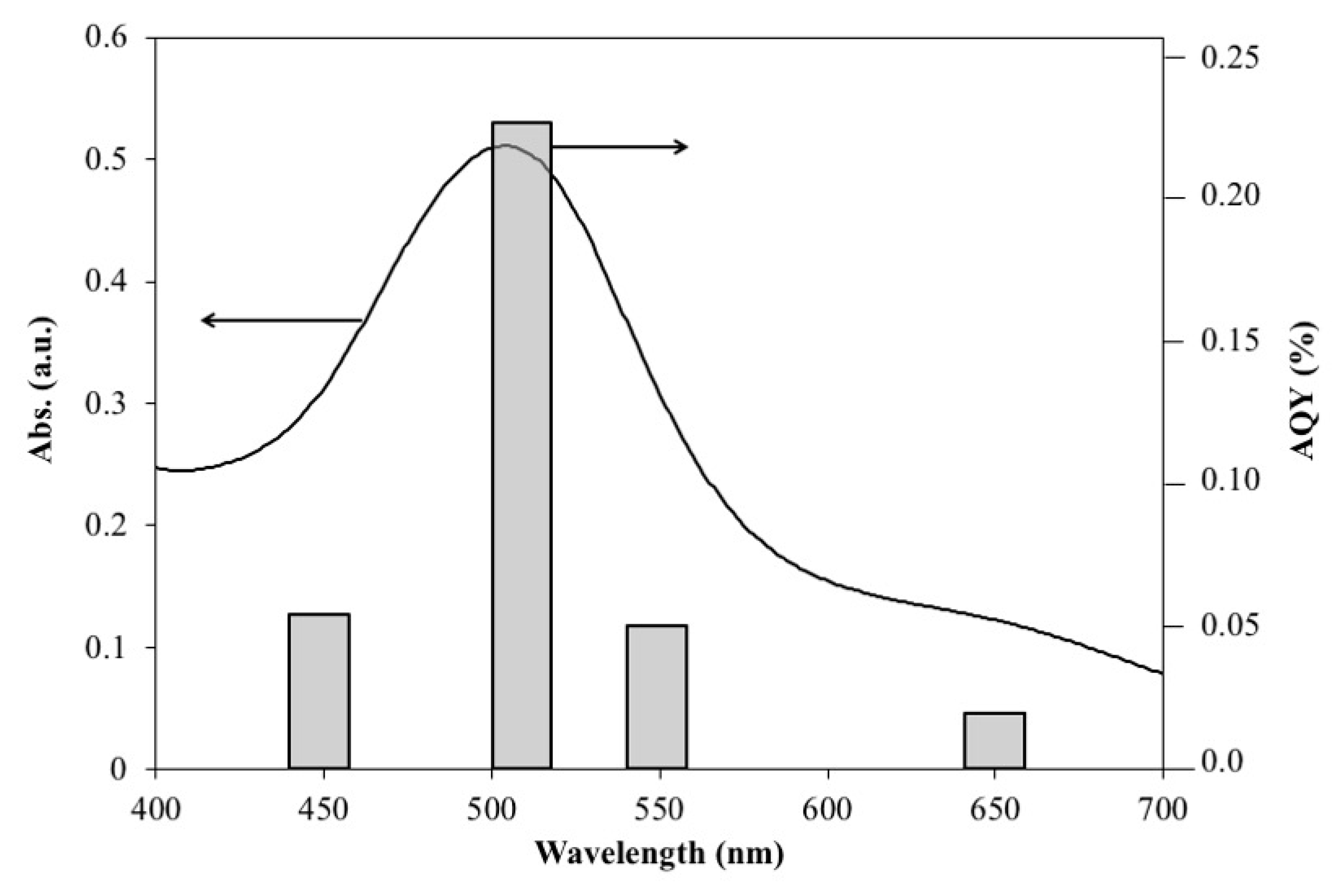

Figure 4. UV−vis spectrum of 1 in chloroform, as well as action spectra for the evolution of H2 from H2O using 1@CNT/C60-dendron.
Figure 4. UV−vis spectrum of 1 in chloroform, as well as action spectra for the evolution of H2 from H2O using 1@CNT/C60-dendron.
Preprints 115396 g004
Preprints 115396 g005

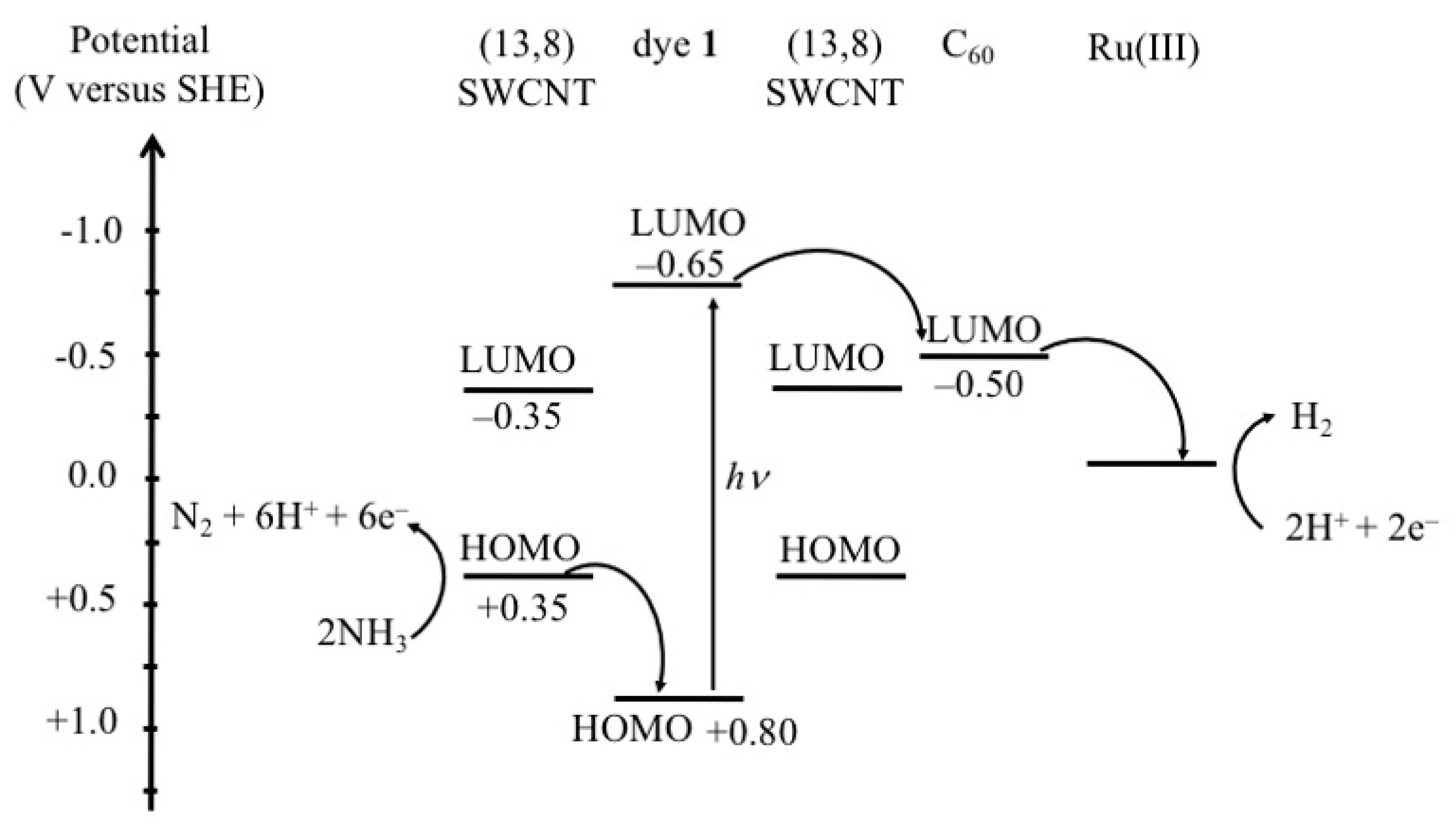

Figure 5. Energy-level diagram of the photocatalytic decomposition of NH3 using 1@SWCNT/C60-dendron to evolute H2 and N2.
Figure 5. Energy-level diagram of the photocatalytic decomposition of NH3 using 1@SWCNT/C60-dendron to evolute H2 and N2.
Preprints 115396 g005
Preprints 115396 g006

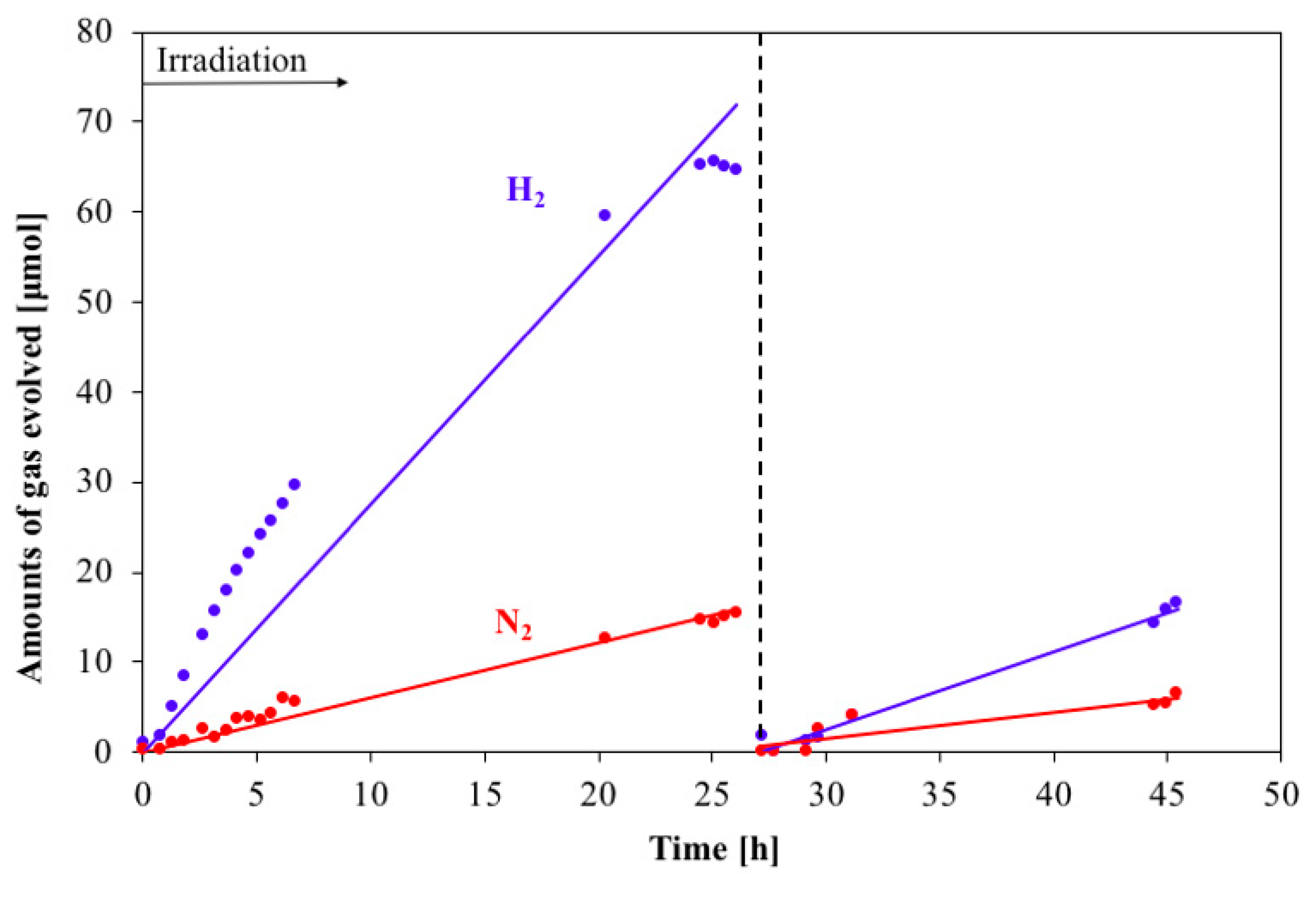

Figure 6. Time course of the H2 (blue) and N2 (red) evolution using 1@CNT/C60-dendron photocatalyst under irradiation with simulated sunlight (AM-1.5G; 1000 Wm2).
Figure 6. Time course of the H2 (blue) and N2 (red) evolution using 1@CNT/C60-dendron photocatalyst under irradiation with simulated sunlight (AM-1.5G; 1000 Wm2).
Preprints 115396 g006
