Abstract
Ti-Al based alloys, particularly TiAl and Ti3Al two-phase alloys, have garnered significant attention as potential replacements for various high-temperature structural materials due to their exceptional properties, including low density, oxidation resistance, and high strength at elevated temperatures. Despite these advantages, experimental studies on the microstructure evolution of Ti-Al based alloys under complex conditions remain challenging to observe and characterize. This review article examines the current research on molecular dynamics (MD) simulations of Ti-Al based alloys, focusing on two-phase Ti-Al alloys, Ti-Al amorphous alloys, Ti-Al composite materials, and the welding and multi-layer/film applications of Ti-Al alloys. The review highlights the unique capabilities of MD simulations in predicting the behavior of Ti-Al based alloys and addresses existing scientific challenges. Furthermore, the article discusses future research directions and development prospects in this field.
Keywords:
Subject: Chemistry and Materials Science  -   Metals, Alloys and Metallurgy

1. Introduction

The rapid advancements in the aerospace and automotive industries have led to an increased demand for metal structural materials, particularly those used in engines and thermal protection systems [1,2,3]. Enhancing the operating temperature and reducing the weight of engine components are two critical strategies for improving the performance of existing engines and developing new engines with high thrust-to-weight ratios. Consequently, the search for new lightweight, high-temperature structural materials to enhance efficiency and conserve energy has become a key research focus. Numerous countries have shown significant interest in titanium and aluminum compounds, conducting extensive and in-depth research. Especially the Ti3Al and TiAl-based superalloys, achieving remarkable results [4,5,6].
Ti-Al based alloys have emerged as promising candidates to replace Ni-based high-temperature alloys. This is primarily due to their low density, high strength retention at elevated temperatures, excellent creep resistance, and high specific strength [7,8,9]. Within the Ti-Al binary system, three intermetallic compounds—Ti3Al, TiAl, and TiAl3—have garnered extensive research and attention. Additionally, based on Ti3Al research, the Ti2AlNb titanium alloy has been developed [10,11,12,13]. A comparative performance analysis of Ti, TiAl, and Ti3Al based alloys is presented in Table 1.
TiAl is a typical berthollide compound with a broad compositional range, from 48% to 69.5% aluminum (atomic fraction), and remains stable below its melting point of 1460 °C. TiAl exhibits an L10 ordered superlattice structure, characterized by a square lattice with parameters a = 0.398 nm, c = 0.404 nm, and a c/a ratio of 1.015. This c/a ratio varies from 1.01 to 1.03 as the aluminum content increases. The Ti3Al intermetallic compound has a D019 structure, which is an ordered variant of the α-Ti structure, also known as the α2 phase [14,15,16]. Studies on the resilience mechanism of Ti3Al have revealed that increasing the Nb content (primarily Nb, with some Mo and V) leads to the formation of a new phase, Ti2AlNb [17]. When the Nb content reaches 25 at%, a Ti2AlNb combination is formed. Face-centered cubic (FCC) TiAl3-type alloys, with their low density and high melting points, show significant promise as high-temperature resistant metal composites [18]. The lattice parameters for the TiAl3-D022 phase are reported as a = b = 0.3856 nm and c = 0.8622 nm, giving a c/a ratio of 2.236 [19].
The properties of Ti-Al based alloys are influenced by factors such as alloying elements, processing methods, and microstructure variations. However, experimental deformation tests are often tedious, costly, and challenging to observe directly at the atomic scale. Advances in computer technology have popularized molecular dynamics (MD) as an effective simulation method for material calculations [20,21,22]. MD studies, conducted using the LAMMPS package, utilize atomic interaction potentials to simulate material behavior. Among the various potentials available, such as MEAM and EAM, the EAM potential is particularly effective for MD characterization. This is due to its ability to accurately model interactions between similar and dissimilar atoms, facilitating the examination of the effects of externally applied forces on all particles [23,24,25].
The MD simulation is a powerful method for uncovering the deformation mechanisms of metal materials at the atomic scale [26,27,28]. It allows for the observation of dynamic evolution processes under various loading conditions, such as the nucleation, propagation, and interaction of atomic structures. Additionally, MD simulations provide valuable insights into the effects of microstructure features and ambient temperature on mechanical properties and failure modes [29,30,31], making them essential for understanding the plastic deformation mechanisms of metal materials [32,33,34]. For instance, Medyanik et al. [35] demonstrated that the coherent interface in a Cu-Ni bilayered composite acts as a strong barrier to dislocation propagation during nanoindentation, significantly strengthening the composite. Similarly, Shimono et al. [36] conducted MD simulations to study the recrystallization process of Ti-Al alloys in an amorphous state, revealing that the alloy's ability to form an amorphous structure is influenced by its aluminum content.
Currently, MD simulations have been widely applied to the study of Ti-Al based alloys. For instance, researchers have investigated the rapid cooling of Ti3Al to form amorphous materials, determining the relationship between cooling rate and amorphous formation ability using the EAM potential [36,37,38]. Studies have also explored the thermophysical properties of molten titanium aluminum, including density and specific heat [39]. Subsequent research has expanded into areas such as layered composites [40,41], welding [42,43], and the effects of additional alloying elements on titanium-aluminum alloys [44,45,46].
In this study, we review the MD simulations related to different Ti-Al based alloys, aiming to present recent research progress. Section 2 discusses the simulation methods employed for different types of Ti-Al alloys and analyzes the resulting data. Finally, Section 3 addresses the development trends, challenges, and future directions for applying MD simulations to Ti-Al based alloys.

2. Prediction of Different Ti-Al Based Alloys

The thermophysical properties, particularly in the under-cooled regime, are crucial for understanding and defining the thermodynamic state of Ti-Al based systems. Properties such as specific heat and density of liquid alloys in this regime are of significant interest [39]. MD simulations are highly effective in studying these properties, as well as the local structure and diffusion in liquid TixAl1-x alloys, using the EAM potential and NPT ensemble [47]. Additionally, MD simulations have been applied to investigate transitions from the β phase to the α phase, elastic constants, structural and deformation behaviors, and the micro-mechanisms of cold deformation in Ti-Al alloys [48,49,50].
MD simulations are being increasingly used to exploring the dynamic properties of Ti-Al based alloys, offering high efficiency in simulating atomic-level processes over extensive spatial and temporal scales [51,52,53,54]. In-situ virtual experiments using MD simulations have facilitated the examination of microscopic mechanisms that govern the mechanical properties of multi-component alloys [55]. MD simulations can be used for calculations involving various ensembles such as NPT, NVE, and NVT. This method, grounded in Newtonian determinism, provides higher accuracy and effectiveness in macroscopic property calculations compared to Monte Carlo methods and is widely applicable across fields like physics, chemistry, biology, materials science, medicine, etc [56]. In this section, we briefly introduce the application of MD simulations in studying two-phase alloys, amorphous alloys, composite materials, welding, and multi-layer/film in Ti-Al alloys, as illustrated in Figure 1.

2.1. Simulation of Two-Phase Ti-Al Alloys

Ti-Al alloys have been extensively studied to address challenges related to ductility and damage tolerance. Research has focused on single-phase γ-TiAl [57], Ti3Al alloys [58], polysynthetically twinned crystals (PTC) [55], deformation twinning [59], and various compositions of Ti-Al alloys [60,61]. Key areas of investigation include the effects of residual stress, deformation, and crystal structure [48,62,63].
Hariprasath Ganesan [63] studied the high-temperature separation behavior of lamellar interfaces in γ-TiAl under tensile loading, with the main results shown in Figure 2. This study employed two different atomistic interface models: a defect-free model (Type-1) and a model with preexisting voids (Type-2), as illustrated in Figure 2(a). In Figure 2(b), the first row presents the constructed atomistic models of the four interlamellar interfaces in TiAl after initial energy minimization. The second row displays the centrosymmetry parameter (CSP) for each atom in this initial configuration, which measures local lattice disorder caused by defects, surfaces, or interfaces. Figure 2(c) shows the global normal stress for Type-1 models of the four single interlamellar interfaces within the simulation box. A consistent relationship between stress and strain is observed for all temperatures, interfaces, and strain rates up to the yield stress, characterized by significant dislocation nucleation. Figure 2(d) presents the global stress-strain curves for the Type-2 interface models, which contain a preexisting void. The presence of the void-type defect reduces interface strength due to high local stress concentrations around the void, leading to lower global loads for interatomic bond breakage. Consequently, compared to the Type-1 models, the yield stress is reduced for all interfaces, with the high-stress regions near the void becoming dominant dislocation sources [63].
Roman E. Voskoboinikov [64] utilized MD simulations to study the radiation damage in the D019 Ti3Al intermetallic compound. His findings revealed that Ti3Al exhibited excellent resistance to the formation of primary radiation defects across the entire range of simulated temperatures and PKA energies. The number of Frenkel pairs generated in collision cascades in Ti3Al is significantly lower than in α-Zr under identical irradiation conditions, particularly at high PKA energies and temperatures. This phenomenon suggests that Ti3Al-based intermetallic alloys could benefit from enhanced oxidation and corrosion resistance through ion beam treatment followed by post-irradiation annealing.

2.2. Simulation of Ti-Al Amorphous Alloys

The microstructure of Ti-Al alloys can be controlled through amorphous metastable states, making it essential to understand the micro-mechanisms of amorphous phase formation and crystallization. The excessive vibration observed in metallic glasses, known as boson peaks, is a common characteristic of amorphous phases [65]. MD simulations have shown that these vibrational modes are closely related to local atomic structures and coordinated nanoscale motions. Research in this area includes the formation of amorphous Ti3Al through rapid cooling [38], the thermal expansion and recrystallization of amorphous Al and Ti [66], the formation of amorphous structures by encapsulating Ti and Al nanoparticles [67,68], and the local atomic structural order in TiAl3 metallic glass [69].
Xie et al. [70] investigated the glass formation and icosahedral intermediate-range order in liquid titanium aluminum alloys. The results indicate that the icosahedron is an appropriate structural unit to describe the glass formation process of liquid and amorphous Ti-Al alloys. Additionally, hexagonally connected icosahedral clusters, linked by volume sharing, exhibit good structural stability and continuity, acting as tightly connected junctions. These clusters extend into nearby regions, enhancing structural integrity. The rapid solidification process and the formation of hexagonal structures effectively reflect the glass-forming ability of different Ti-Al alloy compositions. Part of the research findings is illustrated in Figure 3. Figure 3(a) shows the evolution of the simulation box with a structural type of Ti3Al alloy during rapid solidification. Figure 3(b) presents sectional drawings of the center atoms of icosahedral clusters in TiAl3 and TiAl alloys during rapid solidification. Figure 3(c) and Figure 3(d) demonstrate that the fuller growth of IMRO structures in Ti-Al alloys results in the formation of more hexagonally connected icosahedral clusters after rapid quenching. The evolution of hexagonal structures in TiAl3 alloy indicates the excellent structural stability and continuity of hexagonally connected icosahedral clusters during rapid solidification.

2.3. Simulation of Ti-Al Composite Material

Titanium aluminum composite panels hold significant applications in the aerospace industry. Due to their lightweight and high-strength characteristics, these panels are ideal for manufacturing structural components for aircraft, rockets, and other aerospace vehicles. They not only reduce the weight of aircraft and improve fuel efficiency but also offer excellent corrosion resistance, ensuring long-term durability in harsh environments. These benefits are similarly advantageous in the automotive field. The layered ternary compound Ti2AlN plays a crucial role in reinforcing and toughening TiAl matrix composites due to its unique combination of ceramic and metallic properties [71,72]. Research has also explored the use of graphene as a reinforcing phase. The high defect density in graphene nanosheets induces severe interfacial reactions, leading to the formation of numerous recrystallized nuclei in the matrix, thereby increasing the isometric crystal content [41].
Han et al. [71,73]  investigated the Ti2AlN/TiAl composite using MD simulations, with  typical results shown in Figure 4. Atomic  models, top and side views of the Ti2AlN(0001)/TiAl(111) coherent  interface, and Ti2AlN(10 1 ¯ 3)/TiAl(111)  incoherent interface are displayed in Figure 4(a)  and Figure 4(b). Figure 4(c) illustrates the  interface under uniaxial loading for different strains. The results suggest  that micro-voids cannot rapidly propagate along the incoherent interface due to  the dual factors of dislocation nucleation and strong bonds. This behavior results  in the Ti2AlN(10 1 ¯ 3)/TiAl(111)  incoherent interface system exhibiting ductile fracture behavior.

2.4. Simulation of Ti-Al Alloy Welding

Advancements in lightweight technology have made the use of composite structures that combine high-strength and lightweight materials a viable method for improving the thrust-to-weight ratio of transportation equipment and reducing energy consumption. The Ti/Al composite structure leverages the performance advantages of both titanium and aluminum alloys and holds promising applications in the aerospace, shipbuilding, and automotive industries. Consequently, the welding of Ti and Al has become a critical issue that needs to be addressed. Key research topics in this area include mass transfer principles in laser manufacturing [43,74], the influence of temperature on interfacial diffusion processes [75], and the analysis of welding melting behavior involving titanium aluminum alloys and titanium aluminum nanoparticles [76,77,78,79].
A notable early study focused on linear friction welding between titanium and aluminum was conducted by Song et al. [80]. This research used MD software to analyze temperature changes, plastic deformation, and atomic diffusion behavior (Figure 5). Different colors in Figure 5(a) indicate the thermostat layer and Newton layer, while Figure 5(b) shows temperature changes. Figure 5(c) and Figure 5(d) depict the simulation process and cross-section at different friction times, with the results shown in Figure 5(e). The diffusion behavior of aluminum atoms in both directions was nearly identical, whereas self-diffusion of Ti atoms occurred. The applied pressure in the X-direction promoted diffusion. However, due to the influence of pressure, the diffusion of Al into the Ti-based HCP structure was significantly more challenging, as it could not easily overcome the potential barriers caused by atomic diffusion [80].

2.5. Simulation of Ti-Al Based Multi-Layer/Film

Researchers have proposed various mechanisms for strengthening and failure in metal multi-layer composite materials [81]. The strength of these multi-layer/film also depends on the initial dislocation density in the constituent layers [82]. For instance, Al-Ti multi-layer exhibit good thermal stability and minimal mixing at layer thicknesses of 22 nm or more, even at temperatures up to 400°C [83]. Additionally, annealing aluminum-titanium multi-layer/film significantly enhances their hardness, with the hardening effect becoming more pronounced as the layer thickness decreases. Ti-Al-N, used as a ceramic layer, can also resist cracking [84]. Beyond multi-layer materials, there is research on Ti-Al based films, such as Ti-Al-N [85,86], as well as Ti-coated Al, or Al-coated Ti [67,68], and the fabrication of Ti-Al modified layers to improve the wear resistance of aluminum-based alloys [87].
Sumit Kumar Maurya et al. [88] conducted an atomic analysis of HCP-FCC conversion and redirection in Al-Ti multi-layer using molecular dynamics software, as shown in Figure 6. The representative volume element of the Al-Ti multi-layer system is depicted in Figure 6(a), while the interface characteristics and relative stresses in the Al-Ti multi-layer are shown in Figure 6(b). Figure 6(c) reveals the redirection mechanism of hexagonal close-packed Ti [88]. The results indicate that this displacement mechanism involves the formation of an intermediate BCC phase, similar to the one reported by Chen et al. [89].

2.6. Others

In addition to using MD simulations for Ti-Al two-phase alloys, Ti-Al amorphous alloys, Ti-Al composite materials, Ti-Al welding, and Ti-Al multi-layer/film, researchers have also investigated the addition of Ti and Al as reinforcing phases in high entropy alloys (HEAs). HEAs are alloys formed from five or more metals in equal or approximately equal amounts [90,91,92]. Due to their desirable properties, HEAs are highly valued in materials science and engineering, characterized by high entropy, lattice distortion, slow diffusion, and the "cocktail" effect [93,94,95]. MD simulations play a crucial role in revealing and predicting the properties of HEAs at the atomic scale [96,97,98].

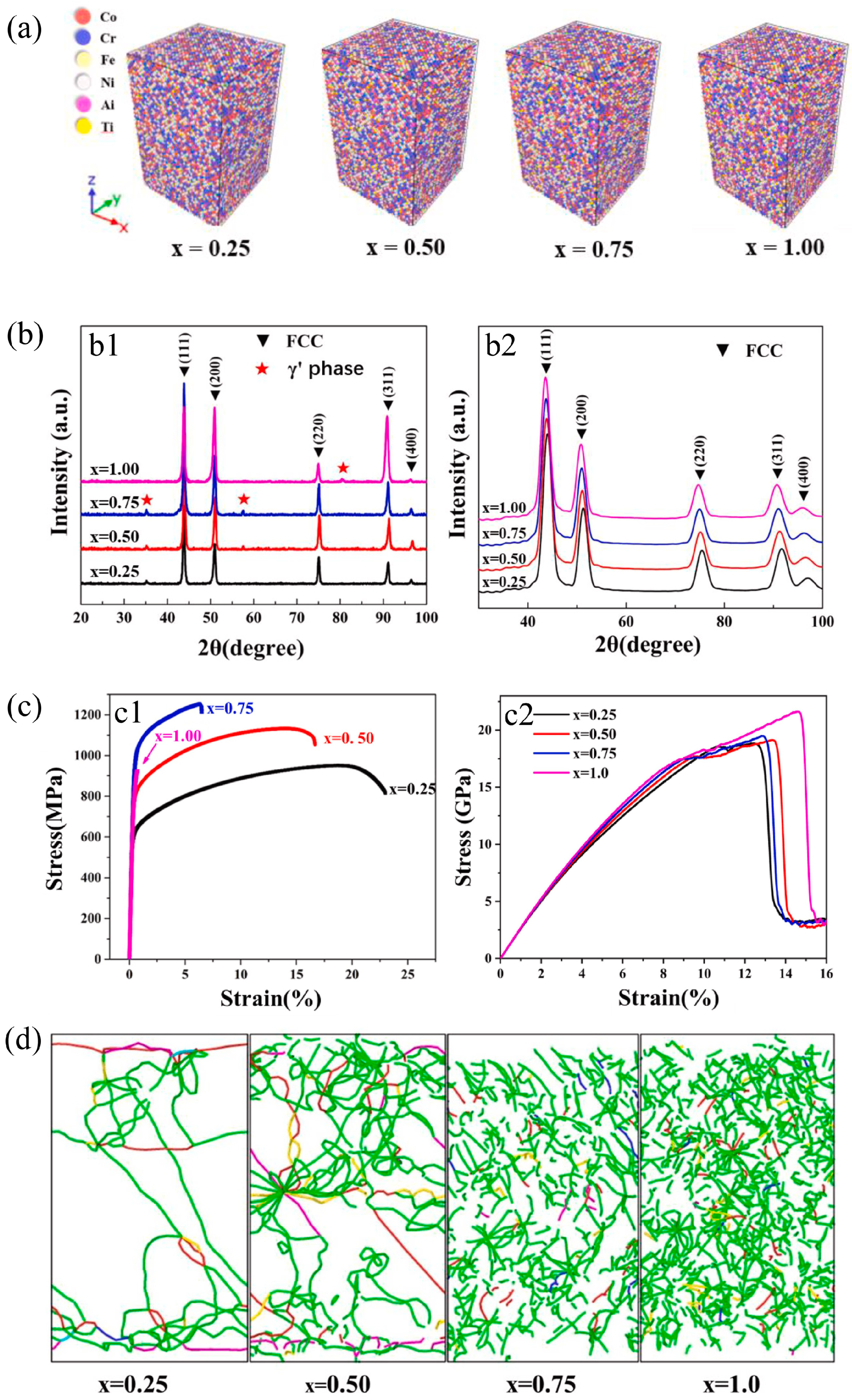

Sun et al. [99] studied CoCrFeNi (Al0.3Ti0.2)x HEA with varying Ti and Al contents, exploring the effects of content and temperature on mechanical properties. The main research findings are presented in Figure 7. Figure 7(a) shows the models with different Ti and Al contents established using MD software. The XRD patterns after rolling and the stress-strain tensile characteristics from experiments and MD simulations are depicted in Figure 7(b) and Figure 7(c). Figure 7(d) illustrates the dislocation distribution diagrams of the CoCrFeNi(Al0.3Ti0.2)x HEA before fracturing. The analysis indicates that increasing Ti and Al content significantly raises the dislocation density in HEAs, leading to intensified dislocation intersections. This increases deformation resistance and makes continuous plastic deformation difficult, ultimately enhancing the deformation resistance of the alloy.
A team led by Academician Chen Guang [100] from Nanjing University of Science and Technology published a paper in The Innovation Materials, proposing and establishing a dual-phase symbiotic nucleation model. Based on the classical nucleation theory equation, the anisotropy parameter and shape factor of the lamellar interface were introduced to develop the lamellar structure nucleation equation. They derived the critical lamellar nucleation radius, critical lamellar nucleation thickness, and critical nucleation free energy. Theoretical calculations indicated that the free energy barrier for nucleation of the layered structure during biphasic symbiosis was the smallest and easiest to overcome. Thus, the layered structure nucleates in pairs, rather than the traditional view that A-phase or B-phase nucleates first.

3. Challenges and Further Perspectives

This article summarizes and analyzes MD simulations of various Ti-Al based alloys, including Ti-Al alloys, Ti-Al amorphous alloys, Ti-Al composite materials, Ti-Al welding, and Ti-Al multi-layer materials. MD simulations offer valuable insights into the structure and properties of different materials under various conditions. This review provides an overview of the application of MD simulations in studying different Ti-Al alloys. To achieve the best results, it is crucial to fully consider the characteristics of the target material and select an appropriate starting configuration. Additionally, the size of the force field file and the system significantly impact the accuracy of the simulations. It is also essential to consider system energy minimization and relaxation phenomena to obtain more accurate data.

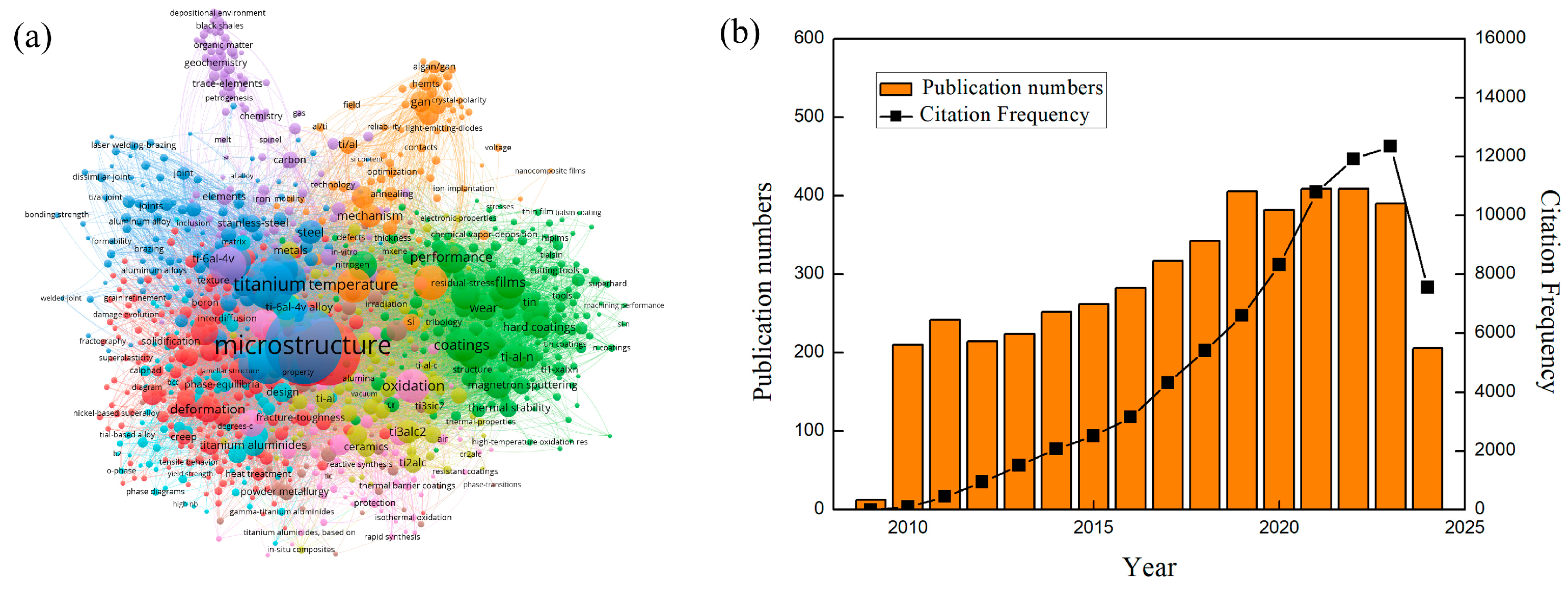

Figure 8 shows the overview of the research on Ti-Al based alloys. Figure 8a express a keyword clustering view of published literature on Ti-Al from 2009 to present. It can be seen that, many scholars have conducted generous and extensive research in these years. Figure 8b is the histograms of publication numbers and citation frequency of relevant articles retrieved with the keywords"Ti-Al" in the Web of Science database. The graph indicates that research in this area has grown rapidly in recent years, with the citation frequency reached 12349 times in 2023. The introduction of MD simulation methods has further utilized the development of research on Ti-Al, since it is a very powerful tool. However, there is still considerable room for development:
1. Comprehensive database of Ti-Al alloys: Over the past few decades, extensive research on the preparation processes and properties of Ti-Al alloys has generated a wealth of data. However, due to compositional variations among different Ti-Al alloys and the lack of high-quality data, there is a need for a comprehensive Ti-Al alloy database. This database should include detailed information on alloy compositions, preparation methods, and performance characteristics. Such a resource would significantly accelerate the research and development efforts aimed at optimizing the performance of Ti-Al alloys.
2. Cross-scale computational techniques for Ti-Al alloys: Integrating computational models with experimental research can provide a detailed understanding of the microstructure evolution of Ti-Al alloys and their impact on macroscopic properties. This method can tightly integrate MD simulation with density functional theory and finite element analysis, and enhance the understanding of the relationship between microstructure and the properties of Ti-Al alloys.
3. Development of improved potential energy functions: Creating potential energy functions that more accurately describe atomic interactions while maintaining manageable computational complexity will yield more realistic simulation results.
4. Advancements in computational power: Although improvements in computational power have increased the modeling size and simulation time, there remains a significant gap between the actual workpiece sizes and the duration required for experimental processes. Bridging this gap will be essential for achieving more practical and applicable simulation results.

Author Contributions

Writing—original draft preparation, N.N. L.; conceptualization, N.N. L. and Z.J. H.; methodology,N.N. L, Z.J. H. and S. L; writing—review and editing, L.X. and F.L.W.; investigation, N.N. L., and L.Y. W.; formal analysis, N.N. L. and M.Q. T.; data curation, L.X. and F.L.W.; resources, L.Y. W. and M.Q. T.; supervision L.X. and F.L.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Shanxi province (No. 20210302123163), the Central Government Guided Local Science and Technology development projects (No. YDZJSX2021A010), the China Postdoctoral Science Foundation (No. 2022M710541), and the High-Level Introduction of Talent Research Start-Up and Electric Power (No. 4001/40680).

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pradeep, G.V.K.; Duraiselvam, M.; Sivaprasad, K. Tribological behavior of laser surface melted γ-TiAl fabricated by electron beam additive manufacturing. J. Mater. Eng. Perform. 2022, 31, 1009–1020. [Google Scholar] [CrossRef]
  2. Tan, Y.; Wang, Y.; You, X.; Liu, H.; Li, P. Effect of solution heat treatment on the microstructure and hardness of theTi-48Al-2Cr-2Nb alloy prepared by electron beam smelting. J. Mater. Eng. Perform. 2022, 31, 1387–1396. [Google Scholar] [CrossRef]
  3. Mohammadnejad, A.; Bahrami, A.; Tafaghodi Khajavi, L. Microstructure and mechanical properties of spark plasma sintered nanocrystalline TiAl-x B composites (0.0< x< 1.5 at.%) containing carbon nanotubes. J. Mater. Eng. Perform. 2021, 30, 4380–4392. [Google Scholar]
  4. Zha, M.; Wang, H.Y.; Li, S.T.; Li, S.L.; Guan, Q.L.; Jiang, Q.C. Influence of Al addition on the products of self-propagating high-temperature synthesis of Al-Ti-Si system. Mater. Chem. Phys. 2009, 114, 709–715. [Google Scholar] [CrossRef]
  5. Liu, Y.; Hu, R.; Kou, H.C.; Wang, J.; Zhang, T.B.; Li, J.S.; Zhang, J. Solidification characteristics of high Nb-containing γ-TiAl-based alloys with different aluminum contents. Rare Metals 2015, 34, 381–386. [Google Scholar] [CrossRef]
  6. Bizot, Q.; Politano, O.; Nepapushev, A. A.; Vadchenko, S. G.; Rogachev, A. S.; Baras, F. Reactivity of the Ti-Al system: Experimental study and molecular dynamics simulations. J.Appl. Phys. 2020, 127, 145304. [Google Scholar] [CrossRef]
  7. Tian, Y.; Shen, J.; Hu, S.; Gou, J.; Cui, Y. Effects of cold metal transfer mode on the reaction layer of wire and arc additive-manufactured Ti-6Al-4V/Al-6.25 Cu dissimilar alloys. J. Mater. Sci. Technol. 2021, 74, 35–45. [Google Scholar] [CrossRef]
  8. Rittinghaus, S.K.; Wilms, M.B. Oxide dispersion strengthening of γ-TiAl by laser additive manufacturing. J. Alloy. Compd. 2019, 804, 457–460. [Google Scholar] [CrossRef]
  9. Yang, J.; Xiao, S.; Zhang, Q.K.; Xu, C.; Li, W.D.; Zheng, B.Z.; Hu, F.Q.; Yin, J.; Song, Z.L. In-situ synthesis of Ti-Al intermetallic compounds coating on Ti alloy by magnetron sputtering deposition followed by vacuum annealing. Vacuum 2020, 172, 109060. [Google Scholar] [CrossRef]
  10. Chen, G.; Peng, Y.; Zheng, G.; Qi, Z.; Wang, M.; Yu, H.; Dong, C.; Liu, C.T. Polysynthetic twinned TiAl single crystals for high-temperature applications. Nat. Mater. 2016, 15, 876–881. [Google Scholar] [CrossRef] [PubMed]
  11. Shagiev, M.R.; Galeyev, R.M.; Valiakhmetov, O.R.; Safiullin, R.V. Improved mechanical properties of Ti2AlNb-based intermetallic alloys and composites. Adv. Mater. Res. 2009, 59, 105–108. [Google Scholar] [CrossRef]
  12. Wang, D.P.; Qi, Z.X.; Zhang, H.T.; Chen, G.; Lu, Y.; Sun, B.A.; Liu, C.T. Microscale mechanical properties of ultra-high-strength polysynthetic TiAl-Ti3Al single crystals. Mat. Sci. Eng: A. 2018, 732, 14–20. [Google Scholar] [CrossRef]
  13. Djanarthany, S.; Viala, J.-C.; Bouix, J. An overview of monolithic titanium aluminides based on Ti3Al and TiAl. Mater. Chem. Phys. 2001, 72, 301–319. [Google Scholar] [CrossRef]
  14. Cao, S.Z.; Xiao, S.L.; Chen, Y.Y.; Xu, L.J.; Wang, X.P.; Han, J.C.; Jia, Y. Phase transformations of the L12-Ti3Al phase in γ-TiAl alloy. Mater. Design. 2017, 121, 61–68. [Google Scholar] [CrossRef]
  15. Avdeeva, V.; Bazhina, A.; Antipov, M.; Stolin, A.; Bazhin, P. Relationship between structure and properties of intermetallic materials based on γ-TiAl hardened in situ with Ti3Al. Metals 2023, 13, 1002. [Google Scholar] [CrossRef]
  16. Wimler, D.; Lindemann, J.; Kremmer, T.; Clemens, H.; Mayer, S. Microstructure and mechanical properties of novel TiAl alloys tailored via phase and precipitate morphology. Intermetallics 2021, 138, 107316. [Google Scholar] [CrossRef]
  17. Zhang, H.; Yan, N.; Liang, H.; Liu, Y. Phase transformation and microstructure control of Ti2AlNb-based alloys: a review. J. Mater. Sci. Technol. 2021, 80, 203–216. [Google Scholar]
  18. Hussain, A.; Mehmood, S.; Rasool, N.; Li, N.; Dharmawardhana, C.C. Electronic structure, mechanical and optical properties of TiAl3 (L12 & D022) via first-principles calculations. Chinese J. Phys. 2016, 54, 319–328. [Google Scholar]
  19. Xie, Y.Q.; Liu, X.B.; Peng, K.; Peng, H.J. Atomic states, potential energies, volumes, stability, and brittleness of ordered FCC TiAl3-type alloys. Physica B 2004, 353, 15–33. [Google Scholar] [CrossRef]
  20. Xie, Z.C.; Gao, T.H.; Guo, X.T. , Xie, Q. Molecular dynamics simulation of nanocrystal formation and deformation behavior of Ti3Al alloy. Comp. Mater. Sci. 2015, 98, 245–251. [Google Scholar] [CrossRef]
  21. Xu, S.; Wan, Q.; Sha, Z.; Liu, Z. Molecular dynamics simulations of nano-indentation and wear of the γTi-Al alloy. Comp. Mater. Sci. 2015, 110, 247–253. [Google Scholar] [CrossRef]
  22. Poletaev, G. M. Self-diffusion in liquid and solid alloys of the Ti-Al system: molecular dynamics simulation. J. Exp. Theor. Phy. 2021, 133, 455–460. [Google Scholar] [CrossRef]
  23. Hollingsworth, S.A.; Dror, R.O. Molecular dynamics simulation for all. Neuron 2018, 99, 1129–1143. [Google Scholar] [CrossRef]
  24. Tuckerman, M.E.; Martyna, G.J. Understanding modern molecular dynamics: Techniques and applications. J. Phys. Chem. B 2000, 104, 159–178. [Google Scholar] [CrossRef]
  25. Karplus, M.; McCammon, J. A. Molecular dynamics simulations of biomolecules. Nat. struct. biol. 2002, 9, 646–652. [Google Scholar] [CrossRef] [PubMed]
  26. Zepeda-Ruiz, L.A.; Stukowski, A.; Oppelstrup, T.; Bulatov, V.V. Probing the limits of metal plasticity with molecular dynamics simulations. Nature 2017, 550, 492–495. [Google Scholar] [CrossRef] [PubMed]
  27. Sankar, N.; Mathew, N.; Sobhan, C. B. Molecular dynamics modeling of thermal conductivity enhancement in metal nanoparticle suspensions. Int. Commun. Heat. Mass. 2008, 35, 867–872. [Google Scholar] [CrossRef]
  28. Wang, M.; Jiang, S.; Sun, D.; Zhang, Y.; Yan, B. Molecular dynamics simulation of mechanical behavior and phase transformation of nanocrystalline NiTi shape memory alloy with gradient structure. Comp. Mater Sci. 2022, 204, 111186. [Google Scholar] [CrossRef]
  29. Singh, A.; Kumar, D. Effect of temperature on elastic properties of CNT-polyethylene nanocomposite and its interface using MD simulations. J. Mol. Model. 2018, 24, 1–11. [Google Scholar] [CrossRef] [PubMed]
  30. Sri Harish, M.; Patra, P.K. Temperature and its control in molecular dynamics simulations. Mol. Simulat. 2021, 47, 701–729. [Google Scholar] [CrossRef]
  31. Lu, X.; Ran, H.; Cheng, Q.; Guo, F.; Huang, C. Underlying mechanisms of enhanced plasticity in Ti/Al laminates at elevated temperatures: A molecular dynamics study. J. Mater. Res. Technol. 2024, 28, 31–42. [Google Scholar]
  32. Pogorelko, V. V.; Mayer, A. E. Dynamic tensile fracture of iron: Molecular dynamics simulations and micromechanical model based on dislocation plasticity. Int. J. Plasticity 2023, 167, 103678. [Google Scholar] [CrossRef]
  33. Shuang, F.; Aifantis, K. E. Modelling dislocation-graphene interactions in a BCC Fe matrix by molecular dynamics simulations and gradient plasticity theory. Appl. Surf. Sci. 2021, 535, 147602. [Google Scholar] [CrossRef]
  34. Zhou, J.; Shen, J.; Yue, W.; Liu, Y.; Chen, Z. Molecular dynamics simulation of reinforcement mechanism of graphene/aluminum composites and microstructure evolution. J. Mater. Res. Technol. 2023, 23, 2147–2159. [Google Scholar] [CrossRef]
  35. Medyanik, S.N.; Shao, S. Strengthening effects of coherent interfaces in nanoscale metallic bilayers. Comp. Mater Sci. 2009, 45, 1129–1133. [Google Scholar] [CrossRef]
  36. Shimono, M.; Onodera, H. Molecular dynamics study on formation and crystallization of Ti–Al amorphous alloys. Mat. Sci. Eng. A. 2001, 304, 515–519. [Google Scholar] [CrossRef]
  37. Song, H.; Gao, T.; Gao, Y.; Liu, Y.; Xie, Q.; Chen, Q.; Xiao, Q.Q.; Liang, Y.C.; Wang, B. Hall-Petch relationship in Ti3Al nano-polycrystalline alloys by molecular dynamics simulation. J. Mater. Sci. 2022, 57, 20589–20600. [Google Scholar] [CrossRef]
  38. Pei, Q.X.; Lu, C.; Fu, M.W. The rapid solidification of Ti3Al: a molecular dynamics study. J. Phys: Condens. Mat. 2004, 16, 4203. [Google Scholar] [CrossRef]
  39. Han, X.J.; Chen, M.; Guo, Z.Y. A molecular dynamics study for the thermophysical properties of liquid Ti–Al alloys. Int. J. Thermophys. 2005, 26, 869–880. [Google Scholar] [CrossRef]
  40. Polyakova, P.V.; Shcherbinin, S.A.; Baimova, J.A. Molecular dynamics investigation of atomic mixing and mechanical properties of Al/Ti interface. Lett. Mater. 2021, 11, 561–565. [Google Scholar] [CrossRef]
  41. Gao, T.; He, H.; Liu, Y.; Bian, Z.; Chen, Q.; Xie, Q.; Liang, Y.; Xiao, Q. Molecular dynamics simulation of dislocation network formation and tensile properties of graphene/TiAl-layered composites. Surf. Interfaces. 2023, 39, 102983. [Google Scholar] [CrossRef]
  42. Wu, X.M.; Shi, C.G.; Wang, H.T.; Luo, X.C.; Sun, Z.R. Atomic motion behavior calculation and bonding mechanism analysis of explosive welding of high-strength and high-hardness titanium alloy Ti6Al4V/aluminum alloy 7075. Mater. Res. Express. 2023, 10, 106518. [Google Scholar]
  43. Cui, Z.; Zhou, X.; Meng, Q. Atomic-scale mechanism investigation of mass transfer in laser fabrication process of Ti-Al alloy via molecular dynamics simulation. Metals 2020, 10, 1660. [Google Scholar] [CrossRef]
  44. Kiselev, S. P.; Zhirov, E. V. Molecular-dynamics simulation of the synthesis of intermetallic Ti–Al. Intermetallics 2014, 49, 106–114. [Google Scholar] [CrossRef]
  45. Poletaev, G.M.; Bebikhov, Y.V.; Semenov, A.S.; Starostenkov, M.D. Self-diffusion in melts of Ni-Al and Ti-Al systems: molecular dynamics study. Lett. Mater. 2021, 11, 438–441. [Google Scholar] [CrossRef]
  46. Guo, F.; Holec, D.; Wang, J.; Li, S.; Du, Y. Impact of V, Hf and Si on oxidation processes in Ti-Al-N: Insights from ab initio molecular dynamics. Surf. Coat. Tech. 2020, 381, 125125. [Google Scholar] [CrossRef]
  47. Xia, J.H.; Liu, C.S.; Cheng, Z.F.; Shi, D.P. Molecular dynamics simulations on local structure and diffusion in liquid TixAl1− x alloys. Physica B 2011, 406, 3938–3941. [Google Scholar] [CrossRef]
  48. Zhang, B.; Zhang, X.; Li, C.; Zhou, K. Molecular dynamics simulation on phase transformation of Ti-Al alloy with low Al content. Rare Metal Mat. Eng. 2012, 41, 1010–1015. [Google Scholar] [CrossRef]
  49. Venkataraman, A.; Shade, P.A.; Adebisi, R.; Sathish, S.; Pilchak, A.L.; Viswanathan, G.B.; Brandes, M.C.; Mills, M.J.; Sangid, M.D. Study of structure and deformation pathways in Ti-7Al using atomistic simulations, experiments, and characterization. Metall. Mater. Trans. A. 2017, 48, 2222–2236. [Google Scholar] [CrossRef]
  50. Arifin, R.; Setiawan, D.R.P.; Triawan, D.; Putra, A.F.S.; Munaji, *!!! REPLACE !!!*; Winardi, Y.; Putra, W.T.; Darminto., *!!! REPLACE !!!*. Darminto. Structural transformation of Ti-based alloys during tensile and compressive loading: An insight from molecular dynamics simulations. MRS Commun. 2023, 13, 225–232. [Google Scholar] [CrossRef]
  51. Li, T.; Tian, C.; Moridi, A.; Yeo, J. Elucidating interfacial dynamics of Ti-Al systems using molecular dynamics simulation and markov state,odeling. ACS Appl. Mater. Interfaces, 2023, 15, 50489–50498. [Google Scholar] [CrossRef] [PubMed]
  52. Liu, J.; Zhang, L. Investigation on the diffusion behaviors and mechanical properties of the Ti/Al interface using molecular dynamics simulation. J. Mater. Eng. Perform. 2024, 33, 2920–2939. [Google Scholar] [CrossRef]
  53. Hui, C.; Zhiyuan, R.; Wenke, C.; Ruicheng, F.; Changfeng, Y. Deformation mechanisms in nanotwinned γ-TiAl by molecular dynamics simulation. Mol. Simulat. 2018, 44, 1489–1500. [Google Scholar] [CrossRef]
  54. Liu, J.; Zhang, L. Molecular dynamics simulation of the tensile deformation behavior of the γ (TiAl)/α2(Ti3Al) interface at different temperatures. J. Mater. Eng. Perform. 2022, 31, 918–932. [Google Scholar] [CrossRef]
  55. Wang, F.; Wu, H.H.; Dong, L.; Pan, G.; Zhou, X.; Wang, S.; Guo, R.; Wu, G.; Gao, J.; Dai, F.Z. Atomic-scale simulations in multi-component alloys and compounds: a review on advances in interatomic potential. J. Mater. Sci. Technol. 2023, 165, 49–65. [Google Scholar] [CrossRef]
  56. Kim, J.H.; Lee, S.H. Molecular dynamics simulation studies of benzene, toluene, and p-xylene in NpT ensemble: Thermodynamic, structural, and dynamic properties. B. Korean Chem. Soc. 2002, 23, 447–458.
  57. Wu, H.N.; Xu, D.S.; Wang, H.; Yang, R. Molecular dynamics simulation of tensile deformation and fracture of γ-TiAl with and without surface defects. J. Mater. Sci. Technol. 2016, 32, 1033–1042. [Google Scholar]
  58. Liu, Y.; Gao, T.; Gao, Y.; Li, L.; Tan, M.; Xie, Q.; Chen, Q.; Tian, Z.; Liang, Y.; Wang, B. Evolution of defects and deformation mechanisms in different tensile directions of solidified lamellar Ti–Al alloy. Chinese Physics B. 2022, 31, 046105. [Google Scholar] [CrossRef]
  59. Zhang, H.; Wei, B.; Ou, X.; Ni, S.; Yan, H.; Song, M. Atomic-level study of {10 1} deformation twinning in pure Ti and Ti-5at.% Al alloy. Int. J. Plasticity. 2022, 153, 103273. [Google Scholar] [CrossRef]
  60. Xu, T.T.; Li, J.Y.; Xiao, R.L.; Qin, J.Y.; Ruan, Y.; Li, H. The mixing enthalpy and liquid structural properties of Ti–Al alloys by ab inito molecular dynamics simulation. J. Phase Equilib. Diff. 2022, 43, 585–593. [Google Scholar] [CrossRef]
  61. Sun, R.; Mi, G.; Huang, X.; Sui, N. Molecular dynamic simulations of Ti-6Al and Fe-12Cr alloys for their heat transfer and oxygen transport behaviors. Mod. Phys. Lett. B. 2024, 38, 2350263. [Google Scholar] [CrossRef]
  62. Feng, R.; Song, W.; Li, H.; Qi, Y.; Qiao, H.; Li, L. Effects of annealing on the residual stress in γ-TiAl alloy by molecular dynamics simulation. Materials 2018, 11, 1025. [Google Scholar] [CrossRef] [PubMed]
  63. Ganesan, H.; Scheider, I.; Cyron, C.J. Quantifying the high-temperature separation behavior of Lamellar interfaces in γ-titanium aluminide under tensile loading by molecular dynamics. Front. Mater. 2021, 7, 602567. [Google Scholar] [CrossRef]
  64. Voskoboinikov, R.E. Molecular dynamics simulations of radiation damage in D019 Ti3Al intermetallic compound. Nucl. Instrum. Meth. B. 2013, 307, 25–28. [Google Scholar] [CrossRef]
  65. Shimono, M.; Onodera, H. Molecular dynamics study on liquid-to-amorphous transition in Ti–Al alloys. Mater. T. Jim. 1998, 39, 147–153. [Google Scholar] [CrossRef]
  66. Chu, J.J.; Steeves, C.A. Thermal expansion and recrystallization of amorphous Al and Ti: A molecular dynamics study. J. Non-Cryst. Solids. 2011, 357, 3765–3773. [Google Scholar] [CrossRef]
  67. Levchenko, E.V.; Evteev, A.V.; Löwisch, G.G.; Belova, I.V.; Murch, G.E. Molecular dynamics simulation of alloying in a Ti-coated Al nanoparticle. Intermetallics 2012, 22, 193–202. [Google Scholar] [CrossRef]
  68. Levchenko, E.V.; Evteev, A.V.; Lorscheider, T.; Belova, I.V.; Murch, G.E. Molecular dynamics simulation of alloying in an Al-coated Ti nanoparticle. Comp. Mater. Sci. 2013, 79, 316–325. [Google Scholar] [CrossRef]
  69. Tahiri, M.; Hassani, A.; Sbiaai, K.; Hasnaoui, A. Investigating local atomic structural order in TiAl3 metallic glass using molecular dynamic simulation. Comput. Condense. Matte. 2018, 14, 74–83. [Google Scholar] [CrossRef]
  70. Xie, Z.C.; Gao, T.H.; Guo, X.T.; Qin, X.M.; Xie, Q. Glass formation and icosahedral medium-range order in liquid Ti-Al alloys. Comp. Mater. Sci. 2014, 95, 502–508. [Google Scholar] [CrossRef]
  71. Han, X.; Liu, P.; Sun, D.; Wang, Q. Quantifying the role of interface atomic structure in the compressive response of Ti2AlN/TiAl composite using MD simulations. J. Mater. Sci. 2019, 54, 5536–5550. [Google Scholar] [CrossRef]
  72. Duong, T.C.; Singh, N.; Arróyave, R. First-principles calculations of finite-temperature elastic properties of Ti2AlX (X= C or N). Comp. Mater. Sci. 2013, 79, 296–302. [Google Scholar] [CrossRef]
  73. Han, X.; Liu, P.; Sun, D.; Wang, Q. Molecular dynamics simulations of the tensile responses and fracture mechanisms of Ti2AlN/TiAl composite. Theor. Appl. Fract. Mec. 2019, 101, 217–223. [Google Scholar] [CrossRef]
  74. Zhang, Y.F.; Li, Q.; Gong, M.; Xue, S.; Ding, J.; Li, J.; Cho, J.; Niu, T.; Su, R.; Richter, N.A. Deformation behavior and phase transformation of nanotwinned Al/Ti multilayers. Appl. Surf. Sci. 2020, 527, 146776. [Google Scholar] [CrossRef]
  75. Li, P.; Wang, L.; Yan, S.; Meng, M.; Xue, K. Temperature effect on the diffusion welding process and mechanism of B2-O interface in the Ti2AlNb-based alloy: A molecular dynamics simulation. Vacuum. 2020, 173, 109118. [Google Scholar] [CrossRef]
  76. Ou, P.; Cao, Z.; Rong, J.; Yu, X. Molecular dynamics study on the welding behavior in dissimilar TC4-TA17 titanium alloys. Materials 2022, 15, 5606. [Google Scholar] [CrossRef] [PubMed]
  77. Zhang, H.; Su, Y.C.; Han, Y.; Jiang, S. Molecular dynamics study of melting behavior of planar stacked Ti–Al core–shell nanoparticles. J. Compos. Sci. 2022, 6, 126. [Google Scholar] [CrossRef]
  78. Wang, L.; Chen, Y.; Xia, X.; Zhang, Z.; Wang, T.; Zhang, H. A molecular dynamics simulation-based laser melting behavior analysis for Ti–Al binary alloy. Int. J. Mod. Phys. B. 2023, 37, 2350196. [Google Scholar]
  79. Moon, S.; Paek, J.H.; Jang, Y.H.; Kang, K. Mixing behavior of Ti–Al interface during the ultrasonic welding process and its welding strength: Molecular dynamics study. Heliyon 2024, 10, e25116. [Google Scholar] [CrossRef]
  80. Song, C.; Lin, T.; He, P.; Jiao, Z.; Tao, J.; Ji, Y. Molecular dynamics simulation of linear friction welding between dissimilar Ti-based alloys. Comp. Mater. Sci. 2014, 83, 35–38. [Google Scholar] [CrossRef]
  81. Zhou, X.; Chen, C. Strengthening and toughening mechanisms of amorphous/amorphous nanolaminates. Int. J. Plasticity. 2016, 80, 75–85. [Google Scholar] [CrossRef]
  82. Salehinia, I.; Wang, J.; Bahr, D.F.; Zbib, H.M. Molecular dynamics simulations of plastic deformation in Nb/NbC multilayers. Int. J. Plasticity. 2014, 59, 119–132. [Google Scholar] [CrossRef]
  83. Zhang, Y.F.; Su, R.; Niu, T.J.; Richter, N.A.; Xue, S.; Li, Q.; Ding, J.; Yang, B.; Wang, H.; Zhang, X. Thermal stability and deformability of annealed nanotwinned Al/Ti multilayers. Scripta Mater. 2020, 186, 219–224. [Google Scholar]
  84. Wang, C.; Shi, K.; Gross, C.; Pureza, J.M.; Mesquita Lacerda, M. de; Chung, Y.W. Toughness enhancement of nanostructured hard coatings: design strategies and toughness measurement techniques. Surf. Coat. Tech. 2014, 257, 206–212. [Google Scholar] [CrossRef]
  85. Shugurov, A.R.; Panin, A.V.; Dmitriev, A.I.; Nikonov, A.Y. Multiscale fracture of Ti-Al-N coatings under uniaxial tension. Phys. Mesomech. 2021, 24, 185–195. [Google Scholar] [CrossRef]
  86. Wang, S.; Zhang, J.; Kong, Y.; Chen, L.; Du, Y. Influence of oxygen addition on the oxidation resistance of TiAlN. Scripta Mater. 2023, 224, 115148. [Google Scholar] [CrossRef]
  87. Tang, G.; Ou, Z.; Liu, F.; Li, T.; Su, F.; Zheng, J.; Liang, Z. Enhancing wear resistance of aluminum alloy by fabricating a Ti-Al modified layer via surface mechanical attrition treatment. Tribol. Int. 2024, 193, 109462. [Google Scholar] [CrossRef]
  88. Maurya, S.K.; Nie, J.F.; Alankar, A. Atomistic analyses of HCP-FCC transformation and reorientation of Ti in Al-Ti multilayers. Comp. Mater. Sci. 2021, 192, 110329. [Google Scholar]
  89. Chen, P.; Wang, F.; Li, B. Transitory phase transformations during {10 1 ¯ 2} twinning in titanium. Acta Mater. 2019, 171, 65–78. [Google Scholar] [CrossRef]
  90. George, E.P.; Raabe, D.; Ritchie, R.O. High-entropy alloys. Nat. Rev. Mater. 2019, 4, 515–534. [Google Scholar] [CrossRef]
  91. Zhang, Y.; Zuo, T.T.; Tang, Z.; Gao, M.C.; Dahmen, K.A.; Liaw, P.K.; Lu, Z.P. Microstructures and properties of high-entropy alloys. Prog. Mater. Sci. 2014, 61, 1–93. [Google Scholar]
  92. Li, W.; Xie, D.; Li, D.; Zhang, Y.; Gao, Y.; Liaw, P.K. Mechanical behavior of high-entropy alloys. Prog. Mater. Sci. 2021, 118, 100777. [Google Scholar]
  93. Miracle, D.B.; Senkov, O.N. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar]
  94. Yeh, J.W.; Chen, Y.L.; Lin, S.J.; Chen, S.K. High-entropy alloys–a new era of exploitation. Mater. Sci. Forum. 2007, 560, 1–9. [Google Scholar] [CrossRef]
  95. Zhang, W.; Liaw, P.K.; Zhang, Y. Science and technology in high-entropy alloys. Sci China Mater. 2018, 61, 2–22. [Google Scholar] [CrossRef]
  96. Li, J.; Fang, Q.; Liu, B.; Liu, Y.; Liu, Y. Mechanical behaviors of AlCrFeCuNi high-entropy alloys under uniaxial tension via molecular dynamics simulation. RSC Adv. 2016, 6, 76409–76419. [Google Scholar] [CrossRef]
  97. Chen, K.T.; Wei, T.J.; Li, G.C.; Chen, M.Y.; Chen, Y.S.; Chang, S.W.; Yen, H.W.; Chen, C.S. Mechanical properties and deformation mechanisms in CoCrFeMnNi high entropy alloys: A molecular dynamics study. Mater. Chem. Phys. 2021, 271, 124912. [Google Scholar] [CrossRef]
  98. Jiang, J.; Chen, P.; Qiu, J.; Sun, W.; Saikov, I.; Shcherbakov, V.; Alymov, M. Microstructural evolution and mechanical properties of AlxCoCrFeNi high-entropy alloys under uniaxial tension: A molecular dynamics simulations study. Mater. Today Commun. 2021, 28, 102525. [Google Scholar] [CrossRef]
  99. Sun, Z.H.; Zhang, J.; Xin, G.X.; Xie, L.; Yang, L.C.; Peng, Q. Tensile mechanical properties of CoCrFeNiTiAl high entropy alloy via molecular dynamics simulations. Intermetallics 2022, 142, 107444. [Google Scholar] [CrossRef]
  100. Zheng, G.; Chen, Y.; Xiang, H.; Zhang, J.; Tu, K.N.; Feng, C.; Li, P.; Song, L.; Sha, G.; Qi, Z. Coupled nucleation of dual-phase lamellar structure. The Innovation Materials 2023, 1, 100043. [Google Scholar] [CrossRef]
Preprints 115662 g001

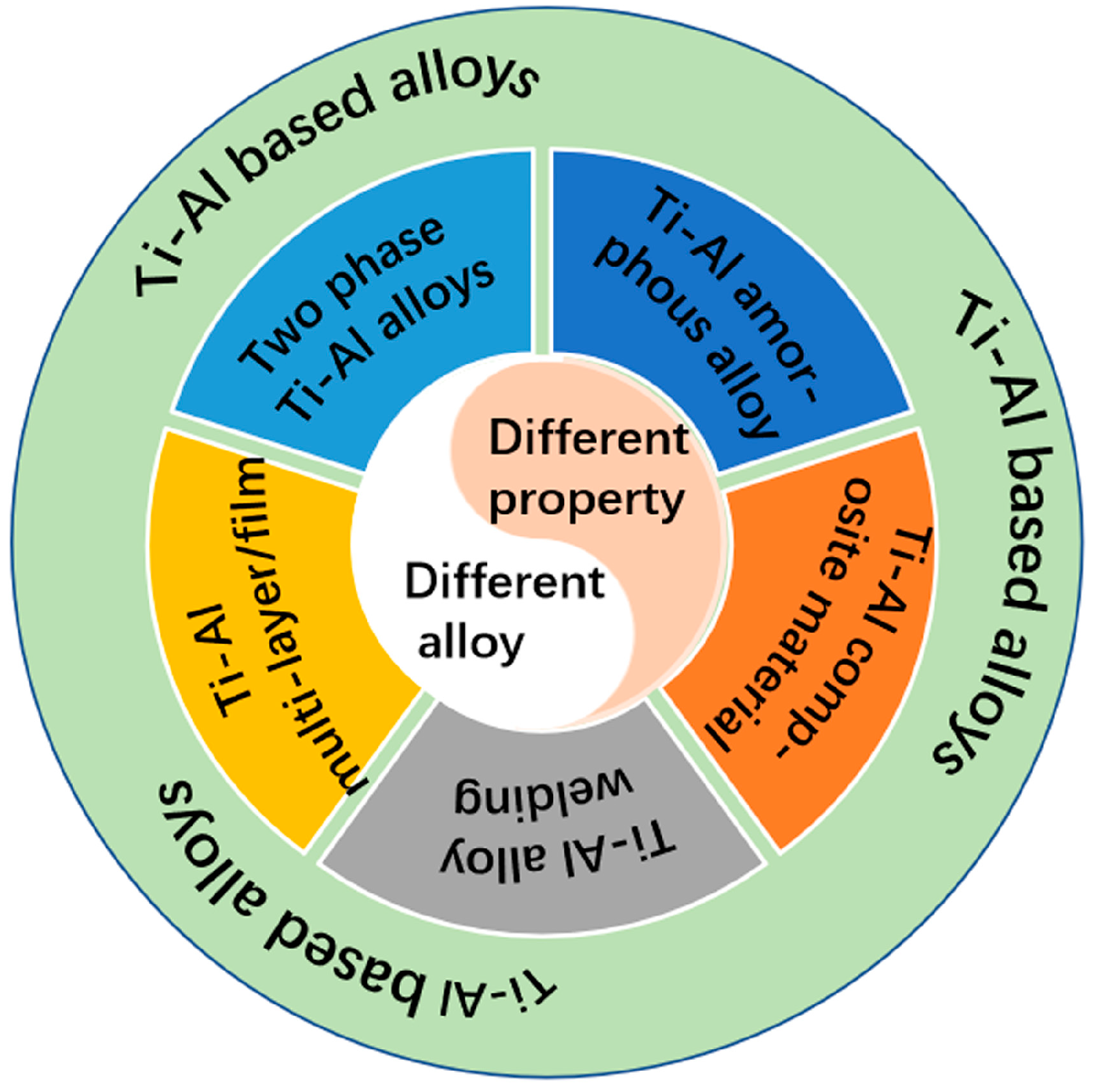

Figure 1. Application of molecular dynamics simulation on different types of Ti-Al based alloys.
Figure 1. Application of molecular dynamics simulation on different types of Ti-Al based alloys.
Preprints 115662 g001
Preprints 115662 g002

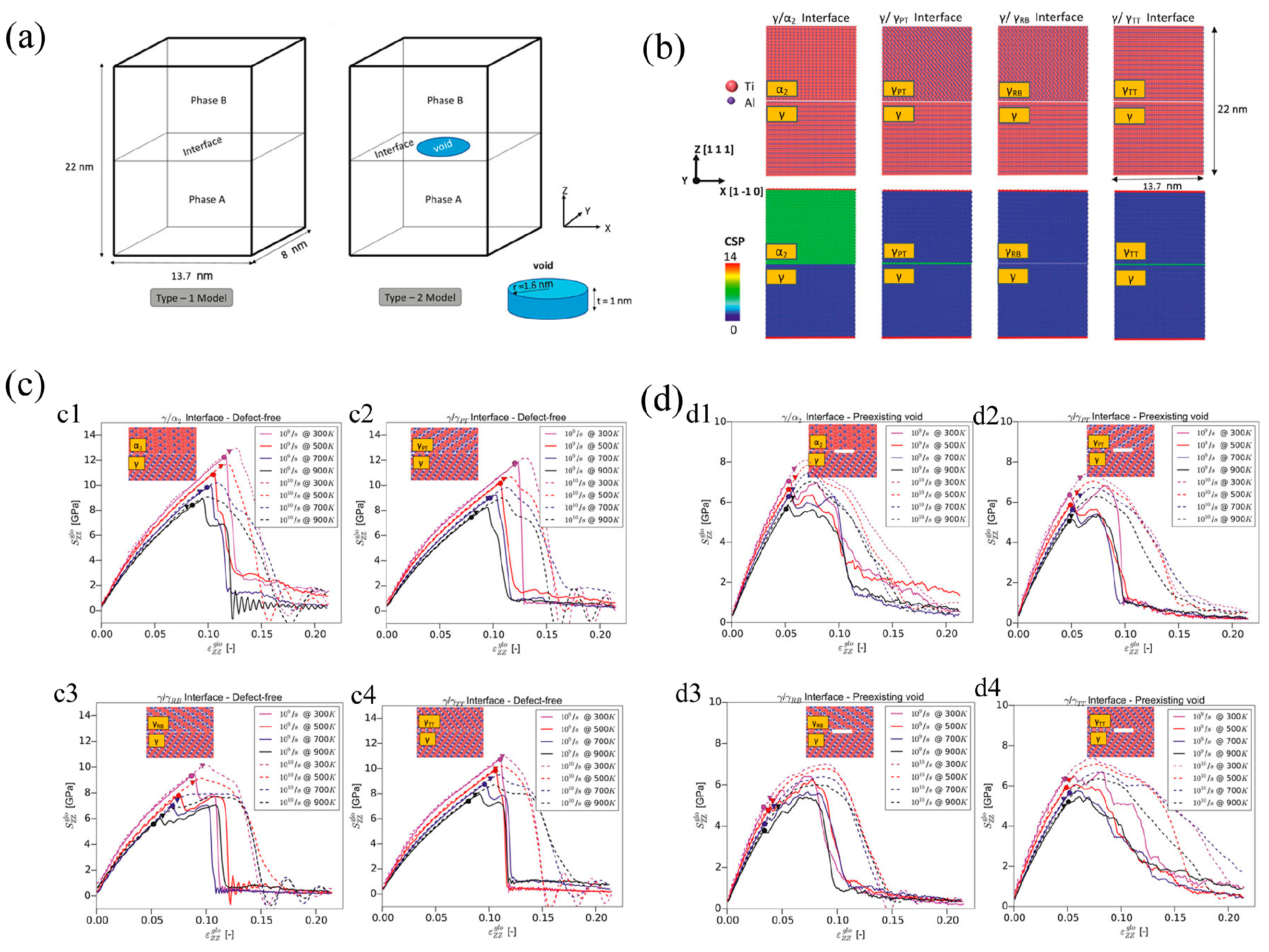

Figure 2. Partial study on high-temperature separation behavior of layered interface under tensile load of γ- TiAl. (a) The two types of single interface models used herein; (b) First row: simulation system for the defect-free interfaces; second row: computed centrosymmetry parameter (CSP) to categorize the bulk constituent phase and interface; (c) Stress-strain curves under normal loading for Type-1 models interfaces, (c1) γ/α2, (c2) γ/γPT, (c3) γ/γPB, and (c4) γ/γTT; (d) Stress-strain curves under normal loading for Type-2 models (with preexisting void) interfaces, (d1) γ/α2, (d2) γ/γPT, (d3) γ/γPB, and (d4) γ/γTT. Reprinted from Ref. [63].
Figure 2. Partial study on high-temperature separation behavior of layered interface under tensile load of γ- TiAl. (a) The two types of single interface models used herein; (b) First row: simulation system for the defect-free interfaces; second row: computed centrosymmetry parameter (CSP) to categorize the bulk constituent phase and interface; (c) Stress-strain curves under normal loading for Type-1 models interfaces, (c1) γ/α2, (c2) γ/γPT, (c3) γ/γPB, and (c4) γ/γTT; (d) Stress-strain curves under normal loading for Type-2 models (with preexisting void) interfaces, (d1) γ/α2, (d2) γ/γPT, (d3) γ/γPB, and (d4) γ/γTT. Reprinted from Ref. [63].
Preprints 115662 g002
Preprints 115662 g003

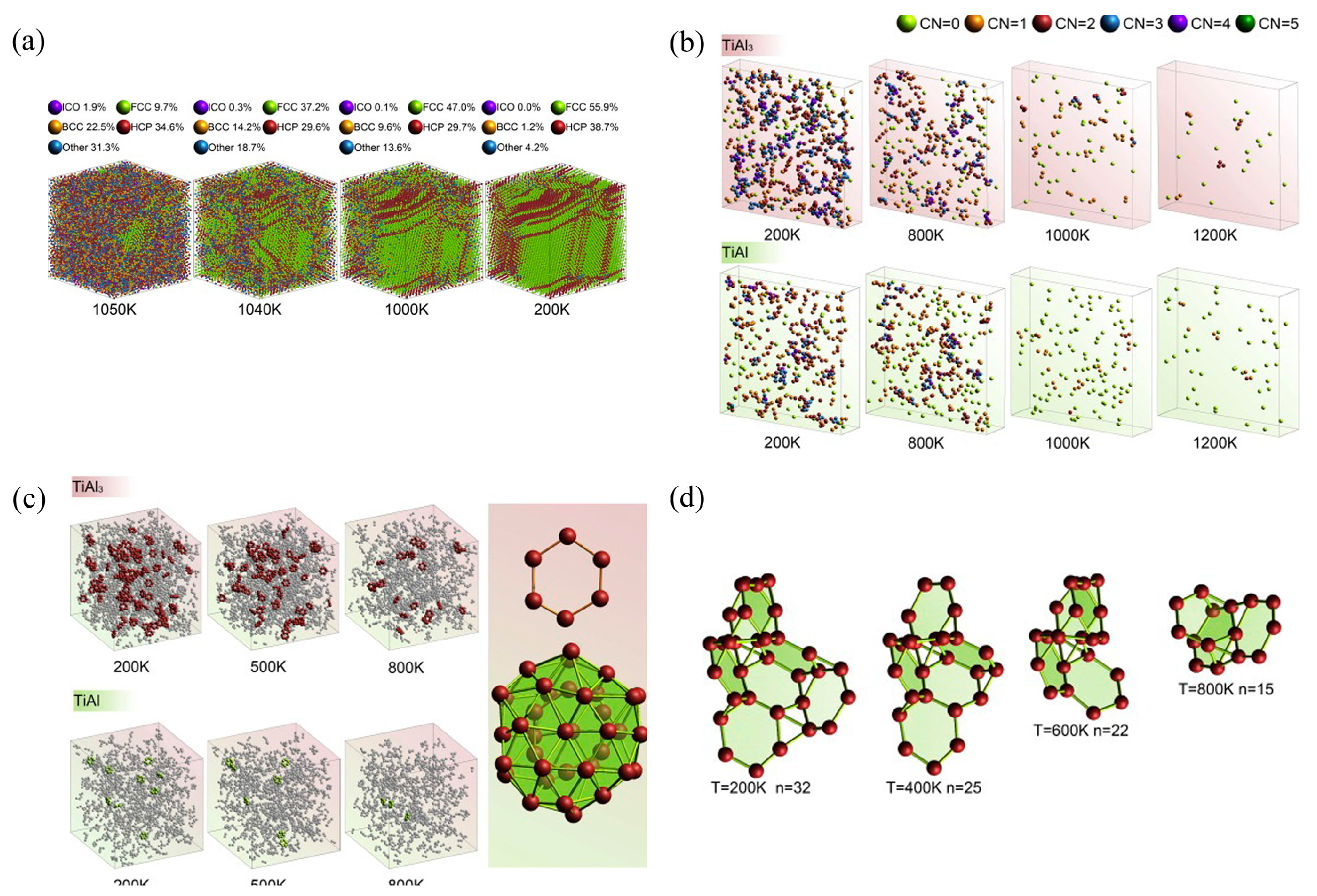

Figure 3. Glass formation and icosahedral medium-range order in liquid Ti-Al alloys. (a) Evolution of simulation box with structural type of Ti3Al alloy during the rapid solidification; (b) Sectional drawings of center atoms of icosahedral clusters in TiAl3 and TiAl alloys during the rapid solidifications; (c) Evolutions of center atoms of hexagonal connected icosahedral clusters in TiAl3 and TiAl alloys during the rapid solidifications. The red and green balls represent center atoms of hexagonal connected icosahedral clusters in TiAl3 and TiAl alloys, respectively. The inset shows the formation of hexagonal-connected icosahedral clusters. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.) (d) Growth of center atoms of the hexagonal-connected icosahedral clusters in TiAl3 alloy during the rapid solidification. Reprinted from Ref. [70].
Figure 3. Glass formation and icosahedral medium-range order in liquid Ti-Al alloys. (a) Evolution of simulation box with structural type of Ti3Al alloy during the rapid solidification; (b) Sectional drawings of center atoms of icosahedral clusters in TiAl3 and TiAl alloys during the rapid solidifications; (c) Evolutions of center atoms of hexagonal connected icosahedral clusters in TiAl3 and TiAl alloys during the rapid solidifications. The red and green balls represent center atoms of hexagonal connected icosahedral clusters in TiAl3 and TiAl alloys, respectively. The inset shows the formation of hexagonal-connected icosahedral clusters. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.) (d) Growth of center atoms of the hexagonal-connected icosahedral clusters in TiAl3 alloy during the rapid solidification. Reprinted from Ref. [70].
Preprints 115662 g003
Preprints 115662 g004

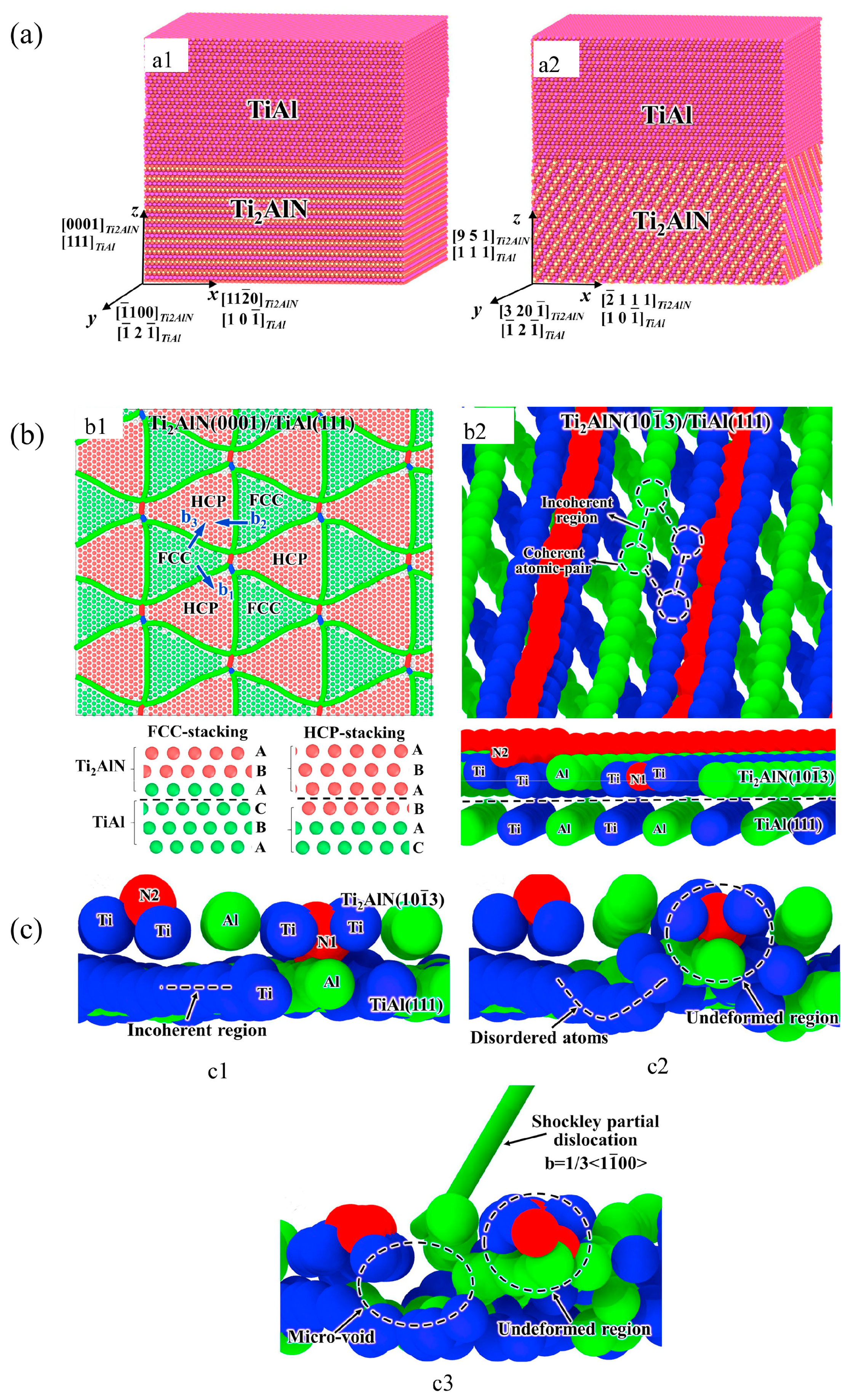

Figure 4. The tensile responses and fracture  mechanisms of Ti2AlN/TiAl composite by MD simulations. (a) Atomic  models for MD simulation. coherent interface of Ti2AlN(0001)/TiAl(111)  (a1) and Ti2AlN(10 1 ¯ 3)/TiAl(111)  (a2)Atoms are color-coded according to their types (Ti in red, Al in pink, and  N in yellow); (b) Top view (upper portion) and side view (lower portion) of  relaxed Ti2AlN(0001)/TiAl(111) coherent interface (b1) and Ti2AlN(10 1 ¯ 3)/TiAl(111)  incoherent interface atomic structure (b2); (c) Atomic snapshots under uniaxial  loading with different strains.(c1) Initial atomic configuration of incoherent  interface; (c2) disordered atoms nucleate in the interface; (c3) dislocation  nucleates near micro-void. The atoms are color-coded according to their types  (Ti in blue, Al in green, and N in red). Reprinted from Ref. [71].
Figure 4. The tensile responses and fracture  mechanisms of Ti2AlN/TiAl composite by MD simulations. (a) Atomic  models for MD simulation. coherent interface of Ti2AlN(0001)/TiAl(111)  (a1) and Ti2AlN(10 1 ¯ 3)/TiAl(111)  (a2)Atoms are color-coded according to their types (Ti in red, Al in pink, and  N in yellow); (b) Top view (upper portion) and side view (lower portion) of  relaxed Ti2AlN(0001)/TiAl(111) coherent interface (b1) and Ti2AlN(10 1 ¯ 3)/TiAl(111)  incoherent interface atomic structure (b2); (c) Atomic snapshots under uniaxial  loading with different strains.(c1) Initial atomic configuration of incoherent  interface; (c2) disordered atoms nucleate in the interface; (c3) dislocation  nucleates near micro-void. The atoms are color-coded according to their types  (Ti in blue, Al in green, and N in red). Reprinted from Ref. [71].
Preprints 115662 g004
Preprints 115662 g005
Figure 5. The linear friction welding between dissimilar Ti-based alloys. (a) Molecular dynamic simulation model of LFW; (b) Temperature profile on the interface of LFW joints; (c) Simulation of the LFW process: t = 0 ps (c1), t = 5 ps (c2), t = 15 ps (c3), t = 76 ps (c4); (d) Configurations of a cross-section with different friction time: t = 200 ps (d1), t = 500 ps (d2), t = 800 ps (d3), t = 1200 ps (d4); (e) MSD results of different atoms: (e1)Ti atoms and (e2) Al atoms. Reprinted from Ref. [80].
Figure 5. The linear friction welding between dissimilar Ti-based alloys. (a) Molecular dynamic simulation model of LFW; (b) Temperature profile on the interface of LFW joints; (c) Simulation of the LFW process: t = 0 ps (c1), t = 5 ps (c2), t = 15 ps (c3), t = 76 ps (c4); (d) Configurations of a cross-section with different friction time: t = 200 ps (d1), t = 500 ps (d2), t = 800 ps (d3), t = 1200 ps (d4); (e) MSD results of different atoms: (e1)Ti atoms and (e2) Al atoms. Reprinted from Ref. [80].
Preprints 115662 g005
Preprints 115662 g006

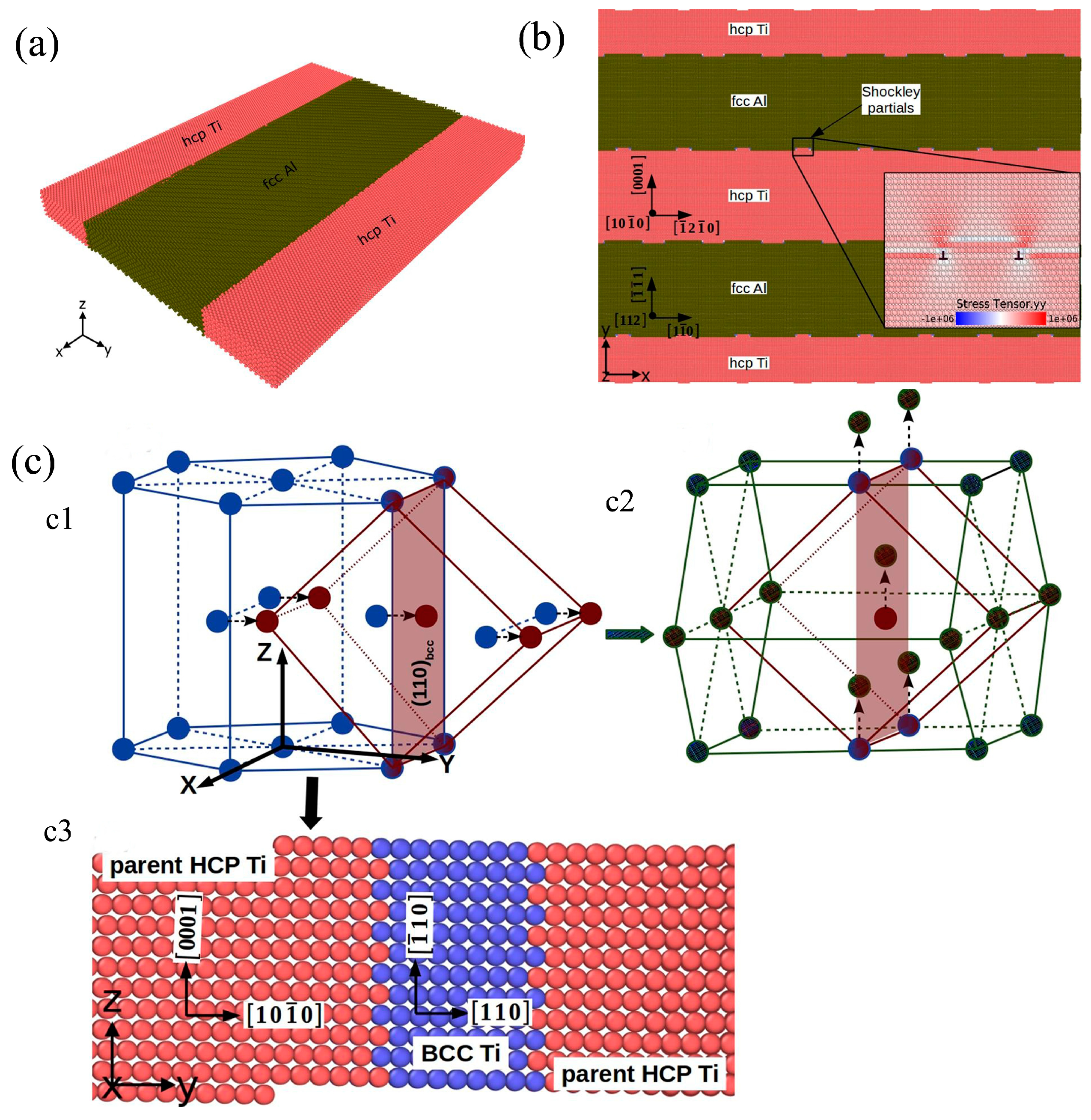

Figure 6. Atomistic analyses of HCP-FCC transformation and reorientation of Ti in Al-Ti multi-layers. (a) Representative volume element (RVE) of the Al-Ti multi-layer system used in the present study. The y-dimension of the RVE will change based on the layer thickness. FCC Al atoms are shown in olive color, and HCP Ti atoms are in red; (b) Interface characteristics and relative stresses in Al-Ti multi-layer with configuration A and viewed along the Z-direction; (c) Schematic of reorientation mechanism in HCP Ti. (c1) shows the unit cell in parent HCP Ti and BCC Ti formed after the first displacement, (c2) shows the second displacement and resultant unit cell in reoriented HCP Ti, (c3) is the atomic arrangement of parent HCP Ti (red color) and BCC Ti (blue color). Reprinted from Ref.[88].
Figure 6. Atomistic analyses of HCP-FCC transformation and reorientation of Ti in Al-Ti multi-layers. (a) Representative volume element (RVE) of the Al-Ti multi-layer system used in the present study. The y-dimension of the RVE will change based on the layer thickness. FCC Al atoms are shown in olive color, and HCP Ti atoms are in red; (b) Interface characteristics and relative stresses in Al-Ti multi-layer with configuration A and viewed along the Z-direction; (c) Schematic of reorientation mechanism in HCP Ti. (c1) shows the unit cell in parent HCP Ti and BCC Ti formed after the first displacement, (c2) shows the second displacement and resultant unit cell in reoriented HCP Ti, (c3) is the atomic arrangement of parent HCP Ti (red color) and BCC Ti (blue color). Reprinted from Ref.[88].
Preprints 115662 g006
Preprints 115662 g007
Figure 7. Molecular dynamics simulation of tensile mechanical properties of CoCrFeNiTiAl high entropy alloy. (a) CoCrFeNi(Al0.3Ti0.2)x HEA models with different Ti and Al contents; (b) XRD patterns after rolling: (b1) experiment; and (b2) MD simulations; (c) Stress-strain tensile characteristics (c1) experimental stress-strain curves at room temperature and (c2) MD simulated tensile stress-strain curves; (d) Dislocation distribution diagrams before the fracture. Reprinted from Ref.[99].
Figure 7. Molecular dynamics simulation of tensile mechanical properties of CoCrFeNiTiAl high entropy alloy. (a) CoCrFeNi(Al0.3Ti0.2)x HEA models with different Ti and Al contents; (b) XRD patterns after rolling: (b1) experiment; and (b2) MD simulations; (c) Stress-strain tensile characteristics (c1) experimental stress-strain curves at room temperature and (c2) MD simulated tensile stress-strain curves; (d) Dislocation distribution diagrams before the fracture. Reprinted from Ref.[99].
Preprints 115662 g007
Preprints 115662 g008
Figure 8. An overview of the research on Ti-Al based alloys: (a) Keyword network visualization in Ti-Al literature from the Web of Science database; (b) a histograms of the publication number and citation frequency of relevant articles retrieved with the keywords “Ti-Al” in the Web of Science database.
Figure 8. An overview of the research on Ti-Al based alloys: (a) Keyword network visualization in Ti-Al literature from the Web of Science database; (b) a histograms of the publication number and citation frequency of relevant articles retrieved with the keywords “Ti-Al” in the Web of Science database.
Preprints 115662 g008
Table 1. The performance comparison of Ti, TiAl, and Ti3Al based alloys.
Table 1. The performance comparison of Ti, TiAl, and Ti3Al based alloys.
Performance Ti-based alloys TiAl-based alloys Ti3Al-based alloys
Crystal structure hcp/bcc L10 D019
Density/g·cm-3 4.5 4.1-4.7 3.7~4.3
Elastic modulus/GPa 96-115 100~145 160~180
Yield strength/MPa 380-1150 700~990 400~800
Tensile strength/MPa 480~1200 800~1140 450~1000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
