Geochemical mapping of river sands in the Manufahi area of Timor-Leste revealed potential areas for future mineral exploration. River sand samples from the study area were collected and geochemically analyzed to identify anomalous concentration distributions of several valuable elements and locate potential target areas and geological formations that may host mineral deposits. The 26 major and minor elements were identified using wavelength-dispersive X-ray fluorescence. The river sands exhibited varying elemental concentrations, with Cr, Cu, Zn, and Ba showing deviations from the normal distribution patterns. Identification of geochemical anomalies is an important task in mineral exploration geochemistry. The mean + 2 standard deviations (mean+2STD), median + 2 median absolute deviations (median+2MAD), and Tukeyâs inner fence (TIF) methods were used to determine the geochemical thresholds. This study shows that TIF and principal component analysis (PCA) methods are highly effective in calculating appropriate threshold values and identifying relevant elemental associations. These approaches have proven useful for delineating target areas for mineral deposits, resulting in reliable outcomes. Four predicted target areas with high potential for deposits and mineralization anomalies of Cr, Cu, Ni, and Ba were delineated in the study area.

Keywords:

Subject: Environmental and Earth Sciences - Geochemistry and Petrology

1. Introduction

"River sand" is the term used to refer to the samples under analysis in this study [1,2,3]. Fine-to-coarse sand fractions were obtained from the active channel below the water level. Modern river sand is an effective medium for geochemical mapping in many regions worldwide including Japan [4,5], Portugal [6], Brazil [7], and Australia [8]. The characteristics of modern river sands in drainage basins are often influenced by various factors, including source rock lithologies, mineral deposit occurrence, climate, topographic relief, transportation, and depositional environment [8,9,10]. However, the source area materials appear to have the greatest influence on the geochemistry of modern river sands [11,12,13,14,15]. Geochemical data for river sand and other surface sediments often deviate from a normal distribution [16]. The potential occurrence of mineral deposits or atypical lithologies, such as iron-rich sedimentary rocks, radiolarian cherts, carbonatites, and serpentinites, may be responsible for the high elemental concentrations found in river sands [17].

The main duty of the geochemical assessment of mineral resource prospects in the identification of potential areas for further investigation is to determine and separate anomalies, thresholds, and background values [18,19]. Various statistical analyses and methods have been employed using different approaches and parameters, including univariate, bivariate, multivariate, and spatial analyses. These include mean, median, mode, standard deviation, variance, skewness, kurtosis, median absolute deviation (MAD), interquartile range (IQR), Tukey’s inner fence (TIF), mean + 2 standard deviations (mean+2STD), median + 2 median absolute deviations (median+2MAD), and an association of distribution plots, such as histograms, boxplots, and normal quantile plots, to characterize anomalies and define threshold and background values in a univariate data set that falls outside a normal distribution. Additionally, the Spearman correlation coefficient, principal component analysis (PCA), and inverse distance weighting (IDW) interpolation methods were applied to identify the original geochemical signatures of the source composition and the distribution of anomalies that may be related to mineral deposits or atypical lithologies [19,20,21,22,23,24,25,26,27].

In 1936, mineral exploration was conducted in the research area by the Allied Mining Corporation, resulting in the discovery of several potential mineralization areas [28]. Subsequent studies and research projects have been conducted, providing information on the occurrence of massif sulfide mineralization and other mineral deposits in the area, including those by Leme [29], Lacerda [30], and ESCAP [31]. However, geochemical mapping investigations were not conducted or documented in these reports.

This study focused on the geochemistry of river sands with the main objective of gathering important information regarding the anomalous concentration distributions of valuable elements and identifying potential target areas and geological formations that may host mineral deposits in the study area. The results of this study can serve as a basis and provide useful information for future geochemical mapping and mineral exploration campaigns in Timor-Leste and similar global geological settings.

2. Geographical and Geological Setting

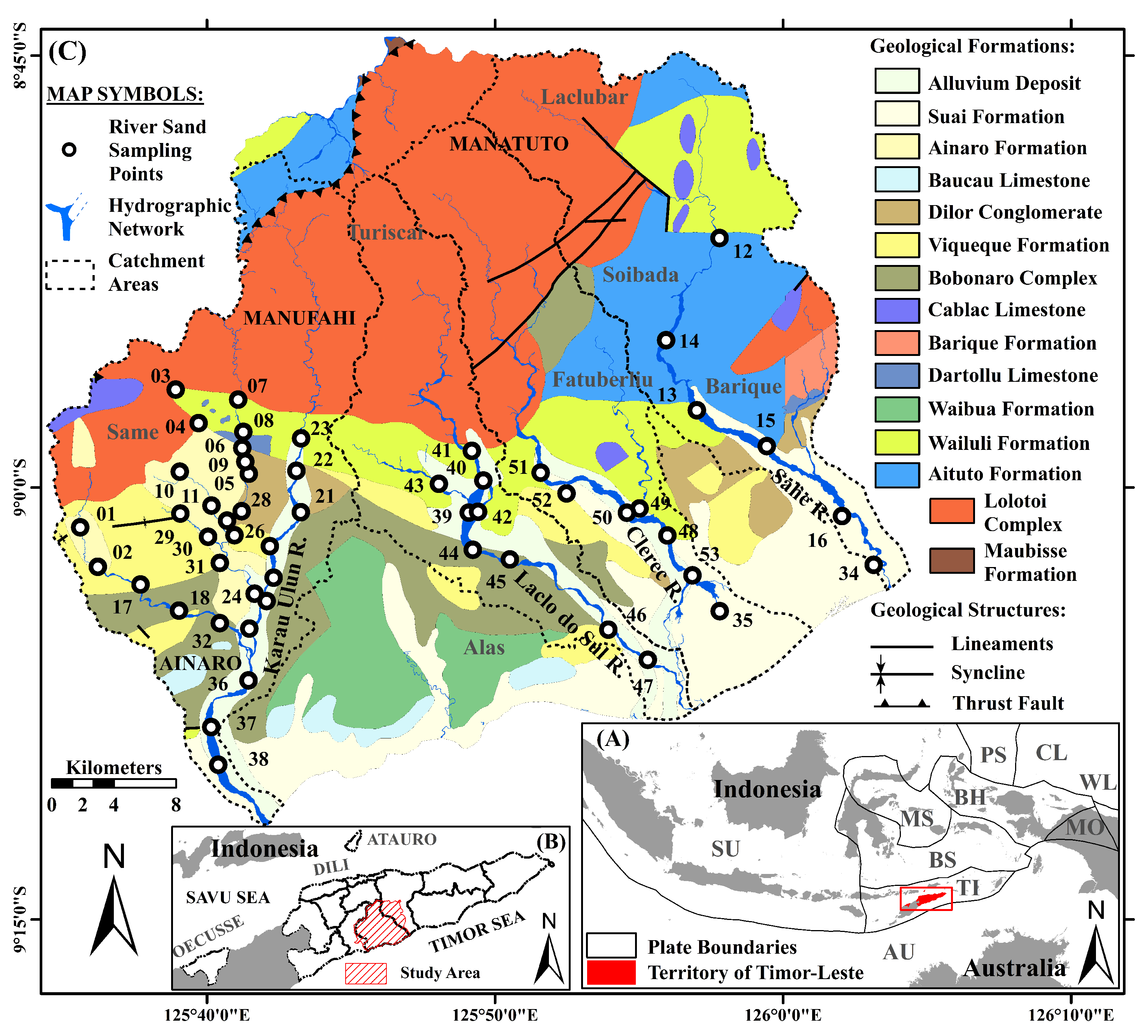

The territory of Timor-Leste comprises the eastern portion of the island of Timor, the small offshore areas of Atauro Island and Jaco Islet, and the enclave of Oecusse (Figure 1). Geologically, the small island of Atauro is part of the inner Banda arc of the volcanic island. Timor and Jaco Islet are part of the outer Banda arcs and are non-volcanic islands formed by orogenic processes resulting from the collision between the passive margin of the Australian continent and the Banda volcanic arc of the Eurasian plate after the subduction of the Indian Ocean crust [32,33,34,35,36,37]. The study area is geographically located on the south coast of Timor-Leste, approximately 100 km south of the capital city, Dili. The study area is largely characterized by rugged to moderate mountainous topography, with various slopes ranging from moderate to steep.

As delineated by Audley-Charles [38], Bachri and Situmorang [39], and Partoyo et al. [40], along with geological research and mapping carried out by other researchers [36,41,42,43,44,45,46,47,48,49,50,51], the study area encompasses several formations (Figure 1C): (a) Suai Formation, is Pleistocene to the Holocene in age and predominantly consists of rudites and arenites, with minor proportions of mud and marls; (b) Ainaro Formation is Pleistocene to Holocene in age and primarily consists of matrix-supported conglomerates; (c) Baucau Limestone, which ranges in age from the Lower Pleistocene to the Holocene, primarily consists of coral-reef limestones, along with minor amounts of calcarenites, calcirudites, and conglomerates; d) Dilor Conglomerate, composed of sandstones and conglomerates with significant detritus input from the quartzites of the Lolotoi Complex, is Pliocene in age; (e) Viqueque Formation, dating from the Upper Miocene to the Lower Pliocene, is lithologically divided into two sections: (i) the upper layer comprises significant proportions of silty marls, marly siltstones, silty claystones, siltstones, and sandstones, as well as lesser calcilutites and biocalcarenites; (ii) the lower layer contains minor proportions of basal conglomerates and mottled marls, along with notable amounts of marls, clayey marls, silty marls, calcilutites, and tuffs; (f) Bobonaro Complex, Middle Miocene in age, is dominated by exotic blocks within a scaly clay matrix. The matrix lithology resembles that of the mudstone of the Wailuli Formation.

Exotic blocks that are Permian to Cretaceous in ages are common and extensively distributed; (g) Cablac Limestone, ranging in age from the Oligocene to the Miocene, predominantly consists of oolitic and peloidal limestones, pelagic carbonates, and minor proportions of intraformational conglomerates, calcilutites, calcarenites, agglomerates, and tuffaceous rocks; (h) Barique Formation is Oligocene in age and is primarily composed of mafic to acidic lavas and tuffs, with lesser amounts of serpentinites, volcanic conglomerates, and sandstones; (i) Dartollu Limestone, which has been dated to the Middle–Upper Eocene, is largely composed of algal and alveolina biomicarenites, with minor amounts of calcilutites, siliceous shales, and siltstones; (j) Waibua Formation ranges in age from the Lower to the Upper Cretaceous and mainly consists of radiolarites, radiolarian cherts, marls, and shales, with varying proportions of calcilutites, marls, and calcarenites; (k) Wailuli Formation, in which the major constituents include gray shales and blue-gray marls, with lesser amounts of sandstones, mudstones, quartz-arenites, coarse polymictic conglomerates, calcarenites, and calcilutites, is Late Triassic to Middle Jurassic in age. Most shales are characterized by fine micaceous minerals and microcrystalline carbonates, with small amounts of pyrite; (l) Aitutu Formation, which ranges in age from the Middle to Upper Triassic, is largely composed of calcilutites, shales, and calcareous shales with minor proportions of marls, calcarenites, lumachelles, quartz-arenites, radiolarites, bituminous rocks, and cherts. Several limestones have undergone silicification, dedolomitization, and pyritization processes; (m) Lolotoi Complex mainly consist of regional metasedimentary and metavolcanic rocks, along with basic and ultrabasic volcanic rocks. Most metamorphic rocks within the Lolotoi Complex are derived from sedimentary rocks. This formation dates from the Triassic to the Late Cretaceous; and (n) Maubisse Formation, which is Permian in age, largely comprises fossiliferous limestones and volcanic rocks, along with well-bedded dense biocalcarenites, massive reef limestones, pink crinoidal limestones, calcirudites, sandstones, calcareous shales, micaceous siltstones, tuffs, volcanic conglomerates, basalts, marbles, and metamorphosed basic volcanics.

3. Samples and Methods

3.1. Sampling and Preparation

In this study, basic procedures for sampling river sand and treating samples before chemical analysis, as outlined in Hale and Plant [55], Darnley et al. [56], Tanaka et al. [57], Fletcher [58], Ohta et al. [59], and Yamamoto et al. [5], were implemented. Modern river sand samples were collected from 53 sites in the study area (Figure 1). Samples were dried in an oven at 105 °C and then sieved using a vibrating sieve shaker machine. The composite samples of fine-grained river sands sieved through 180–150 and < 150

μ

m metal sieves were ground using an agate mortar and pestle, followed by machine crushing using an agate ball mill. Organic matter and volatile compounds in the samples were removed using the loss-on-ignition method, and it was determined by measuring the weight loss after heating to 950 °C.

As described and recommended by Yamamoto and Morishita [60], to analyze major and minor elements, glass beads were used for sample preparation in X-ray fluorescence (XRF) analysis. The fused glass beads were prepared by mixing the powder at a sample-to-flux ratio of one to two after heating. The flux used was a crystalline powder of anhydrous lithium tetraborate (

L i_{2} B_{4} O_{7}

= 169.12). The mixed powder was placed in a platinum crucible and processed using a bead sampler (TK-4100 model, Amena Tech Co., Yokohama, Japan) to form glass beads.

3.2. Analytical Methods and Data Analysis

Fifty-three modern river sand samples were analyzed using wavelength-dispersive XRF (WD-XRF) at the Division of Instrumental Analysis, Gifu University, and 26 major and minor element concentrations were determined. These elements were accurately calibrated using standard reference samples provided by the Geological Survey of Japan (GSJ).

3.2.1. Univariate Analysis

In this study, basic and classical descriptive statistics refer to univariate analyses, which include the calculation and estimation of minimum, maximum, mean, mode, median, variance, range, standard deviation, and quartile values. In addition to the aforementioned parameters, skewness and kurtosis were employed as initial estimates to indicate the distribution characteristics of the studied geochemical elements. In normal distributions, the skewness is zero and the kurtosis is approximately three, whereas the mean, mode, and median values are nearly identical [61,62,63,64]. In addition, statistical methods such as mean+2STD, median+2MAD, and TIF are the most precise methods for defining anomaly threshold values. In certain cases, where the raw geochemical data did not follow a normal distribution, the mean+2STD method failed to provide a relevant threshold estimate. The TIF method was calculated using the formula: [TIF = Q3 + 1.5 x IQR], where the third quartile (Q3) represents the 75th percentile value (Q75), and interquartile range (IQR) represents the difference between the 75th and 25th percentile values (Q3-Q1) [19,20,22,65,66,67,68].

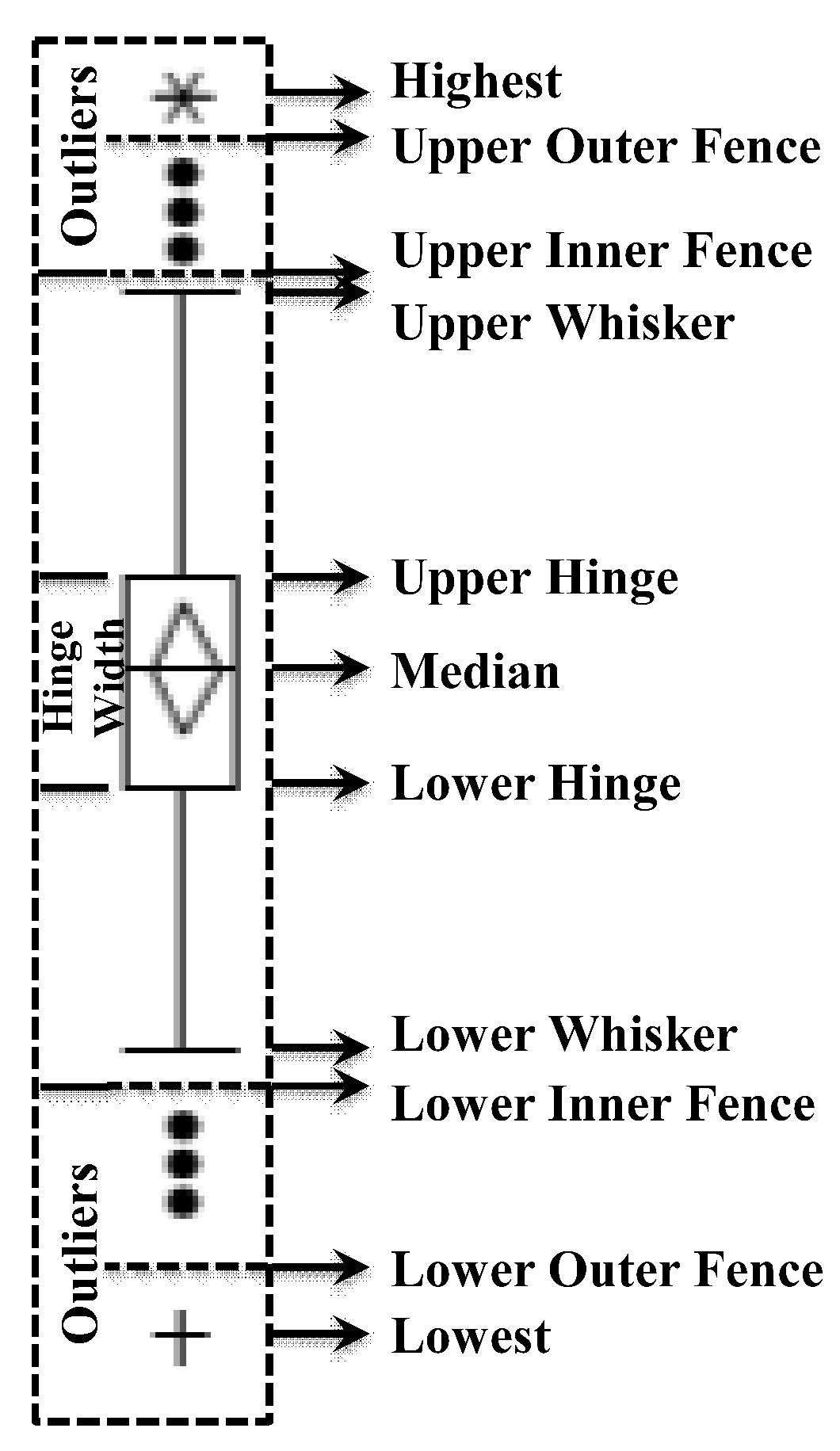

The distribution plots, which involve the joint application of several graphs and diagrams, such as normal quantile plots, boxplots, and histograms, are focused on visualizing, simplifying, and clarifying the distribution and characteristics, or any deviations, in the studied geochemical elements that could be attributed to the contributions of the underlying lithologies or mineral deposits [64,69,70,71]. The elements of the boxplot (Figure 2) reveal that the box represents the hinge width or IQR, which is defined as the absolute difference between the third and first quartile values. The second quartile (median) is marked by a line within the box. The lower and upper "inner fences" and "outer fences" were drawn at 1.5 and 3 times the hinge width, extending towards the lowest and highest values, respectively. The boxplot categorizes a set of geochemical element data into five reliable classes as follows [69]: (a) the lowest-lower whisker is classified as extremely low background; (b) lower whisker-lower hinge is labelled as low background; (c) lower hinge-upper hinge is defined as background; (d) upper hinge-upper whisker is considered high background; and (e) upper whisker-highest is classified as an anomaly. In addition, the upper inner fence was defined as the threshold for separating the background from anomalous values.

3.2.2. Bivariate and Multivariate Analyses

The Spearman correlation coefficient was employed to identify and evaluate the inter-relationships between the variables of the geochemical elements that deviated from a normal distribution [72]. PCA is one of the most commonly used techniques for multivariate statistical analyses and is an effective and reliable approach for extracting information and determining the composition of geochemical populations [9,23,73], outlining the source composition of underlying lithologies and identifying areas of interest for the potential occurrence of mineral deposits [27,74]. Only principal components with eigenvalues greater than or near 1.0 were used to analyze and interpret PCA results in a biplot of joint graphical representations of variables and samples because they represent most of the variance in the data [66,75,76]. IDW is a deterministic, predictable, and reproducible approach for multivariate spatial techniques that can be applied to compute and interpolate values in areas where samples were not collected. IDW assigns more influence on the interpolated value to the points closest to the known value points than to those farther away [77]. In this study, IDW was employed to create a surface model that represented the spatial distribution of multi-element associations derived from the PCA scores along with several independent variables.

Descriptive statistics, distribution plots, Spearman’s correlation coefficients, and PCA were performed using Microsoft Office Excel version 2405 (Build 17628.20144) and JMP Pro 14. Additionally, the maps presented in this study, including interpolated and geological maps, were created using ArcGIS 10.4.

4. Results

4.1. Statistical and Distribution Characteristics of Geochemical Elements

The basic and classical descriptive statistics of the univariate analysis of the 26 raw geochemical elements in river sands from the study area are summarized in Table 1. In this study, we present geochemical analysis results for both major and minor elements. However, our focus was on minor elements, as the geochemical characteristics of the major elements regarding their provenance have already been discussed and published [78].

Table 1 presents the skewness and kurtosis values, which reveal that

T i O_{2}

F e_{2} O_{3}

M n O

K_{2} O

C a O

, Cr, Cu, Zn, and Ba exhibited values higher than zero, whereas the remaining elements displayed skewness or kurtosis values lower than zero. Table 1 also documents the geochemical threshold values used to separate anomalies from background values for the 26 elements in river sands from the study area. These threshold values were determined using the mean+2STD, median+2MAD, and TIF methods. Anomaly threshold values obtained from statistical approaches that exceeded the maximum measured values were excluded. Nb had a threshold value determined by the median+2MAD approach, whereas

S i O_{2}

A l_{2} O_{3}

N a_{2} O

, Co, Ga, Sr, Y, Zr, Nb, and Th had threshold values obtained from the mean+2STD method, which were greater than the maximum measured values. In addition,

T i O_{2}

C a O

, Cr, Cu, Zn, and Ba exhibit threshold values lower than the maximum values derived from the TIF approach.

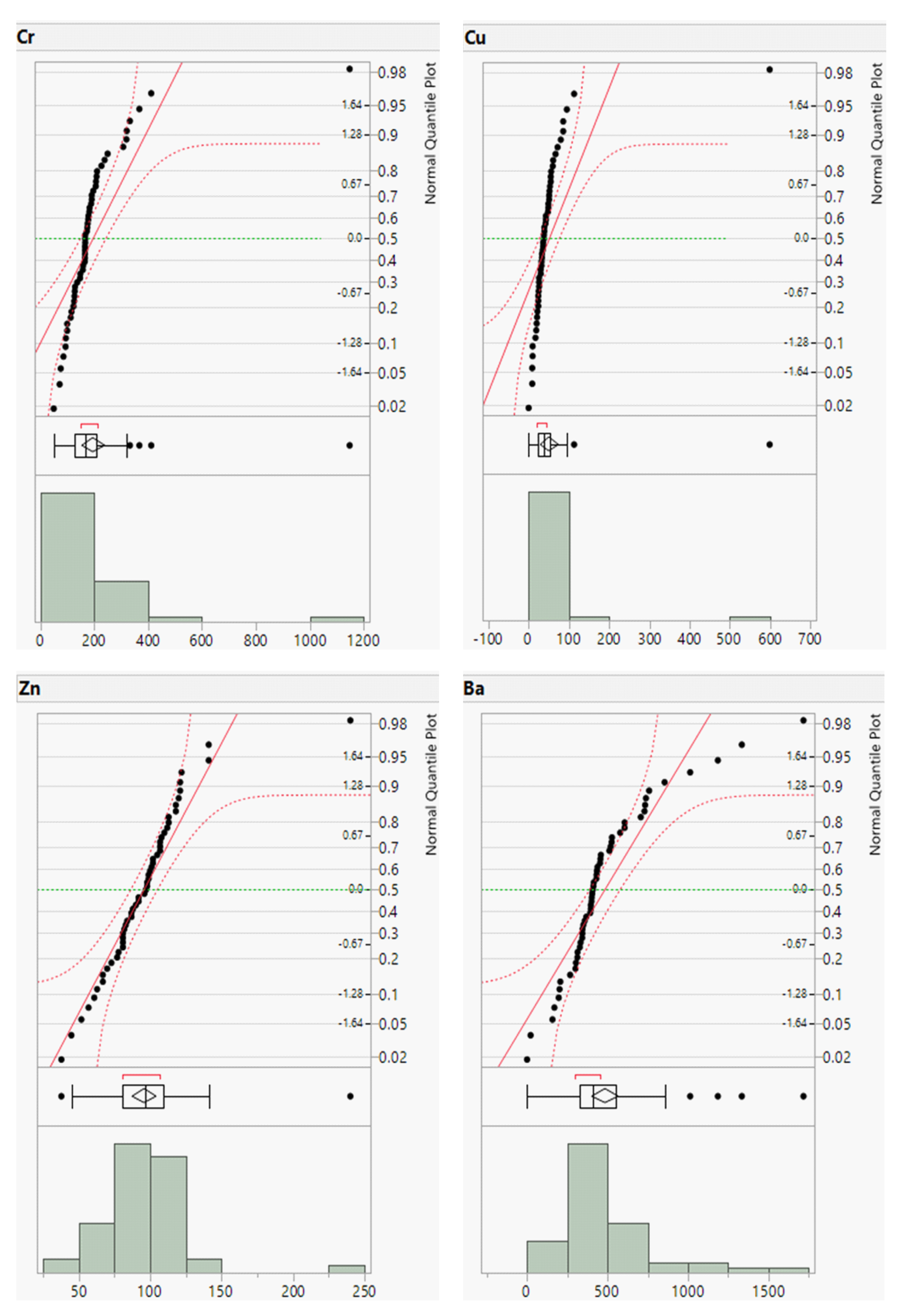

To complement the descriptive statistics, distribution plots for the raw geochemical data of the river sands were generated. The distribution plots for Cr, Cu, Zn, and Ba are presented in Figure 3 and those for the remaining elements are provided in the Supplementary Material (Appendix A, Figure A1 and Figure A2). The distribution plots for the analyzed geochemical elements primarily exhibited a normal distribution; however, those for Cr, Cu, Zn, and Ba deviated from the normal distribution.

4.2. Correlation and Multi-Element Relationships

The Spearman correlation coefficients between any pair of variables (elements) for the sampled river sands are presented in Table 2. The PCA results for the variables and samples are presented in Table 3 and Table 4 as well as in Figure 4 and Figure 5 (A and B). The percentages of variance explained by the first, second, third, and fourth principal components were 56.04%, 13.10%, 7.72% and 5.63%, respectively. According to the variable and sample results of the PCA as well as the component pattern biplot of the first and second principal components (PC1 and PC2), PC1 was strongly positively associated with Ga, Co, Y, La, Pb, Th,

A l_{2} O_{3}

, Nb, Zr, Ni, Rb,

M g O

F e_{2} O_{3}

N a_{2} O

P_{2} O_{5}

, Zn,

S i O_{2}

, Sc, Cr,

T i O_{2}

, and

K_{2} O

. The positive PC1 value had strong loadings for samples SS23, SS1, SS41, SS50, SS42, SS40, SS45, SS48, and others. Samples SS29, SS15, SS4, SS6, SS30, and others had a strong negative correlation with the first principal component, and showed relative enrichment in

C a O

and Sr. The positive values of PC2 were strongly correlated with

K_{2} O

S i O_{2}

, Rb, Ba, and Zn. These elements were highly concentrated in samples SS49, SS39, SS12, SS43, SS9, and SS13. PC2 had strong negative loadings for Sc,

M g O

F e_{2} O_{3}

, Cr, and

T i O_{2}

. These elements were abundant in samples SS4, SS45, SS11, SS29, and SS50. The component pattern biplot of the third and fourth principal components (PC3 and PC4) revealed that

M n O

, Ba, and

T i O_{2}

had a strong positive association with PC3 and were enriched in samples SS15, SS49, SS13, and SS50. In contrast, the negative values of PC3 had a strong relationship with sample SS039 and were relatively abundant in Cu and Zn. In addition, samples SS039 and SS045 were strongly positively correlated with PC4 and were abundant in Cu, Sr, Zn, and

M n O

5. Discussion

5.1. Geochemistry and Provenance of River Sands

The concentration ranges of minor elements in Earth surface materials, as presented by Kabata-Pendias and Mukherjee [79], are provided in the Supplementary Material (Appendix A, Table A1) and can be used as references for the study area. Certain minor elements in basic rocks have higher concentrations than those in argillaceous rocks and sandstones, and vice versa. The basic and ultramafic rocks are identified by a significant percentage of mafic minerals [80], which typically contain higher concentrations of Cr, Co, Ni, Cu, and Sc [79,81]. In the basic and ultramafic igneous rocks, the values of Cr, Co, Ni, Cu, Nb, and Sc range from 170-3400, 35-200, 130-160, 10-120, 10-35, and 5-35 ppm, respectively. In addition, argillaceous rocks are characterized by a significant proportion of clay minerals [82]. However, carbonate materials are also abundant and have been found to be integrated into sediment and sedimentary rocks in different proportions [83]. The concentrations of Zn, Ga, Rb, Sr, Ba, Pb, Th, and La in the argillaceous sedimentary rocks range from 80-120, 15-25, 120-200, 300-450, 500-800, 14-40, 10-12, and 30-90 ppm, respectively. The values of Y and Zr in the sandstones vary from 15-250 and 180-250 ppm, respectively.

The high concentrations of Cr, Cu, and Zn recorded in the river sands in the study area can be attributed to the occurrence of chromite and Cu-Zn mineral deposits [84,85]. Ba, Sr, and Rb are widely recognized as mobile elements that are often depleted in river sands because of their mobility and leachability during weathering [86,87]. However, the high

The Spearman correlation coefficient results (Table 2) revealed that the contribution from the destruction of carbonate, clay, mica, and feldspar minerals was reflected in the negative correlation between most of the minor elements and Sr and

C a O

, significant positive associations between most minor elements and Ga and

A l_{2} O_{3}

, and significant positive correlations between

K_{2} O

and Rb and Pb and Rb. Ba displayed a positive relationship with

K_{2} O

, Rb, and Sr. Moderate-to-strong positive associations were observed among Cr, Co, Ni, Sc,

T i O_{2}

F e_{2} O_{3}

, and

M g O

, likely reflecting the contributions of minerals such as chromite, garnet, olivine, pyroxene, amphibole, sphene, rutile, hematite, ilmenite, magnetite, biotite, and chlorite to the river sand compositions.

The major contributions of clastic sedimentary rocks (such as shales, claystones, siltstones, and mudstones), mafic igneous rocks with chromite deposits, carbonate sedimentary rocks, metamorphic rocks, and Cu-Zn deposits in the river sands were confirmed by observing the distribution plots of minor elements (Figure 3 and Supplementary Materials in Appendix A, Figure A1 and Figure A2), comparing the concentrations of minor elements with the range in concentrations presented by Kabata-Pendias and Mukherjee [79], and the results of the Spearman correlation coefficient [81,84,89,90,91]. The potential occurrence of hydrothermal and metamorphic processes, along with the presence of clastic and carbonate sedimentary, igneous, and metamorphic rocks in the study area, has been reported by Vilanova et al. [78].

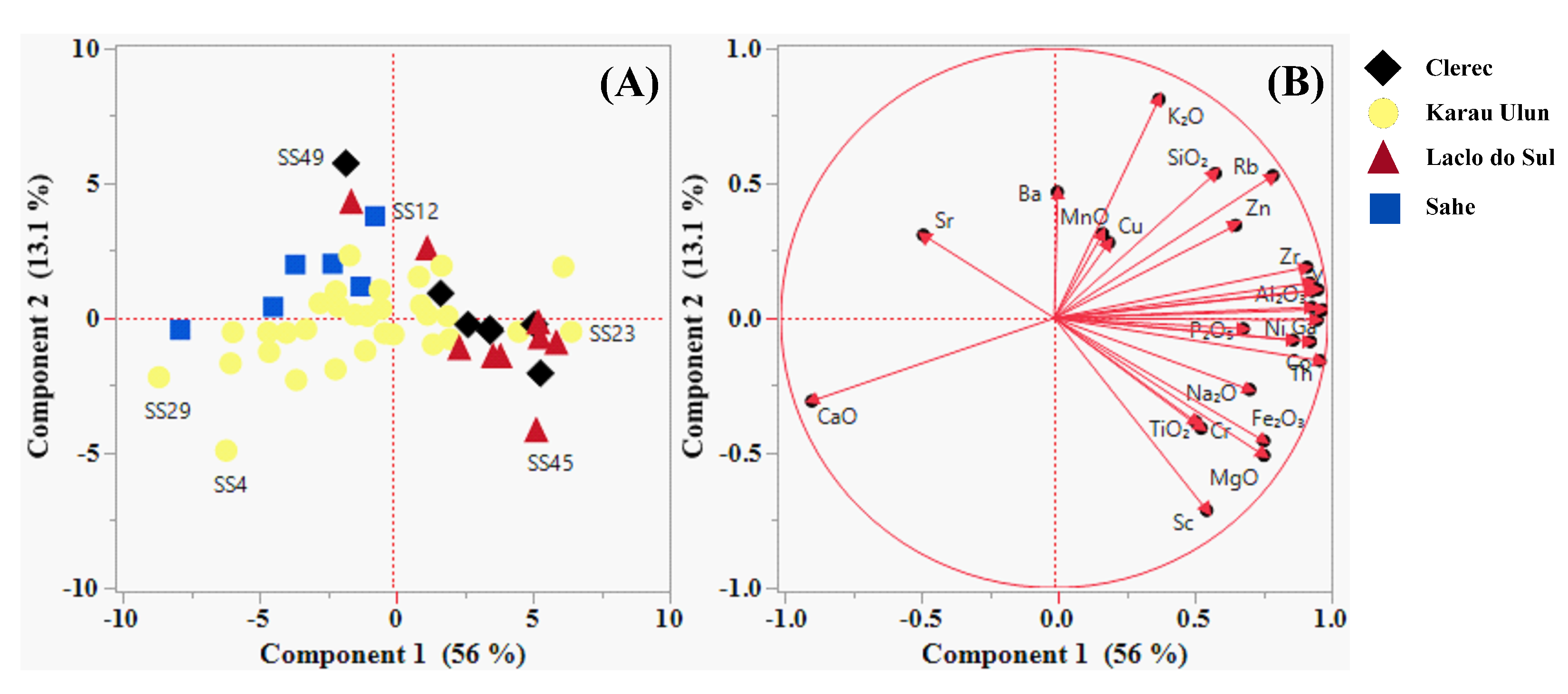

The PCA results showed that the pattern plot of PC1 and PC2 (Table 3 and Table 4; Figure 4) defined the geochemical associations of elements related to the origin and composition of the underlying lithologies, whereas PC3 and PC4 (Table 3 and Table 4; Figure 5) allowed identification of the presence and distribution of deposits and alteration minerals associated with the effects of metamorphism and hydrothermal processes in the study area. The PCA findings corroborate the aforementioned results.

The pattern plot of PC1 may effectively separate the presence and distribution of compositional variations between the carbonate- and non-carbonate-rich river sands from the study area. Carbonate minerals, such as calcite and aragonite, which are commonly affiliated with carbonate sedimentary rocks, may have significantly contributed to the elemental association observed in the negative scores of PC1. This component was prominently recorded at sample locations SS29, SS15, SS4, SS6, and SS30, which were mainly drained from the Aitutu, Viqueque, and Wailuli Formations. The elemental relationship seen in the positive values of PC1 may have been strongly influenced by non-carbonate minerals, such as clay, mica, quartz, feldspar, heavy, and other accessory minerals, which are frequently associated with clastic sedimentary rocks. The elemental association observed in these positive values was highly concentrated in sample locations SS23, SS1, SS41, SS50, SS42, SS40, SS45, and SS48, which were primarily drained from the Wailuli, Viqueque, and Aitutu Formations, as well as the Bobonaro Complex. The PC2 pattern plot effectively captures the compositional variations between the mafic- and non-mafic-rich river sands within the study area. The contributions of chromite, garnet, spinel, olivine, pyroxene, amphibole, biotite, magnetite, sphene, ilmenite, and chlorite affiliated with igneous, metamorphic, and clastic sedimentary rocks were responsible for the negative PC2 scores. Representing this component, samples SS4, SS45, SS11, SS29, and SS50 were collected from areas drained from the Lolotoi and Bobonaro Complexes as well as from the Ainaro, Viqueque, and Wailuli Formations. The igneous and metamorphic rocks associated with the Bobonaro Complex were identified as exotic blocks that were incorporated into clastic sedimentary rocks (such as shales and mudstones) [92]. The elemental association observed in the positive values of PC2 was potentially consistent with the relative abundance of feldspar, quartz, mica, and clay minerals in the river sands. These minerals can be attributed to the presence of clastic sedimentary rocks and their altered rocks owing to metamorphic processes. The elemental relationship observed in these positive scores was highly reported in samples SS49, SS39, SS12, SS43, SS9, and SS13, which were collected from areas drained from the Wailuli Formation and Dilor Conglomerate.

5.2. Influence of Mineral Deposit Potential on the Geochemical Characteristics of River Sands

The statistical parameters of the raw geochemical elements, particularly skewness and kurtosis, indicated that Cr, Cu, Zn, and Ba had values greater than 1 and 3, respectively. These elements also exhibited relatively noticeable differences in the mean, median, and mode values. For

C a O

, the skewness value was greater than 1, whereas the kurtosis value was less than 3. The threshold values for

T i O_{2}

C a O

, Cr, Cu, Zn, and Ba were obtained using these three methods. The threshold values achieved by the methods followed the decreasing order TIF > mean+2STD > median+2MAD for

T i O_{2}

and

C a O

, whereas Cr, Cu, Zn, and Ba decreased in the order mean+2STD > TIF > median+2MAD. The TIF approach values corresponded closely to the upper inner fence values of the boxplot [65,66,93], and the results of this approach were used as the threshold values [67,68].

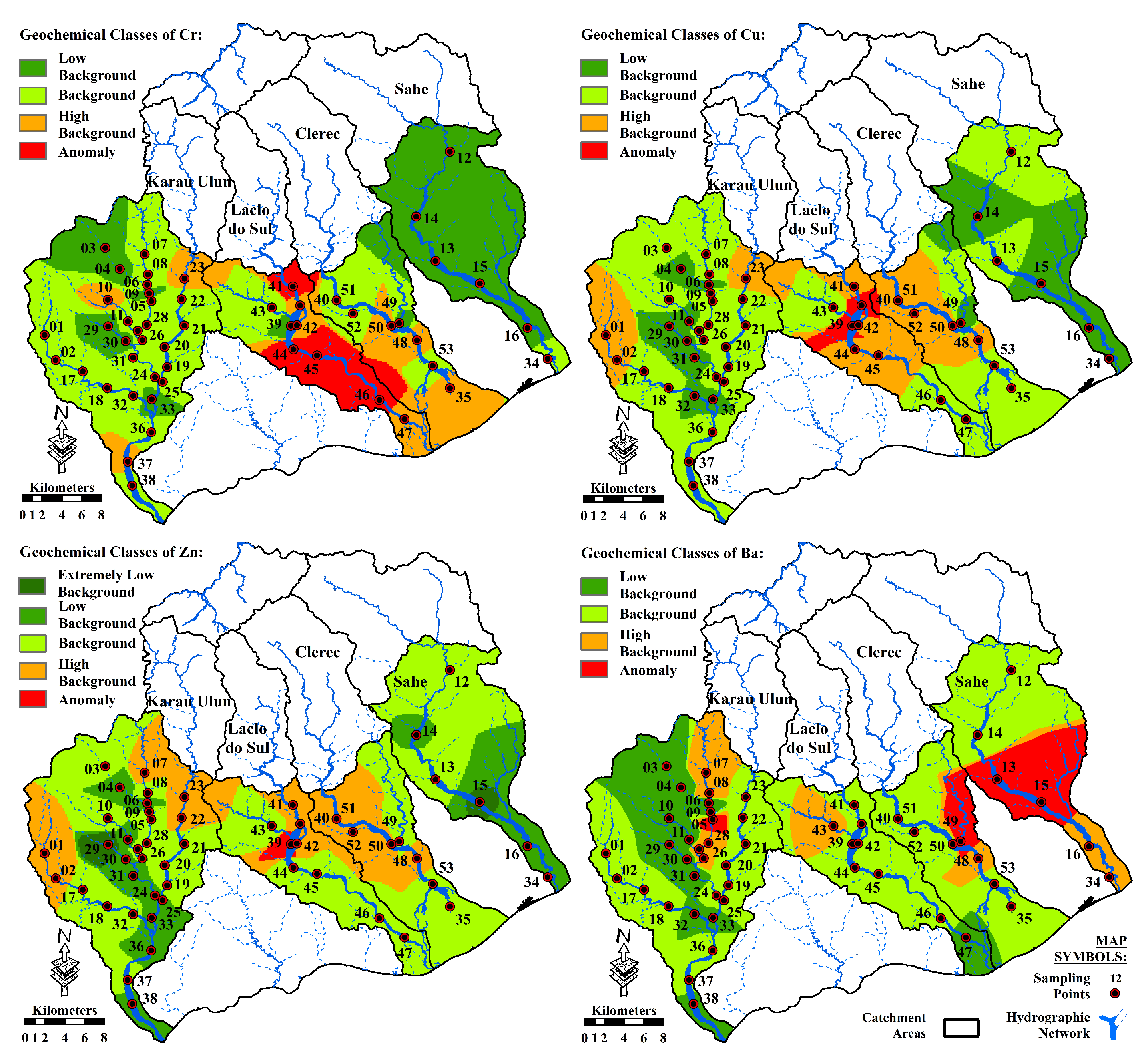

Five geochemical classes for the concentrations of Cr, Cu, Zn, and Ba were identified using the boxplot model [69], as shown in Table 5. A distribution map of geochemical classes for Cr, Cu, Zn, and Ba in the study area was delineated using the IDW method for gridding and illustrating the spatial distributions of geochemical anomalies (Figure 6). Anomalous values of Cr were observed in the midstream to downstream areas of the Laclo do Sul River basin. In contrast, anomalous values of Ba were concentrated in the northern branch of the Clerec River catchment, midstream areas of the Sahe River basin, and midstream areas of the western branch of the Karau Ulun River catchment. In addition, the nearly identical spatial distribution patterns of Cu and Zn likely indicated that they were derived from the same source materials [94]. Anomalous values of Cu and Zn were observed in the midstream area of the Laclo do Sul basin.

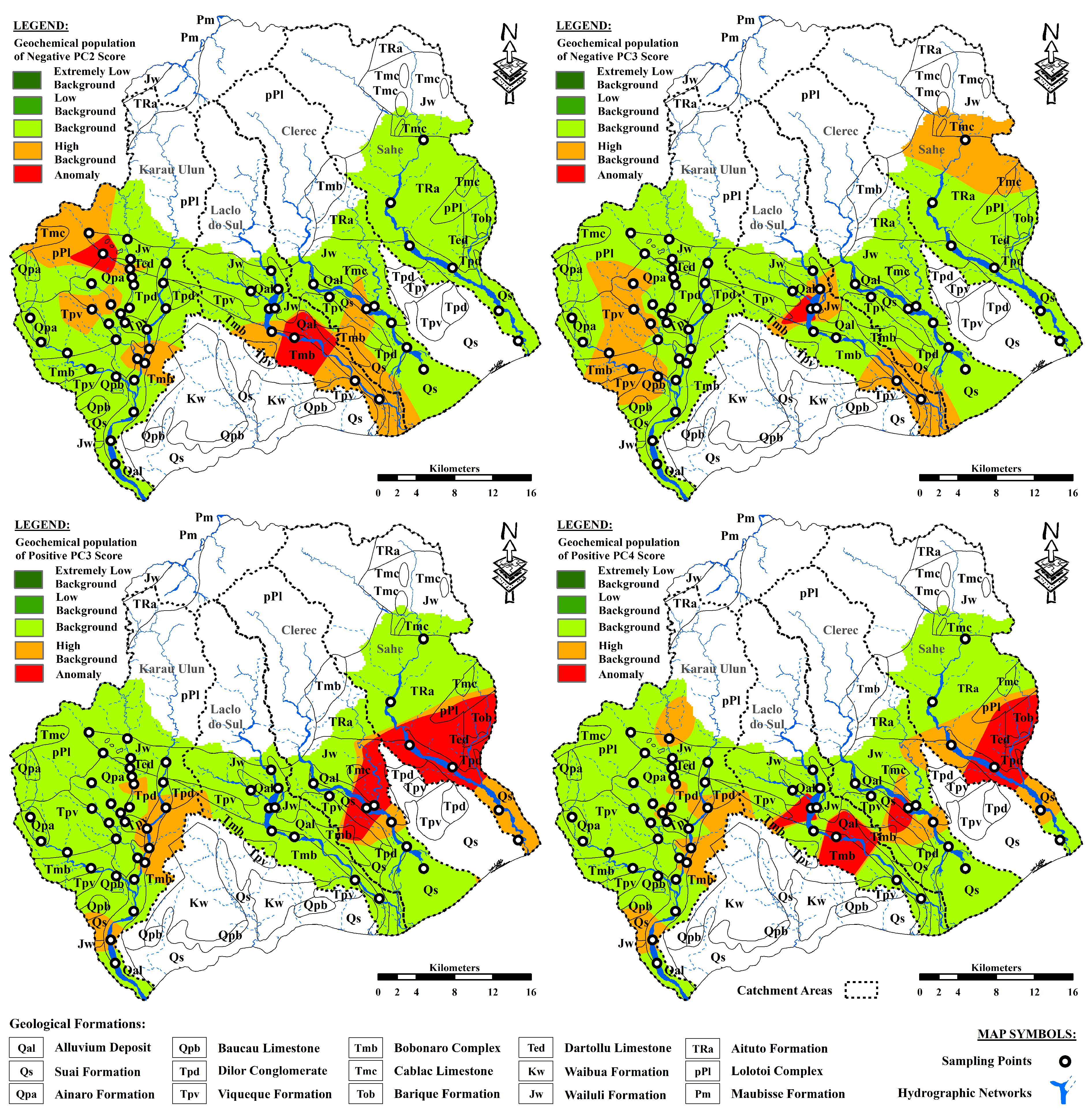

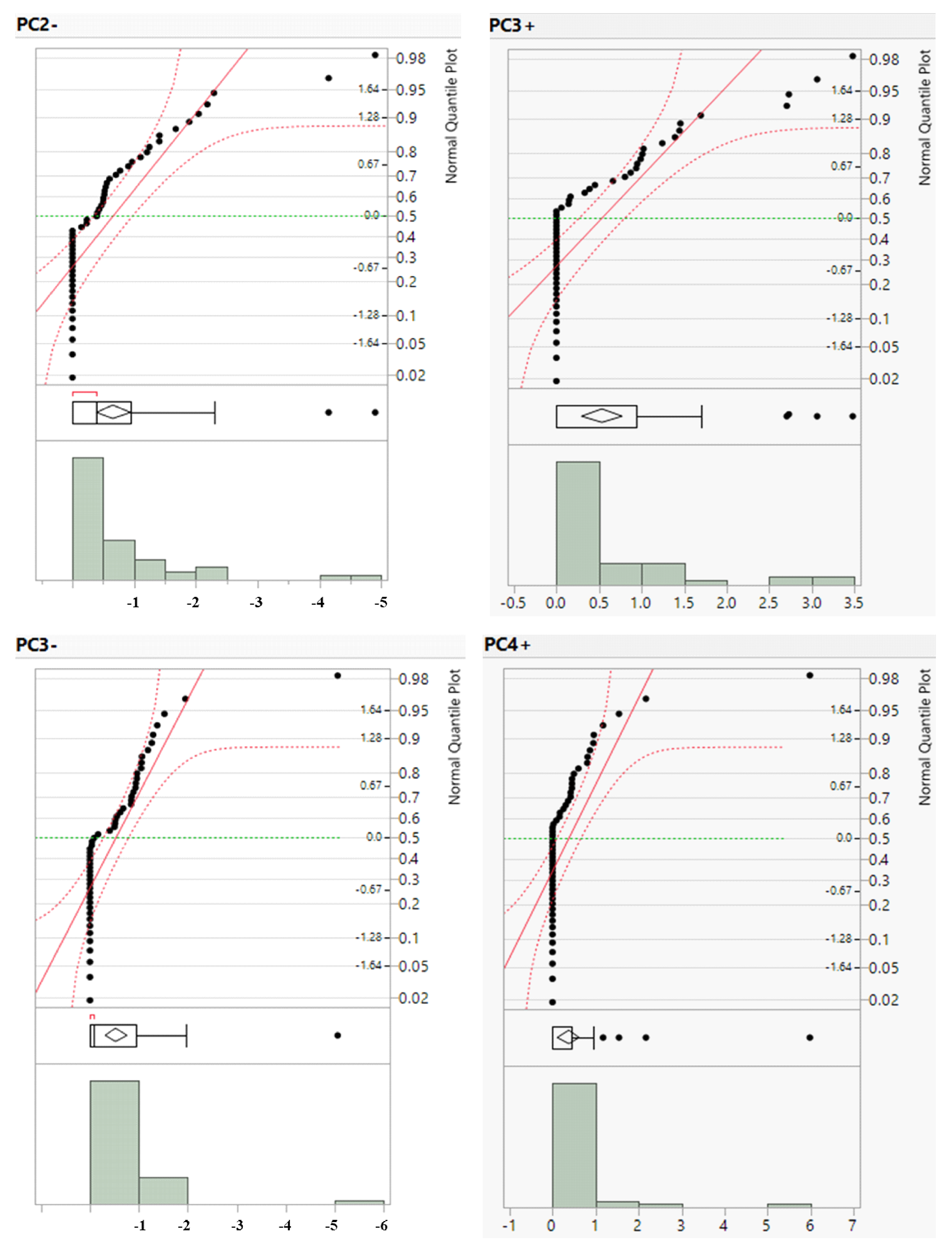

The positive PC3 and PC4 values as well as the negative PC2 and PC3 scores were subjected to distribution plots (Figure 7) to separate the five geochemical populations with extremely low background, low background, background, high background, and anomalies (Table 6). Five distinct geochemical classes were delineated using the IDW approach for gridding and illustrating the spatial distributions of anomalous values from the selected PCA components in the study area (Figure 8).

Sc,

M g O

F e_{2} O_{3}

, Cr, and

T i O_{2}

were grouped together on the negative side of PC2, likely reflecting the presence of mafic, heavy, and accessory minerals concentrated in the igneous and metamorphic rocks [84,91,95]. However, the high anomalous value distributions of Cr and elemental associations in the negative PC2 scores (Figure 6 and Figure 8) may be related to the presence of igneous rocks (basic and ultramafic) containing chromite mineral deposits [78,85]. The samples representing these anomalies were collected from areas that were drained from the Lolotoi and Bobonaro Complexes, particularly in the upstream areas of the northwestern branch of the Karau Ulun River catchment and the midstream areas of the Laclo do Sul basin. The existence of igneous rocks with chromite mineral deposits associated with the Bobonaro Complex as exotic blocks were incorporated into shales and mudstones [92].

The occurrence of a potential mineralization zone dominated by Cu and Zn could explain their high anomalous value distributions, as well as the elemental relationships in the negative PC3 scores [84,90], in the midstream areas of the Laclo do Sul River basin (Figure 6 and Figure 8). This anomaly was particularly evident in the sample drained from clastic sedimentary rocks and the altered rocks of the Wailuli Formation, which could be the host rocks for the Cu-Zn mineralization.

Overall, the contributions of carbonate, feldspar, mica, clay, amphibole, and biotite were most likely responsible for the presence and distribution of Ba [81,89] in the river sands of the study area. However, the high anomalous value distributions of Ba and the elemental association of

M n O

-Ba-

T i O_{2}

in the positive PC3 scores likely indicate the occurrence of secondary alteration mineral assemblages, such as barite, manganese, rutile, and goethite [85,96]. The distribution of geochemical classes for positive PC3 values in the study area shows that anomalous values of this component were concentrated in the northern branch and downstream areas of the Clerec River catchment, as well as in the midstream areas of the Sahe River basin (Figure 8). Samples carrying these anomalies were collected from locations drained from carbonate sedimentary rocks and altered rocks because of metamorphic and hydrothermal processes in the Aitutu and Wailuli Formations.

The elemental association observed in the positive PC4 scores could be significantly influenced by the occurrence of the Cu-Zn deposits, as well as carbonate and manganese minerals [84,85,90], which are associated with carbonate and clastic sedimentary rocks and their altered rocks owing to metamorphic and hydrothermal processes. Anomalous values of this component were observed in the midstream areas of the Laclo do Sul, Clerec, and Sahe River catchments (Figure 8). These anomalies were most noticeable in the sample drained from the Aitutu and Wailuli Formations, as well as the Bobonaro Complex. The presence of carbonate and clastic sedimentary rocks and their altered rocks are associated with the Bobonaro Complex as exotic blocks incorporated into shales and mudstones [92].

5.3. Prediction of Target Areas for Future Research and Exploration

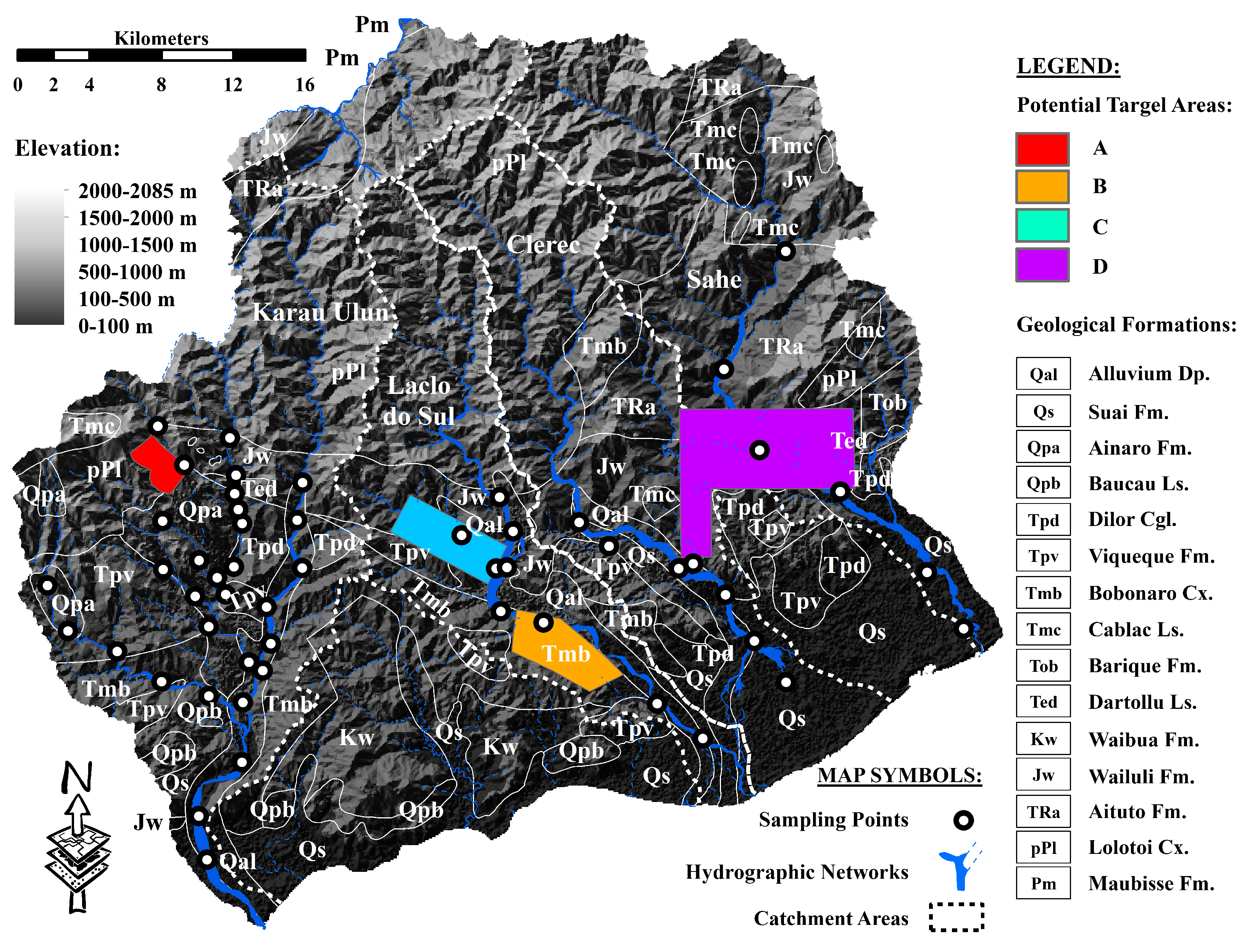

Four potential target areas for mineral deposits were identified in the study area and proposed for further study and exploration, as illustrated in Figure 9. Target areas A and B show evident distributions of anomalous values of Cr and elemental assemblages with the negative PC2 scores, as shown in Figure 6 and Figure 8. The distributions of anomalous values of Cu and Zn as well as the elemental association with negative PC3 scores (Figure 6 and Figure 8), corresponded well with the delineation of target area C. In addition, the proposed boundary of target area D is consistent with the distribution of anomalous Ba values and anomalous scores of multi-element relationships in the positive PC3 and PC4.

6. Conclusions

The characteristics of Cr, Cu, Zn, and Ba in the river sands of the study area fell outside a normal distribution. The threshold estimated for these elements using the mean+2STD approach failed to yield adequate values, whereas the median+2MAD method delivered low threshold values, leading to the detection of the greatest number of outliers. This study presents the findings that the TIF and PCA methods are highly applicable and effective for calculating appropriate geochemical thresholds to separate anomalies from background values and identify relevant elemental associations. These approaches have proven useful for delineating target areas for mineral deposits, resulting in reliable outcomes [67,68,97,98].

Mafic, heavy, accessory, and clay minerals associated with igneous, metamorphic, and clastic sedimentary rocks significantly contributed to the varying concentrations of Cr, Cu, and Zn in most river sands in the study area. In addition, the Ba content was attributed to the important contributions from the destruction of carbonate and aluminum-rich minerals associated with carbonate and clastic sedimentary rocks. Target areas predicted for further geochemical studies and mineral exploration campaigns were delineated based on the distribution of several potential mineral deposit areas and hydrothermal alteration zones identified in the study area. Area A is spatially covered by the igneous rocks of the Lolotoi Complex, which are suspected to be the source of the detected geochemical anomalies and may indicate the presence of Cr deposits. Area B was identified as the source of the chromite deposits associated with the igneous and metamorphic rocks and was spatially affiliated with the Bobonaro Complex. In addition, area C is expected to be composed of clastic sedimentary rocks and altered rocks associated with the Wailuli Formation, which are considered potential hosts for mineralization dominated by Cu and Zn. Furthermore, area D is spatially occupied by carbonate and clastic sedimentary rocks affiliated with the Aitutu and Wailuli Formations, which are considered the source of the detected Ba geochemical anomalies and demonstrate possible evidence that these rocks have been significantly altered by hydrothermal processes.

The occurrence of hydrothermal mineralization associated with the Gondwana Megasequence has been reported previously by Vicente et al. [85]. Further geochemical studies and mineral exploration campaigns should be conducted in areas covered by the Wailuli Formation, particularly within the proposed boundary of target area D, because of the limited number of samples collected and the fact that several discoveries did not show significant geochemical anomalies [99], as demonstrated in the case study presented here. In addition, future studies should give greater attention and consideration to the presence of chromite deposits associated with the igneous rocks and altered clastic sedimentary rocks due to hydrothermal processes of the Wailuli Formation, which are incorporated into clastic sedimentary rocks as exotic blocks within the Bobonaro Complex [92]. However, no large outcrops of these exotic blocks have been found in the basin.

Author Contributions

V.V.: conceptualization, methodology, validation, investigation, formal analysis, writing—original draft. T.O.: validation, supervision, visualization, writing—review and editing. S.K.: validation, supervision, visualization, writing—review and editing. K.Y.: formal analysis. E.M.: investigation, formal analysis. All authors have read and agreed to the published version of the paper.

Funding

The Japan International Cooperation Agency (JICA) Development Studies Program, Human Resources Development in Science and Technology Innovation, and the Earth Science Laboratory, Faculty of Engineering, Gifu University provided funding for this study and covered the article processing charges (APC).

Data Availability Statement

All data included or referenced within this article are publicly available.

Acknowledgments

This study was made possible through the generous financial support of the Japan International Cooperation Agency (JICA) Development Studies Program and Human Resources Development in Science and Technology Innovation. We express our sincere appreciation to the staff of the Ministry of Petroleum and Mineral Resources, particularly Instituto de Geociências de Timor-Leste and the National Petroleum and Minerals Authority, Dili, Timor-Leste, for authorizing the shipment of samples from Timor-Leste to Japan. We also extend our gratitude to Professor Katsuta Nagayoshi and Mr. Matsuki of Gifu University for allowing us to take advantage of their laboratory facilities to prepare the glass bead samples. Finally, we would like to extend our heartfelt gratitude to the Nagoya University Museum, JICA and the dedicated staff members of the Faculty of Engineering at Gifu University, Prof. Dr. Koshi Yamamoto, Prof. Dr. Koichi Shimakawa, Mr. Atsushi Takahashi, Ms. Mieko Araki, Ms. Yukiko Eguchi, Ms. Naoko Yamada, and Ms. Midori Iinuma.

Conflicts of Interest

The authors declare that there are no conflicts of interest, either financial or non-financial, that might affect the topic or findings of the research presented in this paper.

Appendix A

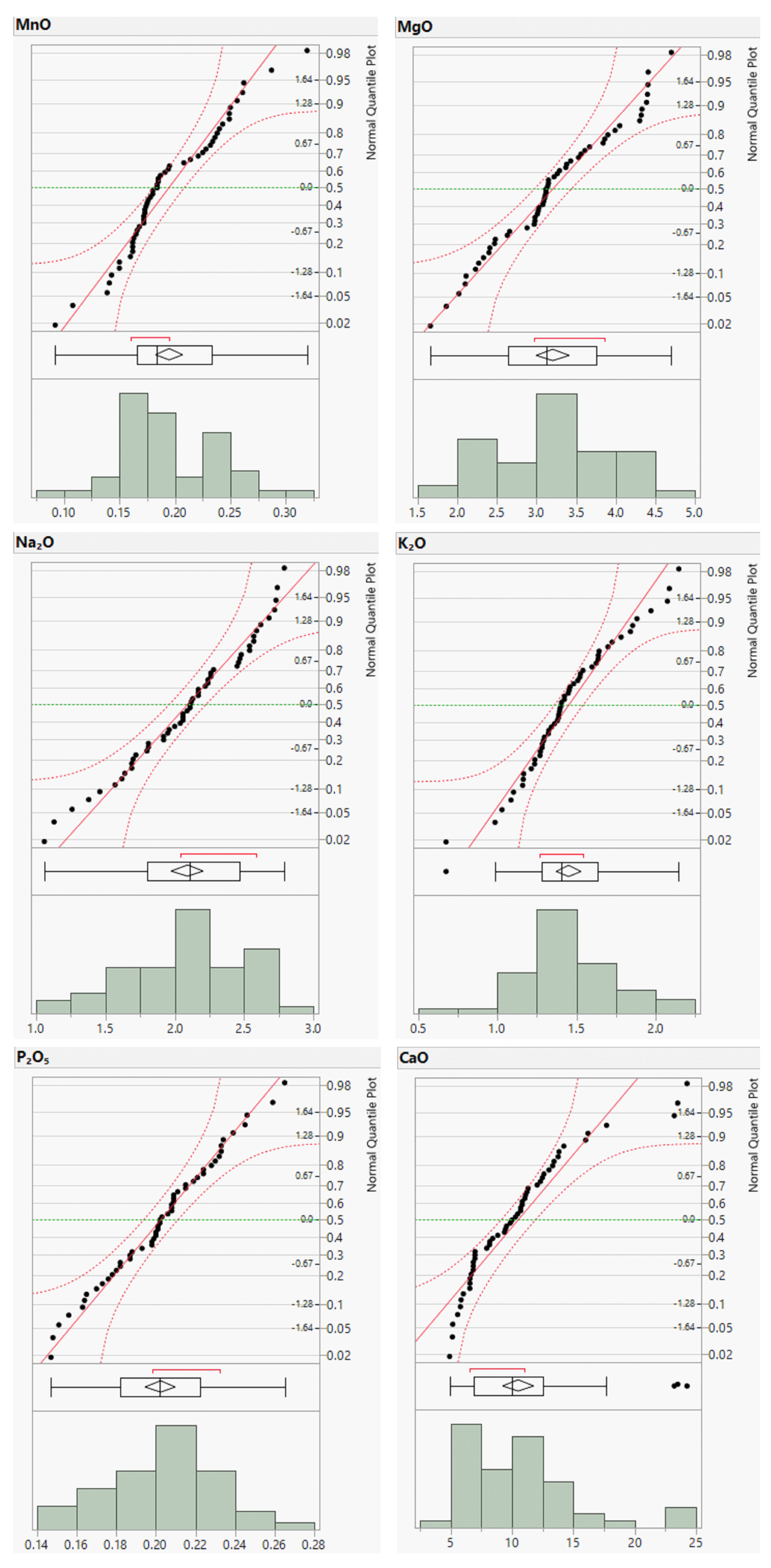

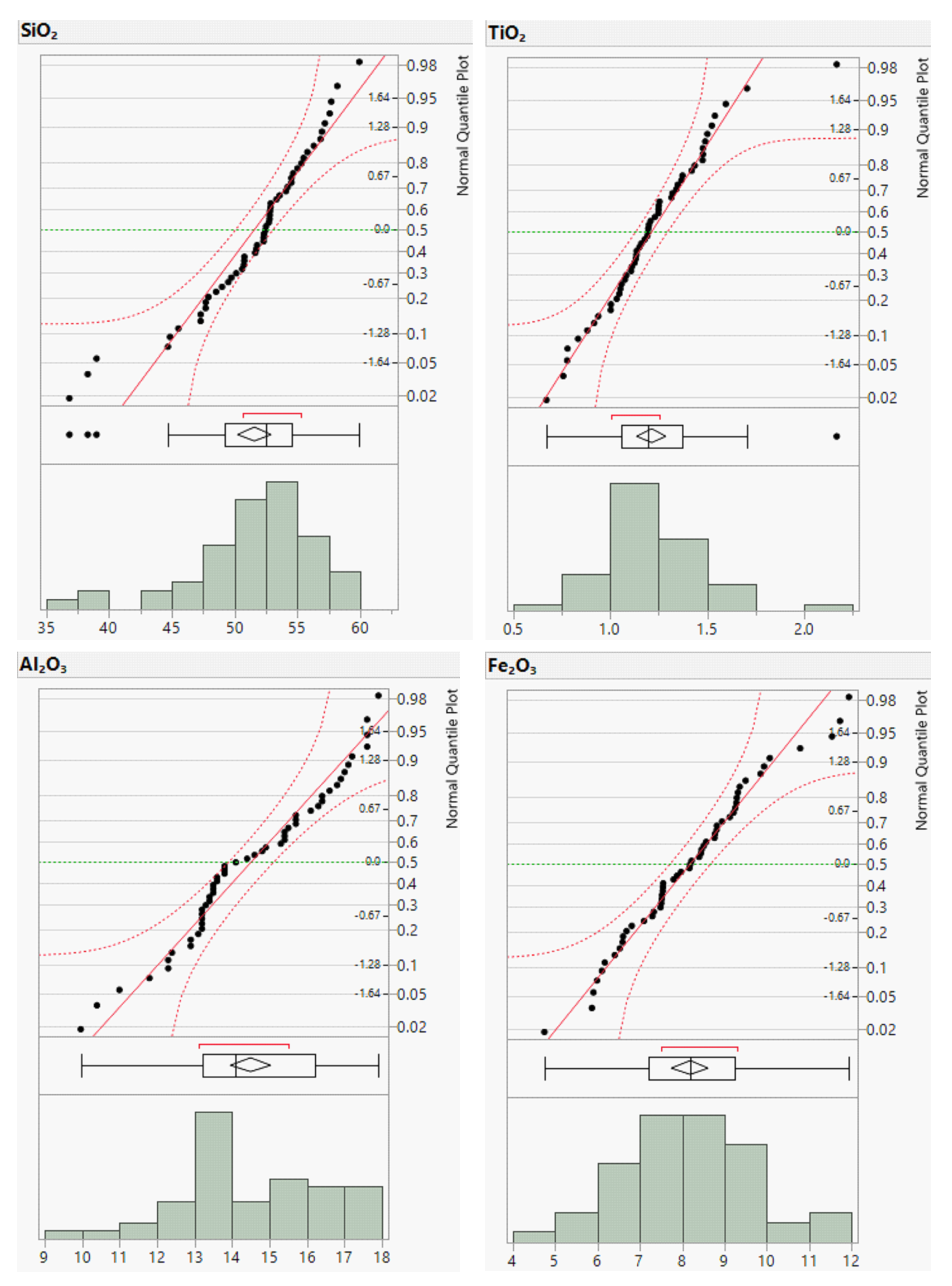

Figure A1. Distribution plots of major element concentrations (in wt.%).

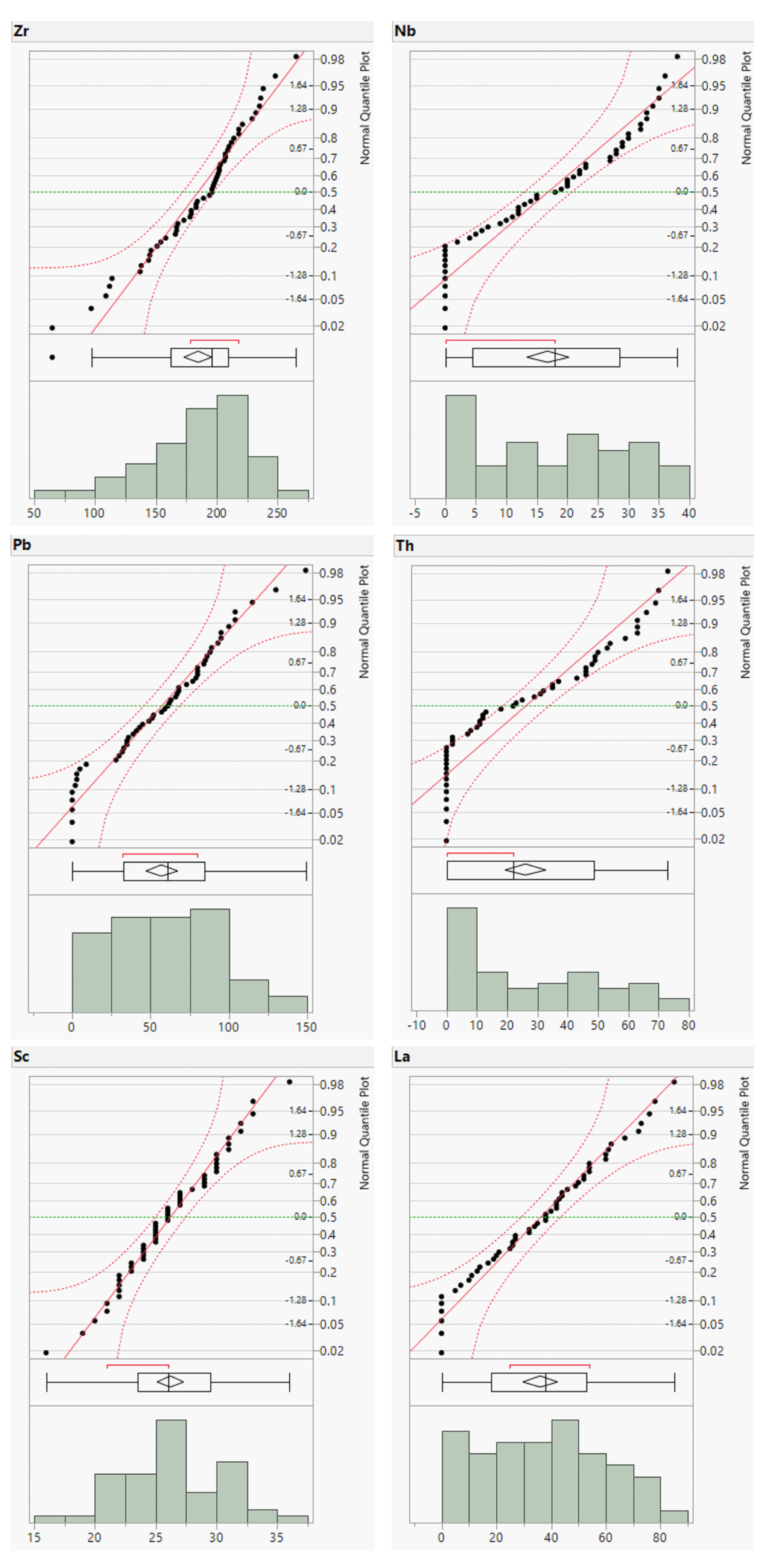

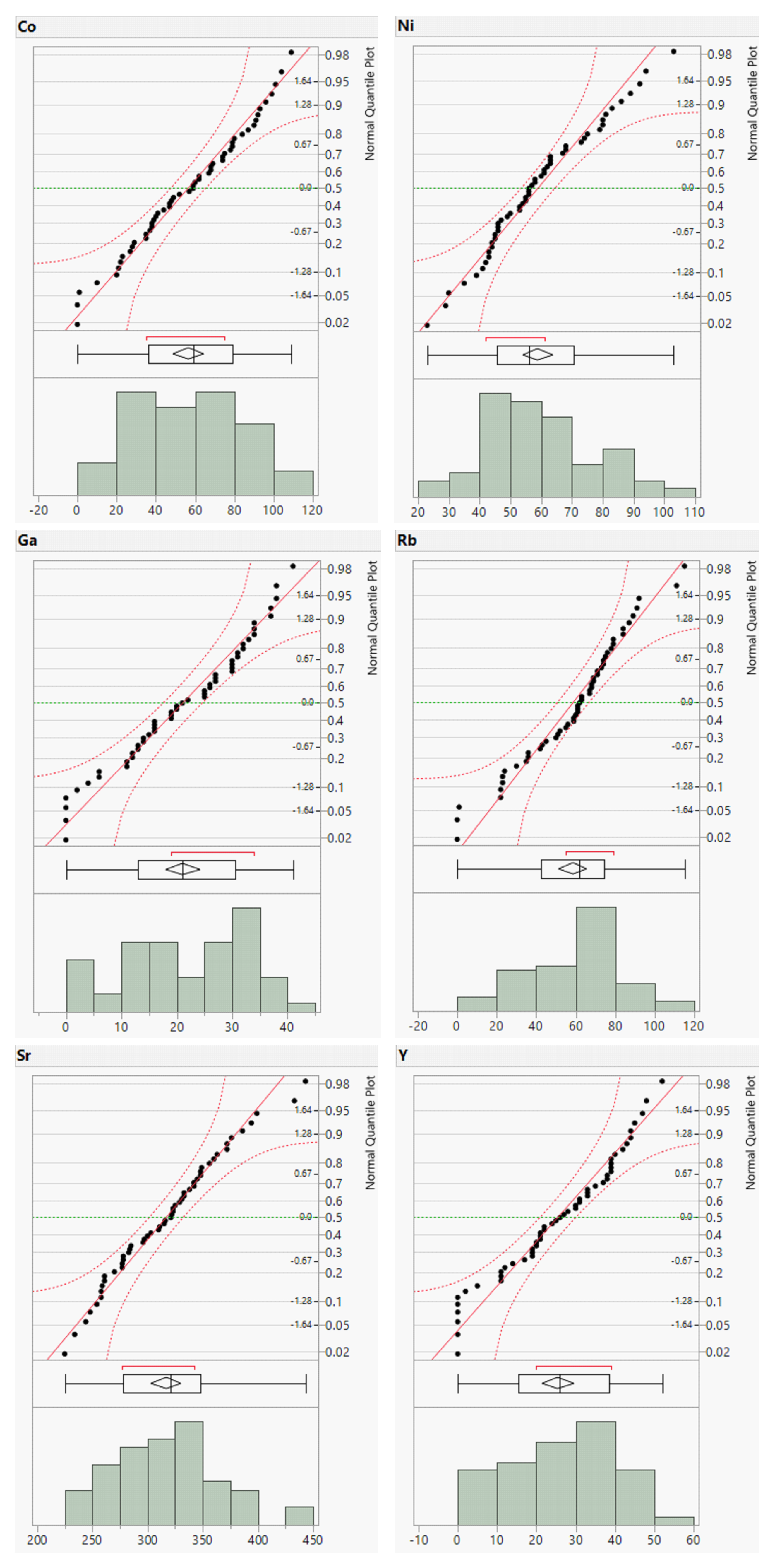

Figure A2. Distribution plots of minor element concentrations (in ppm).

Table A1. The abundance range values of minor elements in argillaceous, sandstone, and basic to ultramafic rocks (data from Kabata-Pendias and Mukherjee [79]).

Minor Elements	Basic-ultramafic igneous rocks (in ppm)	Argillaceous sedimentary rocks (in ppm)	Sandstones (in ppm)
Cr	170.0-3400.0	80.0-120.0	20.0-40.0
Co	35.0-200.0	14.0-20.0	0.3-10.0
Ni	130.0-160.0	40.0-90.0	5.0-20.0
Cu	10.0-120.0	40.0-60.0	5.0-30.0
Zn	40.0-120.0	80.0-120.0	15.0-30.0
Ga	15.0-24.0	15.0-25.0	5.0-12.0
Rb	2.0-45.0	120.0-200.0	10.0-45.0
Sr	140.0-460.0	300.0-450.0	20.0-140.0
Y	0.5-20.0	25.0-40.0	15.0-250.0
Zr	80.0-200.0	160.0-200.0	180.0-250.0
Nb	10.0-35.0	15.0-20.0	0.5-10.0
Ba	250.0-400.0	500.0-800.0	100.0-320.0
Pb	0.1-8.0	14.0-40.0	5.0-10.0
Th	1.0-14.0	10.0-12.0	2.0-4.0
Sc	5.0-35.0	10.0-15.0	1.0-3.0
La	2.0-70.0	30.0-90.0	17.0-40.0
