Directed Acyclic Graphs as Conceptual and Analytical Tools in Applied and Theoretical Epidemiology: Advances, Setbacks and Future Possibilities

1. Introduction

The origins of directed acyclic graphs (DAGs) date back to the emergence of ‘graph theory’ in the early 1700s [1]. DAGs are speculative, theoretical or literal diagrammatic representations of causal paths between variables that are constructed, as their name suggests, on the basis of two over-riding principles – ‘directionality’ and ‘acyclicity’ – which require that:

Principle 1: “All causal paths are ‘directed’” – such that for any pair of (asynchronous) variables (e.g. x and y) between which a causal relationship is speculated, theorized or temporally/probabilistically known to exist, only one (either x or y) can represent the cause; and only the other (either y or x) can be its consequence (hence either: x → y or y → x; but neither x – y nor x ↔ y).

Principle 2: “No direct cyclical paths or indirect cyclical pathways (comprising sequences of multiple consecutive paths) are permitted” – such that no consequence can be its own direct or indirect cause (hence ‘acyclic’ [2] – a property that is a definitive feature of DAGs and reflects what is known as the ‘topological ordering’ or ‘topological sorting’ of unidirectional paths [3,4]).

DAGs reflect the speculation and/or theoretical knowledge of the analyst(s) concerned regarding the causal relationships speculated, theorized or known to exist between each of the variables they have included in their DAGs. These variables are termed ‘nodes’ or ‘vertices’ and, as illustrated in Figure 1, are commonly represented as spheroid (for unmeasured/unknown/‘latent’ variables) or regular/irregular rectangular shapes (for measured/known/‘manifest’ variables). Causal paths between variables are known as directed ‘arcs’ or ‘edges’ and are often represented as unidirectional arrows. Importantly, while each arc or edge indicates both the presence and direction of a speculative, theorized or known causal relationship between the two variables concerned, drawing an arc does not require the sign, magnitude, precision or function of the relationship to be known or declared [5]. For this reason, DAGs provide a disarmingly simple, accessible, and entirely nonparametric approach for postulating causal relationships amongst any variables of interest – even when these variables or relationships are themselves unknown, uncertain, or entirely speculative [6]. Nonetheless, as a result of the parametric constraints imposed by the presence or absence of ‘permissible’ arcs or edges within any given DAG (i.e. those consistent with directionality and acyclicity), these diagrams also support a number of more sophisticated statistical applications. These applications make it possible to use DAGs to inform the design of multivariable statistical models that can accommodate or exploit their postulated causal structures without the need to understand the mathematical properties on which these structures depend [7]).

These features make DAGs attractive cognitive and analytical tools for strengthening the epistemological, theoretical and empirical basis of causal inference – particularly amongst analysts who lack specialist mathematical training. Unsurprisingly, there has been a rapid proliferation in the use of DAGs across a range of applied scientific disciplines (including the biosciences, medicine and engineering [8,9,10,11,12,13,14,15]), and an upsurge in associated training [16,17,18,19,20].

To temper this enthusiasm – for what are ostensibly simple but somewhat simplistic representations of potentially complex and complicated causal processes – this review explores the advances and strengths, setbacks and weaknesses, and future possibilities of DAGs as conceptual and analytical tools within applied and theoretical epidemiology. We conclude that using DAGs requires a clear understanding of both their non-parametric nature and their parametric implications; and that the substantial weaknesses of DAGs seem likely to reflect both:

• the challenges inherent in the modelling of ‘data generating mechanisms’, and ‘dataset generating processes’, whenever either of these are incompletely understood or poorly conceptualized; and
• the troublesome cognitive tendencies that accompany the application of all analytical tools, in which their ease of use and practical utility seems to obviate the discipline required to identify, evaluate and acknowledge all prevailing uncertainties and assumptions – particularly those that might be irreducible.

2. The Strengths of Directed Acyclic Graphs in Applied and Theoretical Epidemiology

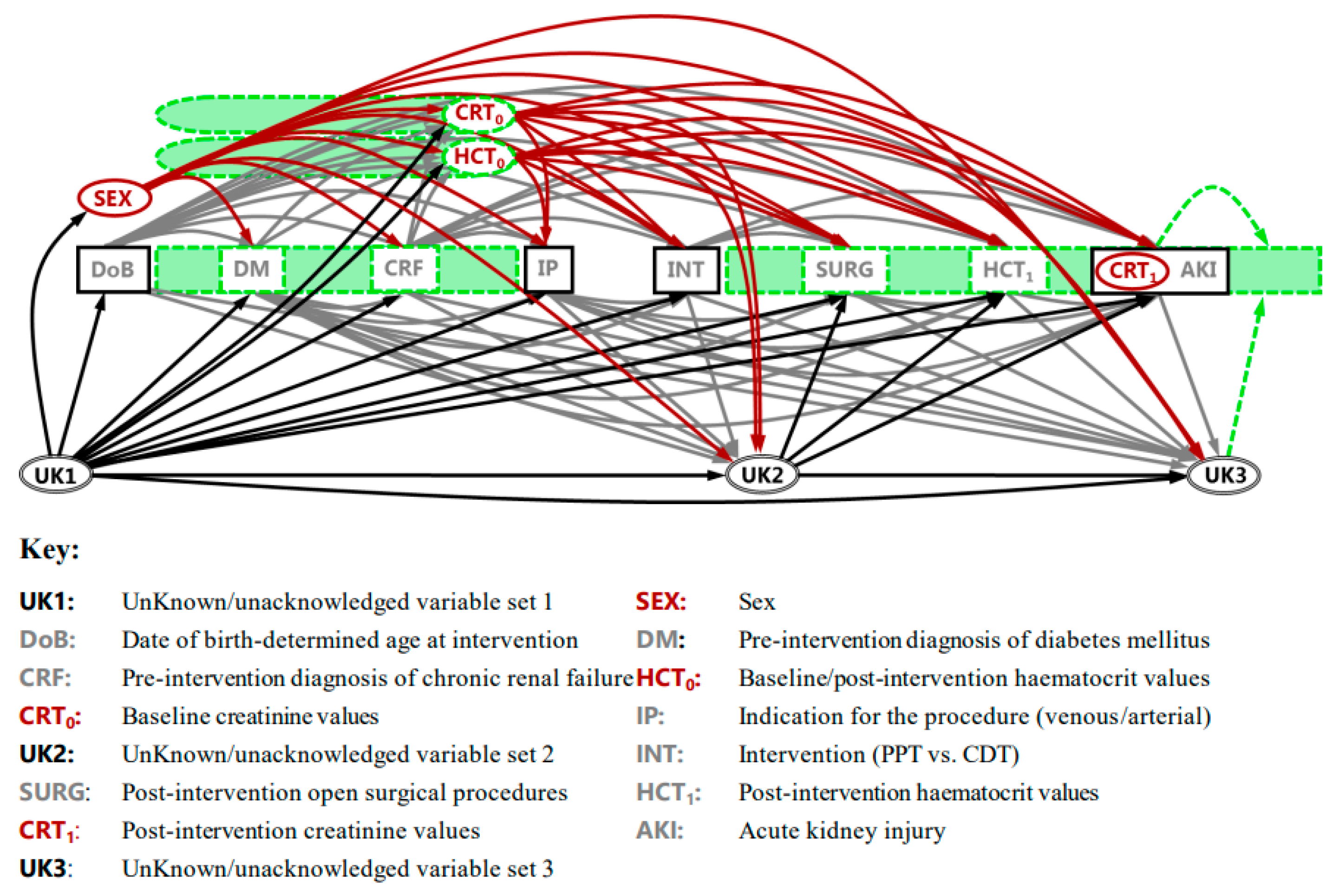

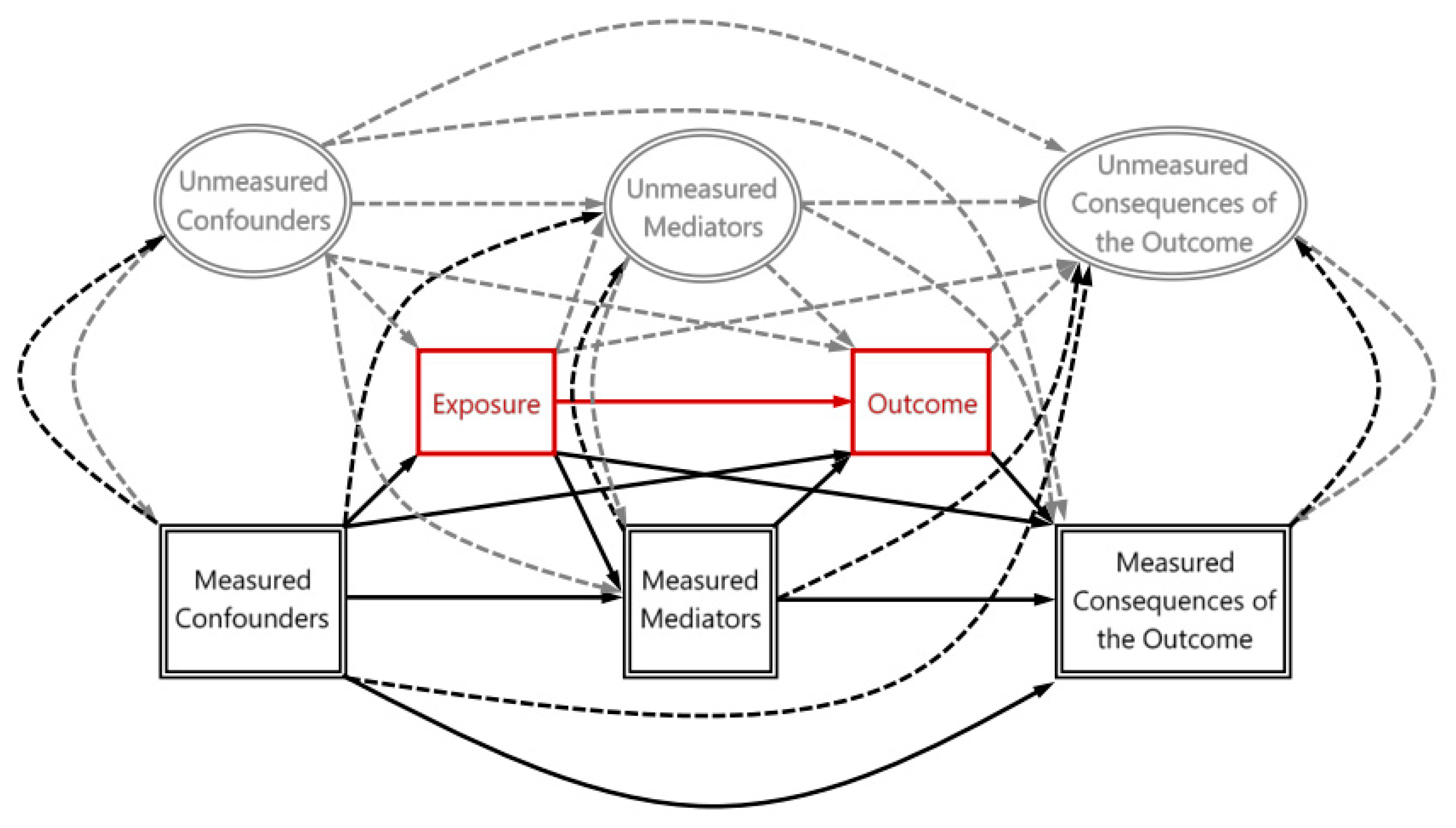

As Figure 1 demonstrates, a comprehensive DAG offers a ‘principled’ representation of all causal pathways that are known, or can be theorized or speculated to exist within any specified context. These variables include: those for which measurements have been made and are available (the so-called ‘known knowns’ [22]); those for which measurements have been made but for some reason or other are unavailable (the ‘unknown knowns’); and any for which measurements have not been, or cannot be, made (which include both the conceivable but unmeasured/unmeasurable ‘known unknowns’, and the unacknowledged and hitherto inconceivable ‘unknown unknowns’). In this way, a comprehensive DAG not only reflects the premise upon which a causal model has been constructed, but also reveals many of the model’s associated uncertainties and assumptions (whether explicit or implicit) – including the likely presence of ‘unknow-able’ numbers of unmeasured and unmeasurable variables situated at each and every stage of the causal mechanisms involved.

Such features imbue even non-comprehensive DAGs with a number of invaluable properties that make them useful tools to assist in the conceptualization and analysis of speculative, theorized and known causal processes – and particularly in non-experimental (i.e. observational) contexts where the causal pathways involved can be incompletely understood, somewhat uncertain, or completely unknown. Indeed, in the absence of the advances in causal inference that DAGs have been able to provide, definitive evidence of cause and effect has had to rely upon experimentation involving the deliberate manipulation of ‘exposures’ to evaluate their effect on subsequent ‘outcomes’. Yet experimental studies: are often resource intensive; have limited utility for complex, real-world interventions/exposures; and often face substantial ethical constraints [23]. This is why causal inference is where we have seen the most widespread application of DAGs, and the area with the greatest potential for impact – not least since robust understanding of causal/functional mechanisms is critical for identifying, selecting and refining interventions capable of: preventing, pre-empting, attenuating or reversing undesirable processes; and enhancing those processes most likely to do good. At the same time, causal inference is also critical to the generalizability and associated ‘portability’ of prediction models and their algorithmic outputs beyond the contexts, periods and datasets in which (and on which) these have been developed [24,25,26,27]. For these reasons it is worth examining, in some detail, what the potential and achievable strengths of DAGs might be within analyses of observational datasets, focusing in particular on the contributions DAGs might make to causal inference – but also, thereby, to causality-informed (and causality-enhanced) prediction.

2.1. Transparency

As we have already seen, a key strength of DAGs is their ability to reveal conceptual and analytical uncertainties and assumptions that might otherwise remain unspecified, unclear and/or uncertain to both:

• the analysts concerned – who might have: been unaware of these uncertainties; not intended to make such assumptions; and overlooked the implications of both; and
• third parties and others, including peers, reviewers and end-users – who are then able to examine, understand and evaluate the implications and impacts of these uncertainties and assumptions for the design and outputs of associated causal inference analyses.

While transparency is, in and of itself, a tangible benefit of using DAGs – and not least in terms of enhancing the reproducibility and replicability of scientific research [28] – it has direct methodological utility in the design and conduct of both: primary studies seeking causal inference (or causality-informed predictions) from analyses of observational data (see 2.4.1-2.4.5, below); and secondary studies seeking to critically appraise the methods of, and synthesize the findings generated by, these primary studies (see 2.4.6, below [29]).

2.2. Simplicity

The ability of DAGs to improve the transparency of conceptual uncertainties and analytical assumptions benefits from substantial consensus regarding the principles that govern both: what DAGs can (and cannot) represent; and how these features are represented. As predominantly theoretical, and exclusively non-parametric representations of causal processes, DAGs neither reflect nor dictate the parametric features of any of the causal paths involved (i.e. the sign, magnitude, precision or function of their parametric relationships [5]). Indeed, the only exception in this regards is where the omission of a causal path represents (and imposes) a very specific parametric value for the relationship between the variables concerned; namely that the associated path coefficient is, and can only be, ‘absolute’ zero (i.e. $0.00\overline{0}$). And while DAGs need not necessarily be operationalized as graphical diagrams [30,31,32], all DAGs – as we have seen – only contain directed and acyclic causal paths (that is, unidirectional paths from preceding causes to subsequent consequences, none of which can be circular – or can contribute to circular pathways comprising multiple causal paths – through which any given cause might directly or indirectly become a consequence of itself). Ostensibly, these two simple principles appear easy to understand and apply, making DAG construction a task that is accessible even to those with little technical expertise or experience (albeit somewhat imperfectly [6,33]).

2.3. Flexibility

While the twin principles of directionality and acyclicity impose strict constraints on the forms that DAGs can take, the rationale applied in deciding precisely which of the ‘permissible’ (i.e. directionality- and acyclicity-compliant) causal paths exist can:

• involve a number of very different (and potentially contested and contradictory) considerations; and
• be used in both theoretical and more practical applications.

In applications where DAGs are used to represent entirely hypothetical causal relationships amongst the variables involved, the selection of (permissible) causal paths included/excluded can be determined on an entirely speculative – or even deliberatively experimental – basis. However, in applications where DAGs are intended to represent the real-world processes involved in generating the observational data to hand (i.e. the underlying data generating mechanism[s] and dataset generating processes involved), robust – that is, contextually and functionally consistent – knowledge is required to determine where permissible causal paths might be known or likely to exist, and where they are not. Yet even in applications where any such knowledge is contested, equivocal, uncertain, elusive or unknown, temporal considerations alone can often be used to determine where causal paths might plausibly or probabilistically exist, and where they might be implausible or impossible. Temporal considerations achieve this simply because a cause must precede any subsequent consequence(s) or effect(s) – such that any preceding variable might therefore be considered a plausible, probabilistic cause of all subsequent variables; and any subsequent variable might be considered a plausible, probabilistic consequence of all preceding variables.

In this way, decisions as to where causal paths are situated in any given DAG can be informed by speculation, knowledge or temporal/probabilistic considerations – or any combination of these three. For this reason, DAGs are inherently flexible tools amenable for use in a wide range of applications involving the modelling of subjective, hypothetical and/or a-theoretical (and ostensibly objective) conceptualizations of the underlying data generating mechanism(s) (and dataset generating process[es]) involved. However, as will become clear in subsequent sections of our review, it is this flexibility that lies at the heart of the potential ambiguity and uncertainty of DAGs when it comes to assessing their internal consistency and practical utility – and this ambiguity and uncertainty warrant improvements in the level of detail that analysts are encouraged or required to provide when developing, specifying, operationalizing and reporting their DAGs.

2.4. Methodological Utility

By improving the transparency of any residual (and irreducible) uncertainties that analysts routinely face – and of the explicit and implicit decisions and/or assumptions that analysts must make to overcome these – DAGs can help improve the choices analysts make at every stage in the research process, be that during: problem identification and hypothesis generation; study design; dataset selection and/or the sampling, measurement and coding/transformation of novel data; analysis and interpretation; and in the critical appraisal, synthesis and meta-analysis of primary studies. It is therefore worth exploring each of these methodological choices in turn, to explicate how DAGs might strengthen the judgements and decisions these require.

2.4.1. Hypothesizing

Wherever hypotheses involve, or depend upon, the presence or absence of specific causal pathways, DAGs can be of substantial utility in exploring and evaluating the potential implications/consequences of the causal assumptions involved – and thereby the likely plausibility of the hypotheses concerned. In this way – and even in the absence of data (or any analysis thereon) – DAGs are powerful tools that can improve the critical, initial, conceptual phase of the research process, in which the insights offered by DAGs can stretch beyond the modelling of real-world observational data to the design of entirely exploratory and experimental ‘studies’ [34,35].

2.4.2. Sampling

Wherever research studies involve choosing amongst a range of alternative secondary datasets, or planning the prospective collection of data de novo, prior specification of a DAG can help identify the potential risk of collider bias [36] that might otherwise be incurred when selecting unrepresentative datasets, or when generating novel datasets likely to be vulnerable to/affected by unrepresentative recruitment, inclusion or selection procedures.

2.4.3. Data Availability/Collection

A DAG can also be invaluable for ensuring that substantial, accurately measured data are available (within the dataset selected) or can be measured (when collecting data de novo) for a wide variety of those variables likely to contribute confounding bias – these comprising both the known and conceivable (and potentially measurable) variables that are likely to have occurred/crystallized before the specified exposure(s). In this way, prior specification of a DAG helps identify which covariates might need to be measured/available (as known and know-able knowns) for inclusion within the covariate adjustment set(s) required by multivariable statistical models where the intended estimand is either: the ‘total causal effect’ [37]; or the naïve ‘direct causal effect’, between a specified exposure and outcome [38,39] – i.e. where adjustment for covariates acting as potential confounders and/or mediators are required, respectively [40].

2.4.4. Data Analysis

DAGs have particular utility in helping analysts identify measured and unmeasured/unknown/latent covariates acting as potential: colliders (including mediators and consequences of the outcome [41]); or confounders [42] (see Figure 1). The risk of bias due to conditioning on any potential colliders – or from failing to condition on any potential confounders – can then be mitigated through sampling- and stratification-related decisions, or by the exclusion of any colliders, and the inclusion of all measured confounders, in the covariate adjustment sets used in the study’s multivariable statistical analyses [43]. And wherever the speculative, theoretical and/or temporal rationale(s) applied when constructing DAGs involves the omission of one or more permissible causal paths, a number of alternative yet equivalent adjustment sets may exist – each containing a different selection of covariates [44]. Under such circumstances, a DAG will also make it possible to optimize the adjustment set selected so that this contains covariates offering the most detailed, most accurate and most varied statistical information possible on potential confounding – i.e. choosing from amongst these alternative sets the one whose covariates:

• are likely to capture the most variance in confounding; and
• have been measured with the greatest accuracy and precision (so as to reduce the risk of residual confounding – this being the proportion of confounder bias remaining, even after conditioning/adjustment, that is contributed by measurement error [2]).

2.4.5. Interpretation

DAGs also have substantial utility for interpreting findings generated by multivariable statistical analyses of observational datasets, either:

• where one or more potential confounders have not been, or cannot not be, measured; or
• where conditioning on one or more colliders is unavoidable, unintended or deemed necessary/desirable.

Unadjusted/unobserved confounder bias may be unavoidable whenever latent confounders exist (whether: measured yet unavailable; unmeasured; or unmeasurable) that cannot be conditioned on (through sampling, stratification or inclusion in the covariate adjustment sets of the study’s multivariable statistical analyses). Endogenous selection bias may likewise make conditioning on colliders unavoidable in the absence of plausible and robust sampling weights, and associated imputation for cases with missing data (so as to ensure these cases can be included in the dataset available for analysis). This is simply because it is very likely – in such instances – that the sample of data available/generated for analysis will otherwise prove to be unrepresentative of the population to whom the analyses’ findings are intended to apply [45].

Unintended collider bias will likewise occur whenever potential mediators or consequences of the outcome are mistakenly classified as confounders and included in the covariate adjustment sets of a study’s multivariable statistical analyses (see Figure 1). In contrast, ‘necessary/desirable’ collider bias occurs whenever the intentional adjustment for mediators is considered necessary to generate naïve estimates of any direct effects between the specified exposure and outcome (e.g. [46]); or when covariates taken to represent competing exposures are included in covariate adjustment sets to improve the precision of the estimated path coefficient for the focal relationship (see also 2.5 and 3.4.1, below; and Figure 1 in [5]) – a practice that can even undermine the validity of experimental studies [47].

Indeed, in many multivariable analyses of observational data, undeclared/unacknowledged naïvety extends beyond the deliberate application of simplistic mediator-adjustment procedures to estimate direct causal effects, to the deliberate conditioning on covariates (mis)interpreted as competing exposures (so as to increase the precision of the estimated path coefficient for the focal relationship). Both are arguably naïve since it seems implausible that:

• any non-comprehensive sampling procedures are capable of generating absolutely representative samples that do not (unintentionally) condition on potential colliders;
• any covariate adjustment set can include all potential confounders (given a comprehensive list of confounders will include many that are ‘known unknowns’, and an indeterminate – and potentially inconceivable – number that are ‘unknown knowns’ and ‘unknown unknowns’);
• all (measured and available) confounders that have been subjected to conditioning (through sampling, stratification or inclusion in the multivariate models’ covariate adjustment sets) will have been measured with absolute precision (‘residual confounding’, as we have already seen, being that proportion of confounder bias remaining – despite conditioning/adjustment – that is contributed by measurement error); and
• all covariates are accurately classified as likely confounders, mediators or consequences of the outcome so that conditioning on those classified as potential (or likely) confounders includes only those that are.

2.4.6. Critical Appraisal and Synthesis

Though as yet unrealized [29,48,49,50], DAGs have substantial potential utility for strengthening the critical appraisal and synthesis of findings generated by primary studies involving causal analyses of observational data – even if only by facilitating assessments of the risk of bias therein. Indeed, even where the original studies concerned have not used DAGs to inform their analytical designs (or have not described/reported the DAGs used in any, or sufficient, detail [5]), critical appraisal can still be applied to discrete focal relationships within carefully defined contexts based on theoretical knowledge, speculation and/or temporal/probabilistic considerations concerning the underlying data generating mechanism(s) involved. In such instances, DAGs can be developed de novo to inform critical appraisal and synthesis simply on the basis of the covariates available to each of the primary studies concerned [29]; and can then be augmented by careful consideration of any likely or potential unmeasured/unknown/latent covariates – particularly those positioned before the specified exposure that might thereby act as sources of unadjusted/unobserved confounder bias in the coefficient estimates reported for each of the focal relationship(s) concerned. Such DAGs can subsequently be applied across multiple studies to assess the risk of bias in their multivariable statistical models that might arise from: endogenous selection bias/unrepresentative sampling (collider bias); under-adjustment for potential confounders (confounder bias – and particularly when these involve confounders measured by, or available to, at least some of the studies examined); or over-adjustment for consequences of the outcome or mediators (either when required to generate naïve estimates of direct causal effects or when mistaken for bona fide competing exposures [49,50]).

2.5. Consistency Evaluation

In those (applied) studies where DAGs are intended to: inform multivariable statistical analyses capable of supporting causal inference (or causality-informed prediction) that are based on real-world observational datasets; and accurately reflect the underlying data generating mechanism(s) involved, it may also be possible to use these as a basis for evaluating ‘DAG-analysis’ and ‘DAG-dataset’ consistency.

DAG-analysis consistency can be assessed for any DAGs, regardless of their structure or the rationale(s) involved and application(s) considered when constructing these. Such evaluations involve examining both:

• the conditioning decisions made – such as the study’s sampling and stratification procedures, and the covariate adjustment sets used in each of the study’s multivariable statistical analyses (which should be consistent with the risks of both collider bias and confounding evident in the DAG); and
• the conditional or contingent nature of any inferences drawn on the basis of these decisions and analyses – such as acknowledging the possibility/likelihood of unadjusted/unmeasured and residual confounding, and of both intentional and unintentional/irreducible collider bias.

Ideally, analysts should aim to condition on/adjust for a sufficient number and variety of accurately measured confounders to mitigate the risk of confounding bias (and residual confounding) in the estimated path coefficient of their focal relationship(s). They should also – ideally – avoid conditioning on any potential (conceivable) colliders whenever: the datasets available to/collected by them can be comprehensive or representative samples of the populations concerned; and it is possible to definitively differentiate between confounders, mediators and consequences of the outcome (so as to only condition on bona fide confounders). And whenever it is deemed necessary or desirable to condition on one or more likely/possible colliders – including mediators (where the estimands concerned include naïve estimates of direct causal effects) and competing exposures (wherever the precision of the causal estimates generated is considered sufficiently important to warrant the associated risk of collider bias) – then analysts should ideally acknowledge and wherever possible evaluate (e.g. using sensitivity analyses) the risks of bias that these impose on their estimated total and/or direct causal effects (see 2.4.5 above, and 3.4.1, below).

In contrast, DAG-dataset consistency evaluations are only possible for DAGs in which the speculative, theoretical and/or temporal/probabilistic rationale(s) on which these are developed and specified support the omission of one or more causal paths that might otherwise be permissible (i.e. without breaching the principles of directionality and acyclicity). In these instances, the non-parametric features of the DAGs concerned impose testable parametric constraints on the data these DAGs are intended to represent [30,51]. It is therefore possible to: establish whether such constraints actually apply within these datasets (and therefore whether these DAGs are consistent with the datasets they are intended to represent); and identify a comprehensive set of any and all alternative DAGs (each of which are consistent with the datasets concerned) – regardless of whether (m)any of these DAGs reflect (m)any of the features of the DAGs that might otherwise have been proposed by the analysts concerned.

Although these assessments do not represent a formal ‘test’ of whether or not any given DAG correctly reflects the data generating mechanism(s) of any given dataset, they can help:

• evaluate whether DAGs that analysts have developed and specified on speculative, theoretical and/or temporal/probabilistic grounds might actually, and in any way, reflect the real-world data they are intended to represent – assuming, of course, that the analysts’ DAGs were actually intended to accurately represent the data generating mechanism(s) and dataset generating process(es) involved (which may not be the case if the DAGs were intentionally hypothetical or experimental [13,15,25]; see 3.4 and 3.6, below); and
• identify the full range of DAGs that might be parametrically plausible for the dataset(s) at hand – thereby prompting subsequent consideration of the basis on which one (or more) of these DAGs might actually – better or best – reflect the underlying data generating mechanism(s) and dataset generating process(es) involved.

2.6. Epistemological Credibility

For those studies engaged in generating causal hypotheses, analyses and inferences from observational data, DAGs have benefits that extend beyond their impact on the coherence and consistency of sampling, stratification and multivariable statistical modelling. Indeed, the cognitive and conceptual impact of DAGs on collective understanding of data generating mechanisms and dataset generating processes – and on how these might be modelled using statistical techniques to generate insight and facilitate foresight – may prove to be just as important for identifying and elucidating entirely hypothetical and hitherto poorly understood, under-acknowledged or completely hidden and unknown sources of bias (and analytical opportunities). These benefits are evident in: the recent identification of ‘M-bias’ and ‘Butterfly-bias’ – two forms of bias whose nomenclature stems from the shapes these take when elucidated within topologically arrayed DAGs [52]; and the role that the concept of ‘a collider’ has played in understanding the bias imposed on causal inference by unrepresentative sampling, and by inappropriate stratification and adjustment procedures [53]. Ongoing applications of DAGs within causally-informed prediction models [24,25,26,27] are likewise capitalizing on the cognitive and conceptual understanding that these bring to bear on the data/dataset generating mechanisms/processes on which interpolative and extrapolative predictive modelling rely – and on which the portability and generalizability of their algorithms often depend.

3. The Weaknesses of Directed Acyclic Graphs in Applied and Theoretical Epidemiology

There is little doubt that DAGs offer substantive advances in transparency, reproducibility and analytical integrity – particularly for applied and theoretical studies seeking to strengthen the credibility of causal inference (and causality-informed prediction) derived from observational data. Yet variation in the uptake and application of DAGs [5] suggests that: challenges remain in both their conceptualization and operationalization; and the widespread adoption of these tools may yet face a number of setbacks.

In this regard it is important to point out that the mis-application of DAGs not only reduces their self-evident utility – which ultimately depends on the internal and external validity of DAG-enhanced findings and inferences – but also undermines the sustained improvements in analytical practice that DAGs might otherwise support. Clearly, the contemporary use of DAGs in causal inference research offers only limited reassurance that these studies have been any more competently or robustly designed, conducted, and interpreted than more traditional/established practices (in which numerous biases and errors remain commonplace, widely accepted and routinely overlooked [6,33,36,54,55,56,57,58,59]). As such, there is a tangible risk that DAGs simply become another device for ‘virtue signaling’ in science [60] – a practice that bears little relation to the integrity, humility, reflection, and rigor necessary to root out and mitigate known biases; and to acknowledge any remaining, known and unknown biases, and any associated uncertainties. Wherever reviewers and end-users naïvely interpret the referencing, use or inclusion of DAGs in published research as evidence of sophisticated, advanced and robust analytical practice, DAGs will simply detract from the many improvements in analytical technique (rather than analytical tools) that are long overdue and seem likely to require sustained and relentless vigilance.

These concerns affect the utility of any novel tools that depend on the knowledge, understanding, skill and competence – as well as the diligence, determination and integrity – of those who use them. Since the use of causal path diagrams (and particularly DAGs) constitutes a substantial departure from established analytical practice, the potential for misunderstanding, misuse and mis-application will inevitably pose weaknesses and setbacks across all of the potential strengths and advances identified earlier (see Section 2). It is therefore worth considering each of these putative strengths in turn to identify: those where variation (in understanding and/or practice) might benefit from greater clarity, consensus or standardization; and those where further developments in the tools themselves, or in their application and practice, might yet be required.

3.1. Transparency

Exposing analytical uncertainties and assumptions that might otherwise remain hidden or unrecognized is a key benefit of using DAGs to support applied and theoretical modelling of observational data. This utility is nonetheless constrained not only by the knowledge and understanding of the analysts concerned (and of their peers, reviewers and end-users), but also by: the size and complexity of the DAGs themselves (which can be challenging to represent in diagrammatic form); and the accessibility (readability and interrogability) of the formats in which these are reported and presented. Physical constraints place limits on the number of variables and causal paths that can be presented in any finite space, and there are similar constraints on the ability of the human eye to interpret cluttered and fine-grained images of complex diagrams. Indeed, in a recent review of 144 published DAGs [5] – all of which had been reported/presented as static, two-dimensional images – the co-authors involved made more errors recording the numbers of variables and paths in DAGs with larger numbers of variables and paths; and such errors occurred in well over a third (39%) of the DAGs examined. At the same time, data extraction errors were lower amongst DAGs drawn using specialist DAG-specification software (www.daggity.net [61,62]); and amongst those that were topologically arrayed [3] – though only when their causal paths had been aligned vertically (i.e. from top ←to→ bottom) or horizontally (i.e. from left ←to→ right), and not when arranged diagonally across the page.

It is tempting to conclude from these findings that the benefits of DAGs in supporting greater transparency will be limited to leaner, simpler DAGs; or to DAGs amenable to dedicated DAG-specification software. However, the review [5] did not include DAGs presented in alternative, non-graphical formats (such as the innovative, list-wise approach developed by Stacey et al. [62]; see Figure S1 therein); or DAGs summarized using specialist technical notation (some forms of which have the added benefit of being machine-readable – thereby enhancing their interoperability with specialist analytical software, such as the R package ‘daggity’ [30,51]. These innovations may yet address the inherent space constraints of academic publications, and the cluttered (and often indecipherable) diagrams required to summarize larger and more complex DAGs. But until they do, DAGs presented in traditional two-dimensional formats (as in Figure 1) will struggle to accommodate more than a handful of nodes and arcs without compromising their interrogability and analytical utility.

3.2. Simplicity

The apparent ease with which DAGs can be drawn using two ostensibly simple principles – that all of their arcs must be directed and acyclic – masks the less straightforward conceptual and cognitive challenges this often entails [33]. Regardless of the format used (and notwithstanding the alternative and flexible applications of DAGs; see 2.3, above and 3.3, below), the use of DAGs to support the modelling of observational data requires a firm understanding of what these diagrams aim to represent – namely, the underlying ‘data generating mechanism(s)’ and/or ‘dataset generating process(es)’ responsible for the relationships observed between all conceivable (and any hitherto inconceivable) variables.

The conceivable variables include not only those for which measurements are available (the known knowns), and those for which measurements should be available (the unknown knowns), but also those for which measurements are not available simply because the analysts concerned lack the means to measure or ascertain these (the known unknowns). As for the inconceivable variables (the so-called unknown or unknow-able unknowns), until the analysts concerned are aware of their (possible) existence they won’t know that these variables warrant measurement, and may often lack the means to do so. Since all four sets of variables are required to comprehensively characterize the underlying data generating mechanism(s) involved in (m)any (and perhaps all) DAGs that aim to reflect ‘real-world’ causal processes, an additional (third) – and hitherto undeclared – principle of DAGs seems necessary to invoke, namely that:

Principle 3: “DAGs that seek to represent real-world causal processes should include all of the variables required to characterize and specify the data generating mechanism(s) (and/or dataset generating processes) involved” – with a particular emphasis on ‘all’.

In applying this principle, analysts require a substantial degree of humility, given our limited and incomplete understanding of the functional/causal mechanisms involved in most real-world systems – except perhaps those where the systems concerned are: the artefacts of deliberate, accidental or incidental human design; or based on established physical properties and so-called ‘laws’ [64]. Analysts will also need to grasp the critical role that context can play, and how contexts themselves can vary over time and space.

These considerations arguably detract from the much vaunted simplicity of DAGs. This is because the comprehensive DAGs these considerations require (e.g. Figure 1, above) demand far greater thoughtfulness (and humility) than that required simply to draw directed and acyclic causal path diagrams. Such thoughtfulness is critical if DAGs are to be able to: faithfully represent the (theoretical; speculative; and/or temporal/probabilistic) rationale(s) involved; accommodate all conceivable variables (including the unknown and unknow-able unknowns); and carefully accommodate context-related variation as to which variables and pathways are relevant/present, and which are irrelevant/absent. Nonetheless, wherever the pursuit of causal inference involves a finite number of causal paths (‘focal relationships’) between a finite number of variables (the specified ‘exposures’ and ‘outcomes’ concerned), then it is usually unnecessary to generate comprehensive DAGs detailing all possible pathways amongst all possible variables (whether exposures, outcomes, confounders, mediators, or consequences of the outcome). This is because all that may be necessary to mitigate the most important biases (the “tigers” as opposed to the “mice”, as the statistician George Box once described these [65]) when estimating the sign and magnitude of each focal relationship will be to focus intently on the ‘Markov blanket’ of key sets of variables that precede these relationships – i.e. those operating as known and unknown potential confounders [21]. That said, the risk of substantial collider bias incurred as a result of unacknowledged and unintended conditioning on mediators or consequences of the outcome – whether through sampling, stratification or inappropriate adjustment – means that an analyst will still need to be vigilant (and thoughtful) in mitigating and acknowledging the likelihood of these biases even when the analyst’s principal focus will remain on identifying, enumerating and eliminating the impact of confounders.

3.3. Flexibility

The explicit and implicit conceptual considerations that underpin the apparent simplicity and transparency of DAGs also extend to their flexibility, since:

(i)

DAGs can be developed on the basis of theoretical knowledge, speculation, or temporal/ probabilistic considerations, or a combination of all three; and

(ii)

the rationales involved in DAG development and specification impose constraints on their intended – and likely – application(s), internal validity and external generalizability.

These considerations aside, it is important to stress that wherever DAGs are constructed on the basis of entirely speculative causal relationships between each of the variables included therein, these DAGs can still be conceptually valid even when they bear little relation to any real-world observational datasets. Likewise, where DAGs are constructed on the basis of theoretical knowledge – whether experientially or empirically informed – of the causal relationships theorized to be present (or absent) amongst each of the variables involved, then these DAGs can also offer valid representations of the theoretical causal structures concerned even when these are somewhat at odds with the real-world observational data available. Indeed, even those analysts who rely exclusively on temporal/probabilistic considerations when developing and specifying their DAGs [6,59,66] – so as to generate ostensibly a-theoretical, and thereby more ‘objective’, DAGs in the hope that these better reflect all of the possible, probabilistic causal processes involved – may nonetheless find that their DAGs deviate from the data they were intended to represent. This might occur, for example, where: any of the constituent probabilistic causal paths are so trivial that it is possible these might not actually exist; or there is substantial epistemological uncertainty as to precisely when each of the variables actually occurred (relative to one another; see Figure 2, below). In each instance then, assessing whether the analysts concerned have generated DAGs that fit their intended (speculative, theoretical or temporal/probabilistic) rationale(s) and application(s) requires that these intentions are clearly reported/declared. This is because any given DAG – regardless of how this is represented (whether as a static, two-dimensional diagram; an innovative list; or in machine-readable notation) – does not, in and of itself, reflect or reveal the rationale involved and intended applications when deciding what variables to include (see 3.2, above), and which causal paths do/do not exist between and amongst these variables.

As a result, knowing the analysts’ rationale for formulating their DAGs – and their intended application(s) – is critical for assessing not only their DAG-theory consistency, but also the likely utility, value, insight and inference that might then be drawn from the modelling of real-world observational data based thereon. For this reason, encouraging analysts to declare the rationale(s) used and the intended application(s) of their DAG(s) when they subsequently report these, warrants a further (fourth) principle, namely that:

Principle 4: “Analysts using DAGs which seek to represent theoretical, speculative and/or real-world causal processes should report the application(s) for which these were designed, and the rationale(s) involved in their development and specification”.

Like each of the three earlier principles, greater transparency in terms of a DAG’s intended application(s), and the rationale(s) involved in their development and specification, would not only:

• help others (peers, reviewers and end-users) assess the consistency of a DAG’s design-related decisions with their intended application(s), and with the rationale(s) on which the DAG was developed and specified; but might also
• prompt analysts to more carefully reflect on: the intended application(s) of their DAGs (to ensure these are fit for purpose); and any (explicit and implicit) uncertainties, assumptions and potential inconsistencies incurred by the rationale(s) used to develop and specify these.

The latter may prove an invaluable improvement in DAG-development and DAG-reporting practice, given that theoretical knowledge, speculation, and temporal/probabilistic considerations all rely on cognitive processes that invoke and involve conscious and unconscious heuristics – all of which are prone to error and bias [67,68]. These will even affect those DAGs developed and specified on the (arguably more a-theoretical and ‘objective’) basis of temporality alone – not least when there is any uncertainty as to the precise point in time at which a variable occurred, or its value crystallized relative to the specified exposure and outcome variable(s) (see Figure 2). Such uncertainty is likely to be particularly prevalent when the variables involved are time-variant features of any entities/processes involved as opposed to those variables that are discrete, time-invariant characteristics or phenomena that might more easily be conceptualized (and operationalized) as ‘time-stamped’ events.

3.4. Methodological Utility

It bears repeating that the methodological utility of any analytical tools – including DAGs – will substantively depend on the competence, thoughtfulness, diligence and critical open-mindedness of the analysts concerned. Together, these attributes and practices will determine an analyst’s ability to develop and specify DAGs as principled representations of data generating mechanisms (and dataset generating processes) that faithfully reflect both the intended applications and the rationale(s) involved (be this speculative, theoretical and/or temporal/probabilistic). Beyond the analyst-specific limitations and constraints that these considerations place on the transparency, simplicity and flexibility of DAGs (and how the improvements in DAG specification and reporting practices recommended in Principles 3 and 4 might be required to secure and enhance each of their related benefits; see 3.1-3.3, above), the methodological utility of DAGs extends beyond:

• their internal validity (i.e. whether, as specified, these accurately reflect the uncertainties and assumptions involved, the rationale[s] on which they were derived, and the application[s] they were intended to support); to
• their external validity (i.e. whether, as applied, these DAGs support meaningful analyses, findings and insights).

Following George Box’s adage that “all models are wrong, but some are useful” [65], the potential methodological limitations of DAGs principally stem from the challenges involved in developing, specifying and analyzing DAGs as – ‘wrong’ but ‘useful’ – representations of often unknown and uncertain data generating mechanism(s). Indeed, assessing whether any such models are nonetheless ‘useful’ needs to involve evaluating whether these are actually capable of supporting improvements in causal inference (and causality-informed prediction). Put simply, incorrectly specified DAGs that do not closely (or, at the very least, usefully) represent the underlying data generating mechanism(s) involved are unlikely to provide a sound basis on which multivariable statistical models can be designed to generate useful causal inference or causality-informed prediction.

However, unlike the considerations brought to bear on transparency, simplicity and flexibility (see 3.1-3.3, above), methodological concerns are primarily relevant only to those applications where DAGs are intended to strengthen the statistical estimation of focal relationships through analyses of real-world observational data to generate causal inference or causality-informed prediction. Such concerns tend to be far less critical, or relevant, to more theoretical, experimental (and potentially spurious) applications that do not necessarily depend on real-world data (such as those necessary to explore the implications of M-bias and ‘butterfly-bias’, assuming these actually exist [52]). As such, the methodological utility or usefulness of DAGs (in applied settings) primarily depends on the careful application of plausible and pragmatic assumptions when developing and specifying these tools, so as to: minimize the likelihood that any subsequent analytical modelling based thereon might be wrong; and maximize the extent to which the modelling’s imperfect findings might nonetheless prove to be useful [65].

In most contexts, plausible speculation, pragmatic understanding and temporal/probabilistic considerations may all make appropriate and useful contributions to the development and specification of DAGs – and not least because, despite the apparent merits and potential objectivity of a temporal/probabilistic rationale, operationalizing time-variant and time-invariant variables as discrete phenomena/events requires substantial theoretical understanding and speculation to decide precisely when and where (with respect to all other variables) each of these variables most likely/most plausibly occurred or crystallized. Indeed, drawing or relying upon a temporal/probabilistic rationale when developing and specifying DAGs – whether exclusively or in combination with less pragmatic theoretical and speculative considerations – can impose two substantive consequences on the subsequent methodological utility of such DAGs:

• First, it requires that all DAGs intended to represent uncertain, real-world data generating mechanisms are ‘saturated’ (i.e. contain all of the permissible arcs that directionality and acyclicity allow) such that each variable is assumed to cause all subsequent variables [70] – except, that is, in those rare instances where there is unequivocal evidence that supports the omission of one or more arcs.
• Second, it eliminates the possibility that any variables might operate independently of (all) preceding variables – except, that is, for those variables situated at the very beginning of the causal pathways examined, where any preceding cause(s) are unlikely to have been measured/measurable, and may not yet have been conceived.

Although neither of these consequences (and the constraints they impose) might necessarily reflect the data generating mechanisms and dataset generating processes at play, most of their impacts on multivariable statistical models designed to support causal inference and causality-informed prediction should prove to be trivial – though they do mean that these DAGs may not be amenable to DAG-dataset consistency evaluation (see 2.5, above; and 3.5, below [30,51].

3.4.1. Causal Inference Modelling

The principal benefit of using DAGs to generate causal inference from observational data stems from the way their theoretical representations of data generating mechanisms facilitate the identification of covariates acting as potential confounders (see 2.4 (iv), above). Facilitating the identification of potential confounders ensures that conditioning on those of these variables that are known (i.e. for which measurements have been made and are available) can be applied – through sampling, stratification or adjustment – to mitigate the contribution of confounding bias in the estimation of the total causal effect of any specified exposure on any specified outcome. In this regard, the a priori assumption of a temporal/probabilistic rationale – that all preceding variables should be viewed as possible (if not likely) probabilistic causes of all subsequent variables (at least in the absence of unequivocal evidence to the contrary) – is unlikely to compromise the ability of such DAGs to identify potential confounders. Indeed, it may actually substantively improve the mitigation of (measured) confounder bias and the acknowledgement of unmeasured/unadjusted confounding. This is because all variables interpreted as having occurred/crystallized before the specified exposure will thereby be viewed as potential confounders – these being likely, probabilistic causes of both the exposure and any subsequent outcome.

Meanwhile, adjustment for covariates acting as ‘competing exposures’ (see 2.4.5 and 2.5, above; and Figure 1 in [5]) – which have a causal effect on the specified outcome but no direct/indirect causal relationship with the specified exposure – has, as already discussed, been popular amongst analysts who condition on these covariates (predominantly by including them within the adjustment sets of multivariable statistical models) on the basis that they should not affect the strength or direction of the estimated focal relationship, but can help to improve its precision. Setting aside the inappropriate conflation of estimation and hypothesis testing that such practices reveal [71], these also risk overlooking two important possibilities:

• First, that many competing exposures will actually be the probabilistic consequences of any measured/known/manifest and unmeasured/unknown/latent variables that occur before these variables (including any preceding mediators, the specified exposure and, thereafter, all potential confounders).
• Second, that some variables considered competing exposures might actually occur/crystallize after the outcome and might therefore prove to be probabilistic consequences of the outcome.

In either case, any improvement in precision from conditioning on variables mistakenly considered (or misclassified as) bona fide competing exposures would come at an increased (and some might argue, unnecessary) risk of collider bias. Instead, if one is content to assume that all preceding variables might be/should be considered probabilistic causes of all subsequent variables, this should militate against the risk of bias associated with conditioning on putative ‘competing exposures’ (whether through sampling, stratification or their inclusion within the covariate adjustment sets of multivariable statistical models). This is because no bona fide competing exposures can exist within DAGs drawn using a primarily or exclusively temporal/probabilistic rationale – except in the highly unlikely and improbable scenario in which there is definitive and unequivocal evidence that variables considered competing exposures had no (direct or indirect) causal relationship with any (measured, unmeasured or unknown) preceding variables.

Nonetheless – and beyond the benefit of discouraging unnecessary and risky adjustment for putative competing exposures – might not the presumption that all possible (directed and acyclic) causal paths between preceding and subsequent variables exist risk introducing additional/alternative (and ostensibly unnecessary) sources of bias? For example, adjustment for covariates known as “mediator-outcome confounders” (MOCs; see Figure 1 in [5]) – covariates that have no direct causal relationship with the specified exposure, but have an indirect causal relationship with the outcome through a mediator (a variable that is, itself, a consequence of the exposure) – would introduce the risk of biases associated with mediator adjustment (i.e. the reversal paradox and collider bias [72,73,74]). Whether such risks are common or have substantive impact on the estimated path coefficient between exposure and outcome will depend not only on the strength and direction of each of the constituent causal paths involved, but also on whether the apparent MOC actually occurred/crystallized: prior to the exposure – in which case it would represent a misclassified confounder; or after the exposure – in which case it would represent a misclassified mediator.

Under these somewhat hypothetical scenarios, the issue that might prove most critical for balancing the risks and benefits of adopting a temporal/probabilistic rationale when developing and specifying a DAG – and thereby assuming that all preceding variables should be assumed to act as probabilistic causes of all subsequent variables – will be accurately identifying when each of these variables occurred/crystallized relative to all other variables in the DAG. In most (but not all) current applications of DAGs within causal inference modelling, this issue relies less on temporality/probabilistic considerations than on speculation and theoretical knowledge. Developing procedures (and associated principles) for exploring how the misspecification of ‘when’ and ‘where’ each variable sits within a DAG’s temporally dependent pathways might thereby affect the risk of bias (whether from unadjusted confounding or conditioning on a collider) remains a task worthy of much further exploration (beyond the advances offered by the R program ‘daggity’ [30,51]). Though any such risks should be amenable to sensitivity analyses simply by comparing the impact of DAG-consistent analyses when estimating the focal relationship(s) of interest in plausible, alternative DAGs (see Figure 2).

3.4.2. Prediction Modelling

In prediction modelling of observational data, the principal utility of DAGs lies in the identification of covariates likely to contribute substantial statistical information of value to the accurate prediction of a specified ‘target variable’ – i.e. as a result of their direct and/or indirect causal relationship(s) with this variable. While covariates with strong direct/indirect causal links to a target variable often warrant serious consideration as ‘candidate predictors’, they can still end up being excluded during the development of predictive algorithms wherever their net contribution comes at the cost of parsimony, accuracy or precision [75]. However, wherever optimizing the accuracy of predictive algorithms over time and place is considered more important than optimizing their accuracy at any single point in time, or within any specific context, then DAGs can offer substantial support to the modeling of prediction in terms of prioritizing/ensuring the inclusion of information from candidate predictors whose contribution to the model stems from the direct and indirect causal role(s) they play within the underlying data generating mechanism(s) [24,25,26,27]. Indeed, since prediction modelling ordinarily involves examining multiple combinations of alternative sets/combinations of predictors, even were one to mistakenly preference covariates for inclusion in these models on the (erroneous) basis of their (indirect/direct, probabilistic) causal effects on the target variable, such errors are unlikely to dramatically affect the performance of the optimal model(s) available or selected. It might nonetheless complicate or extend the process required to identify and preference ‘causally-relevant candidate predictors’; and this issue warrants further investigation, not least within prediction techniques reliant on supervised machine learning, where there is scope to introduce causal insight into model development, specification and supervision – on the basis of any associated theoretical knowledge, speculation and/or temporal/probabilistic considerations.

3.5. Consistency Evaluation

As mentioned previously (see 3.3, above), a further consequence of the assumption that variables be considered probabilistic causes of all subsequent variables is that the saturated DAGs this assumption generates are not amenable to DAG-dataset consistency assessment using the R package ‘dagitty’ [30,51]. For these reasons, the rationale(s) used when generating DAGs (be this on the basis of theoretical knowledge, speculation, or temporal/probabilistic considerations) determine not only DAG-theory consistency evaluation, but also whether DAG-analysis and DAG-dataset consistency assessment is possible. Greater clarity and precision regarding the intended application for which (and the rationale[s] on which) analysts have generated their DAG(s) – as proposed by Principle 4 (above) – will ensure this can inform DAG-theory and DAG-analysis consistency assessment. However, DAG-dataset assessment will not be possible for any DAGs in which temporal/probabilistic considerations constitute the only (or pre-eminent) rationale involved in their development and specification. This is because – as already discussed – temporal/probabilistic considerations ordinarily impose saturation on all such DAGs. Indeed, DAG-dataset consistency assessment of these DAGs will only be possible where analysts are:

• prepared to speculate (or at least consider the possibility) that one or more of the permissible causal paths – i.e. those that directionality and acyclicity allow – are actually missing; or
• confident that definitive and unequivocal (empirical or experiential) knowledge exists to support such a possibility.

At the same time, whether the evaluation of DAG-dataset consistency might hold the key to addressing any uncertainty regarding precisely when each of the included covariates occurred/crystallized – relative to one another, and to the specified exposure and outcome – is another question worthy of further examination.

3.6. Epistemological Credibility

Finally, while it is true that using DAGs has helped analysts to identify potential sources of bias that had proved challenging to conceptualize and operationalize – particularly those relevant to colliders [53] (as mentioned earlier under 2.4, above) – it is also possible that DAGs might lead to levels of epistemic abstraction that, though theoretically and methodologically insightful, bear little relation to the forms that ‘real-world’ observational datasets most plausibly or commonly take. In this regard, it seems likely that many of the possible roles that variables might play within DAGs – such as competing exposures and mediator-outcome confounders (MOCs [5]) – might turn out to be implausible, illusory or spurious considerations that only very rarely exist (if at all) in real-world contexts and datasets. Certainly, from a temporal/probabilistic perspective, neither of these roles could exist within the saturated DAGs developed and specified using a temporal/probabilistic rationale. Provided this rationale is not itself an abstraction of reality – which would be ironic given it makes assumptions that are generally intended/considered to be plausible, objective and likely – then it seems sensible to conclude that such roles might constitute a spurious, unnecessary and potentially unhelpful distraction to any DAGs that intend to reflect the underlying, real-world data generating mechanism(s) involved.

Further research is nonetheless warranted to:

• map all of the potential additional roles that covariates might play within an otherwise simplistic and unsaturated DAG – i.e. one that simply includes: a specified exposure and a specified outcome; and one or more confounders, mediators and consequences of the outcome;
  and to evaluate both:
• the potential risk of bias that each of these additional roles might pose when estimating the focal relationship between a specified exposure and specified outcome; and
• the likely occurrence of these additional roles in real-world contexts – based on understanding informed by theoretical knowledge, speculation and temporality/probabilistic considerations.

4. Conclusion

DAGs – like all analytical tools – benefit from doubt, circumspection and careful deliberation to ensure their thoughtful application helps harness the opportunities that DAGs provide for ‘discovery’; alongside the self-evident contribution their careful implementation should make to ‘translation’ (through greater consistency, competency and transparency). Although many analysts may be drawn to DAGs as accessible tools for conceptualizing and operationalizing ‘data generating mechanisms’ and ‘dataset generating processes’, the two ostensibly simple principles involved (of directionality and acyclicity) still require thoughtful and careful application. This is particularly the case when DAGs are used for very different purposes, and are specified on the basis of very different rationales – i.e. on the basis of theoretical knowledge, speculation, and/or temporal/probabilistic considerations.

For this reason, and to ensure the use of DAGs optimizes the strengths they offer – in terms of transparency, simplicity, flexibility, methodological utility and epistemological credibility – we recommend that all analysts should provide greater detail of the rationale(s) used when developing and specifying their DAGs and the application(s) for which their DAGs have been designed (Principle 4, above). Where these applications involve the need to represent real-world (rather than predominantly or entirely speculative) causal processes, we recommend that – regardless of the role that speculative, theoretical and/or probabilistic/temporal considerations might have played therein – the DAGs concerned should include all possible/conceivable variables necessary to mitigate and acknowledge the risk of bias in the modelling and estimation of causal relationships (or when optimizing the portability of causality-informed prediction models; Principle 3, above) – where these ‘possible/conceivable’ variables comprise both the ‘known and know-able knowns’ and the ‘unknown and unknow-able (un)knowns’. Including all such variables in DAGs developed to inform robust causal analysis of real-world datasets will not only: help analysts to mitigate the risk of bias in the estimation of focal relationships; but will also help them acknowledge the inherent and irreducible uncertainties that bedevil (mis)understanding of most real-world data generating mechanism(s). It should also encourage the analysts concerned to more fully acknowledge any residual biases that these unacknowledged uncertainties might otherwise impose.
