Abstract

This article develops duality principles, a related convex dual formulation and a primal dual one suitable for the local optimization of non-convex primal formulations for a large class of models in physics and engineering. The results are based on standard tools of functional analysis, calculus of variations and duality theory. In particular, we develop applications to a Ginzburg-Landau type equation. We emphasize the novelty here is that the first dual variational formulation developed is convex for a primal formulation which is originally non-convex. Finally, we also highlight the second primal dual variational formulation presented has a large region of convexity around any critical point.

Keywords:

Subject: Computer Science and Mathematics - Applied Mathematics

1. Introduction

In the first part of this article, we establish a duality principle and a related convex dual formulation suitable for the local optimization of a primal formulation for a large class of models in non-convex optimization. We highlight the first dual variational formulation presented is convex and such a feature may be very useful for a large class of similar models, in particularly for large systems in a three or higher dimensional context.

For such large systems the convexity obtained is relevant for an easier numerical computation, since in such a case of strict convexity, the standard Newton, Newton-type and other similar methods are always convergent.

We also emphasize the main duality principle is applied to the Ginzburg-Landau system in superconductivity in the absence of a magnetic field.

Such results are based on the works of J.J. Telega and W.R. Bielski [1,2,3,4] and on a D.C. optimization approach developed in Toland [5].

About the other references, details on the Sobolev spaces involved are found in [6]. Related and more recent results on convex analysis and duality theory are addressed in [7,8,9,10,11]. In particular, the results in the present work are extensions and improvements of those results found in the recent book [12] and recent article [13], which by the way, are also based on the articles [1,2,3,4]. Finally, similar models on the superconductivity physics may be found in [14,15].

Remark 1.1.

It is worth highlighting, we may generically denote

\int_{Ω} [{(- γ \nabla^{2} + K I_{d})}^{- 1} v^{*}] v^{*} d x

simply by

\int_{Ω} \frac{{(v^{*})}^{2}}{- γ \nabla^{2} + K} d x,

where

I_{d}

denotes a concerning identity operator.

Other similar notations may be used along this text as their indicated meaning are sufficiently clear.

Finally,

\nabla^{2}

denotes the Laplace operator and for real constants

K_{2} > 0

and

K_{1} > 0

, the notation

K_{2} ≫ K_{1}

means that

K_{2} > 0

is much larger than

K_{1} > 0 .

Now we present some basic definitions and statements.

Definition 1.2.

Let V be a Banach space. We define the topological dual space of V, denoted by

V^{'}

, as the set of all continuous and linear functionals defined on V.

We assume

V^{'}

may be represented through another Banach space denoted by

V^{*}

and a bilinear form

{〈 \cdot, \cdot 〉}_{V} : V \times V^{*} \to R .

More specifically, for each

f \in V^{'}

, we suppose there exists a unique

u^{*} \in V^{*}

such that

f (u) = {〈 u, u^{*} 〉}_{V}, \forall u \in V .

Moreover, we define the norm of f, denoted by

{∥ f ∥}_{V^{*}}

{∥ f ∥}_{V^{*}} = sup {| {〈 u, u^{*} 〉}_{V} : u \in {V and ∥ u ∥}_{V} \leq 1} \equiv ∥ u^{*} ∥_{V^{*}} .

For an open, bounded and connected set

Ω \subset R^{N}

and

Y = Y^{*} = L^{2} (Ω)

we recall that

{〈 u, u^{*} 〉}_{L^{2}} = \int_{Ω} u u^{*} d x .

More specifically, for each continuous and linear functional

f : Y \to R

there exists a unique

u^{*} \in Y^{*} = L^{2} (Ω)

such that

f (u) = \int_{Ω} u u^{*} d x, \forall u \in Y = L^{2} (Ω) .

Definition 1.3

(Polar functional). Let V be a Banach space and let

F : V \to R

be a functional.

We define the polar functional of F, denoted by

F^{*} : V^{*} \to R

, by

F^{*} (u^{*}) = sup_{u \in V} {{〈 u, u^{*} 〉}_{V} - F (u)}, \forall u^{*} \in V^{*} .

Another important definition refers to the Legendre transform one and respective relevant propriety, which are summarized in the next theorem.

Theorem 1.4

(Legendre transform theorem). Let V be a Banach space and let

F : V \to R

be a twice continuously Fréchet differentiable functional.

Let

u^{*} \in V^{*}

. Assume there exists a unique

\hat{u} \in V

such that

u^{*} = \frac{\partial F (\hat{u})}{\partial u} .

Suppose also

det \{\frac{\partial^{2} F (u)}{\partial u^{2}}\} \neq 0,

in a neighborhood of

\hat{u} .

Under such hypotheses, defining the Legendre tranform of F at

u^{*}

F_{L}^{*} (u^{*})

where

F_{L}^{*} (u^{*}) = {〈 \hat{u}, u^{*} 〉}_{V} - F (\hat{u})

we have that

\hat{u} = \frac{\partial F_{L}^{*} (u^{*})}{\partial u^{*}} .

Remark 1.5.

Concerning such a last definition, observe that if F is convex on V, then the extremal condition

u^{*} = \frac{\partial F (\hat{u})}{\partial u},

corresponds to globally maximize

H (u) = {〈 u, u^{*} 〉}_{V} - F (u)

on V, so that, in such a case,

F^{*} (u^{*}) = H (\hat{u}) = {〈 \hat{u}, u^{*} 〉}_{V} - F (\hat{u}) = F_{L}^{*} (u^{*}) .

Summarizing, if F is convex, under the hypotheses of the last theorem, the polar functional

F^{*} (u^{*})

coincides with the Legendre transform of F on

V^{*}

already denoted by

F_{L}^{*}

, that is,

F^{*} (u) = F_{L}^{*} (u^{*}), \forall u^{*} \in V^{*} .

2. The primal variational formulation and the dual functional definitions

At this point we start to describe the primal and dual variational formulations.

Let

Ω \subset R^{3}

be an open, bounded, connected set with a regular (Lipschitzian) boundary denoted by

\partial Ω .

Consider a functional

J : V \to R

where

\begin{matrix} J (u) & = & \frac{γ}{2} \int_{Ω} \nabla u \cdot \nabla u d x \\ + \frac{α}{2} \int_{Ω} {(u^{2} - β)}^{2} d x - {〈 u, f 〉}_{L^{2}} . \end{matrix}

(1)

Here

γ > 0,

α > 0

β > 0

and

f \in L^{2} (Ω) \cap L^{\infty} (Ω) .

Moreover,

V = W_{0}^{1, 2} (Ω)

and we denote

Y = Y^{*} = L^{2} (Ω) .

Define the functionals

F_{1} : V \times Y \to R

F_{2} : V \to R

\begin{matrix} F_{1} (u, v_{0}^{*}) & = & - \frac{γ}{2} \int_{Ω} \nabla u \cdot \nabla u d x - {〈 u^{2}, v_{0}^{*} 〉}_{L^{2}} \\ + \frac{K_{1}}{2} \int_{Ω} {(- γ \nabla^{2} u + 2 v_{0}^{*} u - f)}^{2} d x + \frac{K_{2}}{2} \int_{Ω} u^{2} d x \\ + {〈 u, f 〉}_{L^{2}} + \frac{1}{2 α} \int_{Ω} {(v_{0}^{*})}^{2} d x \\ + β \int_{Ω} v_{0}^{*} d x, \end{matrix}

(2)

and

F_{2} (u) = \frac{K_{2}}{2} \int_{Ω} u^{2} d x .

At this point we assume a finite dimensional version for this concerning model. For example, we may define a new domain for the primal functional considering the projection of V on the space spanned by the first N (in general N=10, is enough) eigen-vectors of the Laplace operator, corresponding to the first N eigen-values. On this new not relabeled finite dimensional space V, since

v_{0}^{*}

corresponds to a diagonal matrix, there exists

c_{0} > 0

such that

{(- γ \nabla^{2} + 2 v_{0}^{*})}^{2} \geq c_{0} I_{d},

\forall v_{0}^{*} \in B^{*}

, where

B^{*} = {v_{0}^{*} \in Y^{*} : ∥ 2 v_{0}^{*} ∥_{\infty} < K / 2},

for an appropriate real constant

K > 0

We define also

J_{1} : V \times Y \to R

J_{1} (u, v_{0}^{*}) = F_{1} (u, v_{0}^{*}) - F_{2} (u),

and

F_{1}^{*} : Y^{*} \times B^{*} \to R

F_{2}^{*} : Y^{*} \to R

\begin{matrix} F_{1}^{*} (v_{2}^{*}, v_{0}^{*}) \\ = & sup_{u \in V} {{〈 u, v_{2}^{*} 〉}_{L^{2}} - F_{1} (u, v_{0}^{*})} \\ = & \frac{1}{2} \int_{Ω} \frac{{(v_{2}^{*} + f + K_{1} (- γ \nabla^{2} + 2 v_{0}^{*}) f)}^{2}}{K_{2} + γ \nabla^{2} - 2 v_{0}^{*} + K_{1} {(- γ \nabla^{2} + 2 v_{0}^{*})}^{2}} d x \\ - \frac{1}{2 α} \int_{Ω} {(v_{0}^{*})}^{2} d x - β \int_{Ω} v_{0}^{*} d x, + \frac{K_{1}}{2} \int_{Ω} f^{2} d x \end{matrix}

(3)

and,

\begin{matrix} F_{2}^{*} (v_{2}^{*}) & = & sup_{u \in V} {{〈 u, v_{2}^{*} 〉}_{L^{2}} - F_{2} (u)} \\ = & \frac{1}{2 K_{2}} \int_{Ω} {(v_{2}^{*})}^{2} d x, \end{matrix}

(4)

respectively.

Furthermore, we define

D^{*} = {v_{2}^{*} \in Y^{*} : ∥ v_{2}^{*} ∥_{\infty} \leq 5 K_{2} / 4}

and

J_{1}^{*} : D^{*} \times B^{*} \to R,

J_{1}^{*} (v_{2}^{*}, v_{0}^{*}) = - F_{1}^{*} (v_{2}^{*}, v_{0}^{*}) + F_{2}^{*} (v_{2}^{*}) .

Assuming

0 < α ≪ 1

(through a re-scaling, if necessary) and

K_{2} ≫ K_{1} ≫ K ≫ {max {∥ f ∥}_{\infty}, α, β, γ, 1}

by directly computing

δ^{2} J_{1}^{*} (v_{2}^{*}, v_{0}^{*})

we may easily obtain that for such specified real constants,

J_{1}^{*}

in convex in

(v_{2}^{*}, v_{0}^{*})

D^{*} \times B^{*} .

3. The main duality principle and a concerning convex dual formulation

Considering the statements and definitions presented in the previous section, we may prove the following theorem.

Theorem 3.1.

Let

({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) \in D^{*} \times B^{*}

be such that

δ J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) = 0

and

u_{0} \in V

be such that

u_{0} = \frac{\partial F_{2}^{*} ({\hat{v}}_{2}^{*})}{\partial v_{2}^{*}} .

Under such hypotheses, we have

δ J (u_{0}) = 0,

and

\begin{matrix} - J (u_{0}) & = & J_{1} (u_{0}, {\hat{v}}_{0}^{*}) \\ = & inf_{u \in V} J_{1} (u, {\hat{v}}_{0}^{*}) \\ = & inf_{(v_{2}^{*}, v_{0}^{*}) \in D^{*} \times B^{*}} J_{1}^{*} (v_{2}^{*}, v_{0}^{*}) \\ = & J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) . \end{matrix}

(5)

Proof.

Observe that

δ J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) = 0

so that, since

J_{1}^{*}

is convex in

(v_{2}^{*}, v_{0}^{*})

D^{*} \times B^{*}

, we obtain

J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) = inf_{(v_{2}^{*}, v_{0}^{*}) \in D^{*} \times B^{*}} J_{1}^{*} (v_{2}^{*}, v_{0}^{*}) .

Now we are going to show that

δ J (u_{0}) = 0 .

From

\frac{\partial J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*})}{\partial v_{2}^{*}} = 0,

and

\frac{\partial F_{2}^{*} ({\hat{v}}_{2}^{*})}{\partial v_{2}^{*}} = u_{0}

we have

- \frac{\partial F_{1}^{*} ({\hat{v}}_{2}^{*}, v_{0}^{*})}{\partial v_{2}^{*}} + u_{0} = 0

and

{\hat{v}}_{2}^{*} - K_{2} u_{0} = 0 .

Observe now that denoting

H (v_{2}^{*}, v_{0}^{*}, u) = {〈 u, v_{2}^{*} 〉}_{L^{2}} - F_{1} (u, v_{0}^{*}),

there exists

\hat{u} \in V

such that

\frac{\partial H ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}, \hat{u})}{\partial u} = 0,

and

F_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) = H ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}, \hat{u}),

so that

\begin{matrix} \frac{\partial F_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*})}{\partial v_{2}^{*}} & = & \frac{\partial H ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}, \hat{u})}{\partial v_{2}^{*}} \\ + \frac{\partial H ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}, \hat{u})}{\partial u} \frac{\partial \hat{u}}{\partial v_{2}^{*}} \\ = & \hat{u} . \end{matrix}

(6)

Summarizing, we have got

u_{0} = \frac{\partial F_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*})}{\partial v_{2}^{*}} = \hat{u} .

Also, denoting

A (u_{0}, {\hat{v}}_{0}^{*}) = - γ \nabla^{2} u_{0} + 2 {\hat{v}}_{0}^{*} u_{0} - f,

from

\frac{\partial H ({\hat{v_{2}}}^{*}, {\hat{v}}_{0}^{*}, u_{0})}{\partial u} = 0,

we have

- (γ \nabla^{2} u_{0} - 2 {\hat{v}}_{0}^{*} u_{0} + f + K_{1} (- γ \nabla^{2} + 2 {\hat{v}}_{0}^{*}) A (u_{0}, {\hat{v}}_{0}^{*}) - {\hat{v}}_{2}^{*} + K_{2} u_{0}) = 0,

so that

- A (u_{0}, {\hat{v}}_{0}^{*}) + K_{1} (- γ \nabla^{2} + 2 {\hat{v}}_{0}^{*}) A (u_{0}, {\hat{v}}_{0}^{*}) = 0 .

(7)

From such results, we may infer that

A (u_{0}, {\hat{v}}_{0}^{*}) = - γ \nabla^{2} u_{0} + 2 {\hat{v}}_{0}^{*} - f = 0, in Ω .

Moreover, from

\frac{\partial J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*})}{\partial v_{0}^{*}} = 0,

we have

K_{1} A (u_{0}, {\hat{v}}_{0}^{*}) 2 u_{0} + \frac{{\hat{v}}_{0}^{*}}{α} - u_{0}^{2} + β = 0,

so that

v_{0}^{*} = α (u_{0}^{2} - β) .

From such last results we get

- γ \nabla^{2} u_{0} + 2 α (u_{0}^{2} - β) u_{0} - f = 0,

and thus

δ J (u_{0}) = 0 .

Furthermore, also from such last results and the Legendre transform properties, we have

F_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) = {〈 u_{0}, {\hat{v}}_{2}^{*} 〉}_{L^{2}} - F_{1} (u_{0}, {\hat{v}}_{0}^{*}),

F_{2}^{*} ({\hat{v}}_{2}^{*}) = {〈 u_{0}, {\hat{v}}_{2}^{*} 〉}_{L^{2}} - F_{2} (u_{0}),

so that

\begin{matrix} J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) \\ = & - F_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) + F_{2}^{*} ({\hat{v}}_{2}^{*}) \\ = & F_{1} (u_{0}, {\hat{v}}_{0}^{*}) - F_{2} (u_{0}) \\ = & J_{1} (u_{0}, {\hat{v}}_{0}^{*}) \\ = & - J (u_{0}) . \end{matrix}

(8)

Finally, observe that from a concerning convexity,

- J (u_{0}) = J_{1} (u_{0}, {\hat{v}}_{0}^{*}) = inf_{u \in V} J_{1} (u, {\hat{v}}_{0}^{*}) .

Joining the pieces, we have got

\begin{matrix} - J (u_{0}) & = & J_{1} (u_{0}, {\hat{v}}_{0}^{*}) \\ = & inf_{u \in V} \{J_{1} (u, {\hat{v}}_{0}^{*})\} \\ = & inf_{(v_{2}^{*}, v_{0}^{*}) \in D^{*} \times B^{*}} J_{1}^{*} (v_{2}^{*}, v_{0}^{*}) \\ = & J_{1}^{*} ({\hat{v}}_{2}^{*}, {\hat{v}}_{0}^{*}) . \end{matrix}

(9)

The proof is complete.

□

4. A primal dual formulation for a local optimization of the primal one

In this section we develop a primal dual formulation corresponding to a non-convex primal formulation.

We start by describing the primal formulation.

Let

Ω \subset R^{3}

be an open, bounded, connected set with a regular (Lipschitzian) boundary denoted by

\partial Ω .

For the primal formulation, consider a functional

J : V \to R

where

\begin{matrix} J (u) & = & \frac{γ}{2} \int_{Ω} \nabla u \cdot \nabla u d x \\ + \frac{α}{2} \int_{Ω} {(u^{2} - β)}^{2} d x - {〈 u, f 〉}_{L^{2}} . \end{matrix}

(10)

Here

γ > 0,

α > 0

β > 0

and

f \in L^{2} (Ω) \cap L^{\infty} (Ω) .

Moreover,

V = W_{0}^{1, 2} (Ω)

and we denote

Y = Y^{*} = L^{2} (Ω) .

Define the functional

J_{1}^{*} : V \times {[Y^{*}]}^{2} \to R

, by

\begin{matrix} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*}) & = & \frac{γ}{2} \int_{Ω} \nabla u \cdot \nabla u d x + {〈 u^{2}, v_{0}^{*} 〉}_{L^{2}} \\ + \frac{K_{1}}{2} \int_{Ω} {(- γ \nabla^{2} u + 2 v_{3}^{*} u - f)}^{2} d x + \frac{K_{1}}{2} \int_{Ω} {(v_{3}^{*} - α (u^{2} - β))}^{2} d x \\ - {〈 u, f 〉}_{L^{2}} - \frac{1}{2 α} \int_{Ω} {(v_{0}^{*})}^{2} d x \\ - β \int_{Ω} v_{0}^{*} d x . \end{matrix}

(11)

We define also

B^{*} = {v_{0}^{*} \in Y^{*} : ∥ 2 v_{0}^{*} ∥_{\infty} < K / 2},

for an appropriate real constant

K > 0

Furthermore, we define

D^{*} = {v_{3}^{*} \in Y^{*} : ∥ v_{3}^{*} ∥_{\infty} \leq K_{2}}

A^{+} = {u \in V : u f \geq 0, a . e . in Ω},

V_{2} = {{u \in V : ∥ u ∥}_{\infty} \leq K_{3}}

for an appropriate real constant

K_{3} > 0

and

V_{1} = A^{+} \cap V_{2} .

Now observe that denoting

φ_{1} = v_{3}^{*} - α (u^{2} - β)

, we have

\begin{matrix} \frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial u^{2}} & = & K_{1} {(- γ \nabla^{2} + 2 v_{3}^{*})}^{2} + 4 K_{1} α^{2} u^{2} \\ - 2 K_{1} α φ_{1} - γ \nabla^{2} + 2 v_{0}^{*} \end{matrix}

(12)

and

\begin{matrix} \frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial {(v_{3}^{*})}^{2}} & = & K_{1} + 4 K_{1} u^{2} . \end{matrix}

(13)

Denoting

φ = - γ \nabla^{2} u + 2 v_{0}^{*} u - f

we have also that

\begin{matrix} \frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial u \partial v_{3}^{*}} & = & K_{1} (- 2 γ \nabla^{2} u + 2 v_{3}^{*} u) + 2 K_{1} φ - 2 K_{1} α u . \end{matrix}

(14)

In such a case, we obtain

\begin{matrix} det \{\frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial u \partial v_{3}^{*}}\} & = & \frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial {(v_{3}^{*})}^{2}} \frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial u^{2}} - {(\frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial v_{3}^{*} \partial u})}^{2} \\ = & K_{1}^{2} {(- γ \nabla^{2} + 2 v_{3}^{*} + 4 α u^{2})}^{2} \\ + (- γ \nabla^{2} + 2 v_{0}^{*}) O (K_{1}) \\ - 4 K_{1}^{2} φ^{2} - 4 K_{1}^{2} φ [(- γ \nabla^{2} u + 2 v_{0}^{*} u) - 2 α u] \\ - 2 K_{1}^{2} α φ_{1} (1 + 4 u^{2}) . \end{matrix}

(15)

Observe that at a critical point

φ = 0

and

φ_{1} = 0 .

From such results we may infer that

det \{\frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})}{\partial u \partial v_{3}^{*}}\} > 0

around any critical point.

With such results in mind, at this point and on assuming a related not relabeled finite dimensional model version, in a finite differences or finite elements context, we may prove the following theorem.

Theorem 4.1.

Let

(u_{0}, {\hat{v}}_{3}^{*}, {\hat{v}}_{0}^{*}) \in V_{1} \times D^{*} \times B^{*}

be such that

δ J_{1}^{*} (u_{0}, {\hat{v}}_{3}^{*}, {\hat{v}}_{0}^{*}) = 0 .

Under such hypotheses, we have

δ J (u_{0}) = - γ \nabla^{2} u_{0} + 2 α (u_{0}^{2} - β) u_{0} - f = 0

and there exists

r > 0

such that

\begin{matrix} J (u_{0}) & = & sup_{v_{0}^{*} \in B^{*}} \{inf_{(u, v_{3}^{*}) \in B_{r} (u_{0}, {\hat{v}}_{3}^{*})} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})\} \\ = & J_{1}^{*} (u_{0}, {\hat{v}}_{3}^{*}, {\hat{v}}_{0}^{*}) . \end{matrix}

(16)

Proof.

The proof that

δ J (u_{0}) = 0

and

J (u_{0}) = J_{1}^{*} (u_{0}, {\hat{v}}_{3}^{*}, {\hat{v}}_{0}^{*})

may be done similarly as in the previous sections.

Observe that, as previously obtained, there exists

r > 0

such that

det \{\frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, {\hat{v}}_{0}^{*})}{\partial u \partial v_{3}^{*}}\} > 0, \forall (u, v_{3}^{*}) \in B_{r} (u_{0}, {\hat{v}}_{3}^{*})

and

\frac{\partial^{2} J_{1}^{*} (u_{0}, {\hat{v}}_{3}^{*}, v_{0}^{*})}{\partial {(v_{0}^{*})}^{2}} < 0, \forall v_{0}^{*} \in B^{*} .

Since for a sufficiently large

K_{1} > 0

we have

\frac{\partial^{2} J_{1}^{*} (u, v_{3}^{*}, {\hat{v}}_{0}^{*})}{\partial u^{2}} > 0, in B_{r} (u_{0}, {\hat{v}}_{3}^{*}),

from these last results and the standard Saddle point theorem, we have

J (u_{0}) = J_{1}^{*} (u_{0}, {\hat{v}}_{3}^{*}, {\hat{v}}_{0}^{*}) = sup_{v_{0}^{*} \in B^{*}} \{inf_{(u, v_{3}^{*}) \in B_{r} (u_{0}, {\hat{v}}_{3}^{*})} J_{1}^{*} (u, v_{3}^{*}, v_{0}^{*})\} .

The proof is complete. □

5. A numerical example

In order to illustrate the applicability of such results we have developed the following numerical example.

For

Ω = [0, 1]

γ = 0.1

α = β = 1

and

f \equiv 1

Ω

we have solved the Ginzburg-Landau type equation

- γ \nabla^{2} u + α (u^{2} - β) 2 u - f = 0, in Ω

with

u = 0, on \partial Ω .

To obtain such numerical results, refereing to those previous ones of Section 3, we have used the following primal dual functional

J_{2} (u, v_{0}^{*}, v_{2}^{*})

where

J_{2} (u, v_{0}^{*}, v_{2}^{*}) = F_{1} (u, v_{0}^{*}) - {〈 u, v_{2}^{*} 〉}_{L^{2}} + F_{2}^{*} (v_{2}^{*}),

where

\begin{matrix} F_{1} (u, v_{0}^{*}) & = & - \frac{γ}{2} \int_{Ω} \nabla u \cdot \nabla u d x - {〈 u^{2}, v_{0}^{*} 〉}_{L^{2}} \\ + \frac{K_{1}}{2} \int_{Ω} {(- γ \nabla^{2} u + 2 v_{0}^{*} u - f)}^{2} d x + \frac{K_{2}}{2} \int_{Ω} u^{2} d x \\ + {〈 u, f 〉}_{L^{2}} + \frac{1}{2 α} \int_{Ω} {(v_{0}^{*})}^{2} d x \\ + β \int_{Ω} v_{0}^{*} d x, \end{matrix}

(17)

and,

\begin{matrix} F_{2}^{*} (v_{2}^{*}) & = & sup_{u \in V} {{〈 u, v_{2}^{*} 〉}_{L^{2}} - F_{2} (u)} \\ = & \frac{1}{2 K_{2}} \int_{Ω} {(v_{2}^{*})}^{2} d x . \end{matrix}

(18)

Observe that a critical point of

J_{2}

corresponds to a critical of the dual functional

J_{1}^{*}

. From the convexity of

J_{1}^{*}

, such a critical point corresponds a to a global optimal one for

J_{1}^{*}

We have obtained results through finite differences combined with a MAT-LAB optimization tool. For an extensive approach on finite differences schemes, please see reference [16].

For the corresponding solution

u_{0}

, please see Figure 1.

6. A duality principle for a related relaxed formulation concerning the vectorial approach in the calculus of variations

In this section we develop a duality principle for a related vectorial model in the calculus of variations.

Let

Ω \subset R^{n}

be an open, bounded and connected set with a regular (Lipschitzian) boundary denoted by

\partial Ω = Γ .

For

1 < p < + \infty

, consider a functional

J : V \to R

where

J (u) = G (\nabla u) + F (u) - {〈 u, f 〉}_{L^{2}},

where

V = \{u \in W^{1, p} (Ω; R^{N}) : u = u_{0} on \partial Ω\}

and

f \in L^{2} (Ω; R^{N}) .

We assume

G : Y \to R

and

F : V \to R

are Fréchet differentiable and F is also convex.

Also

G (\nabla u) = \int_{Ω} g (\nabla u) d x,

where

g : R^{N \times n} \to R

it is supposed to be Fréchet differentiable. Here we have denoted

Y = L^{p} (Ω; R^{N \times n})

We define also

J_{1} : V \times Y_{1} \to R

J_{1} (u, ϕ) = G_{1} (\nabla u + \nabla_{y} ϕ) + F (u) - {〈 u, f 〉}_{L^{2}},

where

Y_{1} = W^{1, p} (Ω \times Ω; R^{N})

and

G_{1} (\nabla u + \nabla_{y} ϕ) = \frac{1}{| Ω |} \int_{Ω} \int_{Ω} g (\nabla u (x) + \nabla_{y} ϕ (x, y)) d x d y .

Moreover, we define the relaxed functional

J_{2} : V \to R

J_{2} (u) = inf_{ϕ \in V_{0}} J_{1} (u, ϕ),

where

V_{0} = {ϕ \in Y_{1} : ϕ (x, y) = 0, on Ω \times \partial Ω} .

Now observe that

\begin{matrix} J_{1} (u, ϕ) & = & G_{1} (\nabla u + \nabla_{y} ϕ) + F (u) - {〈 u, f 〉}_{L^{2}} \\ = & - \frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot (\nabla u + \nabla_{y} ϕ (x, y)) d y d x + G_{1} (\nabla u + \nabla_{y} ϕ) \\ + \frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot (\nabla u + \nabla_{y} ϕ (x, y)) d y d x + F (u) - {〈 u, f 〉}_{L^{2}} \\ \geq & inf_{v \in Y_{2}} \{- \frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot v (x, y) d y d x + G_{1} (v)\} \\ + inf_{(v, ϕ) \in V \times V_{0}} \{\frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot (\nabla u + \nabla_{y} ϕ (x, y)) d y d x + F (u) - {〈 u, f 〉}_{L^{2}}\} \\ = & - G_{1}^{*} (v^{*}) - F^{*} ({div}_{x} (\frac{1}{| Ω |} \int_{Ω} v^{*} (x, y) d y) + f) \\ + \frac{1}{| Ω |} \int_{\partial Ω} (\int_{Ω} v^{*} (x, y) d y) \otimes n u_{0} d Γ, \end{matrix}

(19)

\forall (u, ϕ) \in V \times V_{0}, v^{*} \in A^{*}

, where

A^{*} = {v^{*} \in Y_{2}^{*} : {div}_{y} v^{*} (x, y) = 0, in Ω} .

Here we have denoted

G_{1}^{*} (v^{*}) = sup_{v \in Y_{2}} \{\frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot v (x, y) d y d x - G_{1} (v)\},

where

Y_{2} = L^{p} (Ω \times Ω; R^{N \times n}),

Y_{2}^{*} = L^{q} (Ω \times Ω; R^{N \times n}),

and where

\frac{1}{p} + \frac{1}{q} = 1 .

Furthermore,

\begin{matrix} F^{*} ({div}_{x} (\frac{1}{| Ω |} \int_{Ω} v^{*} (x, y) d y) + f) - \frac{1}{| Ω |} \int_{\partial Ω} (\int_{Ω} v^{*} (x, y) d y) \otimes n u_{0} d Γ \\ = & sup_{(v, ϕ) \in V \times V_{0}} \{- \frac{1}{| Ω |} \int_{Ω} \int_{Ω} v^{*} (x, y) \cdot (\nabla u + \nabla_{y} ϕ (x, y)) d y d x - F (u) + {〈 u, f 〉}_{L^{2}}\}, \end{matrix}

(20)

Therefore, denoting

J_{3}^{*} : Y_{2}^{*} \to R

J_{3}^{*} (v^{*}) = - G_{1}^{*} (v^{*}) - F^{*} ({div}_{x} (\int_{Ω} v^{*} (x, y) d y) + f) + \frac{1}{| Ω |} \int_{\partial Ω} (\int_{Ω} v^{*} (x, y) d y) \otimes n u_{0} d Γ,

we have got

inf_{u \in V} J_{2} (u) \geq sup_{v^{*} \in A^{*}} J_{3}^{*} (v^{*}) .

Finally, we highlight such a dual functional

J_{3}^{*}

is convex (in fact concave).

7. A primal dual variational formulation for a Burger’s type equation

In this section we develop a primal dual variational formulation for a Burger’s type equation.

Let

Ω \subset R^{3}

be an open, bounded and connected set with a regular (Lipschitzian) boundary denoted by

\partial Ω

Consider the Burger’s type equation in

u \in V

given by

- γ \nabla^{2} u + u u_{x} - f = 0, in Ω,

where

γ > 0

f \in L^{2} (Ω)

and

V = {u \in W^{1, 2} (Ω) : u = u_{0} on \partial Ω} .

At this point we define the functional

J : V \times Y \to R

where

J (u, v_{3}^{*}) = \frac{1}{2} \int_{Ω} {(- γ \nabla^{2} u + v_{3}^{*} u - f)}^{2} d x + \frac{1}{2} \int_{Ω} {(v_{3}^{*} - u_{x})}^{2} d x .

Here

Y = Y^{*} = L^{2} (Ω) .

Let

φ, φ_{1} \in C_{c}^{\infty} (Ω) .

Observe that

δ_{u u}^{2} J ((u, v_{3}^{*}), φ, φ) = \int_{Ω} {(- γ \nabla^{2} φ + v_{3}^{*} φ)}^{2} d x + \int_{Ω} {(φ_{x})}^{2} d x,

δ_{v_{3}^{*} v_{3}^{*}}^{2} J ((u, v_{3}^{*}), φ_{1}, φ_{1}) = \int_{Ω} u^{2} φ_{1}^{2} d x + \int_{Ω} φ_{1}^{2} d x,

and denoting

W = - γ \nabla^{2} u + v_{3}^{*} u - f,

we have

\begin{matrix} δ_{u v_{3}^{*}}^{2} J ((u, v_{3}^{*}), φ, φ_{1}) & = & \int_{Ω} W φ φ_{1} d x \\ + \int_{Ω} (- γ \nabla^{2} φ + 2 v_{3}^{*} φ) u φ_{1} d x - \int_{Ω} φ_{1} φ_{x} d x . \end{matrix}

(21)

Therefore

\begin{matrix} \frac{1}{2} δ_{u u}^{2} J ((u, v_{3}^{*}), φ, φ) + \frac{1}{2} δ_{u u}^{2} J ((u, v_{3}^{*}), φ, φ) + δ_{u v_{3}^{*}}^{2} J ((u, v_{3}^{*}), φ, φ_{1}) \\ = & \frac{1}{2} \int_{Ω} {(- γ \nabla^{2} φ + 2 v_{3} φ + φ_{1} u)}^{2} d x \\ + \frac{1}{2} \int_{Ω} {(φ_{x} - φ_{1})}^{2} d x + \int_{Ω} W φ φ_{1} d x . \end{matrix}

(22)

Observe that at a critical point we have

W = - γ \nabla^{2} u + v_{3}^{*} u - f = 0, in Ω

From this and (22) we may infer that

δ^{2} J

is positive definite in a neighborhood of any critical point of J.

Thus, we may also conclude that the functional J has a large region of convexity around any of its critical points.

8. Conclusions

In this article we have developed convex dual and primal dual variational formulations suitable for the local optimization of non-convex primal formulations.

It is worth highlighting, the results may be applied to a large class of models in physics and engineering.

We also emphasize the duality principles here presented are applied to a Ginzburg-Landau type equation. In a future research, we intend to extend such results for some models of plates and shells and other models in the elasticity theory.

References

W.R. Bielski, A. Galka, J.J. Telega, The Complementary Energy Principle and Duality for Geometrically Nonlinear Elastic Shells. I. Simple case of moderate rotations around a tangent to the middle surface. Bulletin of the Polish Academy of Sciences, Technical Sciences, Vol. 38, No. 7-9, 1988.
W.R. Bielski and J.J. Telega,A Contribution to Contact Problems for a Class of Solids and Structures, Arch. Mech., 37, 4-5, pp. 303-320, Warszawa 1985.
J.J. Telega, On the complementary energy principle in non-linear elasticity. Part I: Von Karman plates and three dimensional solids, C.R. Acad. Sci. Paris, Serie II, 308, 1193-1198; Part II: Linear elastic solid and non-convex boundary condition. Minimax approach, ibid, pp. 1313-1317 (1989).
A.Galka and J.J.Telega, Duality and the complementary energy principle for a class of geometrically non-linear structures. Part I. Five parameter shell model; Part II. Anomalous dual variational priciples for compressed elastic beams, Arch. Mech. 47 (1995) 677-698, 699-724.
J.F. Toland, A duality principle for non-convex optimisation and the calculus of variations, Arch. Rat. Mech. Anal., 71, No. 1 (1979), 41-61.
R.A. Adams and J.F. Fournier, Sobolev Spaces, 2nd edn. (Elsevier, New York, 2003).
F. Botelho, Functional Analysis and Applied Optimization in Banach Spaces, Springer Switzerland, 2014.
F.S. Botelho, Variational Convex Analysis, Ph.D. thesis, Virginia Tech, Blacksburg, VA -USA, (2009).
F. Botelho, Topics on Functional Analysis, Calculus of Variations and Duality, Academic Publications, Sofia, (2011).
F. Botelho, Existence of solution for the Ginzburg-Landau system, a related optimal control problem and its computation by the generalized method of lines, Applied Mathematics and Computation, 218, 11976-11989, (2012).
R.T. Rockafellar, Convex Analysis, Princeton Univ. Press, (1970).
F.S. Botelho, Functional Analysis, Calculus of Variations and Numerical Methods in Physics and Engineering, CRC Taylor and Francis, Florida, 2020.
F.S. Botelho, Dual Variational Formulations for a Large Class of Non-Convex Models in the Calculus of Variations, Mathematics 2023, 11(1), 63. [CrossRef]
J.F. Annet, Superconductivity, Superfluids and Condensates, 2nd edn. (Oxford Master Series in Condensed Matter Physics, Oxford University Press, Reprint, 2010).
L.D. Landau and E.M. Lifschits, Course of Theoretical Physics, Vol. 5- Statistical Physics, part 1. (Butterworth-Heinemann, Elsevier, reprint 2008).
J.C. Strikwerda, Finite Difference Schemes and Partial Differential Equations, SIAM, second edition (Philadelphia, 2004).

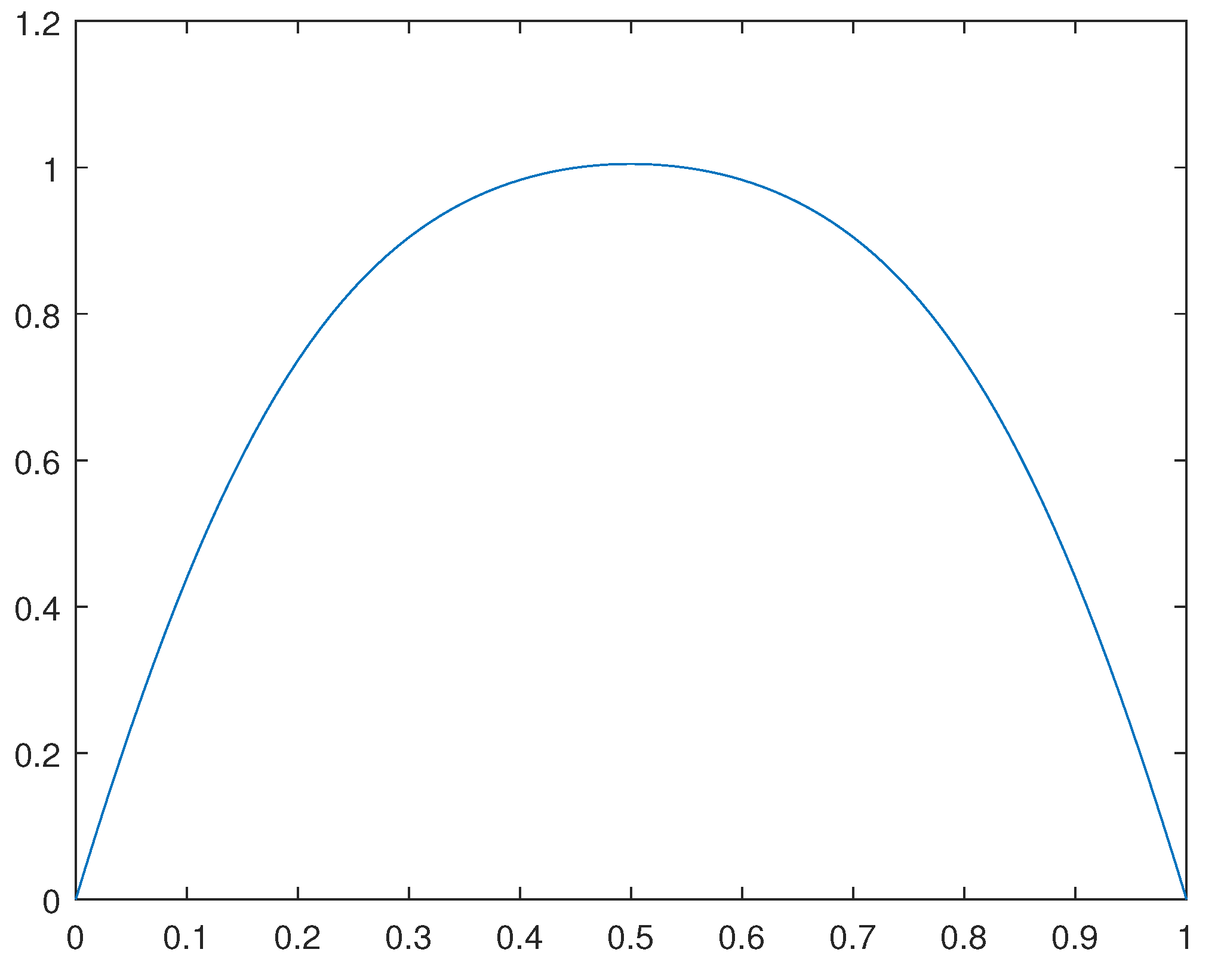

Figure 1. Solution

u_{0} (x)

for the primal formulation.

Figure 1. Solution

u_{0} (x)

for the primal formulation.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.

MDPI Initiatives

Important Links

Choose an area of interest and we will send you notifications of new preprints at your preferred frequency.

Disclaimer

On Duality Principles and Related Convex Dual Formulations Suitable for Local Non-Convex Variational Optimization

Abstract

1. Introduction

2. The primal variational formulation and the dual functional definitions

3. The main duality principle and a concerning convex dual formulation

4. A primal dual formulation for a local optimization of the primal one

5. A numerical example

6. A duality principle for a related relaxed formulation concerning the vectorial approach in the calculus of variations

7. A primal dual variational formulation for a Burger’s type equation

8. Conclusions

References

MDPI Initiatives

Important Links

Subscribe
