The Imaginary Universe

Altmetrics

Downloads

1862

Views

1404

Comments

1

This version is not peer-reviewed

Submitted:

14 April 2023

Posted:

17 April 2023

Read the latest preprint version here

Alerts
Abstract
Imaginary dimensions in physics require an imaginary set of base natural units and some negative parameter $c_n$ corresponding to the speed of light in vacuum $c$. The second, negative fine-structure constant $\alpha_2^{-1} \approx -140.178$ is present in Fresnel coefficients for the normal incidence of electromagnetic radiation on monolayer graphene, leading to these imaginary natural units, and it establishes $c_n \approx -3.06 \times 10^8~\text{[m/s]}$. It follows that electric charges are the same in real and imaginary dimensions. We model neutron stars and white dwarfs, emitting perfect black-body radiation, as objects having energy exceeding their mass-energy equivalence ratios. We define complex energies in terms of real and imaginary natural units. Their imaginary parts, inaccessible for direct observation, store the excess of these energies. It follows that black holes are fundamentally uncharged, charged micro neutron stars and white dwarfs with masses lower than $5.7275 \times 10^{-10}~[\text{kg}]$ are inaccessible for direct observation, and the radii of white dwarfs' cores are limited to $R_{\text{WD}} < 3.3967~R_{\text{BH}}$, where $R_{\text{BH}}$ is the Schwarzschild radius of a white dwarf mass. It is conjectured that the maximum atomic number $Z=238$. A black-body object is in the equilibrium of complex energies of masses, charges, and photons if its radius $R_\text{eq} \approx 1.3833~R_{\text{BH}}$, which is marginally greater than a locally negative energy density bound of $4/3~R_{\text{BH}}$. Complex Newton’s law of universal gravitation, based on complex energies, leads to the black-body object's surface gravity and the generalized Hawking radiation temperature, which includes its charge. The proposed model takes into account the value(s) of the fine-structure constant(s), which is/are otherwise neglected in general relativity, and explains the registered (GWOSC) high masses of neutron stars' mergers and the associated fast radio bursts (CHIME) without resorting to any hypothetical types of exotic stellar objects.
Keywords:
Subject: Physical Sciences  -   Mathematical Physics

1. Introduction

The universe began with the Big Bang, which is a current prevailing scientific opinion. But this Big Bang was not an explosion of 4-dimensional spacetime, which also is a current prevailing scientific opinion, but an explosion of dimensions. More precisely, in the − 1 -dimensional void, a 0-dimensional point appeared, inducing the appearance of countably infinitely other points indistinguishable from the first one. The breach made by the first operation of the dimensional successor function of the Peano axioms inevitably continued leading to the formation of 1-dimensional, real and imaginary lines allowing for an ordering of points using multipliers of real units (ones) or imaginary units ( a ∈ R ⇔ a = 1 b 1 , a ∈ I ⇔ a = i b , b ∈ R ). Then out of two lines of each kind, crossing each other only at one initial point ( 0 , 0 ) , the dimensional successor function formed 2-dimensional R 2 , I 2 , and R × I Euclidean planes, with I 2 being a mirror reflection of R 2 . And so on, forming n-dimensional Euclidean spaces R a × I b with a ∈ N real and b ∈ N imaginary lines, n a + b , and the scalar product defined by
x · y = x 1 , . . . , x a , i x 1 ′ , . . . , i x b ′ y 1 , . . . , y a , i y 1 ′ , . . . , i y b ′ ≔ ≔ ∑ k = 1 a x k y k + ∑ l = 1 b x l ′ y l ′ ¯ ,
where x , y ∈ R a × I b . With the onset of the first 0-dimensional point, information began to evolve [1,2,3,4,5,6].
However, dimensional properties are not uniform. Concerning regular convex n-polytopes in natural dimensions, for example, there are countably infinitely many regular convex polygons, five regular convex polyhedra (Platonic solids), six regular convex 4-polytopes, and only three regular convex n-polytopes if n > 3 [7]. In particular, 4-dimensional Euclidean space is endowed with a peculiar property known as exotic R 4 [8], absent in other dimensionalities. Thanks to this property, R 3 × I space provides a continuum of homeomorphic but non-diffeomorphic differentiable structures. Each piece of individually memorized information is homeomorphic to the corresponding piece of individually perceived information but remains non-diffeomorphic (non-smooth). This allowed for variation of phenotypic traits within populations of individuals [9] and extended the evolution of information into biological evolution. Exotic R 4 solves the problem of extra dimensions of nature. Each biological cell perceives emergent space of three real and one imaginary (time) dimension observer-dependently [10] and at present when i 0 = 0 is real, and perceived space requires a natural number of dimensions [11]. This is the emergent dimensionality (ED) [5,9,12,13,14].
Each dimension requires certain units of measure. In real dimensions, the natural units of measure were derived by Max Planck in 1899 as "independent of special bodies or substances, thereby necessarily retaining their meaning for all times and for all civilizations, including extraterrestrial and non-human ones" [15]. Planck units utilize the Planck constant h that he introduced in his black-body radiation formula. However, already in 1881, George Stoney derived a system of natural units [16] based on the elementary charge e (Planck’s constant was unknown at that time). The ratio of Stoney units to Planck units is α , where α is the fine-structure constant. This study derives the complementary set of natural units applicable for imaginary dimensions, including the imaginary base units, based on the discovered negative fine-structure constant α 2 . Similarly, the ratio of α 2 -Stoney units to α 2 -Planck units is α 2 . As the speed of electromagnetic radiation is the product of its wavelength and frequency and both these quantities are imaginary in imaginary dimensions, some real but negative parameter c n = ν i λ i corresponding to the speed of light in vacuum c (i.e., the natural speed) is also necessary as i 2 = − 1 . It turns out that the imaginary Planck energy E P i and temperature T P i are larger in moduli than the Planck energy E P and temperature T P setting more favorable conditions for biological evolution to emerge in R 3 × I Euclidean space than in I 3 × R Euclidean one due to the minimum energy principle.
The study shows that the energies of neutron stars and white dwarfs exceed their mass–energy equivalences and that excess energy is stored in imaginary dimensions and is inaccessible to direct observations. This corrects the value of the photon sphere radius and results in the upper bound on the size-to-mass ratio of their cores, where the Schwarzschild radius sets the lower bound.
The paper is structured as follows. Section 2 shows that Fresnel coefficients for the normal incidence of electromagnetic radiation on monolayer graphene include the second, negative fine-structure constant α 2 as a fundamental constant of nature. Section 3 shows that by this second fine-structure constant nature endows us with the complementary set of α 2 -natural units. Section 4 introduces the concept of a black-body object in thermodynamic equilibrium, emitting perfect black-body radiation, and reviews its necessary properties. Section 5 introduces complex energies of masses, charges, and photons expressed in terms of real and imaginary Planck units introduced in Section 3 and discusses equilibria formed by comparing their moduli. Section 6 applies these equilibria to black-body objects to derive the range of their size-to-mass ratios and the equilibrium size-to-mass ratio. Section 7 applies this range to the observed mergers of black-body objects to show that the observed data is explainable with no need to introduce hypothetical exotic stellar objects. Section 8 define complex forces to derive a black-body object surface gravity, and the generalized Hawking radiation temperature. Section 9 summarizes the findings of this study. Certain prospects for further research are given in the appendices.

2. The Second Fine-Structure Constant

Numerous publications provide Fresnel coefficients for the normal incidence of electromagnetic radiation (EMR) on monolayer graphene (MLG), which are remarkably defined only by π and the fine-structure constant α
α − 1 = q P e 2 = 4 π ϵ 0 ℏ c e 2 ≈ 137.036 ,
where q P is the Planck charge, ϵ 0 is vacuum permittivity (the electric constant), ℏ is the reduced Planck constant, and e is the elementary charge. Transmittance (T) of MLG
T = 1 1 + π α 2 2 ≈ 0.9775 ,
for normal EMR incidence was derived from the Fresnel equation in the thin-film limit [17] (Eq. 3), whereas spectrally flat absorptance (A) A ≈ π α ≈ 2.3 % was reported [18,19] for photon energies between about 0.5 and 2.5 [eV]. T was related to reflectance (R) [20] (Eq. 53) as R = π 2 α 2 T / 4 , i.e,
R = 1 4 π 2 α 2 1 + π α 2 2 ≈ 1.2843 × 10 − 4 ,
The above equations for T and R, as well as the equation for the absorptance
A = π α 1 + π α 2 2 ≈ 0.0224 ,
were also derived [21] (Eqs. 29-31) based on the thin film model (setting n s = 1 for substrate). The sum of transmittance (3) and the reflectance (4) at normal EMR incidence on MLG was derived [22] (Eq. 4a) as
T + R = 1 − 4 σ η 4 + 4 σ η + σ 2 η 2 + k 2 χ 2 = = 1 + 1 4 π 2 α 2 1 + π α 2 2 ≈ 0.9776 ,
where η is the vacuum impedance
η = 4 π α ℏ e 2 = 1 ϵ 0 c ≈ 376.73 [ Ω ] ,
σ = e 2 / ( 4 ℏ ) = π α / η is the MLG conductivity [23], and χ = 0 is the electric susceptibility of vacuum. These coefficients are thus well-established theoretically and experimentally confirmed [17,18,19,22,24,25].
As a consequence of the conservation of energy
( T + A ) + R = 1 .
In other words, the transmittance in the Fresnel equation describing the reflection and transmission of EMR at normal incidence on a boundary between different optical media is, in the case of the 2-dimensional (boundary) of MLG, modified to include its absorption.
The reflectance R = 0.013 % (4) of MLG can be expressed as a quadratic equation with respect to α
1 4 R − 1 π 2 α 2 + R π α + R = 0 .
This quadratic equation has two roots with reciprocals
α − 1 = π − π R 2 R ≈ 137.036 , and
α 2 − 1 = − π − π R 2 R ≈ − 140.178 .
Therefore, the equation (9) includes the second, negative fine-structure constant α 2 . It happens that the sum of the reciprocals of these fine-structure constants (10) and (11)
α − 1 + α 2 − 1 = π − π R − π − π R 2 R = − 2 π 2 = − π ,
is remarkably independent of the value of the reflectance R. The same result can only be obtained for T + A (cf. Appendix A). This result is intriguing in the context of a peculiar algebraic expression for the fine-structure constant [26]
α − 1 = 4 π 3 + π 2 + π ≈ 137.036303776
that contains a free  π term and is very close to the physical definition (2) of α − 1 , which according to the CODATA 2018 value is 137.035999084 . Notably, the value of the fine-structure constant is not constant but increases with time [27,28,29,30,31]. Thus, the algebraic value given by (13) can be interpreted as the asymptote of the α increase.
Using relations (12) and (13), we can express the negative reciprocal of the 2nd fine-structure constant α 2 − 1 that emerged in the quadratic equation (9) also as a function of π only
α 2 − 1 = − π − α 1 − 1 = − 4 π 3 − π 2 − 2 π ≈ − 140.177896429 ,
and this value can also be interpreted as the asymptote of the α 2 decrease, where the current value would amount to α 2 − 1 ≈ − 140.177591737 , assuming the rate of change is the same for α and α 2 .

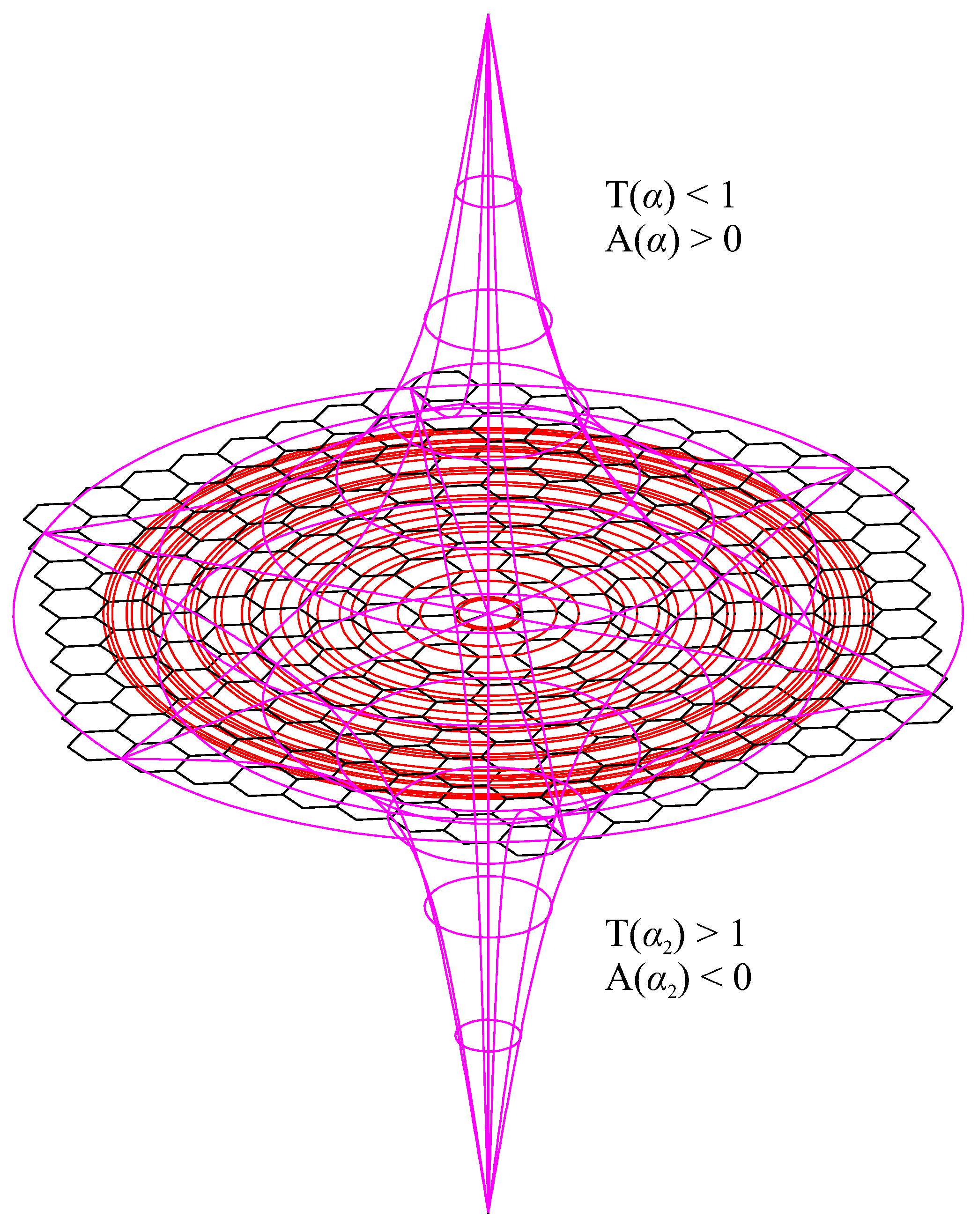

Using relations (13) and (14), T (3), R (4), and A (5) of MLG for normal EMR incidence can be expressed just by π . Moreover, equation (9) includes two π -like constants for two surfaces with positive and negative Gaussian curvatures (cf. Appendix B).

3. Set of α 2 -Planck units

For further analysis, we have to use Planck units over the Stoney units as only the former incorporate α (and h). Planck units can be derived from numerous starting points [5,32] (cf. Appendix C and Appendix D). The definition of the Planck charge q P = 4 π ϵ 0 ℏ c can be solved for the speed of light yielding c = q P 2 / ( 4 π ϵ 0 ℏ ) . Furthermore, the ratio of charges in the definition of the fine-structure constant α = e 2 / q P 2 (2) applied for the negative α 2 , requires an introduction of some imaginary Planck charge q P i so that its square would yield a negative value of α 2
q P i 2 e 2 = α 2 − 1 ≈ − 140.178 ,
and since the elementary charge e is real
q P i = ± e 2 α 2 = ± 4 π ϵ 0 ℏ c n .
Among the physical constants of the 4 π ϵ 0 ℏ c n term, almost all are positive2. Only the c n = ν i λ i parameter, corresponding to the speed of light c, is negative as both frequency ν i and wavelength λ i are imaginary in imaginary dimensions. Therefore, the equation (16) can be solved for c n yielding
c n = q P i 2 / ( 4 π ϵ 0 ℏ ) ≈ − 3.066653 × 10 8 [ m / s ] ,
which is greater than the speed of light in vacuum c in modulus3. We also note that c is defined by the electric constant ϵ 0 and the magnetic constant μ 0 as c = 1 / ϵ 0 μ 0 ; a square root is bivalued and the value of μ 0 depends on α . Furthermore, c is defined by α -dependent vacuum impedance (7).
The negative parameter c n (17) leads to the imaginary Planck charge q P i , length ℓ P i , mass m P i , time t P i , and temperature T P i that redefined by square roots containing c n raised to odd (1, 3, 5) powers become imaginary and bivalued4
q P i = ± 4 π ϵ 0 ℏ c n = ± q P α α 2 ≈ ≈ ± i 1.8969 × 10 − 18 [ C ] | q P i | > | q P | ,
ℓ P i = ± ℏ G c n 3 = ± ℓ P α 2 3 α 3 ≈ ≈ ± i 1.5622 × 10 − 35 [ m ] | ℓ P i | < | ℓ P | ,
m P i = ± ℏ c n G = ± m P α α 2 ≈ ≈ ± i 2.2012 × 10 − 8 [ kg ] | m P i | > | m P | ,
t P i = ± ℏ G c n 5 = ± t P α 2 5 α 5 ≈ ≈ ± i 5.0942 × 10 − 44 [ s ] | t P i | < | t P | ,
T P i = ± ℏ c n 5 G k B 2 = ± T P α 5 α 2 5 ≈ ≈ ± i 1.4994 × 10 32 [ K ] | T P i | > | T P | ,
and furthermore can be expressed, using the relation (31), in terms of base Planck units q P , ℓ P , m P , t P , and T P .
Planck units derived from the imaginary base units (19)-(21) are generally not imaginary. The α 2 Planck volume
ℓ P i 3 = ± ℏ G c n 3 3 / 2 = ± ℓ P 3 α 2 9 α 9 ≈ ≈ ± i 3.8127 × 10 − 105 [ m 3 ] | ℓ P i 3 | < | ℓ P 3 | ,
the α 2 Planck momentum
p P i = ± m P i c n = ± ℏ c n 3 G = ± m P c α 3 α 2 3 ≈ ≈ ± i 6.7504 [ kg m / s ] | m P i c n | > | m P c | ,
the α 2 Planck energy
E P i = ± m P i c n 2 = ± ℏ c n 5 G = ± E P α 5 α 2 5 ≈ ≈ ± i 2.0701 × 10 9 [ J ] | E P i | > | E P | ,
and the α 2 Planck acceleration
a P i = ± c n t P i = ± c n 7 ℏ G = ± a P α 7 α 2 7 ≈ ≈ ± i 6.0198 × 10 51 [ m / s 2 ] | a P i | > | a P | ,
are imaginary and bivalued. However, the α 2 Planck force
F P 2 = ± E P i ℓ P i = ± c n 4 G = ± F P α 4 α 2 4 ≈ ≈ ± 1.3251 × 10 44 [ N ] | F P 2 | > | F P | ,
and the α 2 Planck density
ρ P 2 = ± m P i ℓ P i 3 = ± c n 5 ℏ G 2 = ± ρ P α 5 α 2 5 ≈ ≈ ± 5.7735 × 10 96 [ kg / m 3 ] | ρ P 2 | > | ρ P | ,
are real and bivalued. On the other hand, the α 2 Planck area
ℓ P i 2 = ℏ G c n 3 = ℓ P 2 α 2 3 α 3 ≈ ≈ − 2.4406 × 10 − 70 [ m 2 ] | ℓ P i 2 | < | ℓ P 2 | ,
is strictly negative, while the Planck area ℓ P 2 is strictly positive. In the following, we shall call the units (18)-(29) α 2 -Planck units.
Both α 2 and c n lead to the second, negative vacuum impedance
η 2 = 4 π α 2 ℏ e 2 = 1 ϵ 0 c n ≈ − 368.29 [ Ω ] | η 2 | < | η | .
Solving both impedances (7) and (30) for 4 π ℏ ϵ 0 / e 2 and comparing with each other yields the following important relation between the speed of light in vacuum c, negative parameter c n , and the fine-structure constants α , α 2
c α = c n α 2 = v e ,
where, notably, v e is the electron’s velocity at the first circular orbit in the Bohr model of the hydrogen atom. This is not the only α to α 2 relation. Along with the two π -like constants π 1 , π 2 (relations (B8) and (B10), cf. Appendix B)
α 2 α = c c n = π 1 π = π π 2 ≈ − 0.9776 .
The relations between time (21) and temperature (22) α 2 -Planck units are inverted, α 5 t P i 2 = α 2 5 t P 2 , α 2 5 T P i 2 = α 5 T P 2 , and saturate Heisenberg’s uncertainty principle (energy-time version) taking energy from the equipartition theorem for one degree of freedom (or one bit of information [5,33])
1 2 k B T P t P = 1 2 k B T P i t P i = ℏ 2 .
Furthermore, eliminating α and α 2 from the relations (18)-(20), yield
q P 2 m P 2 = q P i 2 m P i 2 = 4 π ϵ 0 G ,
and
ℓ P m P 3 = ℓ P i m P i 3 and ℓ P q P 3 = ℓ P i q P i 3 .
Base Planck and Stoney units themselves admit negative values as negative square roots. By choosing complex analysis, within the framework of ED, we enter into bivalence by the very nature of this analysis. All geometric objects have both positive and negative volumes and surfaces [14] equal in moduli. On the other hand, imaginary and negative physical quantities are the subject of research. In particular, the subject of scientific research is thermodynamics in the complex plane. Lee–Yang zeros, for example, have been experimentally observed [34,35]. We note here that the imaginary Planck Units are not imaginary due to being multiplied by the imaginary unit i. They are imaginary due to the negativity of odd powers of c n being the square root argument; thus, they define imaginary physical quantities inaccessible to direct measurements5. They do not apply only to the time dimension but to any imaginary dimension. However, in our four-dimensional Euclidean R 3 × I space-time, Planck units apply in general to the spatial dimensions, while the imaginary ones in general to the imaginary temporal dimension. All the α 2 -Planck units have physical meanings. However, some are elusive, like the negative area or imaginary volume, which require two or three orthogonal imaginary dimensions.
Planck charge relations (2), (16), and the charge conservation principle imply that the elementary charge e is the same both in real and imaginary dimensions since
e 2 = α q P 2 = α 2 q P i 2 = q S 2 ,
where q S is the Stoney charge. There is no physically meaningful elementary mass  M e = ± 1.8592 × 10 − 9 [ kg ] that would satisfy the relation (20)
M e 2 = α m P 2 = α 2 m P i 2 .
Neither is there a physically meaningful elementary (and imaginary) length  L e ≈ ± i 9.7382 × 10 − 39 [ m ] satisfying the relation (29)
L e 2 = α 3 ℓ P i 2 = α 2 3 ℓ P 2 ,
(which in modulus is almost 1660 times smaller than the Planck length), or an elementary temperature  T e ≈ ± 6.4450 × 10 26 [ K ] abiding to (22)
T e 2 = α 5 T P 2 = α 2 5 T P i 2 ,
and close to the Hagedorn temperature of grand unified string models.
Thus, as to the modulus, charges are the same in real and imaginary dimensions, while masses, lengths, temperatures, and other derived quantities that can vary with time, may differ (the dimensional character of the charges is additionally emphasized by the real α multiplied by i in the imaginary charge energy (56) and imaginary α 2 in the real charge energy (57)). We note that the same form of the relations (36) and (37) reflect the same form of Coulomb’s law and Newton’s law of gravity, which are inverse-square laws.
In the following, where deemed appropriate, we shall express the physical quantities by Planck units
M ≔ m m P , M i ≔ m i m P i , m , m i ∈ R , Q ≔ q e , Q i ≔ i Q = i q e , q ∈ Z λ ≔ l ℓ P , λ i ≔ l i ℓ P i , l , l i ∈ R , D ≔ d ℓ P , D i ≔ d i ℓ P i , d , d i ∈ R , R ≔ r ℓ P , R i ≔ r i ℓ P i r , r i ∈ R
where uppercase letters M, Q, λ , D, and R denote respectively masses, charges, wavelengths, diameters, and radii (or lengths), lowercase letters (with few exceptions) denote Planck units or their multipliers, and the subscripts i refer to imaginary quantities. We note that the discretization of charges by integer multipliers q of the elementary charge e is far-fetched, considering the fractional charges of quasiparticles.

4. Black Body Objects

There are only three observable objects in nature that emit perfect black-body radiation: unsupported black holes (BHs, the densest), neutron stars (NSs), supported, as it is accepted, by neutron degeneracy pressure, and white dwarfs (WDs), supported, as it is accepted, by electron degeneracy pressure (the least dense). We shall collectively call them black-body objects (BBOs). This term is not used in standard cosmology, but standard cosmology scrunches under embarrassingly significant failings, not just tensions as is sometimes described, as if to somehow imply that a resolution will eventually be found [36]. Entropic gravity [33] explains galaxy rotation curves without resorting to dark matter, has been experimentally confirmed [37], and is decoherence-free [38]. It has recently been experimentally confirmed that the so-called accretion instability is a fundamental physical process [39]. We conjecture that this process is common for all BBOs. Also James Webb Space Telescope data show multiple galaxies that grew too massive too soon after the Big Bang, which is a strong discrepancy with the Λ cold dark matter model ( Λ CDM) expectations on how galaxies formed at early times at both redshifts, even when considering observational uncertainties [40]. This is an important unresolved issue indicating that fundamental changes to the reigning Λ CDM model of cosmology is needed [40].
Therefore, the term object as a collection of matter is a misnomer, as it neglects quantum nonlocality [41] that is independent of the entanglement among the particles [42]. Thus we use emphasis for (indistinguishable) particle and (distinguishable) object, as well as for matter and distance. These terms have no absolute meaning in ED. In particular, given the recent observation of quasiparticles in classical systems [43]. Within the framework of ED no object is enclosed in space. Also, the ugly duckling theorem [44,45] asserts that every two objects we perceive are equally similar (or equally dissimilar), however ridiculous that may sound.
As black-body radiation is radiation of global thermodynamic equilibrium, it is patternless (thermal noise) radiation that depends only on one parameter. In the case of BHs, this is known as Hawking radiation and this parameter is the BH temperature T BH = T P / ( 2 π d BH ) corresponding to the BH diameter [5] D BH = d BH ℓ P , where d BH ∈ R . As black-body radiation is patternless, the triangulated [5] BBOs contain a balanced number of Planck area triangles, each carrying binary potential δ φ k = − c 2 · { 0 , 1 } , as it has been shown for BHs6 [5], based on Bekenstein-Hawking (BH) entropy S BH = k B N BH / 4 . BH entropy can be derived from the Bekenstein bound
S ≤ 2 π k B R E ℏ c ,
which defines an upper limit on the thermodynamic entropy S that can be contained within a sphere of radius R having energy E. After plugging the BH (Schwarzschild) radius R BH = 2 G M BH / c 2 and mass-energy equivalence E BH = M BH c 2 , where M BH is the BH mass, into the bound (41), it reduces BH entropy. In other words, BH entropy saturates the Bekenstein bound (41).
The patternless nature of the perfect black-body radiation was derived [5] by comparing BH entropy with the binary entropy variation δ S = k B N 1 / 2 ([5] Eq. (55)), valid for any entropy variation sphere (EVS), where N 1 ∈ N denotes the number of active Planck triangles bearing binary potential δ φ k = − c 2 . Thus, the entropy of all BBOs is
S BBO = 1 4 k B N BBO ,
where N BBO ≔ 4 π R BBO 2 / ℓ P 2 = π d BBO 2 is the information capacity of the BBO surface, i.e., the N BBO ∈ N Planck triangles (where " x " is the floor function that yields the greatest integer less than or equal to its argument x) corresponding to bits of information [33,46,47], and the fractional part triangle(s) having the area { N BBO } ℓ P 2 = ( N BBO − N BBO ) ℓ P 2 to small to carry a single bit of information. Furthermore, N 1 = N BBO / 2 confirms the patternless thermodynamic equilibrium of the BBOs by maximizing Shannon entropy [5].
We shall define the generalized radius of a BBO (this definition applies to all EVSs) having mass M BBO as a function of G M BBO / c 2 multiplier k ∈ R or the BH radius R BH multiplier k ^ = k / 2
R BBO ≔ k G M BBO c 2 = k ^ R BH ⇒ r = k m , r i = k m i ,
and the generalized BBO energy E BBO as a function of M BBO c 2 multiplier a ∈ R (this definition also applies to all EVSs)
E BBO ≔ a M BBO c 2 .
Plugging definitions (43) and (44) into the Bekenstein bound (41) it becomes
S ≤ 1 2 k B a k N BBO ,
and equals the BBO entropy (42) if a 2 k = 1 4 ⇒ a = k 2 . Thus, the energy of all BBOs having a radius (43) is
E BBO = k 2 M BBO c 2 = k ^ M BBO c 2 ,
with k = 2 in the case of BHs and k > 2 setting the lower bound for other BBOs. We shall further call the coefficients k, k ^ the size-to-mass ratios (STM). The upper bound shall be given in Section 6.
According to the no-hair theorem, all BHs general relativity (GR) solutions are characterized only by three parameters: mass, electric charge, and angular momentum. However, BHs are fundamentally uncharged since the parameters of any conceivable BH, in particular, charged (Reissner–Nordström) and charged-rotating (Kerr–Newman) BH, can be altered arbitrarily, provided that the BH area does not decrease [48] by means of Penrose processes [49,50] to extract BH electrostatic and/or rotational energy [51]. Thus any BH is defined by only one real parameter: its diameter (cf. [5] Fig. 2(b)), mass, temperature, energy, etc., each corresponding to the other. We note that in the complex Euclidean R 3 × I space, an n-ball ( n ∈ C ) is spherical only for a vanishing imaginary dimension [14]. As the interiors of the BBOs are inaccessible to an exterior observer [46], BBOs do not have interiors7, which makes them similar to interior-less mathematical points. Yet, a BH can embrace this defining parameter. That means that three points forming a Planck triangle corresponding to a bit of information on a BH surface can store this parameter and this is intuitively comprehensible: the area of a spherical triangle is larger than that of a flat triangle defined by the same vertices, providing the curvature is nonvanishing, and depends on this curvature, i.e., this additional parameter defines it.
On the other hand, it is accepted that in the case of NSs, electrons combine with protons to form neutrons so that NSs are composed almost entirely of neutrons. But it is never the case that all electrons and all protons of an NS become neutrons. WDs are charged by definition as they are accepted to be composed mostly of electron-degenerate matter. But how can a charged BBO store both the curvature and an additional parameter corresponding to its charge? Fortunately, the relation (36) ensures that charges are the same in real and imaginary dimensions. Therefore each charged Planck triangle of a BBO surface is associated with three R × I Planck triangles, each sharing a vertex or two vertices with this triangle in R 2 . And this configuration is capable of storing both the curvature and the charge. The Planck triangle ℓ P 2 and the R × I imaginary Planck triangle ℓ P ℓ P i = ℓ P 2 α 2 3 / α 3 , which has a smaller area in modulus, can be considered in a polyspherical coordinate system, in which gravitation/acceleration acts in a radial direction (with the entropic gravitation acting inwardly and acceleration acting in both radial directions) [5], while electrostatics act in a tangential direction.
Contrary to the no-hair theorem, we characterize BBOs only by mass and charge, neglecting the angular momentum, since the latter introduces the notion of time, which we find redundant in the BBO description of a patternless thermodynamical equilibrium.
Not only BBOs are perfectly spherical. Also, their mergers, to which we shall return in Section 7, are perfectly spherical, as it has been recently experimentally confirmed [52] based on the registered gravitational event GW170817. One can hardly expect a collision of two perfectly spherical, patternless thermal noises to produce some aspherical pattern instead of another perfectly spherical patternless noise. Where would the information about this pattern come from at the moment of the collision? From the point of impact? No point of impact is distinct on a patternless surface.
The hitherto considerations may be unsettling for the reader, as the energy (46) of BBOs other than BHs (i.e., for k > 2 ) exceeds mass-energy equivalence E = M c 2 , which is the limit of the maximum real energy. We note in passing that mass-energy equivalence stems from Taylor expansion of the Lorentz factor γ = 1 / 1 − v 2 / c 2 around v = 0
M c 2 γ ≈ M c 2 + M v 2 2 + 3 8 M v 4 c 2 + 5 16 M v 6 c 4 + 35 128 M v 8 c 6 + ⋯ ,
where the 2nd term corresponds to the kinetic energy of mass M. Thus, the notion of time is included in countably infinite fractions of Taylor expansion (47). But Mc2 is timeless. In the subsequent section, we shall show that a part of the energy of NSs and WDs, exceeding Mc2 is imaginary and thus unmeasurable.

5. Complex Energies and Equilibria

A complex energy formula
E R ≔ E M R + i E Q R = M R c 2 + i Q R 2 π ϵ 0 G c 2 ,
where E M R and i E Q R represent respectively real and imaginary energy of an object having mass M R and charge Q R 8 was proposed in [53]. Equation (48) considers real (i.e., physically measurable) masses M R and charges Q R . We shall modify it to a form involving real and imaginary physical quantities, defining the following six complex energies, the complex energy of real mass and imaginary charge
E M Q i ≔ E M + E Q i = M c 2 + Q i 2 π ϵ 0 G c 2 = = m m P + i q α m P c 2 = m + i q α E P ,
of real charge and imaginary mass
E Q M i ≔ E Q + E M i = Q 2 π ϵ 0 G c n 2 + M i c n 2 = = q α 2 m P i + m i m P i c n 2 = α 2 α 2 2 q α + α α 2 m i E P ,
of real photon (energy or frequency ν ) and imaginary mass
E F M i ≔ h ν + M i c n 2 = f + α 5 α 2 5 m i E P ,
of real photon and imaginary charge
E F Q i ≔ h ν + Q i 2 π ϵ 0 G c 2 = f + i q α E P ,
of real mass and imaginary photon (with frequency ν i = c n / λ i )
E M F i ≔ M c 2 + h c n λ i = m + α 5 α 2 5 f i E P ,
and of real charge and imaginary photon
E Q F i ≔ Q 2 π ϵ 0 G c n 2 + h ν i = α 2 α 2 2 q α + α α 2 f i E P ,
where h ν = 2 π ℏ c λ = 2 π l E P ≔ f E P , h ν i ≔ f i E P i , f ∈ R , We used relations (20), (25), (31) (40), and
α c ℏ = α 2 c n ℏ = e 2 4 π ϵ 0
Complex energies (49)-(54) link mass, charge, and photon energies within the framework of ED. We note in passing that using the different speed of light parameters in energies (49) and (50) yields a contradiction (cf. Appendix E).
Energies (49), (50), (52), and (54) yield two different quanta of the charge energies corresponding to the elementary charge, the imaginary quantum
E Q i ( q = ± 1 ) = ± i α E P ≈ ± i 1.6710 × 10 8 [ J ] ,
and the - larger in modulus - real quantum
E Q ( q = ± 1 ) = ± α 2 E P i ≈ ± 1.7684 × 10 8 [ J ] .
Furthermore, ∀ q , α 2 E Q i = i α 2 2 E Q . We note that photon energy vanishes for the infinite wavelength.
The squared moduli of the energies (49)-(54) are
| E M Q i | 2 = M 2 + q 2 α m P 2 c 4 = m 2 + q 2 α E P 2 ,
| E Q M i | 2 = α 4 α 2 4 q 2 α m P 2 − M i 2 c 4 = α 4 α 2 4 q 2 α − α α 2 m i 2 E P 2 ,
| E F M i | 2 = f 2 − α 5 α 2 5 m i 2 E P 2 ,
| E M F i | 2 = m 2 − α 5 α 2 5 f i 2 E P 2 .
| E F Q i | 2 = f 2 + q 2 α E P 2 ,
| E Q F i | 2 = α 4 α 2 4 q 2 α − α 5 α 2 5 f i 2 E P 2 ,
Postulating that the squared moduli (57) and (58) are equal
| E M Q i | 2 = | E Q M i | 2 , α 2 4 M 2 + q 2 α m P 2 = α 4 q 2 α m P 2 − M i 2 ,
we demand a mass-charge energy equilibrium condition from which we can obtain the value of the imaginary mass M i as a function of mass M and charge Q in this equilibrium
M i = ± q 2 α m P 2 1 − α 2 4 α 4 − α 2 4 α 4 M 2 .
In particular for q = 0 this yields
M i α 2 = ± i M α 2 2 or M i = ± i α 2 2 α 2 M ≈ ± 0.9557 i M .
Since mass M i is imaginary by definition, the argument of the square root in the relation (65) must be negative. Thus
M > | q | m P α α 4 α 2 4 − 1 ≈ | q | 5.7275 × 10 − 10 [ kg ] .
This means that masses of uncharged micro BHs ( q = 0 ) in thermodynamic equilibrium can be arbitrary. However, micro NSs and micro WDs, also in thermodynamic equilibrium, are inaccessible for direct observation, as they cannot achieve a net charge Q = 0 . Even a single elementary charge of a white dwarf renders its mass M WD = 5.7275 × 10 − 10 [ kg ] comparable to the mass of a grain of sand.
We note here that only the masses satisfying M < 2 π m P ≈ 1.3675 × 10 − 7 [ kg ] have Compton wavelengths larger than the Planck length [5]. We note in passing that a classical description has been recently ruled out at the microgram ( 1 × 10 − 9 [ kg ] ) mass scale [54]. Comparing this bound with the bound (67) yields the charge multiplier q corresponding to an atomic number
Z = 2 π α α 4 α 2 4 − 1 = 238 ,
of a hypothetical element, which - as we conjecture - sets the limit on an extended periodic table and is a little higher than the accepted limit of Z = 184 (unoctquadium). More massive elements would have Compton wavelengths smaller than the Planck length, which is physically implausible.
Postulating that the squared moduli (62) and (63) are equal
| E F Q i | 2 = | E Q F i | 2 , α 2 4 f 2 + q 2 α = α 4 q 2 α − α α 2 f i 2 ,
we demand a photon-charge energy equilibrium condition from which we can obtain the value of the imaginary photon energy h ν i corresponding to the real photon energy h ν and charge Q in this equilibrium
f i = ± α 2 5 α 5 q 2 α α 4 α 2 4 − 1 − f 2 .
Since α 2 5 / α 5 is imaginary, we demand q 2 α ( α 4 / α 2 4 − 1 ) < f 2 to ensure that f i ∈ R . Thus
h ν = f E P > ± q α α 4 α 2 4 − 1 E P ≈ ± q 5.1477 × 10 7 [ J ] ,
which, using mass-energy equivalence, corresponds to the bound (67). We can also obtain the maximum wavelength in this equilibrium corresponding to the charge. For q 2 = 1 it is λ < 3.8589 × 10 − 33 [ m ] with l < 238.7580 corresponding to the bound (68).
It seems that no meaningful conclusions can be derived by postulating the equality of the squared moduli (60) and (61). Such a mass-photon energy equilibrium is an equation with four unknowns. Neither physically meaningful elementary mass (37) nor length (38) is common for real and imaginary dimensions.
Postulating the equality of all the squared moduli (58)-(63) to some constant energy
| E M Q i | 2 = | E Q M i | 2 = | E F M i | 2 = = | E F Q i | 2 = | E M F i | 2 = | E Q F i | 2 ≔ A E P 2 , A ∈ R ,
we demand a mass-charge-photon equilibrium condition, which can be solved for A. Subtracting moduli (58) and (62) yields m 2 = f 2 , and similarly subtracting moduli (59) and (63) yields m i 2 = f i 2 . This equates moduli (60) and (61). Substituting m i 2 = f i 2 into the modulus (63) and subtracting from the modulus (58) yields
m 2 + α α 2 m i 2 = A 1 − α 2 4 α 4 .
Subtracting this from (60) or (61) yields
m i 2 = f i 2 = − A α 2 9 α 5 ( α 4 + α 2 4 ) ,
which substituted into the relation (73) yields
m 2 = f 2 = A α 4 α 4 + α 2 4 .
Finally, substituting the relation (75) into the modulus (58) yields
q 2 α = A α 2 4 α 4 + α 2 4 .

6. BBO Complex Energy Equilibria

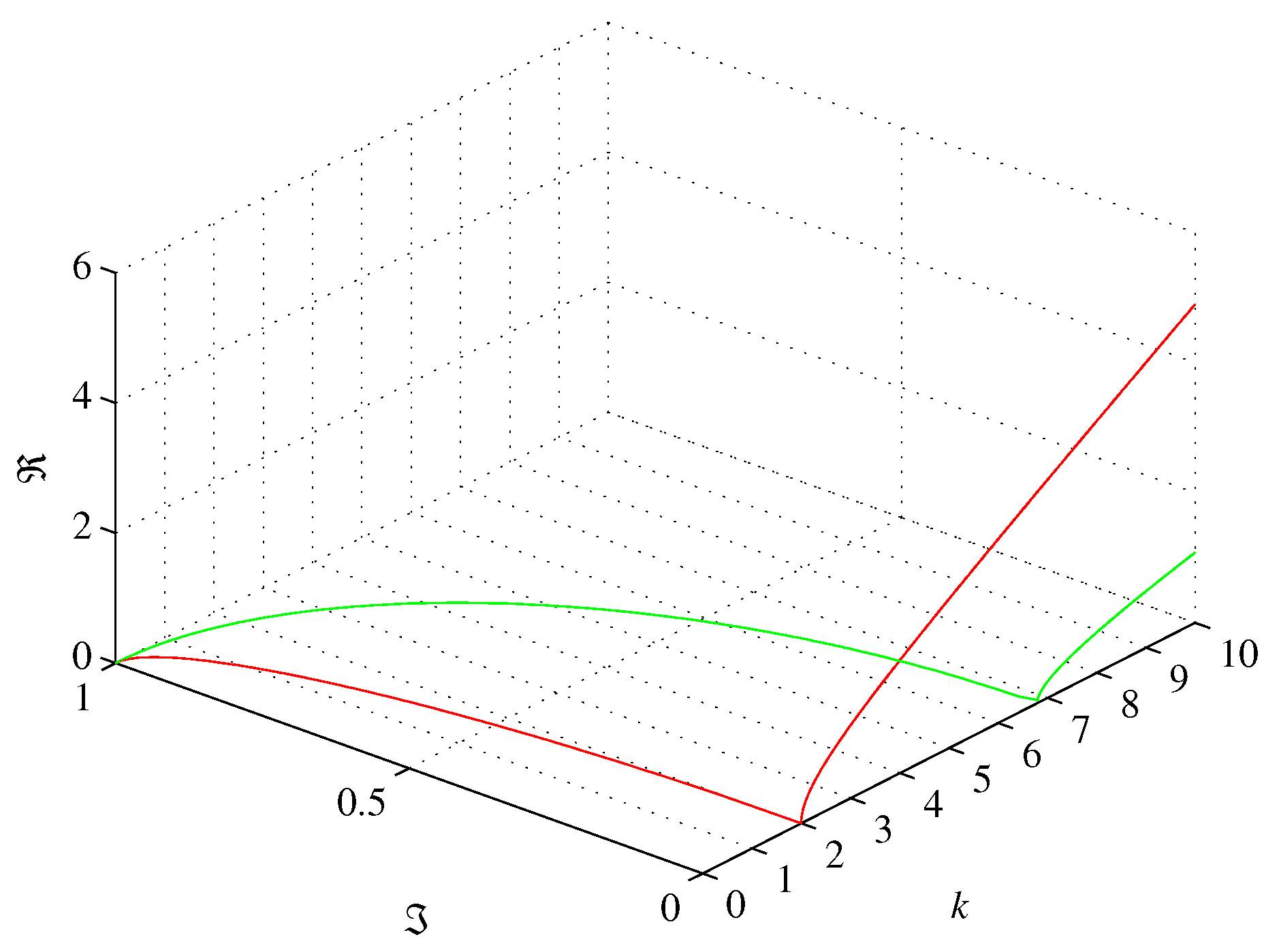

We can interpret the modulus of the generalized energy of BBOs (46) as the modulus of the complex energy of real mass (58), taking the observable real energy E BBO = M BBO c 2 of the BBO as the real part of this energy. Thus
k 2 M BBO c 2 2 = M BBO 2 + q BBO 2 α m P 2 c 4 ,
leads to
q BBO = ± M BBO m P 1 α k 2 4 − 1 ,
representing a charge surplus energy exceeding M BBO c 2 . For k = 2 , q BBO vanishes, confirming the vanishing net charge of BHs. Similarly, we can interpret the modulus of the generalized energy of BBOs (46) as the modulus of the complex energy of real charge (59). Thus
k 2 4 M BBO 2 = α 4 α 2 4 q BBO 2 α m P 2 − M i B B O 2 , M i B B O 2 = q BBO 2 α m P 2 − α 2 4 α 4 k 2 4 M BBO 2 .
Substituting q BBO 2 from the relation (78) into the relation (79) turns the equilibrium condition (65) into a function of the STM k instead of the charge q
M i BBO 2 = k 2 4 1 − α 2 4 α 4 − 1 M BBO 2 , M i BBO = ± M BBO k 2 4 1 − α 2 4 α 4 − 1 ,
which for BHs ( k = 2 ) also corresponds to the relation (66) between uncharged masses M and M i , where no assumptions concerning the BBO energy were made.
Furthermore, the argument of the square root in the relation (80) must be negative, as mass M i is imaginary by definition. This leads to the maximum STM ratio
k max = ± 2 1 − α 2 4 α 4 ≈ 6.7933 , k ^ max ≈ ± 3.3967 ,
where k < | k max | satisfies the mass equilibrium (80). Relations (78) and (80) are shown in Figure 1.
The maximum STM ratio k max (81) sets the bounds on the BBO energy (46), mass, and radius (43)
R BH = 2 G M BBO c 2 ≤ R BBO < k max G M BBO c 2 .
In particular, using relations (40), 2 m BBO ≤ r BBO < k max m BBO or r BBO / k max < m BBO ≤ r BBO / 2 . As WDs are the least dense BBOs, this bounds define the maximum radius and mass of a WD core.
Furthermore, relations (67) and (81) set the bound on the BBO minimum mass in the equilibrium (64)
m BBO > max q BBO α α 4 α 2 4 − 1 , d BBO 4 1 − α 4 α 2 4 ,
where
q BBO = 1 4 α 2 4 α 5 d BBO
defines a condition in which neither q BBO nor d BBO can be further increased to reach its counterpart (defined respectively by d BBO and q BBO ) in the bound (83). Thus, for example, 1-bit BBO ( d BBO = 1 / π ) corresponds to q BBO > 1.5780 , π -bit BBO ( d BBO = 1 ) corresponds to q BBO > 2.7969 , while the conjectured heaviest element with atomic number q BBO (68) corresponds to
d BBO = ± 8 π 1 − α 2 4 α 4 ≈ 85.3666 .
In the case of a BBO, we obtain the equilibrium condition (72) by comparing the squared moduli (58)-(63) of the energies (49)-(54) with the squared BBO energy (46) which yields a solvable system of six nonlinear equations with six unknowns k , q , m , m i , f , f i
| E M Q i | 2 ⇒ m 2 + q 2 α = k 2 4 m 2 , q 2 α = m 2 k 2 4 − 1 , | E Q M i | 2 ⇒ α 4 α 2 4 q 2 α − α 5 α 2 5 m i 2 = k 2 4 m 2 , | E F M i | 2 ⇒ f 2 − α 5 α 2 5 m i 2 = k 2 4 m 2 , | E F Q i | 2 ⇒ f 2 + q 2 α = k 2 4 m 2 , | E M F i | 2 ⇒ m 2 − α 5 α 2 5 f i 2 = k 2 4 m 2 , m 2 1 − k 2 4 = α 5 α 2 5 f i 2 , | E Q F i | 2 ⇒ α 4 α 2 4 q 2 α − f i 2 α 5 α 2 5 = k 2 4 m 2 .
Substituting q 2 α = m 2 k 2 4 − 1 from | E M Q i | 2 to | E F Q i | 2 recovers the Compton wavelength of the BBO, λ BBO = h M BBO c , in its Planck units form l 2 = 4 π 2 m 2 . Furthermore, by substituting q 2 α and the Compton mass m 2 = 4 π 2 l 2 into | E Q M i | 2 , and comparing the LHSs of | E Q M i | 2 and | E F M i | 2 we obtain the BBO equilibrium STM ratio
k eq 2 4 = α 2 4 α 4 + 1 ⇒ k eq = ± 2 1 + α 2 4 α 4 ≈ 2.7665 , k ^ eq ≈ 1.3833 ,
where BBO gravity, charge, and photon energies remain at equilibrium. The STM ratio k = k eq satisfies the equilibrium condition (72) for
A = 1 4 k eq 2 m BBO 2 = 1 + α 2 4 α 4 m BBO 2 ≈ 1.9133 m BBO 2 .
The equilibrium k eq (87) and the maximum k max (81) STM ratios are related as k eq 2 + 16 / k max 2 = 8 . Also, the following relations can be derived from the relations (86) for the BBO in the equilibrium k eq (87)
m i 2 = − α 2 9 α 9 m 2 ⇔ M i BBO eq = ± i α 2 4 α 4 M BBO eq ,
l i 2 = − α 9 α 2 9 l 2 ⇔ λ i BBO eq = ± i α 3 α 2 3 λ BBO eq ,
m 2 = f 2 = 4 π 2 l 2 ⇔ λ BBO eq = h M BBO eq c ,
q 2 α = α 2 4 α 4 m 2 .
The BBO in the energy equilibrium k eq bearing the elementary charge ( q 2 = 1 ) would have mass M BBO eq ≈ ± 1.9455 × 10 − 9 [ kg ] , imaginary mass M i BBO eq ≈ ± i 1.7768 × 10 − 9 [ kg ] , wavelength λ BBO eq ≈ ± 1.1361 × 10 − 33 [ m ] , and imaginary wavelength λ i BBO eq ≈ ± i 1.2160 × 10 − 33 [ m ] .
We note that objects with radii R BH ≤ R ∗ ≤ 1.5 R BH are referred to in state of the art as ultracompact [55], where 1.5 R BH is a photon sphere radius9. Any object that undergoes complete gravitational collapse passes through an ultracompact stage [56], where R ∗ < 1.5 R BH . Collapse can be approached by gradual accretion, increasing the mass to the maximum stable value, or by the loss of angular momentum [56]. During the loss of angular momentum, the star passes through a sequence of increasingly compact configurations until it finally collapses to become a black hole. It was also pointed out [57] that for a neutron star of constant density, the pressure at the center would become infinite if R ∗ < 1.125 R BH , a radius of the maximal sustainable density for gravitating spherical matter given by Buchdahl’s theorem. It was shown [58] that this limit applies to any well-behaved spherical star where density increases monotonically with radius. Furthermore, some observers would measure a locally negative energy density if R ∗ < 1.3 ( 3 ) R BH , thus breaking the dominant energy condition, although this may be allowed [59]. As the surface gravity grows, photons from further behind the NS become visible. At R ∗ ≈ 1.76 R BH , the whole NS surface becomes visible [60]. The relative increase in brightness between the maximum and minimum of a light curve are greater in the case of R ∗ < 1.5 R BH than in the case of R ∗ > 1.5 R BH [60]. Therefore the equilibrium STM ratio R eq = 1.3833 R BH (87) is well within the range of radii of ultracompact objects researched in state-of-the-art within the framework of GR.
However, aside from the Schwarzschild radius (derivable from escape velocity v e s c 2 = 2 G M / R of mass M by setting v e s c 2 = c 2 ), and discovered in 1783 by John Michell [61], all the remaining radii of GR are only approximations, as GR neglects the value of the fine-structure constants α and α 2 , which, similarly as π or the base of the natural logarithm, are the fundamental constants of nature.

7. BBO Mergers

As the entropy (Boltzmann, Gibbs, Shannon, von Neumann) of independent systems is additive, a merger of BBO1 and BBO2 having entropies (42) S BBO 1 = 1 4 k B N BBO 1 and S BBO 2 = 1 4 k B π d BBO 2 2 , produces a BBOC having entropy
S BBO 1 + S BBO 2 = S BBO C ⇒ d BBO 1 2 + d BBO 1 2 = d BBO C 2 ,
which shows that a merger of two primordial BHs, each having the Planck length diameter, the reduced Planck temperature T P 2 π (the largest physically significant temperature [12]), and no tangential acceleration a L L [5,12], produces a BH having d BH = ± 2 which represents the minimum BH diameter allowing for the notion of time [12]. In comparison, a collision of the latter two BHs produces a BH having d BH = ± 2 having the triangulation defining only one precise diameter between its poles (cf. [5] Fig. 3(b)), which is also recovered from Heisenberg’s Uncertainty Principle (cf. Appendix C).
Substituting the generalized radius (43) into the entropy relation (93) yields
k BBO C 2 M BBO C 2 = k BBO 1 2 M BBO 1 2 + k BBO 2 2 M BBO 2 2 ,
which establishes a Pythagorean relation between the generalized energies (46) of the merging components and the merger
k BBO C 2 4 M BBO C 2 c 4 = k BBO 1 2 4 M BBO 1 2 c 4 + k BBO 2 2 4 M BBO 2 2 c 4 ,
valid both for m BBO ≥ 0 and m BBO ≤ 0 .
It is accepted that gravitational events’ observations alone are able to measure the masses of the merging components and set a lower limit on their compactness, but the results do not exclude mergers more compact than neutron stars such as quark stars, black holes, or more exotic objects [62]. We note in passing that describing the registered gravitational events as waves is misleading. Normal modulation of the gravitational potential, caused by rotating (in the merger case - inspiral) bodies, is wrongly interpreted as a gravitational wave understood as a carrier of gravity [63].
The accepted value of the Chandrasekhar WD mass limit, preventing its collapse into a denser form, is M Ch ≈ 1.4 M ⊙ [64] and the accepted value of the analogous Tolman–Oppenheimer–Volkoff NS mass limit is M TOV ≈ 2.9 M ⊙ [65,66]. There is no accepted value of the BH mass limit. The conjectured value is 5 × 10 10 M ⊙ . The masses of most of the registered merging components are well beyond M TOV . Of those that are not, most of the total or final masses exceed this limit. Therefore these mergers were classified as BH mergers. Only a few were classified otherwise, including GW170817, GW190425, GW200105, and GW200115. They are listed in Table 1.
The relation (95) explains the measurements of large masses of the BBO mergers with at least one charged merging component without resorting to any hypothetical types of exotic stellar objects such as quark stars. Interferometric data, available online at the Gravitational Wave Open Science Center (GWOSC) portal10, indicate that the total mass of a merger is the sum of the masses of the merging components. Thus
m BBO C = m BBO 1 + m BBO 2 ⇒ m BBO C 2 = m BBO 1 2 + m BBO 2 2 + 2 m BBO 1 m BBO 2 ⇒ m BBO C 2 > m BBO 1 2 + m BBO 2 2 if m BBO 1 m BBO 2 > 0 < m BBO 1 2 + m BBO 2 2 if m BBO 1 m BBO 2 < 0 .
We initially assume m BBO > 0 ⇒ m BBO 1 m BBO 2 > 0 as negative masses, similarly to negative lengths, are inaccessible for direct observation, unlike charges.
We can use the BBO equilibrium relations (86) to derive some information about the merger from the relation (95). | E M Q i | 2 with the first inequality (96) lead to
m BBO C 2 + α q BBO C 2 = = m BBO 1 2 + α q BBO 1 2 + m BBO 2 2 + α q BBO 2 2 , m BBO C 2 = = m BBO 1 2 + m BBO 2 2 + α ( q BBO 1 2 + q BBO 2 2 ) − α q BBO C 2 ≥ , ≥ m BBO 1 2 + m BBO 2 2 ⇒ q BBO C 2 ≤ q BBO 1 2 + q BBO 2 2 ,
which, by the charge conservation principle, implies mixed (positive and negative) charges of the merging components satisfying q BBO 1 q BBO 2 ≤ 0 . On the other hand, | E M F i | 2 with the first inequality (96) lead to
m BBO C 2 ≥ m BBO 1 2 + m BBO 2 2 ⇒ f i BBO C 2 ≥ f i BBO 1 2 + f i BBO 2 2 .
But | E Q F i | 2 with the inequality (97) lead to an apparent contradiction
q BBO C 2 ≤ q BBO 1 2 + q BBO 2 2 ⇒ f i BBO C 2 ≤ f i BBO 1 2 + f i BBO 2 2 ,
while | E M F i | 2 with the inequality (99) lead to
f i BBO C 2 ≤ f i BBO 1 2 + f i BBO 2 2 ⇒ m BBO C 2 ≤ m BBO 1 2 + m BBO 2 2 ,
| E Q F i | 2 with the inequality (98) lead to
f i BBO C 2 ≥ f i BBO 1 2 + f i BBO 2 2 ⇒ q BBO C 2 ≥ q BBO 1 2 + q BBO 2 2 ,
and so on ( | E Q M i | 2 , | E F M i | 2 , | E F Q i | 2 )
q BBO C 2 ≥ q BBO 1 2 + q BBO 2 2 ⇒ m i BBO C 2 ≥ m i BBO 1 2 + m i BBO 2 2 ⇒ f BBO C 2 ≥ f BBO 1 2 + f BBO 2 2 ⇒ q BBO C 2 ≤ q BBO 1 2 + q BBO 2 2 .
Additivity of entropy (93) of statistically independent merging BBOs, both in global thermodynamic equilibrium, defined by their generalized radii (43), introduces the energy relation (95). This relation, equality of charges in real and imaginary dimensions (36), and the BBO equilibrium relations (86) induce not only mixed charges but also imaginary, negative, and mixed wavelengths and masses during the merger. A BBO merger spreads in all dimensions, not only the observable ones, as a gravitational event associated with a fast radio burst (FRB) event, as it has recently been reported [67] based on GW1904251 gravitational event and FRB 20190425A event11.
In the observable dimensions during the merger, the STM ratio k BBO C decreases making the BBOC denser until it becomes a BH for k BBO C = 2 and no further charge reduction is possible (cf. Figure 1). From the relation (94) and the first inequality (96) we see that this holds for
k BBO C 2 M BBO 1 2 + M BBO 2 2 < k BBO 1 2 M BBO 1 2 + k BBO 2 2 M BBO 2 2 .
Table 1 lists the mass-to-size ratios k BBO C calculated according to the relation (95) that provide the measured mass M BBO C of the merger and satisfy the inequality (103). Mass-to-size ratios k BBO 1 and k BBO 2 of the merging components were arbitrarily selected based on their masses, taking into account the M TOV NS mass limit.
The meaning of f and f i photon energy multipliers in the relations (98)-(102) requires further research. We conjecture that f relates to the spectrum of measured FRBs of the mergers.

8. BBO Complex Gravity and Temperature

Complex energies (49)-(54) define complex forces (similarly to the complex energy of real masses and charges (48), [53] Eq. (7)) acting over real and imaginary distances  R , R i . Using the relations (40), we obtain the following products
E 1 m q i E 2 m q i ≔ E 1 M Q i E 2 M Q i / E P 2 = = m 1 m 2 − q 1 q 2 α + i α ( m 1 q 2 + m 2 q 1 ) , E 1 q m i E 2 q m i ≔ E 1 Q M i E 2 Q M i / E P 2 = = α 5 α 2 4 q 1 q 2 + 1 α 2 m i 1 m i 2 + 1 α 2 q 1 m i 2 + q 2 m i 1 ,
E 1 f m i E 2 f m i ≔ E 1 F M i E 2 F M i / E P 2 = = f 1 f 2 + α 5 α 2 5 m i 1 m i 2 + α 5 α 2 5 f 1 m i 2 + f 2 m i 1 , E 1 m f i E 2 m f i ≔ E 1 M F i E 2 M F i / E P 2 = = m 1 m 2 + α 5 α 2 5 f i 1 f i 2 + α 5 α 2 5 m 1 f i 2 + m 2 f i 1 ,
E 1 q f i E 2 q f i ≔ E 1 Q F i E 2 Q F i / E P 2 = = α 4 α 2 4 q 1 q 2 α + α 5 α 2 5 f i 1 f i 2 + α 5 α 2 9 f i 2 q 1 + f i 1 q 2 , E 1 f q i E 2 f q i ≔ E 1 F Q i E 2 F Q i / E P 2 = = f 1 f 2 − q 1 q 2 α + i α f 1 q 2 + f 2 q 1 ,
defining six complex forces acting over a real distance  R ≔ r ℓ P , r ∈ R
F A B i = G c 4 R 2 E 1 A B i E 2 A B i = F P r 2 E 1 a b i E 2 a b i ,
and six complex forces acting over an imaginary distance  R i ≔ r i ℓ P i , r i ∈ R
F ˜ A B i = G c n 4 R i 2 E 1 A B i E 2 A B i = α 2 α F P r i 2 E 1 a b i E 2 a b i ,
where A , B ∈ { M , Q , F } and a , b ∈ { m , q , f } , and
α 2 r 2 F A B i = α r i 2 F ˜ A B i .
We exclude mixed forces (based on real and imaginary masses/charges/photons) as real and imaginary dimensions are orthogonal.
With a further simplifying assumption of r 2 = r i 2 , the forces acting over a real distance R are stronger and opposite to the corresponding forces acting over an imaginary distance R i even though the Planck force is lower in modulus than the (real) α 2 -Planck force (27). This is a strong assumption but seemingly correct. General radius (43) and energy (46) are the same in Planck units, and α 2 -Planck units; STM remains the same.
In particular, we can use the complex force F M Q i (107) with (104) (i.e., complex Newton’s law of universal gravitation) to calculate the BBO surface gravity g BBO , assuming an uncharged ( q 2 = 0 ) test mass m 2
F P r BBO 2 m BBO m 2 + i α m 2 q BBO = = M 2 g BBO = m 2 m P g ^ BBO a P , g ^ BBO = 1 r BBO 2 m BBO + i α q BBO ,
where g BBO = g ^ BBO a P , g ^ BBO ∈ R . Substituting the BBO equilibrium relation (78) and the generalized BBO radius (43) r BBO = k m BBO into the relation (110) yields
g BBO = a P k r BBO 1 ± i k 2 4 − 1 ,
which reduces to BH surface gravity for k = 2 , in modulus
g ^ BBO 2 = 1 k 2 r BBO 2 1 + i k 2 4 − 1 1 − i k 2 4 − 1 = 1 4 r BBO 2 ,
equals to a squared BH surface gravity for all k, and in particular,
g BBO ( k max ) = ± a P d BBO 0.2944 ± 0.9557 i ,
g BBO ( k eq ) = ± a P d BBO 0.7229 ± 0.6909 i .
As the BBO potential is [5]
δ φ BBO = − N 1 N BBO c 2 = − 1 2 c 2 ,
we conjecture that its complex form is
δ φ BBO = ± c 2 k 1 ± i k 2 4 − 1
and only its negative modulus equals − c 2 / 2 .
The BBO surface gravity (111) leads to the generalized complex Hawking blackbody-radiation equation
T BBO = ℏ 2 π c k B g BBO = T P k π d BBO 1 ± i k 2 4 − 1 ,
describing the BBO temperature12 by including its charge in the imaginary part, which also in modulus equals squared BH temperature ∀ k . In particular,
T BBO ( k max ) = ± T P 2 π d BBO α 4 − α 2 4 α 2 ± i α 2 2 α 2 , = ± T P 2 π 3 d BBO π 4 − π 1 4 ± i π 1 2 , = ± T P 2 π π 2 2 d BBO π 2 4 − π 4 ± i π 2 ,
T BBO ( k eq ) = ± T P 2 π d BBO α 2 ± i α 2 2 α 4 + α 2 4 , = ± T P 2 π d BBO π 2 ± i π 1 2 π 4 + π 1 4 , = ± T P 2 π d BBO π 2 2 ± i π 2 π 2 4 + π 4 ,
reduce to a BH temperature for α 2 = 0 . We note that for d BBO = 1 , Re ( T BBO ( k max ) ) ≈ 6.6387 × 10 30 [ K ] (where T P / ( 2 π ) ≈ 2.2549 × 10 31 [ K ] ) has the magnitude of the Hagedorn temperature of strings.
It seems, therefore, that a universe without imaginary dimensions (i.e., with α 2 = 0 ) would be a black hole. Hence, the evolution of information [1,2,3,4,5,6] requires imaginary time. And we cannot zero α 2 as we would have to neglect graphene.

9. Discussion

The reflectance of graphene under the normal incidence of electromagnetic radiation expressed as the quadratic equation for the fine-structure constant α includes the 2nd negative fine-structure constant α 2 . The sum of the reciprocal of this 2nd fine-structure constant α 2 with the reciprocal of the fine-structure constant α (2) is independent of the reflectance value R and remarkably equals simply − π . Particular algebraic definition of the fine-structure constant α − 1 = 4 π 3 + π 2 + π , containing the free π term, can be interpreted as the asymptote of the CODATA value α − 1 , the value of which varies with time. The negative fine-structure constant α 2 leads to the set of α 2 -Planck units applicable to imaginary dimensions, including imaginary α 2 -Planck units (18)-(26). Real and imaginary mass and charge units (34), length and mass units (35) units, and temperature and time units (33) are directly related to each other. Also, the elementary charge e is common for real and imaginary dimensions (36).
Applying the α 2 -Planck units to a complex energy formula [53] yields complex energies (49), (50) setting the atomic number Z = 238 as the limit on an extended periodic table. The generalized energy (46) of all perfect black-body objects (black holes, neutron stars, and white dwarfs) having the generalized radius R BBO = k ^ R BH exceed mass-energy equivalence if k ^ > 1 . Complex energies (49), (50) allow for storing the excess of this energy in their imaginary parts, inaccessible for direct observation. The results show that the perfect black-body objects other than black holes cannot have masses lower than 5.7275 × 10 − 10 [ kg ] and that the STM ratios of their cores cannot exceed k ^ max ≈ 3.3967 defined by the relation (81). It is further shown that a black-body object is in the equilibrium of complex energies if its radius R eq ≈ 1.3833 R BH (87). BBO fluctuations for k eq and k max are briefly discussed in Appendix G. Appendix F presents BBO quantum statistics. The proposed model explains the registered (GWOSC) high masses of the neutron stars mergers without resorting to any hypothetical types of exotic stellar objects.
In the context of the results of this study, monolayer graphene, a truly 2-dimensional material with no thickness13, is a keyhole to other, unperceivable, dimensionalities. Graphene history is also instructive. Discovered in 1947 [69], graphene was long considered an academic material until it was eventually pulled from graphite in 2004 [70] by means of ordinary Scotch tape14. These fifty-seven years, along with twenty-nine years (1935-1964) between the condemnation of quantum theory as incomplete [71] and Bell’s mathematical theorem [72] asserting that it is not true, and the fifty-eight years (1964-2022) between the formulation of this theorem and 2022 Nobel prize in physics for its experimental loophole-free confirmation, should remind us that Max Planck, the genius who discovered Planck units, has also discovered Planck’s principle.

Acknowledgments

I truly thank my wife for her support when this research [73,74] was conducted. I thank Wawrzyniec Bieniawski for inspiring discussions and constructive ideas concerning the layout of this paper and for his feedback while working on the BBO mergers section. I thank Andrzej Tomski for the definition of the scalar product for Euclidean spaces R a × I b (1).

Appendix A. Other quadratic equations

The quadratic equation for the sum of transmittance (3) and absorptance (5) of MLG under normal incidence of EMR, putting C TA T + A , is
1 4 C TA π 2 α 2 + C TA − 1 π α + C TA − 1 = 0 ,
and has two roots with reciprocals
α − 1 = C TA π 2 1 − C TA + 1 − C TA ≈ 137.036 ,
and
α 2 − 1 = C TA π 2 1 − C TA − 1 − C TA ≈ − 140.178 ,
whereas their sum α − 1 + α 2 − 1 = − π is, similarly as the relation (12), also independent of T and A.
Other quadratic equations do not feature this property. For example, the sum of T + R (6) expressed as the quadratic equation and putting C TR T + R , is
1 4 C TR − 1 π 2 α 2 + C TR π α + C TR − 1 = 0 ,
and has two roots with reciprocals
α − 1 = π ( C TR − 1 ) − 2 C TR + 2 2 C TR − 1 ≈ 137.036 ,
and
α TR − 1 = π ( C TR − 1 ) − 2 C TR − 2 2 C TR − 1 ≈ 0.0180 ,
whereas their sum
α TR 1 − 1 + α TR 2 − 1 = − π C TR C TR − 1 ≈ 137.054
is dependent on T and R.

Appendix B. Two π-like constants

With algebraic definitions of α (13) and α 2 (14), T (3), R (4) and A (5) of MLG for normal EMR incidence can be expressed just by π . For α − 1 = 4 π 3 + π 2 + π (13) they become
T α = 4 4 π 2 + π + 1 2 8 π 2 + 2 π + 3 2 ≈ 0.9775 ,
A α = 4 4 π 2 + π + 1 8 π 2 + 2 π + 3 2 ≈ 0.0224 ,
while for α 2 − 1 = − 4 π 3 − π 2 − 2 π (14) they become
T α 2 = 4 4 π 2 + π + 2 2 8 π 2 + 2 π + 3 2 ≈ 1.0228 ,
A α 2 = − 4 4 π 2 + π + 2 8 π 2 + 2 π + 3 2 ≈ − 0.0229 ,
with
R α = R α 2 = 1 8 π 2 + 2 π + 3 2 ≈ 1.2843 × 10 − 4 .
( T ( α ) + A ( α ) ) + R ( α ) = ( T ( α 2 ) + A ( α 2 ) ) + R ( α 2 ) = 1 as required by the law of conservation of energy (8), whereas each conservation law is associated with a certain symmetry, as asserted by Noether’s theorem. A ( α ) > 0 and A ( α 2 ) < 0 imply a sink and a source respectively, while the opposite holds true for T, as illustrated schematically in Figure 2. Perhaps, the negative A and T exceeding 100% for α 2 (11) or (14) could be explained in terms of spontaneous graphene emission.
The quadratic equation (9) describing the reflectance R of MLG under the normal incidence of EMR (or alternatively (A1)) can also be solved for π yielding two roots
π ( R , α ∗ ) 1 = 2 R α ∗ ( 1 − R ) , and
π ( R , α ∗ ) 2 = − 2 R α ∗ ( 1 + R ) ,
dependent on R and α ∗ , where α ∗ indicates α or α 2 . This can be further evaluated using the MLG reflectance R (4) or (B5) (which is the same for both α and α 2 ), yielding four, yet only three distinct possibilities
π 1 = π ( α ) 1 = − π 4 π 2 + π + 1 4 π 2 + π + 2 = π α 2 α ≈ − 3.0712 ,
π ( α ) 2 = π ( α 2 ) 1 = π ≈ 3.1416 , and
π 2 = π ( α 2 ) 2 = − π 4 π 2 + π + 2 4 π 2 + π + 1 = π α α 2 ≈ − 3.2136 .
Preprints 71075 g0a1
Figure 2. Illustration of the concepts of negative absorptance and excessive transmittance of EMR under normal incidence on MLG.
Figure 2. Illustration of the concepts of negative absorptance and excessive transmittance of EMR under normal incidence on MLG.
Preprints 71075 g0a1
The modulus of π 1 (B8) corresponds to a convex surface having a positive Gaussian curvature, whereas the modulus of π 2 (B10) - to a negative Gaussian curvature. Their product π 1 π 2 = π 2 is independent of α ∗ , their quotient π 1 / π 2 = α 2 2 / α 2 is not directly dependent of π , and π 1 − π ≠ π − π 2 . It remains to be found whether each of these π -like constants describes the ratio of the circumference of a circle drawn on the respective surface to its diameter ( π c ) or the ratio of the area of this circle to the square of its radius ( π a ). These definitions produce different results on curved surfaces, whereas π a > π c on convex surfaces, while π a < π c on saddle surfaces [75].

Appendix C. Planck units and HUP

Perhaps the simplest derivation of the squared Planck length is based on Heisenberg’s uncertainty principle
δ P HUP δ R HUP ≥ ℏ 2 or δ E HUP δ t HUP ≥ ℏ 2 ,
where δ P HUP , δ R HUP , δ E HUP , and δ t HUP denote momentum, position, energy, and time uncertainties, by replacing energy uncertainty δ E HUP = δ M HUP c 2 with mass uncertainty and time uncertainty with position uncertainty, using mass-energy equivalence and δ t HUP = δ R / c HUP [32], which yields
δ M HUP δ R HUP ≥ ℏ 2 c .
Plugging δ M HUP = δ R HUP c 2 / ( 2 G ) for BH mass into (C2) we arrive at δ R HUP 2 = ℓ P 2 ⇒ δ D HUP = ± 2 ℓ P and recover [5] BH diameter d BH = ± 2 .
However, using the same procedure but inserting the BH radius, instead of the BH mass, into the uncertainty principle (C2) leads to δ M HUP 2 = 1 4 ℏ c / G = 1 4 m P 2 . In general, using the generalized radius (43) in both procedures, one obtains
δ M HUP 2 = 1 2 k m P 2 and δ R HUP 2 = k 2 ℓ P 2 .
Thus, if k increases mass δ M HUP decreases, and δ R HUP increases and the factor is the same for k = 1 i.e., for orbital speed radius δ R = G δ M / c 2 or the orbital speed mass δ M = δ R c 2 / G .

Appendix D. The Stoney units drivation

We assume that the elementary charge is the unit of charge q S = e and that the speed of light is the quotient of the unit of length and time c = l S / t S . Next, we compare the Coulomb force between two elementary charges and units of masses m S with Newton’s law of gravity, acting over the same distance
1 4 π ϵ 0 e 2 R 2 = G m S 2 R 2 ⇒ m S = e 2 4 π ϵ 0 G .
Finally, we compare the inertial force of the unit of mass with Newton’s law of gravity
m S l S t S 2 = G m S 2 l S 2 ⇒ l S = G e 2 4 π ϵ 0 c 4 .

Appendix E. A mixed speeds hypothesis

Let us define the mass/charge energies (49), (50) with different speeds of light, i.e., the charge part of the energy E M Q i with c n and the charge part of the energy E Q M i with c
E ^ M Q i ≔ M c 2 + Q i 2 π ϵ 0 G c n 2 = M c 2 ± i q α m P α 2 α 2 2 c 2 , E ^ Q M i ≔ Q 2 π ϵ 0 G c 2 + M i c n 2 = ± q α m P c 2 + M i α 2 α 2 2 c 2 ,
Demanding equality of their moduli
M 2 + q 2 α m P 2 α 4 α 2 4 = q 2 α m P 2 − M i 2 α 4 α 2 4 , M i = ± q 2 α m P 2 α 2 4 α 4 − 1 − α 2 4 α 4 M 2 .
For q = 0 this relation corresponds to the relation (66). However, since mass M i is imaginary, the argument of the square root in the relation (E2) must be negative, i.e.,
| M | ≯ | q | m P α 1 − α 4 α 2 4 .
But α 4 > α 2 4 , yielding imaginary M, while M is real by definition. The same result would be obtained if mass-energy E Q M i was parametrized with c n and E Q M i with c, since
α α 2 4 α 4 − 1 ∈ I , α 1 − α 2 4 α 4 ∈ R , α α 4 α 2 4 − 1 ∈ R , α 1 − α 4 α 2 4 ∈ I .
Therefore, complex energies E M Q i (49) and E Q M i (50) must be parametrized respectively by c and c n .

Appendix F. BBO quantum statistics

BH Bose-Einstein (BE), Fermi-Dirac (FD), and Maxwell-Boltzmann (MB) quantum statistics ([5], Eqs. (132)-(134), Figs. 12-14), with degeneracy interpreted as the BBO information capacity, can be extended to BBOs using the BBO temperature (117), relations (40), and
exp h c λ k B T BBO = exp 8 π 2 d BBO i k 2 4 − 1 ∓ 1 k l .
Using (F1) they become
N BBO B E ( k , d BBO , l ) = π d 2 exp 8 π 2 d BBO i k 2 4 − 1 ∓ 1 k l − 1 ,
N BBO M B ( k , d BBO , l ) = π d 2 exp 8 π 2 d BBO i k 2 4 − 1 ∓ 1 k l ,
N BBO F D ( k , d BBO , l ) = π d 2 exp 8 π 2 d BBO i k 2 4 − 1 ∓ 1 k l + 1 .
To emit/absorb N > 0 photons or correspondingly increase/decrease N > 0 electron energy levels on average, N ( k , d BBO , l ) must be greater or equal to N and the statistics (F2)-(F4) yield the following wavelength thresholds
l B E ( d , N ) ≥ 8 π 2 d i k 2 4 − 1 ∓ 1 k ln π d 2 + N − ln ( N ) ,
l M B ( d , N ) ≥ 8 π 2 d i k 2 4 − 1 ∓ 1 k ln π d 2 − ln ( N ) ,
l F D ( d , N ) ≥ 8 π 2 d i k 2 4 − 1 ∓ 1 k ln π d 2 − N − ln ( N ) .

Appendix G. Fluctuations of the BBOs

A relation describing a BH information capacity, having an initial information capacity N m ( k ) = π d m 2 , after absorption (+) or emission (−) of a particle having the Compton wavelength l can be generalized (cf. [5], Appendix 3), using the generalized radius (43), to all EVSs, including BBOs as
N m + 1 A / E ( k , d m , l ) = 16 k 2 π 3 1 l 2 ± 8 k π 2 d m l + π d m 2 .
Thus,
Δ N A / E ( k , d m , l ) ≔ N m + 1 − N m = 16 k 2 π 3 1 l 2 ± 8 k π 2 d m l , Δ N A > 0 l > − 2 k π d m = 0 l = − 2 k π d m < 0 l < − 2 k π d m , Δ N E > 0 l < 2 k π d m = 0 l = 2 k π d m < 0 l > 2 k π d m .
The wavelength of a particle emitted from a BH that does not change the BH diameter corresponds to half of the BH Compton wavelength ( l BH = 8 π / d BH ). Accordingly, the wavelength of a particle absorbed by a BH that does not change its diameter is l BHconst = − 4 π / d BH . We note in passing that three spatial dimensions set the minimum for such conditions to occur (cf. [5], Table III). In general, l BBOconst = ∓ 2 k π / d BBO . In particular, for k eq (87)
l const ( k e q ) = ∓ 4 π 1 + α 2 4 α 4 d ≈ ∓ 1.3832 4 π d ,
(with "−" for absorption and "+" for emission) reduces to l BHconst for α 2 = 0 . For k max (81)
l const ( k max ) = ∓ 4 π d 1 − α 2 4 α 4 ≈ ∓ 3.3966 4 π d ,
also reduces to l BHconst for α 2 = 0 .
The relation (G1) is remarkably similar to the algebraic definitions of the inverses of α (13) and α 2 (14) also containing π 3 , π 2 , and π terms. This raises the question of whether the fine-structure constants’ inverses correspond to the number of bits. The floor function of the inverse of the fine-structure constant α represents the threshold on the atomic number (137) of a hypothetical element feynmanium that, in the Bohr model of the atom, still allows the 1s orbital electrons to travel slower than the speed of light. Furthermore, the fine-structure constant has been reported as the quantum of rotation [76]. Thus, two alphas between α − 1 ≈ 137.0363 and α 2 − 1 ≈ − 140.1779 hinted by the relations (13), (14), and (G1)
α ˜ − 1 = 4 π 3 − π 2 + π ≈ 117.2971 , α 2 ˜ − 1 = − 4 π 3 + π 2 − 2 π ≈ − 120.4387 ,
seem intriguing.
It was shown that the spectral density in the phenomenon of sonoluminescence, light emission by sound-induced collapsing gas bubbles in fluids, has the same frequency dependence as black-body radiation [77,78]. Thus, the sonoluminescence, and in particular shrimpoluminescence [79], is emitted by collapsing micro-BBOs. A micro-BH induced in glycerin by modulating acoustic waves was recently reported [80]. For example, the relation (G1) yields the wavelength l = 8 π / ( d BH ± 1 ) required for collapsing a BH to the π -bit BH (i.e., to the reduced Planck temperature limit [12], to d BH = ± 1 ). Demanding | l | ≥ 1 we obtain | d BH | ≤ 8 π ± 1 .

References

  1. de Chardin, P.T. The Phenomenon of Man; Harper, New York, 1959.
  2. Prigogine, I.; Stengers, I. Order out of Chaos: Man’s New Dialogue with Nature; 1984.
  3. Melamede, R. Dissipative Structures and the Origins of Life. Unifying Themes in Complex Systems IV; Minai, A.A.; Bar-Yam, Y., Eds.; Springer Berlin Heidelberg: Berlin, Heidelberg, 2008; pp. 80–87.
  4. Vedral, V. Decoding Reality: The Universe as Quantum Information; Oxford University Press, 2010. [CrossRef]
  5. Łukaszyk, S. Black Hole Horizons as Patternless Binary Messages and Markers of Dimensionality. In Future Relativity, Gravitation, Cosmology; Dvoeglazov, V.V.; Caldera Cabral, M.d.G.; Cázares Montes, J.A.; Quintanar González, J.L., Eds.; Nova Science Publishers, 2023. [CrossRef]
  6. Vopson, M.M.; Lepadatu, S. Second law of information dynamics. AIP Advances 2022, 12, 075310. [Google Scholar] [CrossRef]
  7. Platonic Solids in All Dimensions.
  8. Taubes, C.H. Gauge theory on asymptotically periodic {4}-manifolds. Journal of Differential Geometry 1987, 25. [Google Scholar] [CrossRef]
  9. Łukaszyk, S. Four Cubes, 2021. arXiv:2007.03782 [math].
  10. Brukner, Č. A No-Go Theorem for Observer-Independent Facts. Entropy 2018, 20. [Google Scholar] [CrossRef] [PubMed]
  11. Lukaszyk, S. Solving the black hole information paradox. Research Outreach 2023. [Google Scholar] [CrossRef]
  12. Łukaszyk, S. Life as the Explanation of the Measurement Problem 2018. [CrossRef]
  13. Łukaszyk, S. Novel Recurrence Relations for Volumes and Surfaces of n-Balls, Regular n-Simplices, and n-Orthoplices in Real Dimensions. Mathematics 2022, 10, 2212. [Google Scholar] [CrossRef]
  14. Łukaszyk, S.; Tomski, A. Omnidimensional Convex Polytopes. Symmetry 2023, 15. [Google Scholar] [CrossRef]
  15. Planck, M. Über irreversible Strahlungsvorgänge, 1899.
  16. Stoney, G.J. LII. On the physical units of nature. The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science 1881, 11, 381–390. [CrossRef]
  17. Kuzmenko, A.B.; van Heumen, E.; Carbone, F.; van der Marel, D. Universal dynamical conductance in graphite. Physical Review Letters 2008, 100, 117401, arXiv:0712.0835 [cond-mat]. [Google Scholar] [CrossRef]
  18. Mak, K.F.; Sfeir, M.Y.; Wu, Y.; Lui, C.H.; Misewich, J.A.; Heinz, T.F. Measurement of the Optical Conductivity of Graphene. Physical Review Letters 2008, 101, 196405. [Google Scholar] [CrossRef]
  19. Nair, R.R.; Blake, P.; Grigorenko, A.N.; Novoselov, K.S.; Booth, T.J.; Stauber, T.; Peres, N.M.R.; Geim, A.K. Universal Dynamic Conductivity and Quantized Visible Opacity of Suspended Graphene. Science 2008, 320, 1308–1308. [Google Scholar] [CrossRef]
  20. Stauber, T.; Peres, N.M.R.; Geim, A.K. Optical conductivity of graphene in the visible region of the spectrum. Physical Review B 2008, 78, 085432. [Google Scholar] [CrossRef]
  21. Wang, X.; Chen, B. Origin of Fresnel problem of two dimensional materials. Scientific Reports 2019, 9, 17825. [Google Scholar] [CrossRef] [PubMed]
  22. Merano, M. Fresnel coefficients of a two-dimensional atomic crystal. Physical Review A 2016, 93, 013832. [Google Scholar] [CrossRef]
  23. Ando, T.; Zheng, Y.; Suzuura, H. Dynamical Conductivity and Zero-Mode Anomaly in Honeycomb Lattices. Journal of the Physical Society of Japan 2002, 71, 1318–1324. [Google Scholar] [CrossRef]
  24. Zhu, S.E.; Yuan, S.; Janssen, G.C.A.M. Optical transmittance of multilayer graphene. EPL (Europhysics Letters) 2014, 108, 17007. [Google Scholar] [CrossRef]
  25. Ivanov, I.G.; Hassan, J.U.; Iakimov, T.; Zakharov, A.A.; Yakimova, R.; Janzén, E. Layer-number determination in graphene on SiC by reflectance mapping. Carbon 2014, 77, 492–500. [Google Scholar] [CrossRef]
  26. Varlaki, P.; Nadai, L.; Bokor, J. Number Archetypes in System Realization Theory Concerning the Fine Structure Constant. 2008 International Conference on Intelligent Engineering Systems; IEEE: Miami, FL, 2008; pp. 83–92. [CrossRef]
  27. Webb, J.K.; Flambaum, V.V.; Churchill, C.W.; Drinkwater, M.J.; Barrow, J.D. Search for Time Variation of the Fine Structure Constant. Physical Review Letters 1999, 82, 884–887. [Google Scholar] [CrossRef]
  28. Murphy, M.T.; Webb, J.K.; Flambaum, V.V.; Dzuba, V.A.; Churchill, C.W.; Prochaska, J.X.; Barrow, J.D.; Wolfe, A.M. Possible evidence for a variable fine-structure constant from QSO absorption lines: motivations, analysis and results. Monthly Notices of the Royal Astronomical Society 2001, 327, 1208–1222. [Google Scholar] [CrossRef]
  29. Webb, J.K.; Murphy, M.T.; Flambaum, V.V.; Dzuba, V.A.; Barrow, J.D.; Churchill, C.W.; Prochaska, J.X.; Wolfe, A.M. Further Evidence for Cosmological Evolution of the Fine Structure Constant. Physical Review Letters 2001, 87, 091301. [Google Scholar] [CrossRef] [PubMed]
  30. Murphy, M.T.; Webb, J.K.; Flambaum, V.V. Further evidence for a variable fine-structure constant from Keck/HIRES QSO absorption spectra. Monthly Notices of the Royal Astronomical Society 2003, 345, 609–638. [Google Scholar] [CrossRef]
  31. Rosenband, T.; Hume, D.B.; Schmidt, P.O.; Chou, C.W.; Brusch, A.; Lorini, L.; Oskay, W.H.; Drullinger, R.E.; Fortier, T.M.; Stalnaker, J.E.; Diddams, S.A.; Swann, W.C.; Newbury, N.R.; Itano, W.M.; Wineland, D.J.; Bergquist, J.C. Frequency Ratio of Al + and Hg + Single-Ion Optical Clocks; Metrology at the 17th Decimal Place. Science 2008, 319, 1808–1812. [Google Scholar] [CrossRef]
  32. Scardigli, F. Some heuristic semi-classical derivations of the Planck length, the Hawking effect and the Unruh effect. Il Nuovo Cimento B (1971-1996) 1995, 110, 1029–1034. [Google Scholar] [CrossRef]
  33. Verlinde, E. On the origin of gravity and the laws of Newton. Journal of High Energy Physics 2011, 2011, 29. [Google Scholar] [CrossRef]
  34. Peng, X.; Zhou, H.; Wei, B.B.; Cui, J.; Du, J.; Liu, R.B. Experimental Observation of Lee-Yang Zeros. Physical Review Letters 2015, 114, 010601. [Google Scholar] [CrossRef]
  35. Gnatenko, K.; Kargol, A.; Tkachuk, V. Lee–Yang zeros and two-time spin correlation function. Physica A: Statistical Mechanics and its Applications 2018, 509, 1095–1101. [Google Scholar] [CrossRef]
  36. Melia, F. A Candid Assessment of Standard Cosmology. Publications of the Astronomical Society of the Pacific 2022, 134, 121001. [Google Scholar] [CrossRef]
  37. Brouwer, M.M.; others. First test of Verlinde’s theory of emergent gravity using weak gravitational lensing measurements. Monthly Notices of the Royal Astronomical Society 2017, 466, 2547–2559. [Google Scholar] [CrossRef]
  38. Schimmoller, A.J.; McCaul, G.; Abele, H.; Bondar, D.I. Decoherence-free entropic gravity: Model and experimental tests. Physical Review Research 2021, 3, 033065. [Google Scholar] [CrossRef]
  39. Vincentelli, F.M.; Neilsen, J.; Tetarenko, A.J.; Cavecchi, Y.; Castro Segura, N.; Del Palacio, S.; Van Den Eijnden, J.; Vasilopoulos, G.; Altamirano, D.; Armas Padilla, M.; Bailyn, C.D.; Belloni, T.; Buisson, D.J.K.; Cúneo, V.A.; Degenaar, N.; Knigge, C.; Long, K.S.; Jiménez-Ibarra, F.; Milburn, J.; Muñoz Darias, T.; Özbey Arabacı, M.; Remillard, R.; Russell, T. A shared accretion instability for black holes and neutron stars. Nature 2023, 615, 45–49. [Google Scholar] [CrossRef]
  40. Boylan-Kolchin, M. Stress testing ΛCDM with high-redshift galaxy candidates. Nature Astronomy 2023. [Google Scholar] [CrossRef]
  41. Lukaszyk, S. A No-go Theorem for Superposed Actions (Making Schrödinger’s Cat Quantum Nonlocal). In New Frontiers in Physical Science Research Vol. 3; Purenovic, D.J., Ed.; Book Publisher International (a part of SCIENCEDOMAIN International), 2022; pp. 137–151. [CrossRef]
  42. Qian, K.; Wang, K.; Chen, L.; Hou, Z.; Krenn, M.; Zhu, S.; Ma, X.s. Multiphoton non-local quantum interference controlled by an undetected photon. Nature Communications 2023, 14, 1480. [Google Scholar] [CrossRef]
  43. Saeed, I.; Pak, H.K.; Tlusty, T. Quasiparticles, flat bands and the melting of hydrodynamic matter. Nature Physics 2023. [Google Scholar] [CrossRef]
  44. Watanabe, S. Knowing and Guessing: A Quantitative Study of Inference and Information; 1969.
  45. Watanabe, S. Epistemological Relativity. Annals of the Japan Association for Philosophy of Science 1986, 7, 1–14. [Google Scholar] [CrossRef]
  46. Bekenstein, J.D. Black Holes and Entropy. Phys. Rev. D 1973, 7, 2333–2346. [Google Scholar] [CrossRef]
  47. Hooft, G.t. Dimensional Reduction in Quantum Gravity, 1993. [CrossRef]
  48. Gould, A. Classical derivation of black-hole entropy. Physical Review D 1987, 35, 449–454. [Google Scholar] [CrossRef]
  49. Penrose, R.; Floyd, R.M. Extraction of Rotational Energy from a Black Hole. Nature Physical Science 1971, 229, 177–179. [Google Scholar] [CrossRef]
  50. Christodoulou, D.; Ruffini, R. Reversible Transformations of a Charged Black Hole. Physical Review D 1971, 4, 3552–3555. [Google Scholar] [CrossRef]
  51. Stuchlík, Z.; Kološ, M.; Tursunov, A. Penrose Process: Its Variants and Astrophysical Applications. Universe 2021, 7, 416. [Google Scholar] [CrossRef]
  52. Sneppen, A.; Watson, D.; Bauswein, A.; Just, O.; Kotak, R.; Nakar, E.; Poznanski, D.; Sim, S. Spherical symmetry in the kilonova AT2017gfo/GW170817. Nature 2023, 614, 436–439. [Google Scholar] [CrossRef]
  53. Zhang, T. Electric Charge as a Form of Imaginary Energy, 2008.
  54. Schrinski, B.; Yang, Y.; Von Lüpke, U.; Bild, M.; Chu, Y.; Hornberger, K.; Nimmrichter, S.; Fadel, M. Macroscopic Quantum Test with Bulk Acoustic Wave Resonators. Physical Review Letters 2023, 130, 133604. [Google Scholar] [CrossRef]
  55. Iyer, B.R.; Vishveshwara, C.V.; Dhurandhar, S.V. Ultracompact (R<3 M) objects in general relativity. Classical and Quantum Gravity 1985, 2, 219–228. [Google Scholar] [CrossRef]
  56. Nemiroff, R.J.; Becker, P.A.; Wood, K.S. Properties of ultracompact neutron stars. The Astrophysical Journal 1993, 406, 590. [Google Scholar] [CrossRef]
  57. Lightman, A.P.; Press, W.H.; Price, R.H.; Teukolsky, S.A. Problem Book in Relativity and Gravitation; Princeton University Press, 2017. [CrossRef]
  58. Weinberg, S. Gravitation and cosmology: principles and applications of the general theory of relativity; Wiley: New York, 1972. [Google Scholar]
  59. Morris, M.S.; Thorne, K.S. Wormholes in spacetime and their use for interstellar travel: A tool for teaching general relativity. American Journal of Physics 1988, 56, 395–412. [Google Scholar] [CrossRef]
  60. Pechenick, K.R.; Ftaclas, C.; Cohen, J.M. Hot spots on neutron stars - The near-field gravitational lens. The Astrophysical Journal 1983, 274, 846. [Google Scholar] [CrossRef]
  61. Montgomery, C.; Orchiston, W.; Whittingham, I. MICHELL, LAPLACE AND THE ORIGIN OF THE BLACK HOLE CONCEPT. Journal of Astronomical History and Heritage 2009, 12, 90–96. [Google Scholar]
  62. Abbott, B.; et al. GW170817: Observation of Gravitational Waves from a Binary Neutron Star Inspiral. Physical Review Letters 2017, 119, 161101. [Google Scholar] [CrossRef]
  63. Szostek, R.; Góralski, P.; Szostek, K. Gravitational waves in Newton’s gravitation and criticism of gravitational waves resulting from the General Theory of Relativity (LIGO). Bulletin of the Karaganda University. "Physics" Series 2019, 96, 39–56. [Google Scholar] [CrossRef]
  64. Hawking, S.W., Ed. Three hundred years of gravitation, transferred to digital print ed.; Cambridge University Press: Cambridge, 2003.
  65. Kalogera, V.; Baym, G. The Maximum Mass of a Neutron Star. The Astrophysical Journal 1996, 470, L61–L64. [Google Scholar] [CrossRef]
  66. Ai, S.; Gao, H.; Zhang, B. What Constraints on the Neutron Star Maximum Mass Can One Pose from GW170817 Observations? The Astrophysical Journal 2020, 893, 146. [Google Scholar] [CrossRef]
  67. Moroianu, A.; Wen, L.; James, C.W.; Ai, S.; Kovalam, M.; Panther, F.H.; Zhang, B. An assessment of the association between a fast radio burst and binary neutron star merger. Nature Astronomy 2023. [Google Scholar] [CrossRef]
  68. Jussila, H.; Yang, H.; Granqvist, N.; Sun, Z. Surface plasmon resonance for characterization of large-area atomic-layer graphene film. Optica 2016, 3, 151. [Google Scholar] [CrossRef]
  69. Wallace, P.R. Erratum: The Band Theory of Graphite [Phys. Rev. 71, 622 (1947)]. Physical Review 1947, 72, 258–258. [Google Scholar] [CrossRef]
  70. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric Field Effect in Atomically Thin Carbon Films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  71. Einstein, A.; Podolsky, B.; Rosen, N. Can Quantum-Mechanical Description of Physical Reality Be Considered Complete? Physical Review 1935, 47, 777–780. [Google Scholar] [CrossRef]
  72. Bell, J.S. On the Einstein Podolsky Rosen paradox. Physics Physique Fizika 1964, 1, 195–200. [Google Scholar] [CrossRef]
  73. Łukaszyk, S. A short note about graphene and the fine structure constant 2020. [CrossRef]
  74. Łukaszyk, S. A short note about the geometry of graphene 2020. [CrossRef]
  75. Mahajan, S. Calculation of the pi-like circular constants in curved geometry. ResearchGate, 2013.
  76. Shuvaev, A.; Pan, L.; Tai, L.; Zhang, P.; Wang, K.L.; Pimenov, A. Universal rotation gauge via quantum anomalous Hall effect. Applied Physics Letters 2022, 121, 193101. [Google Scholar] [CrossRef]
  77. Hiller, R.; Putterman, S.J.; Barber, B.P. Spectrum of synchronous picosecond sonoluminescence. Physical Review Letters 1992, 69, 1182–1184. [Google Scholar] [CrossRef] [PubMed]
  78. Eberlein, C. Theory of quantum radiation observed as sonoluminescence. Physical Review A 1996, 53, 2772–2787. [Google Scholar] [CrossRef] [PubMed]
  79. Lohse, D.; Schmitz, B.; Versluis, M. Snapping shrimp make flashing bubbles. Nature 2001, 413, 477–478. [Google Scholar] [CrossRef]
  80. Rietman, E.A.; Melcher, B.; Bobrick, A.; Martire, G. A Cylindrical Optical-Space Black Hole Induced from High-Pressure Acoustics in a Dense Fluid. Universe 2023, 9, 162. [Google Scholar] [CrossRef]
1
This is, of course, a circular definition. But it is given for clarity.
2
Vacuum permittivity ϵ 0 is the value of the absolute dielectric permittivity of classical vacuum. The Planck constant h is the uncertainty principle parameter (cf. also the relation (55), showing that ℏ is common for α c and α 2 c n ). Thus, they cannot have negative counterparts.
3
Their average ( c + c n ) / 2 ≈ − 3.436417 × 10 6 [ m / s ] is in the range of the Fermi velocity.
4
Contrary to the Stoney units containing c raised to even (4, 6) powers.
5
Quantum measurement outcomes are real eigenvalues of hermitian operators.
6
Perhaps the only meaningful spatial concept is the Planck area triangle, encoding one bit of classical information and its curvature.
7
Thus, the term object is a particularly staring misnomer if applied to BBOs.
8
Charges in the cited study are defined in CGS units. Here we adopt SI.
9
At which, according to an accepted photon sphere definition, the strength of gravity forces photons to travel in orbits. The author wonders why photons would not travel in orbits at radius R = G M / c 2 corresponding to the orbital velocity v orb 2 = G M / R . Obviously, photons do not travel.
10
https://www.gw-openscience.org/eventapi/html/allevents
11
Data available online at the Canadian Hydrogen Intensity Mapping Experiment (CHIME) portal https://www.chime-frb.ca/catalog
12
In a commonly used form it is T BBO = ℏ c 3 2 k 2 π G M BBO k B 1 ± i k 2 4 − 1 .
13
Thickness of MLG is reported [68] as 0.37 [nm] with other reported values up to 1.7 [nm]. However, considering that 0.335 [nm] is the established inter-layer distance and consequently the thickness of bilayer graphene, these results do not seem credible: the thickness of bilayer graphene is not 2 × 0.37 + 0.335 = 1.075 [nm].
14
Introduced into the market in 1932.
Preprints 71075 g001
Figure 1. Ratios of imaginary mass M i BBO to real mass M BBO (green) and real charge q BBO m P α to M BBO (red) of a BBO as a function of the size-to-mass ratio k : 0 ≤ k ≤ 10 . Mass M i BBO is imaginary for k ⪅ 6.79 . Charge q BBO is real for k ≥ 2 .
Figure 1. Ratios of imaginary mass M i BBO to real mass M BBO (green) and real charge q BBO m P α to M BBO (red) of a BBO as a function of the size-to-mass ratio k : 0 ≤ k ≤ 10 . Mass M i BBO is imaginary for k ⪅ 6.79 . Charge q BBO is real for k ≥ 2 .
Preprints 71075 g001
Table 1. Selected BBO mergers discovered with LIGO and Virgo. Masses in M ⊙ .
Table 1. Selected BBO mergers discovered with LIGO and Virgo. Masses in M ⊙ .
Event M BBO 1 M BBO 2 M BBO C k BBO 1 k BBO 2 k BBO C
GW170817 1 . 46 − 0.10 + 0.12 1 . 27 − 0.09 + 0.09 2.8 4.39 4.39 3.03
GW190425 2 . 00 − 0.2 + 0.6 1 . 4 − 0.3 + 0.3 3 . 4 − 0.1 + 0.3 4.39 4.39 3.15
GW200105 8 . 9 − 1.5 + 1.2 1 . 9 − 0.2 + 0.3 10 . 9 − 1.2 + 1.1 2.76 4.39 2.38
GW200115 5 . 7 − 2.1 + 1.8 1 . 5 − 0.3 + 0.7 7 . 1 − 1.4 + 1.5 3 4.39 2.64
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
