Abstract
Mechanically strong and thermally stable films obtained from a water-based polyurethane (PU) dispersion with small (0.1–1.5 wt.%) additions of graphene oxide nanosheet (GO) were studied through elemental analysis, X-ray photoelectron spectroscopy, differential thermogravimetry, and Raman spectroscopy. Moreover, the depletion of near-surface layers in nitrogen was presented for all the samples under study. It was found that the introduction of GO into a PU matrix was ac-companied by a partial reduction of graphene oxide nanosheet and an increase in the concentra-tion of defects in its structure.
Keywords:
Subject:
Chemistry and Materials Science  -   Polymers and Plastics

1. Introduction

Polyurethanes (PUs) are used for manufacturing sealing products, protective abrasion-resistant coatings, elastic molds of decorative elements, paints and varnishes, sealants, machine parts and machine tools, and various rubber products for both household and industrial use [1]. PU is distinguished from other polymeric materials by its high mechanical strength, wide range of elasticity, and excellent impact-viscosity characteristics. In addition, the properties of PU are quite easy to control by changing the chemical structure of isocyanate and polyol through the introduction of fillers [2,3]. In principle, polymer composite materials with small additions of graphene-like materials demonstrate a significant improvement in mechanical and physicochemical properties and performance characteristics, which usually cannot be achieved using pure polymers [4,5,6,7].
In our previous studies, we described a method for obtaining aqueous mixtures of PU with a GO suspension that was stable over time [8]. We obtained mixtures with a GO content of 0.1–2.0 wt.%, which were used to obtain nanocomposite PU/GO films. The nanocomposites demonstrated higher thermal stability and increased mechanical strength compared to the original polymer. It has been established that the introduction of 2 wt.% graphene oxide increases the Young’s modulus of films almost six times.
Interestingly, we did not find the effect of graphene oxide additives on the IR spectrum of composites [8]. Moreover, the same results were obtained earlier [9]. Thus, a paradoxical situation arose where there was no direct information regarding the state of the additive that significantly affected the mechanical properties of the studied samples. In the present study, our goal was to study the Raman spectra of the designated composites given that Raman spectroscopy is a well-known and highly informative method for studying carbon materials, including graphene-like ones [10-12]. Another goal of this study was to study the effect of the GO addition on the surface segregation of mobile PU segments in the PU/GO composite by using X-ray photoelectron spectroscopy. As is known from the literature, PU is characterized by a significant difference in the composition of near-surface and bulk grains [13-18].

2. Materials and Methods

Aliphatic polyurethane dispersion Bayhydrol® UH 340/1 (manufacturer: COVESTRO, Germany) was used as a source of PU. This material is used as a binder in the formulation of highly elastic waterborne compounds for wood, metal, and plastic, along with being used as a combined binder to improve the elasticity and flexibility of coatings.
Graphite oxide was obtained by the modified Hummers’ method according to the procedure described in [19]. Pencil graphite grade GK-1 was used as a raw material, and the particle size for this brand of graphite did not exceed 30 microns. When graphite is oxidized, the particle size along the basal plane does not increase. Therefore, a GO suspension of a given concentration was prepared through the ultrasonic treatment of a graphite oxide suspension followed by centrifugation at 3000 g to remove large nonseparated particles.
The composite PU/GO films were prepared as follows: The calculated volume of the GO suspension was added dropwise to the PU dispersion with stirring. After the introduction of GO, the stirring was continued for 10 min. Then, the mixture was poured into a mold, which was a glass plate, and edged in order to prevent the mixture from spreading. Afterward, the mold was preliminarily leveled on a bar level to obtain a film without a significant thickness deviation. After the mixture had dried, the film was separated from the mold, and the necessary tests were carried out.
The elemental analysis of the samples preliminarily degassed in an argon flow at a temperature of 80 °C for 30 min was performed using a Vario Micro cube CHNS analyzer (Elementar GmbH, Hanau, Germany).
Thermogravimetric analysis (TG) of the samples was performed using an STA 449 F3 Jupiter instrument (Selb, Bavaria, Germany). In order to calibrate the balance, the chamber of the instrument was evacuated (10-2 bar) and filled with grade 6.0 He gas (99.9999%). After that, two empty corundum (Al2O3) crucibles were placed on the holder in the working chamber of the device, and the baseline was recorded. Then, a sample was placed in one of the empty crucibles, and the instrument chamber was once again evacuated and filled with He. The measurements were carried out in the temperature range of 20–400 °C and at a rate of 10 °C/min in a He flow of 50 mL/min.
The Raman spectra were obtained on a Bruker Senterra micro-Raman instrument. The laser excitation wavelength was 532 nm, the power at the measurement point was 1 mW for PU and 0.1 mW for the composites with GO; the beam diameter was ~2 μm. For all samples, 4 spectra at different points were taken (no difference between these points was found); acquisition time was 2x30s.
XPS spectra were obtained using a Specs PHOIBOS 150 MCD9 electronic spectrometer for chemical analysis. When recording spectra, the vacuum in the spectrometer chamber, which is an X-ray tube with a magnesium anode (Mg Kα radiation 1253.6 eV), did not exceed 2 × 10–10 Torr, and the source power was 225 W. A low-resolution survey spectrum was recorded in the range of 0–1000 eV, and the spectra were recorded in the constant transmission energy mode (i.e., 40 eV for the survey spectrum and 10 eV for individual lines). The overview spectrum was recorded with a step of 1 eV, while the spectra of individual lines were recorded with a step of 0.05 eV.

3. Results

3.1. Elemental Analysis

Table 1 presents the results of the elemental composition of the studied samples. All the samples of the composite were close in composition to the composition of the matrix. As graphene oxide is made up of the same elements as PU, a small addition of graphene oxide had practically no effect on the composition of the composite, which was determined by the aforementioned method.

3.2. XPS Spectra

The results obtained after analyzing the composition of the samples by using the XPS method (Table 2) differ from those obtained by elemental analysis. First, silicon’s presence in the studied samples should attract attention. According to the literature, silicon is often derived from dimethylsiloxane-based contaminants [15, 20], and the introduction of GO slightly reduces the surface content of silicon. However, the most striking difference between the composition of the near-surface layers and the volume can be seen in Table 3, which presents the C/O and C/N ratios for the samples under study. It can be observed that the surface C/O ratio was almost two times higher than the volume ratio for both the initial PU and the composites. In principle, surface segregation in PUs is a well-known phenomenon (for example, see [13-18, 21-24]). In the case of our study, the surface C/N ratio changed symbatically with the change in the GO concentration, while the volume ratio remained almost constant (Figure 1). Moreover, since nitrogen is bound to urethane and urea bonds (i.e., hard segments), the elemental composition data demonstrated a significant increase in the nitrogen concentration from the surface to the volume, which suggests that the content of urethane and urea near the surface is much less than in bulk. Thus, our findings are consistent with the data obtained by [13-18, 24].
The XPS spectra of high-energy resolution from PU and PU/GO films can be seen in Figure 2. The decomposition of the spectra was carried out following the algorithm proposed in [25]. The assignment, position, and relative intensities of individual peaks (within a separate spectrum) are provided in Table 4. It can be observed that in the N1s spectrum, along with isocyanate groups (peak at 399.9 eV), a peak with a binding energy of 401.3 eV appeared in the composite, which could be attributed to oxidized nitrogen. In [25], nitrogen with such a binding energy was designated as C–NH3+. In principle, it is known that graphene oxide interacts with isocyanates [26]. Moreover, it was established by the XPS method that this is a very complex interaction. Thus, the intensity of the peak at 286.55 eV in the spectrum of C1s GO sharply decreased after treatment with isocyanate, while, on the contrary, the intensity of the peak at 287.1 eV increased. This change might have been due to the formation of a carbamate ester instead of hydroxyl, which reduces the number of hydroxyl groups and, accordingly, increases the number of carboxyl groups. In general, the C1s spectrum of graphene oxide treated with isocyanate indicates a partial reduction of graphene oxide because of treatment [27]. Therefore, the data obtained in our study are in full agreement with this scheme, i.e., the sum of the intensities of the peaks at 286.0 and 286.6 eV was higher in the spectrum of the composite (36.68%) than in the spectrum of the original PU (35.34%).

3.3. DTG Curves

The TG curves were presented in Ref. 8, and it was noted that the introduction of GO increased the thermal stability of films based on PU. However, no quantitative estimates of this increase were given. Provided below are DTG curves for a pure PU film and a composite film with a GO content of 1.0 wt.% (Figure 3). It can be observed from Figure 3 that the temperature of the maximum composite degradation rate (Tmax) significantly exceeded that of a pure PU film. Moreover, the numerical values of Tmax for the studied samples are presented in Table 2. It was found that the Tmax of all the studied composites was more significant than that of pure PU. However, instead of the expected monotonic dependence of this parameter on the GO content, a dependence with a maximum can be observed, which we cannot yet explain.

3.4. Raman Spectra

The Raman spectra of GO and rGO are well known (for example, see [28-31]). At the same time, the information regarding the Raman spectra obtained by different authors differs somewhat. In our study, we followed the authors of [32], according to whom the Raman spectra of rGO obtained upon excitation with radiation at a wavelength of 532 nm can be used to obtain data on the oxygen content of crystallinity as well as the degree of disorder in it. Figure 4 shows the Raman spectrum of graphene oxide used in this work. Table 5 shows the position, relative intensities, and half-widths of individual peaks in this spectrum, as well as similar parameters of the spectrum of graphene oxide (for the sake of comparison), which was reduced (i.e., treated with hydrazine vapor). It can be observed from Table 5 that after reduction, the main peaks (D and G) narrowed and the ID/IG - ratio increased. Similar changes in the Raman spectra of reduced GO were previously observed in [33].
Figure 5 presents the Raman spectra of the polymer and its composites with GO. In the case of the spectrum of pure PU with the range of 50–3500 cm-1, there were practically no intense peaks. Moreover, the introduction of 1% graphene oxide led to the appearance of peaks characteristic of graphite-like structures in the spectrum. Furthermore, when 1.5% graphene oxide was introduced, the peaks characteristic of the polymer practically does not appear in the spectrum. The results of the decomposition of the PU/GO spectra in the region of 750–2000 cm-1 are also shown in Table 5, which shows that, as in the case of restoration, the main peaks (i.e., D and G) in the spectra of the composites had a smaller half-width compared to that in the initial graphene oxide. Additionally, the ID/IG ratio in the spectra of the composite increased, and this increase was much higher than the increase in the reduction of GO. Consequently, new defects appeared in the graphene-like structure of GO. Such defects can be chemical bonds with the PU matrix.

4. Discussion

As it was previously reported [8], introducing a small amount of GO (i.e., up to 2 wt.%) effectively strengthened the PU matrix. Moreover, the Young’s modulus increased symbatically with the increasing concentration of the additive, reaching a value of 42.95 MPa, which was almost six times higher than that of the initial PU. In the literature, this behavior is logically associated with physical crosslinking between the rigid domains of the PU matrix and the functional groups on the GO nanosheet surface due to the formation of hydrogen bonds [34-38]. However, IR spectroscopy, which is one of the most effective methods for studying hydrogen bonds, turned out to be insensitive in our case [8, 9]. Nevertheless, as is evident in this work, the study of composites by the Raman method made it possible to establish that GO nanosheets embedded in a PU matrix are partially reduced due to the chemical interaction with the functional groups of the matrix. Such an interaction may result in the appearance of such groups as C–NH3+, which XPS detected.

5. Conclusions

The PU/GO films with a GO content of 0.1–1.5 wt.% were studied with the help of elemental analysis, X-ray photoelectron spectroscopy, differential thermogravimetry, and Raman spectroscopy. From this study, the following conclusions can be drawn:
1. The comparison between the data on the volume and the surface elemental composition reveals a significant increase in the nitrogen concentration from the surface to the volume, which suggests that the content of urethane and urea near the surface is much less than in the bulk.
2. It has been established that the [C/N]at ratio in the near-surface layer of PU/GO composite films grows symbatically with an increase in the content of graphene oxide in the composite.
3. In the N1s spectrum of the composite, along with the peak from the isocyanate groups (399.9 eV), another peak appeared with a binding energy of 401.3 eV, which can be attributed to oxidized nitrogen.
4. The peak intensity in the C1s spectrum underwent a slight decrease due to the hydroxyl and peroxide groups in the composite compared to the initial PU.
5. The temperatures of the maximum degradation rate Tmax of all the studied composites were higher than that of pure PU. The value can increase by more than 26 °C with the introduction of only 0.5 wt.% GO.
6. The change in the Raman spectra indicates that the formation of the composite is accompanied by a partial reduction of GO nanosheet and an increase in the concentration of defects in its structure.

Author Contributions

Investigation, formal analysis, writing—original draft, S.A.B.; Investigation, formal analysis, Y.V.B., Investigation, visualization, formal analysis, writing—review and editing, K.E.N.; Investigation, formal analysis, E.V.D.; Investigation, formal analysis, S.S.K.; Investigation, formal analysis, V.I.K.; Review and editing, data curation, A.M.; Review and editing, project administration, Y.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

This work was supported by the Ministry of Science and Higher Education of the Russian Federation in the frame of state tasks (state registration Nos АААА-А19–119032690060−9, АААА-А19-119061890019-5 and 075-01304-23-00).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Akindoyo, J.O.; Beg, M.D.H.; Ghazali, S.; Islam, M.R.; Jeyaratnam, N.; Yuvaraj, A.R. Polyurethane Types, Synthesis and Applications – a Review. RSC Adv. 2016, 6, 114453–114482. [Google Scholar] [CrossRef]
  2. Tian, S. Recent Advances in Functional Polyurethane and Its Application in Leather Manufacture: A Review. Polymers 2020, 12. [Google Scholar] [CrossRef] [PubMed]
  3. Alizadegan, F.; Mirabedini, S.M.; Pazokifard, S.; Goharshenas Moghadam, S.; Farnood, R. Improving Self-Healing Performance of Polyurethane Coatings Using PU Microcapsules Containing Bulky-IPDI-BA and Nano-Clay. Prog. Org. Coat. 2018, 123, 350–361. [Google Scholar] [CrossRef]
  4. Itapu, B.; Jayatissa, A. A Review in Graphene/Polymer Composites. Chem. Sci. Int. J. 2018, 23, 1–16. [Google Scholar] [CrossRef]
  5. Sreenivasulu, B.; Ramji, B.R.; Nagaral, M. A Review on Graphene Reinforced Polymer Matrix Composites. Materials Today: Proceedings 2018, 5, 2419–2428. [Google Scholar] [CrossRef]
  6. Al Faruque, M.A.; Syduzzaman, M.; Sarkar, J.; Bilisik, K.; Naebe, M. A Review on the Production Methods and Applications of Graphene-Based Materials. Nanomaterials (Basel) 2021, 11. [Google Scholar] [CrossRef]
  7. Razaq, A.; Bibi, F.; Zheng, X.; Papadakis, R.; Jafri, S.H.M.; Li, H. Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications. Materials 2022, 15. [Google Scholar] [CrossRef]
  8. Baskakov, S.A.; Baskakova, Y.V.; Dvoretskaya, E.V.; Krasnikova, S.S.; Lesnichaya, V.A.; Shulga, Y.M.; Gutsev, G.L. Mechanical and Water Absorption Properties of Waterborne Polyurethane/Graphene Oxide Composites. Materials 2022, 16. [Google Scholar] [CrossRef]
  9. Wu, G.; Xu, X.; He, X.; Yan, Y. Preparation and Characterization of Graphene Oxide-Modified Sapium Sebiferum Oil-Based Polyurethane Composites with Improved Thermal and Mechanical Properties. Polymers 2018, 10. [Google Scholar] [CrossRef]
  10. Calizo, I.; Balandin, A.A.; Bao, W.; Miao, F.; Lau, C.N. Temperature Dependence of the Raman Spectra of Graphene and Graphene Multilayers. Nano Lett. 2007, 7, 2645–2649. [Google Scholar] [CrossRef]
  11. Kudin, K.N.; Ozbas, B.; Schniepp, H.C.; Prud’homme, R.K.; Aksay, I.A.; Car, R. Raman Spectra of Graphite Oxide and Functionalized Graphene Sheets. Nano Lett. 2008, 8, 36–41. [Google Scholar] [CrossRef] [PubMed]
  12. Korepanov, V.I.; Kabachkov, E.N.; Baskakov, S.A.; Shul’ga, Y.M. Raman Spectra of Composite Aerogels of Polytetrafluoroethylene and Graphene Oxide. Russ. J. Phys. Chem. A 2020, 94, 2250–2254. [Google Scholar] [CrossRef]
  13. Wen, J.; Somorjai, G.; Lim, F.; Ward, R. XPS Study of Surface Composition of a Segmented Polyurethane Block Copolymer Modified by PDMS End Groups and Its Blends with Phenoxy. Macromolecules 1997, 30, 7206–7213. [Google Scholar] [CrossRef]
  14. Chattopadhyay, D.K.; Sreedhar, B.; Raju, K.V.S.N. Effect of Chain Extender on Phase Mixing and Coating Properties of Polyurethane Ureas. Ind. Eng. Chem. Res. 2005, 44, 1772–1779. [Google Scholar] [CrossRef]
  15. Mishra, A.K.; Chattopadhyay, D.K.; Sreedhar, B.; Raju, K.V.S.N. FT-IR and XPS Studies of Polyurethane-Urea-Imide Coatings. Prog. Org. Coat. 2006, 55, 231–243. [Google Scholar] [CrossRef]
  16. Ghermezcheshme, H.; Makki, H.; Mohseni, M.; Ebrahimi, M. Hydrophilic Dangling Chain Interfacial Segregation in Polyurethane Networks at Aqueous Interfaces and Its Underlying Mechanisms: Molecular Dynamics Simulations. Phys. Chem. Chem. Phys. 2020, 22, 26351–26363. [Google Scholar] [CrossRef]
  17. Rapone, I.; Taresco, V.; Lisio, V.D.; Piozzi, A.; Francolini, I. Silver- and Zinc-Decorated Polyurethane Ionomers with Tunable Hard/Soft Phase Segregation. Int. J. Mol. Sci. 2021, 22. [Google Scholar] [CrossRef] [PubMed]
  18. Su, X.; Yang, M.; Hao, D.; Guo, X.; Jiang, L. Marine Antifouling Coatings with Surface Topographies Triggered by Phase Segregation. J. Colloid Interface Sci. 2021, 598, 104–112. [Google Scholar] [CrossRef]
  19. William, S.; Hummers, J.R.; Offeman, R.E. ; Others Preparation of Graphitic Oxide. J. Am. Chem. Soc. 1958, 80, 1339–1339. [Google Scholar]
  20. Baskakov, S.A.; Manzhos, R.A.; Lobach, A.S.; Baskakova, Y.V.; Kulikov, A.V.; Martynenko, V.M.; Milovich, F.O.; Kumar, Y.; Michtchenko, A.; Kabachkov, E.N.; et al. Properties of a Granulated Nitrogen-Doped Graphene Oxide Aerogel. J. Non-Cryst. Solids 2018, 498, 236–243. [Google Scholar] [CrossRef]
  21. Vaidya, A.; Chaudhury, M.K. Synthesis and Surface Properties of Environmentally Responsive Segmented Polyurethanes. J. Colloid Interface Sci. 2002, 249, 235–245. [Google Scholar] [CrossRef]
  22. Røn, T.; Javakhishvili, I.; Jeong, S.; Jankova, K.; Lee, S. Low Friction Thermoplastic Polyurethane Coatings Imparted by Surface Segregation of Amphiphilic Block Copolymers. Colloid and Interface Science Communications 2021, 44, 100477. [Google Scholar] [CrossRef]
  23. Wang, W.; Bai, X.; Sun, S.; Gao, Y.; Li, F.; Hu, S. Polysiloxane-Based Polyurethanes with High Strength and Recyclability. Int. J. Mol. Sci. 2022, 23. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, G.B.; Labow, R.S.; Santerre, J.P. Probing the Surface Chemistry of a Hydrated Segmented Polyurethane and a Comparison with Its Dry Surface Chemical Structure. Macromolecules 2000, 33, 7321–7327. [Google Scholar] [CrossRef]
  25. Ederer, J.; Janoš, P.; Ecorchard, P.; Tolasz, J.; Štengl, V.; Beneš, H.; Perchacz, M.; Pop-Georgievski, O. Determination of Amino Groups on Functionalized Graphene Oxide for Polyurethane Nanomaterials: XPS Quantitation vs. Functional Speciation. RSC Adv. 2017, 7, 12464–12473. [Google Scholar] [CrossRef]
  26. Stankovich, S.; Piner, R.D.; Nguyen, S.T.; Ruoff, R.S. Synthesis and Exfoliation of Isocyanate-Treated Graphene Oxide Nanoplatelets. Carbon N. Y. 2006, 44, 3342–3347. [Google Scholar] [CrossRef]
  27. Zhao, H.; Wu, L.; Zhou, Z.; Zhang, L.; Chen, H. Improving the Antifouling Property of Polysulfone Ultrafiltration Membrane by Incorporation of Isocyanate-Treated Graphene Oxide. Phys. Chem. Chem. Phys. 2013, 15, 9084–9092. [Google Scholar] [CrossRef] [PubMed]
  28. Cançado, L.G. Jorio, EH Martins Ferreira, F Stavale, C a Achete, RB Capaz, MVO Moutinho, a Lombardo, TS Kulmala, and a C Ferrari. Quantifying Defects in …. Nano Lett. 2011.
  29. Casero, E.; Alonso, C.; Vázquez, L.; Petit-Domínguez, M.D.; Parra-Alfambra, A.M.; de la Fuente, M.; Merino, P.; Álvarez-García, S.; de Andrés, A.; Pariente, F.; et al. Comparative Response of Biosensing Platforms Based on Synthesized Graphene Oxide and Electrochemically Reduced Graphene. Electroanalysis 2013, 25, 154–165. [Google Scholar] [CrossRef]
  30. Dong, X.; Wang, K.; Zhao, C.; Qian, X.; Chen, S.; Li, Z.; Liu, H.; Dou, S. Direct Synthesis of RGO/Cu2O Composite Films on Cu Foil for Supercapacitors. J. Alloys Compd. 2014, 586, 745–753. [Google Scholar] [CrossRef]
  31. Dashairya, L.; Sharma, M.; Basu, S.; Saha, P. SnS2/RGO Based Nanocomposite for Efficient Photocatalytic Degradation of Toxic Industrial Dyes under Visible-Light Irradiation. J. Alloys Compd. 2019, 774, 625–636. [Google Scholar] [CrossRef]
  32. Claramunt, S.; Varea, A.; López-Díaz, D.; Velázquez, M.M.; Cornet, A.; Cirera, A. The Importance of Interbands on the Interpretation of the Raman Spectrum of Graphene Oxide. J. Phys. Chem. C 2015, 119, 10123–10129. [Google Scholar] [CrossRef]
  33. Krishnamoorthy, K.; Veerapandian, M.; Mohan, R.; Kim, S.-J. Investigation of Raman and Photoluminescence Studies of Reduced Graphene Oxide Sheets. Appl. Phys. A: Mater. Sci. Process. 2012, 106, 501–506. [Google Scholar] [CrossRef]
  34. Akram, N.; Saeed, M.; Usman, M.; Mansha, A.; Anjum, F.; Zia, K.M.; Mahmood, I.; Mumtaz, N.; Gul Khan, W. Influence of Graphene Oxide Contents on Mechanical Behavior of Polyurethane Composites Fabricated with Different Diisocyanates. Polymers 2021, 13. [Google Scholar] [CrossRef] [PubMed]
  35. Strankowski, M.; Korzeniewski, P.; Strankowska, J.; A S, A.; Thomas, S. Morphology, Mechanical and Thermal Properties of Thermoplastic Polyurethane Containing Reduced Graphene Oxide and Graphene Nanoplatelets. Materials 2018, 11. [Google Scholar] [CrossRef] [PubMed]
  36. Tounici, A.; Martín-Martínez, J.M. Addition of Graphene Oxide in Different Stages of the Synthesis of Waterborne Polyurethane-Urea Adhesives and Its Influence On Their Structure, Thermal, Viscoelastic and Adhesion Properties. Materials 2020, 13, 2899. [Google Scholar] [CrossRef] [PubMed]
  37. Han, X.; Gao, J.; Chen, Z.; Tang, X.; Zhao, Y.; Chen, T. Correlation between Microstructure and Properties of Graphene Oxide/waterborne Polyurethane Composites Investigated by Positron Annihilation Spectroscopy. RSC Adv. 2020, 10, 32436–32442. [Google Scholar] [CrossRef]
  38. Prakash, R.; Maiti, P. The Effect of Chemical Tagging of Graphene Oxide in Thermoplastic Polyurethane on Gelation Behavior. Polymer 2022, 253, 124999. [Google Scholar] [CrossRef]
Preprints 67484 g001
Figure 1. Dependence of the surface and volume ratio [C/N]at on the content of graphene oxide in the PU/GO composite (*content of graphene oxide multiplied by 10).
Figure 1. Dependence of the surface and volume ratio [C/N]at on the content of graphene oxide in the PU/GO composite (*content of graphene oxide multiplied by 10).
Preprints 67484 g001
Preprints 67484 g002

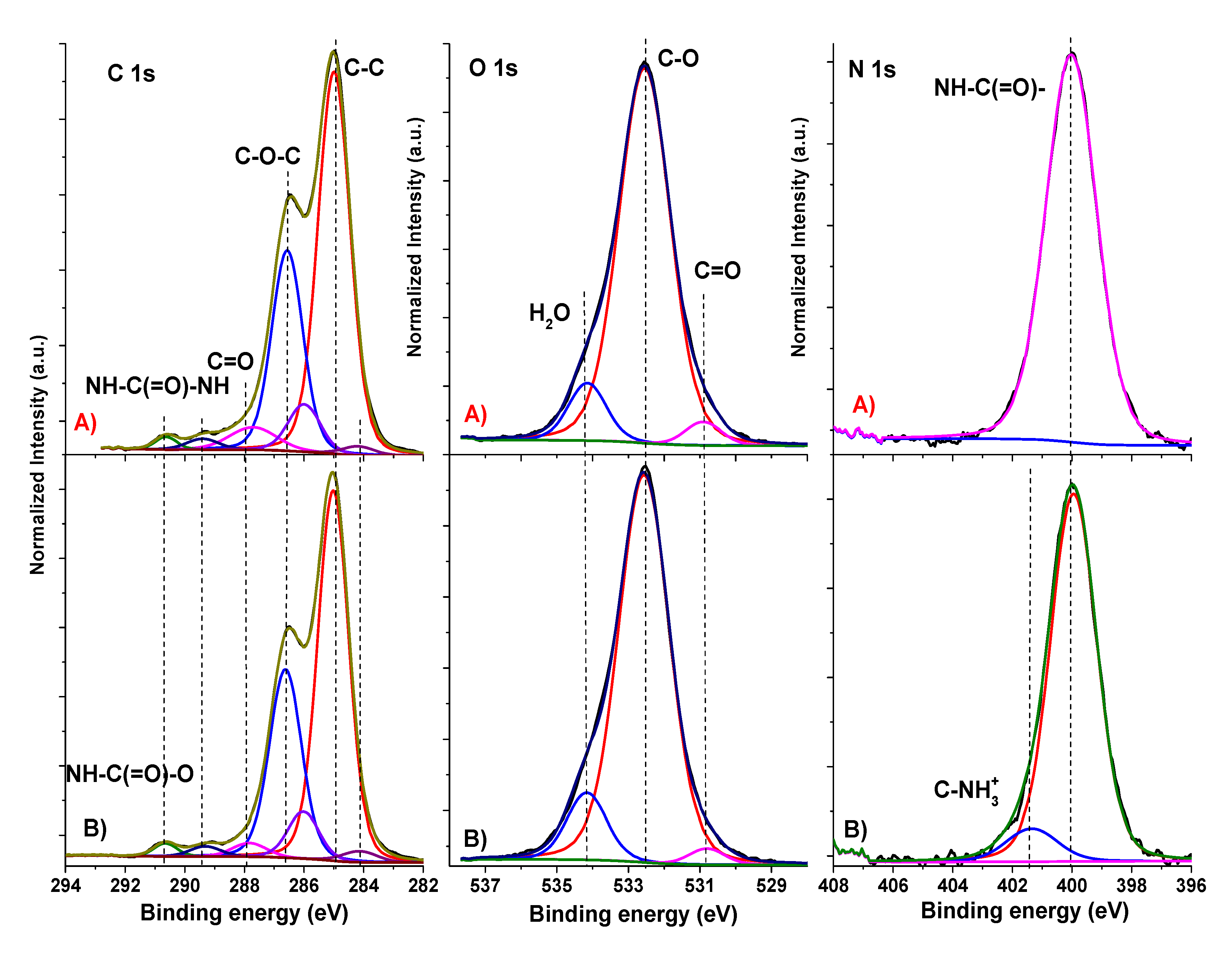

Figure 2. High-energy resolution XPS spectra С 1s, O 1s, and N1s for pure PU (A) and PU/1.5GO composite (B).
Figure 2. High-energy resolution XPS spectra С 1s, O 1s, and N1s for pure PU (A) and PU/1.5GO composite (B).
Preprints 67484 g002
Preprints 67484 g003

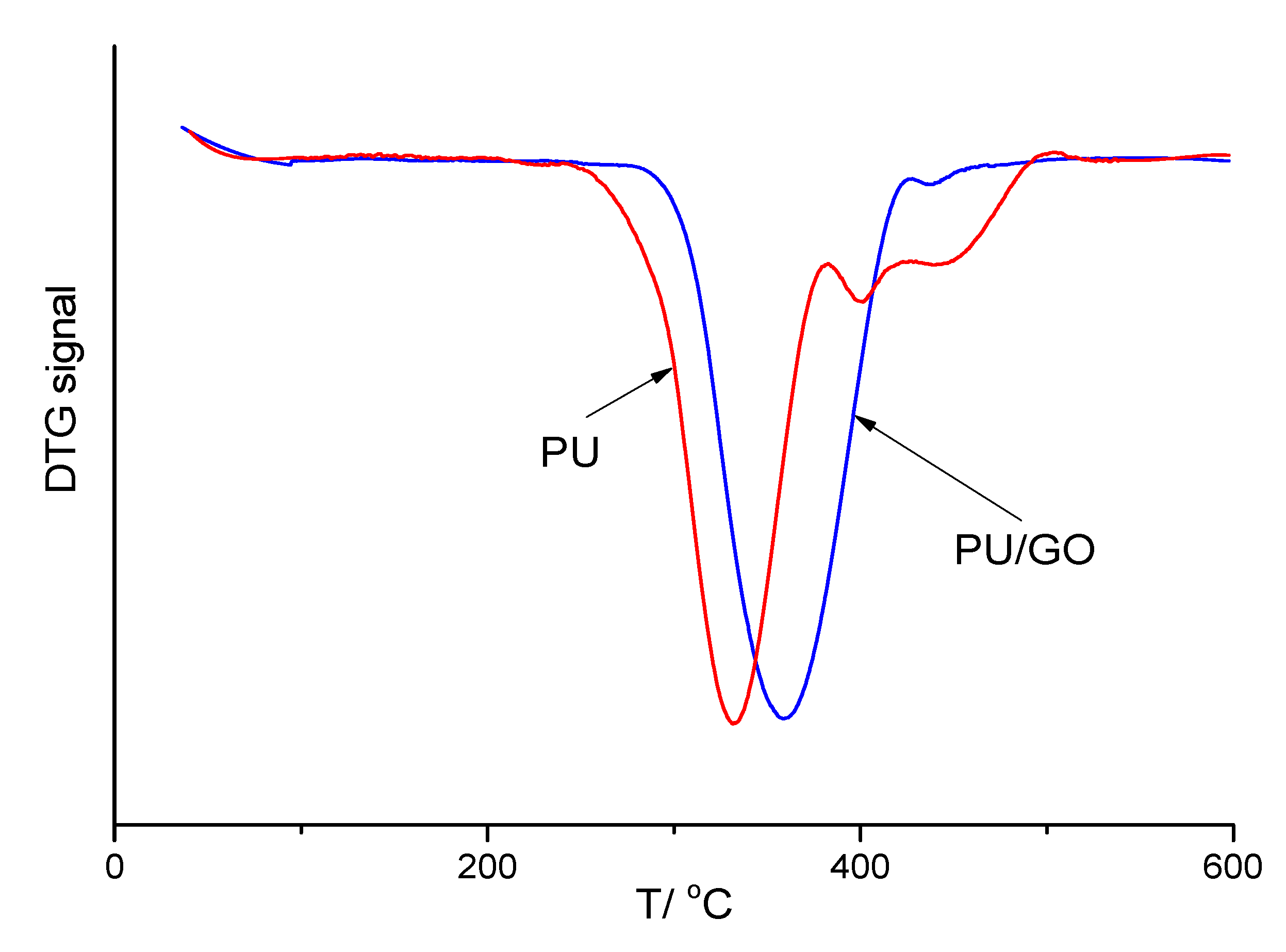

Figure 3. DTG curves of PU and PU/1.0GO.
Figure 3. DTG curves of PU and PU/1.0GO.
Preprints 67484 g003
Preprints 67484 g004

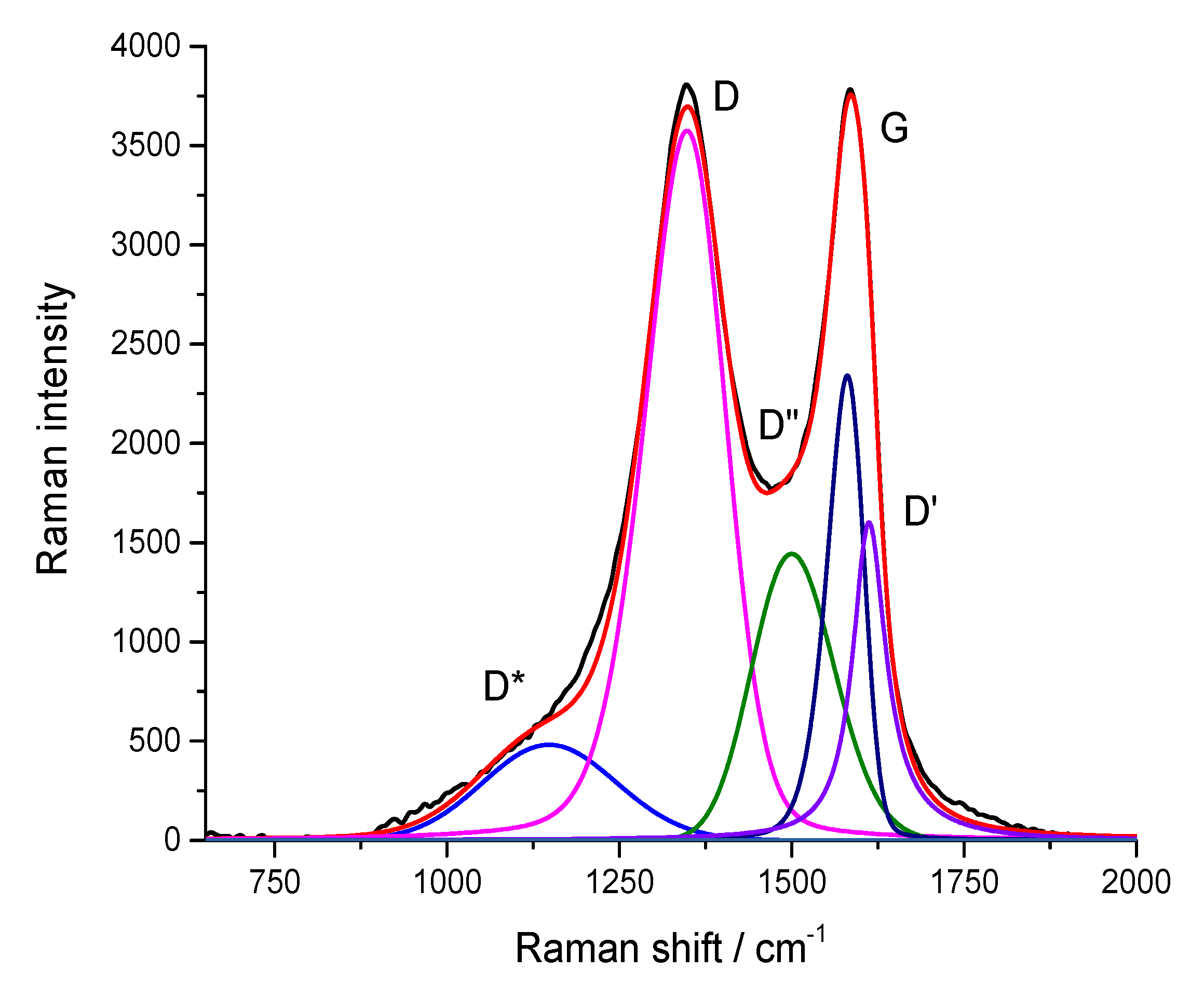

Figure 4. Raman spectrum of graphene oxide in the range of 750–2000 cm-1, along with its description by two Gaussians (peaks D* and D”) and three pseudo-Vogt functions (peaks D, G, and D’); for the justification of the expansion in terms of such a set of functions, see [32].
Figure 4. Raman spectrum of graphene oxide in the range of 750–2000 cm-1, along with its description by two Gaussians (peaks D* and D”) and three pseudo-Vogt functions (peaks D, G, and D’); for the justification of the expansion in terms of such a set of functions, see [32].
Preprints 67484 g004
Preprints 67484 g005

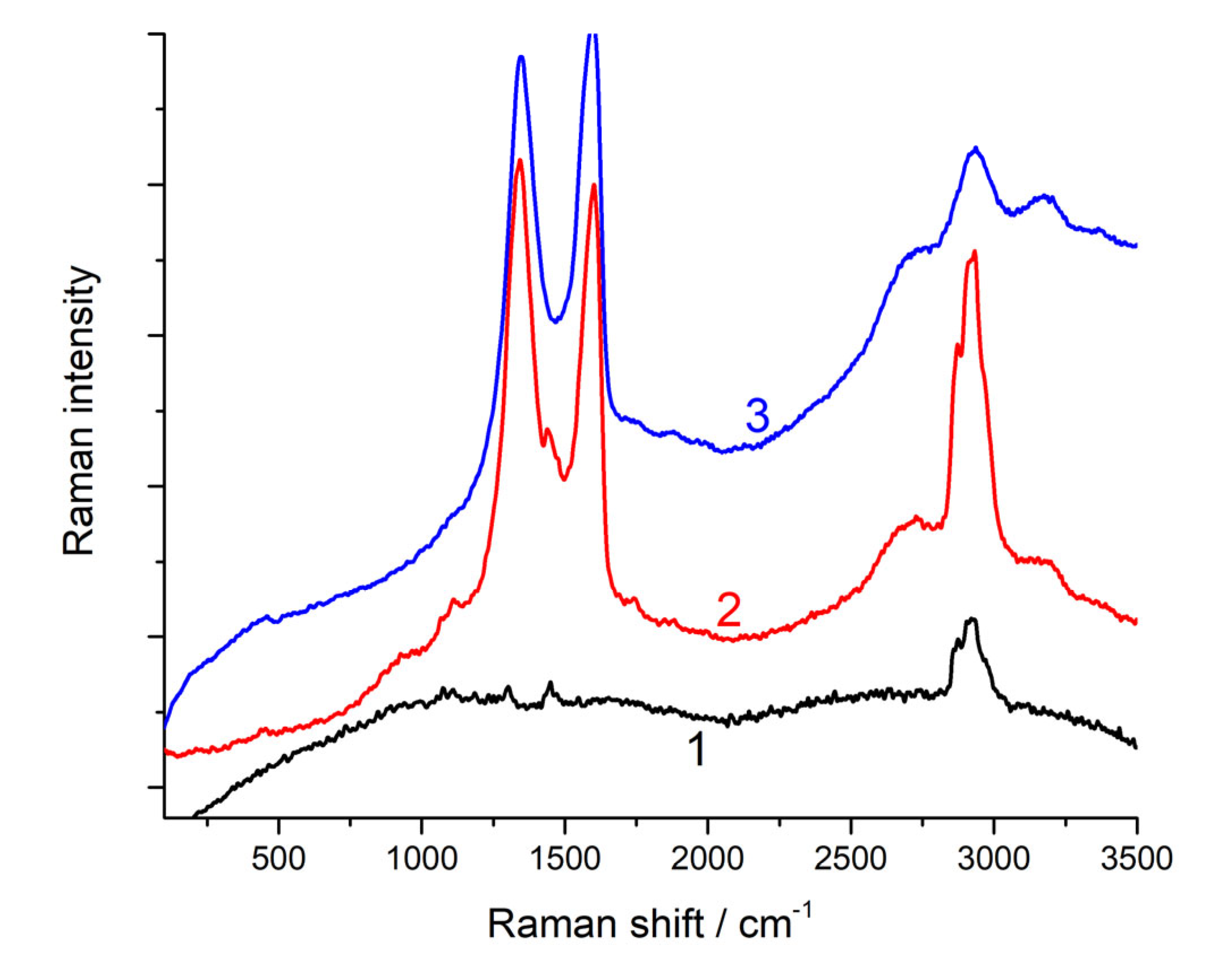

Figure 5. Raman spectra in the range of 50–3500 cm-1 of PU (1) and its composites with 1% GO (2) and 1.5% GO (3).
Figure 5. Raman spectra in the range of 50–3500 cm-1 of PU (1) and its composites with 1% GO (2) and 1.5% GO (3).
Preprints 67484 g005
Table 1. Elemental analysis of PU/GO composites.
Table 1. Elemental analysis of PU/GO composites.
Sample Content, wt. %
C H N S O*
PU 58.03 8.74 2.99 0.29 29.96
PU/0.1GO 57.35 8.77 2.92 0.11 30.86
PU/0.5GO 57.76 8.74 2.96 0.37 30.18
PU/1.0GO 58.14 8.84 3.07 0.41 29.55
PU/1.5GO 57.89 8.77 2.94 0.19 30.21
GO 45.28 2.72 0.00 2.30 49.70
* Oxygen content was estimated by the formula [O] = 100— ∑ i [ C i ], where [Ci] is the content of the i-th element.
Table 2. XPS-derived content (in atomic units) and temperature of maximum degradation rate Tmax (in oC) for PU and PU/GO composites.
Table 2. XPS-derived content (in atomic units) and temperature of maximum degradation rate Tmax (in oC) for PU and PU/GO composites.
Sample Content, at.% Tmax,
C О N S Si oC
PU 75.87 16.71 1.97 0.11 5.34 340.5
PU/0.1GO 76.31 16.35 1.92 0.13 5.29 348.0
PU/0.5GO 76.55 16.51 1.73 0.15 5.06 366.4
PU/1.0GO 76.14 16.98 1.58 0.14 5.15 363.6
PU/1.5GO 77.29 16.42 1.50 0.09 4.71 358.1
GO 73.23 24.28 >0.30 2.19 - -
Table 3. Atomic ratios for PU and PU/GO composites according to Elemental analysis and XPS.
Table 3. Atomic ratios for PU and PU/GO composites according to Elemental analysis and XPS.
Sample Atomic ratios elemental XPS
C/O C/N C/O C/N
PU 2.58 22.7 4.54 38.5
PU/0.1GO 2.47 23.0 4.67 39.8
PU/0.5GO 2.54 22.8 4.64 44.2
PU/1.0GO 2.62 22.2 4.48 48.1
PU/1.5GO 2.55 23.0 4.70 51.5
Table 4. Contributions of individual chemical moieties in the high-resolution C1s, N1s and O1s spectra of PU and PU/1.5GO.
Table 4. Contributions of individual chemical moieties in the high-resolution C1s, N1s and O1s spectra of PU and PU/1.5GO.
Moiety Binding energy [eV] PU/1.5GO [at%] PU [at%]
C 1s C=C 284.2 1.9 1.31
C–C 285.0 56.15 55.73
CC–OH, –NH2 286.0 7.11 6.93
C–O–C 286.6 29.57 28.41
C=O 287.8 2.27 4.87
C=NH–(O)–NH 289.3 1.54 1.57
C=NH–(O)–O 290.6 1.47 1.3
N 1s C=NH–(O)– 399.9 90.8 100
C–NH3+ 401.3 9.2 -
O 1s O=C 530.8 2.5 3.84
O–C 532.5 85.89 86.43
H2O 534.2 11.61 9.74
Table 5. The positions (Pos), full widths at half maximum (FWHM), and intensities (Int) of the peaks in the Raman spectra of the samples under study.
Table 5. The positions (Pos), full widths at half maximum (FWHM), and intensities (Int) of the peaks in the Raman spectra of the samples under study.
Sample Peak Pos, cm–1 FWHM, cm–1 Int, % ID/IG
GO D* 1114.2 178 3.2
D 1348.5 134 60.3
D” 1520.0 123 4.8 2.09
G 1587.1 78 28.8
D’ 1613.3 32 3.0
rGO D* 1144.2 220 5.2
D 1347.9 80 60.1
D” 1522.2 140 9.7 2.68
G 1584.0 55 22.4
D’ 1617.1 27 2.7
PU/1.0GO D* 1100.5 180 5.6
D 1338.7 111 55.0
D” 1500.0 187 21.0 7.24
G 1580.0 71 7.6
D’ 1605.9 56 10.8
PU/1.5GO D* 1150.0 144 2.3
D 1346.6 118 45.8
D” 1520.0 221 30.2 3.69
G 1580.0 72 12.4
D’ 1602.8 56 9.4
