Evaluation of a Cyber Risk Assessment Approach for Cyber-Physical Systems: Maritime and Energy Use Cases

Altmetrics

Downloads

177

Views

55

Comments

0

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

07 March 2023

Posted:

07 March 2023

You are already at the latest version

Alerts
Abstract
In various domains such as energy, manufacturing, and maritime, cyber-physical systems (CPS) have seen increased interest. Both academia and industry have focused on the cybersecurity aspects of such systems. The assessment of cyber risks in CPS is a popular research area with many existing approaches that aim to suggest relevant methods and practices. However, few works have addressed the extensive and objective evaluation of the proposed approaches. In this paper, a standard-aligned evaluation methodology is presented and empirically conducted to evaluate a newly proposed cyber risk assessment approach for CPS. The approach, which is called FMECA-ATT&CK is based on Failure Mode, Effects & Criticality Analysis (FMECA) risk assessment process and enriched with the semantics and encoded knowledge in the Adversarial Tactics, Techniques, and Common Knowledge framework (ATT&CK). Several experts were involved in conducting two risk assessment processes, FMECA-ATT\&CK and Bow-Tie, against two use cases in different application domains, particularly an autonomous passenger ship (APS) as a maritime use case and a digital substation as an energy use case. This allows for the evaluation of the approach based on a group of characteristics, namely, applicability, feasibility, accuracy, comprehensiveness, adaptability, scalability, and usability. The results highlight the positive utility of FMECA-ATT&CK in model-based, design-level, and component-level cyber risk assessment of CPS with several identified directions for improvements. Moreover, the standard-aligned evaluation method and the evaluation characteristics have been demonstrated as enablers for the thorough evaluation of cyber risk assessment methods.
Keywords:
Subject: Computer Science and Mathematics  -   Information Systems

1. Introduction

Interest in Cyber-Physical Systems (CPS) has increased in the last years across different application domains such as maritime and energy. The maritime industry is undergoing a major transformation leading to changes in operations and technology [1]. As an example of this trend, this work is part of the “Autoferry" project [2] that aims to develop a ferry to transport passengers autonomously across the Trondheim canal. In our previous work [3], we classified the ferry as an Autonomous Passenger Ship (APS).
Cyber attacks targeting the maritime domain are increasing both in number and severity [4]. Attacks of this type target all segments of the maritime infrastructure, including ships, ports, and shipping companies. The denial of service attack against COSCO shipping company [5], stealing of confidential designs from Austal naval shipbuilders [6], and ransomware attack against Maersk [7] are notable and well-known examples. Arguably, attacks against ships are of relatively low complexity [8]. In real events, ships themselves have also been targets of attacks, and incidents involving their Global Positioning System (GPS) and communication technologies [9] indicate the feasibility of cyber attacks and potential impact.
Regarding the APS, it includes a wide range of Information and Communication Technology (ICT), and Industrial Control Systems (ICS) allowing it to be conceptualized as a CPS. The APS security risks may directly or indirectly endanger passengers’ safety and adversely affect the operational environment. The ship can be steered into a collision with the surrounding environment or other ships if its remote or autonomous control capabilities are hijacked. To increase the trustworthiness, security, and resilience of integrated systems, risk management is considered for implementation in the APS architecture. As discussed in ISO 31010 [10] and ISO 27005 [11], risk management includes several processes, with risk assessment at the core. To ensure the safety of people and the systems themselves, the relationship between safety and security in the risk management of CPS like autonomous ships requires additional attention.
Moreover, surveyed risk assessment approaches in CPS have been observed to rely heavily on the experts’ judgment which increases the required efforts for continuous risk assessment and management as well as having results that are heavily subject to bias [12]. In this direction, the authors of this article have previously proposed an approach for assessing the risks in cyber-physical systems [12]. The approach is based on Failure Mode, Effects Criticality Analysis (FMECA) risk assessment process and enriched with the semantics and encoded knowledge in the Adversarial Tactics, Techniques, and Common Knowledge framework (ATT&CK). We refer to this approach throughout this article as FMECA-ATT&CK. The approach reduces the need for expert judgment in several steps of the risk assessment leading to reduced efforts and impact of bias on judgment. In this article, further evaluation of FMECA-ATT&CK is carried and its results are presented. The evaluation relies on the engagement of a group of experts for conducting the risk assessment process using the FMECA-ATT&CK approach and another common approach that is Bow-Tie against two different use cases in different application domains one in maritime and another in energy. This allows for the evaluation of the approach based on a group of characteristics, namely, applicability, feasibility, accuracy, comprehensiveness, adaptability, scalability, and usability.
The contribution of this article can be summarized as follows:
  • An evaluation of an open source risk assessment process that is FMECA-ATT&CK supporting its development as a semi-automated cyber risk assessment tool for CPS.
  • Key characteristics for the evaluation of risk assessment methods. These characteristics can be utilized as a basis for comparison among existing and newly proposed methods for risk assessment.
  • A standard-aligned methodology for the evaluation of risk assessment methods. The methodology allows for the evaluation according to a group of characteristics while reducing the impact of bias.
The remainder of this paper is structured as follows. In Section 2, background information regarding the relevant standards, methods, and use cases is provided. In Section 3, a group of related works is discussed to highlight the observed relevant methods and characteristics for evaluation. Then, the evaluation methodology is presented in Section 4. The evaluation of FMECA-ATT&CK is detailed in Section 5. The evaluation results are presented in Section 6. Then, reflections from conducting the evaluation including identified limitations and future directions are discussed in Section 7. Finally, concluding remarks are provided in Section 8.

2. Background

FMECA-ATT&CK has been developed as an approach for risk assessment. It has a defined set of inputs, and procedures, and produces an output. This allows it to be conceptualized as a system. Therefore, the evaluation is approached as a system analysis process following the ISO 15288:2015 system development standard [13]. Also, the chosen system analysis method relies on experts’ judgment through brainstorming, then techniques for eliciting expert views are utilized from the IEC 31010:2019 standard for risk assessment techniques [10]. Additionally, the applicability of FMECA-ATT&CK for assessing risks in different use cases and application domains is among the targeted characteristics for evaluation. Therefore two use cases are utilized for carrying out the assessment procedure. One use case is a maritime use case that is an APS while the other is from the energy domain that is a generic digital substation. In order to establish a reference for comparison, the evaluation includes the utilization of another well-established assessment process that is Bow-Tie for evaluating the same use cases. In this section, several resources, approaches, and use cases are introduced to facilitate later discussion of the evaluation process of the FMECA-ATT&CK approach.

2.1. Standards, Methods and Approaches

The evaluation process is aimed to be aligned with the relevant standards and common approaches in the industry. The relevant standards are the IEC 31010:2019 [10], ISO 15288:2015 [13], and IEC 60812 [14]. Additionally, a commonly utilized method for risk assessment that is Bow-Tie is utilized to provide a basis for comparison with regards to FMECA-ATT&CK. Moreover, details regarding the use cases are presented hereafter.

2.1.1. IEC 31010:2019, ISO 15288:2015, and IEC 60812

The FMECA-ATT&CK approach has been developed based on the IEC 60812 FMECA standard [14]. The standard provides detailed steps for conducting a FMECA process including guiding criteria and suggested methods. The IEC 31010:2019 standard [10] was utilized for the identification of relevant risk analysis and assessment techniques to be adopted during the different steps in the FMECA process, such as the utilization of threat taxonomies as a threat identification method. Additionally, IEC 31010:2019 standard was consulted during the evaluation of FMECA-ATT&CK regarding guidelines for eliciting expert opinions and judgment. Additionally, the system analysis process in the ISO 15288:2015 [13] standard for system development was consulted for the development of the evaluation methodology, particularly, the system analysis process. This highlights how aligned the FMECA-ATT&CK approach and its evaluation with the relevant standards.

2.1.2. FMECA-ATT&CK

The Adversarial Tactics, Techniques, and Common Knowledge from MITRE, shortly known as the ATT&CK framework [15] is witnessing widespread adoption in both academia and the cybersecurity industry as a source of knowledge regarding adversarial tactics, techniques, and procedures (TTP). ATT&CK includes several technology domains such as enterprise Information Technology (IT) and the Operational Technology (OT) in Industrial Control Systems (ICS) and Mobile technology making ATT&CK suitable in a wide range of use cases hosting a collection of these technologies. As opposed to other high-level models observed in the literature like STRIDE [16] and the cyber Kill Chain [17], the ATT&CK framework presents a comprehensive and low-level abstraction of adversarial tactics and techniques. Additionally, the witnessed utilization of ATT&CK terminologies in threat reports [18] and cybersecurity testing frameworks such as Caldera [19] highlights the utility of integrating ATT&CK framework within the different risk management processes starting with the risk assessment.
Preprints 69507 g001

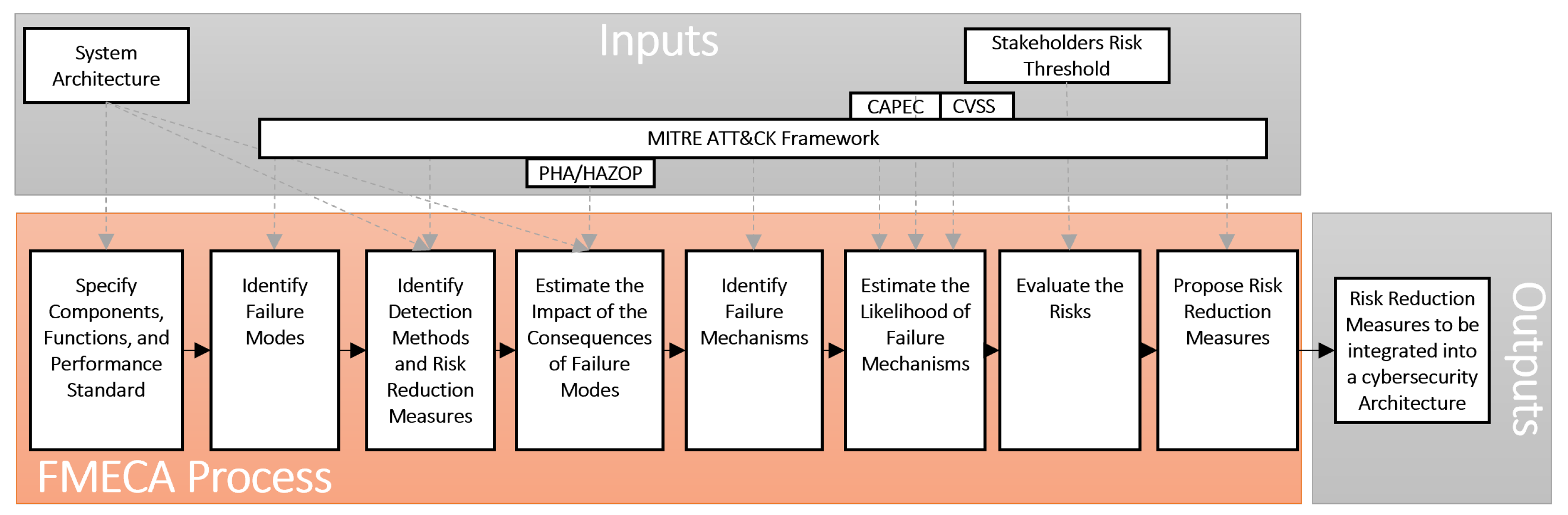

Figure 1. Steps of FMECA-ATTCK with the knowledge Sources (Adapted from [12])
Figure 1. Steps of FMECA-ATTCK with the knowledge Sources (Adapted from [12])
Preprints 69507 g001
Yet, ATT&CK is not a method for risk assessment. Therefore, a number of approaches have been considered in order to determine what method is most appropriate for risk assessment. We referred to the IEC 31010:2019 [10] standard for risk assessment techniques. The standard describes and compares the most commonly employed techniques in the different steps of risk assessment. We considered scope, time horizon, specialist expertise requirements, and the amount of effort required to apply risk assessment techniques. The scope of our risk assessment in CPS includes components, equipment, and processes. In order to support continuous risk assessment and management as well as reduce the effect of biased assessment associated with expert judgment, the time horizon should be flexible. In addition, the amount of specialist expertise and effort needed should be at most moderate. We have chosen Failure Modes, Effects, and Criticality Analysis (FMECA) [14] based on the aforementioned criteria. Further, the standard emphasizes FMECA’s application to all stages of the risk assessment process, which include identifying risk, assessing consequence, estimating likelihood, and evaluating risk.
Based on FMECA, FMECA-ATT&CK makes use of common knowledge encapsulated in the ATT&CK framework. The components within scope, their functions, and performance standards are defined. Then, the relevant failure modes are identified, and for this, the ATT&CK tactics are considered. Then, The existing detection methods are identified and their efficiency is estimated. Later, the impact of the consequences of failure modes is estimated based on five elements of impact, namely, operational, safety, financial, information, and staging (stage further attacks). The operational and staging impacts are estimated based on the centrality measures of the component after a graph of the system is modeled. The remaining elements are estimated based on expert judgment. Each failure mode is assigned a weighting of the expected impact elements. For instance, the collection tactic as a failure mode is only expected to cause information and staging consequences. In order to calculate the estimated failure mode for each component, each component is assigned criticality scores covering all five elements of impact. Afterward, the possible failure mechanisms causing the failure modes are identified. For this, the ATT&CK techniques are utilized and their properties such as relevant assets and platforms are used to match them with the relevant components. After that, the likelihood of failure mechanisms is estimated based on the exploitability score in the Common Vulnerability Scoring System (CVSS) which considers Attack Vector (AV), Attack Complexity (AC), Privilege Required (PR), User Interaction (UI). Later, the risk rating criteria are defined (e.g. based on value distribution). Finally, the relevant mitigation measures for each failure mechanism are defined. This is derived from the encoded knowledge in ATT&CK. When all the aforementioned information is collected, a Risk Priority Number Calculation and Mitigation Identification (RPNMI) Algorithm is executed to calculate the risk of each failure mechanism and suggest the relevant mitigation measures. Detailed description of the FMECA-ATT&CK steps, tables, data types and sources of knowledge is presented in Appendix A. Additionally, the reader may refer to our original work [12] for more information regarding the risk assessment approach.

2.1.3. Bow-Tie

The Bow-Tie approach allows for the assessment of cyber risks and the identification of barriers needed to control them without focusing on the likelihood. This aids in quick visualizations of the measures that are needed for implementation [20]. The Bow-Tie is among the known method in the maritime sector and was found suitable for implementation in this paper for providing a basis for comparing the risk assessment results achieved through FMECA-ATT&CK and evaluating their soundness. The Bow-Tie method begins with defining the scope of the target system for evaluation. This can be done by interviewing system users, operators, and other stakeholders for answering scoping questions regarding the system components, and existing mitigation measures. to identify gaps. Then, threats and consequences are identified using any suitable threat modeling approach. This includes the identification of a top event, threat scenarios leading to it, and possible arising consequences. Then, the incident prevention and consequence reduction barriers are identified. Finally, the robustness and effectiveness of the barriers are considered to identify directions for improvement.
Preprints 69507 g002

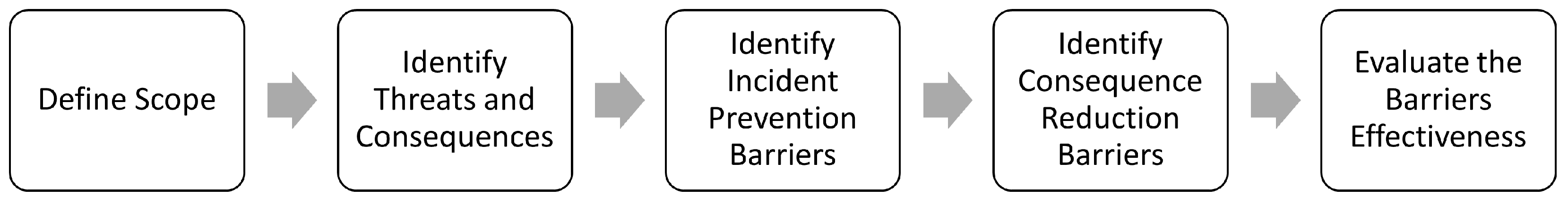

Figure 2. The Bow-Tie method (adapted from [20])
Figure 2. The Bow-Tie method (adapted from [20])
Preprints 69507 g002

2.2. Use Cases

Two use cases are utilized to evaluate FMECA-ATT&CK, namely, an Autonomous Passenger Ship (APS) and a generic Digital Substation (DS). The APS represents a use case from the maritime domain while the DS represents a use case from the Energy domain.

2.2.1. Autonomous Passenger Ship (APS)

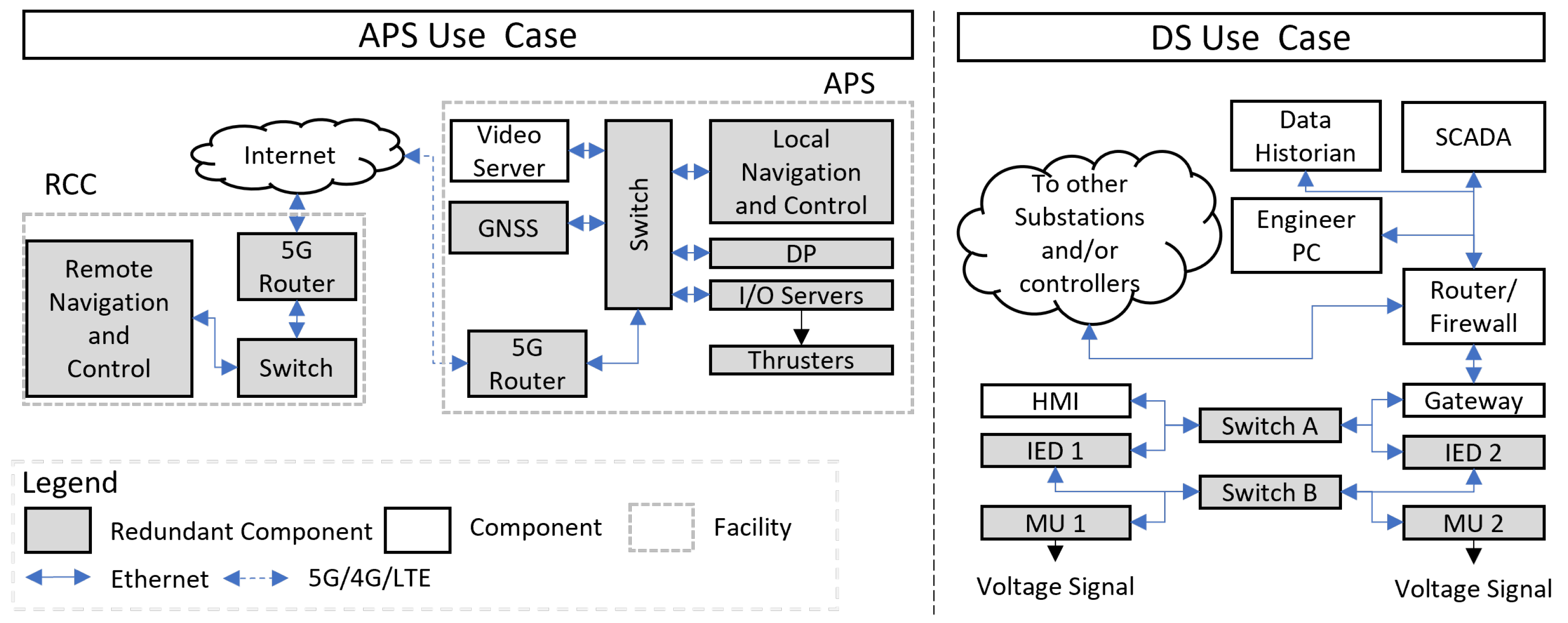

The first use case is a prototype of an APS named milliAmper2. An overview of the use case description is depicted in Figure 3. The assessment scope was defined in one network among several networks of the milliAmper2 to reduce the assessment time and required efforts. However, information regarding redundant systems in other networks was utilized during the assessment for accurate risk estimation. In summary, the ferry includes several components such as a Global Navigation Satellite System (GNSS) and video cameras as sensor data. These data are sent to a local navigation and control system to identify safe routes and then instruct the dynamic positioning (DP) system to control the thrusters through a group of I/O servers. The ferry is connected through a 5G network to a Remote Control Center (RCC) hosting a remote navigation and control system that can intervene in case of an unsafe situation. Further details about the APS architecture can be found in [21].

2.2.2. Digital Substation (DS)

To evaluate FMECA-ATT&CK applicability in different use cases in the different application domains, another use case is needed. For this, we have identified the Digital Substation from the work of Khodabakhsh et al [22] as a suitable use case. An overview of the use case description is depicted in Figure 3. The digital substation includes a Supervisory Control and Data Acquisition (SCADA) system with an Engineering PC for monitoring and control. A data historian is hosted for storage. These components are connected through a router and a gateway to the lower devices, Intelligent Electronic Devices (IED), Human-Machine Interface (HMI), and Merging Units (MU) for monitoring and controlling the voltage signal.

3. Related Work

The area of cyber risk assessment in cyber-physical systems is rich with relevant literature. A wide range of risk assessment methods and approaches do exist. However, limited works have been observed regarding a structured and systematic evaluation of such works.
Some works have been observed that targets the evaluation of risk assessment approaches. Tam [23] conducted a qualitative evaluation of the author’s risk assessment framework. The author relied on expert judgment for measuring the usability and applicability of the risk assessment framework using a survey. Abkowitz and Camp [24] investigated the applicability of the Enterprise Risk Management (ERM) framework in marine transportation. The authors utilized a group of experts to implement the ERM framework against a case study including a marine transportation carrier. Grigoriadis et al [25] engaged system stakeholders to evaluate a risk assessment tool regarding satisfaction of the stakeholders’ security and privacy requirements as well as the feasibility of its application. The evaluation approach entails a demonstration of the tool and asking the participants to answer a questionnaire. Moreover, [26] examined the feasibility of using the System Theoretic Process Analysis (STPA) for risk analysis and quantitative risk modeling of autonomous ships. The author identified and assessed 35 risk analysis methods and found seven methods that can be used to enhance STPA for risk analysis of autonomous ships.
Additionally, several works proposing risk analysis and assessment approaches in CPS have been observed in the literature. The authors’ evaluation of their contributions tends to include the utilization of certain use cases to demonstrate the applicability of their proposed approach (e.g. [27,28]). Some works have utilized other approaches to provide a ground for comparison (e.g. [23,26]).
Moreover, several guidelines and standards are available with relevant artifacts for evaluating risk assessment approaches. This includes the NIST Assessment guidelines (NIST.SP.800-53Ar5) [29], ISO 31010:2019 risk assessment standard [10]. NIST guidelines discuss several approaches for evaluation, namely, examine, interview, and test with different levels of rigor ranging from basic to comprehensive and covering a scope ranging from basic to comprehensive. The ISO 31010 standard [10] suggests Characteristics for comparison among risk assessment and analysis methods including application, scope, specialist expertise, and efforts to apply.
Lastly, our original work [12] proposing FMECA-ATT&CK as a risk assessment approach for CPS discussed the background and rationale that led to that proposition. Among the original objectives is to include the applicability in different application domains utilizing Information Technology (IT), and Operational Technology (OT). Also, to be comprehensive in its consideration of risk elements. Additionally, reducing the need for expert judgment through employing the concept of curated knowledge to support the automation of some elements to allow a continuous risk assessment process. Moreover, the approach’s adaptability to include additional components of risks has been demonstrated in the original work. Therefore, measuring the applicability of FMECA-ATT&CK, its comprehensiveness, and the accuracy of the results based on curated knowledge and some automated elements and adaptability, was deemed necessary to assess the satisfaction of the original objectives and therefore these characteristics are targeted in this work.

4. Evaluation Methodology

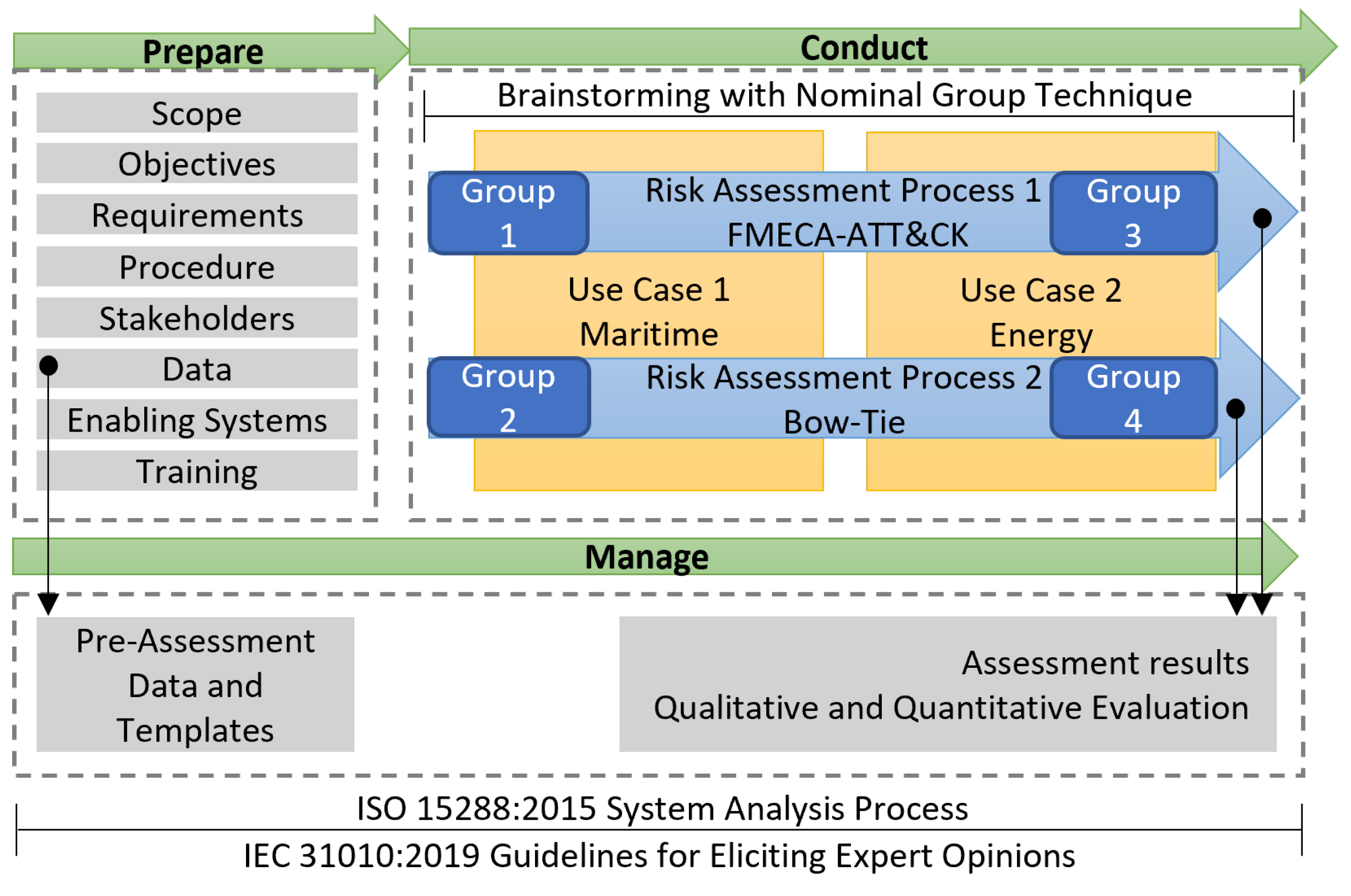

An evaluation methodology for evaluating a risk assessment approach is proposed in this section. The approach under evaluation; which is FMECA-ATT&CK in this paper, is conceptualized as a system. Therefore, the evaluation is approached as a system analysis process following the ISO 15288:2015 [13] system development standard. This includes preparation, conducting, and managing the analysis results as shown in Figure 4.

4.1. Preparing for the Evaluation

The preparation entails specifying the evaluation scope, objectives, and requirements. Then, the evaluation procedure is determined, the stakeholders are identified, and the required data and enabling systems are prepared. The scope is defined within the evaluation of a risk assessment method through application against several CPS use cases in different application domains. The evaluation objective is to evaluate the risk assessment method according to a group of characteristics, namely, applicability, feasibility, comprehensiveness, adaptability, scalability, usability, and accuracy. The characteristics were chosen based on what has been observed in the literature as well as the original motivations that led to the proposition of FMECA-ATT&CK. The evaluation characteristics are summarized in Table 1. Methods for measuring the characteristics are discussed in Section 5.1.2.
Then, the analysis requirements are identified. The requirements are expected to be different according to each evaluation process. The following requirements are derived based on the method itself:
  • Due to the reliance on expert judgment, measures for reducing bias in the assessment must be integrated in order to improve the assessment quality.
  • Diversity in the use cases should be pursued to include various application and technology domains in order to measure applicability.
  • Another common risk assessment method needs to be chosen that performs a similar function to the method that is subject to evaluation and provides categorically aligned results.
Additionally, an evaluation procedure should be defined. This includes applying the risk assessment that is subject to evaluation as well as another common and similar method against the same set of use cases. This is intended to provide a reference for comparing the results. Moreover, the relevant stakeholders for the evaluation should be identified. The identification should consider their expertise in the application domain of the use cases. Finally, the data and enabling systems needed for the evaluation need to be prepared. This includes training the participants for the assessment.

4.2. Executing the Evaluation

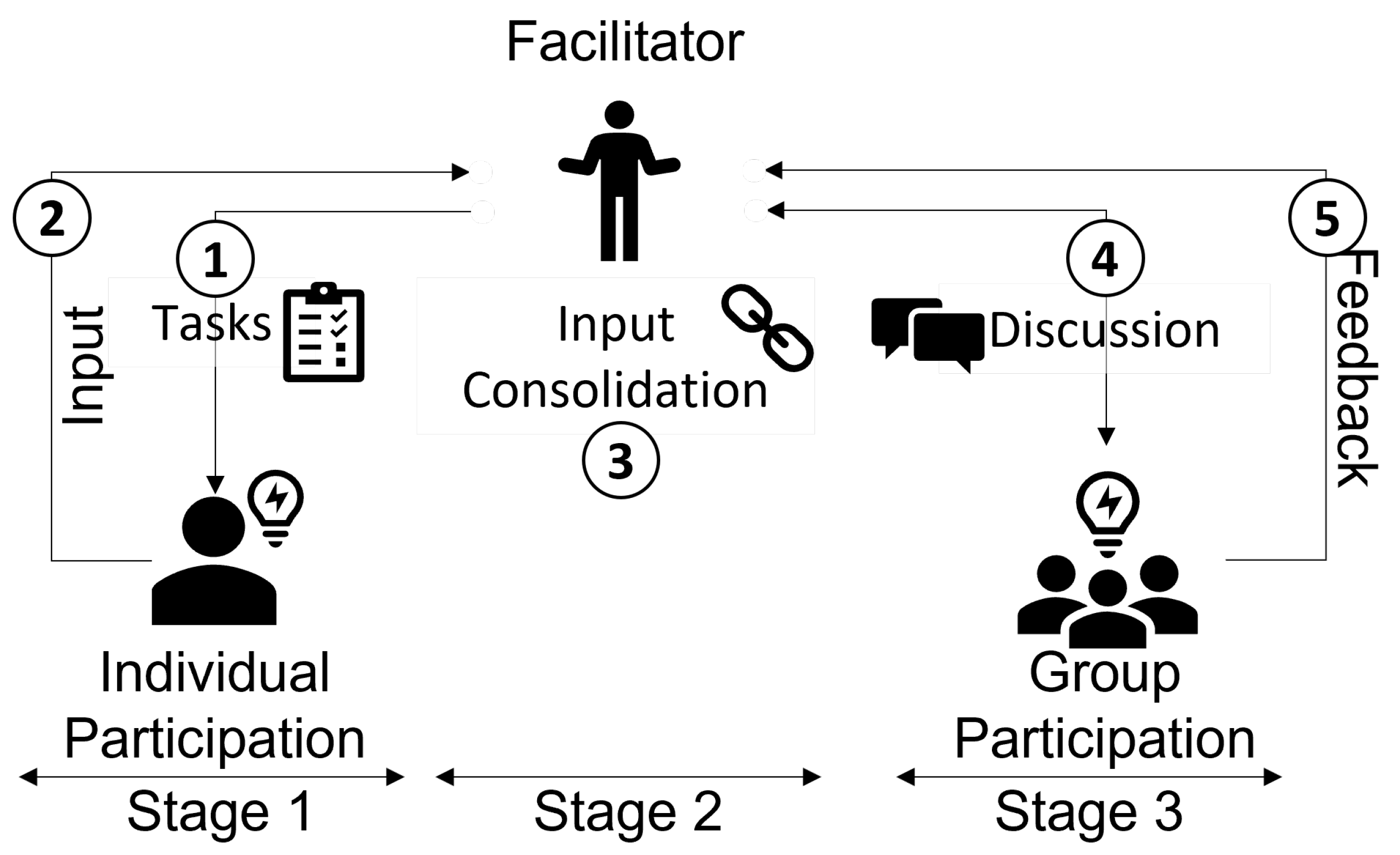

The evaluation is proposed to be executed over several sessions spanning the different groups. As shown in Figure 5, the procedure is divided into three stages for each group, the first stage aims to run the assessment process step by step, describe to each participant the individual tasks, and address their questions. The participants should be given a sufficient period of time to provide their individual input. After receiving the participants’ input, the results are evaluated to identify conflict areas and generate initial results based on consolidated inputs. Proposed consolidation rules can be found in Appendix B. In the third stage, the results are discussed in a group to reach a conclusion. Then, feedback from the participants applying the method under evaluation should be queried regarding their experience with the evaluated risk assessment approach utilizing a questionnaire.

4.3. Managing the Evaluation

All the prepared data for the evaluation, the participants’ input, and the results should be maintained for future reference.

5. FMECA-ATT&CK Evaluation

In this section, The evaluation process of FMECA-ATT&CK is presented. The evaluation is based on the methodology discussed in Section 4.

5.1. Preparing for the Evaluation

Preparation involves defining the scope, objectives, and requirements of the evaluation. Following this, the evaluation procedure is determined, stakeholders are identified, and the data and enabling systems are prepared.

5.1.1. Scope, Objectives, and Requirements

The scope is constrained to the evaluation of FMECA-ATT&CK as a design-level cyber risk assessment approach in Cyber-Physical Systems (CPS). Two use cases of CPS were chosen in different application domains, namely, an Autonomous Passenger Ship (APS) or ferry representing the maritime domain and a generic Digital Substation (DS) representing the energy domain. The objectives include evaluating FMECA-ATT&CK according to the defined characteristics, namely, applicability, feasibility, comprehensiveness, adaptability, scalability, usability, and accuracy.

5.1.2. Evaluation Procedure

In order to evaluate the applicability of FMECA-ATT&CK, we considered the utilization of two distinct use cases in different application domains as the target system of analysis. To evaluate the accuracy, a basis for comparison is needed, and therefore, the utilization of another commonly adopted risk analysis and assessment method is needed. To evaluate the feasibility, comprehensiveness, usability, adaptability, and scalability, FMECA-ATT&CK is planned to be applied by experts and query their feedback through a questionnaire. Additionally, usability is measured by monitoring the experts’ progression throughout the execution process. Moreover, brainstorming to elicit experts’ comments, concerns, and ideas regarding FMECA-ATT&CK was found to be a suitable approach for evaluation. However, since the chosen evaluation approach relies on expert judgment, then techniques for eliciting expert views are utilized from IEC 31010:2019 [10]. Additionally, since such views are subject to bias, the following measures for reducing bias were implemented:
  • To reduce bias based on the bandwagon effect, the nominal group technique is implemented [30]. The bandwagon effect refers to the tendency of group ideas to converge rather than diverge. The nominal group technique has been found to generate more ideas than brainstorming alone [10].
  • Group communication is hindered to avoid information bias.
  • FMECA-ATT&CK itself implements measures to reduce bias through the utilization of metrics based on graph theory and data from the ATT&CK framework.
  • Inputs from previous relevant risk assessment processes are avoided as much as possible. However, the utilization of some previous data was unavoidable. More details will be discussed later on when such a case occurred.
Then, the additional risk assessment process to be conducted was chosen to be the Bow-Tie method since it is a common approach in evaluating the risks in CPS. So, brainstorming with nominal group technique while implementing FMECA-ATT&CK and Bow-Tie against different use cases was determined to be the assessment procedure. Excel sheets were utilized as the medium for guiding the tasks and collecting input from the experts. Noteworthy, each risk assessment process might require specific system-level information in a specific format. So, a coherent state of the system description of both use cases must be maintained when applying the two processes to ensure a symmetric basis for evaluation. Also, several groups each working on a different use case and applying a specific risk assessment process need to be formulated.

5.1.3. Identifying Stakeholders

The relevant stakeholders including the evaluation participants are identified and approached. In this direction, several Subject Matter Experts (SME) were considered based on their experience in the use case application domain. As shown in Table 2, both academic and industrial SMEs were pursued with various experiences and backgrounds to improve the quality of the evaluation process.

5.1.4. Preparing Data, enabling systems, and training for the assessment

The required data and enabling systems for the assessment were identified after a detailed study of the two risk assessment processes, namely, FMECA-ATT&CK and Bow-Tie. The common starting point for both is to define the analysis scope and this includes the targeted system for evaluation (i.e. use case). Descriptions of the two use cases to be targeted by both assessment processes were formulated. Several views of each use case architecture were prepared and made ready for analysis (Section 2.2.1 and Section 2.2.2). The following steps are different for each risk assessment process. The steps for conducting FMECA-ATT&CK were followed based on our original article where it was proposed [12] while the steps for conducting Bow-Tie were based on the class guidelines published by De Norsk Veritas (DNV) [20].
When preparing the data required for conducting FMECA-ATT&CK, some data doesn’t rely on expert judgment as it is extracted from the continuously updated ATT&CK framework, others required modeling the use cases in graphs and calculate the centrality metrics, while others were identified to require input from the experts.
The DNV class guidelines  [20] were utilized for preparing data required for conducting Bow-Tie. This entails answering a list of questions to help guide the experts in identifying the scope of the analysis and assessing the risks.
Finally, to facilitate a productive risk assessment process with the limited time the experts were willing to provide, the participants received a briefing and training on the assessment procedure and were provided with the required preliminary data using a combination of meetings and email communications.

5.2. Executing the Evaluation

The evaluation was executed over several sessions spanning the different groups following the procedure depicted in Figure 5. During the first stage, the assessment processes, namelym Bow-Tie and FMECA-ATT&CK were conducted step by step, describing to each participant the individual tasks, and addressing their questions. A sufficient period of time was provided so that participants could provide their individual input. On the basis of consolidated inputs, the results are evaluated to identify conflict areas and generate initial results. To reach a conclusion, the results were discussed in a group stage. Participants applying FMECA-ATT&CK were then surveyed regarding their experience with the risk assessment approach utilizing a questionnaire. An exception to that procedure occurred with the fourth group as we were forced to accommodate the participants’ time constraints by running the first stage as a group by facilitating and stimulating discussion among the group participants and receiving their input for the assessment. After consolidating their input, the results were sent to the participants to receive their confirmation on the final assessment results.

5.2.1. Delivering Tasks and Receiving input from experts

The tasks for conducting FMECA-ATT&CK were compiled in an Excel worksheet including all the steps, and required tables to fill with guiding notes and room for receiving detailed comments. The utilized template for each use case can be found in the authors’ public repository 1. On the other hand, the tasks for conducting Bow-Tie were communicated to the relevant groups in meetings. They were provided with the data prepared for the assessment. They were requested to deliver input for drafting Bow-Tie diagrams and highlighting the top threats, and mitigation measures that are required. After a sufficient period, the experts provided their answers back.

5.2.2. Evaluating the results

After receiving the experts’ deliverables. A consolidation process was executed to produce the risk assessment results (See Appendix B). The inputs for the FMECA-ATT&CK process were fed to a semi-automated tool to generate the results. On the other hand, the inputs for the Bow-Tie process were utilized to draft Bow-Tie diagrams. Finally, the results were presented to the experts, and a discussion was opened to reach a conclusion. Both sets of outputs were then compared to evaluate the soundness of the FMECA-ATT&CK results.
Another input was received from the groups applying the FMECA-ATT&CK process. This includes quantitative evaluation in the form of a rating of the process based on the characteristics specified earlier (Section 5.1.1) as well as qualitative evaluation in the form of comments on the process.

5.3. Managing the Evaluation

All the prepared data for the evaluation, the participants’ input, and results are maintained in a public repository for future reference 1. This includes the following:
  • The utilized template for receiving experts’ input for each use case when conducting FMECA-ATT&CK.
  • The scoping questions and the prepared answers for the Bow-Tie process
  • The FMECA-ATT&CK scripts, the inputs, and outputs.
  • The generated Bow-Tie diagrams.
Moreover, this paper constitutes a report of the executed evaluation with the lessons learned.

6. Evaluation Results

The results of the evaluation are presented in this section. The evaluation relied on three types of input, namely, categorical comparison between the results of the risk assessment processes, namely, FMECA-ATT&CK and Bow-Tie, experts’ feedback through questionnaires, and experts’ comments.

6.1. Risk Assessment Results

The results from the risk assessment processes conducted by the four groups have been collected, categorized, and compared. The categorization is based on the identified risks and suggested controls. More details in this regard are presented hereafter.

6.1.1. Top Risks

The Bow-Tie and FMECA-ATT&CK methods are categorically compatible. Threats, consequences, and mitigations in Bow-Tie can be mapped to techniques, tactics, and mitigations in FMECA-ATT&CK, respectively. This allows for a comparison of the results of the two methods and consequently provides evidence regarding the soundness of the results obtained through the application of FMECA-ATT&CK. The top risks identified through Bow-Tie and their relevant identified techniques in FMECA-ATT&CK and their corresponding risks are presented in Table 3. The results suggest that FMECA-ATT&CK can identify similar risks to Bow-Tie with more granularity; defined atomic techniques. The highest risks identified through FMECA-ATT&CK are all identified through Bow-Tie while several threats identified through Bow-Tie were rendered of low risks. The rationale for these discrepancies is the consideration of existing mitigation measures. FMECA-ATT&CK does consider the existing mitigation measures in the risk calculation while the experts applying Bow-Tie appear to have either dropped them from their considerations or found them inefficient. Still, some threats identified through Bow-Tie (e.g Employees Wrongdoing) are not supported by the current version of FMECA-ATT&CK which only considers adversarial threats.
Another categorical view is the desired attacker objectives or expected consequences in the evaluated systems. The identified consequences through Bow-Tie and their corresponding tactic (i.e objective) identified by FMECA-ATT&CK are presented in Table 4. The results suggest an alignment of the identified possible consequences in both use cases. The results of Bow-Tie cover all the high risks objectives identified by FMECA-ATT&CK. Some consequences from Bow-Tie are rendered of medium to low risks in FMECA-ATT&CK due to existing risk mitigation measures. Additionally, FMECA-ATT&CK identified additional objectives which Bow-Tie did not. This includes privilege escalation, exfiltration, credential access, and others.

6.1.2. Suggested Risk Controls

The identification of required risk mitigation measures or controls is a main objective of FMECA-ATT&CK. It was originally proposed as an instrument for the identification of risks and the proposition of the required controls to be considered in a subsequent process which includes the development of an architecture for cyber risk management. Table 5 depicts the controls suggested by Bow-Tie and their corresponding controls suggested by FMECA-ATT&CK. The controls that were already included in the use case are highlighted. Additionally, the number of identified high and medium risks for which the corresponding controls are suggested are presented as well. This suggests a certain priority of certain controls over others. The results suggest that the controls suggested by Bow-Tie and FMECA-ATT&CK are somehow comparable. Most of the controls proposed by Bow-Tie are also identified by FMECA-ATT&CK for addressing high to medium risks in both use cases. Some controls are proposed in FMECA-ATT&CK but not in Bow-Tie such as data backup for the APS use case. On the other hand. Some controls suggested through Bow-Tie are not supported by FMECA-ATT&CK due to their scope. FMECA-ATT&CK only addresses controls that are relevant to the system’s components.

6.1.3. Usability Metric

The experts applying FMECA-ATT&CK were given an Excel worksheet with detailed instructions for delivering their input. The experts were instructed to leave a field empty if the task was not clear or they lacked the relevant knowledge needed for delivering a sound judgment. This procedure allows for estimating the usability of the current FMECA-ATT&CK version. In this direction, we define a Usability metric to be the ratio of the number of decisions made by an expert to the number of decisions asked to be made by the expert. Table 6 depicts the number of decisions that were provided to the experts and the number of decisions made which was subsequently used to calculate the usability metric. The experts were given mandatory and optional tasks regarding the risk assessment. The mandatory tasks are system-specific; the expert judgment regarding them is expected to be different for different use cases. On the other hand, the optional tasks are non-system-specific, such as the threat checklist, likelihood, and mitigation effectiveness. Also, a decision on an aspect that was added to the process and does not exist in the original proposition is considered optional. Such as the estimation of the environmental and reputation impacts. Offering the experts the option for providing a decision was intended to reduce bias from previous risk assessment processes. Table 6 only depicts the statistics related to the required decisions. The estimated usability of the current FMECA-ATT&CK process is 94,32%. This is an excellent indication of the readiness of the process for application in other use cases. Feedback was received from experts regarding the challenges faced during the execution. The main reason for the lack of ability to provide a judgment was the lack of sufficient background.

6.2. FMECA-ATT&CK Questionnaire

After the execution of the FMECA-ATT&CK risk assessment process, the experts were asked to anonymously answer a questionnaire to rate the method according to the targeted characteristics (Section 5.1.1). The questionnaire is not specific to each of the use cases. Therefore, the compiled results from all the experts are presented in this section. The questionnaire included nine questions, seven of which were related to the targeted characteristics, one regarding the execution time, and the last is to receiving their comments. Regarding the execution time, it ranges from 3 to 4 hours per expert. The main reason behind this can be linked to the comprehensive nature of the approach which according to the majority of experts was found to be from comprehensive to very comprehensive. The approach was also been perceived to be suitable for application in several to many use cases, feasible but requires certain adaptations for implementation in real systems, and highly adaptable. The majority in the scalability rating suggests that the approach is suitable for implementation in a System of Systems with a moderate amount of components. Finally, the majority of experts found some of the results to make sense while others did not. This was expected due to the fact that the input that was used to generate the risk assessment results were consolidated from all the experts in each use case with various diversion in the experts’ inputs. Nevertheless, experts’ critical comments were received and are presented in Section 6.3 and will be considered for future improvement of FMECA-ATT&CK. Additionally, the risk assessment results when compared to the results from the Bow-Tie process suggest that FMECA-ATT&CK is capable of producing sound results that are comparable to a commonly used approach with a more granular risk description, adaptable and comprehensive approach.

6.3. Experts Comments

The experts were asked to provide their critical comments regarding each step of FMECA-ATT&CK. Several comments were received from different experts. They can be summarized as follow:
  • Scope definition (Step 1): The classification criteria for certain components is not clear. Some components can be classified in different ways, others were outside the knowledge field of some experts. Also, additional technical and non-technical components should be considered such as the human operator. Moreover, there exist several performance standards for defining failure modes. However, they are safety-related.
  • Relevant failure modes (Step 2): the criteria for defining the relevant failure mode was characterized as difficult. Some emphasized existing failure modes that are safety-related are easier to consider than security-related failure modes. Also, human errors were proposed for consideration.
  • Impact estimation of failure modes (Step 4): The current estimation criteria are generic and require additional methods such as a Hazard and Operability study (HAZOP) or Event Tree Analysis (ETA). Also, some failure modes were not clear to some experts and therefore were unable to estimate their impact. Additionally, quantifying the safety, financial, environmental, and reputation criticality scores for certain components was found to be challenging.
  • Training: additional training was required for better execution.
  • Scope: experts with more operational than technical expertise found the approach difficult to apply due to a lack of knowledge of component-level failures. Also, the human element is underrepresented in the current approach. Humans can be an asset in the system as well as a risk.
  • Background: the approach requires several experts with diverse backgrounds including operational and technical experts. Some components would require certain knowledge to provide a more sound judgment.

7. Discussion

This paper presents an empirical study aimed to evaluate a recently proposed risk assessment approach for CPS that is FMECA-ATT&CK. The evaluation approach relied on expert judgment. FMECA-ATT&CK was subjected to detailed application and critical comments from a group of experts with various sets of expertise and diverse background to elicit directions for improvements. In this section, we will summarize the found limitations of the FMECA-ATT&CK approach and discuss directions for future work.
Input from experts implementing Bow-Tie referred to the demanding task of conducting a component-level assessment. With the time provided for assessments, only high-level assessment was possible. FMECA-ATT&CK on the other hand was originally proposed as a method that reduces the need for expert judgment while at the same time being comprehensive and systematic in its coverage. The expert spent no time identifying threats, estimating their likelihood, or figuring out the required risk controls. Such information was utilized based on the encoded knowledge provided by the ATT&CK framework. The threats are drawn from the list of ATT&CK techniques and their properties. Based on the components properties in the system model, the relevant ATT&CK techniques are automatically identified as relevant threats. The likelihood values of the ATT&CK techniques are estimated based on the CVSS method and relying on a group of heuristics (More details can be found in [12]). The relevant risk controls for each ATT&CK technique are queried from the ATT&CK repository. Also, the experts were not required to estimate the operational nor the staging impact of threats as it was pre-calculated based on a modeled graph of the system. The graph is modeled based on the components’ network and application level connections provided as input for the risk assessment. The observed average time for conducting FMECA-ATT&CK was 3 hours per expert while providing a comprehensive output. This highlights the utility of FMECA-ATT&CK in achieving its original objective.
Still, several aspects were observed when comparing the results obtained through Bow-Tie and FMECA-ATT&CK. One aspect related to the experts’ ability to contextualize the system is unmatched in the current form of FMECA-ATT&CK. For instance, in the APS use case, the RCC is expected to be hosted at a university facility. This information is not encoded in the system model. However, it was communicated during the initial session introducing the use case. Although valid accounts are an identified risk by FMECA-ATT&CK, the contextual information that these accounts can be stolen from students is not encoded yet in FMECA-ATT&CK. This affects the communication of the identified risks. Additionally, when discussing possible mitigation methods during the execution of Bow-Tie in the DS use case, the experts suggested future directions that are relevant but not yet implemented such as zero trust and resilient design. Such strategic direction cannot be made by the FMECA-ATT&CK approach. This sheds additional light on the component level in which FMECA-ATT&CK operates.

7.1. Limitations in the Evaluation

We acknowledge the following limitations in the evaluation process:
  • The results received from group 4 might include bias due to the bandwagon effect. This was an unavoidable effect in order to accommodate the participants’ time limitations. Efforts to reduce the bias were taken in the form of seeking individual confirmation of the results.
  • The FMECA-ATT&CK approach for calculating threats likelihood is based on the calculated CVSS metrics for the techniques in the different ATT&CK matrices which are system-independent and were pre-estimated and discussed in previous work [12]. The experts were offered a chance to provide their own estimation but due to time limitations, they were unable to do so. Therefore, we resorted to utilizing the pre-estimated data which is subject to bias.
  • We are not claiming that FMECA-ATT&CK is straightforwardly applicable in application domains of CPS other than maritime and energy. This would require extending the evaluation to include additional and diverse use cases.

7.2. Future Work

In summary, based on the results from the evaluation process, the identified future work to improve FMECA-ATT&CK are listed below:
  • The scope of considered failure modes focuses on adversarial threats. Considerations of non-adversarial threats such as human errors could be useful as a future direction.
  • Additional guidelines and supporting methods are needed for estimating the impact of certain failures. Particularly, the estimation of safety and financial impacts.
  • The current asset categorization does limit the scope of relevant use cases. Categorizing some components according to the existing asset categorization criteria was found to be challenging. This suggests the proposition of domain-specific categorization. Consequently, the approach requires additional adaptations to accommodate the change of scope. This can include domain-specific threats, failure modes, and risk controls.
  • FMECA-ATT&CK is suitable for tier 3 activities according to NIST risk management tiers which address risk from the perspectives of the system components [31]. The conducted risk assessment process using Bow-Tie yielded the suggestion of some risk mitigation measures that are at higher tiers, such as a Business Continuity Plan (BCP). The consideration of such mitigation measures requires additional tasks to be conducted after FMECA-ATT&CK which focus on multi-tier risk management rather than tier 3 risk assessment. In this direction, the expansion of the list of supporting controls will be considered in the future.
  • The utilization of additional use cases and different application domains for the application of FMECA-ATT&CK to expand its applicability.

8. Conclusions

There is increased interest in Cyber-Physical Systems (CPS) as their application has been observed in various domains such as energy, manufacturing, and maritime. The cybersecurity aspect of such systems has been the focus of many in academia as well as industry. In order to improve risk management capabilities, a number of approaches and methods have been proposed for assessing the cyber risks of CPS. However, there is a lack of dedicated work in the literature that addresses the evaluation of proposed risk assessment approaches. Our evaluation approach in this paper can be useful for evaluating other risk assessment processes. We proposed a set of characteristics for evaluating risk assessment processes and multi-staged execution procedures to measure the process according to a group of characteristics: applicability, feasibility, usability, adaptability, scalability, accuracy, and comprehensiveness. At the same time, reducing the effect of bias introduced by reliance on experts’ judgment was pursued. Recently, a new approach has been proposed to address the issue of increased reliance on expert judgment, known as FMECA-ATT&CK. The approach is based on the Failure Mode, Effects Criticality Analysis (FMECA) risk assessment process, enriched with the semantics and encoded knowledge in the ATT&CK framework. FMECA-ATT&CK was subjected to empirical evaluation by applying it to different use cases from different application domains by several groups of experts with various expertise and backgrounds. To provide a comparison basis, Bow-Tie was used as an additional common risk assessment process.
When comparing FMECA-ATT&CK with Bow-Tie for risk assessment, it was found that FMECA-ATT&CK is capable of identifying similar risks, consequences, and risk controls for the same use cases although the assessment was conducted by different groups of experts without any communication between them. This finding highlights the accuracy of the results obtained through the application of FMECA-ATT&CK. Additionally, the comprehensiveness, adaptability, feasibility, and usability of the approach were measured by experts through a questionnaire and were found excellent. On the other hand, the scalability was restricted to systems with a moderate amount of components. Furthermore, the applicability of the approach is demonstrated through its application in assessing the risks for two CPS use cases in two different application domains while providing logically sound results. In summary, the overall results are positive and suggest that FMECA-ATT&CK is a viable option for design-level and component-level cyber risk assessment for CPS.
Still, several areas for improvement have been identified based on experts’ input. This includes asset categorization, identification of relevant failure modes, impact estimation, lack of human element, and the scope of suggested controls. All of these have been discussed in the paper and are rendered as suggested directions for future work.

Author Contributions

“Conceptualization, A.A. and V. G.; methodology, A.A. and V. G.; software, A.A.; validation, A.A. and V. G.; formal analysis, A.A.; investigation, A.A.; resources, A.A. and V. G.; data curation, A.A.; writing—original draft preparation, A.A.; writing—review and editing, A.A. and V. G.; visualization, A.A.; supervision, V. G.; All authors have read and agreed to the published version of the manuscript.”

Funding

This work was funded by the NTNU Digital transformation project Autoferry

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study

Data Availability Statement

Data prepared for the evaluation, results, and utilized templates are maintained in a public repository https://github.com/ahmed-amro/FMECA-ATT-CK-Evaluation

Acknowledgments

The authors would like to express their gratitude to the participating experts, namely, Aida Akbarzadeh, Andre Jung Waltoft-Olsen, Arne Roar Nygård, Erlend Erstad, Filip Holik, Georgios Kavallieratos, Marie Haugli-Sandvik, Mohamed Abomhara, and Vijayan Manogara. The experts’ time and efforts invested in this work as well as their valuable comments are highly appreciated and will contribute to advancing the research in the field.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A Detailed FMECA-ATT&CK Description

FMECA-ATT&CK approach relies on a group of tables for collecting and processing the different aspects of risks, namely, threat identification, likelihood estimation, impact estimation, and detectability estimation. Table A1 summarizes the steps of FMECA-ATT&CK, the relevant tables to be filled, the data description, expected values, and the sources of the data. This highlights areas where experts’ judgments were speared. After the conducting the steps in the table are completed, a Risk Priority Number (RPN) Calculation and Mitigation Identification (RPNMI) algorithm is executed to generate the results. The algorithm is described in Algorithm A1.
Table A1. Detailed Description of FMECA-ATT&CK Steps, tables, data types, and knowledge sources
Table A1. Detailed Description of FMECA-ATT&CK Steps, tables, data types, and knowledge sources
Step Table Column Data Description Data Values Data Source
Step 1: Specify
Components		 Component
Description
Table (CDT)		 Class Relevant ATT&CK Matrices Enterprise, ICS, Mobile, Combination Experts
Comp Name Component Name Architecture Model
Type Component ICS
Categorization		 Control Server, Data Historian, Engineering
Workstation, Field Controller/RTU/PLC/IED,
HMI, I/O Server, SIS/Protection Relay, Sensor		 Experts choice based
on ATT&CK
categorization
Platform Component IT Platform Windows, Linux, Network, macOS, Cloud,
Containers		 Architecture Model
Technology Component Technology App-Based or Other
Additions Component Additions Radio, GPS, Cell, Wi-Fi, Video, etc.
Step 2: Identify
Failure Modes		 - - Relevant Failure Modes All ATT&CK Tactics (16) Experts choice based
on ATT&CK Tactics
Step 3: Identify
Controls		 Failure-
Mitigation
Table (FMT)		 Matrix ATT&CK Matrix Enterprise, ICS, Mobile ATT&CK
Technique ATT&CK Technique All ATT&CK Techniques (>700)
Mitigation ATT&CK Mitigation All ATT&CK Mitigations (>70)
Efficiency Mitigation Efficiency (0,0 - 1,0) Experts
Component-
Mitigation
Table (CMT)		 Mitigation ATT&CK Mitigation All ATT&CK Mitigations (>70) ATT&CK
Component 1 Component Name (0: not covered or 1: covered) Architecture Model
Component 2 Architecture Model
…..
Component N
Step 4: Estimate
the Impact of
the Consequences
of Failure Modes		 Failure-Mode-
Consequences
Table (FMCT)		 Matrix ATT&CK Matrix Enterprise, ICS, Mobile ATT&CK
Tactic ATT&CK Tactics and Impact
Techniques		 All Tactics and Impact Techniques (>90)
Operational Wight of Operational Consequence (0,00 - infinity) Experts
Safety Wight of Safety Consequence
Information Wight of Information Consequence
Financial Wight of Financial Consequence
Staging Wight of Staging Consequence
The Failure-
Mode-Metric
Table (FMMT)		 Matrix ATT&CK Matrix Enterprise, ICS, Mobile ATT&CK
Tactic ATT&CK Tactics and Impact
Techniques		 All Tactics and Impact Techniques (>90)
Operational Operational Metric to be used Overall Operational Impact (OOI), Impact
to Control Functions (I2CF), Impact to
Monitoring Functions (I2MF)		 Process Defined
Safety Safety Metric to be used Safety Criticality (SC)
Information Information Metric to be used Location Information Criticality (LIC),
Information Criticality (IC), Intellectual
Property Criticality (IPC)
Financial Financial Metric to be used Financial Criticality (FC), Occurring
Financial Criticality (FC2)
Staging Staging Metric to be used Out-Degree Centrality (ODC), Overall
Component Criticality (OCC)
Component-
Criticality-
Scoring
Table (CCST)		 Comp Name Component Name
OOI OOI score of component (0,0 - 1,0) Graph of Architecture
Model
I2CF I2CF score of component
I2MF I2MF score of component
SC SC score of component Experts
LIC LIC score of component
IC IC score of component
IPC IPC score of component
FC FC score of component
FC2 FC2 score of component
ODC ODC score of component Graph of Architecture
Model
OCC OCC score of component Process Defined
Step 5: Identify
Failure
Mechanisms		 Techniques-
Description
Table (TDT)		 Matrix ATT&CK Matrix Enterprise, ICS, Mobile ATT&CK
Technique ATT&CK Technique All ATT&CK Techniques (>700)
Tactic ATT&CK Tactics All ATT&CK Tactics (16)
Platform Technique IT Platform Windows, Linux, Network, macOS, Cloud,
Containers
Type Technique ICS Assets Control Server, Data Historian, Engineering
Workstation, Field Controller/RTU/PLC/IED,
HMI, I/O Server, SIS/Protection Relay, Sensor
Technology Technique Technology App-Based or Other Experts
Additions Technique Additions Radio, GPS, Cell, Wi-Fi, Video, etc.
Step 6: Estimate the
Likelihood of Failure
Mechanisms		 Techniques-
Description
Table (TDT)		 CVSS Technique Expolitability
Score based on CVSS		 (0,00 - 3,89) ATT&CK-based
heuristics and Experts
Step 7: Evaluate the
Risks		 - - Risk Rating Criteria such
as thresholds		 e.g. Risk <3 = Low Experts
Step 8: Propose Risk
Reduction Measures		 - - Suggested mitigation
methods for each technique		 All ATT&CK Mitigations (>70) ATT&CK
Algorithm A1 Risk Priority Number (RPN) Calculation and mitigation identification (RPNMI) (adapted from [12]). Check Table A1 for acronyms
1:
procedure RPNMI(TDT, CDT, FMCT, CCST, FMMT, FMT,CMT)
2:
    for each component in CDT do
3:
        AttackList ← IdentifyRelevantAttacksByMatchingAttributes(CDT, TDT)
4:
        for each attack in AttackList do
5:
           Likelihood ← CalculateAttackLikelihood( C V S S   i n   T D T )
6:
           Impact ← CalculateAttackImpact( R e l e v a n t   C o n s e q u e n c e s   i n   F M C T   a n d   m e t r i c s   i n   F M M T   a n d   c o m p o n e n t   s c o r e s   i n   C C S T )
7:
           Detectability ← CalculateAttackDetectability( M a x   E f f i c i e n c y   a m o n g   r e l e v a n t   M i t i g a t i o n s   i n   F M T   a n d   C M T )
8:
           RPN ← Likelihood × Impact × Detectability
9:
           MitigationList ← GetAttackMitigation(FMT)
10:
        end for
11:
    end for
12:
    return AttackLists, RPNs and MitigationLists
13:
end procedure

Appendix B Consolidation Process

The consolidation was utilized as means for implementing voting on conflicting decisions in the assessment. Voting is among the steps in applying brainstorming with the nominal group technique. The following protocol was followed for consolidating the results. If a majority is identified for a decision point, the majority decision will be directly used as input for the assessment. Else, if only a single response is found for a decision point, the response is directly used as input for the assessment. Else, if a response agrees with other non-matching responses, that response is considered inclusive and is used as input to the assessment. For instance, if component classification is IT, OT, or IT/OT, then IT/OT is considered inclusive of the other responses. Otherwise, the average is calculated for decisions including numerical values. The conflicting decision points were moved for discussion in stage 3 in the groups. Moreover, an additional step is conducted to rectify any implementation errors. For instance, some expert input was considered incorrect under the scope and semantics of the conducted process. For instance, some experts categorized certain components based on their own definition rather than the definition proposed in the process. Additionally, the ratio of consensus is tracked to measure the assessment quality; under the assumption that when a consensus is reached, the input quality for the assessment is higher than in the case of no consensus.
1
https://github.com/ahmed-amro/FMECA-ATT-CK-Evaluation

References

  1. Duru, O. The Future Shipping Company: Autonomous Shipping Fleet Operators.
  2. NTNU Autoferry. Autoferry - Autonomous all-electric passenger ferries for urban water transport, 2018.
  3. Amro, A.; Gkioulos, V.; Katsikas, S. Connect and Protect: Requirements for Maritime Autonomous Surface Ship in Urban Passenger Transportation. In Computer Security; Springer, 2019; pp. 69–85. [CrossRef]
  4. Johnson, B. Maritime Cyber Incidents Increased at Least 68 Percent in 2021, Coast Guard Reports. https://www.hstoday.us/featured/maritime-cyber-incidents-increased-at-least-68-percent-in-2021-coast-guard-reports/.
  5. offshore energy.biz. COSCO Shipping Lines Falls Victim to Cyber Attack, 2018.
  6. Norman, J. Iranian hackers suspected in cyber breach and extortion attempt on Navy shipbuilder Austal, 2018.
  7. Greenberg, A. The Untold Story of NotPetya, the Most Devastating Cyberattack in History.
  8. Seals, T.; Seals, T. Researcher: Not Hard for a Hacker to Capsize a Ship at Sea.
  9. Hambling, D. Ships fooled in GPS spoofing attack suggest Russian cyberweapon, 2017.
  10. Committee, I..T.; et al. 31010: Risk management–Risk assessment techniques 2019.
  11. for Standardization, I.O. Information Technology. Security Techniques. Information Security Risk Management: ISO/IEC 27005: 2018; International Organization for Standardization, 2018.
  12. Amro, A.; Gkioulos, V.; Katsikas, S. Assessing Cyber Risk in Cyber-Physical Systems Using the ATTCK Framework. ACM Trans. Priv. Secur. 2022. Just Accepted. [CrossRef]
  13. ISO. IEC/IEEE 15288: 2015. Systems and software engineering-Content of systems and software life cycle process information products (Documentation), International Organization for Standardization/International Electrotechnical Commission: Geneva, Switzerland 2015.
  14. Committee, I..T.; et al. Analysis techniques for system reliability-procedure for failure mode and effects analysis (FMEA) 2018.
  15. Strom, B.E.; Applebaum, A.; Miller, D.P.; Nickels, K.C.; Pennington, A.G.; Thomas, C.B. Mitre att&ck: Design and philosophy. Technical report 2018.
  16. Shostack, A. Threat Modeling: Designing for Security; Vol. Wiley Publishing, 2014.
  17. Mihai, I.C.; Pruna, S.; Barbu, I.D. Cyber kill chain analysis. Int’l J. Info. Sec. & Cybercrime 2014, 3, 37. [Google Scholar]
  18. ENISA. ENISA Threat Landscape 2021. https://www.enisa.europa.eu/publications/enisa-threat-landscape-2021, 2021.
  19. Alford, R.; Lawrence, D.; Kouremetis, M. CALDERA: A Red-Blue Cyber Operations Automation Platform 2022.
  20. AS, D. Cyber security resilience management for ships and mobile offshore units in operation. Technical report, DNVGL-RP-0496. DNV GL: Oslo, Norway, 2016. Available online: https …, 2016.
  21. Amro, A.; Gkioulos, V.; Katsikas, S. Communication architecture for autonomous passenger ship. Proceedings of the Institution of Mechanical Engineers, Part O: Journal of Risk and Reliability 2021, p. 1748006X211002546.
  22. Khodabakhsh, A.; Yayilgan, S.Y.; Abomhara, M.; Istad, M.; Hurzuk, N. Cyber-risk identification for a digital substation. Proceedings of the 15th International Conference on Availability, Reliability and Security, 2020, pp. 1–7.
  23. Tam, K.; Jones, K. Factors affecting cyber risk in maritime. In proceedings of the 2019 International Conference on Cyber Situational Awareness, Data Analytics And Assessment (Cyber SA). IEEE, 2019, pp. 1–8.
  24. Abkowitz, M.; Camp, J. An application of enterprise risk management in the marine transportation industry. WIT Transactions on The Built Environment 2011, 119, 221–232. [Google Scholar]
  25. Grigoriadis, C.; Papastergiou, S.; Kotzanikolaou, P.; Douligeris, C.; Dionysiou, A.; Elias, A.; Bernsmed, K.; Meland, P.H.; Kamm, L. Integrating and Validating Maritime Transport Security Services: Initial results from the CS4EU demonstrator. In proceedings of the 2021 Thirteenth International Conference on Contemporary Computing (IC3-2021), 2021, pp. 371–377.
  26. Johansen, T.; Utne, I.B. Risk Analysis of Autonomous Ships. In proceedings of the e-proceedings of the 30th European Safety and Reliability Conference and 15th Probabilistic Safety Assessment and Management Conference (ESREL2020 PSAM15). Research Publishing Services, 2020.
  27. Tam, K.; Jones, K. Cyber-risk assessment for autonomous ships. In proceedings of the 2018 International Conference on Cyber Security and Protection of Digital Services (Cyber Security). IEEE, 2018, pp. 1–8.
  28. Kavallieratos, G.; Katsikas, S.; Gkioulos, V. Cyber-attacks against the autonomous ship. In Computer Security; Springer, 2018; pp. 20–36.
  29. Pillitteri, V.Y.; et al. Assessing Security and Privacy Controls in Information Systems and Organizations 2022.
  30. Boddy, C. The nominal group technique: An aid to brainstorming ideas in research. Qualitative Market Research: An International Journal 2012, 15, 6–18. [Google Scholar] [CrossRef]
  31. Boyens, J.; Paulsen, C.; Moorthy, R.; Bartol, N.; Shankles, S. NIST special publication 800-161: Supply chain risk management practices for federal in-formation systems and organizations. NIST. April 2015. [Google Scholar]
Preprints 69507 g003
Figure 3. Overview of the APS and DS Use Cases
Figure 3. Overview of the APS and DS Use Cases
Preprints 69507 g003
Preprints 69507 g004
Figure 4. Evaluation Methodology
Figure 4. Evaluation Methodology
Preprints 69507 g004
Preprints 69507 g005
Figure 5. Execution Procedure
Figure 5. Execution Procedure
Preprints 69507 g005
Table 1. Evaluation characteristics for cyber risk assessment approaches.
Table 1. Evaluation characteristics for cyber risk assessment approaches.
Characteristics Objective Related Work
Applicability suitability for application in different use cases in different application domains. [23,24]
Feasibility the ability to implement the different steps in the approach. [25,26]
Comprehensiveness the extent to which different aspects of risks have been considered. Aspects of risks
include but do not exclude, threats identification, likelihood and impact estimation,
mitigation measures, etc.		 [12]
Adaptability The extent to which the missing aspects can be integrated to improve the method.
Scalability The performance of the process in large and complex networks.
Usability The ability to follow and conduct the process with limited training/consultation. [23]
Accuracy The soundness of the results. [23,26]
Table 2. Experts roles and background
Table 2. Experts roles and background
Group Assessment
Process		 Participants
Current Roles Background and Previous Roles
1 FMECA-
ATT&CK
on APS		 PhD candidate in maritime cyber security Working experience on offshore vessels
Researcher in Cybersecurity Maritime, Energy, and CPS Cybersecurity
PhD candidate in maritime cyber security Seafarer (AB apprentice, AB, Deck Cadet, Junior
Officer) and FMEA Auditor of DP Systems
2 Bow-tie
on APS		 Cybersecurity Consultant IT/OT Cybersecurity
Cybersecurity Consultant IT/OT Cybersecurity
3 FMECA-
ATT&CK
on DS		 PhD Candidate in
CPS Cybersecurity		 Cybersecurity in the smart grid
Postdoctoral researcher Postdoc in smart grid communication and Security
simulation
Researcher in Cybersecurity and Privacy Cybersecurity in the smart grid and IoT Privacy
4 Bow-tie
on DS		 Industrial PhD / Cybersecurity Engineer Cybersecurity in the smart grid
Industrial PhD /Senior adviser
information security		 Working with SCADA/OT – systems in the Electricity
sector for over 30 years
Table 3. The relations between the top risks identified through Bow-Tie and FMECA-ATT&CK
Table 3. The relations between the top risks identified through Bow-Tie and FMECA-ATT&CK
Bowtie Threats FMECA-ATT&CK
Techniques
(ATT&CK ID)		 FMECA-ATT&CK Risk
APS Use Case
Valid Accounts Stolen
from a Student		 Valid Accounts (T0859/T1078) Low risk due to the inclusion of many relevant mitigation
methods (e.g Access Management)
Remote Desktop
Protocol (RDP)		 Remote Desktop Protocol
(T1021.001)		 Low risk due to the inclusion of many relevant mitigation
methods (e.g. Network Segmentation)
Compromises Hosts High-level threat. Relevant
techniques: Drive-by Compromise
(T1189),Compromise Client
Software (T1554)		 Both relevant techniques have a low risk either due to
the inclusion of several relevant mitigations methods or
low estimated impact and likelihood
(e.g. Update Software)
Internal spear phishing Internal Spear phishing (T1534) Low due to low estimated likelihood
Malicious Software Malicious File (T1204.002) Low risk either due to the inclusion of many relevant
mitigation methods, and low estimated likelihood
(e.g. Execution Prevention)
Compromised
Credentials		 High-level threat. Relevant
techniques: Valid Accounts
(T0859/T1078) Default
Credentials (T0812)		 Low risk due to the inclusion of many relevant mitigation
methods (e.g Access Management)
Single 4G/5G link Outside the scope of
FMECA-ATT&CK which only
considers adversarial threats.		 Although no techniques are identified for this specific
threat, FMECA-ATT&CK does consider the existing
redundant services for calculating the detectability
(risk reduction degree).
Malicious Remote Access
Tools		 Exploitation of Remote Services
(T1210)		 Low risk due to the inclusion of many relevant mitigation
methods (e.g. Update Software)
Legitimate Credentials
with Native Network
and Operating System
Tools
Remote Services Remote Services (T1021) High risk for some components due to high likelihood,
impact, and lack of existing relevant mitigation measures
Commonly used port
(RDP, SMB, SSH, etc.)		 Commonly Used Port (T0885) Low risk due to the inclusion of many relevant mitigation
methods (e.g. Network Segmentation)
Repetitive Change of the
I/O point values at the
Control computer		 Brute Force I/O (T0806) Low risk due to the inclusion of many relevant mitigation
methods (e.g. Network Segmentation)
DS Use Case
Supply Chain
Compromise		 Supply Chain Compromise (T1195) High risk for some components due to high likelihood,
impact, and lack of existing relevant mitigation measures
Wrongdoing by
Employees		 N/A
External
Environmental
Threats		 Outside the scope of
FMECA-ATT&CK which only
considers adversarial threats.
Gaining Access to
the System		 20 techniques in the “Initial Access”
Tactic (TA0001 and TA0108).		 High risk for some components due to high likelihood,
impact, and lack of existing relevant mitigation measures
Ransomware Data Encrypted for Impact (T1486) Low risk due to low likelihood and existing relevant
mitigation measures
Malware Injection Malicious File (T1204.002) Low risk due to low impact and existing relevant
mitigation measures
Rouge Devices Rogue Master (T0848) Low risk due to low likelihood and existing relevant
mitigation measures
Table 4. The relations between the top consequences/objectives identified through Bow-Tie and FMECA-ATT&CK
Table 4. The relations between the top consequences/objectives identified through Bow-Tie and FMECA-ATT&CK
Bowtie Consequences FMECA-ATT&CK Tactics C H M L
APS Use Case
Malicious Actions with logged in user privileges Initial Access 0 0 7 313
Attackers with more information about the system Discovery 0 0 0 398
Loss of view and control of the ferry from RCC Impact 0 15 78 301
Attackers propagate and move freely within the network Lateral Movement 0 3 18 239
Malicious control over compromised hosts Command and Control 0 54 206 208
An undesired system state or action is reached Impair Process Control 0 0 0 51
DS Use Case
Covert access to the system Command and Control 0 53 69 239
Gaining Physical Access to the system Initial Access 0 4 2 40
Losing Trust of the System Impact* 0 6 21 263
Credibility and Societal Trust
Human Harm Impact
Reputation Damage
Loss of Revenue
Render System Non-Functional Impair Process Control 0 0 0 35
C: Critical, H: High, M: Medium, L: Low
Trust is not an element of impact estimation, however, losing trust in the system is perceived by the assessors
because of functional impact.
Table 5. The relations between the top controls identified through Bow-Tie and FMECA-ATT&CK
Table 5. The relations between the top controls identified through Bow-Tie and FMECA-ATT&CK
Suggested
for
Bowtie Mitigations FMECA-ATT&CK Mitigations Already Included H M
APS Use Case
Audit the Remote Desktop Users
group membership regularly.		 Audit Yes 0 0
Remove unnecessary accounts
and groups from Remote Desktop
Users groups.		 Use Account Management Limited** 3 34
Secure remote access to internal
PC’s and PLC’s		 Access Management, Account Use Policies, Authorization
Enforcement, Human User Authentication, Password
Policies, Software Process and Device Authentication,
User Account Management, Multi-factor Authentication		 Partially* 3 4
Secure portable media Limit Hardware Installation, Antivirus/ Antimalware,
Behavior Prevention on Endpoint, Execution
Prevention, Exploit Protection		 Limited** 3 90
Clean support computers Antivirus/Antimalware Limited** 0 6
Regular patching, minimal
applications, AV scan etc. for the
jump server		 Security Updates, Update Software, Use Recent OS
Version, Vulnerability Scanning		 Partially* 0 8
Email Gateways Not supported
Redundancy of 4G/5G Service Redundancy of Service Yes 0 0
Network Segmentation Network Segmentation,
Limit Access to Resource Over Network		 Yes 0 3
Strict Access Control and
Management of Change (MoC)
with proper Validation		 Not supported
Firewalls Filter Network Traffic, Limit Access to Resource Over
Network, Network Allow lists, SSL/TLS Inspection		 Limited** 33 126
Intrusion Detection Systems Behavior Prevention on Endpoint,
Network Intrusion Prevention		 Very Limited 48 195
Not Discussed Data Backup Very
Limited		 3 27
DS Use Case
Following Standards and
Routines		 Not supported No
Asset Management Not supported No
Security Testing Deploy Compromised Device Detection Method,
Vulnerability Scanning		 No 4 10
Redundancy and Resilience Redundancy of Service Partially* 0 0
Access Control and
Management		 Access Management, Account Use Policies, Authorization
Enforcement, Human User Authentication, Password
Policies, Software Process and Device Authentication, User
Account Management, Multi-factor Authentication, User
Account Control		 Partially* 0 5
Segmentation Network Segmentation,
Limit Access to Resource Over Network		 Yes 0 14
Certification Not supported No
Awareness, Competence, and
Skills Building		 User Guidance, User Training,
Application Developer Guidance		 Yes 0 0
Business Continuity Plan
(BCP)		 Not supported No
Recovery Capability Data Backup, Remote Data Storage Yes 0 1
Isolation Mode Not supported No
Incident Response,
Detection, and Logging		 Audit, Behavior Prevention on Endpoint, Deploy
Compromised Device Detection Method, Exploit Protection,
SSL/TLS Inspection, Network Intrusion Prevention		 Very
Limited		 59 75
Not Discussed Filter Network Traffic Partially* 12 23
Update Software Limited** 4 14
Execution Prevention No 3 3
Encrypt Sensitive Information No 1 4
H: High Risks, M: Medium Risks
Partially: the controls are included only for some components. Also, some controls are not included
* Limited: the controls are included only for very few components.
Table 6. Calculation of Usability Metric
Table 6. Calculation of Usability Metric
Use Case
Expert		 APS DS Usability
1 2 3 4 5 6
Required decisions 700 700 700 624 624 624
Required decisions made 677 608 692 608 538 623
% of Required decision made 96,71 % 86,86 % 98,86 % 97,44 % 86,22 % 99,84 % 94,32 %
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
