2. The Symmetries of the Schwarzschild Metric
Historically, when the Schwarzschild metric was derived, it was derived under the assumptions of a static spherically-symmetric vacuum. Birkhoff’s theorem later showed that the static assumption is not necessary and that the Schwarzschild metric is the description for all spherically-symmetric vacua in General Relativity. This makes sense because while the assumption of a static metric applies to the external solution, it is well-known that the internal solution is not static due to the fact that r becomes the timelike coordinate and t becomes the spacelike coordinate in the internal metric.
The assumption of a static condition in the case of the Schwarzschild metric turns out to be the assumption that the metric is symmetric under hyperbolic rotation. We can see this in

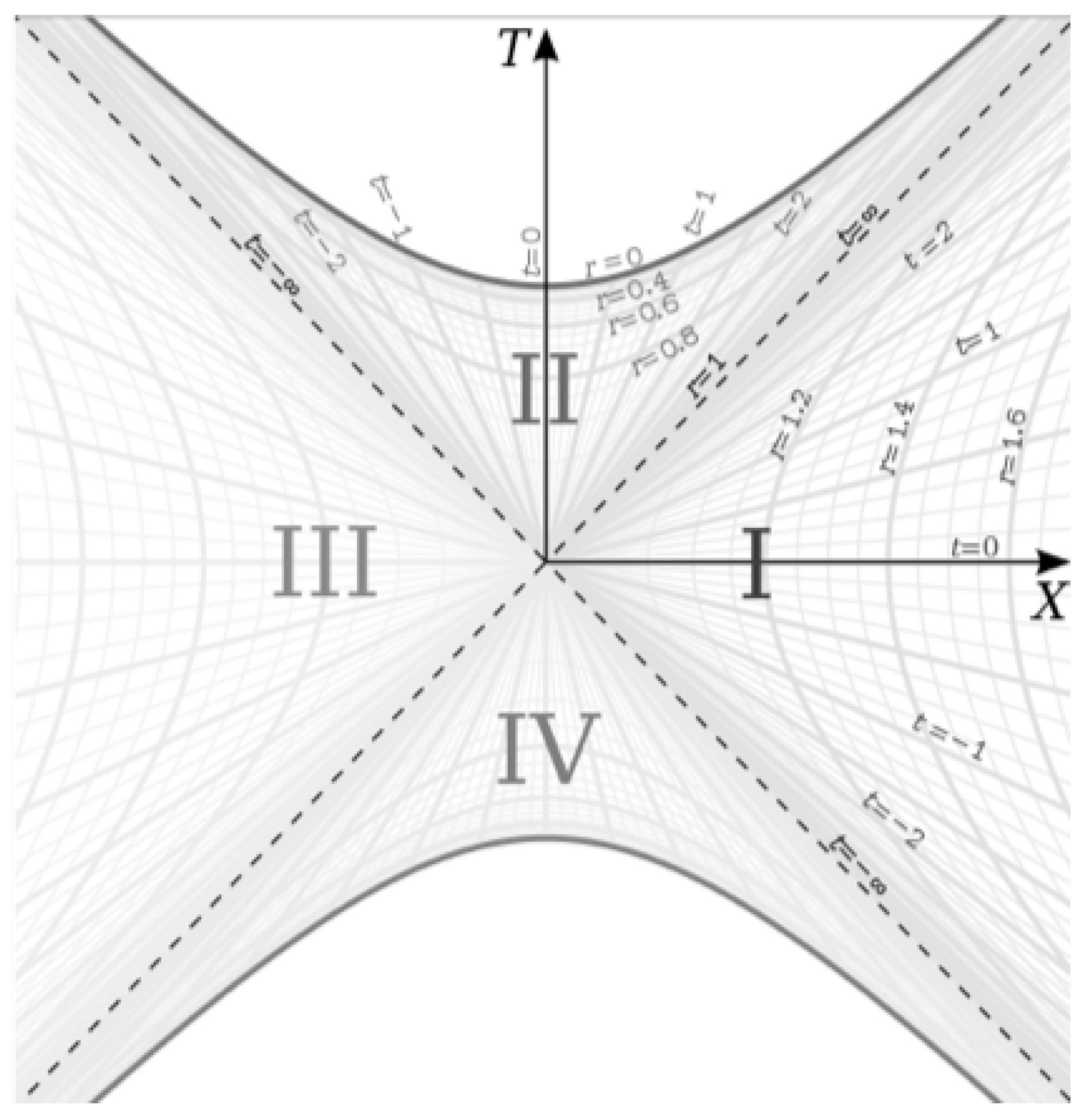

Figure 1, where in both the external and internal cases, the
t coordinate is a hyperbolic angle. Since the metric coefficients are independent of
t, this means that performing a hyperbolic rotation of the spacetime does not change the physics just as doing a spherical rotation of the spacetime does not change the physics.
Regions I and II of
Figure 1 represent 1+1 dimensions of the external and internal metric. Therefore, for example, region I represents a radial line at fixed angles
and
in space at all times. So all worldlines in region I represent particles on the same radial line at different times. We can extend
Figure 1 to 2+1 dimensions by adding a
Y coordinate perpendicular to both
X and
T to equation
6 as follows:
We can do this because of the spherical symmetry of the metric if we assert that
is the center of the source of the metric. Next, let us compare equation
7 to the equation for a hyperboloid of revolution given below:
These equations are equivalent if we set , , , and . We can see that for the external metric and for the internal metric. We can plot both cases for fixed r ( for the external case, for the internal case) to see what surfaces of constant r look like in both the external and internal solutions:

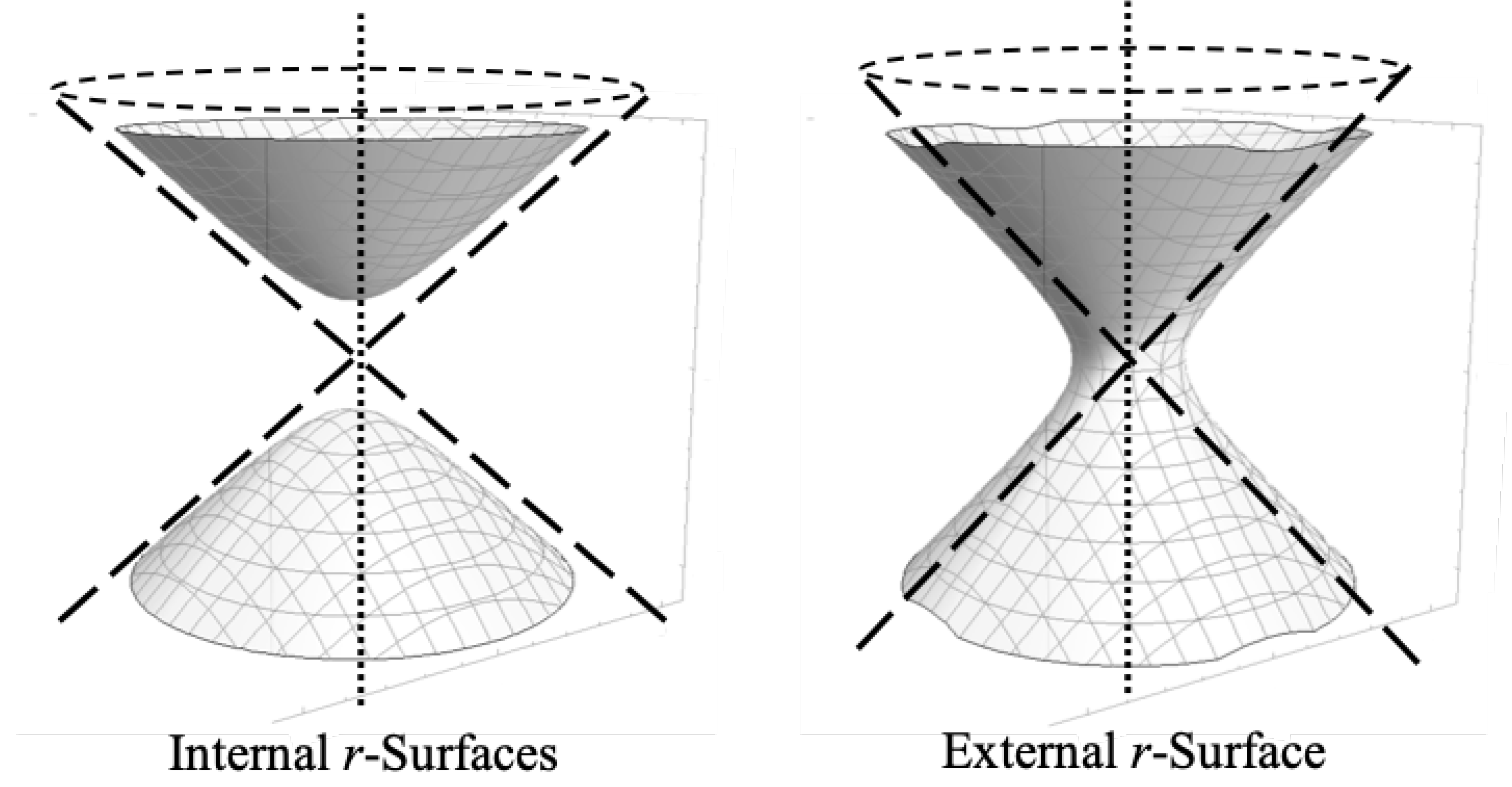

Note that in the external case shown in
Figure 2, the
t coordinates are radial lines emanating out of the center of the diagram on the outside of the light cone representing the event horizon (dashed lines). This is clear by imagining you revolve region I in
Figure 1 around the
T axis (the
T axis is represented by the vertical dotted line). All
r surfaces in the external metric lie outside of the event horizon light cone depicted. Likewise, for the internal case, the
t coordinates are radial lines emanating out of the center of the diagram on the inside of the event horizon light cone and all
r surfaces of the internal metric lie inside the event horizon light cone. This can also be visualized by revolving region II in
Figure 1 around the
T axis.
If we assume the surfaces in
Figure 2 are depicting the case where
, then the two Killing vectors of the spacetime are
and
. The
Killing vector tells us that if we rotate the surface along with all the worldline points on it in the
direction (revolve all the points on the surface around the
T axis by some amount), there is no change to the physics. This is true for both surfaces.
The
Killing vector tells us that if we hyperbolically rotate the surface along with all the worldline points on it, the physics also remains unchanged. For the external case, this hyperbolic rotation is essentially 1-dimensional in that you can only hyperbolically rotate the external surface in the ’vertical’ (
T) direction (looking at region I of
Figure 1, this means you move all the points up or down along their respective hyperbolas). But in the internal case, we can see that the surface can be hyperbolically rotated in 2 dimensions either along the
X or
Y directions, or in a direction whose vector is some linear combination of the
X and
Y directions. Again, looking at
Figure 1, the hyperbolic rotation would mean you move all the points left or right along their respective hyperbolas. But since the axis of rotation is
T, this means that we have two degrees of freedom for hyperbolic rotation in the internal case.
We can extend this to 3 spatial dimensions by adding a
term to equation
9 as follows:
This cannot be visualized as it requires four dimensions to do so, but we can just imagine that each circle around the
T axis shown on the surfaces in
Figure 2 represents the surface of a sphere in 3D.
So with the Kruskal-Szekeres coordinates, we can call the
t Killing vector
since it involves hyperbolic rotation exclusively in the
T direction. We can even imagine it as having a radial-type structure as shown in

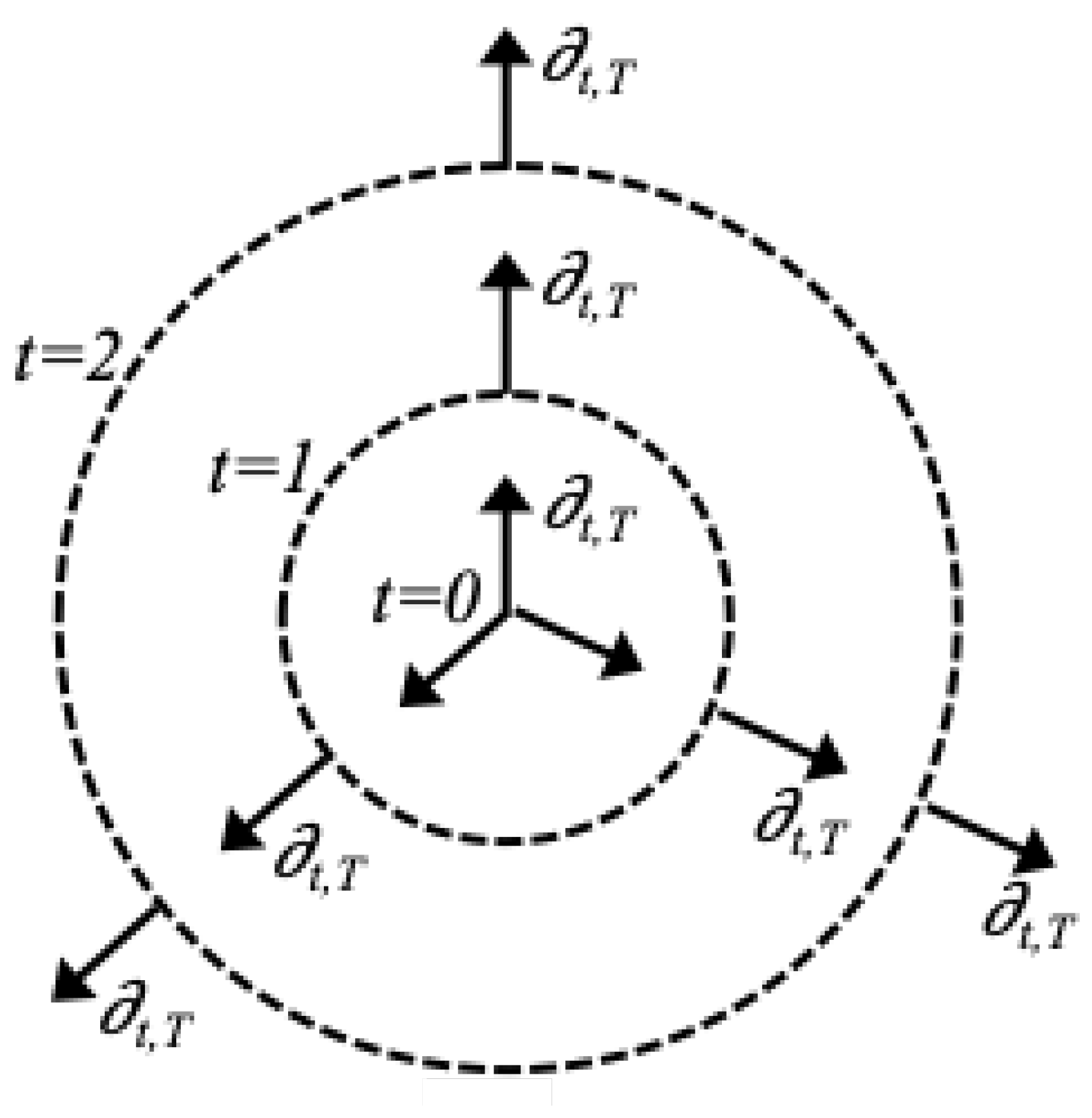

Figure 3 below, where the vectors are the same in all directions and at all times:
For the internal metric, we essentially have t Killing vectors in each of the 3 spatial Kruskal-Szekeres directions called , , and . These form a Cartesian basis for the 3D space of the internal solution at a given time (r is the timelike coordinate in the internal solution):
So for the 2 sheets on the left side of
Figure 2, the
and
coordinates can be interpreted as the hyperbolas on the surface running perpendicular to each other in the
X and
Y directions (in this paper, we are only concerned with the upper hyperboloid on the left side of
Figure 2, but the
X and
Y oriented hyperbolas are more easily seen as the mutually perpendicular hyperbolas on the low hyperboloid. The upper sheet has the same hyperboloids, but it is more difficult to see them in the figure). Again,
Figure 2 is only depicting 2 spatial dimensions, but the spherical symmetry tells us that there is a 3rd spatial dimension
Z that behaves identically to the
X and
Y dimensions.
It is important to recall here that the
t coordinate and therefore the
basis/Killing vectors are spacelike in the internal metric and
r is the timelike coordinate. Therefore, since the Cartesian basis of the spatial part of the internal metric depicted in

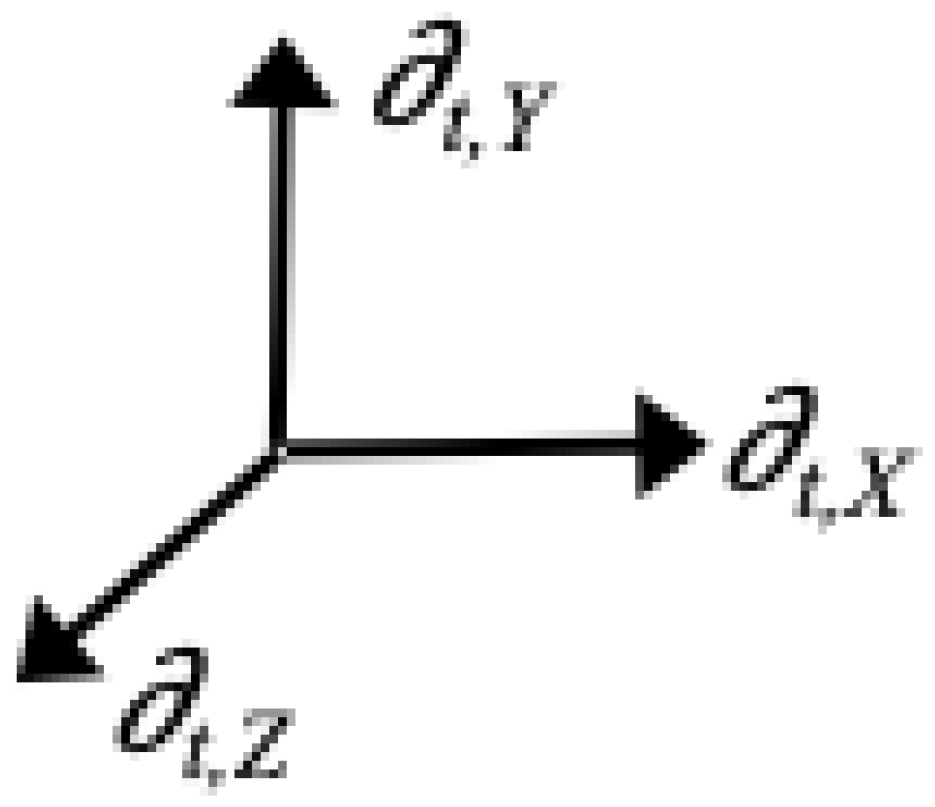

Figure 4 are also Killing vectors, we see that at a given time, the space of the internal metric is homogeneous and isotropic. Thus, the hyperbolic rotation symmetry of the Schwarzschild metric results in a static solution for the external metric and homogeneous space at fixed time for the internal solution.
3. Approaching the Event Horizon in Kruskal-Szekeres Coordinates
Given the circular and hyperbolic rotational symmetries of the Schwarzschild metric, we can now examine the worldlines for particles in circular orbit as well as in radial freefall from a presentist perspective. To define the meaning of a ’presentist perspective’, consider

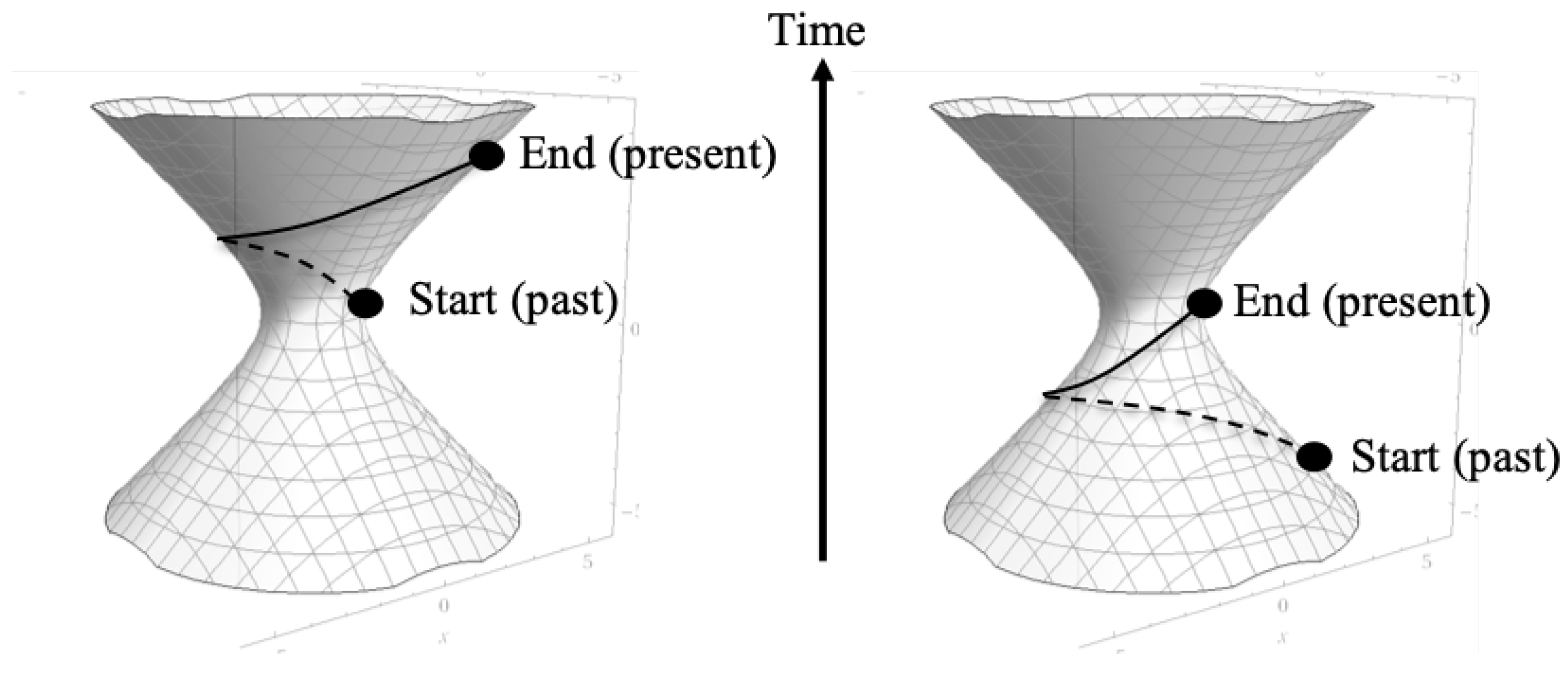

Figure 5 below:
In this figure, we see the sheet for the external solution at some fixed r. Drawn on the sheet is the worldline of a particle in inertial circular orbit around the source of the metric for one revolution of the orbit. Time increases vertically as shown in the figure. On the left side, the worldline starts at the center () and spirals up the surface counter-clockwise until in returns to the same angular position at which it started at some later time t.
On the left side, we have the same worldline, but hyperbolically rotated down so that the end point is at and the starting point is at some . Because of the hyperbolic symmetry, these two worldlines are identical because they are on the same surface with the only difference being that they have been hyperbolically rotated relative to each other. This is equivalent to saying that since the external metric is static, it doesn’t matter what time t at which you choose to start (or end) the worldline, as long as (in this case) the and are the same in both cases.
But on the right side of
Figure 5, instead of interpreting the figure as saying that the worldline runs from some
to
, we can look at it as the present point always remaining at
and
while the surface rotates about the vertical axis and hyperbolically rotates downward as time goes on. So we need to imagine a dynamic picture where we fix a pen to the
,
point on the surface and then circularly and hyperbolically rotate the surface such that the past worldline grows out of the point in the
direction as time passes. Since the end of the worldline, which always represents the present is always at the
coordinate, this is what is meant by the presentist perspective. In this perspective the present worldline point is always at
and the past worldline points are hyperbolically rotated downward to increasing
coordinates as time passes. This is still equivalent to drawing the line as described for the left side of the figure, where the past worldline points have fixed
t coordinates and as time passes, new worldline points are fixed to increasing
t coordinates.
Now let us consider particles in radial freefall as seen on the Kruskal-Szekeres coordinate chart.

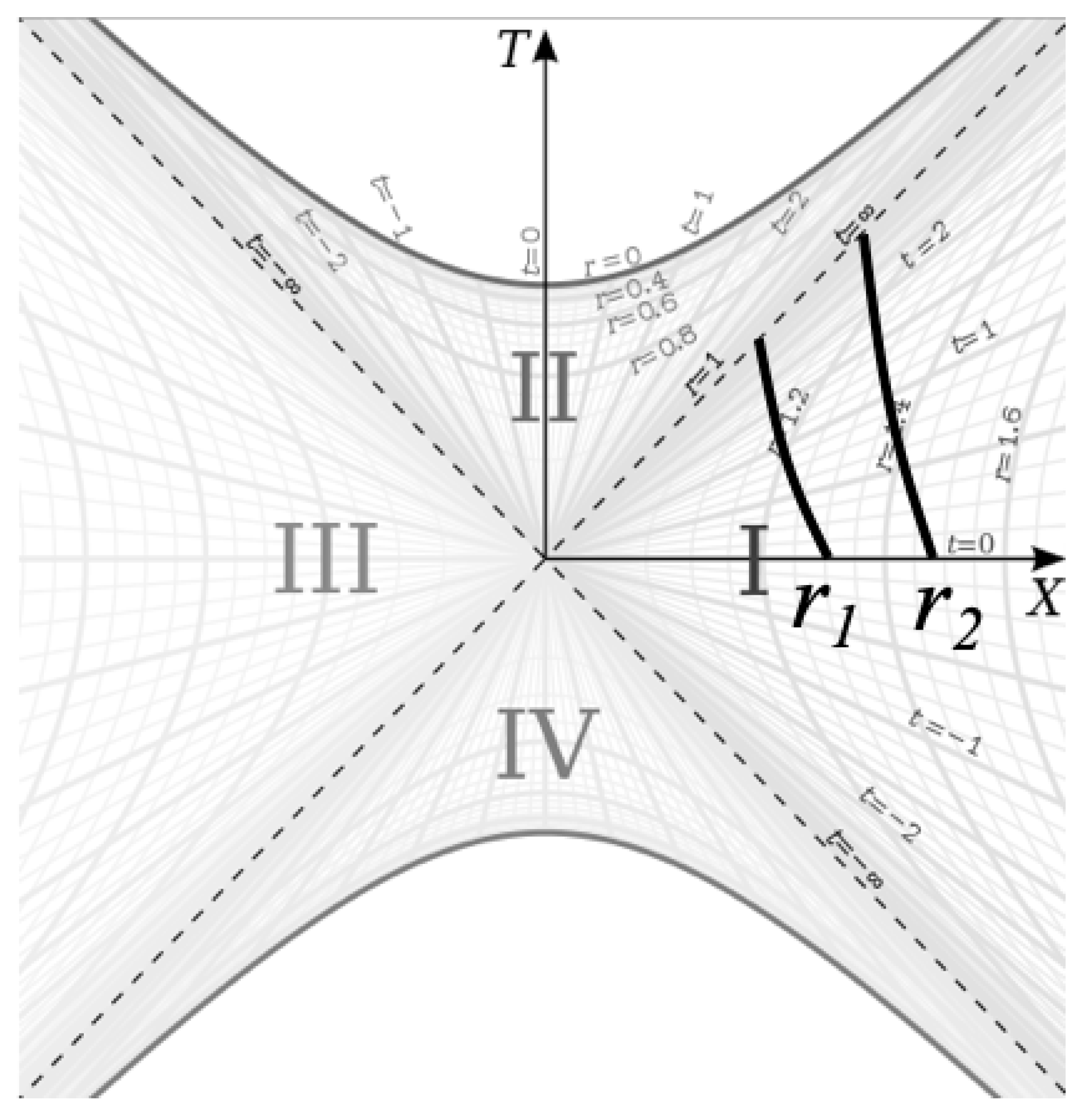

Figure 6 shows the worldlines for two different particles falling toward the event horizon. They both start at time
but one starts the fall from some radius
and the other from some greater radius
.
If we were to extend the worldlines to , we are given the impression that the particles never meet at any point in the spacetime where since the worldlines never intersect each other. But let us look more closely at the event horizon, represented by the dashed line on the diagram. That line is a null geodesic in the spacetime meaning the proper distance s between any two points on the line is zero. Furthermore, the coordinate position for all points on that line is the same (). Therefore, the points where the two worldlines intersect the horizon are at the same coordinate position separated by zero proper distance. By definition, this means that the two particles are coincident at the horizon. This tells us that no matter how far apart any two particles are when they start to fall, they will meet each other at the event horizon.
This becomes more obvious if we construct the worldlines in the presentist perspective. In

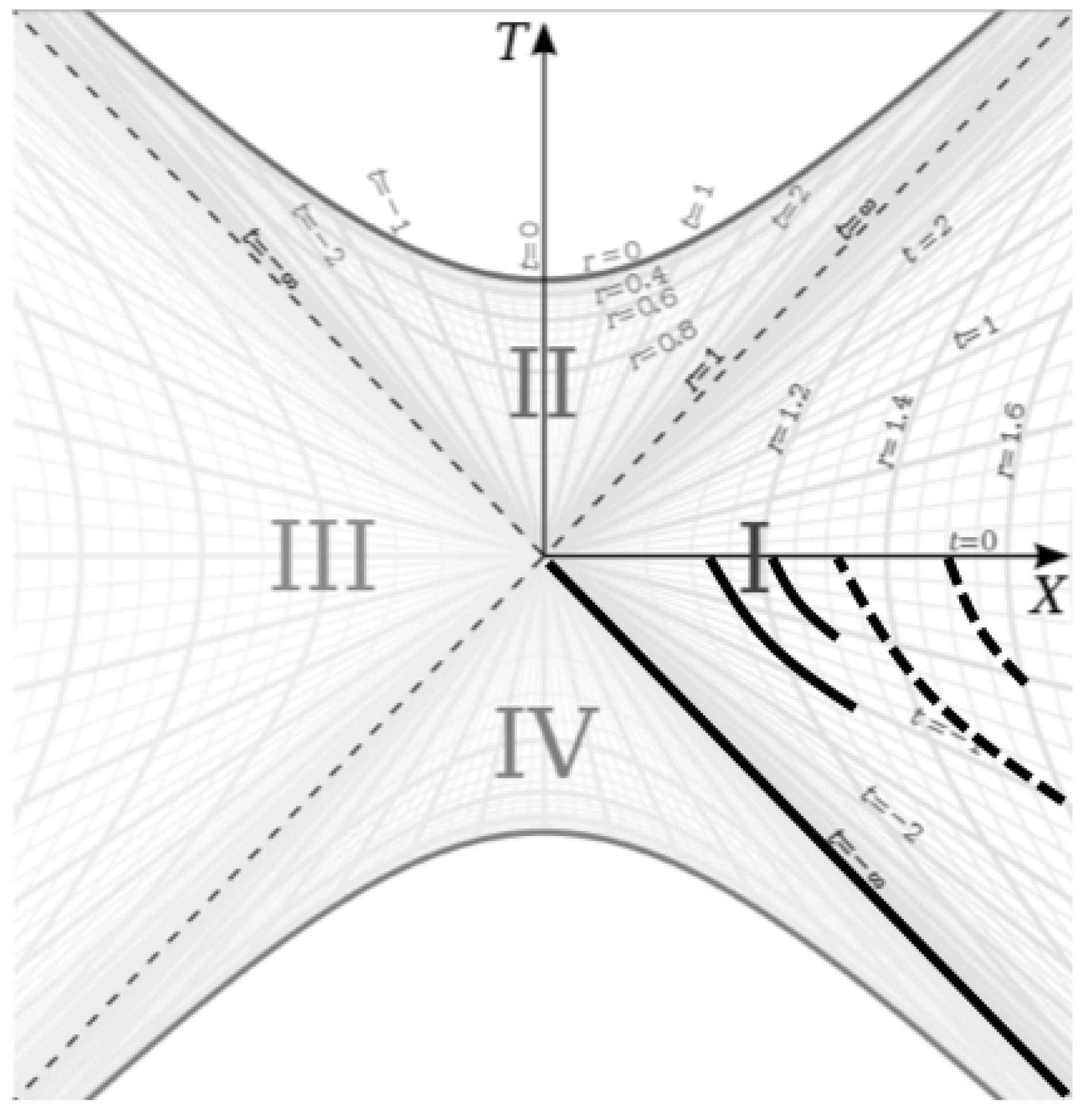

Figure 7, we see the worldlines for each particle drawn at two different ’present’ moments. The solid worldlines represent the the particle that started falling closer to the source and the dashed worldlines represent that particle that started falling from farther away.
Since, in this construction, the present time coordinate of the particles is always at the (X axis) line, both particles fall along the line. The past worldlines grow longer over time as the past worldline points are hyperbolically rotated downward during the fall. We can see therefore that they will both reach the horizon at the point on the coordinate chart, and from the perspective of the infinite observer, they will reach that point simultaneously. We know this because for each interval , the change in radius for each particle will go down the closer the particle is to the horizon (the amount of proper time elapsed in that period for each particle will also go down the closer the particle is to the horizon) and an infinite amount of is needed for all particles to reach . Therefore, all particles will become asymptotically closer to the particles closer to the horizon than them and the distance will shrink to zero as .
Not only will the particles get closer together as they approach the horizon, but their geodesics will become null there (as can be seen from the solid
line in
Figure 7). We can prove this mathematically by first taking the differentials of
T and
X in equations
3:
Calculating the partial derivatives and rearranging we get (we will set
for this example to simplify the equations):
Next, we want to calculate the slope
of the worldline at
as the observer falls along the
line. Thus,
in equations
11 meaning
and
. So the present slope of the worldline when we hyperbolically rotate the space to keep the present point at
is given by (we will now denote the Schwarzschild radius as
instead of setting it to 1):
Reference [
3] gives us an expression for
for a freefalling observer that starts falling from rest at
as:
Note that the absolute value of the radial speed of light in Schwarzschild coordinates is given by:
Substituting equations
13 and
14 into
12 we get:
Regardless of where the observer begins falling,
when it reaches the horizon (
), which confirms what was depicted in
Figure 7. If the particle starts falling from rest at infinity (
), this simplifies to:
Equations
15 and
16 tell us that the slope of the worldline at the start of the fall is zero, which is correct since a worldline starting from rest at
will be tangent to the hyperbola at
, which is a vertical line on the Kruskal-Szekeres chart.
So we have an apparent contradiction between the worldlines in
Figure 6 and equation
15. Equation
15 implies that if we always hyperbolically rotate the worldline such that the slope
at the point we are interested in is at
differs from the slope if we do not perform the hyperbolic rotation. The end result is that when we do the hyperbolic rotations all the way to the horizon, the worldline becomes null whereas if we do not hyperbolically rotate,
of the worldline at the horizon is something between -1 and 1 depending on our choice of start time.
This discrepancy is resolved by the fact that on the
line, the
r and
t basis vectors are aligned with the
X and
T basis vectors. So the physical interpretation of
in
Figure 6 is not clear as the horizon is approached because the
r and
t basis vectors rotate relative to the
X and
T basis along the worldline (the
T and
X coordinates represent different mixtures of space and time as one moves along the worldline). When the worldlines reach the horizon in
Figure 6, the
t and
r basis vectors become collinear, such that no absolute physical meaning can be given to
there.
But since the X and T basis vectors are always aligned with the r and t basis vectors in the presentist construction, always has a clear physical interpretation, and in particular, in this construction always represents the fraction of the speed of light at which the freefalling particle is moving.
We can see the problem at the horizon for the worldlines in
Figure 6 by again dividing the equations in
11, factoring out
and
from the numerator and denominator, and substituting equation
13 for
:
If we plug
and
into equation
17, representing where the freefalling worldline reaches the horizon in
Figure 6, we get:
We see that unlike equation
15, where the derivative is well-defined at the horizon at
, for the worldlines in
Figure 6, the derivative at the horizon is undefined (the derivative for a null geodesic is also undefined there). Note that if you take the limit of
as the worldline approaches the horizon you can get a finite value. Reference [
4] gives us
near the horizon for an observer falling from rest at infinity as:
So let us examine equation
17 with
and substitute equation
19 in for
t. We will also add a constant offset
to the time so that
and set
to get:
So we see in equation
20, the limit depends on
which can be thought of as a constant shift in time for the worldline. But since the metric is static, this shift does not change the physics of the radial fall. Therefore, for a given worldline, you can force
of the worldline as it approaches the horizon to take any value between
and 1 by choosing some arbitrary value for the constant
. The presentist construction comes from the case where we let
vary over the worldline, such that we change the time offset as the radius of the particle changes. For the presentist construction in this case, we would set
(which is a continuous hyperbolic rotation of the line as the particle falls), which removes the time dependence of the derivative.
So the terms reflect the non-physical time dependence of the slope of the worldline in Kruskal-Szekeres coordinates. We therefore see that if we remove the non-physical time dependence by simply setting , the limit of the derivative is -1, indicating that the worldlines become light-like as they approach the horizon.
For completion, we will look at the proper time interval
for the presentist construction. The proper time interval at the horizon for the particle from equation
1 falling from rest at inifinity is given by:
Combining equations
21,
from equations
11, and equation
13 for the
case we get:
We see that the proper time interval goes to 0 at
, indicating the geodesic becomes null there. It is notable again that if we do this for the
case and take the limit (similar to equation
20), we can get any value by choosing a constant time offset, but the derivative is undefined at
.
Finally, we can see that the particle will come to rest at the
point by solving the
equation from
11 with
(and setting the Schwarzschild radius to
instead of 1) for
:
Which goes to zero when . Again, if we did this for , the derivative would be undefined at .
We can therefore conclude that all worldlines do in fact become null at the horizon and the particles come to rest there. What this implies is that the particle becomes massless (because the geodesic is null) and has zero momentum (because the null geodesic lies on the line which is at fixed ). This makes sense if we consider the fact that the Schwarzschild metric is a vacuum solution. Therefore, there is no mass or energy anywhere on the Kruskal-Szekeres coordinate chart because the stress-energy tensor is zero everywhere. So what this implies is that at this location, all the mass/energy of the particles there is in the gravitational field itself. The point is the source of the gravitational field and any particles that hypothetically reach this point add all of their energy to the field and no longer exist as particles in the Universe. In a follow-up work, it will be shown that in the actual Universe, it is not possible to reach the horizon under any condition.
We can think of the presentist perspective as observing the spacetime from the frame of the freefalling observer where the surrounding spacetime is continuously Lorentz boosted during the fall. Given equation
15, we can define the Kruskal-Szekeres Lorentz factor as
And the rapidity
in Kruskal-Szekeres coordinates is given by:
Finally, we can combine these to get the Lorentz factor as a function of rapidity:
The Kruskal-Szekeres coordinate axes in
Figure 1 represent the spacetime in the frame of an observer at rest in the spacetime. Falling along the line
is more sensible if we show the
T and
X axes Lorentz boosted relative to the rest frame, such that we see both the frame of the rest observers as well as the frame of the freefalling observer on the same chart at different times.

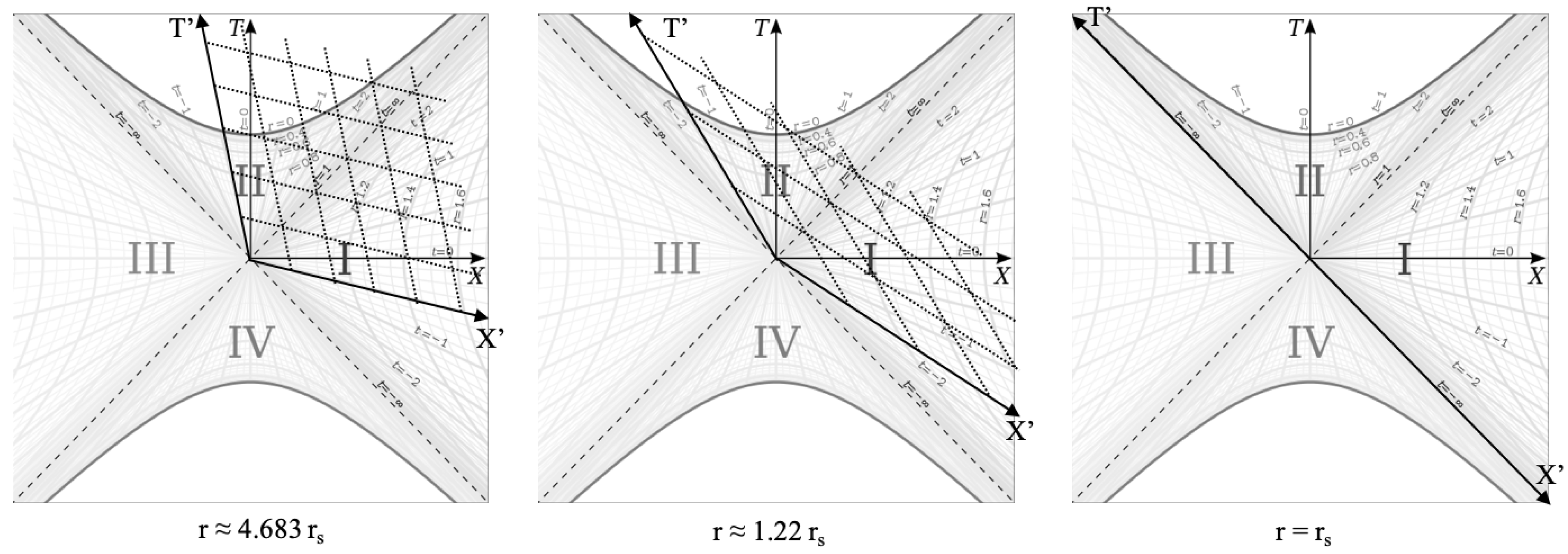

Figure 8 shows three snapshots of these frames for a particle falling from infinity beginning at
with the faller’s radius labelled in each snapshot.
In this figure, we can see that the basis vectors of the boosted frames are rotated relative to the rest frame (the
and
axes represent the boosted frames). Therefore, in this representation, we still remain on the
line during the fall, but since the
axis is rotating down due to the Lorentz boosts,
t (and
T) is effectively increasing, as was the case in
Figure 6. The boost representation very nicely depicts the fact that the falling particle approaches the speed of light as it falls to the horizon as well as showing how the spacetime ends at the horizon itself.
There is also a sense of length contraction in the falling frame. The
term of the metric really should be
as described in
Section 2 since it represents a change in the radial position of a particle. This means the Lorentz boost the falling frame experiences when it falls is radial in all directions, with the origin of the frame at the horizon (it is the radial basis vector that rotates in

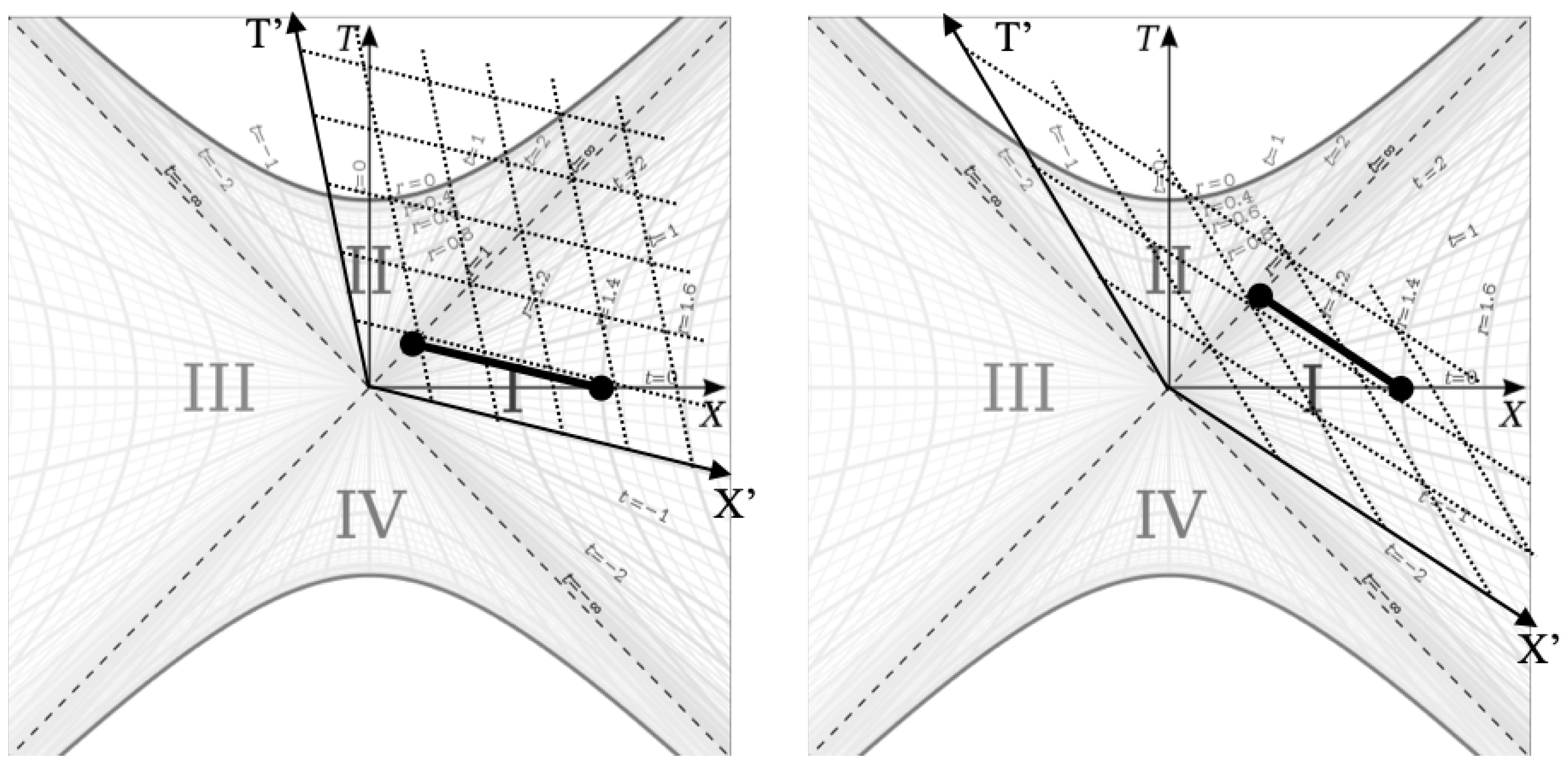

Figure 8). The planar surfaces perpendicular to a Cartesian coordinate axis in the Minkowski metric become spherical surfaces centered on the metric source in the Schwarzschild metric. This radial contraction is necessary for all inertial observers to see the spacetime as spherically symmetric. If the length contraction was dependant on the direction of the radial fall, then inertial observers would disagree on the spherical symmetry of the metric. We can see the length contraction effect in Kruskal-Szekeres coordinates by looking at the
X distance from the horizon to some radius
r along a line of constant
T for two different cases where the observers started falling from a different radius in each case such that when when we look at the frame of each observer at some time after they started falling, the Lorentz factor and rapidity have different values for each case.
In the above figure, the particle started falling from closer to the horizon on the left picture relative to the particle on the right picture. Therefore, the particle on the right has a higher velocity relative to the rest frame at this time than the particle on the left at the same time (by ’same time’, we mean we are seeing both frames after a certain amount of time has elapsed in the infinite observer’s frame). Therefore, the particle on the right has a larger Lorentz factor and rapidity then the particle on the left at that moment. By comparing the dark lines in each picture, which represent the distance from the horizon to some r (the same r in both cases) measured in at constant in each frame, we clearly see that this distance is shorter for the particle on the right with a distance of roughly 1.4 units of compared to the particle on the left, which sees a distance of roughly 2.9 units of .
We can formalize the difference in lengths in the two frames given the length contraction equation
. The ratio of the lengths of the lines on the left (
) and right (
) sides of
Figure 9 will be a ratio of Lorentz factors. We can see from the figure, that
and
. Using equation
26, we can solve for the ratio of the lengths in the falling frames as:
Which is in agreement with what we see in
Figure 9. Note that we would get the same result regardless of which point on the
r hyperbola we draw the line to, as long as we use the same point in all frames being compared and draw the lines along a line of simultaneity in each frame. As the rapidity increases further, we can see that this line will tend toward a null geodesic as the horizon is approached indicating that the spacetime contracts fully to the horizon in the falling frame, which is consistent with the argument that the falling frame becomes light-like at the horizon.
Given the length contraction observed, the observer should also see the Schwarzschild radius contract in the falling frame. Applying the length contraction equation to the Schwarzschild radius gives:
Where
is the Schwarzschuild radius in the frame of the falling observer. The mass of the source is related to its Schwarzschild radius in the falling frame by
, which means the mass of the source also decreases in the falling frame as a result of the length contraction. If we assume the mass of the source is within the Schwarzschild radius, the density of the source is given by
So in the falling frame,
goes to infinity as the horizon is approached meaning that
and therefore the mass of the source goes to zero in that frame. But as equation
29 shows, the density of the source goes to infinity. This tells us that in a frame positioned away from the horizon, the source has some finite mass and radius, but to an observer approaching the horizon, the source shrinks to a point of zero mass and infinite density. This is in line with the earlier discussion about the particle losing its mass when it reaches the horizon and shows that due to the length contraction, there is no space beyond the event horizon indicating that the event horizon is the end point of gravitational collapse. At the horizon, the falling frame will see the entire Universe radially length contracted to the horizon as well due to length contraction. This is reflected in the rest frame by the fact that all hyperbolas intersect with the horizon when
, which is the horizon itself. In a followup work, it will be demonstrated that reaching the horizon in is not possible in the actual Universe.
If the horizon is the endpoint of gravitational collapse, then the question then remains, what is region II of
Figure 1 describing. We know that the Schwarzschild solution describes all spherically symmetric vacua. In region I, the
t coordinate is spacelike while the
r coordinate is timelike. We see that at the the horizon, the spatial
t coordinate density is infinite and the coordinate lines separate as one moves from the horizon to
. As discussed in
Section 2, the space of the metric at a given time is homogeneous and isotropic. It was also demonstrated in the case of the external solution that the source of the metric is at
. It stands to reason then that the source of the internal solution is also at that point. So the internal solution describes a spherically symmetric vacuum surrounded by a horizon which, from the perspective of an observer at some
r between the horizon and
, surrounds the vacuum infinitely far away in space and at some finite time in the past. And from the perspective of that observer, this horizon, which looks like a surrounding sphere, is a time where space is infinitely dense. A spacetime fitting this description would be any empty space in the Universe whose surrounding mass is spherically symmetric. Voids in the cosmic web would be an example of such a spacetime, and the horizon of the metric in this case would be the Big Bang, which is an event at some finite time in the past that surrounds all points in the Universe which has an infinite density. And an observer in the present Universe can never reach the Big Bang, no matter how far they travel through space, which is in alignment with the fact that the surface, from the perspective of a present observer, is infinitely far away from them in space. So we might think of the expanding Universe as baking bread where the air pockets that expand as the bread bakes give the bread a web-like structure over time, where the bread itself would be analogous to the cosmic filaments of matter in the Universe. A full cosmological analysis of the internal solution will be completed in a followup work which will also discuss all four regions of the Kruskal-Szekeres coordinate chart as well as the curvature singularity at
.
