Thyroid Hormone Transporters MCT8 and OATP1C1 are Expressed in Projection Neurons and Interneurons of Basal Ganglia and Motor Thalamus in the Adult Human and Macaque Brain

Altmetrics

Downloads

217

Views

78

Comments

0

A peer-reviewed article of this preprint also exists.

supplementary.pdf (1.46MB )

Submitted:

19 April 2023

Posted:

20 April 2023

You are already at the latest version

Alerts
Abstract
Monocarboxylate transporter 8 (MCT8) and organic anion-transporting polypeptide 1C1 (OATP1C1) are thyroid hormones (TH) transmembrane transporters relevant for the availability of TH in neural cells, crucial for their proper development and function. Mutations in MCT8 or OATP1C1 result in severe disorders with dramatic movement disability related to alterations in basal ganglia motor circuits. Mapping the expression of MCT8/OATP1C1 in those circuits is necessary to explain their involvement in motor control. We studied the distribution of both transporters in the neuronal subpopulations that configure the direct and indirect basal ganglia motor circuits using immunohistochemistry and double/multiple labeling immunofluorescence for TH transporters and neuronal biomarkers. We found their expression in the medium-sized spiny neurons of the striatum (the receptor neurons of the corticostriatal pathway), and in various types of its local microcircuitry interneurons, including the cholinergic. We also demonstrate the presence of both transporters in projection neurons of intrinsic and output nuclei of the basal ganglia, motor thalamus and nucleus basalis of Meynert, suggesting an important role of MCT8/OATP1C1 for modulating the motor system. Our findings suggest that a lack of function of these transporters in the basal ganglia circuits would significantly impact motor system modulation, leading to clinically severe movement impairment.
Keywords:
Subject: Biology and Life Sciences  -   Endocrinology and Metabolism

1. Introduction

Thyroid hormones (TH) are essential for human brain development and functionality [1]. The active form, 3,5,3′-triiodothyronine (T3), modulates gene expression by directly binding to specific nuclear receptors, while indirect genomic actions mediated by T4 (3,5,3′,5′-tetraiodothyronine or thyroxine) or T3 by means of its binding to different receptors at the cytoplasmic membrane, cytoplasm, and mitochondria have also been described [2,3]. Experimental studies in rodents have established that TH availability and action in the central nervous system (CNS) are tightly controlled by two main mechanisms: local deiodination of TH, which activates and inactivates TH inside the brain [4,5], and TH transport across the cell membranes [6,7,8]. Several TH transporters have been described, and an earlier review by our group provided a detailed summary of these transporters, their functions, and their clinical implications [8]. Briefly, there are two widely accepted transporters with physiological functions in the CNS: the monocarboxylate transporter 8 (MCT8) [6] and the organic anion-transporting polypeptide 1C1 (OATP1C1) [7], belonging to the MCT and OATP families respectively, and both included in the major facilitator superfamily (MFS), which elements show a double bundle of six transmembrane domains joined with a large intracellular loop. MCT8 has a high affinity for T4 and its nuclear active form T3 [6] while OATP1C1 transports T4, with the highest affinity among all known TH transporters [8], as well as the iodothyronine product of its deiodination, reverse T3 (rT3) [7]. OATP1C1 also transports other substances such as metabolites of steroid hormones, including 17-(β-D-glucuronic acid) estradiol, but virtually no T3 [7].
Mutations in the MCT8 gene (SLC16A2) and in the OATP1C1 gene (SLCO1C1) can cause a psychomotor developmental delay in humans. MCT8 deficient patients show a specific TH peripheral blood profile with high T3, low T4, low rT3, and normal to slightly elevated thyrotropin (TSH), whereas OATP1C1 deficient patients present hypothyroid symptoms such as intolerance to cold but with a normal thyroid function test in serum. MCT8 mutations located on the X chromosome are linked to the rare disease known as MCT8 deficiency or Allan-Herndon-Dudley Syndrome (AHDS) [9,10]. Aside from severe cognitive impairment, AHDS patients present noticeable neuromotor disturbances, such as central hypotonia, pyramidal signs such as Babinski (referable to failure in cortical commands), and extrapyramidal signs such as dystonia, choreoathetosis, and hypokinesia (referable to failure of the basal ganglia inhibitory-excitatory commands) [11,12,13]. General delay in myelination or myelin dysplasia has been shown in AHDS patients by magnetic resonance imaging (MRI) [10,11,14,15,16,17,18], and histopathological examinations [19,20]. But in some cases, MRI also shows various basal ganglia lesions such as high T1 signals in the bilateral globus pallidus [14], low T2 signals in the bilateral globus pallidus, which were designated as calcifications by a computed tomography scan [21], high T2 signals in the bilateral basal ganglia [16], high T2 signal in the bilateral putamen [22], or low T1 and high T2 signals in the left putamen region [23]. The first and sole patient with a functional mutation in OATP1C1 was reported in 2018 [24], a 15.5-year-old girl showing gradual deterioration of cognitive and motor domains, with gait apraxia, myoclonic-like movements in the hands, scoliosis, and spasticity of the lower limbs. Brain imaging with MRI and positron emission tomography–computed tomography demonstrated grey and white matter degeneration and severe glucose hypometabolism [24].
Patients with TH transporters deficiency suffer from severe motor disturbances that can be attributed to dysfunction of the cerebellum and its related nuclei, dysfunctions of the cortical command, and dysfunctions of the basal ganglia. The study of the expression of TH transporters in those systems is relevant to understanding the physio-pathogenesis of the disease. In previous work, we have discussed the alterations of the cerebellum in AHDS patients [20] as a possible underlying factor for motor disturbances. We have also discussed the possible implications of the lack of expression of MCT8 and OATP1C1 in cortical projection neurons and interneurons of adult human and monkey brain [25]. Here we focus on the distribution of TH transporters in the basal ganglia.
Basal ganglia are a group of interconnected subcortical nuclei that are primarily responsible for the modulation of motor control. To simplify the anatomy of the basal ganglia and related nuclei, these are separated into three compartments [26]: 1) input nuclei, which refers to the dorsal striatum (consisting of the caudate nucleus (Cd) and the putamen (Put)) and the ventral striatum (accumbens nucleus, not covered in this article); 2) output nuclei, consisting of the internal segment of the globus pallidus (GPi) and the substantia nigra pars reticulata (SNr); and 3) intrinsic nuclei, consisting of the external segment of the globus pallidus (GPe), the substantia nigra pars compacta (SNc), and the subthalamic nucleus (STN). Input nuclei receive information from various sources, primarily the motor cortex, the centromedian-parafascicular nucleus (CM-Pf) of the thalamus, and the substantia nigra; intrinsic nuclei relay information from input nuclei to output nuclei; and output nuclei send basal ganglia processed information to the motor thalamus, mainly the ventral anterior and ventral lateral nuclei (VA/VL), which in turn are connected to the motor cortex. The classical basal ganglia model depicts how the commands that lead to a coordinated sequence of muscle contractions produce a movement flow from the motor cortex through the basal ganglia and back to the cortex. Briefly, the cortico-spinal motor command for muscle contraction is relayed by collaterals of the pyramidal pathway to the striatum in the basal ganglia. These nuclei contain the representation of the whole final movement scenario (because they receive connections from all the association cortical areas) and generate new orders that need to go through several synapses in the intrinsic and output nuclei and in the thalamus to prepare the cortex for the next sequence of motor commands, either inhibiting the previous command or exciting the output of the new command. The motor thalamus is a key intermediate element in this mechanism: it is an excitatory pathway for the motor cortex (and movement) unless it is inhibited by the basal ganglia, similarly to the way a jockey controls a horse with the reins. This allows the preparation of the cortex for sequential and fast release of cortical motor commands one after the other, and thence a coordinated sequence of muscle contractions for movement. Disruptions in the basal ganglia network cause several movement disorders, mainly including: 1) hypokinetic (akinesia and bradykinesia), 2) hyperkinetic (ballism, chorea, and athetosis), and 3) dystonia (characterized by prolonged muscle spasms and abnormal postures) [27,28].
The cortex delivers the information to the striatum (caudate nucleus and putamen which have the same cytoarchitecture) via the corticostriatal pathway. This mainly ends in one kind of neuron, the medium-sized spiny neurons (MSN) which are GABAergic projection neurons, and in other interneurons that in turn modulate MSN [26]. In all striatal subdivisions, the inhibitory projection of MSN is the origin of the two main circuits to the thalamus [29]: a) the direct pathway formed by the inhibitory axons of MSN to the GPi and SNr (two output nuclei), which projections to the thalamus are inhibitory, resulting in a disinhibition of the motor thalamus and facilitation of the thalamocortical action for movement, and b) the indirect pathway formed by the inhibitory axons of MSN to the GPe (an intrinsic nucleus), which in turn sends inhibitory axons to another intrinsic nucleus, the STN, resulting in disinhibition of the STN. The STN in turn projects an excitatory connection back to the GPi and SNr which in turn activate inhibitory projections to the motor thalamus, thus resulting in a deactivation of the thalamocortical pathway and a dis-facilitation of the motor command. MSN that originate one or the other pathway are distinguished by their expression of dopamine receptors. MSN that express dopamine receptor type 1 (DRD1) are called D1 receptor-expressing MSN (D1-MSN) and start the direct pathway, while MSN that express dopamine receptor type 2 (DRD2) are called D2 receptor-expressing MSN (D2-MSN) and start the indirect pathway [26,30]. Additionally, there is a local striatal microcircuitry formed by cholinergic and several types of GABAergic interneurons that influence MSN activity both directly and indirectly through influences on corticostriatal, thalamostriatal, and nigral dopaminergic afferents [31]. Some groups of neostriatal GABAergic interneurons can be identified by their expression of calcium-binding proteins such as Calbindin-D-28K (CALB), Calretinin (CALR) or Parvalbumin (PARV) [32] and of neuropeptides such as Somatostatin (SOM) [33] and nitric oxide [33,34].
All the projection neurons in the intrinsic and output nuclei of the basal ganglia-thalamic circuits are GABAergic [35,36,37] except those in the SNc which are dopaminergic [37] and in the STN [38] and the VA/VL of the thalamus which are glutamatergic [39]. All of them can also be identified by their expression of PARV in GPe, GPi, STN, and SNr [35,36,37,38] and core thalamocortical cells of VA/VL or CALB in matrix thalamocortical cells of the VA/VL [40,41], or dopamine in SNc [37].
Syndromes caused by deficiency of the TH transporters MCT8 and OATP1C1 [11,12,24], evolve with clinical disorders that point to lesions in the basal ganglia and disruptions in both direct and indirect circuitries. It is then reasonable to hypothesize that the neurons involved in basal ganglia circuits might express these transporters and that their absence causes alterations in the balance of excitation/inhibition in the striatum microcircuitry and in the activity balance between the neurons of the direct and indirect circuits, contributing to the clinical picture described. However, there is no previous information regarding the precise cellular location of MCT8 and OATP1C1 in these circuits. Previous in situ hybridization studies have demonstrated mRNA expression of Mct8 in the adult mouse basal ganglia [42,43], but there is no reference to specific cell types. Human multiple tissues northern blots [7] have shown high expression of OATP1C1 mRNA in the striatum, and moderate expression in other nuclei of the basal ganglia and thalamus. The large-scale human study Genotype-Tissue Expression (GTEx) project [44] shows that the median value of the MCT8 gene SLC16A2 transcripts per million (TPM) is moderately high in basal ganglia among other brain structures while the TPM values of the OATP1C1 gene SLCO1C1 are extremely high in comparison with other tissues. Analyses of human brain transcriptome data sets show high MCT8 expression in the caudate nucleus and nucleus basalis of Meynert [45]. To date, the study of the protein distribution of these TH transporters in adult human basal ganglia and thalamus has been very unspecific, with a lack of information defining the precise filiation of the transporter-expressing neurons.
Even though further procedures for TH transporters deficiency syndromes are being developed [46], effective treatments for the neurological alterations remain to be investigated. It has become critical to determine the anatomical distribution of MCT8 and OATP1C1, as well as the exact nature of the cells and elements that express them, to model the etiopathogenesis of transporter-deficient syndromes and to advance in the development of therapeutic strategies.
In the present study, we analyzed the distribution of MCT8 and OATP1C1 in the projection neurons and interneurons in input, intrinsic and output nuclei of the basal ganglia of adult humans and monkeys, and in their blood-brain barriers, aiming at further exploring the role of MCT8- and OATP1C1- expressing cells in this important system of motor modulation and control.
We found that TH transporters MCT8 and OATP1C1 are widely expressed in all projection neurons of basal ganglia and related nuclei that participate in direct and indirect motor pathways, suggesting that a lack of function of these transporters in the basal ganglia circuits would have a significant impact on the motor system modulation, leading to clinically severe movement impairment.

2. Results

We have analyzed the cellular expression of the TH transporters MCT8 and OATP1C1 in the nuclei of the basal ganglia in the brains of adult humans and monkeys, as specified in Table 1 and Table 2. We performed immunohistochemistry (IHC) and double/triple staining immunofluorescence (IF) following the optimized protocols as described in Wang et al., 2023 [25] in coronal sections of seven adult individuals and ten monkeys. Brain tissue of one Squirrel monkey (Saimiri sciureus) was histologically analyzed. As we only analyzed one monkey from this genus and the results obtained were the same in terms of types of neurons and cells expressing MCT8 and OATP1C1 in all monkeys independently of the genus, only data from macaques are shown in the figures and throughout the text. All Figures in this section and the Supplementary materials section show the most representative results.

2.1. General pattern of MCT8 and OATP1C1 immunostaining in the adult human and macaque basal ganglia nuclei.

Figure 1 shows the general regional MCT8 and OATP1C1 immunohistochemical labeling patterns in coronal sections of the human and macaque monkey thalamus and basal ganglia nuclei. The negative controls are shown in Figure S1. MCT8 and OATP1C1 are differentially expressed across the brain regions.
At low magnification, the MCT8 immunostaining signal in the human section is seen in the caudate nucleus, putamen, claustrum, globus pallidus, STN, and thalamus (Figure 1B). The white matter also shows positive signals, which reflect the labeling of fibers that are seen at higher magnification. In the macaque brain sections (Figure 1E, H and K), the MCT8 immunostaining signal is also present in the caudate-putamen complex, in the GPe and GPi, in the VA/VL, in the STN, and the substantia nigra. White matter also shows positive signals as fibers that are very intensely labeled. OATP1C1 immunostaining signal is observed in the same mentioned nuclei in human (Figure 1C) and macaque sections (Figure 1F, I, and L).

2.2. MCT8 and OATP1C1 in blood vessels and barriers in macaque and human basal ganglia.

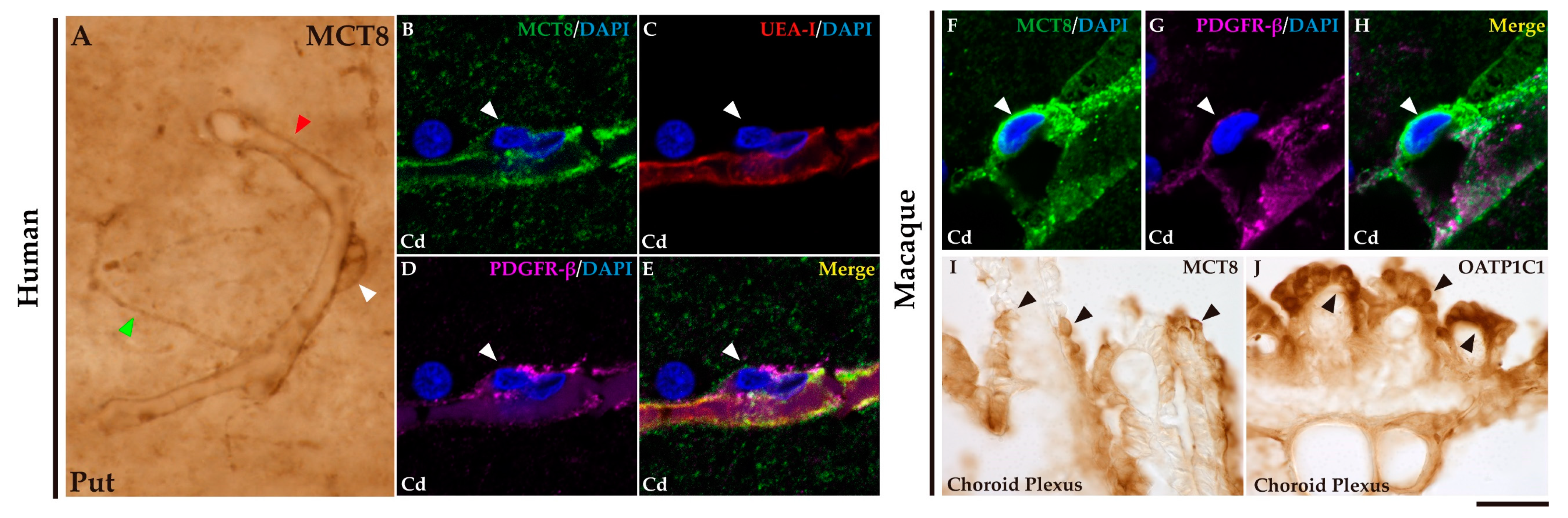

We investigated the expression of MCT8 and/or OATP1C1 in the blood vessels and barriers in the adult human and macaque basal ganglia. Consistently with previous studies [49,50], we found that MCT8 immunostaining is widely distributed in the blood vessels of all the studied nuclei (Figure 2A), whereas OATP1C1 immunostaining is very rare. Figure 2B-E shows in humans the colocalization of MCT8, Ulex europaeus agglutinin-I (UEA-I) lectin that labels endothelial cells, and platelet-derived growth factor receptor-β (PDGFR-β) that was used to label all vascular mural cells. Figure 2B-E shows the colocalization of MCT8 in perivascular cell profiles with PDGFR-β, but not with UEA-I, indicating that those MCT8 immunopositive profiles are pericytes. Those profiles can also be observed in the macaque (Figure 2F-H). In addition, expression of MCT8 and OATP1C1 was observed in the choroid plexus of the ventricles in the macaque brain (Figure 2I and J).

2.3. MCT8 and OATP1C1 are expressed in input nuclei of the human and macaque basal ganglia.

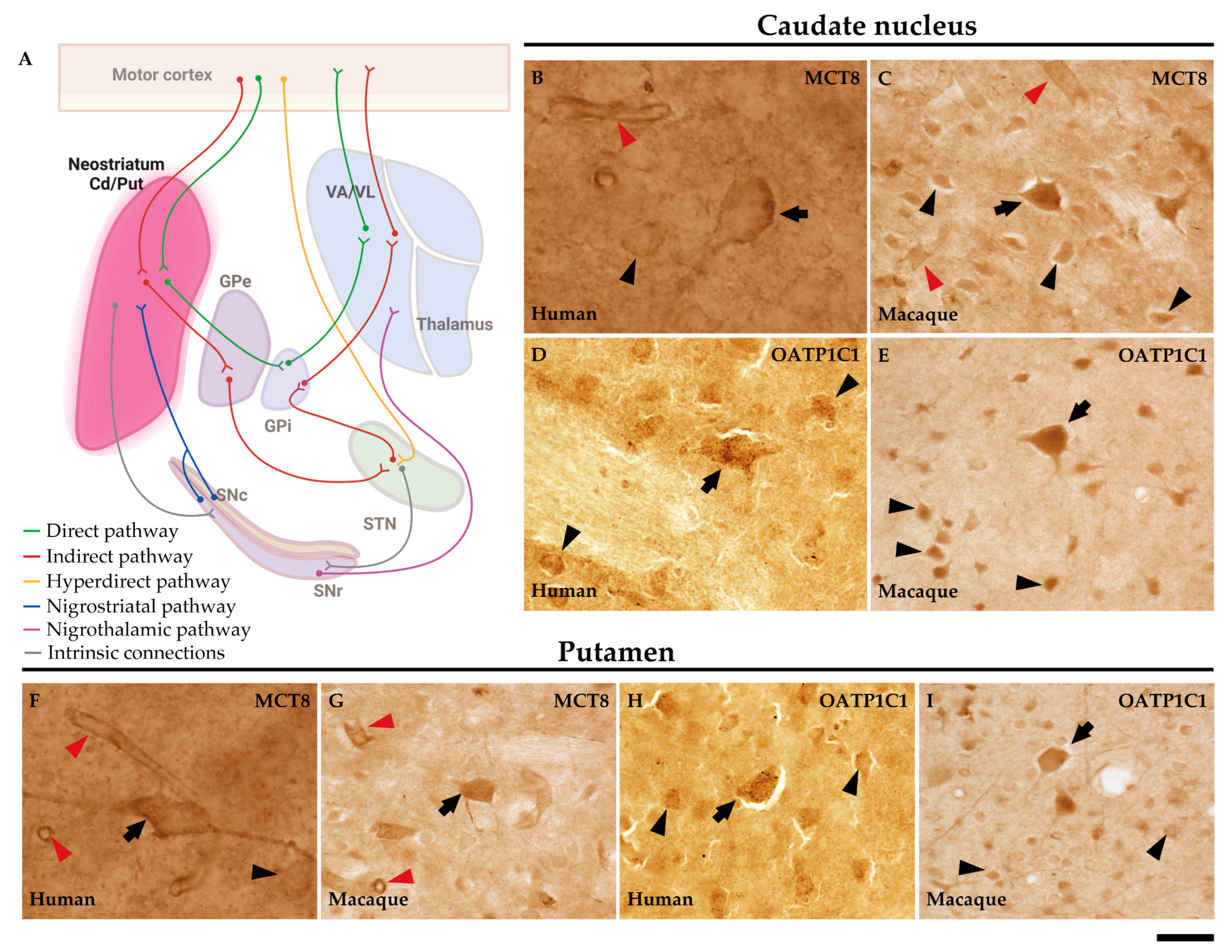

The striatum (caudate nucleus and putamen) are the input nuclei of the motor pathway of the basal ganglia in humans and macaques (Figure 3A). In the human striatum, MCT8 immunoreactivity is present at the soma cell membrane and dendrites of medium-sized neurons and in the soma of the large-sized neurons, as well as diffusely distributed in the extracellular matrix or neuropil (Figure 3B and F). Likewise, the neuronal expression of MCT8 is also observed in the macaque striatum at the cell membrane, cytoplasm, and dendrites (Figure 3C and G) of medium and large cells. OATP1C1 immunopositive signal is high in medium-sized and large neurons in humans (Figure 3D and H) and macaques (Figure 3E and I), which show intense signals in the soma and dendrites. By their morphology, we can identify these medium-sized MCT8 and OATP1C1 immunopositive neurons either as MSN (projection neurons) or as interneurons, while the large-sized cells might correspond to cholinergic neurons.

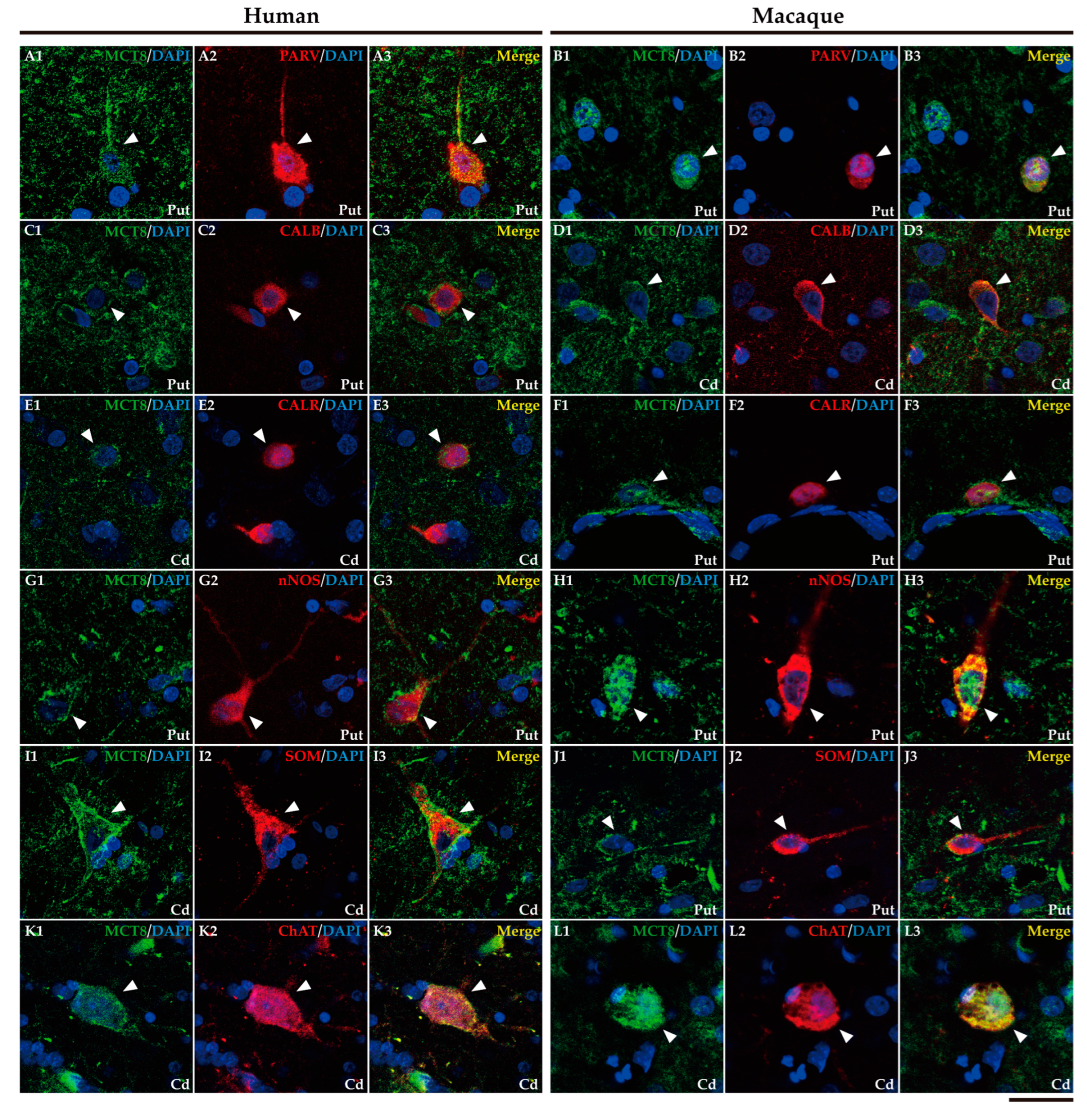

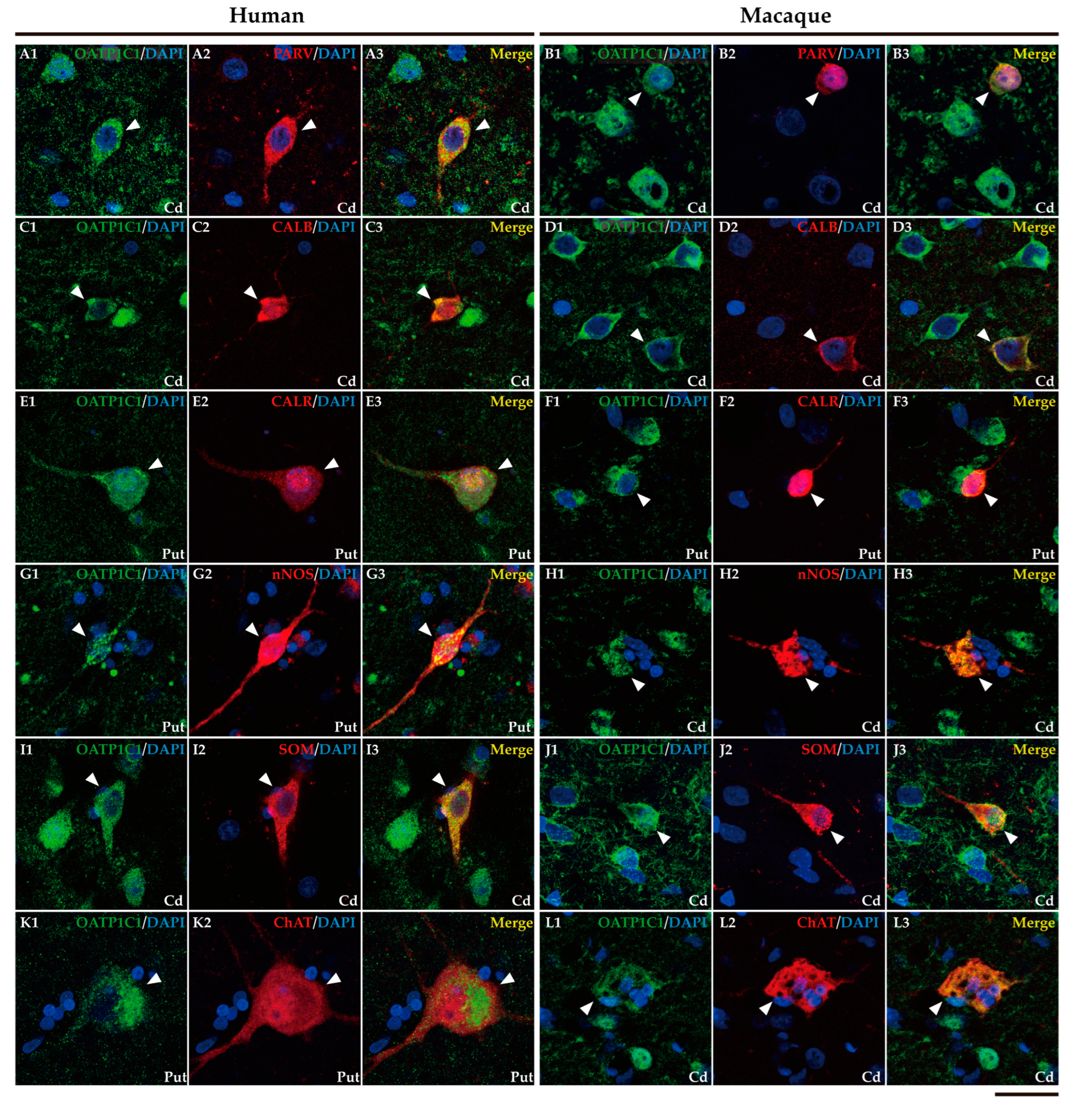

We performed double labeling IF studies in human and macaque sections to further address the nature of those cells. Our analyses show that MCT8 and OATP1C1 immunostaining colocalize in the medium-sized cells with the typical MSN biomarkers (Figure 4 and Figure 5). MCT8 and OATP1C1 are coexpressed with the DRD1 in human and macaque caudate and putamen (Figure 4) and also with DRD2 (Figure 5). This indicates that MCT8 and OATP1C1 are expressed in MSN cells in both the direct pathway (D1-MSN,Figure 4), and the indirect pathway (D2-MSN, Figure 5). In humans, the cellular MCT8 signal is mainly restricted to the membrane and dendrites consistently with our IHC results (Figure 3).
In addition, it is well known that the striatum also contains a small population of medium and/or small-sized GABAergic interneurons which play an important role in the modulation and control of the MSN, that is, the striatum output. We further performed double labeling IF to study the colocalization of different biomarkers for various subtypes of striatum GABAergic interneurons. Thus, we observed that MCT8 and OATP1C1 are colocalized in human and macaque striatum with the calcium-binding protein PARV in fast-spiking GABAergic interneurons (Figure 6A1-B3 and Figure 7A1-B3) [33], with the calcium-binding proteins CALB (Figure 6C1-D3 and Figure 7C1-D3) and CALR (Figure 6E1-F3 and Figure 7E1-F3), with Neuronal nitric oxide synthase (nNOS) for nitrergic interneurons and persistent and low-threshold spiking interneurons (Figure 6G1-H3, and Figure 7 G1-H3) [33,34], and with SOM for persistent and low-threshold spiking interneurons (Figure 6I1-J3 and Figure 7I1-J3 respectively) [33]. As shown in Figure 3, in human and macaque striatum MCT8 and OATP1C1 also are expressed in multipolar neurons with large soma (around 30 μm in diameter), the typical morphology of large aspiny cholinergic interneurons which are also called tonically active interneurons [33]. We performed double labeling IF for MCT8/OATP1C1 and the Choline Acetyltransferase (ChAT) as a biomarker for cholinergic interneurons. Figure 6K1-L3 and Figure 7K1-L3 show the coexpression of these transporters with ChAT in humans and macaques. Together, MCT8 and OATP1C1 were observed to be expressed in all these types of striatal interneurons.
Additionally, some abundantly scattered fibers in the striatum showed MCT8 immunoreactivity in both humans and macaques. In the human brain sections, we have observed that there are aggregations of Corpora amylacea surrounding the lateral ventricles (Figure S2) which is consistent with our previous finding in the human cortex [25]. We also found some OATP1C1 immunoreactive depositions restricted to striatum gray matter neuropil and not present in white matter, in all seven human individuals under the antigen retrieval free condition (Figure S2).

2.4. MCT8 and OATP1C1 are expressed in projection neurons of output nuclei of the human and macaque basal ganglia.

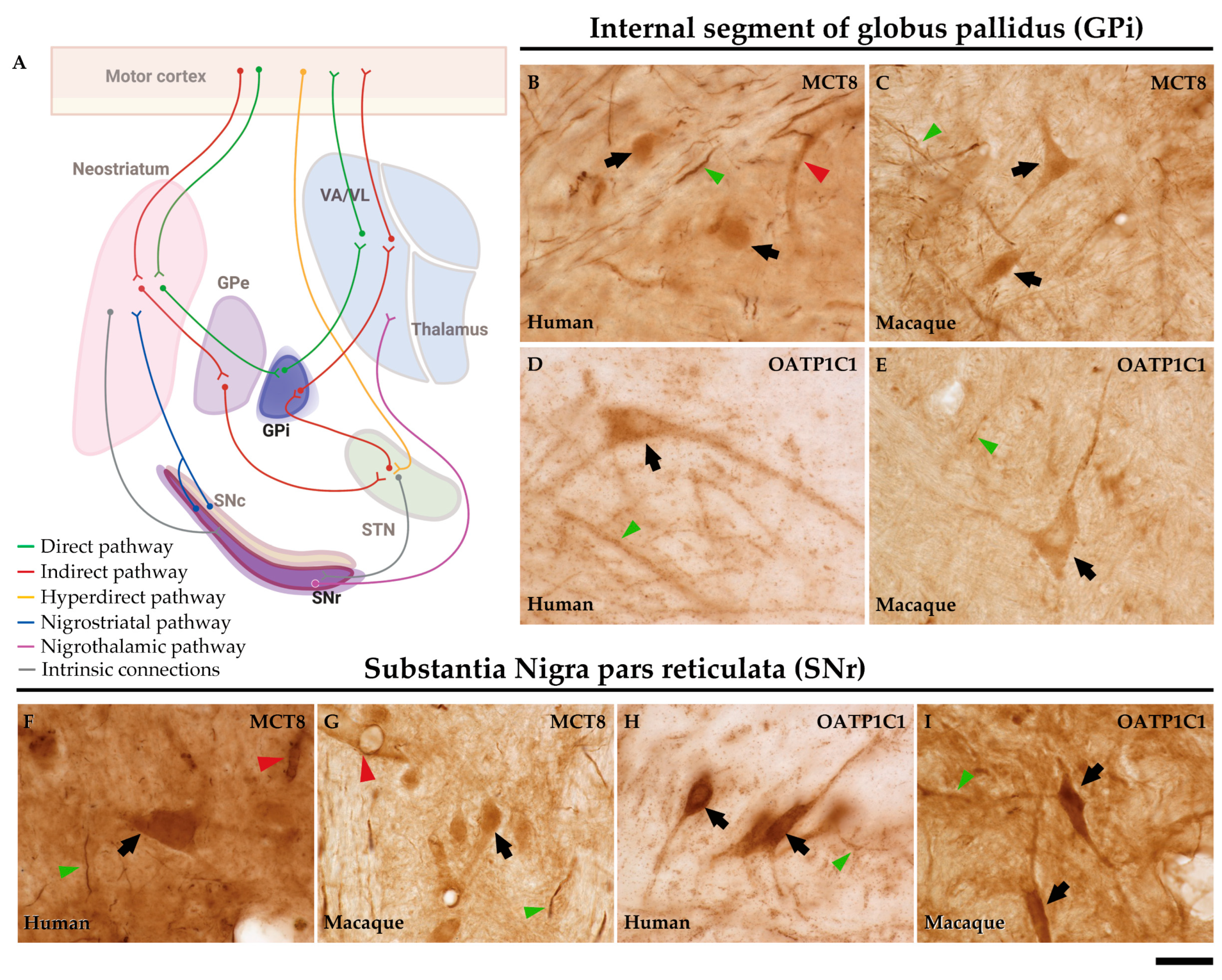

In humans and macaques, the internal segment of globus pallidus (GPi) and substantia nigra pars reticulata (SNr) (Figure 8A) are the output nuclei of the basal ganglia. Figure 8B shows that MCT8 immunoreactivity was observed in spherical neurons in human GPi, while Figure 8C, in macaque, shows triangular or fusiform MCT8 immunopositive somas with low branching dendrites, a feature that fits with the typical morphology of the neurons of this nucleus. In addition, many MCT8 immunopositive fibers can be observed in this region in both humans and macaques. OATP1C1 immunoreactive cells show the typical morphology features of the GPi neurons in both humans and monkeys (Figure 8D and E). The double staining IF experiments with PARV showed coexpression with MCT8 and OATP1C1 in those cells (Figure 9A1-D3). The expression of MCT8 and OATP1C1 was also observed in human and macaque SNr (Figure 8F-I). As described previously, the neurons in GPi and SNr are mostly GABAergic and can be labeled by PARV [36,37]. The coexpression of MCT8/OATP1C1 with PARV was confirmed by double labeling IF (Figure 9E1-H3).

2.5. MCT8 and OAdTP1C1 are expressed in projection neurons of the human and macaque intrinsic nuclei.

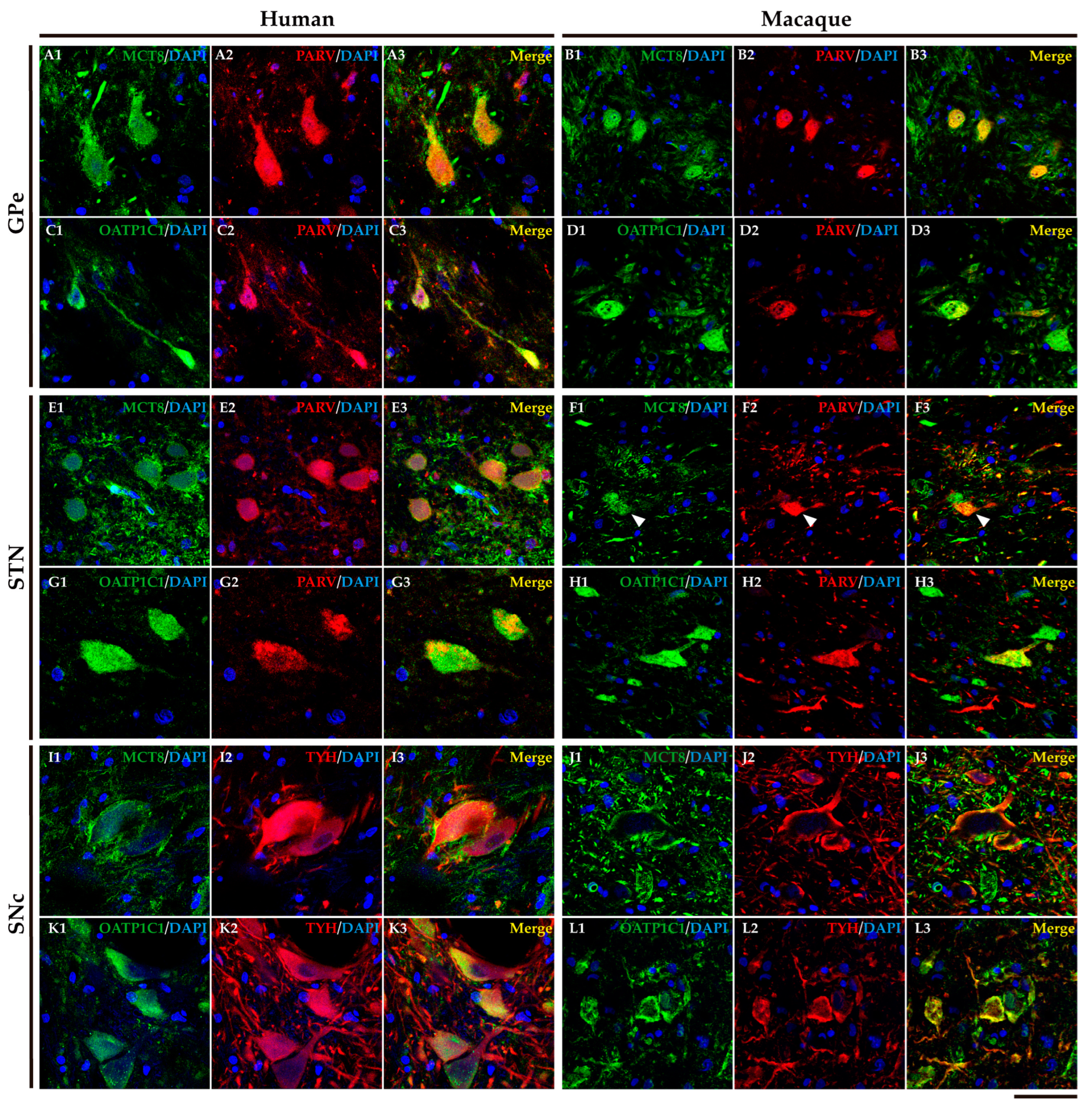

The external segment of globus pallidus (GPe), subthalamic nucleus (STN) and substantia nigra pars compacta (SNc) of humans and monkeys (Figure 10A) are the intrinsic nuclei of the basal ganglia. In the human and macaque GPe, immunoreactivity for both MCT8 and OATP1C1 is present in the soma and dendrites of the typical GPe triangular neurons (Figure 10B-E). Notably, immunopositive signal for MCT8 can be seen in fibers (Figure 10B and C). Double labeling IF experiments confirmed that both TH transporters colocalize with PARV in cells (Figure 11A1-D3) in the human and macaque GPe. (Figure 11A1-B3). Figure 10F-I shows the immunohistochemical signal for MCT8 and OATP1C1 in the human and macaque STN, located in the soma and some dendrites of small neurons. Previous findings indicate that PARV is a biomarker only for projection neurons in the STN [38]. Our double labeling IF experiments show that both TH transporters are coexpressed with PARV in a population of neurons (Figure 11E1-H3), confirming that they are projection neurons. Abundant fibers immunoreactive for MCT8 can be found in this region. In the human and macaque SNc, the expression of MCT8 and OATP1C1 was observed in the soma and dendrites of multipolar and fusiform neurons and fibers (J-M). I1-L3 shows the results of double staining IF for MCT8 or OATP1C1 with tyrosine hydroxylase (TYH) in the human and macaque SNc, which confirms the presence of both transporters in the dopaminergic neurons.

2.6. MCT8 and OATP1C1 are expressed in thalamocortical neurons of the human and macaque motor thalamus.

The ventral anterior and ventral lateral nuclei of the thalamus (VA/VL) of humans and macaques are the motor relay nuclei of the direct and indirect pathways of the basal ganglia to the motor cortex (Figure 12A).
In the human motor thalamus, MCT8 immunocytochemical staining is mainly present in the cell membrane of round medium-sized cells (B). In the macaque motor thalamus, MCT8 is expressed at the cell membrane and cytoplasm of neurons (C). In both human and macaque motor thalamus MCT8 immunoreactive fibers are very abundant. OATP1C1 immunopositive signal is also found at the membrane and cytoplasm of neurons of the human and macaque VA/VL thalamus (D and E).
Early studies have shown that CALB or PARV-expressing neurons (matrix cells and core cells, respectively) within each thalamic nucleus project to either supragranular or granular layers of the cerebral cortex [40,41,51,52]. We therefore performed the double labeling IF experiment with MCT8 and/or OATP1C1 with those calcium-binding proteins and the results evidenced that both TH transporters colocalize with CALB (Figure 13A1-D3) or PARV (Figure 13E1-H3) being then present in both types of thalamocortical projection neuron (Figure 13). We also found that MCT8 colocalizes with CALB or PARV in thick fibers of the macaque motor thalamus (Figure 13).

2.7. MCT8 and OATP1C1 are expressed in the cholinergic neurons of the human and macaque nucleus basalis of Meynert.

The nucleus basalis of Meynert is an important source of acetylcholine for the basal ganglia and the cerebral cortex. This nucleus is a relatively diffuse collection of large cholinergic neurons in the human basal forebrain [53]. Figure 14 shows that MCT8 and OATP1C1 immunohistochemical signal is positive in the clusters of large-sized neurons located underneath the inferior limit of the globus pallidus, and between the external and internal segments of that nucleus, where the nucleus basalis of Meynert is found. Figure 14 also shows the results of double labeling IF experiments confirming the coexpression of MCT8 (Figure 14B-D) or OATP1C1 (Figure 14F-H) with ChAT in the macaque brain.

3. Discussion

In this study, we have focused on identifying the nature of the neuronal elements of the basal ganglia and motor thalamus that express TH transporters MCT8 and OATP1C1, to understand their importance in the excitation/inhibition balance of the basal ganglia motor circuits. We have performed the study in brain tissues of healthy adult primates, including humans and macaques. Hitherto not reported, our results demonstrate that all types of projection neurons of the various basal ganglia nuclei express both TH transporters. Our research points to the potential consequences of their absence in the basal ganglia circuits as a basis to explain the pathophysiology of MCT8 and OATP1C1 deficiencies, and to provide a foundation of knowledge for future therapeutic applications aimed at cellular targets.

3.1. Study limitations.

In the present study, we performed histological analyses of postmortem human brain tissues. The protein expression, antigenicity, and reaction with specific antibodies are susceptible to change whenever the condition of tissue source, cryoprotection, storage conditions and experimental protocols are altered. Regarding the donor status, we selected those brain tissues whose donor ages were either adulthood (29, 32, 55, and 59 years old) or aged (86, 97, and 98 years old) considered normal upon macroscopical and microscopical examination by a pathologist and a neurologist. Some of them died after conditions that could be associated with non-thyroidal illness syndrome. However, it is known that in that syndrome, even when T3 might be reduced, human expression of MCT8 does not vary in liver and muscle [54] while there is no study on the expression of MCT8 and OATP1C1 in the human basal ganglia and thalamus in those conditions. In murine animal models, expression of MCT10 and OATP1C1 is reduced in the hypothalamus, but not MCT8 [55]. In any case, even if the expression of these transporters had been altered by non-thyroidal illness syndrome in our human tissue, they were still present and both showed a similar immunocytochemical signal in the subpopulations of cells described in the paper, as we have demonstrated consistently, in all the studied brains. Concerning the deleterious effect of the postmortem human brain tissues on antigenicity, we have taken great care to optimize protocols to eliminate non-specific staining, autofluorescence, and false negatives in order to yield reliable results, as explained in a previous paper [25]. For the same reasons stated above, we only conducted a qualitative study and did not conduct a quantitative study.
The selection of specific antibodies was a critical challenge for this study. The quality and specificity of the primary antibodies used in this work have been verified and discussed in previous articles [25,56,57,58]. The individual variability of the sample and the differences in antibodies might be the reason why most of the human anatomy and histology insights reported in the literature for the MCT8 and OATP1C1 distribution in the basal ganglia are either incomplete or ambiguous. One of the strong points of our study is the careful management of tissues and antibodies to achieve consistent results. According to this study, results among all individuals are indeed similar and reliable, and this is also true for the results obtained for monkeys. When comparing the outcomes between humans and monkeys, the distribution in terms of cell type expression is essentially consistent. Further verification of our findings by other methods, such as in situ hybridization, would be of interest, even though mRNA integrity and preservation in postmortem human tissue are not always guaranteed.

3.2. Expression pattern of TH transporters in the human and non-human primate basal ganglia and thalamus.

Our study provides the first immunocytochemical demonstration of the existence of the TH transporters MCT8 and OATP1C1 in the projection neurons of the basal ganglia and motor thalamus, which are those whose axons contribute to the direct and indirect motor pathways of the basal ganglia. Our results are partially supported by GTEx project [44], transcriptomic [45] and northern blot analysis [7] that show mRNA of both MCT8 and OATP1C1 in human basal ganglia, although those studies did not specify which type of neurons were expressing that mRNA. One of the main contributions of our results is the definition of the types of neurons that express the TH transporters MCT8 and OATP1C1 in relation to the activation/inhibition balance of the basal ganglia motor circuits.
In agreement with the previous findings at the protein level by IHC [25,56,58,59,60], we observed the cellular expression pattern of MCT8 in the endothelial cells of vessels, and we demonstrate for the first time the expression of MCT8 in basal ganglia pericytes and the expression of MCT8 and OATP1C1 in monkey choroid plexus.
The functional relevance of MCT8 and OATP1C1 expression at the cellular level in the striatum in primates remains elusive as yet; however, since they are critical for the TH nuclear receptor-mediated signaling [61,62], one might assume that those cells would be affected by some kind of hypothyroidism throughout development and postnatal life. The lack of TH produces severe effects on general brain development such as marked maturational delay in rat caudate nucleus neuronal proliferation [63,64]. That would imply the growing of impoverished MSN neurons and interneurons. On the other hand, it has been reported that the striatum transcriptome profiling of Slc16a2/Slco1c1 and Slc16a2/Dio2 double knockout mice overlaps with that of a systemic hypothyroidism mouse model [65]. However, it is difficult to totally extrapolate this pattern to humans or primate models. Other proteins that have been shown to be regulated by TH specifically in the striatum might also be affected by the deficiency of TH transporters. For instance, the expression of the synaptic plasticity TH target genes such as Calmodulin Kinase II, RC3/neurogranin, and Rhes (a TH–induced gene that regulates the striatal motor activity and promotes tunneling nanotube transport [66]) is reduced in the hypothyroid rodent models, RC3/neurogranin and Rhes both being present in the MSN neurons of the striatum [67,68]. Although there are differences between the clinical profiles of hypothyroidism and TH transporters deficiency, it is plausible that all or some of those proteins might also be) affected by the deficiency of TH transporters in the MSN, resulting in defects in the neuronal synaptic transmission throughout the basal ganglia motor circuits.
The possibility that MSN were hypotrophic owing to the lack of TH transport across their cytoplasmic membrane is important since these neurons are the origin of the basal ganglia motor circuits. In addition, as we have demonstrated in this study, the interneurons that modulate the activity of MSN, such as the cholinergic, CALR, PARV, nNOS, and SOM ones, also express MCT8 and OATP1C1 and, therefore, they would also be vulnerable to the lack of TH.

3.3. TH transporters in the nucleus basalis of Meynert.

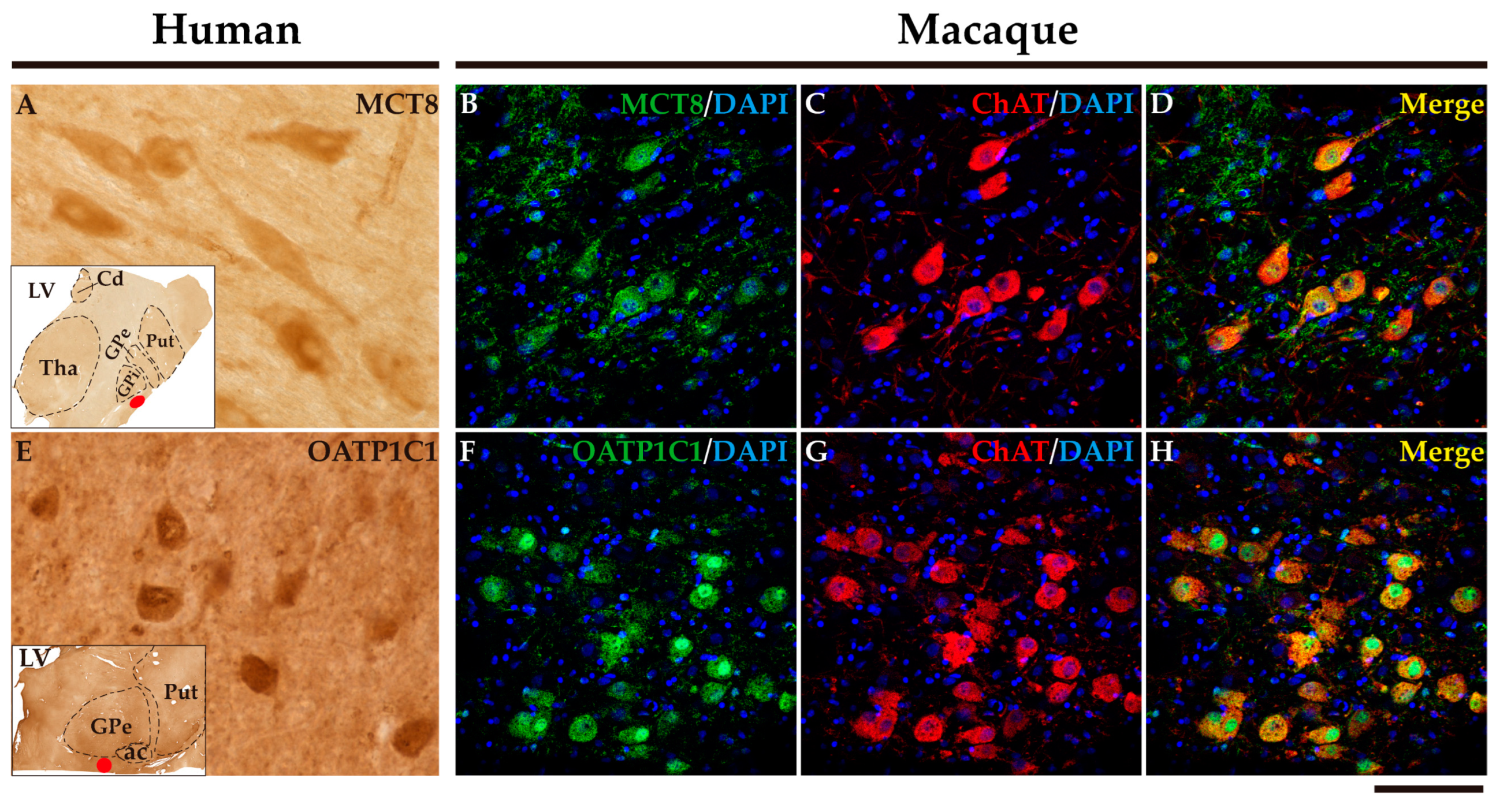

This is the first demonstration of MCT8/OATP1C1 transporters in the cholinergic cells of the nucleus basalis of Meynert. The functional consequence of this finding is the sensitivity of those neurons to TH regulation.
TH participate in the development of the cholinergic system [69,70,71] and in the maintenance of the nucleus basalis of Meynert [72]. Cholinergic basal forebrain neurons are sensitive to TH during development [73]. Administration of T3 leads to an earlier and increased expression of cholinergic markers in the caudate-putamen complex [70] and the nucleus basalis of Meynert [73]. In addition), several data indicate a close link between TH and neurotrophins in the basal forebrain [70,71]. Immunostaining for nerve growth factor receptor, which is expressed in ChAT-positive neurons in the basal forebrain, is also regulated by TH content [70]. Furthermore, some studies show a reduction of ChAT mRNA in the basal forebrain of adult-onset hypothyroid rats indicating a role for TH in the maintenance of cholinergic neurons during adulthood [74]. TH levels reduction was also reported to induce nucleus basalis of Meynert cell death [72]. Trophic actions of TH on the cholinergic system have been described, through the stimulation of the acetylcholine metabolism, the increase of acetylcholinesterase activity, and acetylcholine uptake [75]. Moreover, TH were reported to regulate muscarinic receptors expression and ligand affinity [76] and the acetylcholinesterase expression [77]. In the CNS, cholinergic signaling is critical to many cognitive processes [78,79,80]. TH may directly regulate cholinergic signaling by controlling the expression of ChAT, the gene responsible for the synthesis of acetylcholine, by TRs [81]. Several in vitro and in vivo studies have correlated TH signaling with ChAT expression, particularly during development [81,82,83,84]. In the case of TH transporters deficiency, it could be assumed that the cholinergic neurons of the nucleus basalis of Meynert would be affected in their development, function and signaling, resulting in disturbances in many systems that are critical for learning, memory, and synaptic plasticity.

3.4. Model of TH transport in human and non-human primate neostriatum microcircuitry.

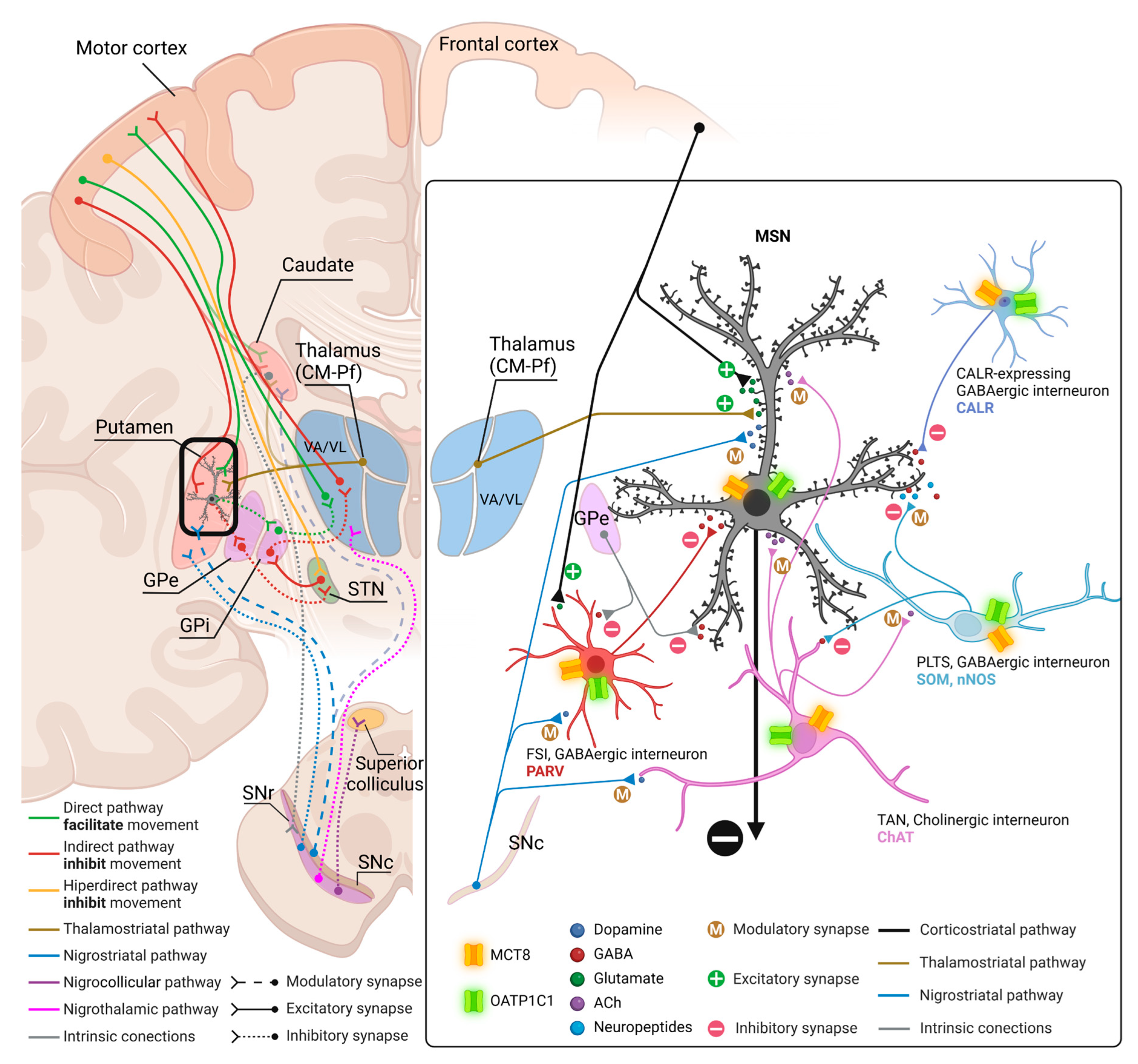

Based on our novel findings regarding the cellular location of MCT8 and OATP1C1 in the human and monkey basal ganglia and motor thalamus, Figure 15 depicts our proposed model of TH transport within the motor pathways and striatum microcircuitry.
The striatal MSN are the first station of the basal ganglia system of circuits being the recipients of the efferent projections from the cortex and the thalamus and being modulated by local interneurons and by other afferents from the substantia nigra, amygdaloid complex, raphe nuclei, and parabrachial pontine reticular formation. It is well known that the MSN recorded in vivo fire few action potentials spontaneously [85,86,87], and that their activity is regulated by extrinsic inputs as well as by the strong feedforward from interneurons. The dysfunction of the striatal microcircuitry because of a lack of MCT8 or OATP1C1 transporters may be another factor that contributes to the pathophysiology of the movement disorders that appear in TH transporters deficiency syndromes.
In summary, the effects of the lack of those two transporters on the input nuclei can be diverse; on the one hand, MSN can be directly affected in their trophism, resulting in abnormalities in their output signal; on the other hand, various types of interneurons expressing these two transporters can affect the excitatory/inhibitory balance of the striatum microcircuitry, thereby affecting the output of MSN signals. All these synaptic transmission defects will be transferred through the direct and indirect pathways into the intrinsic and output nuclei, including the thalamus, where projection neurons also express MCT8 and OATP1C1 and would be likely to also be affected in their trophism. The most likely result would be the imbalance of excitation/inhibition of the cerebral motor cortex producing the typical signs of basal ganglia diseases such as hypotonia, dystonia, choreoathetosis, and spasticity, which are frequent signs in the AHDS and OATP1C1 deficient syndromes.
In this paper, motor functions related to the basal ganglia are discussed in relation to the expression of the TH transporters MCT8 and OATP1C1, and to the possible effects of their deficiency in the cortical-basal ganglia-thalamus-cortical motor loop (Figure 15). In a previous article, we have also proposed a pathogenesis model for OATP1C1 and MCT8 deficiency syndromes related to the anatomopathological effects in the neuronal subpopulations of the motor cortex (pyramidal neurons and interneurons), which also express these transporters [25]. However, other types of sensorimotor, associative, and limbic information flow in parallel streams through the basal ganglia-thalamocortical loop [88]. How nonmotor basal ganglia channels are affected in AHDS or OATP1C deficient patients, and whether their alterations are correlational in the cognitive and behavioral symptoms, remains a potential area for further investigation.

4. Materials and Methods

4.1. Human samples and tissue preparation.

The present results were obtained by analyzing postmortem samples obtained from seven healthy individuals, whose ages ranged from 29 to 98 years old, and who did not exhibit any neurological or psychiatric disorder, as detailed in Table 1. The material was generously provided by Dr. Ricardo Insausti from the Human Neuroanatomy Laboratory at the University of Castilla-La Mancha in Albacete, Spain, and Dr. Lucía Prensa from the Department of Anatomy, Histology, and Neuroscience at the Autónoma de Madrid University in Madrid, Spain.
All human brain tissue studied for this paper was prepared with the same special protocol for neuroscience studies. The data on the length of admission in the hospital or intensive care unit were not reflected in the death certificate at the time, but all the brains arrived at the necropsy laboratory between two- and twenty-four h postmortem. The necropsy was performed by a pathologist and a neurologist, and careful macroscopical and microscopical examination of samples of brain tissue was performed by the pathologist to discard edema, hemorrhages, infections, or metastasis and ensure that the brain was normal and could be used as a control sample. Tissue from donors of the same list and protocol has been used in other published papers such as Iglesias et al., 2018 [89], Uroz et al., 2004 [90] and Wang et al., 2023 [25]. The tissue preparation has been extensively reported elsewhere [25,32,89,90]. Briefly, the brains were cut into thin blocks that were fixed by immersion in 4% paraformaldehyde for 10 days or 10% buffered formalin for at least 4 weeks. Blocks of brains were immersed in 15% sucrose at 4ºC until they sank before cutting. Samples were cut with a freezing microtome into 50 μm thick sections that were serially collected in a cryoprotective solution and stored at −80ºC.

4.2. Monkey samples and tissue preparation.

We obtained tissue samples from ten healthy adult monkeys (Table 2), which had been stored in Dr. Rausell’s tissue bank located in the Department of Anatomy, Histology, and Neuroscience at the Autónoma de Madrid University in Madrid, Spain, and preserved using cryoprotective techniques.
The tissue preparation method used in this study has also been described in detail in our previous studies [25,91]. To summarize, the monkeys were anesthetized using intramuscular ketamine and intravenous Nembutal, after which they were perfused with normal saline and a solution of 4% paraformaldehyde and 1% glutaraldehyde in phosphate buffer through the ascending aorta. The brain was then removed and blocked, and the blocks were postfixed in 4% paraformaldehyde for 4 hours, followed by infiltration with 30% sucrose in 0.1 M PB at 4°C with gentle stirring, freezing in dry ice, and storage at -80°C. The tissue was cut into 25-30 μm thick sections tangential to the pia mater using a freezing sliding microtome, and alternate series of sections were collected in a sterile cryoprotectant solution and stored in a -80°C freezer. These series were to be processed later for Nissl staining, IHC, and double/triple labeling with IF for several neuronal and vascular biomarkers.

4.3. Histological analysis.

After the above procedures, one series was selected for Nissl staining with thionine to study the cytoarchitectonics and to outline the borders of basal ganglia and thalamic nuclei. This series would serve as a reference for the topographical location of elements labeled by means of IHC and double IF for MCT8/OATP1C1 and several cell/vessel markers in adjacent sections. The different nuclei were identified by anatomical landmarks, such as ventricles, together with the indications of the atlas of the human brain by Mai et al., 2015 [47] associated with details previously described for the thalamus by Iglesias et al., 2018 [89] for humans, and the atlas from Winters et al., 1969 [48] and Emmers et al., 1963 [92] for monkeys.

4.4. Immunohistochemistry (IHC).

IHC and double IF procedures and the specificity of antibodies were performed as previously described [25] in free-floating tissue sections.
Briefly, for detection of the MCT8 TH transporter, we use a rabbit polyclonal anti-MCT8 antibody (IHC 1:700-1:2000/IF 1:600, Sigma-Aldrich HPA003353) [56]. For detection of the OATP1C1 TH transporter, we used antibodies from six different suppliers: five rabbit polyclonal anti-OATP1C1 (IHC 1:800, hOATP1C1-3516, an antibody donated by Dr. T. Visser; IHC 1:500/IF 1:200, bs-11436R, Bioss; IHC 1:600/IF 1:300, CSB-PA868355LA01HU, Cusabio; IHC 1:500/IF 1:300, ab234729, Abcam; IHC 1:200-1:500, PA5-115919, Invitrogen) and a mouse monoclonal anti-OATP1C1 (IHC 1:50, sc-398883, Santa Cruz Biotechnology) [25,58].
In some of the experiments, the unmasking of epitopes was performed for 30 min incubating human tissue at 90°C or macaque tissue at 37°C in pH 6.0 sodium citrate buffer or pH 8.0 Tris–EDTA buffer. Inactivation of endogenous peroxidases was also performed by incubating the sections in 10% H2O2 and 10% methanol for 15 min twice. Then, sections were incubated in 5% normal serum of the same species as that in which the secondary antibody was raised [25], 4% bovine serum albumin (BSA), and 0.1 M Lysine in 0.1 M PB as a blocking buffer for 60 min. The primary antibodies were diluted in 0.1 M PB containing 1% normal serum, and 4% BSA and were incubated with the tissue sections for 48 h at 4°C on a shaking platform. The biotinylated secondary antibodies were diluted in the same solution as the primary antibody and incubated for 1 h at room temperature. We mainly used the avidin-biotin complex method (ABC, Invitrogen, 32050) for 60 min for signal amplification. Immunoreactivity was developed by 0.5 mg/mL 3,3’-5,5’-diaminobenzidine tetrahydrochloride (DAB, Sigma, D5905) and 0.01% H2O2 in 0.1 M PB. Finally, sections were mounted on gelatin-coated glass slides, dehydrated in a series of graded dilutions of ethanol to xylene, and coverslipped with DPX.

4.5. Double/triple immunofluorescence (IF).

Double/triple IF sections were used for the colocalization of MCT8 or OATP1C1 immunoreactivity with different biomarkers or lectins. The antibody against PDGFR-β (IHC 1:200/IF 1:100, AF385, R&D systems) was used to label all vascular mural cells [93]; the lectin UEA-I was used to label blood vessel endothelial cells [94]; anti-DRD1 (IHC 20 μg/mL / IF 25 μg/mL, MAB8276, R&D systems) labeled D1-MSN in the direct pathway and anti-DRD2 (IHC 20 μg/mL / IF 25 μg/mL, MAB9266, R&D systems) labeled D2-MSN in the indirect pathway [30]; the antibody against the calcium binding protein CALB (IHC 1:2000 / IF 1:1000, #C9848, Sigma-Aldrich) was used to label striatal GABAergic interneurons [32] and matrix projection cells in the thalamus [40,41,95]; the antibody against the calcium binding protein CALR (IHC 1:2000 / IF 1:1000, 6B3, Swant) labeled GABAergic interneurons in neostriatum [32]; the antibody against ChAT (IHC 1:500 / IF 1:250, AB144P, Merck Millipore) labeled cholinergic interneurons in neostriatum [32] and cholinergic neurons in nucleus basalis of Meynert [53]; the antibody against PARV (IHC 1:2000 / IF 1:1000, #P3088, Sigma-Aldrich) labeled striatal GABAergic interneurons [32], GABAergic neurons in GPe, GPi and SNr [35,36,96], projection neurons in STN, and core projection cells in thalamus [40]; the antibody against nNOS (IHC 15 μg/mL / IF 10 μg/mL, AF2416, R&D systems) labeled GABAergic interneurons in neostriatum [34]; the antibody against SOM (IHC 1:500 / IF 1:300, sc-55565, Santa Cruz Biotechnology) labeled GABAergic interneurons in neostriatum [33]; and finally the antibody TYH (IHC 1:400 / IF 1:200, sc-25269, Santa Cruz Biotechnology) labeled dopaminergic neurons in SNc [96].
Before performing the additional procedures for double IF staining, the tissue was subjected to 48 h of photobleaching pre-treatment to bleach endogenous autofluorescence. For unmasking the epitope and blocking unspecific signals, we used the same method as mentioned above for IHC. Then, sections were treated for 72 h at 4°C with a solution of 0.1 M pH 7.4 PB, 4% BSA, 1% normal serum plus the primary antibodies followed by several cold washes and by 3 h of incubation in the same solution but this time with fluorescent dye-conjugated (AF488, AF546, AF647 Invitrogen) secondary antibodies against the species of the primary antibody [25]. Finally, the sections were immersed for 5 min in a solution containing 0.01% 4’, 6-diamidino-2-phenylindole (DAPI; Invitrogen, D1306) to label cellular nuclei, and coverslipped with FluorSave (Merck, 345789).

4.6. Image Acquisition and Processing.

Brightfield microscope images of IHC stained sections were analyzed with Neurolucida software (Version 2022, MicroBrightField Bioscience, Williston, VT, USA). Images were captured with a digital camera attached to a Nikon microscope (Nikon Eclipse 400, Nikon Instech Co., Ltd., Kawasaki, Japan). Immunofluorescent images were captured using a Zeiss confocal microscope (Zeiss, Spectral Confocal Microscope LSM710, Oberkochen, Germany) and Zen 3.1 pro software. Image analysis and treatment, including merging of images, contrast and brightness modification, and maximum intensity projection, were performed using FIJI software (National Institutes of Health, USA). Control or reference images were acquired under the same conditions as the respective set of images.

Supplementary Materials

The following supporting information can be downloaded at the website of this paper posted on Preprints.org. Figure S1: Negative control sections for the immunostaining protocol in human and macaque brain tissue. Figure S2: Expression of OATP1C1 in Corpora amylacea at the human neostriatum.

Author Contributions

TW, YW, AG-F, and ER conceived and planned the experiments. LP donated human brain tissue and designed IHC for basal ganglia. TW and YW carried out the experiments. TW, YW, AM-P, AG-F, and ER analyzed the data. AG-F and ER supervised and administered the project. TW, YW, AM-P, LP, AG-F, and ER discussed the results and wrote the manuscript.

Funding

This research was funded by MCIN/AEI/10.13039/501100011033 (Grant No. SAF2017-86342-R to AG-F); MCIN/AEI/10.13039/501100011033/FEDER “Una manera de hacer Europa” (Grant No PID2020-113139RB-I00 to AG-F); Consejo Superior de Investigaciones Científicas (Grant No. 2020AEP044 to AG-F); the Sherman Foundation (Grant No. OTR02211 to AG-F); Asociación Corriendo con el Corazón por Hugo (Grant No OTR06190 to AG-F), YW is a beneficiary of a fellowship from China Scholarship Council (CSC).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki. Animal experiments were performed following the European Union Council guidelines (directive 2010/63/UE) and Spanish regulations (R.D. 53/2013). All procedures involving human and monkey brain tissues were approved by the Ethics Committee of The Spanish National Research Council (protocol code 045/2019 for SAF2017-86342-R approved on 04/08/2021).

Informed Consent Statement

Patient consent was waived as the samples were obtained before 2000.

Data Availability Statement

Not applicable.

Acknowledgments

We gratefully acknowledge the kindness of Ricardo Insausti and Lucia Prensa for donating human tissue from their personal collections. We thank Theo Visser for their generous gift of the OATP1C1 antibody. We thank Michael Paul for his help in editing the English of this paper. TW also thanks Mantang Wang and Cunzhen Luo for their financial support.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
