Speckle Plethysmography and Photoplethysmography behaviour during Cold Pressor Test

Altmetrics

Downloads

185

Views

147

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

01 May 2023

Posted:

02 May 2023

You are already at the latest version

Alerts
Abstract
Speckle Plethysmography (SPG) and Photoplethysmography (PPG) are different biophotonics technologies that allow for measurement of hemodynamics. As the difference between SPG and PPG under low perfusion conditions is not fully understood, a Cold Pressor Test (CPT) was used to modulate blood pressure and peripheral circulation. A custom-built setup simultaneously derived SPG and PPG from the same video streams at two wavelengths (639 nm and 850 nm). SPG and PPG were measured at right index finger location before and during CPT using finger Arterial Pressure (fiAP) as reference. The effect of CPT on Alternating Component amplitude (AC) and Signal-to-Noise-Ratio (SNR) of dual-wavelength SPG and PPG signals was analysed across participants. Furthermore, waveform differences between SPG, PPG, and fiAP based on frequency harmonic ratios, were analysed for each subject (n=10). Both PPG and SPG at 850 nm show a significant reduction during CPT for both AC and SNR. However, SPG showed significantly higher and more stable SNR than PPG in both study phases. Harmonic ratios were found substantially higher in SPG than PPG. Therefore, in low perfusion conditions, SPG seems to offer a more robust pulse wave monitoring with higher harmonic ratios than PPG.
Keywords:
Subject: Engineering  -   Bioengineering

1. Introduction

Speckle Plethysmography (SPG) and Photoplethysmography (PPG) are fundamentally different biophotonics methods, both based on the measurement of photons to analyse blood dynamics in living tissue. SPG is a technology based on the analysis of Laser Speckle Contrast Imaging (LSCI) [1,2,3,4,5,6]. Spatial changes in speckle contrast are calculated from a sequence of video frames, generating a single value per frame. Changes in speckle contrast are produced by variations, such as movement of the target under analysis (in this case, human tissue cells: skin, blood vessels, blood cells, etc).
PPG is a technology based on the measurement of light intensity. This technology is used to estimate modulations on the absorption of light by a living tissue, which relates to blood volume [7]. When cameras are used, intensity changes are calculated throughout a sequence of video frames producing an average value per frame.
Simultaneous monitoring of SPG and PPG could be used to study changes induced by blood circulation modulations [8]. A well-known technique used to manipulate the peripheral circulation systemically is the Cold Pressor Test (CPT) [9], which is performed through the application of cold temperatures to a part of the body. To preserve core temperature, sensory nerves trigger a systemic reaction leading to vasoconstriction, and inducing a decrease of the vessel diameter and increase in tone of the vessel walls. This results in elevated Blood Pressure (BP), increase of Pulse Wave Velocity (PWV), and reduced skin blood flow [10]. Pulse Pressure (PP), which is calculated as the difference between systolic and diastolic BPs, has also been proven to increase [11]. Stroke volume decreases, which in turn decreases PPG amplitude [11]. For PPG, this decrease in stroke volume deteriorates the Signal-to-Noise Ratio (SNR) and pulse strength, which sometimes even results in a complete loss of the signal [12]. Different parts of the body react differently to CPT. While core body parts do not seem affected, peripheral parts typically react with a decrease in the AC-amplitude of PPG. This has been demonstrated for ear and finger measurements [13].
The effects of CPT on peripheral Near-Infrared SPG have been explored by Ghijsen et al. [1], whose findings show an increase on the time delay between SPG and PPG. SNR changes were also observed but not extensively analysed. Nevertheless, these observations suggested that SPG might be more robust to changes under low perfusion conditions compared to PPG. Therefore, SPG might become a promising alternative to monitor peripheral circulation under low perfusion conditions [11,12], although it deserves further investigation.
To our knowledge, SNR and morphology of dual-wavelength SPG and PPG during CPT have never been investigated before. This investigation focusses on analysing the changes induced by a lowered perfusion condition on SPG and PPG. The experiments were performed using a custom setup, which can measure simultaneous SPG and PPG from skin at two wavelengths (639 nm and 850 nm) multiplexed in time. Dual-wavelength SPG and PPG were measured at right index finger location before and during CPT.
The change produced by CPT in AC-amplitude of dual-wavelength SPG and PPG signals across 10 subjects was evaluated. In addition, changes in SNR due to CPT were calculated for SPG and PPG at two wavelengths. Furthermore, using frequency harmonic ratios, SPG and PPG waveform morphology characteristics were analysed for all subjects and compared to the finger Arterial Pressure (fiAP) reference.

2. Materials and Methods

The custom setup used for this investigation incorporated a miniature CMOS camera, and two laser diodes with wavelengths of 639 nm (Thorlabs HL6358MG, 10 mW) and 850 nm (Thorlabs L850P010, 10 mW), embedded in a finger-clip. The setup was configured to allow for the simultaneous measurement of reflective SPG and PPG multiplexing in time between the two wavelengths, each at 40 Frames Per Second (FPS). The distance between the camera and the finger skin was approximately 1 cm. The subjects positioned their right index finger on the setup.
A Finapres Nova (Finapres Medical Systems) was used as reference device to monitor fiAP, based on the Penaz method [14]. The custom experimental system was synchronized with the reference device using the acquisition platform BIOPAC MP160 (BIOPAC Systems Inc.). The Finapres finger cuff was applied on the right middle finger. This device was used as reference for heart rate and for harmonic ratios comparison.
The experimental study was performed on 10 subjects without known medical conditions. Both the custom setup and the Finapres recorded continuously during the protocol. The study consisted of two experimental phases: Baseline and CPT. During the Baseline phase, which lasted 1 minute, the subject was asked to sit relatively still. Whereas, during CPT the subject was asked to submerge the left hand in ice water for 1 minute while the reference and custom setup were recording the signals on the right-hand fingers. The ice water was prepared by mixing 3 litres of cold tap water with 0.5 kg of ice cubes, to be used after waiting for 5 minutes at room temperature.
The subject population consisted of 10 healthy participants ranging from 28 to 53 years old with a 40 percent female population. The experimental protocol was evaluated and executed in accordance with the Declaration of Helsinki 2008 (protocol number: IM-NL-STUDY-2022-0029), and all subjects signed the informed consent prior to the study. Figure 1 summarizes the experimental protocol and data analysis pipeline.

2.1. Analysis

All the processing and analysis was performed using Python programming language (Python Software Foundation 3.8). Raw videos were recorded at 80 FPS from the index finger, while using synchronized illumination at two alternating wavelengths (40 FPS each). After separating the alternating frames by wavelength, SPG and PPG were extracted for each wavelength at 40 samples per second. The equations used to compute SPG and PPG [15] are shown below. Let I t   be a frame of one of the two video streams at time t , with resolution N x M , corresponding to 640 x 400 pixels. The PPG was extracted by calculating the average value of the frame as:
P P G t = 1 N M n = 0 N 1 m = 0 M 1 I n , m t ,
where n and m represent the two indices running through the two frames dimensions. SPG was calculated from the same video as the average spatial variability of each frame as:
S P G t = 1 N M n = 0 N 1 m = 0 M 1 σ t n , m ,
with σ t n , m being the spatial variability matrix calculated in the neighbourhood of the pixel at position n , m . Following the well-known standard deviation definition, the spatial variability can be expressed as:
σ t n , m = 1 K + 1 2 x = n K 2 n + K 2 y = m K 2 m + K 2 I x , y t 2 1 K + 1 2 x ^ = n K 2 n + K 2 y ^ = m K 2 m + K 2 I x ^ , y ^ t 2 ,
with K + 1 being the kernel size, here equal to 7 pixels based on literature [16]. An example of the extracted signals from the videos, both SPG and PPG at the two wavelengths, is shown in Figure 2.

2.1.1. AC-amplitude and SNR calculations

PPG and SPG, obtained from the videos at both wavelengths, were further analysed to monitor the changes in AC and SNR between the Baseline and CPT phases. The reference signal, fiAP, was included in the AC analysis, the AC of a BP signal can also be indicated as PP. The reference was not included in the SNR analysis since the signal is not raw but prefiltered by the Finapres system. However, fiAP was used for the estimation of the fundamental frequency in the SNR estimation.
Both AC-amplitude and SNR calculations were performed using a sliding window approach, with a window size of 10 seconds and an overlap of 9 seconds. The window size was chosen taking into account the trade-off between time and frequency resolutions. Both phases were included in this calculation. The two phases were separated, and 5 seconds signals were removed at the start and end of the Baseline and CPT phases in order to avoid motion artifacts that could be present, e.g., due to the subject submerging the left hand in the ice water.
For the AC-amplitude calculations, each window of the signals of interest (SPG, PPG, and fiAP) in both phases and wavelengths was first filtered using a bandpass filter (Butterworth cut-off frequencies: 0.58 Hz – 4.17 Hz). Afterwards, peaks and valleys were located, and an interpolation was performed to obtain a line connecting all the peaks and a line connecting all the valleys, similar to an upper and lower envelope. The AC-amplitude of the signal in the current window was then calculated as the median value of the difference between the upper and lower envelopes.
For all subjects, the SNR was analysed by comparing the spectral power contained between certain frequency bands considered as signal and frequency bands of noise. This is done using fiAP as reference for the fundamental frequency peak, similar to the method described by Gerard de Haan et al. [15]. A binary mask was created to split the spectrum between signal and noise. This binary mask was equal to “1” in the frequency bands containing the fundamental frequency peak, calculated from fiAP reference, and in the 4 following harmonics of SPG and PPG. The rest of the binary mask was equal to “0” representing frequencies corresponding to noise. The spectrum, limited to 800 Beats Per Minute (BPM) was calculated, using zero-padding and a Hanning window, on the high passed filtered signals with a cut-off frequency of 0.58 Hz, in order to remove possible baseline and respiratory contributions. The width of the fundamental band was empirically set to 20 frequency bins and proportionally increased for the harmonics’ bands [15]. An example of this procedure is visible in Figure 3. More in details, let Y ( f ) be the spectrum of the current 10 s window of the signal of interest (SPG, PPG), and U ( f ) the binary mask described, the SNR can be calculated as:
S N R   d B = 10 log 10 f = 0 800   B P M U f Y ( f ) 2 f = 0 800   B P M ( 1 U f ) Y ( f ) 2

2.1.2. Harmonic Ratio Calculation

The harmonic content of the signals was analysed to quantify the morphology differences between SPG, PPG, and fiAP. This analysis was based on the ratio between the different frequency harmonics of the signal and the fundamental, inspired by Ghijsen et al. who defined the Third Harmonic Ratio (THR) [1]. In this work, Second Harmonic Ratio (SHR) and Fourth Harmonic Ratio (FHR) were introduced and included in the analysis together with THR. The harmonics of a signal are influenced by its morphology, and the use of the three harmonic ratios allows for better comparison of the morphological differences and similarities between PPG, SPG, and fiAP. In all three cases, harmonic ratios are calculated as the ratio between the amplitude of the pertaining harmonic peak of interest and the fundamental peak.
The signals chosen for this analysis were produced by the 850 nm laser diode during the Baseline test phase since they show the highest quality across subjects. The harmonic content was analysed on a representative beat per signal. This representative beat was selected by first calculating an average beat of each signal per subject and then selecting the real pulse that correlated the most with the average beats. The representative beats are concatenated 10 times with the purpose of obtaining a Fourier frequency spectrum with reasonable resolution. This results in a frequency spectrum for individual PPG, SPG, and fiAP beat. Figure 4 shows the representative beat of the collected signals for all the subjects during the Baseline phase. It should be noted that the representative beats may not be the same, timewise, for all the three signals because the representative beats are selected based on the correlation coefficient.

2.1.3. Statistical Analysis

For each subject, phase, signal, and wavelength a median value is calculated for both AC and SNR. These values are then analysed with paired comparisons. Four statistical comparisons were performed to analyse the significance of the changes. Two main statistical tests were used, assuming the populations have significant deviations from normality. Firstly, the Wilcoxon signed-rank test was chosen as a non-parametric version of the paired t-test, in order to perform paired comparisons. Secondly, the Levene’s test was chosen to compare variances. Four comparisons were made:
  • Comparison between phases of the study (Baseline and CPT): the Wilcoxon signed-rank test was used inter-subject to analyse if the changes in both AC-amplitude and SNR between the Baseline and CPT phases were significant for the signals of interest. It is expected that PPG would have a reduction in AC-amplitude during CPT and consequently SNR [17]. However, it is hypothesized that SPG does not change with CPT.
  • Comparison between experimental signals (SPG and PPG): the Wilcoxon signed-rank test was used to test if SNR SPG was significantly higher than SNR PPG in both phases and wavelengths. It has been suggested that SPG has a higher SNR than PPG during CPT [1].
  • Comparison between SNR variance of experimental signals (SPG and PPG): the Levene’s test was used inter-subject to analyse if the SNR variance was significantly different between SPG and PPG. For this test all the SNR estimations are used as populations not the median, as done for the other tests.
  • Comparison between harmonic ratios of the signals (fiAP, SPG and PPG): the Wilcoxon signed-rank test was used inter-subject to test if SHR, THR, and FHR were significantly higher between the different pairs of signals.
In addition, the Pearson’s correlation coefficient and the regression line are estimated for the three harmonic ratios to compare fiAP morphology with SPG and PPG.

3. Results

3.1. AC-amplitude results

AC-amplitude was analysed for the experimental signals, SPG and PPG at 850 nm and 639 nm, as well as for fiAP. Figure 5 and Figure 6 show the inter-subject average and 95% Confidence Interval (CI) of AC-amplitude of each signal calculated independently for both phases of the study (Baseline and CPT). On average, all signals show a reduction in AC-amplitude during CPT, SPG at 639 nm shows a positive slope during CPT. Whereas, the AC-amplitude of fiAP shows an increase in the CPT phase, as expected.
To analyse if the reduction in AC-amplitude was significant, a statistical analysis was performed. Figure 7 shows the percentage of AC-amplitude change between Baseline and CPT on each of the signals extracted from the videos and the reference fiAP for all subjects.
The change in SPG AC-amplitude (average ± standard deviation) was 14% ± 8% and 1% ± 11% for 850 nm and 639 nm, respectively. Whereas, for PPG it was 18% ± 25% for 850 nm, and 3% ± 41% for 639 nm. The fiAP reference showed changes of -9% ± 10%. The positive average change indicates that the AC-amplitude was higher during Baseline than during CPT, whereas the negative average change indicates a higher AC-amplitude during CPT.
The results of the Wilcoxon signed-rank test are shown in Figure 7 on each boxplot. The AC-amplitude during Baseline is significantly higher than the one during CPT for SPG and PPG at 850 nm, and not significant for the signals at 639 nm. The change is also not significant for fiAP which is expected to react to the CPT with an increase in PP.

3.2. SNR results

Example signals of both PPG and SPG with different SNR levels are shown in Figure 8. More concretely, four different quality levels ranging from 18 dB to 0 dB, depicting the different quality levels indicated by the SNR algorithm are shown.
Figure 9 shows average values and 95% CI of the SNR values inter-subject for the 4 signals produced by the experimental device (PPG & SPG at 850 nm & 639 nm) differentiating between the two phases of the study (Baseline & CPT). Most signals show a reduction in SNR during the CPT phase, except for SPG 639 nm which has a less abrupt SNR change between the two study phases.
As shown in Figure 9, SNR of SPG is higher than of PPG for all wavelengths and phases. Figure 10 further confirms this by showing the comparison between SNR of SPG and PPG at two different wavelengths differentiating between the different phases of the study. The results of the Wilcoxon signed-rank test, indicated in the titles of Figure 10, show that for both wavelengths and phases the SNR of the SPG is significantly higher than the SNR of PPG.
Examination of Figure 9 and Figure 10, reveals a large spread in SNR between subjects for PPG compared to SPG. Confirmed by Levene’s test, a significant difference in variance was observed between SPG and PPG during Baseline at 850 and 639 nm and during CPT only at 850 nm.
An overview on the reduction of SNR due to CPT for every experimental signal on every subject is presented in Figure 11. The significance of the Wilcoxon signed-rank test is presented in the titles of Figure 11.
Similar to the results for the AC-amplitude analysis, at 850 nm, both SPG and PPG showed a significant reduction of SNR during the CPT case, and at 639 nm, the difference resulted is not significant.

3.3. Harmonic Ratio results

The harmonic ratios, SHR, THR, and FHR were analysed to highlight the morphology differences between 850 nm SPG, 850 nm PPG, and fiAP representative beats from each subject during the Baseline phase of the study. Figure 12 shows an example of the representative SPG, PPG, and fiAP beats or heart cycles (left) with their calculated Fourier spectrum (right).
The boxplots of the SHR, THR, and FHR calculated on the representative beats are presented in Figure 13 together with the results of the Wilcoxon signed-rank test. In particular, all the harmonic ratios of PPG resulted in being significantly lower than the SPG and fiAP ones. Furthermore, while SPG’s THR and FHR were significantly lower than the ones of fiAP, the same comparison for SHR was not significant. In Figure 14 the correlation plots between each harmonic ratio of fiAP and PPG/SPG is shown. The correlation between fiAP and SPG is significantly higher than the one between fiAP and PPG for all harmonic ratios.

4. Discussion

In this work, reflective PPG and SPG were obtained at two wavelengths (639 and 850 nm, using time-multiplexing) from the right index finger of 10 healthy volunteers, using fiAP as a reference under lowered perfusion conditions by applying a CPT. The data collection consisted of a Baseline phase and a CPT phase. Per wavelength, PPG and SPG were calculated from the same video stream using different processing pipelines.
As seen in the Results Section, both AC-amplitude and SNR of PPG and SPG decrease during CPT-induced lowered perfusion conditions. This only reached statistical significance for the signals at a wavelength of 850 nm and not for 639 nm. Furthermore, SPG has consistently higher SNR values than PPG, with lower intra and inter subject variation. In addition, the harmonic analyses revealed that there is a larger resemblance between SPG and fiAP compared to PPG and fiAP.
In healthy subjects, CPT leads to increase in BP and decrease in blood flow and volume. It is expected that PPG will have a reduced AC-amplitude as the blood volume decreases. Since SPG is a speckle-based method, it might be influenced by blood flow [1] as well as by blood pressure [8]. From the AC-amplitude analysis it is shown that the change due to the CPT was significant with 850 nm illumination (see Figure 7). Both SPG and PPG signals at 850 nm showed a significant decrease, while both signals at 639 nm did not show a significant decrease. This could suggest that the signals at the two wavelengths partly contain different information. A possible explanation might be the difference in penetration depth or changes in chromophores [18]. However, the non-significance of the AC-amplitude decrease of PPG at 639 nm could also be caused by the lower quality, and hence variation, of the signal overall. fiAP instead, did not show a significant reduction as expected. The PP showed an increase during CPT, compared to Baseline, of 9% ± 10%.
SPG resulted in having a significantly higher SNR compared to PPG in both Baseline and CPT, and both wavelengths, as shown in Figure 9 and 10. During CPT the reduction of volumetric flow in the peripheral circulation and the shunting of the capillaries influences the SNR of both PPG and SPG. These lower perfusion conditions depict a challenging situation for PPG measurements. However, the SNR of SPG is significantly higher than PPG during normal conditions but also during CPT. Therefore, in poor perfusion cases where PPG could be lost, SPG might still preserve enough signal quality for heart rate (HR) measurements. In addition, the variance in SNR was found to be significantly different between SPG and PPG for all phases and light sources applied, with one exception. This exception was PPG at 639 nm during CPT, where the SNR was already low before CPT and became consistently low across subjects during CPT, reaching a consistency in SNR levels similar to the SPG. This explains how the SNR across subjects during the two phases of the measurement is significantly more consistent for SPG.
The change in SNR was further analysed for each signal between the two phases as shown in Figure 11. Similar to the AC-amplitude changes, for 850 nm illumination there was a statistically significant difference in the SNRs between the Baseline and CPT phases. This means that both PPG and SPG have a statistically significant reduction in SNR during CPT. This reduction is less present at 639 nm, however, it is worth mentioning that the SNR for PPG at 639 nm was already very poor during Baseline measurements, as shown in Figure 9. This might explain the fact that the decrease in SNR is not significant.
These results indicate that SPG could be more accurate than PPG for HR measurements for most situations, and especially in conditions with low perfusion. Furthermore, this could even extend to more accurate Heart Rate Variability (HRV) and Pulse Arrival Time (PAT) measurements over long recording periods [8,19], which could be applied for more accurate non-invasive blood pressure assessment.
In all subjects the harmonic ratios measured during Baseline on the 850 nm illumination source were found to be significantly different between SPG and PPG, as visible in Figure 13. FiAP shows the most pronounced harmonic ratios, closely followed by SPG, and PPG shows the lowest harmonic ratios. This means that the secondary peak is usually more pronounced for fiAP and SPG than for PPG. SHR was not significantly different between fiAP and SPG. The correlation between fiAP and SPG is higher than PPG for all harmonic ratios (see Figure 14), which suggests a bigger relation of SPG with BP than PPG. It could be speculated that differences between harmonic ratios derived from simultaneous SPG and PPG signals might provide information about the state of the circulatory system, but this requires more investigation. However, considering the differences in SPG morphology depend on age, as already shown in [1], this analysis should be repeated on a larger population. SPG has potential to be used as a method to assess cuffless blood pressure, but care should be taken to directly use AC values since they are still subjected to perfusion changes independent of BP.
This is the first investigation analysing dual-wavelength SPG and PPG from a reflective contact probe. Measuring in reflective mode is suitable for more body locations than transmission mode, it allows for more compact setups and offers the possibility of integration in wearable devices. In addition, the custom setup designed for this work adds extra information due to the dual-wavelength usage. However, the relatively small population, 10 subjects, forms a limitation of the study. This is especially relevant if the differences in CPT reactions between different ages and sexes are considered [20].

5. Conclusions

CPT has an effect on the SNR of both SPG and PPG signals, at 850 nm most of the participants show a decrease in SNR under CPT. However, the SNR of SPG resulted in being significantly higher than the PPG one, with significantly lower variability. This suggests that SPG measurements could be more suitable for low perfusion situations. The AC-amplitude of SPG and PPG signals at 850 nm show a significant reduction during CPT, but this is not seen for 639 nm. This suggests that the two wavelengths might contain different information and might be affected differently by hemodynamics.
The harmonic ratio analysis indicates that fiAP, PPG and SPG are different signals, containing different information about the state of the cardiovascular system and blood dynamics. Harmonic ratio analysis revealed clear differences between SPG and PPG. Furthermore, the harmonic ratio or waveform morphology of SPG resembles fiAP waveform more closely than PPG. Thus, to provide more information on the monitoring of blood dynamics, combining SPG and PPG measurements should be considered, instead of using only PPG. Studies on a larger population should be conducted to further conclude on these points.

Author Contributions

Conceptualization, J.H.O., W.V., I.L., F.W. and E.H.; methodology, E.H., J.H.O., I.L.; software, I.L., J.H.O.; hardware, J.H.O., J.K., M.V.; validation, E.H., J.H.O. and I.L.; formal analysis, I.L., J.H.O.; investigation, J.H.O., W.V., I.L., F.W. and E.H.; writing—original draft preparation, J.H.O., I.L.; review and editing of writing, J.H.O, I.L., E.H., F.W., J.K, W.V. and C.V.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of imec Netherlands (protocol code IM-NL-STUDY-2022-0029 and date of approval 11/08/2022).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data used in this study is not publicly available due to privacy concerns.

Acknowledgments

The authors would like to thank Dr. Jens Mühlsteff from Philips Research for the support and feedback during the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ghijsen, M.; Rice, T.B.; Yang, B.; White, S.M.; Tromberg, B.J. Wearable Speckle Plethysmography (SPG) for Characterizing Microvascular Flow and Resistance. Biomed Opt Express 2018, 9, 3937–3952. [Google Scholar] [CrossRef] [PubMed]
  2. Rice, T.B.; Yang, B.; White, S. Effect of Skin Optical Absorption on Speckleplethysmographic (SPG) Signals. Biomed Opt Express 2020, 11, 5352–5361. [Google Scholar] [CrossRef] [PubMed]
  3. Dunn, C.E.; Lertsakdadet, B.; Crouzet, C.; Bahani, A.; Choi, B. Comparison of Speckleplethysmographic (SPG) and Photoplethysmographic (PPG) Imaging by Monte Carlo Simulations and in Vivo Measurements. Biomed Opt Express 2018, 9, 4306–4316. [Google Scholar] [CrossRef] [PubMed]
  4. Boas, D.A.; Dunn, A.K. Laser Speckle Contrast Imaging in Biomedical Optics. Journal of Biomedical Optics 2010, 15, 1–12. [Google Scholar] [CrossRef] [PubMed]
  5. Dunn, C.E.; Monroe, D.C.; Crouzet, C.; Hicks, J.W.; Choi, B. Speckleplethysmographic (SPG) Estimation of Heart Rate Variability During an Orthostatic Challenge. Sci Rep 2019, 9, 14079. [Google Scholar] [CrossRef] [PubMed]
  6. Garrett, A.; Kim, B.; Sie, E.; Gurel, N.; Marsili, F.; Boas, D.; Roblyer, D. Simultaneous Photoplethysmography and Blood Flow Measurements towards the Estimation of Blood Pressure Using Speckle Contrast Optical Spectroscopy. Biomed Opt Express 2023, 14, 1594–1607. [Google Scholar] [CrossRef] [PubMed]
  7. Allen, J.; Kyriacou, P.A. Photoplethysmography in Oxygenation and Blood Volume Measurements. Photoplethysmography 2022, 147–188. [Google Scholar] [CrossRef]
  8. Herranz Olazabal, J.; Wieringa, F.; Hermeling, E.; Van Hoof, C. Comparing Remote Speckle Plethysmography and Finger-Clip Photoplethysmography with Non-Invasive Finger Arterial Pressure Pulse Waves, Regarding Morphology and Arrival Time. Bioengineering 2023, 10, 101. [Google Scholar] [CrossRef] [PubMed]
  9. Lamotte, G.; Boes, C.J.; Low, P.A.; Coon, E.A. The Expanding Role of the Cold Pressor Test: A Brief History. Clinical Autonomic Research 2021, 31, 153–155. [Google Scholar] [CrossRef] [PubMed]
  10. Whitmer, K. A Mixed Course-Based Research Approach to Human Physiology; Iowa State University Digital Press, 2021. [Google Scholar] [CrossRef]
  11. Mourot, L.; Bouhaddi, M.; Regnard, J. Effects of the Cold Pressor Test on Cardiac Autonomic Control in Normal Subjects. Physiological research 2009, 58, 83–91. [Google Scholar] [CrossRef] [PubMed]
  12. Shafique, M.; Kyriacou, P.A.; Pal, S.K. Investigation of Photoplethysmographic Signals and Blood Oxygen Saturation Values on Healthy Volunteers during Cuff-Induced Hypoperfusion Using a Multimode PPG/SpO2 Sensor. Med Biol Eng Comput 2012, 50, 575–583. [Google Scholar] [CrossRef] [PubMed]
  13. Awad, A. A.; Ghobashy, M. A. M.; Ouda, W.; Stout, R. G.; Silverman, D. G.; Shelley, K. H. Different Responses of Ear and Finger Pulse Oximeter Wave Form to Cold Pressor Test. Anesthesia & Analgesia 2001, 92, 1483–1486. [Google Scholar] [CrossRef]
  14. Wesseling, K.H. Finapres, Continuous Noninvasive Finger Arterial Pressure Based on the Method of Pefiaz. In Blood Pressure Measurements; Meyer-Sabellek, W., Gotzen, R., Anlauf, M., Steinfeld, L., Eds.; Steinkopff, 1990; pp. 161–172. [Google Scholar] [CrossRef]
  15. De Haan, G.; Jeanne, V. Robust Pulse Rate from Chrominance-Based RPPG. IEEE Trans Biomed Eng 2013, 60, 2878–2886. [Google Scholar] [CrossRef] [PubMed]
  16. Heeman, W.; Steenbergen, W.; van Dam, G.M.; Boerma, E.C. Clinical Applications of Laser Speckle Contrast Imaging: A Review. Journal of Biomedical Optics 2019, 24, 080901. [Google Scholar] [CrossRef]
  17. Nandakumar Selvaraj, A.J.J.S.K.K.D.S.A. Monitoring of Cardiovascular Reactivity During Cold Pressor Test Using Photoplethysmography. In Proceedings of the 2008 International Conference on Signal Processing, Communications and Networking; 2008; pp. 363–367. [Google Scholar] [CrossRef]
  18. Verkruijsse, W.; Ordelman, A.; Presure, C.; Bezemer, R.; Chiuhu, C. Device for use in blood oxygen saturation. WIPO Patent WO/2018/029123, filed 07 Aug 2017, 15 and 2018. [Google Scholar]
  19. Herranz Olazabal, J.; Wieringa, F.; Hermeling, E.; Van Hoof, C. Beat-to-Beat Intervals of Speckle Intensity-Based Optical Plethysmograms Compared to Electrocardiogram. In Proceedings of the 2021 Computing in Cardiology (CinC); 2021; pp. 1–4. [Google Scholar] [CrossRef]
  20. Keller-Ross, M.L.; Cunningham, H.A.; Carter, J.R. Impact of Age and Sex on Neural Cardiovascular Responsiveness to Cold Pressor Test in Humans. Am J Physiol Regul Integr Comp Physiol 2020, 319, 288–295. [Google Scholar] [CrossRef] [PubMed]

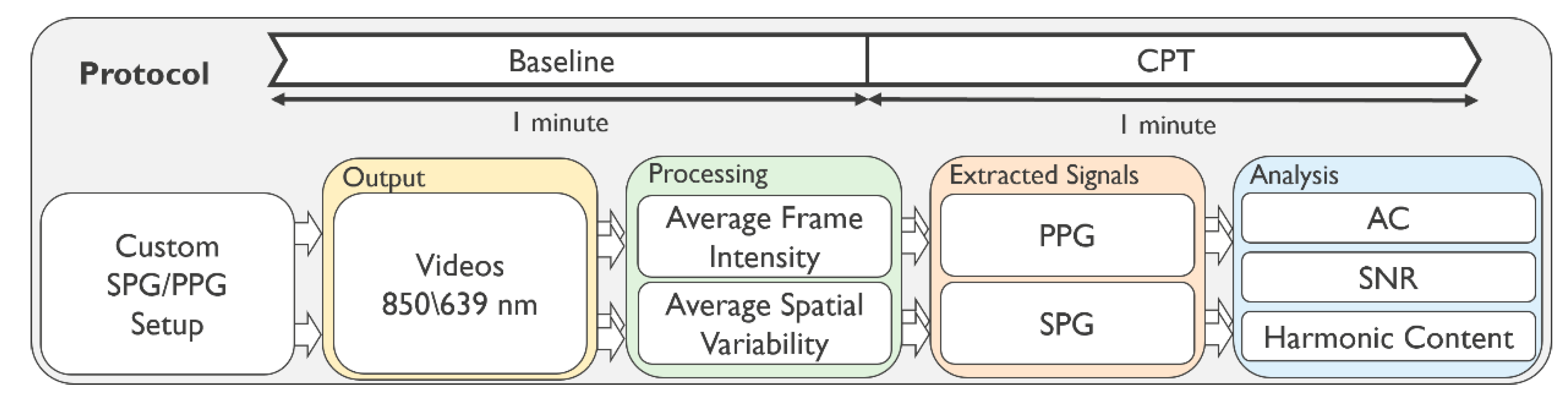

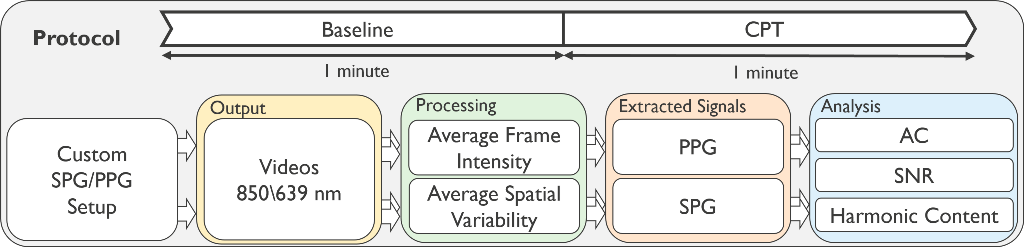

Figure 1. Flow diagram of the experimental protocol and data analysis of the experiments at Baseline and CPT phases.
Figure 1. Flow diagram of the experimental protocol and data analysis of the experiments at Baseline and CPT phases.
Preprints 72393 g001

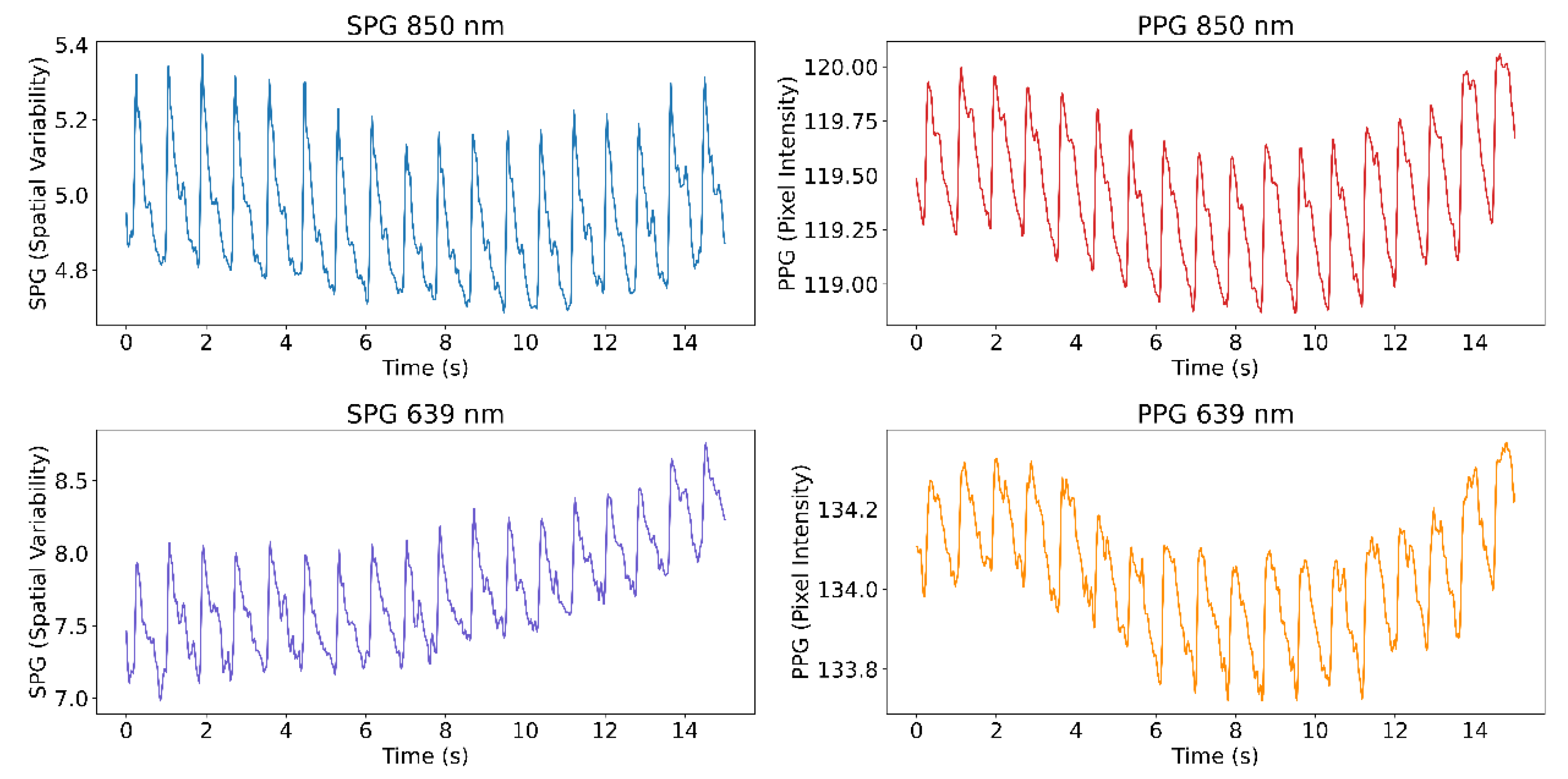

Figure 2. Example from Subject 1 of a 15 second period of the 4 simultaneous signals extracted from the videos. The signals showed were low pass filtered (10 Hz) and inverted.
Figure 2. Example from Subject 1 of a 15 second period of the 4 simultaneous signals extracted from the videos. The signals showed were low pass filtered (10 Hz) and inverted.
Preprints 72393 g002

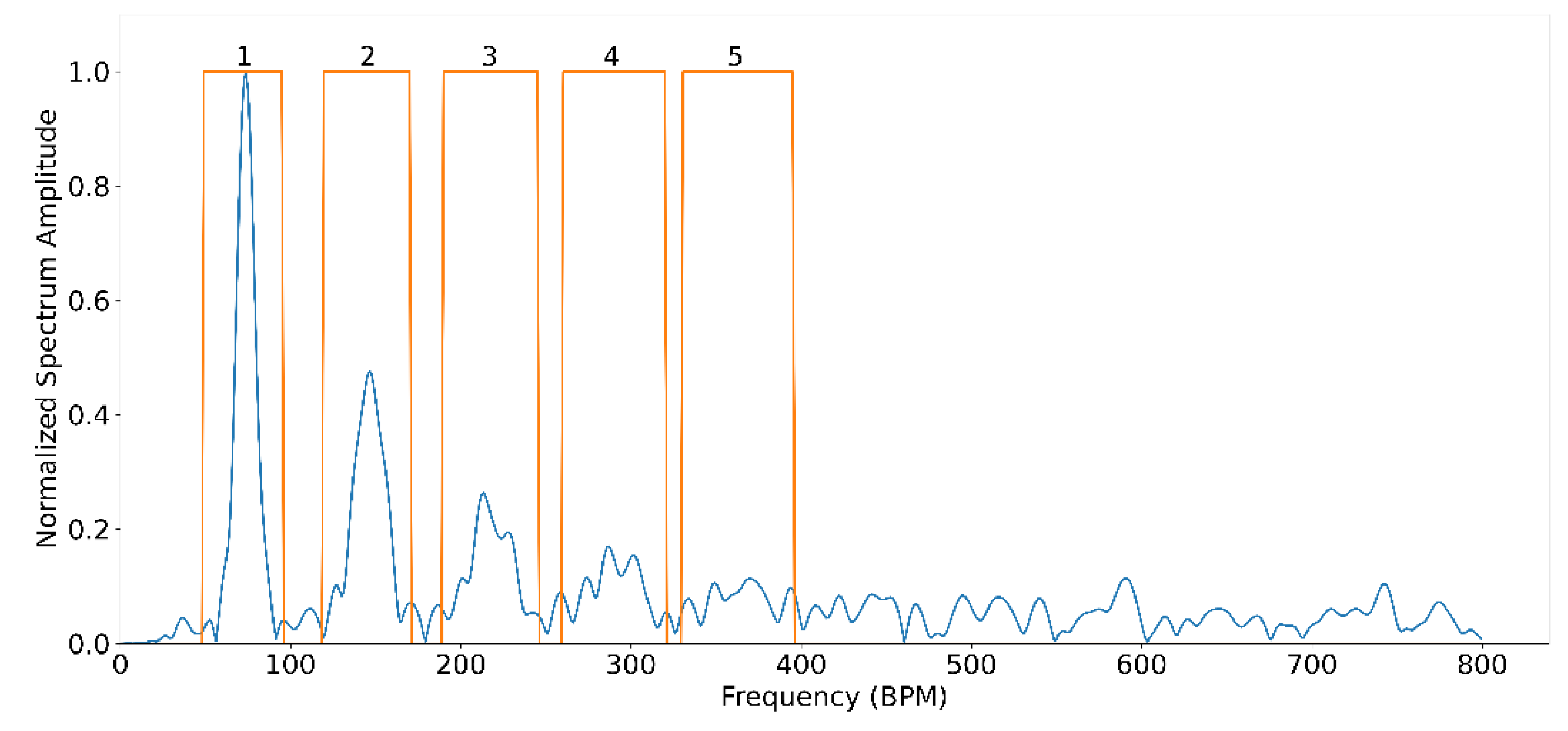

Figure 3. Typical spectrum of SPG from a single 10 s window in blue, with superimposed binary spectral mask (orange) describing bands containing signal (“1”) and noise (“0”). Numbering of the binary spectral mask refers to: 1 – Fundamental, 2 – Second harmonic, 3 – Third harmonic, 4 – Fourth harmonic, 5 – Fifth harmonic.
Figure 3. Typical spectrum of SPG from a single 10 s window in blue, with superimposed binary spectral mask (orange) describing bands containing signal (“1”) and noise (“0”). Numbering of the binary spectral mask refers to: 1 – Fundamental, 2 – Second harmonic, 3 – Third harmonic, 4 – Fourth harmonic, 5 – Fifth harmonic.
Preprints 72393 g003

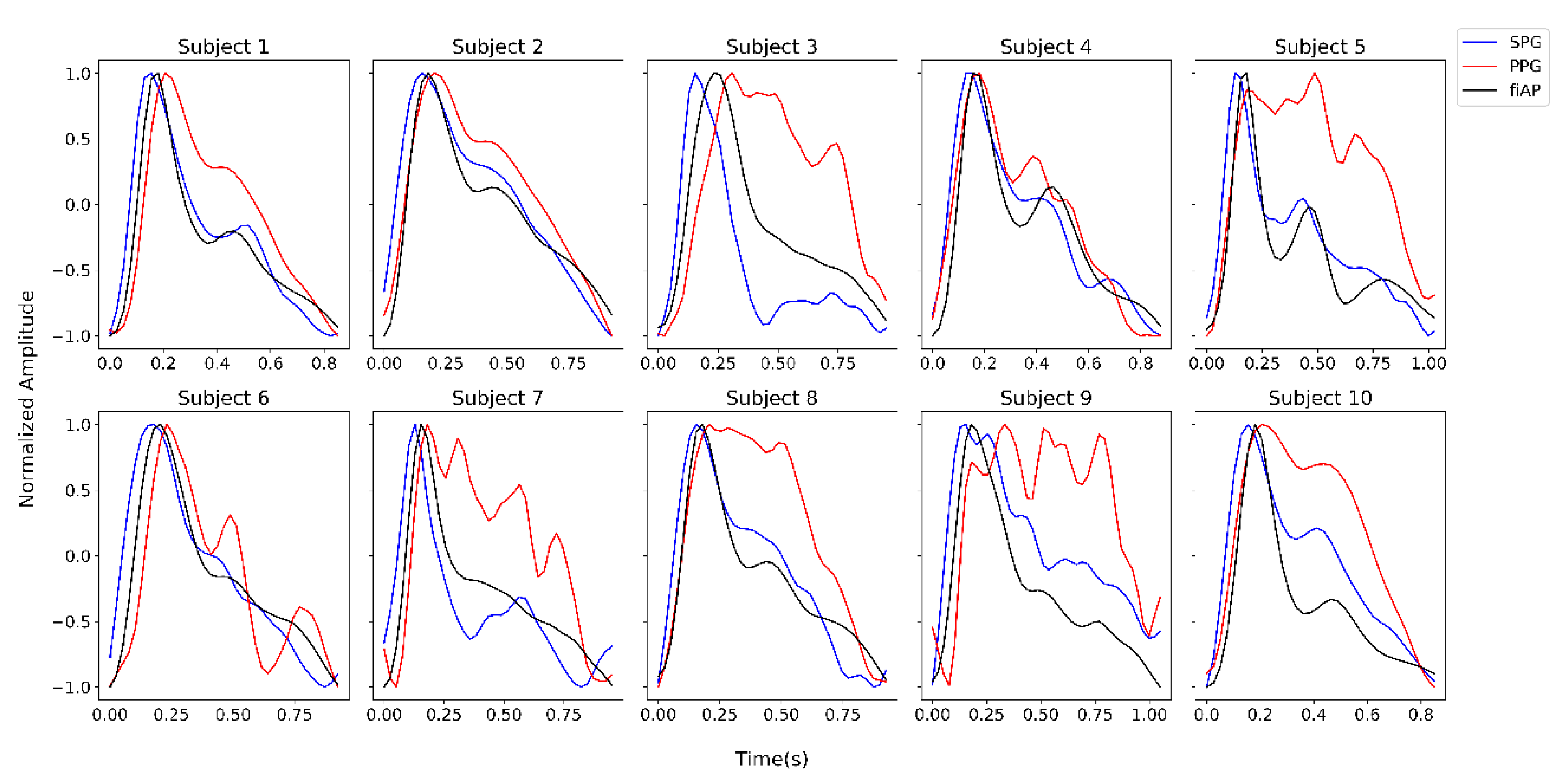

Figure 4. Representative SPG, PPG, and fiAP beats per subject, measured during the Baseline test phase. The illumination chosen for this analysis was a reflective 850 nm laser diode. The representative beats are not simultaneous between the different signals.
Figure 4. Representative SPG, PPG, and fiAP beats per subject, measured during the Baseline test phase. The illumination chosen for this analysis was a reflective 850 nm laser diode. The representative beats are not simultaneous between the different signals.
Preprints 72393 g004

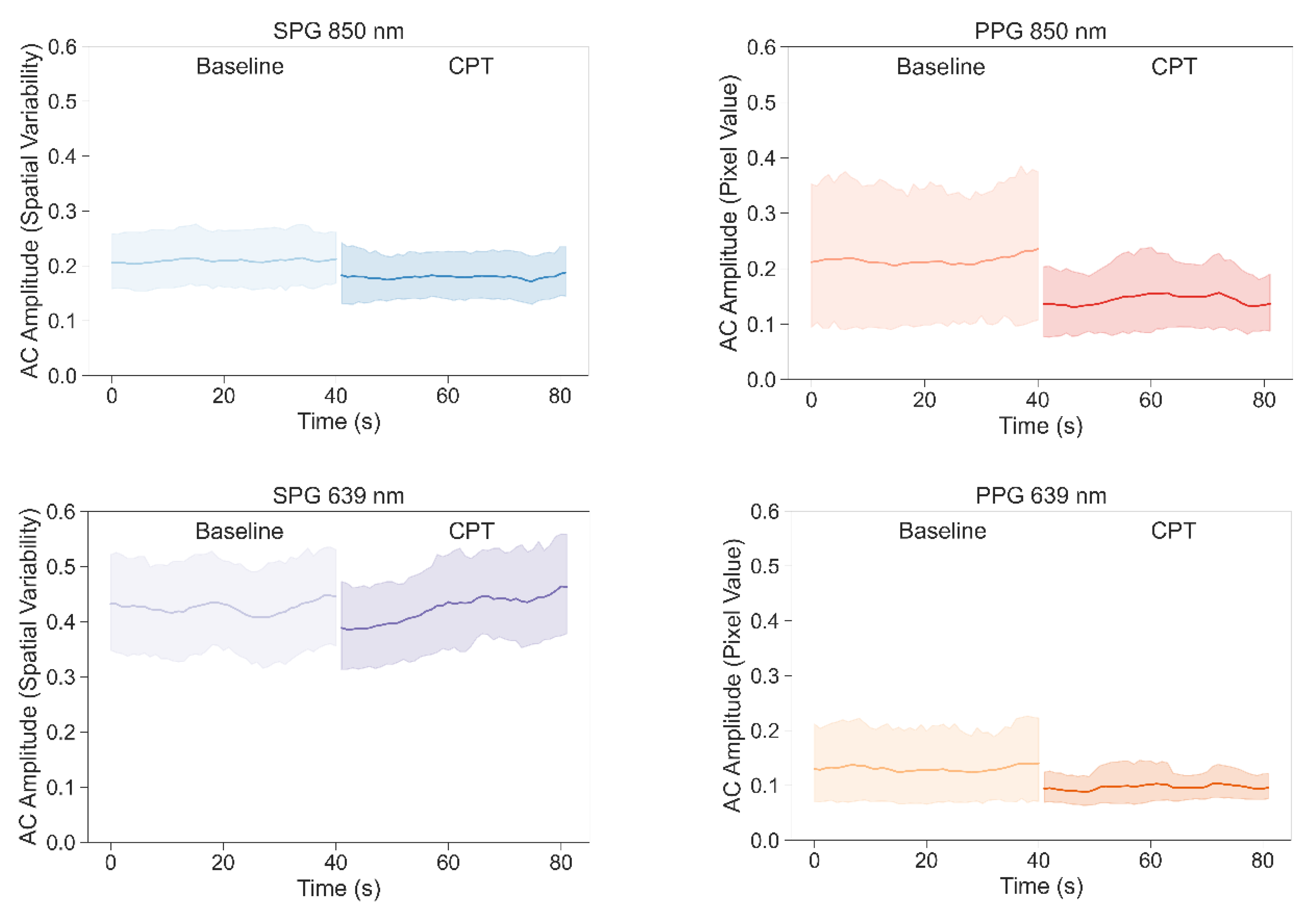

Figure 5. Inter-subject average values and 95% CI of AC-amplitude of the signals extracted from the videos during Baseline and CPT phases.
Figure 5. Inter-subject average values and 95% CI of AC-amplitude of the signals extracted from the videos during Baseline and CPT phases.
Preprints 72393 g005

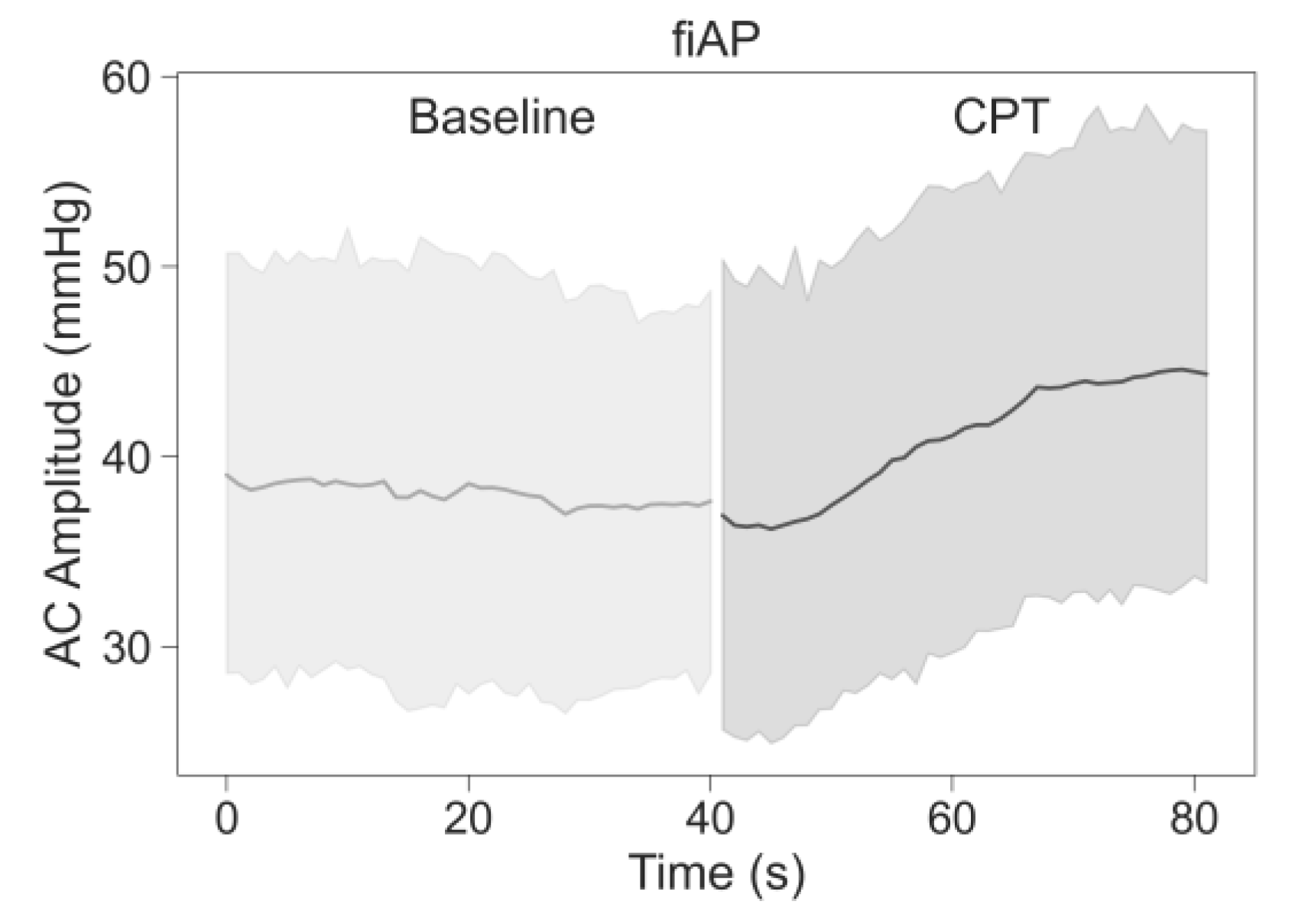

Figure 6. Inter-subject average values and 95% CI of AC-amplitude of the fiAP signals during Baseline and CPT phases.
Figure 6. Inter-subject average values and 95% CI of AC-amplitude of the fiAP signals during Baseline and CPT phases.
Preprints 72393 g006
Figure 7. Percentage of AC-amplitude change between Baseline and CPT on each of the experimental and reference signals for all subjects. P-values from Wilcoxon test prove the significance of the rejection of the null-hypothesis, indicating that AC-amplitude is significantly higher at Baseline than at CPT phase at 850 nm.
Figure 7. Percentage of AC-amplitude change between Baseline and CPT on each of the experimental and reference signals for all subjects. P-values from Wilcoxon test prove the significance of the rejection of the null-hypothesis, indicating that AC-amplitude is significantly higher at Baseline than at CPT phase at 850 nm.
Preprints 72393 g007

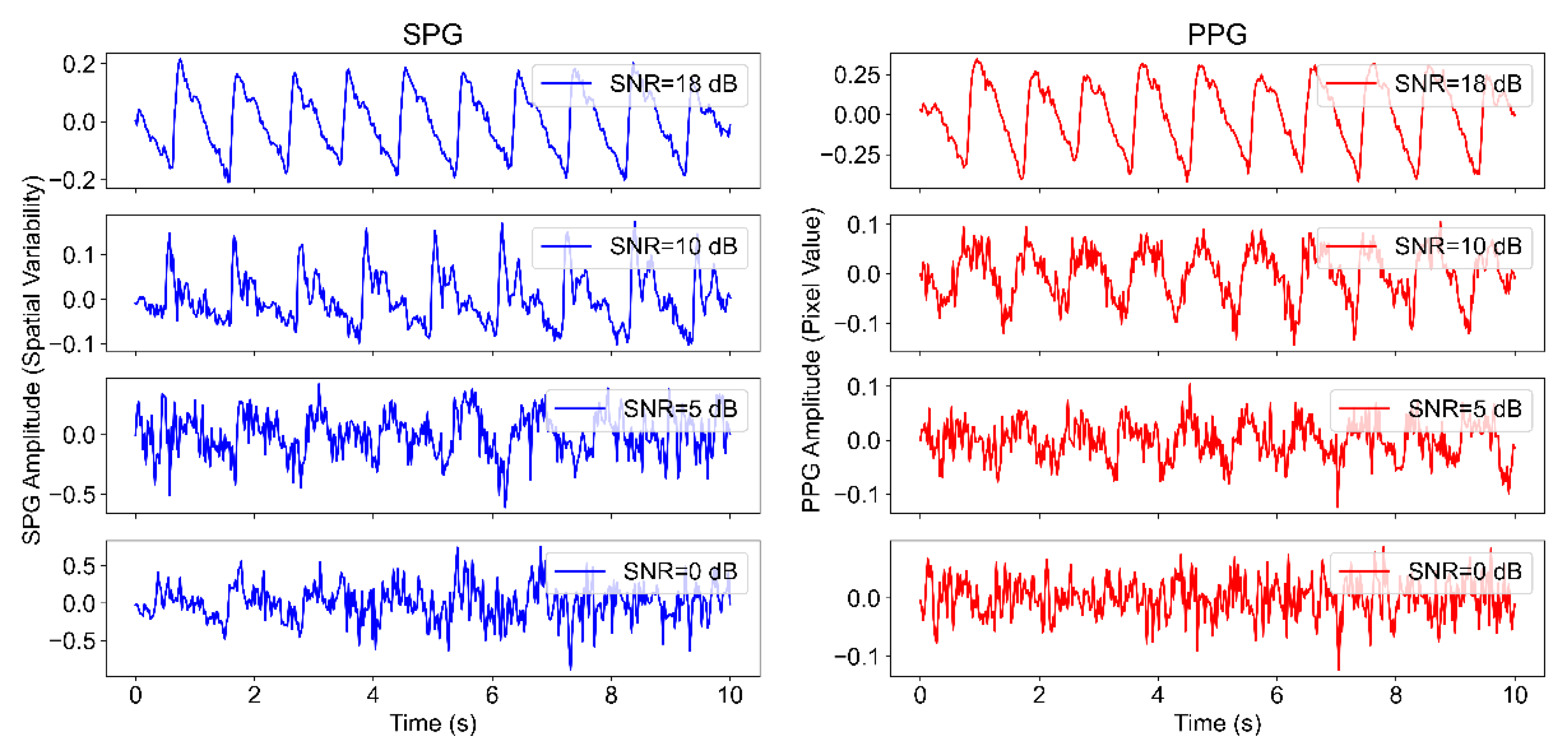

Figure 8. Example of SPG and PPG signals at different quality levels. From top to bottom: 18 dB, 10 dB, 5dB, and 0 dB.
Figure 8. Example of SPG and PPG signals at different quality levels. From top to bottom: 18 dB, 10 dB, 5dB, and 0 dB.
Preprints 72393 g008

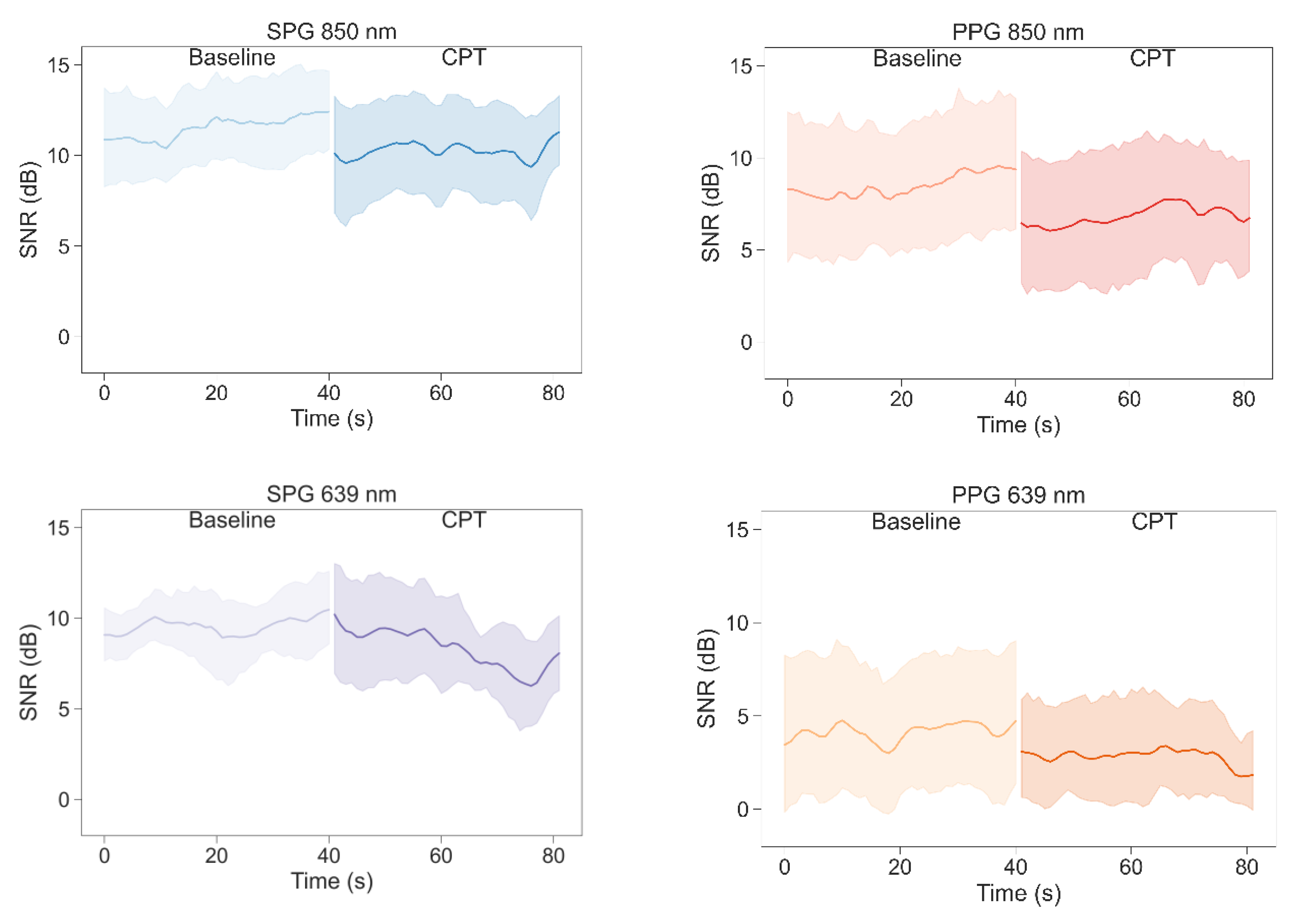

Figure 9. Average values and 95% CI of the SNR of the signals extracted from the videos during Baseline and CPT.
Figure 9. Average values and 95% CI of the SNR of the signals extracted from the videos during Baseline and CPT.
Preprints 72393 g009

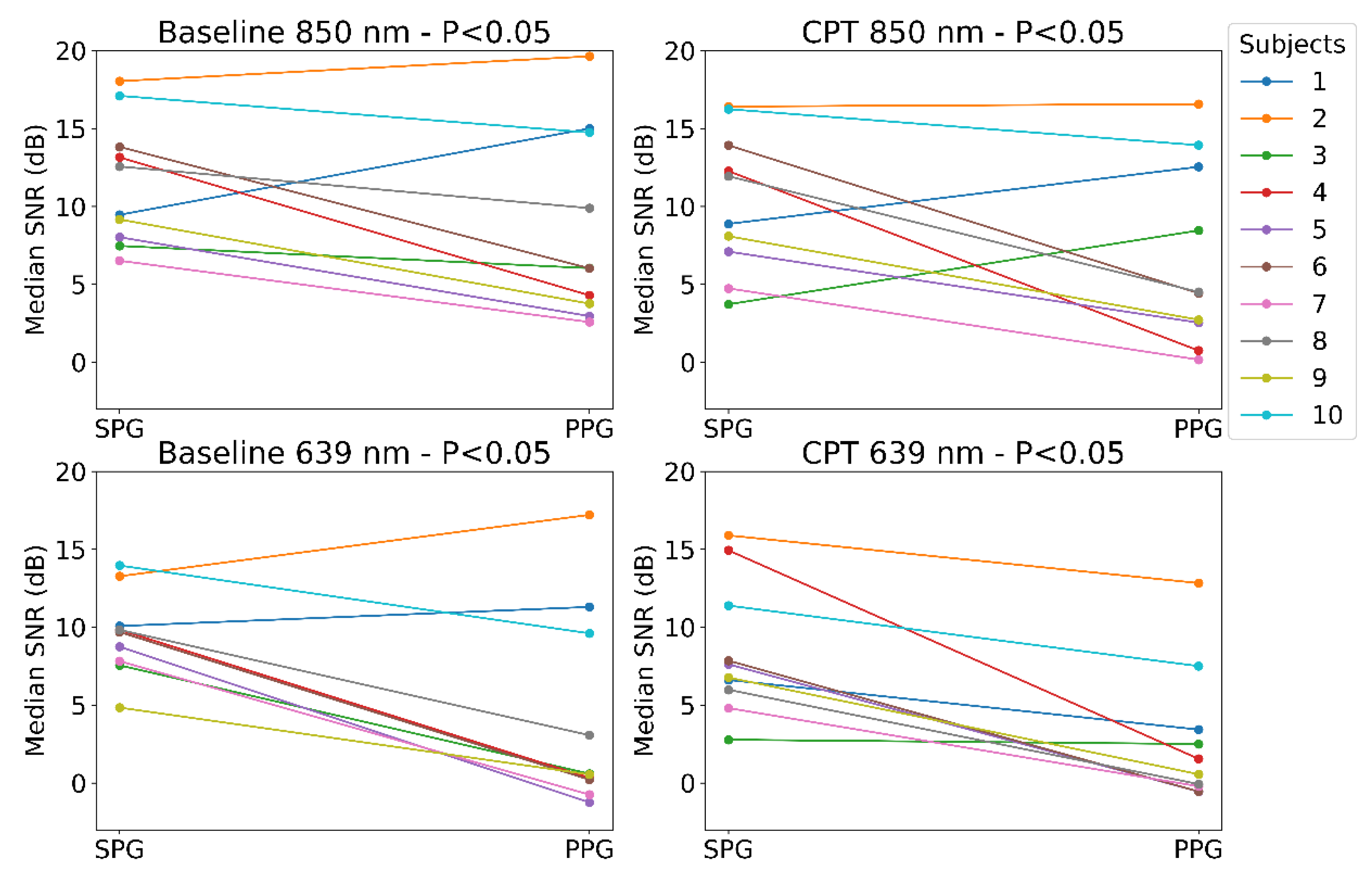

Figure 10. All-subject overview of SNR values of SPG and PPG at two different wavelengths at Baseline and CPT phases. P-values shown for every subject on paired Wilcoxon test, showing the significance of the rejection of the null-hypothesis, this indicates that SNR SPG is significantly higher than SNR PPG.
Figure 10. All-subject overview of SNR values of SPG and PPG at two different wavelengths at Baseline and CPT phases. P-values shown for every subject on paired Wilcoxon test, showing the significance of the rejection of the null-hypothesis, this indicates that SNR SPG is significantly higher than SNR PPG.
Preprints 72393 g010

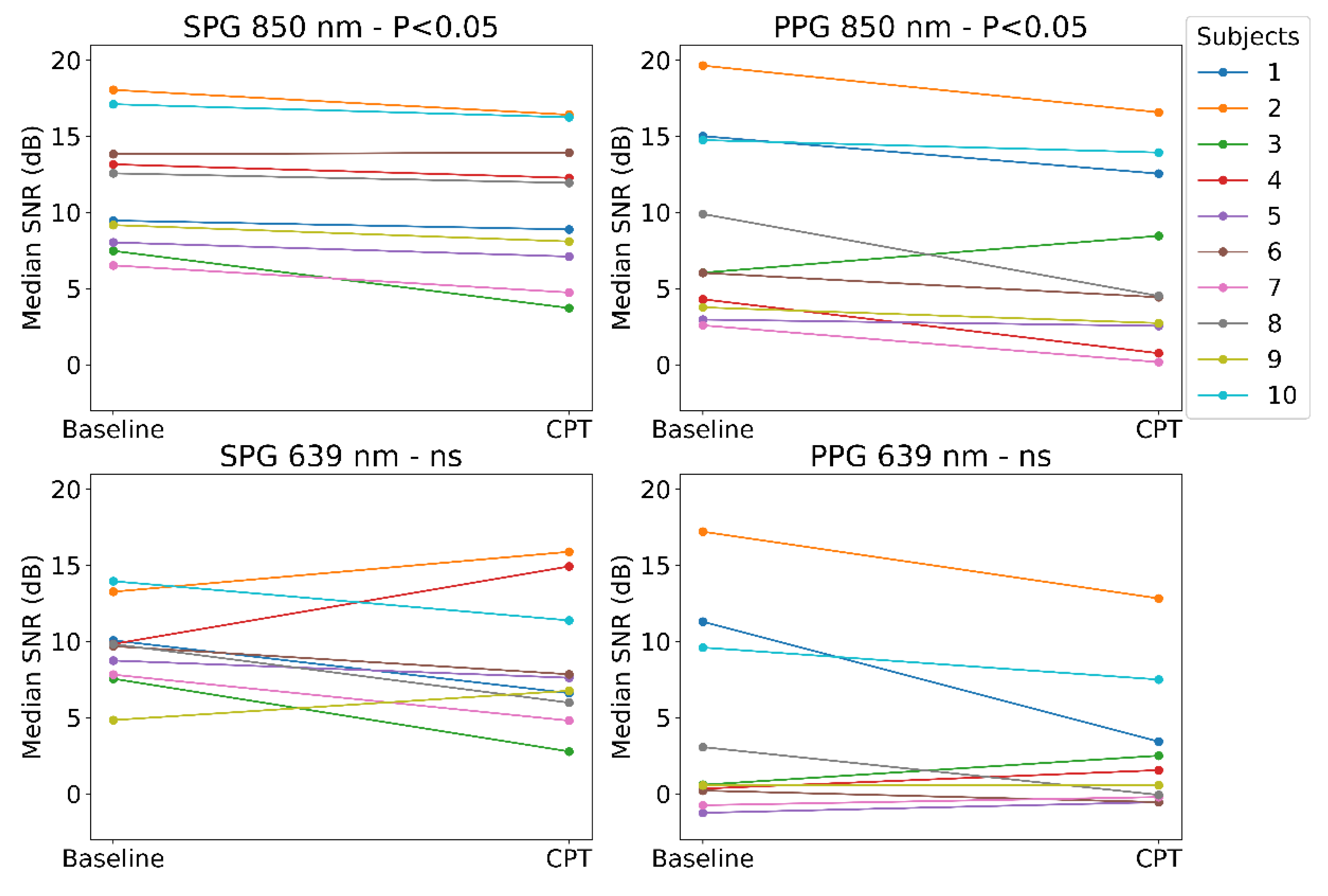

Figure 11. Median SNR values on Baseline and CPT phases shown on for every subject on each of the experimental signals. Wilcoxon test p-values smaller than 0.05 show the significance of the rejection of the null-hypothesis, this indicates that SNR Baseline is significantly higher than SNR CPT.
Figure 11. Median SNR values on Baseline and CPT phases shown on for every subject on each of the experimental signals. Wilcoxon test p-values smaller than 0.05 show the significance of the rejection of the null-hypothesis, this indicates that SNR Baseline is significantly higher than SNR CPT.
Preprints 72393 g011

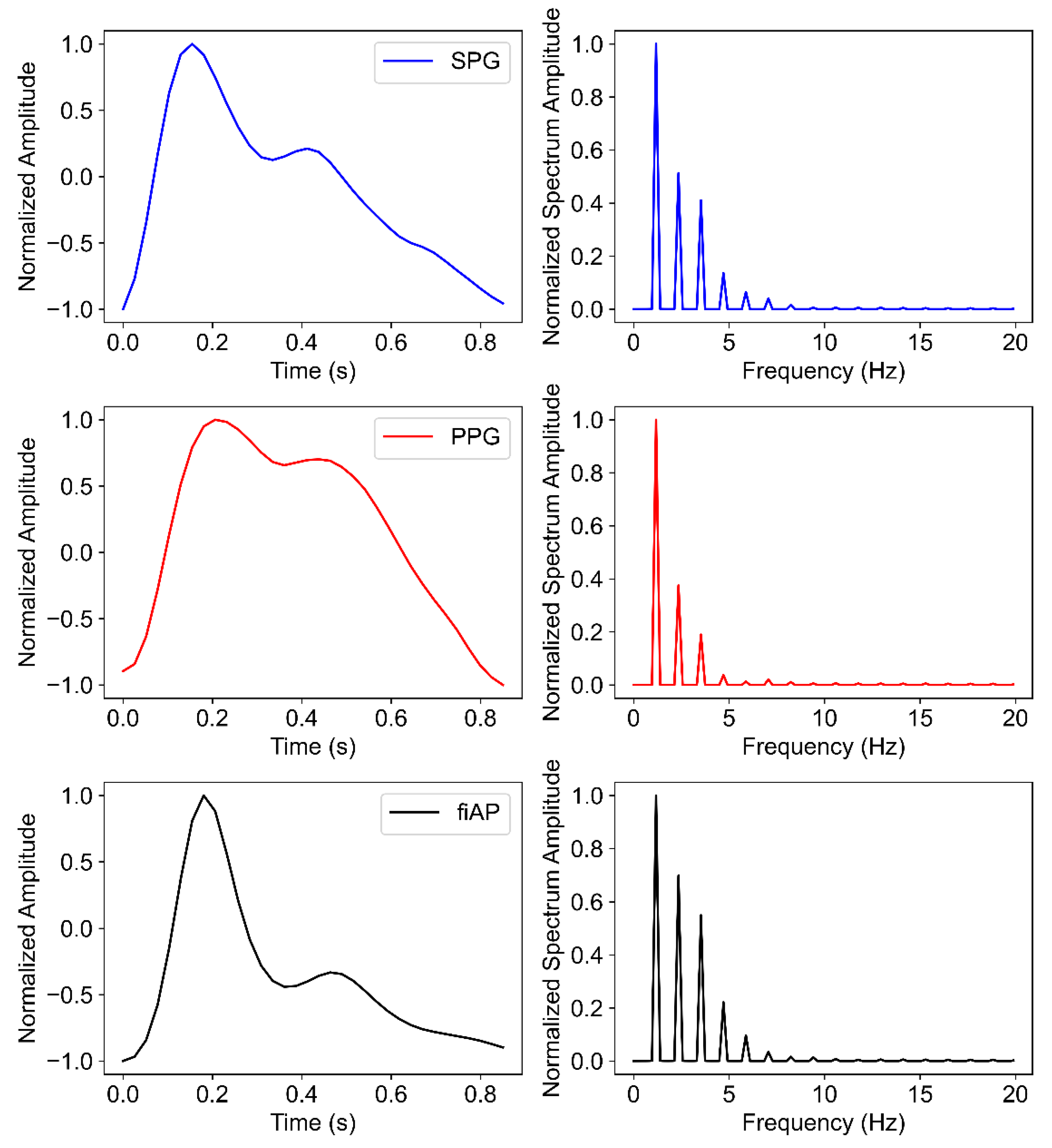

Figure 12. Representative beat measured from subject 10 (left) and its Fourier spectrum (right) from experimental (SPG and PPG) and reference (fiAP) signals during Baseline. Note, the beats were band-passed filtered to remove low frequency drift, respiration influence, and high frequency noise, and normalized to improve comparability.
Figure 12. Representative beat measured from subject 10 (left) and its Fourier spectrum (right) from experimental (SPG and PPG) and reference (fiAP) signals during Baseline. Note, the beats were band-passed filtered to remove low frequency drift, respiration influence, and high frequency noise, and normalized to improve comparability.
Preprints 72393 g012
Figure 13. Boxplot of harmonic ratios of fiAP, SPG, and PPG during Baseline including p-values from Wilcoxon test (P<0.05 means significantly higher harmonic ratio between of the signal on the left of the bracket compared to the one on the right). All displayed SPG and PPG values were measured at 850 nm.
Figure 13. Boxplot of harmonic ratios of fiAP, SPG, and PPG during Baseline including p-values from Wilcoxon test (P<0.05 means significantly higher harmonic ratio between of the signal on the left of the bracket compared to the one on the right). All displayed SPG and PPG values were measured at 850 nm.
Preprints 72393 g013

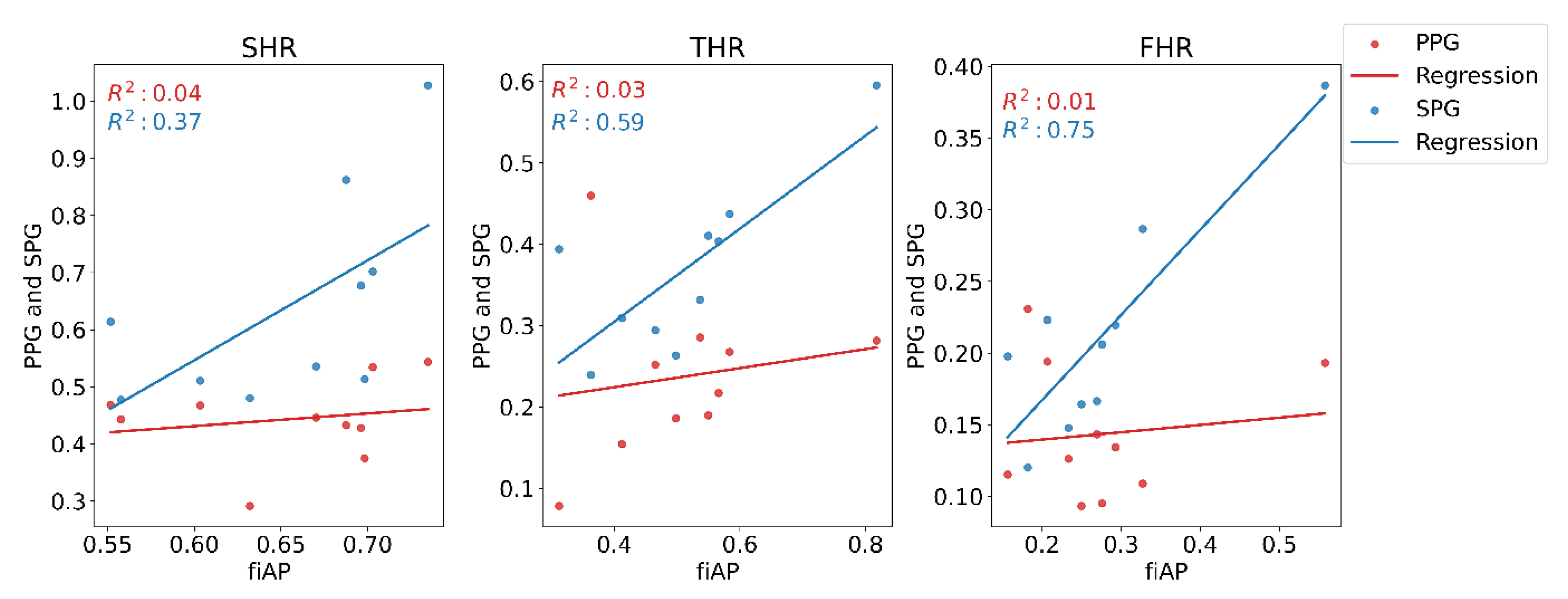

Figure 14. Correlation plots of the harmonic ratios between the fiAP reference and PPG and SPG. The regression lines are also shown, and the coefficient of determination is indicated. All displayed SPG and PPG values were measured at 850 nm.
Figure 14. Correlation plots of the harmonic ratios between the fiAP reference and PPG and SPG. The regression lines are also shown, and the coefficient of determination is indicated. All displayed SPG and PPG values were measured at 850 nm.
Preprints 72393 g014
