Abstract
Lately Silicon Carbide (SiC) and Galium Nitride (GaN) based high frequency power conversion has gained immense popularity which stems from relatively low switching energy, robustness to high temperature operation, wide-band gap and superior thermal limits. While this aspect inherently results in a high-density power stage design, the design of adjoining passive components, particularly magnetics, needs careful attention. This is especially true if the compatibility of core and winding options and their performance is limited with the use of higher switching frequency. In this regard, this paper presents a brief review of existent research conducted in materials, optimization and integration of magnetics for single and three phase applications, ranging from filters, resonant inductors to isolation transformers. Design knobs pertaining to medium voltage (MV) applications, low-voltage (LV) applications, e-mobility sector such as more electric aircrafts (MEAs) and electric vehicles (EVs) are discussed. Guidelines for magnetics design are summarized for each application with a projected roadmap on future trend for magnetics.
Keywords:
Subject:
Engineering  -   Electrical and Electronic Engineering

1. Introduction

Passive components, specifically magnetics consume more than 30% of the power converter volume. Their utility ranges from filtering action, isolation and power flow and line inductors for power factor correction (PFC). Therefore, it is not surprising to see a relatively higher volume contribution.
To address this, a lot of interest has been dedicated towards the optimization of magnetics. Closed form analytical core and winding loss and volume computations allows for faster design process. Form factor manipulation through geometry of cores and winding parameter tuning can be used to further optimize any magnetics design. Knowledge of core material properties, available shapes and vendor limitations is therefore a pre-requisite during any such design process.
Table 1 provides a summary of the available core materials and their typical application areas and frequency range of operation. While Silicon steel has higher saturation flux density, it is not recommended for high switching frequency applications due to poor core loss characteristics. On the other hand, ferrites offer superior core loss curves but poor peak saturation flux. Nanocrystalline cores offers a good balance, but their properties are subjected to severe changes when molded to customized (no-standard) shapes. Powder cores tend to provide higher winding loss due to low permeance. Gapped cores are popular in cases where the eddy current losses due to fringing fields are dominant.
Besides component level optimization, topological modifications in magnetic circuits are critical for low volt-second (i.e., core volume) and winding loss reduction. Magnetic integration is gaining attention in this regard. The benefits of integration are manifold: Scalability, manufacturability, enhanced impedance, flux-cancellation and loss reduction.
The paper is organized as follows. First, the recent developments in magnetic integration in automotive, server and telecom industries is highlighted. Second, the developments in magnetic integration concepts for harmonics and electromagnetic interference (EMI) filtering techniques for grid-tied applications (LV and MV) is discussed. Finally, key remarks on prospects and typical design examples are shown in detail.

2. Magnetic Integration for e-mobility and telecom/microprocessor applications

Lately transportation sector has picked up significant attention due to the use of WBG power conversion for on-board chargers (OBCs), either single or two stage, auxiliary power modules (APMs) with wide input voltage range and high step-down ratios and traction inverters for propulsion. The magnetics required for these applications are categorized.

3.1. DC-DC converters

3.1.1. Telecom industry

The 48V bus architecture is common standard for the telecom sector, but a transition towards higher efficiency based 12V systems is underway. In this case the LLC converter is heavily used. The matrix transformer concept is adopted. Each elemental transformer is connected with series input and parallel output windings to reduce severe conduction losses and thermals stress on the secondary side [1,2,3,4,5]. To suppress core loss, magnetic integration of matrix transformer is adopted [6]. The idea is simply to combine multiple modular matrix transformers and arrange them into one consolidated structure, such as a common UI core can be achieved using two UI cores through winding reconfiguration on the two limbs as shown in Figure 1 per [7]. Interleaved primary and secondary windings are adopted to minimize the losses due to proximity effects while shielding layers are embedded to block common-mode (CM) currents between primary and secondary sides. Other aspects such as termination losses, SR conduction losses are discussed in detail. In all the above cases, a leakage inductance is introduced in the primary windings through asymmetrical winding structure [6]. Alternate ways include adding a magnetic shunt as discussed in [8,9].
In late 2000s, voltage regulator modules (VRMs) to drive microprocessors were investigated to meet the high dynamic transient operation [10]. A multi-phase buck converter with integrated coupled inductors (CI) was proposed to achieve this functionality shown in Figure 2. By adding coupling between channels, a high steady state inductance and low transient inductance can be achieved [11,12,13,14]. Consequently, the structure was adopted in matrix transformers [15,16,17,18,19]. A dedicated controller was eventually developed to integrate the control architecture within the system. To minimize winding loss for the CI in [11,12,13,14] a twisted core concept was introduced in [20], shown in Figure 2 wherein the core is wrapped around the winding instead of the other way around. To eliminate driver losses, a self-driven, driverless VRM was developed through magnetic coupling in [21]. An interesting point here is the light load efficiency, at discontinuous conduction mode (DCM) which can be improved using saturable cores. To minimize losses at light load, a larger inductance is required while at heavy load a small inductance will suffice to meet transient requirements [22]. This necessitated the use of non-linear inductor integration in the integrated magnetics using saturable core concepts.
The low-profile magnetic concepts were extended to vertical integration. As an example, the 3D integrated solution using low-profile inductor with lateral flux pattern (LTCC material), which can have large inductance density even with very thin core thickness, was explored in [23], also shown in Figure 2.

3.1.2. Auxiliary Power Module (APMs):

The power requirement for auxiliary systems increases with the increasing use of electronics, multi-media, controls and diagnostics requirements for modern EVs. Typically, full bridge converters with isolated secondaries are employed. On the secondary side, symmetrical output current modes are generated through center tapped or current doubler rectifiers. Herein the elemental transformer concept was introduced in [1,24] where two EI cores or EE cores, shown in Figure 3, are stacked and the air-gap and winding arrangement is such that either DC flux is cancelled or amplified at the center leg depending on the loss and coupling requirement. The concept is extended to multi-phase interleaved current doubler [25] through matrix transformers where the center limb is further coupled with adjacent parallel branches to introduce inverse coupled inductor configuration which leads to ripple cancellation [26,27]. To scale to further higher currents, a current tripler structure was proposed in [28] with reduced root mean square (RMS) current stress on secondary side synchronous rectifiers (SRs). Resonant converters are a viable solution for APMs, typically from 400V to 12V conversion, LLC converters are adopted [29,30,31]. Crucially, integration of SRs on LV side is critical for low termination loss [31] along with the use of embedded shielding layers for low CM noise propagation is critical [32].

3.1.3. On board chargers (OBCs):

Vehicular OBCs must meet the wide input (250-800 V) range, high efficiency and low cost/scalability per CHAdeMO and combined charging systems (CCS) standards [35,36]. This necessitates the use of scalable transformers (galvanic isolation), typically input series output parallel to cater to the wide voltage range. The matrix transformers for single and three-phase LLC(s) [37] and CLLC(s) [38] based resonant converters has been reported in this regard.
In some cases, the APM is integrated with chargers (termed as a three-port solution) for which magnetic and topological integration is required. An example of this is the three-port transformer per [39]. Another example is a wireless integrated charger is presented in [40], where the magnetic coupler is integrated with the high frequency transformer of the isolated DC-DC stage of an OBC. An important consideration is the avoidance of leakage inductance to avoid cross-coupling between three ports (during charge or EV running modes). This is also important for bi-directional operation. A symmetrical structure known as the LCL-T was investigated in [41] to meet this requirement.

3.2. Three phase AC-DC and DC-AC converters for e-mobility applications

3.2.1. Traction inverters:

With increasing torque and power demands, interesting solutions are proposed with adjoining magnetics. The three-phase interleaved converter solution is recommended in state-of-the-art systems [42,43,44] for redundancy and low output ripple. This necessitates the use of coupled inductors to block inter-channel circulation [45,46]. Typically, circulating current controllers for low frequency are adopted with three phase direct interleaving [47].

3.2.2. Off-board chargers:

Just as in multi-phase VRMs, the inter-channel coupled inductor concepts for three phases are useful in this regard. Novel strategies for three-phase inter-channel coupling were explored in grid tied converters, typically PFCs. The concept of indirect coupling [48,49,50,51] which leads to fault tolerance [52] was proposed. Direct coupling using monolithic coupler was also explored in [46,53,54]. Such forms of coupling create avenues to integrate coupled inductors with line harmonic filters using block I cores and star-delta composite Y cores. Gohil et.al. presented a high-density integration for 4 interleaved channels using whiffletree configuration in [55]. Another idea, i.e., localization of circulation using trap inductors was demonstrated in [56,57]. A brief evaluation of such inter-connected systems was conducted in [58].
Fast charging is another sector where careful attention to charging profiles is required when it comes to magnetics design. Magnetics for solid state transformer technology has been demonstrated in existing literature. Dual Active Bridge (DAB) based fast charger technology and LLC based technology was demonstrated and compared in [59,60]. The key differentiator in terms of magnetics design consideration is that the isolation transformer in DAB is un-gapped and for LLC is gapped depending on magnetizing inductance and energy storage requirements [61].
Dual inverter charger using open-ended winding PMSM [62] was introduced. A similar concept for propulsion was shown in [63]. In these cases, motor design calls for integration to utilize inductive coupling to cancel circulation of high frequency currents which would enhance device thermal stress.

3. Magnetic Integration for filtering applications

3.1. Single phase systems:

Single phase systems suffer from EMI noise produced by the downstream electronics which requires the use of EMI filters. Magentic integration techniques have been proposed to shrink the filter size. For instance, integration with EE and EIE-type cores was proposed in [64] with CM and DM chokes integrated into one unit. Similarly an integrated CM indcutor (ICMI) was proposed using four amorphous type C cores in [65] and using two E cores with air gap on the center limb in [66,67]. An integrated CM+DM core was proposed using UU type core which was also demonstrated in [68], where the additional beneift of using flexible multi-layer foil (FMLF) was seen in the form of additional DM capacitance between layers. Therefore the structure allowed not only magnetic but also capacitive integration to realize the DM+CM filter. A similar idea was reported in [69]. An extesion of integrated DM+CM structures in planar PCBs is found in [70,71]. A simpler and relatively cost effective approach to integrating DM inductance (block-I core) with standard torroidal chokes was demonstrated in [72].

3.2. Three phase systems:

EMI filters for three-phase systems occupy approximately 30% of the total system volume. Efforts to shrink filter volume through integration are adopted as such. Magnetic integration of CM AC output filter through optimized damping schemes was reported in [73,74,75,76] along with reduced CMV schemes for improved bandwidth [77,78]. The DC side filter also requries special attention and integrated DM/CM cores were proposed in [75,79,80]. Critically, designs for high altitude aircraft propulsion require additional control objectives, such as limiting the peak E-field in air. An example of E-field control for an integrated DM-CM filter assembly, rated at 300A was demonstrated in [81]. Other solutions include single turn EMI filters for aerospace and MV applications [82,83] with emphasis on insulation constrained design.
State of the art line harmonic filters have been proposed for LLCL[84] and LCL[85,86,87] filter where the grid and inverter side inductors are coupled in one common core. The coupling coefficient and winding pattern is tweaked to get the desired equivalent circuit. To solve the attenuation loss due to a virtual inductor introduction in the shunt path, an active decoupling winding was integrated as shown in [88], per Figure 5. Similarly, an LTCL filter (i.e. a trap LCL filter) was deviced through integration of two E cores [89], resulting in a structure with a high roll off rate. In [90], a clever approach to integrate the LCL filter with the isolation transformer was proposed using leakage inductance of transformer secondary winding to realize grid side LCL filter inductor. This was achieved using the magnetic shunt technique. Ref. [91] shows another example of integrating delta-star transformers to realize multi-level output at the grid side (Point of Common Coupling) PCC through the use of just two-level converters.
Besides integrated structures for grid side harmonic filter, Xuning and Ohn proposed combinations of AC harmonic filters with the coupled inductor, through the use of amorphous based C cores, either through phase sequence analysis or asymmetric interleaving [92,93,94]. Other competitive magnetic integration schemes were proposed in [95] to cater to circulation and EMI requirement for three phase systems. Figure 6 shows examples of magnetically integrated structures for parallel / interleaved converters which address modularity and scalability to higher power rating.

3.3. Integration to desensitize parasitic effects:

An interesting aspect of integration is parasitic control of EMI filters to handle the high frequency EMI noise content effectively. As an example, integration of shielding techniques was proposed in [96,97]. While parasitic capacitance cancellation using embedded layers was discussed in [98]. Other ways to mitigate parasitic effects are discussed in [99] using winding techniques, such as split wound scheme. Appropriate winding and core combinations for flyback transformers was proposed in [100,101]. Such design rules were extended to three phase systems in [102]. Integration to contain radiated emissions was discussed at length in [103,104,105]. Recommendations to arrange multiple inductors spatially to minimize near field coupling influence on EMI performance was discussed. The most commonly used technique is shielding between primary and secondary isolation layers of the transformer [32] which is achevied using embedded layers in the planar configuration. Typical example is shown in Figure 7.

4. Technology Roadmap

Both industrial and automotive grade integration requires novel techniques to integrate core shapes and materials. For micro-converter applications such as VRMs the survey is performed in Table 2. A clear picture on levels of integration from board to package level was provided in [106].
In terms of material, an inductor suitable for high-voltage and high-current is the next big thing. Mainly due to the adaptation of EVs, industrial automation and renewable (solar + wind) technologies with the mass inductor demands. A proposal from CleanMag® seems promising in this regard [107]. Immunity to soft saturation due to DC bias can be another promising feature for future materials. Most power converter operation is asymmetric under dynamic transients which can saturate cores due to drop in permeance with DC bias. METCOM and FINEMET provide options with relatively stable inductance drop with DC superposition characteristics [108]. Metal inductors are gaining more attention in this context, although they provide lower permeability, they immunity to DC bias is exceptional [109]. Murata’s high current metal alloy power inductors [110] provides almost 80% reduction in footprint area. Additionally, the molded structure suppresses the wire vibrations. A similar concept is utilized in [111] where a method to fabricate an inductor in which the core is realized by molding a magnetic mixture over the circuit board is presented.
A significant emphasis is given to planar technologies such as flexible foil PCB (FPCB) to create windings without increasing the remaining number of rigid layers. To handle higher current, thicker stamped copper turns are typically used [112]. Other technologies such as hybrid PCB and stamped copper foil and pure copper foil windings [113] are gaining attention due to better thermal handling capability. Although, significant work has been demonstrated in low power DC-DC converter applications, high power systems see a huge bottleneck in terms of PCB cost. Heavy copper PCBs are preferred for multi kW high current based converters for better degree of control over parasitics, thermal and peak electric field distribution. But due to the expensive heavy copper technology, industry wide acceptance is still in question.

5. Conclusion

This paper presents a comprehensive review of advancements in magnetically integrated structures catered to a wide range of applications. Based on the recent trend and developments in the field of high frequency power conversion using wide band gap devices, inductor size can be minimized which paves the way for integration possibilities. The tradeoffs, however, need to be carefully investigated prior to any form of integration. It is projected that modular and scalable magnetic integration is possibly going to be of immense importance in the next decade to drive manufacturing and minimize product cost. At the same time, processing and fabrication technologies are expected to adopt these novel integration practices to comply with limited space and high density requirements.
Preprints 72879 g008

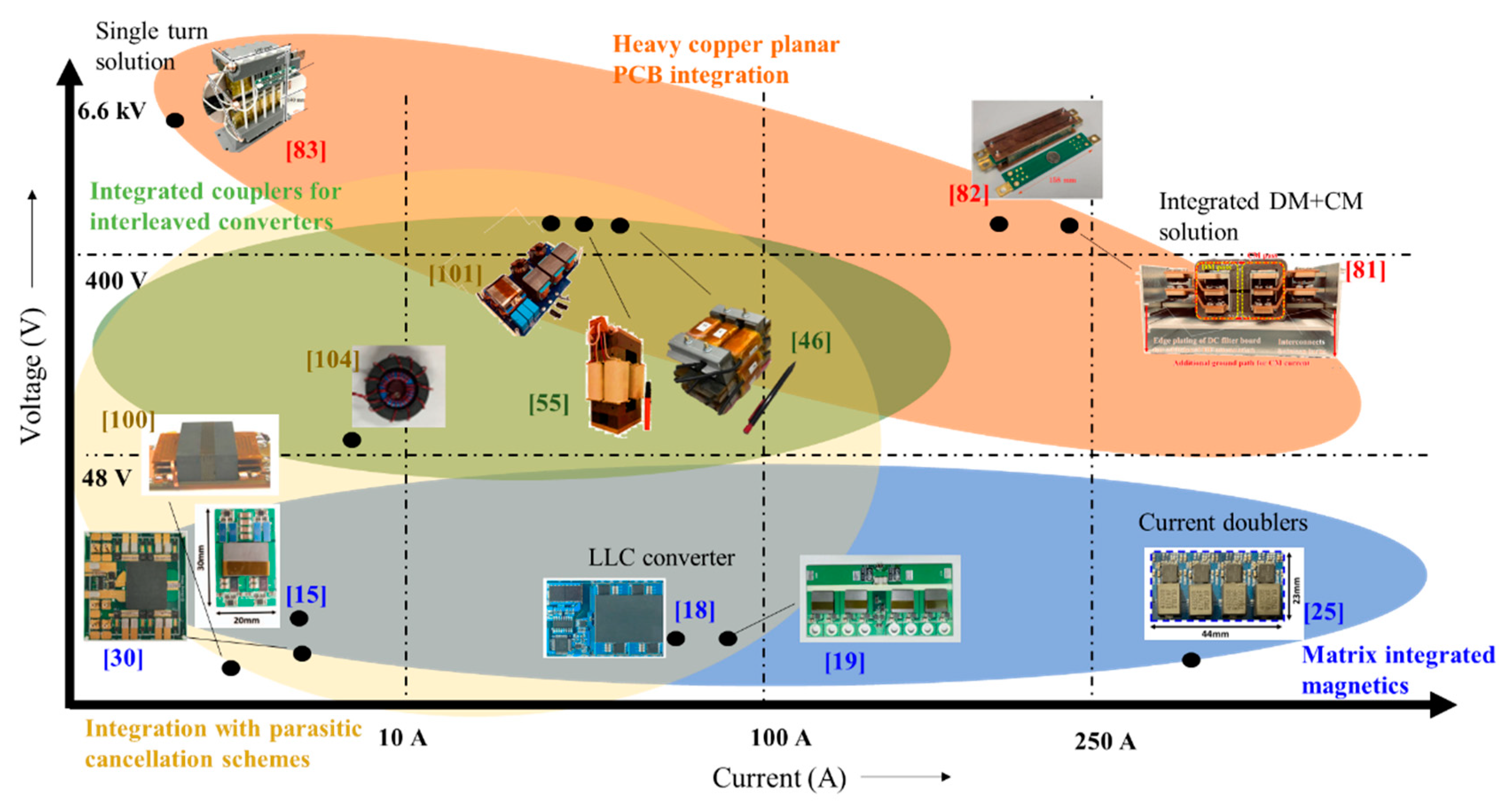

Figure 8. Map of representative integration solutions based on power rating.
Figure 8. Map of representative integration solutions based on power rating.
Preprints 72879 g008

References

  1. Reusch, D.; Lee, F.C. High frequency bus converter with integrated matrix transformers for CPU and telecommunications applications. Proc. IEEE Energy Convers. Congr. Expo., Sep. 2010, pp. 2446–2450.
  2. Fei, C.; Lee, F.C.; Li, Q. High-Efficiency High-Power-Density LLC Converter With an Integrated Planar Matrix Transformer for High-Output Current Applications. IEEE Trans. Ind. Electron. 2017, 64, 9072–9082. [Google Scholar] [CrossRef]
  3. Ahmed, M.H.; Nabih, A.; Lee, F.C.; Li, Q. Low-Loss Integrated Inductor and Transformer Structure and Application in Regulated LLC Converter for 48-V Bus Converter. IEEE J. Emerg. Sel. Top. Power Electron. 2019, 8, 589–600. [Google Scholar] [CrossRef]
  4. D. Huang, S. D. Huang, S. Ji, and F. C. Lee, “LLC resonant converter with matrix transformer,” IEEE Trans. Power Electron., vol. 29, no. 8, pp. 4339–4347, Oct. 2014.
  5. M. Ahmed, C. M. Ahmed, C. Fei, F. C. Lee, and Q. Li, “High-efficiency high power-density 48/1 V sigma converter voltage regulator module,” in Proc. IEEE Appl. Power Electron. Conf. Expo. (APEC), Mar. 2017, pp. 2207. [Google Scholar]
  6. Li, B.; Li, Q.; Lee, F.C. High-Frequency PCB Winding Transformer With Integrated Inductors for a Bi-Directional Resonant Converter. IEEE Trans. Power Electron. 2018, 34, 6123–6135. [Google Scholar] [CrossRef]
  7. Wang, S.; Wu, H.; Lee, F.C.; Li, Q. Integrated Matrix Transformer with Optimized PCB Winding for High-Efficiency High-Power-Density LLC Resonant Converter. APEC 07-Twenty-Second Annual IEEE Applied Power Electronics Conference and Exposition, Anaheim, CA, USA, 2007, pp. 1630-1635.
  8. Bo, Y.; Lee, F.C.; Zhang, A.J.; Guisong, H. LLC Resonant Converter for Front End DC/DC Conversion. In Proceedings of the APEC 2002, Dallas, TX, USA, 10–14 March 2002; Volume 2, pp. 1108–1112. [Google Scholar]
  9. Li, M.; Ouyang, Z.; Andersen, M.A.E. High frequency LLC resonant converter with magnetic shunt integrated planar transformer. 2018 IEEE Applied Power Electronics Conference and Exposition (APEC), San Antonio, TX, USA, 2018, pp. 2678–2685.
  10. Chen, W.; Lee, F.; Zhou, X.; Xu, P. Integrated planar inductor scheme for multi-module interleaved quasi-square-wave (QSW) DC/DC converter. 30th Annual IEEE Power Electronics Specialists Conference. Record. (Cat. No.99CH36321), Charleston, SC, USA, 1999, pp. 759-762 vol.2.
  11. Zhu, F.; Li, Q.; Lee, F.C. Modeling and Analysis of Multi-Phase Coupled Inductor Structures for Voltage Regulators. 2021 IEEE Energy Conversion Congress and Exposition (ECCE), Vancouver, BC, Canada, 2021, pp. 5507-5514.
  12. Li, J.; Sullivan, C.; Schultz, A. Coupled-inductor design optimization for fast-response low-voltage DC-DC converters. Seventeenth Annual IEEE Applied Power Electronics Conference and Exposition (Cat. No.02CH37335), Mar. 2002, vol. 2, pp. 817–823 vol.2.
  13. Wong, P.-L.; Xu, P.; Yang, P.; Lee, F. Performance improvements of interleaving VRMs with coupling inductors. IEEE Trans. Power Electron. 2001, 16, 499–507. [Google Scholar] [CrossRef]
  14. Y. Dong, “Investigation of Multiphase Coupled-Inductor Buck Converters in Point-of-Load Applications,” PhD dissertation, 2009.
  15. Ahmed, M.; Fei, C.; Lee, F.C.; Li, Q. High efficiency two-stage 48V VRM with PCB winding matrix transformer. 2016 IEEE Energy Conversion Congress and Exposition (ECCE). 016 IEEE Energy Conversion Congress and Exposition (ECCE), Milwaukee, WI, USA, 2016, pp. 1-8.
  16. K. Leong, G. K. Leong, G. Deboy, K. Krischan and A. Muetze, "A single stage 54V to 1.8V multi-phase cascaded buck voltage regulator module," in Applied Power Electronics Conference and Exposition (APEC), 2015 IEEE, Charlotte, 15. 20 March.
  17. Fei, C.; Lee, F.C.; Li, Q. Multi-step Simplified Optimal Trajectory Control (SOTC) for fast transient response of high frequency LLC converters. in IEEE Energy Conversion Congress and Exposition (ECCE), Montreal, QC, 2015.
  18. Fei, C.; Lee, F.C.; Li, Q. High-Efficiency High-Power-Density LLC Converter With an Integrated Planar Matrix Transformer for High-Output Current Applications. IEEE Trans. Ind. Electron. 2017, 64, 9072–9082. [Google Scholar] [CrossRef]
  19. Mu, M.; Lee, F.C. Design and Optimization of a 380–12V High-Frequency, High-Current LLC Converter with GaN Devices and Planar Matrix Transformers. IEEE J. Emerg. Sel. Top. Power Electron. 2016, 4, 854–862. [Google Scholar] [CrossRef]
  20. Dong, Y.; Zhou, J.; Lee, F.C.; Xu, M.; Wang, S. Twisted Core Coupled Inductors for Microprocessor Voltage Regulators. IEEE Trans. Power Electron. 2008, 23, 2536–2545. [Google Scholar] [CrossRef]
  21. Jin, K.; Xu, M.; Lee, F.C.; Sun, Y. Self-driven schemes for 12V self-driven voltage regulator. 2009 IEEE Energy Conversion Congress and Exposition. ECCE 2009. 2009 IEEE Energy Conversion Congress and Exposition, San Jose, CA, USA, 2009; pp. 1648–1654.
  22. Sun, J.; Ren, Y.; Xu, M.; Lee, F.C. Light Load Efficiency Improvement for Laptop VRs. PEC 07 - Twenty-Second Annual IEEE Applied Power Electronics Conference and Exposition. APEC 07 -Twenty-Second Annual IEEE Applied Power Electronics Conference and Exposition, Anaheim, CA, USA, 2007; pp. 120–126.
  23. Li, Q.; Dong, Y.; Lee, F.C. High density low profile coupled inductor design for integrated Point-of-Load converter. 2010 IEEE Applied Power Electronics Conference and Exposition - APEC 2010. 2010 Twenty-Fifth Annual IEEE Applied Power Electronics Conference and Exposition (APEC), Palm Springs, CA, USA, 2010; pp. 79–85.
  24. Ahmed, M.H.; Lee, F.C.; Li, Q. LLC Converter with Integrated Magnetics Application for 48V Rack Architecture in Future Data Centers. 2019 IEEE Conference on Power Electronics and Renewable Energy (CPERE). in Proc. IEEE Conf. Power Electron. Renew. Energy (CPERE), Oct. 2019; pp. 437–443.
  25. Lou, X.; Li, Q. 300A Single-stage 48V Voltage Regulator with Multiphase Current Doubler Rectifier and Integrated Transformer. 2022 IEEE Applied Power Electronics Conference and Exposition (APEC). 2022 IEEE Applied Power Electronics Conference and Exposition (APEC), Houston, TX, USA, 2022; pp. 1004–1010.
  26. Xu, P.; Wu, Q.; Wong, P.-L.; Lee, F. A novel integrated current doubler rectifier. APEC 2000. Fifteenth Annual IEEE Applied Power Electronics Conference and Exposition (Cat. No.00CH37058), New Orleans, LA, USA, 2000.
  27. L. Balogh, “The performance of the current doubler rectifier with synchronous rectification”, High Frequency Power Conversion Conference Proceedings, pp. 216-225, 95. 19 May.
  28. Xu, M.; Zhou, J.; Lee, F. A Current-Tripler dc/dc Converter. IEEE Trans. Power Electron. 2004, 19, 693–700. [Google Scholar] [CrossRef]
  29. Mu, M.; Lee, F.C. Design and Optimization of a 380–12V High-Frequency, High-Current LLC Converter with GaN Devices and Planar Matrix Transformers. IEEE J. Emerg. Sel. Top. Power Electron. 2016, 4, 854–862. [Google Scholar] [CrossRef]
  30. Wang, C.; Li, M.; Ouyang, Z.; Zhang, Z.; Zsurzsan, G.; Andersen, M.A.E. High Step-Down Single-Stage DC-DC Converter with Improved Planar Matrix Transformer for High-Current Data Center Application. 2022 IEEE Applied Power Electronics Conference and Exposition (APEC). 2022 IEEE Applied Power Electronics Conference and Exposition (APEC), Houston, TX, USA, 2022; pp. 709–715.
  31. Prakash, P.R.; Nabih, A.; Li, Q. Design Optimization of PCB-Winding Matrix Transformer for 400V/12V Unregulated LLC Converter. 2021 IEEE Energy Conversion Congress and Exposition (ECCE). 2021 IEEE Energy Conversion Congress and Exposition (ECCE), Vancouver, BC, Canada, 2021; pp. 1777–1784.
  32. Fei, C.; Yang, Y.; Li, Q.; Lee, F.C. Shielding Technique for Planar Matrix Transformers to Suppress Common-Mode EMI Noise and Improve Efficiency. IEEE Trans. Ind. Electron. 2017, 65, 1263–1272. [Google Scholar] [CrossRef]
  33. Xu, P.; Wu, Q.; Wong, P.-L.; Lee, F. A novel integrated current doubler rectifier. APEC 2000 - Applied Power Electronics Conference. 2000, pp. 735–740.
  34. Sun, J.; Mehrotra, V. Orthogonal winding structures and design for planar integrated magnetics. Nineteenth Annual IEEE Applied Power Electronics Conference and Exposition, 2004. APEC ’04. vol. 55, no. 3, pp.1463-1469, March, 2008.
  35. Wikipedia, “Combined charging system,” 2022, Accessed Aug. 5, 2022. [Online]. Available: https://en.wikipedia.
  36. Wikipedia, “Chademo,” 2022, Accessed: Aug. 5, 2022. [Online]. Available online: https://en.wikipedia.org/wiki/CHAdeMO.
  37. Hsieh, H.-I.; Lin, P.-C.; Hsieh, G.-C.; Lin, H.-Y. LLC charger using matrix core coupling for power transfer to electric vehicle. 2015 IEEE 6th International Symposium on Power Electronics for Distributed Generation Systems (PEDG). 2015 IEEE 6th International Symposium on Power Electronics for Distributed Generation Systems (PEDG), Aachen, Germany, 2015; pp. 1–8.
  38. Jin, F.; Nabih, A.; Li, Z.; Li, Q. A Single Phase CLLC Resonant Converter with a Novel Matrix Integrated Transformer. 2022 IEEE Energy Conversion Congress and Exposition (ECCE). 2022 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 2022; pp. 1–8.
  39. Zou, S.; Lu, J.; Mallik, A.; Khaligh, A. Modeling and Optimization of an Integrated Transformer for Electric Vehicle On-Board Charger Applications. IEEE Trans. Transp. Electrification 2018, 4, 355–363. [Google Scholar] [CrossRef]
  40. Marques, E.G.; da Silva, S.V.; Mendes, A. A new magnetic coupler for EVs chargers based on plug-in and IPT technologies. 2017 IEEE Energy Conversion Congress and Exposition (ECCE). Cincinnati, OH, USA, 2017; pp. 2760–2766.
  41. Mukherjee, S.; Ruiz, J.M.; Barbosa, P. A High Power Density Wide Range DC–DC Converter for Universal Electric Vehicle Charging. IEEE Trans. Power Electron. 2022, 38, 1998–2012. [Google Scholar] [CrossRef]
  42. Bhattacharya, S.; Mascarella, D.; Joos, G.; Cyr, J.-M.; Xu, J. A Dual Three-Level T-NPC Inverter for High-Power Traction Applications. IEEE J. Emerg. Sel. Top. Power Electron. 2016, 4, 668–678. [Google Scholar] [CrossRef]
  43. Bernet, S. Recent developments of high power converters for industry and traction applications. IEEE Trans. Power Electron. 2000, 15, 1102–1117. [Google Scholar] [CrossRef]
  44. Zhao, X.; Jiang, D.; Li, Q.; Ma, Y.; Liu, Y. An Application of Variable Switching Frequency PWM on SiC-Based Paralleled Inverters for Motor Drive. 2020 IEEE 9th International Power Electronics and Motion Control Conference (IPEMC2020-ECCE Asia). 2020 IEEE 9th International Power Electronics and Motion Control Conference (IPEMC2020-ECCE Asia), Nanjing, China, 2020; pp. 1151–1155.
  45. Ohn, S.; Phukan, R.; Dong, D.; Burgos, R.; Boroyevich, D.; Gopal, M.; Nielebock, S. Modeling of $N$-Parallel Full-SiC AC–DC Converters by Four Per-Phase Circuits. IEEE Trans. Power Electron. 2020, 36, 6142–6146. [Google Scholar] [CrossRef]
  46. Phukan, R.; Nam, D.; Dong, D.; Burgos, R.; Mondal, G.; Nielebock, S. Highly Integrated Monolithic Filter Building Block for SiC based Three-Phase Interleaved Converters. 2021 IEEE Applied Power Electronics Conference and Exposition (APEC), Phoenix, AZ, USA, 2021, pp. 2876-2882; pp. 2876–2882.
  47. Li, Q.; Jiang, D.; Shen, Z.; Zhang, Y.; Liu, Z. Variable Switching Frequency PWM Strategy for High-Frequency Circulating Current Control in Paralleled Inverters With Coupled Inductors. IEEE Trans. Power Electron. 2019, 35, 5366–5380. [Google Scholar] [CrossRef]
  48. Ohn, S.; Phukan, R.; Dong, D.; Burgos, R.; Boroyevich, D.; Mondal, G.; Nielebock, S. Modular Filter Building Block for Modular full-SiC AC-DC Converters by an Arrangement of Coupled Inductors. 2020 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 2020; pp. 4130–4136.
  49. Phukan, R.; Ohn, S.; Dong, D.; Burgos, R.; Mondal, G.; Nielebock, S. Evaluation of Modular AC Filter Building Blocks for Full SiC based Grid-Tied Three Phase Converters. 2020 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 2020; pp. 1835–1841.
  50. Phukan, R.; Ohn, S.; Dong, D.; Burgos, R.; Mondal, G.; Nielebock, S. Design and Optimization of a Highly Integrated Modular Filter Building Block for Three-Level Grid Tied Converters. 2020 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 2020; pp. 4949–4956.
  51. Phukan, R.; Nam, D.; Ohn, S.; Mondal, G.; Nielebock, S.; Dong, D.; Burgos, R. Design of an Indirectly Coupled Filter Building Block for Modular Interleaved AC–DC Converters. IEEE Trans. Power Electron. 2022, 37, 13343–13357. [Google Scholar] [CrossRef]
  52. Phukan, R.; Ohn, S.; Dong, D.; Burgos, R.; Mondal, G.; Nielebock, S. Fault Tolerant Operation of Interleaved Converters using a Bypass Switch Arrangement. 2021 IEEE Applied Power Electronics Conference and Exposition (APEC), Phoenix, AZ, USA, 2021; pp. 2657–2661.
  53. Gohil, G.; Bede, L.; Teodorescu, R.; Kerekes, T.; Blaabjerg, F. An Integrated Inductor for Parallel Interleaved Three-Phase Voltage Source Converters. IEEE Trans. Power Electron. 2015, 31, 3400–3414. [Google Scholar] [CrossRef]
  54. Gohil, G.; Bede, L.; Teodorescu, R.; Kerekes, T.; Blaabjerg, F. Integrated inductor for interleaved operation of two parallel three-phase voltage source converters. 2015 17th European Conference on Power Electronics and Applications (EPE'15 ECCE-Europe), Geneva, Switzerland, 2015; pp. 1–10.
  55. Gohil, G.; Bede, L.; Teodorescu, R.; Kerekes, T.; Blaabjerg, F. Magnetic Integration for Parallel Interleaved VSCs Connected in a Whiffletree Configuration. IEEE Trans. Power Electron. 2016, 31, 7797–7808. [Google Scholar] [CrossRef]
  56. Phukan, R.; Ohn, S.; Dong, D.; Burgos, R. An Approach to Localize Circulating Current for Three Phase Interleaved AC-DC Converters. 2021 IEEE Applied Power Electronics Conference and Exposition (APEC), Phoenix, AZ, USA, 2021; pp. 1848–1853.
  57. Gohil, G.; Bede, L.; Teodorescu, R.; Kerekes, T.; Blaabjerg, F. Design of the trap filter for the high power converters with parallel interleaved VSCs. IECON 2014 - 40th Annual Conference of the IEEE Industrial Electronics Society, Dallas, TX, USA, 2014; pp. 2030–2036.
  58. Phukan, R.; Ohn, S.; Nielebock, S.; Mondal, G.; Dong, D.; Burgos, R. Comparison Between Interconnected Filter Blocks for Three-Phase AC–DC Interleaved Converters. IEEE J. Emerg. Sel. Top. Power Electron. 2022, 10, 5956–5968. [Google Scholar] [CrossRef]
  59. Marques, E.G.; da Silva, S.V.; Mendes, A. A new magnetic coupler for EVs chargers based on plug-in and IPT technologies. in Proc. IEEE Energy Convers. Congr. Expo., Cincinnati, OH, USA, 2017; pp. 2760–2766.
  60. Khaligh, A.; D’Antonio, M. Global Trends in High-Power On-Board Chargers for Electric Vehicles. IEEE Trans. Veh. Technol. 2019, 68, 3306–3324. [Google Scholar] [CrossRef]
  61. Mukherjee, S.; Kumar, A.; Chakraborty, S. Comparison of DAB and LLC DC–DC Converters in High-Step-Down Fixed-Conversion-Ratio (DCX) Applications. IEEE Trans. Power Electron. 2020, 36, 4383–4398. [Google Scholar] [CrossRef]
  62. Han, D.; Morris, C.; Choi, W.; Sarlioglu, B. Common mode voltage cancellation in PWM motor drives with balanced inverter topology. IECON 2016 - 42nd Annual Conference of the IEEE Industrial Electronics Society, Florence, Italy, 2016; pp. 4313–4318.
  63. Shi, R.; Semsar, S.; Lehn, P.W. Constant Current Fast Charging of Electric Vehicles via a DC Grid Using a Dual-Inverter Drive. IEEE Trans. Ind. Electron. 2017, 64, 6940–6949. [Google Scholar] [CrossRef]
  64. Liu, Y.; Jiang, S.; Liang, W.; Wang, H.; Peng, J. Modeling and Design of the Magnetic Integration of Single- and Multi-Stage EMI Filters. IEEE Trans. Power Electron. 2019, 35, 276–288. [Google Scholar] [CrossRef]
  65. Hedayati, M.H.; John, V. Novel integrated CM inductor for single-phase power converters with reduced EMI. 2015 IEEE International Transportation Electrification Conference (ITEC), Chennai, India, 2015; pp. 1–6.
  66. Jiang, S.; Liu, Y.; Mei, Z.; Peng, J.; Lai, C.-M. A Magnetic Integrated LCL–EMI Filter for a Single-Phase SiC-MOSFET Grid-Connected Inverter. IEEE J. Emerg. Sel. Top. Power Electron. 2019, 8, 601–617. [Google Scholar] [CrossRef]
  67. Li, X.; Liu, Y.; Yang, J.; Wu, X. Decoupled Magnetic Integration of Symmetrical LCL Filter With a Common-Mode Inductor for Single-Phase Grid-Connected Converters. IEEE J. Emerg. Sel. Top. Ind. Electron. 2021, 3, 966–977. [Google Scholar] [CrossRef]
  68. Jiang, S.; Liu, Y.; Ye, X.; Pan, X. Design of a Fully Integrated EMI Filter for a Single-Phase Grid-Connected Inverter. IEEE Trans. Ind. Electron. 2020, 68, 12296–12309. [Google Scholar] [CrossRef]
  69. Jiang, S.; Wang, W.; Wang, P.; Xu, D.G. A Fully Integrated Common-Mode Choke Design Embedded With Differential-Mode Capacitances. IEEE Trans. Power Electron. 2021, 37, 5501–5513. [Google Scholar] [CrossRef]
  70. Lu, Z.; Liu, Y.; Yin, J. Design of Planar Magnetic Integrated LCL-EMI Filter for the Grid-Connected Inverter. in IEEE Transactions on Power Electronics, vol. 37, no. 5; pp. 493–497.
  71. Jianjiang, L.; Lili, C.; Xuemei, Z.; Long, H.; Cuifen, L.; Lidong, C. Design on the planar magnetic integrated EMI filter based on U-shaped magnetic core. 2017 8th International Conference on Mechanical and Intelligent Manufacturing Technologies (ICMIMT), Cape Town, 2017; pp. 159–163.
  72. M. Ali, R. M. Ali, R. Bushra, J. Friebe and A. Mertens, "Design and Potential of EMI CM Chokes with Integrated DM Inductance," 2022 24th European Conference on Power Electronics and Applications (EPE’22 ECCE Europe), Hanover, Germany, 2022, pp. 1-10.
  73. Phukan, R.; Zhao, X.; Chang, C.-W.; Dong, D.; Burgos, R.; Debbou, M.; Platt, A.; Asfaux, P. Enhanced Three-Phase AC Common-Mode Filter With Optimized Damping Network for VFDs. IEEE Trans. Ind. Appl. 2023, 59, 4274–4286. [Google Scholar] [CrossRef]
  74. Erickson, R. Optimal single resistors damping of input filters. APEC ’99. Fourteenth Annual Applied Power Electronics Conference and Exposition. 1999 Conference Proceedings (Cat. No.99CH36285), Dallas, TX, USA, 1999; pp. 1073–1079 vol.2.
  75. Phukan, R.; Zhao, X.; Chang, C.-W.; Dong, D.; Burgos, R.; Debbou, M.; Platt, A.; Asfaux, P. Characterization and Mitigation of Conducted Emissions in a SiC Based Three-Level T-Type Motor Drive for Aircraft Propulsion. IEEE Trans. Ind. Appl. 2023, 59, 3400–3412. [Google Scholar] [CrossRef]
  76. Phukan, R.; Zhao, X.; Chang, C.-W.; Dong, D.; Burgos, R.; Plat, A.; Mustapha, D. Optimized DC-AC EMI Filter Design for DC-Fed High Speed SiC-Based Motor Drive. 2022 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 2022; pp. 1–8.
  77. Ohn, S.; Yu, J.; Burgos, R.; Boroyevich, D.; Suryanarayana, H. Reduced Common-Mode Voltage PWM Scheme for Full-SiC Three-Level Uninterruptible Power Supply With Small DC-Link Capacitors. IEEE Trans. Power Electron. 2019, 35, 8638–8651. [Google Scholar] [CrossRef]
  78. Phukan, R.; Zhao, X.; Asfaux, P.; Dong, D.; Burgos, R. Investigation of Staggered PWM Scheme for AC Common Mode Current Minimization in SiC-Based Three-Phase Inverters. IEEE Trans. Transp. Electrification 2022, 8, 4378–4390. [Google Scholar] [CrossRef]
  79. Maillet, Y.; Lai, R.; Wang, S.; Wang, F.; Burgos, R.; Boroyevich, D. High-Density EMI Filter Design for DC-Fed Motor Drives. IEEE Trans. Power Electron. 2009, 25, 1163–1172. [Google Scholar] [CrossRef]
  80. Lai, R.; Maillet, Y.; Wang, F.; Wang, S.; Burgos, R.; Boroyevich, D. An Integrated EMI Choke for Differential-Mode and Common-Mode Noise Suppression. IEEE Trans. Power Electron. 2009, 25, 539–544. [Google Scholar] [CrossRef]
  81. Phukan, R.; Zhao, X.; Chang, C.-W.; Dong, D.; Burgos, R.; Mustapha, D.; Platt, A. A Compact Integrated DM-CM Filter with PCB Embedded DC Current Sensor for High Altitude High Current Applications. 2022 IEEE Transportation Electrification Conference and Expo (ITEC), Anaheim, CA, USA, 2022; pp. 923–928.
  82. Zhao, X.; Hu, J.; Ravi, L.; Dong, D.; Burgos, R.; Chandrasekaran, S.; Eddins, R. Planar Common-Mode EMI Filter Design and Optimization for High-Altitude 100-kW SiC Inverter/Rectifier System. IEEE J. Emerg. Sel. Top. Power Electron. 2022, 10, 5290–5303. [Google Scholar] [CrossRef]
  83. H. Song, J. H. Song, J. Wang, Y. Xu, R. Burgos, and D. Boroyevich, “A high-density single-turn inductor for a 6 kV SiC-based power electronics building 705 block,” in Proc. IEEE Appl. Power Electron. Conf. Expo. (APEC), 706 Oct. 2020, pp. 1127. [Google Scholar]
  84. Fang, J.; Li, H.; Tang, Y. A Magnetic Integrated LLCL Filter for Grid-Connected Voltage-Source Converters. IEEE Trans. Power Electron. 2016, 32, 1725–1730. [Google Scholar] [CrossRef]
  85. Jiang, S.; Liu, Y.; Mei, Z.; Peng, J.; Lai, C.-M. A Magnetic Integrated LCL–EMI Filter for a Single-Phase SiC-MOSFET Grid-Connected Inverter. IEEE J. Emerg. Sel. Top. Power Electron. 2019, 8, 601–617. [Google Scholar] [CrossRef]
  86. Liu, Y.; See, K.Y.; Tseng, K.J.; Simanjorang, R.; Lai, J.-S. Magnetic Integration of Three-Phase LCL Filter With Delta-Yoke Composite Core. IEEE Trans. Power Electron. 2016, 32, 3835–3843. [Google Scholar] [CrossRef]
  87. Pan, D.; Ruan, X.; Bao, C.; Li, W.; Wang, X. Magnetic Integration of the LCL Filter in Grid-Connected Inverters. IEEE Trans. Power Electron. 2013, 29, 1573–1578. [Google Scholar] [CrossRef]
  88. Li, X.; Fang, J.; Lin, P.; Tang, Y. Active Magnetic Decoupling for Improving the Performance of Integrated LCL-Filters in Grid-Connected Converters. IEEE Trans. Ind. Electron. 2017, 65, 1367–1376. [Google Scholar] [CrossRef]
  89. Fang, J.; Li, X.; Yang, X.; Tang, Y. An Integrated Trap-LCL Filter With Reduced Current Harmonics for Grid-Connected Converters Under Weak Grid Conditions. IEEE Trans. Power Electron. 2017, 32, 8446–8457. [Google Scholar] [CrossRef]
  90. Valdivia, V.; Pleite, J.; Zumel, P.; Gonzalez, C.; Lazaro, A. Three phase LCL filter and transformer with integrated magnetics for grid connected converters. 2008 34th Annual Conference of IEEE Industrial Electronics, Orlando, FL, USA, 2008; pp. 1027–1032.
  91. Ohn, S.; Park, Y.; Sul, S.-K. Multi-level operation of triple two-level PWM converters. 2015 IEEE Energy Conversion Congress and Exposition (ECCE), Montreal, QC, Canada, 2015; pp. 4283–4289.
  92. Ohn, S.; Zhang, X.; Burgos, R.; Boroyevich, D. Differential-Mode and Common-Mode Coupled Inductors for Parallel Three-Phase AC–DC Converters. IEEE Trans. Power Electron. 2018, 34, 2666–2679. [Google Scholar] [CrossRef]
  93. Zhang, X.; Burgos, R.; Boroyevich, D. Passive component loss minimization for interleaved dc-dc boost converters in electric vehicle applications. 2016 IEEE 8th International Power Electronics and Motion Control Conference (IPEMC-ECCE Asia), Hefei, China, 2016; pp. 1412–1418.
  94. Ohn, S.; Phukan, R.; Dong, D.; Burgos, R.; Boroyevich, D.; Gopal, M.; Nielebock, S. Modeling of $N$-Parallel Full-SiC AC–DC Converters by Four Per-Phase Circuits. IEEE Trans. Power Electron. 2020, 36, 6142–6146. [Google Scholar] [CrossRef]
  95. Phukan, R.; Burgos, R. Alternate Filter Structures for Circulating Current and Conducted Noise Mitigation. IEEE Trans. Power Electron. 2022, 37, 14052–14056. [Google Scholar] [CrossRef]
  96. Ma, Z.; Yao, J.; Wang, S.; Sheng, H.; Lakshmikanthan, S.; Osterhout, D. Radiated EMI Reduction with Double Shielding Techniques in Active-clamp Flyback Converters. 2021 IEEE International Joint EMC/SI/PI and EMC Europe Symposium, Raleigh, NC, USA, 2021; pp. 1064–1069.
  97. W. Tan, X. W. Tan, X. Margueron, T. Duquesne and N. Idir, "An Improved Parasitic Capacitance Cancellation Method for Planar Differential Mode Inductor in EMI Filters," 2012 7th International Conference on Integrated Power Electronics Systems (CIPS), Nuremberg, Germany, 2012, pp. 1-6.
  98. Chen, R.; van Wyk, J.; Wang, S.; Odendaal, W. Application of structural winding capacitance cancellation for integrated EMI filters by embedding conductive layers. Conference Record of the 2004 IEEE Industry Applications Conference, 2004. 39th IAS Annual Meeting., Seattle, WA, USA, 2004, pp. 2679- 2686 vol.4.
  99. Wang, S.; Lee, F.C.; van Wyk, J.D. Design of Inductor Winding Capacitance Cancellation for EMI Suppression. IEEE Trans. Power Electron. 2006, 21, 1825–1832. [Google Scholar] [CrossRef]
  100. Zhang, H.; Wang, S.; Li, Y.; Wang, Q.; Fu, D. Two-Capacitor Transformer Winding Capacitance Models for Common-Mode EMI Noise Analysis in Isolated DC–DC Converters. IEEE Trans. Power Electron. 2017, 32, 8458–8469. [Google Scholar] [CrossRef]
  101. Li, Y.; Zhang, H.; Wang, S.; Sheng, H.; Chng, C.P.; Lakshmikanthan, S. Investigating Switching Transformers for Common Mode EMI Reduction to Remove Common Mode EMI Filters and Y-Capacitors in Flyback Converters. IEEE J. Emerg. Sel. Top. Power Electron. 2018, 6, 2287–2301. [Google Scholar] [CrossRef]
  102. Phukan, R.; Chen, S.-Y.; Dong, D.; Burgos, R.; Mondal, G.; Krupp, H.; Nielebock, S. Design of a Three-Phase Three-Level Back-to-Back Bridge Interconnection-Based Filter Scheme. IEEE J. Emerg. Sel. Top. Power Electron. 2023, 11, 3208–3222. [Google Scholar] [CrossRef]
  103. Zhang, H.; Zhang, Y.; Wang, S. Radiated EMI Modeling of the Non-Isolated DC-DC Power Converters with Attached Cables. 2018 IEEE Energy Conversion Congress and Exposition (ECCE), Portland, OR, USA, 2018; pp. 4203–4209.
  104. Zhang, H.; Wang, S. Near Magnetic Field Assessment and Reduction for Magnetic Inductors with Magnetic Moment Analysis. IEEE Trans. Power Electron. 2021, PP, 1–1. [Google Scholar] [CrossRef]
  105. Zhang, B.; Wang, S. Analysis and Reduction of the Near Magnetic Field Emission From Toroidal Inductors. IEEE Trans. Power Electron. 2019, 35, 6251–6268. [Google Scholar] [CrossRef]
  106. Li, Q.; Lim, M.; Sun, J.; Ball, A.; Ying, Y.; Lee, F.C.; Ngo, K. Technology roadmap for high frequency integrated DC-DC converter. 2009 IEEE 6th International Power Electronics and Motion Control Conference, Wuhan, China, 2009; pp. 1–8.
  107. Available online: https://cmmaterials.com/blog/f/high-voltage-inductors-for-gan-and-sic-based-power-converters.
  108. Available online: https://www.kemet.com/en/us/technical-resources/bms-and-kemet-metcom-inductors.html.
  109. Available online: https://article.murata.com/en-us/article/characteristics-of-compact-metal-alloy-power-inductors.
  110. Available online: https://techweb.rohm.com/trend/engineer/4804/.
  111. Ge, T.; Yan, Y.; Lu, G.-Q.; Ngo, K. Over-Molded Inductor (OMI)—Feasibility Demonstration in a DC–DC Converter. IEEE Trans. Ind. Electron. 2017, 64, 5738–5740. [Google Scholar] [CrossRef]
  112. de Jong, E.; Ferreira, B.; Bauer, P. Toward the Next Level of PCB Usage in Power Electronic Converters. IEEE Trans. Power Electron. 2008, 23, 3151–3163. [Google Scholar] [CrossRef]
  113. Meurer, E.; de Haan, S. On the common mode resonant frequency of transformers. in Proc. European Power Electronics (EPE), pp.1-6, Sept. 2007.
Preprints 72879 g001

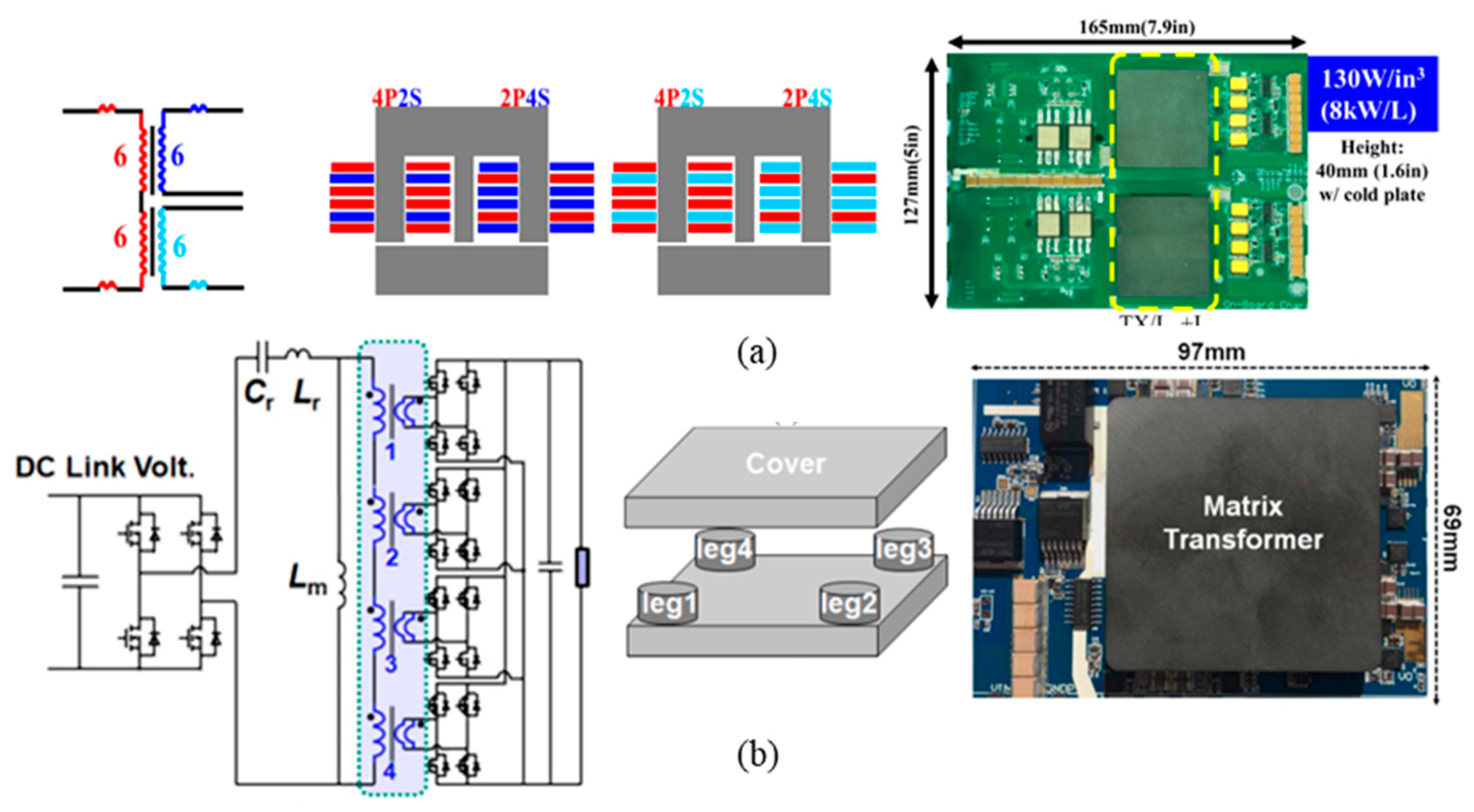

Figure 1. (a) split core MIM for CLLC converter utilizing asymmetric winding distribution for leakage inductance on primary and secondary sides [6] (b) Two integrated MIMs to realize a matrix transformer (shown a 500 kHz 3 kW 48 V-output LLC converter prototype) [7].
Figure 1. (a) split core MIM for CLLC converter utilizing asymmetric winding distribution for leakage inductance on primary and secondary sides [6] (b) Two integrated MIMs to realize a matrix transformer (shown a 500 kHz 3 kW 48 V-output LLC converter prototype) [7].
Preprints 72879 g001
Preprints 72879 g002
Figure 2. (a) CPES QSW VRM [10] (b) Twisted core coupled inductor implementation [15] and (c) Low profile buck converter using LTCC substrate [23].
Figure 2. (a) CPES QSW VRM [10] (b) Twisted core coupled inductor implementation [15] and (c) Low profile buck converter using LTCC substrate [23].
Preprints 72879 g002
Preprints 72879 g003

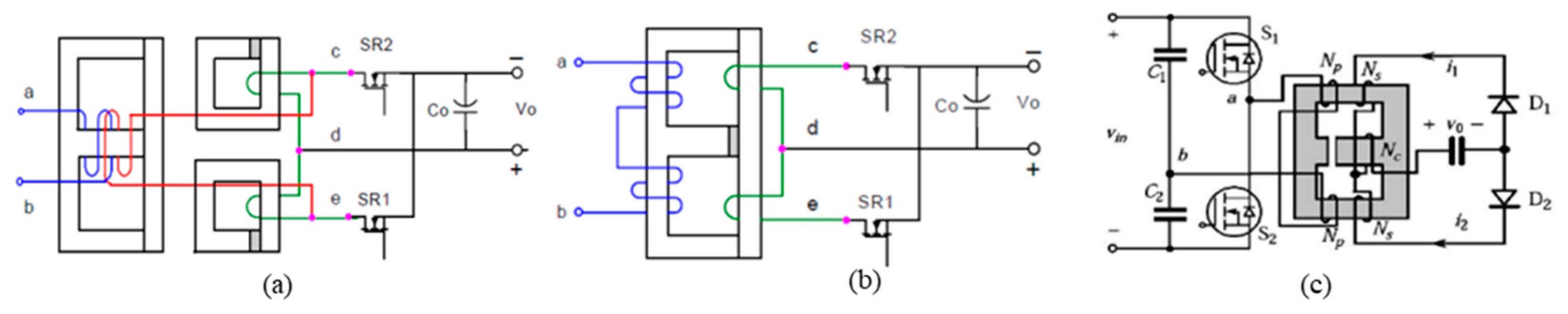

Figure 3. Elemental transformer configurations for current doubler rectifier, (a) discrete solution, (b,c) Integrated solutions [33,34].
Figure 3. Elemental transformer configurations for current doubler rectifier, (a) discrete solution, (b,c) Integrated solutions [33,34].
Preprints 72879 g003
Preprints 72879 g004
Figure 4. Realization of integrated DM+CM core (a) 2xUU cores [65] and (b) using C + block I core [72].
Figure 4. Realization of integrated DM+CM core (a) 2xUU cores [65] and (b) using C + block I core [72].
Preprints 72879 g004
Preprints 72879 g005

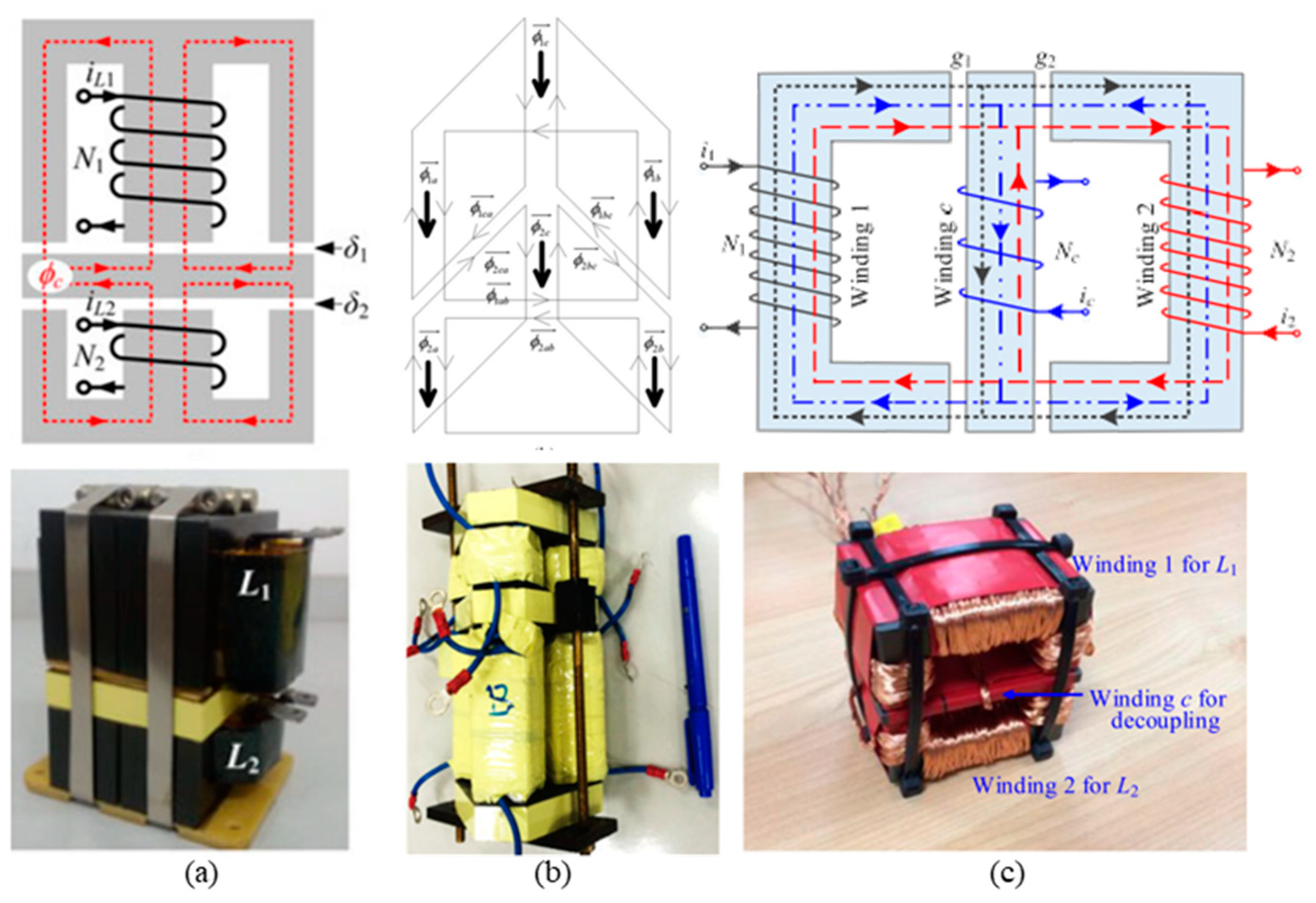

Figure 5. Integrated LCL filter variants (a) Integrated grid side and converter side inductor using 2xE cores and 1xI core [87], (b) similar integration using delta-yoke composite core [86] and (c) Active decoupling of improve attenuation of grid side and converter side coupling [88].
Figure 5. Integrated LCL filter variants (a) Integrated grid side and converter side inductor using 2xE cores and 1xI core [87], (b) similar integration using delta-yoke composite core [86] and (c) Active decoupling of improve attenuation of grid side and converter side coupling [88].
Preprints 72879 g005
Preprints 72879 g006

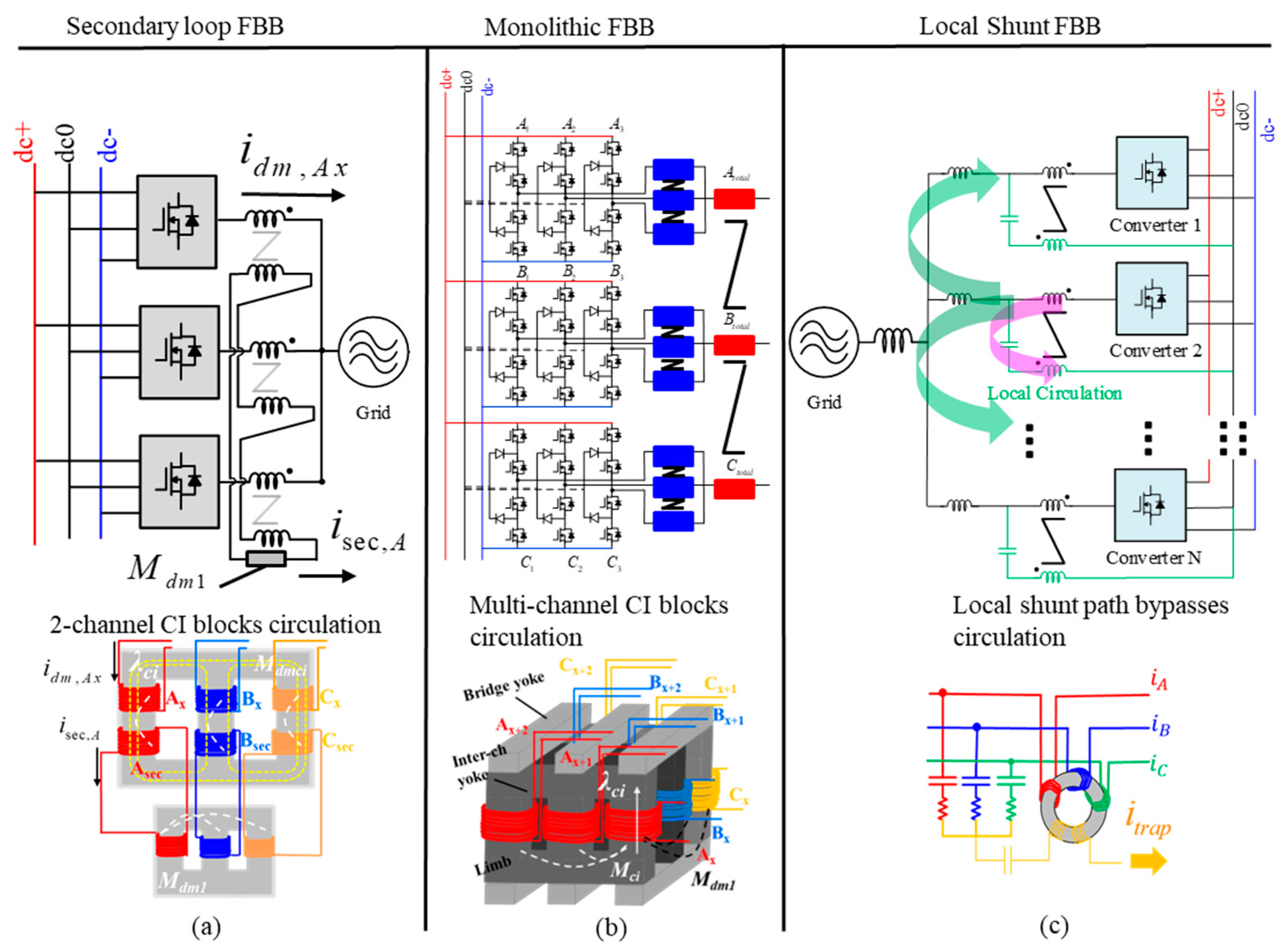

Figure 6. Integration schemes for CI (a) In-direct integration using secondary loop [47] (b) direct integration using monolithic structure [46] and localization using 4-winding CMC [55].
Figure 6. Integration schemes for CI (a) In-direct integration using secondary loop [47] (b) direct integration using monolithic structure [46] and localization using 4-winding CMC [55].
Preprints 72879 g006
Preprints 72879 g007

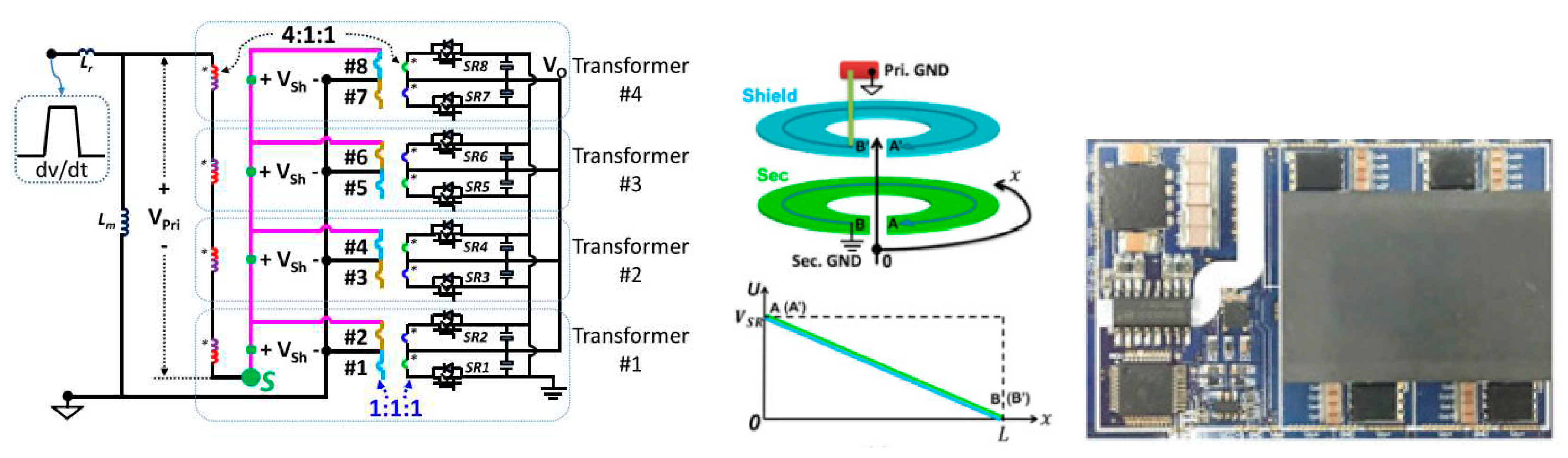

Figure 7. Example of shielding techniques for EMC mitigation in a 4:1:1 input-series output-parallel matrix transformer. Tie the shield to the primary bus results in negligible dv/dt between the primary and secondary side windings, therefore low CM currents [32].
Figure 7. Example of shielding techniques for EMC mitigation in a 4:1:1 input-series output-parallel matrix transformer. Tie the shield to the primary bus results in negligible dv/dt between the primary and secondary side windings, therefore low CM currents [32].
Preprints 72879 g007
Table 1. Core material properties and application areas.
Table 1. Core material properties and application areas.
Core Type Properties (Bsat, µr at 10 kHz) Operating Frequency Range Application Domain
Ferrites 0.3 T, < 3000 100 kHz – 1 MHz Transformers, CM-EMI filters (gapped)
Nanocrystalline 1.2 T, < 20000 10 kHz – 10 MHz CM-EMI Filters
Silicon Steel 1.7 T, 500-1500 < 1 kHz Grid-side line inductor for PFCs
Amorphous and Gapped Cores 1.5 T, 500-3000 60 Hz - Line inductor for PFCsTransformers
Powder Cores 1.1 T, < 500 60 Hz – 10 MHz Line inductors
Table 2. Novel and Existent material characteristics and applications [106].
Table 2. Novel and Existent material characteristics and applications [106].
Material Frequency Range
CoZrNb Amorphous 100 kHz to 5 MHz
NiZn Ferrite 1 MHz to 30 MHz
CoZrO Granular Film 5 MHz to 100 MHz
CoNiFe thin film alloy
Iron Powder 10 kHz to 1 MHz
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Alerts
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2025 MDPI (Basel, Switzerland) unless otherwise stated
