Using HVS Dual-Pathway and Contrast Sensitivity to Blindly Assess Image Quality

Altmetrics

Downloads

105

Views

11

Comments

0

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

05 May 2023

Posted:

08 May 2023

You are already at the latest version

Alerts
Abstract
Blind image quality assessment (BIQA) aims to evaluate image quality in a way that closely matches human perception. To achieve this goal, the strengths of deep learning and the characteristics of human visual system (HVS) can be combined. In this paper, inspired by the ventral pathway and dorsal pathway of HVS, a dual-pathway convolutional neural network is proposed for BIQA task. The proposed method consists of two pathways: “what” pathway, which mimics the ventral pathway of HVS to extract the content features of distorted images, and the “where” pathway, which mimics the dorsal pathway of HVS to extract the global shape features of distorted images. Then, the features from the two pathways are fused and mapped to an image quality score. Additionally, the gradient images weighted by the contrast sensitivity are used as the input to the “where” pathway, allowing it to extract global shape features that are more sensitive to human perception. Moreover, a dual-pathway multi-scale feature fusion module is designed to fuse the multi-scale features of the two pathways, enabling the model to capture both global features and local details, thus improving the overall performance of the model. The experiments conducted on six databases show that the proposed method achieves the state-of-the-art performance.
Keywords:
Subject: Computer Science and Mathematics  -   Computer Vision and Graphics

1. Introduction

With the rapid development of digital multimedia technology and the popularity of various photography devices, image information has become an important source of human visual information. However, in the process from obtaining digital images to arriving at the human visual system, there is inevitable degradation of image quality. Therefore, it is meaningful to research image quality assessment (IQA) methods that are highly consistent with human visual perception [1].
According to the degree of participation of the original image information, objective IQA methods can be classified into the following categories: full-reference IQA, reduced-reference IQA, and no-reference IQA [2]. Thereinto, no-reference IQA is also called blind IQA (BIQA). Because BIQA methods do not require the use of reference image information and are more closely related to actual application scenarios, they have become research focuses in recent years [3].
Traditional BIQA methods (e.g., NIQE [4], BRISQUE [5], DIIVINE [6], and BIQI [7]) typically extract low-level features from images and then use regression models to map them to image quality scores. The extracted features are often manually designed and are difficult to fully characterize the quality of images. With the development of deep learning, many deep learning-based BIQA methods (e.g, IQA-CNN [8], DIQaM-NR [9], DIQA [10], HyperIQA [11], DB-CNN [12], and TS-CNN [13]) have been proposed. With their powerful learning abilities, these methods can extract high-level features of distorted images, and their performance is greatly improved compared to the traditional methods. Although most existing deep learning-based IQA methods enhance the feature extraction ability by proposing new network structures to improve the model's performance, they overlook the important influence of HVS characteristics and the guiding role it may play.
The goal of BIQA is to judge the degree of image distortion with high consistency to human visual perception. It is natural to combine the characteristics of the human visual system (HVS) with powerful deep learning methods. Moreover, based on HVS characteristics, research on BIQA can provide new research perspectives for the study of IQA. This can help to develop evaluation metrics that are more in line with HVS characteristics and provide useful references for understanding how HVS perceives image degradation mechanisms, making it a valuable scientific problem.
The HVS has many characteristics, such as the dual-pathway feature [14,15], in which visual information is transmitted through the ventral pathway and dorsal pathway in the visual cortex. The former is involved in image content recognition and long-term memory, also known as the “what” pathway. The latter is involved in processing spatial location information of objects, also known as the “where” pathway. Inspired by the ventral and dorsal pathways of the HVS, Karen and Andrew [16] proposed a dual-stream convolutional neural network (CNN) structure and successfully applied it to the field of video action recognition. They used a spatial stream to take video frames as input to learn scene information and a temporal stream to take optical flow images as input to learn object motion information. Optical flow images explicitly describe the motion between video frames, eliminating the need for CNNs to implicitly predict object motion information, simplifying the learning process, and significantly improving the model accuracy. The contrast sensitivity characteristic of the HVS reflects the different sensitivity of the human eye to different spatial frequencies [17]. This characteristic is similar to the widely used spatial attention mechanism [18] and image saliency [19]. Campbell et al. [20] proposed a contrast sensitivity function to explicitly calculate the sensitivity of the HVS to different spatial frequencies. Some traditional IQA methods [21,22] use the contrast sensitivity function to weight the extracted features to achieve better results. In addition, when perceiving images, the HVS simultaneously pays attention to both global and local features [23]. This characteristic is particularly important for IQA because the degree of distortion of authentically distorted images is often not uniformly distributed [24]. Some IQA methods [25,26] are designed for extracting multi-scale features based on this characteristic, and the results show that using multi-scale features can effectively improve the algorithm's performance. The aforementioned HVS characteristics have been directly or indirectly applied to computer vision-related tasks and have been experimentally proven to be effective.
The main contribution of this article is to propose a new model based on dual-pathway and contrast sensitivity (DPCS) for BIQA. The HVS's dual-pathway characteristic is used to guide the construction of a dual-pathway BIQA deep learning model, which can simultaneously learn the content and spatial location information of distorted images. The multi-scale and contrast sensitivity characteristics of the HVS are also introduced to enable the model to extract distortion features that are highly consistent with human perception. Specifically, our contributions are as follows:
  • First, inspired by the ventral and dorsal pathways of the HVS, a dual-stream convolutional neural network is proposed, with the two streams named the “what” pathway and the “where” pathway, respectively. The “what” pathway extracts the content features of distorted images, while the “where” pathway extracts the global shape features. The features of the two streams are fused and mapped into an image quality score.
  • Second, by weighting the gradient image of the contrast sensitivity as the input of the “where” pathway, the global shape features that are sensitive to the human eye can be extracted.
  • Third, a dual-stream multi-scale feature fusion module is designed to fuse the multi-scale features of the two pathways, enabling the model to focus on both global and local features of distorted images.
The rest of this paper is organized as follows. Section 2 introduces related works for BIQA and analyzes their limitations. Section 3 provides a detailed description of the proposed HVS-based dual-stream model, image preprocessing method, and dual-stream multi-scale feature fusion module. Section 4 reports the experiment results. Section 5 discusses some related issues and concludes this paper.

2. Related Works

According to the method for feature extraction, the BIQA methods can be generally divided into two categories: handcrafted feature extraction methods and learning-based methods. Handcrafted feature extraction methods typically extract the natural scene statistics (NSS) features of distorted images. Researchers have found that the NSS features vary with the degree of distortion. Therefore, NSS features can be mapped to image quality scores through regression models.
Early NSS methods extracted features in the transform domain of the image. For example, the BIQI method proposed by Moorthy and Bovik [7] performs wavelet transform on the distorted image and fits the wavelet decomposition coefficients using the generalized Gaussian distribution (GGD). They first determine the type of distortion and then predict the quality score of the image based on the specific distortion type. Later, they extend the features of BIQI to obtain the DIIVINE [6], which more comprehensively describes scene statistics by considering the correlation of sub-bands, scales, and directions. The BLIINDS method proposed by Saad et al. [27] performs discrete cosine transform (DCT) on distorted images to extract contrast and structural features based on DCT, which are then mapped to quality scores through a probabilistic prediction model. It is computationally expensive for all of these methods to extract features in the transform domain of the image. To avoid transforming the image, many researchers have proposed methods to directly extract NSS features in the spatial domain. The BRISQUE method proposed by Mittal et al. [5] extracts the local normalized luminance coefficients of distorted images in the spatial domain and quantifies the loss of "naturalness" of distorted images. This method has very low computational complexity. Based on the BRISQUE, Mittal et al. proposed an NIQE [4], which uses multivariate Gaussian models (MVGs) to fit the NSS features of distorted and natural images and defines the distance between the two models as the quality of the distorted image. The handcrafted feature extraction methods have a good performance on small databases (such as LIVE [28]), but the designed features can only extract low-level features of images, and their expressive power is limited. Therefore, their performance on large-scale synthetically distorted databases (such as TID2013 [29] and KADID [30]) and authentically distorted databases (such as LIVE Challenge [31]) is relatively poor.
With the successful applications of deep learning methods to other visual tasks [32,33], more and more researchers have applied deep learning to BIQA. Kang et al. [8] first used CNNs for no-reference image quality assessment. To solve the problem of insufficient data, they segmented the distorted images into non-overlapping 32 × 32 patches and assigned each patch a quality score as its source image’s score. Bosse et al. [9] proposed a DIQaM-NR and WaDIQaM-NR based on the VGG [32]. This method uses a deeper CNN and simultaneously predicts the quality scores and weights of image patches, and weighting summation is used to obtain the quality score of the image. Kim et al. [33] proposed a BIECON. It uses FR-IQA method to predict the quality scores of distorted image patches, utilizes these scores as intermediate results to train the model, and subsequently finely tunes the model using ground truth scores of images. Kim et al. [10] subsequently proposed the DIQI. The framework is similar to BIECON but uses error maps as intermediate training targets to avoid overfitting. Su et al. [11] proposed a HyperIQA for authentically distorted images. This method predicts the image quality score based on the perceived image content and also increases the multi-scale features so that the model can capture local distortions. Some researchers have introduced multitask learning into BIQA, which integrates multiple tasks into one model for training and promotes each other based on the correlation between tasks. Kang et al. [34] proposed an IQA-CNN++, which integrates image quality assessment and image distortion type classification tasks and improves the model's distortion type classification performance through multitask training. Ma et al. [35] proposed a MEON, which simultaneously performs distortion type classification and quality score prediction. Unlike other multitask models, the authors first pre-train the distortion type classification sub-network, and then perform joint training of the quality score prediction network. The experimental results show that this pre-training mechanism is effective. To enhance the model's feature extraction ability, some researchers have proposed a dual-stream CNN structure. Zhang et al. [12] proposed a DB-CNN, which uses VGG-16, pre-trained on ImageNet [36], to extract authentic distortion features and uses CNN, pre-trained on Waterloo Exploration Database [37] and PASCAL VOC 2012 [38], to extract synthetic distortion features. Yan et al. [13] also proposed a dual-stream method. The two streams take the distorted image and its gradient image as input, respectively, so that the gradient stream focuses more on the details of the distorted image.
Although the aforementioned deep learning-based BIQA methods have achieved good results, there are still rooms for further improvement. For example, the relevant characteristics of HVS can be combined with deep learning to make the model consistent with the perceptual of HVS. Inspired by the dual-pathway characteristics of the HVS, our work also adopts a dual-pathway structure. However, our two pathways extract the content features and location features of the distorted image, which are functionally consistent with the ventral and dorsal pathways of HVS. In addition, our dual-pathway model adds contrast sensitivity weighted gradient image as an input. This provides different perspectives of the distorted image for the model and explicitly learns the contrast sensitivity characteristics of the HVS. The dual-pathway multi-scale feature module designed in our work enables the model to focus on the global and local features of the image simultaneously. It is also highly consistent with the process of HVS perception.

3. Proposed Method

Inspired by the ventral and dorsal pathways in the HVS, this paper proposes a dual-stream CNN structure for BIQA. The model architecture is shown in Figure 1, “where” the two pathways are referred to as “what” pathway and “where” pathway. Han and Sereno [39,40] proved that when modeling the ventral and dorsal pathways using CNNs, both pathways can use the same network structure. Therefore, both pathways have the same structure and use the ResNet-50 [41] as the backbone network, which is pre-trained on ImageNet. However, these two pathways receive input of distorted images and contrast-sensitive weight gradient images, respectively, to achieve the function of the ventral and dorsal pathways. In addition, the model introduces a multi-scale feature module that concatenates the multi-scale feature maps of the two streams and fuses them through the module. This allows the model to focus on the global features and local details of the image simultaneously.
3.1. “What” Pathway and “Where” Pathway
The “what” pathway takes a distorted image as input and extracts content features through a pre-trained ResNet-50. The pre-trained ResNet-50 has demonstrated excellent performance in image classification tasks, proving its strong ability to understand image content. Because the content and structure of an image are closely related to its perceived quality, using ResNet-50 can better capture details and structural information in images, thus improving the accuracy of the model. To apply it to our method, the last average pooling layer and fully connected layer of the original ResNet-50 are removed, as shown in Table 1.
In line with the “what” pathway, the “where” pathway also uses the pre-trained ResNet-50 as a feature extractor. However, the “where” pathway takes a gradient image weighted by contrast sensitivity as input. Gradient image provides rich structural and contour information, and the HVS is highly sensitive to such information [40]. Using gradient image allows the “where” pathway to extract object shape information from the distorted image, which is more consistent with the global shape perception of the dorsal pathway [43]. The Scharr operator [44] is chosen as the gradient operator, and its mask structure is shown in Figure 2.
The HVS has the characteristic of contrast sensitivity, meaning that the sensitivity of the human eye varies for different spatial frequencies. This characteristic is similar to the widely used spatial attention mechanism [18] and image saliency [19]. Campbell et al. [20] proposed a contrast sensitivity function to explicitly calculate the sensitivity of HVS for different spatial frequencies:
A f = 2.6 0.192 + 0.114 f e − 0.114 f 1.1 ,
where f denotes the spatial frequency of a point. For the point I i , j , its spatial frequency can be calculated as:
f = f x 2 + f y 2 ,
f x = I i , j − I i − 1 , j ,
f y = I i , j − I i , j − 1 .
The proposed method performs contrast sensitivity weighting on gradient images to enhance the frequency information that is sensitive to the HVS, thereby making the model highly consistent with the HVS perception. Specifically, a contrast sensitivity function is used to calculate the contrast sensitivity of each pixel in the distorted image. This yields a contrast sensitivity image, which is then combined with the gradient image to obtain the contrast sensitivity weighted gradient image:
I C W G = α I C + β I G + γ ,
where I C denotes the contrast sensitivity image, I G denotes the gradient image, and α , β and γ are constants. We set α = β =0.5 and γ =0.
Representative gradient images and the corresponding contrast sensitivity weighted gradient images are shown in Figure 3. Compared to the gradient images, it can be observed that the contrast sensitivity weighted gradient images better highlight the regions of interest to human eyes, such as the patterns around the eyes and the edges of the bird's beak and body. This is because the contrast sensitivity weighted gradient images assign different weights to different regions of the images, which enables it to capture the image details that human eyes pay attention to. Additionally, the contrast sensitivity weighted gradient images are also capable of capturing the structural information of distortions, such as block artifacts caused by JPEG compression and image noise caused by Gaussian distortion. This can significantly affect the image quality. Figure 4 shows the gradient images and the corresponding contrast sensitive weighted gradient images for different distortion levels of JPEG. It can be seen that the image distortion level increases from top to bottom, the block artifacts caused by JPEG becomes increasingly apparent, leading to a declining image quality. For different distortion levels, contrast sensitivity weighted images can accurately capture the changes of distortion structures in the image, especially in highly sensitive regions of the HVS.
Preprints 72827 g003

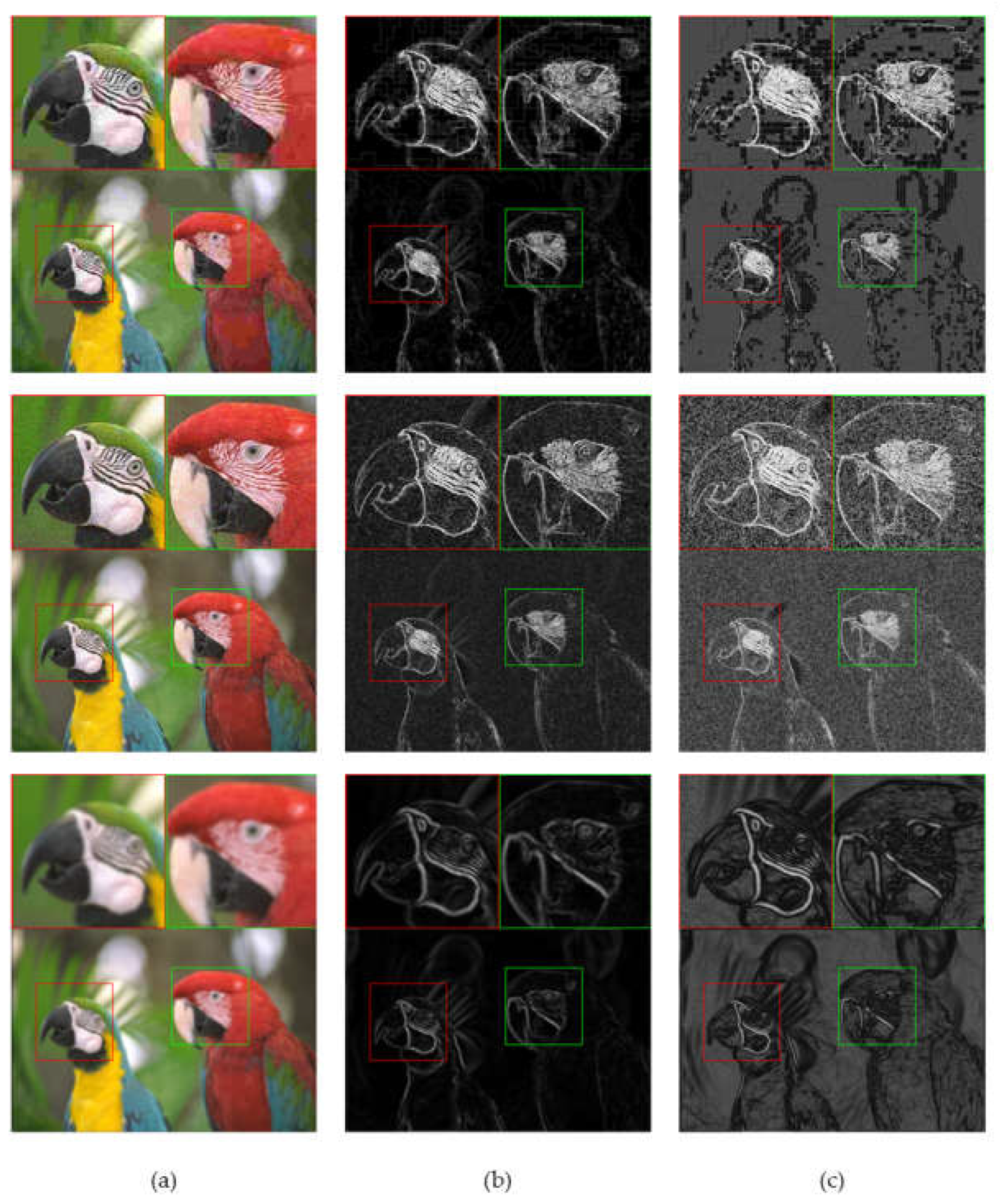

Figure 3. Examples of gradient images and the corresponding contrast sensitive weighted gradient images for different distortion types. (a) are the distorted images with JPEG compression distortion, white Gaussian noise (WN) distortion and Gaussian blur (GB) distortion. (b) are the gradient images. (c) are the contrast sensitive weighted gradient images.
Figure 3. Examples of gradient images and the corresponding contrast sensitive weighted gradient images for different distortion types. (a) are the distorted images with JPEG compression distortion, white Gaussian noise (WN) distortion and Gaussian blur (GB) distortion. (b) are the gradient images. (c) are the contrast sensitive weighted gradient images.
Preprints 72827 g003
Preprints 72827 g004

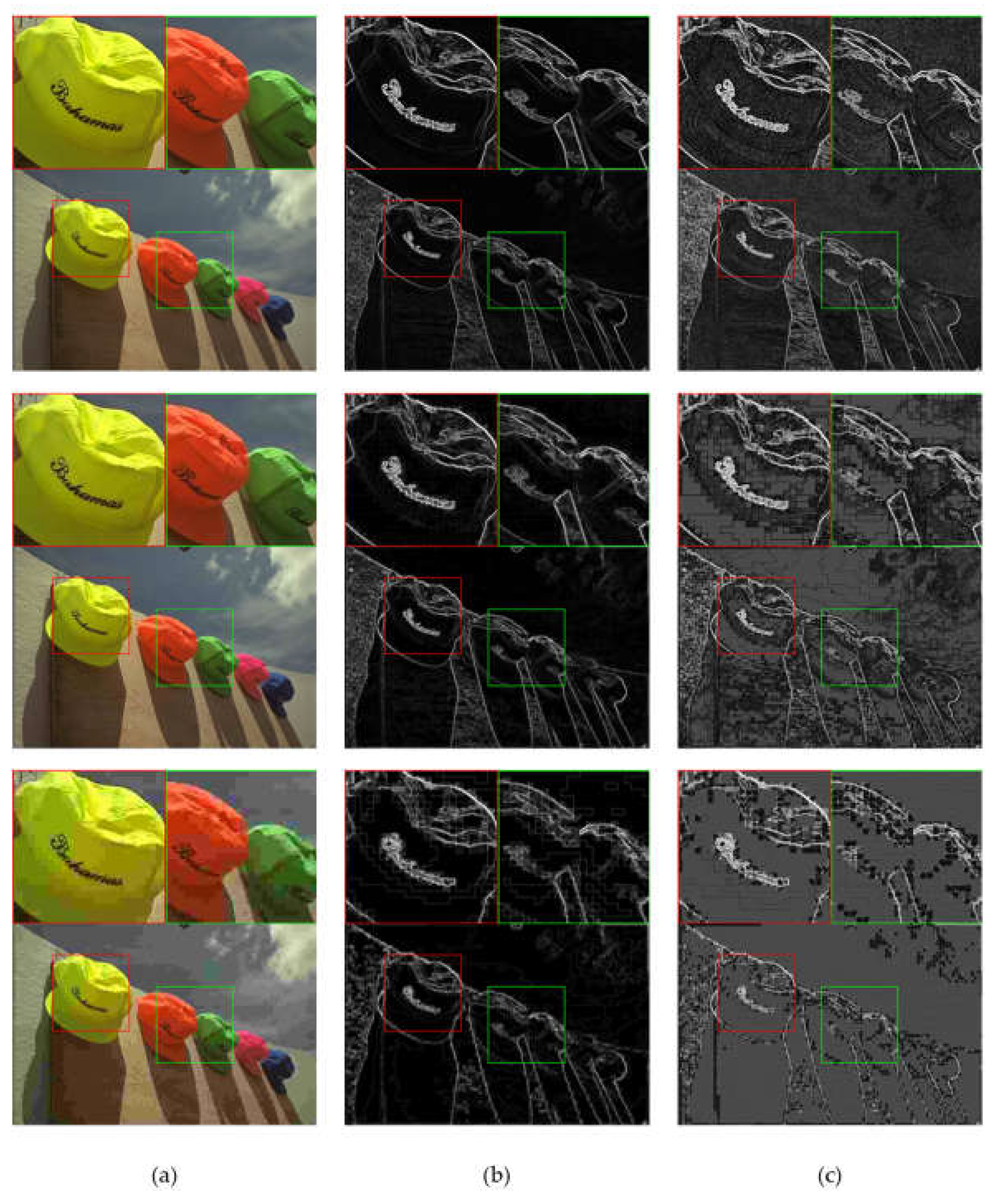

Figure 4. Examples of gradient images and the corresponding contrast sensitive weighted gradient images for different distortion levels of JPEG. (a) are JPEG distortion images at different levels, with DMOS scores of 12.56, 33.97 and 70.02 from top to bottom. The higher DMOS score indicates the worse quality. (b) are the gradient images. (c) are the contrast sensitive weighted gradient images.
Figure 4. Examples of gradient images and the corresponding contrast sensitive weighted gradient images for different distortion levels of JPEG. (a) are JPEG distortion images at different levels, with DMOS scores of 12.56, 33.97 and 70.02 from top to bottom. The higher DMOS score indicates the worse quality. (b) are the gradient images. (c) are the contrast sensitive weighted gradient images.
Preprints 72827 g004
The feature maps extracted by “what” pathway and “where” pathway on different distortion types are shown in Figure 5. It can be seen intuitively that the feature maps extracted by “what” pathway focus more on the content of the image, such as the lighthouse and buildings. The feature maps extracted by the “where pathway” not only focus on the shape of the main content, but also accurately perceives the global shape of the image. This makes the “where” pathway able to accurately extract the distorted structural features in the image and enhance them. For example, the block effect is strengthened in the feature map extracted by JPEG distortion, the global noise in WN distortion, and the blur effect areas are more focused in the feature map extracted by GB distortion. Overall, the feature maps extracted by the “where” pathway focus more on the main content of the image, while the “where pathway” focus more on global shape perception, rather than just the main features of the image. This is consistent with the function of the ventral and dorsal pathways, and improves the performance of the model.

3.2. Proposed Multi-scale Module

When the image quality is evaluated, the HVS not only focuses on the global content features of the image, which are the high-level features, but also pays attention to the local distortion features of the image, which are the low-level features [23]. This characteristic is particularly important for IQA tasks because it is often not uniformly distributed for the degree of distortion in images that have undergone authentic distortion. Using only global features may not enable the model to perceive the local distortion of the image. Therefore, we propose a multi-scale module to extract distortion features of different scales in distorted images and effectively fuse the multi-scale features from the two streams. This enables the model to focus on both global and local features simultaneously, which is more in line with the HVS perception.
The multi-scale module, as shown in Figure 6, concatenates the features output by Conv2_10, Conv3_12, and Conv4_18 in the “what” pathway and “where” pathway. A channel attention mechanism [45] is then used to reassign different channel importance to the concatenated feature map. Specifically, the concatenated feature map is first globally average pooled to a one-dimensional vector. Then, a fully connected layer is used to generate a weight vector W c for each channel, so that each channel has a corresponding weight to better distinguish the importance of each channel. Finally, the weight vector is multiplied with the concatenated feature map to further fuse the feature maps from the “what” pathway and the “where” pathway, thereby enhancing the representational power and robustness of the features. 1×1 convolution is used to reduce the number of channels in the fused feature map by half to reduce computational cost, and a global average pooling is applied to obtain a multi-scale feature vector. This process can be described as:
F i = F c ⨂ F p W c = σ ( W 2 δ ( W 1 G A P ( F i ) ) ) F i ' = W c F i F m = G A P ( C o n v 1 × 1 ( F i ' ) ) ,
where F c and F p denote the feature maps from the “what” pathway and “where” pathway, respectively. W 1 and W 2 are the parameters of two fully connected layers. σ ( ⋅ ) and δ ( ⋅ ) denote the sigmoid function and ReLU function. G A P ( ⋅ ) denotes global average pooling, and C o n v 1 × 1 ( ⋅ ) denotes 1 × 1 convolution operation.

3.3. Network Training

For data augmentation, we follow the training strategy in [11] and [46] by performing random horizontal flipping of the images in the training set and randomly sampling five 224×224 pixel image patches from each image to increase the number of training samples. The quality score of each image patch is the same as the quality score of the distorted image. The L 1 loss function is used to train the model:
L 1 = 1 N ∑ i = 1 N q i − q ^ i l 1 ,
where q i represents the ground truth score of the i t h image patch, q ^ i represents the predicted quality score of the i t h image patch by the model, N denotes the number of image patches, and l 1 denotes the l 1 -norm.
We use the Adam [47] optimizer for model parameter optimization with a weight decay rate of 5 × 10 − 4 . The model is trained for 50 epochs with a batch size of 48, and the initial learning rate is set to 5 × 10 − 5 which is reduced by half every 10 epochs. During the testing process, we also randomly sample five 224×224 image patches from each testing image, and calculate the average predicted quality score for five image patches as the quality score of the testing image. The proposed method is implemented by Pytorch and the experiments are conducted on NVIDIA 3080Ti GPU.

4. Experiments

4.1. Image Quality Databases

To evaluate the performance of the proposed method, experiments are conducted on both synthetically distorted databases and authentically distorted databases, and the proposed approach is compared with the state-of-the-art methods. The synthetically distorted databases include LIVE [28], CSIQ [24], TID2013 [29], KADID-10k [30], and Waterloo Exploration Database [38], with detailed information summarized in Table 2. The authentically distorted databases include LIVE Challenge (LIVEC) [31] and KonIQ-10k [48]. The LIVEC database contains 1,162 images captured by different photographers using different equipment in natural environments, which include complex authentic distortion types. The KonIQ-10k dataset contains 10,073 images selected from the YFCC100M database [49], ensuring diversity in image content and quality, and evenly distributed in brightness, color, contrast, and sharpness.

4.2. Experimental Protocols and Evaluation Metrics

To avoid content overlap between the training and testing images, we split 80% of the synthetically distorted databases based on the reference images for training and the remaining 20% for testing. For the authentically distorted databases, we directly split 80% of all images for training and 20% for testing. Each database is randomly split 10 times according to the aforementioned rule for experiments, and the average of 10 experimental results is taken as the final result.
We use the Spearman rank-order correlation coefficient (SROCC) and Pearson linear correlation coefficient (PLCC) to evaluate the performance of IQA methods. These coefficients are used to evaluate the monotonicity and linear correlation between the predicted scores and the ground truth scores, respectively. Their range is [−1, 1], and the larger the absolute value is, the better the model's performance is. In addition, on the Waterloo Exploration Database, the D-test metric is used to evaluate the model's ability to distinguish between reference images and distorted images, the L-Test metric is used to evaluate the consistency between the predicted rank orders with different distortion levels but the same content and distortion type and their true rank orders, and the P-Test metric is used to evaluate the consistency of the IQA model in terms of the distortion score order between image pairs and their true order.

4.3. Performance on Individual Database

The experimental results on individual databases are summarized in Table 3 and Table 4. The proposed method is compared with three traditional methods (PSNR, SSIM [50], and BRISQUE [5]) and seven deep learning-based methods (IQA-CNN [8], BIECON [33], MEON [35], DIQaM-NR [9], HyperIQA [11], MMMNet [51], AIGQA [52], DB-CNN [12], TS-CNN [13]) in terms of SROCC and PLCC results on six databases. Here, the DB-CNN and TS-CNN are similar to our proposed method, both with dual-stream structure.
From Table 3 and Table 4, it can be observed that all methods exhibit good performance on the LIVE and CSIQ databases which contain fewer distortion types. However, varying degrees of performance degradation are evident on more complex distortion types of the TID2013 and KADID databases, as well as the synthetically distorted databases of LIVEC and KonIQ.
On the synthetically distorted databases of LIVE, TID2013, and KADID, the proposed method achieves the top two SROCC and PLCC. On the authentically distorted databases of LIVEC and KonIQ, the performance of the proposed method is among the top two methods, partly because the proposed method adopts a pre-trained ResNet-50 as the backbone to enable the model to learn the authentic distortions in the images more easily. Additionally, since the degree of distortion distribution in authentic distortion images is uneven, the proposed method introduces a multi-scale feature fusion module. This allows the model to focus on local details and better align with human visual perception.
Overall, based on the SROCC and PLCC results, the proposed method demonstrates excellent performance on six commonly used databases. Compared with other dual-pathway structures such as DB-CNN and TS-CNN, the proposed method maintains a leading position on most databases. Particularly, compared with the TS-CNN, the proposed method shows a significant performance difference on authentically distorted databases. This is mainly due to the incorporation of the dual-path characteristics of the HVS in the proposed approach, which can extract the content and location features of distorted images simultaneously. The contrast sensitivity weighted gradient image can explicitly extract the frequency information that is of interest to human vision. Additionally, the proposed multi-scale feature fusion module allows the model to focus on both global content and local details.

4.4. Performance on Individual Distortion Types

To compare the performance of the proposed method with the state-of-the-art methods on individual distortion types, experiments are conducted on three synthetically distorted databases, LIVE, CSIQ, and TID2013. All the distortion types are used for training on each database, and testing is performed on specific distortion types. The experimental results are summarized in Table 5, Table 6 and Table 7 for each database, respectively.
From Table 5, it can be observed that the proposed method achieves the best performance on four distortion types, i.e., JPEG, WN, GB, and FF, in the LIVE database. Particularly, the proposed method outperforms other methods by a large margin on the FF distortion type. From Table 6, it can be seen that the proposed method achieves the best performance on four distortion types, i.e., JPEG, WN, PN, and CC, in the CSIQ database, and obtains the second and third-best performance on JP2K and GB distortion types, respectively, with a small gap from the top methods. For more complex distortion types of PN and CC, the proposed method still maintains a high SROCC.
It can be observed from Table 7 that the proposed method achieves top-two performance on 17 out of 24 distortion types, second only to HyperIQA's 19 types. Moreover, for complex distortion types such as NPN, BW, MS, and CC, most methods fail to achieve satisfactory results, while the proposed method still achieves relatively good performance. Figure 7 shows the SROCC line chart of CNN, MEON, DIQA, HyperIQA, DBCNN, and the proposed method on each distortion type of TID2013. It can be seen that our method maintains stable and excellent performance on all distortion types of TID2013. Overall, the experimental results on the individual distortion types of the three datasets demonstrate that our method also performs well for specific distortion types.

4.5. Performance Across Different Databases

Cross databases testing is a common method to test the model generalizability. We conduct cross databases test on four databases: LIVE, CSIQ, TID2013, and LIVEC. Specifically, we train the model on one database and test it on the others, such as training the model on the LIVE database and testing on the CSIQ, TID2013, and LIVEC databases, and so on. The SROCC results of the test are summarized in Table 8.
From Table 8, it can be seen that the proposed method achieves the best performance in a total of eight cases, surpassing the DB-CNN's three cases. When cross database testing is conducted among the three synthetically distorted databases (LIVE, CSIQ, and TID2013), most methods achieve relatively good results. However, because synthetically distorted databases cannot fully simulate the authentic distortion, many methods cannot achieve good performance on authentically distorted databases. Nevertheless, the proposed method still maintains good performance in such scenarios. Although it is trained on LIVE, CSIQ, and TID2013 and tested on LIVEC, it achieves the best performance. Similarly, when it is trained on LIVEC and tested on LIVE, CSIQ, and TID2013, our method also maintains good performance and achieves better results than other methods on the TID2013. Although the performance on the LIVE and CSIQ is slightly lower than DB-CNN, the proposed method still outperforms other methods and maintains a significant lead.
To further evaluate the generalization performance of the proposed method on large-scale database, we train the model on the entire LIVE database and test it on the Waterloo Exploration Database, calculating the D-Test, P-Test, and L-Test metrics. The experimental results are presented in Table 9. It can be observed that the proposed method achieves top two performance in both D-Test and L-Test metrics. It also demonstrates competitive performance in the P-Test metric, which further validates its superior generalization capability.

4.6. Ablation Experiments

To validate the effectiveness of the modules in the proposed method, ablation experiments are conducted on the LIVE, CSIQ, and LIVEC databases. The “what” pathway, which only takes distorted image as input, is used as the baseline model. Then, the “where” pathway is added, which takes the gradient image as input, followed by the contrast sensitivity weighted gradient image as input in comparison and finally the multi-scale module. The experimental results are summarized in Table 10.
From Table 10, it can be observed that when there is only one pathway in the model, the performance is poor, especially when it only contains the “where” pathway. This is because the model can only extract high-frequency information from the gradient image and lacks detail information. When the model contains both the "what" pathway and the "where" pathway, the model can extract rich structural information from the gradient domain of the distorted image and effectively improve the model's performance. It improves the performance by 0.011, 0.019, and 0.009 on the three databases, respectively. When the contrast sensitivity weighted gradient image is used as the input for the “where” pathway, the improvement in model performance is even more significant, increased by 0.015, 0.028, and 0.019 on the three databases, respectively. This demonstrates that using the contrast sensitivity weighted gradient map as input can explicitly make the model focus more on the sensitive parts of the HVS, making the model highly consistent with the HVS perception. Finally, adding the multi-scale module to the model shows that the performance of both “where” pathway and “what” pathway, which take the gradient image and contrast sensitivity weighted gradient map as input, are improved, with the largest improvement seen on the authentically distorted database LIVEC, increasing by 0.011 and 0.014, respectively. This is because the degree of image distortion in LIVEC is unevenly distributed, and the multi-scale module enables the model to focus on global features and local detail features simultaneously, thereby improving the model's performance.

5. Conclusion

In this paper, we propose a dual-pathway CNN model for BIQA based on the dual-pathway characteristic and contrast sensitivity of the HVS. Both pathways use pre-trained ResNet-50 as a feature extractor to enhance feature extraction capability. The model can be used to evaluate the image quality of both synthetic and authentic distortions. Considering the contrast sensitivity and edge sensitivity of the HVS, the method uses contrast sensitivity weighted gradient image as input to the “where” pathway, enabling the model to explicitly focus on the highly salient parts of distorted images. Finally, a multi-scale module is proposed to focus on global and local features of images simultaneously. Experimental results on individual databases and individual distortion types demonstrate that the proposed method's performance is comparable to the state-of-the-art methods. Cross database experiments and experiments on the Waterloo Exploration Database also demonstrate that the proposed method has a strong generalization performance.
Although the proposed method has achieved good performance on most commonly used databases, there are still rooms for further improvement in some aspects. For example, better feature fusion methods such as bilinear pooling or other fusion methods could be considered when global features from both pathways and global and local features are fused. In addition, it is also a future research direction on how to combine more HVS characteristics highly related to image quality assessment tasks (e.g., bandpass characteristic [56,57] and masking effect [58]) with deep learning methods.

Author Contributions

Conceptualization, F.C., Y.C.; methodology, F.C.; software, F.C.; validation, F.C.; formal analysis, F.C.; investigation, F.C.; resources, F.C.; data curation, F.C.; writing—original draft preparation, F.C.; writing—review and editing, H.F., H.Y. and Y.C.; visualization, F.C.; supervision, H.F., H.Y. and Y.C.; project administration, Y.C.; funding acquisition, Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Stabilization Support Plan for Shenzhen Higher Education Institutions, grant number 20200812165210001.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rehman, A.; Zeng, K.; Wang, Z. Display device-adapted video quality-of-experience assessment. Human vision and electronic imaging. 2015, 9394, 27–37. [Google Scholar]
  2. Wang, Z.; Bovik A, C. Modern image quality assessment. Synthesis Lectures on Image, Video, and Multimedia Processing. 2006, 2, 1–156. [Google Scholar]
  3. Wang, Z.; Bovik A, C. Reduced-and no-reference image quality assessment. IEEE Signal Processing Magazine. 2011, 28, 29–40. [Google Scholar] [CrossRef]
  4. Mittal, A.; Soundararajan, R.; Bovik A, C. Making a “completely blind” image quality analyzer. IEEE Signal processing letters. 2012, 20, 209–212. [Google Scholar] [CrossRef]
  5. Mittal, A.; Moorthy A, K.; Bovik A, C. No-reference image quality assessment in the spatial domain. IEEE Transactions on image processing. 2012, 21, 4695–4708. [Google Scholar] [CrossRef] [PubMed]
  6. Moorthy A, K.; Bovik A, C. Blind image quality assessment: From natural scene statistics to perceptual quality. IEEE transactions on Image Processing. 2011, 20, 3350–3364. [Google Scholar] [CrossRef]
  7. Moorthy A, K.; Bovik A, C. A two-step framework for constructing blind image quality indices. IEEE Signal processing letters. 2010, 17, 513–516. [Google Scholar] [CrossRef]
  8. Kang, L.; Ye, P.; Li, Y.; Doermann, D. Convolutional neural networks for no-reference image quality assessment. Proceedings of the IEEE conference on computer vision and pattern recognition, 2014, 1733-1740.
  9. Bosse, S.; Maniry, D.; Müller K, R.; Wiegand, T.; Samek, W. Deep neural networks for no-reference and full-reference image quality assessment. IEEE Transactions on image processing. 2017, 27, 206–219. [Google Scholar] [CrossRef]
  10. Kim, J.; Nguyen A, D.; Lee, S. Deep CNN-based blind image quality predictor. IEEE transactions on neural networks and learning systems. 2018, 30, 11–24. [Google Scholar] [CrossRef]
  11. Su S, Yan Q, Zhu Y, Zhang C.; Ge X.; Sun J.; Zhang Y. Blindly assess image quality in the wild guided by a self-adaptive hyper network. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2020, 3667-3676.
  12. Zhang, W.; Ma, K.; Yan, J.; Deng, D.; Wang, Z. Blind image quality assessment using a deep bilinear convolutional neural network. IEEE Transactions on Circuits and Systems for Video Technology. 2018, 30, 36–47. [Google Scholar] [CrossRef]
  13. Yan, Q.; Gong, D.; Zhang, Y. Two-stream convolutional networks for blind image quality assessment. IEEE Transactions on Image Processing. 2018, 28, 2200–2211. [Google Scholar] [CrossRef] [PubMed]
  14. Mishkin, M.; Ungerleider L, G. Contribution of striate inputs to the visuospatial functions of parieto-preoccipital cortex in monkeys. Behavioural brain research. 1982, 6, 57–77. [Google Scholar] [CrossRef] [PubMed]
  15. Goodale M, A.; Milner A, D. Separate visual pathways for perception and action. Trends in neurosciences. 1992, 15, 20–25. [Google Scholar] [CrossRef] [PubMed]
  16. Simonyan, K.; Zisserman, A. Two-stream convolutional networks for action recognition in videos. Advances in neural information processing systems. 2014, 27. [Google Scholar]
  17. Mannos, J.; Sakrison, D. The effects of a visual fidelity criterion of the encoding of images IEEE transactions on Information Theory. 1974, 20, 525–536.
  18. Woo, S.; Park, J.; Lee J, Y.; Kweon I, S. Cbam: Convolutional block attention module. Proceedings of the European conference on computer vision (ECCV), 2018, 3-19.
  19. Achanta, R.; Hemami, S.; Estrada, F.; Susstrunk, S. Frequency-tuned salient region detection. 2009 IEEE conference on computer vision and pattern recognition, 2009. 1597-1604.
  20. Campbell F, W.; Robson J, G. Application of Fourier analysis to the visibility of gratings. The Journal of physiology. 1968, 197, 551. [Google Scholar] [CrossRef] [PubMed]
  21. Gao, X.; Lu, W.; Tao, D.; Li, X. Image quality assessment based on multiscale geometric analysis. IEEE Transactions on Image Processing. 2009, 18, 1409–1423. [Google Scholar] [PubMed]
  22. Saha, A.; Wu Q M, J. Utilizing image scales towards totally training free blind image quality assessment. IEEE Transactions on Image Processing. 2015, 24, 1879–1892. [Google Scholar] [CrossRef]
  23. Shnayderman, A.; Gusev, A.; Eskicioglu A, M. An SVD-based grayscale image quality measure for local and global assessment. IEEE transactions on Image Processing. 2006, 15, 422–429. [Google Scholar] [CrossRef]
  24. Larson E, C.; Chandler D, M. Most apparent distortion: full-reference image quality assessment and the role of strategy. Journal of electronic imaging. 2010, 19, 011006–011006-21. [Google Scholar]
  25. Wang, Z.; Simoncelli E, P.; Bovik A, C. Multiscale structural similarity for image quality assessment. The Thrity-Seventh Asilomar Conference on Signals, Systems & Computers, 2003. 2003, 2: 1398-1402.
  26. Pan, Z.; Zhang, H.; Lei, J.; Fang, Y.; Shao, X.; Ling, N.; Kwong, S. DACNN: Blind image quality assessment via a distortion-aware convolutional neural network. IEEE Transactions on Circuits and Systems for Video Technology. 2022, 32, 7518–7531. [Google Scholar] [CrossRef]
  27. Saad M, A.; Bovik A, C.; Charrier, C. A DCT statistics-based blind image quality index. IEEE Signal Processing Letters. 2010, 17, 583–586. [Google Scholar] [CrossRef]
  28. Sheikh H, R.; Sabir M, F.; Bovik A, C. A statistical evaluation of recent full reference image quality assessment algorithms. IEEE Transactions on image processing. 2006, 15, 3440–3451. [Google Scholar] [CrossRef] [PubMed]
  29. Ponomarenko, N.; Jin, L.; Ieremeiev, O.; Lukin, V.; Egiazarian, K.; Astola, J.; Kuo C C, J. Image database TID2013: Peculiarities, results and perspectives. Signal processing: Image communication. 2015, 30, 57–77. [Google Scholar] [CrossRef]
  30. Lin, H.; Hosu, V.; Saupe, D. KADID-10k: A large-scale artificially distorted IQA database. 2019 Eleventh International Conference on Quality of Multimedia Experience (QoMEX), 2019, 1-3.
  31. Ghadiyaram, D.; Bovik A, C. Massive online crowdsourced study of subjective and objective picture quality. IEEE Transactions on Image Processing. 2015, 25, 372–387. [Google Scholar] [CrossRef] [PubMed]
  32. Simonyan, K.; Zisserman, A. Very Deep Convolutional Networks for Large-Scale Image Recognition. Computer Science. 2014. [Google Scholar]
  33. Kim, J.; Lee, S. Fully deep blind image quality predictor. IEEE Journal of selected topics in signal processing. 2016, 11, 206–220. [Google Scholar] [CrossRef]
  34. Kang, L.; Ye, P.; Li, Y.; Doermann, D. Simultaneous estimation of image quality and distortion via multi-task convolutional neural networks. 2015 IEEE international conference on image processing (ICIP), 2015, 2791-2795.
  35. Ma, K.; Liu, W.; Zhang, K.; Duanmu, Z.; Wang, Z.; Zuo, W. End-to-end blind image quality assessment using deep neural networks. IEEE Transactions on Image Processing. 2017, 27, 1202–1213. [Google Scholar] [CrossRef]
  36. Deng, J.; Dong, W.; Socher, R.; Li L, J.; Li, K.; Fei-Fei, L. Imagenet: A large-scale hierarchical image database. 2009 IEEE conference on computer vision and pattern recognition, 2009, 248-255.
  37. Ma, K.; Duanmu, Z.; Wu, Q.; Wang, Z.; Yong, H.; Li, H.; Zhang, L. Waterloo exploration database: New challenges for image quality assessment models. IEEE Transactions on Image Processing. 2016, 26, 1004–1016. [Google Scholar] [CrossRef]
  38. Everingham, M.; Van Gool, L.; Williams C, K.; Winn, J.; Zisserman, A. The pascal visual object classes (voc) challenge. International journal of computer vision. 2009, 88, 303–308. [Google Scholar] [CrossRef]
  39. Zhixian Han. ; Anne Sereno. Identifying and Localizing Multiple Objects Using Artificial Ventral and Dorsal Cortical Visual Pathways. Neural Comput. 2023, 35, 249–275. [Google Scholar] [CrossRef]
  40. Zhixian Han. ; Anne Sereno. Modeling the Ventral and Dorsal Cortical Visual Pathways Using Artificial Neural Networks. Neural Comput. 2022, 34, 138–171. [Google Scholar] [CrossRef] [PubMed]
  41. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. Proceedings of the IEEE conference on computer vision and pattern recognition, 2016, 770-778.
  42. Xue, W.; Zhang, L.; Mou, X.; Bovik A, C. Gradient magnitude similarity deviation: A highly efficient perceptual image quality index. IEEE transactions on image processing. 2013, 23, 684–695. [Google Scholar] [CrossRef] [PubMed]
  43. Ayzenberg, V.; Behrmann, M. The dorsal visual pathway represents object-centered spatial relations for object recognition. Journal of Neuroscience. 2022, 42, 4693–4710. [Google Scholar] [CrossRef] [PubMed]
  44. Jähne, B.; Haussecker, H.; Geissler, P. Handbook of computer vision and applications with Cdrom. New York: Academic press, 1999; pp. 423–450.
  45. Hu, J.; Shen, L.; Sun, G. Squeeze-and-excitation networks. Proceedings of the IEEE conference on computer vision and pattern recognition, 2018, 7132-7141.
  46. Kim, J.; Zeng, H.; Ghadiyaram, D.; Lee, S.; Zhang, L.; Bovik A, C. Deep convolutional neural models for picture-quality prediction: Challenges and solutions to data-driven image quality assessment. IEEE Signal processing magazine. 2017, 34, 130–141. [Google Scholar] [CrossRef]
  47. Kingma D P.; Ba J. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014. arXiv:1412.6980, 2014.
  48. Hosu, V.; Lin, H.; Sziranyi, T.; Saupe, D. KonIQ-10k: An ecologically valid database for deep learning of blind image quality assessment. IEEE Transactions on Image Processing. 2020, 29, 4041–4056. [Google Scholar] [CrossRef] [PubMed]
  49. Thomee, B.; Shamma D, A.; Friedland, G.; Elizalde, B.; Ni, K.; Poland, D.; Li L, J. YFCC100M: The new data in multimedia research. Communications of the ACM. 2016, 59, 64–73. [Google Scholar] [CrossRef]
  50. Wang, Z.; Bovik A, C.; Sheikh H, R.; Simoncelli E, P. Image quality assessment: from error visibility to structural similarity. IEEE transactions on image processing. 2004, 13, 600–612. [Google Scholar] [CrossRef]
  51. Li, F.; Zhang, Y.; Cosman P, C. MMMNet: An end-to-end multi-task deep convolution neural network with multi-scale and multi-hierarchy fusion for blind image quality assessment. IEEE Transactions on Circuits and Systems for Video Technology. 2021, 31, 4798–4811. [Google Scholar] [CrossRef]
  52. Ma, J.; Wu, J.; Li, L.; Dong, W.; Xie, X.; Shi, G.; Lin, W. Blind image quality assessment with active inference. IEEE Transactions on Image Processing. 2021, 30, 3650–3663. [Google Scholar] [CrossRef]
  53. Ye, P.; Kumar, J.; Kang, L.; Doerman, D. Unsupervised feature learning framework for no-reference image quality assessment. 2012 IEEE conference on computer vision and pattern recognition, 2012, 1098-1105.
  54. Xu, J.; Ye, P.; Li, Q.; Du, H.; Liu, Y.; Doermann, D. Blind image quality assessment based on high order statistics aggregation. IEEE Transactions on Image Processing. 2016, 25, 4444–4457. [Google Scholar] [CrossRef]
  55. Ma, K.; Liu, W.; Liu, T.; Wang, Z.; Tao, D. dipIQ: Blind image quality assessment by learning-to-rank discriminable image pairs. IEEE Transactions on Image Processing. 2017, 26, 3951–3964. [Google Scholar] [CrossRef] [PubMed]
  56. Daugman J, G. Two-dimensional spectral analysis of cortical receptive field profiles. Vision research. 1980, 20, 847–856. [Google Scholar] [CrossRef] [PubMed]
  57. Lee T, S. Image representation using 2D Gabor wavelets. IEEE Transactions on pattern analysis and machine intelligence. 1996, 18, 959–971. [Google Scholar]
  58. Legge G E, Foley J M. Contrast masking in human vision. J Opt Soc Am. 1980, 70, 1458–1471. [Google Scholar] [CrossRef]
Preprints 72827 g001

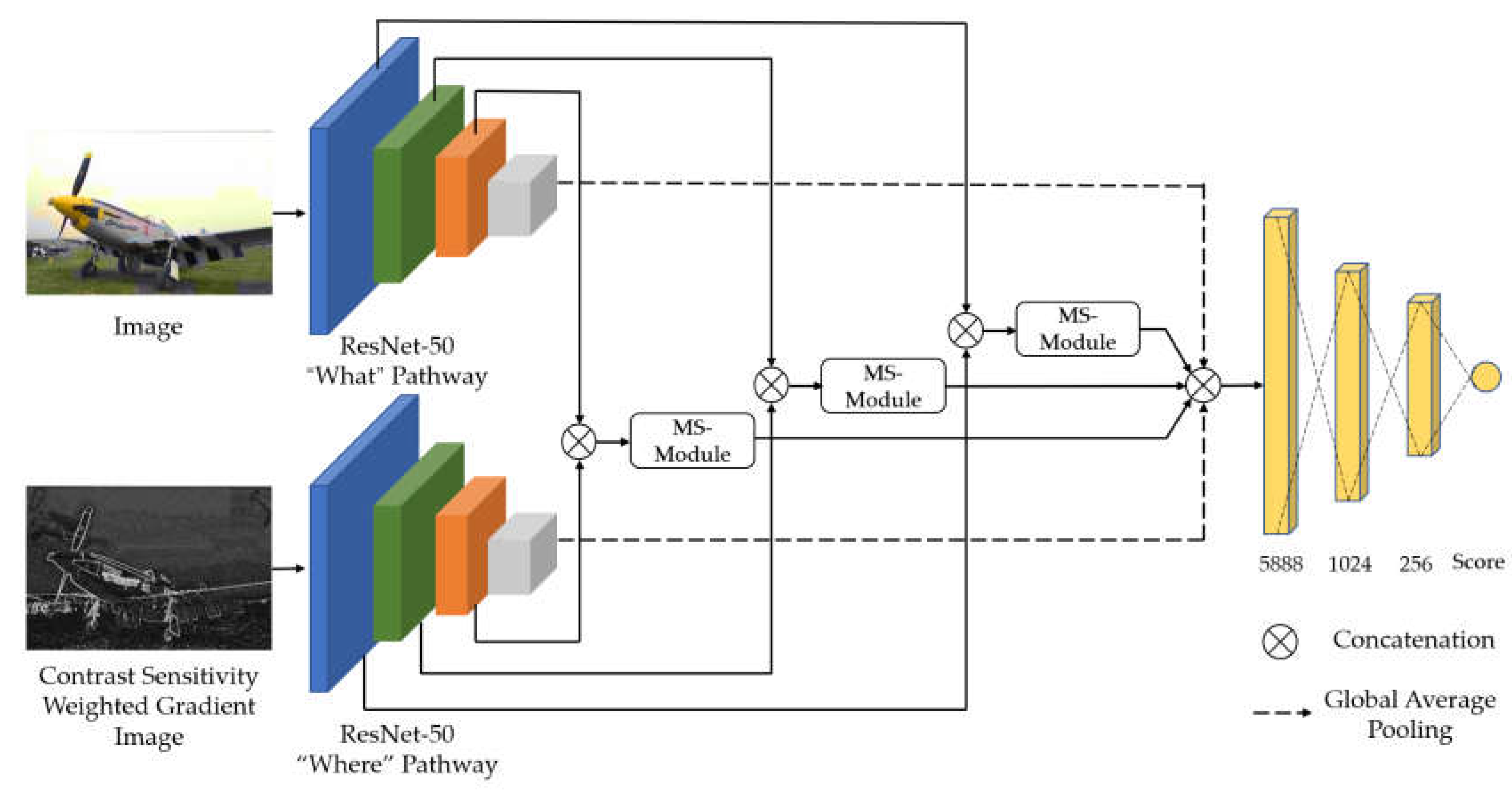

Figure 1. The architecture of the proposed method. MS-Module represents the multi-scale module which is shown in Figure 4.
Figure 1. The architecture of the proposed method. MS-Module represents the multi-scale module which is shown in Figure 4.
Preprints 72827 g001
Preprints 72827 g002

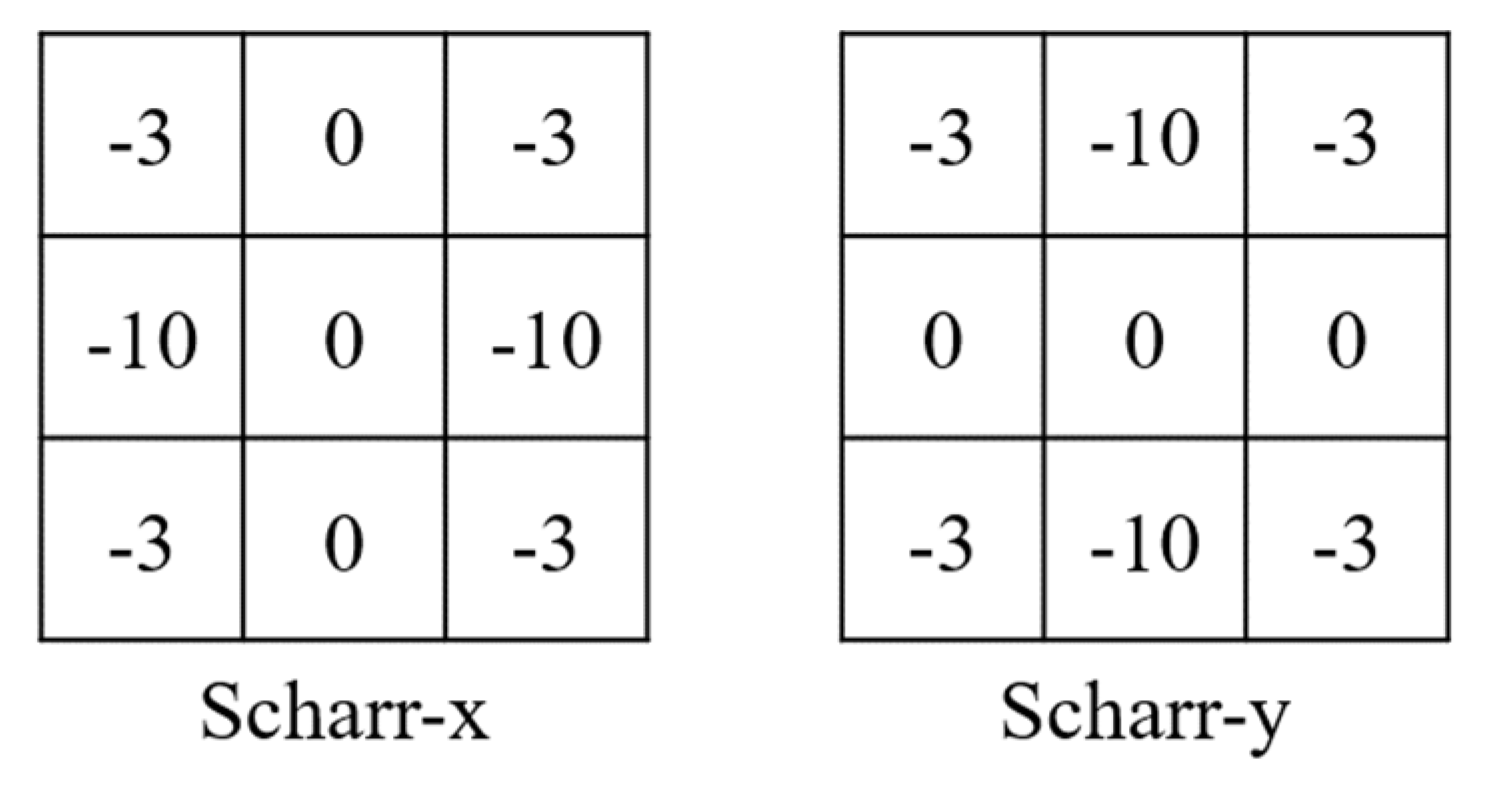

Figure 2. The structure of the Scharr operator.
Figure 2. The structure of the Scharr operator.
Preprints 72827 g002
Preprints 72827 g005

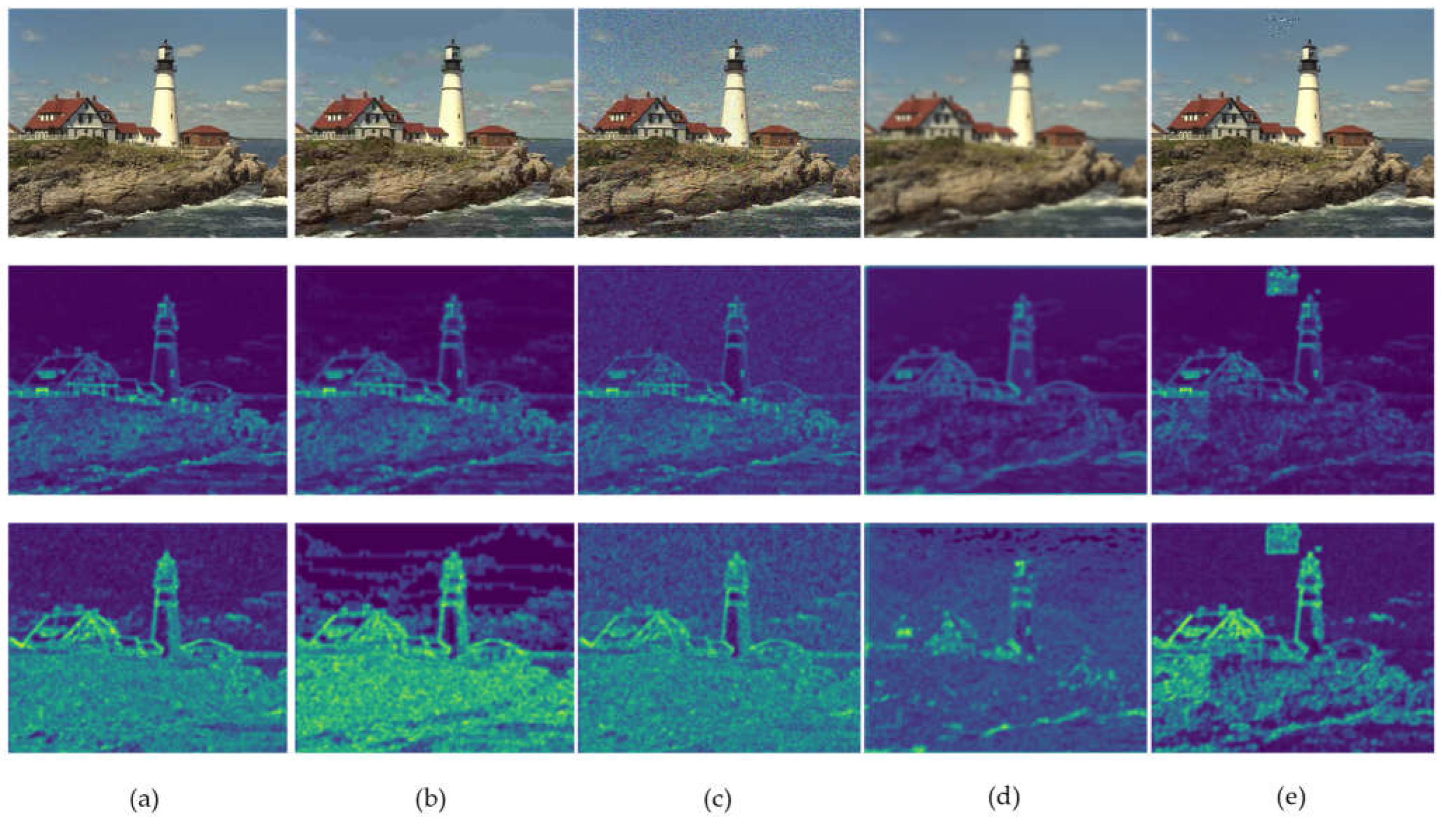

Figure 5. Examples of feature maps extracted by “what” pathway and “where” pathway on different distortion types, where the images from top to bottom are distorted images, feature maps extracted by the “what” pathway, and feature maps extracted by the “where” pathway. (a) is the JP2K compression distortion, (b) is the JPEG compression distortion, (c) is the WN distortion, (d) is the GB distortion, and (e) is the FF distortion.
Figure 5. Examples of feature maps extracted by “what” pathway and “where” pathway on different distortion types, where the images from top to bottom are distorted images, feature maps extracted by the “what” pathway, and feature maps extracted by the “where” pathway. (a) is the JP2K compression distortion, (b) is the JPEG compression distortion, (c) is the WN distortion, (d) is the GB distortion, and (e) is the FF distortion.
Preprints 72827 g005
Preprints 72827 g006

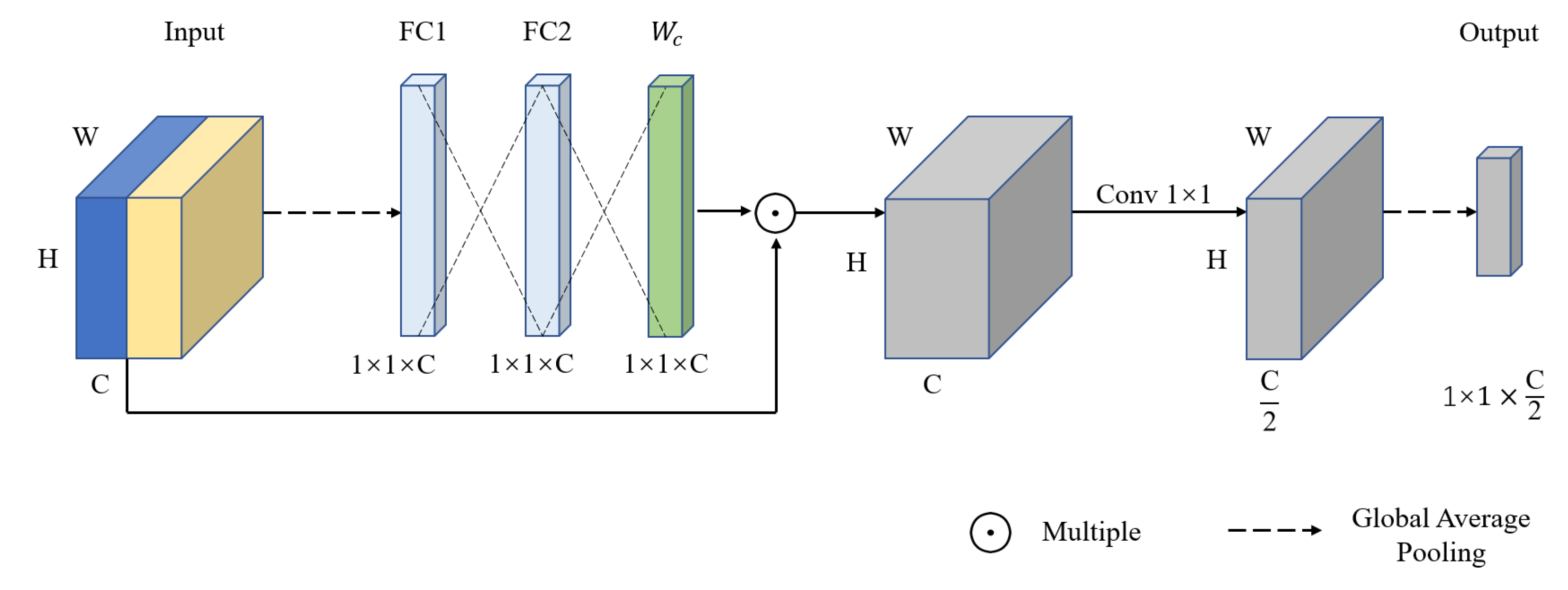

Figure 6. The structure of the proposed multi-scale module. Where W, H, C represents the width, height and channels of the feature map, respectively.
Figure 6. The structure of the proposed multi-scale module. Where W, H, C represents the width, height and channels of the feature map, respectively.
Preprints 72827 g006
Preprints 72827 g007

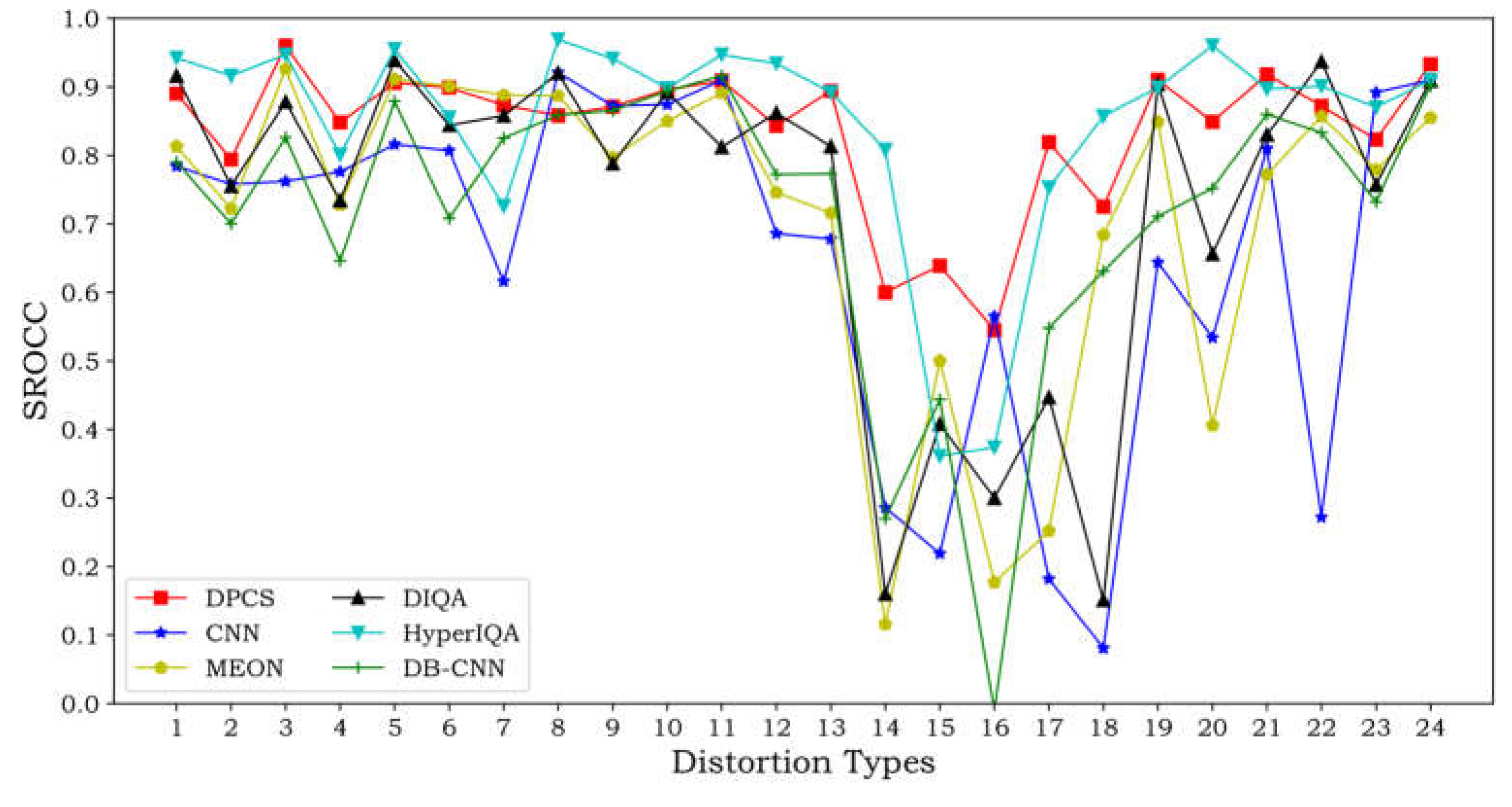

Figure 7. The SROCC line chart of the individual distortion type on the TID2013 database.
Figure 7. The SROCC line chart of the individual distortion type on the TID2013 database.
Preprints 72827 g007
Table 1. The architecture of ResNet-50.
Table 1. The architecture of ResNet-50.
Conv1 Conv2_10 Conv3_12 Conv4_18 Conv5_9
7×7, 64, s2 3×3 max pool, s2 1 × 1 , 128 3 × 3 , 128 1 × 1 , 512 × 4 1 × 1 , 256 3 × 3 , 256 1 × 1 , 1024 × 6 1 × 1 , 512 3 × 3 , 512 1 × 1 , 2048 × 3
1 × 1 , 64 3 × 3 , 64 1 × 1 , 256 × 3
Table 2. Details of the synthetically distorted databases.
Table 2. Details of the synthetically distorted databases.
Database Ref. imgs Dist. imgs Dist. types Score’s type
LIVE [28] 29 779 5 DMOS
CSIQ [24] 30 866 6 DMOS
TID2013 [29] 25 3000 24 MOS
KADID-10k [30] 81 10125 25 DMOS
Waterloo [38] 4744 94880 4 /
Table 3. The SROCC results on six databases. The top two results are shown in bold font.
Table 3. The SROCC results on six databases. The top two results are shown in bold font.
SROCC LIVE CSIQ TID2013 KADID LIVEC KonIQ
PSNR 0.866 0.806 0.636 0.674 - -
SSIM [50] 0.913 0.876 0.637 0.783 - -
BRISQUE [5] 0.940 0.746 0.604 0.519 0.607 0.673
IQA-CNN [8] 0.956 0.876 0.701 0.651 0.516 0.655
BIECON [33] 0.961 0.825 0.717 0.685 0.595 0.618
MEON [35] 0.943 0.839 0.828 0.813 0.693 0.754
DIQaM-NR [9] 0.960 0.901 0.835 0.840 0.606 0.722
HyperIQA [11] 0.962 0.923 0.840 0.852 0.859 0.906
MMMNet [51] 0.970 0.924 0.832 0.841 0.852 0.867
AIGQA [52] 0.960 0.927 0.871 0.864 0.751 0.766
DB-CNN [12] 0.968 0.946 0.816 0.801 0.851 0.875
TS-CNN [13] 0.969 0.892 0.779 0.745 0.655 0.722
DPCS 0.971 0.929 0.866 0.882 0.856 0.909
Table 4. The PLCC results on six databases. The top two results are shown in bold font.
Table 4. The PLCC results on six databases. The top two results are shown in bold font.
PLCC LIVE CSIQ TID2013 KADID LIVEC KonIQ
PSNR 0.856 0.800 0.706 0.681 - -
SSIM [50] 0.931 0.861 0.691 0.780 - -
BRISQUE [5] 0.942 0.829 0.694 0.554 0.585 0.692
IQA-CNN [8] 0.953 0.905 0.752 0.607 0.536 0.671
BIECON [33] 0.962 0.838 0.762 0.691 0.613 0.651
MEON [35] 0.954 0.850 0.811 0.822 0.688 0.760
DIQaM-NR [9] 0.972 0.908 0.855 0.843 0.601 0.736
HyperIQA [11] 0.966 0.942 0.858 0.845 0.882 0.917
MMMNet [51] 0.970 0.937 0.853 0.840 0.846 0.871
AIGQA [52] 0.957 0.952 0.893 0.863 0.761 0.773
DB-CNN [12] 0.971 0.959 0.865 0.806 0.869 0.884
TS-CNN [13] 0.978 0.905 0.784 0.744 0.667 0.729
DPCS 0.973 0.935 0.880 0.884 0.873 0.914
Table 5. The SROCC results of the individual distortion type on the LIVE database. The top two results are shown in bold font.
Table 5. The SROCC results of the individual distortion type on the LIVE database. The top two results are shown in bold font.
SROCC JP2K JPEG WN GB FF
PSNR 0.870 0.885 0.942 0.763 0.874
SSIM [50] 0.939 0.946 0.964 0.907 0.941
BRISQUE [5] 0.910 0.919 0.955 0.941 0.874
IQA-CNN [8] 0.936 0.965 0.974 0.952 0.906
BIECON [33] 0.952 0.974 0.980 0.956 0.923
MEON [35] 0.953 0.964 0.981 0.958 0.904
DIQaM-NR [9] 0.914 0.951 0.972 0.944 0.926
HyperIQA [11] 0.949 0.961 0.982 0.926 0.934
DB-CNN [12] 0.955 0.972 0.980 0.935 0.930
TS-CNN [13] 0.966 0.950 0.979 0.963 0.911
MMMNet [51] 0.968 0.974 0.985 0.935 0.936
DPCS 0.963 0.978 0.987 0.966 0.957
Table 6. The SROCC results of the individual distortion type on the CSIQ database. The top two results are shown in bold font.
Table 6. The SROCC results of the individual distortion type on the CSIQ database. The top two results are shown in bold font.
SROCC JP2K JPEG WN GB PN CC
PSNR 0.926 0.888 0.936 0.829 0.874 0.852
SSIM [49] 0.921 0.922 0.925 0.914 0.941 0.740
BRISQUE [5] 0.840 0.806 0.723 0.820 0.378 0.804
IQA-CNN [8] 0.930 0.915 0.919 0.918 0.900 0.786
BIECON [33] 0.954 0.942 0.902 0.946 0.884 0.523
MEON [35] 0.934 0.922 0.944 0.901 0.867 0.847
DIQaM-NR [9] 0.896 0.946 0.947 0.908 0.895 0.807
HyperIQA [11] 0.960 0.934 0.927 0.915 0.931 0.874
DB-CNN [12] 0.953 0.940 0.948 0.947 0.940 0.870
TS-CNN [13] 0.914 0.907 0.938 0.895 0.882 0.866
MMMNet [51] 0.932 0.912 0.879 0.894 0.941 0.942
DPCS 0.936 0.947 0.954 0.930 0.944 0.912
Table 7. The SROCC results of the individual distortion types on the TID2013 database. The top two results are shown in bold font.
Table 7. The SROCC results of the individual distortion types on the TID2013 database. The top two results are shown in bold font.
SROCC BRISQUE [5] IQA-CNN [8] MEON [35] DIQA [10] HyperIQA [11] DB-CNN [12] TS-CNN [13] DPCS
AGN 0.711 0.784 0.813 0.916 0.942 0.790 0.816 0.890
ANC 0.432 0.758 0.722 0.755 0.916 0.700 0.704 0.794
SCN 0.746 0.762 0.926 0.878 0.947 0.826 0.809 0.960
MN 0.252 0.776 0.728 0.734 0.801 0.646 0.475 0.848
HFN 0.842 0.816 0.911 0.939 0.955 0.879 0.833 0.906
IN 0.765 0.807 0.901 0.844 0.855 0.708 0.819 0.899
QN 0.662 0.616 0.888 0.858 0.726 0.825 0.801 0.873
GB 0.871 0.921 0.887 0.920 0.969 0.859 0.786 0.858
DEN 0.612 0.872 0.797 0.788 0.941 0.865 0.733 0.871
JPEG 0.764 0.874 0.850 0.892 0.898 0.894 0.847 0.896
JP2K 0.745 0.910 0.891 0.812 0.947 0.916 0.851 0.909
JGTE 0.301 0.686 0.746 0.862 0.934 0.772 0.699 0.843
J2TE 0.748 0.678 0.716 0.813 0.892 0.773 0.766 0.894
NPN 0.269 0.286 0.116 0.160 0.808 0.270 0.211 0.600
BW 0.207 0.219 0.500 0.408 0.361 0.444 0.313 0.639
MS 0.219 0.565 0.177 0.300 0.374 -0.009 0.107 0.545
CC -0.001 0.182 0.252 0.447 0.753 0.548 0.315 0.819
CCS 0.003 0.081 0.684 0.151 0.857 0.631 0.324 0.725
MGN 0.717 0.644 0.849 0.904 0.899 0.711 0.744 0.910
CN 0.196 0.534 0.406 0.656 0.960 0.752 0.638 0.849
LCNI 0.609 0.810 0.772 0.830 0.897 0.860 0.742 0.918
ICQD 0.831 0.272 0.857 0.937 0.901 0.833 0.759 0.872
CHA 0.615 0.892 0.779 0.757 0.870 0.732 0.714 0.823
SSR 0.807 0.910 0.855 0.909 0.910 0.902 0.826 0.933
Mean 0.538 0.652 0.709 0.728 0.846 0.714 0.651 0.836
Count 0 3 3 5 19 1 0 17
Table 8. The SROCC results of cross database test. The top result is shown in bold font.
Table 8. The SROCC results of cross database test. The top result is shown in bold font.
Training LIVE TID2013
Testing CSIQ TID2013 LIVEC LIVE CSIQ LIVEC
DIIVINE [6] 0.582 0.373 0.300 0.714 0.585 0.230
BRISQUE [5] 0.562 0.358 0.326 0.758 0.570 0.209
CORNIA [53] 0.620 0.382 0.431 0.829 0.662 0.267
HOSA [54] 0.598 0.470 0.455 0.844 0.609 0.253
IQA-CNN [8] 0.616 0.407 0.103 0.530 0.600 0.102
DIQaM-NR [9] 0.623 0.425 0.206 0.812 0.698 0.112
DB-CNN [12] 0.758 0.524 0.567 0.891 0.807 0.457
TS-CNN [13] 0.621 0.431 0.273 0.576 0.609 0.114
MMMNet [51] 0.793 0.546 0.502 0.853 0.702 0.348
DPCS 0.743 0.614 0.587 0.897 0.739 0.462
Training CSIQ LIVEC
Testing LIVE TID2013 LIVEC LIVE CSIQ TID2013
DIIVINE [6] 0.815 0.419 0.366 0.362 0.417 0.337
BRISQUE [5] 0.790 0.590 0.106 0.346 0.245 0.258
CORNIA [53] 0.843 0.331 0.393 0.578 0.456 0.403
HOSA [54] 0.770 0.341 0.309 0.537 0.336 0.399
IQA-CNN [8] 0.713 0.315 0.103 0.213 0.195 0.132
DIQaM-NR [9] 0.817 0.516 0.114 0.319 0.313 0.215
DB-CNN [12] 0.877 0.540 0.452 0.746 0.697 0.424
TS-CNN [13] 0.836 0.477 0.158 0.283 0.249 0.225
MMMNet [51] 0.890 0.522 0.406 0.528 0.518 0.398
DPCS 0.893 0.584 0.491 0.638 0.686 0.426
Table 9. Results of D-Test, L-Test and P-Test. The top two results are shown in bold font.
Table 9. Results of D-Test, L-Test and P-Test. The top two results are shown in bold font.
Method D-Test L-Test P-Test
BRISQUE [5] 0.920 0.977 0.993
IQA-CNN [8] 0.929 0.930 0.997
dipIQ [55] 0.935 0.985 0.999
DIQaM-NR [9] 0.907 0.947 0.963
MEON [35] 0.938 0.967 0.998
HyperIQA [11] 0.901 0.975 0.997
DB-CNN [12] 0.962 0.961 0.999
TS-CNN [13] 0.930 0.979 0.995
DPCS 0.941 0.976 0.999
Table 10. The SROCC results of the ablation experiments.
Table 10. The SROCC results of the ablation experiments.
Baseline √ √ √ √ √
Gradient Image √ √ √ √ √ √
Contrast Sensitivity √ √ √
Multi-scale Module √ √
LIVE 0.951 0.938 0.944 0.962 0.968 0.966 0.971
CSIQ 0.894 0.864 0.875 0.913 0.921 0.922 0.929
LIVEC 0.823 0.768 0.773 0.832 0.843 0.842 0.856
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
