The Effect of Nitrogen Fertilization on Tree Growth, Fruit Yield and Quality of Clementine Nules on Two Citrus Rootstocks in the Gharb Region (Morocco)

Altmetrics

Downloads

200

Views

97

Comments

0

Submitted:

11 May 2023

Posted:

11 May 2023

You are already at the latest version

Alerts
Abstract
The objective of the current study is to evaluate the effects of nitrogen rate N on tree growth, fruit yield and quality of clementine Nules variety, budded on Flhorag and Carrizo citrange rootstocks, grown on clay soils at the Experimental station of Sidi Allal Tazi, INRA Morocco, over five seasons. The experiment has been carried out in a split-plot design with three replications, including the nitrogen doses as the main plot and rootstock the subplot. Three fertilization treatments of the rates of N (g/tree) (T0: control (native nutrient), T1: 270, T2: 540 in g/tree) and 135 P2O5, 270 K2O g/tree have been applied to citrus trees in field conditions. The study found that nitrogen rate and rootstock genotype had significant effects on vegetative growth, yield, and fruit quality of Nules clementine. As N rate increased, vegetative growth improved significantly, with the trees grafted on Carrizo citrange and fertilized with T2 (540 N g/tree) showing the best results. A strong positive correlation was also observed between canopy volume and fruit yield for both rootstock genotypes. Carrizo citrange proved to be a more efficient rootstock for Nules variety than Flhorag, with higher yield and better fruit quality. As a conclusion, the recommended NPK rate for obtaining an optimal yield and good fruit quality of Nules clementine fruits was 540 N-135 P2O5-270 K2O g/tree/year under Sidi Allal Tazi–Gharb (Morocco) conditions.
Keywords:
Subject: Biology and Life Sciences  -   Agricultural Science and Agronomy

1. Introduction

Citrus fruits are the most widely produced fruit crops in the world. In Morocco, the citrus fruits cover an area of 129,000 ha and an average production of around 2.4 million T/year [1,2].
During the last few years, citrus plantations have increased due to increasing demands of local consumption and export, which expected to bloom in the future. Unfortunately, the citrus productivity in Morocco is low (19T/ha) as compared to other countries such as Spain, Turkey and Egypt (20-34T/ha) [1,2]. In fact, most of the current fertilization programs are based either on very old local recommendations which are no longer suitable for new variety-rootstock associations, or come from other countries whose citrus growing conditions differ from those of Moroccan orchards. Such extensions in acreage are preferred to be accompanied by more studies regarding the optimum nutrient fertilizer management and the best citrus rootstock for gaining the highest yield and optimal citrus fruit quality.
Citrus is a nutrient loving and requires adequate nutrition for proper growth and development [3]. The bearing trees consume considerable amount of nutrients from the soil and these must be replenished to maintain soil fertility and get high yields of good quality fruits. The feeding of macro and micronutrients has gained much importance due to their impact on the fruit yield.
Nutrient management is one of the largest shares of cost with its impact on potential yield and crop quality. Perennial fruit crops are heavy feeders of plant nutrients and high yields can only be sustained through the application of optimal doses in balanced proportion [4].
Adequate supply of Nitrogen (N), Phosphorus (P) and Potassium (K) is important for citrus tree growth [5]. Nitrogen is the key component in mineral fertilizers applied to citrus groves; it has more influence on tree growth, appearance and fruit production/quality than any other element [6]. In young trees, N fertilizers can promote vegetative growth and decrease flower induction [7]. Excess nitrogen application enhances vegetative tree growth and may cause groundwater contamination if leached with excess irrigation and/or rainfall [8]. However, it affects the absorption and distribution of practically all other elements [9].
The nitrogen deficiency leads to decrease plant growth. The typical symptom is observed on the old leaves due to the translocation of nitrogen from the old to the developing young leaves [10,11]. The old leaves, therefore, become yellow and fall off in the time, so the branches become dry and die from the top. This causes poor production of a small-size fruits of citrus [12,13].
Nitrogen (N) is the most important nutrient in the plant. It is a crucial and primary element of amino acid, proteins, enzyme and chlorophyll [12,14,15,16,17,18,19,20,21,22].Several studies have been reported that the nitrogen supply has a significant effect on citrus fruits quality [14,15,17,23,24,25,26,27,28,29].
Yield and fruit quality as well as physical and chemical properties of various cultivars of citrus trees were positively affected by using balanced program for NPK fertilization applied via sol [23,30,31,32,33].The benefit of finding out an optimum NPK fertilization for gaining an optimal yield was recently supported by the results of Omari et al., [23] and Huang et al., [34].The results obtained in previous research, reported that varying citrus rootstocks affected yield and fruit quality of different citrus scions [23,24,35,36,37,38,39,40].
In this particular context, more research is needed to assess the current nutritional status of citrus orchards and develop appropriate fertilization recommendations adapted to local soil and climate conditions. Therefore, more studies should be conducted to evaluate the effect of fertilization on clementine and orange citrus varieties. The objective of this study is to find out an efficient N fertilizer program for producing an optimal yield and fruits quality of Nules clementine trees grown onto Flhorag and Carrizo citrange rootstocks in field conditions and conducted during long-term experimentation in the Gharb region (Morocco).

2. Materials and Methods

2.1. Plant material and growth conditions

A field experiment was conducted in the Experimental station of Sidi Allal Tazi, INRA Morocco (34° 31’ 07.8” N, 006° 14’ 42.0” W) on Nules trees budded on Flhorag and Carrizo citrange rootstock planted at 5.0×3.0m spacing with 667 trees/ha and planted in 2010. The soil of the experimental site of Nules is clay (Table 1). Standard cultural practices for Nules trees were used with drip irrigation and chemical weed control. Water pH was 7.84, while electrical conductivity was 0.964 mS.cm–1.
The experiment was carried out using a split-plot design with three blocs replications, including the N doses as the main plot (with three levels of N doses: T0, T1, T2) and the rootstock in the subplot (with two levels rootstocks: Flhorag and Carrizo citrange). Three fertilization treatments based on the rates of nitrogen were applied to citrus tree in field condition over five seasons (2016-2017, 2017-2018, 2018-2019, 2019-2020, and 2020-2021), namely T0: Control (native nutrient), T1: 270, T2: 540 (in g/tree/year). Nitrogen, phosphorus and potassium were applied as Ammonium nitrate (33.5%), TripleSuper Phosphate (TSP) (0-45-0) and Potassium Sulphate (0-48-50%), respectively.
The measured parameters are: tree growth, canopy volume, canopy projectional unit area, diameter of the rootstock and trunk of the variety,TCSA (trunk cross sectional area) variety, TCSA rootstock, SPAD, fruit size, fruit weight and fruit quality (juice content, sugar content, acidity, fruit color and ripening index), fruit yield, yield/canopy projectional unit area and Cumulative yield.

2.2. Fruit quality characteristics

Fruit quality was determined for the 2016-2017 until 2020-2021 harvests.
-Juice content (%) is obtained by a rotary extractor. The juice content expressed as a percentage by weight is given by the formula:
Juice content (%) = Weight of juice extracted from 10 fruits × 100/Total Weight of 10 fruits
-Solid soluble content (SSC) determined by a digital refractometer, which reports the amount of sugar in °Brix.
-Acidity of juiceis obtained according to the following formula: A = Vs/10 (Vs: Volume of solution of the NaOH (ml) used for the titration and 10: Volume (ml) of juice used).
-Ripening index (RI) was calculated as the ratio of Solid soluble content (°Brix)/titratable acidity (%).

2.3. Agronomic and morphological characters

-Mean fruit weight (g) is determined by measuring total weight of the 10 fruits per tree.
-Fruit diameter (mm), average diameter of ten fruits was recorded.
-Citrus Color Index: The fruit color was evaluatedat the harvest time using a Chromameter 400/410 Minolta, (Japan). Thus, three replicates of five fruit per treatment were measured and three different readings were obtained along the equatorial circumference of each fruit.The CIE l*a*b* color scale was adopted (McGuire)[41] and the citrus color index (CCI) was calculated according to Jiménez- Cuesta et al. [42]: Preprints 73381 i001 where, CCI = citrus color index, a* = red-green color value, b* = yellow-blue color value, l* = lightness.
The CCI is a comprehensive indicator for color impression with positive values for red, negative values for blue-green, and 0 for an intermediate mixture of red, yellow, and blue-green (Zhou et al., 2010). Lightness (l*) value ranges from 0 to 100 in which higher values indicate lighter color intensity (McGuire) [41].
-Trunk cross sectional area (TCSA) of the trees at the height of 20 cm above the soil level was measured at the beginning of the experiment and at fall. The relative TCSA growth was measured according to Forey et al., [43].
-Canopy volume: Tree height, canopy diameter, trunk girth at 15cm above and below the budding union were measured for all the trees and scion/stock ratio was calculated. Canopy volume was calculated using Turrell’s formula [44].
-Fruit yield (kg/tree): Total weight of the tree in kg. In November, each tree was harvested. Yield (kg.tree–1) was monitored over a five-year period (2016-2017 until 2020-2021).
-Cumulative yield (kg. tree–1) was calculated for 2016-2017 through 2020-2021 (five-year cumulative yield).
-SPAD (portable chlorophyll meter): The SPAD-502 meter is used as a rapid, inexpensive, and non-destructive method for the assessment of leaf chlorophyll content. The SPAD-502 meter consists of two light-emitting diodes (LEDs) and a silicon photodiode receptor. It measures leaf transmittance in the red region (650 nm) and infrared region (940 nm) of the electromagnetic spectrum. A relative SPAD-502 meter value (ranging from 0–99) is derived from the transmittance values, which is proportional to the chlorophyll content in the sample [45,46].From each tree, 10 leaves were selected for measurements. Every leaf measurement was an average of 10 SPAD-502 readings.

2.4. Statistical analysis

The results were expressed as means ± standard errors (SE). Data were analyzed using the proc GLM procedure in a split-split-plot design (three-way ANOVA) with year (seasons) is the main factor (main plots with 5 levels) and a treatment (N application rate) is the second factor (subplots with 3 levels) and the third factor is the rootstock genotype (sub-subplots with 2 levels), using SAS (Statistical Analysis System version 9.1) software. Differences between treatments means were compared using Duncan’s multiple-range test at P ≤ 0.05. Relationships between parameters were fitted to linear regressions. The relationship between quality and yield variables was examined using a bilateral Pearson correlation.

3. Results

3.1. Vegetative growth

The vegetative growth of Nules clementine was significantly affected by the nitrogen rate and citrus rootstock genotype (Table 2). The results show a significant effect on tree height, canopy diameter, canopy volume, diameter of the rootstock, diameter of the variety, TCSA (Trunk cross-section area) rootstock, TCSA variety, canopy projectional unit area and SPAD.

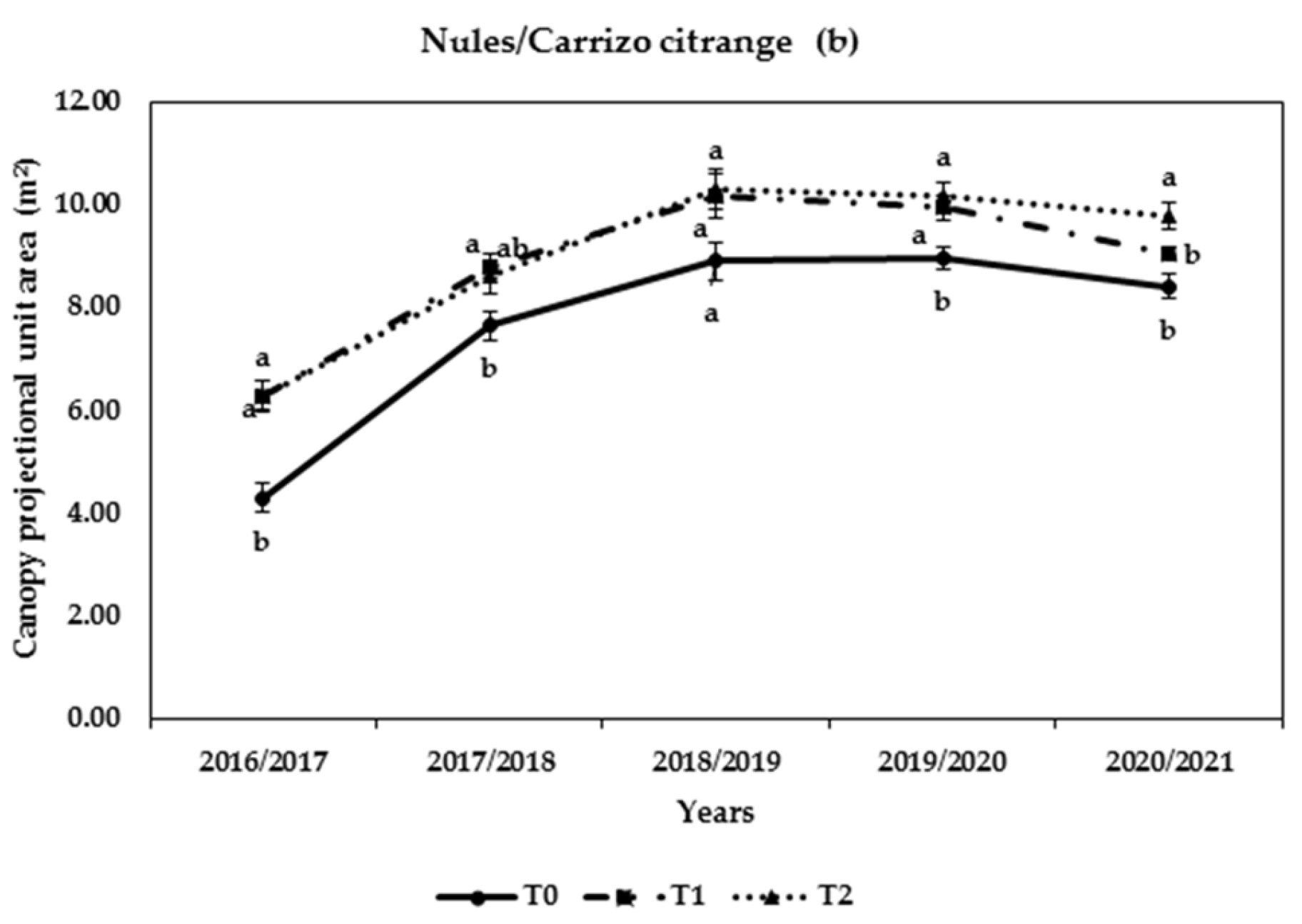

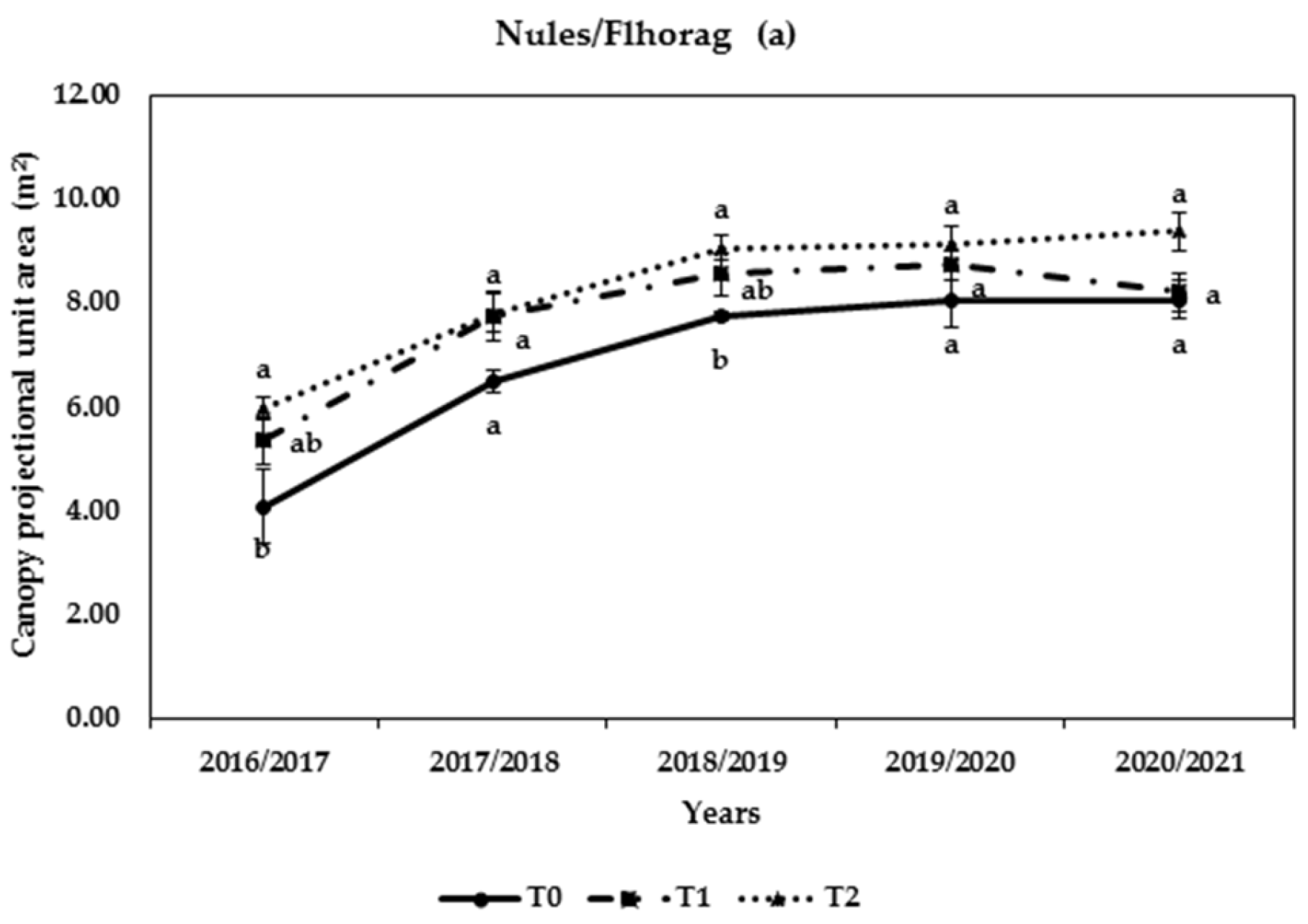

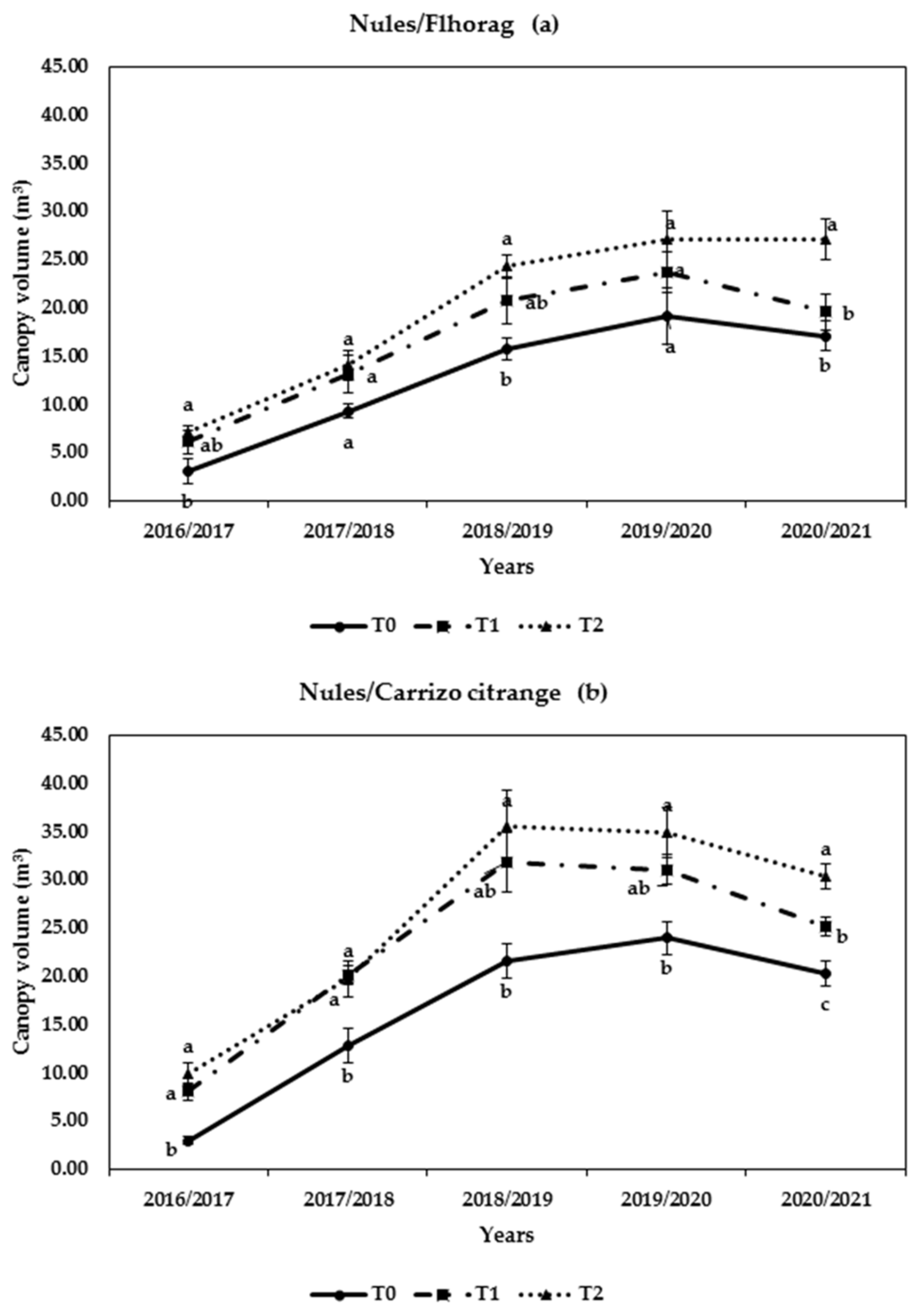

Data in Table 2 and Figure 1, Figure 2, Figure 3 and Figure 4 clearly show that varying macro fertilization (N) was followed by a significant difference on vegetative growth parameters. There was a gradual promotion on all parameters with increasing levels of N. Significant differences on such parameters were observed between treatments.
At the end of the experiment, the maximum values of tree height (2.98 ± 0.06m) (Figure 1), canopy diameter (3.12 ± 0.09m) (Figure 2), canopy volume (30.35 ± 1.31m3) (Figure 3), canopy projectional unit area (9,79 ± 0,27m2) (Figure 4) were registered on Carrizo citrange trees fertilized with T2(540 N g/tree). The Flhorag control trees (T0) produced the minimum values in all seasons of tree height (2.47 ± 0.02m), canopy diameter (2.57 ± 0.12m), canopy volume (17.08 ± 1.54m3) and canopy projectional unit area (8.06 ± 0.38 m2) (Figure 1, Figure 2, Figure 3 and Figure 4).
Tree growth increased from the first to the fifth year in the field. Overall average by year of canopy volume varied from (7.12 ± 0.59m3) in 2016 to (27.13 ± 2.10m3) in 2020 of Flhorag trees and from (9.87 ± 1.21m3) in 2016 to (30.35 ± 1.31m3) in 2020 of Carrizo citrange trees (Figure 3). Canopy projectional unit area varied from (5.97 ± 0.21m2) in 2016 to (9.37 ± 0.36m2) in 2020 of Flhorag trees and from (6.28 ± 0.28m2) to (9.79 ± 0.27m2) of Carrizo citrange trees (Figure 4).
For Nules clementine, the diameter of the rootstock (89.26 ± 6.34mm) and diameter of the variety (77.8 ± 5.18mm) were found to be highest for Carrizo citrange trees of T2 (540 N g/tree) than other treatments for the averages of 5 years. However, control trees of Flhorag (T0) gave the lowest averages values of diameter of the rootstock (66.71 ± 6.99mm) and diameter of the variety (56.21 ± 6.06mm) as shown in Table 2.
TCSA (trunk cross sectional area) is usually considered to be highly correlated with tree height and canopy volume [47]. Carrizo citrange trees of T2(540 N g/tree) had the highest TCSA rootstock (71.73 ± 7.36cm2) and TCSA variety (53.64 ± 5.35cm2), whereas Flhorag control trees (T0) had the lowest TCSA rootstock (40.33 ± 5.82cm2) and TCSA variety (28.86 ± 4.45cm2) with significant differences (Table 3).
Overall average of SPAD varied from (56.13 ± 2.03) to (70.45 ± 1.19) of Flhorag trees and from (57.44 ± 2.56) to (72.6 ± 1.46) of Carrizo citrange trees. The maximum value of SPAD (72.6 ± 1.46) was registered on Carrizo citrange trees fertilized with T2 (540 N g/tree) (Table 4).

3.2. Yield

Yield means of Nules clementine trees showed significant differences among the treatment.Yield was progressively increased with increasing levels of N, the application of the treatment T2 (540 N g/tree) was very beneficial for improving yield than other treatment (65.23 ± 1.84 on Carrizo citrange and 58.44 ± 2.17 on Flhorag rootstock). Carrizo citrange had the greatest yields for 2016 to 2020 (Table 5).

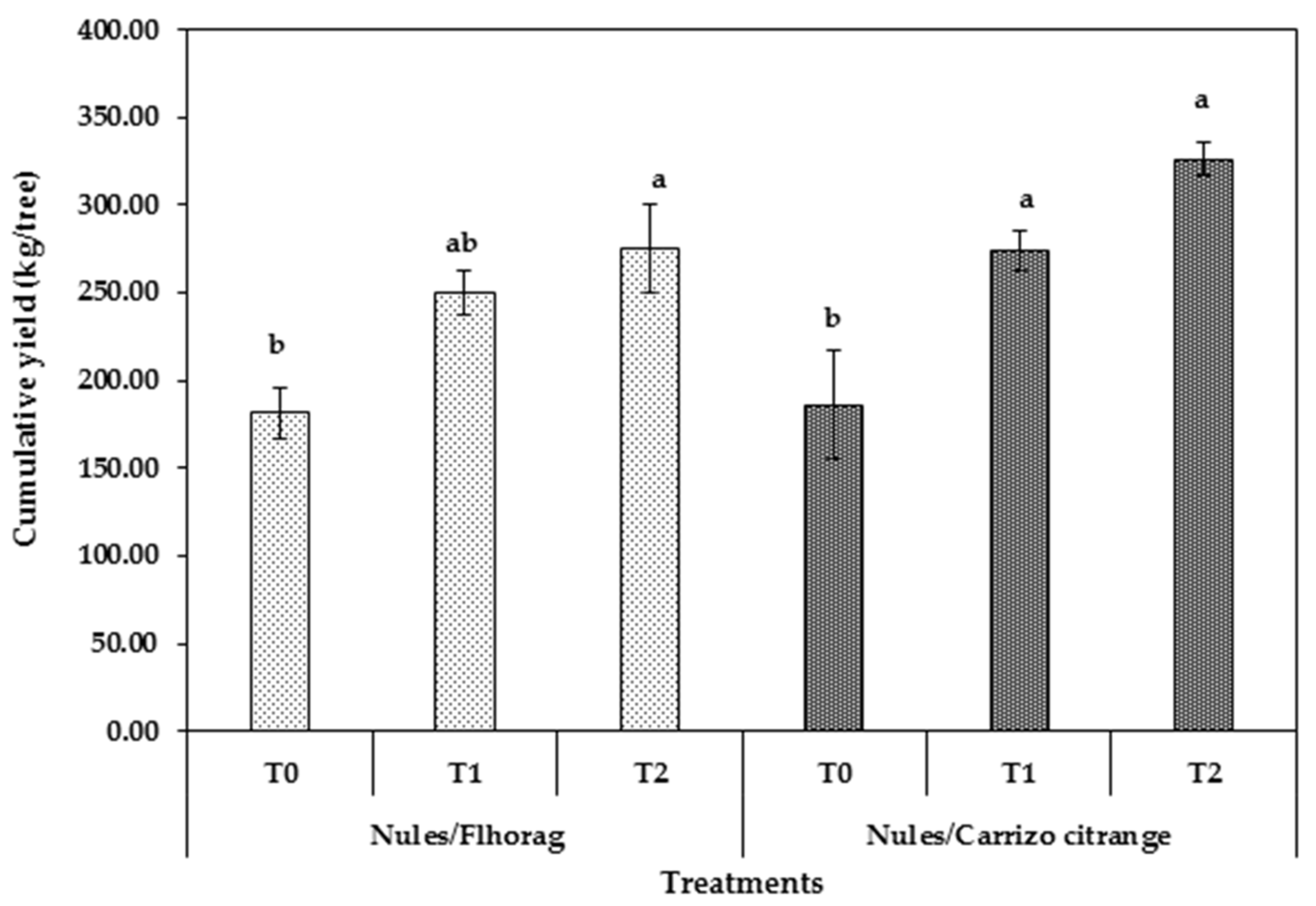

For the cumulative yield based on a five-year period, Carrizo citrange had significantly greater yield (326.17 ± 9.18 kg/tree) on the trees fertilized with T2 (540 N g/tree) than Flhorag in Nules. Flhorag had lower cumulative yield (181.67 ± 14.24kg/tree) than Carrizo citrange rootstock in T0 (control) (Figure5).

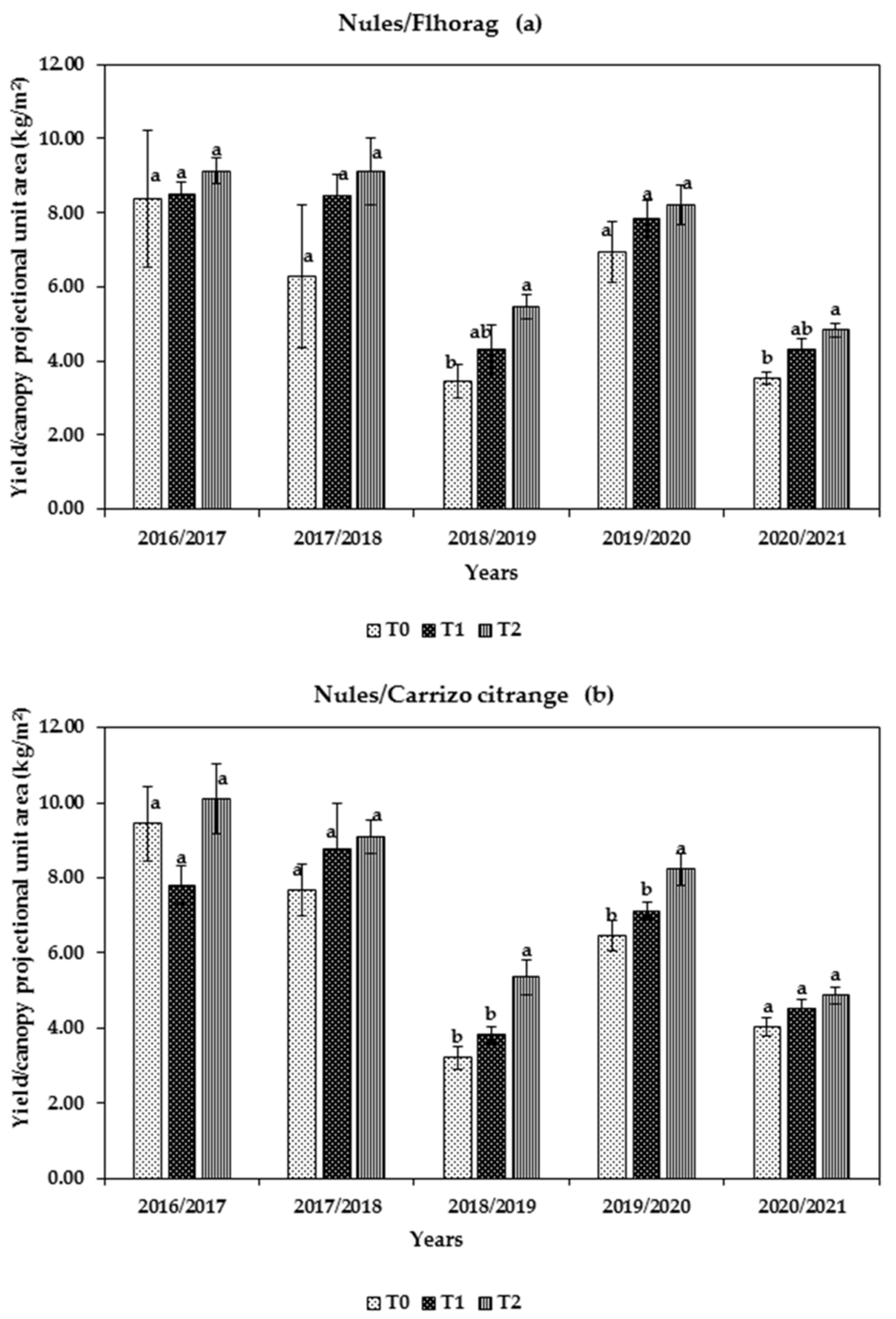

Growth and production parameters allowed estimating yield/canopy projectional unit area (kg/m2) for fruit yield as influenced by N fertilizer rates for Nules variety in 2017, 2018 and 2020. yield/canopy projectional unit area (kg/m2) varied from (3.45 ± 0.45) to (9.13 ± 0.90) of Flhorag trees and from (3.21 ± 0.30) to (10.10 ± 0.93) of Carrizo citrange trees. The maximum Yield/canopy projectional unit area (10.10 ± 0.93) was registered on Carrizo citrange trees fertilized with T2 (540 N g/tree) (Figure 6).
Results regarding the effect of citrus rootstocks on yield clearly show that yield was varied according to citrus rootstocks genotype. Nules clementine trees grown on Carrizo citrange rootstock produced higher yield than the trees on Flhorag rootstock. Under such promising treatment, yield reached 83.33 ± 4.22 kg/tree (Table 5). Flhorag had less cumulative yield than Carrizo citrange (Figure 6).
Since N fertilizer treatments affected growth and scion/rootstock trees on all experimental, a significant relationship between canopy volume and fruit yield was verified (Figure 7 and Figure 8). Citrus trees require nutrients for growth and increasingly for fruit yield. Fruit yield increase with an increase in canopy volume for Flhorag and Carrizo citrange rootstock and for nitrogen treatment (Figure 7 and Figure 8). On the other hand, an increase of Nitrogen rate from 0 to 540g/tree increased fruit yield (from 22.01 to 47.36 kg/tree) (Figure 9).
The N fertilization influenced tree growth, especially the average canopy volume and fruit yield. The fruit yield has a significant linear response to N fertilization as observed in (Figure 9).

3.3. Fruit quality variables

The fruit quality variables were affected by the N treatment and rootstock genotype in Nules clementine. The heaviest fruits were obtained from Carrizo citrange (135.86 ± 4.6g) trees fertilized with T2 (540 N g/tree), whereas the lowest was from Flhorag (102.77 ± 4.1g) than Carrizo citrange rootstock in T0 (control) (Table 6).
Nules’s fruit diameter was affected by the N treatment and the rootstock. Application of the treatment T2 (540 N g/tree) was very effective in improving fruit diameter compared to using T1. The maximum values were detected on trees of Carrizo citrange fertilized with treatment (T2) (69.59 ± 1.42mm) while the minimum values were observed on Flhorag trees control (T0)(59.79 ± 1.04mm) (Table 6).
It is evident from the data in Table 7, Table 8 and Table 9 that varying N fertilization treatments had a considerable effect on the juice content and the total acidity, Solid soluble content, Ripening Index and fruit color of Nules clementine examined in our study. Juice content ranged from (42.2 ± 0.81%) on Flhorag trees of T0 to (51.72 ± 0.7%) on Carrizo citrange trees of T2 (540 N g/tree) (Table 7).The Solid soluble content ranged from (9.85 ± 0.23) on Flhorag trees of T0 to (11.63 ± 0.24) on Carrizo citrange trees of treatment T2 (Table 8).
Total acidity of Nules Clementine was also higher in fruits of Carrizo citrange (1.15 ± 0.02 %) and Flhorag (1.04 ± 0.002%) trees of T2 (540 N g/tree) than in the other treatments (Table 7). Whereas, Ripening Index of Nules Clementine was higher in fruits of Carrizo citrange (12.16 ± 0.5) and Flhorag (12.4 ± 0.41) trees of control (T0) than in the other treatments (Table 8).
The fruit color is affected by the rootstock genotype and the nitrogen rate. The l* color for the fruits of the trees T2 (540 N g/tree) grafted on Carrizo citrange has the highest l* value (61.91 ± 0.52), compared to the others treatments. Fruits obtained on control trees (T0) grafted on Flhorag has the lowest values (57.56 ± 1.84) compared to the others (Table 9).
The a* color of Nules Clementine was also higher in fruits of Carrizo citrange (25.94 ± 2.02) and Flhorag (26.02 ± 1.7) trees of T2 (540 N g/tree) than in the other treatments. Whereas, b* color was lower in fruits of Flhorag (49.9 ± 3.13) trees of control T0 than in the other treatments (Table 9).
The CCI* fruits of Nules trees fertilizer under T2 (540 N g/tree) and grafted on the Carrizo citrange and Flhorag rootstocks has the highest CCI* value (7.01 ± 0.52 and 7.21 ± 0.48), compared to the others treatments. Fruits obtained on control trees (T0) grafted on Flhorag have the lowest values (2.23 ± 1.52) (Table 9).

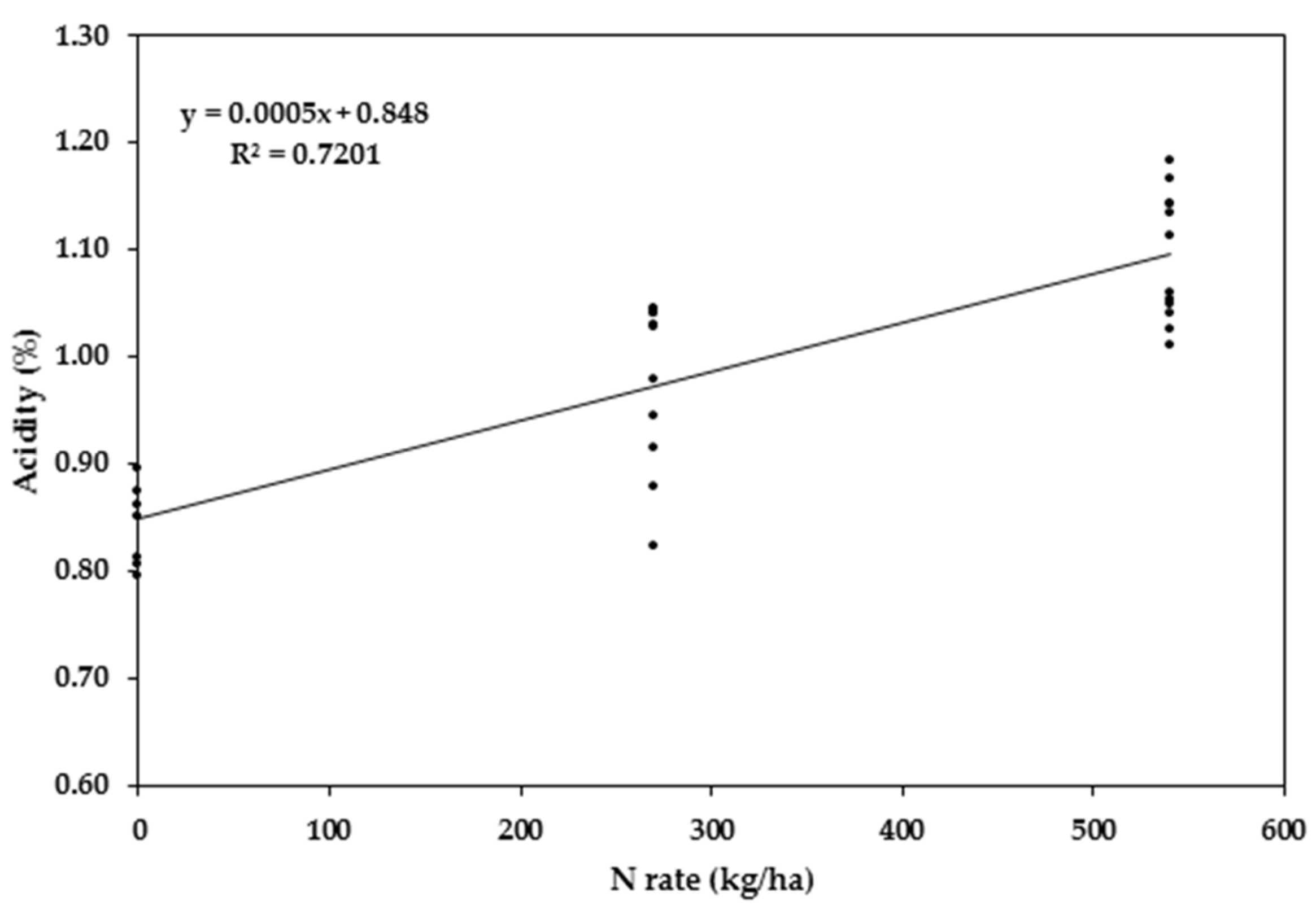

The Nitrogen fertilization influenced fruit quality variables, the acidity (%) and Solid soluble content (SSC) of Nules clementine fruits. They have a significant linear response to N fertilization as observed (Figure 10 and 11). Acidity (%) and Solid soluble content (SSC) rise upwith an increase in Nitrogen rate for Nules from 0.80 to 1.10 % for Acidity (%) (Figure 10) and (10 to 12°Brix) for SSC (Figure 11).
Citrus rootstocks genotype resulted asignificant difference in most parameters of fruit quality. The fruit weight, fruit diameter, juice content, solid soluble content, total acidity and fruit color of Nules clementine fruits were greater for Nules trees grafted on Carrizo citrange rootstock than on Flhorag rootstock (Table 6, Table 7, Table 8 and Table 9).

3.4. Correlation analysis

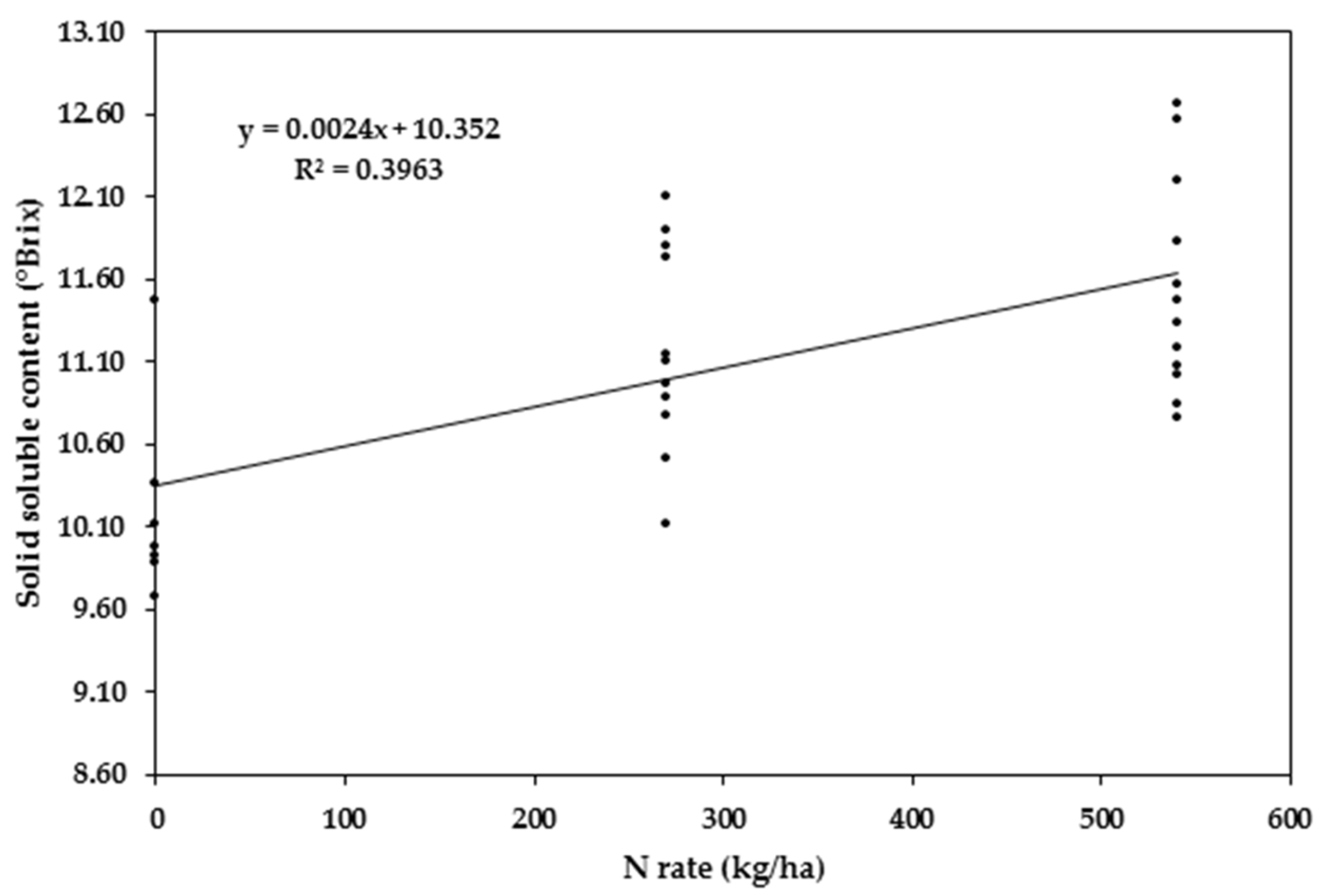

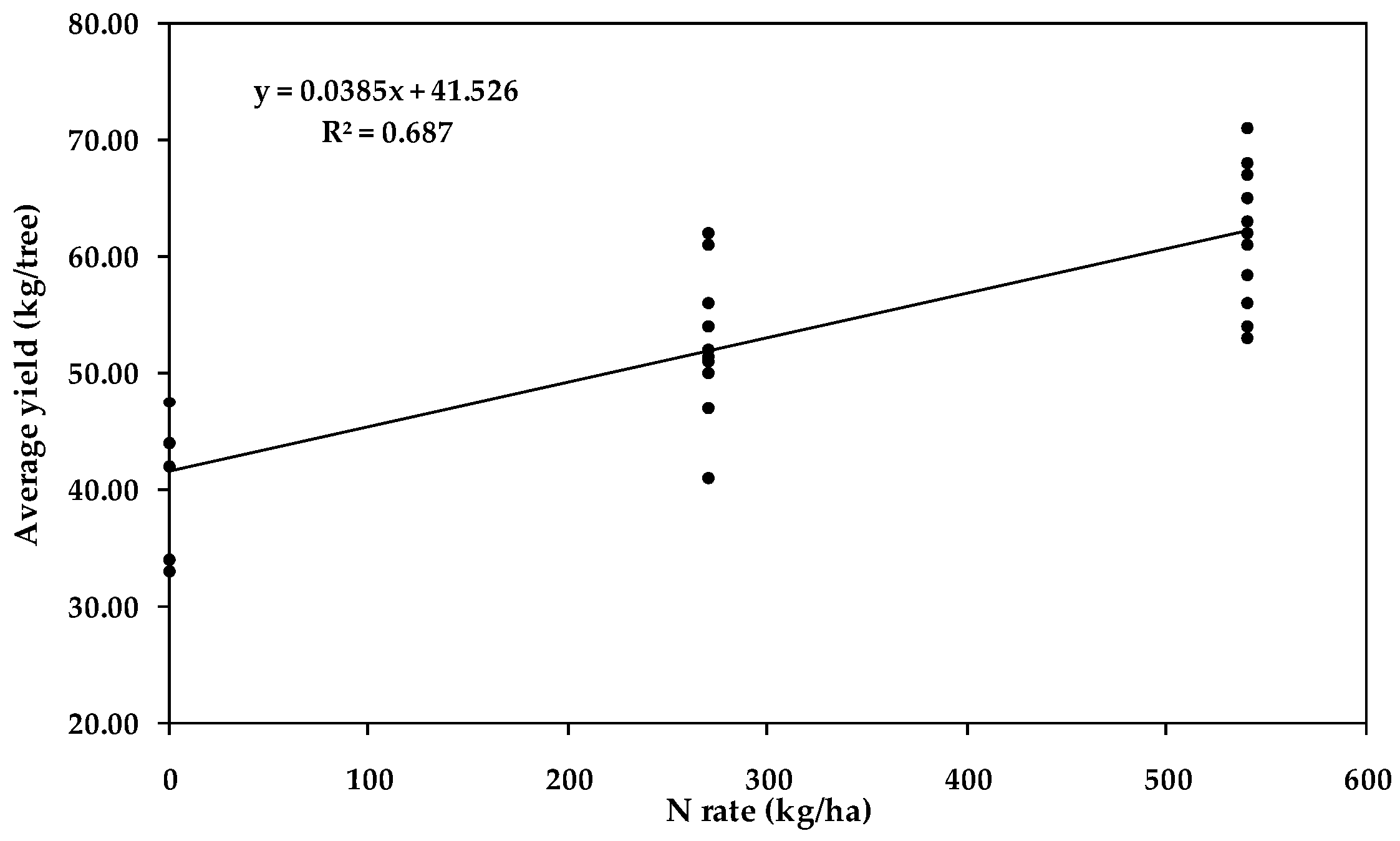

To compare such different treatments of Nules variety on Carrizo citrange and Flhorag rootstocks, a correlation matrix was built based on Pearson’s correlation coefficients (r) and the variables studied (Table 10 and Table 11). Significant positive correlations were found between yield and yield/canopy projectional unit area (r = 0.82, p < 0.0001) and SPAD (r = 0.78, p < 0.0001). As hypothesized, yield was positively correlated with cumulative yield (r = 0.85, p < 0.0001). Tree height was strongly correlated with canopy volume (r = 0.92, p < 0.0001). Fruit weight and fruit diameter had a highly positive correlation (r = 0.85, p < 0.0001). A negative correlation was found between Ripening Index and Fruit Color Index (CCI) (r = -0.17, p = 0.3798). Similarly, a negative correlation was also found between Acidity and Ripening Index (r = -0.76, p < 0.0001). TCSA variety and TCSA rootstock were strongly positively correlated too (r = 0.92, p < 0.0001) (Table 10 and Table 11).

4. Discussion

Vegetative growth
The vegetative growth of Nules clementine was affected by the nitrogen rate and citrus rootstock genotype. The results show a significant effect on tree height, canopy diameter, canopy volume, diameter of the rootstock, diameter of the variety, TCSA (Trunk cross-section area) rootstock, TCSA variety, Canopy projectional unit area and SPAD.
Varying macro fertilization (N) was followed by significant differences on vegetative growth parameters. There was a gradual promotion on all parameters with increasing levels of N. Significant differences on such parameters were observed between treatments.
TCSA (trunk cross sectional area) is usually considered to be highly correlated with tree height and canopy volume [47]. Carrizo citrange trees received T2 (540 N g/tree) treatment had the highest TCSA-rootstock and TCSA-variety. Similar TCSA values were obtained on C. volkameriana with ‘Clementine’ mandarin [48].
These results concerning the effect of nitrogen fertilizer rate and rootstocks are nearly in the same line with those obtained in a previous study [49]. Bassal [49] reported that the trees budded on Carrizo citrange and ‘Swingle’ citrumelo were taller than those grafted on Cleopatra mandarin. Similar results were obtained by Kaplankiran et al., [50]. These results may be explained by the greater canopy volume of trees grafted on Carrizo citrange when compared to those of other rootstock tested.
Yield
For the cumulative yield based on a five-year period, Carrizo citrange had significantly greater yield on the trees fertilized with T2 (540 N g/tree) than Flhorag in Nules.
Yield was progressively increased with increasing levels of N. The application of the treatment T2 (540 N g/tree) was very beneficial for improving yield than other treatment. Carrizo citrange had the greatest yields for 2016 to 2020 and Yield/canopy projectional unit area.
These results regarding the effect of N fertilization on fruit yield are in harmony with those obtained by other studies [23,24,32,51,52]. This can be explained by the significant and positive correlation founded between N fertilization rate and total fruit yield. Increasing the N rate improve the fruit set of citrus trees and, consequently, the number of fruits produced per canopy volume unit. The data presented are in agreement with those reported by Du Plessis and Koen [53] who’s observed that the maximum fruit yield of orange trees was attained at 225kg.ha–1 of N and 310kg.ha–1 of K.
Previous studies showed that fruit yield of Coorg mandarin improved with the increase in the level of N supply in trees grafted on Rangpur lime and trifoliate stocks. The application of 668g N/tree for Coorg mandarin/Rangpur lime and 623g N/tree for Coorg mandarin/trifoliate stocks trees is optimum for increasing fruit yield.The NPK recommended fertilizer rate to obtain higher yields with good fruits quality was 670g N-100g P-400g K (per tree) for citrus scion budded on vigorous rootstocks and 625g N-100g P-400g K (per tree) for those grafted on dwarf rootstocks [54].
Results regarding the effect of citrus rootstocks on yield clearly show that yield was varied according to rootstockgenotype. Nules clementine trees grown on Carrizo citrange rootstock produced higher yield than the trees on Flhorag rootstock. Georgiou [55] reported that sour orange had higher cumulative yields when compared to Carrizo and Troyer citranges. In the present study, Flhorag had less cumulative yield than Carrizo citrange. In a two-year study by Temiz [56], the highest yield was recorded from the Carrizo citrange for Nova. Reese and Koo [57] demonstrated that the highest yield of oranges varieties grafted on Rough lemon rootstock was observed at N rate of 202 kg·ha−1.
In the present study, Nules was grafted on Flhorag and Carrizo citrange rootstock; therefore, the positive response to increasing N fertilization rate could be related to the differential nutrient need according to rootstock genotype, as recently reported [58,59]. Mattos [58] observed that sweet orange trees budded on Cleopatra rootstockhas a significantly and higher response to N fertilization supply than those grafted on Rangpur lime rootstock [59,60]. This may explain that rootstock genotype probably plays an important role in determining the response of citrus trees to nitrogen fertilization than citrus cultivars.

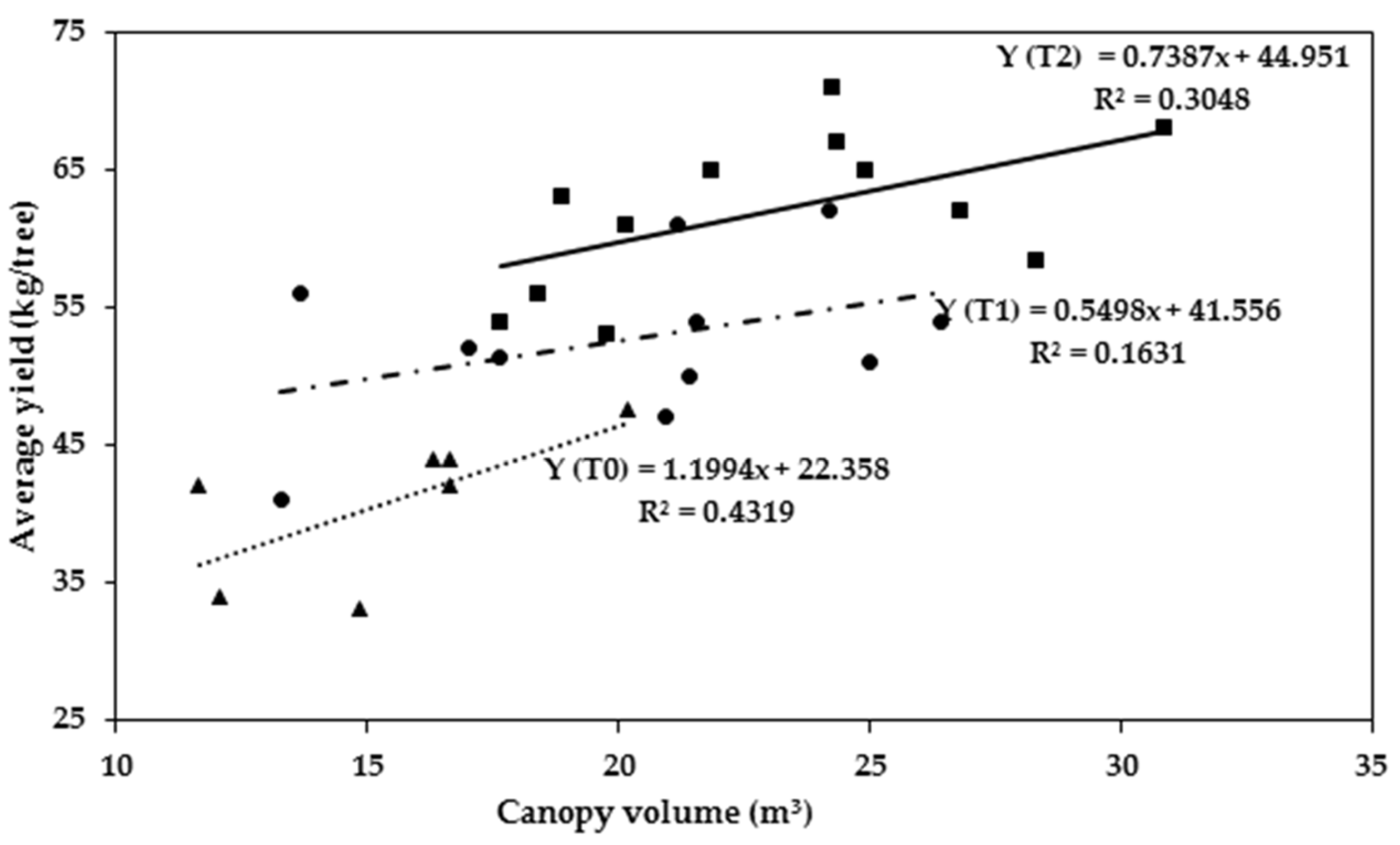

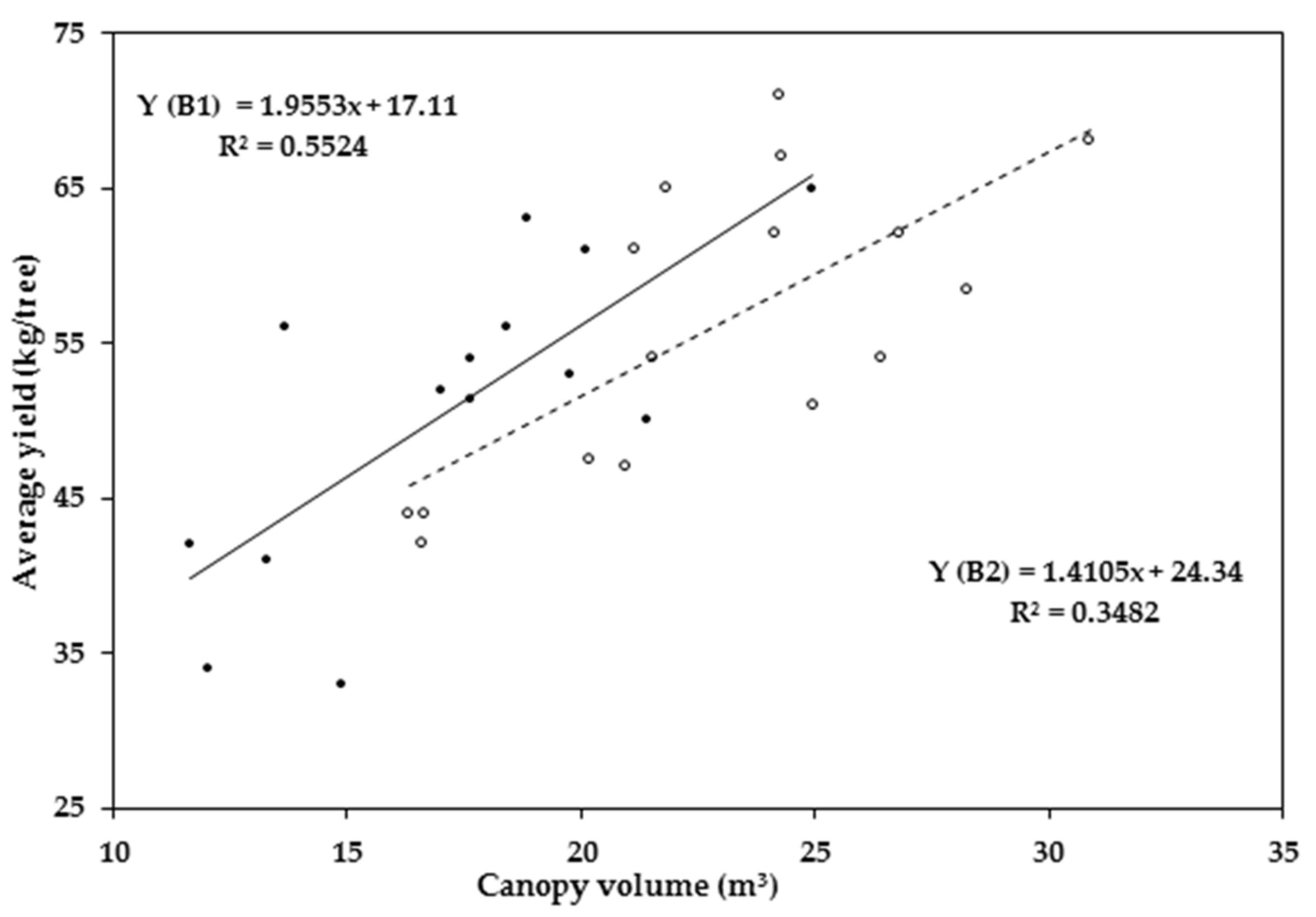

A significant relationship between canopy volume and fruit yield was demonstrated. Citrus trees require nutrients for growth and increasingly for fruit yield. Fruit yield increase with canopy volume for both Flhorag and Carrizo citrange rootstock and with nitrogen rate. The fruit yield has a significant linear response to N rate as observed.This last observation is important to establish the best fertilization management of citrus orchards to achieve an optimal fruits yield and quality. Mattos [58] observed that fruit yield increased with increasing fertilizer rates of N and K on trees either budded on Rangpur lime or Cleopatra mandarin rootstocks.
Fruit quality variables
The fruit quality variables were affected by the N rate and rootstock genotype in Nules clementine. Application of 540 N g/tree was very effective in improving size, weight and fruit quality (juice content, total acidity, Solid soluble content, Ripening Index and fruit color CCI).They have a significant linear response of Acidity (%) and Solid soluble content (SSC) to N fertilization rate. A significant effect on fruits quality was obtained with the treatment (T2). Application of T2 (540 N-135 P2O5-270 K2O in g/tree) gave an improved fruit quality of Nules clementine under both two rootstocks. The important role of N, P and K on the biosynthesis and translocation of carbohydrates that leads to enhance fruit maturity could explain the present results. The improving effect of NPK on citrus fruits quality was supported by other researchers [23,24,33,34].These results are in the same line of those obtained by Huchche et al., [61]. Several studies were reported that the Total Soluble Solids (TSS) content of oranges was significantly improved as the nitrogen (N) rate increased [57,62,63,64], while other researchers observed the opposite trends [65,66,67].
Citrus rootstock genotype significantly influence on various chemical characteristics of citrus fruits. The fruit quality parameters of Nules clementine budded on Carrizo citrange rootstock were better than those grafted on Flhorag rootstock. These results were confirmed by the findings of Castle et al, [36]. Demirkeser et al.,[68] on Nova mandarin and Mendilcioglu [69] on Satsuma founded that Troyer and Carrizo citrange had higher fruits size and weight as compared to sour orange rootstock.
The fruit color of Nules was affected by the rootstock genotype and the nitrogen rate. The CCI* fruits of Nules trees fertilizer under T2 (540 N g/tree) and grafted on Carrizo citrange and Flhorag rootstocks has the highest CCI* value (7.01 ± 0.52 and 7.21 ± 0.48), previous research reported that the best color of Lane late fruit is found on trees grafted on Citrus macrophylla and Citrus volkameriana [70,71].
However, other studies reported no differences in juice quality of Fallglo and Sunburst mandarin cultivars regarding to rootstocks genotype. Also they reported that fruit weight and juice content of both mandarin cultivars were not influenced by the rootstocks [72]. These results are consistent with the previous findings of Mourao Filho et al., [73] and Demirkeser et al., [68], in which the fruit weight of Satsuma mandarin [68] and Robinson mandarin [72] was not affected by rootstock genotype.

5. Conclusions

The results of this study reveal the significant effect of N rates and rootstocks genotype on vegetative growth, yield and fruit quality of Nules clementine. There is a positive relationship between canopy volume and fruit yield. Carrizo citrange seem to be a more efficient rootstock for Nules variety than Flhorag under experiment growing conditions. Nules trees grafted on Carrizo citrange produce a higher yield and the optimal fruit quality using 540g of N/tree/year.
In conclusion, the optimal NPK rate for achieving optimal yield and fruit quality of Nules clementine in Sidi Allal Tazi–Gharb (Morocco) conditions was 540 N-135 P2O5-270 K2O g/tree/year. This study provides valuable insights for farmers and citrus producers to improve the growth, yield, and quality of Nules clementine fruit trees in similar soil and climatic conditions.

Author Contributions

Conceptualization, F.E.O.; L.B.; H.B. and R.B.; methodology, F.E.O.; L.B. and H.B.; validation, F.E.O.; L.B.; H.B. and R.B. formal analysis, F.E.O.; L.B.; H.B. and R.B.; investigation, F.E.O.; L.B.; H.B. and R.B.; resources, F.E.O.; L.B.; H.B.; H.B. and R.B.; writing—original draft preparation, F.E.O.; writing—review and editing, F.E.O.; L.B.; H.B.; H.B.; A.Z. and R.B.; visualization, F.E.O.; L.B. and H.B.; supervision, H.B.; R.B. All authors have read and agreed to the published version of the manuscript.

Funding

Not applicable “This research received no external funding”

Data Availability Statement

Not applicable.

Acknowledgments

Authors wish to thank Ollitrault Patrick of CIRAD-France for kindly providing contribution of this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. FAO. 2021. Crop statistics: citrus. Online statistical working system for Crop statistics (available in a link: http://www.fao.org/faostat/en/#data/QC. Last visit: December 2021).
  2. FAO. 2020. Citrus fruit fresh and processed statistical bulletin 2020. Food and Agriculture Organization of the United Nations Rome, 2021. 48p.
  3. Ghosh, S. N. Nutritional requirement of sweet orange (Citrus sinensis) cv. Mosambi. Haryana J. Hort. Sci., 1990, 19, 39-44.
  4. Ganeshamurthy A. N., Satisha G. C. and Patil P. Potassium nutrition on yield and quality of fruit crops with special emphasis on banana and grapes. Karnataka J.Agric. Sci., 2011, 24 (1), 29-38.
  5. Obreza TA., Kelly T. and Morgan. Nutrition of Florida Citrus Trees. SL 253. University of Florida Lake Alfred. FL., .2008, 96.
  6. Zekri, M. and T.A. Obreza. Plant nutrients for citrus trees. Extension service fact sheet SL 200. Florida Cooperative Extension Service, Institute of Food and Agricultural Sciences, University of Florida, Gainesville. 2003.
  7. Menino, M.R., C. Carranca, A. de Varennes, V.V. d’Almeida and J. Baeta. Tree size and flowering intensity as affected by nitrogen fertilization in non-bearing orange trees grown under Mediterranean conditions. J. Plant Physiol., 2003, 160, 1435-1440.
  8. Alva, A. K., Paramasivam, S., Obreza T. A. and Schumann, A. W. Nitrogen best management practice for citrus trees I. Fruit yield, quality, and leaf nutritional status. Scientia Horticulturae, 2006, 107(3), 233-244. [CrossRef]
  9. Zekri M. and Obreza, T.A. Macronutrient Deficiencies in citrus: Calcium, Magnesium, and Sulfur. Institute of Food and Agricultural Sciences, University of Florida. 2003. http://edis.ifas.ufl.edu. [CrossRef]
  10. Alva, A. K., Paramasivam, S. and Graham, W. D. Impact of nitrogen management practice on nutritional status and yield of Valencia orange trees and ground water nitrate. Journal of Environmental Quality, 1998, 27(4), 904- 910.
  11. Koo, R. C. J. and Young, T. W. Effect of age, position and fruiting status on mineral composition of Tonnage avocado leaves. Journal of the American Society for Horticultural Science, 1977, 102(3), 311-313.
  12. Osotsapa, Y. Soil, mineral and fertilization in citrus. In Orange training. Bangkok: Office of Extension and Training of Kasetsart University, 2001, 6: 1-58.
  13. Ritenour, M. A., Wardowski, W. F. and Tucker, D. P. Effects of Water and Nutrients on the Postharvest Quality and Shelf Life of Citrus. 2003 HS942 (https://hos.ifas.ufl.edu/media/hosifasufledu/documents/pdf/in-service-training/shared-related-publications/Effects-of-Water-and-Nutrients-on-the-Postharvest-Quality-and-Shelf-Life-of-Citrus.pdf).
  14. Alva, A. K., Mattos, D. and Quaggio, J. A. Advances in nitrogen fertigation of citrus. Journal of Crop Improvement, 2008, 22(1), 121-146. [CrossRef]
  15. Alva, A. K., Paramasivam, S., Obreza, T. A. and Schumann, A. W. Nitrogen best management practice for citrus trees II. Nitrogen fate, transport and component of N budget. ScientiaHorticulturae, 2006, 109(3), 223- 233.
  16. Cantarella, H., Mattos, D., Quaggio, J. A. and Rigolin, A. T. Fruit yield of Valencia sweet orange fertilized with different N sources and the loss of applied N. Nutrient Cycling in Agroecosystems, 2003, 67(3), 215-223. [CrossRef]
  17. Quaggio, J. A., Mattos, J. D., Cantarella, H., Almeida, E. L. E. and Cardoso, S. A. B.. Lemon yield fruit quality affected by NPK fertilization. Scientia-Horticulturae, 2000 96(3), 151-162. [CrossRef]
  18. Storey, R. and Treeby, M. T. Seasonal changes in nutrient concentrations of Navel orange fruit. Scientia Horticulturae, 2000, 84(1), 67-82. [CrossRef]
  19. Warren, C. R., Adam, M. A. and Chen, Z. Is photosynthesis related to concentrations of nitrogen and rubisco in leaves of Australian native plant? Australia Journal Plant Physiology, 2000, 27(5), 407-416.
  20. Feungchan, S. Mineral nutrient of horticulture. KhonKaen, Thailand: KhonKaen University, 1995, pp. 1-89.
  21. Domingo, A. L., Nagamoto, Y., Tamai, M. and Takaki, H. Free tryptophan and indoleacetic acid in zinc-deficient radish shoots. Soil Science and Plant Nutrition, 1992, 38(2), 261-267. [CrossRef]
  22. Hewitt, E. J. The essential and functional mineral element. In Diagnosis of Mineral disorder in plant. New York: Chemical. 1984, pp. 7- 53.
  23. Omari F.E., Beniken L., Zouahri A., Talha A., Benkirane R. and Benyahia H. Effect of nitrogen level application on yield and fruit quality of Navel orange variety in a sandy soil. African & Mediterranean Agricultural Journal –Al Awamia, 2020a, 129, 92-107.
  24. Omari F.E., Beniken L., Zouahri A., Douaik A., Mrabet R., Benkirane R. Benyahia H. Effet de la fertilisation N, P et K sur la production et la qualité des fruits de la clémentine Sidi Aissa. AFRIMED AJ –Al Awamia, 2020b, 129, 76-91.
  25. He, Z. L., Calvert, D. V., Alva, A. K., Banks, D. J. and Li, Y. C. Thresholds of leaf nitrogen for optimum production and quality in grapefruit. Soil Science Society of America, 2003, 67, 583-588.
  26. Obreza, T. A. and Rouse R. E. Fertilizer effects on early growth and yield of Hamlin orange trees. HortScience, 1993, 28(2), 111-114. [CrossRef]
  27. Cameron, J.S. and Dennis, F.G. The carbohydrate nitrogen relationship and flowering/fruiting: Kraybill revisited. HortScience, 1986, 21(5), 1099-1102. [CrossRef]
  28. Dasberg, S., Bielorai, H. and Erner, J. Nitrogen fertigation of Shamouti oranges. Plant Soil, 1983, 75(1), 41–51. [CrossRef]
  29. Sahota, G. S. and Arora, J. S. 1981. Effect of N and Zn on ‘Hamlin’ sweet orange (CitrussinensisOsbeck). Journal Japan Society Horticultural Science, 1981, 50(3), 281-286.
  30. Quaggio, J.A.; Souza, T.R.; BachiegaZambrosi, F.C.; MarcelliBoaretto, R.; Mattos, D. Nitrogen-fertilizer forms affect the nitrogen-use efficiency in fertigated citrus groves. J. PlantNutr. Soil Sci. 2014, 177, 404–411. [CrossRef]
  31. Tsakelidou, K.; Papanikolaou, X.; Karagiannidis, N. Fruit production and nutrient status in grapefruit on five rootstocks. J. Plant Nutr.2007, 30, 995–1004. [CrossRef]
  32. Zayan, M.A., M. El-Sayed, M. A. El-Hamady and S.A. Dawood. Effect of NPK fertilization and application of some soil amendment agents on 11- vegetative growth and root density and distribution of Valencia and Washington Navel orange varieties. J. Agric. Res. Tanta Univ., 1989, 15, 325-332.
  33. Chen, Y., J. Wang, Z. Wang, Y.H. Chen, J.R. Wang and Z.M. Wang. Cultural techniques for obtaining early high production of 4 late orange cultivars. South China fruits, 1999, 28:1, 10-11.
  34. Huang, Y., X. Lin, Ye. T. Xiao, Y.Q. Hung, X.R. Lin, X.Q. Xiao and T.Y.Ye. The cultural techniques for early and high production of Newhall Navel orange. South China fruits, 2000, 29, 6-11.
  35. Omari F.E., Beniken L., Gaboune F., Zouahri A., Benkirane R. et Benyahia H. Effet de la nutrition azotée sur les paramètres morphologiques et physiologiques de quelques porte-greffes d’agrumes. Journal of Applied Biosciences, 2012, 53, 3773-3786.
  36. Castle, W.S., D.P.H. Tucker, A.H. Krezorn and C.O. Youtsey. Rootstocks for Florida citrus. 2nd Ed. Florida Univ., 1993, pp: 92.
  37. Fallahi, E. and D.R. Rodney. Tree size, yield, fruit quality and leaf mineral nutrient concentration of of ‘Fairchild’ Mandarin on six Rootstock. J. Amer. Soc. Hort. Sci., 1992, 117(1), 28-31.
  38. Fallahi, E., Z. Mousavi and D.R. Radney. Performance of Orlando tangelo rootstocks. In Arizona. J. Am. Soc. Hortic. Sci., 1991, 116 (1), 2-5.
  39. Laboren, E.G., F.J. Reyes, and L. Rongel. Determination of quality indices in fruit of Valencia orange grafted on different rootstocks. Agronomia Tropical, Maracay, Venzuela, 1991, 39, 289-310.
  40. Saunt, T. Citrus varieties of the world. Sinclair Inter. Limited England, 1990, pp: 126.
  41. McGuire, R.G. Reporting of objective color measurements. HortScience, 1992, 27, 1254-1255. [CrossRef]
  42. Jiménez- Cuesta, M., Cuquerella, J., and Marinez-Javega, J.M. Determination of a color index for citrus fruit degreening. Proc. Int. Soc. Citriculture, 1981, 2, 750-753.
  43. Forey O. Metay A. Wery J. Differential effect of regulated deficit irrigation on growth and photosynthesis in young peach trees intercropped with grass. Eur. J. Argon. 2016; 81, 106–16.
  44. Turrell F.M. Tables of surfaces and volumes of spheres and of prolate and oblate spheroids and spheroidal coefficients. University of California Press, Berkeley, CA, USA, 1946.
  45. Markwell, J.; Osterman, J.C.; Mitchell, J.L. Calibration of the minoltaspad-502 leaf chlorophyll meter. Photosynth. Res., 1995, 46, 467–472.
  46. Uddling, J.; Gelang-Alfredsson, J.; Piikki, K.; Pleijel, H. Evaluating the relationship between leaf chlorophyll concentration and spad-502 chlorophyll meter readings. Photosynth. Res. 2007, 91, 37–46. [CrossRef]
  47. Westwood M.N., Roberts A.N. The relationship between trunk cross-sectional area and weight of apples trees. J Am SocHorticSci, 1970, 95, 28-30. [CrossRef]
  48. Georgiou A. Evaluation of rootstocks for ‘Clementine’ mandarin in Cyprus. SciHortic., 2002, 93, 29-38.
  49. Bassal M.A. Growth, yield and fruit quality of ‘Marisol’ clementine grown on four rootstocks in Egypt. SciHortic, 2009, 119, 132-137.
  50. Kaplankiran M., Demirkeser T.H., Yildiz E. The effects of some citrus rootstocks of fruit yield and quality for Okitsu Satsuma during the juvenility period in Dortyol (Hatay, Turkey) conditions. 7th International Society of Citrus Nurserymen Congress, Cairo, Egypt, 2005, pp. 27.
  51. Sarooshi, R., R.G. Weir and B.G. Coote. Effect of nitrogen, phosphorus and potassium fertilizer rates on fruit yield, leaf mineral concentration and growth of young orange trees in the Sunzaysid district, Australia, Aust. J. Exp. Agric., 1991, 31, 263-272.
  52. Fawzi, A.F.A., M. M. El-Fouly and F.K. El-Bas. Problems of potassium nutrition in citrus (C. Sinensis) orchards on Egypt. Dordrecht, Netherlands; K luwer Academic publishers, Developments in plant and soil Sci. 1990, Vol. 41, 729-733.
  53. Du Plessis S.F., Koen T.J. Effect of nutrition on fruit size of citrus, Proc. Int. Soc. Citric., 1984, 1, 148–150.
  54. Anjaneyulu, K. and Murthy, S.V.K. Response of Coorg mandarin to different levels of nitrogen. Haryana J. Horti. Sci., 1984, 13(1&2), 35-37.
  55. Georgiou A. Performance of Nova mandarin on eleven rootstocks in Cyprus. Sci. Horticult., 2000, 84, 115-126.
  56. Temiz S. Various Biological, physiological, morphological and pomological characteristics of some citrus species and cultivars grafted on different rootstocks on Kirikhan conditions. Mustafa Kemal University, Natural Science Institute, Master Thesis, Hatay., 2005, p. 214.
  57. Reese R.L., Koo R.C.J. N and K fertilization effects on leaf analysis, tree size, and yield of three major Florida orange cultivars, J. Am. Soc. Hortic. Sci., 1975, 100, 195–198.
  58. Mattos D. Jr. Citrus response functions to N, P, and K fertilization and N uptake dynamics, Univ. Fla, Ph.D, Gainesville FL, USA, 2000, 133 p.
  59. Quaggio J.A., Mattos D. Jr., Cantarella H., Stuchi E.S., Sempionato O.R., Sweet orange trees grafted on selected rootstocks fertilized with nitrogen, phosphorus and potassium. Pesqui. Agropecu. Bras., 2004., 39(1), 55-60. [CrossRef]
  60. Davies F.S., Albrigo L.G. Citrus, CAB Int., Wallingford, UK, 1994, 254 p.
  61. Huchche, A.D., ,M.S. Ladaniya, , R. Lallan, R.R. Kohli, A.K. Srivatava and L. Ram,. Effect of nitrogenous fertilizers and form yard manure on yield, quality and shelf-life of Nagpur mandarin. Indian J. Hortic., 1998, 55, 100-112.
  62. Stewart I., Leonard C.D., Wander I.W. Comparison of nitrogen and sources for pineapple oranges, Proc. Fla. State Hortic. Soc., 1961, 74, 75–86.
  63. Stewart I., Wheaton T.A.. A nitrogen source and rate study on ‘Valencia’ oranges, Proc. Fla. State Hortic. Soc., 1965, 78, 22–25.
  64. Koo R.C.J. The influence of N, K and irrigation on tree size and fruit production of ‘Valencia’ orange, Proc. Fla. State Hortic. Soc., 1979, 92, 10–13.
  65. Reitz H.J., Koo R.C.J. Effect of nitrogen and potassium fertilization on yield, fruit quality and leaf analysis of ‘Valencia’ oranges, Proc. Am. Soc. Hortic. Sci., 1960, 75, 244–252.
  66. Smith P.F., Scuder G.K., Hrnciar G.. A comparison of nitrogen sources, rates and placement on performance of ‘Pineapple’ orange trees, Proc. Fla. State Hortic. Soc., 1968, 81, 25–29.
  67. Deszyck E.J., Koo R.C.J., Ting S.. Effect of potash on yield and quality of Hamlin and Valencia oranges, Proc. SoilCropSci. Soc. Fla., 1958, 18, 129–135.
  68. Demirkeser T. H., Kaplankıran M., Toplu C. and Yıldız E. Yield and fruit quality performance of Nova and Robinson mandarins on three rootstocks in Eastern Mediterranean. African Journal of Agricultural Research, 2009, Vol. 4 (4), 262-268.
  69. Mendilcioglu K. A research on the effects of rootstocks on yields and fruit characteristics. J.Egean Uni. Agric. Fac., 1986, 23, 41-77.
  70. Legua P., Bellver R., Forner J. and Forner-Giner M. A. Plant growth, yield and fruit quality of ‘Lane Late’ navel orange on four citrus rootstocks. Spanish Journal of Agricultural Research, 2011, 9(1), 271-279.
  71. Legua P., Forner JB., Fca. Hernández, Forner-Giner MA. Physicochemical properties of orange juice from ten rootstocks using multivariate analysis. ScientiaHorticulturae. 2013; 160, 268–73. [CrossRef]
  72. Filho FA., Erick Espinoza-Nunez AM., Stuchi ES., Ortega EM. Plant growth, yield and fruit quality of Fallglo and Sunburst mandarins on four rootstocks. Sci. Horticult., 2007, 114, 45-49.
Preprints 73381 g001aPreprints 73381 g001b

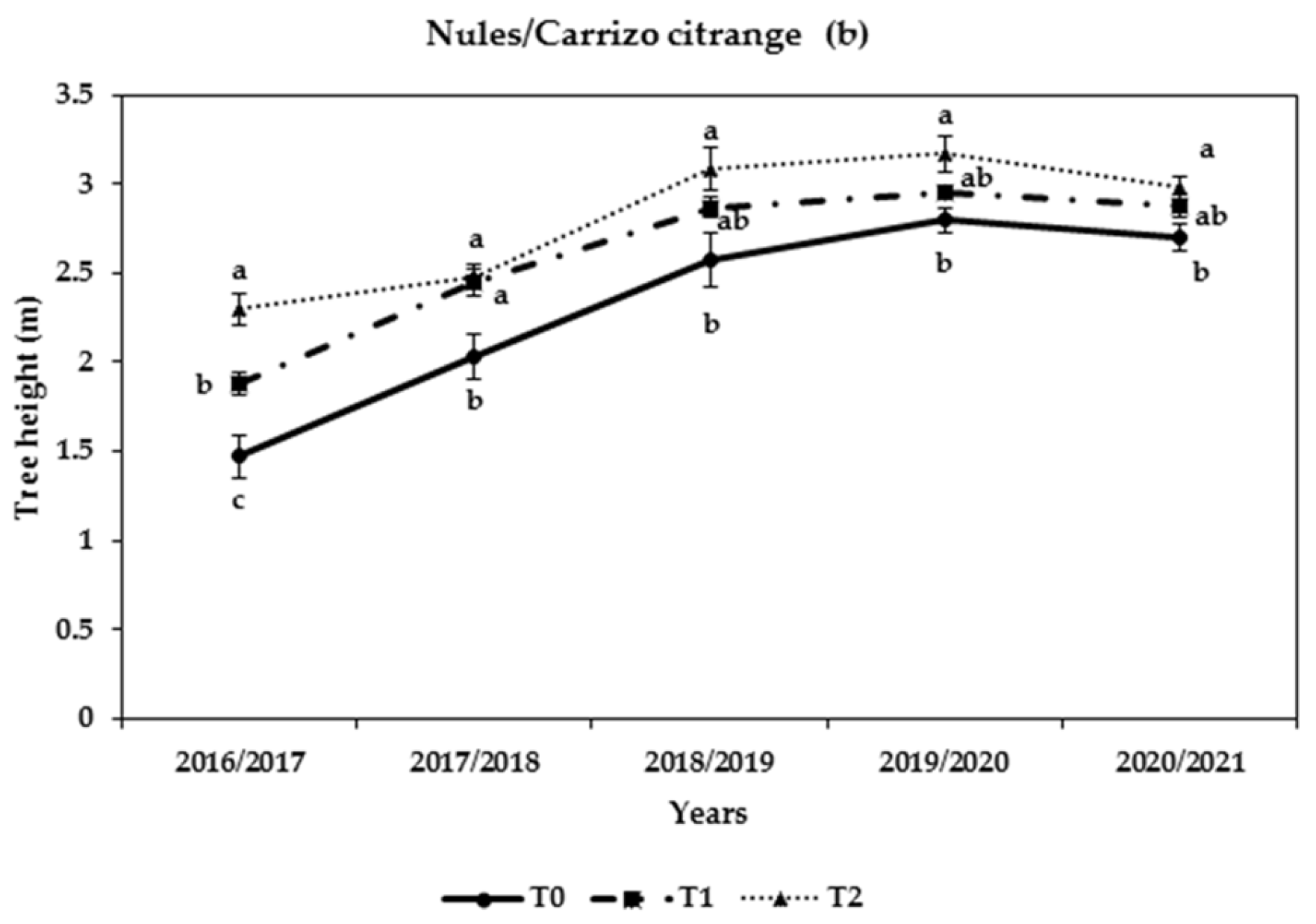

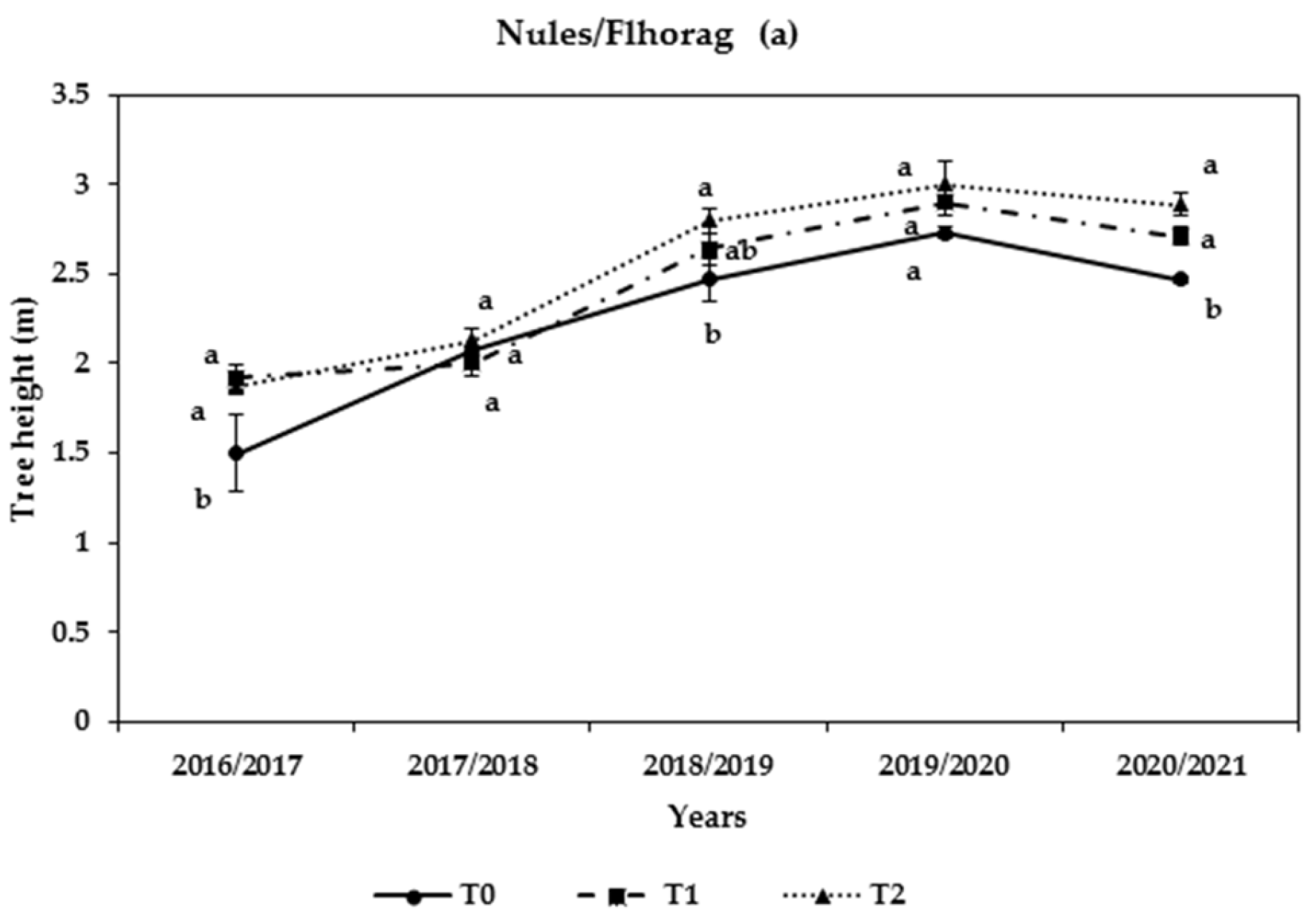

Figure 1. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on tree height of Nules clementine.
Figure 1. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on tree height of Nules clementine.
Preprints 73381 g001aPreprints 73381 g001b
Preprints 73381 g002

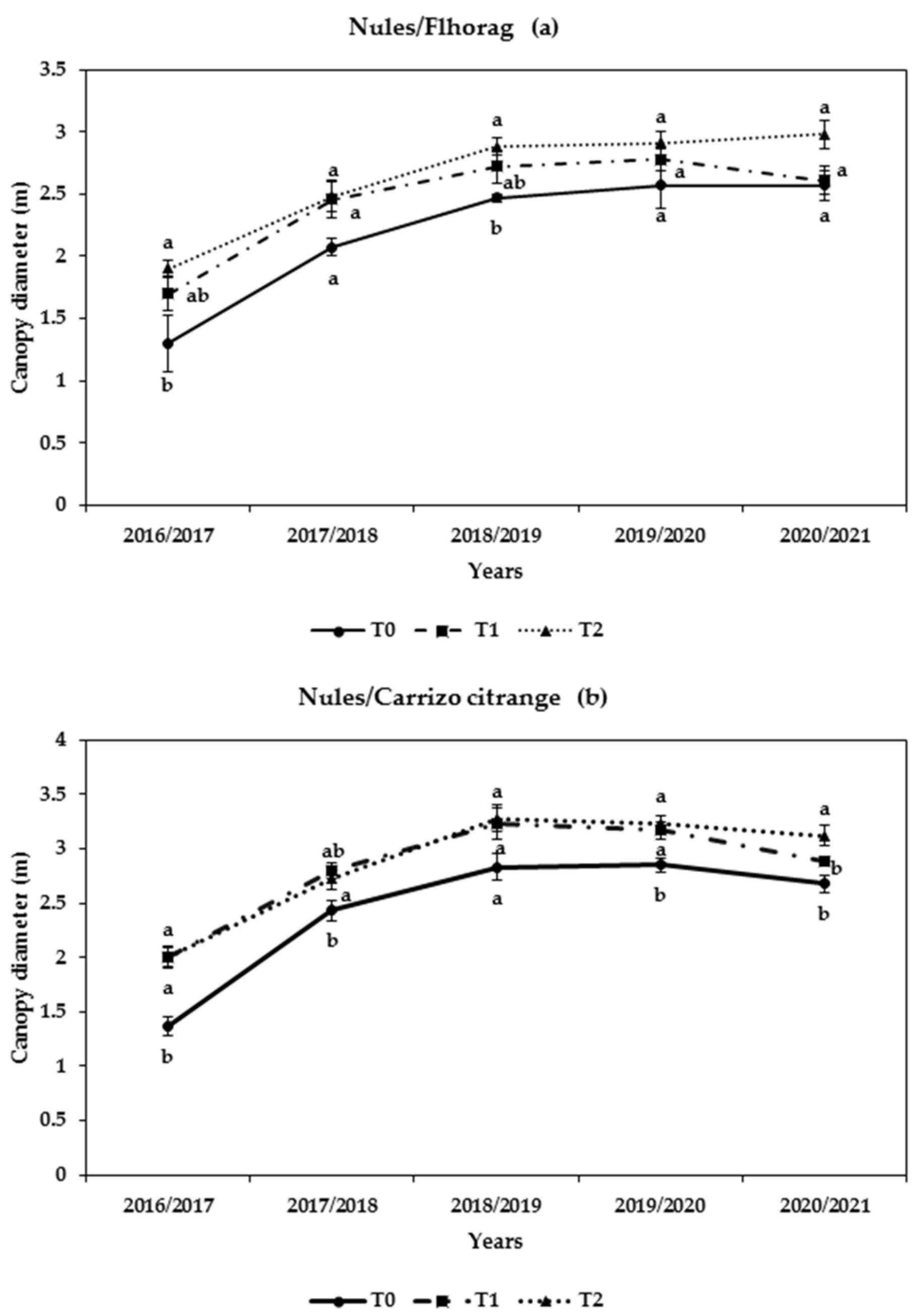

Figure 2. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy diameter of Nules clementine.
Figure 2. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy diameter of Nules clementine.
Preprints 73381 g002
Preprints 73381 g003
Figure 3. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy volume of Nules clementine.
Figure 3. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy volume of Nules clementine.
Preprints 73381 g003
Preprints 73381 g004aPreprints 73381 g004b
Figure 4. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy projectional unit area of Nules clementine.
Figure 4. Effect of N rates and citrus rootstocks (Flhorag (a), Carrizo citrange (b)) on canopy projectional unit area of Nules clementine.
Preprints 73381 g004aPreprints 73381 g004b
Preprints 73381 g005
Figure 5. The cumulative yield of Nules clementine trees on two rootstocks (Flhorag, Carrizo citrange) (2016/2017-2020/2021).
Figure 5. The cumulative yield of Nules clementine trees on two rootstocks (Flhorag, Carrizo citrange) (2016/2017-2020/2021).
Preprints 73381 g005
Preprints 73381 g006
Figure 6. Yield/canopy projectional unit area (kg/m2) of Nules clementine trees on two rootstocks (Flhorag (a), Carrizo citrange (b)) (2016/2017-2020/2021).
Figure 6. Yield/canopy projectional unit area (kg/m2) of Nules clementine trees on two rootstocks (Flhorag (a), Carrizo citrange (b)) (2016/2017-2020/2021).
Preprints 73381 g006
Preprints 73381 g007
Figure 7. Fruit yield of Nules clementine trees on two rootstocks related to canopy volume (B1: Flhorag and B2: Carrizo citrange rootstock).
Figure 7. Fruit yield of Nules clementine trees on two rootstocks related to canopy volume (B1: Flhorag and B2: Carrizo citrange rootstock).
Preprints 73381 g007
Preprints 73381 g008
Figure 8. Fruit yield of Nules clementine trees related to canopy volume (T0: Control (native nutrient). T1: 270. T2: 540 of N g/tree/year).
Figure 8. Fruit yield of Nules clementine trees related to canopy volume (T0: Control (native nutrient). T1: 270. T2: 540 of N g/tree/year).
Preprints 73381 g008
Preprints 73381 g009
Figure 9. Fruit yield of Nules clementine trees related to Nitrogen rate.
Figure 9. Fruit yield of Nules clementine trees related to Nitrogen rate.
Preprints 73381 g009
Preprints 73381 g010
Figure 10. Acidity (%) of Nules clementine fruits related to Nitrogen rate.
Figure 10. Acidity (%) of Nules clementine fruits related to Nitrogen rate.
Preprints 73381 g010
Preprints 73381 g011
Figure 11. Solid soluble content (SSC) of Nules clementine fruits related to Nitrogen rate.
Figure 11. Solid soluble content (SSC) of Nules clementine fruits related to Nitrogen rate.
Preprints 73381 g011
Table 1. Soil characteristics of the Experimental station of Sidi Allal Tazi, INRA Morocco.
Table 1. Soil characteristics of the Experimental station of Sidi Allal Tazi, INRA Morocco.
Depth pH (water) pH
(KCl 1 N)		 Organicmatter (%) P2O5 (ppm) K2O (ppm) CE (dS/m)
0-60 8.87 8.28 2.15 35.55 983.60 0.245
Table 2. Effect of N rate and citrus rootstocks on diameter of the rootstock and diameter of the variety of Nules clementine.
Table 2. Effect of N rate and citrus rootstocks on diameter of the rootstock and diameter of the variety of Nules clementine.
Diameter of the Rootstock (mm ) Diameter of the Variety (mm )
Nules/Flhorag Nules/Flhorag
T0 T1 T2 T0 T1 T2
2016/17 17.50 ± 2.25 20.80 ± 1.62 23.00 ± 0.70 15.17 ± 1.33 21.70 ± 1.55 22.50 ± 0.96
2017/18 66.40 ± 3.84 72.73 ± 3.79 90.60 ± 4.38 56.08 ± 6.62 68.95 ± 5.33 76.92 ± 1.78
2018/19 79.51 ± 1.50 89.79 ± 7.09 96.22 ± 3.87 63.97 ± 4.96 73.82 ± 6.17 83.17 ± 4.06
2019/20 85.25 ± 6.04 91.86 ± 2.52 101.55 ± 3.41 71.68 ± 4.04 79.13 ± 1.10 84.39 ± 2.16
2020/21 84.88 ± 4.88 90.19 ± 2.29 95.70 ± 1.67 74.17 ± 6.83 81.57 ± 1.77 82.15 ± 3.47
Mean 66.71 ± 6.99 a 73.07 ± 5.75 a 81.41 ± 5.61 a 56.21 ± 6.06 a 65.03 ± 4.77 a 69.82 ± 4.56 a
Nules/Carrizo citrange Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 18.17 ± 1.01 26.17 ± 0.71 26.33 ± 2.24 16.67 ± 0.33 23.75 ± 1.41 26.83 ± 2.31
2017/18 77.85 ± 3.92 78.57 ± 2.70 88.08 ± 2.86 65.60 ± 2.22 71.42 ± 2.33 81.05 ± 3.99
2018/19 93.60 ± 4.42 108.10 ± 3.69 111.94 ± 6.28 79.24 ± 5.98 87.69 ± 3.95 88.34 ± 4.28
2019/20 95.06 ± 1.32 107.87 ± 5.27 111.83 ± 3.05 80.97 ± 6.18 88.78 ± 2.04 92.71 ± 3.41
2020/21 103.45 ± 4.80 105.67 ± 2.81 108.10 ± 6.05 83.50 ± 7.22 85.75 ± 3.85 100.09 ± 6.14
Mean 80.17 ± 7.59 a 85.27 ± 6.03 a 89.26 ± 6.34 a 67.20 ± 6.43 a 71.48 ± 4.74 a 77.80 ± 5.18 a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 3. Effect of N rate and citrus rootstocks on TCSA (Trunk cross-sectional area) rootstock and TCSA variety of Nules clementine.
Table 3. Effect of N rate and citrus rootstocks on TCSA (Trunk cross-sectional area) rootstock and TCSA variety of Nules clementine.
TCSA (Trunk Cross-Sectional Area) Rootstock (cm2) TCSA Variety (cm2)
Nules/Flhorag Nules/Flhorag
T0 T1 T2 T0 T1 T2
2016/17 2.49 ± 0.58 3.48 ± 0.54 4.17 ± 0.26 1.83 ± 0.30 3.77 ± 0.50 4.01 ± 0.34
2017/18 34.86 ± 4.03 42.00 ± 4.23 65.21 ± 6.25 25.39 ± 5.49 38.23 ± 6.34 46.60 ± 2.18
2018/19 49.69 ± 1.86 64.91 ± 9.89 73.30 ± 5.73 32.52 ± 5.08 44.00 ± 7.15 54.97 ± 5.18
2019/20 57.66 ± 7.81 66.47 ± 3.64 81.44 ± 5.21 40.61 ± 4.43 49.21 ± 1.38 56.11 ± 2.90
2020/21 56.96 ± 6.32 64.04 ± 3.25 72.04 ± 2.48 43.94 ± 7.63 52.35 ± 2.32 53.48 ± 4.61
Mean 40.33 ± 5.82 b 48.18 ± 5.37 ab 59.23 ± 5.54 a 28.86 ± 4.45 b 37.51 ± 4.01 ab 43.03 ± 3.95 a
Nules/Carrizo citrange Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 2.61 ± 0.29 5.40 ± 0.28 5.64 ± 0.98 2.18 ± 0.09 4.51 ± 0.56 5.86 ± 1.09
2017/18 47.84 ± 4.76 48.77 ± 3.28 61.26 ± 4.00 33.88 ± 2.26 40.27 ± 2.64 52.22 ± 5.17
2018/19 69.11 ± 6.4 92.30 ± 6.30 99.96 ± 11.46 49.88 ± 7.53 61.01 ± 5.46 62.00 ± 6.22
2019/20 71.01 ± 1.96 92.48 ± 8.79 98.59 ± 5.28 52.39 ± 7.85 62.06 ± 2.72 67.96 ± 4.87
2020/21 84.60 ± 7.79 88.00 ± 4.51 93.21 ± 10.17 55.98 ± 9.03 58.33 ± 5.38 80.16 ± 9.36
Mean 57.71 ± 7.31 a 65.39 ± 6.74 a 71.73 ± 7.36 a 40.67 ± 5.56 a 45.24 ± 4.36 a 53.64 ± 5.35 a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 4. Effect of N rate and citrus rootstocks on SPAD of Nules clementine.
Table 4. Effect of N rate and citrus rootstocks on SPAD of Nules clementine.
Nules/Flhorag Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 44.27 ± 3.74 58.92 ± 3.79 61.05 ± 1.68 39.97 ± 1.08 51.82 ± 3.99 59.43 ± 2.73
2017/18 66.40 ± 1.54 71.40 ± 1.96 73.00 ± 1.88 68.30 ± 1.33 73.53 ± 3.34 77.07 ± 2.19
2018/19 50.60 ± 3.11 68.52 ± 0.96 75.17 ± 1.90 53.83 ± 1.59 71.95 ± 2.36 75.02 ± 1.48
2019/20 59.73 ± 1.02 67.86 ± 2.70 72.60 ± 1.53 65.33 ± 2.82 70.12 ± 2.56 76.48 ± 1.54
2020/21 59.67 ± 4.80 66.86 ± 3.76 70.43 ± 2.16 60.08 ± 3.60 65.62 ± 1.56 74.98 ± 1.09
Mean 56.13 ± 2.03 b 66.71 ± 1.47 a 70.45 ± 1.19 a 57.44 ± 2.56 c 66.61 ± 1.93 b 72.6 ± 1.46 a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 5. The annual yield of Nules clementine trees on two rootstocks (Flhorag (a), Carrizo citrange (b)) (2016/2017-2020/2021).
Table 5. The annual yield of Nules clementine trees on two rootstocks (Flhorag (a), Carrizo citrange (b)) (2016/2017-2020/2021).
Nules/Flhorag Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
Yield (kg/tree) 2016/2017 31.67 ± 4.41 b 45.00 ± 2.74 a 54.17 ± 2.01 a 40.00 ± 2.89 b 48.33 ± 2.11 b 62.50 ± 4.43 a
2017/2018 40.00 ± 11.55 b 65.40 ± 6.57 a 70.00 ± 5.16 a 58.33 ± 4.41 a 75.83 ± 8.98 a 77.83 ± 4.32 a
2018/2019 26.67 ± 3.33 b 37.00 ± 6.24 ab 49.17 ± 2.39 a 28.33 ± 1.67 b 38.33 ± 1.67 b 55.00 ± 4.47 a
2019/2020 55.00 ± 2.89 b 68.00 ± 3.74 ab 75.00 ± 5.48 a 57.50 ± 2.50 c 70.83 ± 3.27 b 83.33 ± 4.22 a
2020/2021 28.33 ± 1.67 c 35.00 ± 1.58 b 45.00 ± 1.29 a 33.75 ± 2.39 b 40.83 ± 2.39 ab 47.50 ± 2.14 a
Average Yield (Kg/tree) 36.33 ± 2.85 c 50.08 ± 2.48 b 58.44 ± 2.17 a 44.37 ± 1.14 c 54.83 ± 2.36 b 65.23 ± 1.84 a
1 Mean separation within columns by Duncan test (p ≤0.05). In each row,values with the same letter are not significantly different.
Table 6. The effects of N fertilization and two citrus rootstocks on pomological characters: fruit weight and fruit diameter of Nules clementine (2016–2020).
Table 6. The effects of N fertilization and two citrus rootstocks on pomological characters: fruit weight and fruit diameter of Nules clementine (2016–2020).
Fruit weight (g) Fruit diameter (mm)
Nules/Flhorag Nules/Flhorag
T0 T1 T2 T0 T1 T2
2016/17 92.99 ± 1.71 112.29 ± 4.17 134.00 ± 2.31 57.42 ± 2.26 61.31 ± 0.15 64.51 ± 0.81
2017/18 81.00 ± 0.84 83.52 ± 2.35 85.42 ± 2.50 55.17 ± 0.58 56.81 ± 0.18 58.47 ± 0.43
2018/19 118.33 ± 4.41 131.00 ± 4.64 137.25 ± 5.22 63.15 ± 1.73 64.98 ± 0.98 68.18 ± 0.97
2019/20 118.33 ± 3.33 122.00 ± 3.74 127.50 ± 4.61 64.03 ± 0.17 65.3 ± 0.7 66.67 ± 0.87
2020/21 103.2 ± 5.14 127.94 ± 2.80 138.38 ± 6.17 59.17 ± 1.00 69.5 ± 1.34 74.41 ± 1.32
Mean 102.77 ± 4.10 b 118.67 ± 3.80 a 128.21 ± 4.12 a 59.79 ± 1.04 c 64.44 ± 0.98 b 67.69 ± 1.10 a
Nules/Carrizo citrange Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 101.14 ± 3.13 124.39 ± 0.78 168.77 ± 9.23 61.24 ± 1.98 61.25 ± 0.45 62.16 ± 0.21
2017/18 82.76 ± 0.76 84.71 ± 1.11 88.29 ± 3.47 56.58 ± 0.51 58.52 ± 0.24 61.07 ± 0.94
2018/19 124.50 ± 3.23 133.50 ± 6.55 140.83 ± 2.71 63.86 ± 1.87 66.85 ± 1.18 70.45 ± 0.66
2019/20 112.50 ± 5.20 126.67 ± 5.11 135.00 ± 3.65 63.76 ± 1.17 65.39 ± 0.51 67.49 ± 0.64
2020/21 118.43 ± 3.91 128.62 ± 6.15 139.08 ± 2.58 65.60 ± 2.04 66.32 ± 1.11 78.79 ± 2.35
Mean 109.63 ± 3.75 c 123.33 ± 3.94 b 135.86 ± 4.60 a 62.57 ± 0.98 b 64.61 ± 0.72 b 69.59 ± 1.42 a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 7. The effects of N fertilization and two citrus rootstocks on juice content, total acidity of Nules clementine (2016-2020).
Table 7. The effects of N fertilization and two citrus rootstocks on juice content, total acidity of Nules clementine (2016-2020).
Juice content (%) Acidity (%)
Nules/Flhorag Nules/Flhorag
T0 T1 T2 T0 T1 T2
2016/17 39.79 ± 2.36 42.10 ± 0.4 46.85 ± 0.62 0.64 ± 0.02 0.86 ± 0.01 0.93 ± 0.01
2017/18 40.53 ± 1.02 41.37 ± 0.51 44.19 ± 1.18 0.94 ± 0.01 1.08 ± 0.02 1.19 ± 0.04
2018/19 44.69 ± 2.32 46.59 ± 0.65 48.42 ± 1.19 0.9 ± 0.03 0.96 ± 0.03 1.05 ± 0.03
2019/20 42.20 ± 1.54 45.08 ± 1.24 51.64 ± 1.37 0.79 ± 0.00 0.94 ± 0.02 1.09 ± 0.03
2020/21 43.76 ± 0.38 45.75 ± 0.46 50.24 ± 1.11 0.75 ± 0.01 0.85 ± 0.01 0.97 ± 0.02
Mean 42.20 ± 0.81 c 44.64 ± 0.54 b 48.95 ± 0.72 a 0.81 ± 0.03 c 0.93 ± 0.02 b 1.04 ± 0.02 a
Nules/Carrizo citrange Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 42.96 ± 1.02 46.12 ± 0.74 52.02 ± 2.31 0.67 ± 0.01 0.89 ± 0.01 0.96 ± 0.05
2017/18 42.38 ± 0.48 43.26 ± 1.04 45.96 ± 0.10 1.02 ± 0.01 1.12 ± 0.01 1.29 ± 0.01
2018/19 45.29 ± 0.80 48.56 ± 0.34 51.28 ± 1.05 0.94 ± 0.01 1.18 ± 0.01 1.28 ± 0.04
2019/20 43.35 ± 0.87 48.00 ± 1.02 52.57 ± 1.18 0.95 ± 0.03 1.06 ± 0.02 1.21 ± 0.01
2020/21 45.68 ± 0.97 47.61 ± 0.66 54.04 ± 0.94 0.76 ± 0.01 0.90 ± 0.02 0.96 ± 0.02
Mean 44.07 ± 0.47 c 47.22 ± 0.47 b 51.72 ± 0.7 a 0.87 ± 0.03 c 1.04 ± 0.03 b 1.15 ± 0.03a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 8. The effects of N fertilization and two citrus rootstocks on Solid soluble contentand Ripening Index of Nules clementine (2016-2020).
Table 8. The effects of N fertilization and two citrus rootstocks on Solid soluble contentand Ripening Index of Nules clementine (2016-2020).
Solid soluble content (SSC) Ripening Index (RI)
Nules/Flhorag Nules/Flhorag
T0 T1 T2 T0 T1 T2
2016/17 8.40 ± 0.26 9.10 ± 0.12 8.90 ± 0.26 13.20 ± 0.39 10.58 ± 0.25 9.58 ± 0.39
2017/18 9.73 ± 0.03 10.33 ± 0.26 10.40 ± 0.17 10.37 ± 0.08 9.59 ± 0.41 8.72 ± 0.17
2018/19 10.03 ± 0.26 10.94 ± 0.27 11.33 ± 0.24 11.12 ± 0.24 11.49 ± 0.53 10.83 ± 0.39
2019/20 10.10 ± 0.06 10.6 ± 0.09 11.13 ± 0.15 12.74 ± 0.11 11.35 ± 0.29 10.21 ± 0.26
2020/21 10.97 ± 0.19 11.72 ± 0.28 12.68 ± 0.14 14.55 ± 0.22 13.85 ± 0.39 13.15 ± 0.33
Mean 9.85 ± 0.23 b 10.7 ± 0.20 a 11.2 ± 0.25 a 12.40 ± 0.41 a 11.62 ± 0.35 ab 10.83 ± 0.34 b
Nules/Carrizo citrange Nules/Carrizo citrange
T0 T1 T2 T0 T1 T2
2016/17 8.57 ± 0.09 9.70 ± 0.17 9.47 ± 0.15 12.72 ± 0.14 10.89 ± 0.27 9.88 ± 0.51
2017/18 10.13 ± 0.07 10.53 ± 0.18 11.13 ± 0.13 9.95 ± 0.07 9.41 ± 0.21 8.61 ± 0.02
2018/19 10.70 ± 0.30 11.30 ± 0.16 11.68 ± 0.29 11.45 ± 0.40 9.57 ± 0.19 9.15 ± 0.29
2019/20 10.13 ± 0.32 11.20 ± 0.11 11.57 ± 0.18 10.77 ± 0.62 10.57 ± 0.24 9.55 ± 0.19
2020/21 11.75 ± 0.26 12.58 ± 0.11 12.98 ± 0.19 15.51 ± 0.29 14.02 ± 0.46 13.57 ± 0.42
Mean 10.36 ± 0.26 b 11.3 ± 0.20 a 11.63 ± 0.24 a 12.16 ± 0.50 a 11.08 ± 0.39 ab 10.38 ± 0.41 b
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test (p ≤ 0.05)).
Table 9. The effects of N fertilization and two citrus rootstocks on the fruit coloration (CCI) of Nules clementine.
Table 9. The effects of N fertilization and two citrus rootstocks on the fruit coloration (CCI) of Nules clementine.
Fruit Color Index
Nules/Flhorag Nules/Carrizo citrange
Variable T0 T1 T2 T0 T1 T2
l* 57.56 ± 1.84 b 59.40 ± 0.96 ab 61.13 ± 0.61 a 61.07 ± 0.94 a 61.39 ± 0.69 a 61.91 ± 0.52 a
a* 10.67 ± 4.54 b 15.64 ± 2.95 b 26.02 ± 1.7 a 19.52 ± 3.17 a 22.82 ± 2.27 a 25.94 ± 2.02 a
b* 49.90 ± 3.13 b 53.42 ± 1.87 ab 57.60 ± 1.01 a 56.49 ± 1.64 a 57.40 ± 1.25 a 58.52 ± 0.93 a
CCI* 2.23 ± 1.52 b 4.15 ± 0.98 b 7.21 ± 0.48 a 5.32 ± 0.80 a 6.13 ± 0.62 a 7.01 ± 0.52 a
1 In each row for each parameter studied, values with the same letter are not significantly different (Duncan test, p ≤ 0.05).
Table 10. Pearson product moment correlations (r value) between vegetative growth, quality and yield variables of ‘Nules’ clementine.
Table 10. Pearson product moment correlations (r value) between vegetative growth, quality and yield variables of ‘Nules’ clementine.
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) (20)
(1) N rate 1.00
(2) Tree height 0.63 1.00
(3) Canopy diameter 0.57 0.85 1.00
(4) SPAD 0.89 0.56 0.54 1.00
(5) Canopy projectional unit area 0.57 0.85 1.00 0.54 1.00
(6) Diameter of the variety 0.45 0.76 0.71 0.45 0.71 1.00
(7) Diameter of the rootstock 0.37 0.79 0.73 0.35 0.73 0.92 1.00
(8) TCSA variety 0.44 0.75 0.70 0.45 0.70 0.99 0.92 1.00
(9) TCSA rootstock 0.38 0.79 0.73 0.37 0.73 0.90 0.99 0.92 1.00
(10) Yield 0.83 0.73 0.70 0.78 0.70 0.64 0.60 0.64 0.61 1.00
(11) Canopy volume 0.59 0.92 0.97 0.54 0.97 0.70 0.74 0.71 0.75 0.72 1.00
(12) Yield/canopy projectional unit area 0.68 0.36 0.19 0.64 0.19 0.31 0.27 0.33 0.29 0.82 0.27 1.00
(13) Fruit weight 0.75 0.65 0.71 0.70 0.71 0.53 0.48 0.50 0.46 0.75 0.69 0.46 1.00
(14) Fruit diameter 0.73 0.65 0.71 0.65 0.71 0.47 0.41 0.44 0.40 0.65 0.72 0.33 0.85 1.00
(15) Juice content 0.84 0.81 0.78 0.74 0.78 0.66 0.64 0.67 0.65 0.87 0.83 0.60 0.76 0.79 1.00
(16) Acidity 0.85 0.76 0.75 0.79 0.75 0.64 0.61 0.65 0.63 0.86 0.78 0.60 0.72 0.62 0.88 1.00
(17) Solid soluble content (°Brix) 0.63 0.73 0.84 0.62 0.84 0.56 0.55 0.53 0.52 0.66 0.82 0.24 0.78 0.88 0.80 0.64 1.00
(18) Ripening Index -0.60 -0.36 -0.26 -0.53 -0.26 -0.33 -0.30 -0.36 -0.34 -0.57 -0.31 -0.58 -0.28 -0.06 -0.46 -0.76 0.00 1.00
(19) Fruit Color Index (CCI) 0.40 0.44 0.32 0.34 0.32 0.34 0.39 0.34 0.40 0.45 0.38 0.42 0.36 0.28 0.54 0.42 0.44 -0.17 1.00
(20) Cumulative yield 0.72 0.51 0.56 0.65 0.56 0.34 0.28 0.37 0.32 0.85 0.59 0.75 0.60 0.50 0.67 0.74 0.45 -0.57 0.25 1.00
Table 11. p-value from ANOVA about vegetative growth, quality and yield variables of ‘Nules’ clementine.
Table 11. p-value from ANOVA about vegetative growth, quality and yield variables of ‘Nules’ clementine.
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) (20)
(1) N rate
(2) Tree height 0.0002
(3) Canopy diameter 0.0010 <0.0001
(4) SPAD <0.0001 0.0012 0.0023
(5) Canopy projectional unit area 0.0010 <0.0001 <0.0001 0.0023
(6) Diameter of the variety 0.0135 <0.0001 <0.0001 0.0124 <0.0001
(7) Diameter of the rootstock 0.0459 <0.0001 <0.0001 0.0577 <0.0001 <0.0001
(8) TCSA variety 0.0141 <0.0001 <0.0001 0.0136 <0.0001 <0.0001 <0.0001
(9) TCSA rootstock 0.0385 <0.0001 <0.0001 0.0458 <0.0001 <0.0001 <0.0001 <0.0001
(10) Yield <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 0.0001 0.0004 0.0001 0.0004
(11) Canopy volume 0.0005 <0.0001 <0.0001 0.0021 <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 <0.0001
(12) Yield/canopy projectional unit area <0.0001 0.0489 0.3088 0.0001 0.3089 0.1009 0.1519 0.0784 0.1264 <0.0001 0.1531
(13) Fruit weight <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 0.0024 0.0069 0.0048 0.0102 <0.0001 <0.0001 0.0101
(14) Fruit diameter <0.0001 <0.0001 <0.0001 0.0001 <0.0001 0.0093 0.0229 0.0158 0.0307 0.0001 <0.0001 0.0788 <0.0001
(15) Juice content <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 0.0002 <0.0001 0.0001 <0.0001 <0.0001 0.0005 <0.0001 <0.0001
(16) Acidity <0.0001 <0.0001 <0.0001 <0.0001 <0.0001 0.0001 0.0003 0.0001 0.0002 <0.0001 <0.0001 0.0004 <0.0001 0.0002 <0.0001
(17) Solid soluble content (°Brix) 0.0001 <0.0001 <0.0001 0.0002 <0.0001 0.0012 0.0018 0.0028 0.0029 <0.0001 <0.0001 0.1926 <0.0001 <0.0001 <0.0001 0.0001
(18) Ripening Index 0.0004 0.0503 0.1623 0.0023 0.1623 0.0753 0.1055 0.0482 0.0629 0.0011 0.0969 0.0009 0.1203 0.7462 0.0094 <0.0001 0.9841
(19) Fruit Color Index (CCI) 0.0276 0.0157 0.0808 0.0682 0.0808 0.0638 0.0338 0.0631 0.0300 0.0119 0.0370 0.0195 0.0520 0.1337 0.0023 0.0218 0.0146 0.3798
(20) Cumulative yield <0.0001 0.0036 0.0013 0.0001 0.0013 0.0679 0.1325 0.0466 0.0863 <0.0001 0.0007 <0.0001 0.0004 0.0048 <0.0001 <0.0001 0.0116 0.0009 0.1793
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
