1. Introduction

2. Data and methods

2.1. Study area

FPEN is a typical coupling zone of farming and livestock-grazing [31,32]. The cropland and grassland area accounted for ~73.9% of FPEN, of which the cropland area was ~20.2×10⁴ km² (Figure 1a). Its terrain is complex and diverse, which is low in the northeast and high in the southwest. The region has a temperate continental monsoon climate, with rainfall considerably affected by the summer monsoon, predominantly in summer, and the average annual precipitation of 250~600mm (Figure 1d). The average annual temperature is 6.8℃ (Figure 1c).

Considering the large differences in climate, environment and policies in the study area, we subdivided FPEN into three regions. (1) Eastern region: locating in the east of the study area, it belongs to the Northeast China Plain. The average annual precipitation of ~468.2mm, and the average annual temperature is 5.8℃. Eastern of FPEN has abundant black soil resources, and flat terrain, which provides good conditions for agricultural activities and mechanized production. Also, China's main commercial grain production base and a key implementation region for cropland protection policies [28,29]. (2) Central region: locating in the center of the study area, connecting Inner Mongolia Plateau and Loess Plateau. The average annual precipitation of 551.0mm, and the average annual temperature is 7.5℃. The terrain in central region is complex and diverse, and areas of cropland and grassland are the largest (Figure 1a). Due to the prominent problems of land and environmental degradation, it has become a key ecological reserve in China [33]. (3) Western region: locating in the west of the study area, it belongs to the Loess Plateau. The annual precipitation and temperature are higher than eastern, is 600.8 mm and 7.4℃, respectively. Western region has low vegetation coverage, severe soil erosion and a particularly fragile ecological environment. Like central region, western is also a key implementation area for ecological projects such as the “Grain for Green” Project.

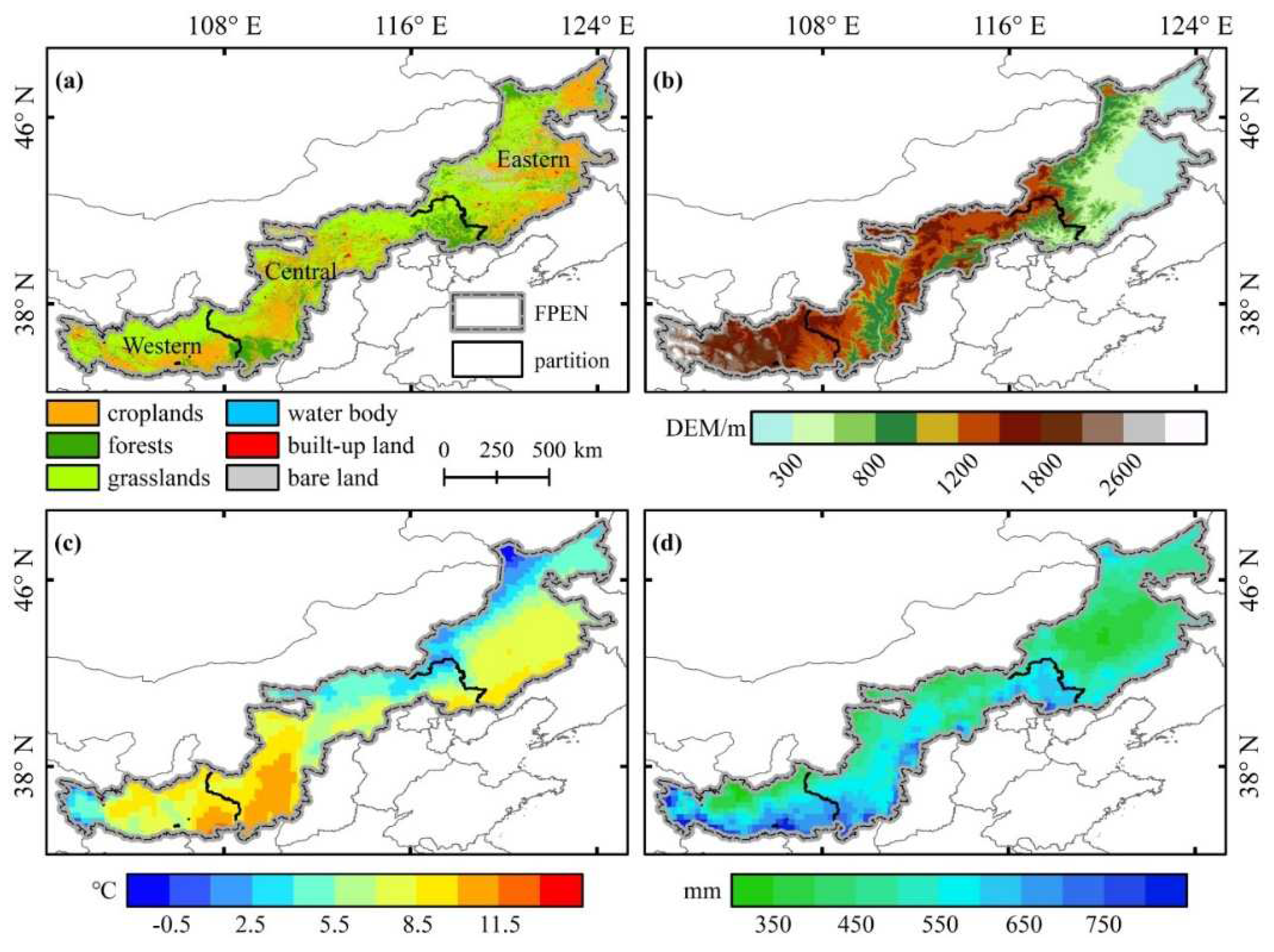

Figure 1. Location maps of the FPEN. a) land use/land cover map in 2020, b) Elevation of the FPEN, c) and d) averaged annual mean temperature and total precipitation during 1992−2020.

Figure 1. Location maps of the FPEN. a) land use/land cover map in 2020, b) Elevation of the FPEN, c) and d) averaged annual mean temperature and total precipitation during 1992−2020.

2.3. Methods

2.3.1. Main research framework

In this study, we quantified impacts of driving factors on cropland area trend at the county scale, and compared the differences in the contribution of driving factors before and after the TP. The main research framework is illustrated in Figure 2, which incorporated four steps:

(1) Spatial-temporal change analysis. We estimated the spatiotemporal dynamics of cropland area from 1992 to 2020 by using the trend analysis approach and detected its time series TP by the piecewise regression approach.

(2) Driver factors determination. We quantified the correlation between cropland area and drivers using the Pearson correlation analysis at the county-scale, and judged whether put initial driving factors into the ridge regression model by considering the correlation coefficient R values and the ratio of significant area to total area.

(3) Relative contribution of drivers. We put the filtered factors and cropland area into the ridge regression model, tested accuracy of model based on the RMSE, R² and RMSE/mean (Appendix A Eq.2~4, Figure 5), and finally get the relative contribution.

And (4) differences in contribution of driving factors before and after the TP. We took the TP obtained in step (1) as a node, the relative contribution value of the driving factors before and after the TP, and their relative changes were calculated, respectively. Finally, we visualized the spatial distribution of the dominant and biggest changes driver at the county-scale.

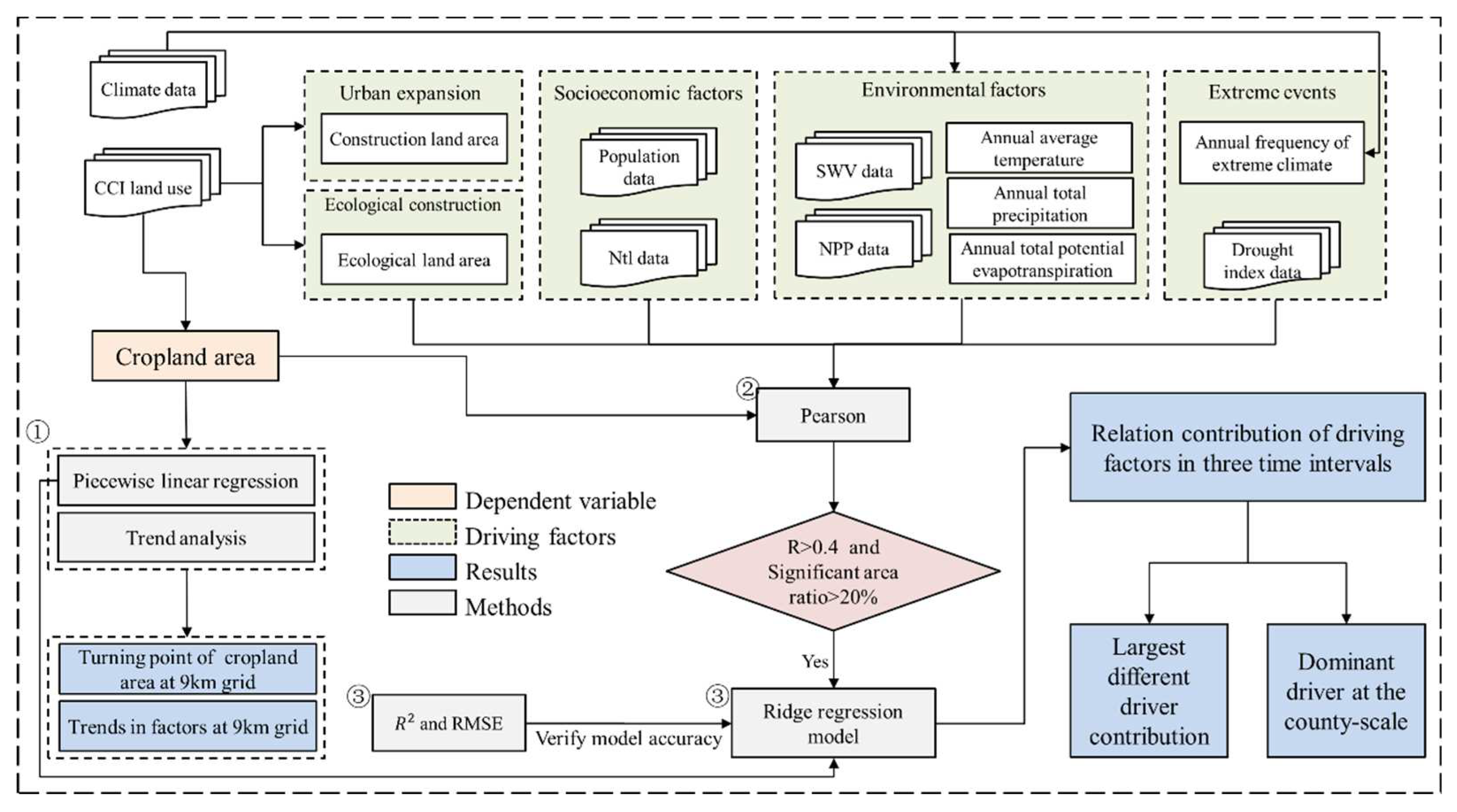

Figure 2. The main research framework of this study. Note: the statistical significance level is 0.05 (p<0.05) in this study.

Figure 2. The main research framework of this study. Note: the statistical significance level is 0.05 (p<0.05) in this study.

2.3.2. Initial driver factors selection and driver factors determination

Previous studies have shown that the potential driving factors that could affect the cropland area change were grouped into five categories: extreme events, environmental conditions, socioeconomic development, urban expansion and ecological construction (Table A2) [16,17,19,22].

Environmental conditions are represented from the perspective of meteorology, soil, and grain production situation using Annual average temperature, annual precipitation, potential evapotranspiration (PET), volumetric soil water, and net primary productivity (NPP), respectively [29,38,39]. These factors are closely related to grain growth and development, which in turn affects the change of cropland area [19,22]. In addition, extreme events could be largely responsible for altering cropland area due to a dramatic increase in the frequency and intensity of extreme events under climate change [10,23,25,40,41]. Therefore, the climate extremes index (covering extreme high temperature, extreme low temperature, extreme precipitation, and drought) also contained in our research.

Due to unavailability of continuous socioeconomic data at the grid scale, we predominantly considered two types of socioeconomic factors, namely population and satellite-based nighttime light index (NTL) data [8]. The areas of construction land and ecological land represent urban expansion and ecological construction in this study, respectively [15].

To further confirm whether the driving factors in Table A2 can reasonably explain the cropland area trend, before estimating the relative contribution of driving factors on cropland area, we screened out the driving factors that had stronger relative (R > 0.4) at first. Meanwhile, we also erased the driving factors that the ratio of significant area to total area was less than 20%, due to the spatial heterogeneity. Their significant was judged with the help of F-statistic test. The Pearson correlation analysis formula is as follows:

$${\mathrm{R}}_{cp,X_i}=\frac{cov\left(cp,X_i\right)}{{\sigma }_{cp}{\sigma }_{X_i}},0<X_i<245$$

(1)

where i is the county of FPEN; cp is the cropland area of i county; X is the driving factors of i county; $cov\left(cp,X_i\right)$ is the covariance of cropland area and driving factors at the county-scale; ${\sigma }_{cp}$ and ${\sigma }_{X_i}$ is the standard deviations of cropland area and driving factors, respectively; ${\mathrm{R}}_{cp,X_i}$ is the correlation coefficient of cropland area and driving factors at the county-scale. ${\mathrm{R}}_{cp,X_i}$ is always between -1 and 1. If ${\mathrm{R}}_{cp,X_i}=1$, means there are the perfect positive linear correlation between cropland area and driving factors. If ${\mathrm{R}}_{cp,X_i}=-1$, indicates perfect negative linear correlation between cropland area and driving factors. While ${\mathrm{R}}_{cp,X_i}=0$ implies no linear correlation. Additionally, an α-level of 0.05 is used as the threshold of statistical significance in our research. While $\left|F\right|>F_{\frac{1-\alpha }{2}}$, means ${\mathrm{R}}_{cp,X_i}$ is significant.

2.3.3. Extreme climate index calculation

We selected four indices, including extreme high temperature, extreme low temperature, extreme drought and extreme precipitation, to describe the extreme climate as they were closely related to cropland area change/agricultural production in FPEN. These indices were calculated by referring to the definition of climate extremes by the Expert Team on Climate Change Detection and Indices (ETCCDI) [42,43]. In addition, to keep the unit of drought indices consistent with others, we compute the annual frequency of drought (D20p) based on DEDI using the same method as ETCCDI. Detailed calculation method is shown in Table A3.

2.3.4. Trend analysis

Linear regression was used to estimate the spatial-temporal trends of annual driving factors and cropland area [44]. Their significant was judged by F-statistic test in this study. Trend formula is as follows:

$${\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}}_i=\frac{n\sum _{t=1}^{n}t{x}_i-\left(\sum _{t=1}^{n}t\right)\left(\sum _{t=1}^n{x}_i\right)}{n\sum _{t=1}^n{t}^2-{\left(\sum _{t=1}^{n}t\right)}^2},0<\mathrm{t}\le 29$$

(2)

where n is study coverage time; $x_i$ represents the value of driving factors/cropland area in year t; ${\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}}_i$ is the slope value of this factor. Additionally, if ${\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}}_i$ is positive, it means that $x_i$ increases over time. The larger |${\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}}_i$| is, the more obvious the increasing trend is. Otherwise, it will decrease over time.

2.3.5. Turing point (TP) detection

A piecewise linear regression model was used to identify the TP of the cropland area from 1992 to 2020 [45], and its significant was judged by F-statistic test. The piecewise linear regression model is as follows:

$$\mathrm{y}=\left\{\begin{array}{c}{\beta }_0+{\beta }_{1}t+\epsilon , t\le t_0\\ {\beta }_0+{\beta }_{1}t+{\beta }_2\left(t-\alpha \right)+\epsilon , t>t_0\end{array}\right.$$

(3)

where y is the cropland area; t is the year; $t_0$ is the identified TP; ${\beta }_0$ is intercept; ${\beta }_1$ and ${{\beta }_1+\beta }_2$ are the value of trends before and after the TP, respectively; and ε is the residual errors. Least squares method is used to compute coefficients, such as ${\beta }_0$, ${\beta }_1$, ${\beta }_2$. In this study, we determined TP by multiple iterations [46,47]. Specifically, firstly, we limited points to between 1996 and 2016, to ensure that the time series before and after the point is greater than or equal to 5 years. Then, we used multiple fitted linear iterations to obtain the point where had minimized residual value square sum of the both sides. Finally, we used F- statistic test to judge whether the trend of time series on both sides of the point is significant. If it passes the significance test (p<0.05), this point is regarded as the TP of cropland area changes.

2.3.6. Ridge regression model

The ridge regression model was designed to solve the problem of multi-collinearity between independent variables [48,49,50]. Compared to the traditional multiple linear regression, ridge regression is more tolerant of ill-conditioned data. This study involved nine variables, and the results of factor inflation factor (VIF) test showed that there was multi-collinearity (VIF≥10) between driving factors (Figure A1). The ridge regression model is expressed as follows:

$$\widehat{\beta }\left(k\right)={\left(X^{T}X+kI\right)}^{-1}{X}^T{A}_{Cropland}$$

(4)

where $A_{Cropland}$ is cropland area of spatial-temporal standardized, $\widehat{\beta }\left(k\right)$ is regression coefficient, X is a 2-dimensional matrix of spatial-temporal standardized driving factors. Detailed calculation method of spatial-temporal standardized is shown in Methods Section of the Appendix A [Eq. 1]. k is the ridge parameter. The principle of selecting the value of k: if k = k₀, the $\widehat{\beta }\left(k\right)$ of driving factors tends to be stable, k₀ will be ridge parameter. In our research, k is 1.

To account for the long-term trend in the effects of drivers on cropland area, we multiplied the ridge regression coefficients by the trend of the corresponding drivers in order to characterize the contribution of drivers for cropland area trends. The contribution of the driving factor to the cropland area is expressed as follows:

$${\eta }_{ij}=\widehat{\beta }{X}_{ij\_trend}$$

(5)

The relative contribution is:

$${R\eta }_{ij}=\frac{{\eta }_{ij}}{\sum _{j=1}^{10}\left|{\eta }_{ij}\right|}$$

(6)

where $X_{ij\_trend}$ is the spatial-temporal standardized of driving factors trends; ${R\eta }_{ij}$ represents relative contribution of driving factors to trends of cropland area, the positive and negative of ${\eta }_{ij}$ indicate the positive and negative effects of ${\eta }_{ij}$, its value larger is impact greater.

The accuracy of the simulated results evaluated using three metrics [root-mean-square error (RMSE), coefficient of determination (R²), and RMSE/mean]. Detailed calculation method is shown in Methods Section of the Appendix A [Eq. 2 ~ 4].

3. Results

3.1. Spatial-temporal dynamics of cropland area

The cropland area significantly increased at a rate of ~ 333.5km²/a in FPEN during 1992−2020 (p<0.05). The area increased from 19.5×10⁴km² in 1992 to 20.2×10⁴km² in 2020 (Figure 3c). Regionally, cropland area of the eastern region continued to increase in the entire period with a growth rate of ~357.3km²/a (p<0.01, Figure 3d). The cropland area in the central region clearly showed two distinct opposite trends before and after 2005 (Figure 3e). Firstly, the cropland area increased significantly from 1992 to 2005, and the growth rate was ~74.2km²/a (p<0.01). Then, at the stage of 2005−2020, its area significantly decreased at a rate of 91.4 km²/a (p<0.01). Its total area finally decreased 765.9km² during 1992−2020. The cropland area of western region showed a significantly decreasing trend (p<0.05). The entire cropland loss area is 875.2 km² from 1992 to 2020 (Figure 3f). Spatially, the increased cropland area of the entire FPEN focused on the eastern region, the significant increased area was 14.13×10⁴km² (p<0.05), particularly in the eastern part of Inner Mongolia. The decreased cropland area primarily in the central and western regions, its significant increased and decreased trend areas were 16.08×10⁴km² and 22.38×10⁴km², respectively (Figure 3a).

In FPEN, ~38.90% of cropland had a significant TP (p<0.01, Figure 3b). The TP of the cropland area mainly occurred after 2010, accounting for ~24.85% of FPEN (63.88% of entire TP regions). The pixels of croplands having TP before 2000 only accounted for ~1.55% of FPEN. Through overlay analysis of the cropland area trend and TP, we found that there were more prone to TP after 2010, if the cropland area exhibited a significant decreasing trend in pixel scale. Therefore, we speculated that there might be large differences in the impact of driving factors on the cropland area trend around 2010.

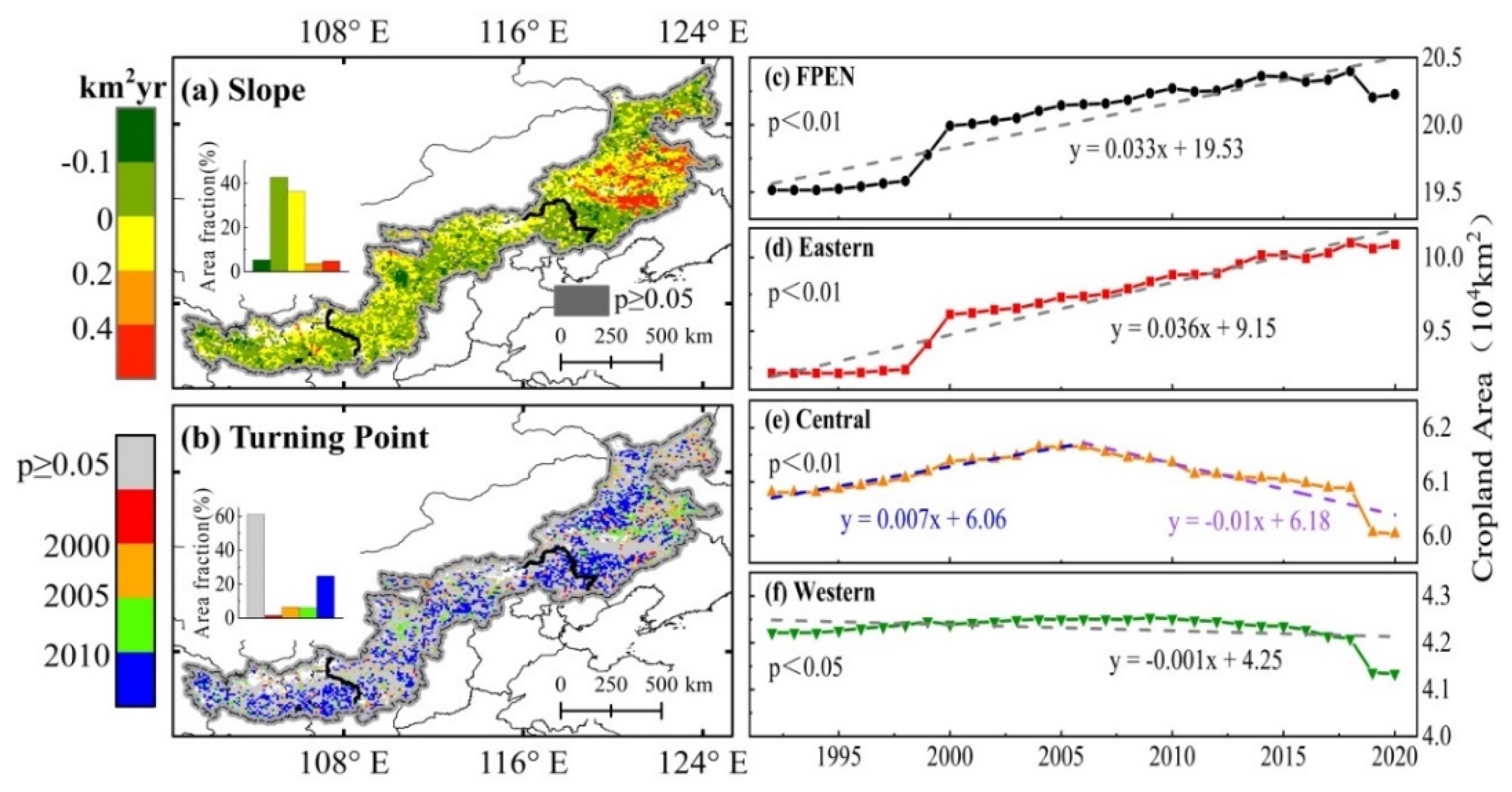

Figure 3. Spatiotemporal dynamics of cropland area from 1992 to 2020, (a) the trend of cropland area, (b) the turning points of cropland area changes, and (c-f) cropland area changes of the FPEN and three sub-regions.

Figure 3. Spatiotemporal dynamics of cropland area from 1992 to 2020, (a) the trend of cropland area, (b) the turning points of cropland area changes, and (c-f) cropland area changes of the FPEN and three sub-regions.

3.2. Selecting driving factors based on the ridge regression model

This study used the Pearson analysis to quantify the correlations between driving factors and cropland area in FPEN (Figure 4a~m). The results showed that the mean absolute of correlation coefficient between all driving factors with cropland area was greater than 0.4. Among them, the mean absolute of the correlation coefficients of EC and UE were much higher than other factors (R values of ~0.9 and 0.8, respectively). At the significance level of 0.05, the area where the cropland area was significantly correlated with socioeconomic development, urban expansion and ecological construction all exceeded 50% of FPEN. On the contrary, except for NPP, the area of significant correlation between environmental conditions and extreme events with cropland area were all less than 50% of FPEN, of which the annual average temperature, annual precipitation, volumetric soil water and annual frequency of extreme precipitation were significantly correlated with cropland area in less than 20% of FPEN (Figure 4c, e, f and h). Due to spatial heterogeneity, the small range significant correlation cannot clearly explain the reason for the cropland area trend in the entire FPEN. Thus, the annual average temperature, annual precipitation, Annual frequency of extreme precipitation and volumetric soil water were excluded from the follow-up study.

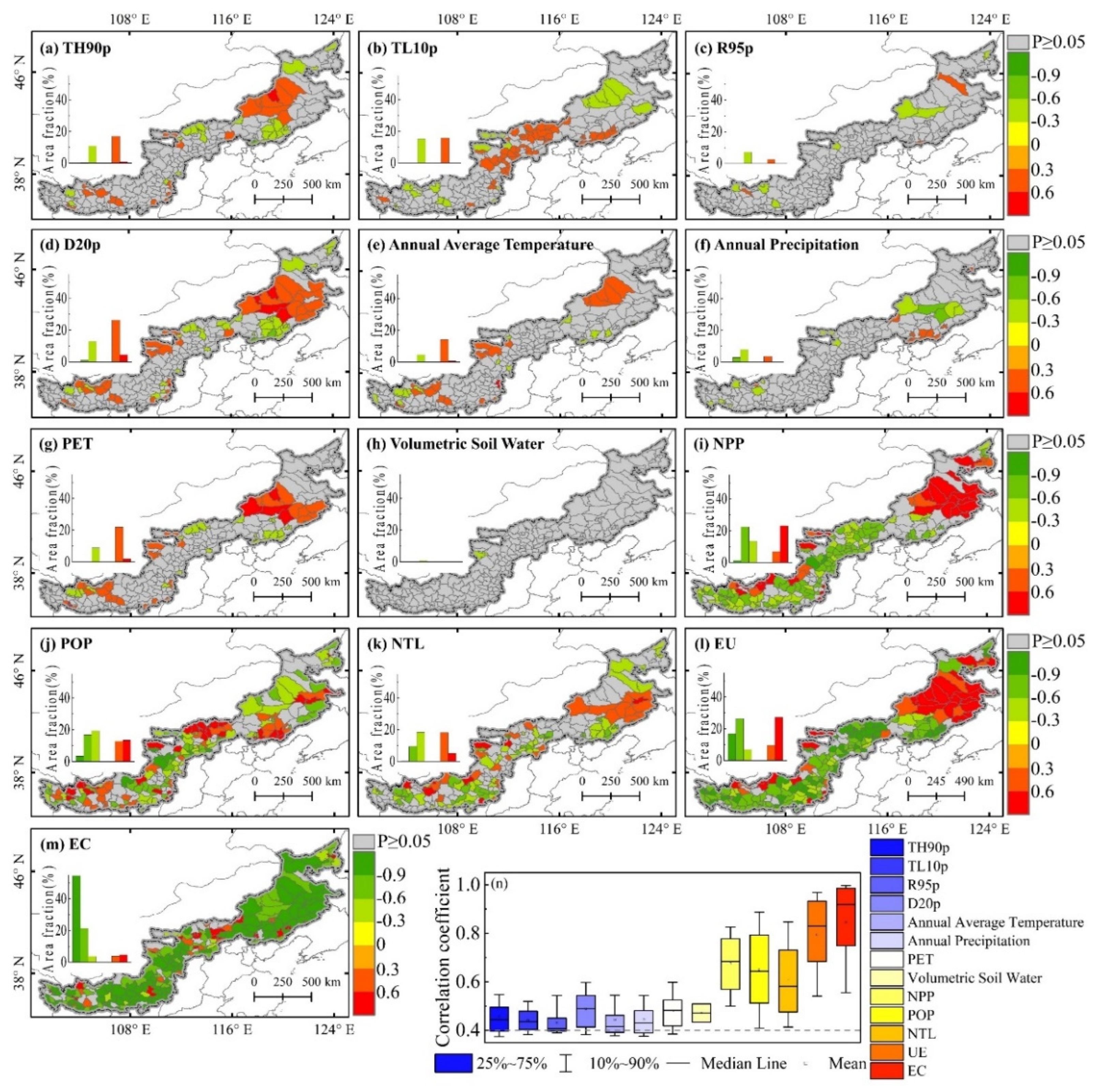

Figure 4. The Pearson correlation coefficients between cropland area and corresponding driving factors (a) ~ (m), and boxplots for correlation coefficient absolute of each driving factors (n).

Figure 4. The Pearson correlation coefficients between cropland area and corresponding driving factors (a) ~ (m), and boxplots for correlation coefficient absolute of each driving factors (n).

3.3. Factor attributions of cropland area trends at the county scale

3.3.1. Relative contributions of driving factors to cropland area trends

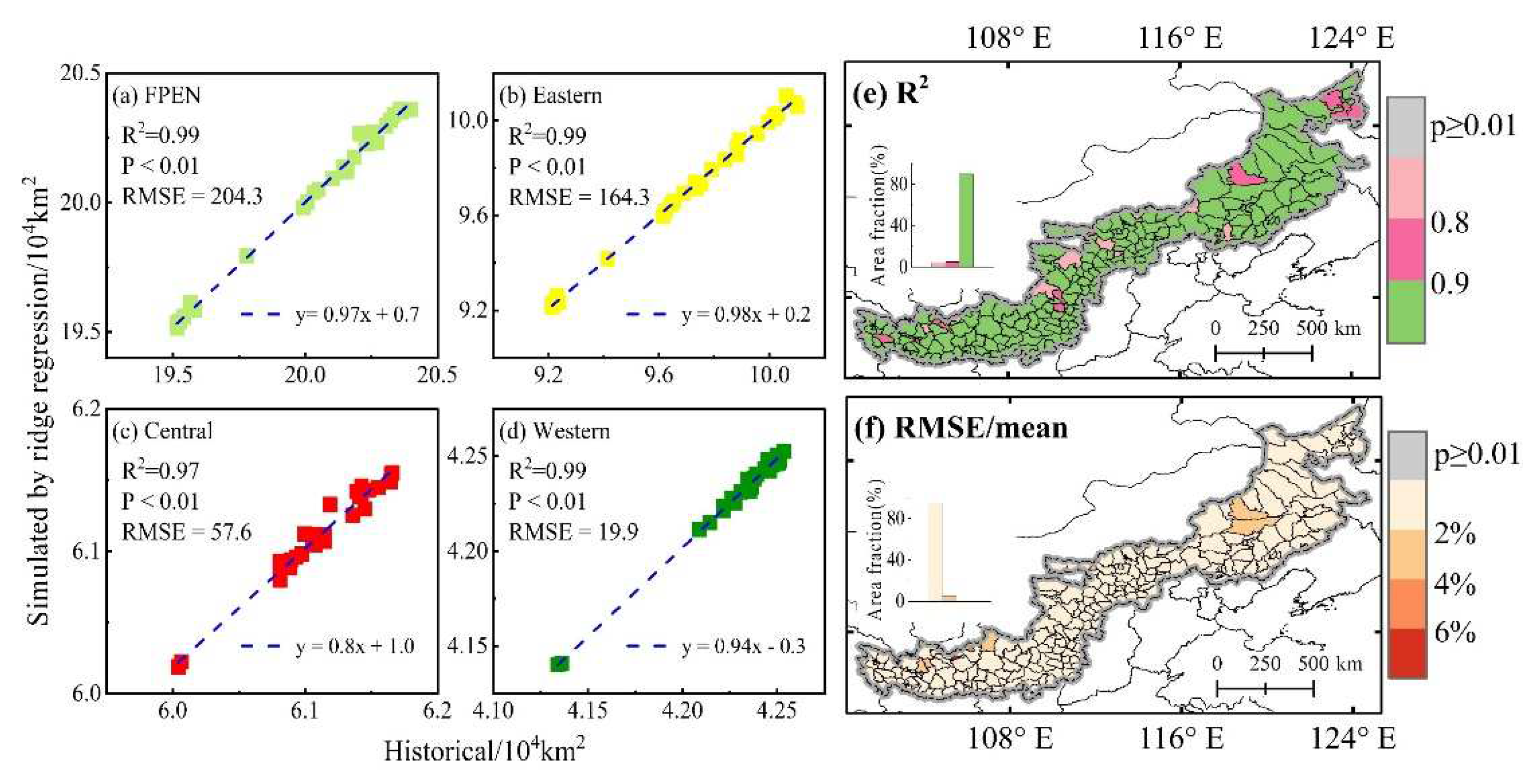

This study compared the simulated cropland and satellite-drived cropland area in entire FPEN and its each county. We found that the simulated cropland area agreed well with the satellite-drived cropland area. Generally, R² is 0.99 and RMSE is 204.3. Of which, regions with R² ≥0.9 accounted for ~90% of FPEN (Figure A5), indicating the model was robust and suitable for further investigating cropland area trend and the driving factor’s contributions. Table 1 summarizes the relative contributions absolute of the driving factors across the FPEN and three subresions. Generally, EC was the greatest contributor to the cropland area trend from 1992 to 2020 in FPEN, and followed by UE. Their relative contributions absolute values were 40.3% and 39.3%, respectively. In contrast, TL10p was the minimal contributor to the cropland area trend. Its relative contribution absolute was 1.3%. Regionally, the impact of TH90p, D20p, NPP and NTL on cropland area trend in the eastern region was slightly larger than that in the central and western regions. Their relative contribution absolute values were 1.8%, 2.3%, 10.4% and 4.1%, respectively. The influences of population and UE on cropland area trend in the central region was slightly higher than in the eastern and western regions. Their relative contribution absolute values were 7.3% and 40.0%. Furthermore, we also discovered that PET and EC had relatively greater impacts on the cropland area trend in the western region. These findings illustrate that cropland area trends in different regions performed spatial heterogeneity of driving factors.

Spatially, the impacts of TH90p, PET, NTL and EC on the cropland area trend were mainly positive, accounted for 39.5%, 58.8%, 42.3%, and 49.8% of FPEN, respectively (Figure 5a, d, g, and i, p<0.05). On the contrary, the impacts of TL10p, D20p, NPP, population and UE on the cropland area trends were mainly negative, accounted for 51.5%, 41.4%, 39.0%, 47.8% and 73.9% of FPEN, respectively (Figure 5b, c, e, f, and h, p<0.05).

Figure 5. Relative contributions of driving factors to trend in cropland area during 1992−2020. Note: The black dots in the graph indicating the trend of drivers significantly at the confidence level of 0.05.

Figure 5. Relative contributions of driving factors to trend in cropland area during 1992−2020. Note: The black dots in the graph indicating the trend of drivers significantly at the confidence level of 0.05.

3.3.2. The relative contribution changes of driving factors

According to 3.1.1., we found that the TP years of cropland area in FPEN were mainly concentrated on after 2010. To spatial calculate and compare the relative contribution absolute of drivers factors, we thus took the year of 2010 as the node. The entire period was divided into two parts, i.e., the period of 1992−2010 and 2010−2020 (Figure 6, Figure A7, Figure A8). The relative contribution absolute values of TH90p, TL10p, D20p, PET, population, NTL and UE from 2010−2020 were higher than those from 1992−2010. Among them, the contribution value of TH90p had the most increase (~99.4%), mainly from the positive contribution increased (Figure A6). Contrastly, the relative contribution absolute of NPP and EC were decreased ~33.8% and ~10.3%, respectively, mainly due to the positive contribution decreased (Figure A6).

Spatially, the relative contribution absolute values of TH90p, TL10p, andUE increased evidently in more than half of the study area (Figure 6a, b and h). Among them, the increased contribution of TH90p could be found in the eastern region, while TL10p and UE mainly in the eastern and central regions. On the contrary, the relative contribution absolute of D20p, PET, NPP, population, NTL and EC decreased significantly in most regions from 1992–2010 to 2010–2020 (Figure 6c ~ g and i). Among them, NPP performed the largest decreased area, accounting for ~70.2%, and followed by EC (62.0%).

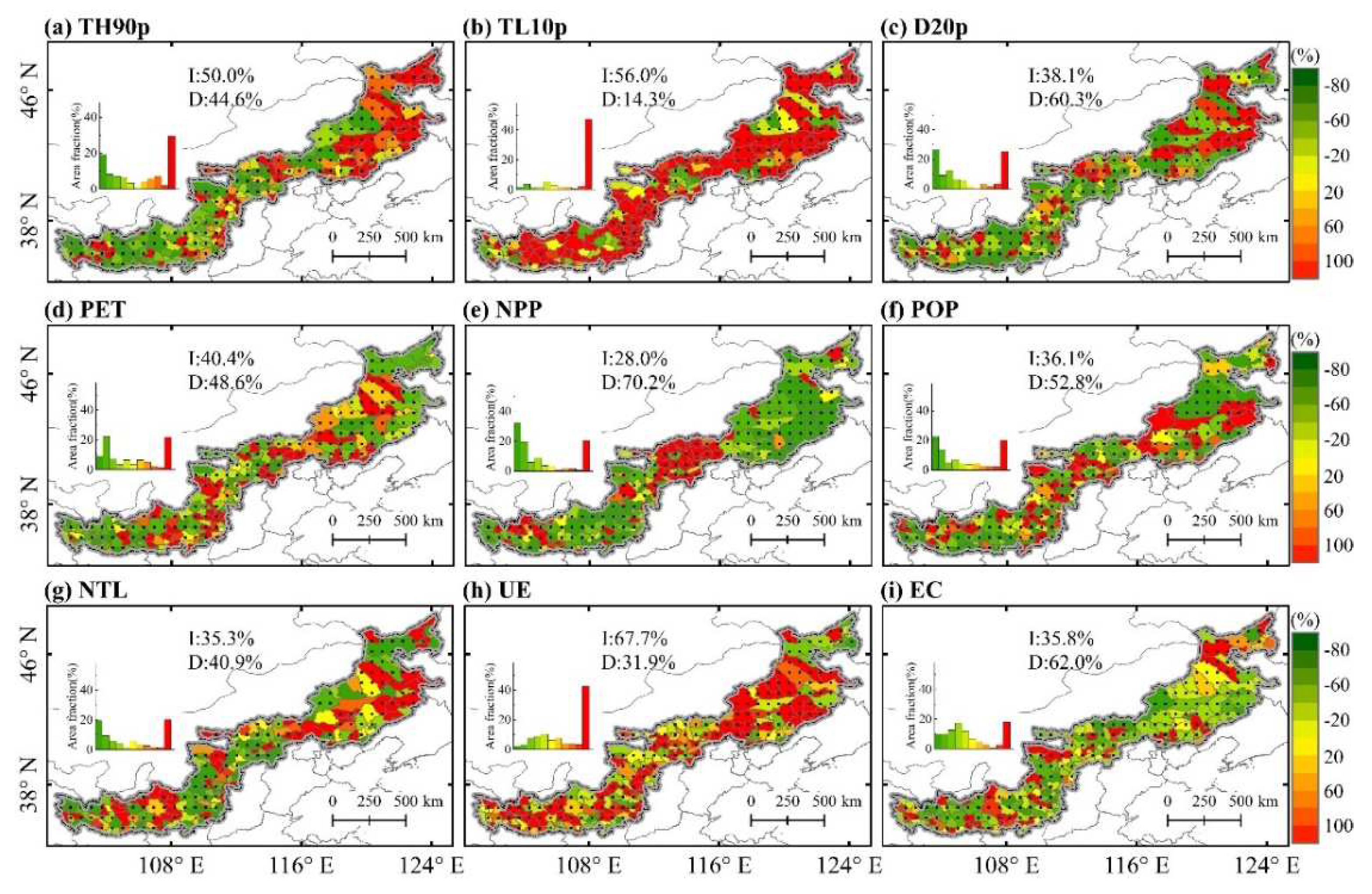

Figure 6. The relative changes of relative contribution absolute values of driving factors before and after 2010. Note: The black dots in the graph indicating the trend of both sides of the driver in 2010 is significant or either side is significant at the 0.05 confidence level. I: the significantly increased trends, and D: the significantly decreased trends.

Figure 6. The relative changes of relative contribution absolute values of driving factors before and after 2010. Note: The black dots in the graph indicating the trend of both sides of the driver in 2010 is significant or either side is significant at the 0.05 confidence level. I: the significantly increased trends, and D: the significantly decreased trends.

3.3.3. Dominance drivers and corresponding changes at the county scale

The relative contribution absolute values were used to determine the dominant factor at the county scale. We found that the dominance areas of PET, TH90p, TL10p, population and UE were increasing over time, but other factors were decreasing (Figure 7a~c). In the whole study period (1992−2020), the dominance of environment conditions, socioeconomic development, urban expansion and ecological construction covered 5.4%, 2.3%, 39.5% and 52.7% of FPEN, respectively (Figure 7a). In 1992−2010, the dominated area of ecological construction was the largest, accounted for 63.0% of FPEN (Figure 7b). Followed by urban expansion, accounted for 30.0% of FPEN (Figure 7b). Environmental and socioeconomic factors only accounted for 4.9% and 1.9% of FPEN, respectively (Figure 7b). The smallest was extreme events factors, only covered 0.2% of FPEN (Figure 7b). In 2010−2020, the dominated areas of ecological construction and environmental factors (mainly due to the decreased areas dominated by NPP) decreased ~16.1% and ~88.2%, respectively (Figure 7c). On the contrary, the dominated areas of socioeconomic factors and urban expansion increased ~35.2% and 41.9%, respectively (Figure 7c). Furthermore, we found that the area dominated by extreme events factors in 2010−2020 was about six times the area dominated in 1992−2010, mainly owing to the increased areas dominated by TH90p and TL10p (Figure 7c).

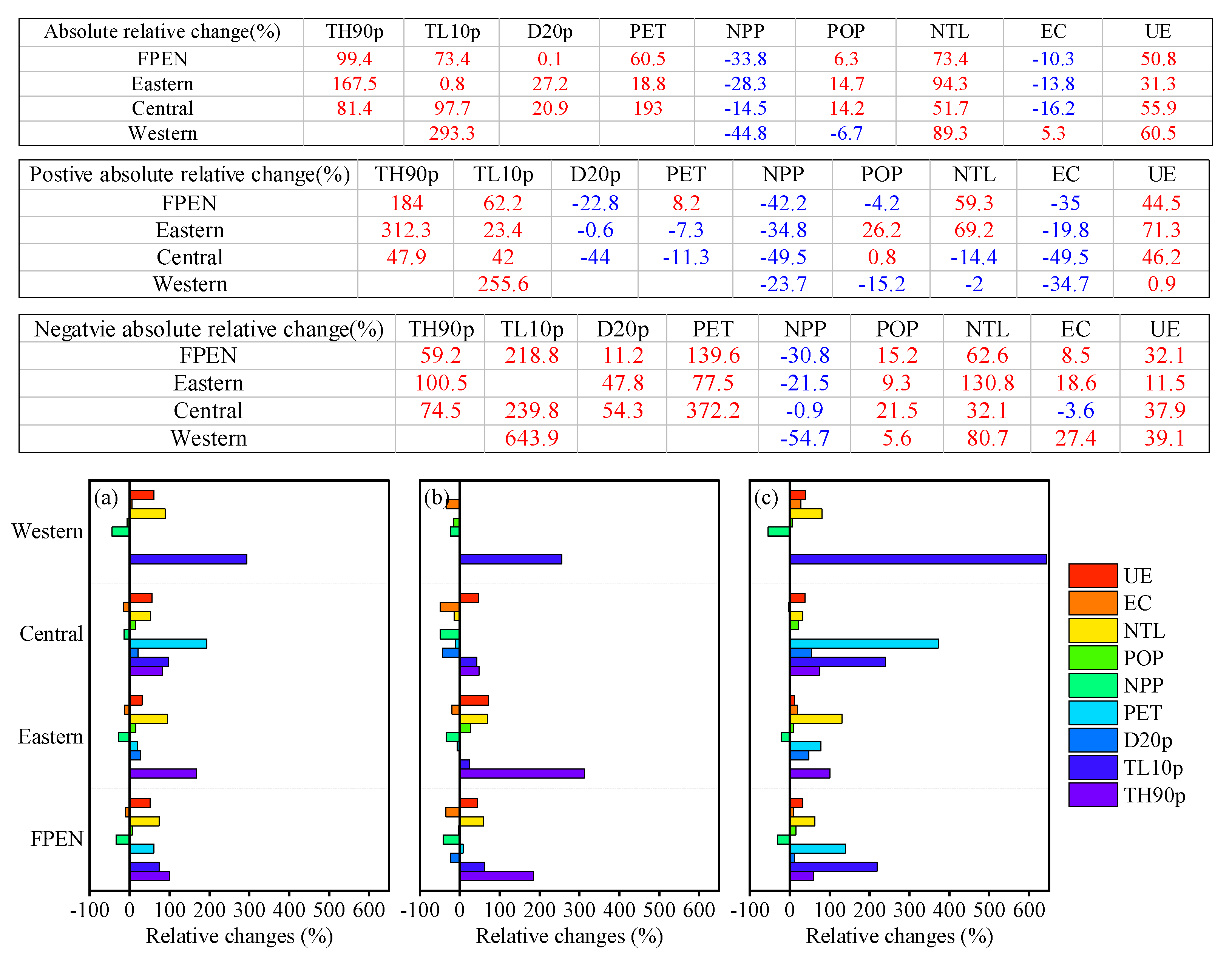

To further examine changes in driver contribution, we used the relative changes of driver contribution in the two periods to identify the factors with the largest change at the county scale (Figure 7d). The results showed that counties firstly led by extreme events, socioeconomic, urban expansion, environmental conditions, and ecological construction covered 43.0%, 16.9%, 15.6%, 13.3% and 10.7% of FPEN, respectively. Individually, the area of TL10p with the biggest change was higher than other factors, accounting for 22.2% of FPEN, mainly located in the eastern and central regions.

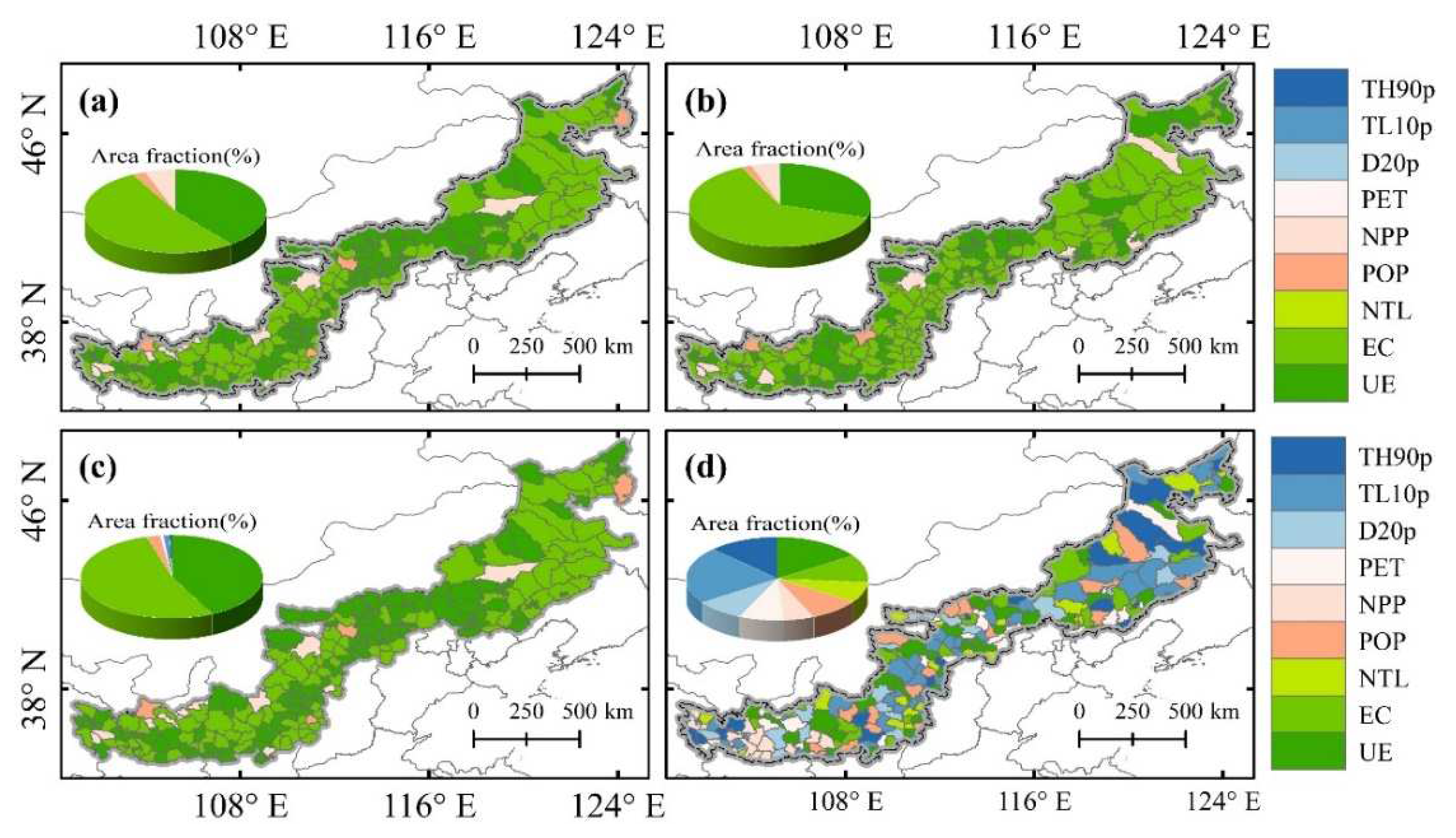

Figure 7. The dominant drivers of cropland area trend in the three intervals (a ~ c) and the drivers with the largest relative contribution change between 1992−2010 and 2010−2020 (d) at the county scale.

Figure 7. The dominant drivers of cropland area trend in the three intervals (a ~ c) and the drivers with the largest relative contribution change between 1992−2010 and 2010−2020 (d) at the county scale.

4. Discussion

5. Conclusions

Abbreviation
