Diagnostic Accuracy of a Portable Electromyography and Electrocardiography Device to Measure Sleep Bruxism in a Sleep Apnea Population: A Comparative Study

Altmetrics

Downloads

307

Views

105

Comments

1

A peer-reviewed article of this preprint also exists.

supplementary.docx (2.65MB )

Submitted:

12 November 2023

Posted:

14 November 2023

You are already at the latest version

Alerts
Abstract
Background: The gold standard for the diagnosis of sleep bruxism (SB) and obstructive sleep apnea (OSA) is Polysmnography (PSG). At the end of the apnea episodes there is frequently a final hy-permotor muscle activity that could act as a confusion factor in the diagnosis of SB with the elec-tromyography portable devices. The aim of this study was to compare the concordance on the number of episodes of SB in a population with OSA, between the diagnosis obtained by PSG, an-alyzed manually by a neurophysiologist and that obtained manually and automatically by a portable electromyography (EMG) and electrocardiography (EKG) device. Methods: Twenty-three subjects underwent one night of polysomnographic study with simulta-neous recording with the EMG-EKG device. The variables referring to the number of episodes and the SB index measured with both tools and analyzed in the manual and automatic modes were compared. Masticatory muscle activity was scored according to published criteria. The sample was segmented by severity of OSA according to AASM criteria. ANOVA, correlations, and the Bland–Altman plot were used to quantify the agreement between both methods. The concordance was calculated through the ICC. Results: The total events of SB per night in the PSG study were on average (8.17), lower than the one obtained with EMG-EKG manual analysis (14.13) and automatic (29.26). Both the SB PSG and Manual EMG-EKG episodes decrease from non-OSA (PSG = 16 ± 13,55, EMG-EKG = 16,83 ±11,58) to severe OSA (PSG = 3,14 ± 4,26, EMG-EKG = 9,86 ± 8,09). However, in the case of automatic EMG-EKG mode: the number of SB episodes in severe OSA doubled (41,23 ± 12,50) with respect to non OSA (24,50 ± 12,19). On average: the EMG-EKG device Automatic analysis measures 21.08 units more than PSG. The results with the manual EMG-EKG analysis improved. Conclusion: There is no concordance between the results obtained in the PSG neurophysiologic analysis and those obtained by means of the EMG-EKG device automatic and manual analysis for the diagnosis of SB in a population mostly with OSA. The OSA could act as a confusion factor in the diagnosis of SB with the electromyography portable devices, but further study is needed.
Keywords:
Subject: Medicine and Pharmacology  -   Clinical Medicine

1. Introduction

Sleep bruxism is a masticatory muscle activity during sleep that is characterized as rhythmic (phasic) or non-rhythmic (tonic) and is not a movement disorder or a sleep disorder in otherwise healthy individuals (1). The basic pattern of Sleep bruxism (SB) consists of rhythmic activity of masticatory muscles (RMMA). It is a consequence of several changes due to the activation of the autonomic nervous system, such as the increase in heart rate (HR) (2,3). Nonetheless, there are other motor events associated with SB, for instance, masticatory muscular activity (MMA), that are not fully explained by these mechanisms. It is suggested that SB is mainly the result of pathophysiological and psychological processes (4–7) and that it is due to a multifactorial origin (8–10). SB also occurs concomitantly or secondarily to other sleep disorders, such as Obstructive Sleep Apnea (OSA) (11–17).
OSA consists of recurrent episodes of partial or total upper airway obstruction (apnea-hypopnea events), accompanied by sleep fragmentation caused by arousals and commonly accompanied by snoring (18,19), in addition to other complications (hypertension, arrhythmias, cardiovascular disease, etc.) (20,21). The gold standard for diagnosing OSA and SB is PSG. However, using portable EMG devices to diagnose SB can be challenging since different studies use varying criteria for neurophysiological analysis (22–28). Different authors suggest that SB studied with PSG in patients with OSA usually occurs close to apnea-hypopnea (AH) events (22,29–31). On the other hand, the causal relationship between SB and OSA is still unclear, with different possible cause-effect theories (27). Additionally, sleep-related oromotor activity (OMA), such as snoring, lip sucking, and swallowing, can also affect EMG results and add to the complexity of diagnosis.
During the analysis of polysomnography (PSG) recordings, differentiating between RMMA, MMA, OMA, and recognized bruxing activity can be challenging. The automatic analysis mode of EMG devices may not always accurately recognize these types of activities, and not all EMG devices offer a manual analysis mode. Moreover, the criteria used for the manual mode of these recordings are not uniform (3,10,22,30–37). PSG studies in sleep laboratories include electroencephalography (EEG), electrooculogram (EOG), electrocardiogram (EKG), EMG recordings (of the masticatory muscles and tibial muscles), and thoracoabdominal movements recordings. It also includes oronasal flow and oxygen saturation, allowing a definitive evaluation of SB and the detection of other disorders such as OSA. The apnea-hypopnea index (AHI) can be calculated based on these recordings, which can help categorize the severity of OSA. PSG studies can also aid in the detection of other disorders such as parasomnias or restless legs syndrome (38–41).
PSG is an effective way of diagnosing SB, but it is costly and requires specialized personnel and equipment. This makes it unfeasible for use in dental clinics, and in particular in the general dental practice. Therefore, in recent years, portable ambulatory instruments have been developed, providing information similar to PSG but more affordable and easier to handle. Its validity is still under discussion and requires further research, but it can be very useful as a clinical approach to SB evaluation (42). EMG-EKG is a three-channel Holter-type device designed to detect the surface EMG signal of the two masseter muscles, and the HR by EKG. This EKG capability is what differentiates this device from other portable devices and supports its efficacy. The reliability of EMG-EKG has been proven with a very good diagnostic yield (3,43). However, these studies have not been conducted in an OSA population. Additionally, there are many cases of undiagnosed OSA among patients.
The relationship between OSA and SB can vary based on the criteria used to measure muscle activity following Apnea-Hypopnea (AH) events (44,45). This difference in criteria can lead to discrepancies in existing studies and may result in an overestimation of SB in patients with OSA. Given that OSA is often undiagnosed and frequently associated with SB, it is important to ensure that the ambulatory EMG used to measure muscle activity is reliable in such cases. It is necessary to exclude increased muscle tone following an apnea episode which is part of the American Academy of Sleep Medicine (AASM) definition of arousal to prevent confusion (34). This study aimed to compare the number of SB episodes in a population suspected of having OSA, as diagnosed by PSG and analyzed manually by a sleep expert, with that obtained manually and automatically by a portable EMG-EKG device (Bruxoff®). The objectives were to estimate the diagnostic validity of the EMG-EKG device for the diagnosis of SB, segment the sample based on the severity of OSA, and estimate the diagnostic validity of the EMG-EKG device for the diagnosis of SB in both manual and automatic analysis modes.

2. Materials and Methods

Twenty-two (n=22) participants underwent a full-night PSG testing (Deltamed Coherence 5.0 system) with simultaneous recording of the Bruxoff® EMG-EKG device (OT Bioelettronica, Italy). Procedures were conducted following the Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement and checklist (46). The study protocol was approved by the Ethics Committee of the Hospital Clínico San Carlos in Madrid, (C.P. - C.I. 14/380-E). Written informed consent was obtained from all participants and all procedures were conducted according to the Declaration of Helsinki. Variables referring to the number of SB episodes and SB index (episodes/hour), measured with both tools and analyzed in the manual and automatic modes, were compared. Masticatory muscle activity was scored according to published criteria (34,40). After PSG testing, the sample was segmented by severity of OSA according to AASM criteria (34).

2.1. Sample Selection:

The participants of the study are adult patients attended by the Sleep Unit (Clinical Neurophysiology Department) of San Carlos University Hospital (Madrid, Spain) who underwent an earlier screening according to the suspicion of OSA and SB, the latter by self-referred bruxism tests (Paesani modified test) and physical examination (47). For OSA, a neurophysiologist performed screening through anamnesis, anxiety-depression questionnaire, Epworth test, and additional examinations when other sleep disorders were suspected (41,48).
Exclusion criteria were major neurological disorders, psychiatric disorders, other sleep disorders, psychoactive medication, edentulism, or under 18 years of age. The clinical examination (tooth wear, masticatory muscle myalgia, temporomandibular joint arthralgia, hard tissue, soft tissue, and masseter and/or temporal hypertrophy) was performed according to Diagnostic criteria for the temporomandibular disorders (DC/TMD) and the American Academy of Orofacial Pain (AAOP) criteria and conducted by a dentist with ability in orofacial pain (49,50).
Finally, for the patients who did not incur the exclusion criteria and had a positive SB screening, a PSG diagnosis was performed by an experienced clinical neurophysiologist with specific training in SB. EMG-EKG with artifacts or other technical problems were excluded. The audio and video recordings were used to confirm the analysis (51). As a result, a sample of 22 subjects with an average age of 46.55 ± 10.06 was achieved, including 15 men and 7 women. A concordance between the EMG-EKG portable device and the PSG (Gold Standard) design was used with six participants without OSA and sixteen with OSA. The sample of OSA patients was segmented by the degree of severity in three groups: Mild OSA = 7 (AHI=5–14.9/hour), Moderate OSA = 3 (AHI=15–29.9/hour), Severe OSA = 6 (AHI≥30/hour) (52).

2.2. PSG recordings

The full-night monitoring recordings in the Sleep Laboratory (minimum of 8 hours in bed) were performed using a Deltamed Coherence 5.0 system. PSG recordings were made according to the AASM recommendations (34), including six EEG derivations; right and left EOG; submental, masseter, and leg EMG; nasal cannula/pressure and oronasal thermal flow; thoracic and abdominal respiratory effort bands; snoring; body position sensor; pulse-oximetry; audio and video recordings. Impedance values were checked and adjusted (< 5 Ω), and standard calibrations were performed.
All PSG recordings were manually reviewed according to international criteria (34). In the SB and OSA group, the diagnosis was confirmed by PSG performed by a sleep expert, following blind masking concerning the clinical examination. The AHI (episodes of AH per hour) was used to categorize OSA groups by severity level, according to published criteria (34,52).

2.2.1. PSG Sleep Bruxism Analysis

SB events were estimated through rhythmic (RMMA; Figure 1), and non-rhythmic masticatory muscle activity (MMA) recorded with EMG on the masseter muscles (surface electrodes). Published criteria for SB episodes in PSG were followed [25]. The presence of > 4 RMMA-MMA/SB episodes/h was considered for the calculation of dichotomous variables. For the calculation of quantitative variables, the type of SB event is decided: phasic event (three or more EMG bursts, at least 0.25 seconds and up to 2.0 seconds), tonic event (at least one EMG burst > 2.0 seconds), and mixed event (both types) (40,53).
Increased muscle tone following an apnea episode, which is part of the AASM criteria definition of arousal (34), as well as sleep-related oromotor activity (OMA; Figure 2) different from RMMA-MMA/SB were excluded to avoid possible confounding bias. All isolated SB events, independent of respiratory events, were accepted according to EMG criteria, regardless of whether accompanied by arousals.

2.3. Bruxoff Sleep Bruxism Analysis

Bruxmeter is the software system of the EMG-EKG device (Bruxoff®; Figure 3 and Figure S1).
Interpretation is performed both manually, with the investigator analyzing the raw data, and automatically, with the device's software analyzing the data to generate a diagnosis. According to data obtained in previous studies, when automatically analyzed reached a sensitivity of 91.6% (3). The MicroSD card provided data for the diagnostic variables: bruxing event, number of bruxing events per hour of sleep (SB index), and number of bruxing events per night.

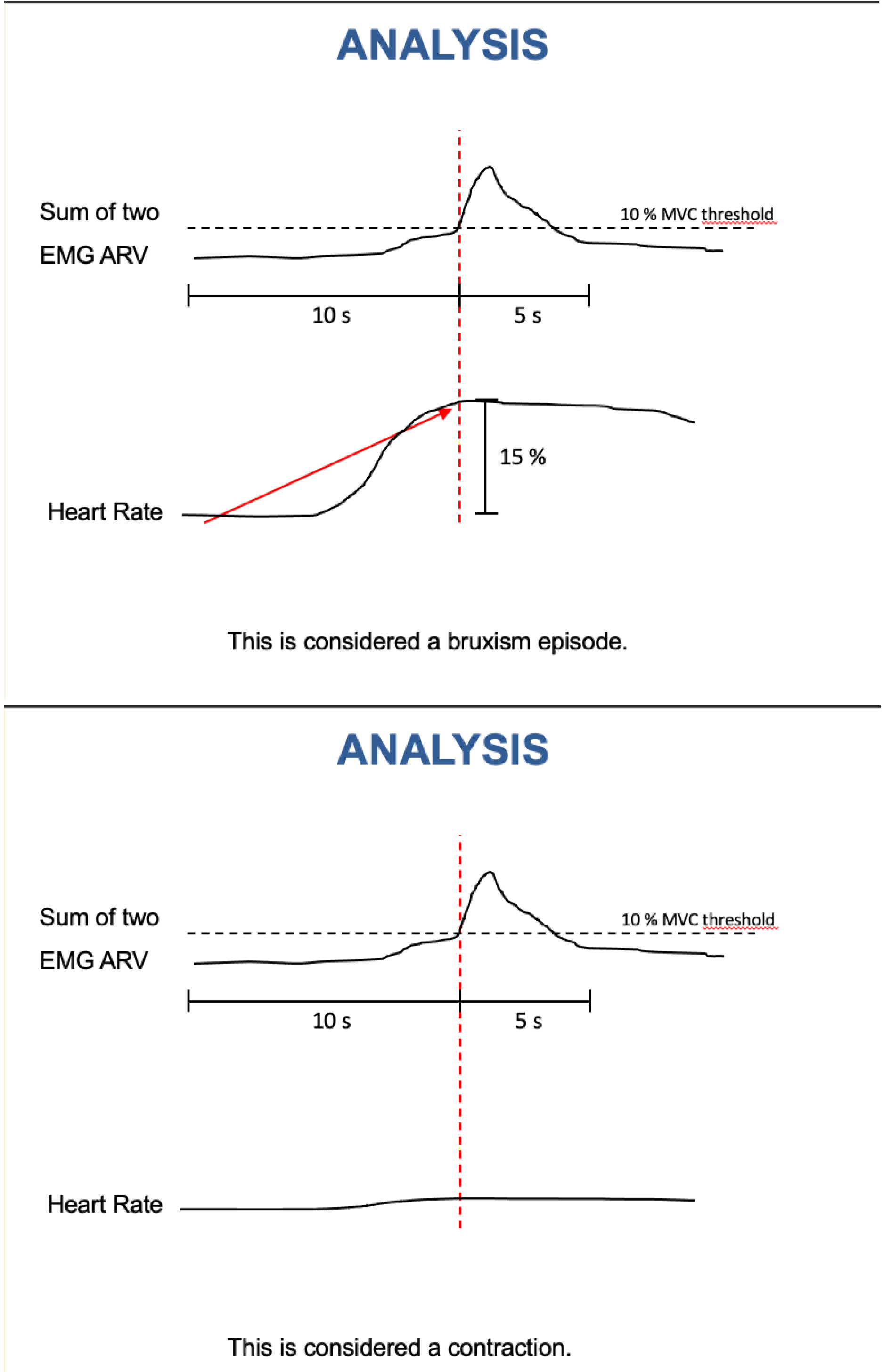

The bruxism event criteria depend on whether the analysis is performed in manual or automatic mode. Manual mode: EMG signal with peaks > 0.25s and an average amplitude of 10% of the patient's maximum voluntary contraction (MVC), being preceded 1s earlier by an increase in HR of 15%. Automatic mode: EMG signal with an amplitude of at least 10% of the patient's MVC, preceded by an increase in HR of 20%, 1-5s before (Figure 4).

2.4. Statistical analysis

The variables used were the Apnea Hypopnea Index (AHI), SB Index, number of apnea events, number of hypopnea events, and number of SB events. Descriptive variables such as means and standard deviations were used. The sample passed the Shapiro-Wilk normality test. Continuous variables with a normal distribution were analyzed by the t-test. In addition, the sample was segmented according to the degree of severity of OSA and according to the types of SB episodes. The Analysis of variance (ANOVA) between non OSA group and several degree severities of OSA was calculated. Spearman correlation for the apnea and hypopnea episodes and SB episodes was used. The Bland–Altman plot (54) was used to quantify the agreement between both methods (PSG and EMG-EKG) For Bland-Altman analysis, the program R Ver. 4.1.3 (R Foundation for Statistical Computing, Institute for Statistics and Mathematics, Welthandelsplatz 1, 1020 Vienna, Austria) was used. The concordance was calculated through the Intraclass Correlation Coefficient (ICC). All calculations were performed with the SPSS v24.0 statistical package (SPSS Inc., Chicago, IL). The p-values equal to or less than 0.05 were considered statistically significant.

3. Results

During the recruitment period, forty-one patients underwent a full night of PSG with simultaneous EMG-EKG device. In seven patients the EMG-EKG device failed to record and this information was excluded from the reliability analysis. Also, during the initial phase, we had problems with storage and methods of distinguishing between different recordings with the EMG-EKG device: eleven records (eleven participants) were removed from further analysis. One patient presented unusual cephalic movements, observed in the video, which could act as a confounding factor, so it was excluded from the final sample. Overall, records of twenty-two individuals (15 males and 7 females) with a mean of 46.55 of age were accepted.
The descriptive sleep data (Table 1) shows a sample predominantly overweight (BMI= 25.0-29.9) with a minimum BMI of 17.93 and a maximum of 40.62.
The time on sleep stages is inside normal values except for the augmented proportion of the N1 stage (25.49 ± 16.32). The oximetry data means are compatible with a partial sleep apnea population pulse oximetry affecting values. The mean of sleep efficiency (81.18 ± 14.18) is the average value for the PSG testing in a sleep laboratory.
As shown in Table 2, the total events of SB per night in the PSG study were on average (8.41± 10.85), lower than the one obtained with EMG-EKG device manual analysis (14.64± 10.76) and automatic (22.68± 16.02).
The tonic SB episodes predominately against phasic SB episodes along the PSG and manual EMG-EKG analysis (Table 2).
The Spearman correlation between the apnea and hypopnea episodes and the SB episodes is negative [r = - 0.402 (p = 0.06)] in the total of the sample, this means that when the number of apnea episodes increases, the number of SB episodes decrease with PSG recordings, but it is a not-significant correlation.
When we compared the variables of SB between the OSA (n =7) and non-OSA (n= 15) group, we obtained an increase of SB episodes from PSG analyses (13.71± 13.76) to manual (16.14±10.73) and automatic (23.14± 11.69) EMG-EKG analyses in the non-OSA group, respectively. The SB episodes number mean decreased from non OSA group to the OSA group with both PSG (5.93) and EMG-EKG analyses (automatic = 22.47, manual = 13.93). However, this decrease was in minor proportion with the automatic EMG-EKG analysis mode (from 23.14 to 22.47) (Table 3.)
The phasic episodes were considerably lower in the OSA group with PSG analysis compared to EMG-EKG results, and it is significant (Table 3). Segmenting the sample by the degree severity of OSA, the severe OSA patients had fewer SB episodes than moderate or mild OSA patients with both PSG and EMG-EKG recordings, but it is not-significant. The tonic episodes predominate against phasic episodes. The phasic episodes decreased considerably from non-OSA to OSA patients with PSG analysis compared to EMG-EKG analysis (Table 4).
Although the ICC [0.55 (p<0.05)] based on the number of SB episodes accounts in all the subjects along the three tools (PSG, manual EMG-EKG, and automatic EMG-EKG) shows a moderate correlation, a wide dispersion can be observed with the Bland-Altman representation (Table 5, Figure 5).

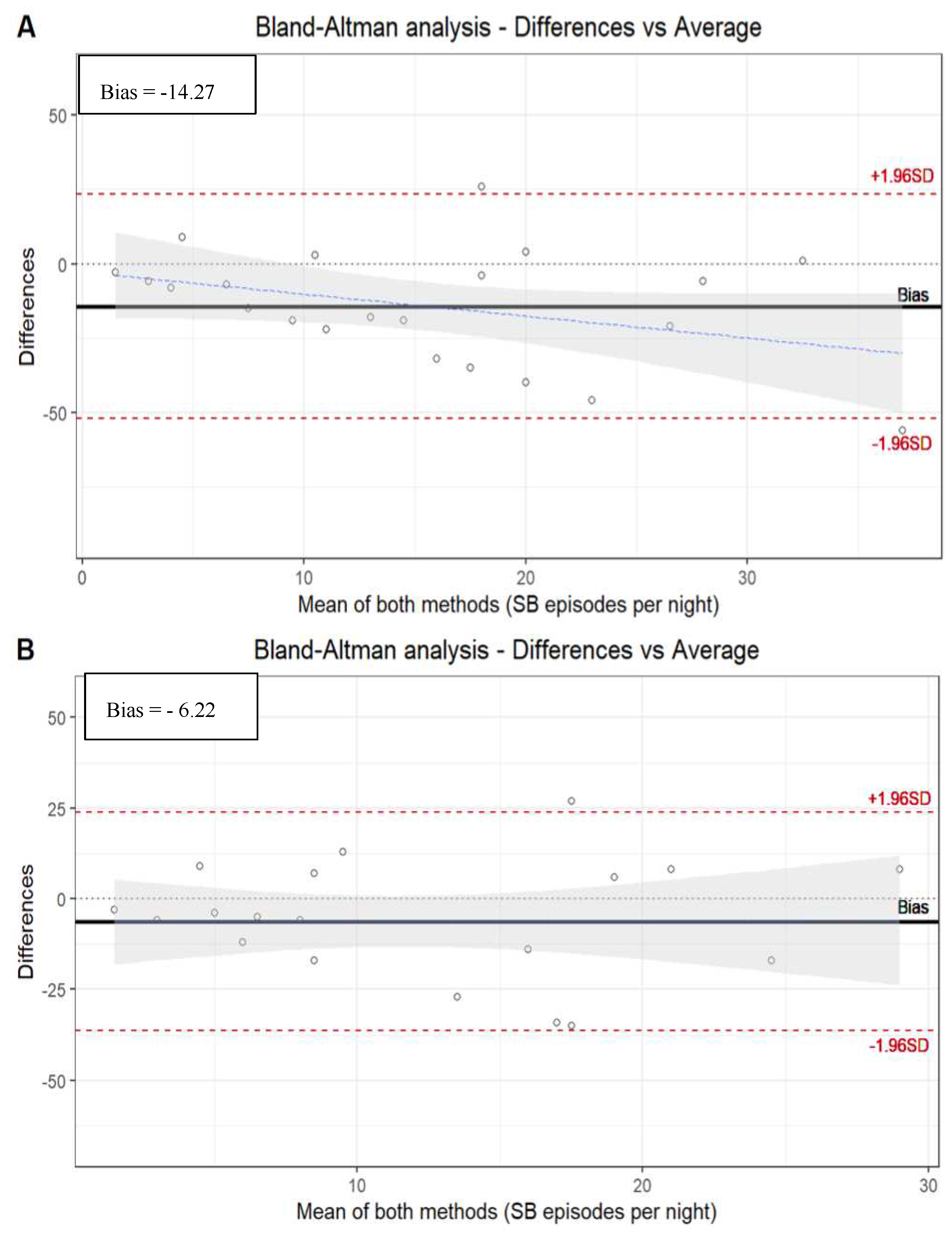

The EMG-EKG automatic analysis measures 14.27 units more than PSG, and the analysis denotes a proportional systematic bias, with a negative trend of the differences as the magnitude of the measured variable increases. The results with the manual EMG-EKG device analysis improved (measures 6.23 units more than PSG), but were not good (Figure 5).
The limits agreement of both EMG-EKG automatic and manual analysis is out of the desirable limits of the S.D. The ICC based on the number of SB episodes accounts in the segmented sample by severity degree of OSA along the three tools (PSG, manual EMG-EKG, and automatic EMG-EKG) shows an acceptable agreement in non-OSA (0.61) and mild OSA (0.53, p<0.05) groups. However, there is insufficient in moderate (0.24) and severe (0.23) OSA groups (Table 5).

4. Discussion

It is important to note that this study is only the second one to compare the Bruxoff® device to laboratory PSG. Additionally, it is the first study to compare both manual and automatic EMG-EKG analysis in an OSA population. The results showed that the diagnostic accuracy was acceptable for non-OSA and mild OSA patients. However, in patients with moderate or severe OSA, apneas could act as a confusing factor in the diagnosis of SB with an EMG-EKG portable device.
Some authors describe the possibility that there is a subtype of patients with subclinical or mild OSA that exhibit EMG activity corresponding to SB. This activity could play a protective role against OSA (28). It is important to keep in mind that OSA and SB share structures that play a fundamental role in protective functions during sleep. Furthermore, there are inter-individual differences (55,56).
Therefore, it is essential to clarify the PSG criteria for the evaluation of SB and its comorbidities. This will help design quality studies and avoid biases in that evaluation (34,40,57). Different authors suggest that SB studied with PSG in patients with OSA usually occurs close to AH events (22,27,57).
Comparative studies between EMG and PSG in the literature are limited and have low sample sizes. There have been only ten studies conducted so far with sample sizes ranging from five to forty-nine participants (3,58–66). Similar to our case, the limitation of sample size is a common issue. This can be attributed to the low prevalence of SB (16), the high cost of PSG, and the time required for both PSG and EMG analysis. These factors make it difficult to collect a large sample quickly, and there are often records that need to be discarded due to interference or failures.
In eight of the studies, different portable EMG devices were used (58–65), while two studies used the same EMG-EKG device that we used (3,66). Yanez-Regonesi et al. compared the EMG-EKG device with the PSG laboratory but did not perform both automatic and manual analysis of the records (66). Castroflorio et al. compared the portable device with PSG type II (without EEG) and excluded the AOS patients with questionaries (3). In our study, we compared a portable EMG-EKG with PSG type I and performed manual PSG analysis. We also performed both automatic and manual EMG analysis, which could be marked as strengths of our design. Only two similar studies have separated the groups by OSA severity, like in our case, although with different designs (59,66).
Most studies have focused on a young population, typically between 21 and 28 years of age (3,61,65,67). However, some authors, such as Mainieri (60) and Yanez-Regonesi (66), have used samples with mean ages similar to ours, which is between 41 and 50 years. In our sample, there are more men than women (15 men and 7 women out of a total of 22 participants). Only the Yamaguchi study had an equal number of men and women (4 men and 4 women out of a total of 8 participants) (61), while the Castroflorio et al. study had almost an equal number of men and women (12 women and 13 men out of a total of 25 participants) (3). The condition we are studying, SB, does not differentiate between sexes, so the fact that our sample is not homogeneous between men and women should not create any bias. The prevalence of SB in adults is between 8% and 12% and decreases with age, dropping below 3% to 5% after the fifth decade (68,69). Therefore, the medium age of the sample should not create any bias. However, OSA increases with age and is more prevalent in men, so it is a factor that needs to be considered when studying its association (23,70).
In our sample, the correlation between the apnea and hypopnea episodes and the SB episodes is negative in the total of the sample, this suggested that when the number of apnea episodes increases, the number of SB decreases in PSG recordings. Authors like Yap suggest that AH and SB events are probably epiphenomena in adult patients with coexisting OSA and SB, where SB events are predominantly featured after AH events and allude to a specific form of secondary SB triggered by sleep micro-arousals (71). Nevertheless, we believe that this kind of activity could act as a confusion factor and should be considered as an AH final expected hypermotor activity rather than a secondary SB if there is not a minimum window of time between AH and the EMG hypermotor activity.
Yanez-Regonesi et al. found no association between AHI and the RMMA index, and they showed an acceptable diagnostic accuracy in terms of sensitivity (83.3%) and specificity (72.2%). However, they found a consistent and systematic difference in the measurement of SB episodes per hour of sleep between Bruxoff® and PSG (66). Castroflorio et al. found an excellent agreement with sensitivity and specificity of 91.6% and 84.6% respectively. However, they used a PSG Type II as the “gold standard” and did not include OSA groups (3).
The accuracy of ambulatory devices used to detect sleep disorders depends on how well they correlate with the gold standard, which is PSG. It is crucial to improve the accuracy of automatic analysis of portable EMG devices to avoid overestimation of sleep disorders. In our study, the total events of SB per night recorded during PSG were lower than the number obtained from manual and automatic analysis of EMG-EKG devices. The mean number of SB episodes decreased from the non-OSA group to the OSA group in both PSG and EMG-EKG analyses. However, the decrease was smaller with automatic EMG-EKG analysis.
Our findings are consistent with the results of the Martynowicz study, which found that the relationship between OSA and SB depends on the severity of OSA (72). However, there are few studies on this relationship, and those that exist use different methods and have different goals. Okeson and Sjöholm did not find any differences in SB between OSA and non-OSA patients, but their sample was not segmented by the severity of OSA, or severe OSA patients were not included in the sample, respectively (30,31). On the other hand, Okura suggests that OSA patients with SB have a unique phenotype of OSA and also emphasizes the distinct relationship of respiratory events with RMMA and non-specific masticatory activity (NSMA) (73).
In our sample, we found that the agreement between PSG and EMG-EKG devices is acceptable in non-OSA and mild OSA groups, but it is insufficient in moderate and severe OSA groups. We suspect that the exclusion or inclusion of the EMG event following the respiratory event (which we have discarded with PSG analysis) could explain the variability of the results. This could lead to an overestimation of SB in moderate and severe OSA patients when using EMG portable devices, especially when including that hypermotor activity. Another study conducted by Saito found a positive and significant correlation between OMA and AHI. (24). As Kato pointed out in 1999, the OMA activity may introduce a bias if it is not excluded from the neurophysiological analyses (74).
In our study, we found that tonic episodes were more common than phasic episodes. The number of phasic episodes decreased significantly in OSA patients compared to non-OSA patients with PSG analysis, as opposed to EMG-EKG analysis. Previous studies suggested that phasic episodes may have a protective role against OSA (28,70). However, our study design only establishes a correlation between different instrumental tools and does not analyze the risk or protection factor. We obtained an acceptable ICC based on the number of SB episode accounts in all the subjects using the three tools (PSG, manual EMG-EKG, and automatic EMG-EKG). Other studies have obtained better diagnostic yield values, but these studies did not research the possible bias of OSA activity for SB estimations or found no association between the AHI and RMMA index (3,66).
Additionally, it is important to note that if the portable device is unable to identify the sleep stage, and an event fitting the criteria for RMMA occurs during wake time it would be scored as an SB event. This could lead to an overestimation of SB (75), which in turn overestimates its association with other sleep disorders. Therefore, it is essential to complement the instrumental diagnosis of SB with clinical examination and the patient's self-referred tests to assess the sequelae of SB (1).
The clinical consequence of SB is the true indicator of the need for treatment (42,76). Therefore, definitive EMG ambulatory evaluation of SB should be increasingly implemented in the clinical setting, and not just in research, as it is the only reliable and objective measure to determine whether bruxing activity is present and active. Similarly, EMG is a useful tool for proper follow-up as a measure of the efficacy of certain therapeutic approaches. The use of EMG on a daily and reliable basis would mean being able to implement this tool in the same way that, for example, a periodontal chart is used for the staging of periodontal disease and its progression.
EMG-only devices may not have sufficient diagnostic yield for SB in populations in which OSA has not been previously ruled out. Therefore, the use of screening questionnaires such as STOP bang, and exploration of the oropharynx such as Mallampati class objectification, among other methods, could help guide whether it would be advisable to perform respiratory polygraphy in addition to EMG (19,41). The combined use of respiratory polygraphy with EMG also allows for the complete screening of both entities (SB-OSA) and is also used for the follow-up of patients who use a mandibular advancement device. It would be interesting to use portable respiratory polygraphs that include EMG in masseters, like the one used by Winck (33). Including masseter and temporalis muscles EMG montage in sleep units as routine would be useful to improve the knowledge about the relationship between SB and OSA.
Bruxism is a continuous activity, so it is important to have instruments that can record several nights in an unrestricted way, such as EMG, and refine them. Deregibus et al. demonstrated good reproducibility over time of the Bruxoff® with no significant difference observed in the SB episodes per hour of sleep over three nights of recording (43). Hence, determining new correlations and updated cut-off points is important (42).
All the EMG portable device designs and software should comply with the recommendations of the SENIAM project (Surface Electromyography for the Non-Invasive Assessment of Muscles), which has resulted in European recommendations for sensors and sensor placement procedures, and signal processing methods for Surface Electromyography (SEMG). The EMG-EKG portable device used for this study complies with those recommendations. However, not all EMG portable devices share a similar protocol (77–79). Once the performance of portable EMG has been improved, it could be used for concordance studies against other types of novel tools that are emerging due to the evolution of technology, big data, and artificial intelligence (80–82). Such studies would allow them to be performed longitudinally and more fluently than with PSG in a sleep lab.
In the case of studies on dental materials used in oral rehabilitation in bruxism patients, biases are significant, as SB is not objectively measured. By promoting the use of EMG, and encouraging clinicians and researchers in different fields of dentistry to utilize it more frequently, many biases can be prevented. For instance, biofeedback is already being used to manage SB with the help of EMG devices (62). Further research in this area can lead to the development of non-invasive, reversible, and cost-effective methods for managing patients.
The findings indicate that manual analysis of SB events is more dependable than automatic analysis in our sample. Professionals who manage this type of patient would benefit from training and calibration in this type of analysis, as in the case of DC/TMD exploration for temporomandibular disorders (49).
It would be advisable to perform a basic OSA screening of all patients with suspected SB. In patients without OSA or with mild OSA, there is a reasonable concordance between the results of PSG manual analysis and those obtained by the EMG-EKG device with automatic and manual analysis for the SB diagnosis. However, in these patients, manual analysis of bruxing events with the EMG-EKG device shows greater reliability than automatic analysis.

Limitations

The patient attending the sleep unit may suffer from "laboratory" effects on the first night, but it was not feasible for us to perform more than one night of PSG recording. However, previous studies have reported no overall first-night effect on the severity of RMMA frequency in patients with SB (83). The groups are not balanced due to the low sample size and there is a predominantly OSA population. We are collecting more data in this regard together with another hospital (Multicenter study). The simultaneous placement of the surface electrodes of the portable device and PSG could generate interference and a poorer quality of signal reception. We tried to improve this limitation with smaller surface electrodes for the EMG-EKG device than those normally included in the package of the EMG and EKG electrodes.

5. Conclusions

In patients with moderate or severe OSA, apneas could act as a confusing factor in the diagnosis of SB with electromyographic portable devices.
To differentiate the muscle activity that meets the criteria for SB from the muscle activity consecutive to the AH episode, it is recommended to clarify the analysis scores, particularly for the programming of portable device algorithms.
It would be beneficial to replicate studies with a similar design and expand the sample size to validate these findings. This would provide data to enhance the SB evaluation algorithms of portable devices for automatic analysis.

Supplementary Materials

The following supporting information can be downloaded at: www.mdpi.com/xxx/s1, Figure S1: EMG-EKG Device; Abbreviations section.

Author Contributions

Conceptualization, R.C-V, F.J.M.O, I.A.G; A.A.D.G.; Methodology, R.C-V, A.A.D.G, F.J.M.O.; Formal analysis, R.C-V., F.J.M.O., A.A.D.G.; Investigation, R.C-V., F.J.M.O.; Writing - Original Draft, R.C-V.; Supervision, I.A.G., F.J.M.O., A.A.D.G.; Resources F.J.M.O., I.A.G., E.A.S.R; Writing-Review and editing, F.J.M.O., I.A.G., E.A.S.R., A.A.D.G.; Project administration, F.J.M.O.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted by the Declaration of Helsinki and approved by the Ethics Committee of the Hospital Clínico San Carlos in Madrid, (C.P. - C.I. 14/380-E).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

the data presented in this study are available on request from the corresponding authors. The data are not publicly available due to ethical restrictions. Acknowledgments: We thank the patients of the study for making this possible.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lobbezoo F, Ahlberg J, Raphael KG, Wetselaar P, Glaros AG, Kato T, et al. International consensus on the assessment of bruxism: Report of a work in progress. J Oral Rehabil. 2018 Nov;45(11):837–44. [CrossRef]
  2. LAVIGNE GJ, KHOURY S, ABE S, YAMAGUCHI T, RAPHAEL K. Bruxism physiology and pathology: an overview for clinicians. J Oral Rehabil. 2008 Jul;35(7):476–94. [CrossRef]
  3. Castroflorio T, Deregibus A, Bargellini A, Debernardi C, Manfredini D. Detection of sleep bruxism: comparison between an electromyographic and electrocardiographic portable holter and polysomnography. J Oral Rehabil. 2014 Mar;41(3):163–9. [CrossRef]
  4. Osses-Anguita ÁE, Sánchez-Sánchez T, Soto-Goñi XA, García-González M, Alén Fariñas F, Cid-Verdejo R, et al. Awake and Sleep Bruxism Prevalence and Their Associated Psychological Factors in First-Year University Students: A Pre-Mid-Post COVID-19 Pandemic Comparison. Int J Environ Res Public Health. 2023 Jan 30;20(3):2452. [CrossRef]
  5. Serra-Negra JM, Lobbezoo F, Martins CC, Stellini E, Manfredini D. Prevalence of sleep bruxism and awake bruxism in different chronotype profiles: Hypothesis of an association. Med Hypotheses. 2017 Apr;101:55–8. [CrossRef]
  6. Alona EP, Ilana E. One year into the COVID-19 pandemic – temporomandibular disorders and bruxism: What we have learned and what we can do to improve our manner of treatment. Dent Med Probl. 2021 May 11;58(2):215–8. [CrossRef]
  7. Cruz-Fierro N, Martínez-Fierro M, Cerda-Flores R, Gómez-Govea M, Delgado-Enciso I, Martínez-De-Villarreal L, et al. The phenotype, psychotype and genotype of bruxism. Biomed Rep. 2018 Jan 15. [CrossRef]
  8. Melo G, Dutra KL, Rodrigues Filho R, Ortega AOL, Porporatti AL, Dick B, et al. Association between psychotropic medications and presence of sleep bruxism: A systematic review. J Oral Rehabil. 2018 Jul;45(7):545–54. [CrossRef]
  9. Rintakoski K, Ahlberg J, Hublin C, Broms U, Madden PAF, Kononen M, et al. Bruxism Is Associated With Nicotine Dependence: A Nationwide Finnish Twin Cohort Study. Nicotine & Tobacco Research. 2010 Dec 1;12(12):1254–60. [CrossRef]
  10. Lavigne G, Kato T, Herrero Babiloni A, Huynh N, Dal Fabbro C, Svensson P, et al. Research routes on improved sleep bruxism metrics: Toward a standardised approach. J Sleep Res. 2021 Oct 6;30(5). [CrossRef]
  11. Carra MC, Bruni O, Huynh N. Topical review: sleep bruxism, headaches, and sleep-disordered breathing in children and adolescents. J Orofac Pain. 2021;26:267–76.
  12. Lavigne G, Manzini C, Huynh N. Sleep bruxism. In: Elsevier Saunders, editor. Principles and Practice of Sleep Medicine. 5th ed. St. Louis; 2011. p. 1129–39.
  13. Glaros, AG. Incidence of diurnal and nocturnal bruxism. J Prosthet Dent. 1981 May;45(5):545–9. [CrossRef]
  14. Reding GR, Rubright WC, Zimmerman SO. Incidence of bruxism. J Dent Rest. 1966;45:1198–204.
  15. Laberge L, Tremblay RE, Vitaro F, Montplaisir J, PhD C. Development of Parasomnias From Childhood to Early Adolescence. Pediatrics. 2000 Jul 1;106(1):67–74. [CrossRef]
  16. Manfredini D, Winocur E, Guarda-Nardini L, Paesani D, Lobbezoo F. Epidemiology of Bruxism in Adults: A Systematic Review of the Literature. J Orofac Pain. 2013;27(2):99–110. [CrossRef]
  17. Kato T, Mikami A, Sugita H, Muraki H, Okura M, Ohi M, et al. Negative association between self-reported jaw symptoms and apnea–hypopnea index in patients with symptoms of obstructive sleep apnea syndrome: a pilot study. Sleep and Breathing. 2013 Mar 18;17(1):373–9. [CrossRef]
  18. Roehrs T, Carskadon MA, Dement WC, Roth T. Day- time sleepiness and alertness. In: Saunders, editor. Principles and Practice of Sleep Medicine. Philadelphia; 2000. p. 43–52.
  19. Kapur VK, Auckley DH, Chowdhuri S, Kuhlmann DC, Mehra R, Ramar K, et al. Clinical Practice Guideline for Diagnostic Testing for Adult Obstructive Sleep Apnea: An American Academy of Sleep Medicine Clinical Practice Guideline. Journal of Clinical Sleep Medicine. 2017 Mar 15;13(03):479–504.
  20. Bassiri AG, Guilleminault C. Clinical features and evaluation of obstructive sleep apnea–hypopnea syndrome. In: Saunders WB, editor. Principles and Practices of Sleep Medicine. Philadelphia; 2000. p. 869–78.
  21. Young T, Peppard PE, Gottlieb DJ. Epidemiology of Obstructive Sleep Apnea. Am J Respir Crit Care Med. 2002 May 1;165(9):1217–39. [CrossRef]
  22. INOKO Y, SHIMIZU K, MORITA O, KOHNO M. Relationship between masseter muscle activity and sleep-disordered breathing. Sleep Biol Rhythms. 2004 Feb;2(1):67–8. [CrossRef]
  23. Saito M, Yamaguchi T, Mikami S, Watanabe K, Gotouda A, Okada K, et al. Temporal association between sleep apnea-hypopnea and sleep bruxism events. J Sleep Res. 2014 Apr;23(2):196–203.
  24. Saito M, Yamaguchi T, Mikami S, Watanabe K, Gotouda A, Okada K, et al. Weak association between sleep bruxism and obstructive sleep apnea. A sleep laboratory study. Sleep and Breathing. 2016 May 12;20(2):703–9. [CrossRef]
  25. Hosoya H, Kitaura H, Hashimoto T, Ito M, Kinbara M, Deguchi T, et al. Relationship between sleep bruxism and sleep respiratory events in patients with obstructive sleep apnea syndrome. Sleep and Breathing. 2014 Dec 14;18(4):837–44. [CrossRef]
  26. da Costa Lopes AJ, Cunha TCA, Monteiro MCM, Serra-Negra JM, Cabral LC, Júnior PCS. Is there an association between sleep bruxism and obstructive sleep apnea syndrome? A systematic review. Sleep and Breathing. 2020 Sep 18;24(3):913–21. [CrossRef]
  27. Manfredini D, Guarda-Nardini L, Marchese-Ragona R, Lobbezoo F. Theories on possible temporal relationships between sleep bruxism and obstructive sleep apnea events. An expert opinion. Sleep and Breathing. 2015 Dec 22;19(4):1459–65. [CrossRef]
  28. Tan M, Yap A, Chua A, Wong J, Parot M, Tan K. Prevalence of Sleep Bruxism and Its Association with Obstructive Sleep Apnea in Adult Patients: A Retrospective Polysomnographic Investigation. J Oral Facial Pain Headache. 2019 Jul;33(3):269–77. [CrossRef]
  29. Phillips BA, Okeson J, Paesani D, Gilmore R. Effect of Sleep Position on Sleep Apnea and Parafunctional Activity. Chest. 1986 Sep;90(3):424–9. [CrossRef]
  30. Okeson JP, Phillips BA, Berry DT, Cook YR, Cabelka JF. Nocturnal bruxing events in subjects with sleep-disordered breathing and control subjects. J Craniomandib Disord. 1991;5(4):258–64. [PubMed]
  31. Sjöholm TT, Lowe AA, Miyamoto K, Fleetham JA, Ryan CF. Sleep bruxism in patients with sleep-disordered breathing. Arch Oral Biol. 2000 Oct;45(10):889–96. [CrossRef]
  32. Manfredini D, Ahlberg J, Castroflorio T, Poggio CE, Guarda-Nardini L, Lobbezoo F. Diagnostic accuracy of portable instrumental devices to measure sleep bruxism: a systematic literature review of polysomnographic studies. J Oral Rehabil. 2014 Nov;41(11):836–42. [CrossRef]
  33. Winck M, Drummond M, Viana P, Pinho JC, Winck JC. Sleep bruxism associated with obstructive sleep apnoea syndrome – A pilot study using a new portable device. Revista Portuguesa de Pneumologia (English Edition). 2017 Jan;23(1):22–6. [CrossRef]
  34. The AASM Manual for the Scoring of Sleep and Associated Events. Vol. 2.6. 2020.
  35. Kato T, Blanchet PJ, Montplaisir JY, Lavigne GJ. Sleep bruxism and other disorders with orofacial activity during sleep. In: Butter-worth Heinemann, editor. Sleep and Movement Disorders. Philadelphia; 2003. p. 273–85.
  36. Lavigne GJ, Manzini C, Kato T. Sleep bruxism. Principles and practice of sleep medicine. 4th ed. Elsevier Saunder, editor. Philadelphia; 2005. 946–959 p.
  37. Miyawaki S, Lavigne GJ, Pierre M, Guitard F, Montplaisir JY, Kato T. Association between sleep bruxism, swallowing-related laryngeal movement, and sleep positions. Sleep. 2003 Jun 15;26(4)(PMID: 12841373):461–5.
  38. Macaluso GM, Guerra P, Di Giovanni G, Boselli M, Parrino L, Terzano MG. Sleep Bruxism is a Disorder Related to Periodic Arousals During Sleep. J Dent Res. 1998 Apr 8;77(4):565–73. [CrossRef]
  39. Rundo JV, Downey R. Polysomnography. In 2019. p. 381–92.
  40. Lavigne GJ, Rompre PH, Montplaisir JY. Sleep Bruxism: Validity of Clinical Research Diagnostic Criteria in a Controlled Polysomnographic Study. J Dent Res. 1996 Jan 8;75(1):546–52. [CrossRef]
  41. Gamaldo C, Buenaver L, Chernyshev O, Derose S, Mehra R, Vana K, et al. Evaluation of Clinical Tools to Screen and Assess for Obstructive Sleep Apnea. Journal of Clinical Sleep Medicine. 2018 Jul 15;14(07):1239–44. [CrossRef]
  42. Manfredini D, Ahlberg J, Wetselaar P, Svensson P, Lobbezoo F. The bruxism construct: From cut-off points to a continuum spectrum. J Oral Rehabil. 2019 Nov 2;46(11):991–7. [CrossRef]
  43. Deregibus A, Castroflorio T, Bargellini A, Debernardi C. Reliability of a portable device for the detection of sleep bruxism. Clin Oral Investig. 2014 Nov 28;18(8):2037–43. [CrossRef]
  44. Smardz J, Martynowicz H, Wojakowska A, Michalek-Zrabkowska M, Mazur G, Wieczorek T, et al. The meaning of the masticatory muscle tonic-type electromyographic pathway correlated with sleep bruxism and sleep-related breathing disorders - A polysomnographic study. Sleep Med. 2020 Apr;68:131–7. [CrossRef]
  45. Martynowicz H, Gac P, Brzecka A, Poreba R, Wojakowska A, Mazur G, et al. The Relationship between Sleep Bruxism and Obstructive Sleep Apnea Based on Polysomnographic Findings. J Clin Med. 2019 Oct 11;8(10):1653.
  46. von Elm E, Altman DG, Egger M, Pocock SJ, Gøtzsche PC, Vandenbroucke JP. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: guidelines for reporting observational studies. J Clin Epidemiol. 2008 Apr;61(4):344–9.
  47. Paesani, DA. Bruxismo: teoría y práctica. Quintessence, editor. 2012.
  48. Johns, MW. A New Method for Measuring Daytime Sleepiness: The Epworth Sleepiness Scale. Sleep. 1991 Nov 1;14(6):540–5. [CrossRef]
  49. Schiffman E, Ohrbach R, Truelove E, Look J, Anderson G, Goulet JP, et al. Diagnostic Criteria for Temporomandibular Disorders (DC/TMD) for Clinical and Research Applications: Recommendations of the International RDC/TMD Consortium Network* and Orofacial Pain Special Interest Group†. J Oral Facial Pain Headache. 2014 Jan;28(1):6–27.
  50. De Leeuw R, Klasser GD. Orofacial Pain, Guidelines for assessment, diagnosis, and management. 5a ed. The American Academy of Orofacial Pain, editor. 2008.
  51. Smardz J, Wieckiewicz M, Michalek-Zrabkowska M, Gac P, Poreba R, Wojakowska A, et al. Is camera recording crucial for the correct diagnosis of sleep bruxism in polysomnography? J Sleep Res. 2023 Oct 13;32(5).
  52. Goyal M, Johnson J. Obstructive Sleep Apnea Diagnosis and Management. Mo Med. 2017;114(2):120–4.
  53. Lavigne GJ, Rompré PH, Poirier G, Huard H, Kato T, Montplaisir JY. Rhythmic Masticatory Muscle Activity during Sleep in Humans. J Dent Res. 2001 Feb 8;80(2):443–8. [CrossRef]
  54. Haghayegh S, Kang HA, Khoshnevis S, Smolensky MH, Diller KR. A comprehensive guideline for Bland–Altman and intra class correlation calculations to properly compare two methods of measurement and interpret findings. Physiol Meas. 2020 Jun 15;41(5):055012. [CrossRef]
  55. Molnár V, Lakner Z, Molnár A, Tárnoki DL, Tárnoki ÁD, Kunos L, et al. The Predictive Role of the Upper-Airway Adipose Tissue in the Pathogenesis of Obstructive Sleep Apnoea. Life. 2022 Oct 4;12(10):1543.
  56. Molnár V, Molnár A, Lakner Z, Tárnoki DL, Tárnoki ÁD, Jokkel Z, et al. The prognostic role of ultrasound and magnetic resonance imaging in obstructive sleep apnoea based on lateral oropharyngeal wall obstruction. Sleep and Breathing. 2023 Mar 30;27(1):319–28. [CrossRef]
  57. Kato T, Thie NM, Huynh N, Miyawaki S, Lavigne GJ. Topical review: sleep bruxism and the role of peripheral sensory influences. J Orofac Pain. 2003;Summer 17 (3):191–213. [PubMed]
  58. GALLO LM, LAVIGNE G, ROMPRE P, PALLA S. Reliability of scoring EMG orofacial events: polysomnography compared with ambulatory recordings. J Sleep Res. 1997 Dec;6(4):259–63. [CrossRef]
  59. Shochat T, Gavish A, Arons E, Hadas N, Molotsky A, Lavie P, et al. Validation of the BiteStrip screener for sleep bruxism. Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, and Endodontology. 2007 Sep;104(3):e32–9. [CrossRef]
  60. Mainieri VC, Saueressig AC, Pattussi MP, Fagondes SC, Grossi ML. Validation of the Bitestrip versus polysomnography in the diagnosis of patients with a clinical history of sleep bruxism. Oral Surg Oral Med Oral Pathol Oral Radiol. 2012 May;113(5):612–7. [CrossRef]
  61. YAMAGUCHI T, ABE S, ROMPRÉ PH, MANZINI C, LAVIGNE GJ. Comparison of ambulatory and polysomnographic recording of jaw muscle activity during sleep in normal subjects. J Oral Rehabil. 2012 Jan;39(1):2–10. [CrossRef]
  62. Stuginski-Barbosa J, Porporatti AL, Costa YM, Svensson P, Conti PCR. Diagnostic validity of the use of a portable single-channel electromyography device for sleep bruxism. Sleep and Breathing. 2016 May 2;20(2):695–702. [CrossRef]
  63. Miettinen T, Myllymaa K, Muraja-Murro A, Westeren-Punnonen S, Hukkanen T, Töyräs J, et al. Screen-printed ambulatory electrode set enables accurate diagnostics of sleep bruxism. J Sleep Res. 2018 Feb 17;27(1):103–12. [CrossRef]
  64. Maeda M, Yamaguchi T, Mikami S, Yachida W, Saito T, Sakuma T, et al. Validity of single-channel masseteric electromyography by using an ultraminiature wearable electromyographic device for diagnosis of sleep bruxism. J Prosthodont Res. 2020 Jan;64(1):90–7. [CrossRef]
  65. Sakuma T, Yamaguchi T, Maeda M, Saito T, Nakamura H, Mikami S, et al. Comparison of the occurrence of sleep bruxism under accustomed conditions at home and under polysomnography conditions in a sleep laboratory. J Prosthodont Res. 2022;66(4):JPR_D_21_00219. [CrossRef]
  66. Yanez-Regonesi F, Eisa E, Judge S, Carlson C, Okeson J, Moreno-Hay I. Diagnostic accuracy of a portable device (Bruxoff®) to measure sleep bruxism. J Oral Rehabil. 2023 Apr 25;50(4):258–66. [CrossRef]
  67. Stuginski-Barbosa J, Porporatti AL, Costa YM, Svensson P, Conti PCR. Diagnostic validity of the use of a portable single-channel electromyography device for sleep bruxism. Sleep and Breathing. 2016 May 2;20(2):695–702. [CrossRef]
  68. Manfredini D, Winocur E, Guarda-Nardini L, Paesani D, Lobbezoo F. Epidemiology of Bruxism in Adults: A Systematic Review of the Literature. J Orofac Pain. 2013;27(2):99–110. [CrossRef]
  69. Maluly M, Andersen ML, Dal-Fabbro C, Garbuio S, Bittencourt L, de Siqueira JTT, et al. Polysomnographic Study of the Prevalence of Sleep Bruxism in a Population Sample. J Dent Res. 2013 Jul 20;92(7_suppl):S97–103. [CrossRef]
  70. Tsujisaka A, Haraki S, Nonoue S, Mikami A, Adachi H, Mizumori T, et al. The occurrence of respiratory events in young subjects with a frequent rhythmic masticatory muscle activity: a pilot study. J Prosthodont Res. 2018 Jul;62(3):317–23. [CrossRef]
  71. Yap AU, Tan MWY, Tan SHX, Chua AP. Sleep bruxism events: an epiphenomenon of severe obstructive sleep apnea? Clin Oral Investig. 2023 May 31;27(8):4633–42.
  72. Martynowicz H, Gac P, Brzecka A, Poreba R, Wojakowska A, Mazur G, et al. The Relationship between Sleep Bruxism and Obstructive Sleep Apnea Based on Polysomnographic Findings. J Clin Med. 2019 Oct 11;8(10):1653. [CrossRef]
  73. Okura M, Kato T, Mashita M, Muraki H, Sugita H, Ohi M, et al. Relationships between respiratory and oromotor events differ between motor phenotypes in patients with obstructive sleep apnea. Front Neurol. 2023 Mar 21;14. [CrossRef]
  74. Kato T, Montplaisir JY, Blanchet PJ, Lund JP, Lavigne GJ. Idiopathic myoclonus in the oromandibular region during sleep: A possible source of confusion in sleep bruxism diagnosis. Movement Disorders. 1999 Sep;14(5):865–71.
  75. Carra MC, Huynh N, Lavigne GJ. Diagnostic accuracy of sleep bruxism scoring in absence of audio-video recording: a pilot study. Sleep and Breathing. 2015 Mar 3;19(1):183–90. [CrossRef]
  76. Raphael KG, Santiago V, Lobbezoo F. Is bruxism a disorder or a behaviour? Rethinking the international consensus on defining and grading of bruxism. J Oral Rehabil. 2016 Oct;43(10):791–8. [CrossRef]
  77. Merletti R, Hermens H. Introduction to the special issue on the SENIAM European Concerted Action. Journal of Electromyography and Kinesiology. 2000 Oct;10(5):283–6. [CrossRef]
  78. Hermens H, FB, MR, SDF, BJH, RG, KCD, HG, BWJ, & HHJ. European recommendations for surface electromyography: Results of the SENIAM Project. 1999.
  79. De Luca CJ. The Use of Surface Electromyography in Biomechanics. J Appl Biomech. 1997 May;13(2):135–63.
  80. Martinot JB, Le-Dong NN, Cuthbert V, Denison S, Gozal D, Lavigne G, et al. Artificial Intelligence Analysis of Mandibular Movements Enables Accurate Detection of Phasic Sleep Bruxism in OSA Patients: A Pilot Study. Nat Sci Sleep. 2021 Aug;Volume 13:1449–59. [CrossRef]
  81. Vicente-Samper JM, Tamantini C, Ávila-Navarro E, De La Casa-Lillo MÁ, Zollo L, Sabater-Navarro JM, et al. An ML-Based Approach to Reconstruct Heart Rate from PPG in Presence of Motion Artifacts. Biosensors (Basel). 2023 Jul 7;13(7):718. [CrossRef]
  82. Almarshad MA, Al-Ahmadi S, Islam MS, BaHammam AS, Soudani A. Adoption of Transformer Neural Network to Improve the Diagnostic Performance of Oximetry for Obstructive Sleep Apnea. Sensors. 2023 Sep 15;23(18):7924. [CrossRef]
  83. Hasegawa Y, Lavigne G, Rompré P, Kato T, Urade M, Huynh N. Is there a First Night Effect on Sleep Bruxism? A Sleep Laboratory Study. Journal of Clinical Sleep Medicine. 2013 Nov 15;09(11):1139–45. [CrossRef]
Preprints 90306 g001

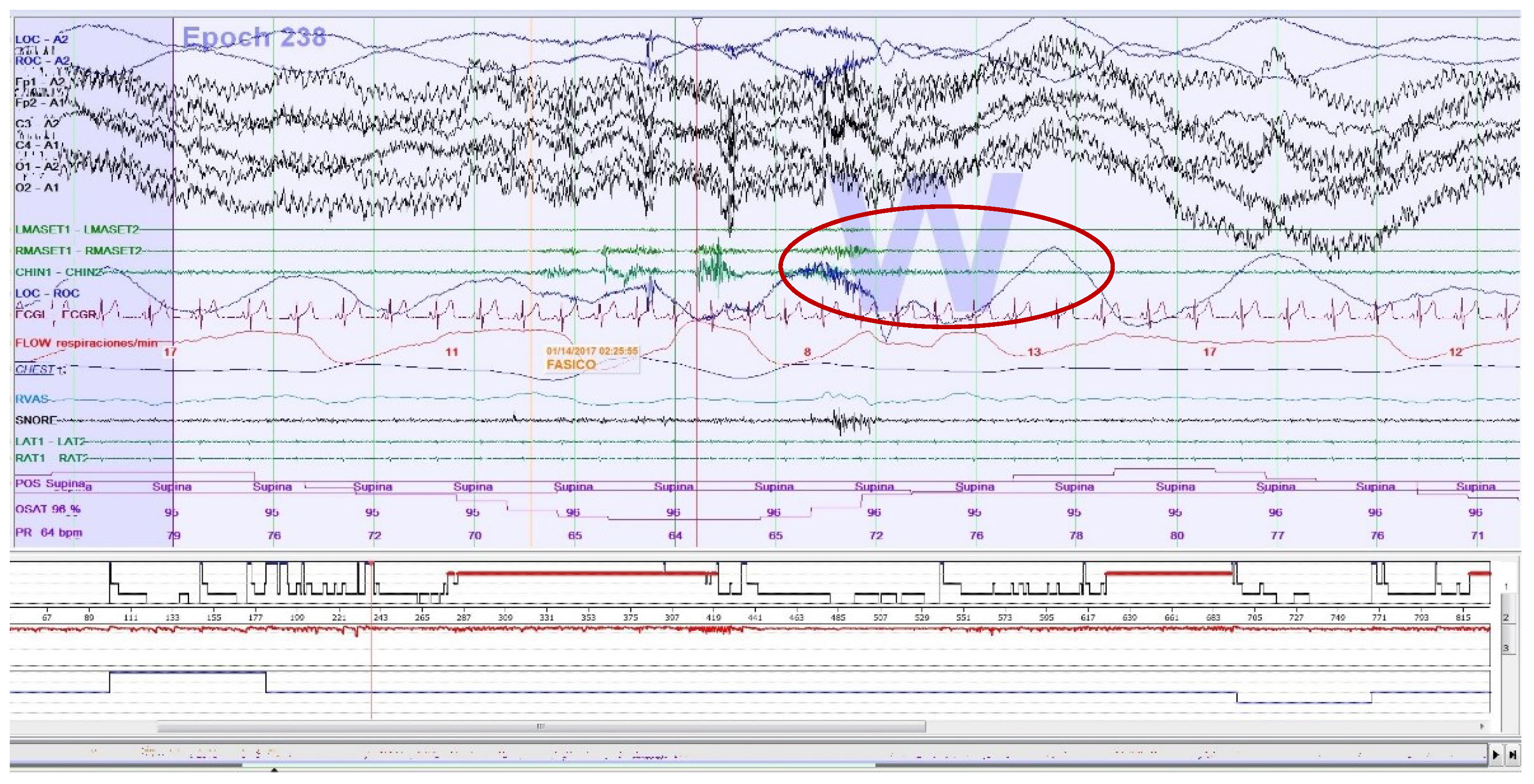

Figure 1. Epoch (30 seconds) of a PSG recording: An EMG phasic event of SB.
Figure 1. Epoch (30 seconds) of a PSG recording: An EMG phasic event of SB.
Preprints 90306 g001
Preprints 90306 g002

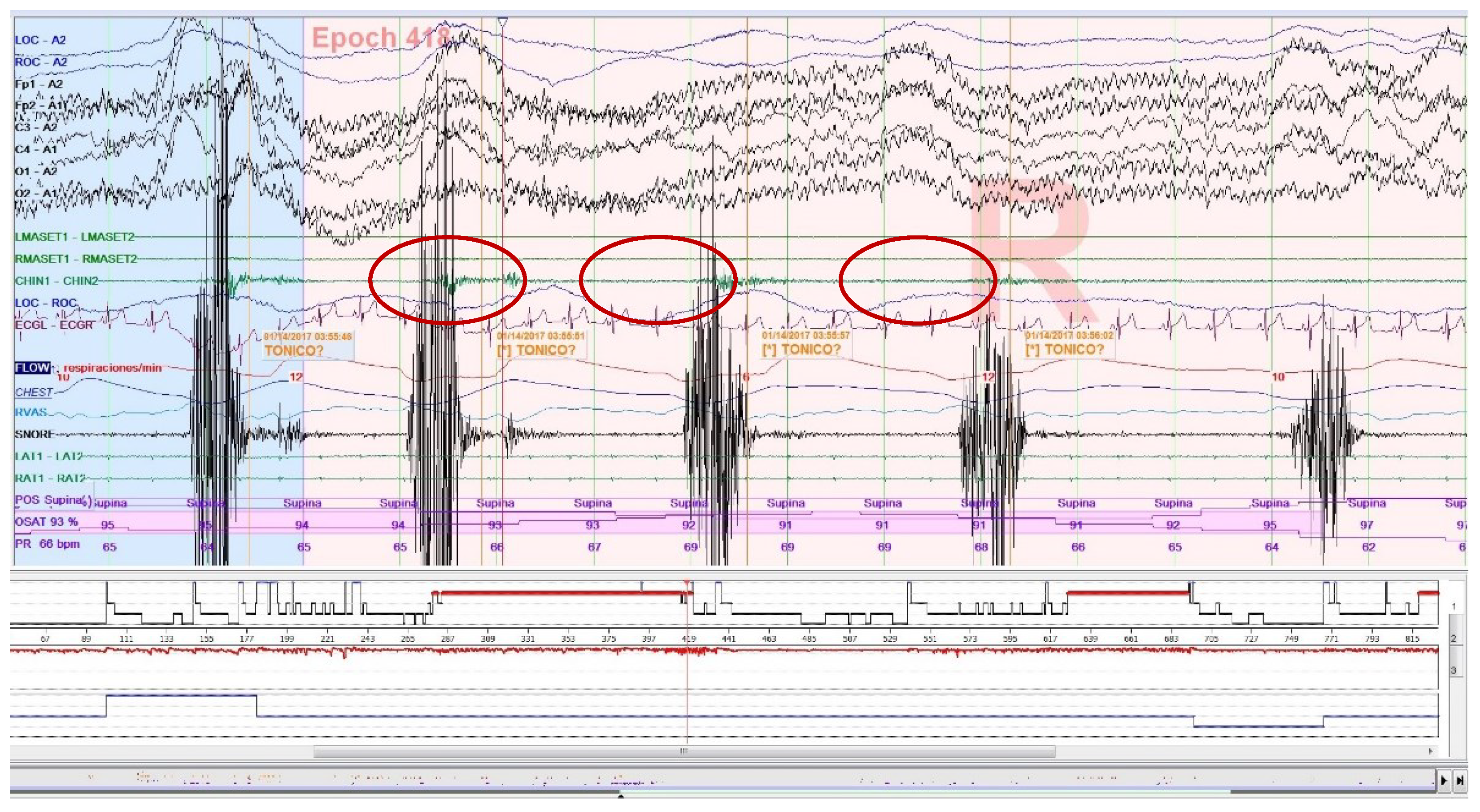

Figure 2. Epoch (30 seconds) of a PSG recording: Tonic EMG episode, corresponding to Sleep-related Oromotor activity (OMA), following snoring. It is excluded as an SB episode.
Figure 2. Epoch (30 seconds) of a PSG recording: Tonic EMG episode, corresponding to Sleep-related Oromotor activity (OMA), following snoring. It is excluded as an SB episode.
Preprints 90306 g002
Preprints 90306 g003

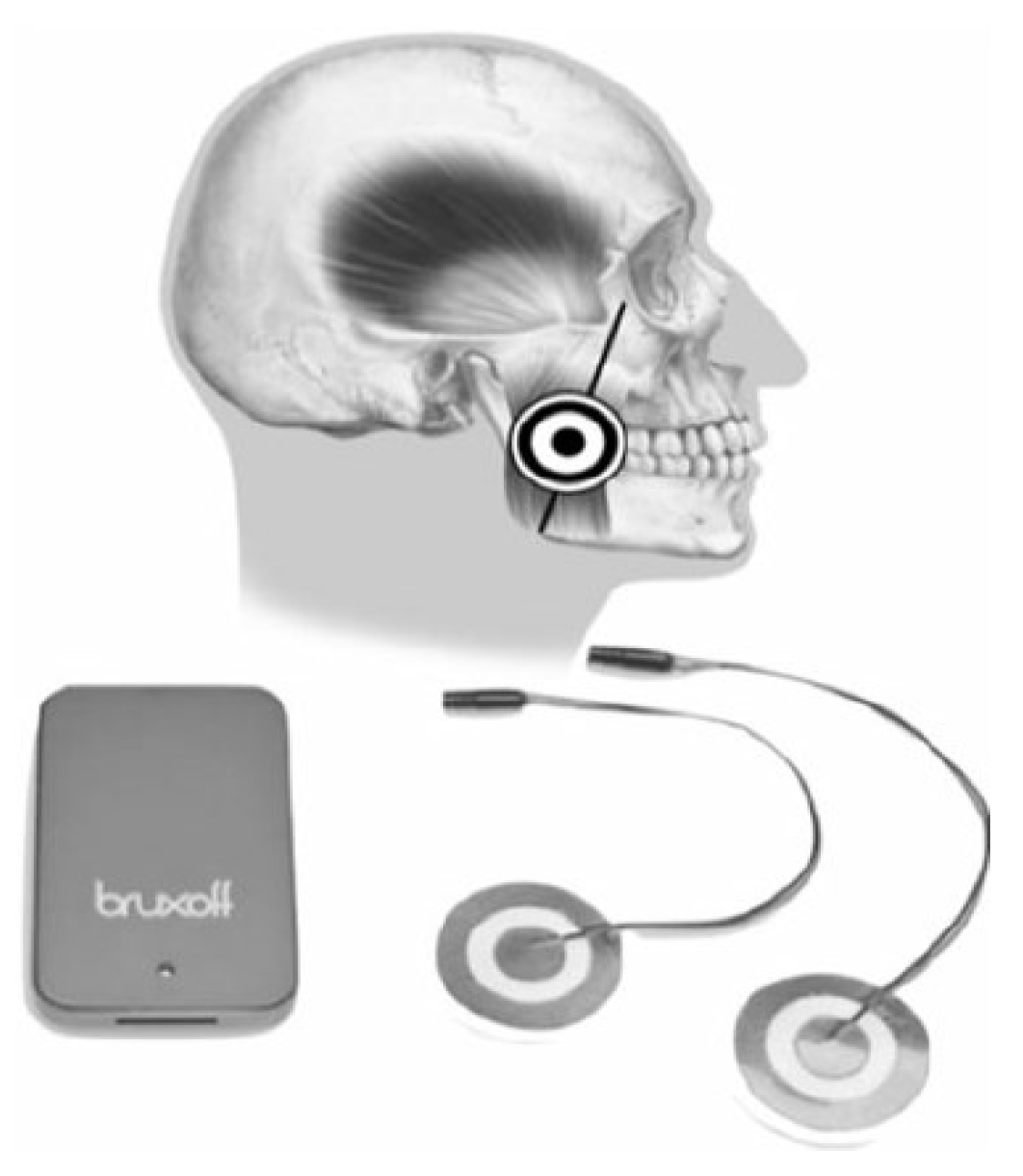

Figure 3. EMG-EKG Device.
Figure 3. EMG-EKG Device.
Preprints 90306 g003
Preprints 90306 g004
Figure 4. The algorithm used by Bruxmeter software to detect SB episodes in automatic mode.
Figure 4. The algorithm used by Bruxmeter software to detect SB episodes in automatic mode.
Preprints 90306 g004
Preprints 90306 g005
Figure 5. Bland-Altman analysis. A) Manual analysis of PSG recordings versus automatic EMG-EKG device analysis. Limits agreement = + 23.52, -52.07 (Bias = -14.27). B) Manual analysis of PSG recordings versus manual EMG-EKG device analysis. Limits agreement = + 23.89, -36.34 (Bias = -6.23).
Figure 5. Bland-Altman analysis. A) Manual analysis of PSG recordings versus automatic EMG-EKG device analysis. Limits agreement = + 23.52, -52.07 (Bias = -14.27). B) Manual analysis of PSG recordings versus manual EMG-EKG device analysis. Limits agreement = + 23.89, -36.34 (Bias = -6.23).
Preprints 90306 g005
Table 1. Descriptive sleep data of the sample.
Table 1. Descriptive sleep data of the sample.
N=22
Mean± SD
Physical data
Age 46.55 ± 11.06
BMI 27.23 ± 5.38
Sleep data
SPT (min) 411.55 ± 27.31
TST (min) 330.05 ± 62.42
SLT (min) 13.86 ± 26.87
Sleep Efficiency (%) 81.66 ± 14.89
WASO (min) 56.30 ± 47.86
Awakes (number) 44.05 ± 25.16
Sleep stage distribution
N1/SPT (%) 25.12 ± 16.60
N2/SPT (%) 43.85 ± 9.37
N3/SPT (%) 15.99 ± 10.91
R/SPT (%) 15.43 ± 5.92
Pulse oximetry data
Mean (%) 93.45 ± 2.98
Max (%) 98.32 ± 1.04
Min (%) 81.09 ± 11.03
CT90 (%) 12.94 ± 23.65
Sleep apnea data
No. Apneas 106.18 ± 161.17
No. Hypopneas 30.32 ± 31.24
No. Apneas + Hypopneas 136.50 ± 172.87
AHI 25.25 ± 32.83
BMI Body Mass Index, SPT sleep period time, TST total sleep time, SLT sleep latency time, WASO wake time after sleep onset, CT90 total time lower 90% O2Sat. AHI Apnea-Hypopnea Index.
Table 2. Data of Sleep bruxism.
Table 2. Data of Sleep bruxism.
N=22
Mean±SD t
Polysomnography
No. Episodes / night 8.41 ± 10.85 3.63
No. Episodes / hour 1.49 ± 2.05 3.39
No. Phasic episodes 2.00 ± 4.48 2.09
No. Tonic episodes 5.55 ± 7.06 3.68
No. Mixed episodes 0.86 ± 1.67 2.42
Automatic Bruxoff
No. Episodes / night 22.68 ± 16.02 6.64
No. Episodes / hour 3.92 ± 2.71 6.78
No. Phasic episodes 5.82 ± 5.37 5.06
No. Tonic episodes 5.77 ± 6.90 3.87
No. Mixed episodes 1.23 ± 1.87 3.06
Manual Bruxoff
No. Episodes / night 14.64 ± 10.76 6.37
No. Episodes / hour 2.54 ± 1.95 6.13
No. Phasic episodes 5.27 ± 4.50 5.49
No. Tonic episodes 8.05 ± 7.82 4.82
No. Mixed episodes 1.32 ± 2.00 3.07
One-sample T-test was used for statistical analysis. Total SB events along the TST total sleep time, excluded the Sleep-related Oromotor Activity (OMA) with the EMG-EKG device and the Gold Standard (PSG, Manual EMG-EKG, and Automatic EMG-EKG). The significance level set as p <0.05.
Table 3. Sleep bruxism data with the segmented sample.
Table 3. Sleep bruxism data with the segmented sample.
n=22
Non OSA ±SD
N=15		 OSA ±SD
N=7		 F
SB Polysomnography
Total episodes 13.71 ± 13.76 * 5.93 ± 8.64 * 4.58
Phasic episodes 4.43 ± 7.39 * 0.87 ± 1.52 * 10.10
Tonic episodes 8.14 ± 8.57 4.33 ± 6.20 1.83
Mixed episodes 1.14 ± 1.86 0.73 ± 16.62 0.25
Ep. /hour 2.11 ± 2.07 1.20 ± 2.07 0.74
SB Automatic Bruxoff
Total episodes 23.14 ± 11.69 22.47 ± 18.07 0.95
Phasic episodes 7.14 ± 6.25 5.20 ± 5.04 0.331
Tonic episodes 5.00 ± 4.65 6.13 ± 7.97 2.76
Mixed episodes 1.43 ± 1.81 1.13 ± 1.95 0.00
Ep. /hour 4.38 ± 2.38 3.70 ± 2.90 0.80
SB Manual Bruxoff
Total episodes 16.14 ± 10.73 13.93 ± 11.08 0.20
Phasic episodes 6.43 ± 6.47 * 4.73 ± 3.39 * 5.07
Tonic episodes 8.,57 ± 8.26 7 80 ± 7.89 0.03
Mixed episodes 1.14 ± 1.86 1.40 ± 2.13 0.18
Ep. /hour 3.15 ± 2.35 2.26 ± 1.74 1.19
An unpaired T-test was used for statistical analysis. Total SB events along the TST total sleep time, excluded the Sleep-related Oromotor Activity (OMA) with sample segmented (Non OSA, OSA). The significance level was set as *p<0.05.
Table 4. Sleep bruxism data with the segmented sample by OSA severity degree.
Table 4. Sleep bruxism data with the segmented sample by OSA severity degree.
n=22
Non OSA ±SD
N=6		 Mild OSA ±SD
N=7		 Moderate OSA ±SD
N=3		 Severe OSA ±SD
N=6		 F
Sleep Bruxism PSG
Total episodes 16 ± 13.55 5.57 ± 6.13 10.33 ± 17.89 3.17 ± 4.66 1.83
Tonic episodes 9.50 ± 8.52 5.85 ± 2.21 6.67 ± 11.54 2.17 ± 2.86 1.18
Phasic episodes 5.17 ± 7.80 0.57 ± 1.13 1.67 ± 2.88 0.67 ± 1.21 1.52
Mixed episodes 1.33 ± 1.97 0.43 ± 0.78 2.00 ± 3.46 0,33 ± 0.82 0.97
Episode / hour 2.46 ± 2.03 0.93 ± 1.01 2.67 ± 4.61 0.80 ± 0.70 1.40
SB Automatic Bruxoff
Total episodes 24.50 ± 12.19 26 ± 20.44 18 ± 24.26 19.33 ± 12.13 0.26
Tonic episodes 4.83 ± 5.07 6.71 ± 5.67 8 ± 13 4.50 ± 8.12 0.21
Phasic episodes 7.67 ± 6.68 7.29 ± 5.31 2.33 ± 3.21 4.00 ± 4.56 1.06
Mixed episodes 1.67 ± 1.86 0.86 ± 1.21 1.33 ± 1.52 1.27 ± 2.86 0.72
Episode / hour 4.68 ± 2.45 4.34 ± 3.24 2.6 ± 3.55 3.33 ± 2.19 0.50
SB Manual Bruxoff
Total episodes 16.83 ± 11.58 16.14 ± 10.30 14 ± 18.19 11.00 ± 8.22 0.32
Tonic episodes 9 ± 8.96 8.29 ± 6.39 7.67 ± 11.59 7.00 ± 8.44 0.61
Phasic episodes 6.5 ± 7.09 6.71 ± 3.86 4 ± 2.64 3.00 ± 1.55 0.92
Mixed episodes 1.33 ± 1.96 1.14 ± 1.86 2.33 ± 4.04 1.00 ± 1.26 0.29
Episode / hour 3.33 ± 2.52 2.6 ± 1.41 2.03 ± 2.65 1.95 ± 1.71 0.55
One-factor ANOVA was used for statistical analysis. Total SB events along the TST total sleep time, excluded the Sleep-related Oromotor Activity (OMA) with sample segmented (Non OSA, mild OSA, moderate OSA and severe OSA) according to the AHI values. p>0.05.
Table 5. Agreement data with the segmented sample by OSA severity degree.
Table 5. Agreement data with the segmented sample by OSA severity degree.
SB episodes (N=22)
Non OSA N=6 Mild OSA N=7 Moderate OSA N=3 Severe OSA N=6
0.61 0.53 * 0.24 0.23
Agreement, ICC Intraclass Correlation Coefficient: Total SB Sleep Bruxism episodes per night along the three tools (PSG, manual EMG-EKG and automatic EMG-EKG) with segmented sample by the degree severity of OSA Obstructive Sleep Apnea. The significance level was set as *p<0.05.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
