β-Tricalcium Phosphate as Alveolar Bone Grafting in Cleft Lip/Palate: A Systematic Review

Altmetrics

Downloads

155

Views

61

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

20 July 2023

Posted:

20 July 2023

You are already at the latest version

Alerts
Abstract
The aim of this systematic review is to describe and to identify prospect of β-Tricalcium Phosphate (β-TCP) as Alveolar Bone Grafting (ABG) in Cleft Lip/Palate (CL/P) or alveolar bone cleft defect. A systematic review protocol based on Preferred Reporting Items for Systematic Reviews and Meta Analyses 2020 (PRISMA 2020) was drafted. The literature search was conducted with MEDLINE/PubMed, Web of Science/ ISI-Web of Knowledge, Scopus and Cochrane Library with English language and no publication year limits. The keywords yielded a total of 5824 publications. There are 3196 suitable articles to evaluate after removing duplicates and languages. Afterward, 1315 studies left after doing title and abstract reading. In addition, 85 full-articles were assessed for eligibility. The read the complete texts of those papers and eventually chose 20 that matched the inclusion requirements. Thirteen of the twenty studies included in this systematic review had a low risk of bias, one had a high risk of bias, and six had moderate bias which not report the randomization. β-TCP as ABG is biocompatible, visible and practical, offers a less invasive procedure, and does not interfere with orthodontic treatment. β-TCP as synthetic ABG can be the alternative to autologous bone grafts with several terms and conditions. Improvement of β-TCP efficacy for ABG in CL/P or alveolar bone cleft defects can be done by a tissue engineering approach combining β-TCP with growth factor, mesenchymal stem cells, or other graft materials and modification of β-TCP physical properties.
Keywords:
Subject: Medicine and Pharmacology  -   Dentistry and Oral Surgery

1. Introduction

Trisomy 21, often known as Down Syndrome , is one of the most frequent orofacial congenital abnormalities worldwide [1]. The epidemiology of cleft lip, cleft palate, and cleft lip and palate (CL/P) related to Down syndrome has been recorded at roughly 1 in 700 per birth, but it has also been reported at 1 in 500 to 1 in 2,500 per birth in other parts of the world [2,3]. The prevalence of CL/P was estimated to be 10.8 million people in 2017, with a disease burden of 652.084 disability-adjusted life years, with low- and middle-income countries (94.1%) of this disease burden [4]. CL/P is highly common in the Asia area, particularly in Japan, China, and Indonesia, which are high-risk nations for CL/P [5,6,7].
CL/P is caused by a defect in palatogenesis during the embryonic phase. CL/P etiology is impacted by genetic, environmental, and a mixture of both factors. CL/P is shown clinically as a cleft in the lip, alveolar bone, palate, and nasal septum. The patients have cosmetic and functional deficiencies [8]. Lifetime costs, loss of productivity, lack of self-confidence due to facial, aesthetic, or cosmetic aspects, increased utilization of mental health services, speech and hearing impairment, risk of infection, and increased morbidity and mortality at all stages of life are all the negative impacts of CL/P on the individual and society. Furthermore, it may affect the oral health related quality of life of CL/P patients [9]. In individuals with CL/P, dental malformations are more prevalent due to anatomical abnormalities in the alveolar process. Approximately 83.3% of the individuals with CL/P had at least one dental anomaly, with tooth agenesis being the most prevalent abnormality observed. Furthermore, the group with unilateral CL/P had the greatest number of dental abnormalities [10]. These anomalies can create serious issues that can be avoided or mitigated by early detection and treatment.
The alveolar cleft volume increased with age in CL/P patients, which is related to an increasing breadth of the lip-palatal defect. Patients under the age of 18 had significantly higher rates of ipsilateral maxillary sinusitis, which may increase the risk of bone infection [11]. The optimal period for alveolar bone grafting (ABG), according to the European and North American Cleft Association, is before canine eruption. However, various concerns remain, including the nature of the surgical and orthodontic techniques, the kind of bone and donor location, and the optimum approach to managing the space in the dental arch. Although the most typical age range for performing a bone graft is between the ages of 8 and 11, some hospitals have started to perform alveolar bone grafts at a younger age in the expectation of achieving better outcomes for unerupted incisors. However, the impact of early ABG on maxillary development has yet to be determined. A variety of donor sites have been used, but the iliac crest remains the most preferred, although it may pose challenges for some patients with medical conditions. Prior to ABG, several teams used orthodontics to rectify significant segment displacement or to align incisors to facilitate surgical access. Following ABG, lateral incisor absence can be addressed by orthodontic space closure, implant implantation, or bridgework [12].
The ilium is the most typical location for ABG harvesting. Curettage, trapdoor or splitting procedures for cancellous bone, and the subcrestal-window approach for bicortical transplant are all ways of harvesting iliac ABG. However, potential consequences of using the ilium as a donor site may include discomfort, neurovascular damage, avulsion fractures of the ASIS, hematoma, infection, herniation of abdominal contents, gait impairment, cosmetic deformity, sacroiliac joint violation, and ureteral injury [13]. There is an option that may replace the autologous iliac crest for ABG with a xenograft or synthetic graft.
Rapid integration of ABG is crucial for achieving structural stiffness. Structural and nonstructural ABG procedures modify alignment, function, and appearance by adding length, height, and volume. Corticocancellous autografts, allografts, xenografts, and synthetic grafts are all kinds of ABG. Autogenic grafts, which are harvested from the patient, are less likely to be rejected. However, the harvesting process adds an additional step, and donor site morbidity is prevalent. Secondary operations and donor site problems are avoided with allografts, xenografts, and synthetic grafts [14]. Stringent regulations are projected to significantly limit the allograft industry in the future. The use of xenograft or synthetic ABG, such as Beta (β)-tricalcium phosphate (β-TCP), a bioceramic biomaterial, is expected to be promising and helpful for clinical results in CL/P therapy. β-TCP materials, followed by xenograft biomaterials, which regrettably still lack established predictability and clinical efficacy, dominate the cranio-maxillofacial market [15]. Despite numerous efforts made to investigate the ABG in the field of cranio-maxillofacial medicine, the regenerative prospect of β-TCP as ABG in CL/P has not yet been fully elucidated and remains limited. Therefore, the aim of this systematic review is to describe the regenerative prospect of β-TCP as an ABG material in CL/P based on existing literature.

2. Material and Methods

2.1. Focused Question

Following the Participants, Intervention, Control, Outcomes (PICO) principle, a focused question was formulated before conducting the literature search made according to Preferred Reporting Items for Systematic Reviews and Meta Analyses 2020 (PRISMA 2020). The focused question was: ‘Compared to autologous bone graft, does β-TCP as ABG stimulate the regeneration of CL/P or alveolar bone cleft defects?’

2.2. Search Strategies

A systematic review protocol based on PRISMA 2020 was drafted. In addition, reporting was based on the PRISMA 2020 checklist [16,17]. The following databases were searched: MEDLINE/ PubMed (https://pubmed.ncbi.nlm.nih.gov), Web of Science/ ISI-Web of Knowledge (https://www.webofscience.com/), Scopus (https://www.scopus.com/), and the Cochrane Library (https://www.cochranelibrary.com/advanced-search). Manual searches were undertaken to supplement the completed searches. Furthermore, the gray literature in The New York Academy of Medicine Gray Literature Report (http://www.greylit.org) and the European System for Information on Gray Literature (http://www.opengrey.eu) was screened [18]. Table 1 shows the search strategies in the selected databases.

2.3. Eligibility Criteria

The following categories of articles were included in this review: original articles that focused on the methodology of using β-TCP as an ABG in animal models or humans, to regenerate CL/P or alveolar bone cleft defects. Open access of full-text articles relevant to β-TCP ABG for CL/P or alveolar bone cleft defect were used as inclusion criteria. Reviews, short communication, editorial notes, processes, and recommendations were not considered. All types of experimental and observational studies in English were included. Nevertheless, no duplicate studies were included in the analysis. Adults or children of any gender or age are acceptable study subjects, as are any other objects of in vivo research. CL/P, alveolar cleft defect, β-TCP, and ABG, as well as any additional therapies involving tissue engineering, were included in the research as study factors or exposures. Bone regeneration, bone repair, bone volume, dentistry, bone remodeling, and any other measure of bone regeneration in CL/P were among the outcomes of the research examined. Articles in languages other than English, letters to the editor, and all types of reviews and commentaries were excluded. There were no restrictions on the year of publication, but only free accessed full papers. The most recent search was conducted in June 2023.

2.4. Study Selection and Data Extraction

The three reviewers (A.P.N, H.Y, J.C) independently conducted electronic literature searches and selected the studies. Any disagreements were resolved by discussion or by consulting a second reviewers (J.R.V. Sáenz, G.H) [16,17]. The reviewers (A.P.N, H.Y, J.C) worked to extract data using a standardized form in Microsoft Excel that had been validated prior to use [18]. Data was primarily extracted using the PICO protocol (Participants: patients (for clinical studies)/animals (for in vivo studies); Intervention: β-TCP ABG; Controls: Autograft / Xenograft or no treatment/other regenerative materials; Outcomes: bone regeneration or bone remodeling of CL/P or alveolar bone cleft defect; Data relevant to methodology, sample size, duration of the studies, and the investigations carried out were extracted from each study. Results from the animal (in vivo) and clinical studies were tabulated in the table using predetermined data collection forms by the two investigators independently [19].

2.6. Quality Assessment of Studies

Depending on the type, each study was assessed individually and independently by investigators. It was decided that for the quality assessment of any randomized clinical trials, Consolidated Standards of Reporting Trials (CONSORT) would be used. The Animal Research: Reporting of In Vivo Experiments (ARRIVE) guidelines were selected for animal studies. Any disagreements were solved by discussion.

2.7. Risk-of-Bias Assessment

The risk of bias evaluation was carried out in accordance with a technique derived from prior systematic reviews [16,17,20]. This assessment evaluated the description of several quality assessment parameters, including a well-defined β-TCP as ABG process, standardized sample or subject preparation, randomization of samples or subjects, tests conducted by a single blinded operator, a clear test method specification, and comprehensive reporting of results. The article was labeled "Y" for a given parameter if the authors reported it and "N" if the information could not be located. The articles were classified as having a high, medium, or low risk of bias based on the number of "Y" elements included (1-2, 3-4, or 5-6).

2.8. Statistical Methods

Microsoft Office Excel (2010, Microsoft) was used for descriptive statistics. Due to the heterogeneity of the papers, a pairwise meta-analysis could not be performed.

3. Results

3.1. Study Selection, Data Extraction, and Quality Assessment

The keywords yielded a total of 5824 articles publication, with 90 papers from Scopus, 6 papers from PubMed, 4510 papers from Web of Science and 1218 papers from the Cochrane Library, respectively. The 3196 suitable articles to evaluate after removing duplicates and languages. We had 1315 studies left after doing title and abstract reading. Eighty-five full-articles were assessed for eligibility. The read the complete texts of those papers and eventually chose 20 that matched the inclusion requirements. The reviewers (A.P.N, H.Y, J.C) independently performed critical evaluations utilizing JBI critical evaluation tools. Figure 1 depicts the flow diagram of the study selection process. The summary of descriptive characteristics of the articles included in this study shown in Table 2.

3.2. Assessment of the Risk of Bias and Quality

The reviewers read the complete texts of those papers and eventually selected 20 studies that met the inclusion criteria. Thirteen of the twenty studies included in this systematic review had a low risk of bias, one had a high risk of bias, and six had moderate bias. Most of the studies did not report the randomization, which is considered a potential source of bias (Table 3).

3.3. Qualitative Analysis

Figure 2 illustrates the possible mechanism of action when β-TCP was used in a tissue engineering approach as an alveolar bone graft in CL/P or an alveolar bone cleft defect. Most of the studies included in this systematic review were experimental studies using animal models of alveolar bone cleft defects that were representative of CL/P condition patients. There were fourteen studies using an alveolar bone cleft defect animal model. Six studies used dogs [28,30,31,35,37,40], five studies used rats [21,23,33,34,39], two studies used goats [36,38], and only one study used rabbits [25]. Only one research study claimed that the rat’s palatine fissure was an acceptable location for the bone substitute implant application of bone graft materials to replicate the human alveolar cleft in animal model studies of CL/P. In addition, the palatine fissure is a congenital bone abnormality comparable to the alveolar cleft abnormalities seen in people [33]. Nevertheless, the rest of the studies were successfully established and reported the research outcome for the alveolar bone cleft defect animal models. A preliminary or pre-clinical study using an animal model as a representative of CL/P conditions in patients is important before the clinical application of the proposed ABG in the clinical setting.
On the other hand, this systematic review also found several studies of β-TCP application in CL/P patients in a clinical setting, such as five articles of case-control clinical studies [24,26,27,29,32] and one article of a retrospective cohort study [22]. Most clinical setting studies of CL/P focused on unilateral alveolar cleft [24,26,27,29,32]. However, only one study used the unilateral or bilateral cleft patients as the study participant in the retrospective study setting [22]. The most frequent prevalence of CL/P type in patients was unilateral alveolar cleft. Out of the 20 articles included in this systematic review, six articles also investigated the potential impact of alveolar bone graft (ABG) application on orthodontic treatment [21,24,32,34,35,36,37]. β-TCP is a more biocompatible alternative to autogenous bone transplantation for orthodontic tooth movement in alveolar bone cleft abnormalities [35]. Other earlier research has found that the use of β-TCP does not impair orthodontic treatment [32,36,37].
In terms of bone regeneration of CL/P or alveolar bone defect cleft, autologous bone graft is considered the gold standard, as indicated by several studies [23,33,34,39]. Most of the studies used the autologous bone graft from hip bone [21], iliac crest bone [22,26,31,36,37,38,40] tibia bone [28,30], particulate marrow and cancellous bone [35], mandibular symphysis bone [27,32]. However, two articles not use any gold standard ABG in animal models, or as control groups [24,25]. Autograft and xenografts seemed to be interchangeable terms, after more tissue engineering adjustments, synthetic β-TCP and HA might be used as an alternative ABG [21]
Some studies suggested β-TCP, which is a bioceramic, as an ABG for bone regeneration in CL/P or alveolar bone cleft defects. Notwithstanding, β-TCP alone cannot substitute the autologous ABG [21]. The result of a previous study found a lower bone volume (BV) and bone mineral density (BMD) after β-TCP application compared to autologous ABG [33]. β-TCP may be able to overcome its lack of osteoinductive and osteoconductive qualities after undergoing many physical changes or the inclusion of certain stem cells or growth factors. There are several modifications of β-TCP as the alternative ABGsuch as combination of rhBMP2 in a β-TCP scaffold [22], AMSCs seeded in β-TCP [23,28], BMSCs or BMMNSCs combined with β-TCP granule [26,31,37,40]. β-TCP in microporous [24,29,30], composite xenogeneic dentin with β-TCP [25], the mixture of autologous ABG in β-TCP granules [27,32,38], combination of HA-β-TCP [34], col/ β-TCP scaffolds, and PLLA/PCL scaffolds [39]. Even though autografts are the best option for bone regeneration, tissue-engineered β-TCP might be a viable alternative, particularly if autografts are hard to come by or there is donor site morbidity [30]. Thus, it may decrease the surgical pain and the number of hospital stay days [26].
Various examination methods are proposed to investigate the efficacy of β-TCP as ABG in the clinical setting or pre-clinical research, such as µCT, histology analysis, CBCT, RT-qPCR, occlusal digital radiography, and densitometry with computer-aided software. µCT was used to examine BMD, BV/TV, BF, defect size, Hounsfield unit, bone quality, trabecular thickness of bone, mineralized matrix formation, and bone mineral content [21,23,25,33,34,38,39,40]. Several important osteogenic biomolecular markers, such as Runx2, OSC, SPARC, BSP, ALP, and Osx mRNA, can be analyzed by RT-qPCR [39]. Histopathology analysis was conducted to investigate several biomarkers within the tissue, such as lamellar bone and woven bone21, runx2, ALP, Osx, BMP2, TRAP expression, osteoblast and osteoclast number, tooth movement, and root resorption, bone formation (%), residual graft (%), collagen regeneration (%), and defect area healing (%) [23,25,28,30,33,34,35,36,37,39,40]. The CBCT instrument can be used to investigate preoperative defect volume, postoperative residual defect volume, and bone formation. Residual calcified tissue, spontaneous eruption of the canine/lateral incisor, continuous alveolar process, residual oronasal fistula, BV/TV, BFR, bone union, Chelsea scale Tb.Th, Tb.N, Tb.Sp, TBPf, SMI, FD, cleft volume pre-operation, graft volume post-operation [21,24,25,27,29]. Conventional dental occlusal radiographs have been used to analyze height of the bone graft, alveolar height and eruption disturbance, bone deposition, repaired alveolar cleft, and residual alveolar height (%) [31,32,35,37]. In addition, bone density examination can be investigated by mean of densitometer software with digital radiography [28]. Direct observation, such as duration of hospital stay may useful to know the efficacy of ABG administration in CL/P [25]. Those various examination methods help to elucidate the β-TCP as ABG in the CL/P patients or alveolar bone cleft defect in vivo.

4. Discussion

The objective of alveolar cleft repair is to reconstruct bone volume and quality to match the original anatomy. The accompanying soft-tissue attachment of the oral and nasal mucosa is specific to these cleft abnormalities [21]. This systematic review aimed to provide a summary of existing research on the regeneration possibility of β-TCP as ABG in cleft lip and palate patients or alveolar bone cleft defect animal models, assessing the success or failure of these interventions. Overall, the findings of this comprehensive analysis show that the use of β-TCP as ABG improves the regeneration of alveolar bone cleft defects in CL/P humans or animal models (in vivo) [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40].
Nevertheless, a downside of β-TCP alone cannot substitute the golden standard of ABG which is autologous bone graft [33]. Autologous bone remains the gold standard for cleft repair. However, autografts have certain drawbacks, including restricted bone supply, the requirement for an extra donor site, the accompanying postoperative morbidity (pain, hematoma, and delayed ambulation), and an intrinsic sensitivity to resorption in the long run [21]. Therefore, different tissue-engineered bone replacements have been proved to be effective options for encouraging bone fusion and minimizing donor site morbidity. The β-TCP is a bioceramic, a synthetic ABG described, and has been recognized to be an alternative to autologous or xenograft ABG, which is acceptable in numerous terms and situations [30]. β-TCP with tissue engineering modification eliminates the limits of autologous bone grafts, such as limited donor supply and donor site morbidity, and minimizes the patient’s surgical stress, which may be connected to a decreased operating time and hospital stay duration reported [25].
For establishing appropriate β-TCP resorption characteristics, the optimal balanced ratio of HA and β-TCP varies between 65:35 and 55:45[41,42]. Some MSCs such as AMSCs or BMSCs may boost the bone regeneration ability of β-TCP [23,26,28,31,37,40]. In addition, the alteration of β-TCP’s shape or combination with growth factor, substance or collagen is also promising for enhancing the osteoinductive and osteoconductive potential of β-TCP [22,24,25,27,29,30,32,38,39]. To date, research has not been carried out to examine the ideal qualities of β-TCP. Additionally, there is a limited study that has investigated the clinical effectiveness of β-TCP [22,24,26,27,29,32].
Animal research included in this comprehensive review demonstrates that β-TCP stimulates bone regeneration in CL/P or alveolar bone cleft defects [21,23,25, 28, 30,31,33- 40.] In addition, most of these studies examined the efficacy of the β-TCP and presently utilized therapies such as hip bone, iliac crest bone, tibia bone, particulate marrow and cancellous bone, and mandibular symphysis bone (all of which have been used clinically) [21,22,26,27,28,30,31,32,35,36,37,38,40]. Nevertheless, this present study discovered in those two articles that there was no gold standard for ABG usage within the research [24,25]. Therefore, future animal studies should evaluate the in vivo effectiveness of β-TCP with the aforementioned materials and methodologies before being approved in clinics.
Regarding the post-operative or post-treatment examination of newly produced bone or bone regeneration, the majority of the included research employed CBCT for clinical investigations and micro-CT or HPA for in vivo studies. We found that five studies used CBCT to examine bone regeneration in post-operative CL/P patients and four studies used conventional dental occlusal radiograph [31,32,35,37]. CBCT scans provide a reduced radiation dosage, a limited scanning time (10–70 s), and allow doctors to scan a small region for a specific diagnosis with fewer picture artifacts [43,44,45]. Orofacial cleft patients require a 3D study for the right diagnosis as they present with numerous medical disorders, including bone graft operations, impacted teeth, or supernumerary teeth. This is the reason why CBCT is advised for orofacial cleft patients by the European Academy of Dental and Maxillofacial Radiology [46]. Therefore, additional research should employ CBCT as an evaluation technique to quantify newly produced bone, especially in clinical situations. Thus, the registration of the protocol is encouraged and will strengthen its robustness in subsequent studies. Although systematic reviews are regarded as the most solid evidence, the research included in each systematic review also has a related bias. The methodological variability includes discrepancies in the trial locations, a lack of a priori acceptable sample size estimates, the kind of sample included (e.g., type of cleft, age groups), intervention protocols, bone measuring techniques, and follow-up timeframes. Other factors may alter the analysis of primary outcomes as they affect bone remodeling, notably the location of teeth on the bone graft, the cleft defect’s breadth, and the volume of grafted bone [47]
The most apparent source of autologous ABG would be the iliac crest bone, which may be retrieved by a surgical procedure with a risk of morbidity, such as infection. However, employing this option in every circumstance would not be practicable, and a synthetic ABG such β-TCP would be more sensible [21,30,31,32]. In the research evaluated, there were various constraints that may have biased outcomes. With the information currently available from in vivo and clinical studies, the overall effect summary of β-TCP as ABG for CL/P or alveolar bone cleft defect cannot be determined. Furthermore, these findings should be regarded with caution since clinical and in vivo methodological heterogeneity might alter the extent of the statistical heterogeneity revealed. This systematic review found multiple heterogeneity variables, such as the number of participants or samples, kind of cleft defect, different treatment, timing of outcome, and intervention design. In the present review, we noticed that six of the studies did not apply any type of randomization [22,24,27,28,29,32]. A lack of randomization may have altered the direction of results due to examiners’ bias.
The primary results may also be altered by the clinician’s skill and the study group's scientific competency. Secondarily, most selected studies were classified as having poor or middling overall quality, which may lower the findings’ confidence [47]. Moreover, the included studies might overstate the impact of the findings due to the inclusion of numerous publications from a single research project or by ignoring studies in other languages. In this systematic review, the majority of the studies employed a small sample size. In addition, varied and diverse criteria for CL/P patient selection could have had an impact on the estimated efficacy of β-TCP as an ABG. Nevertheless, there is no gold standard for alveolar bone cleft defect size in animal models. Because of the variability in the techniques, measurements, and findings, it was not possible to do a meta-analysis in this systematic review. A systematic review without meta-analysis may carry a substantial risk of bias. This was likely the most major shortcoming of our review, as the mean overall effectiveness of β-TCP could not be calculated. Future studies should conduct blinded RCTs to control various sources of bias, such as the randomization technique, assessment equipment, and follow-up timeframes. Moreover, the cost-benefit analysis of these β-TCP to be employed in tissue engineering procedures for regeneration strategies in the ABG of CL/P is advocated as it plays a vital role in healthcare regulation.

5. Conclusions

The following findings may be drawn from this systematic review:
  • β-TCP as ABG is biocompatible, more visible and practical, offers a less invasive procedure, and does not interfere with orthodontic treatment.
  • β-TCP as synthetic ABG can be the alternative to autologous bone grafts with several terms and conditions, such as if autografts are hard to come by or there is donor site morbidity, and the size of the defect restricts the size of the autograft.
  • Enhancement of osteoinductive and osteoconductive abilities for improvement of β-TCP efficacy for ABG in CL/P or alveolar bone cleft defects can be done by a tissue engineering approach combining β-TCP with growth factor, mesenchymal stem cells, or other graft materials and modification of β-TCP physical properties.
However, due to several research gaps concerning the original studies’ methodological quality and lack of findings, conclusions should be regarded with care.

Author Contributions

Conceptualization: AP. Nugraha, G. Hong, J.R.V Sáenz; Methodology, Resources: AP. Nugraha, H. Yang, G. Hong, J.R.VSáenz; Writing—original draft preparation: AP. Nugraha, G. Hong, J.R.V Sáenz, A. Ma, J. Chen, H. Yang, K. Zaww, R. Wang, K. Yang, N. Alshafei, P. Kraisintu; Writing—review and editing: AP. Nugraha, H. Yang , G. Hong, J.R.V Sáenz; funding acquisition: AP. Nugraha, G. Hong. All authors have read and agreed to the published version of the manuscript.

Funding

This study received partial support from Japanese Dental Association, The Fellowship of the International Exchange Fund.

Data Availability Statement

Data are available on request to the corresponding author by e-mail (alexander.patera.nugraha@fkg.unair.ac.id or hong.guang.d6@tohoku.ac.jp). Following PRISMA checklist for systematic review available at: http://prisma-statement.org/prismastatement/checklist.aspx?

Acknowledgments

The author would like to thank the Graduate School of Dentistry, Tohoku University, Miyagi, Japan and Faculty of Dental Medicine, Universitas Airlangga, Surabaya, East Java, Indonesia for their kind support.

Competing Interests

The authors declare no competing interests.

References

  1. Shkoukani MA, Lawrence LA, Liebertz DJ, Svider PF. Cleft palate: a clinical review. Birth Defects Res C Embryo Today. 2014;102(4):333-42. [CrossRef]
  2. Mossey PA, Little J, Munger RG, Dixon MJ, Shaw WC. Cleft lip and palate. Lancet. 2009;374(9703):1773-85. [CrossRef]
  3. Dixon MJ, Marazita ML, Beaty TH, Murray JC. Cleft lip and palate: understanding genetic and environmental influences. Nat Rev Genet. 2011;12(3):167-78. [CrossRef]
  4. Massenburg BB, Hopper RA, Crowe CS, Morrison SD, Alonso N, Calis M, Donkor P, Kreshanti P, Yuan J; Global Burden of Disease 2017 Orofacial Clefting Collaborators. Global Burden of Orofacial Clefts and the World Surgical Workforce. Plast Reconstr Surg. 2021;148(4):568e-580e. [CrossRef]
  5. Tanaka SA, Mahabir RC, Jupiter DC, Menezes JM. Updating the epidemiology of cleft lip with or without cleft palate. Plast Reconstr Surg. 2012;129(3):511e-518e. [CrossRef]
  6. Panamonta V, Pradubwong S, Panamonta M, Chowchuen B. Global Birth Prevalence of Orofacial Clefts: A Systematic Review. J Med Assoc Thai. 2015;98 Suppl 7:S11-21.
  7. Ariawan D, Vitria EE, Sulistyani LD, Anindya CS, Adrin NSR, Aini N, Hak MS. Prevalence of Simonart's band in cleft children at a cleft center in Indonesia: A nine-year retrospective study. Dent Med Probl. 2022 ;59(4):509-515. [CrossRef]
  8. Iskandar RPD, Proboningrat A, Fadholly A, Narmada IB, Nidom CA, Sudjarwo SA. The Densitometric Analysis of Protein Pattern in Cleft Lip and Palate Patients. J Int Soc Prev Community Dent. 2019 May-Jun;9(3):240-244. [CrossRef]
  9. Wehby GL, Cassell CH. The impact of orofacial clefts on quality of life and healthcare use and costs. Oral Dis. 2010;16(1):3-10. [CrossRef]
  10. Menezes C, de Arruda JA, Silva LV, Monteiro JL, Caribé P, Álvares P, Almeida MC, Coelli JC, Goldemberg F, Silveira M, Sobral AP, Bueno DF. Nonsyndromic cleft lip and/or palate: A multicenter study of the dental anomalies involved. J Clin Exp Dent. 2018 Aug 1;10(8):e746-e750. PMID: 30305871; PMCID: PMC6174020. [CrossRef]
  11. Wei S, Wang Y, Ma X, Pan Y, Zhang P, Jiang H, Du Y, Wan L. Comparison of Anatomical Features of Alveolar Cleft in Unilateral Cleft Lip and Palate Patients of Different Ages. J Craniofac Surg. 2020 Sep;31(6):1629-1632. [CrossRef] [PubMed]
  12. Semb, G. Alveolar bone grafting. Front Oral Biol. 2012;16:124-36. Epub 2012 Jun 25. [CrossRef] [PubMed]
  13. Ebraheim NA, Elgafy H, Xu R. Bone-graft harvesting from iliac and fibular donor sites: techniques and complications. J Am Acad Orthop Surg. 2001 May-Jun;9(3):210-8. [CrossRef] [PubMed]
  14. Shibuya N, Jupiter DC. Bone graft substitute: allograft and xenograft. Clin Podiatr Med Surg. 2015 Jan;32(1):21-34. PMID: 25440415. [CrossRef]
  15. Haugen HJ, Lyngstadaas SP, Rossi F, Perale G. Bone grafts: which is the ideal biomaterial?. J Clin Periodontol. 2019;46 Suppl 21:92-102. [CrossRef]
  16. Yu H, Özcan M, Yoshida K, Cheng H, Sawase T. Bonding to industrial indirect composite blocks: A systematic review and meta-analysis. Dent Mater. 2020 Jan;36(1):119-134. Epub 2019 Nov 27. [CrossRef] [PubMed]
  17. Yang H, Xu YL, Hong G, Yu H. Effects of low-temperature degradation on the surface roughness of yttria-stabilized tetragonal zirconia polycrystal ceramics: A systematic review and meta-analysis. J Prosthet Dent. 2021 Feb;125(2):222-230. Epub 2020 Feb 28. [CrossRef] [PubMed]
  18. Yang H, Yang S, Attin T, Yu H. Effect of Acidic Solutions on the Surface Roughness and Microhardness of Indirect Restorative Materials: A Systematic Review and Meta-analysis. Int J Prosthodont. 2023 Jan-Feb;36(1):81–90. [CrossRef] [PubMed]
  19. Yang H, Yang S, Attin T, Yu H. Effect of Acidic Solutions on the Surface Roughness and Microhardness of Indirect Restorative Materials: A Systematic Review and Meta-analysis. Int J Prosthodont. 2023 Jan-Feb;36(1):81–90. [CrossRef] [PubMed]
  20. Zhang L-x, Hong D-w, Zheng M, Yu H. Is the bond strength of zirconia-reinforced lithium silicate lower than that of lithium disilicate? - A systematic review and meta-analysis. Journal of Prosthodontic Research 2022;66(4):530-7.
  21. Möhlhenrich, S.C. , Kniha, K., Magnuska, Z. et al. Evaluation of different grafting materials for alveolar cleft repair in the context of orthodontic tooth movement in rats. Sci Rep 11, 13586 (2021). [CrossRef]
  22. Trujillo RL, Kadioglu O, Currier GF, Smith KS, Yetkiner E. Volumetric Cleft Changes in Treatment with Bone Morphogenic Protein/β-Tricalcium Phosphate Versus Grafts From the Iliac Crest or Symphysis. J Oral Maxillofac Surg. 2018;76(9):1991-1997. [CrossRef]
  23. Putri IL, Fatchiyah, Pramono C, Bachtiar I, Latief FDE, Utomo B, Rachman A, Soesilawati P, Hakim L, Rantam FA, Perdanakusuma DS. Alveolar Repair Using Cancellous Bone and Beta Tricalcium Phosphate Seeded With Adipose-Derived Stem Cell. Cleft Palate Craniofac J. 2022 Oct 13:10556656221132372. Epub ahead of print. [CrossRef] [PubMed]
  24. Janssen NG, Schreurs R, de Ruiter AP, Sylvester-Jensen HC, Blindheim G, Meijer GJ, Koole R, Vindenes H. Microstructured beta-tricalcium phosphate for alveolar cleft repair: a two-centre study. Int J Oral Maxillofac Surg. 2019 Jun;48(6):708-711. Epub 2018 Dec 26. [CrossRef] [PubMed]
  25. Kamal, M. , Andersson, L., Tolba, R. et al. Bone regeneration using composite non-demineralized xenogenic dentin with beta-tricalcium phosphate in experimental alveolar cleft repair in a rabbit model. J Transl Med 15, 263 (2017). [CrossRef]
  26. Du, F. , Wu, H., Li, H. et al. Bone Marrow Mononuclear Cells Combined with Beta-Tricalcium Phosphate Granules for Alveolar Cleft Repair: A 12-Month Clinical Study. Sci Rep 7, 13773 (2017). [CrossRef]
  27. Miyagawa, K. , Tanaka, S., Hiroishi, S. et al. Comparative evaluation of bone microstructure in alveolar cleft repair by cone beam CT: influence of different autologous donor sites and additional application of β-tricalcium phosphate. Clin Oral Invest 24, 2789–2797 (2020). [CrossRef]
  28. Shahnaseri S, Sheikhi M, Hashemibeni B, Mousavi SA, Soltani P. Comparison of autogenous bone graft and tissue-engineered bone graft in alveolar cleft defects in canine animal models using digital radiography. Indian J Dent Res. 2020 Jan-Feb;31(1):118-123. [CrossRef]
  29. Pourebrahim N, Hashemibeni B, Shahnaseri S, Torabinia N, Mousavi B, Adibi S, Heidari F, Alavi MJ. A comparison of tissue-engineered bone from adipose-derived stem cell with autogenous bone repair in maxillary alveolar cleft model in dogs. Int J Oral Maxillofac Surg. 2013 May;42(5):562-8. [CrossRef]
  30. de Ruiter A, Janssen N, van Es R, Frank M, Meijer G, Koole R, Rosenberg T. Micro-structured Beta-Tricalcium Phosphate for Repair of the Alveolar Cleft in Cleft Lip and Palate Patients: A Pilot Study. Cleft Palate Craniofac J. 2015 May;52(3):336-40. [CrossRef]
  31. Huang J, Tian B, Chu F, Yang C, Zhao J, Jiang X, Qian Y. Rapid maxillary expansion in alveolar cleft repaired with a tissue-engineered bone in a canine model. J Mech Behav Biomed Mater. 2015 Aug;48:86-99. Epub 2015 Apr 13. [CrossRef] [PubMed]
  32. Weijs WL, Siebers TJ, Kuijpers-Jagtman AM, Bergé SJ, Meijer GJ, Borstlap WA. Early secondary closure of alveolar clefts with mandibular symphyseal bone grafts and beta-tri calcium phosphate (beta-TCP). Int J Oral Maxillofac Surg. 2010 May;39(5):424-9. Epub 2010 Mar 29. [CrossRef] [PubMed]
  33. Ito M, Toriumi T, Imura H, Akiyama Y, Arai Y, Natsume N, Honda M. Rat Palatine Fissure: A Suitable Experimental Model for Evaluating Bone Regeneration. Tissue Eng Part C Methods. 2019 Sep;25(9):513-522. Epub 2019 Sep 11. [CrossRef] [PubMed]
  34. Möhlhenrich SC, Kniha K, Magnuska Z, Chhatwani S, Hermanns-Sachweh B, Gremse F, Hölzle F, Danesh G, Modabber A. Development of root resorption during orthodontic tooth movement after cleft repair using different grafting materials in rats. Clin Oral Investig. 2022 Sep;26(9):5809-5821. Epub 2022 May 14. PMID: 35567639; PMCID: PMC9474460. [CrossRef]
  35. Hossain MZ, Kyomen S, Tanne K. Biologic responses of autogenous bone and beta-tricalcium phosphate ceramics transplanted into bone defects to orthodontic forces. Cleft Palate Craniofac J. 1996 Jul;33(4):277-83. [CrossRef] [PubMed]
  36. de Ruiter A, Meijer G, Dormaar T, Janssen N, van der Bilt A, Slootweg P, de Bruijn J, van Rijn L, Koole R. β-TCP versus autologous bone for repair of alveolar clefts in a goat model. Cleft Palate Craniofac J. 2011 Nov;48(6):654-62. Epub 2010 Aug 11. [CrossRef] [PubMed]
  37. Zhang D, Chu F, Yang Y, Xia L, Zeng D, Uludağ H, Zhang X, Qian Y, Jiang X. Orthodontic tooth movement in alveolar cleft repaired with a tissue engineering bone: an experimental study in dogs. Tissue Eng Part A. 2011 May;17(9-10):1313-25. Epub 2011 Mar 17. [CrossRef] [PubMed]
  38. Janssen NG, de Ruiter AP, van Hout WMMT, van Miegem V, Gawlitta D, Groot FB, Meijer GJ, Rosenberg AJWP, Koole R. Microstructured β-Tricalcium Phosphate Putty Versus Autologous Bone for Repair of Alveolar Clefts in a Goat Model. Cleft Palate Craniofac J. 2017 Nov;54(6):699-706. Epub 2016 Oct 10. [CrossRef] [PubMed]
  39. Ekin O, Calis M, Aliyev A, Yar AS, Korkusuz P, Bilgic E, Aydin HM, Celik HH, Ozgur F, Vargel I. Poly(L-Lactide)/Poly(ε-Caprolactone) and Collagen/β-Tricalcium Phosphate Scaffolds for the Treatment of Critical-Sized Rat Alveolar Defects: A Microtomographic, Molecular-Biological, and Histological Study. Cleft Palate Craniofac J. 2016 Jul;53(4):453-63. Epub 2015 Oct 27. [CrossRef] [PubMed]
  40. Tokugawa Y, Kubota M, Nishimura M, Haruyama N, Igarashi K. Bone regeneration of canine artificial alveolar clefts using bone-marrow-derived mesenchymal stromal cells and β-tricalcium phosphate: A preliminary study. 5: Orthodontic Wave 2012;71, 2012. [CrossRef]
  41. Ducheyne P, Radin S, King L. The effect of calcium phosphate ceramic composition and structure on in vitro behavior. I. Dissolution. J Biomed Mater Res. 1993 Jan;27(1):25-34. [CrossRef] [PubMed]
  42. Schwartz C, Liss P, Jacquemaire B, Lecestre P, Frayssinet P. Biphasic synthetic bone substitute use in orthopaedic and trauma surgery: clinical, radiological and histological results. J Mater Sci Mater Med. 1999 Dec;10(12):821-5. [CrossRef] [PubMed]
  43. Oberoi S, Chigurupati R, Gill P, Hoffman WY, Vargervik K. Volumetric assessment of secondary alveolar bone grafting using cone beam computed tomography. Cleft Palate Craniofac J. 2009 Sep;46(5):503-11. Epub 2009 Feb 27. [CrossRef] [PubMed]
  44. Stasiak M, Wojtaszek-Słomińska A, Racka-Pilszak B. A novel method for alveolar bone grafting assessment in cleft lip and palate patients: cone-beam computed tomography evaluation. Clin Oral Investig. 2021 Apr;25(4):1967-1975. Epub 2020 Aug 15. Erratum in: Clin Oral Investig. 2020 Sep 15;: PMID: 32803441; PMCID: PMC7966225. [CrossRef]
  45. Kamperos G, Theologie-Lygidakis N, Tsiklakis K, Iatrou I. A novel success scale for evaluating alveolar cleft repair using cone-beam computed tomography. J Craniomaxillofac Surg. 2020 Apr;48(4):391-398. Epub 2020 Feb 17. [CrossRef] [PubMed]
  46. European Commission. Radiation protection No 172. Cone Beam CT for Dental and Maxillofacial Radiology. Evidence Based Guidelines; European Commission: Luxembourg, 2012. European Commission: Luxembourg.
  47. Francisco I, Paula AB, Oliveiros B, Fernandes MH, Carrilho E, Marto CM, Vale F. Regenerative Strategies in Cleft Palate: An Umbrella Review. Bioengineering (Basel). 2021 Jun 3;8(6):76. PMID: 34205126; PMCID: PMC8230219. [CrossRef]
Preprints 80063 g001

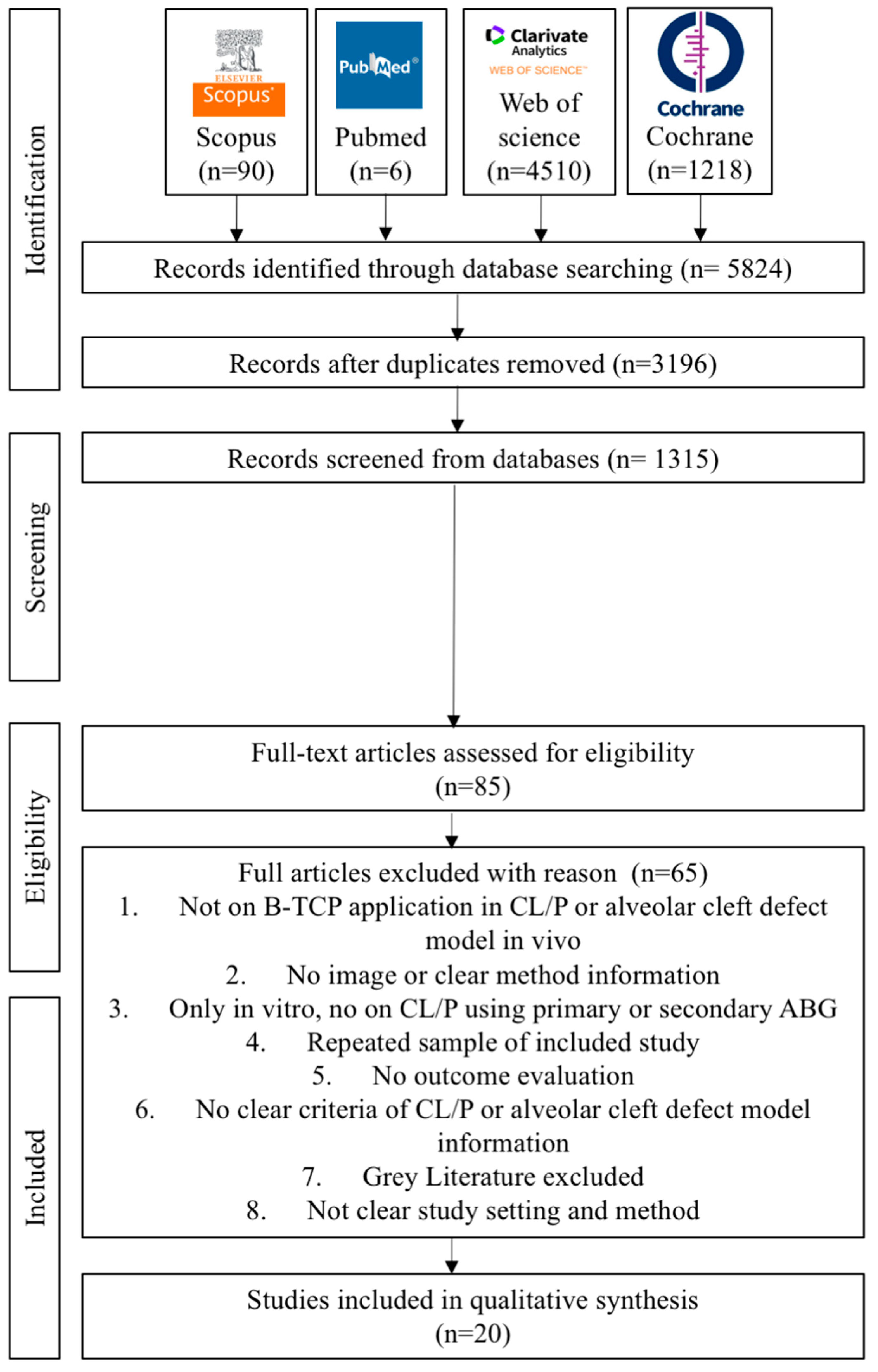

Figure 1. Flow diagram of PRISMA 20202 in the study selection process.
Figure 1. Flow diagram of PRISMA 20202 in the study selection process.
Preprints 80063 g001
Preprints 80063 g002

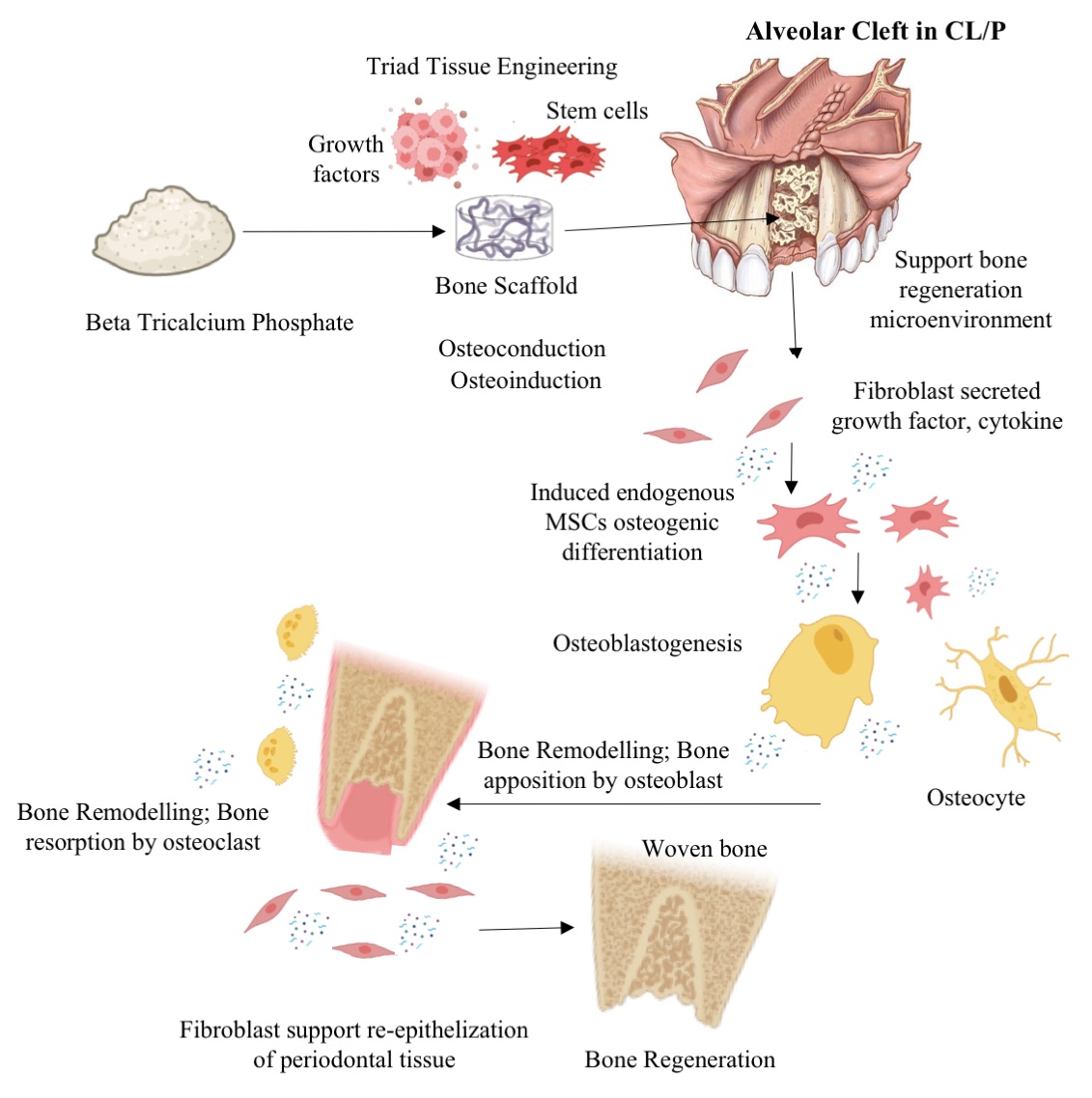

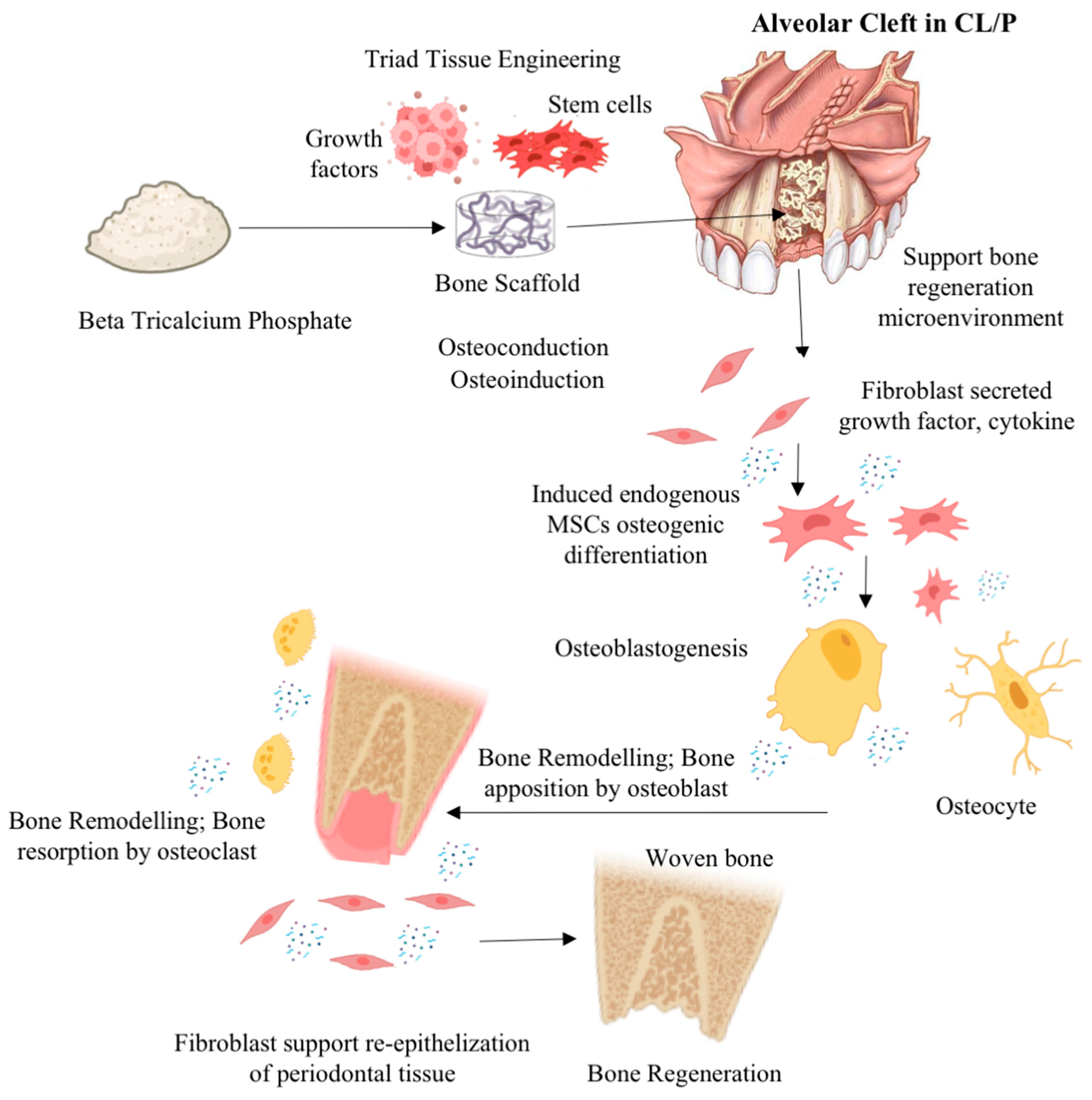

Figure 2. Illustration mechanism of action possibility β-TCP was used in a tissue engineering approach as an alveolar bone transplant in CL/P or an alveolar bone cleft defect (illustration image by BioRender: Scientific Image and Illustration Software https://www.biorender.com and alveolar bone cleft defect image from Texas Children's Hospital www.texaschildrens.org).

Figure 2. Illustration mechanism of action possibility β-TCP was used in a tissue engineering approach as an alveolar bone transplant in CL/P or an alveolar bone cleft defect (illustration image by BioRender: Scientific Image and Illustration Software https://www.biorender.com and alveolar bone cleft defect image from Texas Children's Hospital www.texaschildrens.org).
Preprints 80063 g002
Table 1. Databases and search strategies of this study.
Table 1. Databases and search strategies of this study.
Database Search Strategy
Scopus β-tricalcium AND phosphate OR β-TCP or bone graft OR bone grafting OR alveolar AND bone AND graft AND alveolar AND bone AND cleft OR cleft AND palate AND (LIMIT-TO (PUBSTAGE, “final”)) AND (LIMIT-TO (OA, “all”)) AND ( LIMIT-TO ( DOCTYPE , "ar" ) ) AND ( LIMIT-TO ( LANGUAGE , "English" ) ) AND ( LIMIT-TO ( SRCTYPE , "j" ) )
PubMed β-tricalcium phosphate OR β-TCP OR bone graft OR bone grafting OR biomaterial OR alveolar bone graft AND alveolar bone cleft AND cleft palate
Filters applied: Free full text, Clinical Trial, Randomized Controlled Trial, English, Exclude preprints, MEDLINE.
Web of Science ((((((ALL= (β-tricalcium phosphate)) OR TS= (β-TCP)) OR TS= (bone graft)) OR TS= (bone grafting)) OR TS= (alveolar bone graft)) AND TS=(alveolar bone cleft )) OR TS=(cleft palate)
Refined By: Open Access. Click to remove this refine from your search. Document Types: Article. Click to remove this refine from your search. Open Access: All Open Access. Click to remove this refine from your search. Languages: English.
Cochrane Library β-tricalcium phosphate OR β-TCP OR bone graft OR bone grafting OR alveolar bone graft AND alveolar bone cleft OR cleft palate in Title Abstract Keyword - in Trials, Clinical Answers (Word variations have been searched)
Table 2. Summary of Descriptive Characteristics of Articles Included.
Table 2. Summary of Descriptive Characteristics of Articles Included.
Authors, Year, Country Study Design Sample /
Subject criteria (n)		 Type of Cleft Type of Tissue Engineering Examinations and Variables Outcome Conclusion
Möhlhenrich et al., 2021, German [21] True experimental, post-test only control group design Twenty-one; 8-week-old male Wistar-HAN
rats; average weight of 465 ± 34 g.		 1.7 mm
alveolar clefts at the left side of the upper jaws
with 0.14 N continuous orthodontic tooth movement application		 Autologous rat hip, xenograft human bone substitute material and Synthetic graft β-TCP and HA. µCT: BMD, BV/TV.
Histomorphometric analysis:
lamellar bone and woven bone		 Autologous bone-based grafting materials more strongly promoted the formation of new bone compared to the synthetic bone substitute, which similarly looked to have less resorbed and integrated into the cleft defect.
.
 The gold standard for cleft repair has been proven to be autologous bone grafts. Autografts and xenografts seemed to be interchangeable terms. After more tissue engineering adjustments, β-TCP and HA might be used as an alternative.
Trujillo et al., 2018, USA [22] Retrospective cohort study Twenty-five patient CL/P: 15 and
10 females

Unilateral or bilateral clefts. Iliac crest bone autograft
Mandibular symphyseal bone graft,
rhBMP-2/ β-TCP bone
substitute.
 CBCT:
Preoperative defect volume(cm3), Postoperative residual defect volume (cm3), Bone formation (%)		 The newest bone development was shown in the iliac crest group, which was followed by the rhBMP-2/ACS/ β-TCP group and the mandibular symphysis group. However, the differences were not statistically significant.
 In alveolar cleft patients, rhBMP2 administered in a β-TCP scaffold may be an effective substitute for autogenous iliac crest and symphysis grafts, preventing donor site morbidity.
Putri et al., 2022, Indonesia [23] True experimental, post-test only control group design Thirty-six male Wistar rats (Rattus novergicus) 5 × 5mm alveolar defect of the upper jaws Autologous rat alveolar bone graft (ABG),
human cancellous freezedried graft (HCG)–human adipose stem cell (hADSC),
β-TCP –hADSC		 Immunohistochemical analysis:
runt-related transcription factor 2 (RUNX2), alkaline phosphatase (ALP), osterix (OSX),
and bone morphogenetic protein 2 (BMP2)
µCT:
BV/TV (mm3),
BF (%), and trabecular thickness of bone (TT, mm).		 When it came to the expression of RUNX2, OSX, ALP, and BMP2, HCG-hADSC was superior to the comparison, followed by β-TCP-hADSC and ABG. In terms of promoting bone growth, β-TCP-hADSC outperformed HCG-hADSC and ABG, which both performed about as well. Exogenous hADSC improved the ability of HCG and β-TCP to enhance osteogenesis, osteoconduction, and osteoinduction. The latter proved successful at promoting bone formation after HCG and ABG.
.
Janssen et al., 2019, Netherland [24] Case control randomized clinical study, Total 20 CL/P patients: 14 Males, 6 Female
unilateral CL/P microporous β-TCP
 CBCT: Residual calcified tissue, Spontaneous eruption of canine/lateral incisor, Continuous alveolar process, Residual oronasal fistula

 No significant granule loss, surgical infection, or wound dehiscence occurred. The operating patients, who had an average residual calcified tissue volume of 65% one year after surgery, had no orinasal fistulas left. All patients displayed a continuous alveolar process on the affected side. The canine close to the alveolar cleft failed to erupt on its own in two patients. Three months after the procedure, fixed appliance of orthodontic treatment was begun, and it progressed well. The grafted area allowed easy passage for teeth along the cleft.
 In the clinical setting, secondary alveolar grafting using microporous β-TCP is safe to utilize. At the recipient site, the rates of complications, canine eruption, and residual calcified tissue are comparable to those for autologous grafts.
Kamal et al., 2017 German [25] True experimental, post-test only control group design sixteen male New Zealand rabbits
.		 Unilateral alveolar cleft defects β-TCP,
composite xenogenic dentin with β-TCP.		 µCT:
Defect size (mm3) Hounsfield unit (HU) % BV/TV, BMD.
histomorphometric analysis: % bone formation % residual graft.		 The difference between the Hounsfield unit (HU), BV/TV, and BMD between clefts filled with dentin and β-TCP is considerable. Dentin/β-TCPgroup showed significantly larger bone volume fraction (%) and residual graft (%) compared to β-TCP group. When assessed by µCT and histomorphometry, alveolar cleft defects repaired with dentin/β-TCP resulted in larger graft residual volume and bone volume fraction.
Du et al., 2017; China [26] Clinical study Ten CL/P patients
(5 males and 5 females)		 Unilateral alveolar cleft defects autologous iliac crest bone graft (ICBG),
bone marrow mononuclear cells (BMMNCs) combined
with β-TCP granules		 CBCT and computer aided
engineering technology:
Bone
Volume (mm3), Bone
Formation Ratio (%), Bone Volume (mm3)
Bone Formation
Ratio (%).
Bone Union; Chelsea Scale; Duration of Hospital Stay
(days).		 Average defect volume, bone formation ratio (%), bone volume (mm3), and bone formation ratio (%) were not significantly different between the BMMNCs/ β-TCP group and the ICBG group, respectively.
In both the BMMNCs/-TCP and ICBG groups, the majority of the patients experienced alveolar bone union. Between the BMMNCs/ β-TCP and ICBG groups, there was no discernible difference. When compared to the BMMNCs/ β-TCP group, the length of hospital stays in the ICBG group was much longer. 		Alveolar cleft repair with autologous BMMNCs and β-TCP granules was radiographically similar to using ICBG. Significant reductions were made in both surgical pain and hospital stay days. Similar to ICBG, significant resorption for BMMNCs/ β-TCP grafting was observed up to 6 months following surgery.
Alveolar bone regeneration using BMMNCs/β-TCP grafting was both secure and efficient.
Miyagawa et al., 2020; Japan [27 Clinical study Thirty-one CL/P patients Non-syndromic unilateral cleft lip and alveolus (UCLA) and cleft lip palate (UCLP) iliac crest bone,
Mandibular symphysis,
Mandibular symphysis
combined with β-TCP granules.		 CBCT: BV/TV, trabecular thickness (Tb.Th), trabecular number (Tb.N), trabecular separation (Tb.Sp), trabecular bone pattern factor (TBPf), structure model index (SMI),
and fractal dimension (FD).
TBPs revealed variations between the IC and MS groups, leading to higher bone volume density values and a lower TBPf value in the IC group when compared to the MS group. When compared to the group without β-TCP, using MS+ β-TCP or administering β-TCP granules into the donor site considerably enhanced the reconstructed or regenerated BV/TV and Tb.Th. In comparison to secondary alveolar bone grafting (SABG), the use of β-TCP granules as a partial substitute with autologous bone from the mandibular symphysis could produce similar results in the microstructure of the bone bridge.
Shahnaseri et al., 2020; Iran [28 True experimental, post-test only control group design Four male canines Unilateral alveolar bone cleft (15 mm) Autologous AMSCs osteogenic differentiated seeded in
HA/ β-TCP scaffold, Autologous tibia bone graft		 Densitometer software with digital radiography: bone density
histomorphometric: Bone regeneration (%)
 Bone density and bone regeneration in autologous tibia bone grafts and autologous AMSCs with osteogenic differentiation planted in HA/ β-TCP scaffolds did not differ in a statistically meaningful way.

As a suitable and clinically reliable technique, autologous AMSCs that are osteogenically differentiated and seeded in HA/ β-TCP scaffolds can be used to reconstruct bone defects in patients who are unable to receive autogenous bone grafting when the size of the defect restricts the size of the autograft.
de Ruiter et al., 2015; Netherland [29] Prospective clinical study Seven CL/P patients (5 males and 2 females) Unilateral alveolar cleft Micro-structured β-TCP
 CBCT:
Cleft Volume Pre-operation; Graft Volume
Post-operation; Bone Volume 6 Months Post-operation		 The bone volume thus gained was satisfactory six months following the surgical grafting of micro-structured β-TCP into the alveolar cleft. Comparing the average bone volume to the initial cleft volume, 73% to 6%.
 The therapeutic application of microstructured β-TCP bone replacement in alveolar cleft repair.
Pourebrahim et al., 2013; Iran [30] True experimental, post-test only control group design Four male mongrel dogs
15 mm Alveolar cleft in the crest to nasal floor
by removal of two of the three
incisors bilaterally 		autogenous
tibial graft,
HA/ β-TCP loaded canine AMSCs
Histomorphometric: bone regeneration (%) and collagen regeneration (%) At 15 and 60 days, the autograft sides had more bone growth than the stem cell sides, at 45% and 96%, compared to 5% and 70%, respectively. There were noticeable differences between the two groups at 15 and 60 days.
.
 Even though autografts are the best option for bone regeneration, tissue-engineered HA/ β-TCP -loaded cAMSCs might be a viable alternative, particularly if autografts are hard to come by or there is donor site morbidity.
Huang et al., 2015; China [31] True experimental, post-test only control group design Fourteen
24-week-old male beagles		 Unilateral alveolar bone defect with 15 mm size



 Autogenous iliac crest bone graft; tissue-engineered bone (TEB) BMSCs/ β-TCP with rapid maxillary expansion (RME)
 Occlusal radiograph:
Height of the bonegraft;
Histomorphometric:
Bone formation (%)



 In comparison to untreated dogs or dogs just receiving autogenous iliac bone after 8 weeks of therapy with TEB BMSCs- β-TCP and RME, the dogs' new bone production and mineralization were dramatically accelerated. Bone resorption was also significantly reduced. The bone trabecula was definitely more plentiful, and the region of bone growth was bigger after treatment with both TEB and RME.
The groups treated with autogenous bone and RME and the BMSCs/-TCP group did not differ significantly from one another.		 In addition to being an effective therapeutic treatment for individuals with alveolar clefts, BMSCs-β-TCP also have the capacity to replace autogenous bone, and their combination with RME may be another option for treating alveolar clefts.
Weijs et al., 2010; Netherland [32]
 Clinical study Forty-seven CL/P (24 males and 23 females) patients Unilateral alveolar cleft Autogenous mandibular symphyseal bone only, mandibular symphyseal bone wrapped in
/ β-TCP granules		 Occlusal radiograph: alveolar height and eruption disturbance. There was no discernible difference in alveolar height or eruption disruption between the β-TCP granule group and the mandibular symphysis bone alone.
 Autogenous mandibular symphyseal bone grafts enhanced with β-TCP granules can be utilized effectively in circumstances when the alveolar cleft is too big to be grafted with mandibular symphyseal bone alone.
Orthodontic treatment is not impeded by the use of β-TCP since the cleft-sided canine may still be placed in its normal position.
Ito et al., 2019; Japan [33] True experimental, post-test only control group design Twenty male Sprague-Dawley rats Alveolar bone cleft in the palatine autogenous bone graft, β-TCP. µCT: BV and BMD
Histology analysis:
Osteoblast, osteoclast, Alkaline phosphatase, Tartate Resistant Acid Phosphatase		 Autologous bone grafts had a considerably larger bone volume and BMD than β-TCP.
An autologous bone transplant and β-TCP histological investigation indicated extensive braided bone ingrowth.
The presence of osteoblasts at the leading margins of freshly produced bone was shown by ALP staining.
TRAP staining indicated the presence of a few multinucleated large cells on the surface of the freshly produced bone. β-TCP resulted in lower BV and BMD than autologous bone transplants.		 β-TCP resulted in lower bone volume and BMD than autologous bone transplants.
Möhlhenrich et al., 2022 [34] True experimental, post-test only control group design Twenty-one male Wistar rats (R. novergius) Alveolar bone cleft Autografts, human xenografts and synthetic bone substitute β-TCP/HA μCT and histopathological investigation: tooth movement, and root resorption.
 The differences in root resorption and tooth movement between the bone graft replacements, as well as autologous bone as the gold standard, were not statistically significant at any time.
 Autografts, human xenografts, and synthetic bone substitutes used for cleft repair all appear to have a comparable influence on later orthodontic tooth movement and root resorption.
Hossain et al., 1996; Bangladesh [35] True experimental, post-test only control group design Nine male beagles dog Alveolar bone cleft Autogenous particulate marrow and Cancellous bone (PMCB), β-TCP and combination with experimental tooth movement
 Radiograph analysis:
Bone deposition
histopathological investigation: bone regeneration		 Autogenous bone and β-TCP showed similar adaptive alterations to alveolar bone. β-TCP showed a more pronounced biodegradative reaction to orthodontic force in connection with the production of new cementum. Root resorption was considerably lower in the β-TCP region than in the PMCB zone. β-TCP is a more biocompatible option to autogenous bone transplantation into alveolar bone cleft defects that support orthodontic tooth movement.
de Ruiter et al., 2011; Netherland [36] True experimental, post-test only control group design Ten adult Dutch milk goats (Capra hircus) Alveolar bone cleft β-TCP,
autologous iliac crest bone graft		 Histologic assessment: new bone formation and bone graft resorption.
radiographic measurement: orthodontic tooth movement
.		 An average tooth movement of 43.2% was measured in clefts restored with iliac bone and 41% in clefts rebuilt with β-TCP. There was no statistically significant difference between groups.
Nonetheless, equivalent bone volumes are generated in the alveolar clefts following grafting of either β-TCP or autologous iliac crest bone. After grafting with β-TCP, the total quantity of bone discovered in all ten goats was roughly 10% higher. This difference, however, was not statistically significant, and no association between percentage of bone volume and degree of orthodontic movement was found. 		The bone substitute β-TCP is at least as successful as autologous iliac crest bone in the healing of alveolar clefts in goats, according to surgical, orthodontic, histologic, and radiologic viewpoints.
Zhang et al., 2011; China [37] True experimental, post-test only control group design Six canines Alveolar bone cleft Porous β-TCP
combined with osteogenically induced BMSCs
and
autologous iliac bone
with experimental tooth movement		 occlusal radiographic: repaired alveolar cleft, residual alveolar height (%).
Immunofluorescence: rate of bone formation and mineralization. Histological examination: area of the residual scaffold in the grafted region (%) and area of bone formation in the grafted region (%)		 When compared to β-TCP alone, which was absorbed severely, BMSC-porous b-TCP significantly encouraged new bone formation and mineralization and attained a satisfactory height of the repaired alveolar cleft. The tissue-engineered bone had the same overall effect as autologous bone; the physiological function of the alveolar bone was restored by permitting the surrounding teeth to slide into the newly created bone in the grafted location. For patients with alveolar clefts and resultant orthodontic tooth movement, porous β-TCP in combination with osteogenically produced BMSCs may be a practical therapeutic technique as a replacement for bone transplants.
Janssen et al., 2017, Netherland [38] True experimental, post-test only control group design Ten
Dutch milk goats		 Alveolar bone cleft defect microstructured beta-tricalcium
phosphate (β-TCP) putty with autologous iliac bone		 histomorphometric and μCT: bone quality
and BV/TV		 There was no statistically significant difference between cleft sites and bone area percentages in
β-TCP -CMCG and autologous bone grafts.
 In a goat model, β-TCP -CMCG putty provides superior surgical handling in the correction of alveolar cleft deformities.
Ekin et al., 2015; Turkey [39] True experimental, post-test only control group design Fifty-six Sprague-Dawley rats critical-sized alveolar bone cleft defect autograft, col/ β-TCP scaffolds, and
PLLA/PCL scaffolds		 μCT:
mineralized matrix formation, new
bone formation,
BV
HPA: defect healing
and new bone formation.
RT-qPCR:
Runx2, OSC, SPARC, BSP, ALP, and OSX		 The autograft group had the best new bone volume rate at 1 month and 4 months, with a significant difference. Even though the col/ β-TCP group had a greater new bone volume rate than the PLLA/PCL group, the difference was not significant.
The BSP and ALP gene expression levels were considerably greater in the autograft and col/ β-TCP groups than in the blank defect group. 		Although autogenic bone grafts remain the gold standard treatment for alveolar defects, the synthetic tissue scaffolds reported herein have significant potential as an alternative treatment option when cost, donor region morbidity, and hospitalization time are considered.
Tokugawa et al., 2012; Japan [40] True experimental, post-test only control group design Ten female beagles
dogs		 Alveolar bone cleft defect Canine BMSCs cultured on β-TCP, β-TCP. μCT: BMD (mg/cm3)
Bone mineral content (mg/mm), histopathological investigation: bone regeneration.		 The regenerated bone in the MSCs/ β-TCP group exhibited a bone mineral density that was midway between that of normal bone and that of β-TCP only. The MSCs/b-TCP group had three times the bone mineral content of the cleft region as the other two groups. In the MSCs/ β-TCP group, histological investigation demonstrated that bone had replaced by the artificial bone. cBMSCs-β-TCP based bone regeneration offer a less invasive alternative to standard cancellous iliac bone autografts for alveolar bone replacement.
Table 3. Individual studies are prone to bias. JBI Critical Appraisal for Prevalence Data Studies.
Table 3. Individual studies are prone to bias. JBI Critical Appraisal for Prevalence Data Studies.
Authors, Year, Country CL/P or alveolar cleft defect β-TCP utilization Sample Preparation Randomization Blind Examiner Test method clearly reported Complete results Risk of Bias
Möhlhenrich et al., 2021, German [21] Y Y Y Y Y Y Y Low
Trujillo et al., 2018, USA [22] Y Y Y N N Y Y Moderate
Putri et al., 2022, Indonesia [23] Y Y Y Y Y Y Y Low
Janssen et al., 2019, Netherland [24] Y Y Y N N Y Y Moderate
Kamal et al., 2017 German [25] Y Y Y Y Y Y Y Low
Du et al., 2017; China [26] Y Y Y Y Y Y Y Low
Miyagawa et al., 2020; Japan [27 Y Y Y N N Y Y Moderate
Shahnaseri et al., 2020; Iran [28 Y Y Y N N N N High
de Ruiter et al., 2015; Netherland [29] Y Y Y N N Y Y Moderate
Pourebrahim et al., 2013; Iran [30] Y Y Y Y Y Y Y Low
Huang et al., 2015; China [31] Y Y Y Y Y Y Y Low
Weijs et al., 2010; Netherland [32]
 Y Y Y N N N Y Moderate
Ito et al., 2019; Japan [33] Y Y Y Y Y Y Y Low
Möhlhenrich et al., 2022 [34] Y Y Y Y Y Y Y Low
Hossain et al., 1996; Bangladesh [35] Y Y Y Y N N Y Moderate
de Ruiter et al., 2011; Netherland [36] Y Y Y Y Y Y Y Low
Zhang et al., 2011; China [37] Y Y Y Y Y Y Y Low
Janssen et al., 2017, Netherland [38] Y Y Y Y Y Y Y Low
Ekin et al., 2015; Turkey [39] Y Y Y Y Y Y Y Low
Tokugawa et al., 2012; Japan [40] Y Y Y Y Y Y Y Low
