1. Introduction

2. Classification Machine Learning Techniques

2.5. Ensemble Learning

Ensemble learning is one of the widely utilized techniques in machine learning for combining the outputs of multiple learning models (often referred to as base learners) into a single classifier [34]. In ensemble learning, it is possible to combine various weak machine learning models (base learners) to construct a stronger model with more accurate predictions [35,36]. Currently, ensemble learning methods are widely accepted as a standard choice for enhancing the accuracy of machine learning predictors [35]. Bagging and boosting are two distinct types of ensemble learning techniques that can be utilized to improve the accuracy of machine learning predictors [36].

2.5.1. Bagging

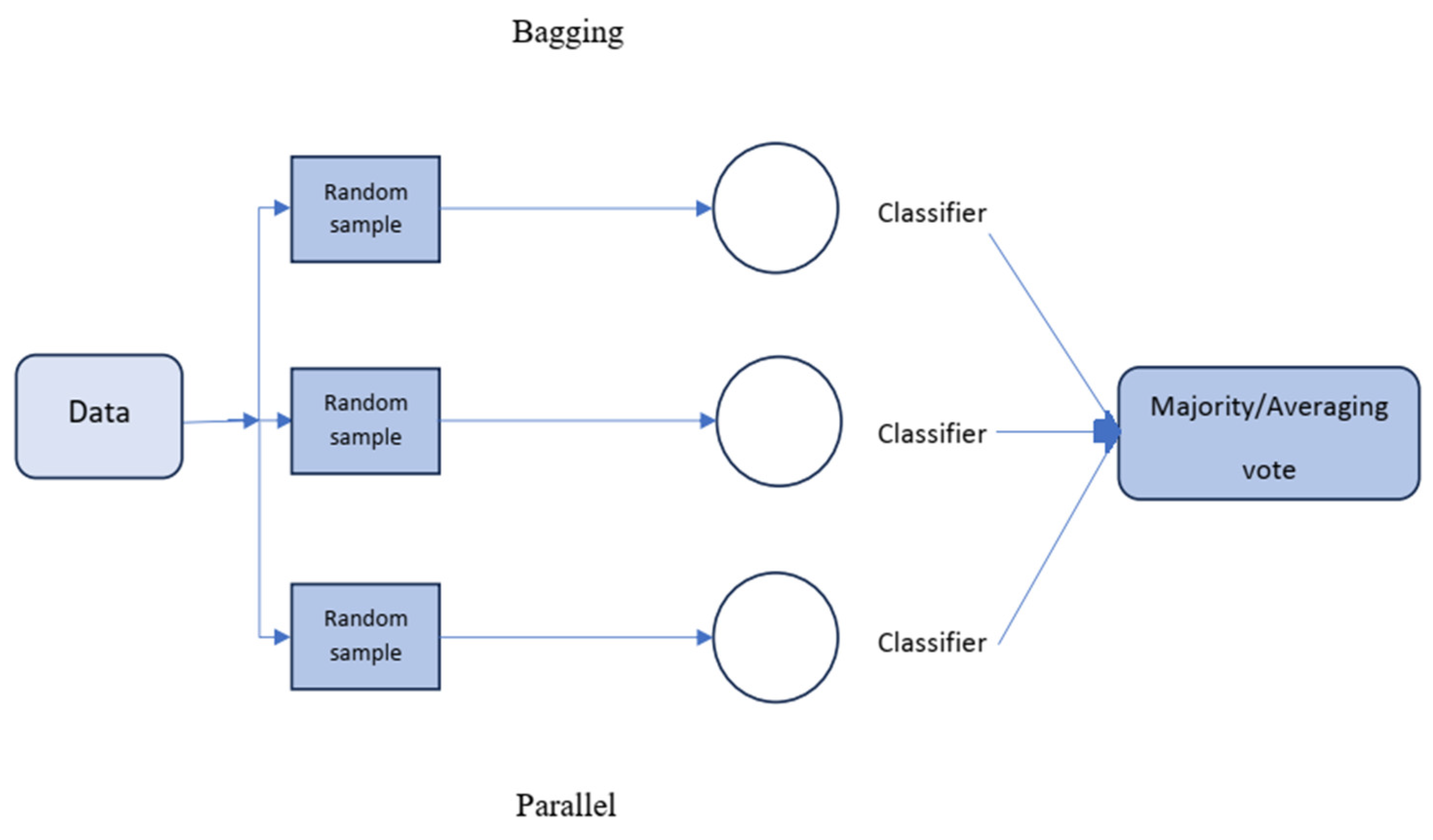

As depicted in Figure 1, in the bagging technique, the training data is partitioned into multiple subset sets, and the model is trained on each subset. The final prediction is then obtained by combining all individual outputs through majority voting (in classification problems) or average voting (in regression problems) [36,37,38].

2.5.1.1. Random Forest

The concept of Random Forest was first introduced by Ho in 1995 [19] and has been the subject of ongoing improvement by various researchers. One notable advancement in this field was made by Leo Breiman in 2001 [20]. Random Forests are an ensemble learning technique for classification tasks that employs a large number of Decision Trees in the training model. The output of Random Forests is a class that is selected by the majority of the trees. In general, Random Forests exhibit superior performance compared to Decision Trees (DTs), however, the performance can be influenced by the characteristics of the data.

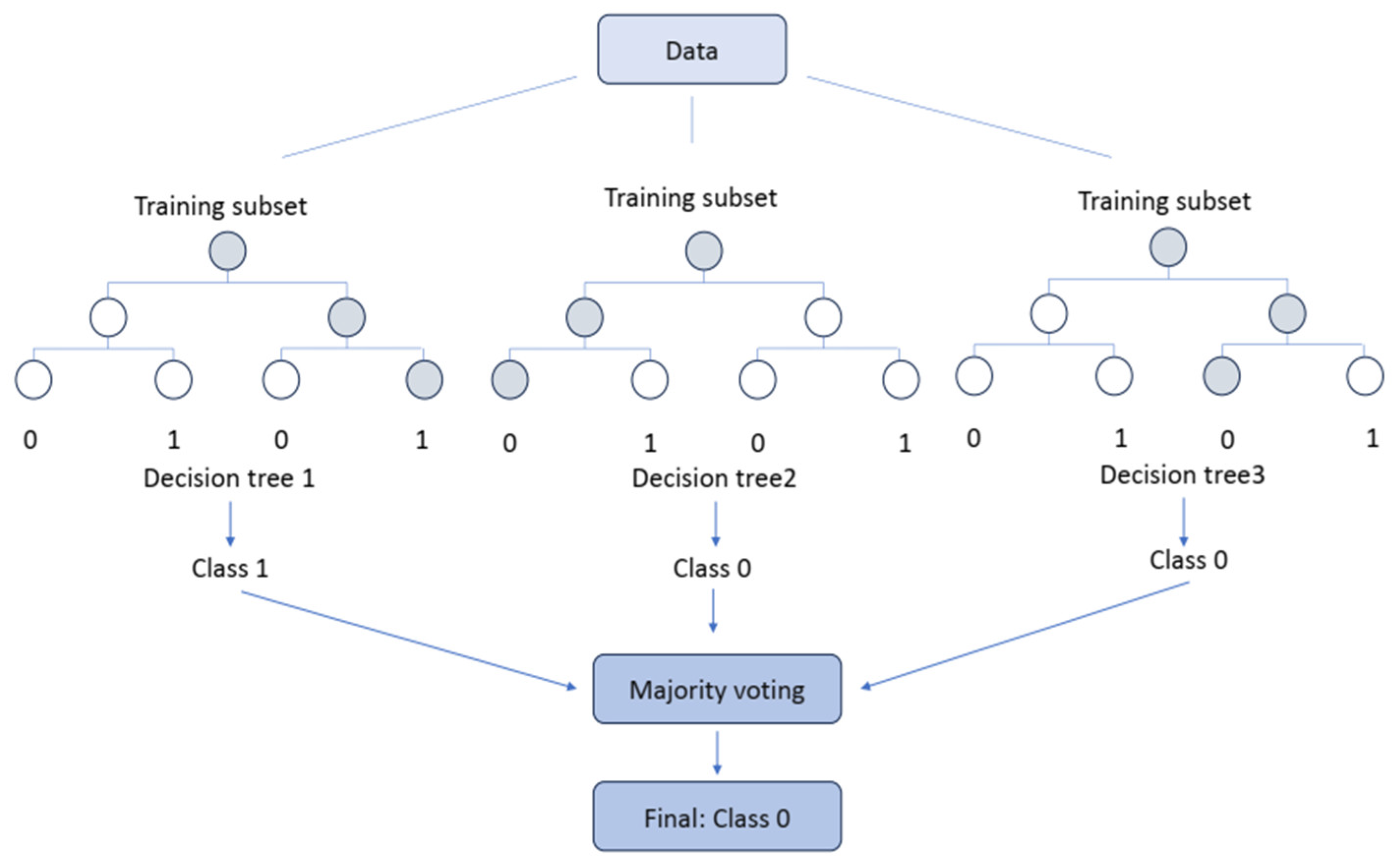

Random Forests utilize the bagging technique for their training algorithm. In greater detail, the Random Forests operate as follows: For a training set ${TS}_n=\{\left(x_1.y_1\right).\cdots .\left(x_n.y_n\right)\}$, bagging is repeated B times, and each iteration selects a random sample with replacement from ${TS}_n$, and fits trees to the samples:

1- Sample $n$ training examples; $X_b.Y_b$

2- Train a classification tree (in the case of churn problems) $f_b$ on the samples $X_b.Y_b$.

After the training phase, Random Forests can predict unseen samples $x^{\text{'}}$ by taking the majority vote from all the individual classification trees $x^{\text{'}}$.

$$\widehat{f}=\frac{1}{B}\sum _{b=1}^B{f}_b\left(x^{\text{'}}\right)$$

(3)

2.5.2. Boosting

Boosting is another method for combining multiple base learners to construct a stronger model with more accurate predictions. The key distinction between bagging and boosting is that bagging uses a parallel approach to combine weak learners, while boosting methods utilize a sequential approach to combine weak learners and derive the final prediction, as shown in Figure 2. Like the bagging technique, boosting improves the performance of machine learning predictors and in addition, it reduces the bias of the model [36].

2.5.2.1. The Famous Trio: XGBoost, LightGBM, CatBoost

Recently, researchers have presented three effective gradient-based approaches using decision trees: CatBoost, LightGBM, and XGBoost. These new approaches have demonstrated successful applications in academia, industry, and competitive machine learning [39]. Utilizing gradient boosting techniques, solutions can be constructed in a stagewise manner, and the over-fitting problem can be addressed through the optimization of loss functions. For example, given a loss function $\psi \left(y,f\left(x\right)\right)$ and a custom base-learner h(x, θ) (e.g., decision tree), the direct estimation of parameters can be challenging. Thus, an iterative model is proposed, which is updated at each iteration with the selection of a new base-learner function h(x, θt), where the increment is directed by:

$$g_t\left(x\right)={E_y\left[\frac{\partial \psi \left(y,f\left(x\right)\right)}{\partial f\left(x\right)}\right|x]}_{f\left(x\right)={\tilde{f}}^{t-1}\left(x\right)}$$

(4)

Hence, the hard optimization problem is substituted with the typical least-squares optimization problem:

$$\left(p_t,{\theta }_t\right)=arg{min}_{p,\theta }{\sum }_{i=1}^N{[-g_t\left(x_i\right)+ph(x_i,\theta \left)\right]}^2$$

(5)

The Friedman’s gradient boost algorithm is summarized by Algorithm 1.

After initiating the algorithm with a single leaf, the learning rate is optimized for each record and each node [40,41,42]. The XGBoost method is a highly flexible, versatile, and scalable tool that has been developed to effectively utilize resources and overcome the limitations of previous gradient boosting methods. The primary distinction between other gradient boosting methods and XGBoost is that XGBoost utilizes a new regularization approach for controlling overfitting, making it more robust and efficient when the model is fine-tuned. To regularize this approach, a new term is added to the loss function as follows:

$$\begin{gathered} L\left(f\right)={\sum }_{i=1}^{n}L\left({\widehat{y}}_i,y_i\right)+{\sum }_{m=1}^M\Omega \left({\delta }_m\right) \\ \mathrm{with} \\ \Omega \left(\delta \right)=\alpha \left|\delta \right|+0.5\beta {\left|\left|w\right|\right|}^2 \end{gathered}$$

(6)

where w represents the value of each leaf, Ω indicates the regularization function, and |δ| denotes the number of branches. A new gain function is used by XGBoost, as follows:

$$\begin{gathered} G_j={\sum }_{i\in I_j}{g}_i \\ {H}_j={\sum }_{i\in I_j}{h}_i \\ Gain=\frac{1}{2}\left[\frac{G_L^2}{H_L+\beta }+\frac{G_R^2}{H_R+\beta }-\frac{{\left(G_R+G_L\right)}^2}{H_R+H_L+\beta }\right]-\alpha \\ \mathrm{where} \\ {g}_i={\partial }_{{\widehat{y}}_i}L({\widehat{y}}_i+y_i) \\ \mathrm{and} \\ {h}_i={\partial }_{{\widehat{y}}_i}^{2}L({\widehat{y}}_i+y_i) \end{gathered}$$

(7)

The Gain represents the score of no new child case, H indicates the score of the left child, and G denotes the score of the right child [43].

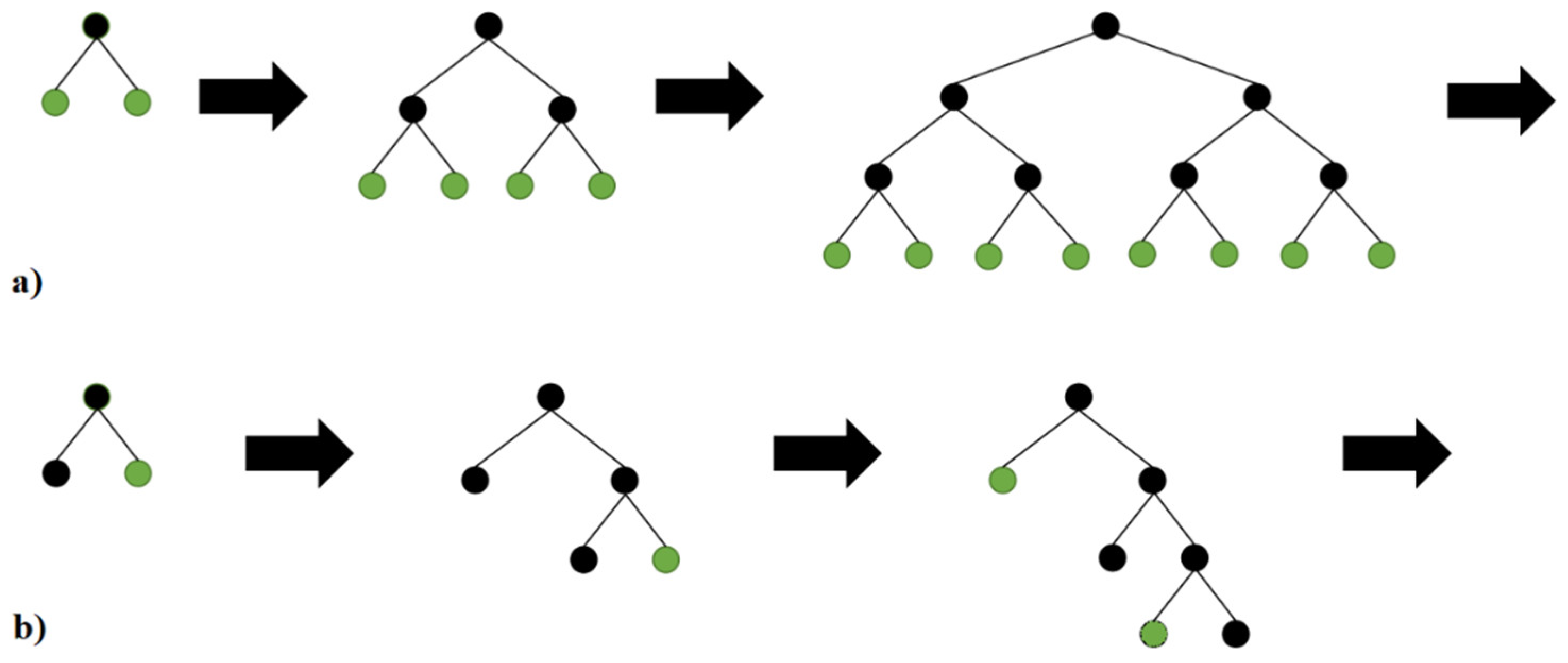

To decrease the implementation time, the LightGBM method was developed by a team from Microsoft in April 2017 [8]. The primary difference is that LightGBM decision trees are constructed in a leaf-wise manner, rather than evaluating all previous leaves for each new leaf (Figure 4a and 4b). The attributes are grouped and sorted into bins, known as the histogram implementation. LightGBM offers several benefits, including faster training speed, higher accuracy, as well as the ability to handle large scale data and support GPU learning.

The focus of CatBoost is on categorical columns through the use of permutation methods, target-based statistics, and one_hot_max_size (OHMS). By using a greedy technique at each new split of the current tree, CatBoost has the capability to address the exponential growth of feature combinations. The steps described below are employed by CatBoost for each feature with more categories than the OHMS (an input parameter):

1. To randomly divide the records into subsets,

2. To convert the labels to integer numbers,

3. To transform the categorical features to numerical features, as follows:

$$avgTarget=\frac{countInClass+prior}{totalCount+1}$$

(8)

Where totalCount denotes the number of previous objects, countInClass represents the number of ones in the target for a specific categorical feature, and the starting parameters specify prior [44,45,46].

3. Handling Imbalanced Data

4. Training and Validation Process

5. Evaluation Metrics

5.2. Ranking Metrics

In the field of churn prediction, the Receiver Operating Characteristic (ROC) Curve is widely recognized as a prominent ranking metric for evaluating the performance of classifiers. This metric enables the assessment of a classifier's ability to differentiate between classes by providing a visual representation of the true positive rate and false positive rate of predicted values, as calculated under various threshold values.

The true positive rate (recall or sensitivity) is calculated as follows:

$$TruePositiveRate=\frac{TP}{TP+FN}$$

(13)

And the false positive rate is calculated as follows:

$$FalsePositiveRate=\frac{FP}{FP+TN}$$

(14)

Each point on the plot represents a prediction made by the model, with the curve being formed by connecting all points. A line running diagonally from the bottom left to the top right on the plot represents a model with no skill, and any point located below this line represents a model that performs worse than one with no skill. Conversely, a point in the top left corner of the plot symbolizes a perfect model.

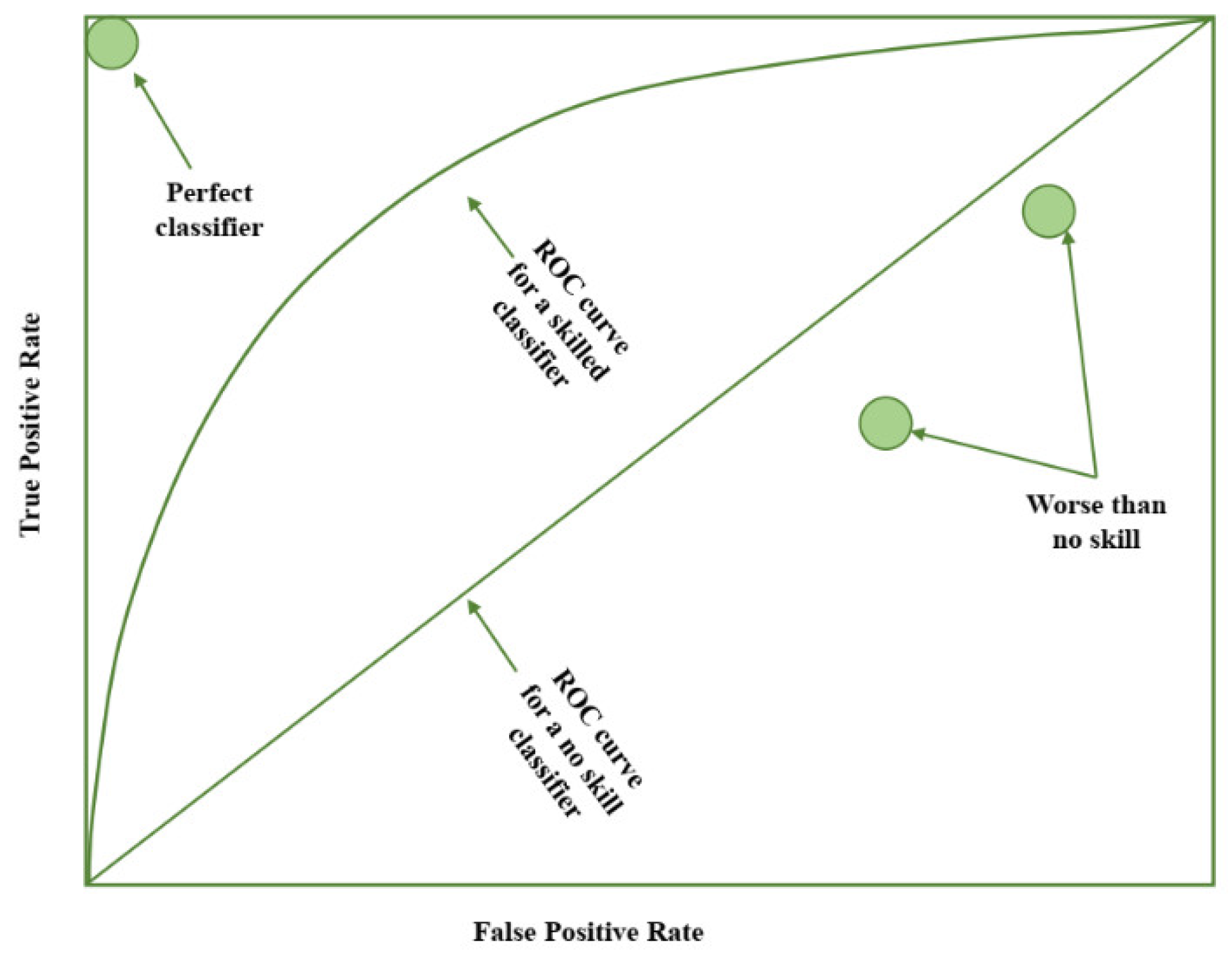

Figure 5. The ROC curve.

Figure 5. The ROC curve.

The area under the ROC curve can be calculated and utilized as a single score to evaluate the performance of models. A classifier with no skill has a score of 0.5, and a perfect classifier has a score of 1.0. However, it should be noted that the ROC curve can be effective for classification problems with a low imbalanced ratio, and can be optimistic for classification problems with a high imbalanced ratio. In such cases, the precision-recall curve is a more appropriate metric, as it focuses on the performance of the classifier on the minority class.

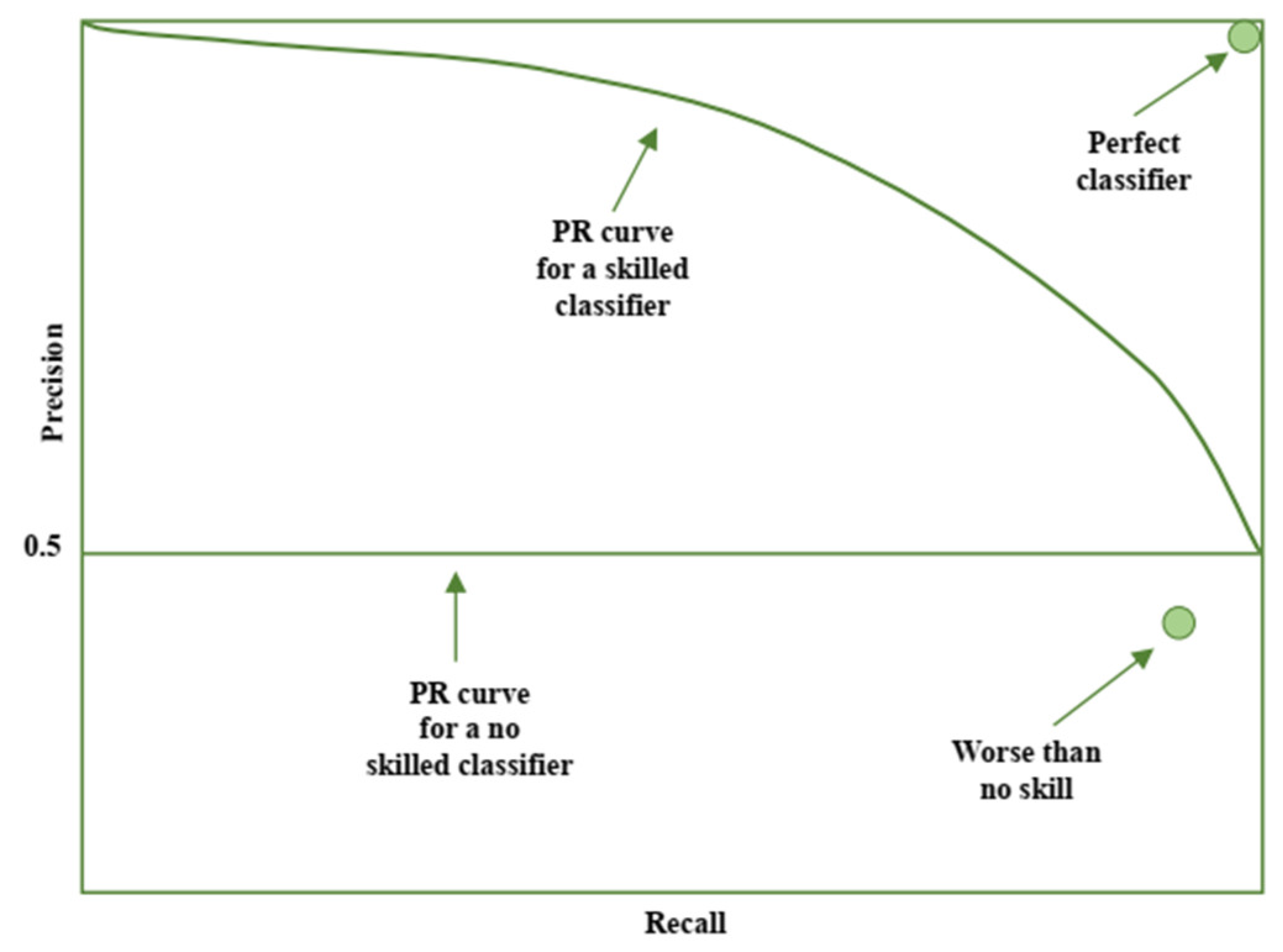

Figure 6. The Precision-Recall curve.

Figure 6. The Precision-Recall curve.

The ROC curve is a widely used method for evaluating the performance of machine learning models. The ROC curve plots the true positive rate against the false positive rate at various threshold settings, with each point on the curve representing a predicted value by the model.

A horizontal line on the plot signifies a model with no skill, while points below the diagonal line indicate a model that performs worse than random chance. Conversely, a point located in the top left quadrant of the plot represents a model with perfect performance.

In datasets with a balanced distribution of positive and negative examples, the horizontal line on the ROC plot is typically set at 0.5. However, when the dataset is imbalanced, such as with an imbalanced ratio of 1:10, the horizontal line is adjusted to 0.1 to reflect the imbalanced nature of the data.

In addition to the ROC curve, the area under the ROC curve (AUC) is also a commonly used metric for evaluating the performance of machine learning models. The AUC provides a single score for comparing the performance of different models. In cases where the dataset has a high imbalanced ratio, the Precision-Recall AUC (PR AUC) may be more informative as it specifically focuses on the performance of the minority class. However, if the imbalanced ratio of the dataset is not excessively high, such as the dataset utilized in this study, the use of PR AUC may not be necessary for evaluation.

In this paper, we employ a comprehensive set of metrics to evaluate the performance of machine learning models, including Recall, Precision, F1-score, and Receiver Operating Characteristic (ROC) AUC. These metrics provide a comprehensive evaluation of the model's performance, including its ability to accurately identify positive examples, balance false positives and false negatives, and handle imbalanced datasets.

Unlike the standard accuracy metric, ROC AUC places a particular emphasis on the performance of the minority class, and the accurate prediction of minority class instances is central to its calculation. This is particularly useful in situations where the dataset is imbalanced, as it ensures that the model's performance is evaluated fairly and in a way that takes into account the specific characteristics of the data.

6. Simulation

7. Conclusions
