A New Model of Gravity at Large Distances

Altmetrics

Downloads

160

Views

106

Comments

0

This version is not peer-reviewed

Submitted:

07 September 2023

Posted:

11 September 2023

Read the latest preprint version here

Alerts
Abstract
In this letter, we construct an effective field theory of gravity at large distances. We obtain to the leading order for large distances: a cosmological constant term and a logarithmic term in addition to the usual General Relativistic terms. The novel logarithmic term has important implications in explaining phenomena such as flat galactic rotation curves and stronger gravitational lensing than predicted that are generally attributed to the presence of dark matter.
Keywords:
Subject: Physical Sciences  -   Astronomy and Astrophysics

1. Introduction

General Relativity (GR) theory is a very successful and currently accepted description of the true nature of gravity. It explains a lot of phenomena from solar system scales to the extreme objects of the universe: black holes. It can be inferred as a simplistic theory with the least free parameters compatible with observations. However, it faces challenges at large distances. Particularly, the problems of cosmological constant[1] and dark matter[2] are still not completely understood. To overcome these challenges, we can either introduce some new particles(dark matter) or we can modify the theory of gravity itself called Modified Gravity theories(see [3] for a nice discussion on modified gravity theories). In[4], a new approach to describe gravity was proposed based on some assumptions such as analyticity and power counting renormalizability. The key concept was to impose spherical symmetry in addition to diffeomorphism invariance which is actually a good description in the IR. Setting the angular momentum and cosmological constant Λ to be zero, the modified potential in the IR was obtained as1
V = M r + a r
The second term is a Rindler term with the free parameter of the model a. It was then shown with the help of toy models that the potential given by (1) is a good fit for rotation curves. However, there is no evidence that such a term linear in r is indeed a good fit. A better fit was obtained in[5] where the authors reconstructed an effective field theory model for gravity at large distances. However, to achieve this, a new free parameter was introduced. In this letter, we propose a new model of gravity at large distances. This model like[4] is based on assumptions of analyticity and power counting renormalizability. The main feature of this model is that it has only one free parameter, there is no Rindler term and produces a very good fit to the data. Furthermore, this model is compatible with MOND[6]. All this points to the naturalness and robustness of our model.

2. Effective Field Theory

Similar to[4], we assume that the spacetime is described by a spherically symmetric metric in four dimensions
d s 2 = f ( r ) d t 2 + f ( r ) 1 d r 2 + Φ 2 ( d θ 2 + s i n 2 θ d ϕ 2 )
where Φ ( r ) denotes the surface radius. The 2-dimensional Ricci scalar is given by
R = d 2 f d r 2
This spherical reduction simplifies the 4 D Einstein-Hilber action to a 2 D dilaton gravity model(see [7] for a nice review). Demanding the theory to be power counting renormalizable, we obtain the generalized action as[4]
S = 1 κ 2 d 2 x g [ f ( Φ ) R + 2 ( Φ ) 2 2 V ( Φ ) ]
where f ( Φ ) Φ 2 is required to produce Newtonian potential. We propose the following form of potential V ( Φ ) in the above action (4)
V ( Φ ) = 1 3 Λ Φ 2 + a ln Φ
The main feature of potential given by Eq.(5) is that it contains only those terms that dominate at large distances and are still free from curvature singularities since the Ricci scalar R given by (3) is finite. Furthermore, there is no Rindler term that has been dropped off on both theoretical and phenomenological grounds (see discussion section). Any term in Φ of order greater than 2 will give a curvature singularity in the IR and is thus not allowed in the model. Therefore, the action given by (4) becomes (with κ = 1 )
S = d 2 x g [ Φ 2 R + 2 ( Φ ) 2 6 Λ Φ 2 2 a ln Φ ]
The solution of the metric function f ( r ) is obtained as[8]
f ( r ) = 1 2 M r Λ r 2 + a ln r
The 2-dimensional Ricci scalar R = d 2 f / d r 2 = 2 Λ + 2 a / r 2 + 4 M / r 3 is well-behaved at large r. If a = Λ = 0 , we recover the Schwarzschild black hole with mass M. The third term which is interestingly logarithmic in nature is novel and does not arise in the vacuum solution of Einstein’s gravity. As we will show, it is this term responsible for explaining the large-scale behavior of gravity.

3. Applications of the Model

3.1. Geodesics of Test Particles

We concentrate on the timelike geodesics in the equatorial plane ( θ = π / 2 ) and follow the standard procedure(see for e.g. [9]) such that the conserved angular momentum is given by l and r ˙ 2 / 2 + V e f f = E where E is a constant of motion, we obtain
V e f f = M r + l 2 2 r 2 M l 2 r 3 Λ r 2 2 + a ln r ( 1 + l 2 r 2 )
The first two are the usual terms, the third is the GR corrected term, the fourth is a cosmic acceleration term, and the last term is a logarithmic potential which is our novel result. For vanishing cosmological constant and angular acceleration, we have
F e f f = V e f f r = M r 2 a r
At sufficiently large distances, the second term becomes appreciable and dominates the dynamics. A plot of effective potential given by (8) for some values of a is shown below.

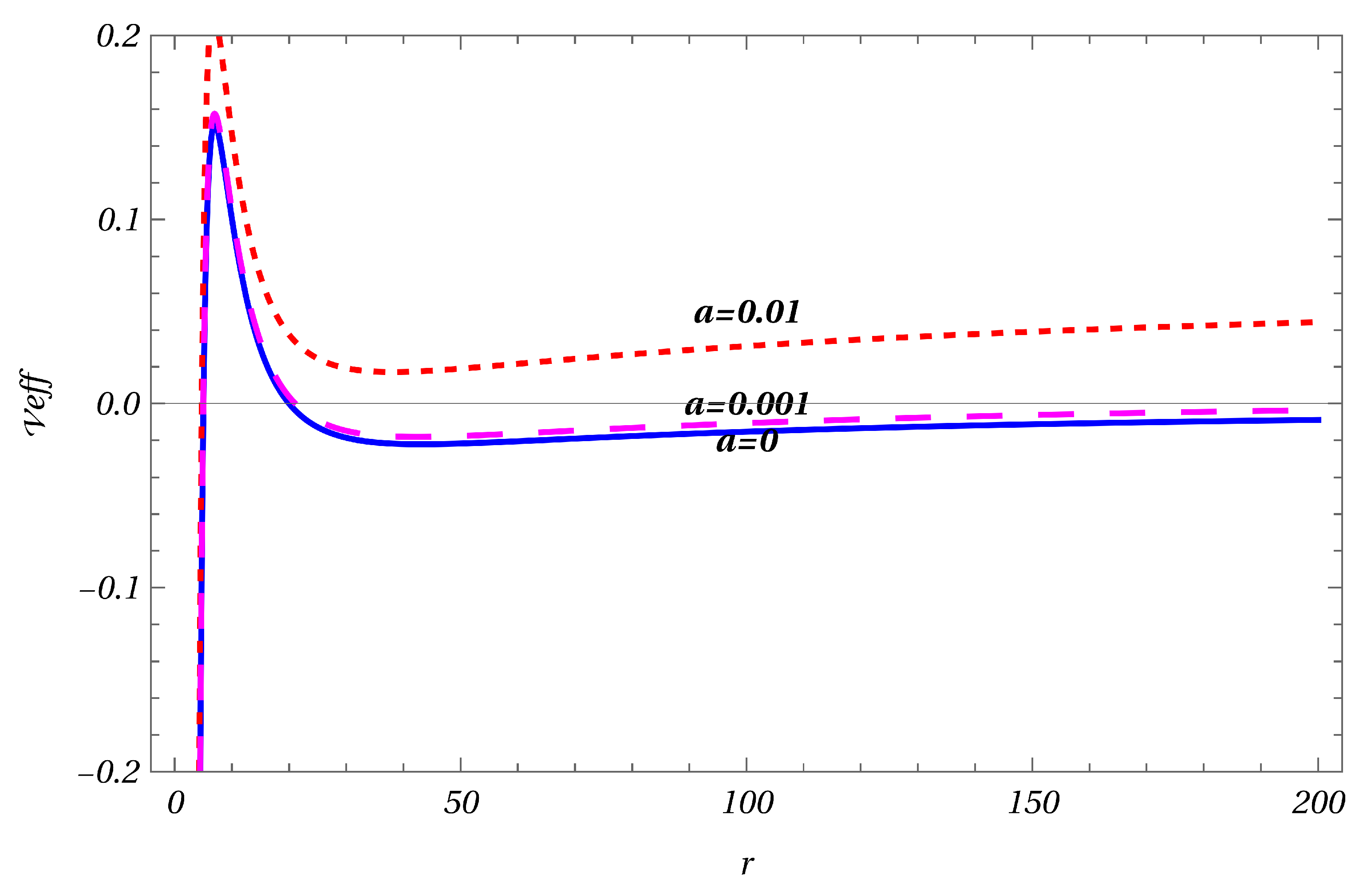

Figure 1. The red dotted curve is the plot of the effective modified potential for a = 0.01 , the pink dotted curve is for a = 0.001 and the blue curve is the effective GR potential.
Figure 1. The red dotted curve is the plot of the effective modified potential for a = 0.01 , the pink dotted curve is for a = 0.001 and the blue curve is the effective GR potential.
Preprints 84540 g001
It is clear from the figure that the fall in the modified potential given by our effective field theory is lower than the GR case and increases with the increase in the value of a. This modified behavior of the effective potential obtained with our effective field theory leads to a flat rotation curve of galaxies for large r while for small r, their behavior matches with that of GR as expected.

3.2. Galactic Rotation Curves

For a spherical galaxy, the modified radial velocity is obtained as
v ( r ) M ( r ) r + a
The second term is constant which dominates for a large distance. This is consistent with the MOND hypothesis. Obviously, MOND is more of an ad-hoc proposal and is not an effective field theory. Our result which is valid for all r is derived from an effective field theory proposed in section II. In Figure 2 and Figure 3 shown on the next page, we obtain the best fit for the velocity profile given by Eq.(10). These plots are obtained following[5]. The red curve is the fit for the modified potential Eq.(5) obtained from our model. Thick dots are data points obtained from[10]. The blue curve is the GR plot which is clearly poor. It is clear that the plots are in excellent agreement with the data. These two galaxies were chosen because of their different behavior. S:610359 has a typical rising velocity profile while the spiral galaxy S:702916 has a flat and slowly dropping velocity profile. Both behaviors are also reminiscent of the plots using the modified potential obtained from our effective field theory. It is amazing that our effective field theory with only one free parameter gives such an excellent fit with data.

3.3. Gravitational Lensing and The Value of Constant a

Following the standard procedures (outlined in for e.g.[9]), the deflection angle of light due to a mass M in this case is given by
δ = 2 c 2 ( V N + V ) d s
= δ 1 + 2 b a c 2 d x ( b 2 + x 2 )
= 4 G M b c 2 + 2 π a c 2
4 G M b c 2
where b is the impact parameter and M = M 1 + b π a 2 . Let us analyze this equation with a real example. For this, we take M = 10 13 M 2 × 10 43 k g , b = 100 k p c 3.1 × 10 21 . This gives, M 7 M with a 2 × 10 12 . Thus, we find that the lensing is approximately 7 times larger in the case of dark matter-dominated galactic scales in agreement with[11]. Furthermore, from MOND theory, at galactic scales, we have the constant G M a 0 with a 0 = 1.2 × 10 10 m s 2 which is approximately equal to 1.67 × 10 12 in close agreement to the value of a obtained above. This can solve the problem of a large deflection angle of light around a lens than the standard case given simply by δ 1 .

4. Discussion

In this letter, we presented a new model of gravity at large distances with the action (6). The solution of this action contains a novel logarithmic term which was shown to account for flat rotation curves and stronger lensing than predicted by GR. Although different modified potentials were obtained in[4,5] and the modifications in GR are based mainly on phenomenology or to fit with experimental data, our motivation mainly comes from our work[12] where we gave a possible "theoretical origin" of the modified gravity leading to dark matter. In[12], we argued that if we treat a gravitational system to be 1 D in its entropy "flow" similar to that argued for black holes in[13], then for large distances we obtain a logarithmic potential term. Furthermore, the authors of[14,15] also proposed a logarithmic potential as the solution of dark matter but the origins of such a term were not known. In this work, we presented an effective field theory leading toward such a modification. Our model accommodates the behavior of gravity at all distances with great precision and is obtained from an action (6) which makes this model very natural and robust.

Data Availability Statement

The data used in this study to plot figures are available in[10].

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Carroll, S.M. The cosmological constant. Living reviews in relativity 2001, 4, 1–56. [Google Scholar] [CrossRef] [PubMed]
  2. Bertone, G.; Hooper, D. History of dark matter. Reviews of Modern Physics 2018, 90, 045002. [Google Scholar] [CrossRef]
  3. Shankaranarayanan, S.; Johnson, J.P. Modified theories of gravity: Why, how and what? General Relativity and Gravitation 2022, 54, 44. [Google Scholar] [CrossRef]
  4. Grumiller, D. Model for gravity at large distances. Physical review letters 2010, 105, 211303. [Google Scholar] [CrossRef] [PubMed]
  5. Perivolaropoulos, L.; Skara, F. Reconstructing a model for gravity at large distances from dark matter density profiles. Physical Review D 2019, 99, 124006. [Google Scholar] [CrossRef]
  6. Milgrom, M. A modification of the Newtonian dynamics-Implications for galaxies. The Astrophysical Journal 1983, 270, 371–383. [Google Scholar] [CrossRef]
  7. Grumiller, D.; Kummer, W.; Vassilevich, D. Dilaton gravity in two dimensions. Physics Reports 2002, 369, 327–430. [Google Scholar] [CrossRef]
  8. This follows from [5] where the general solution of the action (4) with f(Φ) = Φ2 has been obtained.
  9. Carroll, S.M. Spacetime and geometry; Cambridge University Press, 2019.
  10. http://www.ioa.s.u-tokyo.ac.jp/∼sofue/smd2018/Atlas_data_S-galaxies/.
  11. Moffat, J.W. Scalar–tensor–vector gravity theory. Journal of Cosmology and Astroparticle Physics 2006, 2006, 004. [Google Scholar] [CrossRef]
  12. Kumar, N. 2D behavior of Gravity at Large Distances. Preprints 2023. [Google Scholar] [CrossRef]
  13. Bekenstein, J.D.; Mayo, A.E. Black holes are one-dimensional. General Relativity and Gravitation 2001, 33, 2095–2099. [Google Scholar] [CrossRef]
  14. Das, S.; Sur, S. Dark matter or strong gravity? International Journal of Modern Physics D 2022, 31, 2242020. [Google Scholar] [CrossRef]
  15. Das, S.; Sur, S. Gravitational lensing and missing mass. Physics Open 2023, 15, 100150. [Google Scholar] [CrossRef]
1
We use natural units so that G = c = 1

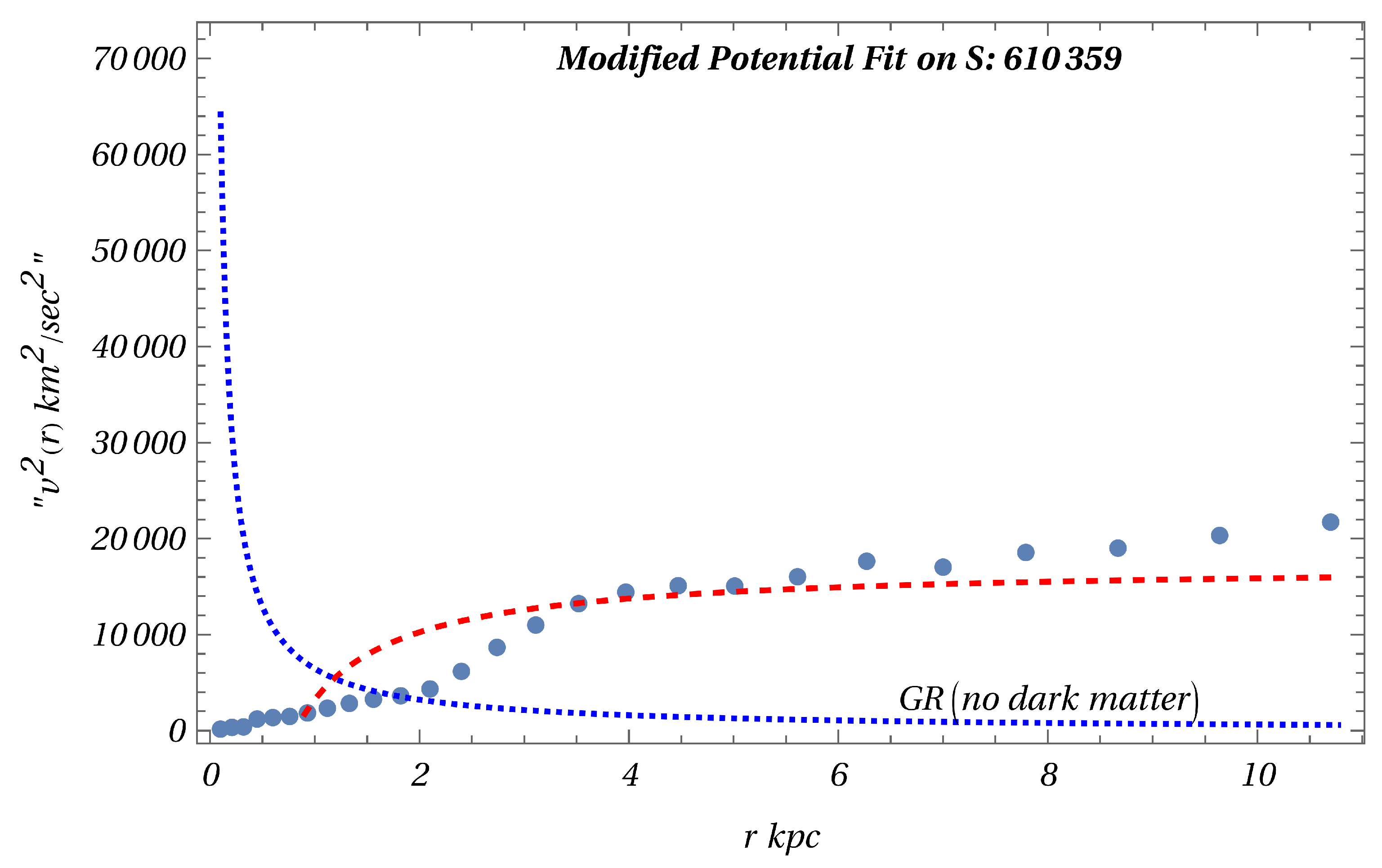

Figure 2. The best-fit form of the velocity profile Eq.(10) for S:610359. The red dashed curve is for the modified potential Eq.(5) obtained from our model. The plot obtained from GR is obviously poor.
Figure 2. The best-fit form of the velocity profile Eq.(10) for S:610359. The red dashed curve is for the modified potential Eq.(5) obtained from our model. The plot obtained from GR is obviously poor.
Preprints 84540 g002

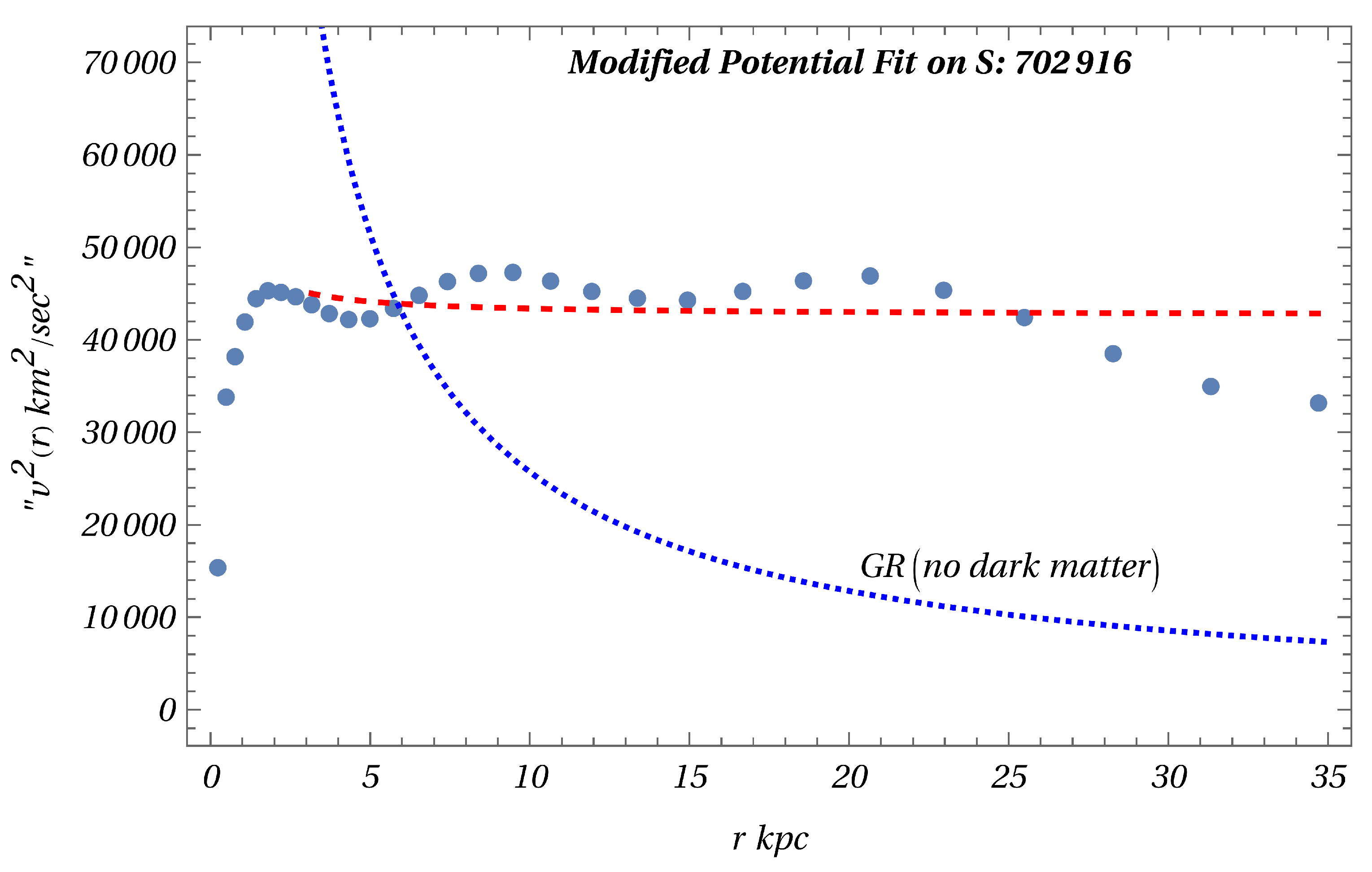

Figure 3. The best-fit form of the velocity profile Eq.(10) for S:702916. The red dashed curve is for the modified potential Eq.(5) obtained from our model. The plot obtained from GR is obviously poor.
Figure 3. The best-fit form of the velocity profile Eq.(10) for S:702916. The red dashed curve is for the modified potential Eq.(5) obtained from our model. The plot obtained from GR is obviously poor.
Preprints 84540 g003
