Angiopoietins as Predictor Indexes in COVID-19 Patients in Delta and Omicron Waves

The study aimed to explore the correlation among Angiopoietin-1, (Ang-1) and Angiopoietin-2, (Ang-2) concentrations and the Angiopoietin-2/Angiopoietin-1 ratio, (Ang-2/Ang-1) with clinical outcomes, potentially serving as disease severity and survival biomarkers. A study at AHEPA University Hospital involved 90 COVID-19 adult patients, with 30 hospitalized in intensive care and 30 in ward units and 30 asymptomatic non-hospitalized individuals as controls. Estimated endothelial dysfunction markers related to angiogenesis were measured, and statistical analysis was performed using IBM SPSS Statistics software, version 29. There was a statistically significant difference only between outpatient and hospitalized patients (non-ICU -ICU groups) for the Ang-1 and Ang-2 indexes. The Ang-2/Ang-1 ratio has differed significantly among all individual patient groups. A ROC analysis was conducted to find an optimal threshold for distinguishing (outpatients – non-ICU) and (non-ICU –ICU) groups. It was based on Youden's Index and was 0.1122 and 0.3825, respectively. The Ang-1, Ang-2 levels, and Ang-2/Ang-1 ratio were analysed as indicators for severity in COVID-19 patients. The Ang-2/Ang-1 ratio demonstrated more excellent prognostic and diagnostic utility than individual biomarker levels. Monitoring the Ang-2/Ang-1 ratio can identify COVID-19 patients at risk and assist clinicians in tailoring treatment strategies for improved outcomes.

Keywords:

Subject: Medicine and Pharmacology - Epidemiology and Infectious Diseases

1. Introduction

Originating in Wuhan, China, in early December 2019, coronavirus disease 19 (COVID-19) has spread rapidly, with cases confirmed in every country. Coronavirus disease 2019 (COVID-19), caused by the SARS-CoV-2 infection, belongs to the subfamily Coronavirinae in the family Coronaviridae [1]. It is still a persistent threat to global public health, resulting in widespread morbidity and mortality and highly intensive care unit use. SARS-CoV-2 targets both the respiratory and extrapulmonary systems. COVID-19 can cause acute lung injury, myocardial infarction, liver injury, kidney injury, and other injuries. Endothelium dysfunction is evidence of COVID-19 syndrome [2,3].

SARS-CoV-2 is a virus with a single-stranded RNA genome that is encapsulated, and that has a positive sense. When it infects a host cell, it utilizes the host's protein synthesis machinery to generate viral proteins necessary for reproduction. SARS-CoV-2 encounters four structural proteins, namely envelope (E), membrane (M), nucleocapsid (N), and spike (S) proteins, together with sixteen non-structural proteins (nsp1–16).

During this pandemic, novel variants of SARS-CoV-2 have emerged as a major challenge. The World Health Organization (WHO) classified some variants as variants of interest (VOIs) and variants of concern (VOCs) in late 2020, due to the emergence of variants that presented a potential threat to global public health [5].

The Delta variant prevailed during the 4th wave of the epidemic in Greece, from mid-summer to the end of 2021, followed by the Omicron variant, and the 5th wave was the period during which the Omicron variant was dominant (approximately January to May of 2022). Despite the disease's milder severity, the Omicron variant is more contagious than the Delta variant [6,7]. In this period, immunity was based on protection due to prior vaccination and infection [8].

Clinical symptoms varied in severity from mild to severe cases. The disease is characterized by pneumonia, fatigue, fever of 38°C or higher, cough, dyspnea, headache, diarrhea, vomiting, abdominal pains, fatigue, and muscle pains, as well as changes in taste and smell [4].

Through the ACE2 receptor, SARS-CoV-2 infections target the pulmonary system primarily. The ACE2 receptor exhibits significant expression in diverse organs and tissues, facilitating the virus's ability to disseminate to different organs and infect cells that express ACE2 at localized locations. COVID-19 is linked to extensive injury to endothelial cells and epithelial cells in lung tissue, leading to increased permeability of capillaries, infiltration of inflammatory cells into tissues surrounding blood vessels, retention of fluid in the extracellular spaces, and the development of acute respiratory distress syndrome (ARDS). In acute lung injury, ARDS is the most severe manifestation, and it is lethality-related to COVID-19. Also, in severe cases, it can lead to acute kidney injury, heart injury, and liver failure.

COVID-19-associated endotheliopathy was promptly acknowledged upon the onset of the disease. Postmortem investigations unveiled the direct invasion of endothelial cells by SARS-CoV-2 or indirectly cause injury through a cytokine storm. Severe cases of COVID-19 are characterized by hyper-inflammatory and thrombotic episodes, cell death, endothelial dysfunction, suggesting that one of the major targets of this disease is endothelium, one of the body’s largest organs.

Endothelial cells line the inner layer of blood vessels, considered a partially transparent biomechanical barrier, and vessel gatekeepers are responsible for preserving micro and macrovascular health by identifying pathogen/danger signs and secreting vasoactive molecules [9]. In addition, endothelial cells release pro-fibrinolytic agents that initiate fibrinolysis to degrade clots [10].

In recent decades, an improved understanding of the biological functions of the endothelium has led to its identification as a ubiquitous tissue that modulates the tone of the blood vessels, cell behavior, innate immunity, cell interactions, and cellular metabolism in the vessels [11].

The endothelial Angiopoietin/Tie2 system is involved in the regulation of endothelial permeability. Endothelial cells primarily express and contain the tyrosine kinase receptor Tie2. The activity of Tie2 is modulated by its ligands, Ang–1 and Ang–2, which are vascular growth factors that contribute to the process of angiogenesis. They act in an agonist/ antagonist manner and may alter the structure and integrity of the vascular endothelium directly or indirectly [12,13].

Ang-1 promotes barrier function by reorganizing endothelial cells. During inactivation, pericytes secrete Angiopoietin 1, which plays a role as a Tie2 agonist and contributes to the maintenance of an effective endothelial barrier. Depending on the circumstances, Angiopoietin-2 is either an antagonist or a partial agonist of the Tie2 receptor. Weibel-Palade bodies release Angiopoietin-2 during pathological conditions, which binds antagonistically to the Tie2 receptor [14]. Thus, downstream Tie2 signaling is deactivated, cell–cell junctions deteriorate, and endothelial hyperpermeability and vascular leakage are induced. Therefore, endothelial Angiopoietin/Tie2 system alterations may contribute to organ injury during critical illness. Therefore, endothelial Angiopoietin/Tie2 system disruptions may contribute to organ damage during critical illness [12,15]. In the face of endothelial dysfunction, endothelial cells trigger fibrin formation, as well as platelet adhesion and aggregation [10].

Macro- and microvascular thromboembolic or in situ thrombotic complications have been observed in COVID-19 in the vasculature of the lungs, spleen, brain, gut, and periphery. Pulmonary embolism (PE) and deep vein thrombosis constitute the most frequent thrombotic events. Additionally, in patients diagnosed with COVID-19, there was an increased occurrence of alveolar capillary microthrombi, nine times greater than in patients with influenza. This finding aligns with the observed higher frequency of blood clot formation in COVID-19 cases than in other viral lung infections. Severe endothelial injury and intracellular virus were also noted in patients with COVID-19 at sites where microthrombosis was observed, indicating that the inflammation and injury to the endothelial cells may directly contribute to the formation of blood clots. Moreover, thromboses have been observed both during the early stage of the disease and in the following weeks, suggesting that the tendency towards a prothrombotic condition may endure for several weeks or even post-hospitalization [17].

The study aimed to identify the appropriate prognostically significant biomarkers and provide the ability to stratify the risk of thrombosis in COVID-19 patients. Many studies have suggested that an increase in Ang-2 and a decrease in Ang-1 may be indicative of a pro-inflammatory state that is best described by the Ang-2 to Ang-1 ratio [16,17]. Considering these findings, our primary objective was to examine the relationship between decreased Ang-1 and increased Ang-2 concentrations and the Ang-2/Ang-1 ratio with clinical outcomes [18,19]. They may appear valid as disease severity and survival biomarkers and a prospective and promising therapeutic target.

2. Materials and Methods

2.1. Study design and patient characteristics

This single-center, cross-sectional, observational study included 90 COVID-19 adult patients (>18 years) and was conducted at AHEPA University Hospital from 20 July 2021 to 30 December 2022. The study included 90 patients that fulfilled the criteria for hospitalization (30 patients with COVID-19 hospitalized in intensive care units, 30 patients with COVID-19 disease hospitalized in ward units) and 30 asymptomatic patients, non-hospitalized individuals with COVID-19 disease, who were used as controls for biomarker measurements.

Between groups, patient characteristics, such as age and sex, were not significantly different. The diagnosis of COVID-19 was based on real-time reverse transcription PCR (RT-PCR) in nasopharyngeal swab samples. The study was approved by the AHEPA Hospital Research Ethics Committee (129/19-03-2020, and the bioethics approval committee of Aristotle University. All procedures carried out on patients complied with the Helsinki Declaration. Informed written consent was obtained from all patients prior to any study procedure. Patients younger than 18 years old, with a history of cancer, a diagnosis of hematological disease or thrombophilia, liver disease or renal failure, or a critical illness related to another diagnosis other than COVID-19 that affect the thrombotic status of the patients, are not included in the study.

2.2. Blood-Sampling Procedures

Venous blood was collected with the first scheduled morning draw within 72 hours post-ward and ICU admission. Based on the test, blood samples were drawn into plastic vacutainer tubes with 0.129 M (3.8%) trisodium citrate (catalog number 363095; Becton Dickinson) for plasma samples in a 9:1 blood to anticoagulant ratio. Test samples were centrifuged twice at 2500 g for 15 min at 18–25 °C to obtain poor platelet plasma. Venus blood samples are also collected in vacutainer tubes coated with silicon and micronized silica particles to accelerate clotting for procedures that require serum samples (catalog number 367837; Becton-Dickinson).

Serum was collected, portioned into 0.5 mL aliquots, and stored at 80°C until used. All samples remained frozen until used. A freeze-thaw cycle was avoided.

2.3. Laboratory procedures

The routine clotting assays, including prothrombin time (PT), activated partial thromboplastin time (aPTT), fibrinogen, and D-Dimers were performed in ACL TOP 50 series (Instrumentation Laboratory; Bedford, MA, USA), with manufacturer reagents and controls per laboratory protocol.

Endothelial dysfunction and angiogenesis laboratory markers, Angiopoietins 1 and 2 (Ang-1 and Ang-2, respectively), were measured in serum by enzyme-linked immunosorbent assay (ELISA) according to the manufacturer's instructions (R&D Systems Inc., Minneapolis, MN, USA). A 50-fold dilution is suggested for Ang-1 serum samples. All samples were assayed in duplicate. Biomarkers are presented with their standard reference range and ratio. Normal values for Ang1 and Ang2 are 14272-65570 pg/ml 1065-8907 pg/ml, respectively). The analysis relies upon the utilization of patients' biomarker levels, i.e., Ang-1 and Ang-2 patient levels, and the corresponding ratio (Ang-2/Ang-1 index).

2.4. Statistical Analysis

The data is presented using the median along with the interquartile range (IQR), specifically ranging from the first quartile (Q1) to the third quartile (Q3), which is particularly suitable for skewed data. For the quantitative indices of the study, descriptive statistics are estimated for the entire sample and the individual groups of patients, i.e., outpatient, non-ICU, and ICU. Additionally, the Kolmogorov-Smirnov test for normality is performed. Plasma levels of Ang-1, Ang-2, and the Ang-2/Ang-1 ratio, exhibiting non-normal distributions, are subject to comparison across the three patient groups using the Mann-Whitney U rank sum test—a non-parametric approach.

To identify the most effective threshold for distinguishing between the three groups of patients, a Receiver Operating Characteristic (ROC) analysis is performed using the Ang-2/Ang-1 index. The area under the curve (AUC) is calculated to assess the accuracy of this discrimination. Further, Youden's Index, which is a commonly used statistic that aims to find a threshold that maximizes the difference between sensitivity and (1-specificity), is utilized. It is calculated for each threshold by adding sensitivity and specificity and subtracting 1. The threshold corresponding to the highest Youden's Index is a potential cut-off point.

The statistical analysis of the data was conducted using IBM SPSS Statistics, version 29.

3. Results

Among 90 individuals, 51 males (56.7%) and 39 females (43.3%) were divided into three groups based on their specific disease severity. Specifically, 30 patients with COVID-19 were hospitalized in intensive care units (ICU), 30 patients with COVID-19 outside of intensive care units in the hospital wards (non-ICU), and 30 asymptomatic non-hospitalized patients with COVID-19 (outpatient).

3.1. Results for Ang-1

Figure 1 shows the histogram of absolute frequencies for Ang-1. The Kolmogorov-Smirnov test indicates that the Ang-1 index does not follow a normal distribution (p-value = 0.012 < 0.05). The median value of Ang-1 is 54525 pg/ml, while the interquartile range is 49422.5 pg/ml, where IQR limits are 30340 pg/ml (Q1) and 79762.5 pg/ml (Q3).

For the three patient groups, the median and IQR values are shown in Table 1. Ang-1 levels vary across the three patient groups, with outpatients showing the highest median (74450 pg/ml) and the least variability (IQR 28812.5 pg/ml). Non-ICU patients have a lower median (47890 pg/ml) and a wider IQR (40177.5 pg/ml), while ICU patients exhibit the lowest median (31070 pg/ml) and the widest IQR (41852.5 pg/ml). The boxplot of Ang-1 visually depicts the distribution and comparative analysis of Ang-1 levels across outpatients, non-ICU, and ICU groups. (Figure 2).

According to the non-parametric Mann-Whitney U rank test, significant variations in Ang-1 levels emerged between outpatient and non-ICU patients (p < 0.001), where outpatients demonstrated a significantly higher median value than non-ICU patients displayed. There is also a statistically significant difference between the outpatient and ICU patients (p-value< 0.001) groups. In contrast, the test showed no significant difference between the non-ICU and the ICU groups (p-value = 0.243) regarding the Ang-1 index.

The significant differences in Ang-1 levels observed between outpatients and both non-ICU and ICU groups suggest that Ang-1 possesses discriminatory ability in distinguishing outpatient conditions from inpatient settings. However, the lack of a significant difference between non-ICU and ICU groups indicates a potential limitation in Ang-1's ability to discriminate between these two inpatient categories.

3.2. Results for Ang-2

Figure 3 shows a histogram of absolute frequencies for Ang-2. Also, according to the normality test for the Ang-2 index, it does not follow a normal distribution according to the Kolmogorov-Smirnov test (p-value < 0.001). The median value of Ang-2 is 7419 pg/ml, while the interquartile range (IQR) is 5089.75 pg/ml, with IQR limits 5110.25 pg/ml (Q1) and 10200 pg/ml (Q3).

Regarding the three groups of patients, the median and IQR values are shown in Table 2. The median Ang-2 levels exhibit a gradient among the patient groups, with outpatients showing the lowest median (5475 pg/ml), followed by non-ICU patients (8057.5 pg/ml), and ICU patients with the highest median (12038.5 pg/ml). The considerable interquartile ranges within each group underscore the notable variability in Ang-2 levels across these distinct patient populations. The boxplot of Ang-2 across the three groups of patients is displayed in Figure 4.

According to the non-parametric Mann-Whitney-U test, there is a statistically significant difference between the outpatient-non-ICU and outpatient-ICU (p-value < 0.001) and (p-value < 0.001) groups. In contrast, the non-ICU and ICU groups do not significantly differ regarding the Ang-2 index (p-value = 0.060).

Ang-2 displays a notable discriminative ability, evidenced by its significant capacity to differentiate between outpatients and inpatient groups. However, the lack of a significant difference between non-ICU and ICU patients suggests a potential limitation in its discriminatory power within the inpatient setting, highlighting nuances in its ability to distinguish between specific categories of patients.

3.3. Results for Ang-2/Ang-1 ratio

The histogram depicting the absolute frequencies of the Ang-2 / Ang-1 ratio is presented in Figure 5. Regarding the ratio, the Ang-2/Ang-1 variable does not follow a normal distribution (Kolmogorov-Smirnov test, p-value ≤ 0.001). The median value of the Ang-2/Ang-1 ratio is 0.1465, and the interquartile range (IQR) is 0.35, with IQR limits 0.0776 (Q1) and 0.4265 (Q3).

Table 3. presents the median and IQR values the three groups of patients. The Ang-1/Ang-2 ratio demonstrates an upward trend, progressing from outpatients (median: 0.0767, IQR: 0.03) to non-ICU patients (median: 0.1790, IQR: 0.18) and peaking in ICU patients (median: 0.5455, IQR: 0.68). These findings imply a potential association between the ratio and the severity of the medical condition, with elevated values observed in more critically ill patients. The boxplot depicting the Ang-2/Ang-1 ratio variation among the three patient groups vividly illustrates the observed trends (Figure 6).

According to the non-parametric Mann-Whitney U test, there is a statistically significant difference among the individual patient groups for the Ang-2 / Ang-1 ratio: outpatient - ICU (p-value < 0.001), outpatient - non-ICU (p-value < 0.001), and non-ICU - ICU (p-value = 0.002).

The Ang-1/Ang-2 ratio demonstrates a progressive increase of medians across the outpatient, non-ICU, and ICU groups, indicating a potential association with disease severity. This suggests that the ratio may serve as a valuable marker for distinguishing patients based on their clinical status, with higher values suggesting more critical conditions. Further, the Mann-Whitney U test reveals statistically significant differences in the Ang-2/Ang-1 ratio among all pairs of patient groups. This indicates distinct patterns in the Ang-2/Ang-1 ratio across different clinical settings, highlighting its potential utility as a discriminatory marker for patient stratification.

3.4. Results of ROC analysis and Ang-2/Ang-1 ratio

Exploring the categories of outpatient and non-ICU patients, we conducted a ROC (Receiver Operating Characteristic) analysis utilizing the Ang-2/Ang-1 ratio to ascertain the optimal threshold for distinguishing between these groups. The area under the curve (AUC) attained the value of 0.849 (p-value< 0.001), meaning that the model is effective in classification tasks. The asymptotic 95% Confidence Interval ranges from 0.738 to 0.959, further underscoring the robustness of these findings. Based on the extracted results, the optimal cut-off point based on Youden's Index would be 0.1122 (Sensitivity = 0.833, Specificity = 0.867). Figure 7 illustrates a ROC analysis for the Ang-2/Ang-1 ratio in outpatient and non-ICU patients.

Furthermore, we conducted a ROC analysis based on the Ang-2 / Ang-1 ratio comparing non-ICU and ICU patients. The Area Under the Curve (AUC) attained a value of 0.734 (p-value = 0.002), meaning the model is acceptably effective in classification tasks. The asymptotic 95% Confidence Interval ranges from 0.602 to 0.867. Youden's index is utilized to extract the potential cut-off point of 0.3825 (Sensitivity = 0.633, 1-Specificity = 0.133). A ROC analysis of the Ang-2/Ang-1 ratio of non-ICU –ICU patients is shown in Figure 8.

4. Discussion

Different conditions such as diabetes mellitus, atherosclerosis, hypertension, endothelial dysfunction, and impaired angiogenesis contribute to microvascular dysfunction [11,19]. It has been demonstrated that markers of endothelial dysfunction and angiogenesis markers have been predictors of disease severity in heart failure, renal failure, and after cardiac surgery [20,21]. These biomarkers circulate in the blood and can cause and affect microvascular dysfunction.

To enhance early diagnosis and risk stratification, it is crucial to identify useful biomarkers. In our study, we analyzed the Angiopoietin-1 and Angiopoietin-2 indexes and Angiopoiten-2/Angiopoiten-1 ratio as indicators that will serve as a screening tool for severity in COVID-19 patients in delta and omicron waves. Regarding the Angiopoietin-1 and Angiopoietin-2 index, we showed significant differences between outpatient and hospitalized patients (non-ICU and ICU groups). In contrast, the non-ICU - ICU groups did not differ significantly. Also, for the Ang-2/Ang-1 index, there is a significant difference among the individual patient groups: outpatient - non-ICU, outpatient- ICU, and ICU- non-ICU. Further, an ROC analysis using the Ang-2/Ang-1 index was conducted to ascertain the optimal threshold for distinguishing between groups. Between outpatient and non-ICU patient categories, the AUC was 0.849, indicating the model's effectiveness. The 95% Confidence Interval ranged from 0.738 to 0.959, indicating robustness. Youden's Index suggested the optimal cut-off point as 0.1122. Furthermore, the ROC analysis showed an acceptable model for classification tasks between non-ICU and ICU groups, with an AUC of 0.734 and a potential cut-off point of 0.3825. However, the Ang-2/Ang-1 ratio in our research is regarded as an essential biomarker for rapid risk stratification and prognosis. The ratio of Ang-2 to Ang-1 demonstrated more excellent prognostic and diagnostic utility, surpassing the levels of Ang-1 and Ang-2 indexes. Moreover, this ratio demonstrated notable diagnostic and prognostic efficacy in predicting severity.

In addition to supporting the value of decreasing levels of Angiopoietin-1 as an indicator for hospitalization, particularly when comparing patients requiring hospital care to those who can be managed as outpatients, our research reinforces prior findings. Researchers in two separate studies, Abou-Arab et al. and Vassilliou et al., have provided additional insights that there is no difference in Ang-1 levels between severe and critical COVID-19 patients and survivors and non-survivors. In our study, there is no difference between hospitalized patients (non-ICU – ICU patients) [22,23]. We also assessed the endothelial damage resulting from increased levels of Ang-2. This discovery reinforces the theory that COVID-19 is a vascular condition marked by injury to the endothelium, angiogenesis, and thrombosis.

According to Six et al. and Alay et al., circulating levels of Angiopoietin-2 as a marker of endothelial injury were higher in hospitalized patients with COVID-19 than in healthy controls [9,24]. Also, the study by Smadja et al. indicated that angiopoietin-2 is a relevant predictive factor for ICU direct admission in COVID-19 patients [25]. Henry et al. as well found that increased Ang-2 expression is related to endothelial activation and an increased risk of ICU admission in patients admitted with COVID-19 [26,27]. Also, three other studies have reported the significant role of Ang-2. In the first study, Abou-Arab et al. found that Ang2 was significantly higher in the critical group [22]. In the second study, Vill et al. showed a strong correlation between Angiopoietin-2 course and mortality in hospitals and a non-resolving pulmonary condition associated with COVID-19 [28]. In the third study, Kümpers et al. highlight the independent prognostic impact of circulating Ang-2 in critical illness [29].

In another study by Vassilliou et al., patients who were directly admitted to the ICU rather than the ward had elevated levels of Ang-2 [23]. In our research, angiopoietin-2 is a valuable indicator for the hospitalization of patients in comparison to the outpatient and hospitalized groups and not only in critical care patients. The discrepancies between our observations and the aforementioned studies and others may be due to the emergence of new virus variants, and the availability of new therapies and vaccines may lead to different outcomes.

In the research of Ong et al., the Ang-2/Ang-1 ratio may be a prognostic biomarker of endothelial activation in patients with acute lung injury and may also be helpful for risk stratification in these patients [30]. Also, in the Gouzi et al. survey, the Ang-2/Ang-1 ratio is a potential marker of vascular impairment in chronic obstructive pulmonary disease (COPD) patients. Moreover, according to the findings of Fang et al., Angiopoietin-2/Angiopoietin-1 and ratios could have a predictive value for early sepsis in an emergency department [31].In the study of Lázaro et al., the Ang2/Ang1 ratio was shown to be a predictor of severity among critically ill patients [33]. According to our research, the Ang-2/Ang-1 ratio is a potent severity indicator considerably higher in the critical group of COVID-19 patients, consistent with the findings of Abou-Arab et al. research.

Monitoring the ratio of Ang-2 to Ang-1 in COVID-19 patients could aid in identifying those at a higher risk for critical outcomes and engaging treatment decisions. Modifications in the levels of Ang-1 and Ang-2 and Ang2/Ang1 ratio may indicate treatment efficacy and serve as plausible therapeutic objectives for multi-targeted therapies.

Our study agrees with the results of Seol et al. for sepsis [34]. The levels of Ang-1 and Ang-2 concentrations exhibit a correlation with disease severity and survival, as indicated by their predictive values. The potential ability of Ang-1 and Ang-2 concentrations to differentiate is clinically important and should be further explored prior to implementation in routine practice.

The limitations of our study include the fact that (1) the patient selection process was conducted randomly without considering specific variables that may have influenced the indices, such as diabetes mellitus and chronic obstructive pulmonary disease, etc. (2) Additionally, cases pertaining to the α wave were not incorporated into the study. (3) As an agonist or antagonist of the Tie-2 receptor, Ang-2 has also been shown to be context-dependent, and its role may depend on other growth factors, such as VEGF-A. We did not measure VEGF-A and Tie-2 receptors in our cohort, so we are unable to corroborate their role in relation to Angiopoietins. (4) Smoke status has not been reported (5) Finally, the small cohort size conducted in a singular center prevents us from extracting broad conclusions from our data. In addition, lacking information included anthropometric data for patients. To confirm and extend these findings, we propose that the Ang-2/Ang-1 ratio be validated as a prognostic factor in a larger cohort of patients. Future research should investigate the relationship between Ang-2/Ang-1 and other endothelial permeability markers to improve severity and stratification prediction.

5. Conclusion

We have identified circulating vascular markers that can be used to monitor disease severity in COVID-19 patients in delta and omicron waves. Monitoring the Ang-2/Ang-1 ratio could aid in identifying COVID-19 patients at higher risk for critical outcomes. Moreover, these markers will assist clinicians in tailoring treatment strategies for improved outcomes. All hospitalized COVID-19 patients exhibited an increase in angiogenesis markers, which might suggest the presence of hypoxemia and inflammation. Endothelial cell integrity provides an antithrombotic environment, and the findings of pulmonary angiopathy in patients with severe COVID-19 highlight the involvement of endotheliopathy in pulmonary perfusion defects, coagulopathy, and thrombosis.

As vaccine-resistant variants are likely to emerge in the future, studies must use biomarkers that correlate with severity. In addition, the findings of our investigation support the hypothesis that COVID-19 induces microvascular dysfunction by activating the endothelium. Moreover, not only in COVID-19 but in various other diseases such as hypertension, cardiovascular disease, diabetes, obesity, and endothelial dysfunction, it is a crucial factor. This dysfunction has a substantial role in disease progression, especially in vascular issues and thrombosis. Therefore, a better understanding of the role of the endothelium can provide new possibilities for exploration and innovative treatments for the management of thromboembolism.

Author Contributions

Conceptualization, P.T.; Investigation, P.T.; K.K.; T.V.; A.L.; E.P.; M.P.; LL.S. Resources, P.T.; Writing—original draft preparation, P.T.; Writing—review and editing, L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was not funded.

Institutional Review Board Statement

The study was approved by the AHEPA Hospital Research Ethics Committee (129/19-03-2020), and the bioethics approval committee of Aristotle University. All procedures carried out on patients complied with the Helsinki Declaration. Informed written consent was obtained from all patients prior to any study procedure.

Informed Consent Statement

Informed consent was obtained from all involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to intellectual property concerns.

Acknowledgments

The authors thank the stuff of laboratory Hematology, Microbiology Department.

Conflicts of Interest

The authors declare no conflict of interest.

References

F. Wu: S. Zhao, B. Yu, Y.M. Chen, W. Wang, Z.G. Song, “A new coronavirus associated with human respiratory disease in China.”, Nature 2020 Mar 12 [cited 2023 Nov 1];579(7798):265. [CrossRef]
T. Mokhtari, F. Hassani, N. Ghaffari, B. Ebrahimi, A. Yarahmadi, and G. Hassanzadeh, “COVID-19 and multiorgan failure: A narrative review on potential mechanisms,” Journal of Molecular Histology 2020 51:6, vol. 51, no. 6, pp. 613–628, Oct. 2020. [CrossRef]
S. wen Xu, I. Ilyas, and J. ping Weng, “Endothelial dysfunction in COVID-19: an overview of evidence, biomarkers, mechanisms and potential therapies,” Acta Pharmacologica Sinica 2022 44:4, vol. 44, no. 4, pp. 695–709, Oct. 2022. [CrossRef]
B. Mohan and N. Vinod, “COVID-19: An Insight into SARS-CoV-2 Pandemic Originated at Wuhan City in Hubei Province of China,” Journal of Infectious Diseases and Epidemiology, vol. 6, no. 4, Jul. 2020. [CrossRef]
H. Akkız, “The Biological Functions and Clinical Significance of SARS-CoV-2 Variants of Corcern.,” Front Med (Lausanne), vol. 9, p. 849217, May 2022. [CrossRef]
Vitiello, F. Ferrara, A. M. Auti, M. Di Domenico, and M. Boccellino, “Advances in the Omicron variant development,” J Intern Med, vol. 292, no. 1, pp. 81–90, Jul. 2022. [CrossRef]
M. Antonelli, J. C. Pujol, T. D. Spector, S. Ourselin, and C. J. Steves, “Risk of long COVID associated with delta versus omicron variants of SARS-CoV-2,” The Lancet, vol. 399, no. 10343, pp. 2263–2264, Jun. 2022. [CrossRef]
S. Liossi, E. Tsiambas, S. Maipas, E. Papageorgiou, A. Lazaris, and N. Kavantzas, “Mathematical modeling for Delta and Omicron variant of SARS-CoV-2 transmission dynamics in Greece,” Infect Dis Model, vol. 8, no. 3, pp. 794–805, Sep. 2023. [CrossRef]
Six et al., “The Endothelium and COVID-19: An Increasingly Clear Link Brief Title: Endotheliopathy in COVID-19,” Int J Mol Sci, vol. 23, no. 11, Jun. 2022. [CrossRef]
J. W. Yau, H. J. W. Yau, H. Teoh, and S. Verma, “Endothelial cell control of thrombosis,” BMC Cardiovasc Disord, vol. 15, no. 1, Oct. 2015. [CrossRef]
G. Krishna Kolluru, S. C. Bir, C. G. Kevil, and J. W. Calvert, “Endothelial Dysfunction and Diabetes: Effects on Angiogenesis, Vascular Remodeling, and Wound Healing,” Int J Vasc Med, vol. 2012, p. 30, 2012. [CrossRef]
G. Thurston and C. Daly, “The Complex Role of Angiopoietin-2 in the Angiopoietin–Tie Signaling Pathway,” Cold Spring Harb Perspect Med, vol. 2, no. 9, 2012. [CrossRef]
“Angiopoietins: Possible biomarkers in severe pneumonia? | European Respiratory Society.”Accessed: Oct. 01, 2023. [Online]. Available online: https://erj.ersjournals.com/content/40/Suppl_56/P830.
R. G. Akwii, S. Sajib, F. T. Zahra, and C. M. Mikelis, “Role of Angiopoietin-2 in Vascular Physiology and Pathophysiology,” Cells, vol. 8, no. 5, May 2019. 20 May. [CrossRef]
Volleman et al., “Endothelial Permeability and the Angiopoietin/Tie2 System Following Mild and Severe COVID-19,” Artery Res, vol. 29, no. 3, pp. 83–93, Sep. 2023. [CrossRef]
Y. Fang, C. Li, R. Shao, H. Yu, Q. Zhang, and L. Zhao, “Prognostic significance of the angiopoietin-2/angiopoietin-1 and angiopoietin-1/Tie-2 ratios for early sepsis in an emergency department,” Crit Care, vol. 19, no. 1, pp. 1–11, Oct. 2015. [CrossRef]
Hanff TC, Mohareb AM, Giri J, Cohen JB, Chirinos JA. “Thrombosis in COVID-19”, Am J Hematol 2020 Dec 1;95(12):1578–89. [CrossRef]
R. Flaumenhaft, K. Enjyoji, and A. A. Schmaier, “Review Series Vasculopathy in COVID-19”. [CrossRef]
P. P. Lázaro et al., “Predictors of mortality in critically ill patients with COVID-19 and diabetes,” Brazilian Journal of Medical and Biological Research, vol. 56, p. e12728, Aug. 2023. [CrossRef]
C. F. M. J. Baaten, S. Vondenhoff, and H. Noels, “Endothelial Cell Dysfunction and Increased Cardiovascular Risk in Patients With Chronic Kidney Disease,” Circ Res, vol. 132, no. 8, p. 970, Apr. 2023. [CrossRef]
Figuer et al., “New mechanisms involved in the development of cardiovascular disease in chronic kidney disease,” Nefrología (English Edition), vol. 43, no. 1, pp. 63–80, Jan. 2023. [CrossRef]
Abou-Arab et al., “Association between inflammation, angiopoietins, and disease severity in critically ill COVID-19 patients: a prospective study,” Br J Anaesth, vol. 126, no. 3, pp. e127–e130, Mar. 2021. [CrossRef]
G. Vassiliou, C. S. Vrettou, C. Keskinidou, I. Dimopoulou, A. Kotanidou, and S. E. Orfanos, “Endotheliopathy in Acute COVID-19 and Long COVID,” International Journal of Molecular Sciences 2023, Vol. 24, Page 8237, vol. 24, no. 9, p. 8237, May 2023. 20 May. [CrossRef]
H. Alay and E. Laloglu, “The role of angiopoietin-2 and surfactant protein-D levels in SARS-CoV-2-related lung injury: A prospective, observational, cohort study,” J Med Virol, vol. 93, no. 10, pp. 6008–6015, Oct. 2021. [CrossRef]
M. Smadja et al., “Angiopoietin-2 as a marker of endothelial activation is a good predictor factor for intensive care unit admission of COVID-19 patients,” Angiogenesis, vol. 23, no. 4, pp. 611–620, Nov. 2020. [CrossRef]
B. Pine et al., “Circulating markers of angiogenesis and endotheliopathy in COVID-19,” Pulm Circ, vol. 10, no. 4, pp. 1–4, 2020. [CrossRef]
M. Henry et al., “Circulating level of Angiopoietin-2 is associated with acute kidney injury in coronavirus disease 2019 (COVID-19),” Angiogenesis, vol. 24, no. 3, p. 403, Aug. 2021. [CrossRef]
Villa et al., “Dynamic angiopoietin-2 assessment predicts survival and chronic course in hospitalized patients with COVID-19,” Blood Adv, vol. 5, no. 3, p. 662, Feb. 2021. [CrossRef]
P. Kümpers et al., “Excess circulating angiopoietin-2 is a strong predictor of mortality in critically ill medical patients,” Crit Care, vol. 12, no. 6, p. R147, Nov. 2008. [CrossRef]
T. Ong, D. E. McClintock, R. H. Kallet, L. B. Ware, M. A. Matthay, and K. D. Liu, “The Ratio of Angiopoietin-2 to Angiopoietin-1 as a Predictor of Mortality in Acute Lung Injury Patients,” Crit Care Med, vol. 38, no. 9, p. 1845, 2010. [CrossRef]
Gouzi et al., “Plasma ratio of angiopoietin-2 to angiopoietin-1 is a biomarker of vascular impairment in chronic obstructive pulmonary disease patients”. [CrossRef]
Y. Fang, C. Li, R. Shao, H. Yu, Q. Zhang, and L. Zhao, “Prognostic significance of the angiopoietin-2/angiopoietin-1 and angiopoietin-1/Tie-2 ratios for early sepsis in an emergency department,” Crit Care, vol. 19, no. 1, pp. 1–11, Oct. 2015. [CrossRef]
P. P. Lázaro et al., “Predictors of mortality in critically ill patients with COVID-19 and diabetes,” Brazilian Journal of Medical and Biological Research, vol. 56, p. e12728, Aug. 2023. [CrossRef]
H. Seol et al., “The ratio of plasma angiopoietin-2 to angiopoietin-1 as a prognostic biomarker in patients with sepsis,” Cytokine, vol. 129, p. 155029, May 2020. [CrossRef]

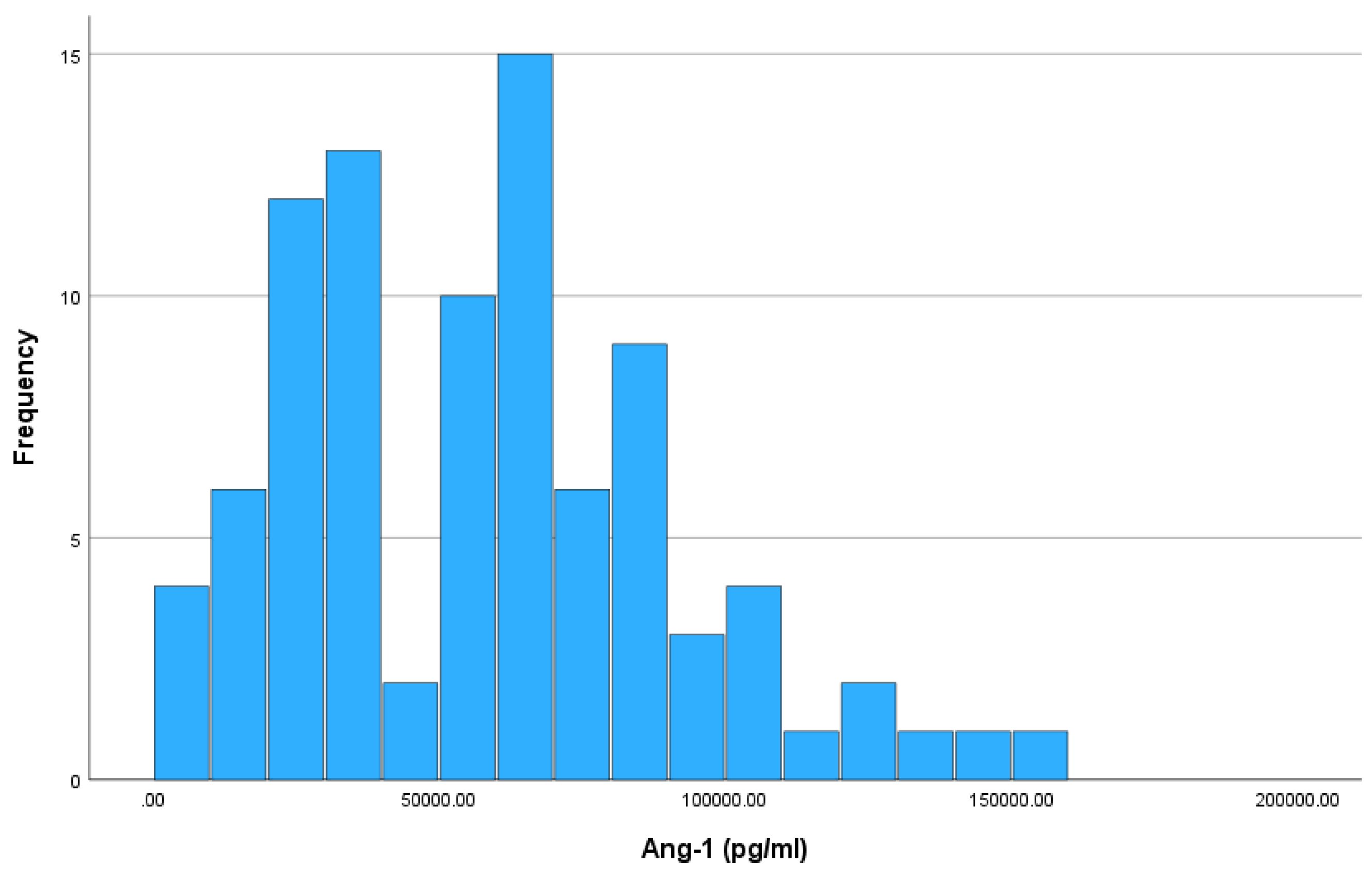

Figure 1. Histogram of absolute frequencies for Ang-1 level.

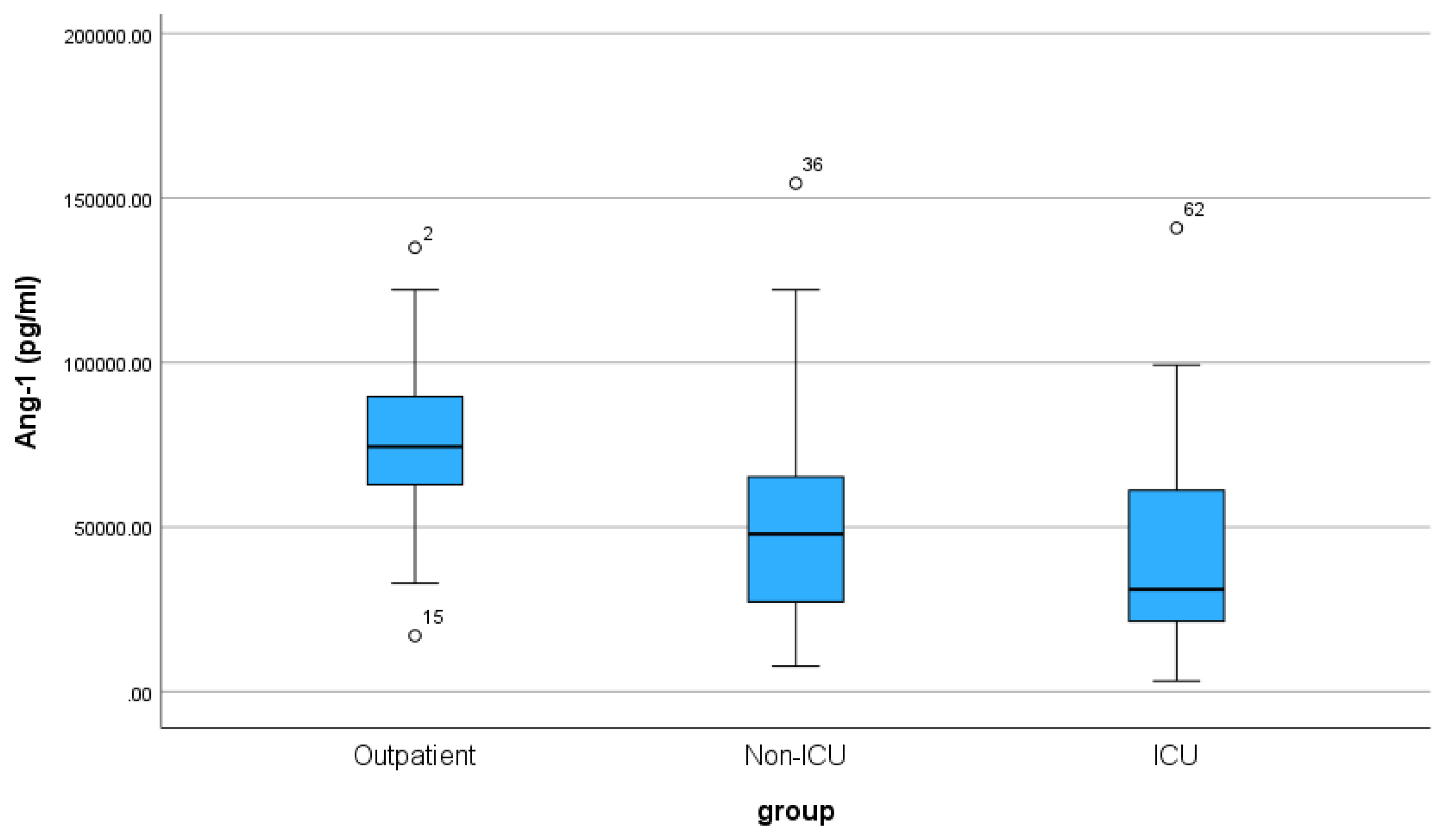

Figure 2. Box Plot of Ang-1 for the three groups of patients.

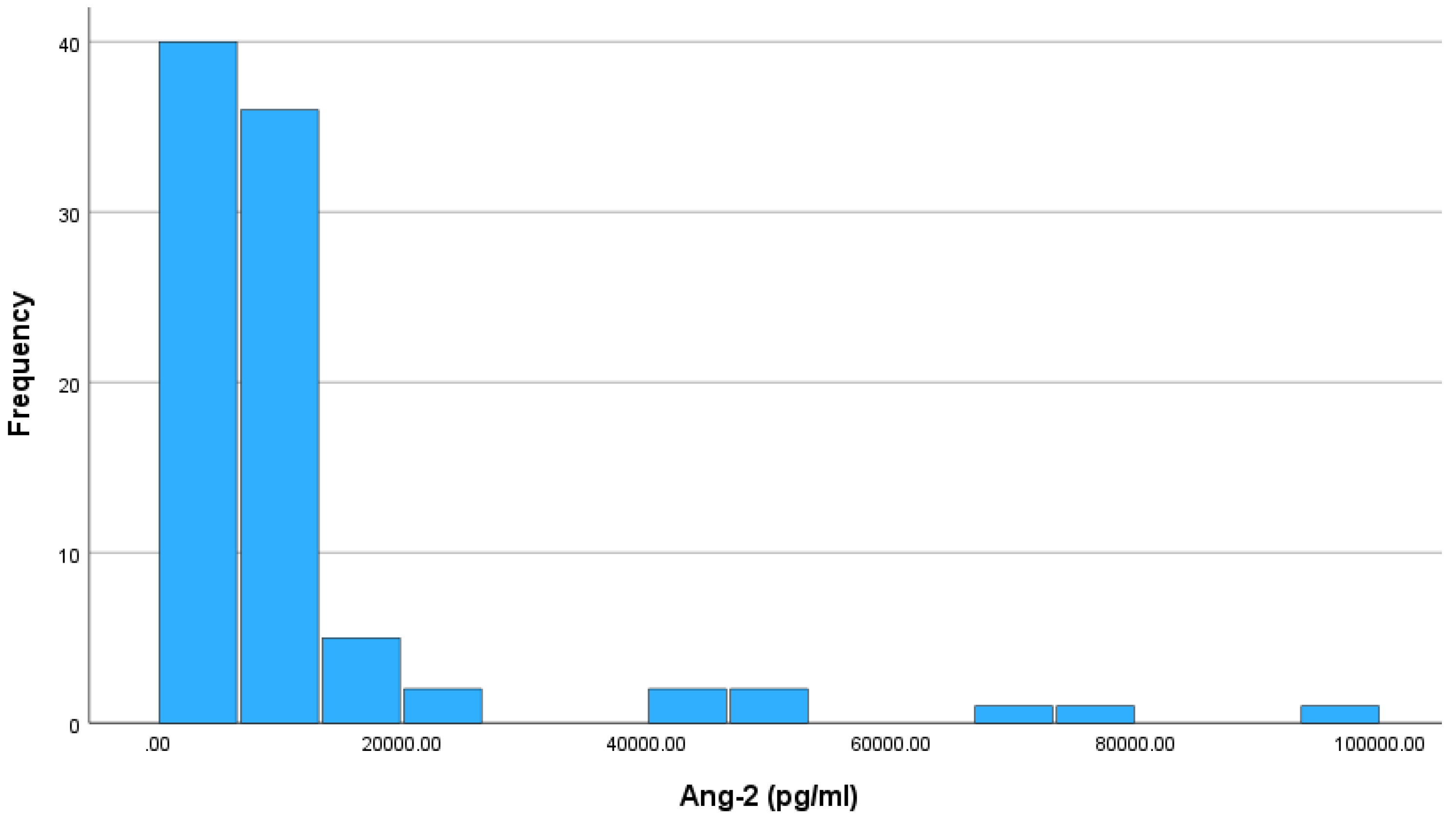

Figure 3. Histogram of absolute frequencies for Ang-2.

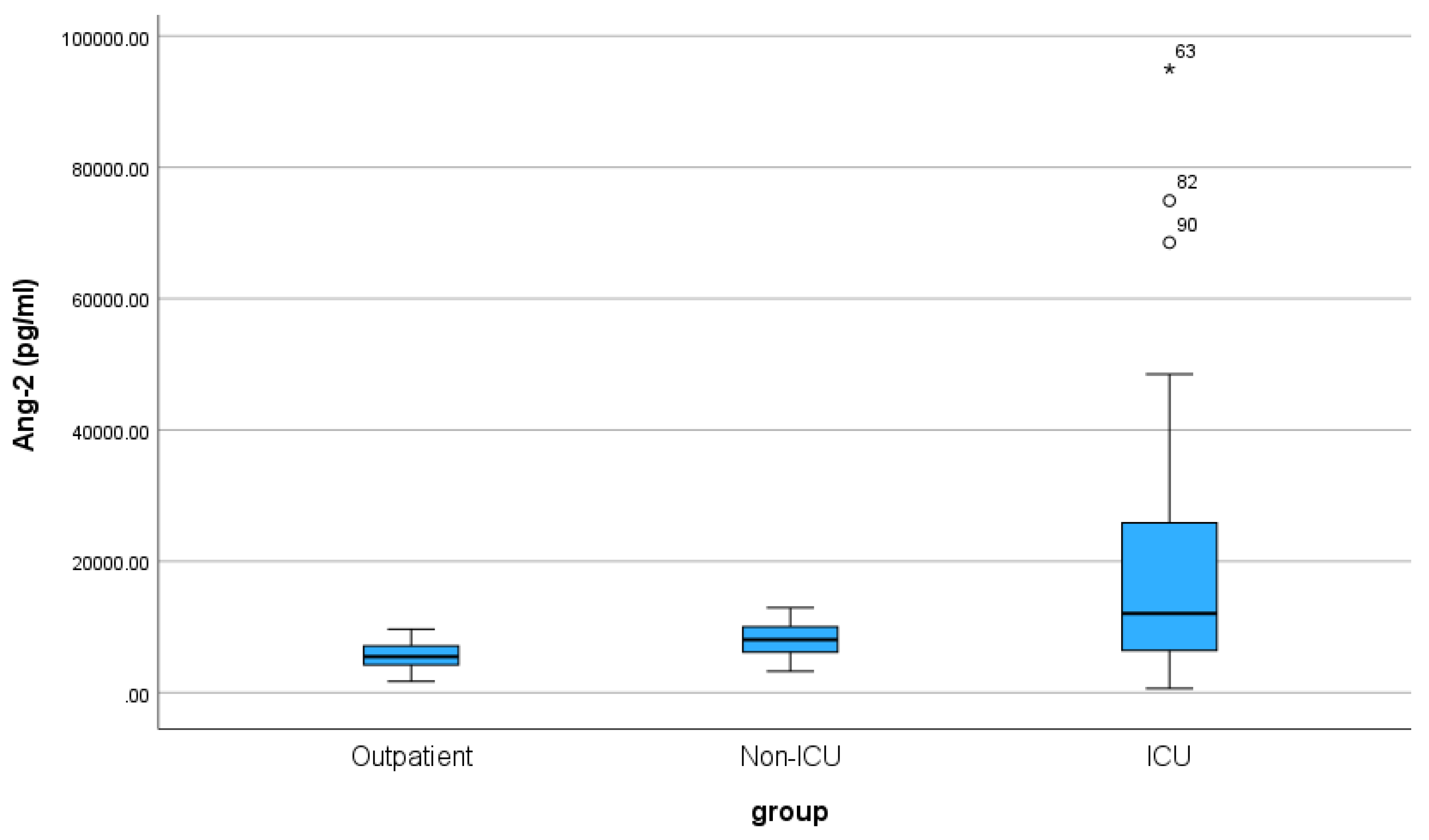

Figure 4. Box Plot of Angiopoietin-2 for the three groups of patients.

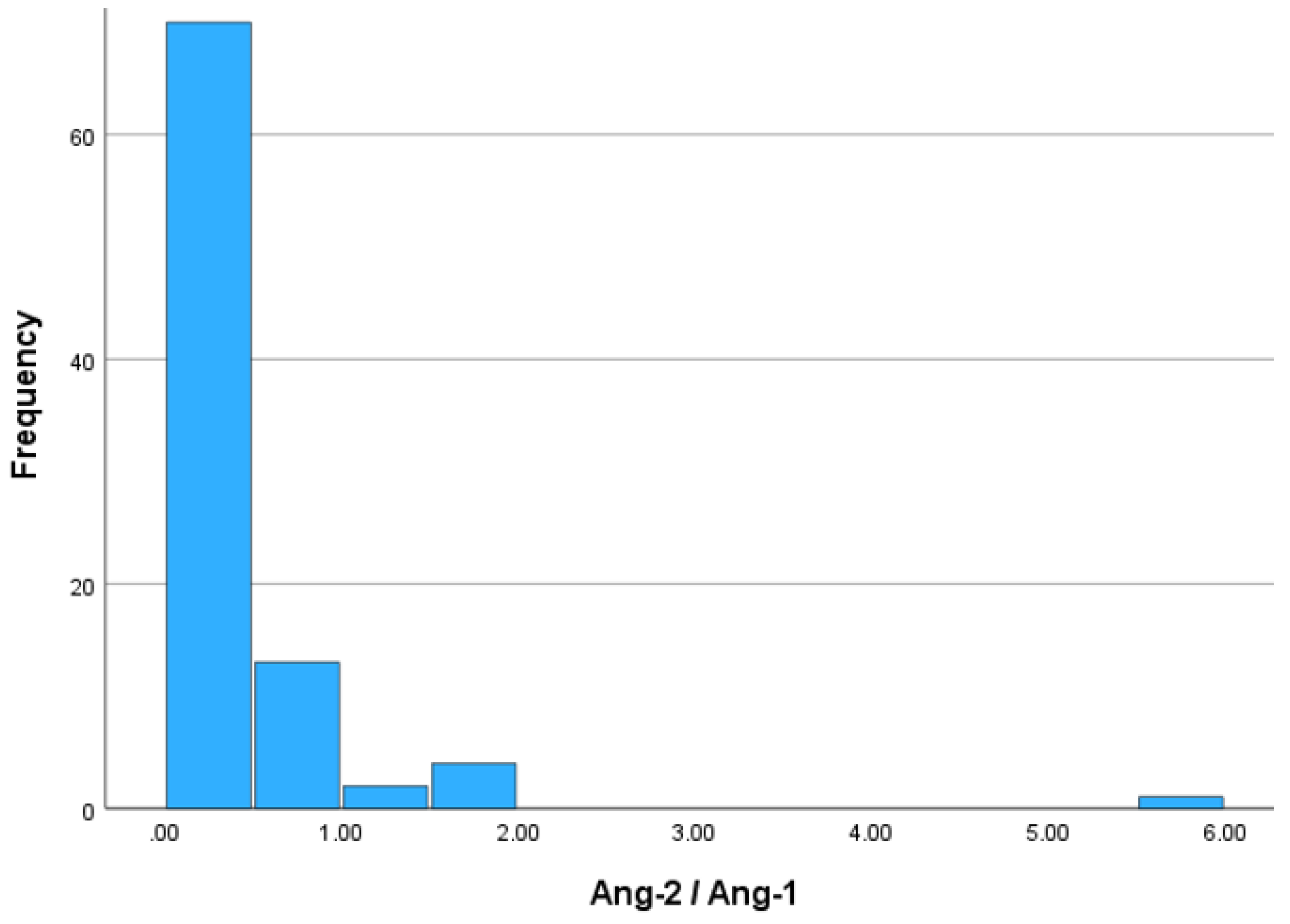

Figure 5. Histogram of absolute frequencies for Ang-2 / Ang-1 ratio.

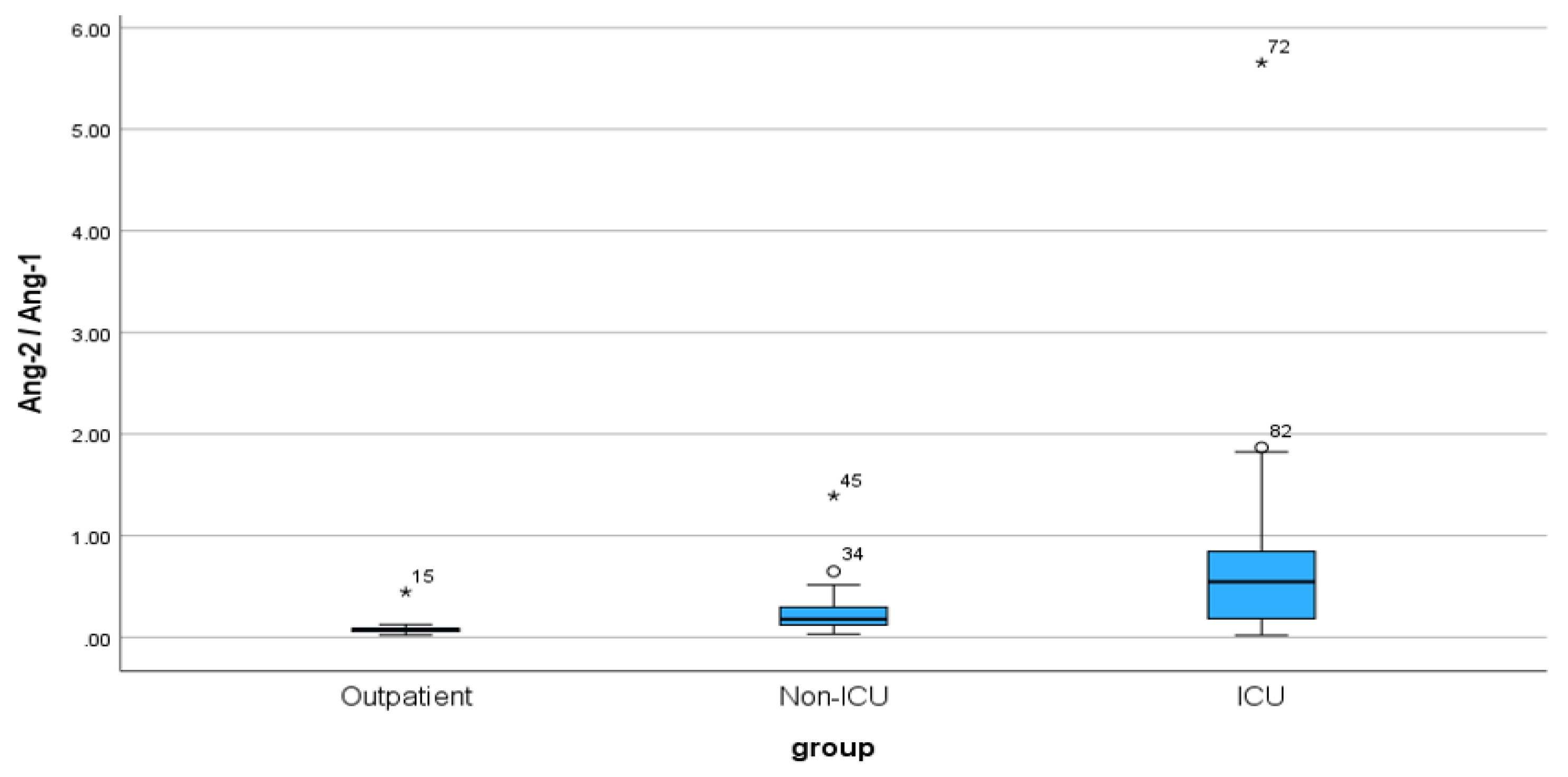

Figure 6. Box Plot of Ang-2/ Ang-1 for the three groups of patients.

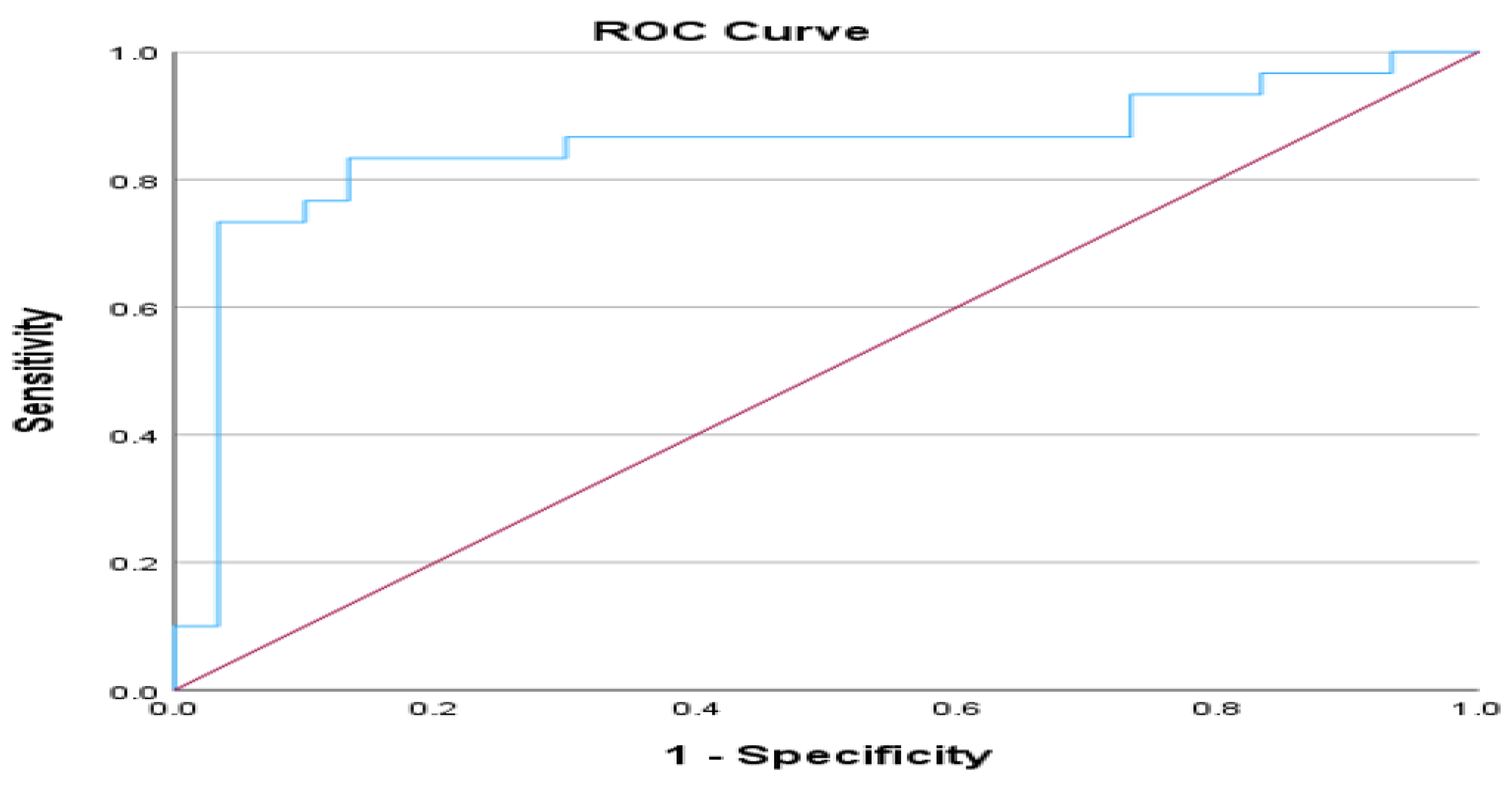

Figure 7. ROC analysis depicting the Ang-2/Ang-1 ratio for outpatient and non-ICU patients.

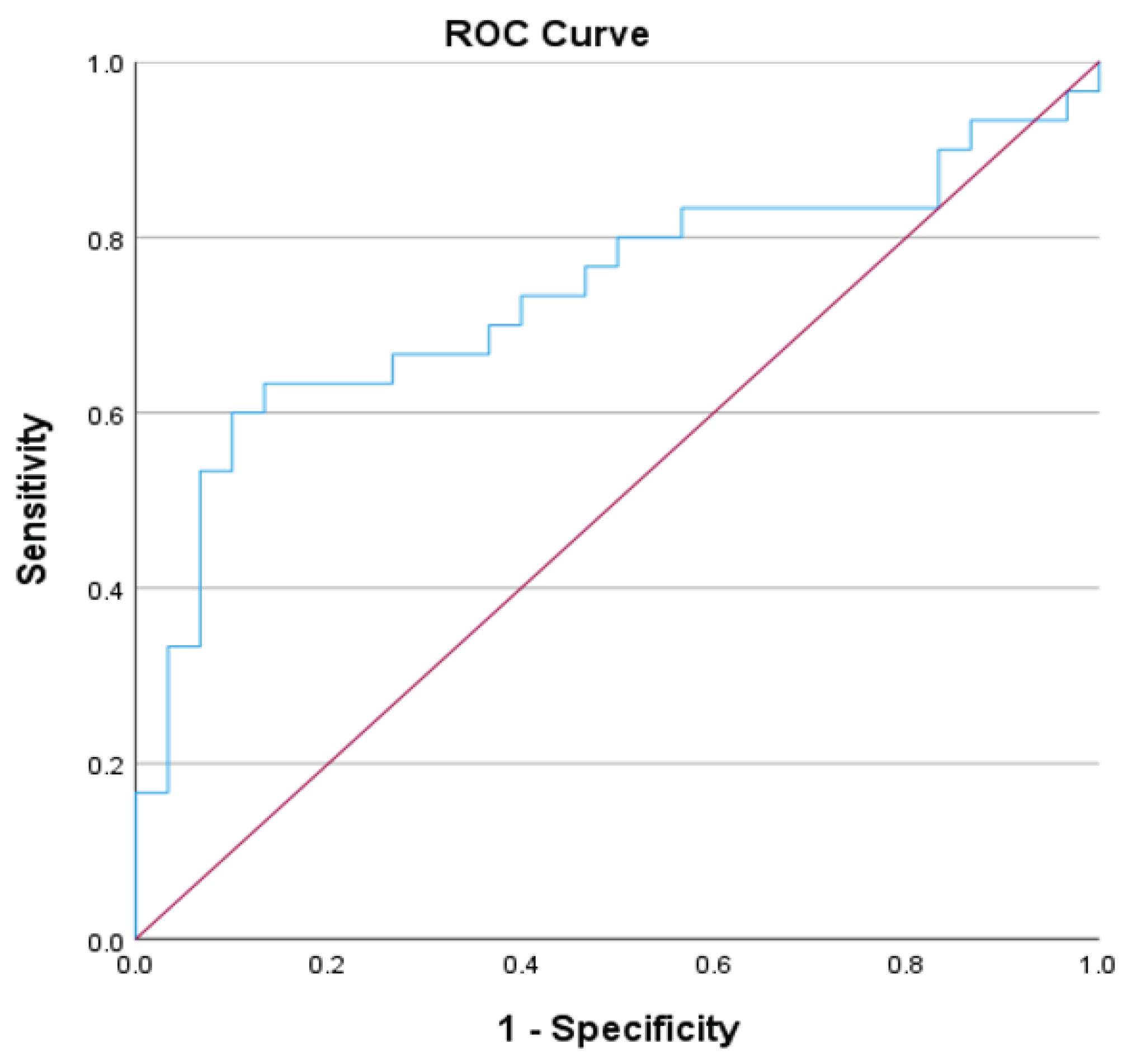

Figure 8. ROC analysis of Ang-2/Ang-1 ratio of non-ICU – ICU patients.

Table 1. Median and IQR values in pg/ml for Ang-1 for the three groups of patients.

Groups	Median	IQR
outpatient	74450	28812.5
non-ICU	47890	40177.5
ICU	31070	41852.5

Table 2. Median and IQR values in pg/ml for Ang-2 for the three groups of patients.

Groups	Median	IQR
outpatient	5475	2917.25
non-ICU	8057.5	4006.25
ICU	12038.5	23990

Table 3. Median and IQR values for Ang-2/Ang-1 ratio for the three groups of patients.

Groups	Median	IQR
outpatient	0.0767	0.03
non-ICU	0.1790	0.18
ICU	0.5455	0.68
