Reactive Molecular Dynamics Simulations of Polystyrene Pyrolysis

Altmetrics

Downloads

157

Views

34

Comments

0

A peer-reviewed article of this preprint also exists.

supplementary.docx (12.56MB )

Submitted:

10 October 2023

Posted:

11 October 2023

You are already at the latest version

Alerts
Abstract
Polymers' controlled pyrolysis is an economical and environmentally friendly solution to prepare activated carbon. However, due to the experimental difficulty in measuring the dependence between tissues and pyrolysis parameters at high temperatures, the unknown pyrolysis mechanism hinders access to the target products with desirable morphologies and performances. In this study, we investigate the pyrolysis process of polystyrene under different heating rates and temperatures employing reactive molecular dynamics (ReaxFF-MD) simulations. A clear profile of the generation of pyrolysis products determined by the temperature and heating rate is constructed. It is found that the heating rate affects the type and amount of pyrolysis intermediates and their timing, and low-rate heating helps yield more diverse pyrolysis intermediates. While the temperature affects the pyrolytic tissues of the final equilibrium products, either too low or too high a target temperature is detrimental to generating large areas of graphitized tissue. The established theoretical evolution process matches experiments well, thus contributing to preparing target activated carbons by referring to the regulatory mechanism of pyrolytic tissues.
Keywords:
Subject: Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

Activated carbon is an essential industrial product with a wide range of energy, environment, biology, and medicine applications. The most commonly used raw materials for preparing activated carbon are coconut shells [1], fruit shells, anthracite, bitumen, petroleum coke, etc [2-8]. However, even with rigorous modification methods, the preparation of activated carbon from these raw materials still faces the problem of high impurity content, poor performance retention, and uncontrollable pore size. Recently, there has been an increasing number of experimental reports on the fine control of the pore structure of activated carbon using polymers and copolymers, such as polypropylene (PP), polyethylene (PE), polystyrene (PS), polyacrylonitrile (PAN), and styrene-divinylbenzene (S-DVB), as pyrolysis precursors [9, 10]. The resulting activated carbon has high purity, regular geometric morphology, and adjustable compositional content [11-15]. Nevertheless, preparing activated carbon from pyrolytic polymer precursors is plagued by unclear mechanisms and difficulties regulating pyrolysis tissues and products.
Polymers are rich in carbon, so converting polymers into high-value-added functional carbon materials is low-cost. PS is a typical polymeric material that is widely available, inexpensive, and structurally controllable, and the pyrolysis of PS precursor into functional carbon materials is considered an attractive option for the treatment of PS solids [1, 16-18]. In attempts to prepare activated carbon by pyrolysis of PS, it has been found that the heating rate and the target temperature are critical elements in determining the intermediate and final products [13, 1, 19-21]. Since microstructures of carbon materials play a vital role in the properties and characterization, the controlled pyrolysis of polymers has been studied by Tang et al. [14]. There are only a few reports on preparing carbonaceous materials using PS as a pyrolysis precursor [1, 13]. Experimentally, although PS thermal decomposition yields relatively simple products compared to other commodity polymers such as PE [22] and PP [23, 24], it is still unsatisfactory in controlling pyrolysis product type, morphology, and pore size [11].
Towards the controllable preparation of PS pyrolysis, this work adopts the reactive molecular dynamics (ReaxFF-MD) method to study the effects of heating rate and target temperature on the pyrolysis mechanism. The evolution of the microstructure and the generation of pyrolysis products is investigated in detail to provide a clear cognition of the pyrolysis mechanism from the atomic level. It is found that the heating rate would mainly affect the diversity of pyrolysis intermediates, while the target temperature would affect the tissue morphology of the final equilibrium products. Carbon ring analysis bridges theoretical simulations and experimental observations, making ReaxFF-MD simulations practically relevant.

2. Computational Details

2.1. Modeling of Pyrolysis Precursor

The pyrolysis precursor is modeled by a cubic amorphous polystyrene cell, which contains five 5 PS molecular chains, and the polymerization degree of a single chain is 20, as Figure 1(a) shows. According to the actual density of polystyrene (1.05g/cm3), the length of the cubic cell is set to 25.45Å. To make the initial structure reasonable, we constructed 10 cell configurations and optimized each configuration with the COMPASS II force field. Then, the configuration with the lowest energy was selected as the precursor model, as depicted in Figure 1(b). Subsequently, an energy minimization of the model was performed before the ReaxFF-MD simulations. In this process, the Forctice force field is utilized for the geometric optimization and annealing simulations. Specifically, 10 cycles of annealing simulations were carried out with the NVT ensemble in the temperature range 200K~500K. Thus, the precursor model was further optimized, as Figure 1(c) shows.

2.2. ReaxFF-MD Details for Polystyrene Pyrolysis

This work employs NVT integration and high-temperature techniques in ReaxFF-MD pyrolysis simulations on PS with different heating rates and target temperatures. Generally speaking, the time scale in experiments is in minutes, while a significant number of reactions in molecular simulations can occur within nanoseconds timescale. Therefore, to accelerate the reaction progress in ReaxFF-MD simulations, higher temperatures are often used to facilitate atomic motion and molecular collisions [25, 26], facilitating the observation of reactions [27]. Despite the differences in time and temperature between MD simulations and experiments, numerous studies have shown that increasing the temperature in ReaxFF-MD yields reasonable and consistent results compared to experimental outcomes, and the method has been applied to investigate combustion, pyrolysis, and explosion in larger systems at high temperatures [27-31].
ReaxFF MD simulations were carried out with the Large-scale Atomic Molecular Massively Parallel Simulator (LAMMPS) package. In all NVT-ReaxFF-MD simulations, periodic boundary conditions are applied, and the time step is set to 0.2 fs. Temperature control is achieved by the Nose-Hoover thermostat method. Structural energy minimization is performed before the ReaxFF-MD simulations, eliminating any potential strong van der Waals interactions that could lead to local structure distortions and unstable simulations. The minimization (or optimization) procedure is an iterative process in which atomic coordinates and possible cell parameters are adjusted to minimize the energy of the structure. Snapshots of the simulation results are generated by Visual Molecular Dynamics (VMD) [32] and OVITO [33] software at different time points during the process. The pore size distribution is analyzed by the Zeo++ [34] tool. The pyrolysis simulation employs the ReaxFF force field (CHON-2019). This force field was developed to characterize the dissociation and formation of carbon bonds, showing a good agreement with experimental results [35] and thus can provide a sound foundation for PS pyrolysis.

3. Results and Discussions

Preparing pyrolyzed carbon materials with well-defined microstructures requires a detailed understanding of the relationship of the pyrolysis mechanism with the heating rate and the target temperature. As widely recognized, the pyrolysis process consists of two main stages: the cleavage of polymers into small organic molecules and the carbonization of degradation products [36, 37], and we discuss both aspects below.

3.1. Effects of Heating Rate on the Pyrolysis Products

Firstly, the temperature of the PS precursor was raised to 3000K with different heating rates (5K/ps, 10K/ps, 50K/ps, 100K/ps, and 200K/ps), and we examined the effect of different heating rates on pyrolysis intermediates. We found that the PS pyrolysis occurs after 2000K, so Figure 2(a) shows the trends in the number and types of pyrolysis species during the heating process above 2000K. According to the changes in pyrolysis intermediates, the heating process can be divided into low-rate (5K/ps, 10K/ps) and high-rate heating (50K/ps, 100K/ps, 200K/ps). Overall, the number and type of pyrolysis intermediates at the low-rate heating are more significant than those at the high-rate heating. A peak occurs in the number and type during the low-rate heating, which involves the further cross-linking transformation of intermediate products obtained from the early pyrolysis of PS into larger carbon-hydrogen macromolecules. However, the number and type of pyrolysis intermediates show a negative correlation with the heating rate during the high-rate heating, which indicates that a higher heating rate suppresses the thermal decomposition of the precursor.
Then, 6ns isothermal simulations at 3000K were performed for both low- and high-rate heating systems. As Figure 2(b) shows, in this stage, the total number of pyrolysis intermediates increases while types decrease for every heating rate, which suggests that diverse molecules during the heating process undergo secondary cross-linking reactions that eventually converge to produce the same final pyrolysis equilibrium products. Therefore, the heating rate will not affect the equilibrium carbon products at 3000K after the isothermal process.
A more detailed pyrolysis products and tissue analysis further prove the above discussion. As shown in Figure 3, hydrocarbon intermediates increase for high-rate heating, while the number and type of hydrocarbon intermediates peak and gradually decrease for low-rate heating. As a result, the heating rate affects the type and quantity of pyrolysis intermediates and their appearance time. In experiments, Onwudili et al. [21] reported the pyrolysis of PS in an intermittent autoclave, where PS was degraded at around 350°C, mainly into viscous, dark-colored oil. Carbon formation increased slightly until 425°C. However, carbon formation increased significantly at 450~500°C. In the absence of a catalyst, PS undergoes pyrolysis at temperatures above 500 degrees Celsius, resulting in the production of styrene and styrene-like compounds, as well as the Formation of coke [19, 21]. Westerhout et al. concluded that even small temperature changes could lead to large changes in reaction rates during PS pyrolysis [38]. Thus, the experiments are highly consistent with our simulations.

3.2. Effects of Target Temperature on the Pyrolysis Products

To test the effects of target temperatures on the equilibrium pyrolysis products, we first heated the system to 2500K, 2750K, 3000K, 3250K, 3500K, and 3750K. As described in the previous section, the heating rate hardly affects the equilibrium pyrolysis products, so the 50K/ps heating rate was implied for every simulated system. Subsequently, a 6ns isothermal simulation was followed at the respective target temperature and all simulated systems reached equilibrium, as proved in Figure S2 in SI.
The evolution of pyrolysis tissues and products at the isothermal simulation process is shown in Figure 4. According to the changes in microscopic morphology and pyrolysis products, these simulated systems can be classified into low-temperature system (LTs, 2500K), proper-temperature system (PTs, 2750K, 3000K, 3250K), high-temperature system (HTs, 3500K), and ultra-high-temperature system (UHTs, 3750K).
Comparing the four sets of simulations, we found that the time required for pyrolysis to reach equilibrium is proportional to the target temperature, i.e., the higher the target temperature, the shorter the time for pyrolysis to reach equilibrium. However, the process of pyrolytic evolution and the final equilibrium products are quite different. In the LTs, the equilibrium pyrolysis products are predominantly organized in cross-linked networks with discrete layers of graphite flakes of small molecules. In the PTs, the pyrolysis products show large graphite lamellar tissues and further evolve to randomly folded carbon networks when the pyrolysis equilibrium is reached. In the HTs, large graphite lamellar tissues appear more significantly during the isothermal simulation and evolve into a regular and hierarchical graphitized carbon network at the end of the simulation. However, if the temperature is extremely high, no graphitized tissues are formed, and cracked small molecules are haphazardly dispersed throughout the system at the end of the simulation, as Figure 4 shows. Thus, excessively low and high target temperatures are not conducive to generating large graphitized tissues.

3.3. Tissue Characterization and Carbon Ring Analysis of Pyrolysis Products

In the previous two sections, we discussed the effects of heating rate and target temperature on the pyrolysis intermediates and final products. However, we need a quantitative characterization that can connect with the experiments to discover the microstructure's evolution during the pyrolysis process, which is crucial for fine-tuning the pyrolysis products in experiments. The previous study showed that the type and quantity of carbon rings in pyrolysis tissues can be fitted by the component peaks in X-ray photoelectron spectroscopy (XPS) [39]. Therefore, in the following, carbon ring analysis is employed to elaborate on the pyrolysis mechanism.

3.3.1. Carbon Ring Evolution with Different Heating Rates

As described in section 3.1, the temperature was raised to 3000K at 5K/ps, 10K/ps, 50K/ps, 100K/ps, and 200K/ps heating rates, respectively. The changes in the various types of carbon rings during the heating process at different heating rates are shown in Figure 5. There are three main types of carbocycles generated during pyrolysis, i.e., 5-, 6-, and 7-membered rings, which we denote by 5r, 6r, and 7r, respectively. Since there are only 6r in the PS pyrolysis precursor, the change in its number represents the pyrolysis process, while the presence of 5r and 7r represents the generation of new pyrolysis products.
Figure 5 shows that higher heating rates can inhibit the early cleavage of the 6r and the production of 5r and 7r. Consistent with the previous analysis, this suggests that the low-rate heating (5K/ps, 10K/ps) contributes to the sufficient cleavage of the precursor, resulting in the production of type-rich pyrolysis intermediates, as 5r and 7r are significantly observed. In sharp contrast, 6r changes extremely slowly in the high-rate heating plots, with a very small number of pyrolysis intermediates, and no new product formation is even observed at a heating rate of 200 K/ps. The analysis of carbon rings further proves that low-rate heating helps yield more diverse pyrolysis intermediates.
The changes in carbon rings during the next thermostatic simulation at 3000K are shown in Figure 6. As can be seen, there is a clear inflection point in 6r plots. At the early stage of the thermostatic simulation, the cracking of the precursor continues and 6r keeps decreasing. During this period, the magnitude of the decrease in the 6r plots is proportional to the rate of heating, i.e., the higher the heating rate, the greater the magnitude of the decrease in the 6r plots, indicating insufficient cleavage at the heating stage is compensated in the thermostatic stage.
Subsequently, accompanying the completion of the precursor pyrolysis and the secondary cross-linking reaction, graphite-type tissues are generated in large quantities, as evidenced by the fact that the amount of 6r starts to rise rapidly and becomes the main structure in the final product, outnumbering both 5r and 7r. Since the heating rate hardly affects the equilibrium product, the same equilibrium tissue is obtained at 3000 K for the five heating rates.

3.3.2. Carbon Ring Evolution at Different Target Temperatures

The evolutions of carbon rings in six thermostats with different target temperatures, as defined in section 3.2, were plotted in Figure 7. We can see that the 6r curves for the other five systems, except for the UHTs (3750K), show inflection points in the early stage of the isothermal simulations, indicating that further cleavage of the tissues from the heating process is still required at the beginning of the isothermal. It was found that the higher the target temperature, the faster the further cleavage of the precursor, which is due to the fact that the 6r decline curve becomes steeper with increasing temperature during the initial period of isothermal, as shown in the individual subplots. However, due to the excessively high temperature in UHTs, the precursor is completely cleaved and no inflection point is observed in the system.
After the inflection points, the secondary cross-linking reaction happens, accompanied by a rapid increase in the number of 6r in LTs (2500K), PTs (2750K, 3000K, 3250K), and HTs (3500K) and a stable evolution of 5r and 7r. The number of 6r in PTs and HTs is obviously larger than that in LTs. Since graphite has a typical 6-membered ring structure, this change of 6r in the system after the inflection point means that the tissues undergo a graphitizing process, which is sufficient in the PTs and HTs. Regarding the main tissue morphology and the number of carbon rings, the final equilibrium products in the PTs and HTs are similar, consisting of large graphitized lamellae. However, as will be discussed in the next chapter, the pore size distributions of these tissues are quite different. In the UHTs, the number of 6r is almost the same as 5r and 7r, indicating that there is a large amount of discrete fragmented organization in the system and no large-scale graphite lamellar structure is generated. Therefore, the evolution of the carbon ring under different conditions can be used as a descriptor and measured value by experiments in the controlled pyrolysis process of polystyrene.

3.3.3. Pore Size Analysis

We analyze the pore sizes and their distribution in the respective pyrolysis products to further differentiate the difference in equilibrium tissues at different target temperatures. The pore size distribution in the equilibrium product at each target temperature is shown in Table 1. The detailed evolution of pore distribution can be found in Figure S7 in SI.
According to the previous discussion, we know that the LTs and UHTs contain a large number of discretized fragmented molecules, so the conductivity will not be good. We focus on the better-graphitized PTs and HTS systems. Inside the tissues of these systems, 5~11Å pore size dominates, about 75%. In particular, the 11 Å apertures increase while 5~9 Å apertures decrease with temperature in the PTs. This phenomenon helps to discern tissue nuances in the PTs.

4. Conclusions

Understanding the heat mechanism is essential to realize controlled pyrolysis of polystyrene. In this paper, we systematically investigated the effect of heating rate and target temperature on the pyrolysis tissues of polystyrene using ReaxFF-MD simulations. The study found that the heating rate would mainly affect the diversity of pyrolysis intermediates, while the target temperature would affect the tissue morphology of the final equilibrium products. From a computational point of view, a temperature increase to 3000~3500 K at a rate of 5~10 K/ps followed by constant temperature pyrolysis yields abundant pyrolysis intermediates as well as an extensive graphitized lamellar tissue. However, constrained by the computational methodology and model size, this by no means implies that the experiments should strictly follow these numbers. Importantly, we have revealed through theoretical simulations the processes that inevitably occur in experiments and are challenging to track in real time. In this way, by comparing the experimental observations with the theoretical simulations, we can know the pyrolysis stage and decide the direction of the next step, thus achieving controlled pyrolysis. In the future, we hope to apply this method to prepare amorphous pyrolyzed carbon materials with metallic and nonmetallic loadings, thus promoting the development of new energy materials.

Supplementary Materials

The following supporting information can be downloaded at the website of this paper posted on Preprints.org.

Author Contributions

ReaxFF-MD simulations, C.L.; writing-original draft preparation, C.L.; writing—editing, Z.Y.; software guidance, X.W. and S.S.; supervision, X.M.; interpretation of data, X.M.; writing—review and editing, X.M. and G.Q.; analysis, X.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Liaoning Applied Basic Research Program Project, China (2023JH2/101300146), the Natural Science Foundation of China (51971059), and the '111' Project in China (B20029).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ma, C.; Min, J.; Gong, J.; Liu, X.; Mu, X.; Chen, X.; Tang, T. Transforming polystyrene waste into 3D hierarchically porous carbon for high-performance supercapacitors. Chemosphere 2020, 253, 1-9. [CrossRef]
  2. Plaza-Recobert, M.; Trautwein, G.; Pérez-Cadenas, M.; Alcañiz-Monge, J. Preparation of binderless activated carbon monoliths from cocoa bean husk. Microporous and Mesoporous Materials 2017, 243, 28-38. [CrossRef]
  3. Li, S.; Han, K.; Li, J.; Li, M.; Lu, C. Preparation and characterization of super activated carbon produced from gulfweed by KOH activation. Microporous and Mesoporous Materials 2017, 243,291-300. [CrossRef]
  4. Wang, J.; Nie, P.; Ding, B.; Dong, S.; Hao, X.; Dou, H.; Zhang, X. Biomass derived carbon for energy storage devices. J. Mater. Chem. A, 2017, 5, 2411-2428. [CrossRef]
  5. Li, J.; Michalkiewicz, B.; Min, J.; Ma, C.; Chen, X.; Gong, J.; Mijowska, E.; Tang, T. Selective preparation of biomass-derived porous carbon with controllable pore sizes toward highly efficient CO2 capture. Chemical Engineering Journal 2019, 360, 250-259. [CrossRef]
  6. Liu, X.; Ma, C.; Li, J.; Zielinska, B.; Kalenczuk, R.J.; Chen, X.; Chu, P.K.; Tang, T.; Mijowska, E. Biomass-derived robust three-dimensional porous carbon for high volumetric performance supercapacitors. Journal of Power Sources 2019, 412, 1-9. [CrossRef]
  7. Sun, F.; Gao, J.; Yang, Y.; Zhu, Y.; Wang, L.; Pi, X.; Liu, X.; Qu, Z.; Wu, S.; Qin, Y. One-step ammonia activation of Zhundong coal generating nitrogen-doped microporous carbon for gas adsorption and energy storage. Carbon 2016, 109, 747-754. [CrossRef]
  8. Chen, C.; Yan, D.; Luo, X.; Gao, W.; Huang, G.; Han, Z.; Zeng, Y.; Zhu, Z. Construction of Core–Shell NiMoO4@Ni-Co-S Nanorods as Advanced Electrodes for High-Performance Asymmetric Supercapacitors. ACS Appl. Mater. Interfaces 2018, 10, 4662–4671. [CrossRef]
  9. Kocirík, M.; Brych, J.; Hradil, J. Carbonization of bead-shaped polymers for application in adsorption and in composite membranes. Carbon 2001, 39, 1919-1928. [CrossRef]
  10. Jiang, Z.; Liu, Y.; Zeng, G.; Xu, W.; Zheng, B.; Tan, X.; Wang, S. Adsorption of hexavalent chromium by polyacrylonitrile (PAN)-based activated carbon fibers from aqueous solution. RSC Advances 2015, 5, 25389-25397. [CrossRef]
  11. de Paula, F.G.F.; de Castro, M.C.M.; Ortega, P.F.R.; Blanco, C.; Lavall, R.L.; Santamaría, R. High value activated carbons from waste polystyrene foams. Microporous and Mesoporous Materials 2018, 267, 181-184. [CrossRef]
  12. Gong, J.; Chen, X.; Tang, T. Recent progress in controlled carbonization of (waste) polymers. Progress in Polymer Science 2019, 94, 1-32. [CrossRef]
  13. Zhang, Y.; Shen, Z.; Yu, Y.; Liu, L.; Wang, G.; Chen, A. Porous carbon derived from waste polystyrene foam for supercapacitor. Journal of Materials Science volume 2018, 53, 12115–12122. [CrossRef]
  14. Tang, T.; Chen, X.; Meng, X.; Chen, H.; Ding, Y. Synthesis of Multiwalled Carbon Nanotubes by Catalytic Combustion of Polypropylene. Angewandte Chemie 2005, 117, 1541-1544. [CrossRef]
  15. Gottlieb, E.; Matyjaszewsk, K.; Kowalewski, T. Polymer-Based Synthetic Routes to Carbon-Based Metal-Free Catalysts. Advanced Materials 2019, 31, 1-16. [CrossRef]
  16. Lee, G.; In Park, S.; Yi Shin, H.; Joh, H.I.; Kim, S.S.; Lee, S. Simultaneous reactions of sulfonation and condensation for high-yield conversion of polystyrene into carbonaceous material. Journal of Industrial and Engineering Chemistry 2023, 122, 426-436. [CrossRef]
  17. Zhao, J.; Lai, H.; Lyu, Z.; Jiang, Y.; Xie, K.; Wang, X.; Wu, Q.; Yang, L.; Jin, Z.; Ma, Y.; Hu, Z. Hydrophilic Hierarchical Nitrogen-Doped Carbon Nanocages for Ultrahigh Supercapacitive Performance. Advanced Materials 2015, 27, 3541-3545. [CrossRef]
  18. Zhang, L.H.; He, B.; Li, WC; Lu, A.H. Surface Free Energy-Induced Assembly to the Synthesis of Grid-Like Multicavity Carbon Spheres with High Level In-Cavity Encapsulation for Lithium–Sulfur Cathode. Advanced Materials 2017, 22, 1-7. [CrossRef]
  19. Maafa, I. Pyrolysis of Polystyrene Waste: A Review. Polymers 2021, 13, 1-26. [CrossRef]
  20. Gonzalez-Aguilar, A.M.; Pérez-García, V.; Riesco-Ávila, J.M. A Thermo-Catalytic Pyrolysis of Polystyrene Waste Review: A Systematic, Statistical, and Bibliometric Approach. Polymers 2023, 15, 1-17. [CrossRef]
  21. Shakya, BD. Pyrolysis of waste plastics to generate useful fuel containing hydrogen using a solar thermochemical process. PhD Thesis, The University of Sydney, Sydney, 2007.
  22. Poutsma, M.L. Reexamination of the Pyrolysis of Polyethylene: Data Needs, Free-Radical Mechanistic Considerations, and Thermochemical Kinetic Simulation of Initial Product-Forming Pathways. Macromolecules 2003, 6, 8931-8957. [CrossRef]
  23. Kruse, T.M.; Wong, H.W.; Broadbelt, L.J. Mechanistic Modeling of Polymer Pyrolysis: Polypropylene. Macromolecules 2003, 36, 9594-9607. [CrossRef]
  24. Levine, S.E.; Broadbelt, L.J. Reaction pathways to dimer in polystyrene pyrolysis: A mechanistic modeling study. Polymer Degradation and Stability 2008, 93, 941-951. [CrossRef]
  25. Lu, X.; Wang, X.; Li, Q.; Huang, X.; Han, S.; Wang, G. A ReaxFF-based molecular dynamics study of the pyrolysis mechanism of polyimide. Polymer Degradation and Stability 2015, 114, 72-80. [CrossRef]
  26. Zhao, T.; Li, T.; Xin, Z.; Zou, L.; Zhang, L. A ReaxFF-Based Molecular Dynamics Simulation of the PyrolysisMechanism for Polycarbonate. Energy Fuels 2018, 32, 2156–2162. [CrossRef]
  27. Liu, X.; Li, X.; Liu, J.; Wang, Z.; Kong, B.; Gong, X.; Yang, X.; Lin, W.; Guo, L. Study of high density polyethylene (HDPE) pyrolysis with reactive molecular dynamics. Polymer Degradation and Stability 2014, 104, 62-70. [CrossRef]
  28. Saha, B.; Schatz, G.C. Carbonization in Polyacrylonitrile (PAN) Based Carbon Fibers Studied by ReaxFF Molecular Dynamics Simulations. The Journal of Physical Chemistry B 2012, 116, 4684-4692. [CrossRef]
  29. Wang, Q.; Wang, J.; Li, J.; Tan, N.; Li, X. Reactive molecular dynamics simulation and chemical kinetic modeling of pyrolysis and combustion of n-dodecane. Combustion and Flame 2011, 158, 217-226. [CrossRef]
  30. Salmon, E.; van Duin, A.C.T.; Lorant, F.; Marquaire, P.M.; Goddard III, W.A. Early maturation processes in coal. Part 2: Reactive dynamics simulations using the ReaxFF reactive force field on Morwell Brown coal structures. Organic Geochemistry 2009, 40, 1195-1209. [CrossRef]
  31. Zhang, L.; Zybin, S.V.; Van Duin, A.C.T.; Goddard III, WA Modeling High Rate Impact Sensitivity of Perfect RDX and HMX Crystals by ReaxFF Reactive Dynamics. Journal of Energetic Materials 2010, 28, 92-127. [CrossRef]
  32. Humphrey, W; Dalke, A.; Schulten, K. VMD: Visual Molecular Dynamics. Journal of Molecular Graphics 1996, 14, 33-38. [CrossRef]
  33. Stukowski, A Visualization and analysis of atomistic simulation data with OVITO–the Open Visualization Tool. Modelling and Simulation in Materials Science and Engineering 2009, 18, 1-8. [CrossRef]
  34. Willems, T.F.; Rycroft, C.; Kazi, M.; Meza, J.C.; Haranczyk, M. Algorithms and tools for high-throughput geometry-based analysis of crystalline porous materials. Microporous and Mesoporous Materials 2012, 149, 134-141. [CrossRef]
  35. Kowalik, M.; Ashraf, C.; Damirchi, B.; Akbarian, D.; Rajabpour, S.; van Duin, A.C.T. Atomistic Scale Analysis of the Carbonization Process for C/H/O/N-Based Polymers with the ReaxFF Reactive Force Field. The Journal of Physical Chemistry B 2019, 123, 5357-5367. [CrossRef]
  36. Arena, U.; Mastellone, M.L.; Giovanni, G.; Boccaleri, E. An innovative process for mass production of multi-wall carbon nanotubes by means of low-cost pyrolysis of polyolefins. Polymer Degradation and Stability 2006, 91, 763-768. [CrossRef]
  37. Gong, J.; Michalkiewicz, B.; Chen, X.; Mijowska, E.; Liu, J.; Jiang, Z.; Wen, X.; Tang, T. Sustainable Conversion of Mixed Plastics into Porous Carbon Nanosheets with High Performances in Uptake of Carbon Dioxide and Storage of Hydrogen. ACS Sustainable Chemistry & Engineering 2014, 2, 2837-2844. [CrossRef]
  38. Westerhout, R.W.J.; Kuipers, J.A.M.; Van Swaaij, W.P.M. Development, modelling and evaluation of a (laminar) entrained flow reactor for the determination of the pyrolysis kinetics of polymers. Chemical Engineering Science 1996, 51, 2221-2230. [CrossRef]
  39. Li, S.; Bian, F.; Meng, X.; Zhai, D.; Yang, H.; Qin, G. Ring structure characterization of nanoporous carbon materials prepared by thermal conversion of fullerenes: Insights from ReaxFF molecular dynamics simulations. Carbon 2022, 189, 484-492. [CrossRef]
  40. Diao, Zh.; Zhao, Y.; Chen, B.; Duan, Ch.; Song, S. ReaxFF reactive force field for molecular dynamics simulations of epoxy resin thermal decomposition with model compound. Journal of Analytical and Applied Pyrolysis 2013, 104, 618-624. [CrossRef]
  41. Desai, T.G.; Lawson, J.W.; Keblinski, P. Modeling initial stage of phenolic pyrolysis: Graphitic precursor formation and interfacial effects. Polymer 2011, 52, 577-585. [CrossRef]
  42. Zheng, M.; Li, X.; Liu, J.; Wang, Z.; Gong, X.; Guo, L.; Song, W. Pyrolysis of Liulin Coal Simulated by GPU-Based ReaxFF MD with Cheminformatics Analysis. Energy & Fuels 2014, 28, 522-534. [CrossRef]
  43. Onwudili, J.A.; Insura, N.; Williams, P.T. Composition of products from the pyrolysis of polyethylene and polystyrene in a closed batch reactor: Effects of temperature and residence time. Journal of Analytical and Applied Pyrolysis 2009, 86, 293-303. [CrossRef]
  44. Rajabpour, S.; Mao, Q.; Gao, Z.; Talkhoncheh, M.K.; Zhu, J.; Schwab, Y.; Kowalik, M.; Li, X.; van Duin. A.C.T. Low-temperature carbonization of polyacrylonitrile/graphene carbon fibers: A combined ReaxFF molecular dynamics and experimental study. Carbon 2021, 174, 345-356. [CrossRef]
  45. Dömötör, G.; Hentschke, R. Equilibrium Swelling of an Epoxy-Resin in Contact with Water – A Molecular Dynamics Simulation Study. Macromolecular Theory and Simulations 2004, 13, 506-511. [CrossRef]
  46. Jin, F.; Li, X.; Park, S.J. Synthesis and application of epoxy resins: A review. Journal of Industrial and Engineering Chemistry 2015, 29, 1-11. [CrossRef]
  47. Shokuhfar, A.; Arab, B. The effect of cross linking density on the mechanical properties and structure of the epoxy polymers: molecular dynamics simulation. Journal of Molecular Modeling 2013, 19, 3719-3731. [CrossRef]
Preprints 87403 g001

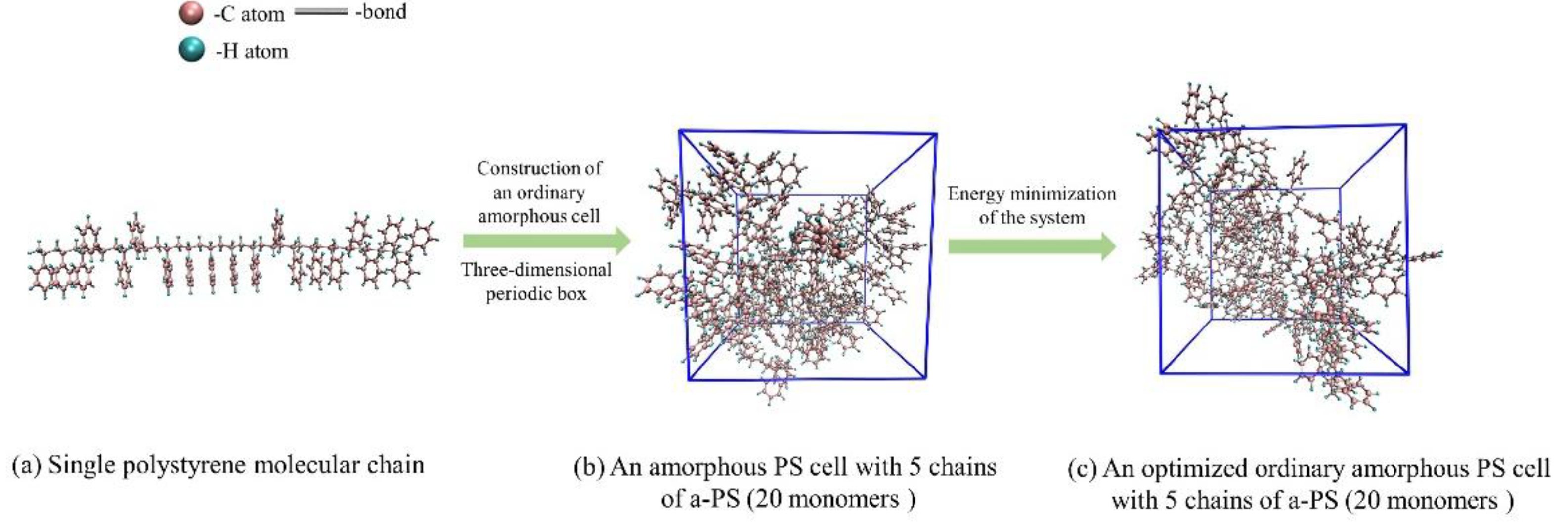

Figure 1. Model of the pyrolysis precursor.
Figure 1. Model of the pyrolysis precursor.
Preprints 87403 g001
Preprints 87403 g002

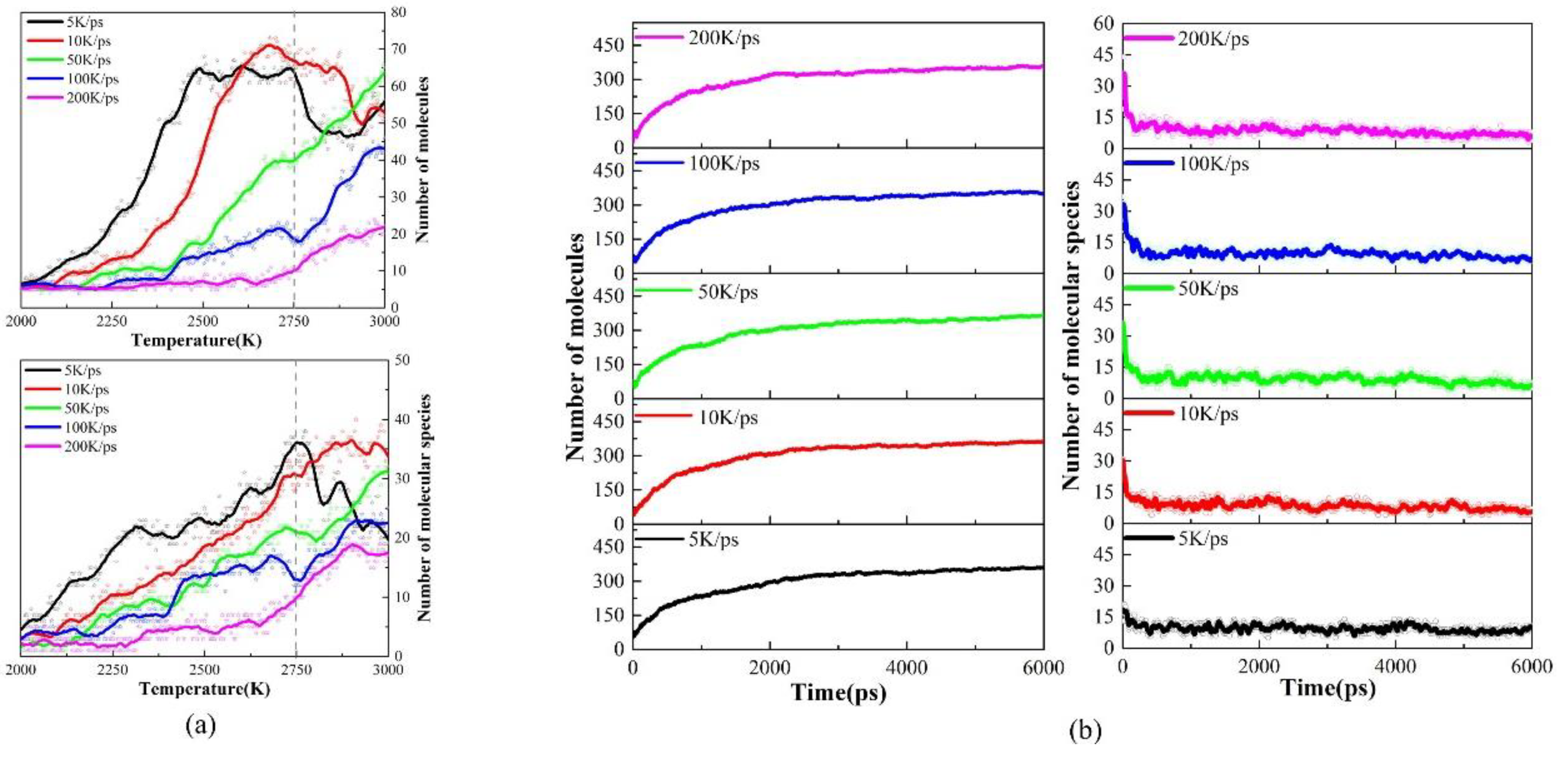

Figure 2. (a) Changes in the type and number of pyrolysis products during the heating process; (b) Changes in the type and number of pyrolysis products during the isothermal process.
Figure 2. (a) Changes in the type and number of pyrolysis products during the heating process; (b) Changes in the type and number of pyrolysis products during the isothermal process.
Preprints 87403 g002
Preprints 87403 g003

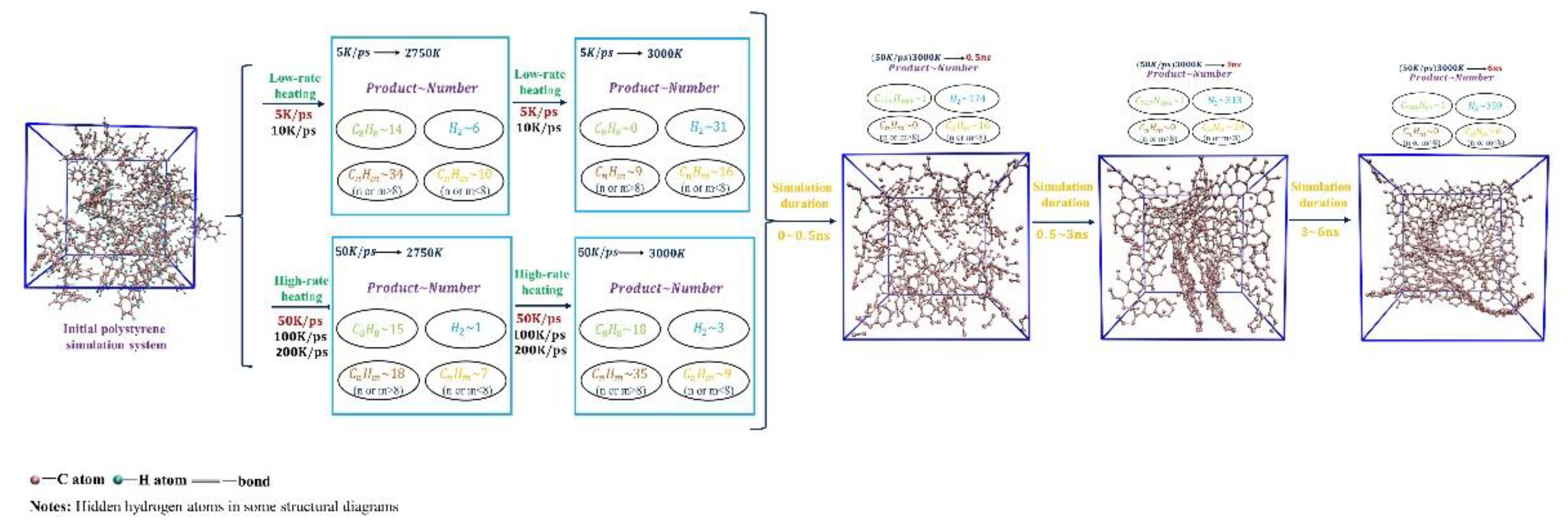

Figure 3. Tissue and species changes during heating and isothermal simulations. To facilitate the comparison of the evolution of the carbon organization during pyrolysis, hydrogen atoms in the polymer are not shown in the figure since they are released as hydrogen gas in the final pyrolysis products. Detailed hydrogen evolution can be found in the Supporting Information (SI) second part.
Figure 3. Tissue and species changes during heating and isothermal simulations. To facilitate the comparison of the evolution of the carbon organization during pyrolysis, hydrogen atoms in the polymer are not shown in the figure since they are released as hydrogen gas in the final pyrolysis products. Detailed hydrogen evolution can be found in the Supporting Information (SI) second part.
Preprints 87403 g003
Preprints 87403 g004

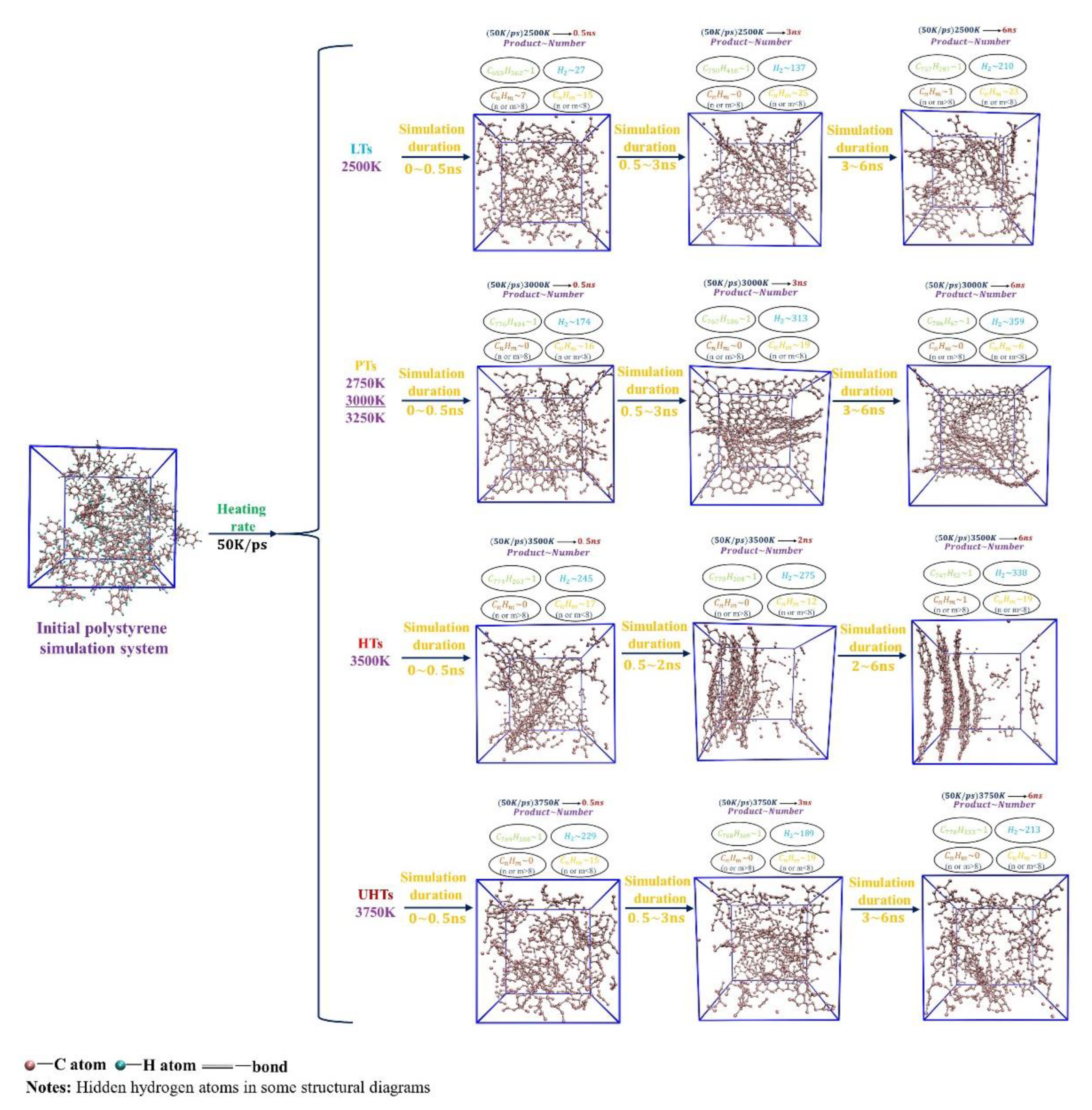

Figure 4. Tissue and species changes during isothermal simulations at different target temperatures.
Figure 4. Tissue and species changes during isothermal simulations at different target temperatures.
Preprints 87403 g004
Preprints 87403 g005

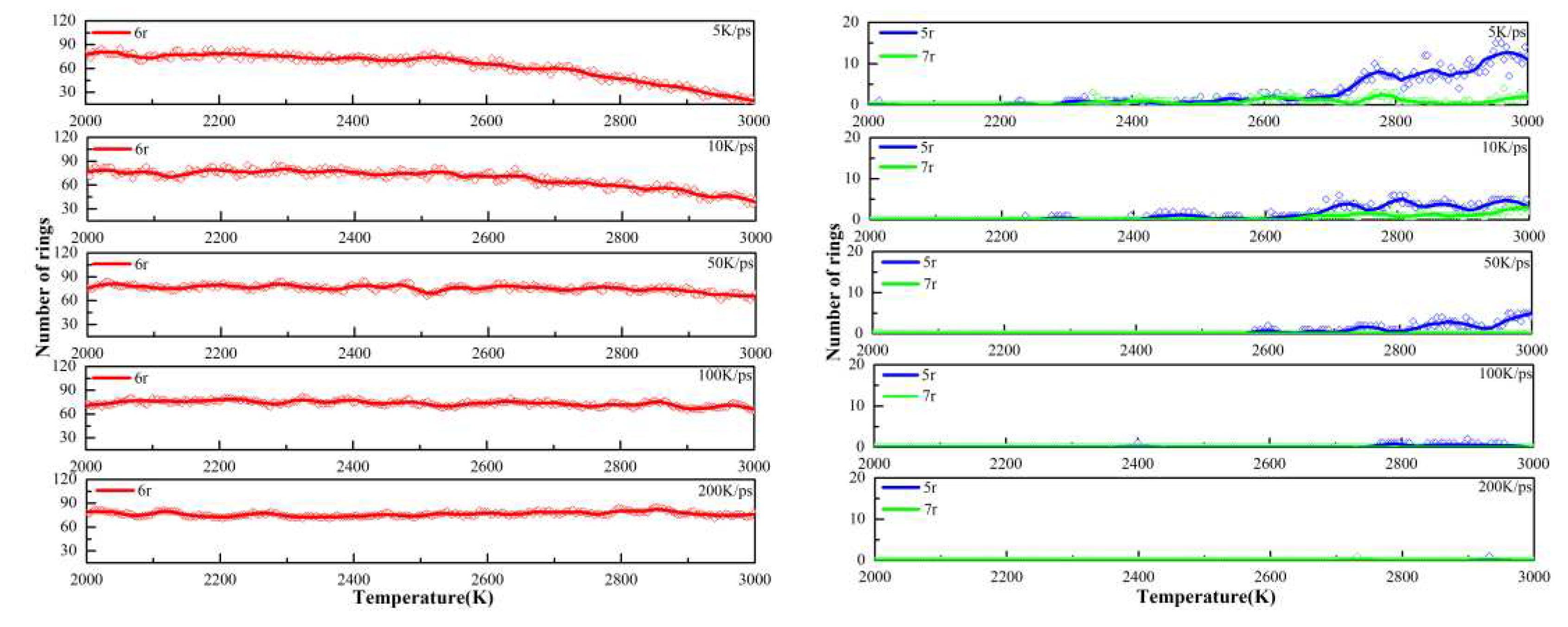

Figure 5. Variation of carbon rings with time during heating to 3000 K at different heating rates.
Figure 5. Variation of carbon rings with time during heating to 3000 K at different heating rates.
Preprints 87403 g005
Preprints 87403 g006

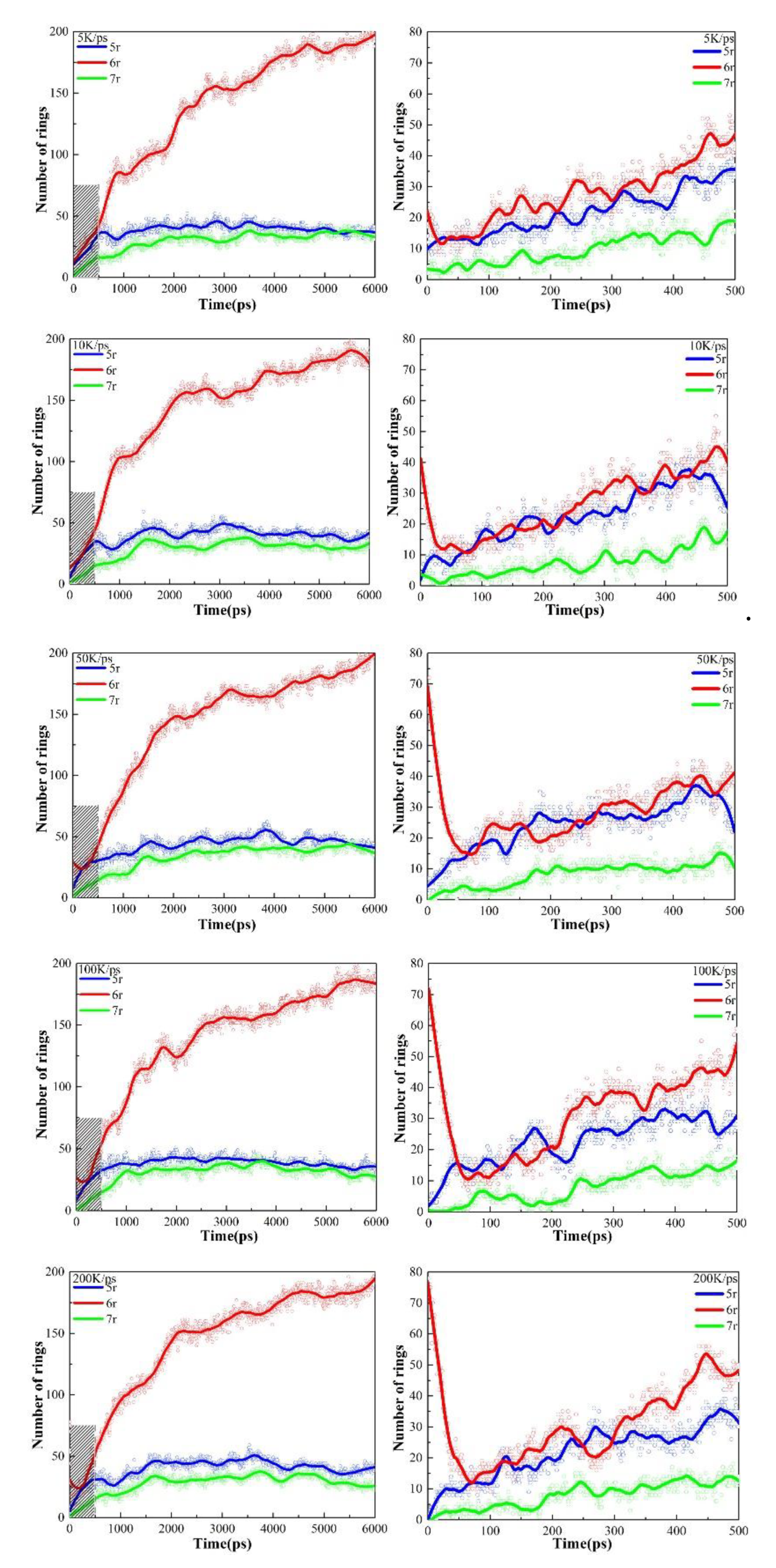

Figure 6. Variation of carbon rings with time during 3000K thermostatic simulation after heating. The right-hand diagram is an enlargement of the shaded portion of the left-hand diagram.
Figure 6. Variation of carbon rings with time during 3000K thermostatic simulation after heating. The right-hand diagram is an enlargement of the shaded portion of the left-hand diagram.
Preprints 87403 g006
Preprints 87403 g007

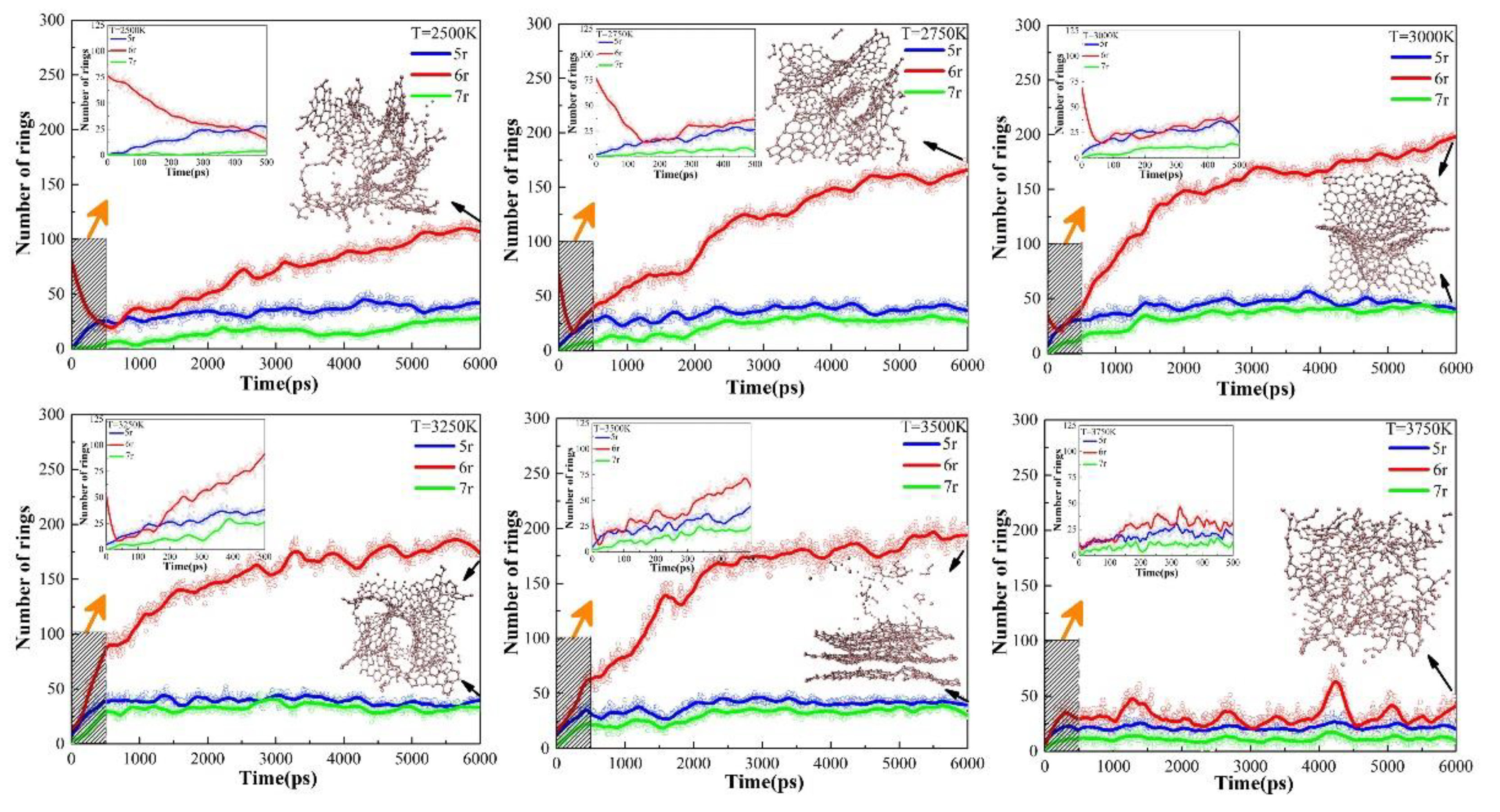

Figure 7. Variation of the carbon rings with time at different constant simulation temperatures. The subplot on the top left enlarges the shaded area.
Figure 7. Variation of the carbon rings with time at different constant simulation temperatures. The subplot on the top left enlarges the shaded area.
Preprints 87403 g007
Table 1. Pore size distribution of final equilibrium products at different temperatures. The unit of the aperture size is Å.
Table 1. Pore size distribution of final equilibrium products at different temperatures. The unit of the aperture size is Å.
Temperature Aperture size Proportion
2500K 1.0-5.0
5.0-8.8
8.8-10.4
10.4-12.1
12.1-13.3		 9.0%
43.3%
22.8%
10.9%
14.0%
2750K 1.1-5.0
5.0-9.2
9.2-11.2
11.2-12.5		 9.1%
58.6%
19.3%
13.0%
3000K 1.0-5.0
5.0-9.0
9.0-11.0
11.0-12.3		 8.3%
41.8%
31.3%
18.6%
3250K 1.1-5.0
5.0-8.9
8.9-11.8
11.8-13.3		 8.4%
39.5%
37.1%
15.0%
3500K 1.0-5.0
5.0-9.2
9.2-11.7
11.7-13.7		 10.0%
43.2%
31.6%
15.2%
3750K 1.1-4.4
4.4-8.7
8.7-9.8
9.8-11.5
11.5-12.8		 8.1%
42.3%
16.7%
19.7%
13.2%
