CloudformerV3: Multi-Scale Adapter and Multi-Level Large Window Attention for Cloud Detection

Altmetrics

Downloads

68

Views

17

Comments

0

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

01 November 2023

Posted:

01 November 2023

You are already at the latest version

Alerts
Abstract
Cloud detection in remote sensing images is a crucial preprocessing step that efficiently identifies and extracts cloud-covered areas within the images, ensuring the precision and reliability of subsequent analyses and applications. Given the diversity of clouds and the intricacies of the surface, distinguishing the boundaries between thin clouds and the underlying surface is a major challenge in cloud detection. To address these challenges, an advanced cloud detection method, CloudformerV3, is presented in this paper. The proposed method employs a multi-scale adapter to incorporate dark and bright channel prior information into the model's backbone, enhancing the model's ability to capture prior information and multi-scale details from remote sensing images. Additionally, multi-level large window attention is utilized, enabling high-resolution feature maps and low-resolution feature maps to mutually focus and subsequently merge during the resolution recovery phase. This facilitates the establishment of connections between different levels of feature maps and offers comprehensive contextual information for the model's decoder. Experimental results on the GF1_WHU dataset demonstrate that the method introduced in this paper exhibits superior detection accuracy when compared to state-of-the-art cloud detection models. Furthermore, enhanced detection performance is achieved along cloud edges and with respect to thin clouds, showcasing the efficacy of the proposed method.
Keywords:
Subject: Computer Science and Mathematics  -   Artificial Intelligence and Machine Learning

1. Introduction

Remote sensing technology is assuming an increasingly pivotal role in the realm of Earth observation. However, according to the International Satellite Cloud Climatology Project-Flux Data (ISCCP-FD) [1], high-altitude clouds blanket 66% of the Earth’s surface, posing a significant impediment to acquiring substantial surface data. This limitation curtails the potential of remote sensing technology. Therefore, within the realm of preprocessing remote sensing images, the detection of clouds assumes paramount importance. By effectively identifying clouds within remote sensing images, surface information can be more accurately extracted. This enhances the authenticity and availability of remote sensing images. Such enhancement holds tremendous practical significance, offering invaluable support for endeavors such as archaeological research [2], the detection of changes in landscape ecology [3], the identification of water bodies [4], weather forecasting [5], and geological landscape analysis [6].
The traditional cloud detection method is based on spectral thresholds, which utilize the unique physical characteristics of clouds to construct multiple spectral thresholds. Among them, Automated Cloud Cover Assessment [7,8] (ACCA) and Function of Mask (Fmask) [9] are the most representative methods. However, methods based on spectral thresholds often have poor generalization ability and overly rely on spectral information. Modern cloud detection technology is usually based on classic machine learning methods, using algorithms such as Support Vector Machine (SVM) [10] and Random Forest (RF) [11] to identify cloud. These methods make better use of spatial information from remotely sensed images and also reduce the high dependence of remotely sensed image data on spectral range. However, due to the fact that classical machine learning models typically require manual design of image features, this method is difficult to effectively extract higher-level semantic information and has poor robustness to complex scenes [12].
In recent years, deep neural networks have shown good performance in segmentation tasks due to their powerful feature extraction capabilities. This method has also been applied to remote sensing image cloud detection and achieved good results. Inspired by convolutional neural networks for semantic segmentation such as FCN [13], SegNet [14], U-Net [15], and DeepLabV3+ [16], Francis et al. proposed CloudFCN [17], a method of cloud detection in combination with Inception module, while Jeppesen et al. proposed RSNet (Remote Sensing Network) [18] for remote sensing images in RGB. As researchers delve deeper into the realm of cloud detection tasks, they have recognized that devising effective methods tailored to the distinct characteristics and challenges of cloud detection tasks stands as a pivotal technology for enhancing algorithm precision. Yang and colleagues introduced CDNet [19], a solution designed for low-resolution remote sensing thumbnail images. This innovation bolsters the accuracy of detecting clouds in low-resolution images through edge refinement and the integration of a feature pyramid structure. Li et al. focused their efforts on high-resolution remote sensing images and devised MSCFF [20], which employs a multiscale feature fusion approach. Guo and his team proposed CDNetV2 [21], a model that attains high-precision cloud detection, even in scenarios where clouds and snow coexist.
Preprints 89356 g001
Figure 1. The overall context of related work.
Figure 1. The overall context of related work.
Preprints 89356 g001
Since 2018, the Transformer [22] has achieved great success in the field of natural language processing and has gradually been applied to image segmentation. Transformer has powerful feature extraction capabilities, which can simultaneously model both global and local features of an image. These abilities enable it to perform well in semantic segmentation, and many high-precision semantic segmentation models have emerged, such as SETR [23], SegFormer [24], MaskFormer [25], Mask2Former [26], and Lawin Transformer [27]. When used for segmentation tasks, these models are usually easier to achieve higher accuracy than convolutional neural network models. When directly applying the aforementioned models to the task of cloud detection in remote sensing images, certain challenges persist. These include difficulties in distinguishing between thin clouds and surfaces, the intricacy of detecting minute cloud formations, and the potential for misidentifying bright surfaces or icebergs as clouds. To address these issues, it becomes imperative to enhance or reconfigure models tailored to natural image data, enabling their effective application to remote sensing image cloud detection tasks. Previous iterations such as Cloudformer [28] and CloudformerV2 [29] have effectively tackled the challenge of detecting small clouds, resulting in improved cloud detection accuracy and faster training inference. Nonetheless, in complex scenarios, the issue of blurring the demarcation between thin clouds and the ground remains unresolved. Consequently, this paper continues to delve into the application of the Transformer model in the cloud detection task. Based on Cloudformer and CloudformerV2, this study suggests using CloudformerV3 to recognize clouds in high-resolution remote sensing image data.

2. Materials and Methods

2.1. Overall structure of CloudformerV3

The structure of CloudformerV3 is composed of two main components: the encoder and the decoder, as depicted in Figure 2. Within the encoder, the backbone incorporates the Mix Transformer [24], optimizing the extraction of image features and striking a balance between accuracy and efficiency. During the fine-tuning process with cloud datasets, a multi-scale adapter is introduced to work in conjunction with the backbone for downsampling operations. Concurrently, the prior information from both dark and bright channels is combined and infused into the backbone through the adapter, fostering comprehensive interaction between the prior information and the input image. The encoder obtains the multi-level feature layer and channels it to the decoder. This enables distinct feature layers at varying levels to mutually focus on one another through a multi-level large window attention. Subsequently, during the resolution recovery phase, the decoder progressively upsamples and integrates the multi-level feature layer with higher-level feature layers. This culminates in the generation of the segmentation result.
The three important areas covered by CloudformerV3’s principal contributions are as follows:
  • Multi-Scale Adapter Incorporation in the Encoder: Introducing a multi-scale adapter within the encoder enhances the synergy be-tween the pretrained natural image-based backbone and the remote sensing image cloud detection process. This collaboration facilitates multi-level feature extraction, allowing the model to gain a more profound understanding of image structure and characteristics that are pertinent to the task;
  • Multi-Level Large Window Attention Enhanced Decoder Mechanism: In the decoder stage, a novel approach is adopted involving the interaction of low-resolution feature maps with high-resolution feature maps through large window attention. This process encompasses incremental layer-by-layer upsampling and fusion with higher-level feature maps. As a result, the decoder comprehensively integrates feature information across multiple levels, thereby intensifying the ability to detect cloud edges;
  • Integration of Dark and Bright Channel Prior to Information: During the data preprocessing phase, the dark channel and bright channel prior information are computed and then integrated into the generalized backbone through an adapter. This infusion equips the model with prior feature information that significantly enhances cloud detection capabilities. Particularly, this enhancement contributes to distinguishing thin clouds from the ground surface with greater precision.

2.2. Multi-Scale Adapter

The traditional adapter [30] comprises three components: Spatial Prior Module, Injector, and Extractor. Spatial Prior Module is used to extract spatial information from the image, while Injector and Extractor modules facilitate interaction with the backbone. When applied to cloud detection, due to the substantial disparities between natural images and remote sensing images, using the backbone trained on natural images directly for fine-tuning yields unsatisfactory outcomes. In contrast, the adapter can infuse prior information from remote sensing images into the backbone trained on natural images, rendering the model better suited for cloud detection. This adaptation enhances the model’s effectiveness in cloud detection tasks.
However, the traditional adapter cannot be applied to the hierarchical backbone structure, which makes the multi-scale feature extraction suffer. To solve this problem, this paper proposes a novel multi-scale adapter that inserts DownSample Layer between each Extractor and Injector, as shown in Figure 3. After the ith Extractor, it can obtain the output feature F s p i ∈ ℝ H W / ( 2 i ) 2 + H W / ( 4 i ) 2 + H W / ( 8 i ) 2 × D i . In the DownSample Layer, it is first splited and reshaped to obtain three feature maps F s p 1 i ∈ ℝ H / ( 2 i ) × W / ( 2 i ) × D i , with different resolutions. Then the feature map is reduced to one-half of its original length and width by the Patch Merging layer [31] to obtain F ^ s p 1 i ∈ ℝ H / ( 4 i ) × W / ( 4 i ) × D i + 1 , F ^ s p 2 i ∈ ℝ H / ( 8 i ) × W / ( 8 i ) × D i + 1 and F ^ s p 3 i ∈ ℝ H / ( 16 i ) × W / ( 16 i ) × D i + 1 . Finally, F ^ s p 1 i , F ^ s p 2 i and F ^ s p 3 i are flattened and concated to obtain F ^ s p i ∈ ℝ H W / ( 4 i ) 2 + H W / ( 8 i ) 2 + H W / ( 16 i ) 2 × D i + 1 , which is injected into the next Injector. The process can be formulated as:
F s p 1 i , F s p 2 i , F s p 3 i = R e s h a p e S p l i t ( F s p i )
F ^ s p j i = P a t c h M e r g i n g ( F s p j ) , j ∈ { 1 , 2 , 3 }
F ^ s p i = F l a t t e n C o n c a t ( F ^ s p 1 i , F ^ s p 2 i , F ^ s p 3 i )
The utilization of a multi-scale adapter accomplishes more than just enhancing the model’s suitability for the cloud detection task and introducing prior information. It also empowers the backbone to acquire precise prior information across all scales, enabling a more comprehensive grasp of the image’s structure and features. This facilitates improved differentiation between regions containing clouds and those without, particularly in intricate scenarios.

2.3. Multi-Level Large Window Attention and Decoder

Detecting thin clouds in remote sensing images is frequently intricately linked to the surrounding context. The employment of multi-level feature maps extends a broader array of contextual insights, equipping the model with an enhanced capacity to comprehend the intricate interplay between thin clouds and their neighboring features. Consequently, this advanced comprehension facilitates a more precise identification of thin clouds. Based on the above reasons, this paper designs a novel decoder in conjunction with the multi-level large window attention, so that the high-level feature maps and the low-level feature maps can pay attention to each other and merge with each other.
Inspired by the concept of large window attention proposed in the Lawin Transformer [27], this paper introduces a multi-level large window attention. In the context of the large window attention, a feature graph is divided into uniformly sized windows, allowing each window denoted as Q to query a larger region represented by C. However, within the framework of the multi-level large window attention, the low-resolution feature map is segmented into n × n windows to replace the query window Q, while the high-resolution feature map undergoes a similar partitioning into n × n windows to substitute the queried region C. This transforms the operation of focusing on a single feature map into the interaction between feature maps at different levels, as illustrated in Figure 4. As the window slides across the low-resolution feature map, the current segment is permitted to query the corresponding region within the high-resolution map, encompassing more pixel information. This capability enables the decoder to establish connections between feature maps at varying levels, thereby furnishing the model with a more extensive and intricate contextual understanding.
In this paper, five parallel branches are designed in conjunction with multi-level large window attention, including a skip connection, a branch pooling F 1 / 32 to obtain F ^ p o o l ∈ ℝ H / 32 × W / 32 × D 4 , and the three branches will be F 1 / 16 , F 1 / 8 and F 1 / 4 respectively with F 1 / 32 in multi-level large window attention to obtain F ^ 1 / 4 ∈ ℝ H / 32 × W / 32 × D 4 , F ^ 1 / 8 ∈ ℝ H / 32 × W / 32 × D 4 and F ^ 1 / 16 ∈ ℝ H / 32 × W / 32 × D 4 . All the obtained features are stitched together to obtain a feature map with multi-level information. The process can be formulated as:
F ^ p o o l = P o o l i n g ( F 1 / 32 )
F ^ i = L a w i n A t t e n ( F i , F 1 / 32 ) , i ∈ 1 / 4 , 1 / 8 , 1 / 16
C 1 / 32 = C o n c a t ( F ^ 1 / 4 , F ^ 1 / 8 , F ^ 1 / 16 , F ^ p o o l , F 1 / 32 )
C 1 / 32 is upsampled layer by layer through the three feature fusion modules and in the process fused with the high-level feature maps F 1 / 16 , F 1 / 8 and F 1 / 4 respectively spliced to recover the image resolution to obtain C 1 / 4 . Finally, the result is output after passing through the multilayer perceptron and upsample layer.

2.4. Dark and Bright Channel Prior Information

Because of the visual resemblance between thin clouds and haze, cloud detection tasks exhibit similarities with tasks involving the dehazing of remote sensing images [32]. In the realm of image dehazing, the dark channel prior [33] and the bright channel prior [34] hold substantial importance. During the preprocessing phase of this research, alongside utilizing image information from the three RGB channels, both the dark channel and the bright channel priors are integrated to aid the detection model. For a given image, the dark channel is defined as:
I d a r k ( x ) = min c ∈ { r , g , b } min y ∈ Ω ( x ) I c ( y )
while the bright channel is defined as:
I b r i g h t ( x ) = max c ∈ { r , g , b } max y ∈ Ω ( x ) I c ( y )
where I c represents the RGB color mode of the image I , Ω ( x ) denotes a local region centered at x, and y represents a pixel point in the image I . When extracting the dark channel and the bright channel, to retain as much original information as possible, the size of Ω ( x ) is chosen as 1×1. This is because image segmentation is an end-to-end task.
Figure 5 provides an illustration of the dark channel and the bright channel for the same scene. In remote sensing images containing cloud layers, both thin and thick clouds have pixel points x with values of I b r i g h t ( x ) → 255 , resulting in a more complete image structure at the edges of clouds in the bright channel compared to the dark channel. In the dark channel, the value of I d a r k ( x ) in cloud-obscured regions is notably distinct from that in non-cloud regions, indicating that the dark channel enhances the brightness contrast between the cloud-obscured and non-cloud areas, facilitating a clearer differentiation between clouds and background information. Therefore, this study concatenates the dark channel and the bright channel for input into the model, allowing them to complement each other’s strengths and weaknesses, thereby providing a more comprehensive and enriched set of image information.

3. Results

3.1. Dataset and Evaluation Metrics

High-resolution remote sensing image data possess characteristics such as high spatial resolution and detailed terrain features, often making them sensitive to cloud and fog presence. Hence, for the experimental dataset, this study selected the GF1_WHU dataset [35]. Acquired from May 2013 to August 2016, the dataset comprises 108 scenes of GF-1 Wide Field of View (WFV) 2A-level images along with their corresponding reference masks. These reference masks are manually drawn through visual inspection, resulting in more precise delineation of cloud and cloud shadow boundaries, which facilitates better model fitting. To reduce computational complexity, this study employed RGB channel image thumbnails. Given the focus on cloud detection, the dataset was further processed to remove cloud shadow annotations. Ultimately, it was resized to 777 images of dimensions 512×512 for both training and testing.
In order to assess the effectiveness of various methods in practice, three metrics are used - mean intersection over union (MIoU) [36], mean accuracy (MAcc) [37], and pixel accuracy (PAcc) [38]—were employed to assess the precision performance of the model. The evaluation metrics are defined by these formulas.
M I o U = 1 k + 1 ∑ i = 0 k T P F N + F P + T P
M A c c = 1 k + 1 ∑ i = 0 k T P F P + T P
P A c c = T P + T N T P + T N + F P + T N
where, k represents the number of categories. Due to cloud detection being a binary classification problem, k=1 during the computation process. TP (True Positive) signifies the count of pixels correctly predicted as clouds by the model, TN (True Negative) represents the count of pixels correctly predicted as background, FP (False Positive) stands for the count of misclassified pixels predicted as clouds, and FN (False Negative) denotes the count of missed pixels predicted as background.
Preprints 89356 g006
Figure 6. Example graph of a data set.
Figure 6. Example graph of a data set.
Preprints 89356 g006

3.2. Ablation Experiment

3.2.1. Performance Verification of the Multi-Scale Adapter

To explore the impact of the multi-scale adapter for the model, a quantitative analysis was conducted by comparing the performance of models without the adapter and those with the multi-scale adapter. And to avoid the influence of prior information on dark and bright channels, the input image information only includes RGB channels. The results are presented in Table 1. It can be observed that the model with the introduced multi-scale adapter exhibits stronger adaptability in terms of network structure. This enables better integration of prior information from remote sensing images, resulting in superior performance in cloud detection tasks. Consequently, the model’s accuracy in cloud detection is effectively enhanced.
Furthermore, a comparative analysis of images processed by models without the adapter and models with the multi-scale adapter was conducted, as shown in Figure 7. Through this analysis, it becomes evident that images processed with the adapter exhibit notably improved detection performance at cloud edges. The differentiation between thin clouds and the background aligns more closely with the true label values. This observation suggests that the model’s perceptual capabilities are enhanced, consequently improving its accuracy and robustness in practical applications. This further validates the effectiveness of the multi-scale adapter in cloud detection tasks.

3.2.2. Performance Validation of Multi-Level Large Window Attention

To validate the performance of the decoder using the multi-level large window attention, this study replaced the large window attention for both low-resolution feature layers and high-resolution feature layers with attention solely driven by high-resolution feature layers. Furthermore, in order to ensure consistent feature map sizes, bilinear interpolation was employed to downsample the high-resolution feature layers used by the latter approach. The results obtained from the experiment are presented in Table 2, indicate that using the multi-level large window attention with integration of both low-level semantic information and high-level semantic information yields higher model accuracy.
The segmentation results of the two models were also compared in this study, as illustrated in Figure 8. It can be observed that compared to employing the large window attention on a single feature map, conducting the large window attention operation between low-level and high-level feature maps leads to a significant enhancement in detecting cloud edges. This observation highlights the effectiveness of the multi-feature layer large window attention in considering information from different levels, resulting in improved cloud detection performance by the model.

3.2.3. Performance Validation of Dark Channel and Bright Channel Prior information

To validate the effectiveness of the dark channel and bright channel prior information in remote sensing image cloud detection, this study introduced various combinations of different channels into the input of the Adapter and conducted corresponding experiments and analyses. While retaining the RGB channel image as the input to the backbone, seven different image data input methods were introduced in the adapter: RGB channels, dark channel, bright channel, concatenation of dark channel and RGB channels, concatenation of bright channel and RGB channels, concatenation of dark channel and bright channel, and concatenation of dark channel, bright channel, and RGB channels. The experimental results are presented in Table 3.
From the experimental results, the following trends can be observed: when combining the dark channel and bright channel prior information and inputting them into the adapter, the model achieves the highest detection accuracy. This indicates that the fusion of these two types of prior information in remote sensing image cloud detection tasks provides the model with more comprehensive and accurate information, leading to superior performance. Furthermore, the experimental results for separately inputting the dark channel or bright channel prior information follow, with both demonstrating better performance compared to solely inputting RGB channels. This result emphasizes the role of the dark channel and bright channel prior information in enhancing model performance. However, a decline in accuracy is observed when attempting to concatenate the RGB channels with the prior information and inputting them into the adapter. This could be attributed to conflicting information or increased model complexity, leading to poorer interaction between channels, consequently affecting the effectiveness of the prior information.

3.3. Comparison with State-of-the-Art Methods

The experiments conducted on the GF1_WHU dataset reveal that CloudformerV3 surpasses existing advanced methods in terms of accuracy, as illustrated in Table 4. This underscores CloudformerV3’s remarkable advantage in terms of segmentation precision. Furthermore, in real-world detection scenarios, CloudformerV3 demonstrates significant enhancement in segmentation performance, as depicted in Figure 9.
This model adeptly captures cloud textures, shapes, and contextual information, leading to more precise and refined segmentation of delicate cloud segments. These outcomes underscore the exceptional performance of CloudformerV3 in cloud detection within high-resolution remote sensing images, offering a dependable solution for cloud detection tasks within the domain of remote sensing imagery applications.

4. Conclusions

This paper addresses the challenge of distinguishing between thin clouds and the unclear boundaries of surfaces in complex scenes, proposing an effective cloud detection method named CloudformerV3 tailored for high-resolution remote sensing image data. By introducing a multi-scale adapter into the backbone, this method accomplishes dual objectives: injecting prior information from remote sensing images into the backbone to enhance its suitability for remote sensing image cloud detection tasks, and enabling multi-scale feature extraction in collaboration with the backbone to capture richer image information. Additionally, the decoder employs multi-level large window attention, facilitating the establishment of connections between feature maps from different levels. In the data preprocessing stage, dark channel and bright channel prior information is incorporated, enabling the model to acquire more comprehensive prior knowledge. This approach offers a strategy to integrate multi-channel remote sensing image prior information into a model pretrained on natural images. Compared to existing advanced models, CloudformerV3 exhibits superior performance on the GF1_WHU dataset, boasting higher accuracy and effectively enhancing its ability to detect thin clouds and cloud edges. These findings validate for effective cloud detection of CloudformerV3 in optical remote sensing image.

Author Contributions

Conceptualization, Z.Z. and S.T.; methodology, Z.Z. and S.T.; software, S.T.; validation, Z.Z. and S.T.; formal analysis, S.T. and Y.Z.; investigation, Z.Z.; resources, Z.Z. and Y.Z.; data curation, Z.Z. and S.T.; visualization, S.T.; writing-original draft preparation, S.T.; writing-review and editing, Z.Z. and Y.Z.; supervision, Z.Z.; project administration, Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program under Ministry of Science and Technology of the People’s Republic of China.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Y.; Rossow, W.B.; Lacis, A.A.; Oinas, V.; Mishchenko, M.I. Calculation of Radiative Fluxes from the Surface to Top of Atmosphere Based on ISCCP and Other Global Data Sets: Refinements of the Radiative Transfer Model and the Input Data. J. Geophys. Res. 2004, 109, 2003JD004457. [CrossRef]
  2. Zhu, X.; Helmer, E.H. An Automatic Method for Screening Clouds and Cloud Shadows in Optical Satellite Image Time Series in Cloudy Regions. Remote sensing of environment 2018, 214, 135–153. [CrossRef]
  3. Ju, J.; Roy, D.P. The Availability of Cloud-Free Landsat ETM+ Data over the Conterminous United States and Globally. Remote Sensing of Environment 2008, 112, 1196–1211. [CrossRef]
  4. Zheng, W.; Shao, J.; Wang, M.; Huang, D. A Thin Cloud Removal Method from Remote Sensing Image for Water Body Identification. Chin. Geogr. Sci. 2013, 23, 460–469. [CrossRef]
  5. Sundqvist, H.; Berge, E.; Kristjánsson, J.E. Condensation and Cloud Parameterization Studies with a Mesoscale Numerical Weather Prediction Model. Monthly Weather Review 1989, 117, 1641–1657. [CrossRef]
  6. Camps-Valls, G.; Marsheva, T.V.B.; Zhou, D. Semi-Supervised Graph-Based Hyperspectral Image Classification. IEEE transactions on Geoscience and Remote Sensing 2007, 45, 3044–3054. [CrossRef]
  7. Irish, R.R. Landsat 7 Automatic Cloud Cover Assessment. In Proceedings of the Algorithms for Multispectral, Hyperspectral, and Ultraspectral Imagery VI; SPIE, 2000; Vol. 4049, pp. 348–355.
  8. Irish, R.R.; Barker, J.L.; Goward, S.N.; Arvidson, T. Characterization of the Landsat-7 ETM+ Automated Cloud-Cover Assessment (ACCA) Algorithm. Photogrammetric engineering & remote sensing 2006, 72, 1179–1188. [CrossRef]
  9. Zhu, Z.; Woodcock, C.E. Object-Based Cloud and Cloud Shadow Detection in Landsat Imagery. Remote sensing of environment 2012, 118, 83–94. [CrossRef]
  10. Kang, X.; Gao, G.; Hao, Q.; Li, S. A Coarse-to-Fine Method for Cloud Detection in Remote Sensing Images. IEEE Geoscience and Remote Sensing Letters 2018, 16, 110–114. [CrossRef]
  11. Fu, H.; Shen, Y.; Liu, J.; He, G.; Chen, J.; Liu, P.; Qian, J.; Li, J. Cloud Detection for FY Meteorology Satellite Based on Ensemble Thresholds and Random Forests Approach. Remote Sensing 2018, 11, 44. [CrossRef]
  12. Mahajan, S.; Fataniya, B. Cloud Detection Methodologies: Variants and Development—a Review. Complex Intell. Syst. 2020, 6, 251–261. [CrossRef]
  13. Long, J.; Shelhamer, E.; Darrell, T. Fully Convolutional Networks for Semantic Segmentation. In Proceedings of the Proceedings of the IEEE conference on computer vision and pattern recognition; 2015; pp. 3431–3440.
  14. Badrinarayanan, V.; Kendall, A.; Cipolla, R. Segnet: A Deep Convolutional Encoder-Decoder Architecture for Image Segmentation. IEEE transactions on pattern analysis and machine intelligence 2017, 39, 2481–2495. [CrossRef]
  15. Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention–MICCAI 2015: 18th International Conference, Munich, Germany, October 5-9, 2015, Proceedings, Part III 18; Springer, 2015; pp. 234–241.
  16. Chen, L.-C.; Zhu, Y.; Papandreou, G.; Schroff, F.; Adam, H. Encoder-Decoder with Atrous Separable Convolution for Semantic Image Segmentation. In Proceedings of the Proceedings of the European conference on computer vision (ECCV); 2018; pp. 801–818.
  17. Francis, A.; Sidiropoulos, P.; Muller, J.-P. CloudFCN: Accurate and Robust Cloud Detection for Satellite Imagery with Deep Learning. Remote Sensing 2019, 11, 2312. [CrossRef]
  18. Jeppesen, J.H.; Jacobsen, R.H.; Inceoglu, F.; Toftegaard, T.S. A Cloud Detection Algorithm for Satellite Imagery Based on Deep Learning. Remote sensing of environment 2019, 229, 247–259. [CrossRef]
  19. Yang, J.; Guo, J.; Yue, H.; Liu, Z.; Hu, H.; Li, K. CDnet: CNN-Based Cloud Detection for Remote Sensing Imagery. IEEE Transactions on Geoscience and Remote Sensing 2019, 57, 6195–6211. [CrossRef]
  20. Li, Z.; Shen, H.; Cheng, Q.; Liu, Y.; You, S.; He, Z. Deep Learning Based Cloud Detection for Medium and High Resolution Remote Sensing Images of Different Sensors. ISPRS Journal of Photogrammetry and Remote Sensing 2019, 150, 197–212. [CrossRef]
  21. Guo, J.; Yang, J.; Yue, H.; Li, K. Unsupervised Domain Adaptation for Cloud Detection Based on Grouped Features Alignment and Entropy Minimization. IEEE Transactions on Geoscience and Remote Sensing 2021, 60, 1–13.
  22. Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A.N.; Kaiser, \Lukasz; Polosukhin, I. Attention Is All You Need. Advances in neural information processing systems 2017, 30.
  23. Zheng, S.; Lu, J.; Zhao, H.; Zhu, X.; Luo, Z.; Wang, Y.; Fu, Y.; Feng, J.; Xiang, T.; Torr, P.H. Rethinking Semantic Segmentation from a Sequence-to-Sequence Perspective with Transformers. In Proceedings of the Proceedings of the IEEE/CVF conference on computer vision and pattern recognition; 2021; pp. 6881–6890.
  24. Xie, E.; Wang, W.; Yu, Z.; Anandkumar, A.; Alvarez, J.M.; Luo, P. SegFormer: Simple and Efficient Design for Semantic Segmentation with Transformers. Advances in Neural Information Processing Systems 2021, 34, 12077–12090.
  25. Cheng, B.; Schwing, A.; Kirillov, A. Per-Pixel Classification Is Not All You Need for Semantic Segmentation. Advances in Neural Information Processing Systems 2021, 34, 17864–17875.
  26. Cheng, B.; Misra, I.; Schwing, A.G.; Kirillov, A.; Girdhar, R. Masked-Attention Mask Transformer for Universal Image Segmentation. In Proceedings of the Proceedings of the IEEE/CVF conference on computer vision and pattern recognition; 2022; pp. 1290–1299.
  27. Yan, H.; Zhang, C.; Wu, M. Lawin Transformer: Improving Semantic Segmentation Transformer with Multi-Scale Representations via Large Window Attention. arXiv preprint arXiv:2201.01615 2022. [CrossRef]
  28. Zhang, Z.; Xu, Z.; Liu, C.; Tian, Q.; Wang, Y. Cloudformer: Supplementary Aggregation Feature and Mask-Classification Network for Cloud Detection. Applied Sciences 2022, 12, 3221. [CrossRef]
  29. Zhang, Z.; Xu, Z.; Liu, C.; Tian, Q.; Zhou, Y. Cloudformer V2: Set Prior Prediction and Binary Mask Weighted Network for Cloud Detection. Mathematics 2022, 10, 2710. [CrossRef]
  30. Chen, Z.; Duan, Y.; Wang, W.; He, J.; Lu, T.; Dai, J.; Qiao, Y. Vision Transformer Adapter for Dense Predictions. arXiv 2022. arXiv preprint arXiv:2205.08534. [CrossRef]
  31. Liu, Z.; Lin, Y.; Cao, Y.; Hu, H.; Wei, Y.; Zhang, Z.; Lin, S.; Guo, B. Swin Transformer: Hierarchical Vision Transformer Using Shifted Windows. In Proceedings of the Proceedings of the IEEE/CVF international conference on computer vision; 2021; pp. 10012–10022.
  32. Zhang, J.; Wang, H.; Wang, Y.; Zhou, Q.; Li, Y. Deep Network Based on up and down Blocks Using Wavelet Transform and Successive Multi-Scale Spatial Attention for Cloud Detection. Remote Sensing of Environment 2021, 261, 112483. [CrossRef]
  33. Kumar, Y.; Gautam, J.; Gupta, A.; Kakani, B.V.; Chaudhary, H. Single Image Dehazing Using Improved Dark Channel Prior. In Proceedings of the 2015 2nd International Conference on Signal Processing and Integrated Networks (SPIN); IEEE, 2015; pp. 564–569.
  34. Wang, Y.; Zhuo, S.; Tao, D.; Bu, J.; Li, N. Automatic Local Exposure Correction Using Bright Channel Prior for Under-Exposed Images. Signal processing 2013, 93, 3227–3238. [CrossRef]
  35. Li, Z.; Shen, H.; Li, H.; Xia, G.; Gamba, P.; Zhang, L. Multi-Feature Combined Cloud and Cloud Shadow Detection in GaoFen-1 Wide Field of View Imagery. Remote sensing of environment 2017, 191, 342–358.
  36. Yuheng, S.; Hao, Y. Image Segmentation Algorithms Overview. arXiv preprint arXiv:1707.02051 2017.
  37. Thoma, M. A Survey of Semantic Segmentation. arXiv preprint arXiv:1602.06541 2016. [CrossRef]
  38. Lateef, F.; Ruichek, Y. Survey on Semantic Segmentation Using Deep Learning Techniques. Neurocomputing 2019, 338, 321–348. [CrossRef]
Preprints 89356 g002

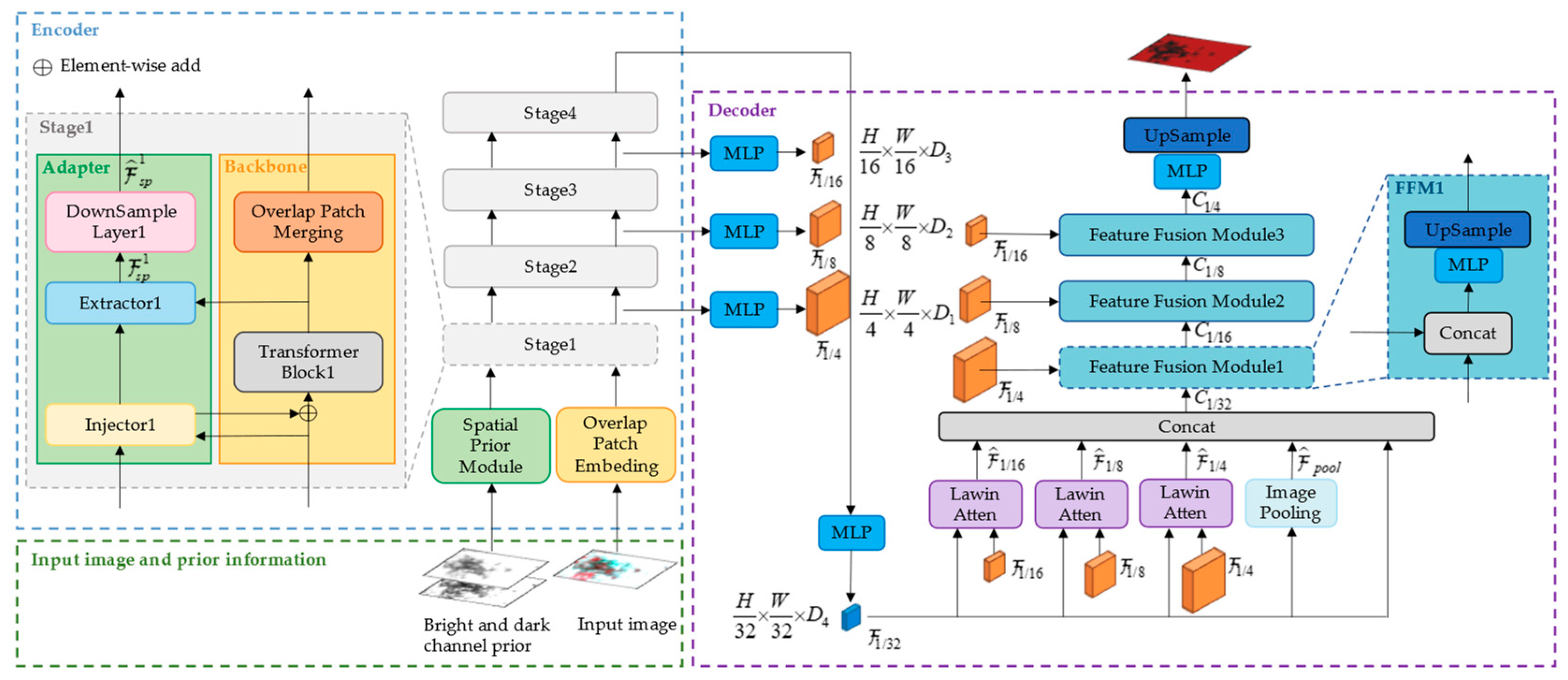

Figure 2. The overall structure of CloudformerV3.
Figure 2. The overall structure of CloudformerV3.
Preprints 89356 g002
Preprints 89356 g003

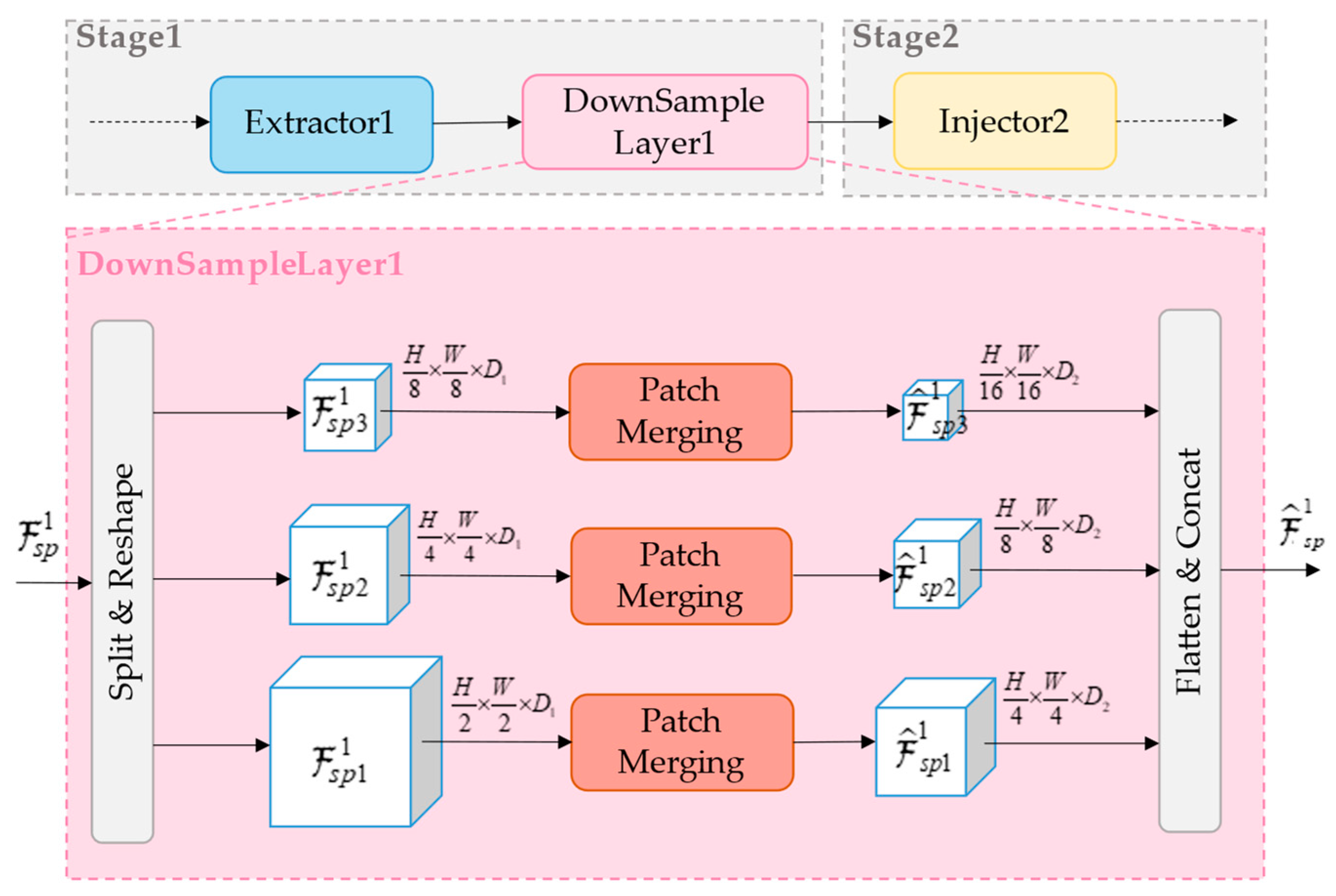

Figure 3. The structure of DownSample Layer.
Figure 3. The structure of DownSample Layer.
Preprints 89356 g003
Preprints 89356 g004

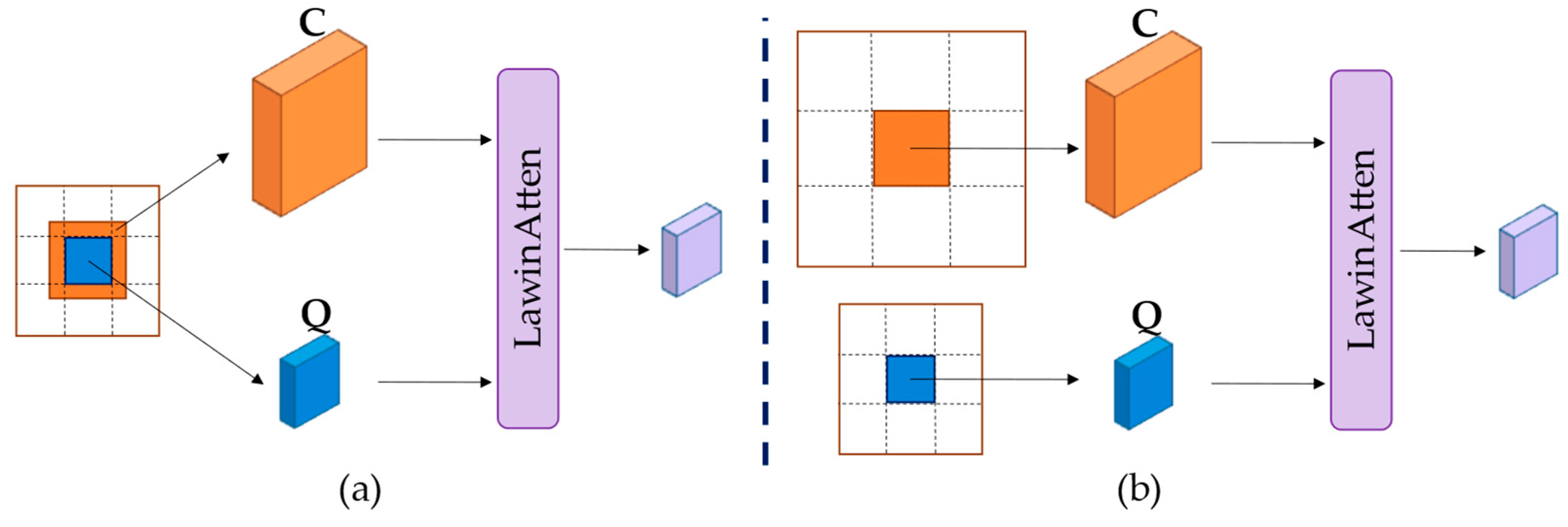

Figure 4. 1/8, 1/16 and 1/32 of the input image size in length and width obtained after passing through the encoder are passed through the multilayer perceptron respectively to obtain F 1 / 4 ∈ ℝ H / 4 × W / 4 × D 1 , F 1 / 8 ∈ ℝ H / 8 × W / 8 × D 2 , F 1 / 16 ∈ ℝ H / 16 × W / 16 × D 3 and F 1 / 32 ∈ ℝ H / 32 × W / 32 × D 4 .
Figure 4. 1/8, 1/16 and 1/32 of the input image size in length and width obtained after passing through the encoder are passed through the multilayer perceptron respectively to obtain F 1 / 4 ∈ ℝ H / 4 × W / 4 × D 1 , F 1 / 8 ∈ ℝ H / 8 × W / 8 × D 2 , F 1 / 16 ∈ ℝ H / 16 × W / 16 × D 3 and F 1 / 32 ∈ ℝ H / 32 × W / 32 × D 4 .
Preprints 89356 g004
Preprints 89356 g005
Figure 5. An example of the bright channel and dark channel. (a) Input image. (b) Bright channel. (c) Dark channel. (d) Ground Truth.
Figure 5. An example of the bright channel and dark channel. (a) Input image. (b) Bright channel. (c) Dark channel. (d) Ground Truth.
Preprints 89356 g005
Preprints 89356 g007

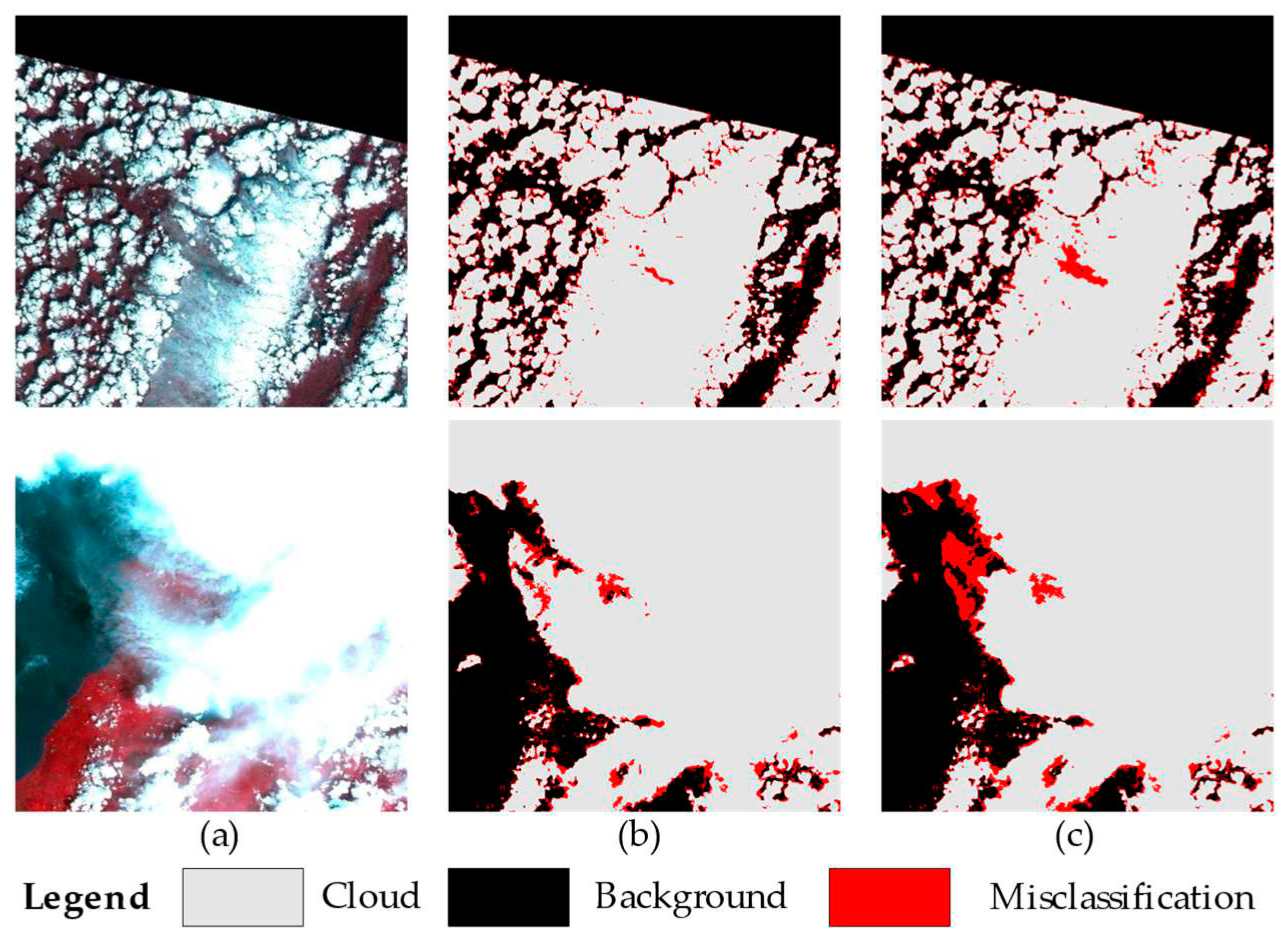

Figure 7. Comparison of models before and after adding multi-scale adapter. (a) Input image. (b) Multi-Scale Adapter. (c) Baseline.
Figure 7. Comparison of models before and after adding multi-scale adapter. (a) Input image. (b) Multi-Scale Adapter. (c) Baseline.
Preprints 89356 g007
Preprints 89356 g008
Figure 8. Comparison of models with single feature layer and multi-feature layer large window attention. (a) Input image. (b) Multi-feature Layer. (c) Single feature Layer.
Figure 8. Comparison of models with single feature layer and multi-feature layer large window attention. (a) Input image. (b) Multi-feature Layer. (c) Single feature Layer.
Preprints 89356 g008
Preprints 89356 g009

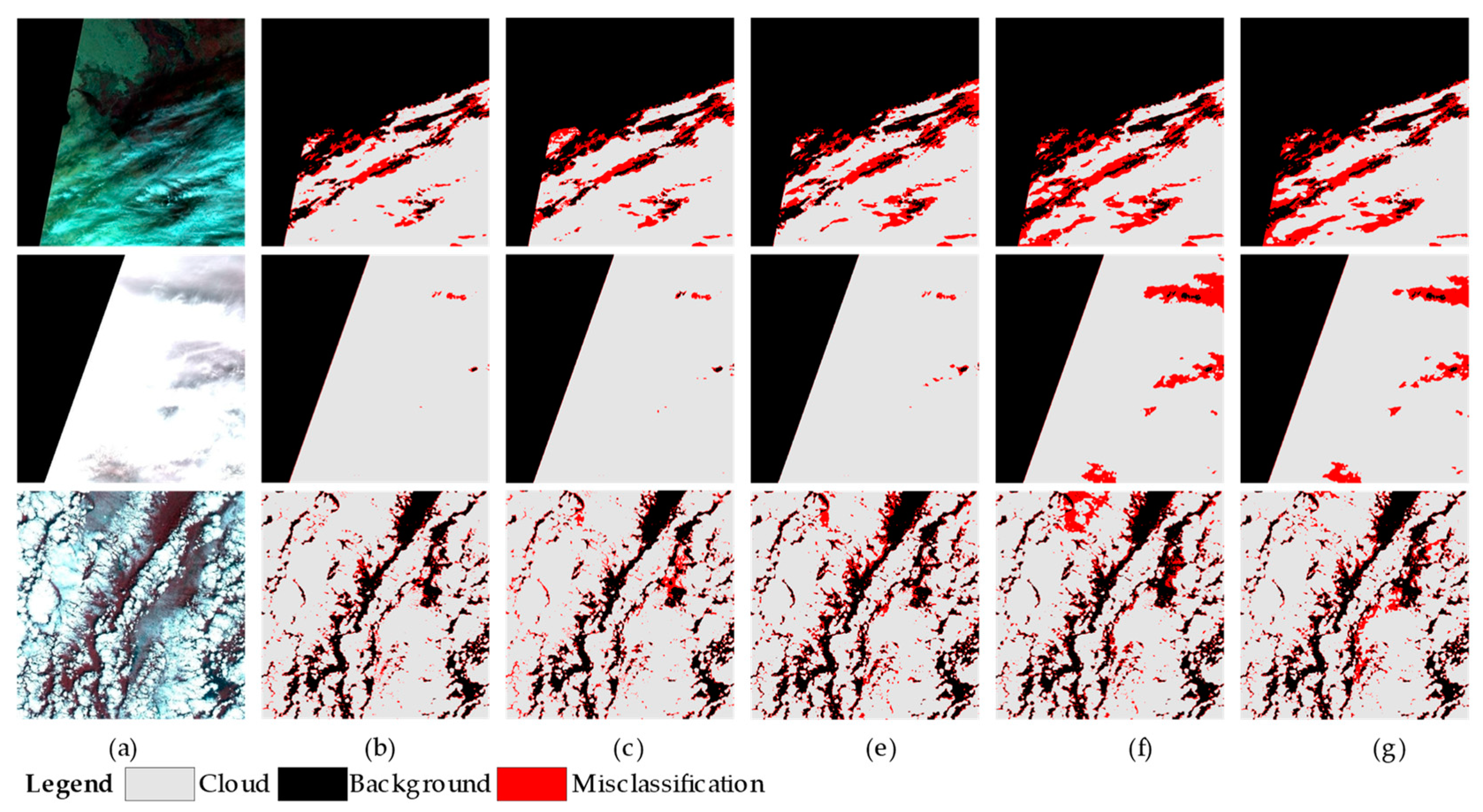

Figure 9. Versus different methods using the GF1_WHU dataset. (a) Image. (b) CloudformerV3. (c) CloudformerV2. (d) Cloudformer. (e) Lawin transformer. (f) Segformer.
Figure 9. Versus different methods using the GF1_WHU dataset. (a) Image. (b) CloudformerV3. (c) CloudformerV2. (d) Cloudformer. (e) Lawin transformer. (f) Segformer.
Preprints 89356 g009
Table 1. Performance comparison of models before and after adding the multi-scale adapter.
Table 1. Performance comparison of models before and after adding the multi-scale adapter.
Encoder MIoU (%) MAcc (%) PAcc (%)
Mix transformer 91.63 94.97 96.44
+ Multi-Scale Adapter 92.43 95.62 96.95
Table 2. Performance comparison between single-level layer large window attention and multi-level large window attention.
Table 2. Performance comparison between single-level layer large window attention and multi-level large window attention.
Decoder MIoU (%) MAcc (%) PAcc (%)
Single feature layer 92.26 95.54 96.83
Multi-feature layer 92.89 96.04 97.12
Table 3. Comparison of effects from different channels input image data.
Table 3. Comparison of effects from different channels input image data.
Input channel MIoU (%) MAcc (%) PAcc (%)
RGB 92.43 95.62 96.95
Dark 92.71 95.77 97.09
Bright 92.68 95.83 97.05
Dark+RGB 92.33 95.48 96.91
Bright+RGB 92.14 95.51 96.84
Dark+Bright 92.89 96.04 97.12
Dark+Bright+RGB 92.03 95.45 96.78
Table 4. Comparison of performance with state-of-the-art methods.
Table 4. Comparison of performance with state-of-the-art methods.
Method MIoU (%) MAcc (%) PAcc (%)
SwinTransformer-UperNet 90.47 93.37 94.12
Mask2former 90.89 94.69 94.89
Segformer 90.65 94.92 95.61
Lawin transformer 90.73 94.55 95.67
Cloudformer 91.78 94.49 95.07
CloudformerV2 92.52 95.66 96.75
CloudformerV3 92.89 96.04 97.12
