1. Introduction

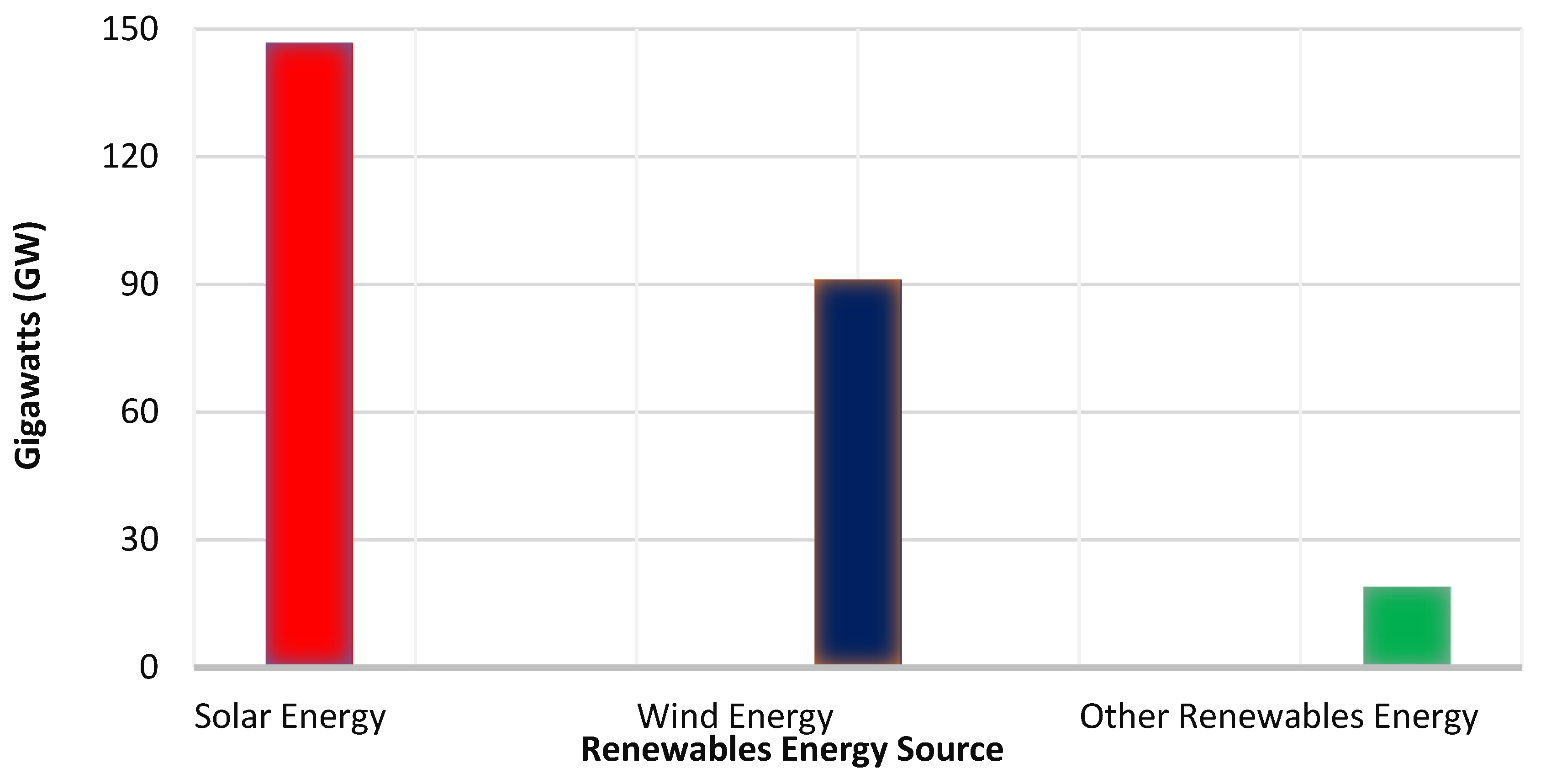

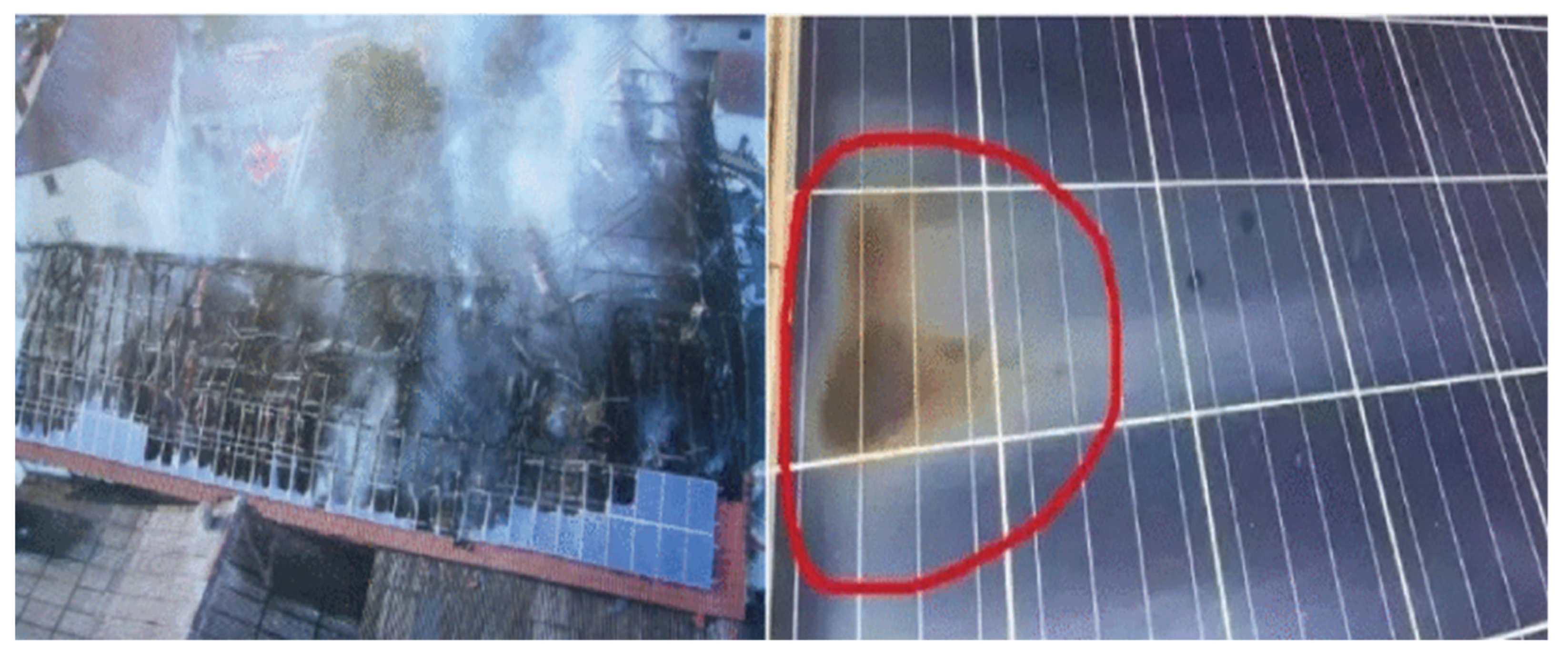

2. Failures of the PV Module Components

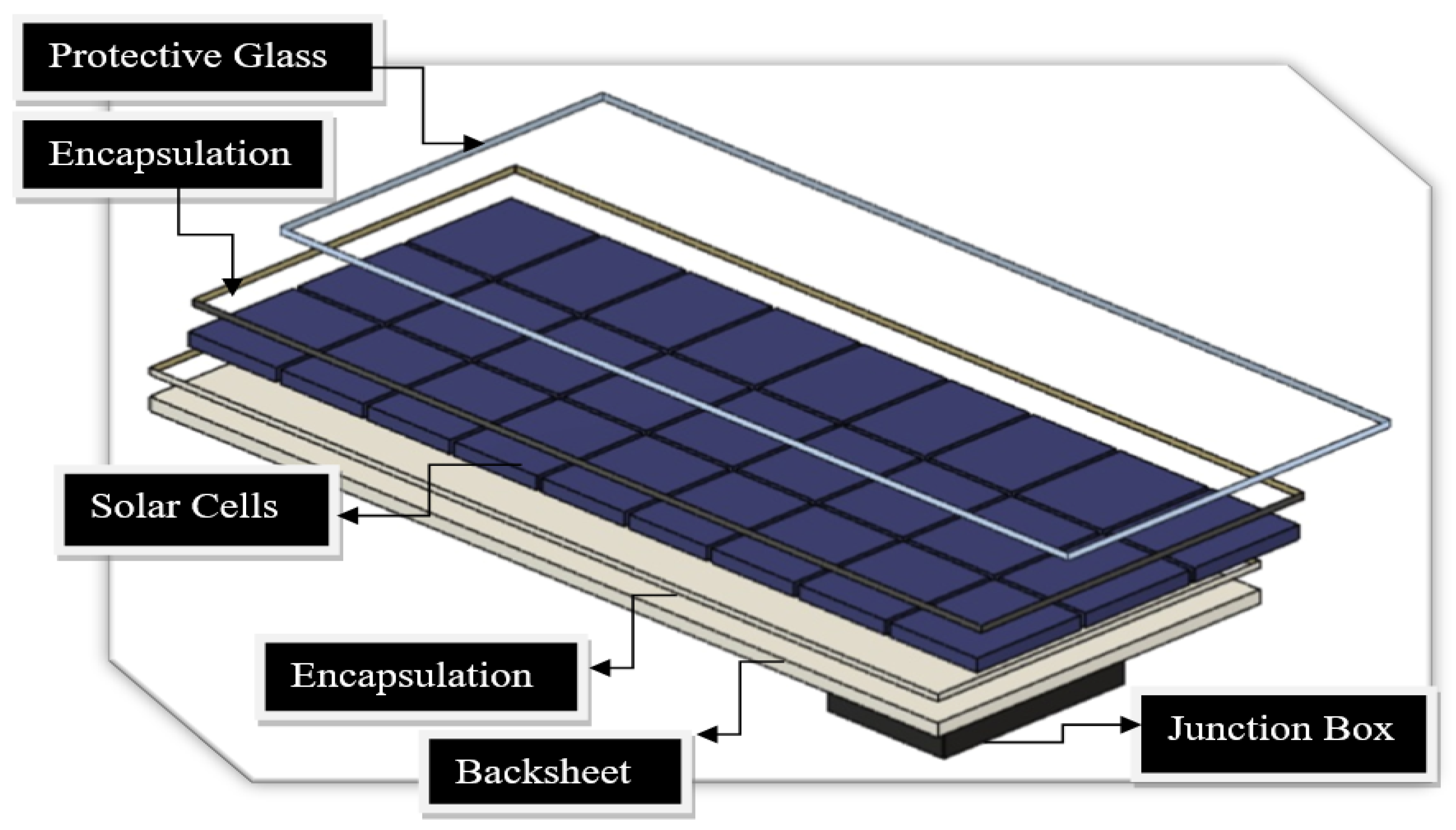

Figure 3. PV module components designed by Fusion 360 modelling program.

Figure 3. PV module components designed by Fusion 360 modelling program.

2.1. Protective Glass

The protective glass in the PV module is made from tempered glass that consists of a small proportion of iron oxide, not exceeding 0.05%, to allow transmission of sun rays [48]. It is manufactured and designed to resist environmental stress factors such as a drastic shift in temperature.

Gürtürk et al. [49] validated glass resistivity by measuring its optical transmittance and energy efficiency. They investigated two types of PV glass, one rated to have a 1% higher solar transmittance. One in each type was used as a control glass and tested at a constant temperature. The others were tested with a drastic shift in their temperature that reached 120°C. Their results showed no significant impact on energy efficiency, only a slight variation, not exceeding 2.06% at most. Afridi et al. [50] artificially formed a hotspot via shading with a temperature rising to 200 ^o C in glass/glass and back-sheet/glass PV modules and proved that the front glass of those two types was not broken or shattered despite severe damage occurring like burn marks, specifically in the glass/glass PV module’s type. Belhaouas et al. [36] inspected 20 PV modules equipped with two different glasses after 11 years of deployment in Bouzareah, Algeria; eight with float glass and the other twelve with textured glass. Their visual inspection showed more optical failures such as delamination in the float glass types albeit all PV modules suffered from discolouration. Besides, PV modules with float glass type have slighter measured values in the electrical parameters than those with textured glass except for open-circuit voltage. Nonetheless, all twenty PV modules experienced nearly the same degradation rate at 1.04% per year.

Optical reduction of light transmittance is primarily the failure that occurs in PV glasses and is potentially caused by glass breaking or shattering or by harsh weather conditions like ultraviolet rays, and dust accumulation [51,52]. A lab experiment by Tagawa et al.[53] explored dust accumulation on glass and its effect on transmittance. Their results revealed a dramatic coarseness increment that resulted in a 32% reduction in glass transmittance after 44 minutes of accumulation. To protect against harmful UV wavelengths, some PV glasses are doped with cerium as an additive [54]. However, King et al. [55], discovered, in a laboratory experiment, that doping cerium reduces the optical transmission by 2% in the distant operational period. Kempe et al. [56] conducted further experiments on the impact of removing cerium from protective glass and found that exclusive cerium can raise optical transmittance by approximately 1.8% [18], which drives some manufacturers to abandon cerium in production line of PV glass. Alternatively, excluding cerium from PV glass is extremely risky; it can cause a substantial rise in the rate of delamination failure by a factor of three [56]. Consequently, when it comes to cerium, Kempe et al. [56] determined that excluding cerium will not boost electrical efficiency, and if excluded, there is a need to coat the glass with anti-reflective substances to filter out damaging ultraviolet wavelengths, predominantly below 350 $\mathrm{nm}$.

Glass shattering can be the result of poor PV module transportation or incorrect manufacturing processes involving excessive clamping force [15,58,59,60]. Some weather conditions also participate in PV glass degradation and failures. A study by Bora et al [61], analysed failure modes of PV modules in different weather conditions in India, they showed that deployed PV modules in hot areas were vulnerable to glass breakage within five years of operation. Shattering or breakage of the module’s glass allows water vapour to ingress the solar cells, creating short circuits and safety risks like electrical shock [32]. This is why glass breakage failure ranked 9 out of 10 in terms of severity as it affects safety severely [32].

In addition, the thermal temperature at the glass’s breaking point increases, which may cause hotspot failure [20]. In an investigation study by Chandel et al. [62], a PV module found with glass breakage had developed hotspot failures with significant power loss which was also stated by Băjenescu and Titu-Marius [63]. Typically, hotspot forms in a PV module when some cells receive less illumination than others, converting them from energy producers to energy dissipaters, i.e., the energy produced by the fully illuminated solar cells is dissipated by the lesser illuminated ones, increasing the latter cells’ thermal temperature and making them operated in reverse bias [64]. Hotspot failures are not only driven by broken glass failures but also driven by shading and mismatch failures [65]. Shading failure is a common PV failure that is strongly linked with hotspot formation [66,67].

When hotspots occur, they cause permanent damage to the solar cells or other module parts; metal connection, EVA encapsulation, or protective glass [68,69]. Jordan et al. [44] rated PV failures based on their severity, where one is low, and ten is considered the most severe; they listed hotspots to have the highest severity rate among all PV failures.

However, Ndiaye et al. [15] investigated a PV module with broken glass operated for five years and found no hotspot that led to significant power loss. This may indicate that the breaking glass is not the cause of the failure, but the consequences that come afterwards due to weak protection. Bansal et al. [32] investigated a PV module operated for 10 years in a mega-plant and found that glass breakage is almost certainly combined with solar cell crack and significant power loss as a result of weak protection.

Figure 4. (a) Example of PV module with a shattered protective glass [57]. (b) Broken glass due to installation fault by too tight bolt [20].

Figure 4. (a) Example of PV module with a shattered protective glass [57]. (b) Broken glass due to installation fault by too tight bolt [20].

2.2. Encapsulant

Various encapsulating substances have been utilized for photovoltaic modules such as polydimethylsiloxane (PDMS) and thermoplastic polyurethane (TPU) [8,70,71,72]. Manufacturers evaluate their advantages and disadvantages in terms of properties including reliability and cost before selection. For instance, PDMS demonstrates better immunity to environmental stress factors which made it favoured in the early stages of PV encapsulation [73]. Recently, manufacturers such as (DuPont) developed a PV encapsulant classified as an Ionomer which offers 25-fold more protection against potential-induced degradation (PID) failure than the typical encapsulant, ethylene-vinyl acetate (EVA). Dow Chemicals, another manufacturer, developed polyolefin-based encapsulants and has claimed it has greater electrical resistance as well as moisture protection when compared to EVA and Ionomers [74,75]. Azam et al. [76] explored the degradation rate of four modules: two of which were laminated with polyvinyl butyral (PVB) encapsulant under an accelerated ultraviolet test and found they had a 50% lower degradation rate compared to EVA.

Despite the superior protection features against environmental stress factors in more advanced encapsulating materials, EVA is still utilized in more than 75% of all PV modules due to its cost-effectiveness [77,78]. The cost of PVB material, for instance, is about 50% more per m² than its competitor, EVA [76]. The majority of EVA composition is vinyl acetate, with the remainder being a combination of ethylene, antioxidants, and curing agents [79,80].

However, from the historical research carried out in 1981 by Lathrop et al. [81] at Clemson University until recent literature reviews, e.g., [82,83], EVA encapsulant is the primary cause of PV degradation mechanisms. Aboagye et al.[33] recently inspected polycrystalline and monocrystalline PV modules deployed in three locations in Ghana with different weather conditions, all of which showed defects in EVA encapsulants. The same findings were noted in 43 monocrystalline PV modules mounted for ten years in NORDICS weather conditions, specifically in Grimstad, Norway [38]. Nearly all 43 modules suffered from encapsulant defects, namely delamination or discolouration. In Florida, United States, 156 PV modules were inspected after 10 years of deployment and also revealed the same results as [33,38], all 156 modules exhibited encapsulant delamination failure.

Encapsulant wear out can result in low optical performance in PV modules, which causes a reduction in the electrical output owing to decreased wavelength absorption and extreme light reflection [84]. The encapsulant discolouration effect begins with a drop in the short-circuit current ($I_{SC}$). The drop in $I_{SC}$ can be as much as 40%, albeit it is not regarded as a PV failure, as it may not pose a safety hazard [43]. Still, discolouration leads to more severe failures like delamination and corrosion, as a result of the release of acetic acid. The released acetic acid in turn is characteristically found responsible for the corrosion of contacts that frequently occurs after the initiation of discolouration failure [85].

With that in context, delamination can cause a substantial decrease in the amount of light absorbed, thereby leading to a significant drop in I_SC. Bubble formation is one of the primary triggers of encapsulant delamination; it is formed initially during the lamination process of encapsulation due to a higher localised ratio of released volatile organic compounds [86,87]. The area affected by bubbles in the PV module operates at hotter temperatures and potentially leads to burn marks [88]. A study by Rajput et al. [89] analysed the degradation mechanism of 90 mono-crystalline PV modules operated for 22 years in India; it was found that the PV modules affected by more bubbles had more power loss.

Despite ultraviolet radiation occupying a relatively small percentage in the solar spectrum, less than 4%, it is considered a major reason for the degradation of PV encapsulant material [90,91]; due to its shorter wavelength, ultraviolet radiation possesses greater energy that can gradually degrade the encapsulant, decomposing its polymeric bonds [92]. The UV spectrum is divided into three types: ultraviolet type-A, ultraviolet type-B, and ultraviolet type-C. In deployments, PV modules are not exposed to ultraviolet type-C but ultraviolet type-B radiation. Hence, it is regarded as the primary trigger of the degradation mechanism in EVA [93,94,95]. Even with the implementation of UV-blocking glass, the degradation of EVA remains significant when exposed heavily to UV-B, particularly in conjunction with other stressors such as high temperatures and humidity [56,96]. Consequently, a chemical process is originated, resulting in the creation of acetic acid and aldehyde, which leads to a gradual darkening of the EVA material from clear to dark brown in severe instances [96,97].

Miller et al. [71] examined five types of encapsulants, exploring the degradation process after exposing them to an artificial ultraviolet source and different combination levels of humidity and temperature. Their experiments revealed that encapsulants had higher degradation rates when they were exposed to lower humidity and higher temperatures, displaying faster yellowing. Experiments for exposing PV encapsulant to ultraviolet sources with stressors were also conducted by Arularasu [98] and showed nearly the same results as Miller et al. [71].

To account for the degree of encapsulant yellowing, a “yellowing-index” terminology, published by the International Standards Organization (ISO) [99], is used. Yellowing-index is defined as the alteration of polymer colour toward yellow [99]. Nevertheless, Oliveira et al. [100] discovered that early degradation of EVA cannot be spotted as it may start before its colour turns yellow, i.e., the yellowing-index has not experienced any modifications. This ambiguity has driven more investigations, for example [54,101,102], to explore the initial stage of EVA degradation.

Figure 5. (A) Brown discolouration of PV cell [103]. (B) PV Module affected by delamination [62]. (C) PV module affected by delamination that led to corrosion [104].

Figure 5. (A) Brown discolouration of PV cell [103]. (B) PV Module affected by delamination [62]. (C) PV module affected by delamination that led to corrosion [104].

The latter might be the one of reasons for Ferrara and Philipp [105] to state there is no distinct correlation between the shift in the EVA’s colour and the solar cell's electrical performance. However, Rosillo and Alonso-Garcia [106] demonstrated through experimentation that an increase in the yellowness index reduces the major electrical parameter, maximum power output. The results of their study are consistent with the well-known research conducted by Pern et al. [107], which examined the electrical performance of solar cells for five different colours of EVA (clear, yellow-brown 1, yellow-brown 2, brown, and dark brown). The researchers concluded that as the EVA colour darkened, there was a gradual decrease in the maximum power output, with the most reduction observed in the dark brown colour [99].

In addition, Dechthummarong et al. [108] took measurements of PV modules before and after they were mounted for 15 years to ascertain whether the insulation resistance still complied with the IEC 61215 standard [109]. The researchers categorized EVA discolouration into four colours: light yellow, yellow, brown, and dark brown. Their findings revealed that the modules with light yellow and yellow discolouration exhibited healthier performance with superior efficiency when compared to the brown and dark-brown EVA modules. Surprisingly, the insulation resistance of all PV modules met the IEC 61215 standard, even though modules with brown and dark-brown discolouration were more vulnerable to failure from corrosion, delamination, and EVA bubble formation. An investigation conducted by Diniz et al. [110] also found that modules with brown discolouration were associated with more severe and safety-related failures, including corrosion.

2.3. Solar Cells

Solar cells are connected in series and then encapsulated, typically with EVA, to provide adhesion between the solar cells and the protective glass. Failure of the solar cell mainly occurs due to the very narrow profile of the pure silicon slice. These thin wafers are very brittle and are prone to cracking easily during manufacturing or transportation.

Generally, the microcracks of the cell cannot be detected by the naked eye. Due to that, they may spread and distribute to other cells in the module [20]. When the cracks block more than 8% of the cell from functioning, it may lead to a hotspot [20,111]. The active area of the cracked cell may be forced to operate in reverse bias, eventually causing a hotspot failure. Moreover, cracks are subject to expansion and emerging more cracks, especially under environmental and mechanical stress factors like hot, cold, and windy climate conditions [112,113,114,115]. Consequently, they accelerate the ageing process, showing a higher degradation rate [20]. Buerhop et al. [116] reported that PV modules with cracked cells had a greater than 10% power loss after six years of operation when compared to healthy ones. A study by Siruvuri et al. [117] developed a deep learning model based on four attributes; crack type (edge or centre), size, orientation angles (angle degrees of the crack: horizontal vs. vertical cracks) and ambient temperature to forecast the crack severity on power loss. The outcome results were analysed and evaluated, revealing that the power loss increased with increasing crack size and temperature but decreased with increasing orientation angle. However, with regards to angle orientation, their results contradicted the results of Dhimish et al. [118], where horizontal cracks are more gentle than those of vertical cracks or so-called parallel to busbar [119].

Conversely, snail track failure can be detected by the naked eye; this failure is so-named because it is shaped like a snail. Alberto et al. [120] indicated that most of the snail track failures are linked to the existence of cracked cells. They also compared four PV modules with a snail track against a healthy one. In their findings, the maximum power output dropped in all PV modules with a snail track, one of which had a power loss of 40% than rated. This reduction in maximum power was caused primarily by a significant reduction in the$I_{SC}$, despite a slight increment in open-circuit voltage (V_OC). This association between cracked cells and snail trails was also stressed in a recent investigation study conducted in Indonesia [121]. Duerr et al. [122] found that four degradation mechanisms trigger snail track failures, depending on the combination of the encapsulant materials, and on that basis, snail tracks should be described and categorised under PV failures rather than a single degradation mechanism.

Potential induced degradation (PID) is another PV failure observed first in Germany in 2005 [123]. It degrades PV wafers and leads to the development of hotspots [124,125]. It is formed owing to polarization differences between the PV module frame and the module’s cells. Thus, it mostly occurs in PV plants and farms where PV frames are grounded as a protective technique against fire ignition [126]. If undetected, it may lead to 100% power loss within a few years [51]. A report based in Germany stated that PID failure is progressing rapidly with the release of acetic acid due to EVA discolouration [127]. Moreover, in a lab experiment by Pingel et al. [128], the PV module was found unlikely to recover from PID when operated at higher temperatures. With the rise of bifacial PV module deployment in the last decade, Molto et al. [129], reviewed the PID failure displayed in these module types. Although bifacial modules recently joined the PV market, over 30 scientific papers were published in the literature for such failure. The review analysis of Molto et al. [129], came with four classifications of PID failures; PID-s, Na-penetration-PID, PID-p and PID-c. Both PID-s and Na-Penetration were caused by the leaning and movement of Na- Na-positive ions to the polarized cells. Involvement of Na⁺ ions were also found in PID-c type which was also classified into three categories, whereas PID-p was related to the deterioration of the PV surface. Recovery of all types was found to be possible either fully or partially via dark storage or ultra-violet lighting, particularly for PID-p, but found irreparable for the PID-c type [129].

Another failure that solar cells might experience is a disconnection of the solar cell wires known as busbars or ribbons. This type of failure occurs because of a manufacturing defect, it is also driven by excessive heat due to long partial shading. it can produce excessive leakage current. When undetected increases the thermal temperature and forms a hotspot [130]. Such failure is detected by an infrared camera (IR) or by monitoring the output I-V curve. When this occurs, the power is dropped by 35%. With progression, it will decrease the power by 46% [33]. Consequently, the solder bound will become extremely hot, leading to burning marks and discolouration of the EVA encapsulant [131]. In the worst scenario, the protective glass will be broken with visible burn marks on the PV module's back sheet, blocking the current path and initiating an electrical arc and fire, causing irreversible damage [20].

Colvin et al.[132], explored interconnection failures depending on cut location in the PV module and irradiance. They investigated cuts in busbars that connect cells in the centre of the PV module and cuts in outer busbars (at the edge). Results showed that outer busbars’ cuts are more severe and reduced modules' power output by nearly double compared to those cuts in centred busbars. They justified their findings as alternative busbars that can carry the captured photocurrents are limited to one when cuts occur at the outer busbar, whereas in inner cuts there is more than one alternative busbar that can act in place. Eslami et al. [133], explored failures immunity in three common interconnections types in PV modules through FEM simulation; the first one is the conventional interconnection known as front-to-back interconnection, the second type is the light-capturing type which is named due to recapturing of lost photocurrent via reflection; the third type is the multi-busbar which uses its rounder shape effect to reflect the lost photo-currents to cell. Among the three, the multi-busbar type showed 15 per cent higher immunity against ribbon and busbar failures.

Thus, as with most PV failures, detecting them earlier is essential to assure a reliable and safe operation of the PV system.

Figure 6. (a) PV module affected by snail track failure [122]. (b) PID failure detected by electroluminescence image [134]. (c) Hotspot burned the cell solder bonding and exhibited burn marks on the backsheet [135].

Figure 6. (a) PV module affected by snail track failure [122]. (b) PID failure detected by electroluminescence image [134]. (c) Hotspot burned the cell solder bonding and exhibited burn marks on the backsheet [135].

2.4. Backsheet

The backsheet is the last protection layer of the PV module that provides construction support to the PV module. It shields the modules’ electrical parts from short circuit failure, ensuring perfect electrical insulation from various environmental stress factors such as water ingress from high relative humidity [136]. Failures and degradation in the backsheet can appear as cracks, discolouration, delamination, bubbles, and burn marks [127].

The major cause of burn marks failure is hotspots, and this may lead the PV module to catch fire. For this purpose, a study conducted by Cancelliere and Liciotti [95] investigated fire reactions with four material arrangements on the basis of PET (Polyethylene Terephthalate) backsheet: 3-layers (PET/PET/Primer), 4-layers (PET/Aluminium/PET/Primer), 3-layers (Fluoro-Coating/PET/EVA) and PET layer with an outside and inside coating. The two backsheets, PET monolayer with an inside and outside coating, and the 4-layers (PET/Aluminium/PET/Primer) reacted slower to fire flame and had fewer damaged areas with no or less harm to EVA encapsulant. However, the monolayer with an inside and outside coating backsheet is favoured over the other as aluminium is electrically conductive and may result in less power production. PET backsheet was also nominated for a cracking comparison against backsheet made of PP (polypropylene) by Oreski et al.[137]. The comparison study employed a stress accelerated test to explore if PP backsheet has the same immunity as PET. They found that PP exhibited cracking after the same exposure time as PET which makes it a reliable substitution in PV backsheet industry. Even though, a suggestion by Elfaqih et al.[138] to mix the PP backsheet with 5% carbon fibre to provide greater strength and longer reliability against failure. They come up with their proposal after they investigated PP and PPCF (PP supported with carbon fibre) and found PPCF backsheet has higher tensile strength.

Investigations of the PV module’s backsheet deployed in outdoor conditions was also conducted by Pascual et al. [139], where PV modules were deployed in an eight-MW plant, all of which were from the same manufacturer but with two backsheet types; PVF (fluorinated) and polyamide. The PV modules were deployed in 2011 and investigated after six years of operation. Visual inspection revealed that 14% of modules with polyamide backsheet suffered from cracks. Furthermore, polyamide backsheets were susceptible to chalking which is a decomposition of backsheet material into white powder that is considered a warning sign of abnormal degradation [140]. More than 90% of inspected PV modules of polyamide backsheet degraded by chalking while none of the PVF backsheets did. The strength of the PVF backsheet might be one of the reasons that drive researchers’ attention e.g.[141,142] to search for effective ingredients to be utilized in stress-accelerated tests.

With regards to cracking, Mühleisen [143], developed a solution based on polyurethane paint to be coated at the early onset of the backsheet’s cracks. The coating was examined for nearly two years in outdoor conditions and was also tested under stress accelerated test. Their results showed a significant reduction in crack progressing in the coated backsheet compared to the uncoated ones. The study of Mühleisen [143] is not the first of its kind, Beaucarne et al. [144] also fabricated a coated solution recognised as a flowable-silicone-sealant that can act in place to avoid early replacement of PV modules. They applied the solution on PV modules operated for less than 8 years with heavy backsheet cracks. These modules were of four types of backsheet; Co-extruded polyamide, PVF, PVDF and PET. The cracked backsheet modules were tested for insulation resistance and none of them passed the required standard level. After applying the coating, all of them restore a healthy level of insulation resistance even after applying stress accelerated tests for a thousand hours.

Figure 7. (A) Backsheet bubbles [127]. (B) Backsheet delamination [127]. (C) Burn marks were caused by a hotspot in the backsheet [135].

Figure 7. (A) Backsheet bubbles [127]. (B) Backsheet delamination [127]. (C) Burn marks were caused by a hotspot in the backsheet [135].

2.5. Junction Box and Bypass Diodes

A junction box (J-box) is attached to the PV module through adhesive material to regulate and provide a safe flow of the collected photocurrents in a PV module [145]. To guarantee the correct flow path of the current, bypass diodes are also installed inside the j-box in different configurations; overlap and non-overlap [146]. Failures in the j-box are mainly caused by low wiring quality, blown bypass diodes, corrosion and poor bonding to the PV module (delamination) caused primarily by high humidity [82]. Failure of the J-box may result in zero output of electricity, this was found by Bakir [147] in a recent assessment of a 23 MW PV plant mounted in Turkey. As of this, many studies e.g.[148,149] came up with novel techniques to monitor and protect J-boxes from failures. Most J-box failures allow water vapour to ingress, causing serious safety issues, initiating an electrical arc or causing hotspots [20]. Ong et al. [150] listed failures of J-box among the root causes of fire ignition in PV modules. Han et al. [14] investigated the condition of 177 mono-crystalline PV modules that operated for 22 years in a humid climate with an average temperature of 27.5°C. Most of the junction boxes of the modules had been seriously damaged and needed a replacement.

Furthermore, junction-box can degrade at a faster rate when exposed to high alteration of ambient temperature during the year. Daher et al.[151] evaluated the reliability of a 9-year PV system (270 modules) installed as off-grid that is expected to produce 62 kW in Ali Adde town, Djibouti. The PV system is exposed to the town’s high temperatures with dramatic variation from winter to summer, where in the winter months its average temperature is 26.7 C and rises to a very hot temperature in the summer months with an average of 38 C. Out of 270 modules, 39% diagnosed with adhesive junction-box failure.

On the other hand, cold climates with high relative humidity like Grimstad, Norway led to the corrosion of junction boxes [38]. J-boxes and metal parts of PV modules operating in the so-called floatovoltaics structure, like PV systems deployed on the water in a floating construction, are too at higher risk of corrosion [152]. This urged Ghosh [153] to recommend that j-boxes should have a protection rating of IP67 when attached to PV modules mounted in a water-based environment. Unsurprisingly, dust was also found to corrode the PV module’s junction box, Tabet et al. [154] inspect a module operating in a dusty environment for six years, exhibiting that j-box failed because of corrosion. This is in agreement with Lin and Zhan [155] that water-dissolvable salts represent more than 59% of dust composition in which ,whenever stuck to metal, react and cause corrosion primarily in humid environments.

Several PV failures were found to form hotspots making it necessary to protect the PV module. One means of protection is to use a bypass diode, although it has been criticised for being neither safe nor effective [68,156,157]. The existence of a bypass diode enables the current to flow over the defective solar cells, thereby protecting the PV module from thermal increases and hotspots. This is one of the main explanations why some PV manufacturers, such as AE-Solar, a German PV Manufacturer, attach a bypass diode to each PV cell [158]. One of the recurrent reasons for blown bypass diodes is the increase in their temperature due to long-term shading [159,160]. Also, it was indicated by Bansal et al. [82] that those bypass diodes that were exposed to over irradiance, in particular over 1400 ${\mathrm{Wm}}^{-2}$are expected to be blown due to high-flowing currents.

Failure to detect poor bypass diodes may lead to serious safety issues [160,161]. Since bypass diodes are used to avoid PV failures that lead to hot-spotting, whenever they fail, the module loses its means of protection becomes vulnerable and, in the worst scenario, initiates fire [26,162]. Bakir [163] used an infrared imaging detection technique where he attached the thermal cameras to a drone to be flown over three solar plants that range between 2 and 3.5 MW. One of the plants has three PV modules with failed bypass diodes and as a result, their operating temperature increased by an average of 19.7 C. It was shown by Ghosh et al.[164] that the operating temperature of the PV cell undergoes shading failure decreased by nearly 50% when bypass diodes are functioning. Their experimental study aimed to explore if total cross-tied (TCT) array configurations is effective in preventing hotspot by allowing the bypass diodes to respond promptly in case of shading. And showed that bypass diode was only functioning if more than one cell was affected by shading and, therefore further investigations are required to pinpoint the optimal configuration of PV array that is able to activate bypass diodes even in the case of one shaded cell, like in the birds dropping situations.

Figure 8. (a) Failed bypass diodes led to hotspots [135]. (b) Poor bonding of j-box [134].

Figure 8. (a) Failed bypass diodes led to hotspots [135]. (b) Poor bonding of j-box [134].

To conclude this section (2 to 2.5), PV failures can be classified based on their components. The same PV failure mechanism can be seen or experienced in more than one component due to the similarity of the materials, e.g. EVA presents in encapsulant and also in backsheet. Furthermore, EVA defect is usually considered the early sign of PV module degradation and failure as it is alongside PV glass representing the first defence line against weather stressors. Unlike snail track in PV cells, corrosion is another failure mechanism that can attack more than one component; solar cell solder, bypass and junction box, especially in humid environments.

The hotspot failure mechanism is considered the most severe failure that leads to catastrophic consequences. It deteriorates all PV module components if undetected, PV module affected by an elevated level of hotspot cannot be reversed and often requires a replacement. Thus, Identifying the initial stages of PV degradation can prevent potential hazards through proactive maintenance. Sometimes, it is even more effective to substitute a PV module that displays early onset of deterioration as it will guarantee all deployed modules in PV plants continue generating the healthier (expected) power, regardless of if their condition complies with the IEC 61215 standard [109]. Table 2 lists the reported PV failures from investigational studies within the last two years, classifying them on PV component basis.

3. Classification of Crystalline Photovoltaic Module Failures

4. Effect of Environmental Stress Factors on PV Degradation

5. Detection of PV Failures

5.2. Infrared Imaging

Infrared imaging is a detection technique based on the solar cell’s reversed biased circulating current in a PV module [190]. In case of failure, the solar cell dissipates heat which an infrared camera can detect. Hotspots, as well as microcrack failures, sometimes cannot be seen by the natural human eye. Still, they are caught by infrared imaging. Predicting failure before taking place is a major advantage of this technique. On the other hand, drawbacks will be staffing and expensive costs [186]. The working principle is usually started by storing images of a healthy PV module to compare them to a faulty module when needed. This technique can detect hotspots, breakage of solar cells, disconnection, and PID failures [82].

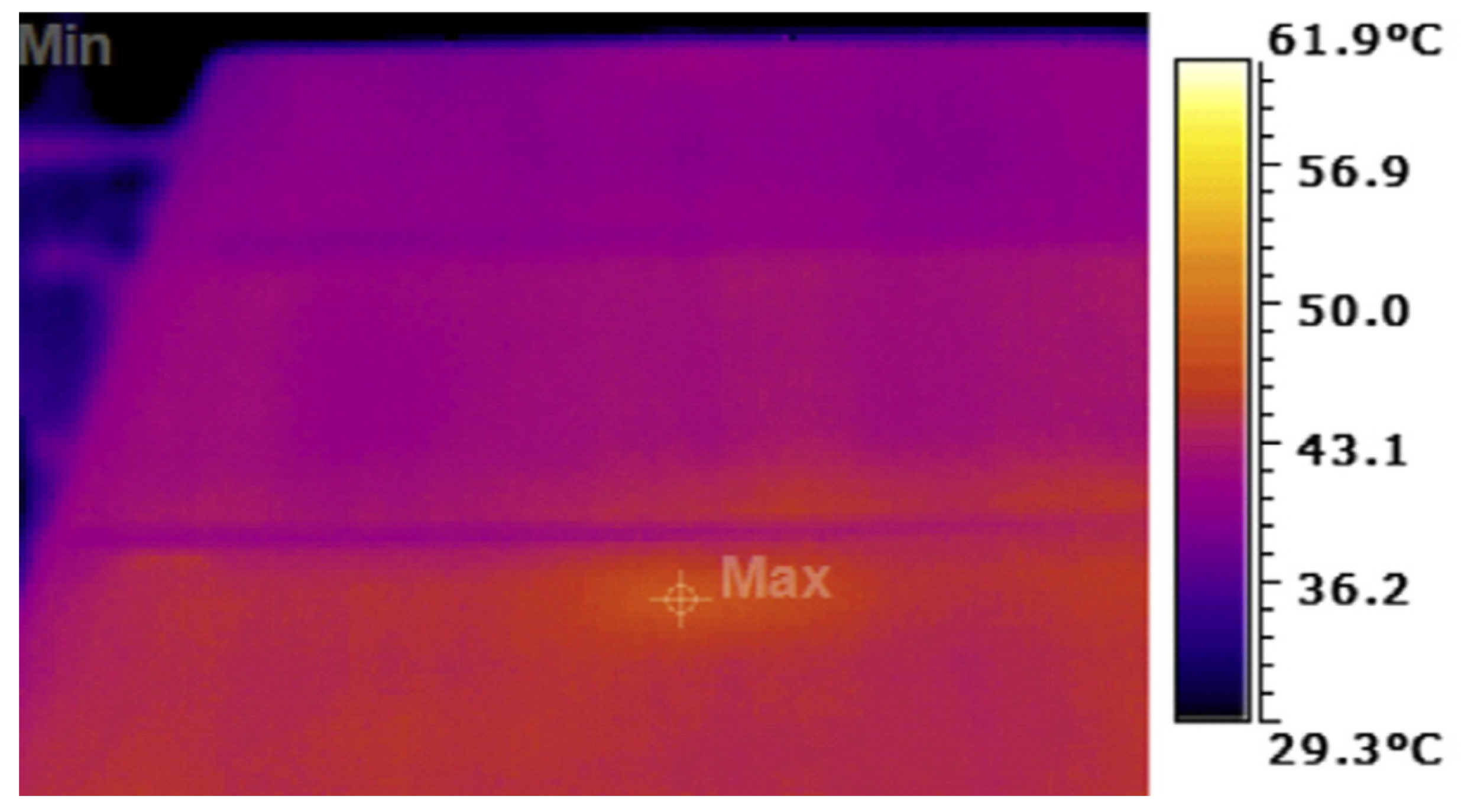

Figure 9. Infrared imaging to discover high-temperature cells in a PV module [186].

Figure 9. Infrared imaging to discover high-temperature cells in a PV module [186].

5.3. Electroluminescence Imaging

This technique is used to detect a potential cracked cell by pinpointing the low contact area of a PV module [191]. The working principle of this technique is to look into the recombination losses (shunt defects) created by an injected current to the solar cell metallic contact [192,193,194]. In addition to detecting cracked cells, snail tracks, and PID failures can be seen using EL imaging [82]. The lock-in thermography detection technique has nearly the same working principle as EL but was found superior and more sensitive in detecting failures [122].

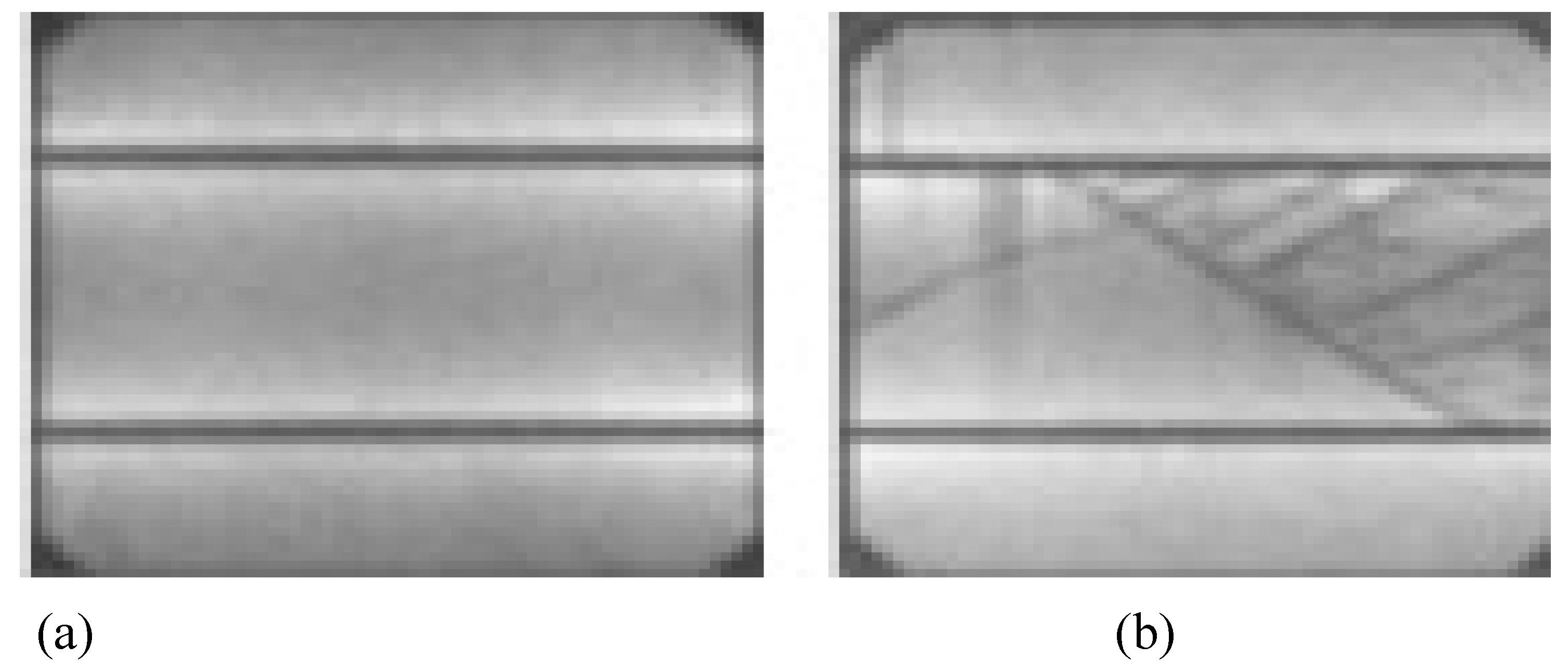

Figure 10. (a) EL imaging of a healthy monocrystalline solar cell. (b) El imaging of a cracked monocrystalline solar cell [195].

Figure 10. (a) EL imaging of a healthy monocrystalline solar cell. (b) El imaging of a cracked monocrystalline solar cell [195].

5.4. Ultrasonic Inspection

The detection technique of ultrasonic inspection compares the frequency signals of a healthy and a faulty cell obtained by an ultrasonic transducer [196,197,198]. The resonance frequency intends to decrease when detecting a defective cell [197,199]. The ultrasonic technique is mainly used to detect cracked cells in a PV module. An advantage of the method is that it infers the severity level of the cell crack based on the range of the frequency’s bandwidth [197].

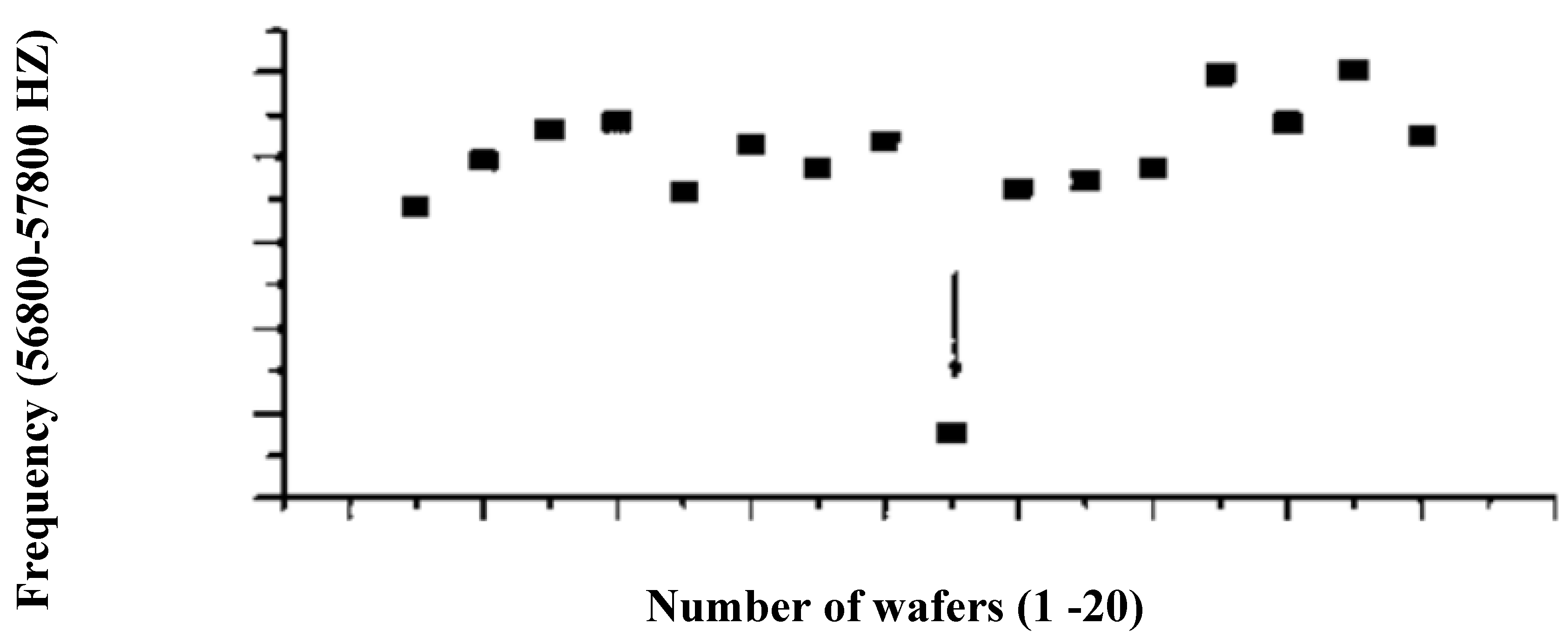

Figure 11. Ultrasonic inspection for several cell wafers showing cell No.11 has an abnormal reduction in frequency, indicating a crack failure [196].

Figure 11. Ultrasonic inspection for several cell wafers showing cell No.11 has an abnormal reduction in frequency, indicating a crack failure [196].

5.5. Electrical Characterization

Electrical characterization has been claimed to be the most common detection technique for PV failures [200]. This detection technique focused on monitoring and spotting any changes in the PV system’s electrical parameters. It was reviewed by Mellit et al. [187] and referred to as a signal-processing approach that involves protection devices such as over-current protection devices. Pillai and Rajasekar critically reviewed protection devices [186], explaining the limitations and drawbacks of detecting a failure instantly, particularly under low irradiance, which may lead to serious safety issues and catastrophic failure. For instance, delayed response from over-current protection devices when PV fails leads to an electric arc or fire [187].

I-V curve, power losses, and PV module’s temperature, all of which can be used to detect PV failures. For instance, if the temperature of the PV module increases at hotspot failure, sensors can be put in place to detect abnormal increases [201], and further, Insulation monitoring devices evaluate the resistance between the current-carrying conductor and the ground to detect ground failure [202]. Fuses are able to calculate the residual system’s current [203].

One technique of using residuals to detect failures is typically the simulation of a healthy PV module to obtain the maximum voltage (V_m), maximum current (I_m), and power values and then compare them with the received actual data. Residuals (the difference between the simulation and the experimental values) indicate the existence of PV failure. Depending on the residual extent, the type of failure can be predicted [204,205]. Harrou et al. [205] used this method as an indicator of abnormal changes in the PV system. However, they concluded the monitored parameters were insufficient to detect extreme degradation and partial shading failures. Elyes et al. [204] used the residual technique and reached the same result as Harrou et al. [205], predominantly for shading failures, thus, it will be more effective to include other I-V parameters as an indicator such as short-circuit current and fill factor.

One obstacle preventing accurate detection of PV failures was obtaining noisy data from measurements. Harrou et al. [205] focused on detecting four types of PV failures on the DC side; open circuit, short circuit, partial shading, and degradation failures. In order to detect those failures accurately, they had to use a wavelet-based multiscale tool to separate the noisy measurement data. Elyes et al. [204], also concluded that using wavelet-based multiscale, anti-noise techniques, increased the accuracy in the detection of PV failures. Noisy data seems to be an obstacle in Ali et al. [206] ending up suggesting to separate them using noise separation devices or working out efficient ways for noise separation. However, with advanced technologies at present, artificial intelligence (machine and deep learning) in particular, noisy data has been tackled in many recent studies, e.g. [207,208], that is; the accuracy of PV failure detection was robust even with the presence of noisy data and only neglected effect was observed.

5.5.1. Detection Techniques Using I-V Curve Parameters

The I-V curve shows the output combinations between voltages and currents, delivering the values of major parameters; short-circuit current, open-circuit voltage, maximum power output, and fill factor. Modelling of healthy or expected I-V curves and power output via engineering modelling programs are also classified under electrical characterization and was referred to as “model-based difference measurements” by Pillai and Rajasekar [186]. One of the reasons for the I-V curve to be simulated, instead of obtaining them experimentally, is the risk associated with performing faulty operation scenarios in a real PV plant which may get out of control [209].

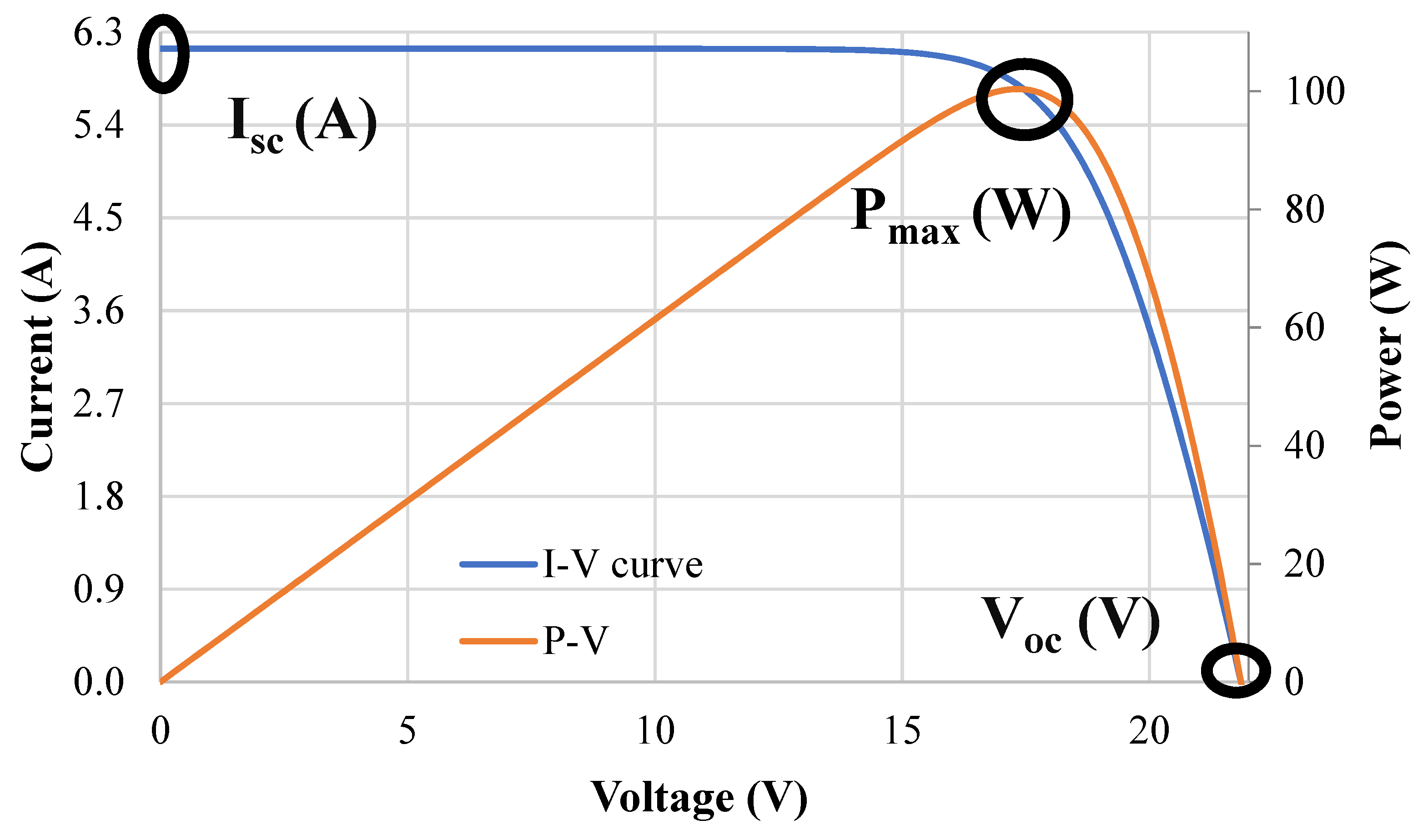

Figure 12. Current-voltage and Power-Voltage curves display the major parameters of a solar cell; I_sc, the current at zero volts, V_OC, the voltage at zero amps, and P_max, the maximum power output.

Figure 12. Current-voltage and Power-Voltage curves display the major parameters of a solar cell; I_sc, the current at zero volts, V_OC, the voltage at zero amps, and P_max, the maximum power output.

Chen et al. [210] investigated four failure modes and recorded their impacts on the I-V curve. Short circuit failure was found to decrease both P_max and V_OC. Degradation failure can be observed when a reduction in the I-V slope accompanies a gradual decrease in P_max. I_SC was decreased in open-circuit failure. In case of partial shading failures, the I-V curve will be distorted, forming multiple P_max points; one before shading and one after shading. Ali et al. [206] fabricated three shading scenarios on a PV string that contains three polycrystalline modules; firstly, one-third of two modules were shaded, secondly, three cells in each module were shaded and lastly, half cells in each module were shaded. As a result, I-V curves were distorted, and V_OC decreased in all three scenarios, at most in the third scenario with a 68% reduction.

Köntges et al. [20] agreed with Ali et al. [206] that shading failure distorts the I-V curve, creating multiple P_max points. They also listed the effect of various PV failures on the I-V curve; I_SC is affected mainly by optical failures and losses of transparency, EVA discolouration, glass breakage and shattering, and EVA delamination. It is also affected by disconnected soldering of the cells, PID, and cracked cells in the PV module. Whereas V_OC is affected by defective bypass diode, PID, and disconnected soldering of the cells. The fill factor is affected by delamination, corrosion, and cracked cells. All PV failures were found to reduce P_max except for the bypass defect.

The awareness of the electrical characterization’s boundaries assists in training supervised machine learning algorithms by looking for deviations from their previous relationships to detect PV failure and degradation. Chine et al. [211] implemented artificial neural networks (ANN) to detect eight types of faults: shading caused by snow and soiling. A probabilistic neural network (PNN) algorithm was implemented to predict and classify three failure mechanisms by Garoudja et al. [209] and was found superior and more efficient than ANN even in the presence of noise. The substantial surge of published studies that proposed or developed artificial intelligent models to detect PV failures demands a review to arrange, compare and classify them. Researchers in recent years were aware of this gap and many reviews were conducted as a result e.g.[167,212,213,214,215,216].

5.5.2. Detection Degradations and Failures Using Shunt and Series Resistances

Modelling of the I-V curve’s major parameters via mathematical equations, e.g. short circuit current and open circuit voltage, assists in extracting the values of other key parameters [217,218], namely series resistance and shunt resistance. As most PV failure and degradation modes will severely impact these parameters, quantifying them will significantly enhance detection models of PV defective modes [219]. Nonetheless, precise extraction of series and shunt resistance values is challenging [217,218] and thus many researchers have developed approaches to optimise an extraction technique to estimate their range values, e.g., [220,221,222,223,224]. While accurate parameter extraction might be challenging, estimating their values’ range is still vital for the healthy operation of PV modules.

The shunt resistance offers a pathway for the photogenerated current, allowing it to bypass the PV equivalent circuit whereas the series resistance infers the solar cell components' resistances altogether such as the cell’s base and busbar resistances. The series resistance increases in the presence of PV failures or degradation. It has been claimed that degradation mechanisms influencing series resistance are the most prevalent degradation mechanism after EVA discolouration [225]. Besides, it has greater severity; Wohlgemuth and Kurtz [40] stated increment of series resistance in PV modules may lead to disastrous consequences resulting from fire. In contrast, a higher value of shunt resistance indicates a safe operation of the PV cell as it directs most of the generated photocurrents to flow through one healthy path [67,226]. Conversely, when it is lost through alternative paths, the R_sh reduces significantly which ultimately leads to a severe drop in overall power production [67,226,227].

Kaplani and Kaplanis [228] investigated PV panels that were deployed for twenty years. They discovered that an 80% reduction in the R_sh and a 50% increment in the R_s were strongly linked to the PV panel's degradation, leading to 11% power loss. Furthermore, power degradation occurred as a result of several failures that directly impacted and reduce the shunt resistance including soldering defects, microcracks, shading, and hotspots [229,230]. Most of these failures were found to directly impact and increase series resistance too [225,231,232]. It can be noted that the majority of PV defects summarised by Tsanakas et al. [51], particularly the electrical ones, have been found in the literature to decrease R_sh and increase R_S. Based on this as well as other findings e.g. [83,219], the shunt as well as series resistances appear as strong predictors of PV failures and deterioration. Optical failures such as EVA delamination were found to lower shunt resistance and increase series resistances. Gxasheka et al. [233] compared the parameters of five deployed PV modules. The one affected by delamination had approximately 50% lower shunt resistance accompanied by a 61% increment in series resistance.

The effect of encapsulant discolouration, the most prevalent EVA defect, was also determined by Rajput et al. [234] to decrease shunt resistance. However, a study by Sinha et al. [235] compared two module pairs that operated for 20 years in India, one in each pair had brown EVA discolouration. They assumed there was no evident link found between brown EVA discolouration and shunt resistance decrement. This is perhaps due to the PV module receiving less illumination when EVA is discoloured [236] and as stated by Ruschel et al. [237] the shunt resistance increases when solar illumination decreases. However, this can be applied if the EVA experiences the same discolouration level across the PV module. Otherwise, different levels of EVA discolouration might have the same effect as minor shading and will lead eventually to decreased shunt resistance.

On the other hand, electrical failures, which are unlikely to be spotted by the naked eye [51], such as microcrack failures, were found by Zhang et al. [238] to decrease R_sh significantly. In their study, low shunt resistance was spotted from the short-circuit current slope in the I-V curve of a module with cracked cells whereas the increment in series resistance was minor unless the range of irradiance was between 250-475 Wm^-2 [238]. Saavedra et al. [130] also experimentally investigated PV modules with cracked cells and reached the same conclusion as Zhang et al. [238], but experienced a greater increment in R_S. Potential-induced degradation was also directly linked with shunt resistance reduction and series resistance increment [239,240,241]. Myer and Dyk [66] simulated a PV module that consisted of 36 cells with 30% of the cells under shading failure to analyse the effect of shading on electrical parameters. In their findings, both shading and hotspots, when presented, significantly lowered the shunt resistance.

Degradation and many PV failures were associated with low shunt resistance and increased series resistance, making it vital to explore their behaviours when the solar cell degrades. A MATLAB study conducted by Dhass et al. [242] displayed that a reduction in shunt resistance caused a significant decrease in short-circuit current compared with open-circuit voltage. Another software program was employed by Dyk and Meyer [243] for the shunt resistance reduction effect, they found that a decrement in shunt resistance reduced P_MAX, V_OC, and fill factor with a slight increase in I_SC. Conversely, Sarkar [244] simulated the reduction of the R_sh effect using SPICE and showed that the reduction of shunt resistance leads to a greater decrement in open-circuit voltage instead of short-circuit current. It can be noted that the outcome discrepancies were due to the studies [242,243,244] relying on simulation software programs.

Several practical experiments have also been conducted and published in the literature; back in 1969 Kennerud [245] investigated a cadmium sulphide (CdS) solar cell, applying the Newton-Raphson technique to solve the I-V equations. Then, he manipulated the electrical parameters, including the R_sh and the R_s, to examine their influence on the I-V characteristics. The findings were experimentally verified and demonstrated that a decrease in shunt resistance was associated with a reduction in open-circuit voltage while increasing in series resistance was linked to a reduction in fill factor. Rummel et al. [246] fabricated a twelve-cell mono-crystalline module to explore the effect of 24 scenarios of shunt resistance levels at different irradiance levels, falling from 1000 W m^-2 down to 90 W m^-2. A significant drop in the module's efficiency was observed after reducing the shun resistance, particularly with the lowest shunt resistance level. With the assistance of electroluminescence (EL) imaging techniques, Roy and Gupta [227] investigated images of solar cells exhibiting low shunt resistance levels linked with faulty operations such as hot spots. The shunt resistance was reduced artificially to six levels from 0.3 kΩ to 0.001 kΩ. The results showed darker images for the cell with reduced R_sh, with the level of darkness becoming more intense with the lowest levels of shunt resistance.

To sum up, it can be noticed from the literature that numerous studies were conducted to explore the shunt and series resistance effect as they are directly linked to most PV failures. Despite that, not as many studies employ them as indicators or predictors, predominantly studies related to series resistance, in the detection of PV failures or degradation. Al Mahdi [247] fulfilled the gap of shunt resistance in terms of PV degradation by developing a lab experiment that gradually and artificially decrease the shunt resistance of poly-crystalline solar cells to propose a detection model. It was found that critical degradation of PV cells occurred when shunt resistance decreased to 100 Ω.cm². Further experimental investigations for employing shunt and series resistances are needed to arrive at comprehensive and robust detection techniques for PV failures. Table 5 lists the most recent review studies about some detection techniques of PV failure mechanisms.

6. Conclusion
