1. Introduction

2. Literature Review

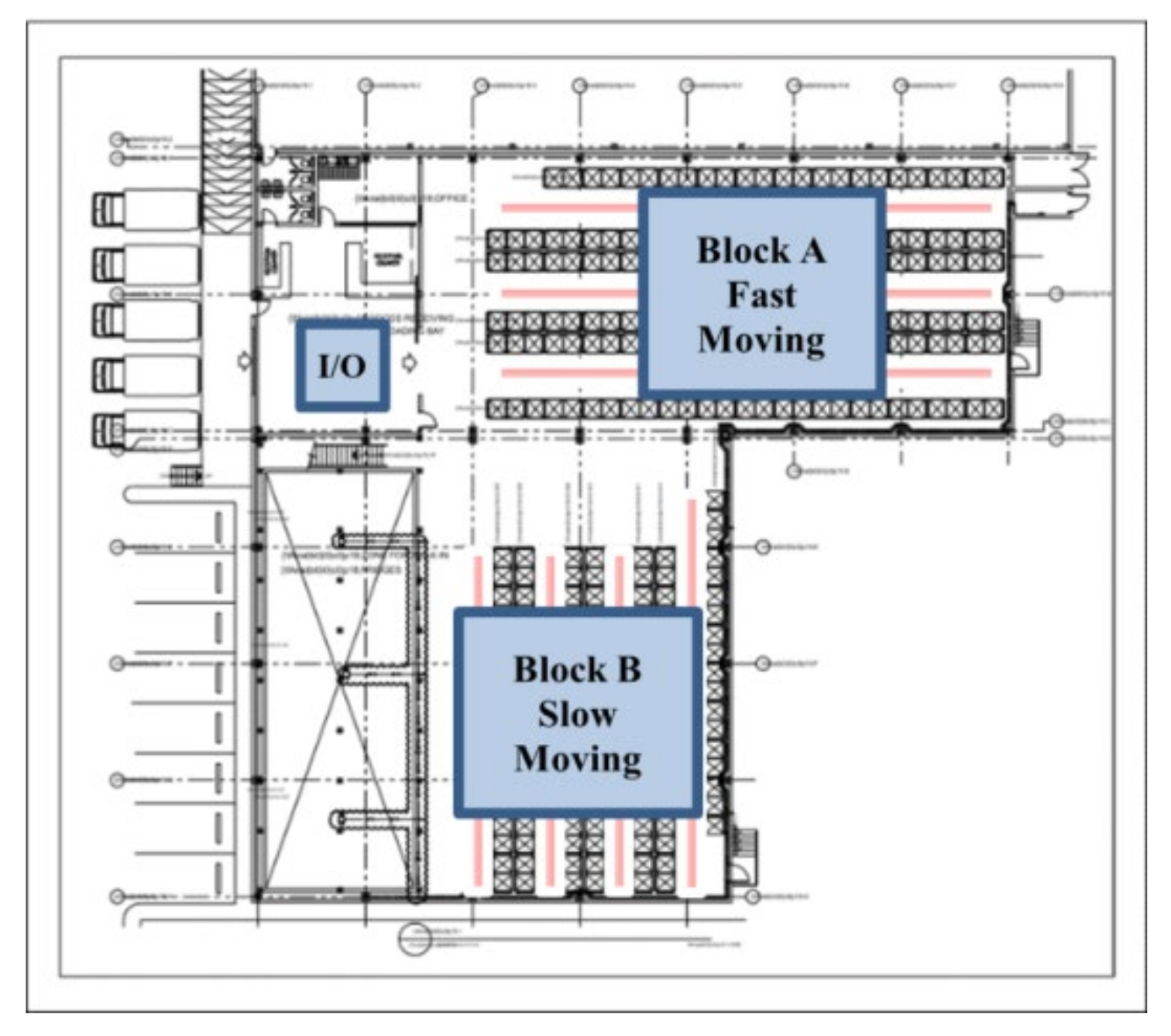

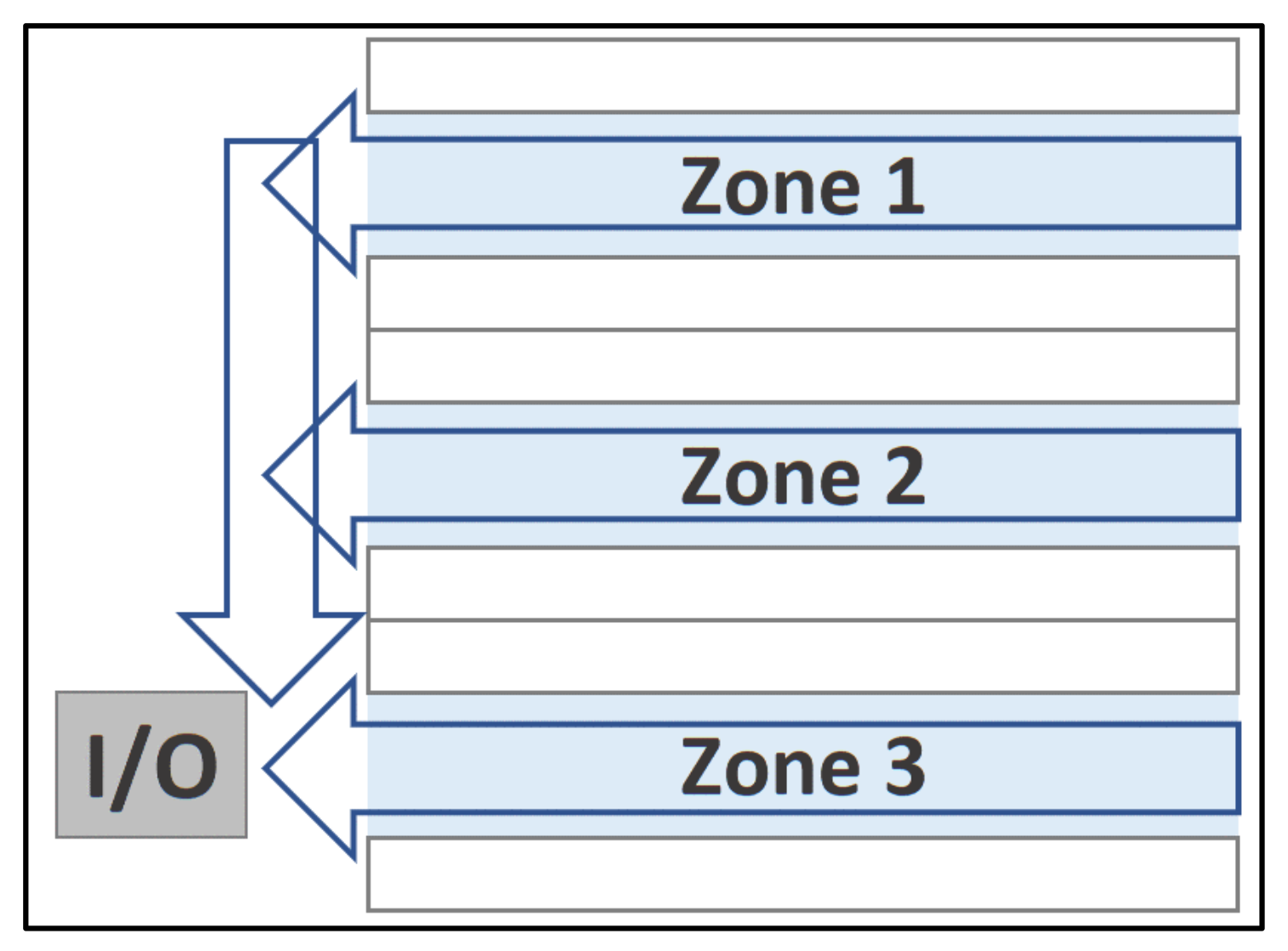

3. Problem Settings

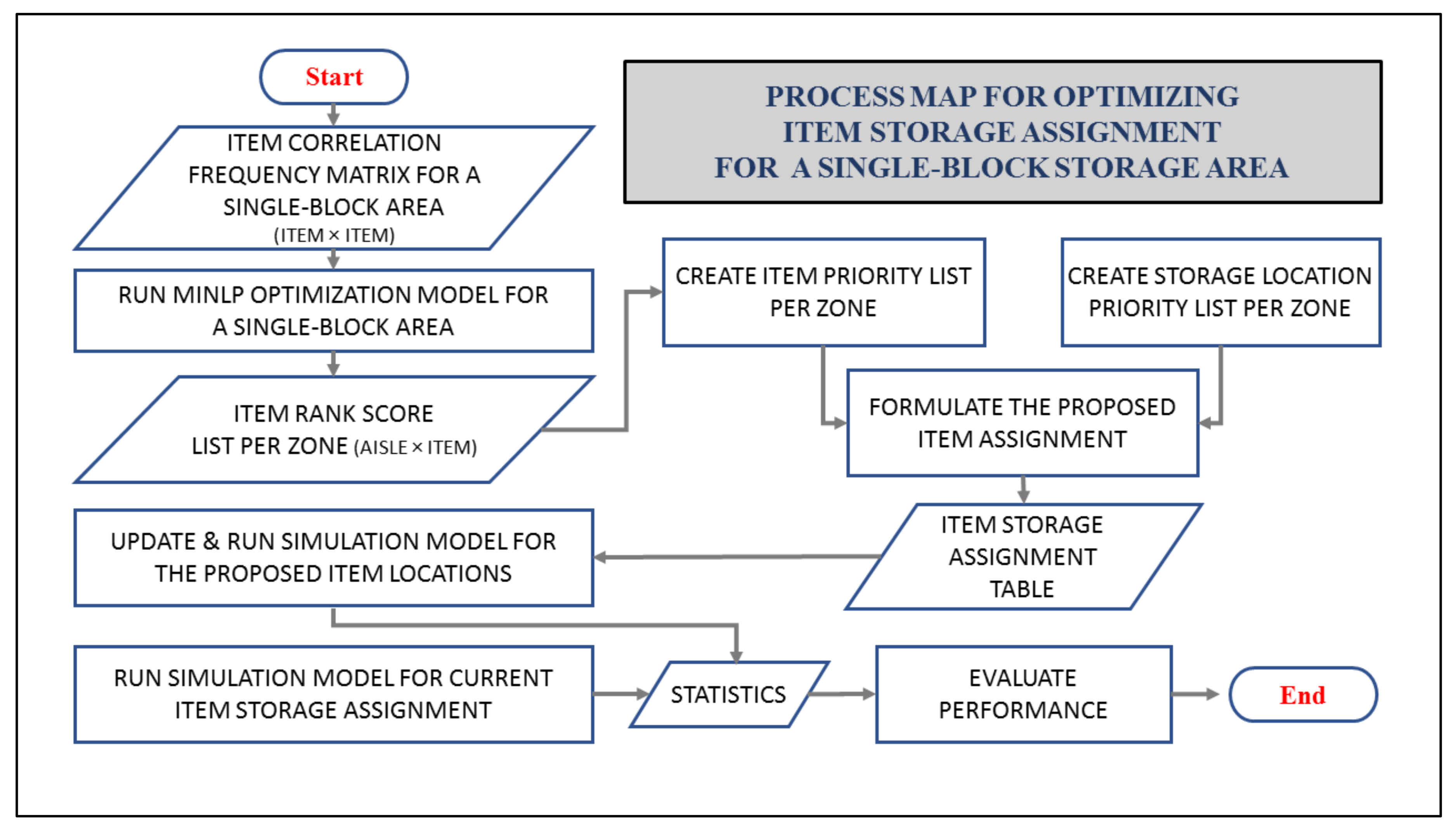

4. Methodology

4.2. Mathematical Programming Model

There are various ways to convey a problem statement and its solution when presenting an optimization model. The common approach is to express the problem using simplified math equations to provide a concise representation. However, in this section, we start with presenting the code in Lingo’s mathematical modeling language. This approach offers several advantages in terms of readability, usability, and the understanding of the potential impact of the problem formulation on the solver's performance. This allows us to include annotations, which can provide additional explanations as presented in “Model E: Lingo Optimization Code (Block A)”. An MINLP model is created for each single-block to maintaining the current class-based storage blocks for fast-moving and slow-moving items while implement the proposed CSAS. The optimization aims to maximize the total zone correlation score while penalizing deviations from weighted averages, referred to as centroids in this model. By defining centroids from achieved total correlation score and total picking frequency based on ratios, we can conduct scenario analysis to examine their influence on travel distance optimization. To better measure deviation from centroids and refine the objective function, we have introduced the utilization of PD and ND as a more effective alternative penalty terms for achieving targets. These measures aim to address the positive or negative sources of deviation, particularly to prohibit it from increasing beyond or below a target. The purpose of this approach is to quantify the feasible solution to allow for better comparison against other states while approaching the target from the opposite side of deviation. By incorporating deviation penalty terms, we can expedite convergence towards maximizing the objective function that ultimately achieves to higher total correlation score in addition to achieving specific targets.

In mathematical programming models, the positive or negative deviation is commonly defined through logical conditions, or employing functions that determine the maximum or minimum value between the deviation result and the zero value since, to the best of our knowledge, there is no standard formula available to measure this deviation. However, when dealing with optimization problems, the solvers translate the formulation into a mathematical representation. Therefore, to facilitate the calculation of these deviations and promote better convergence, we have employed the following simple formulas that enable the quantification of positive centroid deviation (PCD) and negative centroid deviation (NCD) for achieved score (x) and a targeted centroid (C):

$$PCD\left(x,C\right)={\displaystyle \frac{\left|x-C\right|+\left(x-C\right)}{2}}$$

(1)

$$NCD\left(x,C\right)={\displaystyle \frac{\left|x-C\right|-\left(x-C\right)}{2}}$$

(2)

To further refine our model, we incorporate a derivative-based deviation penalty term (P) that penalizes the deviations for each zone. The penalty parameter (t) adjusts the weight of the penalty term, striking a balance between maximizing the total correlation score and enforcing the desired weighted centroids per zone. We calculate the penalty (P) as a function of D, where (D) represents the PCD or NCD and (t) denotes the penalty parameter as presented in equation [3]:

$$P\left(D\right)=D\cdot \left({\displaystyle \frac{D}{t\cdot D+1}}-1\right)$$

(3)

By setting (t) to 10, the penalty approaches ($-{\displaystyle \frac{9}{10}} \mathrm{D})$for larger deviations, resulting in higher accuracy for targeted ratios compared to setting (t) to 2, and the model converges in less solving time compared to using the absolute deviation measure. On the other hand, if we set (t) to 2, the solving time decreases and the objective function achieves higher correlation scores as the penalty term approaches ($-{\displaystyle \frac{1}{2}} \mathrm{D})$ due to reduced penalization. Although it may seem that the term $\left({\displaystyle \frac{\mathrm{D}}{\mathrm{t}\cdot \mathrm{D}+1}}-1\right)$can be replaced by a fixed percentage, it actually plays a crucial role in expediting convergence. For instance, when solving one of the proposed scenarios in Model B with (t) set to 2, the solving time is 10 minutes and 53 seconds. However, replacing the term with ($-{\displaystyle \frac{1}{2}}$) increases the solving time to 27 minutes and 5 seconds, which is 2.5 times slower. It's important to note that both solutions are identical, but the difference in solving time demonstrates the formulation impact of the penalty term on the solver’s performance. Overall, incorporating the penalty term with an appropriate penalty parameter allows us to fine-tune the model's performance, achieving targets while optimizing solving time.

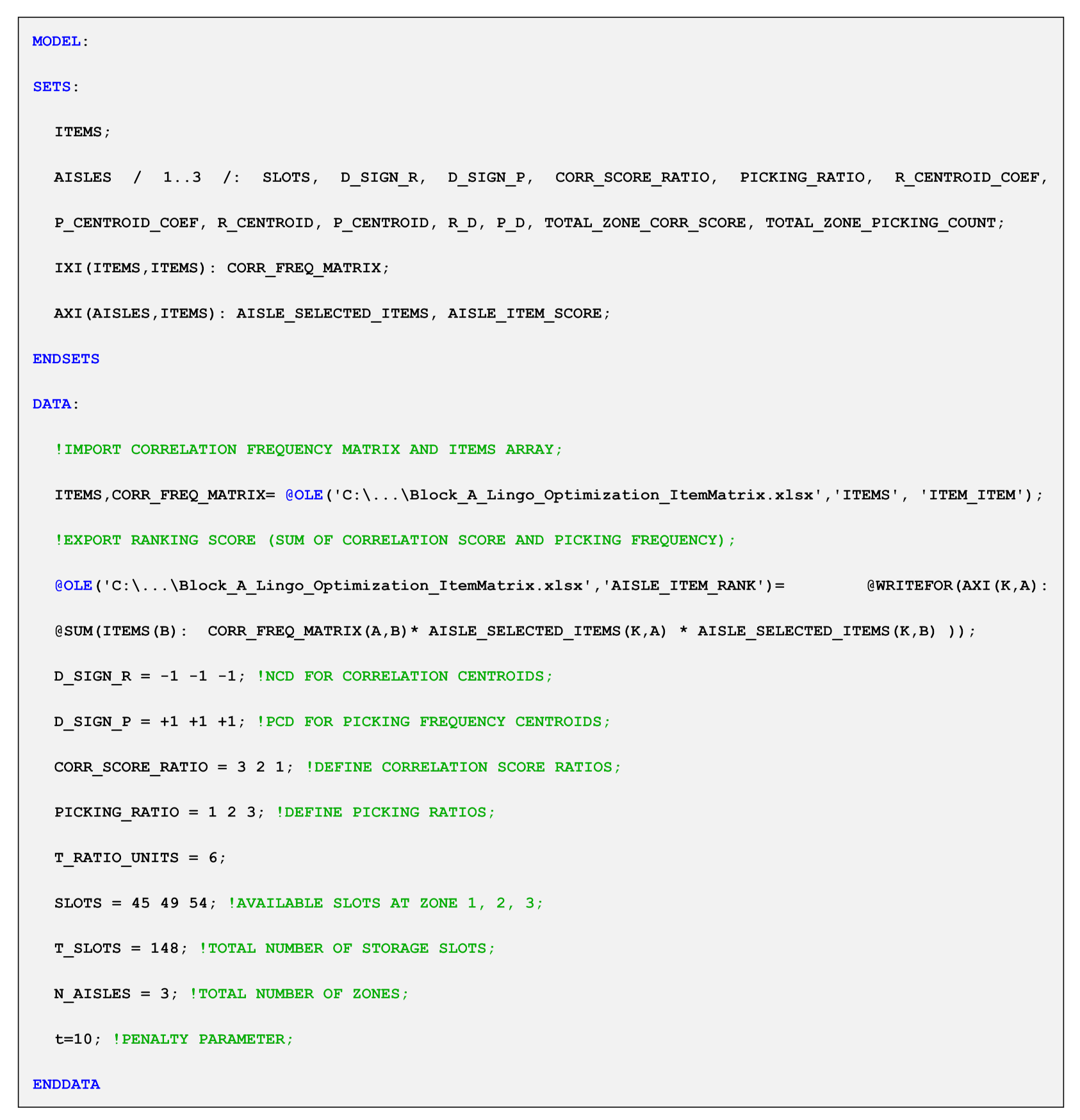

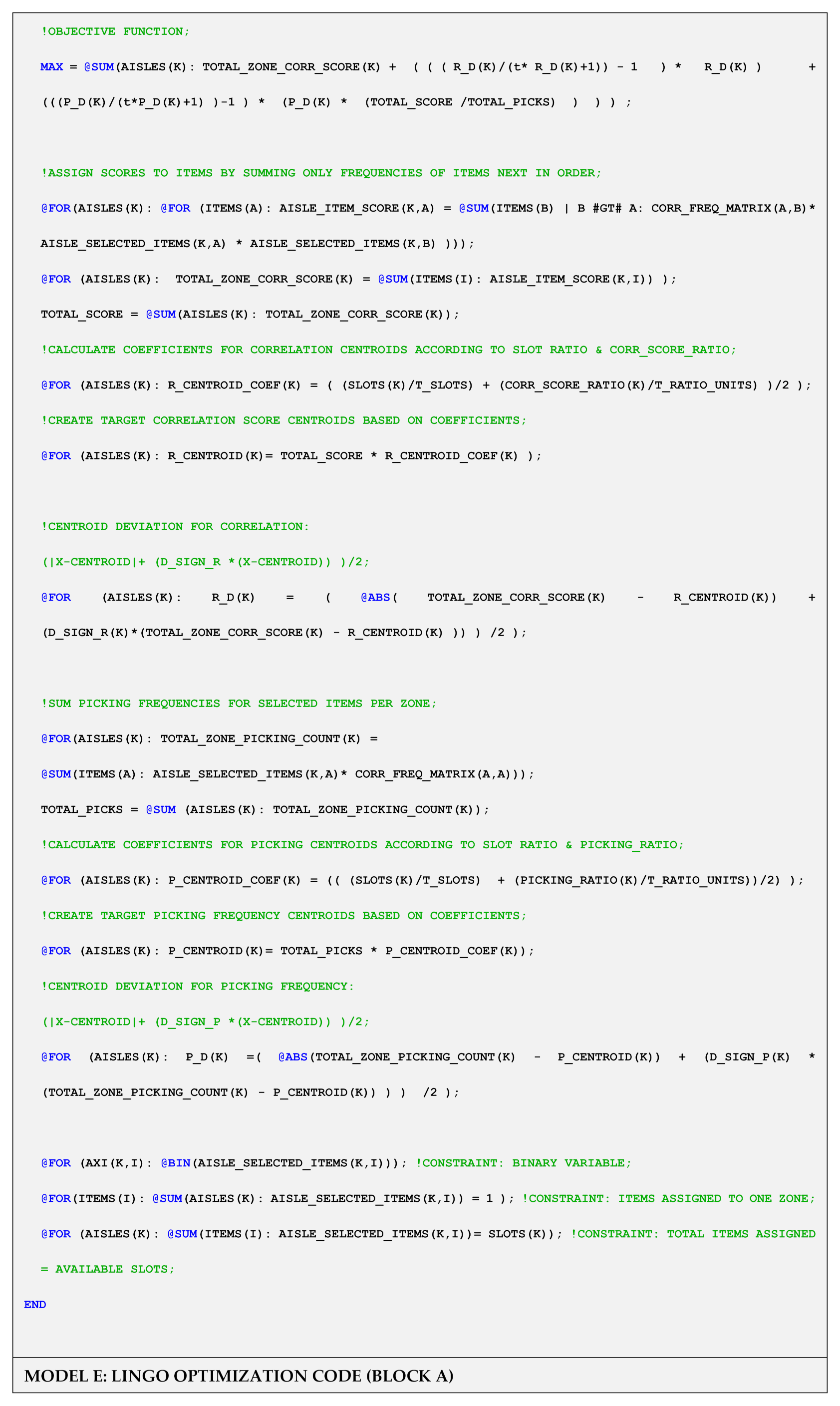

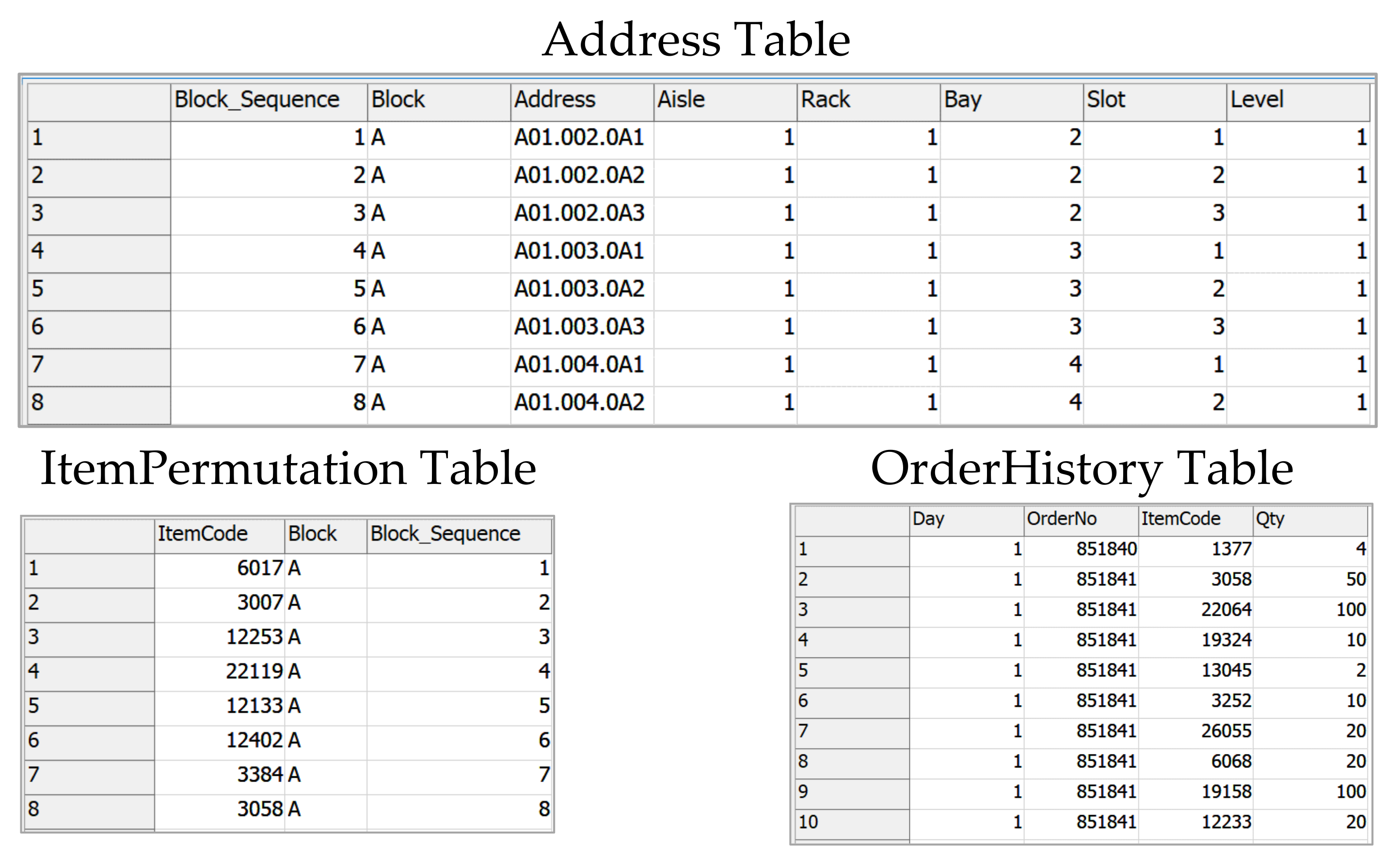

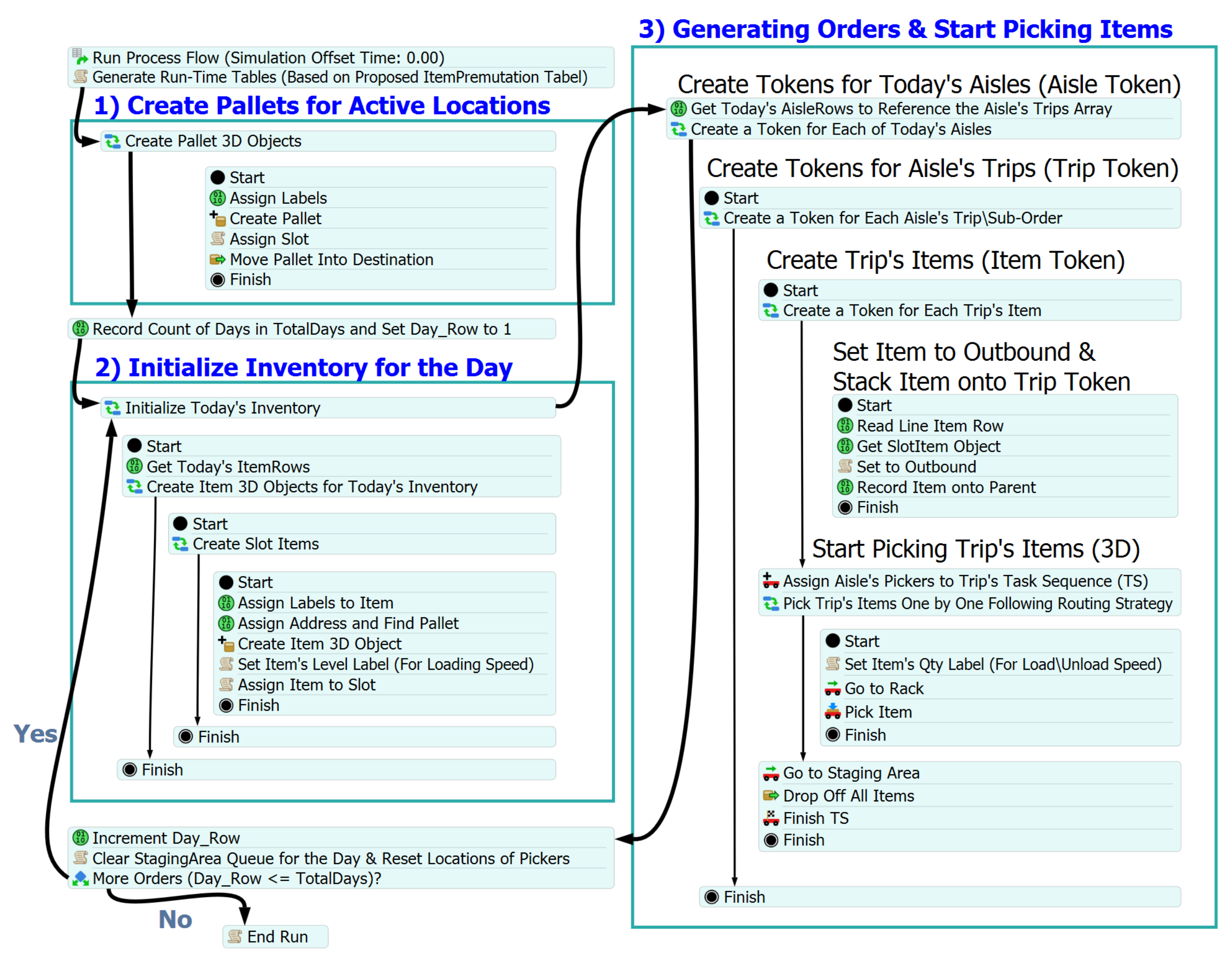

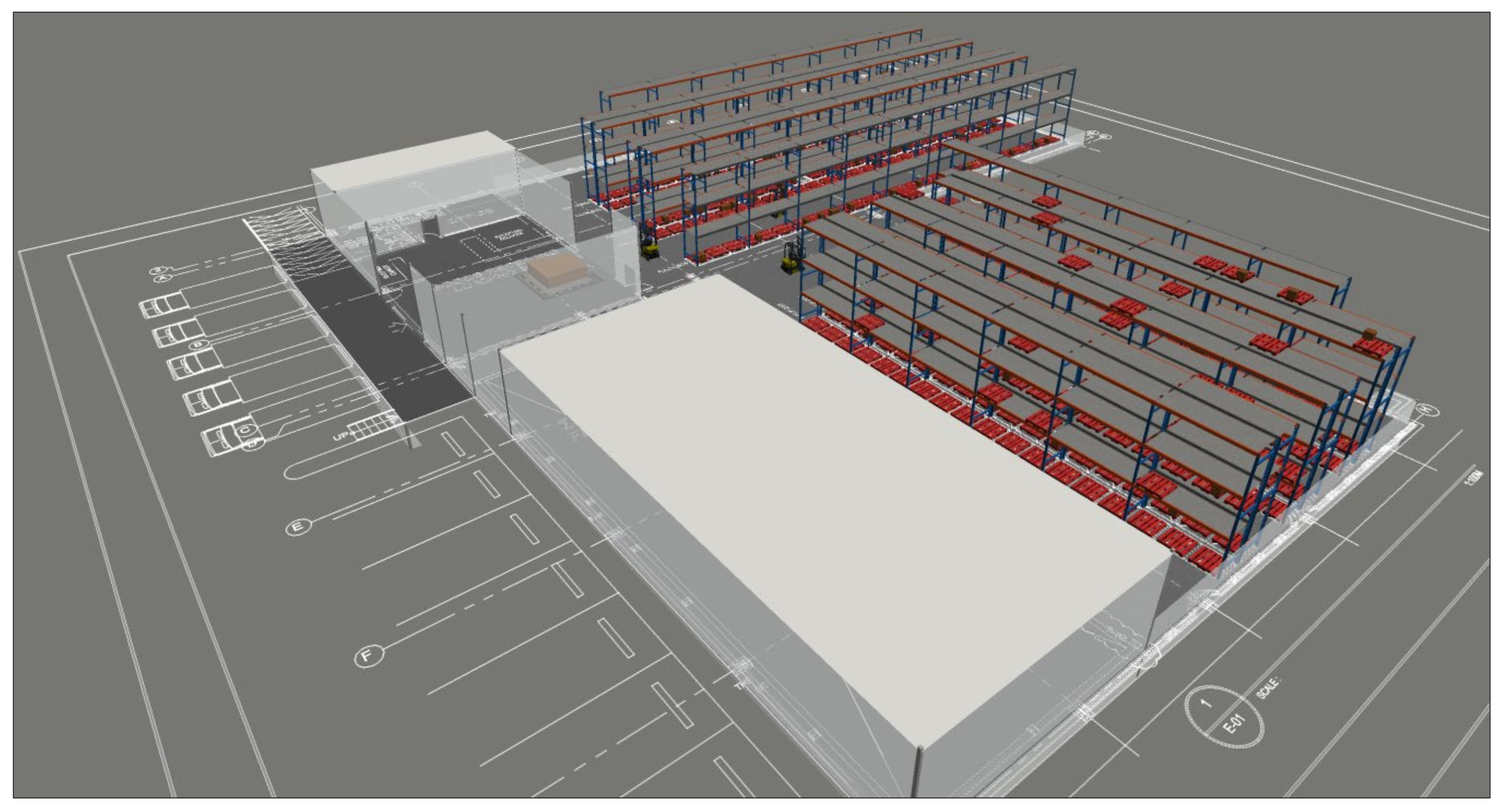

In this section, we introduce Model E, which has been developed to assess the effectiveness of implementing CSAS in optimizing travel distance within an order picking system that utilizes a zoning strategy. The model incorporates weighting coefficients to guide convergence towards targeted correlation scores and picking frequencies. By adjusting the ratios of targeted centroids, the model enables customization of item correlation distribution across zones, effectively balancing workload according to different desired customizations. The primary objective of the model is to achieve various local optimal solutions based on these defined coefficients, maximizing item correlation per zone and consequently increasing the average order size. To further increase the average order size in distant zones, we propose reducing the total picking frequency of items in these zones. This can be achieved by prioritizing the placement of items that collectively exhibit higher correlation and lower picking frequency in distant zones. Such approach effectively reduces travel distance by minimizing the need for frequent travel to the depot, thereby optimizing the picker's travel distance. In the result section, we present several scenarios to analyze the model's performance by testing different parameter configurations. For instance, in a system with three zones where the first zone is the furthest from the depot, setting the correlation score ratio for the coefficients to 3:2:1 and the picking frequency ratio to 1:2:3, as in scenario fourteen, enables the model to find a local optimal solution that satisfies these criteria. This leads to larger average order sizes in distant zones, ultimately minimizing travel distance. To quantify deviations from the targeted centroids, the presented models employ penalization using either the PCD or the NCD. In Model E, NCD is applied for all correlation centroids, while PCD is applied for all picking frequency centroids. This arrangement allows correlation scores to surpass the defined centroids, but restricts picking frequency centroids from exceeding their targets. However, it's important to note that setting extreme ratios and unattainable centroids may render this configuration unachievable. In such cases, when extreme targets are set, the model penalizes multiple targets and leans towards maximizing the total correlation score.

Here is the mathematical representation of Model B, D, and E:

$$\mathrm{MAXIMIZE} \mathrm{Z}={\displaystyle \sum }_{k=1}^n{C}_k+X_k+Y_k$$

(4)

Subject to:

$$S_{ak} \in \left\{0,1\right\}, \forall 1 \le \mathrm{a}\le \mathrm{m} , 1\le \mathrm{k} \le \mathrm{n}$$

(5)

$${\displaystyle \sum }_{k=1}^n{S}_{ak}=1, \forall 1 \le \mathrm{a}\le \mathrm{m}$$

(6)

$${\displaystyle \sum }_{a=1}^m{S}_{ak}=L_k, \forall 1 \le \mathrm{k}\le \mathrm{n}$$

(7)

$L_k defined as the total available slots in zone k.$

where:

$$C_k={\displaystyle \sum }_{a=1}^m{\displaystyle \sum }_{a<b\le m}^m\left(T_{ab}\cdot S_{ak}\cdot S_{bk}\right), \forall 1 \le \mathrm{k}\le \mathrm{n}$$

(8)

$T_{ab} is defined as the correlation frequency for item a and b.$

$$S_{ak}=\left\{\begin{array}{c}1, if item a is selected in zone k\\ 0, otherwise \end{array} \right.$$

(9)

$$X_k=\left(R_k\cdot \left({\displaystyle \frac{R_k}{t\cdot R_k+1}}-1\right)\right), \forall 1 \le k\le n$$

(10)

$$Y_k=\left(F_k\cdot \left({\displaystyle \frac{F_k}{t\cdot F_k+1}}-1\right)\cdot \left({\displaystyle \frac{{\sum }_{k=1}^n\left(C_k\right)}{{\sum }_{k=1}^n\left(P_k\right)}}\right)\right), \forall 1 \le k\le n$$

(11)

$t is the penalty parameter set to a value of 10 in Model \left(E\right).$

${\mathrm{R}}_k is defined as the deviation from correlation centroid \left(C{C}_k\right) given acheived correlation score \left(C_k\right) and defined type of deviation i_k that is calculated by equation \left[12\right] for zone k:$

$$R_k={\displaystyle \frac{\left|C_k-C{C}_k\right|+\left( i_k\cdot \left(C_k-C{C}_k\right)\right)}{2}}$$

(12)

$$i_{k }=\left\{\begin{array}{c}-1, if NCD is implemented for C{C}_k in zone k \\ +1, if PCD is implemented for C{C}_k in zone k\end{array}\right.$$

(13)

$$C{C}_k=\left({\displaystyle \sum }_{k=1}^n{C}_k\right)\cdot e_k$$

(14)

${\mathrm{e}}_k is defined as the weighting coefficient for correlation centroid \left(C{C}_k\right) for zone k.$

$F_k is defined as the deviation from picking centroid \left(P{C}_k\right)given acheived picking frequency \left(P_k\right) and$

$defined type of deviation j_k that is calculated by equation \left[15\right] for zone k:$

$$F_k={\displaystyle \frac{\left|P_k-P{C}_k\right|+\left( j_k\cdot \left(P_k-P{C}_k\right)\right)}{2}}$$

(15)

$$P_k={\displaystyle \sum }_{a=1}^m\left(T_{aa}\cdot S_{ak}\right) , \forall 1 \le \mathrm{k}\le \mathrm{n}$$

(16)

$T_{aa} is defined as the picking frequency for item a$

$$j_{k }=\left\{\begin{array}{c}-1, if NCD is implemented for P{C}_k in zone k \\ +1, if PCD is implemented for P{C}_k in zone k\end{array},\right.$$

(17)

$$P{C}_{k }=\left({\displaystyle \sum }_{k=1}^n{P}_k\right)\cdot h_k$$

(18)

${\mathrm{h}}_k is defined as the weighting coefficient for picking centroid \left(P{C}_k\right)for zone k$

The objective function in equation [4] aims to maximize the sum of item correlation score $\left(C_k\right)$ for each zone $\left(k\right)$, while considering deviation penalty terms $\left(X_k\right)$ and $\left(Y_k\right)$, calculated using equations [10,11] respectively. For every zone $\left(\mathrm{k}\right)$, the deviations $\left(R_k\right)$ and $\left(F_k\right)$ in the penalty terms are calculated by equations [12,15] for the achieved item correlation score $\left(C_k\right)$and the picking frequency $\left(P_k\right)$. These penalty terms account for the zone's correlation centroid $\left(C{C}_k\right)$ and picking centroid $\left(P{C}_k\right)$, based on the deviation types $\left(i_k\right)$ and $\left(j_k\right)$ that are defined for each zone. These terms are formulated using acceleration convergence technique, with a penalty parameter $\left(t\right)$ set to 10 in Model E, resulting in approximately 90% penalization for each deviation. The decision variables $\left(S_{ak}\right)$in equation [5] are binary constraints representing the assignment of each item $\left(a\right)$ to a zone $\left(k\right)$ as in equation [9]. We ensure that the sum of $\left(S_{ak}\right)$ for all zones $\left(k\right)$ is equal to 1 for every item$\left(a\right)$, restricting each item to be located in only one zone. This constraint is expressed in equation [6]. Furthermore, the sum of $\left(S_{ak}\right)$for all items is constrained by the value of $L_k$ for each zone $\left(k\right)$, as indicated in equation [7]. It should be noted that in the "E" model, the exported result for "Aisle_Item_Rank" is a combination of the item's correlation score and its picking frequency. This approach, referred to as method A, which was used initially for item ranking within zones. However, the presented results in Table 1 for scenarios under Model E demonstrate the incorporation of method C. This method takes into account the average order size that is calculated from the order history data. Furthermore, an acceleration technique, which was previously used by Kuo et al. (2016) in their model, is incorporated in this model. This technique involves calculating the item correlation only once for two correlated items, resulting in a more efficient computation process. As a result, the total zone correlation score achieved in the model represents half of the actual zone correlation score, as shown in Table 1. In this paper, however, the item correlation used in formulas for item ranking is defined as the sum of correlation frequencies for all items located in that particular zone.

5. Optimization Result Analysis

• Ranking Method A is the sum of item correlation $\left(C_{ka}\right)$and item picking frequency $\left(P_{ka}\right)$for item $\left(a\right)$in a particular zone $\left(k\right)$:

  $$R_{ka}=C_{ka}+P_{ka}$$

  (19)
• Ranking Method B involves calculating equation [20] for ranking an item $\left(\mathrm{a}\right)$ in a particular zone $\left(\mathrm{k}\right)$:

  $$R_{ka}={\displaystyle \frac{ {\left(P_{ka}\right)}^2}{C_{ka}+P_{ka}}}$$

  (20)
• Ranking Method C for an item $\left(a\right)$involves calculating equation [21] for all orders $\left(w\right)$in the order history binary matrix $\left( O_{wb}\right)$ to determine the order size in the newly generated suborders with the optimization selection $\left(S_{bk}\right)$of all items denoted by $\left(b\right)$in a particular zone $\left(k\right)$:

  $$R_{ka}={\displaystyle \sum }_{w=1}^i\left({\displaystyle \frac{1}{{{\displaystyle \sum }}_{b=1}^m\left( O_{wa}\cdot O_{wb}\cdot S_{ak}\cdot S_{bk}\right)}}\right) , O_{wa}, O_{wb},S_{ak},S_{bk} \in \left\{0,1\right\}$$

  (21)

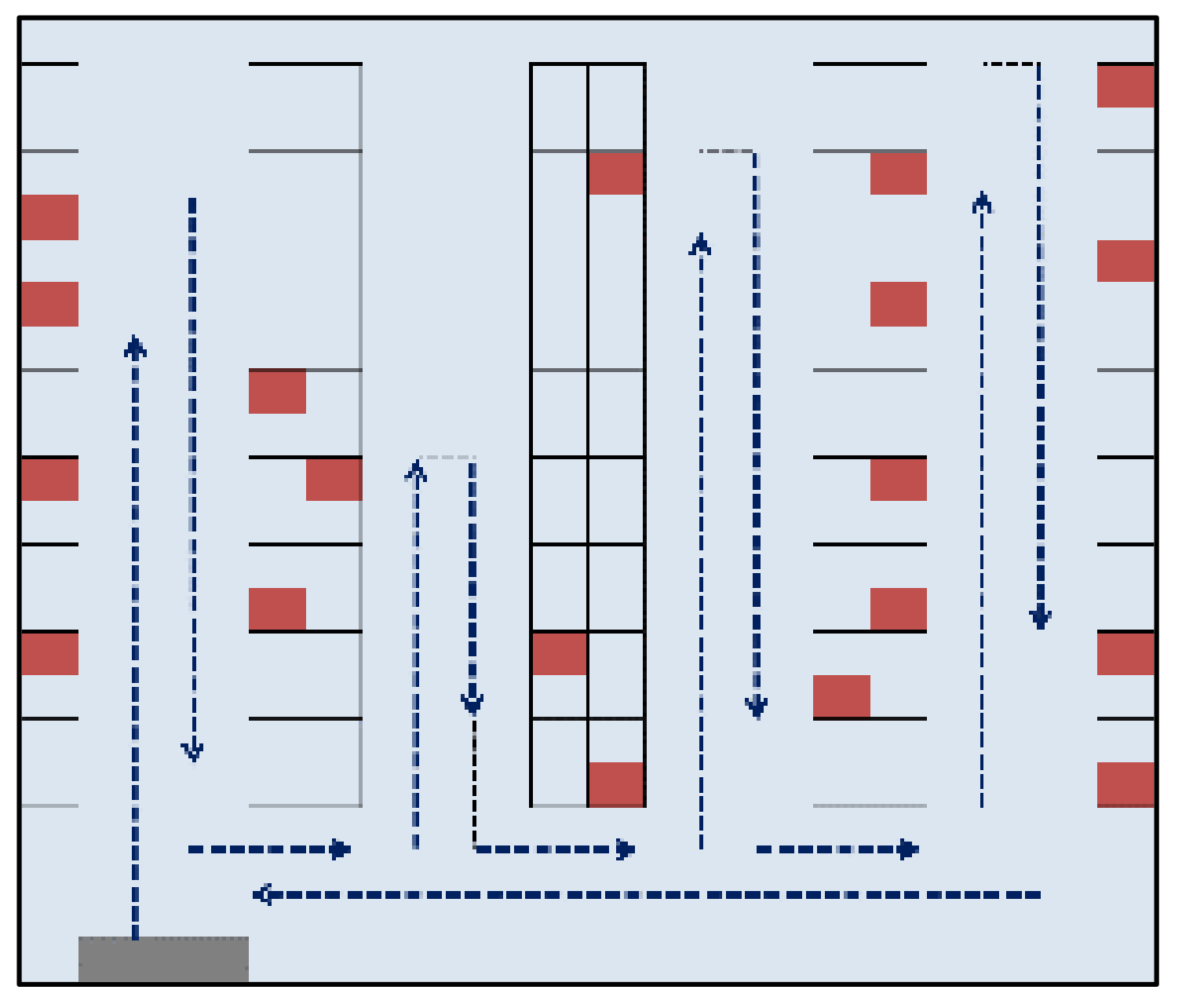

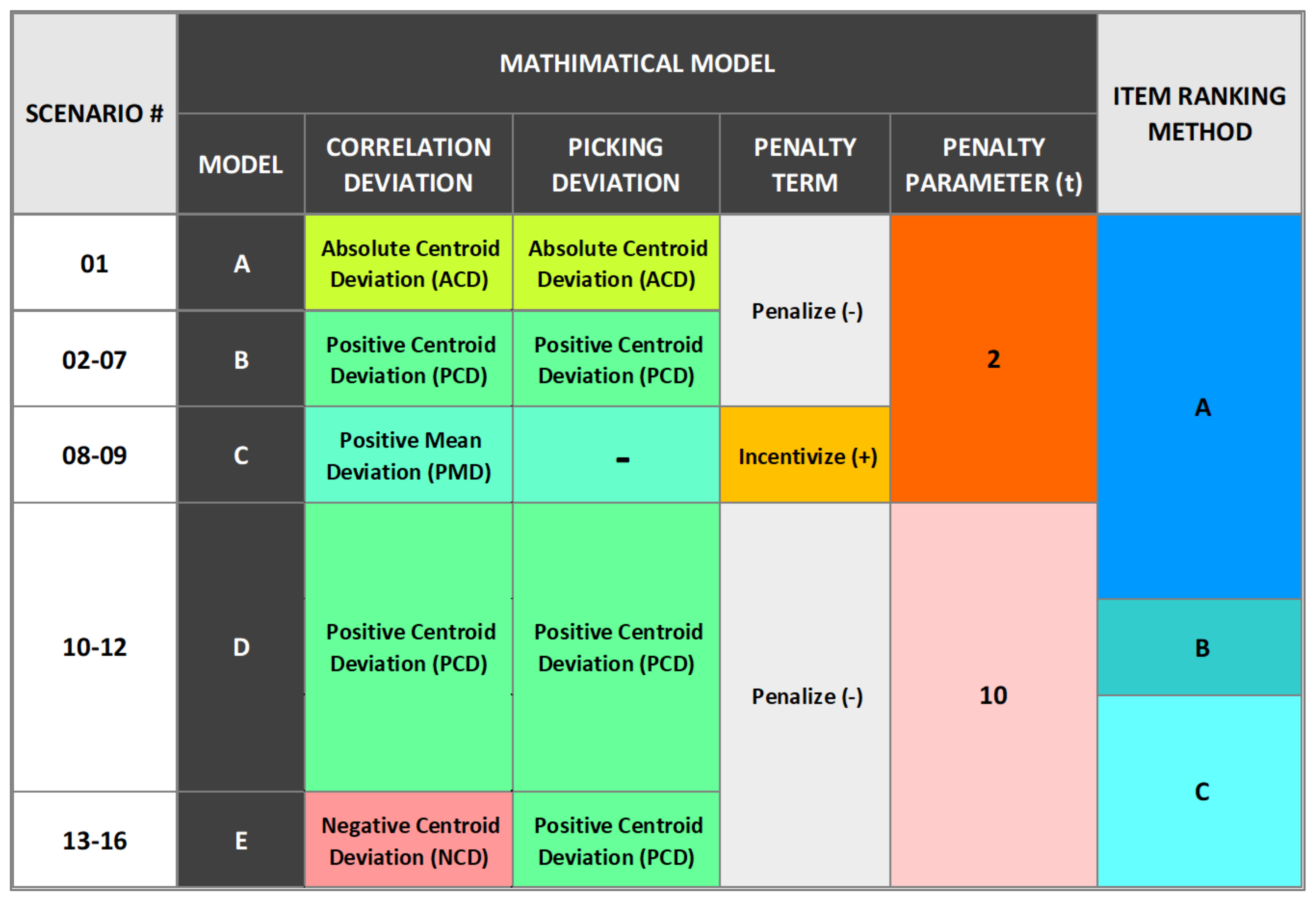

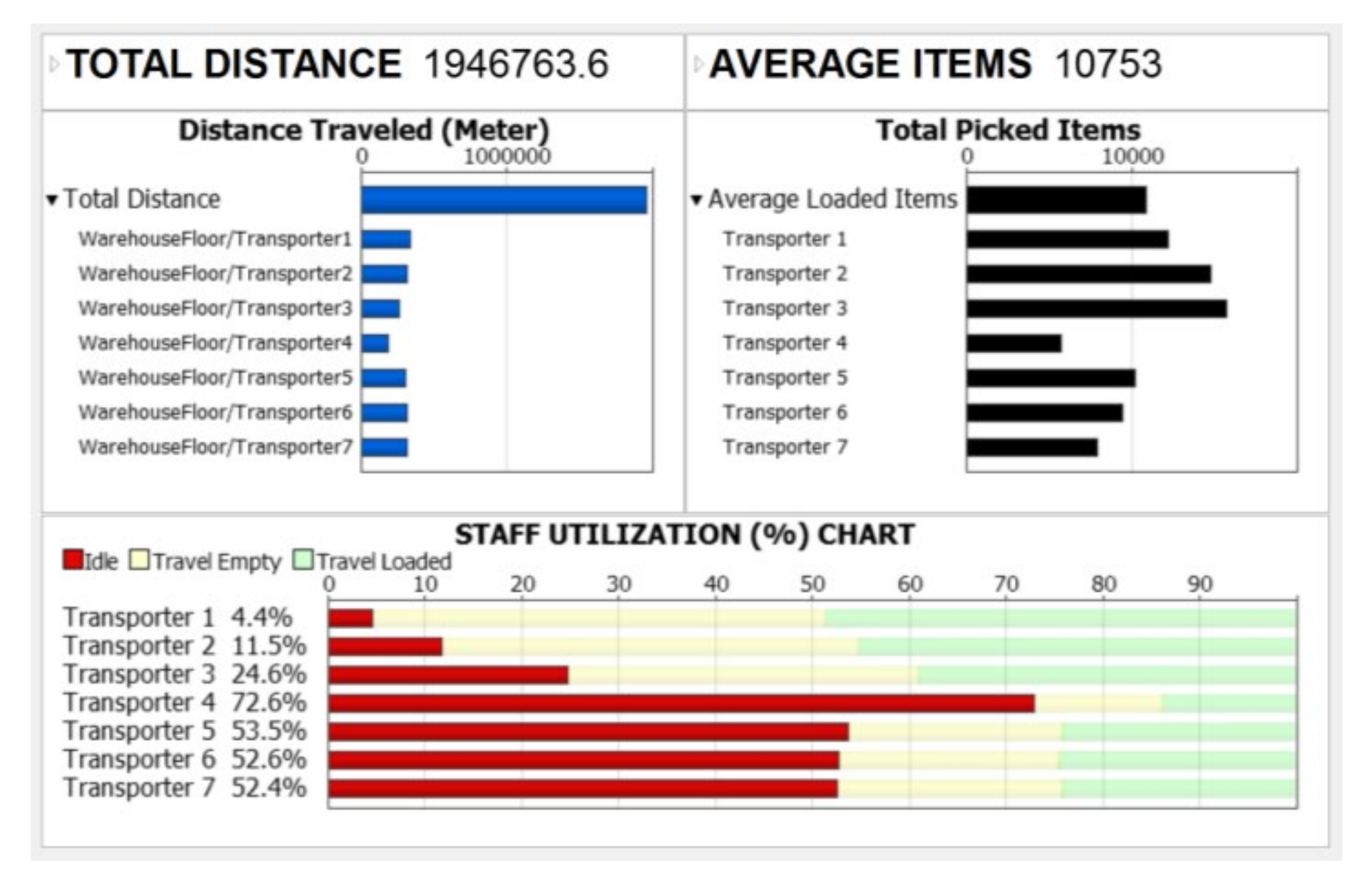

• Model A: Scenario no. one (Block A) implements Absolute Centroid Deviation (ACD) to penalize the objective function with a penalty parameter (t) of 2, and item ranking method A. In order to compare the performance result with scenario no. two (Model B – Block A), the optimization for this scenario was combined with the optimization selection of items for scenario no. seven (Model B – Block B)
• Model B: The scenarios under this model implement PCD to penalize the objective function for all centroids, using a penalty parameter (t) of 2, and item ranking method A. This model includes a set of 6 scenarios with variations of ratios as shown in Table 1. Scenario no. two achieved better result in terms of travel distance optimization compared to other scenarios under the same model. It has the same ratios as scenario no. one (Model A). In comparison, the results in Table 1 demonstrate that scenario no. two is 4.5 times faster in terms of solving time, achieved higher total correlation scores, and slightly better travel distance optimization. All scenarios (Block A) in this model are combined with the optimization selection of items for scenario no. seven (Model B – Block B).
• Model C: This model utilizes Positive Mean Deviation (PMD) for the correlation score centroids to incentivize the objective function and maximize the total correlation. The penalty term’s sign is reversed, and the model does not impose any restrictions through ratios. The centroids in this model represent the mean, and the item ranking method A is used. Two scenarios are presented in Table 1 for Block A and Block B. The performance result presented for scenario no. eight (Block A) represents the combination of both. It is worth noting that scenario no. two (Model B) outperforms scenario no. eight in terms of travel distance optimization, despite the decrease in the overall item correlation achieved. This can be attributed to the process of order splitting that is resulting in a greater number of trips when the optimization of item assignment is solely based on item correlation frequency.
• Model D: This model applies PCD to penalize the objective function with a penalty parameter (t) of 10, and item ranking method A. Compared to scenario no. two (Model B), which utilizes a penalty parameter of 2, scenario no. ten achieves a slightly better travel distance optimization and closer results to the targeted centroids. However, it is slower and achieves a lower total correlation score. The results for scenario no. ten are combined with the optimization selection of items for scenario no. seven (Model B - Block B). Additionally, scenarios no. eleven (item ranking method B) and no. twelve (item ranking method C) outperform scenario no. ten in terms of travel distance optimization.

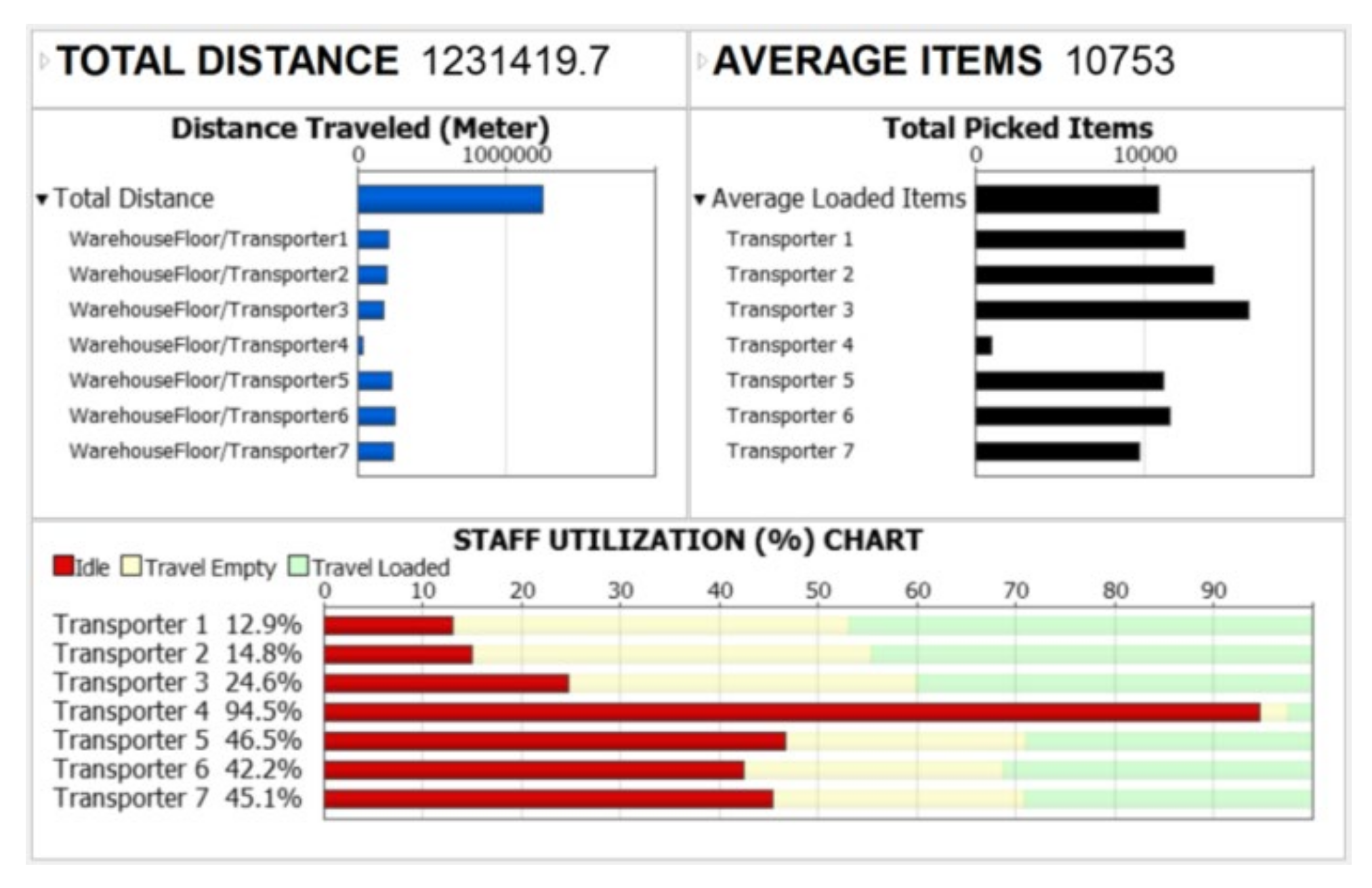

• Model E: The scenarios under this model combines NCD for correlation score centroids and PCD for picking frequency centroids to penalize the objective function with a penalty parameter (t) of 10, and item ranking method C. The results for the four scenarios (Model E - Block A) that implement different defined ratios are combined with the optimization selection of items for scenario no. seven (Model B - Block B). This model aims to better guide the convergence toward the targeted centroids for correlation scores and picking frequency, which are positively correlated. While the correlation scores can increase beyond the targeted centroids by penalizing only negative deviations, the picking frequency can be distributed across zones to minimize the total deviation by avoiding exceeding the defined targeted centroids. Despite our attempt to implement the model with the same ratios as scenario no. one to compare the results, the optimization process did not reach a local optimal solution within several hours before terminating the process. However, a feasible solution was obtained within few minutes. Finding the local optimal solution for these ratios appears to be challenging in this model. However, the feasible solution, which was not included in results, closely achieved the targets for correlation scores.

6. Conclusion

References

1. Adaloudis, N. (2023). Product storage assignment optimization in Robotic Mobile Fulfillment Systems (thesis).
2. Berthold, T. (2014). Heuristic algorithms in global MINLP solvers. Ph.D. thesis, Technische Universität Berlin.
3. Bolaños Zuñiga, J., Saucedo Martínez, J. A., Salais Fierro, T. E., & Marmolejo Saucedo, J. A. (2020). Optimization of the storage location assignment and the Picker-routing problem by using mathematical programming. Applied Sciences, 10(2), 534. [CrossRef]
4. Bolaños-Zuñiga, J., Salazar-Aguilar, M. A., & Saucedo-Martínez, J. A. (2023). Solving location assignment and order Picker-routing problems in warehouse management. Axioms, 12(7), 711. [CrossRef]
5. Buckow, J.-N., & Knust, S. (2023). The warehouse reshuffling problem with swap moves and time limit. EURO Journal on Transportation and Logistics, 12, 100113. [CrossRef]
6. Casella, G., Volpi, A., Montanari, R., Tebaldi, L., & Bottani, E. (2023). Trends in order picking: A 2007–2022 review of the literature. Production & Manufacturing Research, 11(1). [CrossRef]
7. de Koster, R., Le-Duc, T., & Roodbergen, K. J. (2007). Design and control of Warehouse Order Picking: A Literature Review. European Journal of Operational Research, 182(2), 481–501. [CrossRef]
8. Diaz, R. (2016). Using dynamic demand information and zoning for the storage of non-uniform density stock keeping units. International Journal of Production Research, 54(8), 2487-2498. [CrossRef]
9. Frazele, E. H., & Sharp, G. P. (1989). Correlated assignment strategy can improve any order-picking operation.
10. Frazelle, E.H. (1989). Stock location assignment and order picking productivity. Georgia Institute of Technology.
11. Goetschalckx, M., & Ashayeri, J. (1989). Classification and design of order picking. Logistics World, 2(2), 99–106. [CrossRef]
12. Islam, Md. S., & Uddin, Md. K. (2023). Correlated storage assignment approach in warehouses: A Systematic Literature Review. Journal of Industrial Engineering and Management, 16(2), 294. [CrossRef]
13. Jiang, W., Liu, J., Dong, Y., & Wang, L. (2021). Assignment of duplicate storage locations in distribution centres to minimise walking distance in order picking. International Journal of Production Research, 59(15), 4457-4471. [CrossRef]
14. Kim, J., Mendez, F., & Jimenez, J. (2020). Storage location assignment heuristics based on slot selection and frequent itemset grouping for large distribution centers. IEEE Access, 8, 189025–189035. [CrossRef]
15. Krishnamoorthy, S., & Roy, D. (2019). An utility-based storage assignment strategy for e-commerce warehouse management. In 2019 International Conference on Data Mining Workshops (ICDMW) (997-1004). [CrossRef]
16. Kuo, R., Kuo, P., Chen, Y. R., & Zulvia, F. (2016). Application of metaheuristics-based clustering algorithm to item assignment in a synchronized zone order picking system. Applied Soft Computing, 46, 143-150. [CrossRef]
17. Le-Duc, T. (2005, September 23). Design and Control of Efficient Order Picking Processes. ERIM Ph.D. Series Research in Management. Available online: http://hdl.handle.net/1765/6910.
18. Lee, I.G., Chung, S.H., & Yoon, S.W. (2020). Two-stage storage assignment to minimize travel time and congestion for warehouse order picking operations. Computers & Industrial Engineering, 139, 106129. [CrossRef]
19. Li, Y., Méndez-Mediavilla, F.A., Temponi, C., Kim, J., & Jimenez, J.A. (2021). A heuristic storage location assignment based on frequent itemset classes to improve order picking operations. Applied Sciences, 11(4), 1839. [CrossRef]
20. Lindo Systems Inc. (2020). Lingo: The Modeling Language and Optimizer. November 8, 2023. Available online: https://www.lindo.com/downloads/PDF/LINGO.pdf.
21. Mantel, R. J., Schuur, P. C., & Heragu, S. S. (2007). Order oriented slotting: A new assignment strategy for warehouses. European J. of Industrial Engineering, 1(3), 301. [CrossRef]
22. Mirzaei, M., Zaerpour, N., & de Koster, R. B. M. (2021a). How to benefit from order data: Correlated dispersed storage assignment in robotic warehouses. International Journal of Production Research, 60(2), 549–568. [CrossRef]
23. Mirzaei, M., Zaerpour, N., & Koster, R. de (2021b). The impact of integrated cluster-based storage allocation on parts-to-picker warehouse performance. Transportation Research Part E: Logistics and Transportation Review, 146, 102207. [CrossRef]
24. Tahami, H., &; Fakhravar, H. (2022). Literature review on combining heuristics and exact algorithms in combinatorial optimization. European Journal of Information Technologies and Computer Science, 2(2), 6–12. [CrossRef]
25. Trindade, M.A., Sousa, P.S., & Moreira, M.R. (2022). Ramping up a heuristic procedure for storage location assignment problem with precedence constraints. Flexible Services and Manufacturing Journal, 34(3), 646-669. [CrossRef]
26. Wan, Y., & Liu, Y. (2022). Integrating Optimized Fishbone Warehouse Layout, Storage Location Assignment and Picker Routing. IAENG International Journal of Computer Science, 49(3).
27. Wutthisirisart, P., Noble, J.S., & Chang, C.A. (2015). A two-phased heuristic for relation-based item location. Computers & Industrial Engineering, 82, 94-102. [CrossRef]
28. Xiao, J., & Zheng, L. (2012). Correlated storage assignment to minimize zone visits for BOM picking. International Journal of Advanced Manufacturing Technology, 61(5), 797-807. [CrossRef]
29. Xie, J., Mei, Y., Ernst, A.T., Li, X., & Song, A. (2018). A bi-level optimization model for grouping constrained storage location assignment problems. IEEE Transactions on Cybernetics, 48(1), 385-398. [CrossRef]
30. Yuan, M., Zhao, N., Wu, K., & Chen, Z. (2023). The storage location assignment problem of automated drug dispensing machines. Computers & Industrial Engineering, 184, 109578. [CrossRef]
31. Yang, N. (2022). Evaluation of the Joint Impact of the Storage Assignment and Order Batching in Mobile-Pod Warehouse Systems. Mathematical Problems in Engineering, 2022, 1-13. [CrossRef]
32. Yuan, R., Li, J., Wang, W., Dou, J., & Pan, L. (2021). Storage Assignment Optimization in Robotic Mobile Fulfillment Systems. Complexity, 2021, 1-11. [CrossRef]
33. Zhang, J., Tian, L., & Zhou, Z. (2024). Joint optimization of item and pod storage assignment problems with picking aisles’ workload balance in robotic mobile fulfillment systems. Complexity, 2024, 1–15. [CrossRef]
34. Zhang, R.Q., Wang, M., & Pan, X. (2019). New model of the storage location assignment problem considering demand correlation pattern. Computers & Industrial Engineering, 129, 210-219. [CrossRef]
35. Zhang, Y. (2016). Correlated storage assignment strategy to reduce travel distance in order picking. IFAC-Papersonline, 49(2), 30–35. [CrossRef]
