Shapley’s Value as a Resource Optimization Strategy for Digital Radio Transmission over IBOC FM

Altmetrics

Downloads

93

Views

34

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

01 February 2024

Posted:

02 February 2024

You are already at the latest version

Alerts
Abstract
The hybrid in-band on-channel (IBOC) transmission system as a digital audio radio scheme could transmit analog FM and digital audio simultaneously. In IBOC systems, broadcasters transmit signals within the allocated channel bands, so the bandwidth allocated for digital audio transmission is a big challenge. In view of the above, the use of cooperative game theory, supported by the use of the bankruptcy game and Shapley's value, is proposed as a strategy to optimize the bandwidth allocation at each node or station, according to the demand in the service, the number of stations and the radio channel conditions in the FM band. The paper proposes a scenario under saturated traffic conditions, in order to evaluate the degree of optimization that the Shapley value can perform under clearly established traffic and channel conditions. The evaluation process yielded a quite favorable result, where it is observed that the use of cooperative game theory supported by the Shapley value can be considered as an excellent alternative when performing bandwidth optimization processes for digital broadcasting over IBOC in FM and with the possibility of being implemented in other digital radio broadcasting systems.
Keywords:
Subject: Engineering  -   Telecommunications

1. Introduction

Due to inadequate spectrum resources and increasing demand for high quality multimedia services, traditional analog audio broadcasting is migrating to digital radio worldwide. In recent years, several digital audio transmission standards have been developed, such as digital audio transmission under different technologies, among which one of the most relevant is IBOC (NRSC-5). IBOC technology provides an uninterrupted evolution path from analog amplitude modulation (AM) and frequency modulation (FM) radio to a fully digital radio transmission system. The evolution allows listeners to migrate to digital reception of their favorite IBOC-capable analog stations. The history and state of the art of IBOC technologies are well documented in [1]. In addition to the implementation advantage, IBOC digital radio can provide sound quality close to that of a compact disc (CD), as well as multimedia services such as data, images, and even video.
The coexistence of digital and analog radio in the AM and FM bands poses some unique challenges in the design of digital transmission systems. First, the insertion of digital broadcasting into the established analog radio spectrum may cause interference to existing stations. Therefore, the power of the digital signal must be much lower (a power reduction of more than 20 dB is recommended [2]) than that of the analog signal, resulting in tolerable interference in the reception of the analog signal. On the other hand, due to the huge difference in power level, the use of low power digital radio technology with strong resistance to analog interference is a design mandate. Secondly, the gaps between existing analog radio bands are fragmented in most cases. An ideal digital radio system must possess the spectral efficiency and flexibility to deliver high data rates without the use of a large amount of continuous bandwidth. Third, the FM/AM spectra available for digital transmission are narrowband in nature. It is well documented that, in wireless communications, stationary and low mobility users are likely to suffer from prolonged poor reception due to the lack of frequency diversity. However, DRM and NRSC-5 effectively address the co-channel problem with sets of innovations, neither adequately addresses data rate and fading performance issues; however, it may not be sufficient against slow fading cases.
The in-band on-channel (IBOC) system is designed to operate in two specific modes: hybrid mode and fully digital mode. In the hybrid mode, the analog and digital components are transmitted simultaneously, where both signals make use of the channel assigned to the analog signal under the traditional radio model. On the other hand, in the fully digital mode, the transmitted signal makes use of the entire bandwidth assigned to the station and its component is purely digital.
IBOC adopts a hierarchical modulation scheme to further enrich BDR services. The concept of hierarchical transmission is based on providing layered services to mobile users within different coverage areas, all through the same radio channel. For example, a basic layer signal is used to transmit essential information (normal quality audio/video); however, the layer that is added on top of the basic layer is called the secondary layer, which would serve as a transport medium for complementary multimedia services. Therefore, hierarchical streaming offers an attractive solution for terminals with different screen sizes and different video display resolutions. However, the advantages of hierarchical streaming come at a cost. Most notably, the secondary layer not only reduces the effective transmission power of the basic layer, promoting in turn, an additional performance loss in the reception of the basic layer [3].
As a conclusion, it could be said that, although there are several digital radio systems, with specific advantages for each case, all offer great benefits compared to analog radio. Using perceptual audio coding, digital radio can offer better sound quality than AM or FM radio. Based on the OFDM multi-carrier transmission technique, it is able to overcome the mobile reception distortion caused by multipath propagation and other interference inherent in analog radios. Unlike analog radio, digital radio allows the inclusion of additional services such as the transmission of text and/or multimedia information. In fact, almost anything that can be digitized could be transmitted over a digital radio platform. A very important aspect is that these systems use MPEG-2 audio coding, which facilitates the process of transmitting up to five programs with near CD quality in a set. In addition, by synergistically combining LDPC codes, band aggregation and frequency hopping techniques, as well as an efficient hierarchical modulation scheme, IBOC offers performance and service advantages in various application scenarios, accompanied by a wide range of transmission rates (up to 2.53 Mbps) and with the ability to offer high quality radio and rich multimedia services. In view of the above, it is proposed to make use of cooperative game theory, supported by the use of Shapley value as a strategy for bandwidth allocation to each of the nodes or stations that are part of the broadcasting network over IBOC FM, in order to improve its performance, by allowing multiple nodes to transmit simultaneously and under clearly defined distribution policies.

2. Materials and Methods

2.1. Game theory and Shapley value

Game theory, conceptualized by John Von Neumann in 1928, offers a mathematical framework for assessing individual decisions within competitive contexts of gain or loss in comparison to decisions made by other competitors. This competitive scenario is called "Game" and the individuals who are part of this scenario are called "Players"[4].
Game theory provides three models for real scenario representation: extensive, strategic, and coalition. While the first two are applicable to non-cooperative games, emphasizing individual player interests, the coalition model pertains to cooperative games. In cooperative games, players collaborate to achieve common goals, increasing the likelihood of higher gains than individual actions (Ramírez R., 2008). Cooperative game analysis avoids the need to scrutinize player strategies, focusing on coalition utility and payment vectors [5].
Within cooperative game theory, a recurring question involves equitable distribution of a good's net value among players, especially when resources are insufficient. This situation, known as the "bankruptcy" problem, is analyzed either as a transferable utility game or through axiomatic methods [6,7,8,9,10,11]. This paper adopts the transferable utility approach.
Definition [5]: A Transferable Utility (TU) cooperative game is a pair (N, v), where N is the set of players {1, 2, ..., n} and v: 2N → ℝ is the characteristic function, with v(Ø) = 0. Each coalition SN associates with (S), representing the assured payoff for its players, irrespective of others' actions.
Definition [12]: A bankruptcy game, represented as (N, d, E), comprises creditors (N), claims vector (d), and net value (E). A cooperative game (N, v) is defined from each bankruptcy problem. The value of coalition S is the property not claimed by non-S members, calculated as:
v S = m a x 0 ,   E d N S   S N
One significant challenge in TU cooperative game theory is fairly allocating the total gain among players. The Shapley value, introduced by Shapley in 1953, addresses this by considering each player's marginal contributions to all possible coalitions, meeting established axioms [13,14]. The Expression corresponding to the Shapley value is:
φ i v = S N : i S s 1 ! n s ! n ! v S v ( S i )   w h e r e   n = N   y   s = S
The Shapley value ensures efficient, symmetric, passive, and additive resource allocations. O’Neill (1982) demonstrated the correspondence between the recursive partitioning process in a bankruptcy problem and Shapley's value. For the solution to be adequate it is necessary that the vector of payoffs complies with the efficiency principle where [15]:
i N φ i v = v N
φ i ( v ) v i i N
In the context of equitable bandwidth distribution in the digital radio spectrum for IBOC FM, represented as a TU game (N, v), Shapley value emerges as a strategy for fair allocation among nodes under saturation conditions. This scenario involves N nodes as players, λi obeys the width demand of each node i (di) y E = BWT.

2.2. IBOC FM spectrum for hybrid mode

In the hybrid model, the digital signal is transmitted in primary main sidebands on both sides of the FM signal. In this model, each sideband of the IBOC FM system is composed of 10 frequency divisions allocated between carriers 356 to 545 and between - 356 to - 545. Carriers 546 and - 546 are reference carriers. In turn, the level of the digital subcarriers describes a total power 23 dB below the nominal power of the analog FM carrier [2]. Figure 1 shows the carrier distribution for the hybrid mode.

2.3. Spectrum for the extended hybrid mode

In the extended hybrid mode, sidebands are added to the primary sidebands of the hybrid mode, causing the bandwidth of the hybrid sidebands to be extended towards the central area, where the analog FM component is located. This modification increases the digital capacity of the system. However, the analog coverage is affected, because the analog bandwidth is reduced. Depending on the mode of service, one, two or four frequency divisions are added at the inner edge of the primary main sideband to the detriment of the bandwidth allocated to the analog FM signal. In addition, to the subcarrier structure described in hybrid mode, the extended sidebands comprising the subcarriers from - 356 to 280 and from 280 to 356 must be added. The amplitude of the subcarriers of the extended sidebands has the same level as that of the main primary subcarriers. Figure 2 shows the spectrum corresponding to the IBOC FM extended hybrid IBOC model [3].

2.4. Spectrum for all-digital mode

In the all-digital mode, the spectrum is constructed by eliminating the analog signal in its entirety, allowing the full bandwidth to be used for secondary sidebands. The scheme allows for an improved mode of operation, where broadcasters will switch from the hybrid system to the all-digital system, thus achieving better quality levels. Figure 3 shows the carrier structure for the all-digital mode. Each of the secondary sidebands consists of 10 main frequency divisions and 4 extended frequency divisions.
Two reference carriers are transmitted, those numbered - 279 and 279 and 12 protected OFDM subcarriers that are in that area of the spectrum least likely to be interfered with by analog and digital interference. Each secondary sideband comprises carriers 1 to 190 and - 1 to 190. The extended secondary sidebands comprise subcarriers 191 to 266 and - 191 to - 266. The protected sidebands comprise subcarriers - 267 to - 278 and 267 to 278. The average power of the secondary subcarriers will be between 5 and 20 dB below the primary subcarriers [16].
In the IBOC FM system, different service modes associated with the operating modes and logical channels are defined. For the hybrid mode, the operating modes range from MP1 to MP7. In turn, for the all-digital operating mode, service modes ranging from MS1 to MS4 are available. IBOC has 4 main logic channels (P1, P2, P3 and PIDS) and 6 secondary logic channels (S1, S2, S3, S4, S5 and SIDS). A logical channel is a signal path carrying data frames with a given quality of service. Channels P1, P2, P3 and P4 are used to configure the different primary audio services and the PIDS channel provides the primary data service (IDS). Channels S1, S2, S3, S4 and S5 are used only in the all-digital system for the transmission of data or ambient sound (supplementary audio). The SIDS provides the secondary data service.
The system control channel (SCCH) carries the control and status information relating to the operating mode and configuration parameters. In addition, the OFDM subcarriers are arranged in groups called frequency divisions. Each frequency division consists of 18 data subcarriers and one reference subcarrier, with a subcarrier spacing of 363.4 Hz. Table 1 describes the most important parameters of the IBOC FM system [17]. Table 2 and Table 3 show the characterization of the primary and secondary logical channels, respectively, according to the service mode established for transmission.

2.5. Audio source encoding and compression in IBOC

The human voice (analog), to be transmitted efficiently through any medium in a digital format, requires a transformation process known as "digitization", which is performed by a device called CoDec (Codec / Decoder), where each transmission mechanism may have several alternatives of Codecs, as appropriate. Considering that, for the transport of voice information it is necessary to assemble the information in the form of packets or PDUs, the required bandwidth will depend on the overhead generated by these packets [18].
IBOC uses a PAC encoding algorithm from Lucent Technologies, which is a coding method that uses advanced signal processing techniques and the use of psychoacoustic models, through which it is possible to obtain a high compression of the source signal. It uses a sampling frequency of 44.1 kHz, 16 bits of resolution and by means of a bank of special filters, it obtains a complete description of the audio signal whose processing facilitates an auditory perception analysis for its quantification and subsequent coding, optimizing the transmitted information to the extreme. One of the main benefits of PAC is that it allows audio compression at different bit rates, even as low as 6 kbps. When the channel quality is 6 to 8 kbit/s, the result is similar to an AM signal. For a channel capacity between 16 to 24 kbit/s, the result is similar to an FM signal and when a capacity of 32 or 64 kbps is available, the audio quality is considered very similar to what can be obtained on a compact disc. In the particular case of IBOC FM, it is possible to perform transmission processes of high-quality audio channels (comparable to compact disc) with transmission speeds of only 96 kb/s. In turn, the IBOC FM system (standardized as NRSC-5) does not propose a specific source encoder, but makes use of nominal and minimum rates of the source encoders for each of the operating modes [3].

2.6. Estimation of the transmission rate required by the IBOC FM system

To estimate the values corresponding to the calculation of the transmission velocity, the following expression is used according to the recommendations of the standard [NRSC-5B] and the values recorded in Table 1, Table 2 and Table 3, using the following expression:
V t x b p s = f r a m e   s i z e b i t s . f r a m e   s p e e d H z
For example, if you want to estimate the baud rate at IBOC FM, for service mode MP1, and output through logic channel P1:
V t x b p s = 146176 44100 65536 98.4 k b p s
Table 4 and Table 5 show the required transmission rates of the primary and secondary logical channels respectively as a function of the service mode.

3. Results

3.1. Description of the proposed scenario

For understand the use of the Shapley value as a strategy for resource optimization under an IBOC broadcasting scheme in FM, a scenario is proposed with twelve (12) nodes or digital broadcasting stations perform IBOC hybrid transmission processes over FM, under an RF channel which for the particular case will be considered to offer a total bandwidth of 1150 kbps, due to conditions that affect the maximum performance of the channel.
Recorded in Table 6 each class of traffic per node, where it can be observed that the total BW required is 1387 kbps, which is higher than the total BW available in the RF channel, which indicates that the operation mode will be under a saturation state. To calculate the value of BWT it to use the expression given by (7):
B W T = 1 T s k = 1 N s p l o g 2 1 + S N R k Γ
  • Nsp: Number of subcarriers
  • Ts: Time of an OFDM symbol (Ts = 2.902ms) for the particular case of IBOC FM.
  • SNRk : Signal to Noise Ratio present on the subcarrier k.
  • Γ: This is known as SNR gap, which represents the loss in SNR incurred by using a specific discrete coding scheme. At [19] it is suggested that the value of Γ can be calculated for practical purposes by (8):
Γ = 1 1,6 l n B E R o b j 0,2
Where the BERobj, corresponds to the BER value to be sustained. For the particular case a value of 10−6. For the proposed scenario we have considered N=12 nodes that make up the RF system in saturated state (BWT ≤ ∑Ni=1 di) and a total available Bit-rate BWT = E = 1150kbps
Table 6. BW required at each node according to service mode.
Table 6. BW required at each node according to service mode.
Node i Service mode Logic channels BW required [kbps].
P1 P2 P3 P4 PIDS
1 MP1 98
2 MP2 98 12
3 MP3 98 25 1
4 MP3 98 25
5 MP5 25 74 25 1
6 MP1 98
7 MP4 98 25 25 1
8 MP6 50 49 1
9 MP2 98 12
10 MP5 25 74 25 1
11 MP5 25 74 25 1
12 MP6 50 49 1
As mentioned above, a bankrupt set will be considered consistent with the saturation state of the RF channel, in order to calculate the transferable utility value for each of the coalitions. The algorithm to perform the calculation of each of the transferable utility values is as follows:
Algorithm: CalculateCoalitions
1. Initialize Z as a vector containing numbers from 1 to Nj.2. Set n_coal to 0.
3. For each coalition size i from 1 to Nj:
  a. Increment n_coal by n choose i, where n is Nj.
4. Initialize M_Coalitions as a matrix of zeros with dimensions (n_coal x Nj).
5. Initialize c (counter) to 0.
6. For each coalition size i from 1 to Nj:
  a. Generate all combinations S of Z taken i at a time.
  b. For each combination S:
    i. Increment the counter.
    ii. Initialize Suma_d to 0.
    iii. For each member k in S:
        - Suma_d += V(k)
        - M_Coalitions(c, k) = k
    iv. Calculate Suma_dT as BW_T minus (Total_V minus Suma_d).
    v. Set V_Coalition(c) to the maximum of 0 and Suma_dT.
End of Algorithm.
Table 7 presents the transferable utility value calculated for each of the possible coalitions in the saturation state, under the use of the bankruptcy game. The values v(S) consider that the principle of rational individuality must be satisfied (N, v) and the principle of efficiency i S φ i v v S   S N , i N φ i v = v ( N ) .
Therefore, the equations that describe each one of the imputations for the game are (N, v) are:
φ 1 v 0 φ 2 v 0 φ 3 v 0 φ 4 v 0 φ 5 v 0 φ 6 v 0 φ 7 v 0 φ 8 v 0 φ 9 v 0 φ 10 v 0 φ 11 v 0 φ 12 v 0
The efficiency equation for the proposed scenario is:
φ 1 v + φ 2 v + φ 3 v + φ 4 v + φ 5 v + φ 6 v + φ 7 v + φ 8 v + φ 9 v + φ 10 v + φ 11 v + φ 12 v = 1150 10 3
Based on the above expressions, the core of the game would be as follows:
C v = φ ( v ) R n | i S φ i v v S   S N ,   φ 1 v + φ 2 v + φ 3 v + φ 4 v + φ 5 v + φ 6 v + φ 7 v + φ 8 v + φ 9 v + φ 10 v + φ 11 v + φ 12 v = v N
The algorithm to calculate the Shapley value φk(v) ∀kN is as follows:
Algorithm: ShapleyValueCalculation
1. For each player k in [1, Nj]:
  a. For each coalition size lg in [1, Nj]:
    i. Initialize nMk to 0.
    ii. For each coalition i in [1, n_coal]:
       - For each player j in [1, Nj]:
          * If M_Coalitions(i, j) is equal to k:
            - Set N_ceros to 0.
            - For each player g in [1, Nj]:
               + If M_Coalitions(i, g) > 0:
                  * Increment N_ceros by 1.
            - If N_ceros is equal to lg:
               * Increment nMk by 1.
               * Copy the coalition M_Coalitions(i, :) to Mk_Coalitions(nMk, :).
               * Copy the coalition value V_Coalition(i) to Vk_Coalition(nMk).
               * Break the loop for j.
    iii. Initialize Sub_coal as a matrix of zeros with dimensions (nMk, Nj).
    iv. For each coalition i in [1, nMk]:
       - Set j to 0.
       - For each player g in [1, Nj]:
          * If Mk_Coalitions(i, g) > 0 and Mk_Coalitions(i, g) is not equal to k:
            + Increment j by 1.
            + Set Sub_coal(i, j) to Mk_Coalitions(i, g).
    v. For each coalition i in [1, nMk]:
       - If lg is equal to 1:
          * Set Vk_Sub_coal(i) to 0.
       - Else:
          * For each coalition j in [1, n_coal]:
            + If Sub_coal(i, :) is equal to M_Coalitions(j, :):
               * Set Vk_Sub_coal(i) to V_Coalition(j).
    vi. Set M_Shapley(k, lg) to the sum of (Vk_Coalition - Vk_Sub_coal).
    vii. Clear Vk_Coalition, Vk_Sub_coal, Mk_Coalitions, and Sub_coal.
2. For each player S in [1, Nj]:
  - Set B(S) to (factorial(S-1) * factorial(Nj - S)) / factorial(Nj).
3. For each player i in [1, Nj]:
  - Set Z to M_Shapley(i, :) element-wise multiplied by B.
  - Set Peso(i) to the sum of Z.
Table 8 shows the result corresponding to the Shapley matrix in the saturation state for the proposed scenario. The last column shows the Shapley value calculated for each of the players. Additionally, it can be seen that i N φ i v = v N = B W T
Table 9 shows the values for each node corresponding to the bandwidth requested and the bandwidth assigned, considering that the total bandwidth demanded by the RF network is greater than the total bandwidth available in the channel and therefore, the values assigned for each node should be lower than the demanded value. The use of the Shapley value allocates in an equitable and proportional manner to the needs of each node, favoring the use of the Shapley value as a resource optimization strategy for an IBOC FM broadcasting system.

3.2. Evaluation of Optimal BW-PL vs. BW-Shapley approaches

To assess the level of optimization achieved through the application of the Shapley value, an alternative optimization method was devised for computing the Bandwidth (BW) for each node (denoted as i). Subsequently, a comparative analysis of treatments was conducted. In addressing this, the Bandwidth Allocation problem was formulated as a Linear Programming (LP) problem, stated as follows:
M a x i m i z e i = 1 n x i
Subject to:
0 x i d i i = 1 n x i B W T
Where n, di y xi correspond to the number of nodes (n=12), the bandwidth requested by node i and the bandwidth assigned to node i respectively. The LP problem was solved using the Optimization Toolbox in Matlab, employing various optimization methods. The objective function, constraints, and initial iteration point were organized in matrix form. The values were set as follows:
  • F: Vector of coefficients of the Objective function
  • A,b: Inequality restrictions (Axb).
  • BWT : 1150 Kbps.
  • lb, ub: Set the lower and upper limits allowed for each of the nodes respectively.
Finally, the following expression is used to calculate the optimal solution to the problem, using the "interiorpoint-legacy" algorithm, which yielded the best results compared to the "dual-simplex" and "interior-point" algorithms);:
options=optimoptions("linprog","Algorithm","interior-point-legacy");
[x,fval] = linprog(F,A,b,[],[],lb, ub, options)
Where x and fval correspond to the solution vector and the maximum value that the objective function can reach. Table 10 presents the results obtained for the proposed optimization model as a function of the BW requested by each node.
Table 11 shows the values to the optimal BW-PL (BWO), BW-Shapley (BWSℎ), X1 y X2 are the difference between the bandwidth requested by each node (di) and the bandwidth assigned through the PL and Shapley respectively.
To assess whether employing the Shapley value as an optimization strategy in an RF network over IBOC FM leads to a superior resource allocation process compared to the PL-optimization method, the following hypotheses are proposed:
H o :   μ x μ y μ x μ y 0 μ z 0 H a :   μ x > μ y μ x μ y > 0 μ z > 0
Here, μy and μx represent the means for the difference between requested bandwidth and assigned bandwidth, through the PL-optimization methods and the Shapley value respectively. Hypothesis Ho suggest a significant difference between means, with μx being lower than μy, indicating that the Shapley value leads to a more effective optimization process. Hypothesis Ho suggest the opposite. Additionally, a new variable Z is introduced to refine the hypotheses.
To evaluate these hypotheses, a paired t-test is employed, commonly used for assessing the statistical validity of differences between two random samples [20]. The process involves the following steps:
Step 1 : Define a new random variable Z = XY and calculate the mean ( Z ¯ ) and standard deviation (SZ) for Z. The resulting values are 0.0008 and 2.7544 respectively.
Step 2 : Calculate the test statistic ( d ) using the expression :
d = Z ¯ S z n = 0.0008 2.7544 12 = 1.006 x 10 3
Where d is the statistic value, and n is the number of samples for both proposed models.
Step 3: Establish the acceptance range for Ho {t: t < T(α;n−1)} at 5% significance level (α = 0.05) with n − 1 degrees of freedom. For this case, T(0.05; 11) = 1.7959 value, defining the acceptance interval for Ho as (−∞, 1.67959). Evaluating the statistic d reveals that it falls within the acceptance interval, leading to the non-rejection of Ho. Consequently, it can be concluded with 95% confidence that the Shapley value stands as an excellent alternative for executing high-quality optimization processes.

4. Conclusions

In response to the need for equitable resource distribution among nodes in an RF network over IBOC FM, cooperative game theory with transferable utility is proposed as an optimization strategy. The goal is to maximize the allocated bandwidth for each node based on the service class, incorporating Shapley Value in a saturated channel state. This approach optimizes resource allocation by recognizing cooperation among nodes and ensuring adequate Quality of Service (QoS) levels. In the proposed scenario, the cooperative game is framed as a bankruptcy game, characterized by a ternary structure (N, d, C). Here, N = {1,2,… , n} denotes the set of players, d = {d1,d2, … , dn} with di ≥ 0 for all iN represents the vector of demands, and C signifies the net value to be distributed among the elements of N. This formulation allows for the establishment of game imputations, leading to the estimation of the resulting payment vector using four proposed techniques. The outcomes of employing the Shapley value, demonstrated outstanding results in equitable resource allocation, closely aligning with the specified service class requirements, with a confidence level of 95%. Furthermore, it was observed that the total sum of bandwidth assigned to each player aligns precisely with the total bandwidth available in the RF channel. This reinforces the effectiveness of the Shapley Value as an optimal strategy for resource allocation in cooperative RF network scenarios.

Author Contributions

Mónica Rico Martínez: Conceptualization, methodology, software, validation, investigation, project administration, funding acquisition; Juan Carlos Vesga Ferreira: Conceptualization, methodology, software, validation, formal analysis, investigation, data curation, supervision; Joel Carroll Vargas: validation, investigation, data curation, supervision; María Consuelo Rodríguez: resources, visualization, supervision, project administration, funding acquisition; Andres Alejandro Diaz Toro: Conceptualization, methodology, validation, investigation; William A. Cuevas: Conceptualization, validation, resources, data curation. All authors have helped in writing the article.

Funding

The authors appreciate the financial support provided by UNAD (ECBTIEXT102022 - CRC) and Minciencias during the development of this study.

Data Availability Statement

On behalf of all the authors, the corresponding author states that our data are available upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Maxson DP. The IBOC Handbook : Understanding HD Radio Technology. Focal Press; 2007. Accessed August 24, 2023. Available online: http://www.sciencedirect.com:5070/book/9780240808444/the-iboc-handbook.
  2. Peyla PJ, Kroeger BW. New Service Modes for HD RadioTM Transmission. 2018 IEEE Broadcast Symp BTS 2018. Published online November 27, 2018. [CrossRef]
  3. Zhuang Y, Cai C, Hu F, Hu F. A modified data rate limiting method in FM IBOC broadcasting based on dynamic spectrum allocation in real time. Int Conf Commun Technol Proceedings, ICCT. 2018;2017-October:1301-1307. [CrossRef]
  4. Pérez J, Jimeno J, Tena E. Teoría de Juegos. 1 ed. Pearson-Prentice Hall; 2003.
  5. Peleg B, Sudhölter P. Introduction to the Theory of Cooperative Games. Springer; 2007.
  6. O'Neill, B. A problem of rights arbitration from the Talmud. Math. Soc. Sci. 1982, 2, 345–371. [Google Scholar] [CrossRef]
  7. Moulin, H. Axiomatic Cost and Surplus-Sharing, Chapter 17. In: The Handbook of Social Choice and Welfare. ; 2001.
  8. Aumann, R.J.; Maschler, M. Game theoretic analysis of a bankruptcy problem from the Talmud. J. Econ. Theory 1985, 36, 195–213. [Google Scholar] [CrossRef]
  9. Curiel, I. Cooperative Game Theory and Applications: Cooperative Games Arising from Combinatorial Optimization Problems. Kluwer Academic Publishers; 1997.
  10. Herrero, C.; Maschler, M.; Villar, A. Individual rights and collective responsibility: the rights–egalitarian solution. Math. Soc. Sci. 1999, 37, 59–77. [Google Scholar] [CrossRef]
  11. Thomson, W. Axiomatic and Game-Theoretic Analysis of Bankruptcy and Taxation Problems: A Survey.; 2003.
  12. Rodríguez, M. Contribuciones a La Teoría Del Valor En Juegos En Forma Estratégica y En Problemas de Bancarrota. (Científico S de P e I, ed.). Universidad Santiago de Compostela; 2005.
  13. Shapley, L.S. “A value for n-persons games ” in Contributions to the Theory of Games II. Ann Math Stud. 1953, 307–317. [Google Scholar]
  14. Magaña, A. Formación de Coaliciones En Los Juegos Cooperativos y Juegos Con Múltiples Alternativas. Thesis PhD. Universidad Politécnica de Cataluña; 1996.
  15. Vesga-Ferreira, J.C.; Granados-Acuna, G.; Sierra-Carrillo, J.E. The Nucleolus as a Strategy for Resources Optimization in LANs on Power Line Communications. Indian J. Sci. Technol. 2016, 9, 1–14. [Google Scholar] [CrossRef]
  16. Hu F, Cai C, Hu F, Zhuang Y. A modified real time dynamic spectrum adjustment scheme in FM IBOC broadcasting. Proc 2017 6th Int Conf Comput Sci Netw Technol ICCSNT 2017. 2018;2018-January:458-462. [CrossRef]
  17. Dolgopyatova A V., Varlamov O V. Analysis of long-range VHF radio waves propagation to specify protection ratios between coexisting DRM+, RAVIS and IBOC systems. 2021 Syst Signal Synchronization, Gener Process Telecommun SYNCHROINFO 2021 - Conf Proc. Published online June 30, 2021. [CrossRef]
  18. Fang W, Li J, Cai C, Sun R. Analysis of symbol mapping based on BICM-ID for FM IBOC. ICCASM 2010 - 2010 Int Conf Comput Appl Syst Model Proc. 2010;10. [CrossRef]
  19. Cortés, J.A. Modulation and Multiple Access Techniques for Indoor Broadband Power-Line Communications. Universidad de Málaga; 2007.
  20. Ferreira, J.C.V.; Acuna, G.G.; Barrera, J.A.V. Optimización del ancho de banda en redes BPL usando las técnicas nucleolus y max-min fairness. Rev Ing Univ Medellín. 2019, 18, 165–180. [Google Scholar] [CrossRef]
Figure 1. IBOC FM hybrid waveform spectrum. Source: https://www.rfwireless-world.com/.
Figure 1. IBOC FM hybrid waveform spectrum. Source: https://www.rfwireless-world.com/.
Preprints 97990 g001
Figure 2. Spectrum corresponding to the IBOC FM extended hybrid model. Source: https://www.rfwireless-world.com/.
Figure 2. Spectrum corresponding to the IBOC FM extended hybrid model. Source: https://www.rfwireless-world.com/.
Preprints 97990 g002

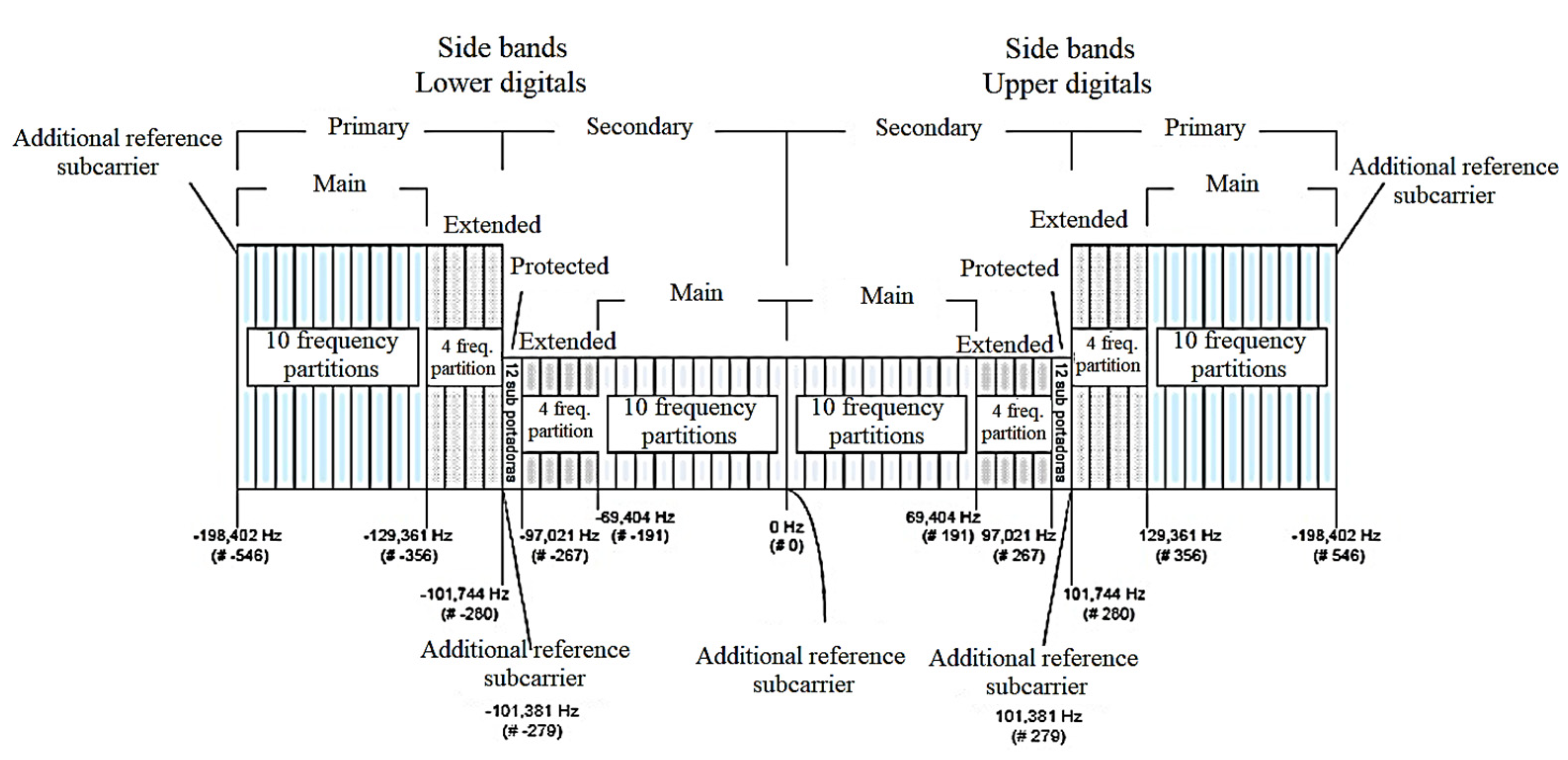

Figure 3. Spectrum of the fully digital IBOC FM waveform. Source: https://www.rfwireless-world.com/.
Figure 3. Spectrum of the fully digital IBOC FM waveform. Source: https://www.rfwireless-world.com/.
Preprints 97990 g003
Table 1. IBOC FM system parameters.
Table 1. IBOC FM system parameters.
Parameter Symbol Units Exact value Approximate value
OFDM subcarrier spacing f Hz 1488375 4096 363.4
Predefined cyclic width α - 7 128 5.469x10-2
OFDM symbol duration T s s 1 + α f 2.902x10-3
OFDM symbol rate R s Hz 1 T s 344.5
L1 frame duration T f s 512. T s 1.486
L1 frame speed R f Hz 1 T f 6.729x10-1
L1 block duration T b s 32. T s 9.288x10-2
L1 block speed R b Hz 1 T b 10.77
Duration of even block L1 T p s 64. T s 1.858x10-1
Torque block speed L1 R p Hz 1 T p 5.383
Table 2. Characterization of primary logic channels according to service mode (IBOC FM).
Table 2. Characterization of primary logic channels according to service mode (IBOC FM).
Service mode logical channel Transfer L1 latency [s] Relative robustness
Frame size [bits] Frame speed [Hz] Frame module
MP1 P1 146.176 R f 1 T f 2
PIDS 80 R b 16 T b 3
MP2 P1 146.176 R f 1 T f 2
P3 2.304 R p 8 2 T f 3
PIDS 80 R b 16 T b 3
MP3 P1 146.176 R f 1 T f 2
P3 4.608 R p 8 2 T f 3
PIDS 80 R b 16 T b 3
MP4 P1 176.176 R f 1 T f 2
P3 9.216 R p 8 2 T f 3
P4 9.216 R p 8 2 T f 3
PIDS 80 R b 16 T b 3
MP5 P1 4.608 R p 8 T p + T d d 1
P2 109.312 R f 1 T f 2
P3 4.608 R p 8 2 T f 3
PIDS 80 R b 16 T b 3
MP6 P1 9.216 R p 8 T p + T d d 1
P2 72.448 R f 1 T f 2
PIDS 80 R b 16 T b 3
Table 3. Characterization of the secondary logic channels according to the service mode (IBOC FM).
Table 3. Characterization of the secondary logic channels according to the service mode (IBOC FM).
Service mode logical channel Transfer L1 latency [s] Relative robustness
Frame size [bits] Frame speed [Hz] Frame module
MS1 S4 18.272 R p 8 T p 7
S5 512 R b 16 T b 6
SIDS 80 R b 16 T b 8
MS2 S1 4.608 R p 8 T p + T d d 5
S2 109.312 R f 1 T f 9
S3 4.608 R p 8 T p 11
S5 512 R b 16 T b 6
SIDS 80 R b 16 T b 10
MS3 S1 9.216 R p 8 T p + T d d 5
S2 72.448 R f 1 T f 9
S5 512 R b 16 T b 6
SIDS 80 R b 16 T b 10
MS4 S1 4.608 R p 8 T p 11
S2 146.176 R f 1 T f 9
S3 4.608 R p 8 T p 11
S5 512 R b 16 T b 6
SIDS 80 R b 16 T b 10
Table 4. Transmission rates of primary logic channels.
Table 4. Transmission rates of primary logic channels.
Service mode Approximate transfer speed [kbps] Waveform
P1 P2 P3 P4 PIDS
MP1 98 N/A N/A N/A 1 Hybrid
MP2 98 N/A 12 N/A 1 Extended hybrid
MP3 98 N/A 25 N/A 1 Extended hybrid
MP4 98 N/A 25 25 1 Extended hybrid
MP5 25 74 25 N/A 1 All-digital extended hybrid
MP6 50 49 N/A N/A 1 All-digital extended hybrid
Table 5. Transmission rates of secondary logic channels.
Table 5. Transmission rates of secondary logic channels.
Service mode Approximate transfer speed [kbps] Waveform
S1 S2 S3 S4 S5 SIDS
MS1 0 0 0 98 6 1 Hybrid
MS2 25 74 25 0 6 1 Extended hybrid
MS3 50 49 0 0 6 1 Extended hybrid
MS4 25 98 25 0 6 1 Extended hybrid
Table 7. Transferable utility value for each of the coalitions v(S).
Table 7. Transferable utility value for each of the coalitions v(S).
Coalition Value [*1E+3] Coalition Value [*1E+3]
{1} 0.00 {7} 0.00
{2} 0.00 {8} 0.00
{3} 0.00 {9} 0.00
{4} 0.00 {10} 0.00
{5} 0.00 {11} 0.00
{6} 0.00 {12} 0.00
Grand coalition {1,2,3,4,5,6,7,8,9,10,11,12} 1150
Table 8. Shapley Matrix for the proposed scenario.
Table 8. Shapley Matrix for the proposed scenario.
Player j Contribution to the coalition containingjplayers φ j ( v )  [*1E+3]
1 2 3 4 5 6 7 8 9 10 11 12
1 0 10 4867 16170 32340 45276 45276 32340 16170 5390 1078 98 80.95
2 0 22 5419 18150 36300 50820 50820 36300 18150 6050 1210 110 90.88
3 0 82 6109 20460 40920 57288 57288 40920 20460 6820 1364 124 102.88
4 0 78 6060 20295 40590 56826 56826 40590 20295 6765 1353 123 102.02
5 0 86 6158 20625 41250 57750 57750 41250 20625 6875 1375 125 103.73
6 0 10 4867 16170 32340 45276 45276 32340 16170 5390 1078 98 80.95
7 0 270 7422 24585 49170 68838 68838 49170 24585 8195 1639 149 125.04
8 0 12 4959 16500 33000 46200 46200 33000 16500 5500 1100 100 82.60
9 0 22 5419 18150 36300 50820 50820 36300 18150 6050 1210 110 90.88
10 0 86 6158 20625 41250 57750 57750 41250 20625 6875 1375 125 103.73
11 0 86 6158 20625 41250 57750 57750 41250 20625 6875 1375 125 103.73
12 0 12 4959 16500 33000 46200 46200 33000 16500 5500 1100 100 82.60
P ( j ) 0,0833 0,0076 0,0015 0,0005 0,0003 0,0002 0,0002 0,0003 0,0005 0,0015 0,0076 0,0833 1150
Table 9. BW requested, BW assigned (Shapley) for a channel saturation state.
Table 9. BW requested, BW assigned (Shapley) for a channel saturation state.
Node i Service mode Logic channels BW [kbps]
BW Requested
di
BW Assigned
φi(v)
1 MP1 98 80.95
2 MP2 110 90.88
3 MP3 124 102.88
4 MP3 123 102.02
5 MP5 125 103.73
6 MP1 98 80.95
7 MP4 149 125.04
8 MP6 100 82.60
9 MP2 110 90.88
10 MP5 125 103.73
11 MP5 125 103.73
12 MP6 100 82.60
Table 10. BW requested, BW assigned by Linear Programming for a channel saturation state.
Table 10. BW requested, BW assigned by Linear Programming for a channel saturation state.
Node i Service mode Logic channels   BW [kbps]
BW Requested d i BW Assigned Model PL
1 MP1 98 77.8238
2 MP2 110 89.9117
3 MP3 124 104.3908
4 MP3 123 103.3451
5 MP5 125 105.4379
6 MP1 98 77.8238
7 MP4 149 130.8483
8 MP6 100 79.8156
9 MP2 110 89.9117
10 MP5 125 105.4379
11 MP5 125 105.4379
12 MP6 100 79.8156
Table 11. Optimal BW-PL vs BW-Shapley and differences in BW allocation according to channel state.
Table 11. Optimal BW-PL vs BW-Shapley and differences in BW allocation according to channel state.
Nodei BW Requested
di
Logic channels BW [kbps]
BWO BWS X1
diBWO
X2
diBWS
1 98 77.8238 80.95 20.1762 17.05
2 110 89.9117 90.88 20.0883 19.12
3 124 104.3908 102.88 19.6092 21.12
4 123 103.3451 102.02 19.6549 20.98
5 125 105.4379 103.73 19.5621 21.27
6 98 77.8238 80.95 20.1762 17.05
7 149 130.8483 125.04 18.1517 23.96
8 100 79.8156 82.60 20.1844 17.4
9 110 89.9117 90.88 20.0883 19.12
10 125 105.4379 103.73 19.5621 21.27
11 125 105.4379 103.73 19.5621 21.27
12 100 79.8156 82.60 20.1844 17.4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

Subscribe

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
