Abstract
Bridges enable communications and transportation of goods nationally and internationally, underpinning economic and social activities, thus they are pylons of our prosperity and mobility. Bridges worldwide are constantly subjected to physical wear, ageing, deterioration, hazards, environmental influences, and increased loading. Loss of performance and functionality of bridge structures would have a crucial impact on overall infrastructural resilience and would cause significant negative economic and social consequences. Monitoring their behaviour for different loading conditions relies on accurate estimations of the stress-strain state of various critical components and remaining capacities. These activities are of high importance for better planning lifespan prolongation, that is the extension of their service life and prevention of unforeseen collapses, in line with sustainability principles of well-informed maintenance. In many cases, access to the structure is limited or even impossible, which causes the need for the deployment of remote and contactless methods. One such innovative technique, which has recently attracted attention in scientific and practical applications is the digital image correlation (DIC). DIC is a contactless approach applicable for long-term measurements, which enables obtaining the full field of strains and deformations. Although the DIC approach has been widely used in world engineering practice for monitoring bridges and has proved to be a reliable and accurate method, there is a lack of systematic integral review on previous practical applications, revealing limitations and perspectives. This is the main motivation and novelty of this study, which will describe selected case studies, in which DIC was used on real full-scale bridge structures and propose improvements for the method.
Keywords:
Subject: Engineering  -   Architecture, Building and Construction

Introduction

The transport infrastructure of any country should be considered as a complex multi-scale system, integrating various sectors of the social, economic, and political life of the region. Bridges, as important components of this system, play a vital role in its functionality, fostering communication and facilitating the transportation of goods both nationally and internationally. Their significance extends beyond mere physical structures; they serve as the backbone of economic and social activities, acting as crucial pylons supporting the prosperity and mobility of societies. In particular, bridge structures connect regions, cities, and even countries, forming essential links for the movement of goods, ensuring international global supply chains, and facilitating the flow of resources, labour, and capital, by reducing transportation costs and improving accessibility to markets. In the context of increasing urbanization trends worldwide, bridges play an essential role in linking urban centres and suburban or rural regions, facilitating the movement of people, contributing to the cultural and social integration of communities, and fostering cultural exchange and social interactions. Accessibility and strategic locations of bridges are vital for efficient emergency response and disaster management, as they serve as critical evacuation routes during emergencies and natural disasters; thus, playing a crucial role in sustainability and resilience of the overall infrastructure. Considering the remarkable role of bridges in the lifelines of societies, economic growth, and social cohesion, the task of ensuring their safety, functionality, and longevity reaches its prevailing importance.
Bridges worldwide face relentless challenges from a multitude of factors, including physical wear, ageing, deterioration, extreme hazards, environmental influences, and increased loading. Thus, long-term operation, associated with progressing wear and ageing of structural components in combination with critical environmental factors such as corrosive substances, extreme weather conditions, and pollution leads to accelerated deterioration of bridge materials.
The concentration of the most significant bridges in main cities, industrial hubs, and economic centres marks a pivotal intersection between infrastructural importance and urban development. The ongoing urbanization trend, characterized by a steady increase of residents in major cities, directly correlates with escalated traffic loading and heightening stress on bridge structures. As traffic volumes soar, bridges are subjected to stresses beyond their original design parameters, which could cause increased wear and tear, accelerated deterioration, and heightened risk of structural deficiencies. The cumulative impact of the challenges, mentioned above, poses a threat to the structural integrity of bridges and to the broader infrastructural resilience and operability, which reveals the criticality of establishment of robust monitoring systems and adopting proactive maintenance practices.
On-site monitoring of bridges’ stress-strain state, deformations, and behaviour under different external impacts is significant for structural health assessment of various critical components and their remaining capacities. Timely and consequent assessment procedures can provide an indispensable basis for reliable planning of proactive measures, lifespan prolongation and prevention of unforeseen collapses.
Active operation of bridges by traffic in most cases causes limited access to them, making it challenging to install and maintain conventional contact/invasive monitoring systems. Traditional load-testing approaches are often attributed to expenses and difficulties, associated with both direct costs for sensor systems purchase and installation and indirect time-dependent losses related to traffic disruptions [1].
Similarly, after the occurrence of extreme natural or human-induced hazards, direct inspection of bridges could be impossible due to safety reasons, or technical inability in difficult-to-reach areas. Consequences and limitations, described above, cause the increased interest in engineering society to contactless monitoring methods, such as laser vibrometry, microwave radar interferometry, optical-based laser systems, digital image correlation, etc. [2,3]. Although all these approaches enable accurate and precise monitoring of the structure without road closure and direct access to it, some of them are associated with certain limitations. Thus, the use of laser vibrometry equipment is associated with high costs, long measuring time, reduced signal-to-noise ratio and enables measuring the position of a singular target. Microwave radar interferometry is applicable for multiple targets assessment within a radar image, but the measurements of displacements are confined to the instrument line of sight [3] and necessity to use at least two radars to reach a satisfactory accuracy [4]. Optical-based laser systems, while ensuring long-term measurements with low error, are constrained by a relatively small distance between the receiver and radiation source and a small displacement measurement range [2,5]. In contrast, the digital image correlation approach (DIC) is a completely contactless method, applicable for long-term remote measurements of full-scale structures, and enables obtaining the full field of strains and deformations until the latest loading stages. This method, after being developed, improved, and tested in laboratory conditions, has already spread to practical engineering implications worldwide. Among existing works, providing a systematic review of the DIC applications can be noted recent study by Mousa et al. in 2023 [6], being focused on laboratory structural tests and applications, while on-site DIC measurements are associated with the number of specific features and challenges. Although a sufficient number of practical examples of DIC application for real bridges have already been published in recent years, there is still a lack of comprehensive review of these practices, systematization and analysis of existing findings, limitations, and challenges. This paper provides a detailed literature review of the existing practices in DIC application for structural health monitoring of bridges, being among the first of this kind in international literature aiming to fill this gap of knowledge.

DIC- the Main Principles of the Method

Digital Image Correlation (DIC) is a multi-stage technique which enables remote contactless measurement of full-field displacements and strains on the surface of objects. DIC has been widely used in various fields, including materials testing [2,7], structural analysis, biomechanics, and experimental mechanics, providing valuable insights into the mechanical behaviour of materials and structures. Although this method has experienced a long history of development [2] and modifications and could have specific features, which depend on the particular application field, it generally includes several key steps. (see Figure 1)

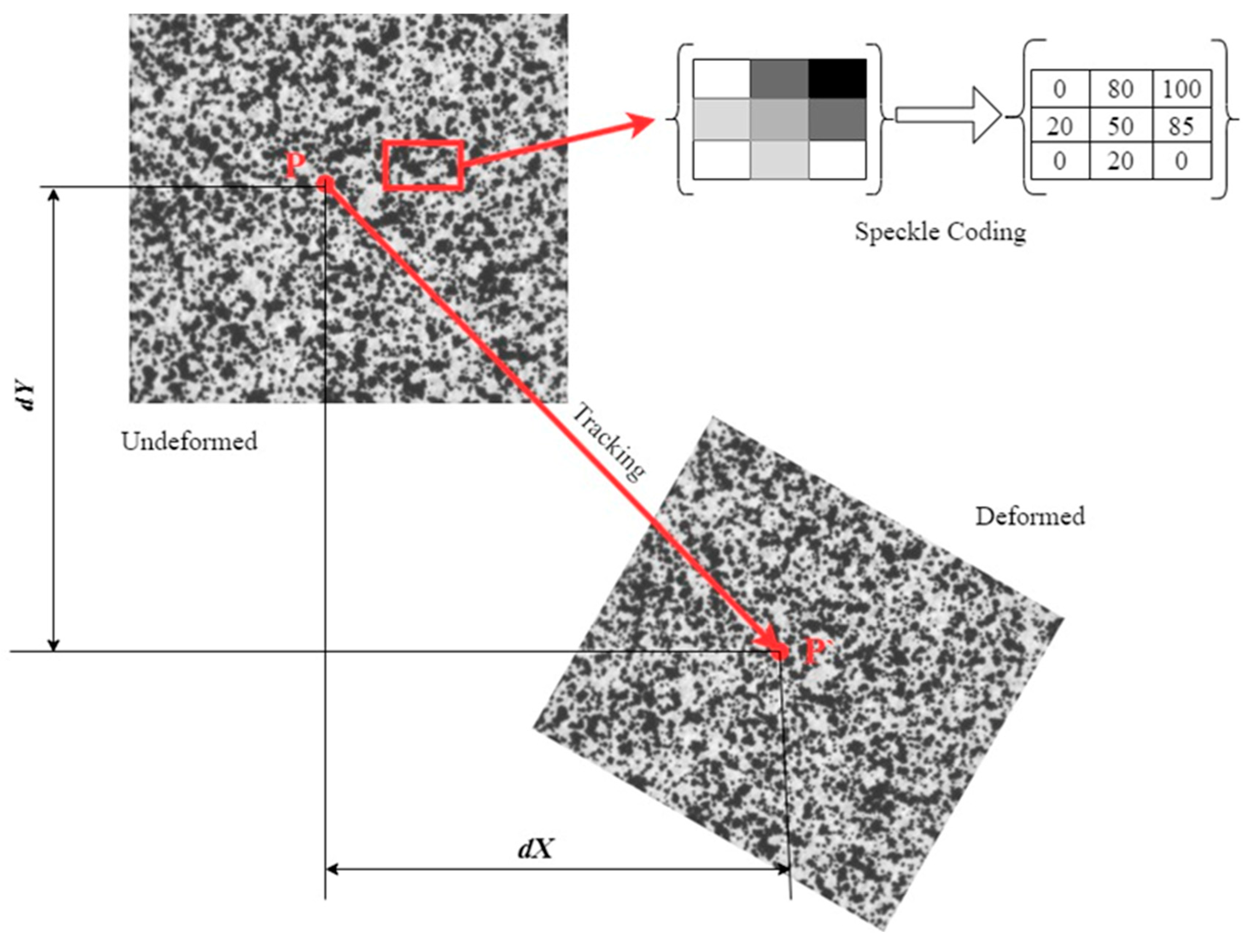

First, high-resolution digital images of the object’s surface are captured using a camera, covering the entire area of interest. At the pre-processing stage images are divided into smaller regions or subsets for further tracking throughout the deformation process. The size of the subsets is determined based on the expected deformation and the level of detail required. The initial image, corresponding to an undeformed state should be chosen as the reference image against which subsequent images will be compared. The basic principle of DIC image tracking entails the representation (coding) of it with a matrix of natural numbers (e.g., white areas corresponding to 0, while black, -to 100). Thus, the subset of the image (normally a square with a 10–50 pixels side) will contain the group of points with different grey level variations and unique numerical coding [2,8] (See Figure 2).
The centre of a particular subset, as the reference point, serves for its further tracking through the subsequent “deformed” images and coordinates identification. The core principle employed in the DIC method involves aligning a specific pixel’s location on the reference image with its corresponding position on the deformed surface images. The region around a given reference point is designated as an arbitrarily shaped area, within which a unique distribution of shades is present. Subsequently, employing a suitable algorithm through specialized software, the region with a matching distribution of pixel shades is identified. Throughout the correlation procedure, sets of numbers are systematically shifted until the pattern on the deformed image aligns optimally with the reference image. This alignment is determined by assessing the overall difference in grey levels for each corresponding point [2,8].
It is obvious, that for effective and precise correlation, the tracked area could have specific features, easily recognised at the processing stage. For this purpose, either the natural speckle pattern on a surface can be used, or the surface should be artificially prepared before the beginning of measurement. The latter approach includes separate printing of the speckle on the paper and application (glueing) to the investigated surface (artificial target) or direct creation of the speckle pattern to the surface.
The target-tracking method, which is specifically widely used for on-site 3D-DIC correlation testing of full-scale structures, entails the use of an artificial target as an independent sensor on the structure. Targets with salient features and known parameters should be rigidly attached to the structure surface, preventing any possible movements or rotation. The targets’ size is determined by the field of view (FOV) and, therefore, the distance between the structure and camera, the larger FOV corresponds to a bigger target size. Thus, the unique dots configuration on coded targets serves as an analogous of the stochastic pattern marking, facilitating mutual orientation and recognition of the 3D coordinates from subsequent images by software [9]. Creation of the speckle pattern directly on the investigated surface is more effective for obtaining a full field of strains but is more time- and labour-consuming and often associated with on-site limitations for long-term access.
Although the application of artificial targets on a surface can be labour-intensive, especially for large or complex structures, they provide distinct and easily recognizable features. They can be precisely placed, allowing for accurate tracking of displacements in specific regions of interest (ROI). They also facilitate in reduction of ambiguity in matching subsets, especially in areas with low texture or uniform patterns. However, for each particular case study, an artificial speckle pattern should be individually developed, considering the natural behaviour (roughness, coating) of the material or surface to eliminate possible interference. Thus, the choice between natural and artificial, or a combination of both patterns involves a trade-off between precision and ease of application, being an aspect of crucial importance for ensuring the accuracy of results [10],[11]. Thus, the artificial speckle pattern, which is a random arrangement of bright and dark spots on a surface, should align with the following requirements [2,10]:
  • high contrast;
  • 50–70% degree of density;
  • Isotropy and randomness;
  • optimal size of dots;
  • consistent speckle size.

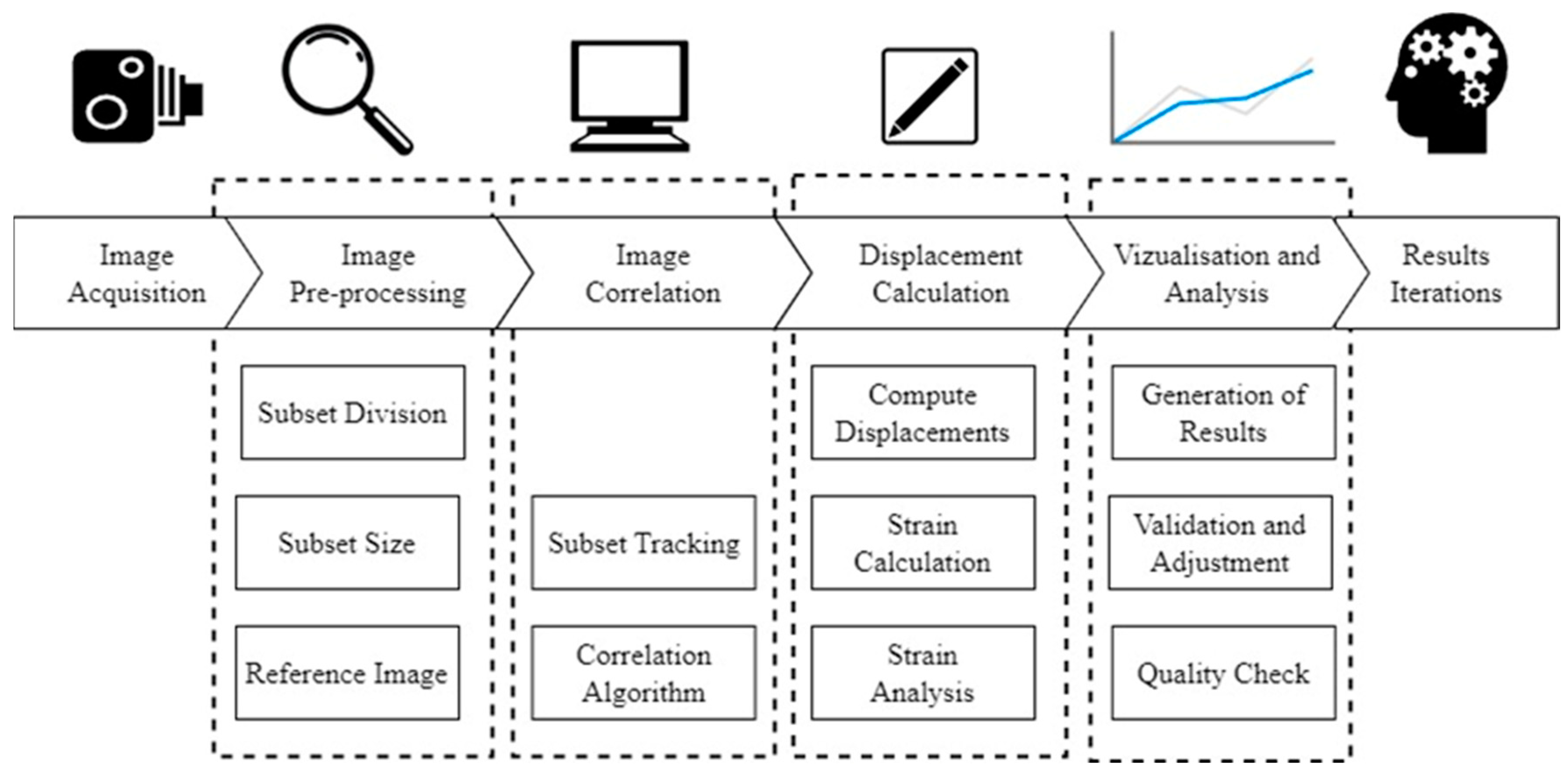

Following the flowchart of the DIC process (Figure 1) ensuring the use of optimal speckle pattern, correlation can be performed with high accuracy and low noise level. Cross-correlation algorithms are used to find the best match for each subset in the deformed images. They are usually applied in specialised software (Vic-2D/3D (Correlated Solutions, Inc., Irmo, SC, USA [12]), StrainMaster (LaVision, Ypsilanti, MI, USA [13]), GOM Correlate Pro, ARAMIS (GOM, Carl Zeiss GOM, Metrology GmbH, Braunschweig, Germany [14]), Solid Mechanics DIC (Dantec Dynamics, Skovlunde, Denmark [15]), etc) or individually developed program scripts. Based on the subset tracking, the software calculates the displacement field, providing information about how each point on the surface has moved. Next, from the analysis of changes in subset shapes and sizes, strains and deformation gradients are estimated. After the results, including displacement and strain maps, are generated, and visualized to represent the object’s deformation, their accuracy and reliability should be validated and adjustments may be made to the analysis parameters or subset sizes, if necessary. Depending on the complexity of the particular application, the process may need to be repeated with finer subsets or different analysis settings.
Among the most crucial concerns associated with the DIC measurements is the effect of out-of-plane motion, which can probably cause data corruption [16,17]. Therefore, in such a context, two approaches can be considered: 2D-DIC (planar measurements) and 3D-DIC (spatial measurements). During 2D planar measurements, one or several time-synchronized cameras enable in-plane full-field deformations’ recording in the pre-determined area of interest (AOI). However, the basic prerequisite of this approach is the absence of out-of-plane displacement and normality of the camera lens axis to the AOI plane [18]. During on-site monitoring of real structures, out-of-plane movement of the investigated surface is a widespread issue, resulting in fictive planar displacement and a considerable measurement error, respectively [11,19].
On the other hand, spatial measurements with a synchronized stereo camera system (3D-DIC) method enable capturing out-of-plane displacements and, thus, tend to yield more precise results, especially when the experiment is not appropriately arranged.

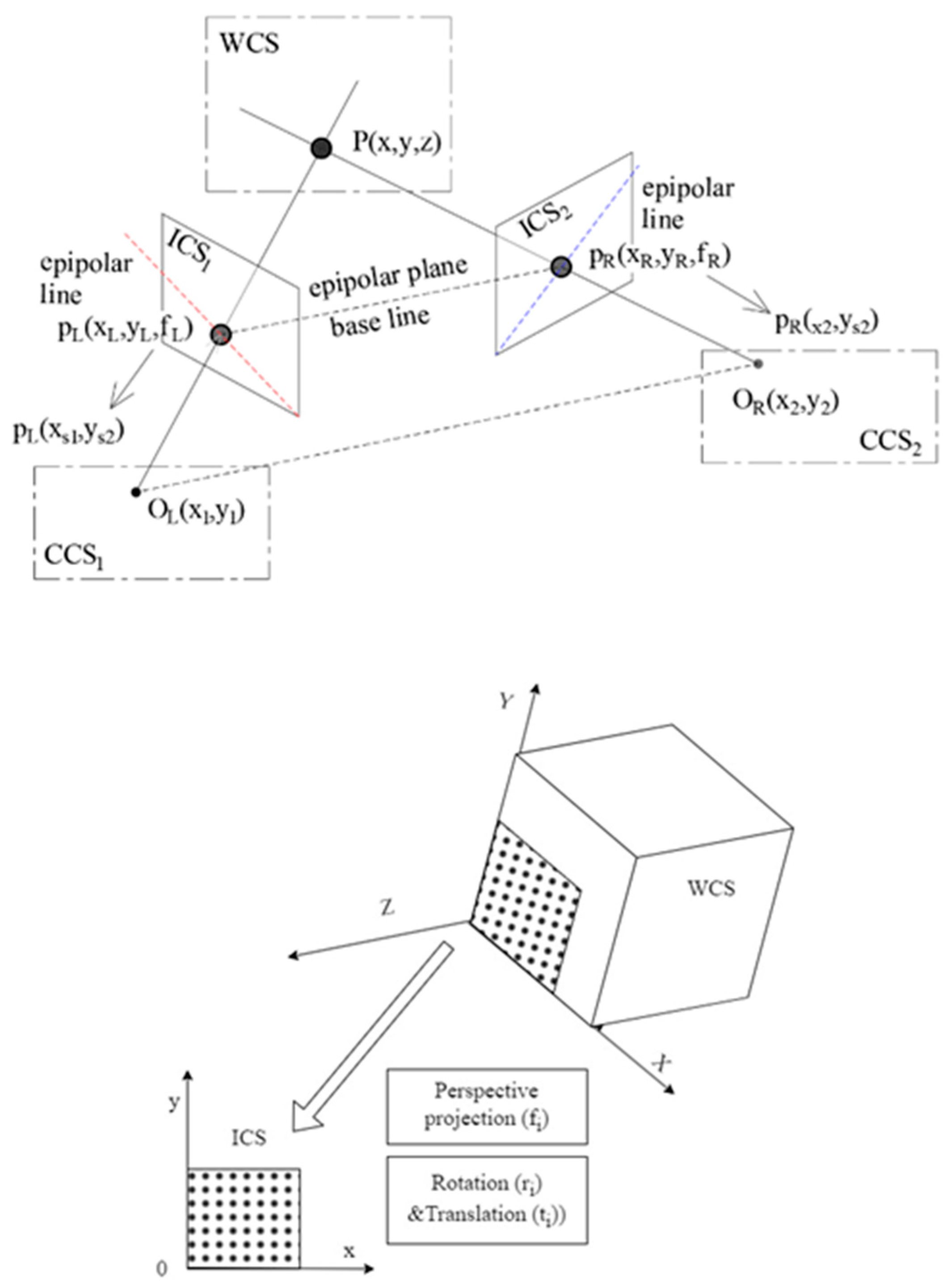

One of the requirements for reliable 3D-DIC measurement is a comprehensive calibration procedure to define the spatial coordinate system and the scale for all-direction displacement [17]. In Digital Image Correlation (DIC), camera calibration is a process that involves determining the intrinsic and extrinsic parameters of a camera system to accurately transform from images (pixels) to real-world coordinates in engineering units (e.g., mm). The intrinsic parameters include focal length, lens distortion, and optical centre, while the extrinsic parameters involve the camera’s position and orientation in the 3D space. The general scheme, illustrating the main parameters of the 3D-DIC measurement process is illustrated in Figure 3.
In general, the calibration process typically involves capturing images of a known calibration target with features of known dimensions. By analyzing the images and comparing the known dimensions with the measured pixel coordinates, the software can establish the camera parameters. The 3D tracking systems measure distances by capturing a series of images of an object from two cameras, determining their relative positioning based on characteristic common points. Corresponding distances between the camera matrix and the targets are calculated using epipolar geometry and a triangulation process. In such a setup, cameras are assigned with origins OL and OR for left and right positions, respectively. The baseline, which connects the cameras’ origins intersects the camera planes at the epipoles (pL and pR, respectively). The principal parameter, determining the relationship between images recorded by pairs of cameras is the epipolar plane, connecting epipoles. Thus, if the pL is observed in the image on the left camera, the pR should be located on the epipolar line in the image on the right camera. If we consider the particular physical point P, its projections for each of the cameras will have coordinates (xi’, yi’, fi’) in the image planes. If the shift from the original pixel coordinate by fi’ is taken into account, then the coordinates of the point in the image coordinate system are (xi’, yi’, 0). Thus, at these stages the global coordinates of a target point are transformed to the camera system coordinates and the coordinates are projected into the retinal plane. The final transformation of the coordinates is associated with the introduction of the sensor system (xs, ys), so that the position of the point could be described as pL(xs1, ys1), and pR(xs2, ys2), respectively. Afterwards, by combining these two points with the intrinsic and extrinsic parameters of the two cameras, the triangulation theory can be applied to derive the 3D coordinates of the physical point P [9].
Figure 3 illustrates the main stages of image translation and interdependencies between world coordinate system (WCS), image coordinate systems (ICS) and camera coordinate systems (CCS). Transformation of an object from 3D space to 2D-image is associated with the impact of perspective projection (defined by camera focal length fi), translation (ti) and rotation (ri) components. A more detailed description of the algorithms for 3D-2D transformation usually used in DIC, (e.g., holography) can be found in several recent studies [3,9,20].
It can be summarized, that the digital image approach provides substantial advantages for structural health assessment due to a completely contactless process and suitability for difficult measuring tasks without stable support for conventional sensors. The approach enables full-field monitoring of a high number of points by a single camera sensor, which allows for obtaining complex deformation gradients. In complicated on-site conditions, possible measurement errors due to off-plane motion can be eliminated by the 3D technique, making it applicable to a wider area of practical engineering tasks. However, the specific feature of the image processing approach is a high dependency on external environmental conditions and the necessity of individual system parameters adjustment for each particular case study. Therefore, the most relevant challenges and widespread error sources in on-site DIC applications are discussed in the next section of the paper.

The Most Relevant Challenges in On-Site DIC Application

As was mentioned by [3], if the optimal conditions are ensured, the modern DIC algorithms enable accurate tracking of in-plane movements of targets and displacements on the investigated surface with a precision of less than 0.01 pixels. Although the DIC technique has been developed, improved, and calibrated during long-term application for structural health monitoring worldwide, on-site use of image processing is still associated with several challenges, caused by environmental conditions, technical limitations, calibration errors, etc. Each of the possible error sources should be accurately evaluated, considering their possible impact on the overall quality of the measurement data (e.g., resolution, accuracy, and repeatability). Table 1, adopted from [3] summarizes the qualitative evaluation of the possible impact of various error sources in the context of:
(1)
resolution, which is the smallest displacement, within the sensitivity of the system, assumed through the standard deviation of measurement noise;
(2)
repeatability pertains to the consistency and precision of repeated measurements taken under identical or nearly identical conditions with minimal variability or scatter, quantified using the standard deviation or the coefficient of variation;
(3)
accuracy refers to the closeness of the measured value to the truth, indicating the reliability of measurement and the absence of systematic errors.
Table 1. Evaluation of DIC errors during on-site monitoring and their possible impact on resolution, accuracy, and repeatability (adopted from Akcitgoz et al., 2018, [3]).
Table 1. Evaluation of DIC errors during on-site monitoring and their possible impact on resolution, accuracy, and repeatability (adopted from Akcitgoz et al., 2018, [3]).
Error sources of DIC in on-field measurements Resolution Repeatability Accuracy Mitigation approaches
Preparation of experimental set-up (before measurement)
Target/speckle pattern 3 3 3 Implementation of artificial targets; Optimal size and location of targets. Optimal speckle dots’ size, contrast level, subpixel precision, intensity gradients, etc
Low quality of images 3 1 3 Use of cameras and lenses with appropriate resolution
Metric calibration 1 1 3 Detailed geometric survey during the set-up. Assessment of camera extrinsic parameters and reconstructed features.
Image recording
Experimental setup and camera settings 2 2 2 Optimal camera exposure, aperture and focus settings. Longer focal lengths.
Movement of camera 1 3 3 Ensuring the stable position of a camera. Correction during post-processing through comparison with stationary targets. Filtering during postprocessing.
Environmental impacts 1 3 3 Autoexposure. Monitoring in shade with artificial lightning control during short periods. Protective barriers. Temperature-displacement models
Elastic deformations and rigid body rotations 1 1 1 The use of high-order shape functions in DIC processing.
Out-of-plane movement 1 1 3 Alternative parallel measurements. The use of 3D-DIC method.
Image processing
Correlation algorithms 1 1 1 Iterative choice of the most optimal algorithm
Subset selection 2 1 1 Smaller subsets in critical areas. Advanced algorithms to handle discontinuities.
* The colour-coded rating system is applied to identify the impact of each error on measurement system performance:1-low, 2-medium, 3-high.

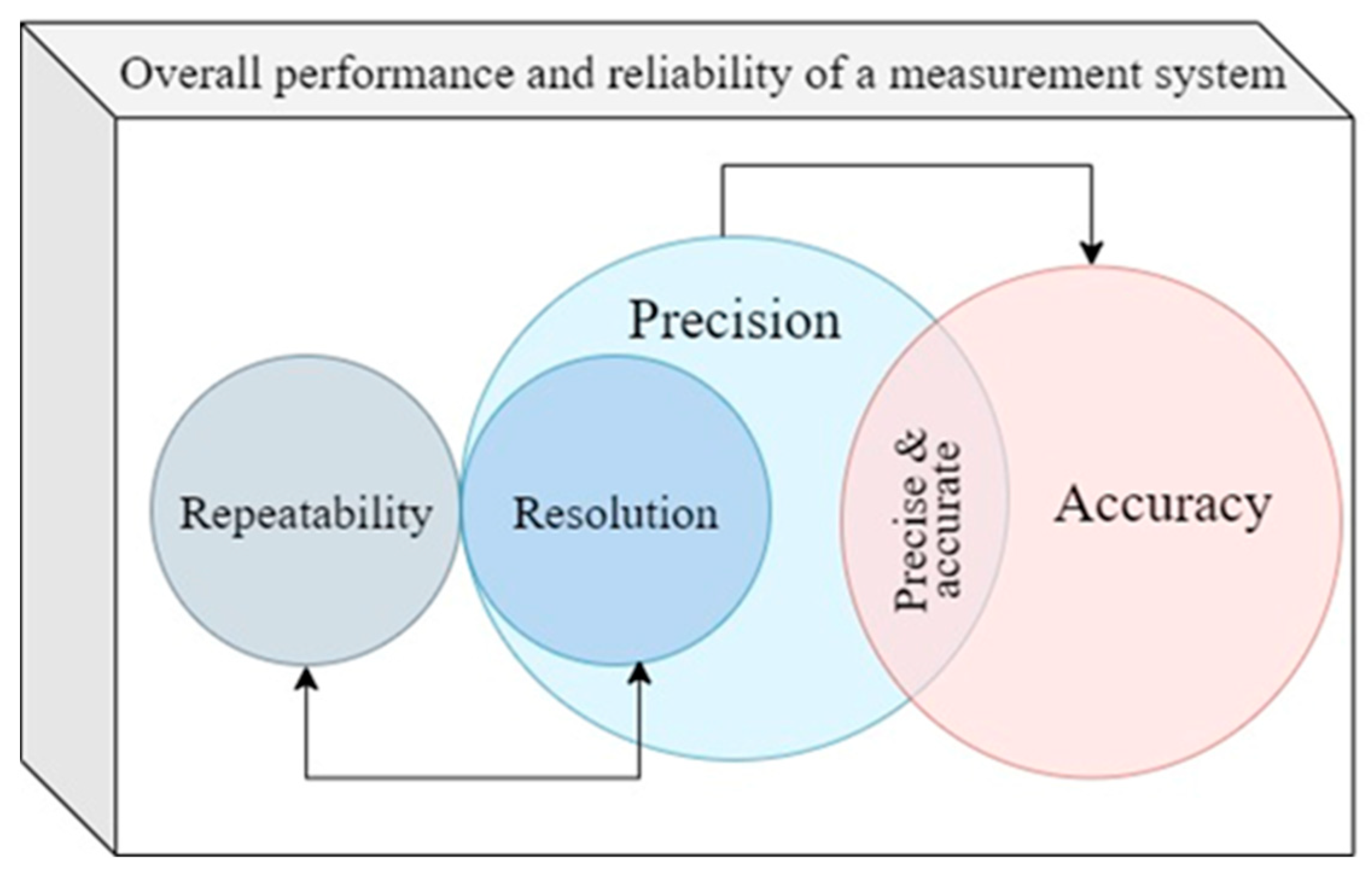

Accuracy, resolution, and repeatability are interconnected supplementary aspects in measurements, each addressing different facets of the measurement process, contributing to overall system performance (Figure 4). Thus, resolution is a component of precision, which contributes to accuracy and supports the goal of achieving accurate measurements. However, precision and accuracy should still be considered as two independent important concepts, with supplementary but diverse features. Repeatability is unidirectionally related to the consistency of measurements (precision), as a system with good repeatability is likely to have high precision. Collectively, accuracy, resolution, and repeatability play integral roles in determining the overall effectiveness and dependability of a measurement system. Balancing these elements is essential to achieve measurements that are both precise and trustworthy.
Among the parameters, which should be taken into account during the preparation of the experimental set-up is the quality of the target, either artificial or natural pattern of the surface (see previous section). Thus, the implementation of artificial targets of optimal size and speckle could play a crucial role in facilitating the tracking and analysis of displacements. Qualitative assessment of the speckle parameters is normally based on such features as mean speckle size (dots’ size), subset entropy, sum of squares of subset, intensity gradients, subset size, contrast level, etc. The unique and random nature of speckle pattern allows for accurate correlation, subpixel precision, and the ability to capture fine details of deformation and strain in structures [11]. For instance, in optimal environmental conditions, natural brick and mortar surfaces can have texture applicable for testing without artificial patterns. However, the suitability of the natural pattern is usually evaluated during the postprocessing, by comparing resolution to the required pixel precision, thus, the necessity of repeating measurement is justified [3]. (see Figure 1).
After the identification of suitable target characteristics, extrinsic parameters of the sensing system should be assessed. Precise metric calibration is essential for accurate transformation between coordinate systems and is vital for the elimination of substantial errors in displacement measurements. Calibration errors can be mitigated by a thorough geometric survey (e.g., with a laser scanner) to validate metric distances from camera reconstruction. Additionally, the pitch and roll angles of the camera, measured during equipment setup, can be compared with the angles calculated from the calibrated rotation matrix [3]. One of the prevalent sources of poor correlation and low accuracy is low-resolution or high level of noise in recorded images This can be prevented by the use of resolution cameras with adequate parameters, proper lighting, and ensuring clear images without distortions. In particular, cameras with increased resolution are more appropriate for diagnostic measurement tasks, specifically for monitoring crack patterns or strain distribution. On the other hand, cameras with lower resolution, in most cases about 2.3 megapixels, have advantages in dynamic behaviour capturing due to the possibility of increasing sampling frequency. Despite their lower resolution, these cameras maintain sufficient accuracy for recording displacement full fields during static and dynamic loading [4]. Focal length is another critical parameter, which has to be considered for optimum equipment selection and setup. Thus, higher focal lenses ensure higher resolution, while reducing the size of the field of view (FOV). Also, the high focal length of lenses typically increases their weight, which makes them susceptible to oscillations due to wind or traffic loads [4].
Some of the error reasons can be addressed by careful setting of the sensing system. Thus, during the subset tracking resolution and repeatability are highly dependent on exposure settings, as high contrast in each greyscale target is required for better performance [3,21]. Also, if several targets are tracked simultaneously, it can be recommended to use the smallest aperture possible to obtain a large depth of field. Authors [22] and [23] also report issues due to radial distortions if a wide field of view is captured from the closer range (which necessitates wide-angle lens configurations). However, this factor can be partly eliminated by the introduction of lens distortion coefficients through a lab calibration or postprocessing calibration.
One of the crucial factors determining the efficiency of the DIC technique is the stability of the camera during the measurement. Thus, ground vibration, due to heavy vehicles’ passage or wind-caused vibration can be the reason for the camera’s slight movements. Being imperceptible to the naked eye, these changes are rather hard to eliminate during the camera set-up, thus, they are mostly corrected during the post-processing. Wind impacts can be also relegated to the group of environmental source errors, which are among the most critical during on-site measurements. In particular, changes in lightning conditions are the common reason for reduced accuracy and repeatability during structure monitoring. One of the recommended mitigation techniques is the utilization of autoexposure, enabling the automatic setting of optimal exposure rate and maintaining the same illumination levels. However, if the particular case entails monitoring of several targets, the efficiency of this method is significantly reduced. In case of lightning changes low-frequency drift from data with a high pass filter or linear baseline can be removed, but the correction of errors is complicated, as lightning deviations usually follow unclear trends [3]. Thus, the general recommendation would be to perform on-site DIC measurements in the shade (or at night) with artificially controlled lightning levels during short periods. In addition, possible mitigation approaches, proposed in the literature, include the introduction of optical bandpass filtering solutions [21] and subpixel tracking techniques, which partly eliminate the impact of ambient light changes [24,25,26,27]. Other ambient error sources, such as traffic-induced vibration, wind, rain, or water wave reflection can be eliminated by positioning the cameras as far as possible from the source or introducing barrier protection [17]. Furthermore, the effects of camera temperature variations can be mitigated to some extent by employing a pre-established temperature-dependent model for displacements determined in the laboratory [28].
Another category of error sources includes structural actions, which are mostly determined by the specific features of the monitoring case and can be addressed at the processing stage. Thus, if rigid body rotations take place, this can cause altering of pixel optical characteristics and challenge efficient tracking of targets. This limitation can be eliminated by the use of high-order shape functions in DIC processing [3,29]. Out-of-plane movement is reported in previous research as one of the critical error sources, particularly at the edges of the image [16]. The impact of out-of-plane movements can be mitigated with the use of alternative parallel measurements to identify its magnitude, or the use of a 3D-DIC approach (especially if the magnitude is likely to be high). 3D-DIC sensing system, utilizing a stereoscopic camera set-up enables tracking of 3 spatial coordinates by 2 cameras simultaneously, eliminating the effect of out-of-plane movement. However, as the 3D-DIC is often associated with several limitations (complicated set-up process on-site, limited observed area and lower resolution, compared to 2D-DIC), the decision on the most optimal measurement technique should be made with consideration of each particular case [3,16]. Potential errors during the processing are mostly associated with improper selection of correlation algorithms and subset size. These errors have a relatively small influence on the overall performance of the sensing system and can be mitigated by introducing advanced algorithms to handle discontinuities, iterative selection of the optimal correlation algorithm and use of smaller subsets in critical areas.
It can be indicated that the digital image correlation approach, either in planar or in spatial coordinates in a complex synergic sensing system, which requires thorough attention to possible error sources to maximize the efficiency of the measurement process. Addressing such challenges during on-site monitoring of full-scale structures requires meticulous planning, adaptation of measurement setups, and continuous monitoring to ensure the reliability and accuracy of DIC measurements in real-world environments. Thus, examples of successful implementation of the DIC approach for bridge structural assessment are described in the following section.

Application of the DIC Method for Bridge Monitoring: Selected Case Studies

The application of innovative non-contact technologies such as wireless sensing or vision-based tracking is a sufficient improvement in the current state of practice in structural health monitoring during service and extreme events. Processing of digital images (e.g., DIC method), among other vision-based approaches has provided effective possibilities for measuring the displacement of full-scale bridges. Practical implementations of this sensor system have already confirmed its cost-effectiveness, reliability, and accuracy; it is also easy to implement and offers real-time capabilities to measure dynamic displacements with a high level of resolution [30]. Table 2 provides a summary of the selected case studies, demonstrating the DIC application for structural health monitoring of bridges and a brief description of the experimental set-up used. Some of these works are also mentioned in previous research [31], highlighting mostly different bridge types (concrete, suspension, masonry, and steel bridges).
Application of photogrammetric methods, which are a prototype of the modern image correlation approach, reach back to the 80s years of last century [32,33,34,35,36]. For instance, pilot studies on the photogrammetric method for bridge deformation monitoring were introduced by Mass, et al. [37], indicating fast and economic setup, integral approach for full-field measurements of a large number of targets and, thus, high potential for further development. Among the earliest studies, which demonstrated the applicability of digital image processing (DIP) for on-site monitoring of full-scale bridges is the study of Lee & Shinozuka, 2006 [30], who verified the method through a laboratory shaking table test and a field application on a steel box girder Yeondae Bridge with less than 3% error. Another work of these authors [38] presented image processing results for the profile of 3 bridges of different structural types, confirming the versatility of the approach. In this period on-site study of the girder bridge, subjected to loading by a heavy cargo truck at different positions was performed by Yoneyama, et al., 2007 [39], confirming the effectiveness of the DIC for structural integrity evaluation of infrastructures. Results, presented in this early study show good correspondence to parallel transducer measurements and authors claim that the DIC maintains its functionality even without the artificial speckle pattern on the investigated surface [39].
Thus, the emerging technology of vision-based monitoring is currently facilitated mainly by template matching techniques, which stand out as one of the most efficient methods for tracking objects [9]. In particular, the DIC vision-based target-tracking method for bridge monitoring was introduced in several previous studies and field applications [30,39,40,41,42,43,44]. Particular attention should be paid to the study of Ngeljaratan & Moustafa, 2020 [9], which, based on previously introduced larger testing and DIC monitoring program [45], demonstrated the capabilities and potential of a non-contact DIC approach for two applications: for assessment of the dynamic response of a large-scale full bridge, subjected to extreme hazards; and for long-term monitoring of bridges natural vibration under pedestrian loads. Target-tracking 3D-DIC approach was used with circular black and white stickers of varying size, depending on the field of view (FOV). The measurements of 3D displacements and bridge deck rotation, validated by conventional instrumentation, corroborated the applicability of the method for seismic and dynamic response monitoring based on very comparable results. Authors noted the outstanding capability of the method for both complex seismic response monitoring (which is normally associated with very limited access for post-event reconnaissance), as well as for walking and jumping pedestrian loading due to high sensitivity to ambient vibrations [9].
A monitoring setup based on 2D and 3D DIC was used in another case study, a pedestrian bridge in the de Porto urban area, subjected to static loading [46]. The investigation demonstrated the good agreement between data obtained from two setups [46], thus confirming the applicability of the approach for urban areas without preparing of investigated surface. Similarly, vibration analysis of the suspension bridge, subjected to pedestrian loadings, performed by Yung-Chiang Lin et al., 2022 [47] has shown satisfactory results for quick remote assessment of the bridge. Similarly, heavy trucks’ vehicle loading tests have confirmed the effectiveness of the method, as was reported in several studies [1,48,49,50,51,52]. For instance, the comprehensive investigation of aged railway arch bridges, validated with FE- simulation enabled monitoring of strain variation with the wheel positions with high accuracy [49]. In addition to results, comparable to conventional sensor installations, DIC-based techniques, provide considerable advantages in terms of operational logistics of transport routes and generally show higher accuracy due to a combination of algorithmic differences and additional signal post-processing [1]. Cost-effectiveness, rapidity, and the possibility to maintain the full-service operation of bridges are among the crucial stakeholder’s requirements and are completely ensured by DIC, as an effective tool for infrastructure whole life management [50].
Crack assessment in bridge structures is among the perspective applications of the image correlation technology, enabling full-field plots, investigation of the time of crack detection and monitoring of crack widths, proved by a number of studies [42,53,54,55]. For instance, the effectiveness of 3D-DIC for bridge structural health monitoring has been demonstrated in the study [42] with specific attention to crack and spalling assessment during 4.5 months by using a projected pattern to measure surface geometry. Similarly, the DIC approach confirms its effectiveness for quantitative crack characterization for out-of-plane distortion-induced fatigue cracks, which is a topical problem in operated steel highway bridges [55]. 2D-DIC provides reliable estimations for verification of qualitative and quantitative stop criteria, based on crack identification, in combination with structural response analysis [53].
Cable tension, as a critical cable-stayed bridge serviceability parameter, has become the motivation of another application of digital image processing for bridges’ technical state assessment [20,56]. The vibration of small cables was successfully assessed from a close distance in the early work of Jo et al., 2021 [20], which, however, identified limitations and the need for further development of the technique for large cable-stayed bridges. Thus, a method for evaluating the instantaneous tension in cables was developed [20], integrating extracts of the digital image processing for cable sag assessment and the parabolic cable theory for tension force evaluation. The validation of the proposed approach on the Godeok bridge under construction (from a 300-m distance) has shown deviations from the direct measurements below 0.22 %, providing concise, time- and cost-effective options for structural health monitoring of cable-stayed bridges. The challenging problem in the reliable estimation of cable forces in contact-type sensors and conventional fixed camera-based methods was also addressed in the study of Tian et al., 2021 [57], where authors proposed the combination of UAV technology and computer vision algorithms to overcome existing limitations. The proposed method confirmed its effectiveness for cables having large vibrations if no wind disruption is present, validated with the full-scale bridge case study.
The unique of its kind investigation of the full-scale real bridge, loaded until the failure, was described in the study of Sas et al., 2012 [58], who highlighted the prevalent suitability of photogrammetric methods for full-field strain monitoring at late loading stages. Thus, the authors noted, that the image correlation approach provided a more comprehensive picture of the strains, than conventional contact methods, as the latter were greatly influenced by crack formation and the longitudinal curvature of the bridge.
In the field of modal analysis, the main advantage of digital image correlation is lower influence on lightweight structural components (e.g., cables, frames) and better full-field measurement performance in comparison with conventional methods (e.g., acceleration sensor method). Although accurate measurements of the first natural frequency are ensured, certain noise levels could be caused by longer shooting distances or smaller displacements, easily eliminated by developed filtering techniques [59]. Similarly, on-site research by Adam Hoag et al., 2017 [52] has confirmed, that the DIC technique outperforms conventional accelerometer sensing because the latter was not optimized for low-frequency acceleration measurement, which resulted in occasional large erroneous peaks due to equipment limitations.
A considerable increase in the measurement accuracy (below 0.2-3%) was reported in a later study [60], which was dedicated to stable cable force measurement with the use of digital image techniques. Notably, authors [60] have predicted certain problems in engineering on-site applications, in particular, unstable lightning conditions, which they managed to resolve in their following work [61].
Table 2. Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
Table 2. Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
Investigated structure* Method Hardware & Software** Source
Street bridge over the Flutgraben in Erfurt, Thuringia (non-reinforced concrete bow bridge, L= 27 m, W= 12.5 m. Vehicle (truck) loading test. Camera at distance 32 m 2D-DIC Machine Vision camera. The Imaging Source (1024 ×768 pixels, 21 fps, standard deviation- 0.017 pixels (EF), rel. accuracy 1: 60.000); grey level machine vision camera (1300×1030 pixels); Still Video camera (Kodak DCS 660, 3040×2008 pixels, 0.1 (max 3) fps, standard deviation-0.01-0.015 pixel (LSM), rel. accuracy 1: 30.000); image rate 1 Hz [37]
Yeondae Bridge (4 continuous spans, 2 open-box steel girders, L=4×45m=180 m, W=12.8m, H=2.5 m). Vehicle running tests (dump trucks with various loads and running speeds). Camera at distance 20 m. 2D-digital image processing Digital camcorder (30× optical zooming capability, 720×480 pixels, 30 fps); telescopic lens (8× optical zooming); laptop (Pentium M 1.6 GHz processor 512 MB RAM); MATLAB [30,38]
Samseung Bridge (steel-plate girder bridge; MS=40 m). Vehicle running tests (dump trucks with various loads and running speeds).
Large pedestrian suspension bridge with stiffened steel girders (L=120 m). Vehicle running tests (dump trucks with various loads and running speeds). Camera at distance 70 m.		 [38]
The cable-stayed pedestrian bridge. Vibration testing of cable (Ø=40 mm). Camcorders at distance 2 and 2.5 m. 2D-digital image processing Digital camcorder (1/3-in. 1.18-megapixel progressive CCDs, 1280×720 pixels, 29.97 fps); lens of F1.8 (52 mm focal length, 10× optical and 200×digital zoom); total station [56]
Highway bridge. Loading by a heavy lorry (32 tonnes). Camera at distance 15 m. 2D-DIC PhaseOne camera (39 MPixel); 80 mm lens [62]
Girder bridge (L=15.4 m, W=7 m) Loading by a heavy cargo truck (20 t, various positions) 2D-DIC 2 single-lens reflex cameras for 2 girders (3072×2048 pixels and 3504×2336 pixels resolution) [39]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
Masonry arch railway bridge (4 spans). Train loading testing (weight ca. 45 tonnes per bogie, maximum speed 200 km/h). Camera at distance 10 m. 2D DIC Digital camera (Nikon D3100 DSLR, 14 MPixel); Nikon AF-S DX Micro NIKKOR 40 mm f/2.8G lens; Photo Video Studio focusable Redhead spotlight; MatchID-2D software (Mechanical Engineering department of the Catholic University College Ghent) [51]
Ornskoldsvik Bridge, Sweden (2 spans, 12 +12-m frame, L=36.293 m, H=8.2 m). Loading-to failure testing. Camera at distance 3.1. m. 2D-DIC Digital camera (Canon EOS 5D); 90-mm lens; MATLAB software [58]
The 1/3 scale model of RC bridge (2 spans, L=2×10.4 m; W=3.4 m) with two-column pier (7ft tall at 6ft spacing). Earthquake testing. Cameras at distance of 10 m, separated at 2.4 m.
The full-scale truss-type bridge (2 spans, L=89 ft; W=9.6 ft). Vibration testing. Cameras at distance 26 ft, separated at 5.13 ft.		 Target-tracking 3D-DIC 2 high-speed cameras (IL5QM4, Fastec Imaging, USA, 2560 × 2048 pixels, 8-bit grayscale); FasMotion software; TRITOP software; GOM photogrammetric software [9,45]
The 2-pylon concrete cable-stayed Godeok bridge under construction (L=1000 m; MS=540m; H= 165 m). Tension-testing in cables. (Target cable -CRS05R). Camera at distance 300 m. 2D-digital image processing Digital camera (Canon’s EOS R5; 8192× 5464 pixels); 70–200 mm F2.8 telephoto lens; total station; camera calibrator toolbox in MATLAB [20]
Three bridges near Lowell, Massachusetts. Crack and spalling evaluation 3D DIC DIC cameras; high power projector; GOMTM’s software ARAMIS
 [42]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
The 1/70 scale model (L=2.15+4.8+2.15=9.1 m) of GuanHe Bridge (L=32.9+115.4+340+115.4+32.9=636.6 m). Dynamic response experiments. Camera at distance 0.78 m. 2D-DIC, DIP Digital camera (DSLR Canon 70D, 1280×720 pixels r, 50 frs); Canon STM lens (Focal length: 18–55 mm, manual zoom); acceleration sensor (TST120A500, 100 Hz) [60]
2D DIC (dual-channel approach at low lightning conditions) Android phone (HONOR V30) (3840×2160 pixels, 60 Hz) [61]
Shuohuang railway bridge (3 spans, L=60 m). Deflection measurement under freight train travelling with speed of 80 km/h. Camera at distance 22.5-22.8 m. 2D-DIC (off-axis method) High-speed area scan monochrome camera (Genie HM1024, Teledyne DALSA, Ontario, Canada, max capture rate of 117 fps, 1024×768 pixels, 8-bit quantization); fixed-focal optical lens; laptop (Thinkpad T440, Lengend, Intel(R) Core(TM) i7-4700 MQ CPU,2.40 GHz main frequency and 8GRAM); laser rangefinder (BOSCH, GLM 250VFPro, max distance 200 m, ±1 mm); optical theodolite. [63]
The Wuhan Yangtze River Bridge (L=1670 m, 8 piers, spaced 128 m and 9 apertures). Static and dynamic load testing. Vehicle (truck) and train loading test. Camera at distance 107.3 m, 134.2 m, 164.2 m, 226.1 m. 2D-DIC (LED-targets) Video deflectometer: camera (Genie HM1024, Teledyne DALSA, ON, Canada, 1024×768 pixels, 8-bit quantization, max 117 fps); fixed-focal optical lens; laser rangefinder (BOSCH GLM 250VFPro, Robert Bosch GmbH, Power, max distance 250 m, ±1 mm), optical theodolite, laptop (Thinkpad T440p, Lenovo, Beijing, China, Intel(R) Core(TM) i7-4700MQ CPU, 2.40 GHz main frequency and 8 GB RAM). [64]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
High-speed railway bridge (MS=16 m). Camera at distance 30 m. 2D-DIC (off-axis method) High-speed video camera (Daheng Imaging, Mer-131-210u3m, 1280 ×1024 pixels, 8-bit grayscale, 210 fps), fixed focal length/ fixed focus lens (F-number according to the actual imaging needs), laser distance measurer/rangefinder (Bosch GLM200, max distance: 200 m, measurement accuracy ± 1 mm); electronic theodolite; tripod; laptop. [65]
Pedestrian bridge (campus of the Faculty of Engineering of the University of Porto). Static loading.
3D-Cameras at distance 30 m, separated at 4 m.
2D-Camera at distance 13 m.		 3D-DIC, 2D-DIC 3D-DIC: 2 cameras (Bosch DINION IP Ultra 8000 MP, 75 mm lens, 4000× 3000 pixels) [46]
2D-DIC: 1 USB camera (iDS uEye UI-3370CP model, 150 mm lens, 2048×2048 pixels), MATLAB
Concrete girder bridge. Usual traffic loading 2D-DIC (camera movement correction method) Single-reflex type digital camera (3008×2000 pixels×24 bits) [66]
Suspension bridge (MS=50 m). Vibration analysis under pedestrian loading. Cameras at distance 54.6 m, separated at 0.644 m. 3D DIC 2 cameras (Sony, recording period 563s, frequency 0.002Hz.); Nikon total station; IMU-laser sensors [47]
Marsh Lane Viaduct (brick masonry viaduct; up to 25-ton axles, up to 55 km/h speed; investigated arch with span of 7.7 m, a rise of 2.1 m, W= 8 m). Train loading testing 2D-DIC, 3D-DIC (calibration method for multipoint displacement measurement), 2 video cameras (industrial-grade Allied Vision GigE, 2048×1088 pixels, 11.26 × 5.98-mm-size sensor, 50 Hz); system controller; Imetrum Video Gauge software; MATLAB [3]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
B1-Bridge in Smyrna, Delaware (1 span, composite, slab-on-steel girder bridge, L=19.96 m, W=14.64; W36 × 210 rolled I-beams spaced 2.74m apart and a 216-mm-thick RC deck). B2-Bridge in Newark, Delaware, (simply supported with a 21.34 m, composite girder bridge, web depth of 864mm and a flange width of 311 mm, 19.1-mm-thick cover plates 2.59m apart; and a RC deck, L=21.34 m, W=9.1 m). Vehicle (truck) loading test DIC (Imetrum technology); phase-based optical flow method 2 Imetrum cameras (6.3 and 13.4mm sensor diagonals); 2 lenses, (12 and 25 mm), Panasonic GH5 camera (12-mm f1.4 lens, 30 fps in B1 and 60 30 fps in B2); Imetrum Video Gauge software, [1]
Road bridge in Bohumín municipality, Czech Republic. Dynamic load test (Anchorage pins assessment) 2D-DIC 2 cameras (Basler acA4096-30μm); lens of focal length f = 35 mm, 75 mm, 50 mm (depending of distance); Correlated Solutions Inc and ISI-sys GmbH system, VIC-snap software, VIC-2D and VIC-3D software [4]
Bridge over Olomoucká Street in Brno, Czech Republic (continuous steel box girder). Dynamic load test (Fatigue crack detection). Cameras at distance 0.9 m. 3D-DIC
Railway bridge near Soběslav municipality, Czech Republic (7 spans, consisting of 3 continuous deck-type steel-concrete composite load bearing structures; cross section, -a pair of steel I-profiles coupled with an upper concrete deck slab). Static load test. Cameras at distance 30-50 m 3D-DIC
Railway bridge near the Vranovice municipality (Czech Republic) (2 parallel continuous steel deck-type beams of 3 spans; cross section, -4 main beams, transversely spanned with an orthotropic steel deck supporting a ballasted bed track; L=38.4). High speed dynamic load testing (10 load cases traffic speed: 5 km/h - 200 km/h). Cameras at distance 40 m 2D-DIC
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
Bridges in Lowell, Massachusetts (concrete cast-in-place). Assessment of displacements due to the thermal expansion and contraction of the concrete abutments and expansion joint. Cameras at distance 1.75 m, separated at 0.707 m, 25°separation angle. Unmanned aerial vehicle (UAV) and 3D-DIC 2 cameras (Basler acA1600-20 series, 2 2-Megapixels employing a (7.16 ×5.44)·10-3m); Sony ICX274 charge coupled device (CCD) monochrome image sensors (1626×1236 pixels, pixel size of 4.4×4.4 μm); 8.5 mm focal length lenses (Edmund Optics Ltd.); GOM’s software TRITOP; ARAMIS
UAV: InstantEye®Gen 4 Quadcopter (Physical Science, Inc. (PSI)); Minnowboard MAX dual-core single board computer (SBC), Linux Ubuntu 14.04		 [67,68,69]
Nansha Bridge, Guangdong province, China (twin-tower 1 span suspension bridge, MS= 1200 m, side span =360 m, span ratio= 1:9.5, the center spacing of 2 main cables = 42.1 m, the standard spacing of cables is 12.8 m. H=193.1 m, W= 49.7 m,) Cable forces testing Unmanned aerial vehicle (UAV) and 2D-DIC Digital camera (DJI Zenmuse X4S, 4096×2160 pixels resolution, 60 Hz);
UAV: Model Jingwei M200 (DJI)		 [65]
The truss bridge model (28 spans: 0.35×0.35×0.35 m, L=9.8 m; 353 rods connected by 112 bolted balls (Ø50 mm); Q235 steel; simply supported at both ends). Modal Analysis 2D-DIC and Modal Analysis Digital video camera (D5300, Nikon Corporation, Japan); MA: 2 acquisition systems: JM3840 (Jing-Ming Technology Inc., Yangzhou, China), acceleration sensors with nominal sensitivity of 100 mV/g.; kit software [59]
B1- OT-slab bridge (Underpass of Foldagervej (road), Jutland, Denmark); MS=11 m, W= 12.2 m (37 beams). B2- OT-slab bridge (Underpass of Rosmosevej (road), Jutland, Denmark); MS=9 m, W= 12.2 m (37 beams) On-site strip test. Crack assessment of the bridge slab samples (lab). Cameras at distance 3.8 m and 2.6 m. 2D DIC 2 cameras: Canon 6D with 20 Megapixel (Mpx) with a wide-angle lens (Canon EF 16-35 mm f/2.8L II USM); Canon 550D with 18.7 Mpx with a regular lens (Canon EF-S 18–55 mm f/3.5–5.6 IS). Images were captured every 3 min (on site) and 10 s (lab); GOM Correlate software [53]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
The Entre-Águas bridge in Caniçal (Madeira, Portugal). Vehicle loading (30-ton trucks). Camera at distance 70 m 2D DIC Digital camera (4-megapixel iDS UI-3370CP, 70 – 300 mm zoom lens, 1.4× teleconverter, eq. to a 420 mm focal distance lens; CMOSIS CMV4000-3E5M sensor, 80 fps); INEGI. software [48]
Docklands Light Railway (DLR) bridge structures:
Warton Road Bridge (L(MS)=13.56 m, W=3 m; 2 longitudinal girders (flange and web plates riveted together using angle sections) and a concrete slab with encased steel beams). Train loading testing. Camera at distance 30 m
Wick Lane Bridge (2-span simply supported bridge, spans from 11.7 to 12.7 m, consisting of 17 longitudinal steel girders (flange and web plates are riveted together using angle section). Train loading testing (fatigue sensitive detail assessment). Camera at distance 0.3 m		 2D DIC Digital camera (20–40 Hz, 1/50th pixel resolution) [50]
The Delaware River Bridge (4 span; truss, W14×314 sections). Monitoring of structural behaviour during the repair works 3D-DIC 2 cameras (2448×2050 pixels); 12 mm lenses; GOM Correlate software [70,71]
Halton railroad 26.36 bridge (Canada-USA; 43⁰37‟18.7” N, -79⁰55‟54.9” W; steel Deck Plate Girder; 6 spans×30 m; masonry piers). Train loading testing 2D-DIC High speed camera (Allied Vision Technologies (AVT) GX1050 8 8-bit monochrome 1 megapixel (MP)); 85 mm lenses; 100 Hz, [52]
B1- railway masonry arch bridge, Australia (9-span, MS-7.85 m, 6 rings, 700 mm thickness, arch rise 2 m) Train loading testing. Camera at distance 4 m.
B2 -railway masonry arch bridge, Australia (10-span masonry arch, MS-3.11 m, 8 rings, 920 mm thickness, arch rise 6.55 m) Train loading testing. Camera at distance 4 m.		 2D-DIC Digital camera (Sony (Tokyo, Japan) IDS, 2.35 megapixels, 1,936×1,216 pixels, 50 fps, 6 ms exposure time, 5.863 mm/pix); high-resolution lens (Kowa, Torrance, California, 35 mm focal length, f1.4 aperture); Infrared (IR) Light Emitting Diode (LED) model, IR filter - 850 nm; Istra4D software [49]
Continuation of Table 2: Selected case studies of DIC method application for bridge monitoring: description and the experimental setup.
Hybrid composite bridge, Colorado (L=12.8 m). Train loading testing. Camera at distances 30.48 m and 60.98 m.
The Streicker pedestrian Bridge (deck-stiffened arch, supported by 4 legs -curved continuous girders supported by steel columns)		 2D-DIC Monochrome camera (Point Grey/FL3-U3-13Y3M-C, 1280×1024 pixels, 150fps, CMOS sensor, 4.8 μm pixel size, C-mount lens); Kowa/LMVZ990 IR lens (9 to 90 mm focal length, maximum aperture F1.8); Sony /PCG-41216L laptop (Intel(R) Core(TM) i7-2620M CPU, 2.70 GHz, 8192 RAM, 250 HDD, 14.1” Screen), Tripod, USB3.0 type-A to micro-B cable; FlyCapture Software Development Kit (SDK) by Point Grey Research [25]
* W-width; L-length; H-height; MS-main span; translation from ft to m, - approximate by authors. ** The hardware and software characteristics are provided upon the availability in the references source.
The separate research area, which has to be additionally outlined includes the number of research studies, dedicated to challenges arising during long-term on-site monitoring of bridges with the use of DIC. The ambient error sources and stability issues like the camera movement due to settlement or the out-of-plane motion phenomenon could become the reason for significant distortion in measurement data. These challenges could be eliminated with an appropriate experimental set-up, choice of calibration methods and compensation techniques, as was demonstrated in the number of practical bridge case studies with different purposes [17]. Similarly, the combined lightweight remotely operated stereovision system, entailing unmanned aerial vehicle (UAV) and 3D-DIC quantified their applicability to acquire data for DIC analysis, but are still associated with significant limitations due to system instability. Thus, while enabling displacement evolution measurements and assessment of the joint state in limited access conditions, the approach is influenced by the effect of lighting, drone unwanted oscillations, challenges in GPS-denied environments positioning, etc [67,68].
In particular, for DIC a constant camera position is a crucial parameter, ensuring the reliability of the measurements, as displacements in this approach are derived directly from digital images. However, on-site measurements for real bridges are associated with such factors as wind, oscillations, and unstable ground conditions, resulting in slight changes in the position and direction of a camera. In such situations, the measured displacement is affected by the movement of the camera, making it challenging to obtain accurate displacement measurements [25,66]. Yoneyama et al. [66] propose a method for correcting the effect of camera movement by introducing the equation of perspective transformation. The effectiveness of the proposed correction was validated through both laboratory testing of a wide-flange beam and application to deflection measurement of a real bridge girder [66]. The problem with ensuring camera stability during on-site measurements was addressed also in the study of Liang, et al., 2021 [72]. Thus, the authors proposed the modification of the digital image correlation technique, enabling the use non-fixed camera, which is a promising direction for engineering field applications. Challenges in fixing the camera in a stable position and ensuring that the optical axis of the camera is normal to the investigated surface were highlighted also in a previous study by Pan, et al., 2016 [63] and could be eliminated with the use of the proposed novel off-axis DIC method. In addition, with the developed video defectometer, authors managed to replace the unpractical artificial targets with the laser range finder and demonstrated the real-time, non-contact targetless and off-axis DIC measurement approach through laboratory testing and a railway bridge field application. Further development of the off-axis DIC method [65] led to a simplified, yet accurate deflection measurements method, based on a special straight-line fitting principle, validated through the indoor cantilever beam experiment and the on-site actual bridge deflection.
Another widespread issue in the long-term monitoring of real bridge structures, as was highlighted by Xie et al., 2023 [61] and Juno et al., 2020 [73] is associated with the notable challenge due to illumination factors. Throughout the monitoring process, fluctuations in natural light result in variations in light intensity and angle. Deviations in light intensity have an impact on the grayscale value of the image, giving rise to two issues associated with the use of a fixed grayscale threshold for binarization. Thus, authors [61] proposed the improved dual-channel approach, integrating the principle of the dark channel and the maximum interclass variance method. The experimental approbation of the bridge prototype in complex and changing light conditions has shown an error of less than 3 % compared with the traditional displacement meter. This confirms the applicability of the technique for eliminating illumination factors, providing a scientific basis for engineering practice.
Specific attention in this direction should be paid to the research paper of [3], providing a detailed evaluation of the errors due to equipment set-up, lighting effects, target quality, camera movements, and metric calibration, influencing the DIC technique performance. The proposed calibration method using vanishing points and a single distance was effectively implemented for on-site multipoint displacement monitoring of Marsh Lane Viaduct, which facilitated to assessment of the complex structural 3D behaviour of the asset.

Conclusions

The paper is focused on a detailed comprehensive review of existing studies demonstrating practical experience in the application of digital image correlation (DIC) techniques for structural health assessment of bridge structures worldwide. The current review provides evidence of the remarkable potential of DIC for advancing structural and infrastructure health monitoring during service or after extreme events. With the utilization of high-resolution cameras and advanced algorithms, this approach provides essential advances for capturing complex deformations, such as those induced by dynamic loads or environmental factors, providing engineers and researchers with valuable insights into a bridge’s performance. The ability to operate in real-world conditions, coupled with its non-contact nature, makes image correlation particularly valuable for on-site measurements. Thus, many practical studies have demonstrated the possibility of implementing the method on existing urban structures, requiring little intervention in the structure being monitored. In particular, from a logistical point of view, the DIC setup significantly outperforms previous conventional methods, minimizing traffic disruption and optimizing the overall monitoring process.
Despite its obvious advantages, careful consideration must be given to calibration procedures, camera selection, and potential error sources to ensure the accuracy and reliability of DIC measurements. The additional complexity of the approach is associated with the camera setup process (e.g., the choice of camera focal length, positioning, and target installation or optimization of speckle pattern) as well as the necessity for sophisticated calibration and data processing. However, ongoing advancements in technology and methodology continue to enhance the capabilities of DIC for bridge assessment, promising even greater accuracy and efficiency in the future.
The evolution of DIC over the recent decades, including the development of digital hardware, software, and computational algorithms, has significantly strengthened and established DIC as a robust technique. It is widely recognized as a groundbreaking method for accurately computing full-field deformations and structural displacements in both static and dynamic conditions. The capability to capture full-field displacement maps provides a holistic understanding of a bridge’s behaviour, allowing for the identification of localized structural issues and potential vulnerabilities. Ongoing advancements in optical instrumentation, such as high-definition video recording devices and unmanned autonomous imaging tools, combined with sophisticated matching algorithms for comprehensive analysis of captured images in full-field 2D and 3D, ensure that DIC is likely to retain its position as the most effective and multifaceted tool for deformation measurement in the years ahead.
It can be summarized, that the digital image correlation (DIC) emerges as a powerful and versatile technique in the field of bridge engineering, contributing to the development of sustainable and resilient infrastructure systems. The continuous refinement of this approach, along with interdisciplinary collaboration, enables the precise measurement of deformations, optimizing maintenance strategies, extending the lifespan of bridges, and contributing to the overall safety and resilience of critical infrastructure.

Funding

This research is supported by the British Academy’s Researchers at Risk Fellowships Programme [Award Reference: RaR\100770].

Data Availability

Authors confirm that the data supporting the findings of this study are available within the article.

Acknowledgments

This research is supported by the British Academy’s Researchers at Risk Fellowships Programme [Award Reference: RaR\100770].

Conflicts of Interest

Authors declare that there is no conflict of interest regarding the publication of this paper.

References

  1. M. Ghyabi, L.C. Timber, G. Jahangiri, D. Lattanzi, H. W. Shenton III, M. J. Chajes, M. H. Head. “Vision-Based Measurements to Quantify Bridge Deformations”. Journal of Bridge Engineering, vol. 28, no 1, 05022010, 2023. [CrossRef]
  2. Y. Blikharskyy, N. Kopiika, R. Khmil, J. Selejdak, Z. Blikharskyy (2022). “Review of development and application of digital image correlation method for study of stress–strain state of RC Structures”. Applied Sciences, vol 12, no 19, 10157, 2022. [CrossRef]
  3. S. Acikgoz, M. J. DeJong, K. Soga. “Sensing dynamic displacements in masonry rail bridges using 2D digital image correlation”. Structural Control and Health Monitoring, vol 25, no 8, e2187, 2018. [CrossRef]
  4. V. Stančík, P. Ryjáček. “The application of modern methods for bridge diagnostics and load testing”. ce/papers, vol 6, no 5, pp. 949-958, 2023. [CrossRef]
  5. O.P. Maksymenko, O.M. Sakharuk, Y. L. Ivanytskyi, P.S. Kun. “Multilaser spot tracking technology for bridge structure displacement measuring” Struct. Control Health Monit, vol 28, no 3, e2675, 2021. [CrossRef]
  6. M. A. Mousa, M. M. Yussof, T. S. Hussein, L. N. Assi, S. Ghahari. “A Digital Image Correlation Technique for Laboratory Structural Tests and Applications: A Systematic Literature Review”. Sensors, vol 23, no 23, 9362, 2023 . [CrossRef]
  7. N. Kopiika, J. Selejdak, Y. Blikharskyy. “Specifics of physico-mechanical characteristics of thermally-hardened rebar”. Production Engineering Archives, vol 28, no 1, pp. 73-81, 2022. [CrossRef]
  8. C. Niezrecki, J. Baqersad, A. Sabato. “Digital Image Correlation Techniques for Non-Destructive Evaluation and Structural Health”. Monitoring. Handb. Adv. Non-Destr. Eval, pp. 1-46, 2018.
  9. L. Ngeljaratan, M. A. Moustafa. “Structural health monitoring and seismic response assessment of bridge structures using target-tracking digital image correlation”. Engineering Structures, vol 213, 110551, 2020. [CrossRef]
  10. Y. Blikharskyy, N. Kopiika, R. Khmil, Z. Blikharskyy. “Digital Image Correlation Pattern for Concrete Characteristics—Optimal Speckle”. In International Conference Current Issues of Civil and Environmental Engineering Lviv-Košice–Rzeszów, Cham: Springer Nature Switzerland, pp.22-31, 2023. [CrossRef]
  11. B. Pan, K. Qian, H. Xie, A. Asundi, “Two-dimensional digital image correlation for in-plane displacement and strain measurement: a review”. Measurement science and technology, vol 20, no 6, 062001, 2009. [CrossRef]
  12. VIC-2D. Reference Manual. Correlated Solutions, Inc. Knowledgebase-Manuals and Guides. 26p. Available online: https://correlated.kayako.com/article/87-vic-volume-manual (accessed on 30 January 2024).
  13. StrainMaster. Digital Image Correlation Systems for Full Field Shape, Displacement and Strain. Manual. LaVision. 20 p. Available online: https://www.lavision.de/de/products/strainmaster/index.php (accessed on 13 January 2024).
  14. GOM Correlate Pro. Electronic Manual. GOM. Available online: https://www.globus.co.il/wp-content/uploads/2022/01/Operating-Instructions-gom-correlate-prof-basic-v8.pdf (accessed on 13 January 2024).
  15. Solid Mechanics DIC. Dantec Dynamics. Available online: https://www.dantecdynamics.com/solutions/stress-strain-espi-dic/solid-mechanics-dic/measurement-principles-of-dic/#:~:text=Digital%20Image%20Correlation%20(DIC)%20is,mechanic%20applications%20in%20materials%20testing. (accessed on 13 January 2024).
  16. M. Sutton, J. Yan, V. Tiwari, H. Schreier, J. Orteu. “The effect of out-of-plane motion on 2D and 3D digital image correlation measurements”. Optics and Lasers in engineering, vol 46, pp. 746–757, 2008. [CrossRef]
  17. V. Stančík, P. Ryjáček. “The application of modern methods for bridge diagnostics and load testing”. ce/papers, vol 6, no 5, pp 949-958, 2023. [CrossRef]
  18. H. Schreier, J-J. Orteu, M.A. Sutton. “Image Correlation for Shape, Motion and Deformation Measurements”. New York: Springer US, 322 p, 2009. [CrossRef]
  19. J. Zhao, Y. Sang, F. Duan, F. “The state of the art of two-dimensional digital image correlation computational method”. Engineering reports, vol 1, no 2, e12038, 2019, . [CrossRef]
  20. H.C. Jo, S. H. Kim, J. Lee, H. G. Sohn, Y.M. Lim. “Sag-based cable tension force evaluation of cable-stayed bridges using multiple digital images”. Measurement, vol 186, 110053, 2021. [CrossRef]
  21. B. Pan, D. Wu, Y. Xia. “An active imaging digital image correlation method for deformation measurement insensitive to ambient light”. Opt. Laser Technol. 2012, vol 44, no 1, pp 204-209, 2012. [CrossRef]
  22. B. Pan, L. Yu, D. Wu, L. Tang. “Systematic errors in two-dimensional digital image correlation due to lens distortion”. Opt. Lasers Eng, vol 51, no 2, pp 140-147, 2013. [CrossRef]
  23. Y. Xu, J. M. W. Brownjohn, J. “Review of machine-vision based methodologies for displacement measurement in civil structures”. Civil Struct. Health Monit, vol 8, pp 91-110, 2018. [CrossRef]
  24. T. Khuc, N. Catbas, “Completely contactless structural health monitoring of real-life structures using cameras and computer vision”. Struct. Control Health Monit, vol 24, no 1, e1852, 2017. [CrossRef]
  25. M. Q. Feng, Y. Fukuda, D. Feng, M. J. Mizuta. “Nontarget Vision Sensor for Remote Measurement of Bridge Dynamic Response”. Bridge Eng, vol 20, no 12, pp 1-12, 2015. [CrossRef]
  26. J. G. Chen, N. Wadhwa, Y. J. Cha, F. Durand, W. T. Freeman, O. Buyukozturk. “Modal identification of simple structures with high-speed video using motion magnification”. J. Sound Vib., vol 345, pp 58-71, 2015. [CrossRef]
  27. H. Yoon, H. Elanwar, H. Choi, M. Golparvar-Fard, B. F. Spencer. “Target-free approach for vision-based structural system identification using consumer-grade cameras”. Struct. Control Health Monit., vol 23, no 12, pp 1405-1416, 2016. [CrossRef]
  28. P. Podbreznik, B. Potočnik. “Influence of temperature variations on calibrates cameras”. International Journal of Computer and Information Engineering, vol 2, no 4, pp. 261-267, 2008.
  29. C. A. Murray, W. A. Take, N. A. Hoult. “Dynamic measurements using digital image correlation”. International Journal of Physical Modelling in Geotechnics, vol 17, no 1, pp 41-52, 2017. [CrossRef]
  30. J. J. Lee, M. Shinozuka. “A vision-based system for remote sensing of bridge displacement.” Ndt & E International, vol 39, no 5, pp 425-431, 2006. [CrossRef]
  31. M. A. Mousa, M. M. Yussof, U. J. Udi, F. M. Nazri, M. K. Kamarudin, G. A. Parke, L. N. Assi, S. A. Ghahari. “Application of digital image correlation in structural health monitoring of bridge infrastructures: A review”. Infrastructures, vol 6, no 12, pp 176-194, 2021. [CrossRef]
  32. R. Jiang, D. V. Jauregui, K. R. White. “Close range photogrammetry applications in bridge measurement: literature review.” Measurement, vol 41, no 8, pp 823–834, 2008 . [CrossRef]
  33. D. V. Jauregui, K. R. White, P. E. Woodward, K. R. Leitch. “Non contact photogrammetric measurement of vertical bridge deflection.” J. Bridge Eng., vol 8, no 4, pp 212–222. 2003. [CrossRef]
  34. F. B. Bales. “Close-range photogrammetry for bridge measurement.” Transportation Research Record, Washington, DC, vol 950: pp 39–44, 1985.
  35. J. C. Li, B. Z. Yuan. “Using vision technique for bridge deformation detection.” Proceedings of International Conference on Acoustic, Speech and Signal Processing, New York, pp 912–915, 1988.
  36. G. W. Johnson. “Digital close-range photogrammetry – a portable measurement tool for public works.” Proceedings of 2001 Coordinate Measurement Systems Committee Conference, Coordinate Measurement Systems Committee, Albuquerque, USA. 2001.
  37. J. Albert, H. G. Maas, A. Schade, W. Schwarz, W. “Pilot studies on photogrammetric bridge deformation measurement.” In Proceedings of the 2nd IAG Commission IV Symposium on Geodesy for Geotechnical and Structural Engineering, vol. 21, pp 24-31, 2002.
  38. J. J. Lee, M. Shinozuka. “Real-time displacement measurement of a flexible bridge using digital image processing techniques.” Experimental mechanics, vol 46, pp 105-114. 2006. [CrossRef]
  39. S. Yoneyama, A. Kitagawa, S. Iwata, K. Tani, H. Kikuta. “Bridge deflection measurement using digital image correlation.” Experimental techniques, vol 31, pp 34-40, 2007. [CrossRef]
  40. C-H. Chiang, M-H. Shih, W. Chen, C-P. Yu. “Displacement measurements of highway bridges using digital image correlation methods”. In: Seventh international symposium on precision engineering measurements and instrumentation. International Society for Optics and Photonics, vol 8372, 2011. [CrossRef]
  41. J. Peddle, A. Goudreau, E. Carlson, E. Santini-Bell. “Bridge displacement measurement through digital image correlation”. Bridge Struct, vol 7, no 4, pp 165-173, 2011. [CrossRef]
  42. C. Nonis, C. Niezrecki, T-Y. Yu, S. Ahmed, C-F. Su, T. Schmidt. “Structural health monitoring of bridges using digital image correlation.” In: Health monitoring of structural and biological systems. International Society for Optics and Photonics, vol 869507, 2013. [CrossRef]
  43. C. Murray, A. Hoag, N. A. Hoult, W. A. Take. “Field monitoring of a bridge using digital image correlation.” In: Proceedings of the institution of civil engineers-bridge engineering. Thomas Telford Ltd., vol 168, no 1, pp. 3-12, 2015. [CrossRef]
  44. C. Murray. “Dynamic monitoring of rail and bridge displacements using digital image correlation.” Queen’s University (Canada); 2013, 107 p.
  45. L. Ngeljaratan, M. A. Moustafa. “System identification of large-scale bridge models using target-tracking digital image correlation.” Front Built Environ, vol 5, no 85, 2019. [CrossRef]
  46. F. Barros, S. Aguiar, P. J. Sousa, A. Cachaço, P. J. Tavares, P.M. Moreira, D. Ranzal, N. Cardoso, N. Fernandes, R. Fernandes, R. Henriques, P.M. Cruz, A. Cannizzaro. “Displacement monitoring of a pedestrian bridge using 3D digital image correlation.” Procedia Structural Integrity, vol 37, pp 880-887, 2022. [CrossRef]
  47. Y. C. Lin, C. H. Tseng, C. H. Chiang, W. H. Hung. “Vibration Analysis and Digital Image Correlation Techniques for a Suspension Bridge.” NDT-CE 2022 - The International Symposium on Nondestructive Testing in Civil Engineering Zurich, Switzerland, August 16-18, 2022. [CrossRef]
  48. P. J. Sousa, F. Barros, P. Lobo, P. J. Tavares, P. M. Moreira, P. M. “Experimental measurement of bridge deflection using Digital Image Correlation.” Procedia Structural Integrity, vol 17, pp 806-811, 2019. [CrossRef]
  49. M. Dhanasekar, P. Prasad, J. Dorji, T. Zahra. “Serviceability assessment of masonry arch bridges using digital image correlation.” Journal of Bridge Engineering, vol 24, no 2, 04018120, 2019. [CrossRef]
  50. J. Winkler C. Hendy. “Improved Structural Health Monitoring of London’s Docklands Light Railway Bridges Using Digital Image Correlation”. Structural Engineering International, vol 27, no 3, pp 435-440, 2017. [CrossRef]
  51. I. Koltsida, A. Tomor, C. Booth. “The use of digital image correlation technique for monitoring masonry arch bridges.” In 7th International Conference on Arch Bridges, pp. 681-690, 2013.
  52. A. Hoag, N. A. Hoult, W. A. Take, F. Moreu, H. Le, V. Tolikonda. V. “Measuring displacements of a railroad bridge using DIC and accelerometers.” Smart Structures and Systems, vol 19, no 2, pp 225-236. 2017. [CrossRef]
  53. C. O. Christensen, J. W. Schmidt, P. S. Halding, M. Kapoor, P. Goltermann, P. “Digital image correlation for evaluation of cracks in reinforced concrete bridge slabs” Infrastructures, vol 6(7), no 99, 2021. [CrossRef]
  54. H. Al-Salih, M. Juno, W. Collins, C. Bennett, J. Li, E. J. Sutley. “Evaluation of a digital image correlation bridge inspection methodology on complex distortion-induced fatigue cracking.” Procedia Structural Integrity, vol 17, pp 682-689, 2019. [CrossRef]
  55. L. Dellenbaugh, X. Kong, H. Al-Salih, W. Collins, C. Bennett, J. Li, E. J. Sutley. “Development of a distortion-induced fatigue crack characterization methodology using digital image correlation.” Journal of Bridge Engineering, vol 25, no 9, 04020063. 2020. [CrossRef]
  56. Y. F. Ji, C. C. Chang. (2008). “Nontarget image-based technique for small cable vibration measurement.” Journal of Bridge Engineering, vol 13, no 1, pp 34-42, 2008. [CrossRef]
  57. Y. Tian, C. Zhang, S. Jiang, J. Zhang, W. Duan. “Noncontact cable force estimation with unmanned aerial vehicle and computer vision.” Computer-Aided Civil and Infrastructure Engineering, vol 36, no 1, pp 73-88, 2021. [CrossRef]
  58. G. Sas, T. Blanksvärd, O. Enochsson, B. Täljsten, L. Elfgren. “Photographic strain monitoring during full-scale failure testing of Örnsköldsvik bridge.” Structural Health Monitoring, vol 11, no 4, pp 489-498, 2012. [CrossRef]
  59. G. Chen, Z. Wu, C. Gong, J. Zhang, X. Sun. “DIC-based operational modal analysis of bridges.” Advances in Civil Engineering, vol 2021, 6694790, pp 1-13, 2021 . [CrossRef]
  60. W. Du, D. Lei, P. Bai, F. Zhu, Z. Huang. “Dynamic measurement of stay-cable force using digital image techniques.” Measurement, vol 151, 107211, 2020. [CrossRef]
  61. K. Xie, D. Lei, W. Du, P. Bai, F. Zhu, F. Liu. “The monitoring of bridge under complex illumination based on digital image technology.” Measurement, vol 206, 112219, 2023. [CrossRef]
  62. N. J. McCormick, J. D. Lord “Practical in situ applications of DIC for large structures”. Applied mechanics and materials, vol 24, pp 161-166, 2010. [CrossRef]
  63. B. Pan, L. Tian, X. Song. “Real-time, non-contact and targetless measurement of vertical deflection of bridges using off-axis digital image correlation”. Ndt & E International, vol 79, pp 73-80, 2016. [CrossRef]
  64. L. Tian, B. Pan. “Remote bridge deflection measurement using an advanced video deflectometer and actively illuminated LED targets”. Sensors, vol 16, no 9, 1344, 2016. [CrossRef]
  65. L. Tian, J. Zhao, B. Pan, Z. Wang. “Full-Field Bridge Deflection Monitoring with Off-Axis Digital Image Correlation”. Sensors, vol 21, no 15, 5058, 2021. [CrossRef]
  66. S. Yoneyama, H. Ueda. “Bridge deflection measurement using digital image correlation with camera movement correction”. Materials transactions, vol 53, no 2, pp 285-290, 2012. [CrossRef]
  67. D. Reagan, A. Sabato, C. Niezrecki, T. Yu, R. Wilson. “An autonomous unmanned aerial vehicle sensing system for structural health monitoring of bridges”. In Nondestructive Characterization and Monitoring of Advanced Materials, Aerospace, and Civil Infrastructure, vol 9804, pp. 244-252, 2016. [CrossRef]
  68. D. Reagan, A. Sabato, C. Niezrecki. “Unmanned aerial vehicle acquisition of three-dimensional digital image correlation measurements for structural health monitoring of bridges”. In Nondestructive Characterization and Monitoring of Advanced Materials, Aerospace, and Civil Infrastructure, vol 10169, pp. 68-77, 2017. [CrossRef]
  69. D. Reagan, A. Sabato, C. Niezrecki. “Feasibility of using digital image correlation for unmanned aerial vehicle structural health monitoring of bridges”. Structural Health Monitoring, vol 17(5), 1056-1072, 2018. [CrossRef]
  70. Y. Wang, A. P. Thrall, T. P. Zoli “Delaware river bridge fracture: Repair strategy and monitoring by digital image correlation”. ProcWorld Steel Bridge Symp, vol 2018, pp 1-6, 2018.
  71. Y Wang, M. D. Tumbeva, A. P. Thrall, T. P. Zoli. “Pressure-activated adhesive tape pattern for monitoring the structural condition of steel bridges via digital image correlation”. Struct Control Health Monit, vol 26, no 8, e2382, 2019. [CrossRef]
  72. Z. Liang, J. Zhang, L. Qiu, G. Lin, F. Yin. “Studies on deformation measurement with non-fixed camera using digital image correlation method”. Measurement, vol 167, 108139, 2021. [CrossRef]
  73. M. Juno, H. Al-Salih, W. Collins, C. Bennett, J. Li, E. J. Sutley. Investigating lighting and focus limitations of digital image correlation as a bridge inspection tool. In Structures Congress, 2020, pp. 341-348.
Preprints 99913 g001
Figure 1. General stages of digital image correlation (DIC) approach for displacement and strain measurement.
Figure 1. General stages of digital image correlation (DIC) approach for displacement and strain measurement.
Preprints 99913 g001
Preprints 99913 g002
Figure 2. Principle of grey level coding and subset tracking in the DIC method: P-initial position of a point on the reference (undeformed image), P’-position after deformation; P-P’(dX, dY)- displacement of Point P.
Figure 2. Principle of grey level coding and subset tracking in the DIC method: P-initial position of a point on the reference (undeformed image), P’-position after deformation; P-P’(dX, dY)- displacement of Point P.
Preprints 99913 g002
Preprints 99913 g003
Figure 3. Scheme of image translation between coordinate systems in DIC approach: WCS-world coordinate system, ICS-image coordinate system, CCS-camera coordinate system, P- point in physical 3D-space, pL(xL,yL,fL) and pR(xR,yR,fR)-its projections for left and right camera, respectively; pL(xs1,ys1) and pR(xs2,ys2)-coordinates in sensor system of left and right camera; OL and OR- origins of left and right cameras; fi-focal length (projection component), ri, ti-rotation and translation components of displacement.
Figure 3. Scheme of image translation between coordinate systems in DIC approach: WCS-world coordinate system, ICS-image coordinate system, CCS-camera coordinate system, P- point in physical 3D-space, pL(xL,yL,fL) and pR(xR,yR,fR)-its projections for left and right camera, respectively; pL(xs1,ys1) and pR(xs2,ys2)-coordinates in sensor system of left and right camera; OL and OR- origins of left and right cameras; fi-focal length (projection component), ri, ti-rotation and translation components of displacement.
Preprints 99913 g003
Preprints 99913 g004
Figure 4. Accuracy, resolution, and repeatability as constituent parts of measuring system performance.
Figure 4. Accuracy, resolution, and repeatability as constituent parts of measuring system performance.
Preprints 99913 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Temporary Structural Health Monitoring of Historical Széchenyi Chain Bridge

Balázs Kövesdi

et al.

,

2024

A Comprehensive Analysis of Static and Dynamic Load Tests of a Long-Span Cable-Stayed Bridge with a Ground-Based Radar Interferometer

Yaowen Chen

et al.

,

2023

Methodology for Assessing the Technical Condition and Durability of Bridge Structures

Kostiantyn Medvediev

et al.

,

2023

Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
