The meat analogues market is expanding very fast and innovative products are released. Currently burgers are the primary product of this new generation of PBMA along with other products such as ground beef, sausages, bacon, and hotdogs (He et al., 2020). In this paper only PBMA burgers based on TVP will be considered.
Plant-based burgers resembling animal-based burgers aim at recreating their appearance, odor, flavour, distinct bite, chewiness, succulence, firmness among other attributes. Animal-based burgers consist mainly of proteins and fats and to a lesser extent of seasoning, salt, and binders. Plant-based burgers follow relatively the same recipe however the nutritional composition can differ substantially [
17,
19,
21,
24]. The principal constituents of the plant-based burgers are texturized vegetable proteins and to a lesser extent, flours, protein concentrates or isolates, fats, and other minor components such as binders, seasonings, salt etc. [
14].
Table 1 provides an overview of the source and primary functionality of various ingredients categorized by their macronutrient composition in plant-based meat analogue burgers formulation. In the following sections these ingredients will be explained in more detail attending to the functionality of each ingredient and its role in the food matrix.
3.1. Plant Proteins
The protein ingredient type (pea protein, soy protein, wheat protein, etc.) used in the formulation of plant-based burgers is one of the main components for product identity and product differentiation [
20]. The selection of plant proteins as a raw material for PBMAs formulation is strongly influenced by cost and technological properties.
The protein functionality includes solubility, emulsification, foaming, gelation, water, and oil holding capacities, flavor binding, texturization, dough formation etc. These functionalities are dependent on the protein composition (chemical composition, amino acid sequence, secondary and higher order structure) and environmental factors (pH, ionic strength, temperature etc.) [
12]. These two parameters are essential in the PBMA burgers structure formation [
30]. Considering these parameters, as building proteins soy, pea, and wheat proteins are the most widely used in the formulation of PBMA burgers [
13,
15]. However, plant proteins from other sources are also used. Some examples are oilseeds (rapeseed, canola, sunflower etc.), cereals (rice, barley etc.) or legumes (lentil, lupine, chickpea, etc.) [
14]. Plant-based burger manufacturers can incorporate proteins into their products as flour, isolates, protein concentrate, or texturized proteins [
29]. However, the principal constituents tend to be protein in its texturized with the aim to mimic the fibrillar structure of meat muscle [
12].
There are several methods available for texturizing vegetable proteins, including wet spinning, electrospinning, shear cell technology, and extrusion. Of these methods, extrusion is the most used technique [
10]. Among this technique, two main types of extrusion process exist based on the amount of water used: low moisture extrusion (<35% moisture content) and high moisture extrusion (40-80% moisture content) [
25].

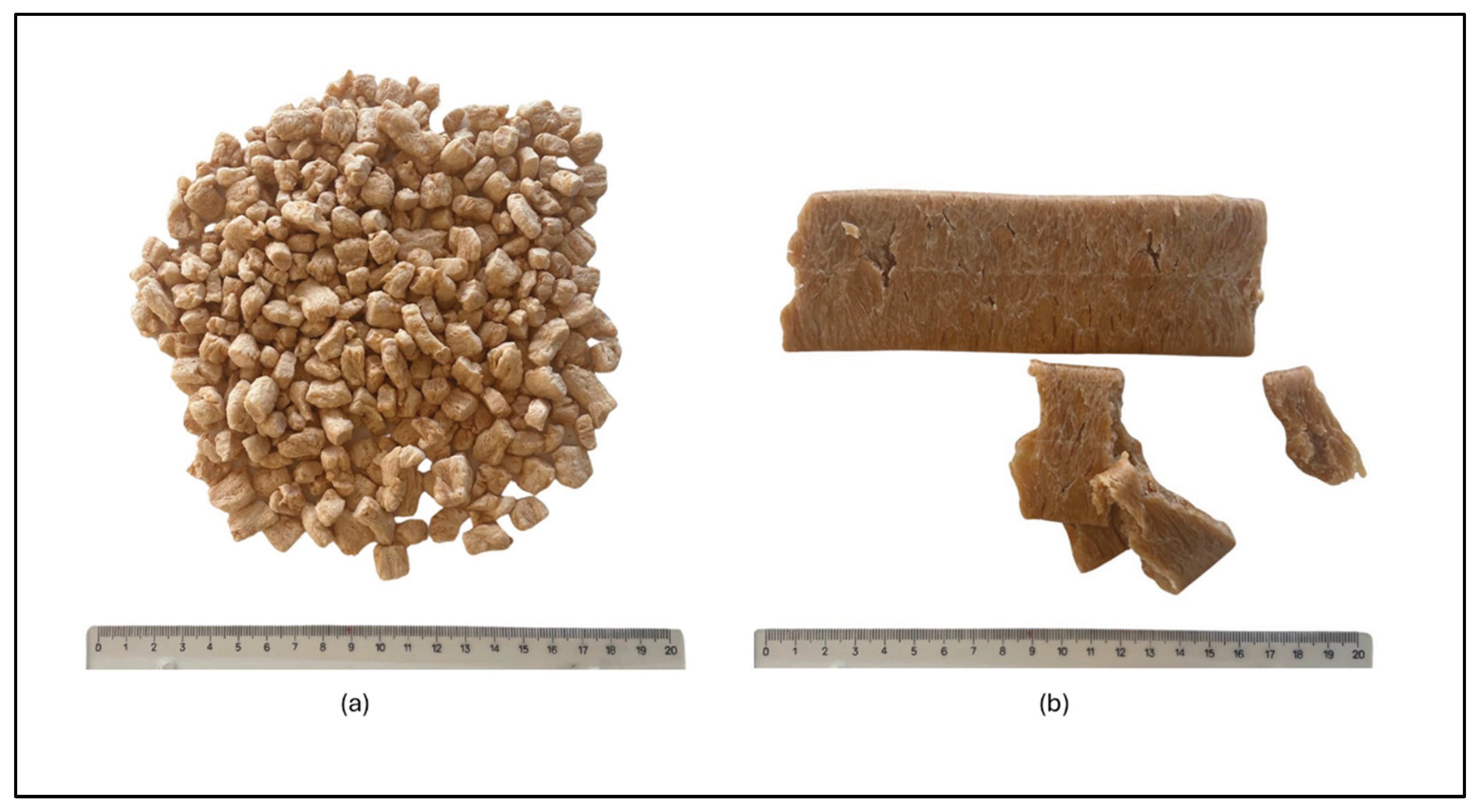

Low-moisture extrusion produces dry texturized vegetable protein (TVP) (
Figure 1a) which is used in the formulation of PBMA burgers but therefore it needs to be rehydrated. By the rehydration step, the TVP absorbs water rapidly and obtains a fibrous and spongy nature resembling meat particles [
13]. Incorporating hydrated TVP into a product formulation can provide the desired meaty and chewy texture while also imparting desirable juiciness [
30]. Consequently TVPs with different granulometries and shapes such as in chunk form, minced form and flaked form are available on the market as food ingredients specifically designed for the formulation of PBMA burgers [
31,
32]. The selection and combination of these ingredients plays a crucial role in achieving the desired texture of the final product. Additionally, a grinding step may be performed after rehydrating certain TVPs to achieve a specific texture.
High moisture extrusion (HME) on the other hand, produces fibrous extrudates, high moisture meat analogues (HMMA) (
Figure 1b). These are high in water content and are primarily suitable for whole-muscle meat analogues, but also for other products such as PBMA burgers. Therefore, these HMMA can be used as an ingredient alone or in combination with rehydrated TVP [
33].
Overall, low moisture TVP is more commonly used in the industry due to its lower cost in large volumes, greater flexibility in creating textures, and longer shelf life compared to HMMA [
34,
35]. The most common extruded ingredients incorporated in PBMA burgers are soy, wheat, and pea. However other plant proteins such as cottonseed, rapeseed, peanuts, and sesame seeds have also been investigated [
32,
36].
The use of soy bean is worldwide extended and many of PBMAs commercialized are based on soy protein due to its availability, specific properties and low prices [
37]. The functional properties of soy proteins, including their ability to hold water, form gels, absorb fat, and emulsify, make them a popular choice for use in meat analgoues. These properties enable the creation of products that closely mimic the texture and mouthfeel of meat. Moreover, from a nutritional point of view, processed soy protein has a very balanced amino acid composition and a high Protein Digestibility Corrected Amino Acid Score being mostly identical to the animal protein [
37]. Textured soy proteins, when hydrated, can emulate meat-like textures and are therefore highly versatile food ingredients [
38]. Non-textured soy protein concentrates and isolates can also be used in PBMAs to boost protein content and enhance other desirable qualities such as fat and water retention, emulsification, and nutritional composition, ultimately contributing to mouthfeel and texture [
32,
38]. Compared to unprocessed or minimally processed soy proteins, soy protein concentrates and isolates are preferred due to improvements in color and flavor since minimally processed soy proteins are typically darker and more bitter in taste [
20].
As mentioned, also wheat protein is widely used, often in combination with other proteins, specifically as gluten protein. Gluten is a structural protein naturally found in certain cereal grains which is cost-effective and a widely used ingredient in the formulation of PBMA burgers [
21]. Wheat gluten is valued for its ability to form a cohesive viscoelastic network through intramolecular and intermolecular disulphide bonds, which is one of its primary functionalities [
39]. By imparting a fibrous and compact structure to extrudates, wheat gluten is a crucial ingredient in achieving a meat-like texture that closely resembles real muscle meat [
40]. This ingredient plays a crucial role in the PBMA burgers as it serves as both a binder and structuring agent. Its unique functionality allows it to create a network that binds the TVP and other ingredients together, resulting in a uniform textured burger [
16]. While gluten remains one of the most commonly declared allergen in PBMA burgers, there is growing demand for allergen-free options [
21]. As such, companies are investing in the development of gluten-free burgers that offer a promising texture. However, creating a gluten-free burger with a texture that is similar to traditional burgers remains a significant challenge.
Similar to soy, pea protein can be used in the formulation of PBMA burgers as TVP, HMMA, flour, concentrate or isolate. Since can be added in different forms, the functionality differs [
16]. While soy protein-based products are the most common meat alternatives, pea protein-based products are gaining in popularity. This is due to the fact that a significant number of customers experience food intolerances from soy and wheat products [
41]. Also, pea protein is considered a more sustainable protein in comparison to soy, however it also has some disadvantages such as its price, limited amino acid profile and digestibility. Moreover, depending on how the protein is processed, pea can have a stronger off-flavor that could negatively affect the acceptance of the product [
42].
Previously, soybean and wheat gluten were the primary raw materials used in food production, however, with advances in technology and innovation, a wide range of alternatives are now available. These include, rice, potato, corn, barley, oats, sorghum, beans, lentils, peas, lupines, and many more which have already offered promising results [
41]. To meet growing demand for plant-based protein sources, the industry is continuously innovating and diversifying protein portfolios. This has led to the emergence of new protein sources such as fava bean protein, mug bean protein, microalgae, seaweed, fungi, and sweet lupin [
25].
3.2. Binding and Texturizing Agents
To mimic meat properties, PBMA rely on various ingredients that serve as stabilizers, gelling agents, thickeners, and emulsifiers. In PBMA burgers, binding agents derived from plants are used to bind water and fat and provide adhesion for the TVP particles. Depending on their quantities, some ingredients can act as both binders and extenders [
30]. For example, protein ingredients, such as soy protein isolate, pea protein isolate, or wheat gluten, that are particularly effective as binding agents due to their water binding and protein network formation capacities.
Carbohydrates are commonly used for their thickening and emulsifying properties particularly in improving texture consistency, binding water, and reducing syneresis [
13]. In fact, these polymers can play a crucial functional and structural role in shaping PBMA burgers [
25] and some examples are crude fibers of plant cell wall material, digestible starches, and purified polysaccharides and derivates. Flours and starches, such as those derived from potato, corn, wheat, cassava, pea, and rice, are commonly used as fillers to improve the texture and consistency of PBMA burgers, also maltodextrins or dextrose might be used with the same purpose. In addition, fibers from various sources, including pea, potato, oat, soybean, bamboo, konjac, citrus, and apple, as well as polysaccharide gums like locust bean gum, acacia gum, tara gum, guar gum, xanthan gum, and carrageenan, can act as binding agents to enhance product stability, thickness, and consistency, and reduce cooking loss [
13,
25]. In this frame multiple ingredients and combinations exist.
Fat is not classified as a binder or texturizing agent, however it is a crucial ingredient when it comes to the textural properties of PBMA burgers since extrudates require a source of fat and binders. The combination of a protein-rich extrudate matrix, binding agents, and fat source helps to retain moisture during post-production frying. This combination is necessary to replicate the juiciness of a meat burger patty and enhance the overall acceptability of the product.
Some other ingredients used as binders or texturizers are methylcellulose (MC), hydroxypropyl methylcellulose, long fiber cellulose, corn zein and alginates. It is well documented that these ingredients, besides having water and fat binding capacity, can significantly improve the texture and appearance of the burger by binding texturized vegetable proteins, enhancing oil encapsulation, and reducing oil absorption [
16]. MC, in particular, is a dietary fiber that is widely used in PBMA burgers and other types of meat analogues due to its remarkable binding capacity. When added in appropriate amounts to food products, this ingredient can undergo unique reversible thermal gelation and control ice crystal formation, resulting in reduced cooking loss [
16,
37].
Transglutaminase is an enzyme that can effectively bind protein molecules in plant-based meat analogue products by inducing crosslink and build up polypeptides. When used in the right amounts, this enzyme can improve the hardness of PBMA burgers by creating fibrous structures [
29,
43]. It’s important to note that this enzyme needs to be declared in the ingredient list in case it is not destroyed during the process and that might cause rejection to consumers [
44].
Lastly, salt addition to the protein base of the PBMAs, can lead to the solubilization and unfolding of the protein affecting its functional properties. For instance, the structuring potential can be enhanced modifying protein-hydrogen interactions [
12,
16].
3.3. Fats and Oils
In PBMA burgers, the addition of vegetable fat into the formulation can provide similar functionalities to the fat present in meat products. Fat plays a crucial role in the nutritional value and sensory properties of meat and its alternatives, including tenderness, mouthfeel, juiciness, and flavor release [
45]. To replicate the flavor and aroma typically associated with meat, it is crucial to carefully consider both the source and the fatty acid profile of the fat used [
25].
Vegetable fats do have a disadvantage in that lack the meat-specific volatile substances found in animal fat. However, may offer health benefits due to the lack of cholesterol and lower saturated fatty acid profile.
When comparing PBMA burgers with traditional meat burgers, it is important to note that while the lipid content is roughly equivalent, the fatty acid profile differs substantially [
20,
24]. Plant based burgers tend to be higher in polyunsaturated and monounsaturated fatty acids, in particular linoleic acid (C18:2n6), probably due to the addition of crop seeds and vegetable oils such as sunflower oils [
11,
19].
The range of different oils varies from product to product where most PBMA burger recipes include vegetable oils with low amounts of saturated fatty acids (SFA), although some formulations may contain vegetable oils or fats that are high in SFA [
21]. Common used oils low in SFA are sunflower oil, olive oil, corn oil, turnip oil, and canola (rapeseed) oil whereas oils high in SFA are coconut oil, palm oil and cocoa butter [
17,
19,
21]. The fatty acid composition of fats and oil varies between sources and manufacturing methods and these do determine its physicochemical characteristics and functional properties [
20]. The melting point of oils is directly influenced by their fatty acid profile, with oils high in saturated fatty acids (SFA) generally exhibiting a higher melting point compared to oils low in SFA content. This means that depending on the oil source and processing method, fats can exist within the food matrix in different forms: liquid, solid, emulsified, crystalized etc. So in some cases in order to develop the texture and mouthfeel resembling animal fat, solid fats are blended with liquid oils that contain more unsaturated fatty acids. Technologies such as encapsulation, emulsion, and oleogelation can be utilized to minimize the separation of plant oils from the product. These methods protect the oils, causing them to release slowly during cooking and consumption [
46].
Therefore, the application of various forms of lipids in the proper balance is of a high importance since it largely influences the structure, rheological properties, and sensory characteristics [
47]. The fat of meat burgers tends to be solid at room temperature and melt upon heating. Hence an ideal PBMA burger should replicate this properties by giving the pleasant mouthfeel similar to the corresponding meat [
16]. Moreover, it is important to consider additional parameters, such as the distribution of fat within the food matrix, as this can significantly impact the sample's hardness and in consequence the overall acceptability of the product [
48].
3.4. Flavouring Agents (Taste and Flavouring Enhancers)
When making purchase decisions, taste is a crucial factor alongside price, healthfulness, convenience, and environmental sustainability. However, optimizing the flavor and taste of PBMA burgers can be challenging because it heavily relies on the raw materials used in their formulation [
42].
Soy and legume ingredients are known to have unpleasant flavor profiles and intrinsic off-flavors that can negatively affect the acceptability of PBMA products [
49]. Furthermore, plant protein concentrates and hydrolysates are associated with "green," "grassy," or "beany" off-odors, as well as long-lasting bitter and/or astringent off-tastes [
42]. In soy or pea, off-notes can arise due to the oxidation of unsaturated fatty acids, presence of glycosides like saponins, and phenols such as isoflavones, catechins, and phenolic acids [
50]. To overcome these off-flavors and aromas in plant proteins, various processing strategies have been implemented, including purification, fermentation, defatting, and removal or deactivation of lipoxygenases, among others [
42]. However, it remains a challenge for the industry to completely eliminate problematic off-flavors rather than merely masking them.
In PBMA products, a higher quantity of flavor compounds is typically utilized compared to meat-based products. This is because these compounds not only serve to replicate the aroma and taste of meat but also to mask any unpleasant aftertastes from the use of specific raw materials [
15]. To make PBMA burgers appealing to consumers, their flavor should closely resemble that of traditional meat burgers to mimic such as beef, lamb, pork, turkey, duck, deer, yak, bison, or other desirable meat flavors [
51]. Additionally, the flavor profile of PBMA burgers should be adapted to the geographic zone of distribution, as flavor preferences can vary across regions. To achieve this, various flavors have been patented to offer a wide range of meaty flavors and aromas such as beefy, bacony, umami, savory, bloody, brothy, gravy, metallic, and bouillon-like. Some of these meat-like flavors are developed using different precursors such as reducing sugars, amino acids, nucleotides, vitamins, and iron complexes [
51].
Also, flavoring ingredients can be from natural origin and be labeled as natural flavorings. These include the use of savory yeast extracts, spices and herbs, such as oregano, sage, black pepper, paprika, rosemary, cloves and many others [
13,
25]. Furthermore, during the cooking process, the Maillard reaction occurs, generating new flavor substances from reducing sugars and amino acids. Among the resulting aromas, roast and meaty aroma are the most desired [
26,
52]. On the other hand, to prevent oxidative reactions and rancidity, antioxidants can be added to PBMA burgers. Organic acids or phosphate compounds can also be used to enhance stability, shelf life, and modify the final flavor of the product. Additionally, salt is essential for taste perception and can contribute to extending the product's shelf life and enhancing its texture. This could explain why PBMA burgers in some cases have higher salt content compared to the animal-based burger products [
21,
24].
3.5. Colouring Agents
Color is an important attribute that contributes to the overall product acceptance by consumers [
53] and it is particularly significant in meat products, where in some cases it is considered to be one of the most important quality characteristic [
12].
Same as flavor, there is not a general rule of color attributes for PBMA burgers. These characteristics are mainly determined by the type of burger being simulated. A wide variety of burgers mimicking different animal products exist, some examples are beef burgers, chicken burgers, cod burgers, hake burgers etc. So, a wide variety of ingredients are used as coloring agents in PBMA burgers and these vary from product to product.
The raw material ingredients typically used for PBMAs such as soy protein or gluten have a beige or yellow brown color which is far different from the well-known meat burger appearance. Therefore colorants can be added either before the extrusion process or during the final product formulation stage along with the other ingredients [
54]. Furthermore, the importance of color changes during preparation cannot be overstated, as these are critical in making PBMA burgers resemble traditional meat products. PBMA burgers are meant to replace raw meat products, which means that they must replicate the typical color changes occurring during cooking [
20]. To achieve a meat-like appearance, reducing sugars, heat-stable coloring agents are combined with heat-labile colorants that allow for a color change similar to that of meat during cooking [
16].
For colors resembling raw uncooked ground meat, mainly beetroots derivates are being used such as beetroot juice, powder, concentrate, extract, etc. For colors resembling brown or cooked meat, caramel, annatto, turmeric, and other artificial dyes are being utilized [
27,
55,
56]. The choice of pigments and their amount in a coloring composition can vary based on the desired color of the ground meat.
Also, it is important to note that during cooking, the Maillard reaction takes place, which can lead to desired color changes. To enhance the reaction, various combinations of reducing sugars such as dextrose, maltose, lactose, xylose, galactose, mannose, and arabinose have been proposed in different formulations [
26,
27]. Additionally, apple extract has been suggested to enhance color changes due to the oxidation of polyphenols and ascorbic acid during cooking [
13].
In addition to the additives mentioned earlier, pigment extracts from red cabbage, red berries, paprika, and carrots may also be used in PBMA burger formulations to achieve desired colors. Some of these ingredients and others might be of high interest since can be perceived as natural or can be labelled in the ingredient list as or spices or spice extracts. Also, in some PBMA burgers the use of soy leghemoglobin has been used to create aroma and a “bloody” appearance of meat heme proteins like hemoglobin and myoglobin [
57,
58].
These additives are employed to keep the product's intended color by inhibiting the color from bleeding out while it's being processed or stored [
59]. Moreover, it is important to note that the pH level of PBMA burger formulations can have a negative impact on the stability of colorants used. To address this issue, acidulants such as citric acid, acetic acid, lactic acid, or their combinations can be added to achieve the optimal pH range. In some cases, maltodextrin and hydrated alginate can also be used to inhibit or control color migration from the dyed structured PBMA and preserve color retention [
59].
3.6. Preservatives
Maintaining a long shelf-life is an important aspect of PBMAs production, as consumers expect their food products to remain fresh and safe for consumption for extended periods of time. Therefore, it is important to control and prevent the growth of microorganisms in PBMA burgers to extend their shelf life [
41].
At the moment there is limited information available regarding the food safety risks associated with PBMAs, however, it is important to note that due to their high protein and moisture content, as well as almost neutral pH, these products are susceptible to spoilage [
60]. Nowadays, a variety of preservation methods are available that can help extend the shelf life of food products. These methods often involve the use of food preservatives, which can be classified as chemical or natural. Recently, there has been an increased emphasis on the use of spices and aromatic vegetables as food ingredients and natural preservatives. Not only do these ingredients add flavor and aroma to a wide range of foods, but they also possess natural antioxidant properties and contain antimicrobial compounds [
61,
62].
It's important to keep in mind that preservatives can serve different functions depending on the type of product, ingredients, and processing methods used. In the formulation of PBMA burgers, various ingredients may be added for multiple functional purposes, however, it's crucial to consider the preservation role of these to ensure the quality and safety of the final product.
Onions are ingredients frequently present in the ingredient list of PBMA burgers. These are valued not only for their distinctive flavor and aroma but also for their demonstrated antimicrobial properties. This antimicrobial activity is due to the presence of thiosulfinates and other volatile organic compounds found in onions [
61]. On the other hand, salt is a well-known antimicrobial agent that works by reducing water activity through its osmotic effect and similarly, sugar can act as a preservative by removing excess moisture and inhibiting the growth of microorganisms. In addition to their sensory and functional properties, these ingredients play a crucial role in ensuring the quality and safety of PBMA burgers by preventing spoilage and the growth of harmful microorganisms [
63].
Food acids are widely used in the food industry to enhance the flavor of products, as well as to act as preservatives and antioxidants. Some commonly used food acids include vinegar, citric acid, tartaric acid, malic acid, fumaric acid, lactic acid, and sorbic acid [
59]. Additionally, certain herbs and spices, such as clove, oregano, thyme, cumin, cinnamon, and rosemary, have been found to improve the shelf life of food products due to their antioxidant, antifungal, and antimicrobial effects. In fact, research has shown that blends of different spices can exhibit even stronger inhibition against specific bacteria than individual spices alone [
62].
Aside from the addition of the natural ingredients listed above, some chemical ingredients might be used. Additionally, various techniques can be applied to both the burger's ingredients and the final product to extend its shelf life, such as pre-cooking, cooking, freezing, and frying. Packaging materials and methods are also decisive in preserving the quality and freshness of the burger. For instance, vacuum-sealed packaging can reduce the amount of oxygen in the package, slowing down the oxidation process that can cause food spoilage. Finally, post-production preservation characteristics during transport and storage are also determinant to ensure the product remains fresh and safe for consumption.
3.7. Fortification
In the context of PBMAs, fortification is used to address the fact that these products may not contain all of the essential nutrients found in traditional animal-based products [
15]. By fortifying the products with essential nutrients, manufacturers aim to make them a more nutritious alternative to traditional meat products. However this strategy leads to additional ingredient costs and longer ingredient lists, which cannot be well appreciated by consumers [
22].
It is important to note that insufficient intake of nutrients found in animal meats, such as iron, zinc, niacin, riboflavin, vitamin B6, and vitamin B12, is a potential concern with consuming a plant-based diet [
64]. Therefore, fortifying PBMA burgers with these nutrients might make them a more attractive option for individuals who are looking to reduce their meat consumption or switch to a vegetarian or an exclusively plant-based vegan diet.
Unlike conventional animal burgers, plant-based burger products often make explicit claims about their nutritional value on their label [
24]. Some of the most common nutritional claims regarding to fortification in the PBMAs are B12, iron and zinc [
17,
65]. PBMA burgers can also be claimed as “high in” or “source of” protein or fiber. When adding ingredients for fortification purposes certain factors should be considered. In the European market, fortified ingredient quantity should follow the EFSA criteria in order to make a nutritional claim of a food product [
66].
Regarding to protein fortification, the final protein content of a food product is primarily determined by the amount of protein added in the form of powder or TVP. The digestibility and amino acid profile depends mainly on the source of the protein and the treatment applied during processing. Nonetheless, the protein nutritional claims only give information on the total protein content and protein quality is not considered [
66]. In this scenario, attaining a protein content higher or equivalent to that found in traditional animal-based burger products holds significant importance.
When it comes to including minerals and vitamins in a product, these can either be added as purified individual ingredients or within matrices such as microalgae, mushrooms, or pulse flours. However, it is crucial to consider the stability and bioavailability of both the additives and ingredients [
21,
67].
For example, the bioavailability of iron varies depending on its form; non-heme iron has low bioavailability, whereas heme-bound iron has high bioavailability [
68]. For that, heme-iron from soy leghemoglobin seems promising, which has an equivalent bioavailability to iron from bovine hemoglobin when supplemented in a food matrix even though further research is needed to fully understand the potential benefits and drawbacks [
69]. Generally iron is introduced into the food matrix of some PBMA products in many different forms such as iron sodium EDTA, ferrous sulphate, microencapsulated iron diphosphate among others [
13]. Additionally, it is important to assess the presence of inhibitors and enhancers to ensure optimal bioavailability of the vitamins and minerals. For instance, EDTA and ascorbate are iron bioavailability enhancers [
68,
70] and these can be seen together with iron in the ingredient list of some PBMA burger product. On the other hand, phytic acid is a potent inhibitor of iron absorption even at low concentrations and this should be considered [
68].
Since vegetarians have limited natural sources of B12 (milk, dairy, and eggs) [
71] supplementation through food supplements and fortified food is recommended to prevent deficiency in these populations [
72]. There are four authorized forms of vitamin B12 for supplementation purposes: cyanocobalamin (CNCbl), hydroxocobalamin (OHCbl), 5′-deoxyadenosylcobalamin (AdoCbl), and methylcobalamin (MeCbl). All four forms are effective in improving vitamin B12 levels in the human body, as reported in various studies. In accordance with the Commission Regulation (EC) No 1170/2009 [
73], CNCbl, OHCbl, AdoCbl, and MeCbl may be used in the manufacture of food supplements, whereas CNCbl and OHCbl may also be added to foods [
72,
74]. The most commonly used supplemental form found in PBMA products is (CNCbl) due to its relatively low production cost and stability when exposed to heat. Alternatively, (OHCbl) may also be used such as in the form of Hydroxocobalamin Acetate [
69].
Regarding to zinc fortification, a range of different forms can be used, including zinc sulfate, zinc oxide, zinc citrate, zinc acetate, and zinc gluconate, among others [
75]. These forms of zinc can be added to food products to increase their zinc content, bringing it to levels comparable to those found in animal products such as beef. However, it's worth noting that the bioavailability of zinc from these forms is comparatively lower than that found in animal products [
69].
