Abstract
Background: Chronic lateral epicondylitis challenges the therapeutical approach; underlying mechanisms are incompletely understood; neuropathic pain and central and peripheral sensitization may explain the fact that botulinum toxin was found to play a role in pain and function management. Methods: We searched the literature for MeSH terms: lateral epicondylitis or synonyms and botulinum toxin. Results: We found 14 papers containing trials on botulinum toxin injection into the tendon or into the extensor muscles (particularly extensor carpi radialis brevis and extensor communis digitorum). We followed the administration pathways, doses, timing and side effects. Conclusion: With chronic course, the focus of the therapy shifts from the afflicted tendon to the inserting muscles, as muscle contracture may create a vicious loop to perpetuate and aggravate the disease. Doses, timing and side effects are discussed.
Keywords:
Subject: Medicine and Pharmacology  -   Anesthesiology and Pain Medicine

1. Introduction

Lateral epicondylitis (LE) wears many names in the literature: common extensor tendinopathy, radial epicondylitis, tennis elbow, radial epicondylalgia. Despite its terminology, it is a rather non-inflammatory, overuse, degenerative condition, the most common elbow affliction, with a prevalence in the general population of 1 – 3 % and in the hard-chores workers of 15%. [1] The involved structure is the common extensor tendon for the following muscles: extensor carpi radialis brevis (ECRB), extensor digitorum communis (EDC), extensor carpi ulnaris and extensor digiti minimi, the first two muscles being the most involved. As a self-limitative disease, 83% of patients recover after 12 months with rest and pain control pills. [2] The chronic evolution or the recurrence ask for more active therapies: splinting, corticosteroid injections, prolotherapy, physical agents, platelet rich plasma etc.
The primary cause of the LE is the contractile overload of the tendon, producing repetitive stress. Furthermore, researchers demonstrated a low blood flow within the ECRB, presuming that impaired muscle microcirculation and reduced oxygen supply contribute to the symptoms. [3] Noteworthy, recent studies underlined the peripheral and central sensitization as mechanisms of pain in chronic unilateral LE, similar to many local pain syndromes (myofascial temporomandibular disease, whiplash, repetitive strain injury, nonspecific arm pain, chronic tension type headache, low back pain, knee osteoarthritis, and unilateral shoulder pain). [4,5] These mechanisms may be responsible for the failure of conservative and surgical therapies.
Botulinum toxin (BTX), an exotoxin of Clostridium botulinum, acts as inhibitor of acetylcholine release in the neuromuscular junction, with a transitory effect. It is known to also have an analgesic effect, inhibiting the release of neurotransmitters and neuropeptides as glutamate, calcitonin gene-related peptide and substance P. Both pathways are investigated in the treatment of LE: the paralyzing effect is followed by reduced burden on the tendon, allowing self-repair and the direct analgesic effect on the tendon. Additionally, muscle relaxation increases intramuscular blood flow, improves aerobic metabolism, lowers lactate concentration, and reduces pain. Additional effects of BTX may count on the inhibition the release of neurotransmitters from peripheral nerve endings, reducing the afferent input to the spinal cord and, consequently, peripheral sensitization that, indirectly, reduces central sensitization. Central sensitization may also be interrupted by the retrograde axonal transport of the toxin along the branches of nociceptive neurons. [6,7].
There are seven distinct serotypes of BTX (from A to G), with types A and B used in clinical practice. Type A toxin (BTX-A) has an endopeptidase light chain that, in the presence of zinc deactivates the synaptosomal-associated protein with the molecular mass of 25 kDn (SNAP 25) within the cell membrane. Recent identification of the SNAP 25 on sensory neurons may count for the antinociceptive effect of BTX-A. [8] BTX-A is commercially available in 4 forms: onabotulinumtoxin A (Botox, Allergan, Irvine, CA), abobotulinumtoxin A (Dysport, Ipsen, Cherry Valley, IL), and incobotulinumtoxin A (Xeomin, Merz, Frankfurt, Germany) available in the United States, and a Chinese toxin Prosigne (Lanzhou Institute, Lanzhou, China). BTX-B is rimabotulinumtoxin B (marketed as Myobloc in the United States and Neurobloc in Europe; Solstice). These toxins have different units and different potencies.
According to the above-mentioned mechanisms of action of BTX-A, we identified two main therapeutical approaches for LE: intratendinous injection (based on local analgesic effect) and intramuscular injection (based on relaxation effect). In fact, it is a unique situation in which tendinopathy is treated either by direct approach or by „at distance” approach, targeting the connecting muscle.

2. Materials and Methods

We searched PubMed, MEDLINE, Google Scholar, EMBASE, PEDro and ISI Web of Science, starting from inception up to 2023, following the MeSH terms: lateral epicondylitis OR radial epicondylitis OR common extensor tendinopathy OR tennis elbow AND botulinum toxin. Two authors independently performed this task, and they gathered 1820 titles. After excluding duplicates, 1570 titles were selected, and titles were analyzed. From the remaining 87 relevant titles, the authors independently followed the abstracts, excluded the reviews, and retained 14 clinical studies [9,10,11,12,13,14,15,16,17,18,19,20,21,22]. All disagreements were solved by discussion with all team members. All studies but one (11, written in German) were written in English. Our paper aims at identifying the indications of BTX-A for LE, the targeted structures, the most valuable injection technique, the dosage, timing, and the side effects.

3. Results

Of the final 14 studies, 2 studies focused on intratendinous administration (12, 21), the remaining 12 studies on intramuscular administration. All but one (17) included patients with chronic LE. In one study (12) patients with chronic LE were administered BTX as a first line of therapy, whereas 12 papers reported BTX administration on chronic LE with failure of conservative therapies. (Figure 1) (Table 1)

Intratendinous Injection

Intratendinous injections were performed either on anatomical landmarks or on ultrasound guidance. In the anatomical landmark study, the authors described the point of needle insertion 1 cm distal from the lateral epicondyle, into the subcutaneous tissue and muscle, toward the tender spot. However, we presume that the targeted structure was rather the tendon than the muscle, as the length of the common extensor tendon is about 1,8 cm. [23] Patient selection included at least 3 months old epicondylitis with no previous local injection therapy (corticosteroid or acupuncture). Compared to placebo, 60 UI abobotulinumtoxin produced significant pain reduction at 4 and 8 weeks. Side effects were weakness of finger extension and paresis of digits in 33% of patients at 4 weeks and in 7% at 12 weeks, with one patient reported interference with job activity, most probably due to accidental leakage of the toxin toward the muscle belly. [12]
The peppering technique into the tendon under ultrasound guidance was used to comparatively study small doses (10 UI) versus large doses (50 UI) of BTX-A for chronic LE. Both doses produced significant pain reduction and grip strength improvement up to 6 months, with better results for the higher dose. The 50 UI dose elicited more extensor weakness versus the small 10 UI dose (20% versus 3%), most probably due to toxin leakage. The authors stressed that the results were due to local analgesic effect rather than to the paralytic one, as the grip strength increased in their study instead of decreasing as noted in the studies with intramuscular injections. [21]

Intramuscular Administration

Despite being a tendinopathy, most papers focused on intramuscular administration of BTX. The mark of correct intramuscular injection was considered the presence of the extensor lag, i.e. the inability to fully extend a digit actively. Some authors even repeated the injection until they obtained an extensor lag to document proper targeting. [24] As the effect of BTX is transitory, an extensor lag of about 3 months would be expected in the studies. The most targeted finger was the third, and some working activities may be impaired. It may be a contraindication for this therapy.
In 1997, a first attempt (an open study) on 14 patients with treatment-resistant chronic LE. The authors performed electromyographic-guided injection BTX-A (20 – 40 UI) into the extensor digitorum communis III and IV muscle. The rationale behind this approach was the clinical observation that the most painful test was the resisted extension of digits III and IV, therefore they had to be targeted to obtain paresis. If paresis was not obtained after one injection, a second dose was administered after one month. All but one patient reported pain relief in an interval between 2 weeks and one month and maintenance of the effect at 6 – 8 months in a significant proportion. Pain reduction persisted beyond the paralyzing effect. No side effects were noted, apart from the expected finger extensor weakness that disappeared after 3 – 4 months. [9]
The same technique was used in a pilot randomized study on BTX-A administration (30 – 40 UI into ECRB) versus operative (Hohmann procedure), both therapies aiming at putting at rest the affected tendon. When the first dose did not produce paresis, a second greater dose (50 UI) was injected at 6 weeks. At 3 months there was a significant difference for sick leave in favor of the operative group; the difference disappeared at 6, 12 and 24 months. At 3 and 6 months the operative group had a greater extension deficit, but not at 12 and 24 months and there was no difference between pain scores in both groups at all moments. Overall scores were comparable between groups. Patients that did not achieve sufficient paresis were recommended to surgery, but the postoperative evolution was negative, suggesting a more complex pain mechanism as central chronic pain. [10]
Based on the observation that persistent ECRB muscle contraction inhibits local microcirculation, decreases oxygen supply, and promotes local anaerobiosis [3], researchers observed reversal of these phenomena and significant pain relief at 3 and 12 months after BTX-A injection of ECRB. Functional improvement was also noted but not to a significant value. Grip strength significantly declined at 3 months and increased at 12 months. The doses were 1 UI/kg body weight onabotulinumtoxin A with an upper limit of 100 UI/muscle. ECRB was targeted by EMG and the injection was performed into a point two fingerbreadths distal to the lateral epicondyle. The accuracy of injection was confirmed also by the transitory reduction of muscle strength 3 months later and normalization at 12 months. [15]
Another randomized, placebo-controlled, double-blinded research confirmed significant pain and quality of life (self-assessment) improvement at 30 and 90 days after 40 UI aboBTX-A injection into ECRB identified with EMG stimulation. Since the targeted structure was ECRB, there were no side effects, especially no extensor lag and no grip strength alteration.[19]
A small prospective, observational, pilot study included 16 patients to receive 60 UI on anatomic landmark: approximately 3 to 4 cm distal to the tender epicondyle, with infiltration of the muscle at two locations; the second location was injected after partial withdrawal of the needle and rotating it in the horizontal plane. The targeted structure was certainly the group of extensor muscles, with no attempt to individualize them. The improvement in pain scores and subjective self-assessment were significant at 2 weeks and maintained up to 2 years. The side effects (weakness of third finger extension) were significant in a small percentage and slowly returned to normal. Grip strength decreased at 2 and 6 weeks and increased at 10 and 14 weeks. [11] Later, using the same technique (landmark and doses) the same authors published an extensive, prospective, placebo-controlled, double-blinded multicentric study on 132 patients that confirmed significant improvement in pain scores at all moments (up to 18 weeks) and in subjective evaluation starting from the 6th week. Grip strength did not differ from placebo at any moment. [14]
Hayton et co. published the results of a double-blinded, placebo-controlled pilot study on 40 patients that received 50 UI onaBTX-A injection on anatomic landmark (5 cm distal to the area of maximal tenderness at the lateral epicondyle, in line with the middle of the wrist, deep to the forearm fascia). They found no significant differences in grip strength, pain, and quality of life at 3 months for the study group and between the study group and the placebo group. A transient extensor lag was noticed in about 7% of the patients, but it was not unbearable. However, in particular situations it might interfere with functionality at work. [13]
Other researchers used a different anatomical landmark, assuming that the motor nerve branch enters the EDC and ECRB muscles at a distance of 33% of the forearm length from the lateral epicondyle. In a randomized, placebo-controlled trial, 60 UI BTX-A produced significant improvements in pain at rest and at maximum pinch up to 16 weeks. There was an unsignificant and transitory reduction in the grip strength at 4 and 8 weeks. Patients reported the occurrence of an extensor lag for the 3rd and 4th fingers, that interfered with current activity and resolved until the end of the study. [16]
For a more specific muscle targeting, Galvan Ruiz and co. evaluated clinically each muscle from the common extensor tendon and injected selectively under sonographic control the afflicted bellies with a specific amount of incoBTX-A, according to muscle size, with a maximum dose of 80 UI / patient. 50% of the patients received injections into more than one muscle. The most frequent adverse effect was the expected weakness of the third finger, present up to 3 months, affecting the working capacity of patients (to be considered when proposing the therapy). Pain and function improved at one month after treatment and were maintained at 6 months (when the paralyzing effect have been disappeared). The authors performed a stratification of the patients according to the intensity of the initial pain (VAS). In the group with a VAS score under 6 improvements of pain and function were higher (47% and 50%) than in the group with a VAS ≥ 6 (37% and 38%). In the latter group, altered pain processing and central sensitization in the chronic musculoskeletal condition may be responsible for these results. Another aspect underlined by the study was that 12,5% of patients required a second dose due to a positive effect but of a short duration. [20]
The question appeared around the number of injections necessary to obtain pain free evolution.
An open study followed the patients with chronic LE and ECRB injection (40 UI aboBTX-A) under EMG-guidance on one-year timeframe. Researchers noticed that after one injection, 44% of patients were satisfied and 40% asked for a second injection. After a second injection, 90% of patients were satisfied. Only 2% asked for a third injection. Overall, after one or two injections, the rate of success was 80%, underlying the cumulative effect of repeated administration. Due to the targeted injection into the ECRB, no weakness of finger extension as a side effect was noted. [22]

Comparative Drug-Controlled Studies

A prospective, randomized, double-blinded pilot study compared three groups of patients receiving 20 UI onaBTX-A, 40 mg triamcinolone into the tendon (1 cm distal to the lateral epicondyle) or into the muscle (ECRB or EDC). Injections were performed on anatomic landmark, for the enthesis 1 cm distal to the lateral epicondyle and for the extensor muscles the most tender point. At 4 weeks, there were significant improvements in pain and function for the intratendinous administration (BTX-A or corticosteroid) versus intramuscular administration. At 8, 12 and 16 weeks, there were no differences between the three groups. Intramuscular injection was followed by a transitory grip strength reduction at 4 weeks, which recovered at 8 and 12 weeks. It is worth mentioning that the cost of BTX-A injection is higher than the cost of corticosteroid injection; however, the rationale behind this study was the necessity of finding an alternative to corticosteroid due to its important rate of recurrence and other side effects. [18]
Comparing intramuscular injection of 50 UI onaBTX-A or 40 mg triamcinolone in acute or subacute LE, researchers reported pain relief at 4 weeks for both groups, with a better value for corticosteroid. At 8 and 12 weeks, the improvement continued, but the differences between the groups were not significant. Grip strength diminished in BTX-A group (as expected) and increased in corticosteroid group at 4 and 8 weeks; the difference was not significant at 12 weeks. Quality of life increased in both groups without significant differences. Injection was administered into the ECRB muscle near common origin of wrist and finger extensors of the affected elbow, with the needle first inserted into the subcutaneous layer and then pushed further into the ECRB. Localization of needle tip in the ECRB was confirmed by palpation during resisted wrist extension.[17]

4. Discussion

BTX-A is a therapeutical approach for chronic LE that failed to respond to conservative measures. Only one research used BTX-A on acute and subacute LE. [17]
Two biological mechanisms sustain this indication: the temporal paralysis of extensor muscles to put the tendon at rest and allow healing and the release of cellular mediators (including substance P, calcitonin gene-related peptide, glutamate, and bradykinin) to reduce pain perception. Some other mechanisms may play a role, such as interference with peripheral and central sensitization associated with chronic pain.
Two papers injected BTX-A into the tendon, either on an anatomic landmark or under ultrasound guidance. [12,21]. Pain relief was significant on short- and long-term, up to 2 years. Mild weakness of finger extension was noted in 20 – 33% of patients, with a reversible course after up to 3 months, most probably due to toxin leakage.
As the disease evolves into a chronic stage, the focus of the therapy shifts from the tendon to the muscle. In the acute cases, the targeted structure is the tendon. In chronic cases, researchers targeted the corresponding muscles, as documented in the 12 studied papers. The rationale behind this approach resided in the occurrence of a vicious circle, tendon pain – muscle contraction – tensile burden on the tendon further eliciting pain. The presence of active myofascial trigger points within the forearm muscles may explain the recommendation for BTX, as studies have shown botulinum toxin effective. [1] In the acute phase, tendon pain was the primary target, in the chronic phase the muscle becomes the target.
Of the four muscles that originate from the common extensor tendon, ECRB and ECD are the most studied. They were injected together or separately, on anatomic landmarks, EMG- or ultrasound guided. The anatomic landmarks varied throughout the trials, from 3 - 5 cm distal the lateral epicondyle, right into the tender spot, to the first third of the forearm length. With this technique, there was no precise localization of one or another muscle, they were injected all together. ECD injection may be followed by weakness of finger extension, particularly third finger. Paresis is reversible, generally after 3 months and, in most cases, was associated with mild and tolerable impairment. When the patients were performing tasks that require hand abilities, this therapy may have been contraindicated. Meantime, paresis of the third finger was considered proof that the injection was properly performed; the lack of weakness might be an indicator of a bad prognosis for surgery [10] or might require another injection to obtain the effect [10,20,22]
EMG- or ultrasound guidance assured a targeted injection into the selected muscle. 4 trials used EMG guidance [9,15,19,22] and one paper used ultrasound guidance [20]. The decision on what muscle to inject came after clinical evaluation. When ECRB was the target, the guidance would have prevented paresis of finger extension. [19] However, even EMG guidance may lead to some leakage of the toxin into adjacent muscles, particularly ECD. [9,22]
Decreased grip strength is generally considered a clinical sign of LE, as it is an indirect measurement of pain. Therefore, it serves as an objective parameter of the response to therapy. [10] Finger extensor paresis may interfere with grip strength, as extensor muscles play the role of stabilizers for finger flexors. A transitory reduction of grip strength was recorded with intramuscular BTX-A injection, at 4 and 6 weeks, with further increase at 10, 12, 14 and 16 weeks. [11,16,17,18] Targeting ECRB did not alter the finger extension force and the grip strength. [19,25] With intratendinous injection, grip strength did not differ to placebo at any moment, although there was a small proportion of patients that reported mild extensor weakness at 4 weeks (33%) and at 12 weeks (7%) when injecting on anatomical landmark. [12] Using ultrasound guidance, intratendon injection was followed by an increase in grip strength. [21].
The type of toxin was aboBTX-A with doses between 40 – 60 UI / injection [11,12,14,21,22], onaBTX-A with doses between 20 – 50 UI / injection or 1 UI/kg, maximum 100 UI/muscle [13,15,17,18], incoBTX-A with specific doses per muscle. [20] 3 papers did not mention the type of BTX-A used for treatment. When comparing different doses of aboBTX-A (10 UI versus 50 UI), the higher dose was more effective. In the literature, the conversion factor for equal potency onaBTX-A : aboBTX-A is ≤ 1:3 and onaBTX-A : incoBTX-A is 1:1. In the cited papers, the most frequent doses were 50 UI for onaBTX-A and 60 UI for aboBTX-A, a rather high conversion factor.
Three months after a first injection, about 33% of patients may ask for a second injection. Six months after the first injection, 6% of patients may ask for a second and 2% for a third. The cumulative effect of BTX injections offered a rate of success of 80% after one or two administrations. [22]
The outcomes of the therapy were pain, grip strength, and function. All papers but one [13] found significative improvement in one or more of the parameters.
A meta-analysis from 2011 underlined the fact that botulinum toxin was more effective than placebo for chronic LE. [26,27] A meta-analysis reported that corticosteroids in LE were more effective in reducing pain on short-term than botulinum toxin, with a higher risk of symptom recurrence and worse outcome. [28] When considering corticosteroid effects on tendon regeneration, botulinum toxin may be considered as an alternative. [29,30]

5. Conclusions

Lateral epicondylitis resolves spontaneously or with conservative modalities, including oral or local medication, physical agents, therapeutic exercise, orthosis. However, persistence or recurrence of symptoms may ask for a new therapies or surgical approach. Botulinum toxin is a choice for the purpose, considering that surgery may imply additional risks. Injected either into the tendon or into the muscle, the latter pathway being more successful, botulinum toxin improved clinical and functional status of the patients.

Author Contributions

For research articles with several authors, a short paragraph specifying their individual contributions must be provided. The following statements should be used “Conceptualization, D.P. and D.C.; methodology, D.P., M.I.S, D.C. and C.G.P.; formal analysis, M.I.S. and C.G.P.; investigation, D.P., D.C. and C.G.P.; resources, D.P., M.I.S, D.C. and C.G.P.; data curation, D.P., M.I.S, D.C. and C.G.P.; writing—original draft preparation, C.G.P. and M.I.P.; writing—review and editing, D.P. and D.C.; visualization, D.P., M.I.S, D.C. and C.G.P. All authors have read and agreed to the published version of the manuscript.

Funding

Publication of this paper was supported by the University of Medicine and Pharmacy Carol Davila, through the institutional program Publish not Perish.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data is available online on the mentioned databases.

Acknowledgments

There is none.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kalichman, L.; Bannuru, R.R.; Severin, M.; Harvey, W. Injection of botulinum toxin for treatment of chronic lateral epicondylitis: systematic review and meta-analysis. Semin Arthritis Rheum. 2011, 40, 532–538. [Google Scholar] [CrossRef] [PubMed]
  2. Song, B.; Day, D.; Jayaram, P. Efficacy of Botulinum Toxin in Treating Lateral Epicondylitis-Does Injection Location Matter?: A Systematic Review. Am J Phys Med Rehabil. 2020, 99, 1157–1163. [Google Scholar] [CrossRef] [PubMed]
  3. Oskarsson, E.; Gustafsson, B.E.; Pettersson, K.; Aulin, K.P. Decreased intramuscular blood flow in patients with lateral epicondylitis. Scand J Med Sci Sports. 2007, 17, 211–215. [Google Scholar] [CrossRef] [PubMed]
  4. Fernández-Carnero, J.; Fernández-de-Las-Peñas, C.; de la Llave-Rincón, A.I.; Ge, H.Y.; Arendt-Nielsen, L. Widespread mechanical pain hypersensitivity as sign of central sensitization in unilateral epicondylalgia: a blinded, controlled study. Clin J Pain. 2009, 25, 555–561. [Google Scholar] [CrossRef] [PubMed]
  5. Roh, Y.H.; Gong, H.S.; Baek, G.H. The Prognostic Value of Pain Sensitization in Patients With Lateral Epicondylitis. J Hand Surg Am. 2019, 44, e1–e250. [Google Scholar] [CrossRef] [PubMed]
  6. Park, J.; Chung, M.E. Botulinum Toxin for Central Neuropathic Pain. Toxins 2018, 10, 224. [Google Scholar] [CrossRef] [PubMed]
  7. Matak, I.; Rossetto, O.; Lacković, Z. Botulinum toxin type A selectivity for certain types of pain is associated with capsaicin-sensitive neurons. Pain. 2014, 155, 1516–1526. [Google Scholar] [CrossRef] [PubMed]
  8. Jabbari, B.; Machado, D. Treatment of refractory pain with botulinum toxins--an evidence-based review. Pain Med. 2011, 12, 1594–1606. [Google Scholar] [CrossRef] [PubMed]
  9. Morré, H.H.; Keizer, S.B.; van Os, J.J. Treatment of chronic tennis elbow with botulinum toxin. Lancet. 1997, 349, 1746. [Google Scholar] [CrossRef] [PubMed]
  10. Keizer, S.B.; Rutten, H.P.; Pilot, P.; Morre, H.H.; v Os, J.J. Verburg AD. Botulinum toxin injection versus surgical treatment for tennis elbow: a randomized pilot study. Clin Orthop. 2002, 401, 125–31. [Google Scholar] [CrossRef]
  11. Placzek, R.; Lindner, M.S.; Deuretzbacher, G.; Meiss, A.L. Therapie der chronischen Epicondylopathia humeri radialis mit Botulinumtoxin A -- eine Therapiestudie mit 2 Jahren Nachuntersuchungszeitraum [Therapy for chronic radial epicondylitis with botulinum toxin A]. Z Orthop Ihre Grenzgeb. 2004, 142, 701–705. [Google Scholar] [CrossRef] [PubMed]
  12. Wong, S.M.; Hui, A.C.; Tong, P.Y.; Poon, D.W.; Yu, E.; Wong, L.K. Treatment of lateral epicondylitis with botulinum toxin: a randomized, double-blind, placebo-controlled trial. Ann Intern Med. 2005, 143, 793–797. [Google Scholar] [CrossRef] [PubMed]
  13. Hayton, M.J.; Santini, A.J.; Hughes, P.J.; Frostick, S.P.; Trail, I.A.; Stanley, J.K. Botulinum toxin injection in the treatment of tennis elbow. A double-blind, randomized, controlled, pilot study. J Bone Joint Surg Am. 2005, 87, 503–507. [Google Scholar] [CrossRef] [PubMed]
  14. Placzek, R.; Drescher, W.; Deuretzbacher, G.; Hempfing, A.; Meiss, A.L. Treatment of chronic radial epicondylitis with botulinum toxin A. A double-blind, placebo-controlled, randomized multicenter study. J Bone Joint Surg Am. 2007, 89, 255–260. [Google Scholar] [CrossRef]
  15. Oskarsson, E.; Piehl Aulin, K.; Gustafsson, B.E.; Pettersson, K. Improved intramuscular blood flow and normalized metabolism in lateral epicondylitis after botulinum toxin treatment. Scand J Med Sci Sports. 2009, 19, 323–328. [Google Scholar] [CrossRef] [PubMed]
  16. Espandar, R.; Heidari, P.; Rasouli, M.R.; Saadat, S.; Farzan, M.; Rostami, M.; Yazdanian, S.; Mortazavi, S.M. Use of anatomic measurement to guide injection of botulinum toxin for the management of chronic lateral epicondylitis: a randomized controlled trial. CMAJ. 2010, 182, 768–773. [Google Scholar] [CrossRef] [PubMed]
  17. Lin, Y.C.; Tu, Y.K.; Chen, S.S.; Lin, I.L.; Chen, S.C.; Guo, H.R. Comparison between botulinum toxin and corticosteroid injection in the treatment of acute and subacute tennis elbow: a prospective, randomized, double-blind, active drug-controlled pilot study. Am J Phys Med Rehabil. 2010, 89, 653–659. [Google Scholar] [CrossRef] [PubMed]
  18. Guo, Y.H.; Kuan, T.S.; Chen, K.L.; Lien, W.C.; Hsieh, P.C.; Hsieh, I.C.; Chiu, S.H.; Lin, Y.C. Comparison Between Steroid and 2 Different Sites of Botulinum Toxin Injection in the Treatment of Lateral Epicondylalgia: A Randomized, Double-Blind, Active Drug-Controlled Pilot Study. Arch Phys Med Rehabil. 2017, 98, 36–42. [Google Scholar] [CrossRef] [PubMed]
  19. Creuzé, A.; Petit, H.; de Sèze, M. Short-Term Effect of Low-Dose, Electromyography-Guided Botulinum Toxin A Injection in the Treatment of Chronic Lateral Epicondylar Tendinopathy: A Randomized, Double-Blinded Study. J Bone Joint Surg Am. 2018, 100, 818–826. [Google Scholar] [CrossRef] [PubMed]
  20. Galván Ruiz, A.; Vergara Díaz, G.; Rendón Fernández, B.; Echevarría Ruiz De Vargas, C. Effects of Ultrasound-Guided Administration of Botulinum Toxin (IncobotulinumtoxinA) in Patients with Lateral Epicondylitis. Toxins (Basel) 2019, 11, 46. [Google Scholar] [CrossRef] [PubMed]
  21. Lee, S.H.; Choi, H.H.; Chang, M.C. The Effect of Botulinum Toxin Injection into the Common Extensor Tendon in Patients with Chronic Lateral Epicondylitis: A Randomized Trial. Pain Med. 2020, 21, 1971–1976. [Google Scholar] [CrossRef] [PubMed]
  22. Cogné, M.; Creuzé, A.; Petit, H.; Delleci, C.; Dehail, P.; de Seze, M. Number of botulinum toxin injections needed to stop requests for treatment for chronic lateral epicondylar tendinopathy. A 1-year follow-up study. Ann Phys Rehabil Med. 2019, 62, 336–341. [Google Scholar] [CrossRef] [PubMed]
  23. Keijsers, R.; Koenraadt, K.; Turkenburg, J.; Beumer, A.; Bertram, T.; Eygendaal, D. Ultrasound Measurements of the ECRB Tendon Shows Remarkable Variations in Patients with Lateral Epicondylitis. Arch Bone Jt Surg. 2020, 8, 168–172. [Google Scholar] [CrossRef] [PubMed]
  24. Keizer, S.B.; Rutten, H.P.; Pilot, P.; Morre, H.H.; v Os, J.J.; Verburg, A.D. Botulinum toxin injection versus surgical treatment for tennis elbow: a randomized pilot study. Clin Orthop. 2002, 401, 125–131. [Google Scholar] [CrossRef] [PubMed]
  25. Moore, C.; Hulsopple, C.; Boyce, B. Utilization of Botulinum Toxin for Musculoskeletal Disorders. Current Sports Medicine Reports 2020, 19, 217–222. [Google Scholar] [CrossRef] [PubMed]
  26. Scaglione, F. Conversion Ratio between Botox®, Dysport®, and Xeomin® in Clinical Practice. Toxins (Basel). 2016, 8, 65. [Google Scholar] [CrossRef] [PubMed]
  27. Su, Y.C.; Guo, Y.H.; Hsieh, P.C.; Lin, Y.C. Effectiveness of different doses of botulinum neurotoxin in lateral epicondylalgia: A network meta-analysis. Annals of physical and rehabilitation medicine 2023, 66, 101711. [Google Scholar] [CrossRef] [PubMed]
  28. Tavassoli, M.; Jokar, R.; Zamani, M.; Khafri, S.; Esmaeilnejad-Ganji, S.M. Clinical efficacy of local injection therapies for lateral epicondylitis: A systematic review and network meta-analysis. Caspian journal of internal medicine 2022, 13, 311–325. [Google Scholar] [CrossRef] [PubMed]
  29. Coombes, B.K.; Bisset, L.; Brooks, P.; et al. Effect of corticosteroid injection, physiotherapy, or both on clinical outcomes in patients with unilateral lateral epicondylalgia. JAMA 2013, 239, 461. [Google Scholar] [CrossRef]
  30. Lin, Y.C.; Wu, W.T.; Hsu, Y.C.; Han, D.S.; Chang, K.V. Comparative effectiveness of botulinum toxin versus non-surgical treatments for treating lateral epicondylitis: a systematic review and meta-analysis. Clin Rehabil. 2018, 32, 131–145. [Google Scholar] [CrossRef] [PubMed]
Preprints 102034 g001

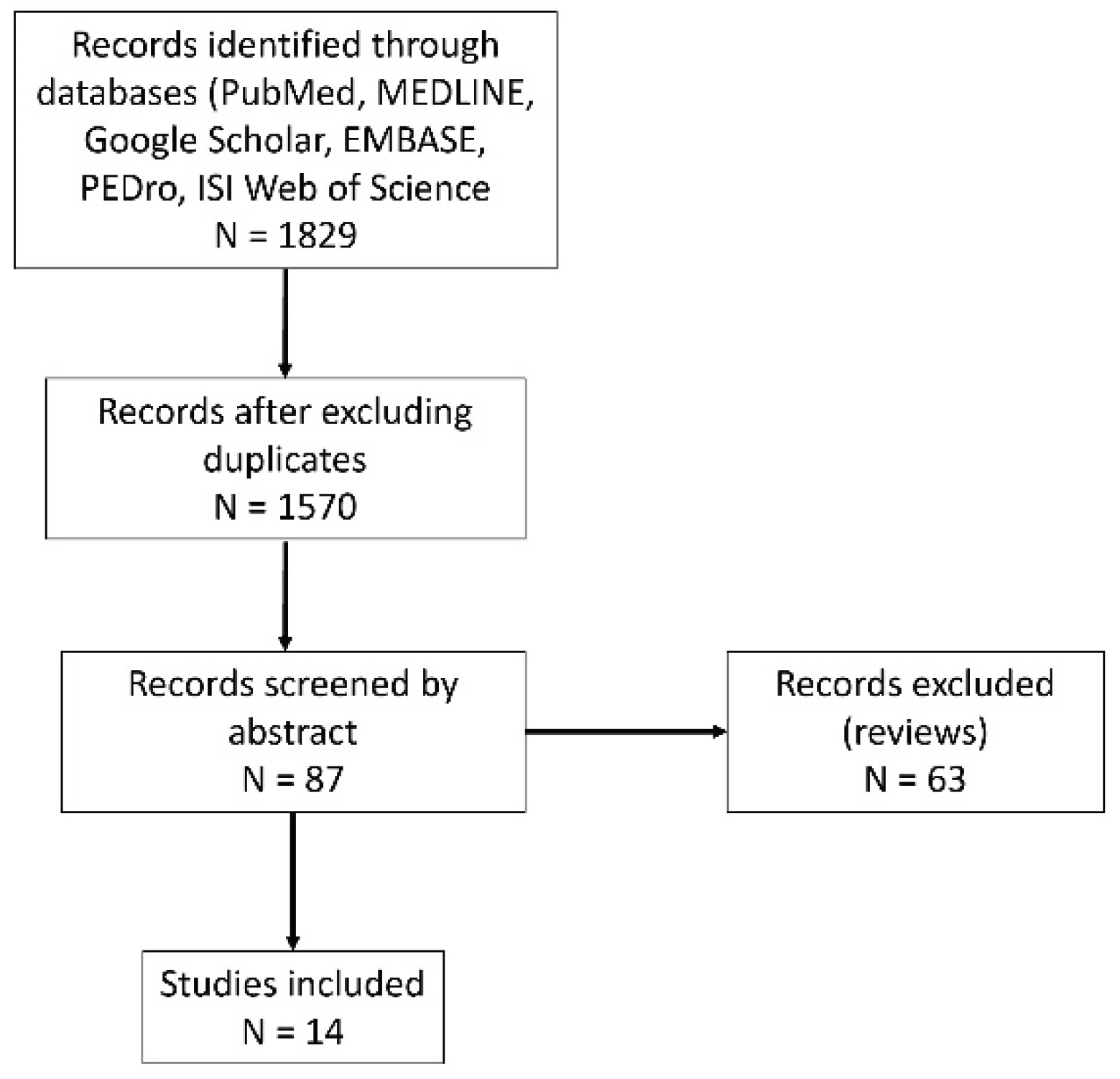

Figure 1. Selection process of the literature.
Figure 1. Selection process of the literature.
Preprints 102034 g001
Table 1. The main features of the papers cited in the literature.
Table 1. The main features of the papers cited in the literature.
Type of study, no. of patients Inclusion/exclusion criteria Injection point / targeted structure Dose Outcome Timing Results Side effects
More, 1997 [9] Open study/ 14 Treatment-resistant chronic LE Electromyographic guidance into extensor fingers III and IV / muscle 20 – 40 UI BTX-A Pain 1 month
3, 6 and 8 months		 Pain improvement Weakness of fingers III and IV extension (expected) for 3 – 4 months
Keizer, 2002 [10] Pilot, randomized / 40 Pain older than 6 months, failure of conservative treatment Anatomic landmark (intramuscular injection ECRB) 30 – 40 UI BTX-A, 50 UI repeated when necessary / operative (Hohmann procedure) Pain (VAS*)
Grip strength
Sick leave
ROM*		 Baseline
6 weeks, 3, 6 months,
1 and 2 years		 Pain improvement in all groups and moments
Sick leave greater at 3 months in operative group
ROM reduced at 3 and 6 months in operative group		 Patients that did not achieve sufficient paresis had a negative postoperative evolution
Placzek, 2004 [11] Pilot, prospective, observational / 16 Chronic LE, at least 6 months old and failure of 3 therapies Anatomic landmark: approximately 3 to 4 cm distal to the tender epicondyle, with infiltration of the muscle at two locations; the second location was injected after partial withdrawal of the needle and rotating it in the horizontal plane. 60 UI aboBTX Pain (VAS, clinical pain score)
Grip strength
 Baseline
2, 6, 10, 14 weeks,
2 years		 Pain reduction from the 2nd week, persisting up to 2 years.
Grip strength decreased at 2 and 6 weeks and increased at 10 and 14 weeks.		 At 2 weeks there was significant extension weakness in third finger, it disappeared slowly
Wong, 2005 [12] Randomized, double-blind, placebo-controlled / 60 Pain longer 3 months
No previous injection treatment		 Anatomic landmark: deeply into the
subcutaneous tissue and muscle, 1 cm from the lateral epicondyle,
and were aimed toward the tender spot / tendon 		60 UI aboBTX / saline (placebo) Pain (VAS)
Grip strength		 Baseline
4 weeks
12 weeks		 Pain reduction (significant improvement at 4 weeks, maintained at 12 weeks).
No diff in grip strength		 Weakness of finger extension
and paresis of digits: 33% at 4 weeks, 7% at 12 weeks, with 3% interfering with job activity
Hayton, 2005 [13] Randomized, double-blinded, placebo-controlled, pilot / 40 LE older than 6 months, with failure of therapies Anatomic landmark: 5 cm distal to the area of maximal tenderness at the lateral epicondyle, in line with the middle of the wrist, the needle inserted deep to the forearm fascia / muscle 50 UI onaBTX-A / saline (placebo) Pain (VAS)
Grip strength
General health questionnaire (SF-12)		 Baseline
3 months		 No significant differences between groups Extensor lag
Placzek, 2007 [14] Prospective, placebo-controlled, double-blinded, multicentric / 132 Chronic LE; older than 4 months, failure of at least 3 modalities of therapy Anatomic landmark: approximately 3 to 4 cm distal to the tender epicondyle, with infiltration of the muscle at two locations; the second location was injected after partial withdrawal of the needle and rotating it in the horizontal plane. 60 UI aboBTX A / placebo (saline) Pain (VAS, clinical pain score)
Grip strength
Subjective assessment		 Baseline, 2, 6, 12 and 18 weeks Pain improved at all moments.
Grip strength did not differ at any moment.
Subjective assessment improved from week 6		 Weakness of extension 3rd finger from 2nd week up to 14th week
Oskarson, 2009 [15] Prospective, observational / 10 Chronic pain with failure of previous therapies and surgical reference ECRB* guided injection under electromyografic stimulation / muscle 1 UI/kg onaBTX-A, maximum 100 UI / muscle / contralateral normal elbow Pain
Function (DASH, COPD*).
Grip strength.
Muscle strength
ECRB blood flow and lactate concetration		 Baseline, 3, 12 months Blood flow increased at 3 and 12 months.
Lactate decreased at 12 months
Pain decreased at 3 and 12 months.
Function improved at 12 months.
Grip strength declined at 3 months and increased at 12 months.
 One patient had abnormal blood flow initially and developed bilateral involvement.
Espandar, 2010 [16] Randomized, placebo-controlled / 48 Failure of previous therapies Anatomic landmark: distance of one-third the length of the forearm from the tip of the lateral epicondyle on the course of the posterior inter - osseus nerve / muscle 60 UI BTX-A / saline Pain at rest
Pain at maximum grip and pinch
Grip strength
Extensor lag for 3rd and 4th finger.		 Baseline
4 weeks
8 weeks
16 weeks		 Pain at rest and at maximum pinch decreased significantly.
Grip strength decreased transitory (4 and 8 weeks) but not significantly.		 Extensor lag (weakness of extension of digits 3 and 4) was largely present at 4 weeks, resolved at 8 and 16 weeks.
Lin, 2010 [17] prospective randomized, double-blind, drug-controlled trial / 16 Acute and subacute LE Anatomic landmark: ECRB muscle near common origin of wrist and finger extensors. The needle was first inserted into the subcutaneous layer and then pushed further into the ECRB. Localization of needle tip in the ECRB was confirmed by palpation during resisted wrist extension. 50 UI onaBTX-A / 40 mg triamcinolone (CS*) Pain (VAS)
Grip strength
Quality of life (WHOQOL-BREF*)		 Baseline
4, 8, 12 weeks
 Pain improved significantly in both groups at 4 weeks, better in CS group.
Grip strength decreased in BTX (4 and 8 weeks) and increased in CS group. At 12 weeks no significant difference.
Quality of life improved in both groups		 Grip strength decreased in BTX group (4 and 8 weeks).
Guo, 2016 [18] Randomized, prospective, double-blinded, active drug-controlled pilot study / 26 LE older than 6 months with failure of physical therapy or oral medication Anatomic landmark: for the enthesis - 1 cm distal to the lateral epicondyle / for the muscles - the most tender point of the common extensor musclaes (ECRB or EDC) 20 UI onaBTX-A,
40 mg triamcinolone (CS)		 Pain (VAS)
Grip strength
PRTEE*		 Baseline 4, 8, 12 and 16 weeks At 4 weeks: intratendon BTX-A and CS better results than intramuscular BTX-A. At 8, 12 and 16 weeks – no difference. Intramuscular: extensor lag with full recovery.
Grip strength transitory reduced at 4 weeks for intramuscular BTX.
Creuze, 2018 [19] Phase-III, single-center, randomized, double-blinded, placebo-controlled / 60 Chronic LE 6 months old
Failure of previous therapies		 Anatomic landmark: at approximately 5 cm distal to the lateral epicondyle (targeting ECRB), EMG confirmation 40 UI aboBTX-A / saline Pain (VAS)
Grip strength
Quality of life (self-assessment)		 Baseline
30 and 90 days		 Pain improved at both moments.
No difference for grip strength.		 No extensor lag.
No grip strength alteration.
Ruiz, 2019 [20] Prospective, experimental / 24 Chronic pain with failure of previous therapies Ultrasound guided infiltration into specific muscle Specific doses incoBTX-A per muscle, maximum 80 UI Pain (VAS)
Function (QuickDASH)		 Baseline
1, 3 and 6 months		 Pain and function improved at 1 month and persisted at 6 months 21% failure
13% required a second dose (positive effect, short duration)
Lee, 2019 [21] Prospective, randomized, comparative / 60 Pain longer 3 months
Failure of previous therapies		 Ultrasound guidance: peppering technique in the tendon in a distal-to-proximal direction 10 UI aboBTX-A (SD) / 50 UI BTX-A (LD) Pain (NRS*)
Grip strength
Motor weakness in extensors
 Baseline
1, 2, 3, 4, 5 and 6 months		 Pain decreased in both groups at all moments, LD group had better results at all moments.
Grip strength increase in both groups, all moments, better results in LD		 Extensor weakness 3% in SD and 20% in LD
Cogne, 2019 [22] Open, prospective, observation, continuation of Creuze, 2018 (19) / 50 Follow-up after first BTX-A injection Anatomic landmark: at approximately 5 cm distal to the lateral epicondyle (targeting ECRB), EMG confirmation 40 UI aboBTX-A Number of required injections 270 and 365 days 80% of patients improved after 1 or 2 injections.
2% asked for a third injection		 18% of patients asked for surgery
*VAS, Visual Analogue Scale; *ROM, range of motion; *NRS, numeric rate scale; DASH, Disability of Arm, Shoulder and Hand; ECRB, extensor carpi radialis brevis muscle; COPD, Canadian Occupational Performance Measure; *PRTEE, Patient-rated tennis elbow evaluation; WHOQOL-BREF, World Health Organization Quality of Life Brief Questionnaire-BREF; *CS, corticosteroid;.
