1. Introduction

2. Influencing Factors of Graphene Hybrid Polymer Composites

2.1. Graphene Type and Aspect Ratio

Filler type and aspect ratio are the backbone of the fabrication of smart composites [15]. While dealing with graphene hybrid polymer composites, the choice of graphene type plays a decisive role in portraying the structural and functional properties of the final composite. Currently, different types of graphene are used to design polymer composites, e.g., pristine graphene, graphene oxide (GO), and reduced graphene oxide (rGO), as shown in Figure 1. However, each type has its unique structural characteristics that extremely influence the performance and tailor the properties resultant composites. For example, pristine graphene, a single layer of carbon atoms arranged in a hexagonal lattice, highly boosts mechanical features like tensile strength and Young's modulus of polymer composites due to its intrinsic structural organization and atomic-level thickness. Also, with a high aspect ratio, pristine graphene sheets present effective load transfer and stress distribution properties [16]. On the other hand, GO keeps oxygen-containing functional groups, which highly facilitate the dispersibility and strong interfacial interactions through polymer matrices, directing them to enhanced thermal stability and mechanical properties [17]. rGO is obtained by the reduction of GO and owns several oxygen functionalities. However, the exceptional structure of rGO supports effective charge transport in the composite compared to GO. It thus shows higher electrical conductivity and mechanical strength, making it an ideal candidate for applications involving electrical conductivity, e.g., sensors and conductive coatings [18].

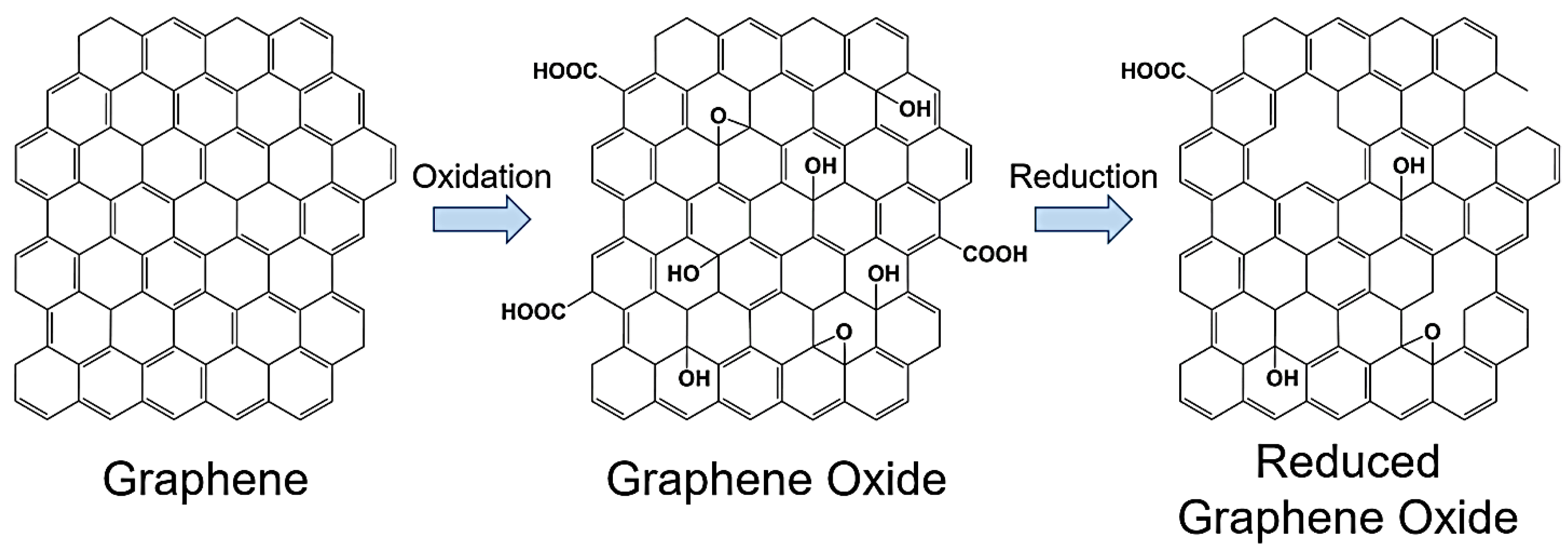

Figure 1. Different types of graphene. The chemical structures of graphene, graphene oxide, and reduced graphene oxide, along with their respective synthesis processes. Adopted with permission from Ref. [19].

Figure 1. Different types of graphene. The chemical structures of graphene, graphene oxide, and reduced graphene oxide, along with their respective synthesis processes. Adopted with permission from Ref. [19].

In recent years, various graphene derivatives and nanostructures have been employed to manufacture polymer composites for desired applications. Graphene nanoplatelets (GNPs), with their plate-like shape and high aspect ratio, improve the strength and toughness of polymer composites [20]. Graphene and graphene oxide quantum dots, with their quantum confinement effects and tunable electronic properties, optimize composite materials' electrical conductivity and optical characteristics [21]. Graphene nanoribbons (GNRs), with their one-dimensional structure, offer exceptional mechanical strength and superior thermal conductivity [22]. Ultralight and porous graphene aerogels (GAs) provide thermal stability and energy absorption properties [23]. Finally, graphene masterbatches simplify the incorporation of graphene into composites, ensuring uniform distribution for consistent performance [24]. These innovations enable the design of advanced composite materials with tailored properties for various industrial applications, opening new perspectives in materials engineering. Tarani et al. [25] examined the influence of graphene nanoplatelet (GNP) aspect ratio on the mechanical properties of high-density polyethylene (HDPE) nanocomposite. Figure 2. shows that adding GNPs improves both the storage and loss modulus of the nanocomposite compared to pure HDPE, indicating an enhancement of the mechanical properties. This enhancement is more evident in nanocomposites with higher proportions of GNPs, suggesting that the aspect ratio of GNPs plays a significant role in the reinforcement of the HDPE nanocomposite.

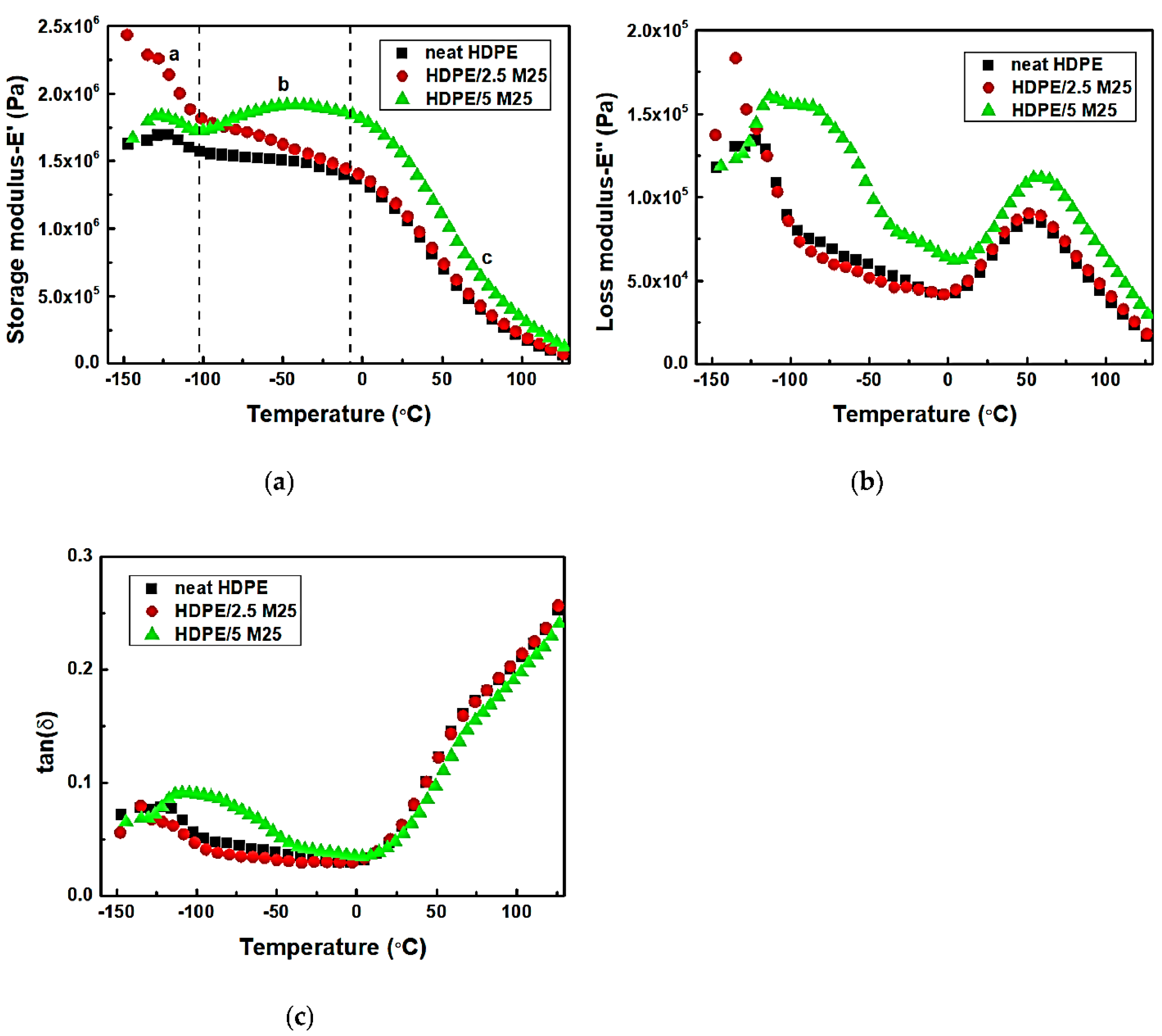

Figure 2. Shows the storage modulus, loss modulus, and tan(δ) values of HDPE/M25 nanocomposites containing 2.5 wt.% and 5 wt.% GNPs. Adopted with permission from Ref. [25].

Figure 2. Shows the storage modulus, loss modulus, and tan(δ) values of HDPE/M25 nanocomposites containing 2.5 wt.% and 5 wt.% GNPs. Adopted with permission from Ref. [25].

Graphene hybrid polymer composites hold great promise due to the discrete dimensions of graphene and other fillers. For instance, combining graphene with CNTs upholds micrometer lengths and 10-30 nm diameters. This scheme establishes a synergistically infiltrated network through polymers producing materials with superb electrical conductivity (1000-3000 Sm^-1), mechanical strength, and thermal conductivity [26,27]. Furthermore, graphene combined with metal nanoparticles like gold (Au), silver (Ag), and copper (Cu) offers nanoscale dimensions (< 100 nm in diameter) and produces a highly connected network structure in the polymer matrix, presenting a higher electrical conductivity of 10⁷ Sm^-1 [28,29]. Besides the dimension, the aspect ratio of graphene drastically impacts the structural features and properties of the polymer composites. The higher aspect ratio promotes better dispersion and interfacial adhesion and thus helps to achieve interconnected network structures in polymer matrices, resulting in increased mechanical strength and electrical conduction [30,31]. Long fibers, e.g., CNTs and CFs, can also make a continuous network in a polymer matrix even with low loading, which precedes excellent stress distribution, heat dissipation, tensile strength, and resistance to structural deformation [29].

Conversely, the low aspect ratio of short nanoparticles results in gaps and irregular networks, which hinder the overall performance of the composite. Nevertheless, filler type, size, and aspect ratio are crucial to producing composite materials with tailored properties for specific applications [32].

2.3. Homogeneity of Dispersion

In the fabrication of excellent hybrid polymer composites, homogeneous dispersion is crucial to determine the performance and properties. In Graphene-based hybrid composites, [43] firstly, graphene and other fillers are evenly dispersed with each other and later uniformly distributed in a polymer matrix. Good dispersion results in symmetrical structure and significantly boosts mechanical properties, i.e., fracture resistance, high tensile strength [44], and load-bearing facilities. Electrical and thermal conductivities are also improved, facilitating continuous charge transport, sensors, and heat management applications [38]. Tuichai et al. [45] prepared well-dispersed Ag-rGO/ polyvinylidene fluoride (PVDF) composites using a seed-mediated growing technique and achieved a highly connected microstructure with a high dielectric constant. However, poor dispersion [46] results in agglomeration and uneven distribution within hybrid fillers and polymer matrix and severely demoralizes the composite capabilities. Such composite presents an irregular and non-uniform structure, leading to mechanical disruptions and ineffective electrical and thermal conductivities due to interrupted pathways [47]. Gong et al. [48] used the chemical vapor deposition (CVD) method to deposit graphene on the surface of nickel meshes, followed by creating graphene fabrics by removing the nickel template. Next, they stacked these graphene fabrics layer by layer to obtain an anisotropic graphene structure, giving the polyimide (PI) composite an in-plane thermal conductivity of 3.73 Wm⁻¹K⁻¹ with 12 wt.% of graphene, as shown in (Figure 3a). On the other hand, Dai et al. [49] employed a roller equipment to extend and roll the porous polyurethane (PU)-graphene film, resulting in a large-scale monolith with a vertically aligned structure shown in (Figure 3b). After the graphitization process and epoxy resin infiltration, the resulting composite demonstrated an unprecedented thermal conductivity of 62.4 Wm⁻¹K⁻¹.

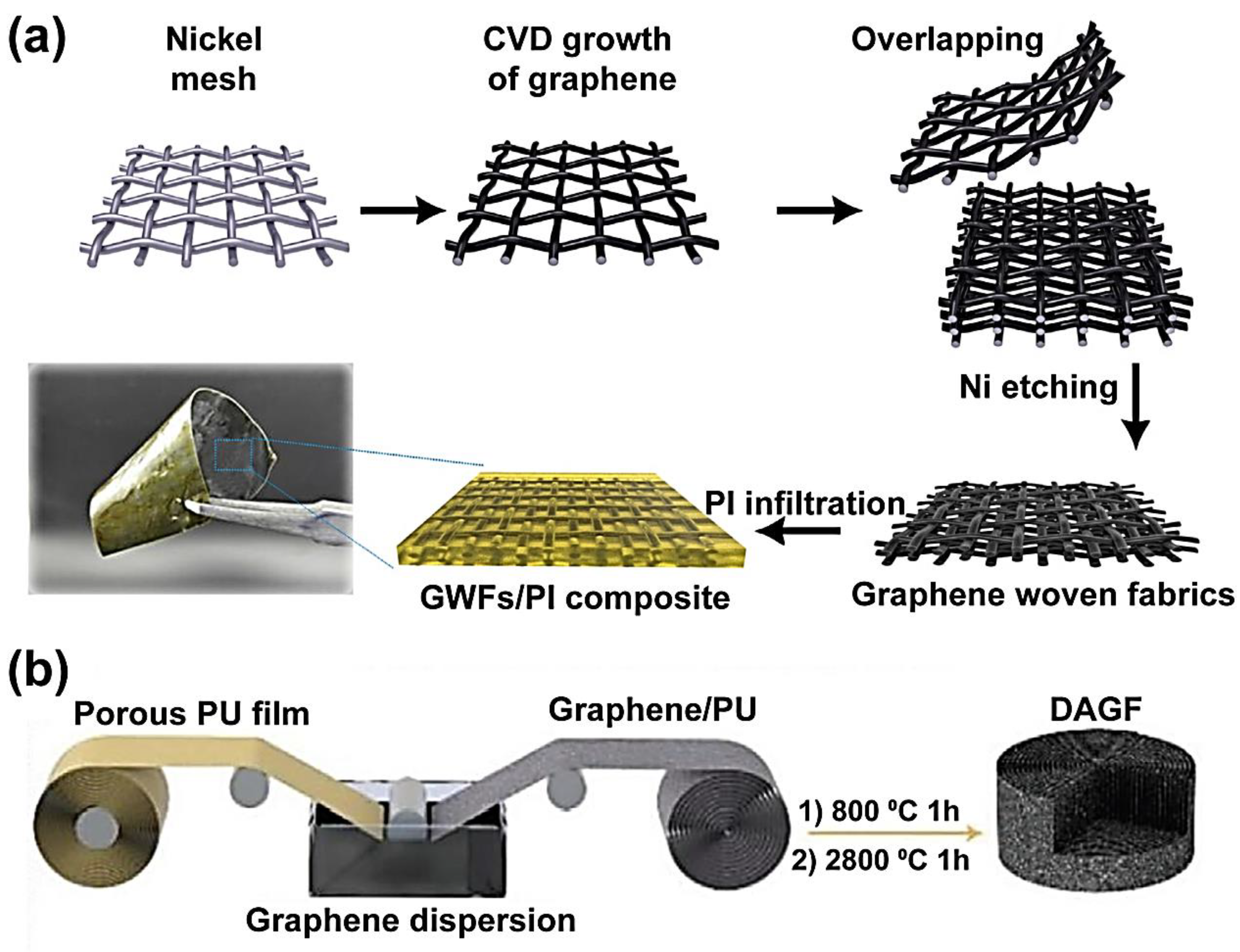

Figure 3. (a) compaction and (b) rolling process in producing anisotropic graphene networks and related composites. Reprinted with permission from Ref. [48,49].

Figure 3. (a) compaction and (b) rolling process in producing anisotropic graphene networks and related composites. Reprinted with permission from Ref. [48,49].

2.4. Fiber Orientation

Fiber orientation highly influences the performance of polymer composites. In fiber-reinforced composites, unidirectional alignment offers high strength along the fibers but weaker properties in perpendicular directions. Bidirectional laminates offer a balance of properties, while graphene can improve different mechanical, thermal, and electrical characteristics depending on orientation. Controlling the orientation of the multiple fibers and graphene during processing allows the customization of composite properties for specific applications. Liu et al. [50] prepared anisotropic graphene aerogels by reducing GO with ascorbic acid at 70 °C for four hours, followed by freeze drying (Figure 4a). These materials show high compressive strength in the axial direction and good compressibility in both directions together with a sensitive electrical conductivity upon deformation. They feature ultra-low density, high porosity, fire resistance, and flexibility in organic liquids. After absorption of liquids, they can be easily recycled by combustion, distillation and pressing. Moreover, Zhang et al. [51] developed a vertically aligned graphene sheet membrane (VA-GSM) using a freezing approach (Figure 4b). VA-GSM demonstrated water evaporation rates of up to 6.25 kg m⁻² h⁻¹ under four times solar illumination, with a solar thermal conversion efficiency of up to 94.2%. This performance makes it possible to efficiently produce clean water from sources such as seawater and wastewater, as well as concentrated acid and alkaline solutions.

In another study, thermally conductive polymer composites were obtained from graphene oxide hydrogels via directional freezing and graphitization at 2800°C. It was observed that these aerogels exhibit excellent thermal and electrical conduction properties due to the highly aligned network of graphitized graphene sheets. An epoxy composite with 0.75% high-quality graphene exhibits a vertical thermal conductivity of 6.57 Wm^-1K^-1 with improved mechanical strength and compressive deformation. (Figure 4c) shows SEM images of vertically aligned graphene networks at different freezing rates with a top view [52].

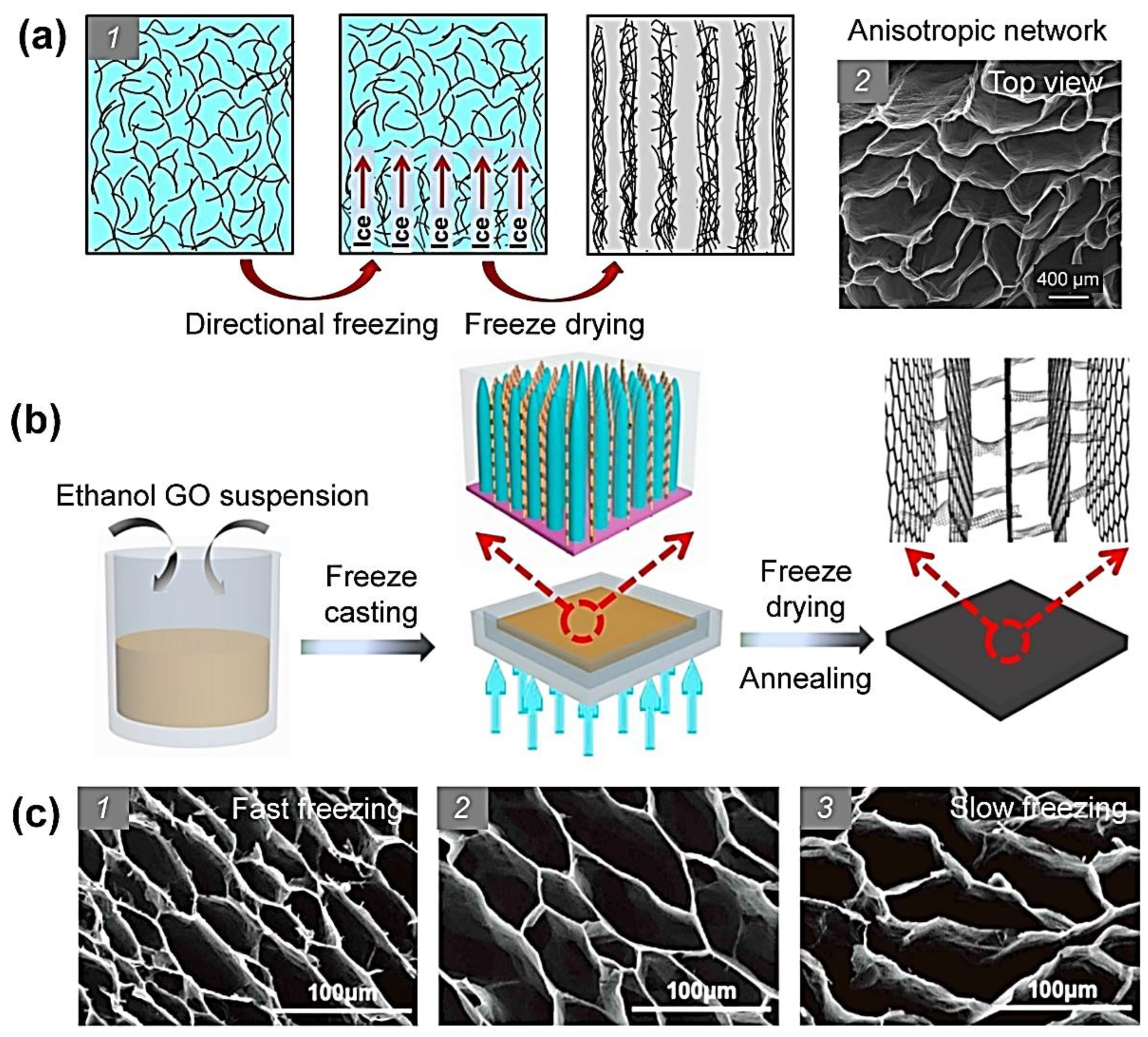

Figure 4. (a) Schematic of the microscopic process of directional freezing [50]. (b) Schematic of directional freezing of graphene oxide (GO) suspension and aligned graphene (GA) structure [51]. (c) SEM images showing vertically aligned graphene networks, fabricated through freeze-drying at different freezing rates and subsequent freeze-drying, with top view [52]. Reused with permission from refs. [50,51,52].

Figure 4. (a) Schematic of the microscopic process of directional freezing [50]. (b) Schematic of directional freezing of graphene oxide (GO) suspension and aligned graphene (GA) structure [51]. (c) SEM images showing vertically aligned graphene networks, fabricated through freeze-drying at different freezing rates and subsequent freeze-drying, with top view [52]. Reused with permission from refs. [50,51,52].

The An et al. [53] fabricated vertically aligned graphene hybrid foams (GHFs) via the hydrothermal reduction process of GNPs, resulting in high-density foams. The integration of GNPs improves the thermal conduction network's density and prevents excessive foam shrinkage during manufacturing. By graphitization at 2800 °C, the oxygen-containing groups are eliminated, and the defects are healed, obtaining high-quality graphene foams (Figure 5a). It was observed that GHF/epoxy composites exhibit extraordinary through-plane thermal conductivity of 35.5 Wm^–1K^–1 at a graphene content of 19 vol.%, making them compatible for thermal management applications (Figure 5b).

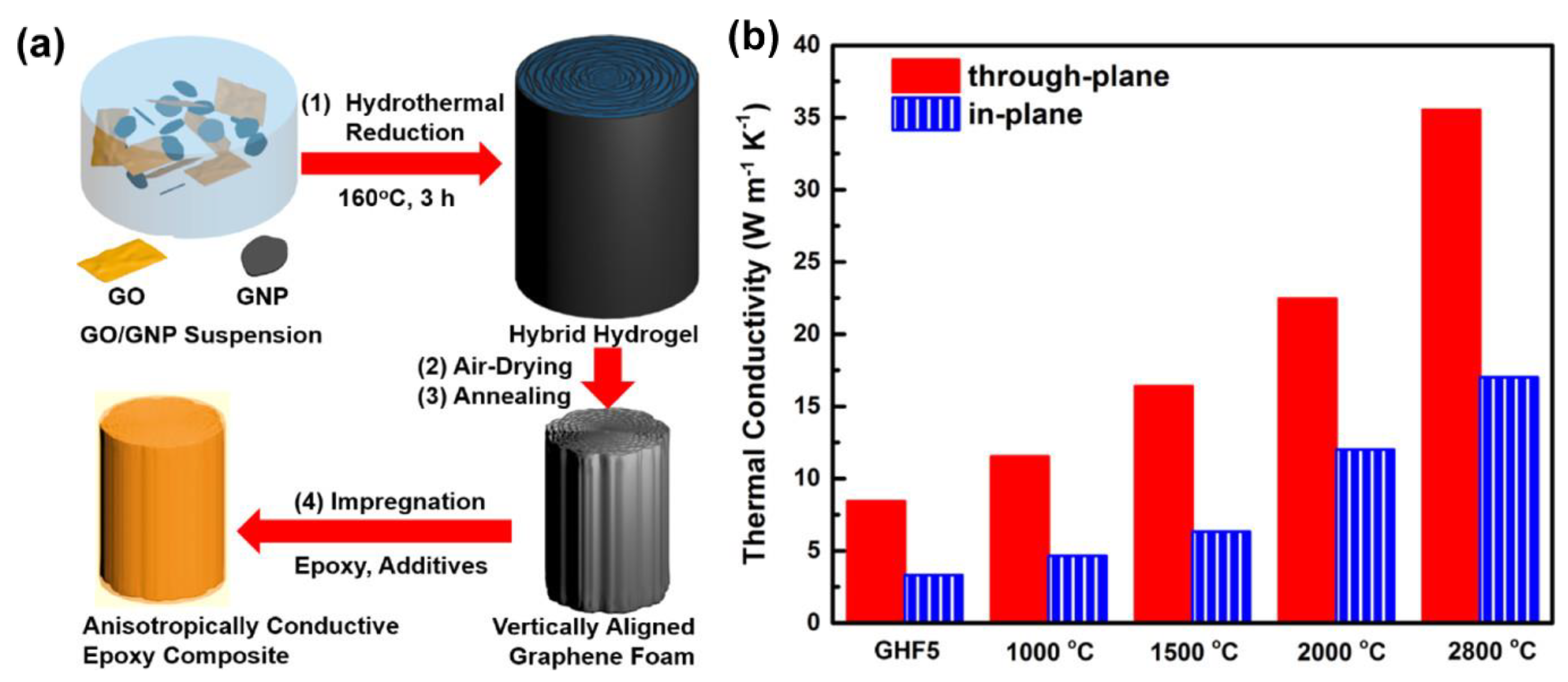

Figure 5. (a) Representative diagram of a conductive epoxy composite production enriched with vertically oriented RGO/GNP hybrid foam. (b) Conductivity variation in the in-plane direction (red column) and in the transverse direction (blue column) of the epoxy composite incorporating the RGO/GNP hybrid foam aligned vertically at different temperatures. Adopted with permission from ref. [53].

Figure 5. (a) Representative diagram of a conductive epoxy composite production enriched with vertically oriented RGO/GNP hybrid foam. (b) Conductivity variation in the in-plane direction (red column) and in the transverse direction (blue column) of the epoxy composite incorporating the RGO/GNP hybrid foam aligned vertically at different temperatures. Adopted with permission from ref. [53].

2.5. Synergistic Effects

The presence of graphene in hybrid polymer composites results in synergistically enhanced network structures, making them ideal for structural applications [54]. These composites exhibit superior mechanical properties, such as increased tensile strength, modulus, and toughness. Their high electrical and thermal conductivity makes them suitable for flexible electronics, thermal management, and electromagnetic interference shielding. Xiao et al. [55] developed PVDF composites with various combinations of CNTs and GNPs (Figure 6a). The addition of 2 wt% CNTs to PVDF/GNP composites generated a three-dimensional hybrid network with improved thermal and electrical conductivity and the incorporation of 2 wt.% GNPs into the PVDF/CNT composites did not change the percolated structure. Both CNTs and GNPs promoted the crystallization of PVDF without significantly altering the crystallinity. Ternary composites demonstrated increased electrical conductivity due to a three-dimensional conductive path. Particularly, PVDF/CNT/GNP composites showed higher thermal conductivity and synergistic efficiency than PVDF/GNP/CNT composites. Also, Liang et al. [56] developed an epoxy nanocomposite with four times the thermal conductivity of pure epoxy, using an RGO/f-SWCNT filler loading of 3.65 vol%. This result was achieved due to a rigid and well-aligned 3D skeleton of RGO walls connected by f-SWCNTs (Figure 6b), which not only improved the alignment of the SWCNTs, but also allowed a significant reduction in the amount of SWCNT used, helping to reduce costs. The 3D networks improved both the dimensional and thermal stability of the nanocomposite without compromising its electrical insulation properties. Shtein et al. [57] explored the effective integration of GNP into a polymer matrix to improve thermal conductivity (TC) significantly. Through a scalable and straightforward dispersion process, the resulting composite demonstrated an ultrahigh TC of 12.4 Wm^-1K^-1, compared to 0.2 Wm^-1K^-1 for the pure polymer, by applying high compressive forces to close the spaces between adjacent graphene nanoplatelets. It was found that the addition of boron nitride nanoparticles synergistically improved TC while reducing electrical conductivity to prevent short circuits (Figure 6c), thus facilitating progress towards large-scale production of thermally conductive composites based on GNP. Xue et al. [58] developed novel composite phase change materials (PCMs) by incorporating melamine foam with GO and GNPs (Figure 6d). The resulting aerogels exhibited high structural stability and high load-bearing capacity. The composite PCMs exhibited high-temperature shape stability and high phase change enthalpy retention capacity, as well as significantly improved thermal and electrical conductivities. These results indicate considerable potential for applications in energy efficiency and thermal protection of microelectronic devices.

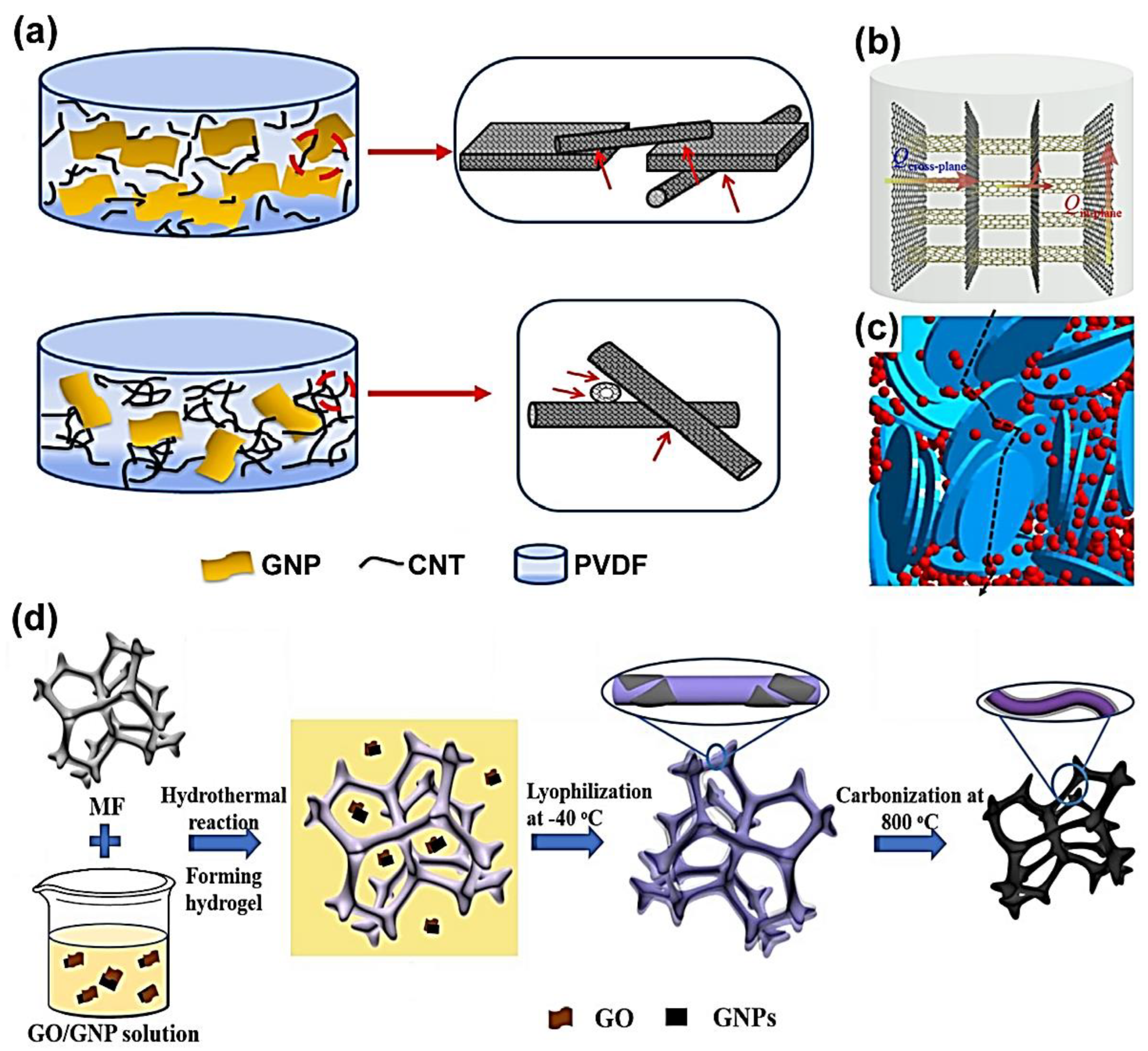

Figure 6. (a)(b) Schematics illustrating the synergies between GNPs and CNTs in thermal conduction [55,56]. (c) Schematics illustrating the synergies between GNP (polymeric nanoalloys, represented by the blue slices) and BN (boron nitrate, represented by the red spheres) [57]. (d) Schematic illustration of the preparation process of both the graphene/MF foam (mixed fiber graphene foam) and the derived graphene/carbon foam [58]. Reprinted with permission from refs. [55,56,57,58].

Figure 6. (a)(b) Schematics illustrating the synergies between GNPs and CNTs in thermal conduction [55,56]. (c) Schematics illustrating the synergies between GNP (polymeric nanoalloys, represented by the blue slices) and BN (boron nitrate, represented by the red spheres) [57]. (d) Schematic illustration of the preparation process of both the graphene/MF foam (mixed fiber graphene foam) and the derived graphene/carbon foam [58]. Reprinted with permission from refs. [55,56,57,58].

2.6. Processing Techniques

Composite processing methods are pillars to achieve uniformly distributed microstructure with expanded properties. The fabrication techniques involving compression mold, 3D printing, and filament winding affect the filler placement inside the matrix. Fabrication of graphene-based hybrid polymer composites with uniform distribution of graphene highly aids in fully harnessing graphene's unique properties and synergistic relation with other fillers [14,59]. However, the tendency of graphene layers to attach precedes clustering issues. Thus, efficient processing strategies, e.g., sonication, high shear mixing, and extrusion methods, aid homogeneous graphene dispersion and increase its reinforcing effect on the composite [60,61]. Moreover, curing conditions, e.g., time or temperature, significantly impact the interfacial bonding and load transfer ability between filler and matrix, improving the composite's mechanical properties and durability. Additionally, specific processing methods, e.g., 3D printing, electrospinning, spray coating, or shear-induced alignment, provide better control over the graphene orientation to get complex geometries with tailored anisotropic properties and the choice of preparation process dramatically impacts the cost-effectiveness and scalability of composites [62,63]. Several studies have compared the effectiveness of various processing methods by characterizing filler dispersion and composite performance. For example, Kim et al. [31] examined thermoplastic polyurethane (TPU) based composites containing thermally reduced graphene oxide (TRG) obtained via solvent dispersion, in situ polymerization, and melt mixing (Figure 7a). The results indicate that the structure and performance of composites are strongly influenced by preparation methods, suggesting the possibility of customization by optimizing manufacturing processes. Furthermore, it was found that solvent-treated composites exhibit higher stiffness and a lower electrical percolation threshold than those obtained via melt mixing, consistent with better dispersion of filler particles. Cao et al. [64] developed 3D graphene networks using Ni foam as a template in ethanol-CVD process. 3D graphene networks presented excellent templates for the construction of graphene-metal oxide composites (Figure. 7b). The NiO-graphene composite showed a high specific capacitance of ≈816 Fg⁻¹ and stable cycling efficiency, by maintaining the specific capacitance even after 2000 cycles at a scan rate of 5 mVs⁻¹. Pham et al. [65] produced poly(methyl methacrylate) /reduced graphene oxide (PMMA/RGO) composites with an electrical conductivity of 64 Sm^-1 at 2.7 vol% by using self-assembly of positively charged PMMA particles and negatively charged GO sheets by reduction with hydrazine (Figure 7c). Moreover, thermomechanical properties were improved with a 30% increase in storage modulus and a 15°C increase in glass transition temperature at only 0.5 wt.% RGO.

Figure 7. Different manufacturing practices for making graphene-polymer composites. (a) representations of TRG/TPU composite formulation routes and TEM images of TRG in TPU and 3 wt.% TRG/PU composites fabricating processes, revealing the improved dispersion of TRG by solution blending and in situ polymerization as compared to melt mixing [31]. (b) shows porous graphene frameworks manufactured by ethanol-CVD method: (i) represents the synthesis diagram of 3-D graphene networks on Ni foam by ethanol-CVD, (ii) shows Ni foam before and after the growing of graphene, and (iii) depicts 3D graphene assemblies after elimination of Ni foam [64]. (c) portrays 3D RGO interaction by a self-assembly method [65]: (i) illustrates the self-assembly of PMMA latex and graphene oxide, supported by hydrazine reduction of graphene oxide, and SEM images of RGO-PMMA composites packed with various filler loadings (ii) 2 wt.% and (iii) 4 wt.% [66]. Adopted with permission from refs. [31,64,65,66].

Figure 7. Different manufacturing practices for making graphene-polymer composites. (a) representations of TRG/TPU composite formulation routes and TEM images of TRG in TPU and 3 wt.% TRG/PU composites fabricating processes, revealing the improved dispersion of TRG by solution blending and in situ polymerization as compared to melt mixing [31]. (b) shows porous graphene frameworks manufactured by ethanol-CVD method: (i) represents the synthesis diagram of 3-D graphene networks on Ni foam by ethanol-CVD, (ii) shows Ni foam before and after the growing of graphene, and (iii) depicts 3D graphene assemblies after elimination of Ni foam [64]. (c) portrays 3D RGO interaction by a self-assembly method [65]: (i) illustrates the self-assembly of PMMA latex and graphene oxide, supported by hydrazine reduction of graphene oxide, and SEM images of RGO-PMMA composites packed with various filler loadings (ii) 2 wt.% and (iii) 4 wt.% [66]. Adopted with permission from refs. [31,64,65,66].

3. Applications

3.1. Aerospace Evolution: Lightweight Structural Components for Enhanced Performance

Graphene-based hybrid polymer composites are an excellent candidate for aerospace applications due to exceptional mechanical properties, e.g., strength, stiffness, and lightweight, to create robust structural components. The combination of lightweight, higher Young's modulus and tensile strength improves fuel efficiency, payload capacity, and overall aircraft efficiency [75]. Moreover, these composites can resist extreme temperature conditions, mechanical stress, and corrosion, making them suitable for aircraft frames, wings, and engine components. Space shuttles and high-velocity aircraft need a thermal management system to dodge overheating and structural issues. Graphene composites serve in thermal protection systems, heat shields, and thermal barriers due to their excellent thermal conductivity [76,77]. (Figure 8) shows potential applications of graphene-based polymer composites in different aspects of aerospace industries.

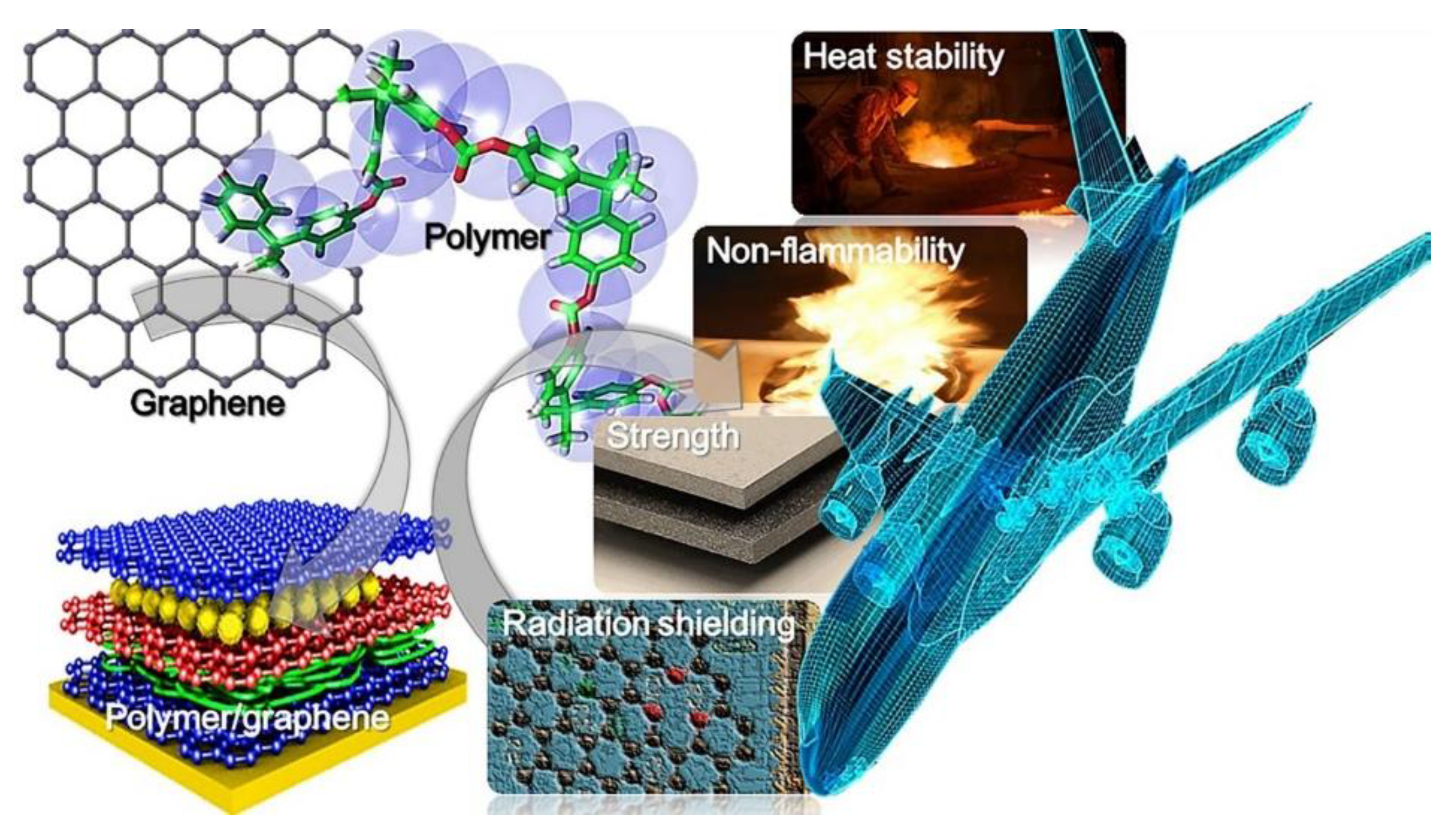

Figure 8. Multiple roles of graphene hybrid polymer composites in aerospace applications. Reprinted with permission from ref. [78].

Figure 8. Multiple roles of graphene hybrid polymer composites in aerospace applications. Reprinted with permission from ref. [78].

Furthermore, installing graphene composite-based sensors in aircraft provides real-time surveillance of structural deformation. Lightning strikes during flights cause severe accidents due to the absence of electrically conductive materials in manufactured parts, while graphene-based hybrid composites have excellent thermal and electrical conductivity and are favorable to resolving lightning strike problems [79]. Furthermore, space exploration demands robust materials to tolerate extensive radiation and vacuum conditions [80]. Graphene-based hybrid composites offer impressive radiation shielding, mechanical strength, and thermal stability to manufacture spacecraft components that are orientated to unforgiving space environments. However, utilizing the full potential of these composites encounters issues like cost-effectiveness, regulatory compliance, scalability, and standardized practices [81,82].

3.2. Advanced Electronics: High-Performance Conductive Materials and Flexible Circuits

Given their significant electrical and thermal conductivity [53], lightweight graphene-based hybrid polymer composites [83] present high-performance conductive coatings, optimal fuel efficiency, efficient heat dissipation [84], effective signal transmission, and electromagnetic shielding in electronics. These composites are perfect for flexible circuits and wearable devices due to their flexibility and lightweight nature [85]. Moreover, the synergy of their electrical and thermal properties with mechanical ability has revolutionized smart textiles, sensors [86], and integrated electronic systems [87,88]. Li et al. [89] presented an orientated assembly of giant graphene oxide (GGO) sheets via 3D printing and achieved flexible patterns with high surface area and enhanced electrical conductivity of up to 4.51 (± 0.18)×10⁴ Sm^-1. Moreover, these orientated patterns were tested for the electrically driven soft actuators, and it offered controlled deformation at lower voltage. (Figure 9) Shows detailed analysis and fabrication process of graphene hybrid composites in flexible and printable electronics by manufacturing a soft actuator with printed RGO electrodes. (Figure 9a) illustrates the electrical stimulation of the bilayer RGO/PDMS actuator, (Figure 9b) shows maximum bending angle as a function of driving voltage (Figure 9c) Digital images of reversible shape change of the actuator at different bending angles, and (Figure 9d) Hand-shaped actuator with independent control of the fingers by various gestures.

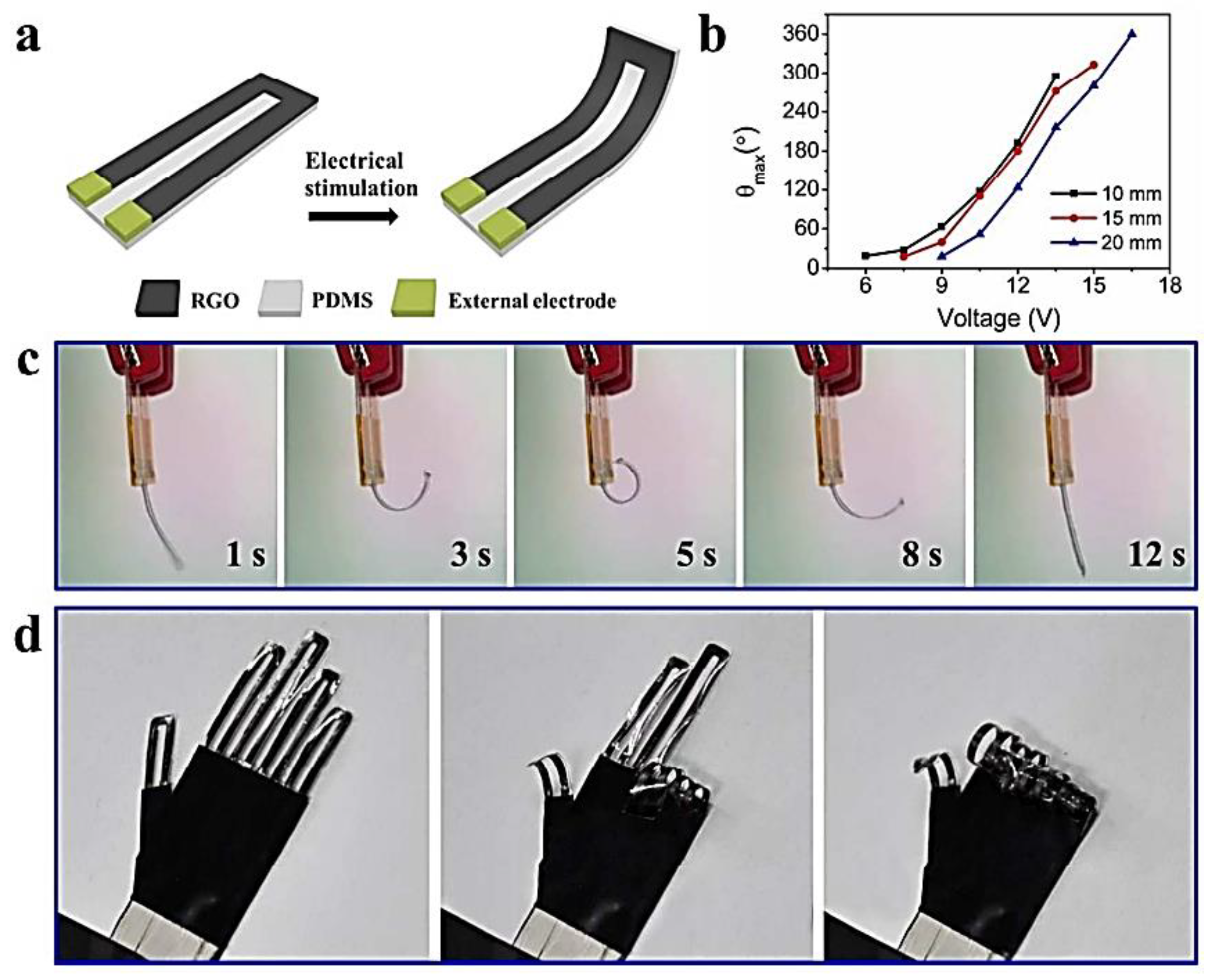

Figure 9. Manufacture of soft actuator with printed RGO electrodes. (a) RGO/PDMS bilayer actuator under electrical stimulation. (b) The maximum bending angle of the actuators as a function of the driving voltage. (c) Digital images of the actuator at various bending angles, with reversible shape change of the actuator. (d) The final look of a Hand-shaped actuator with independent fingers controlled by various gestures. Reprinted with permission from ref. [89].

Figure 9. Manufacture of soft actuator with printed RGO electrodes. (a) RGO/PDMS bilayer actuator under electrical stimulation. (b) The maximum bending angle of the actuators as a function of the driving voltage. (c) Digital images of the actuator at various bending angles, with reversible shape change of the actuator. (d) The final look of a Hand-shaped actuator with independent fingers controlled by various gestures. Reprinted with permission from ref. [89].

3.3. Energy Storage Revolution: Efficient Batteries and Supercapacitor

Graphene-based hybrid polymer composites have revolutionized energy storage technologies [90]. The remarkable electrical conductivity and large surface area leads to elevated energy storage in batteries and supercapacitors by facilitating faster charging and discharging rates, extending battery lifetime, and improving energy density. This progression addresses the energy demands of portable electronics, renewable energy storage systems, and electric vehicles, resulting in green energy solutions [91,92]. Additionally, these composites' electrical and thermal properties offer competent solar cells and thermoelectric generators by improving electron mobility, light absorption, and thermal conversion, resulting in efficient waste heat recovery [85]. He et al. [93] fabricated a very thin (0.5 mm width) graphene-based paper-like electrode for a micro-supercapacitor with a current density of 0.5 to 5 Acm⁻³, and exhibiting high volumetric capacitance of ∼3.6 F·cm⁻³ with highly high specific capacitance retention of up to 94% even after 20000 cycles. Figure 10 shows the detailed preparation process of composite and integration in micro-supercapacitor.

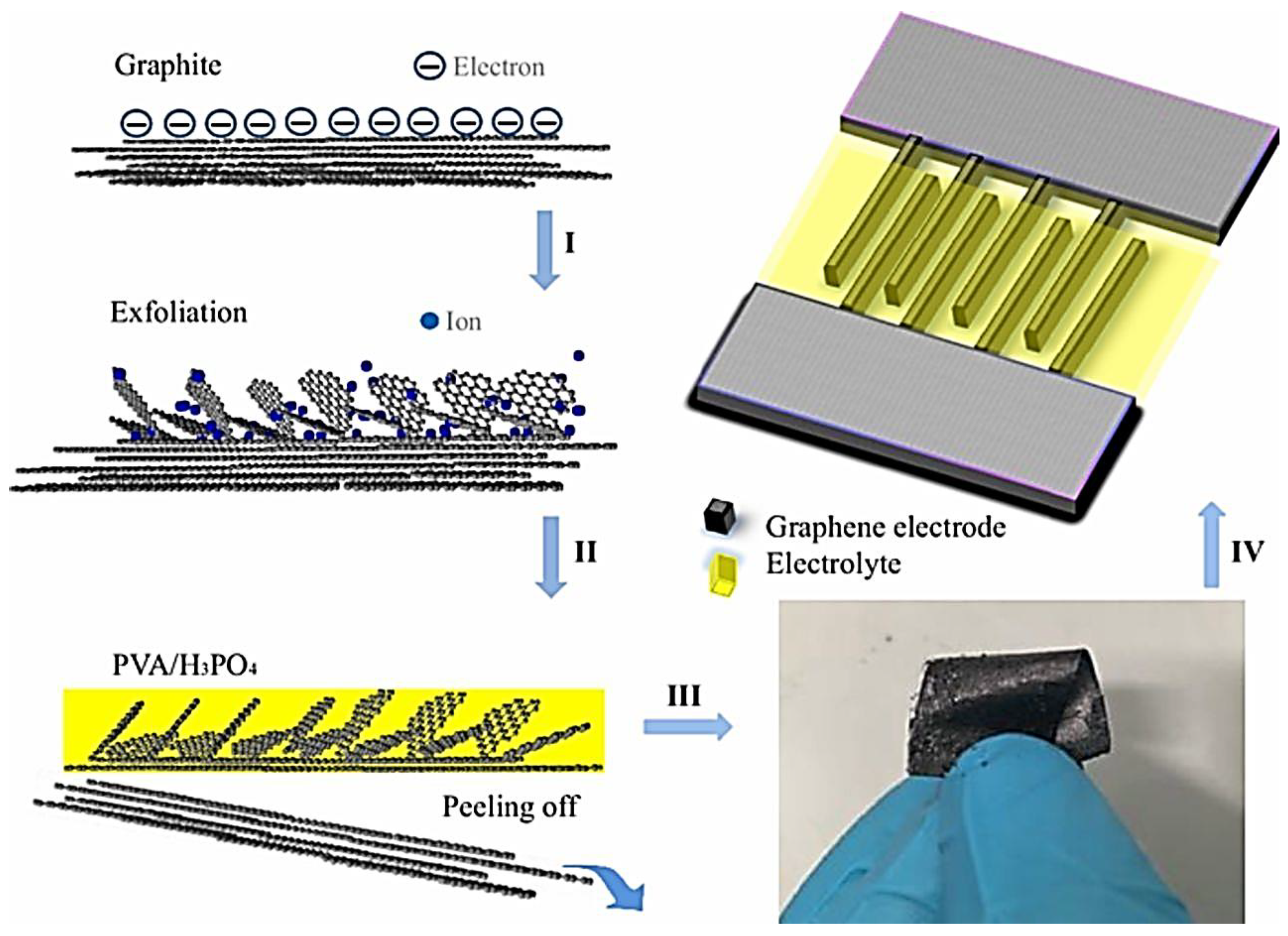

Figure 10. Preparation process of micro-supercapacitor. (I) electrochemical exfoliation of graphite foil. (II) coating the graphene/graphite foil with gel electrolyte (PVA/H3PO4). (III) Peeling off flexible graphene paper-like electrode (IV) building of the interdigitated micro-supercapacitor devices using the electrode paper. Reprinted with permission from ref. [93].

Figure 10. Preparation process of micro-supercapacitor. (I) electrochemical exfoliation of graphite foil. (II) coating the graphene/graphite foil with gel electrolyte (PVA/H3PO4). (III) Peeling off flexible graphene paper-like electrode (IV) building of the interdigitated micro-supercapacitor devices using the electrode paper. Reprinted with permission from ref. [93].

3.4. Transportation Innovation: Lightweight Automotive Components for Enhanced Efficiency

Graphene-based hybrid polymer composites are fundamental in developing robust and fuel-efficient vehicles due to their unique mechanical and lightweight properties. The high electrical conductivity of graphene-based composites dramatically improves the charging efficiency of lithium-ion batteries, resulting in optimum battery lifetimes in electric vehicles [94]. High mechanical strength [95] and higher flexibility facilitate tailored, impact-resistant, and safely enhanced vehicle modules [13]. Furthermore, outstanding thermal conductivity influences electric vehicles' energy efficiency and component durability by heat dissipation through batteries, electric motors, and power electronics [96,97,98]. (Figure 11) presents various graphene composites examined for load-bearing and structural automotive applications, such as seats for Daimler Chrysler sports cars, a diagonal support beam for Porsche, and bumper structures for BMW.

Figure 11. Role of graphene and advanced hybrid polymer composites in load-bearing automobile structure preparation [99]. Reprinted with permission from ref. [100].

Figure 11. Role of graphene and advanced hybrid polymer composites in load-bearing automobile structure preparation [99]. Reprinted with permission from ref. [100].

4. Conclusions

5. Future Perspectives
