Data-Driven Approach for Selecting Mechanical Rebar Couplers Based on the Shape and Structural Characteristics of Reinforcing Bars for Sustainable Built Environment

Altmetrics

Downloads

77

Views

17

Comments

0

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

15 April 2024

Posted:

15 April 2024

You are already at the latest version

Alerts

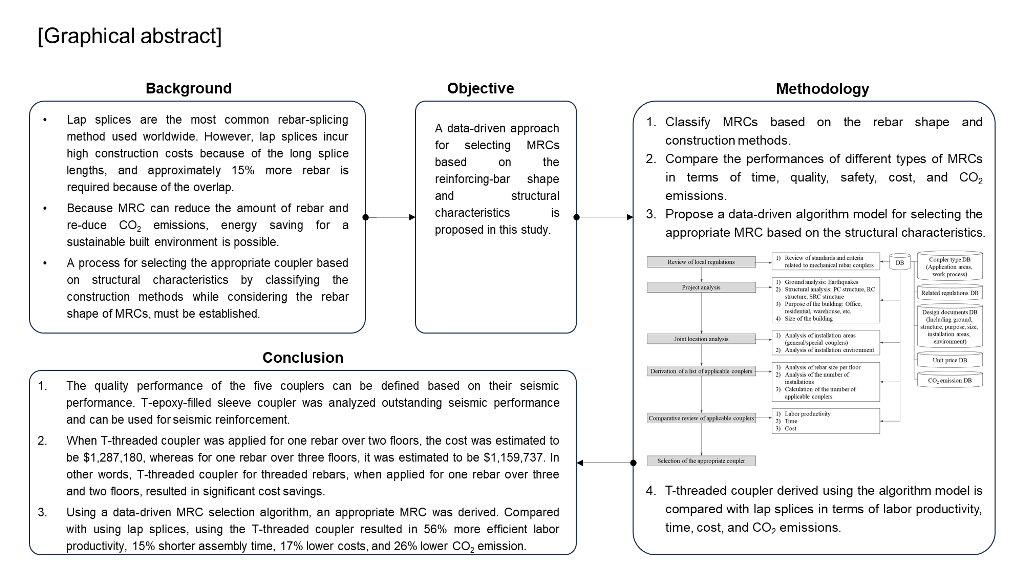

Abstract
In reinforced concrete (RC) structures, splicing is required owing to the length limitations of rebars, insufficient lengths, and transportation issues. In particular, splices connect the rebar of RC structures such as walls, columns, beams, slabs, and joints. Lap splices are the most commonly used method worldwide because they do not require specific equipment or skilled workers. However, lap splices incur high construction costs because of the long splice lengths required for large-diameter rebars in megastructures, as well as issues pertaining to material supply, labor costs, constructability, and project duration. Additionally, approximately 15% more rebar is required because of the overlap. Energy saving for a sustainable built environment is possible if the disadvantage of lap splices, which generate high CO2 emissions due to the excessive use of rebar, are resolved. Hence, mechanical rebar couplers (MRCs) have been developed. However, despite their advantages, they have not been widely applied in construction sites owing to concerns regarding safety, quality, and constructability. Although various MRCs have been developed, most studies focus only on their structural performance. Therefore, a data-driven approach for selecting MRCs based on the reinforcing bar shape and structural characteristics is proposed in this study. Using a data-driven MRC selection algorithm, using the T-threaded coupler for one rebar over two floors resulted in 56% more efficient labor productivity, 15% shorter assembly time, 17% lower costs, and 26% lower CO2 emission. Using a developed algorithm, the appropriate MRC can easily and rapidly be selected for frequent design changes.
Keywords:
Subject: Engineering  -   Civil Engineering

1. Introduction

In reinforced concrete (RC) structures, splicing is required owing to bar length limitations in accommodating building heights [1], insufficient lengths from factory production [2,3,4], and transportation issues [5,6,7,8]. In particular, splices connect the rebar of RC structures such as walls, columns, beams, slabs, and joints. Rebar splicing methods used in construction sites include lap splices, gas pressure welding, welded splices, and mechanical rebar couplers (MRCs) [5]. Gas pressure welding and welded splices are not applied owing to disadvantages such as the necessity for skilled workers and difficulties in ensuring quality.
Lap splices are the most common rebar splicing method used worldwide as they do not require any specific equipment or skilled workers [9,10,11]. Lap splices can incur high construction costs owing to the overlap length required for large-diameter rebars in megastructures such as high-rise buildings, as they can increase both the material supply and labor costs. The increase in dead load due to the rebar in the lap splice area (up to 20% of the total rebar weight) can adversely affect the overall behavior of the structure [5]. Moreover, complex rebar splicing and numerous joints render it difficult to organize joints on site and can result in unsatisfactory constructability owing to the improper placement of concrete between the rebars. Additionally, approximately 15% more rebar is required because of the overlap [2,12].
Globally, climate change has led to future droughts, heat waves, and sea level rise. One of the biggest causes of climate change is CO2 [13], and as the issue of CO2 pollution has recently become more prominent, international regulations on greenhouse gas emissions are being strengthened [14]. The World Bank Group published the world GDP growth rate [15], and the Construction Association of Korea reported the rebar price of 900 USD/ton. And the unit of carbon emissions of a reinforcement bar of 3.505-ton-CO2/ton [16], a carbon emission forecast was generated, as summarized in Table 1. Rebar usage increases every year, which is estimated to be about 1.269 billion tons in 2025. And this means that the generation of about 368.9 million tons of CO2 in 2025 is estimated. In other words, energy saving for a sustainable built environment is possible if the disadvantage of lap splices, which generate high CO2 emissions due to the excessive use of rebar, are resolved.
Compared to other joint methods, MRC can reduce the amount of rebar and reduce CO2 emissions. Site applications of MRCs are increasing owing to their advantages, as follows: (1) MRCs offer a strong bonding force, thus facilitating the maintenance of structural safety even during disasters such as earthquakes. (2) MRCs can be applied to existing structures, thus rendering them useful for reinforcement and repair work. (3) MRCs shorten the construction period owing to their simplicity. (4) MRCs are a relatively economical method for reinforcing and repairing structures and can thus reduce the overall construction cost [17,18]. (5) MRCs facilitate concrete pouring and compaction [2]. (6) MRCs can reduce the amount of rebar used compared with other splicing methods, thus reducing CO2 emissions. Hence, MRCs are widely used to strengthen and reinforce buildings.
Despite the abovementioned advantages, MRCs have not been widely applied outside of a few developed countries. This is because the variety and characteristics of MRCs vary significantly worldwide, thus rendering their selection difficult for construction projects. Owing to the increasing demand for modular construction and sustainable construction, which are aimed at reducing CO2 emissions, MRCs must be investigated more intensively.
In regard to investigations pertaining to MRCs, Hong et al. (2020) tested six groups to identify defects in rebar connections between half grouting sleeves, which included groups featuring insufficient grout height, insufficient compaction, rebar offset, insufficient rebar anchor length, and excessive grouting time, as well as a control group [19]. Han et al. (2018) proposed epoxy mortar-filled threaded couplers and conducted experiments to analyze the seismic behavior of precast columns [20]. Dabiri et al. (2022b) developed and validated a machine learning-based model to estimate the extreme strain of MRCs [21]. In addition, numerous structural experiments on MRCs have been conducted [22,23,24,25,26], and Dabiri et al. (2022a) published a review pertaining to splice methods used for reinforcement steel bars [5]. In general, most studies have focused on rebar splicing methods and experimental approaches. Thus, studies pertaining to MRCs are primarily based on structural experiments.
No study has been conducted that classifies and analyzes MRCs based on the rebar shape and structural characteristics such as deformed and threaded bars. Consequently, organized data pertaining to MRCs are not available, thus rendering it difficult to select the appropriate coupler during the construction phase. Therefore, a process for selecting the appropriate coupler based on structural characteristics, i.e., by analyzing and classifying the construction methods while considering the rebar shape of MRCs, must be established. In this regard, a data-driven approach for selecting MRCs based on the reinforcing bar shape and structural characteristics is proposed in this study.
The sequence of this study is as follows:
(1)
Existing studies pertaining to MRCs are reviewed.
(2)
The characteristics of different types of MRCs are compared.
(3)
The performance of different types of MRCs is compared in terms of quality, safety, time, cost, and CO2 emissions.
(4)
A data-driven algorithm model is proposed for selecting the appropriate MRC based on the structural characteristics.
(5)
A T-threaded coupler derived using the algorithm model is compared with lap splices in terms of labor productivity, time, cost, and CO2 emissions.

2. Existing Studies

Various MRCs have been developed worldwide, and their structural performance has been investigated experimentally. For example, researchers have investigated shear screw [27,28,29,30], headed bar [31,32], grouted sleeve [33,34,35,36,37,38,39,40,41,42], threaded [43], and swaged couplers [43,44].
Additionally, researchers have compared the performance of MRCs based on various standards [21]. Bompa and Elghazouli (2018) discussed the effects of coupler size and type on the ductility and deformation of joined rebars [45], and Bompa and Elghazouli (2019) investigated the inelastic cyclic performance of RC members featuring mechanical reinforcement joints [46]. Dahal and Tazarv (2020) evaluated the behaviors of various types of mechanical bar splices suitable for ductile members, and Haber et al. (2014) developed new bridge columns using mechanical reinforcement joints to connect precast columns to on-site poured foundations [47]. Kheyroddin et al. (2020) investigated the cyclic performance of RC columns with mechanical joints [22], and Rowell et al. (2009) evaluated the performance of mechanical couplers at high deformation rates [23]. Kheyroddin and Dabiri (2020) investigated the performance of RC beam–column joints using couplers [25], and Lloyd (2001) analyzed the performance of reinforcing bars joined by bar lock (shear screw) couplers [27]. However, the abovementioned researchers compared MRCs developed under certain conditions and derived results based on experiments.
Meanwhile, some researchers have categorized and tested MRCs based on their type. Tazarv and Saiidi (2016) classified tension–compression mechanical rebar joints into five common types based on their fixing mechanisms [24]. Dahal and Tazarv (2020) classified them into six types of couplers, i.e., threaded, headed bar, swaged, grouted sleeve, shear screw, and hybrid (a combination of two types) couplers [1]. In these studies, only structural experimental studies were conducted based on the structural mechanisms of MRCs, whereas the reinforcing bar shape and structural characteristics were not considered.

3. Classification of MRCs Based on Rebar Shape

Considering the characteristics of different construction sites, rebars can be classified into deformed bars, threaded bars, and special couplers, whereas MRCs can be classified into three types, as shown in Figure 1. In this study, MRCs applicable to general rebar joint areas such as columns, beams, and slabs are classified into deformed and threaded bars, whereas those applied to areas such as anchors and concrete embedding are classified as special couplers. Among the various couplers, swaged couplers are excluded due to quality issues arising from rebar stretching during joint fastening, and threaded couplers are excluded due to increased costs and longer construction periods, as well as difficulties in applying rebars of different standards. End-processed rebars are excluded due to structural stability defects caused by changes in the rebar structure caused by processing, and shear screws are excluded due to quality variances emanating from the manufacturing process and concerns regarding rebar damage during construction.

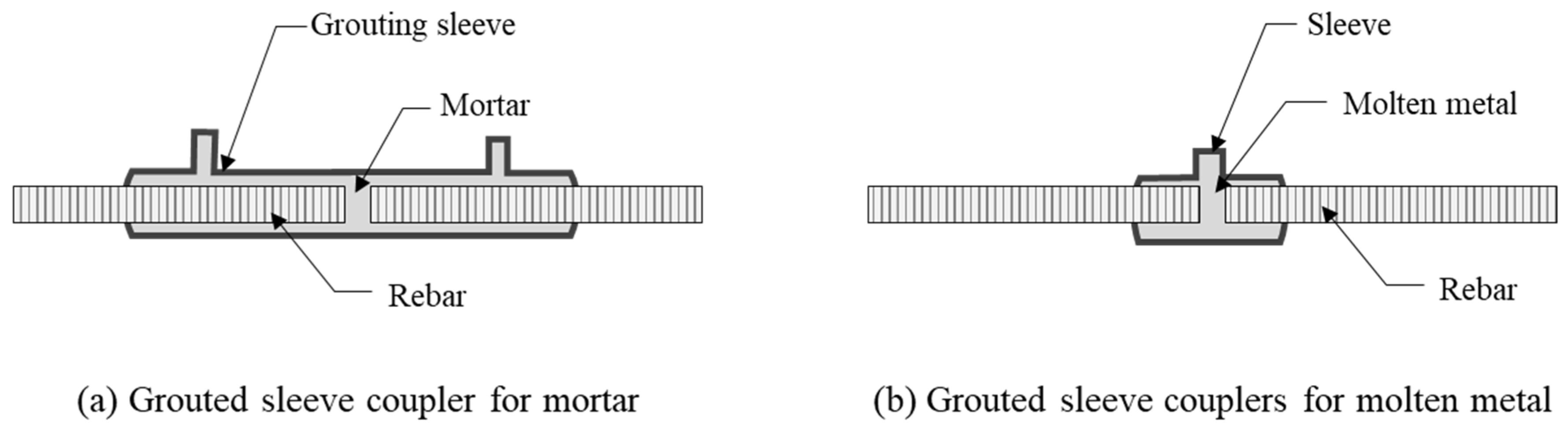

Joints applicable to deformed bars are classified into two types: D-grouted sleeve couplers and D-cad weld couplers. As shown in Figure 2a, grouted sleeve couplers involve filling mortar between the steel pipe and deformed rebar, thus allowing the stress at the rebar joint to be transferred through the mortar to the steel pipe. D-grouted sleeve couplers comprise three main components: the sleeve, grout, and two holes (grout inlet and grout outlet) [5]. After the bar is inserted meticulously into the sleeve, the sleeve is filled with non-shrinking high-strength mortar (or other suitable materials such as epoxy resin) [48]. Subsequently, the mortar is poured through the inlet, and air bubbles are removed via the outlet. As shown in Figure 2b, D-cad weld couplers involve filling the sleeve with molten metal instead of mortar. As this method requires large equipment, it is currently not widely used.

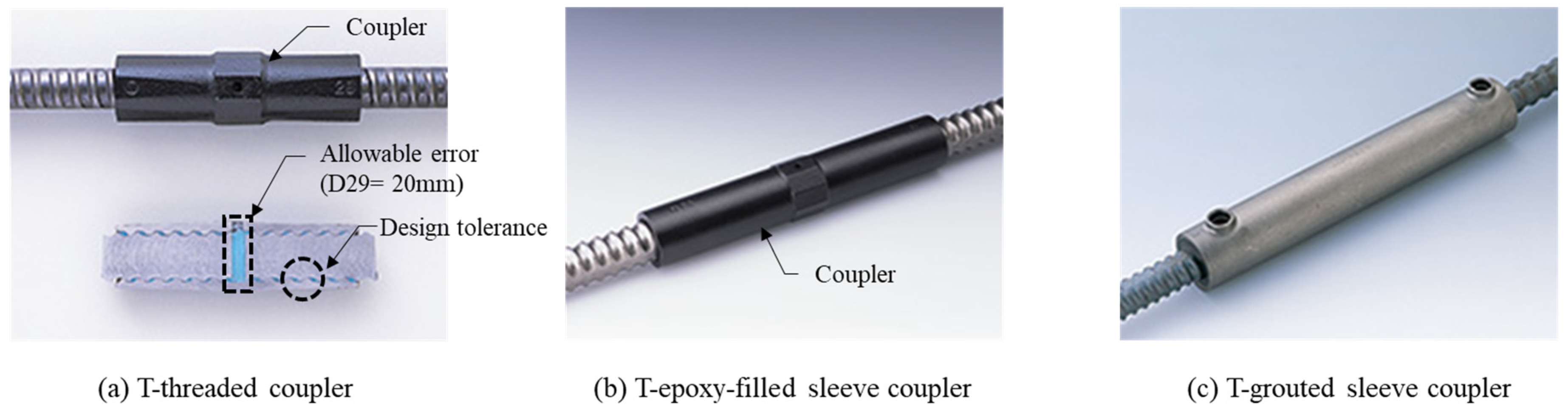

Joints applicable to threaded rebar can be classified into three types: T-threaded couplers, T-epoxy-filled sleeve couplers, and T-grouted sleeve couplers. As shown in Figure 3a, a threaded coupler, which is a general coupler used to join threaded rebars, is applied to threaded rebars [5]. A T-threaded coupler renders construction easier as it does not stretch during joining and is particularly advantageous for joints in columns and beams. When joining threaded rebar, the coupler and threaded rebar may become loose. However, this issue can be resolved as follows: Threaded rebar joints involve twisting the rebar into the coupling (i.e., in a manner resembling a screw), which requires the use of a helical rib rebar. Furthermore, unlike typical deformed rebar, helical rib rebars do not have lateral ribs; instead, they present circumferential ribs in a spiral direction, which resembles a screw. If a coupler that is compatible with the helical rebar is not available, then a dedicated coupler corresponding to the helical rebar manufactured by the respective manufacturer must be used.
Screw-fastening types can be classified into torque- and filling-fixation methods. Torque-fixation couplers secure a rock nut on both ends of the coupler to apply an initial tension between the coupler and rebar. The filling-fixation method involves injecting epoxy resin between the rebar and coupler using an air gun after coupling to integrate the joint area. Notably, shear screws can be applied in cases where rebars are embedded in concrete.
As shown in Figure 3b, the T-epoxy-filled sleeve coupler involves the use of epoxy resin, which hardens immediately upon injection, for fixing the rebar and coupler. Unlike gas pressure welding, it does not require large tools, machines, or skilled workers. A dual-cartridge epoxy gun is used as the injection tool. As shown in Figure 3c, T-grouted sleeve couplers are suitable for precast methods. This coupler has a small diameter and length, which can improve workability in both precast component manufacturing and on-site construction tasks. Excluding special couplers, this study analyzes five types of MRCs for deformed rebar (D-grouted sleeve couplers and D-cad weld couplers) and threaded rebar (T-threaded couplers, T-epoxy-filled sleeve couplers, and T-grouted sleeve couplers).

4. Analysis of Different MRC Types

4.1. Selection of Building

A building was selected for the analysis of different types of MRCs. The building is located in Anyang-si, Gyeonggi-do, South Korea, and its specifications are listed in Table 1. The building, which is an RC structure, features 20 floors above the ground and two underground floors.

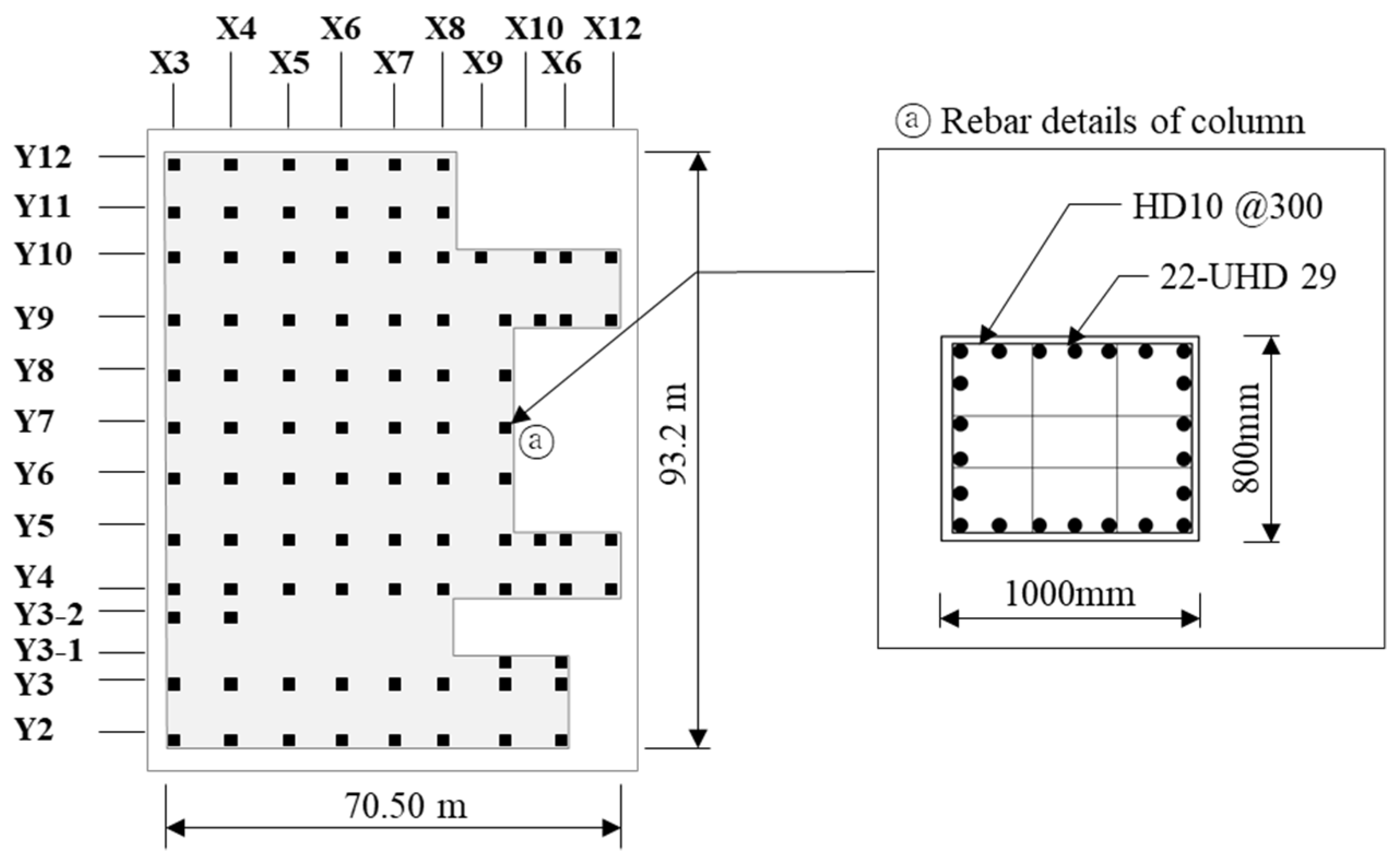

Figure 4 shows the applied column location and an example of the rebar detail for the seventh-floor plan of the building. The column is the member with the highest count and measures 1000 mm × 800 mm. Different types of columns are listed in Figure A1.

4.2. Analysis of Quality Including Seismic Performance

In this study, five types of MRCs for deformed rebar (D-grouted sleeve couplers and D-cad weld couplers) and threaded rebar (T-threaded couplers, T-epoxy-filled sleeve couplers, and T-grouted sleeve couplers) were analyzed. Table 2 shows the quality analysis of the five couplers. Among the joints for deformed rebar, D-grouted sleeve couplers were significantly affected by the sleeve material, sleeve shape (length and diameter), grout strength, and the bond between the grout and sleeve [36,37,38,50]. Meanwhile, D-cad weld couplers demonstrated excellent rigidity.
Among the joints for threaded rebar, T-threaded couplers enable the realization of high-strength rebar joints based on the principle of screws and specific high-strength cement grout. T-threaded couplers enable rebars of various sizes to be combined. Meanwhile, the T-epoxy-filled sleeve coupler enables the fixing of the rebar and coupler using epoxy, thus allowing rebars of various sizes to be combined. The T-grouted sleeve coupler involves the use of specific non-shrinking inorganic mortar, which achieves stable strength, durability, and fire retardancy upon injection.
The performance quality of the five couplers can be defined based on their seismic performance. Based on our analysis, the ranking from best to worst is the T-epoxy-filled sleeve coupler, T-threaded coupler, T-grouted sleeve coupler, D-grouted sleeve coupler, and D-cad weld coupler. MRCs for threaded rebars exhibit excellent seismic performance, i.e., the rebar outside of the coupler area breaks during disasters such as earthquakes. Specifically, the T-epoxy-filled sleeve coupler offers outstanding seismic performance and can be used for seismic reinforcement.

4.3. Safety Analysis

Table 3 shows the safety analysis of the five couplers. Among the joints for deformed rebars, D-grouted sleeve couplers do not require rebar stretching during connection and facilitate the joining of rebars of different standards, thus offering good constructability and wide applicability in the field. D-grouted sleeve couplers only require a manual mortar gun (i.e., specific equipment is not required), and the large gap between the rebar and steel pipe can easily conceal construction errors. Moreover, the large gap between the rebar and sleeve eases sleeve installation. As the rebar does not expand during joining, joining precast or beam members is advantageous. However, grouted sleeve couplers have a clearance of ±5 mm between the steel pipe and deformed rebar, which implies that their sleeve is larger than those of other couplers—this aspect must be considered during construction. The mortar used for filling is an inorganic non-shrinking mortar, and a strength of 700–1000 kg/cm2 is required. Hence, precautions must be exercised during construction. D-cad weld couplers are currently not widely used as they require large equipment to heat the filling material at the joint area.
T-threaded couplers applied to threaded rebars can be cut at any point along their length and combined with another coupler. It takes one coupler and two locknuts to connect the rebar. Additionally, they can be installed rapidly and easily in adverse weather conditions without requiring skilled workers or large machinery. T-epoxy-filled sleeve couplers use epoxy resin, which hardens immediately upon injection, for fixing the rebar and coupler. A dual-cartridge epoxy gun is used as the injection tool. In this method, workability is improved on site without the necessity to tighten locknuts. It was developed for simple and rapid construction and does not require specific equipment or skilled workers. Furthermore, it allows installation to be performed in adverse weather conditions. Meanwhile, T-grouted sleeve couplers offer good workability in both precast component manufacturing and on-site construction tasks. They are applicable even when rebar alignment is off.

4.4. Time Analysis

To perform time (including constructability) analyses for different types of MRCs, we obtained data pertaining to the resources used and measured work times for each coupler (see Table 4. The installation process for each type of MRC was classified based on activity. The resources and work times were measured based on the installation of one coupler. Here, resources refer to the manpower used for each activity, and the installation time of the coupler was estimated by acquiring data. In terms of installation time, the T-threaded coupler required 116.56 min. Only the pure assembly time of the coupler was estimated, i.e., excluding the release agent application, concrete pouring, tie–rebar assembly, accessory insertion, and crane operations.
Based on the second floor of the investigated building (see Figure 4), the installation time for each type of MRC was analyzed, as shown in Table 7. The installation of couplers for one floor was assumed to involve connecting the foundation and the first floor. The total rebar amount for all floors calculated (as presented in Table A1) was applied. In terms of the total work time, the D-cad weld coupler for deformed rebars indicated the least amount of time required, i.e., 496.17 h. In this case, the rebar coupler was applied to two floors as one rebar. Meanwhile, when applied as one rebar for three floors, it was calculated to be 299.09 h. Since the curing period for mortar is not a critical path, it was not considered in calculating the work time.
Table 5. Analysis of installation process for different MRC types.
Table 5. Analysis of installation process for different MRC types.
Screw Type Coupler Classification Process Required Manpower Work Time (min)
Rebar 1ea Column 1ea
For deformed rebar D-grouted sleeve coupler Installing coupler on placed rebar rebar labor 2 0.21 7.56
Filling mortar common labor 1 0.51 18.36
Curing - 1440.00 1440.00
Total 1465.50
D-cad weld coupler Installing coupler on placed rebar rebar labor 2 0.21 7.50
Filling with molten metal common labor 1 0.17 5.76
Cooling - 120.00 120.00
Total 133.26
For threaded rebar T-threaded coupler Installing coupler on placed rebar rebar labor 7 0.21 7.56
Tightening screws common labor 3 0.25 9.00
Grouting common labor 1 0.21 7.56
Curing - 0.17 6.12
Total 16.56
T-epoxy-filled sleeve coupler Installing coupler on placed rebar rebar labor 7 0.21 7.56
Filling epoxy common labor 1 0.22 7.92
Epoxy curing - 10 10.00
Total 25.48
T-grouted sleeve coupler Installing coupler on placed rebar rebar labor 7 0.21 7.56
Tightening screws common labor 3 0.25 9.00
Grouting common labor 1 0.47 16.96
Curing - 35.00 35.00
Total 60.56
Table 6. Estimated installation times for different MRC types.
Table 6. Estimated installation times for different MRC types.
Screw Type Coupler Classification Work Time (h)
For deformed rebar D-grouted sleeve coupler 1411.87
D-cad weld coupler 496.17
For threaded rebar T-threaded coupler 822.49
T-epoxy fixation 531.53
T-grouted sleeve coupler 1142.90
Productivity reflects the relationship between outputs and inputs in the production process [51]. Labor costs typically constitute 30%–50% of the total cost of a project. In the construction industry, labor is typically the dominant or sole resource; thus, labor productivity is generally regarded as the single factor for measuring productivity [52,53]. The American Association of Cost Engineers International [54] defines productivity in the construction industry as the “rate of output per unit of time or effort, usually measured in labor hours.” Labor productivity is calculated by summing the products of the labor force and work time required for each activity, as shown in Equation (1). Using the details provided in Table 4 and the work times listed in Table 5, the labor productivity can be calculated as shown in Table 7. In terms of labor productivity, D-cad weld couplers were shown to be the most efficient, with 88.49 man-days, whereas T-grouted sleeve couplers were the least efficient. For reference, applying a T-threaded joint for one rebar on two floors and one rebar on three floors required 275.29 and 187.70 man-days, respectively.
L P T = ∑ ( L A × T A )
LPT: sum of labor productivity for each activity; LA: number of people involved in each activity; TA: time required for each activity; i : ith activity (1,…, n).
Table 7. Labor productivity analysis.
Table 7. Labor productivity analysis.
Screw Type Coupler Classification Labor Productivity
(Unit: man·day)
For deformed rebar D-grouted sleeve coupler 142.71
D-cad weld coupler 88.49
For threaded rebar T-threaded coupler 372.88
T-epoxy-filled sleeve coupler 259.33
T-grouted sleeve coupler 412.93

4.5. Cost Estimation

Based on the case presented in Figure 4, the cost for each type of MRC was analyzed (see Table 7, Table 8, Table 9, Table 10 and Table 11). The labor cost rate applied was from the “2023 Second Half Construction Labor Wages Survey Report (Market Labor Rate)”, and the material cost and equipment fee were estimated using the “2023 Transaction Prices”, the “2023 Construction Standard Estimating System”, and actual field applied rates published by the Ministry of Economy and Finance and other professional pricing institutions. The cost of building materials is calculated by multiplying the quantity by the unit price of the material [55]. Comparing the total construction costs, D-grouted sleeve couplers for deformed rebars showed the lowest construction cost at USD 1,486,868. Notably, this method is widely used in actual sites for rebar joints in precast concrete (PC) structures. In this case, the rebar coupler was applied as one rebar per floor.
Additionally, as shown in Table 12 and Table 13, when a T-threaded coupler was applied for one rebar over two floors, the cost was estimated to be USD 1,287,180, whereas for one rebar over three floors, it was estimated to be USD 1,159,737. To apply T-threaded couplers to one rebar over three floors and one rebar over two floors, planning must be performed during the design drawing stage. Therefore, to achieve economic efficiency by applying T-threaded couplers, cost analysis should be conducted at the project planning stage, followed by design and construction.

4.6. CO2 Estimation

Using the labor, material costs, and indirect costs estimated from Table 7, Table 8, Table 9, Table 10 and Table 11, CO2 emissions were calculated, as shown in Table 14. Here, CO2 emissions corresponding to direct costs were calculated using the actual labor input and electricity use. Additionally, CO2 emissions corresponding to indirect costs were calculated using the actual lighting input and heating use. Comparing the resulting CO2 emissions, the D-grouted sleeve coupler showed the lowest emission at 4928.49 T-CO2. However, the CO2 emission by T-threaded couplers for one rebar over two floors and one rebar over three floors were 4761.50 and 4400.31 T-CO2, respectively. Therefore, the T-threaded coupler for one rebar over three floors resulted in the lowest CO2 emissions.

5. Proposed Data-Driven MRC Selection Process

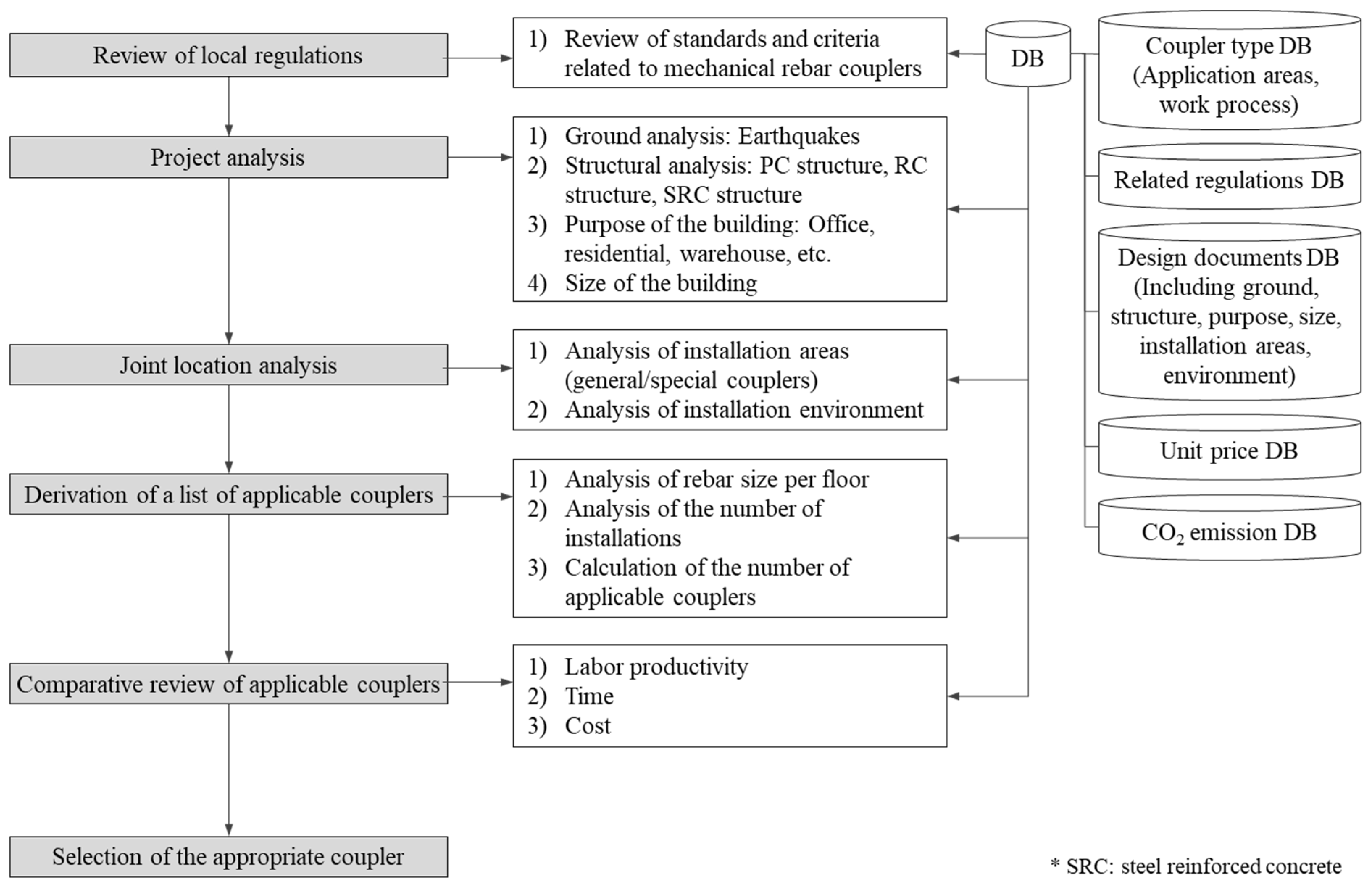

As shown in Figure 5, the MRC selection algorithm comprises six steps. All stages can be analyzed using a database (DB). This implies that data pertaining to the MRC type, related regulations, design documents, unit price, and CO2 emissions are required, and they are provided at each stage.
(1)
Review of local regulations
The criteria for coupler selection apply to all coupler types based on the mechanical coupler standards and regulations of each country [5]. Table 15 shows the regulations for Eurocode 2 [56], ACI 318–19 [57], UBC-97 [58], Caltrans SDC [59], AASHTO LRFD [60], and Korean Industrial Standards [61]. Eurocode 2 [56] does not provide specific standards for mechanical couplers [54]. According to section 25.5.7.1 of ACI 318–19 [57], Type 1 mechanical bar splices must satisfy a minimum of 1.25 fy in compression, and according to section 18.2.7.1, Type 2 must fulfill the requirements of Type 1 mechanical splices and represent the specified tensile strength of the rebar [5,58].
According to section 1912.14.3.4 of UBC-97 (1997), mechanical joints must provide 1.25 fy of a rebar in tension or compression, and according to section 1921.2.6.1, no splices are allowed at a vertical distance exceeding 24 inches (610 mm) [58]. Caltrans SDC (2013) allows “service” and ‘‘ultimate” couplers to be classified based on the deformation capacity [1,57]. Meanwhile, AASHTO LRFD (2014) only allows couplers that can express a minimum strength of 1.25 times the yield strength of the rebar [60]. Moreover, in South Korea, according to Korean Industrial Standards KSD 0249 (2019), couplers that exceed 1.25 times the minimum yield point of the rebar or the tensile strength of the rebar are allowed. For the case site shown in Table 1, South Korea’s KSD 0249 is applied [61].
(2)
Project analysis
Ground conditions must be analyzed when examining structures; in particular, earthquakes must be considered when examining structures in Indonesia and Japan, where earthquakes occur frequently. Generally, current bridge and building design regulations stipulate the use of mechanical splices in the plastic hinge zones of ductile members in areas susceptible to earthquakes [57,59,60]. For RC bridges and building members subject to earthquake loads, tension–compression couplers are necessitated to connect vertical rebars because the members resist periodic shaking [1]. Additionally, the building structure (e.g., PC, RC, and SRC structures, etc.) must be analyzed, and the possibility of cutting rebars for two floors per section or three floors per section based on the building’s use (offices, residences, warehouse facilities, etc.) should be assessed. Moreover, the applicability of MRCs based on the building size should be reviewed. This building is an RC structure, and the floor height for the 7th to 18th floors is 3800 mm. It can be installed with couplers for one rebar per floor or one rebar per two floors.
(3)
Joint location analysis

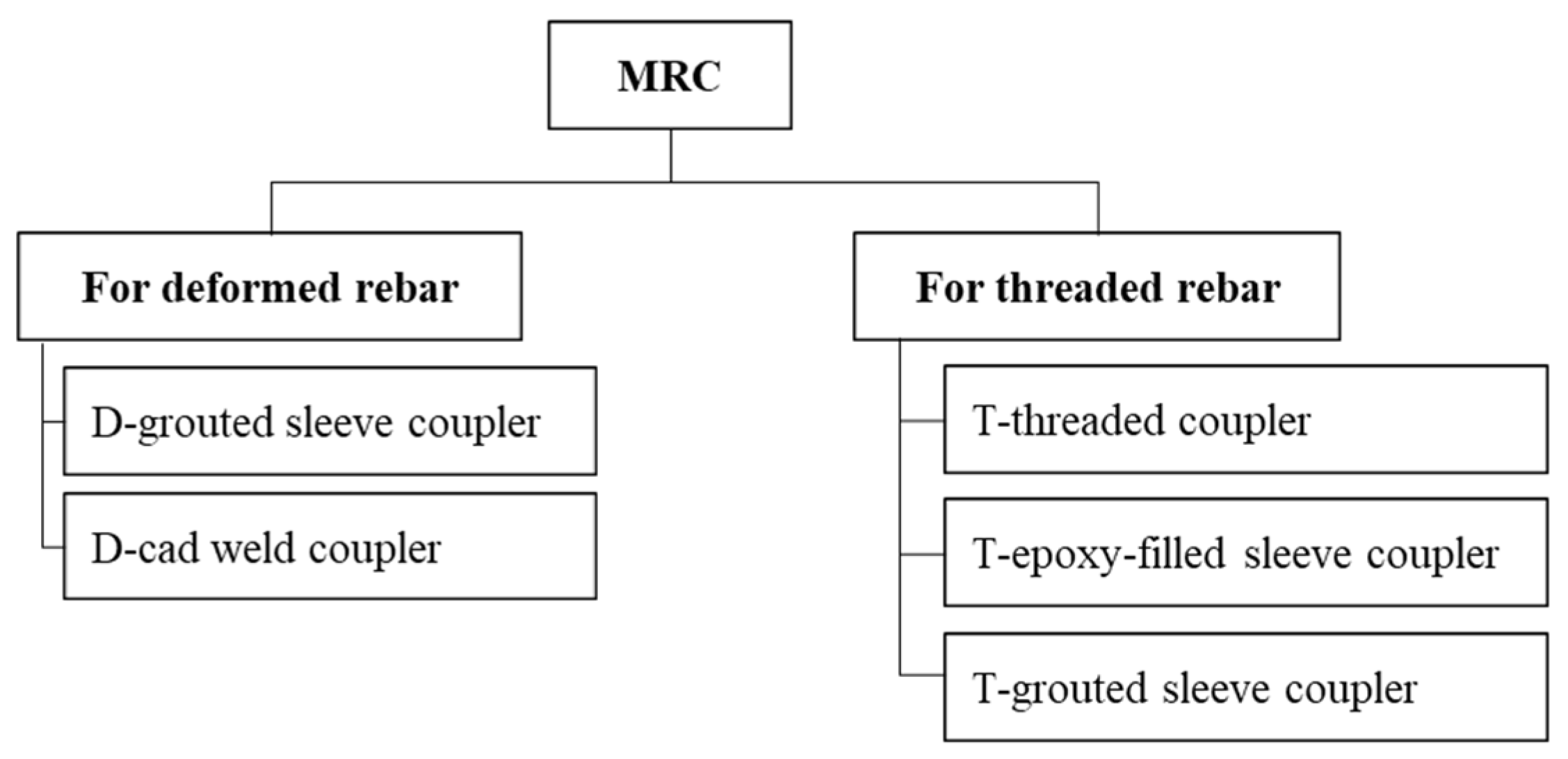

As shown in Figure 1, couplers can be classified into those for deformed and threaded rebars couplers. Couplers for deformed and threaded rebars are applied at columns and beams in general buildings, whereas special couplers are installed in areas other than general building joints such as footing beams and D-walls. Hence, the joint position must be analyzed based on the installation environment, and the appropriate coupler must be used. Moreover, special couplers can be classified into those used for welding fixed rebar units, concrete embedding, and anchoring. In this study, a special coupler was applied to the column members of the investigated building.Derivation of applicable coupler list
After analyzing the coupler types, a list of applicable couplers was derived. The rebar sizes for each floor of the investigated building were analyzed, and areas where rebar joints of different sizes were connected were identified. The number of couplers to be installed was analyzed, and the number of applicable couplers was summed. In this study, lap splices and mortar filling (two floors per section) were assumed.
(5)
Comparative review of applicable couplers
The advantages and disadvantages of couplers were compared in this study in terms of labor productivity, time, and cost. When lap splices were applied, the cost was estimated to be USD 1,530,209, as shown in Table 16. Applying the cost calculated for a T-threaded joint of one rebar over two floors from Table 12 can result in a cost reduction of 16.57%.
Based on the previously estimated results, the productivity, duration, and construction costs between lap splices and T-threaded couplers were compared, as shown in Figure 6. Compared with lap splices (the conventional method), T-threaded couplers (for two floors per section) indicated 56% more efficient labor productivity, 15% shorter construction time, 17% lower costs, and 26% lower CO2 emission. However, these values can vary depending on the site conditions and assumptions.
(6)
Selection of Appropriate Coupler
The advantages and disadvantages of couplers applicable to the investigated building were compared, and a suitable coupler was selected. In this study, a T-threaded coupler (for two floors per section) was applied, owing to its superiority in terms of labor productivity, duration, and cost compared with lap splices. When necessary, the feedback routine was performed to return to stages such as “review of local regulations” and “project analysis”, and the appropriate coupler was reselected. Subsequently, a cost-effective T-threaded coupler (for one rebar over two floors) was selected.

6. Discussion

MRC selection can vary based on key factors such as earthquake vulnerability, environmental conditions, and costs. Among the influencing factors, environmental conditions include temperature, humidity, and corrosiveness; earthquake vulnerability includes the site’s topography, ground conditions, and regional earthquake risk; and costs are categorized into purchasing and installation costs. Considering these factors, among the five types of MRCs, the T-epoxy-filled sleeve coupler was shown to possess the best quality owing to its excellent seismic performance and resistance to temperature, humidity, and corrosion. However, because of its high purchase and installation costs, it cannot be readily applied in the field. Therefore, T-epoxy-filled sleeve couplers should be compared with other MRCs in future studies to enhance their field applicability and devise cost reduction strategies. Additionally, comparative studies pertaining to MRCs should be conducted based on the purpose and characteristics of different buildings.
D-cad weld couplers are not currently widely used as they require large equipment to heat the filler at the joint; nonetheless, they should be investigated further through technological development. In regard to threaded couplers, their joint state can be inspected easily, and their joint strength is stronger than the strength of the rebar material. Under the same conditions as those presented in Table 5, the time required for the shell coupler should be 40 h. However, the compatibility of the shell coupler with the rebar shape is low, and the rebar can slip; thus, subsequent actions such as mortar filling are necessitated. Under different rebar standards, mortar filling is required, and the constructability of spiral and circular tie rebars is deteriorated. Therefore, the shell coupler was excluded when conducting this study. Additionally, a composite coupler combines various mechanical splicing techniques that are primarily used for modular construction, such as for constructing PC components. The limitations of labor-intensive construction production methods [62] can be improved. When using threaded rebar, one can change the application method on site based on the design. This implies that design changes can be accommodated easily during construction as various couplers can be flexibly used with one type of rebar.
Recently, the integration of mechanical splicing in precast RC structures has increased [42,63,64,65,66]. For PC structures, beams and columns are manufactured in factories with inserted rebars, and production errors can render accurate rebar positioning difficult. Therefore, using MRCs with mortar filled through sleeves is useful as it avoids the necessity of reproducing components. For large logistics centers and IDC centers designed with a floor height of approximately 10 m, which is equivalent to approximately three floors of a general building, the same conditions as those for three floors per section are applied. Furthermore, mechanical couplers are used to join rebars of PC components, and high-strength expansive cementitious grout is poured to connect precast beams with columns [63,64]. Liu et al. (2018) proposed a half-threaded half-grouted sleeve for connecting rebars [67].
Meanwhile, Huang et al. (2020) investigated the application of sleeves filled with resin (instead of grout) for FRP rebars [68]. The performance of FRP structures has been evaluated in various studies via field applications [69,70,71,72], and the bond between concrete and FRP rebar is a significant concern because it controls the load-bearing capacity and ductility as well as the limits of deflection and crack width in RC structural members [73,74]. Additionally, the use of FRP reinforcing materials can reduce future maintenance and repair costs arising from increased corrosion resistance and the durability of concrete structures [75,76]. However, FRP rebars exhibit higher tensile strengths but weaker bond strengths compared with steel rebars, thus requiring complex regulations for lap lengths. This results in complicated rebar splicing in concrete members (beams and columns) where laps are provided. Moreover, securing the concrete cover thickness is challenging, which renders it more effective to apply MRCs to standard rebars than to FRP rebars.

7. Conclusions

In this study, five types of MRCs for deformed rebars (D-grouted sleeve couplers and D-cad weld couplers) and threaded rebars (T-threaded couplers, T-epoxy-filled sleeve couplers, and T-grouted sleeve couplers) were analyzed. Data pertaining to each type of MRC were obtained, and their characteristics were analyzed in terms of their construction method, which included the duration of installation, quality, safety, cost, and CO2 emissions, based on the shape and structural characteristics of the reinforcing bars. Furthermore, selection algorithms for suitable couplers were analyzed via classification based on the characteristics of the structure. The conclusions inferred from this study are as follows:
First, the quality performance of the five couplers can be defined based on their seismic performance. Based on our analysis, the ranking from best to worst is the T-epoxy-filled sleeve coupler, T-threaded coupler, T-grouted sleeve coupler, D-grouted sleeve coupler, and D-cad weld coupler. MRCs for threaded rebars exhibit excellent seismic performance, i.e., the rebar outside of the coupler area breaks during disasters such as earthquakes. Specifically, the T-epoxy-filled sleeve coupler presents outstanding seismic performance and can be used for seismic reinforcement.
Second, when a T-threaded coupler was applied for one rebar over two floors, the cost was estimated to be USD 1,287,180, whereas for one rebar over three floors, it was estimated to be USD 1,159,737. In other words, the T-threaded coupler for threaded rebars, when applied for one rebar over three and two floors, resulted in significant cost savings. For one rebar per floor, D-grouted sleeve couplers for deformed rebars were shown to be the most cost effective. For one rebar and one column member, the curing period was included in estimating the construction time. However, when assembling couplers for the entire column’s rebar, the curing time constituted the assembly time and was not considered a critical path; therefore, it was excluded in the estimation.
Third, when designing for one rebar per floor, planning must be performed from the design stage to apply one rebar over two or three floors. Therefore, to achieve economic benefits by applying T-threaded couplers to threaded rebars, cost analysis should be conducted at the project planning stage, followed by design and construction.

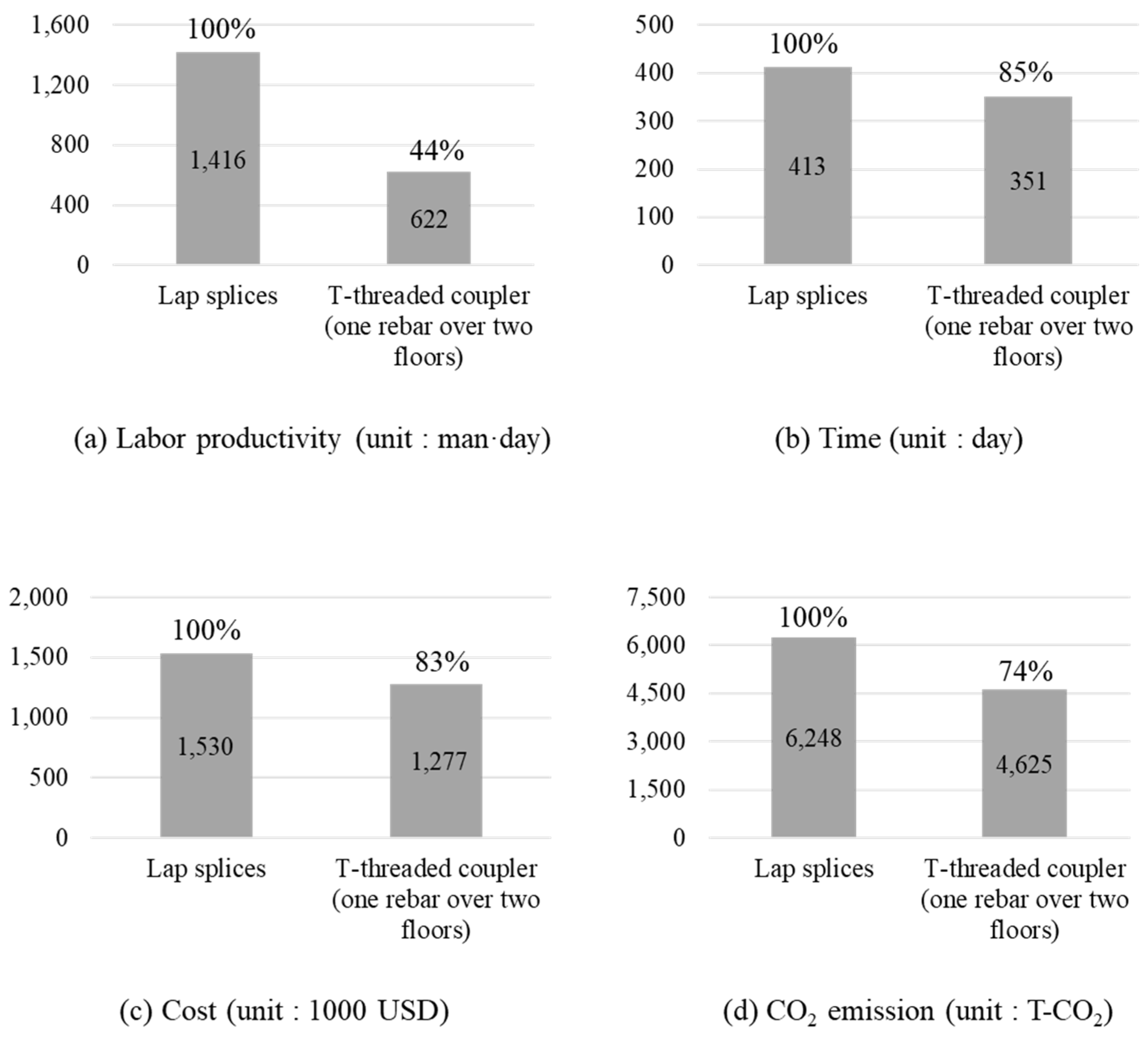

Fourth, using a data-driven MRC selection algorithm, an appropriate MRC was derived. Compared with using lap splices (the conventional method), using the T-threaded coupler (for one rebar over two floors) resulted in 56% more efficient labor productivity, 15% shorter assembly time, 17% lower costs, and 26% lower CO2 emission. Thus, using the T-threaded coupler (for two floors per section) was more efficient than using lap splices. However, the results can vary for sites with different conditions.
Fifth, using the data-driven MRC selection algorithm allows one to select MRCs rapidly and easily on site. The developed model presents the necessary data and enables data management. Hence, using this model, one can easily and promptly respond to frequent design changes during project execution and apply the appropriate MRC based on the situation.
This study shows that couplers suitable for site conditions can be selected in the early stages of construction based on the reinforcing bar shape and structural characteristics. Because the results obtained in this study are based on acquired data, applying them to different types of buildings and other structural components such as beams and slabs may yield different results. Although this study was conducted on the columns of a factory building, further studies should be performed on different types of buildings and other structural components such as beams and slabs. Additionally, studies should be performed to specify the MRC selection process and apply it to case studies, and the characteristics of special couplers should be examined.

Author Contributions

J.L.: Methodology, formal analysis, investigation, validation, writing—original draft preparation, writing—review and editing, resources, and funding acquisition. S.K.: Conceptualization, methodology, investigation, resources, writing—review and editing, supervision, project administration, and funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grants funded by the government of the Republic of Korea (MOE) [No. 2021R1C1C2094527]. This work was supported by the National Research Foundation of Korea (NRF) grants funded by the government of the Republic of Korea (MOE) [No. 2022R1A2C2005276].

Data Availability Statement

Data sharing is not applicable to this paper.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that may have influenced the work reported in this paper.

Appendix A

Preprints 103901 g0a1

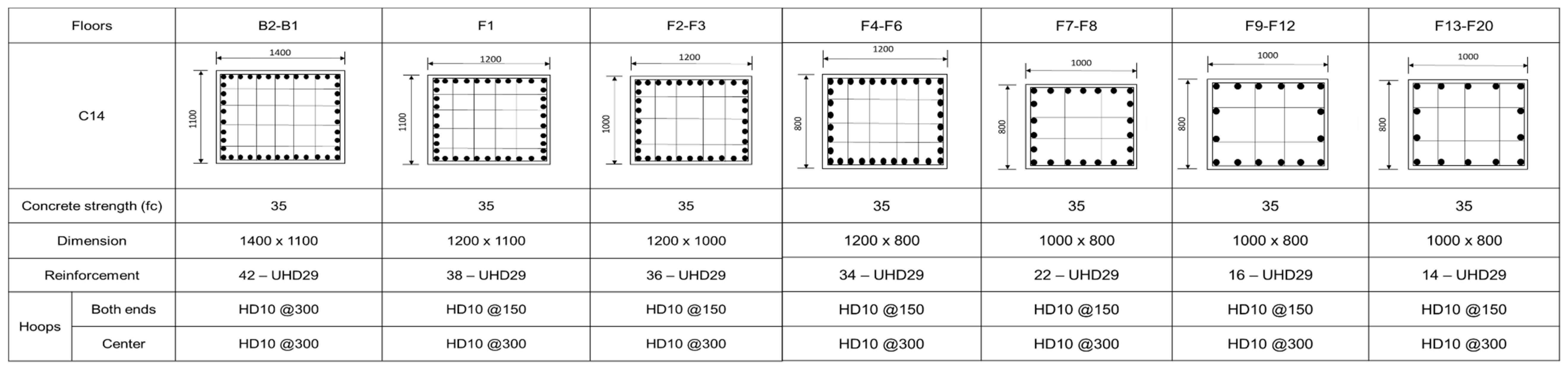

Figure A1. Rebar arrangement of columns.
Figure A1. Rebar arrangement of columns.
Preprints 103901 g0a1
Table A1. Total rebar amount for all floors.
Table A1. Total rebar amount for all floors.
Floor Floor Height (mm) Lapping Length (mm) Number of Rebars (ea) Number of Columns (ea) Total Quantity (ton)
B2 3700 24.86 42 145 114.3294
B1 4600 24.86 42 118 115.5209
F1 4600 24.86 38 109 96.54715
F2 5600 24.86 36 101 103.0781
F3 5600 24.86 36 101 103.0781
F4 5600 24.86 34 101 97.35152
F5 5600 24.86 34 101 97.35152
F6 6000 24.86 34 101 104.2745
F7 3800 24.86 22 93 39.44137
F8 3800 24.86 22 41 17.38813
F9 3800 24.86 16 44 13.57122
F10 3800 24.86 16 44 13.57122
F11 3800 24.86 16 44 13.57122
F12 3800 24.86 16 44 13.57122
F13 3800 17.05 14 32 8.61859
F14 3800 17.05 14 32 8.61859
F15 3800 17.05 14 32 8.61859
F16 3800 17.05 14 32 8.61859
F17 3800 17.05 14 32 8.61859
F18 3800 17.05 14 32 8.61859
F19 4400 17.05 14 32 9.973342
F20 4400 17.05 14 26 8.10334
Total 516 1437 1012.434

References

  1. Dahal, P.K.; Tazarv, M. Mechanical bar splices for incorporation in plastic hinge regions of RC members. Constr. Build. Mater. 2020, 258, 120308. [CrossRef]
  2. Damsara, K.D.P.; Kulathunga, D.D.T.K. Analysis on effectiveness of rebar couplers in splicing of reinforcement bars. In Proceedings of the International Symposium on Advances in Civil and Environmental Engineering Practices for Sustainable Development (ACEPS-2018), University of Ruhuna, Galle, Sri Lanka, 5 March 2018.
  3. Rachmawati, T.S.N.; Khant, L.P.; Lim, J.; Lee, J.; Kim, S. Optimization of lap splice positions for near-zero rebar cutting waste in diaphragm walls using special-length-priority algorithms. J. Asian Arch. Build. Eng. 2023, 1–18. [CrossRef]
  4. Kwon, K.; Kim, D.; Kim, S. Cutting Waste Minimization of Rebar for Sustainable Structural Work: A Systematic Literature Review. Sustainability 2021, 13, 5929. [CrossRef]
  5. Dabiri, H.; Kheyroddin, A.; Dall’Asta, A. Splice methods used for reinforcement steel bars: A state-of-the-art review. Constr. Build. Mater. 2022, 320, 126198. [CrossRef]
  6. Metelli, G.; Cairns, J.; Plizzari, G. The influence of percentage of bars lapped on performance of splices. Mater. Struct. 2015, 48, 2983–2996. [CrossRef]
  7. Mabrouk, R.T.; Mounir, A. Behavior of RC beams with tension lap splices confined with transverse reinforcement using different types of concrete under pure bending. Alex. Eng. J. 2018, 57, 1727–1740. [CrossRef]
  8. Tarabia, A.M.; Mahmoud, Z.I.; Shoukry, M.S.; Abudina, A.A. Performance of R.C. slabs with lap splices using headed bars. Alex. Eng. J. 2016, 55, 2729–2740. [CrossRef]
  9. Alyousef, R.; Topper, T.; Al-Mayah, A. Crack growth modeling of tension lap spliced reinforced concrete beams strengthened with fibre reinforced polymer wrapping under fatigue loading. Constr. Build. Mater. 2018, 166, 345–355. [CrossRef]
  10. Karabinis, A.I. Reinforced concrete beam-column joints with lap splices under cyclic loading. Struct. Eng. Mech. 2002, 14, 649–660. [CrossRef]
  11. Najafgholipour, M.; Dehghan, S.; Khani, M.; Heidari, A. The performance of lap splices in RC beams under inelastic reversed cyclic loading. Structures 2018, 15, 279–291. [CrossRef]
  12. Harinkhede, S.N.; Supekar, G.S.; Ingvale, S.B.; Wagaralakar, V.V.; Narwade, A.S.; Dhomse, S.M. Investigation of new tech-niques in mechanical rebar coupler as an alternative to lap splices. Imp. J. Interdiscip. Res. 2016, 2, 1039–1041.
  13. Jung, K. O., and Chung, Y. K. The pollution and economic growth based on the multi-country comparative analysis. Journal of Industrial Economics and Business 2004. 17, 1077–1098.
  14. Giesekam, J., Taylor, J. P. and Owen, A. The greenhouse gas emissions and mitigation options for materials used in UK construction. Energy and Buildings 2014. 78, 202–214. [CrossRef]
  15. The World Bank Group, Global Economic Prospects June: 2023. https://www.worldbank.org/en/publication/global-economic-prospects (accessed on 11 April 2024).
  16. Ghayeb, H.H.; Razak, H.A.; Sulong, N.H.R. Evaluation of the CO2 emissions of an innovative composite precast concrete structure building frame, J. Clean. Prod. 2020, 42, 118567. [CrossRef]
  17. Singh, R.; Himanshu, S.K.; Bhalla, N. Reinforcement couplers as an alternative to lap splices: A case study. Int. J. Eng. Res. Technol. 2013, 2, 1–5.
  18. PSwami, S.; Javheri, S.B.; Mittapalli, D.L.; Kore, P.N. Use of mechanical splices for reinforcing steel. Int. J. Innov. Eng. Res. Technol. 2016, 1–3.
  19. Guo, H.; Zhang, J.; Wang, C. Experimental Study on Influence of Connection Defects on Joint Strength of Half-Grouted Sleeve Splicing of Rebar. Adv. Civ. Eng. 2020, 2020, 5389861. [CrossRef]
  20. Han, W.; Zhao, Z.; Qian, J.; Cui, Y.; Liu, S. Seismic behavior of precast columns with large-spacing and high-strength longitudinal rebars spliced by epoxy mortar-filled threaded couplers. Eng. Struct. 2018, 176, 349–360. [CrossRef]
  21. Dabiri, H.; Farhangi, V.; Moradi, M.J.; Zadehmohamad, M.; Karakouzian, M. Applications of Decision Tree and Random Forest as Tree-Based Machine Learning Techniques for Analyzing the Ultimate Strain of Spliced and Non-Spliced Reinforcement Bars. Appl. Sci. 2022, 12, 4851. [CrossRef]
  22. Kheyroddin, A.; Mohammadkhah, A.; Dabiri, H.; Kaviani, A. Experimental investigation of using mechanical splices on the cyclic performance of RC columns. Structures 2020, 24, 717–727. [CrossRef]
  23. Rowell, S.P.; Grey, C.E.; Woodson, S.C.; Hager, K.P. High Strain-Rate Testing of Mechanical Couplers. US Army Corps of En-gineers, Engineer Research and Development Center; Report No. ERDC TR-09-8. 2009. p. 74. Available online: https://erdc-library.erdc.dren.mil/jspui/handle/11681/8591 (accessed on 23 September 2023).
  24. Tazarv, M.; Saiidi, M.S. Seismic design of bridge columns incorporating mechanical bar splices in plastic hinge regions. Eng. Struct. 2016, 124, 507–520. [CrossRef]
  25. Kheyroddin, A.; Dabiri, H. Cyclic performance of RC beam-column joints with mechanical or forging (GPW) splices; an experimental study. Structures 2020, 28, 2562–2571. [CrossRef]
  26. Bompa, D.; Elghazouli, A. Ductility considerations for mechanical reinforcement couplers. Structures 2017, 12, 115–119. [CrossRef]
  27. Lloyd, W.R. Qualification of the Bar-Lock Rebar Coupler for Use in Nuclear Safetyrelated Applications Mechanical Testing Program and Performance Analysis; Report No. INEEL/EXT-02-01387; Idaho National Engineering and Environmental Laboratory Materials Department: New York, NY, USA; 2001. p. 22.
  28. Hillis, D.; Saiidi, M.S. Design, Construction, and Nonlinear Dynamic Analysis of Three Bridge Bents Used in a Bridge System Test. Reno, Nevada: Center for Civil Engineering Earthquake Research, Department of Civil and Environmental Engineering, University of Nevada; Report No. CCEER-09-03. 2009. p. 82. Available online: https://citeseerx.ist.psu.edu/document?repid=rep1&type=pdf&doi=cb7b6ffea1f3df87bbc720b96d59fb17166024e6 (accessed on 23 September 2023).
  29. Huaco, G.; Jirsa, J. Performance of damaged column retrofitted with innovative materials and devices. In Proceedings of the 15th World Conference on Earthquake Engineering, 15WCEE, Lisbon, Portugal. 24–28 September 2012; p. 10.
  30. Alam, M.S.; Youssef, M.A.; Nehdi, M.L. Exploratory investigation on mechanical anchors for connecting SMA bars to steel or FRP bars. Mater. Struct. 2010, 43, 91–107. [CrossRef]
  31. Sritharan, S.; Ingham, J.; Priestley, M.; Seible, F. Design and persormance of bridge cap beam/column using headed reinforcement and mechanical couplers. Developments of seismic steel reinforcement products & systems, SP-184. Spec. Publ. 1999, 184, 7–22. [CrossRef]
  32. Haber, Z.B.; Saiidi, M.S.; Sanders, D.H. Precast Column-Footing Connections for Accelerated Bridge Construction in Seismic Zones; Report No. CCEER-13-08; Center for Civil Engineering Earthquake Research, Department of Civil and Environmental Engineering, University of Nevada: Reno, NV, USA, 2013; p. 502.
  33. Ghayeb, H.H.; Razak, H.A.; Sulong, N.R.; Mo, K.H.; Abutaha, F.; Gordan, M. Performance of mechanical steel bar splices using grouted couplers under uniaxial tension. J. Build. Eng. 2021, 34, 101892. [CrossRef]
  34. Henin, E.; Morcous, G. Non-proprietary bar splice sleeve for precast concrete construction. Eng. Struct. 2015, 83, 154–162. [CrossRef]
  35. Ling, J.H.; Rahman, A.B.A.; Ibrahim, I.S. Feasibility study of grouted splice connector under tensile load. Constr. Build. Mater. 2014, 50, 530–539. [CrossRef]
  36. Lin, F.; Wu, X. Mechanical Performance and Stress–Strain Relationships for Grouted Splices Under Tensile and Cyclic Loadings. Int. J. Concr. Struct. Mater. 2016, 10, 435–450. [CrossRef]
  37. Ling, J.H.; Rahman, A.B.A.; Ibrahim, I.S.; Hamid, Z.A. Behaviour of grouted pipe splice under incremental tensile load. Constr. Build. Mater. 2012, 33, 90–98. [CrossRef]
  38. Ling, J.H.; Rahman, A.B.A.; Ibrahim, I.S.; Hamid, Z.A. Tensile capacity of grouted splice sleeves. Eng. Struct. 2016, 111, 285–296. [CrossRef]
  39. Yuan, H.; Zhenggeng, Z.; Naito, C.J.; Weijian, Y. Tensile behavior of half grouted sleeve connections: Experimental study and analytical modeling. Constr. Build. Mater. 2017, 152, 96–104. [CrossRef]
  40. Seo, S.-Y.; Nam, B.-R.; Kim, S.-K. Tensile strength of the grout-filled head-splice-sleeve. Constr. Build. Mater. 2016, 124, 155–166. [CrossRef]
  41. Zheng, Y.; Guo, Z.; Guan, D.; Zhang, X. Parametric study on a novel grouted rolling pipe splice for precast concrete construction. Constr. Build. Mater. 2018, 166, 452–463. [CrossRef]
  42. Xin, G.; Xu, W.; Wang, J.; Yan, X.; Chen, Y.; Yan, W.; Li, J. Seismic performance of fabricated concrete piers with grouted sleeve joints and bearing-capacity estimation method. Structures 2021, 33, 169–186. [CrossRef]
  43. Noureddine, I. Plastic Energy Absorption Capacity of #18 Reinforcing Bar Splices under Monotonic Loading. Master’s Thesis, California State University, Sacramento, CA, USA, 1996; p. 108.
  44. Yang, Y.; Sneed, L.H.; Morgan, A.; Saiidi, M.S.; Belarbi, A. Repair of RC bridge columns with interlocking spirals and fractured longitudinal bars—An experimental study. Constr. Build. Mater. 2015, 78, 405–420. [CrossRef]
  45. Bompa, D.; Elghazouli, A. Monotonic and cyclic performance of threaded reinforcement splices. Structures 2018, 16, 358–372. [CrossRef]
  46. Bompa, D.; Elghazouli, A. Inelastic cyclic behaviour of RC members incorporating threaded reinforcement couplers. Eng. Struct. 2019, 180, 468–483. [CrossRef]
  47. Haber, Z.B.; Saiidi, M.S.; Sanders, D.H. Seismic Performance of Precast Columns with Mechanically Spliced Column-Footing Connections. ACI Struct. J. 2014, 111, 639–650. [CrossRef]
  48. Metric Screw Threads: M Profile, B1.13M—2005(R2020); ASME: New York, NY, USA, 2006.
  49. Tokyo Tekko. Reinforcing Bars & Joints. 2023. Available online: https://www.tokyotekko.co.jp/en/index.html (accessed on 20 September 2023).
  50. Zhao, C.; Zhang, Z.; Wang, J.; Wang, B. Numerical and theoretical analysis on the mechanical properties of improved CP-GFRP splice sleeve. Thin-Walled Struct. 2019, 137, 487–501. [CrossRef]
  51. Li, X.; Chow, K.H.; Zhu, Y.; Lin, Y. Evaluating the impacts of high-temperature outdoor working environments on construction labor productivity in China: A case study of rebar workers. Build. Environ. 2016, 95, 42–52. [CrossRef]
  52. Liou, F.S.; Borcherding, J.D. Work Sampling Can Predict Unit Rate Productivity. J. Constr. Eng. Manag. 1986, 112, 90–103. [CrossRef]
  53. Jarkas, A.M. Critical Investigation into the Applicability of the Learning Curve Theory to Rebar Fixing Labor Productivity. J. Constr. Eng. Manag. 2010, 136, 1279–1288. [CrossRef]
  54. Mcdonald, D.F.; Zack, J.G. Estimating lost labor productivity in construction claims. AACE Int. Recomm. Pract. 2004, 25R, 3.
  55. Lee, Y.S.; Kim, K.H. Experimental study on long-term prediction of rebar price using deep learning recursive prediction meothod. Korean J. Constr. Eng. Manag. 2021, 22, 21–30. [CrossRef]
  56. British Standards Institution. Eurocode 2: Design of Concrete Structures, Part 1–1: General Rules for Buildings; CEN: Brussels, Belgium, 2004.
  57. ACI. Building Code Requirement for Structural Concrete and Commentary; American Concrete Institute Committee: Farmington Hills, MI, USA, 2019; pp. 318–319.
  58. UBC-97. Uniform Building Code; International Council of Building Officials: Lansing, MI, USA, 1997.
  59. Caltrans Seismic Design Criteria (SDC). Ver. 1.7; California Department of Transportation: Sacramento, CA, USA, 2013.
  60. AASHTO LRFD Bridge Design Specifications; American Association of State Highway and Transportation Officials: Washington, DC, USA, 2014.
  61. Korean Industrial Standards-KSB 0249; Method of Inspection for Mechanical Splicing Joint of Bars for Concrete Reinforcement, Korean Standards and Certification, South Korea. 2019.
  62. Yun, W.G.; Shin, E.Y.; Kang, T.K. Analysis of factors for improvement of economic feasibility of construction cost to spread application of OSC construction method for apartment housing. Korean J. Constr. Eng. Manag. 2021, 22, 55–63. [CrossRef]
  63. Lu, Z.; Huang, J.; Li, Y.; Dai, S.; Peng, Z.; Liu, X.; Zhang, M. Mechanical behaviour of grouted sleeve splice under uniaxial tensile loading. Eng. Struct. 2019, 186, 421–435. [CrossRef]
  64. Lu, Z.; Huang, J.; Dai, S.; Liu, J.; Zhang, M. Experimental study on a precast beam-column joint with double grouted splice sleeves. Eng. Struct. 2019, 199, 109589. [CrossRef]
  65. Han, Q.; Li, X.; Xu, K.; Lu, Y.; Du, X.; Wang, Z. Shear strength and cracking mechanism of precast bridge columns with grouted sleeve connections. Eng. Struct. 2021, 230, 111616. [CrossRef]
  66. Parks, J.E.; Papulak, T.; Pantelides, C.P. Acoustic emission monitoring of grouted splice sleeve connectors and reinforced precast concrete bridge assemblies. Constr. Build. Mater. 2016, 122, 537–547. [CrossRef]
  67. Liu, H.; Han, Q.; Bai, Y.; Xu, C.; Du, X. Connection performance of restrained deformed grouted sleeve splice. Adv. Struct. Eng. 2018, 21, 488–499. [CrossRef]
  68. Huang, H.; Jia, B.; Lian, J.; Wang, W.-W. Experimental investigation on the tensile performance of resin-filled steel pipe splices of BFRP bars. Constr. Build. Mater. 2020, 242, 118018. [CrossRef]
  69. Alsayed, S.; Al-Salloum, Y.; Almusallam, T. Performance of glass fiber reinforced plastic bars as a reinforcing material for concrete structures. Compos. Part B Eng. 2000, 31, 555–567. [CrossRef]
  70. Al-Salloum, Y.A.; Almusallam, T.H. Creep effect on the behavior of concrete beams reinforced with GFRP bars subjected to different environments. Constr. Build. Mater. 2007, 21, 1510–1519. [CrossRef]
  71. Alsayed, S.H.; Al-Salloum, Y.A. Optimization of flexure environment of concrete beams reinforced with fibre-reinforced plastic rebars. Mag. Concr. Res. 1996, 48, 27–36. [CrossRef]
  72. Nanni, A.; De Luca, A.; Zadeh, H.J. Reinforced Concrete with FRP Bars: Mechanics and Design; CRC Press: Boca Raton, FL, USA, 2014.
  73. Balazs, G.; Bartos, P.J.M.; Cairns, J.; Borosnyoi, A. Bond in concrete from research to standards. In Proceedings of the 3rd International Symposium, Budapest University of Technology and Economics, Bupapesat, Hungary, 30 November 2002.
  74. Tighiouart, B.; Benmokrane, B.; Gao, D. Investigation of bond in concrete member with fibre reinforced polymer (FRP) bars. Constr. Build. Mater. 1998, 12, 453–462. [CrossRef]
  75. Newhook, J.; Svecova, D. Reinforcing concrete structures with fibre reinforced polymers. In Design Manual; ISIS: Canada; p. 3. Available online: https://asa-eng.com/wp-content/uploads/2020/08/REINFORCING-CONCRETE-STRUCTURE.pdf (accessed on 23 September 2023).
  76. Nanni, A.; Faza, A. Design and construction of concrete reinforced with FRP bars: An emerging technology. Concr. Int. 2002, 24, 53–58.
Preprints 103901 g001
Figure 1. Classification of MRCs.
Figure 1. Classification of MRCs.
Preprints 103901 g001
Preprints 103901 g002
Figure 2. MRC for deformed rebar.
Figure 2. MRC for deformed rebar.
Preprints 103901 g002
Preprints 103901 g003
Figure 3. MRCs for threaded rebar [49].
Figure 3. MRCs for threaded rebar [49].
Preprints 103901 g003
Preprints 103901 g004
Figure 4. Column location and rebar details of building investigated.
Figure 4. Column location and rebar details of building investigated.
Preprints 103901 g004
Preprints 103901 g005
Figure 5. Data-driven MRC selection algorithm.
Figure 5. Data-driven MRC selection algorithm.
Preprints 103901 g005
Preprints 103901 g006
Figure 6. Comparison for lap splices and T-threaded coupler (for one rebar over two floors).
Figure 6. Comparison for lap splices and T-threaded coupler (for one rebar over two floors).
Preprints 103901 g006
Table 1. Forecast of global annual rebar consumption and CO2 emissions.
Table 1. Forecast of global annual rebar consumption and CO2 emissions.
Year World GDP growth rate (%) Rebar (billion ton) CO2 emission (Ton·CO2)
2020 -3.1 1.078 313,481,532
2021 6.0 1.143 332,290,424
2022 3.1 1.178 342,591,428
2023 2.1 1.203 349,785,848
2024 2.4 1.232 358,180,707
2025 3.0 1.269 368,926,128
Table 2. Specifications of building for current study.
Table 2. Specifications of building for current study.
Description Details
Location Anyang-si, Gyeonggi-do, South Korea
Building purpose Factory building
Site area 10,720 m2
Building area 6317 m2
Total floor area 72,916 m2
Number of floors B2–20F
Structure RC structure
Table 3. Analysis of quality of MRCs, including seismic performance.
Table 3. Analysis of quality of MRCs, including seismic performance.
Screw Type Coupler Classification Quality Analysis StrengthRank
For deformed rebar D-grouted sleeve coupler -Good overall quality.
-Determined by factors such as sleeve material, sleeve shape (length and diameter), grout strength, and the bond between the grout and sleeve.
-Not suitable for seismic design.		 4
D-cad weld coupler -Excellent rigidity.
-Lacks seismic performance.		 5
For threaded rebar T-threaded coupler -Good rigidity using grout, i.e., a specific high-strength cement grout.
-Excellent seismic performance.		 2
T-epoxy-filled sleeve coupler -Good quality using epoxy for fixation.
-Excellent seismic performance and can be used for seismic reinforcement.		 1
T-grouted sleeve coupler -Ensures strength, durability, and fire retardancy.
-Excellent seismic performance.		 3
Table 4. Safety (ease of work) analysis.
Table 4. Safety (ease of work) analysis.
Screw Type Coupler Classification Safety Analysis Safety Rank
For deformed rebar D-grouted sleeve coupler -Only a manual mortar gun is required, i.e., specific equipment is not required.
-Wide gap between rebar and sleeve eases sleeve installation.
-Precautions must be exercised during construction.		 4
D-cad weld coupler -Large equipment required to heat filler material at the joint.
-Currently not widely used.		 5
For threaded rebar T-threaded coupler -Can be installed in adverse weather conditions.
-Fast and simple assembly.		 3
T-epoxy-filled sleeve coupler -Improves workability on site without having to tighten locknuts.
-Simple and rapid construction.
-Installation is realizable in adverse weather conditions. 		1
T-grouted sleeve coupler - Good workability in both precast component manufacturing and on-site construction tasks.
- Can be used even if rebar alignment does not match.		 2
Table 8. Cost estimation for D-grouted sleeve coupler.
Table 8. Cost estimation for D-grouted sleeve coupler.
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost
　		 rebar labor day 266 340.47 90,565
common labor day 133 204.10 27,145
Material cost
　
　
　		 rebar (UHD 29) T 1043 774.62 807,774
coupler ea 51,559 8.46 436,270
mortar t 18.75 211.90 3973
cut and bend work t 1043 4.85 5054
Indirect cost 141,674
Total 1,486,868
Table 9. Cost estimation for D-cad weld coupler.
Table 9. Cost estimation for D-cad weld coupler.
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost
　		 rebar labor day 126 340.47 42,899
common labor day 63 204.10 12,858
Material cost
　
　
　		 rebar (UHD 29) t 1043 774.62 807,774
coupler ea 51,559 14.55 749,952
equipment ea 1 1026.00 1026
molten metal t 17 773.85 13,058
cut and bend work t 1043 4.85 5054
Indirect cost 138,773
Total 1,771,394
Table 10. Cost estimation for T-threaded coupler (one rebar per floor).
Table 10. Cost estimation for T-threaded coupler (one rebar per floor).
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost rebar labor day 206.00 340.47 70,137
common labor day 103.00 204.10 21,022
Material cost rebar (UHD 29) t 1043 774.62 807,774
coupler ea 51,559 12.31 634,575
grouting equipment set 1 320 320
mortar t 5.39 221.90 1143
cut and bend work t 1043 4.85 5054
Indirect cost 131,017
Total 1,672,388
Table 11. Cost estimation for T-epoxy-filled sleeve coupler.
Table 11. Cost estimation for T-epoxy-filled sleeve coupler.
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost rebar labor day 206.00 340.47 70,137
common labor day 103.00 204.10 21,022
Material cost rebar (UHD 29) t 1043 774.62 807,774
coupler ea 51,559 12.31 634,575
epoxy t 18.75 89.70 995
epoxy gun ea 154 1.17 180
cut and bend work t 1043 4.85 5054
Indirect cost 130,878
Total 1,579,455
Table 12. Cost estimation for T-grouted sleeve coupler.
Table 12. Cost estimation for T-grouted sleeve coupler.
Item Unit Quantity Unit Price (USD) Amount (USD)
Labor cost rebar labor Day 501 340.47 170,405
common labor Day 257 204.10 52,535
Material cost rebar (UHD 29) t 1043 774.62 807,774
coupler ea 51,559 12.31 634,575
scaffolding (600 × 500 × 1500) ea 1 833 833
grouting equipment ea 1 833 833
mortar t 16.48 211.90 3492
cut and bend work t 1043 4.85 5054
Indirect cost 142,418
Total 1,817,920
Table 13. Cost estimation for T-threaded coupler (one rebar over two floors).
Table 13. Cost estimation for T-threaded coupler (one rebar over two floors).
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost rebar labor day 122 340.47 41,537
common labor day 61 204.10 12,450
Material cost rebar (UHD 29) t 1043 774.62 807,774
coupler ea 25,780 12.31 317,287
scaffolding (600 × 500 × 1500) ea 1 833 833
grouting equipment ea 1 833 833
mortar t 2.70 211.90 571
cut and bend work t 1043 4.85 5054
Indirect cost 100,839
Total 1,287,180
Table 14. Cost Estimation for T-threaded coupler (one rebar over three floors).
Table 14. Cost Estimation for T-threaded coupler (one rebar over three floors).
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost rebar labor day 96 340.47 32,685
common labor day 48 204.10 9797
Material cost rebar (UHD 29) t 1043 774.62 807,774
coupler ea 17,186 12.31 211,525
scaffolding (600 × 500 × 1500) ea 1 833 833
grouting equipment ea 1 833 833
mortar t 1.80 211.90 381
cut and bend work t 1043 4.85 5054
Indirect cost 90,855
Total 1,159,737
Table 15. CO2 emission calculation (unit: T-CO2).
Table 15. CO2 emission calculation (unit: T-CO2).
Classification For Deformed Rebar For Threaded Rebar
D-Grouted Sleeve Coupler D-Cad Weld Coupler T-Threaded Coupler
(One Rebar over One Floor)		 T-Threaded Coupler
(One Rebar over Two Floors)		 T-Threaded Coupler
(One Rebar over Three Floors)		 T-Epoxy-Filled Sleeve Coupler T-Grouted Sleeve Coupler
Labor 98.42 46.62 76.22 45.14 35.52 76.22 158.73
Material use 4683.63 5824.75 5734.57 4694.34 4347.46 5753.44 5712.19
Electricity use 106.29 50.35 82.32 48.75 38.36 83.08 168.25
Lighting, and heating use 40.14 19.01 31.09 18.41 14.49 31.24 64.11
Total 4928.49 5940.73 5847.97 4761.50 4400.31 5943.98 6103.29
Table 16. Regulations of mechanical couplers by country.
Table 16. Regulations of mechanical couplers by country.
Code Provisions
Eurocode 2 [56] -No criteria are provided.
ACI 318–19 [57] -25.5.7.1: mechanical bar splices should develop at least 1.25 fy of bars in tension or compression.
-18.2.7.2: except for Type 2 mechanical splices on Grade 60 bars, mechanical splices cannot be used in (a) within 2 × member depth from the column or beam face for specific moment frames or from critical sections. Type 2 mechanical splices on Grade 60 bars are permitted at any location but not in < 0.5 h from the joint’s face.
UBC 1997 [58] -1912.14.3.4: mechanical splices should provide 1.25 fy of bars in tension or compression.
-1921.2.6.1: no splices are permitted within a vertical distance of 24 inches (610 mm).
Caltrans SDC [59] -“Service” and “ultimate” couplers classified based on deformation capacity are allowed.
AASHTO LRFD [60] -Only couplers that can express a minimum strength of 1.25 times the yield strength of the rebar are allowed.
Korean Industrial Standards-KSD 0249 [61] -Couplers that exceed 1.25 times the minimum yield point of the rebar or the tensile strength of the rebar are allowed.
Table 17. Cost estimation for lap splices.
Table 17. Cost estimation for lap splices.
Item Units Quantity Unit Price (USD) Amount (USD)
Labor cost rebar worker day 944 340.47 321,336
common labor day 472 204.10 96,315
Material cost rebar (UHD 29) t 1043 774.62 807,774
lapping ea 227 774.62 175,528
lapping tool ea 50 15 769
embedded steel ea 3 758 2273
cut and bend work t 1307 4.85 6336
Indirect cost 119,878
Total 1,530,209
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
