Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii and Morganella morganii Clinical Isolates from Bulgaria

Altmetrics

Downloads

91

Views

29

Comments

0

A peer-reviewed article of this preprint also exists.

supplementary.zip (19.05KB )

Submitted:

26 April 2024

Posted:

28 April 2024

You are already at the latest version

Alerts
Abstract
Carbapenemase-producing Enterobacter spp. Serratia marcescens, Citrobacter freundii, Providencia spp. and Morganella morganii (CP-ESCPM) are increasingly identified as causative agents of nosocomial infections but are still not under systematic genomic surveillance. In this study, using a combination of whole genome sequencing and conjugation experiments, we sought to elucidate the genomic characteristics and transferability of resistance genes in clinical CP-ESCPM isolates from Bulgaria. Among the 36 sequenced isolates, NDM-1 (12/36), VIM-4 (11/36), VIM-86 (8/36) and OXA-48 (7/36) carbapenemases were identified; two isolates carried both NDM-1 and VIM-86. The majority of carbapenemase genes were found on self-conjugative plasmids. IncL plasmids were responsible for the spread of OXA-48 among E. hormaechei, C. freundii and S. marcescens. IncM2 plasmids were generally associated with the spread of NDM-1 in C. freundii and S. marcescens, and also of VIM-4 in C. freundii. IncC plasmids were involved in the spread of the recently described VIM-86 in P. stuartii isolates. IncC plasmids carrying blaNDM-1 and blaVIM-86 have been observed too. blaNDM-1 was also detected on IncX3 in S. marcescens and on IncT plasmid in M. morganii. The significant resistance transfer rates highlight the role of the ESCPM group as a reservoir of resistance determinants and stress the need for strengthening the infection control measures.
Keywords:
Subject: Medicine and Pharmacology  -   Medicine and Pharmacology

1. Introduction

Enterobacterales such as Enterobacter spp., Serratia marcescens, Citrobacter freundii, Providencia spp. and Morganella morganii (ESCPM group) are increasingly identified as causative agents of nosocomial infections, frequently including bloodstream, urinary tract, gastrointestinal, respiratory, skin and soft tissue infections [1,2]. These microorganisms produce chromosomally-encoded inducible AmpC β-lactamase, belonging to Ambler class C and Bush group 1 [3]. Low-level expression of this enzyme is sufficient for the hydrolysis of aminopenicillins, aminopenicillin/β-lactamase inhibitor combinations and first-generation cephalosporins. However, AmpC overproduction can occur following exposure to β-lactams, either through induction or selection of derepressed mutants during therapy, which leads to the hydrolysis of third-generation cephalosporins as well. As a result, the use of last-resort antibiotics such as carbapenems may become imperative in managing infections caused by AmpC-producing organisms [4]. Moreover, the intrinsic colistin resistance inherent to S. marcescens, M. morganii and Providencia spp. further limits the therapeutic options and contributes to their growing prevalence [5,6,7].
On the other hand, the widespread use of carbapenems as the preferred therapy for multiresistant ESCPM infections carries the risk of promoting carbapenem resistance. Such resistance can arise from various mechanisms, including diminished outer membrane permeability due to reduced expression or inactivation of outer membrane porins, mutations resulting in increased efflux and alterations in the structure of the penicillin-binding proteins, or a combination of AmpC overexpression and extended spectrum of β-lactamase (ESBL) with porin mutations. However, the most concerning scenario is the acquisition of carbapenemases [8,9,10].
In Enterobacterales, five prevalent carbapenemase families are identified across three Ambler classes: KPC (class A); IMP, NDM, and VIM (class B); and OXA-48-like (class D) [11]. These genes are commonly associated with mobile genetic elements, located on plasmids that facilitate their dissemination through vertical or horizontal transfer [12]. Plasmids also often carry additional genes for non-β-lactam antibiotic resistance, including aminoglycosides (e.g. 16S rRNA methyltransferases) and plasmid-mediated quinolone resistance, leading to further limitation of treatment options for carbapenemase-producing Enterobacterales (CPE) infections [13].
Different types of plasmids are involved in the transfer of carbapenemases, among which IncF, IncL/M, IncA/C and IncX are the most abundant in the Enterobacteriaceae family [14]. IncF plasmids, for example, are globally distributed and carry carbapenemases such as KPC and NDM, as well as ESBL enzymes, in particular CTX-M-15. IncX plasmids, especially the IncX3 variant, play a major role in the dissemination of NDM carbapenemases. IncL/M plasmids are also associated with the transmission of NDM among members of the family, and can also carry OXA-48. IncA/C plasmids are involved in the dissemination of NDM, VIM and KPC carbapenemases, as well as cephalosporinases (e.g. CMY) [15].
In Bulgaria, CPE isolates have been detected as early as 2007 [16]. Various clinical cases involving KPC, VIM, OXA-48, and NDM-producing strains of Klebsiella pneumoniae, and an outbreak of NDM-positive Escherichia coli, have been documented up until 2014 [17]. Since then, the incidence of infections caused by K. pneumoniae strains producing NDM, KPC, and OXA-48-like enzymes has been steadily rising [11]. However, the role of CP-ESCPM remains uncertain, as their reporting is sporadic compared to other CPE.
This study represents a retrospective genomic analysis of carbapenemase-producing ESCPM isolates collected in Bulgaria between 2014 and 2023. Through a combination of whole genome sequencing (WGS) and conjugation experiments, our investigation provides insights into the genetic diversity of CP-ESCPM and the plasmids involved in the dissemination of carbapenemases and the associated resistance genes.

2. Results

2.1. Exploring Carbapenemase Diversity and Plasmid-Mediated Resistance in ESCPM Isolates

Carbapenemase genes were detected in all 36 carbapenemase-producing isolates, with the majority containing blaVIM and/or blaNDM metallo-β-lactamases. Notably, carbapenemases from all of the detected families were present in S. marcescens and C. freundii (Table 1).
The carbapenemases and their alleles were then confirmed by WGS. They were accompanied by a wide range of plasmid-mediated and chromosome-encoded resistance genes. The most prevalent were VIM alleles, blaVIM-4 (n=11) and blaVIM-86 (n=8), found in a total of 19/36 isolates. blaNDM-1 was identified in 12/36 and blaOXA-48 in 7/36 isolates. Interestingly, blaVIM-86 was identified only in P. stuartii isolates, and two of them also co-harbored an additional blaNDM-1 gene. Figure 1 illustrates the correlation among acquired antimicrobial resistance genes, the year and hospital of isolation, MLST profiles (where applicable), as well as the phylogenetic relatedness of isolates within each analyzed species.
All the blaVIM-86 and blaOXA-48 genes, as well as all but two of the blaNDM-1 genes, were successfully transferred by conjugation, confirming their plasmid origin (Table 2). A transconjugant was also obtained for the blaVIM-4-positive C. freundii isolate. The localization of carbapenemase genes in isolates which failed to transfer their plasmids was inferred from WGS data.

2.1.1. Serratia marcescens

We identified a cluster (ST891) of eight epidemiologically unrelated S. marcescens isolates from four hospitals between 2014 and 2020 (Figure 1a and Table 2). This cluster was characterized by a non-transferable VIM-4 along with ArmA and CTX-M-3 on IncM2 plasmid detected in 50% of the isolates. The latter plasmid was similar to the previously described pCTX-M3 [18]. The remaining two VIM-4 positive isolates lacked ArmA and CTX-M-3 and were distant from the VIM-4 cluster. Multiple transfer attempts of VIM-4 failed and BLAST analysis of the upstream and downstream sequences revealed homology with various chromosomal sequences (data not shown) suggesting chromosomal origin.
Next, closely to the VIM-4 cluster was the SM585 isolate with a chromosomal CTX-M-15 and IncL plasmid with OXA-48. The last three isolates (SM4015, SM4949 and SM4487) were NDM-positive and shared an IncM2 plasmid carrying CTX-M-3 and ArmA similar to the VIM-4 cluster. Interestingly, the genetic context of NDM-1 seems to differ among those three isolates. According to the mating-out experiments, in SM4949 NDM-1 was situated on the conjugative IncM2 plasmid along with CTX-M-3/ArmA, whereas in SM4487, the BLAST analysis of the surrounding sequences of NDM-1 suggested its chromosomal localization, consistent with the failed mating attempts. In SM4015, an IncX plasmid was identified as the NDM-1 carrier, which was confirmed by PCR.

2.1.2. Providentia stuartii

P. stuartii isolates were collected between 2017 and 2020 and all belonged to ST46. They exhibited close genetic relatedness and consistently harbored an IncC plasmid, with one of the isolates having an additional IncM2 plasmid (Figure 1b and Table 2). Successful transfer of both plasmids was achieved for all studied P. stuartii isolates and the PCR replicon typing confirmed the presence of IncA/C replicons in all of the transconjugants and the IncL/M replicon in TC–PS995/2.
The IncC transconjugants could be categorized in three groups based on the plasmid transfer and their acquired resistance determinants. The first group of two transconjugants (TC–PS567 and TC–PS1396) harbored both NDM-1 and the recently identified VIM-86 [19], indicative of their co-localization on the same plasmid. Additionally, this plasmid was positive for ArmA, QnrB and CMY-4. The IncC plasmid of the second group of five transconjugants was associated with VIM-86 and CMY-4. Thirdly, TC-PS3347 demonstrated the transfer of IncC with OXA-1 and AAC(6')-Ib-cr5 alongside VIM-86, CMY-4 and ArmA.
Lastly, IncM2 plasmid carrying only CTX-M-3 and ArmA, initially found to be co-hosted by PS995 together with another IncC plasmid, was successfully conjugated through the mating-out experiments.

2.1.3. Citrobacter freundii

For C. freundii isolates, one distinct cluster was identified (Figure 1c and Table 2). The cluster consisted of four NDM-1 producers, which included CF4015 (Hospital B) from 2018 and three epidemiologically related isolates from 2021 – CF2341, CF2068, and CF1976 (Hospital A). WGS identified Col, IncFIB, IncM2, and IncR replicons in all four isolates. They showed a similar resistance profile, but CF4015 also carried the QnrB4 and DHA-1 genes, while CF2068 and CF1976 carried the aph(3')-Ia. Their IncM2 plasmid was successfully transferred, yielding transconjugants positive for NDM-1, ArmA, CTX-M-3 and QnrB, similar to IncM2 from SM4949, suggesting interspecies dissemination of this plasmid.
The remaining isolates were substantially different from each other. CF2747 carried VIM-4 on an IncM2 plasmid together with ArmA and CTX-M-3, while CF1843 harbored only the OXA-48 on an IncL plasmid. Both plasmids were successfully transferred and the replicons confirmed by PCR. The OXA-48-encoding IncL plasmid in the CF1843 genome appeared to be similar to the plasmids observed in the SM585, EH273, EH3371 and EH1401 isolates. In TC–CF2747, VIM-4 was transferred along with ArmA and CTX-M-3, as confirmed by PCR.

2.1.4. Enterobacter hormaechei

E. hormaechei isolates were mainly associated with OXA-48 (Figure 1d and Table 2). The only exception was EH10088, in which we identified NDM-1 and only a Col replicon. Unfortunately, the latter was not confirmed in the corresponding transconjugant by PCR and this led to the assumption that another non-typeable plasmid or an integrative conjugative element might be involved.
The OXA-48 cluster was formed by isolates collected between 2018 and 2020. All donors from that cluster were able to transfer OXA-48. IncL/M replicons were confirmed in all of them, and the in-silico BLAST analysis of the donor sequences further confirmed the IncL plasmid as the host of the OXA-48 gene.
In one transconjugant, TC–EH1872, OXA-48 was co-transferred with CTX-M-3 (Table 2). In TC–EH3113, OXA-48 was transferred along with ArmA, OXA-1, AAC(6')-Ib-cr and QnrB, and the PCR detected only the IncL/M replicon. However, a BLAST analysis of the donor sequences failed to confirm the co-localization of all those genes within the IncL replicon due to fragmented assembly. As a conclusion we are uncertain that the transconjugant has received a single or more plasmids, because the PCR-based replicon typing may have also failed to identify more types.

2.1.5. Morganella morganii

Two epidemiologically unrelated M. morganii isolates recovered from one hospital (A) were identified as producers of NDM-1 (Figure 1e).
The carbapenemase was transferred only in TC–MM4395, suggesting that the gene is encoded by a conjugative IncT plasmid, as this was the only replicon found in the donor. Co-transfer of additional resistance genes, including ArmA, OXA-1, AAC(6')-Ib and QnrB, was also confirmed by PCR. Despite the presence of the IncT replicon in the donor, the PCR assay failed to confirm it in the transconjugant (Table 2). However, aligning the reads to closely related plasmids provided strong evidence that NDM-1 and the other resistance genes are encoded on IncT plasmid.
In contrast, no plasmid replicons were detected in MM231 and it failed to transfer any resistance determinants through conjugation, implying the chromosomal location of NDM-1 and the associated resistance determinants.

2.2. Antibiotic Susceptibility

The results from the susceptibility testing showed that all isolates were resistant to penicillins, penicillin/inhibitor combinations, cephalosporins, cephamycins, ertapenem, doripenem, quinolones and tobramycin, but showed variable results for imipenem, meropenem, ceftazidime-avibactam, aztreonam, amikacin, gentamicin, colistin, tigecycline, fosfomycin, trimethoprim-sulfamethoxazole and cefiderocol. The distribution of MIC values is shown in Table 3.
Disc susceptibility testing revealed that 78% (28/36) of all isolates were susceptible to cefiderocol. This included all isolates of ESCM species and excluded the isolates of P. stuartii as they exhibited resistance. Across all isolates, cefiderocol had the highest activity among all antimicrobials tested, followed by amikacin with 42% (15/36) susceptibility. Colistin and tigecycline were effective only against C. freundii and E. hormaechei, which comprised 33% (12/36) of the total isolates. Ceftazidime-avibactam demonstrated in vitro activity limited to OXA-48 producers, accounting for 19% (7/36) of all isolates. The other antimicrobial agents displayed varying levels of activity against ESCPM isolates, necessitating individual treatment regimens with combinations of antibiotics from different classes [4,20].

3. Discussion

In Bulgaria, carbapenem non-susceptible Enterobacterales isolates are optionally referred to the National Reference Laboratory for Control and Monitoring of the Antimicrobial Resistance for verification. Apart from K. pneumoniae, the frequency of reported and referred ESCPM isolates nation-wide remains unknown. We therefore hypothesized that they persist in many hospitals and that their actual numbers and consequently their impact on human health is underestimated. To address this issue, thirty-six carbapenemase positive ESCPM isolates were subjected to WGS analysis and mating-out experiments to determine their plasmid content and resistance transferability.
Most of the carbapenemase-producing ESCPM isolates originated from urine (59.5%) and wound specimens (27.0%), and only 5,4% from blood. The origin of ESCPM pathogens reflects their ability to cause various nosocomial infections mainly of the urinary tract, intra-abdominal and soft tissue infections, but also bacteraemia and respiratory tract infections [2].
In this study, the majority of carbapenemases within the ESCPM group were found on conjugative plasmids. Plasmids belonging to the IncL/M group were most commonly identified among the obtained transconjugants. Originally considered a single plasmid incompatibility group, IncL/M plasmids underwent re-evaluation and were subsequently categorized into two separate groups – IncL and IncM [21].
IncL plasmids have been associated with the global dissemination of the OXA-48 gene, while IncM2 plasmids have been linked to the spread of NDM-1 [21]. Consistent with these observations, our study revealed a strict association between the presence of IncL-type plasmids and the carriage of OXA-48. In the majority of transconjugants, OXA-48 was the sole resistance gene transferred. But, instances of co-transfer were also observed including the transfer of OXA-48 alongside CTX-M-3 in TC–EH1872, and ArmA, OXA-1, AAC(6')-Ib-cr and QnrB in TC–EH3113 (Table 2). However, the genetic landscape of the detected additional genes remained ambiguous in some cases as the sequences appeared fragmented probably due to the presence of mobile genetic elements.
IncM2 plasmids are known to harbor genes conferring resistance to various antimicrobial agents, including cephalosporins, carbapenems, aminoglycosides, trimethoprim, sulphonamides, and fosfomycin [22]. In this study, they were mainly involved in NDM-1 and VIM-4 dissemination among isolates of C. freundii (n=5) and S. marcescens (n=1) (Table 2). We observed a consistent pattern of co-transfer of CTX-M-3 and ArmA along with the carbapenemases through a plasmid with a similar genetic content to the original pCTX-M-3 plasmid [18].
In the two P. stuartii isolates (PS1396 and PS567) harboring both NDM-1 and VIM-86 carbapenemases, we found multiple resistance determinants. Using long-read sequencing, we were able to reconstruct the entire IncC plasmid of PS1396, revealing that the majority of the resistance genes (CMY-4, ArmA, VIM-86, NDM-1, and QnrB9) are co-localized within it. Likewise, in PS3347, we identified a similar IncC plasmid bearing ArmA, VIM-86, OXA-1, and AAC(6')-Ib-cr5. VIM-86 was recently described by Rezzoug and colleagues [19]. The structure of the plasmid hosting this novel allele closely resembles that of the PS1396 plasmid, albeit lacking the NDM-1 gene. While not explored in this study, determining the origin of NDM-1 in the PS1396 plasmid is expected to be a primary focus of our future investigations.
For isolate SM4015, we obtained two distinct transconjugants (TC–SM4015/1 and TC–SM4015/2). TC–SM4015/1 carried an IncX3 plasmid encoding NDM-1, while TC–SM4015/2 harbored an IncM2 plasmid of the pCTX-M-3 type. IncX3 plasmids, known for their narrow host range, have been associated with the dissemination of various NDM variants among Enterobacteriaceae [23]. Their significance as vectors for clinically relevant antibiotic resistance genes has been increasingly recognized in recent years [24,25].
In one isolate (MM4395) NDM-1 was detected alongside ArmA, possibly situated on an IncT-like plasmid. However, we were unable to confirm this since only PCR was employed for screening of transconjugants, and the assay failed to detect any plasmid replicons in the respective transconjugant. Nevertheless, our investigation using BLAST searches with the sequence containing the NDM-1 identified pZ26CR2253_NDM IncT type plasmid from Providencia huaxiensis (CP145930.1). Mapping the raw reads to this plasmid revealed substantial 94% template coverage, providing strong evidence for the association of the NDM-1 gene with the donor IncT plasmid (data not shown). IncT plasmids have a narrow host range and are rarely reported. Previous studies have identified IncT plasmids in various species such as Proteus mirabilis, C. freundii, and Providencia rettgeri, where they were associated with ESBLs (CTX-M-2) [26] and carbapenemases of class D (OXA-181) and class B (NDM-1) [27].
In the present study, all of the identified carbapenemase types were found in S. marcescens and C. freundii. In S. marcescens isolates VIM-4 was localized on the chromosome. NDM-1 was encoded mainly on plasmids and was detected among all of the tested species. The VIM type carbapenemases were mostly detected in P. stuartii and S. marcescens, while OXA-48-like genes were predominantly found in E. hormaechei. These findings are consistent with the results of a recent surveillance study of 6,774 ESCPM blood culture isolates from 27 European hospitals [20].
A significant concern was the detection of ArmA methyltransferase in association with carbapenemases in CP-ESCPM with intrinsic resistance to colistin and tigecycline (such as P. stuartii and M. morganii). As ArmA confers high-level resistance to clinically relevant aminoglycosides, infections caused by these pathogens present a serious treatment challenge, as there are almost no treatment options left.
There are a few limitations of this study. First, we did not perform WGS for resulting transconjugants, which could improve the detection and typing of the received plasmids and their exact gene content. Next, the assembly of plasmids is often difficult and incomplete with short-read data only. Including long-read data from donor isolates and/or transconjugants will drastically enhance the quality of assembled genomes and thus the plasmid analysis. Finally, we included a relatively small number of isolates per studied species. Routine WGS molecular surveillance is still not implemented in Bulgaria, but increasing the sequencing capacity will provide more reliable and broader understanding of the plasmid diversity and resistance genes of the ESCPM group.

4. Materials and Methods

2.1. Bacterial Isolates

Thirty-six carbapenem-non-susceptible ESCPM isolates were sent by seven hospital laboratories to the National Reference Laboratory for Control and Monitoring of Antimicrobial Resistance in Bulgaria between July 2014 and January 2023 for molecular validation of carbapenem resistance. The isolates were re-identified using the MALDI-TOF Biotyper (Bruker Daltonics GmbH, Bremen, Germany) with MALDI Reference 2022 Library v.4.0. The studied ESCPM group comprised: S. marcescens (n=14), P. stuartii (n=8), C. freundii (n=6), E. hormaechei (n=6), and M. morganii (n=2) isolates. They were anonymized and were assigned code names (e.g. MM4395 for Morganella morganii strain number 4395).
All carbapenem-non-susceptible ESCPM isolates were confirmed as carbapenemase producers by CarbaNP test [28]. Sources and year of isolation are summarized in Table 4 and Table 5, respectively. Hospital laboratories were named with capital letters from A to G depending on the number of the submitted isolates (Table 6).

4.2. Antimicrobial Susceptibility Testing and Detection of Carbapenemases

Disc susceptibility testing was performed according to EUCAST guidelines [29] on Mueller-Hinton agar with disks supplied by Becton Dickinson (BD, Sparks, MD, USA). MICs were determined by broth microdilution using the MicroScan NM-EN52 panel (Beckman Coulter, Inc., USA) and the Micronaut-S MDR plate (Merlin Diagnostika GmbH, Bornheim, Germany) by following the manufacturer's protocols. Susceptibility testing results were interpreted in accordance with EUCAST clinical breakpoints v13.0. E. coli ATCC 25922 was used for quality control.

4.3. Screening for Carbapenemase Genes

Total genomic DNA for PCR and whole-genome sequencing was extracted using the PureLink™ Genomic DNA Mini Kit (Thermo Fisher Scientific, Missouri, TX, USA) following the manufacturer’s instruction, except that all homogenization steps were performed by pipetting. All isolates were screened for class A, class B and class D carbapenemases through in-house multiplex PCR by previously established protocol [30].

4.4. Whole-Genome Sequencing

All isolates that were confirmed to carry carbapenemase genes were subjected to short-read sequencing with Illumina DNA Prep kit with MiSeq V3 (2 x 300 bp) or NextSeq 550 with V2.5 (2 x 150 bp) mid output flow cell (Illumina, Inc., San Diego, CA, USA). The same DNA extracts of PS1396 and PS995 were also sequenced on a MinION Mk1C with the Rapid Barcoding Kit 96 (SQK-RBK110.96) and FLO-MIN106D (R9.4.1) (Oxford Nanopore Technologies, Oxford, UK) with a slight modification. The final size selection of the library pool was carried out using 0.4x SPRI magnetic particles to eliminate fragments < 1.5 kb [31].

4.5. Bioinformatic Analysis

The quality of the raw reads was assessed using FastQC v0.11.9 (https://www.bioinformatics.babraham.ac.uk/projects/fastqc, accessed on 3 April 2024). Subsequent quality trimming and filtering for short and long reads were carried out using fastp v0.23.2 [32] and filtlong v0.2.1 (https://github.com/rrwick/Filtlong, accessed on 3 April 2024). Short-read assemblies were generated with Unicycler v0.4.8 [33]. For PS1396 and PS995, a long-read-only assembly was produced using Trycycler v0.5.3 [34] followed by polishing with MEDAKA v1.7.3 (ONT, https://github.com/nanoporetech/medaka, accessed on 3 April 2024). KmerFinder v3.0.2 [35] with a database version from 11 July 2022 was used for in silico identification. Assemblies were annotated using Bakta v 1.7 [36] with database v5.0-full. Screening for genes related to antimicrobial resistance and prediction of phenotypes were carried out using AMRFinderPlus v3.11.4 [37] and ResFinder v4.3.1 [38] (database v2022-05-24). The sequences containing carbapenemases were further analyzed with BLAST using the nr/nt database. Plasmid analysis was conducted using Abricate (Seemann T, Abricate, Github https://github.com/tseemann/abricate) with the PlasmidFinder database (v2023-01-18) [39]. In silico MLST profiling was performed with mlst v2.23.0 (Seemann T, mlst Github https://github.com/tseemann/mlst, accessed on 3 April 2024).
Phylogenies for individual species were constructed using PhaME v1.0.4 [40], considering only SNPs within the coding regions of the core genome. The resulting maximum-likelihood trees were linked to antimicrobial resistance patterns and visualized with iTOL [41].

4.6. Transfer of Resistance Determinants and Identification of Transconjugant Plasmids

Transfer of carbapenem and 16S rRNA methyltransferase-mediated aminoglycoside resistance was attempted by mating on filters with sodium azide-resistant E. coli J53 recipient strain as previously described [42]. Transconjugants were selected on MacConkey agar containing sodium azide (100 mg/L) supplemented with either meropenem (0.5 mg/L) or amikacin (50 mg/L) and gentamicin (50 mg/L). Transconjugants were confirmed by susceptibility testing and PCR. Detection of carbapenemase genes was performed as described for the donor strains. Other co-transferred antibiotic resistance genes were detected by various multiplex PCRs. CTX-M genes were detected as described previously [43]. OXA-1/2/9/10-like genes [44] were screened with a protocol listed in the Supplementary Table S1. Plasmid-mediated AmpC beta-lactamase genes were detected as previously published [45]. Identification of 16S rRNA methyltransferase genes (armA, rmtB, npmA, rmtA, rmtC, rmtD, rmtE, rmtF) [46,47,48] was carried out as described in the Supplementary Table S2, whereas plasmid-mediated quinolone resistance determinants (qnrA, qnrB, qnrC, qnrD, qnrS, qepA) [49,50,51,52] were detected as described in the Supplementary Table S3. Lastly, the detection of aac(6')-Ib-cr acetyltransferase was performed as described previously [53].
Replicon typing involved combination of multiplex and singleplex PCR panels targeting 21 plasmid replicons as detailed in a previous study [54]. All amplicons were visualized on QIAxcel Advanced high-resolution capillary electrophoresis system (Qiagen, Hilden, Germany) with protocol 0M800 for precise size estimation.

5. Conclusions

In this study we analyzed the genetic characteristics of CP-ESCPM species isolated between 2014 and 2023 in Bulgaria with emphasis on the dissemination of carbapenemases and the significance of the self-conjugative plasmids in the transmission of resistance determinants. The predominant carbapenemase was VIM, represented by VIM-4 (n=11) and VIM-86 (n=8), found in a total of 19/36 isolates. NDM-1 was detected in 12/36 and OXA-48 in 7/36 isolates. VIM-86 was identified only in P. stuartii isolates, two of which also carried NDM-1. IncL plasmids were responsible for the spread of OXA-48 among E. hormaechei, C. freundii and S. marcescens. IncM2 plasmids were generally associated with the spread of NDM-1 in both C. freundii and S. marcescens, and also of VIM-4 in C. freundii. IncC plasmids have been implicated in the spread of the recently described VIM-86 in P. stuartii isolates. IncC plasmids carrying NDM-1 and VIM-86 have also been observed. NDM-1 was detected on IncX3 in S. marcescens and on IncT plasmid in M. morganii. The diversity of CP-ESCPM and carbapenemase-encoding plasmids that were identified in this study highlights the role of the ESCPM group as a reservoir of resistance determinants in hospital settings. Our results stress the need to strengthen control and implement surveillance measures for the carbapenemase-producing ESCPM to limit the spread of antibiotic resistance.

Supplementary Materials

The following supporting information can be downloaded at the website of this paper posted on Preprints.org, Table S1: OXA mPCR; Table S2: 16S rRNA methyltransferase (16S-RMTase) mPCR; Table S3: Plasmid-mediated quinolone resistance (PMQR) mPCR.

Author Contributions

Conceptualization, S.S. and I.S.; methodology, software and validation I.N.I., I.S., D.D., E.D., D.T. and S.S.; formal analysis, I.S. and S.S.; investigation, S.S., I.S. and S.G.; resources S.S., M.L. and I.N.I.; writing—original draft preparation, S.S. and I.S.; writing—review and editing, I.S., I.N.I., D.D., M.L., S.S., and I.C.; visualization, I.S. and D.D.; funding acquisition, I.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated during the study is included in this article and its supplementary materials file. Relevant links and references to other sources are included in the main text. The draft genome sequences were uploaded to the National Center for Biotechnology Information (NCBI) database and are accessible through BioProject ID: PRJNA1077246, except for the complete genome sequences of P. stuartii isolates PS1396 and PS995, deposited in the European Nucleotide Archive (ENA) under project accession number PRJEB70804.

Conflicts of Interest

The authors declare no conflicts of interests.

References

  1. Choi, S.H.; Jung, E.L.; Su, J.P.; Choi, S.H.; Lee, S.O.; Jeong, J.Y.; Kim, M.N.; Jun, H.W.; Yang, S.K. Emergence of Antibiotic Resistance during Therapy for Infections Caused by Enterobacteriaceae Producing AmpC Beta-Lactamase: Implications for Antibiotic Use. Antimicrob Agents Chemother 2008, 52, 995–1000. [CrossRef]
  2. Mizrahi, A.; Delerue, T.; Morel, H.; Le Monnier, A.; Carbonnelle, E.; Pilmis, B.; Zahar, J.R. Infections Caused by Naturally AmpC-Producing Enterobacteriaceae: Can We Use Third-Generation Cephalosporins? A Narrative Review. Int J Antimicrob Agents 2020, 55. [CrossRef]
  3. Jacoby, G.A. AmpC Beta-Lactamases. Clin Microbiol Rev 2009, 22, 161–182. [CrossRef]
  4. Harris, P.N.A.; Ferguson, J.K. Antibiotic Therapy for Inducible AmpC β-Lactamase-Producing Gram-Negative Bacilli: What Are the Alternatives to Carbapenems, Quinolones and Aminoglycosides? Int J Antimicrob Agents 2012, 40, 297–305. [CrossRef]
  5. Zivkovic Zaric, R.; Zaric, M.; Sekulic, M.; Zornic, N.; Nesic, J.; Rosic, V.; Vulovic, T.; Spasic, M.; Vuleta, M.; Jovanovic, J.; et al. Antimicrobial Treatment of Serratia Marcescens Invasive Infections: Systematic Review. Antibiotics (Basel) 2023, 12, 367. [CrossRef]
  6. Hayakawa, K.; Marchaim, D.; Divine, G.W.; Pogue, J.M.; Kumar, S.; Lephart, P.; Risko, K.; Sobel, J.D.; Kaye, K.S. Growing Prevalence of Providencia Stuartii Associated with the Increased Usage of Colistin at a Tertiary Health Care Center. International Journal of Infectious Diseases 2012, 16, e646–e648. [CrossRef]
  7. Osei Sekyere, J.; Govinden, U.; Bester, L.A.; Essack, S.Y. Colistin and Tigecycline Resistance in Carbapenemase-Producing Gram-Negative Bacteria: Emerging Resistance Mechanisms and Detection Methods. J Appl Microbiol 2016, 121, 601–617. [CrossRef]
  8. Caliskan-Aydogan, O.; Alocilja, E.C. A Review of Carbapenem Resistance in Enterobacterales and Its Detection Techniques. Microorganisms 2023, 11. [CrossRef]
  9. Eichenberger, E.M.; Thaden, J.T. Epidemiology and Mechanisms of Resistance of Extensively Drug Resistant Gram-Negative Bacteria. Antibiotics (Basel) 2019, 8, 37. [CrossRef]
  10. Meletis, G. Carbapenem Resistance: Overview of the Problem and Future Perspectives. Ther Adv Infect Dis 2016, 3, 15–21. [CrossRef]
  11. Albiger, B.; Glasner, C.; Struelens, M.J.; Grundmann, H.; Monnet, D.L.; Koraqi, A.; Bino, S.; Hartl, R.; Apfalter, P.; Glupczynski, Y.; et al. Carbapenemase-Producing Enterobacteriaceae in Europe: Assessment by National Experts from 38 Countries, May 2015. Eurosurveillance 2015, 20. [CrossRef]
  12. Mathers, A.J.; Peirano, G.; Pitout, J.D.D. The Role of Epidemic Resistance Plasmids and International High-Risk Clones in the Spread of Multidrug-Resistant Enterobacteriaceae. Clin Microbiol Rev 2015, 28, 565–591. [CrossRef]
  13. Poirel, L.; Dortet, L.; Bernabeu, S.; Nordmann, P. Genetic Features of BlaNDM-1-Positive Enterobacteriaceae. Antimicrob Agents Chemother 2011, 55, 5403. [CrossRef]
  14. Carattoli, A. Resistance Plasmid Families in Enterobacteriaceae. Antimicrob Agents Chemother 2009, 53, 2227–2238. [CrossRef]
  15. Kopotsa, K.; Osei Sekyere, J.; Mbelle, N.M. Plasmid Evolution in Carbapenemase-Producing Enterobacteriaceae: A Review. Ann N Y Acad Sci 2019, 1457, 61–91. [CrossRef]
  16. Ivanov, I.; Sabtcheva, S.; Dobreva, E.; Todorova, B.; Velinov, T.Z.; Borissova, V.; Petrova, I.; Ivancheva, K.; Asseva, G.; Padeshki, P.; et al. Prevalence of Carbapenemase Genes among 16S RRNA Methyltransferase-Producing Enterobacteriaceae Isolated from Cancer Patients. Problems of Infectious and Parasitic Diseases 2014, 42, 10–13.
  17. Todorova, B.; Sabtcheva, S.; Ivanov, I.N.; Lesseva, M.; Chalashkanov, T.; Ioneva, M.; Bachvarova, A.; Dobreva, E.; Kantardjiev, T. First Clinical Cases of NDM-1-Producing Klebsiella Pneumoniae from Two Hospitals in Bulgaria. J Infect Chemother 2016, 22, 837–840. [CrossRef]
  18. Gołȩbiewski, M.; Kern-Zdanowicz, I.; Zienkiewicz, M.; Adamczyk, M.; Zyliǹska, J.; Baraniak, A.; Gniadkowski, M.; Bardowski, J.; Cegłowski, P. Complete Nucleotide Sequence of the PCTX-M3 Plasmid and Its Involvement in Spread of the Extended-Spectrum β-Lactamase Gene BlaCTX-M-3. Antimicrob Agents Chemother 2007, 51, 3789. [CrossRef]
  19. Rezzoug, I.; Emeraud, C.; Girlich, D.; Creton, E.; Naas, T.; Bonnin, R.A.; Dortet, L. Characterization of VIM-29 and VIM-86, Two VIM-1 Variants Isolated in Multidrug-Resistant Enterobacterales in France. Journal of Antimicrobial Chemotherapy 2024, 79, 683–685. [CrossRef]
  20. Boattini, M.; Bianco, G.; Llorente, L.I.; Acero, L.A.; Nunes, D.; Seruca, M.; Mendes, V.S.; Almeida, A.; Bastos, P.; Rodríguez-Villodres, Á.; et al. Enterobacterales Carrying Chromosomal AmpC β-Lactamases in Europe (EuESCPM): Epidemiology and Antimicrobial Resistance Burden from a Cohort of 27 Hospitals, 2020–2022. Int J Antimicrob Agents 2024, 63, 107115. [CrossRef]
  21. Carattoli, A.; Seiffert, S.N.; Schwendener, S.; Perreten, V.; Endimiani, A. Differentiation of IncL and IncM Plasmids Associated with the Spread of Clinically Relevant Antimicrobial Resistance. PLoS One 2015, 10, e0123063–e0123063. [CrossRef]
  22. Blackwell, G.A.; Doughty, E.L.; Moran, R.A. Evolution and Dissemination of L and M Plasmid Lineages Carrying Antibiotic Resistance Genes in Diverse Gram-Negative Bacteria. Plasmid 2021, 113, 102528. [CrossRef]
  23. Guo, X.; Chen, R.; Wang, Q.; Li, C.; Ge, H.; Qiao, J.; Li, Y. Global Prevalence, Characteristics, and Future Prospects of IncX3 Plasmids: A Review. Front Microbiol 2022, 13, 979558. [CrossRef]
  24. Juraschek, K.; Käsbohrer, A.; Malorny, B.; Schwarz, S.; Meemken, D.; Hammerl, J.A. Dissection of Highly Prevalent QnrS1-Carrying IncX Plasmid Types in Commensal Escherichia Coli from German Food and Livestock. Antibiotics (Basel) 2021, 10, 1236. [CrossRef]
  25. Li, R.; Liu, Z.; Li, Y.; Xiao, X.; Wang, Z. Characterization of BlaNDM-Positive Enterobacteriaceae Reveals the Clonal Dissemination of Enterobacter Hormaechei Coharboring BlaNDM and Tet(X4) along the Pork Production Chain. Int J Food Microbiol 2022, 372. [CrossRef]
  26. Nakano, R.; Nakano, A.; Abe, M.; Inoue, M.; Okamoto, R. Regional Outbreak of CTX-M-2 β-Lactamase-Producing Proteus Mirabilis in Japan. J Med Microbiol 2012, 61, 1727–1735. [CrossRef]
  27. Mataseje, L.F.; Peirano, G.; Church, D.L.; Conly, J.; Mulvey, M.; Pitout, J.D. Colistin-Nonsusceptible Pseudomonas Aeruginosa Sequence Type 654 with BlaNDM-1 Arrives in North America. Antimicrob Agents Chemother 2016, 60, 1794. [CrossRef]
  28. Nordmann, P.; Poirel, L.; Dortet, L. Rapid Detection of Carbapenemase-Producing Enterobacteriaceae. Emerg Infect Dis 2012, 18, 1503. [CrossRef]
  29. Matuschek, E.; Brown, D.F.J.; Kahlmeter, G. Development of the EUCAST Disk Diffusion Antimicrobial Susceptibility Testing Method and Its Implementation in Routine Microbiology Laboratories. Clinical Microbiology and Infection 2014, 20. [CrossRef]
  30. Stoikov, I.; Ivanov, I.N.; Donchev, D.; Teneva, D.; Dobreva, E.; Hristova, R.; Sabtcheva, S. Genomic Characterization of IMP-Producing Pseudomonas Aeruginosa in Bulgaria Reveals the Emergence of IMP-100, a Novel Plasmid-Mediated Variant Coexisting with a Chromosomal VIM-4. Microorganisms 2023, 11, 2270. [CrossRef]
  31. Alvarez-Arevalo, M.; Sterndorff, E.B.; Faurdal, D.; Jørgensen, T.S.; Mourched, A.S.; Vuksanovic, O.; Saha, S.; Weber, T. Extraction and Oxford Nanopore Sequencing of Genomic DNA from Filamentous Actinobacteria. STAR Protoc 2022, 4. [CrossRef]
  32. Chen, S.; Zhou, Y.; Chen, Y.; Gu, J. Fastp: An Ultra-Fast All-in-One FASTQ Preprocessor. Bioinformatics 2018, 34, i884–i890. [CrossRef]
  33. Wick, R.R.; Judd, L.M.; Gorrie, C.L.; Holt, K.E. Unicycler: Resolving Bacterial Genome Assemblies from Short and Long Sequencing Reads. PLoS Comput Biol 2017, 13, e1005595. [CrossRef]
  34. Wick, R.R.; Judd, L.M.; Cerdeira, L.T.; Hawkey, J.; Méric, G.; Vezina, B.; Wyres, K.L.; Holt, K.E. Trycycler: Consensus Long-Read Assemblies for Bacterial Genomes. Genome Biol 2021, 22, 266. [CrossRef]
  35. Clausen, P.T.L.C.; Aarestrup, F.M.; Lund, O. Rapid and Precise Alignment of Raw Reads against Redundant Databases with KMA. BMC Bioinformatics 2018, 19, 307. [CrossRef]
  36. Schwengers, O.; Jelonek, L.; Dieckmann, M.A.; Beyvers, S.; Blom, J.; Goesmann, A. Bakta: Rapid and Standardized Annotation of Bacterial Genomes via Alignment-Free Sequence Identification. Microb Genom 2021, 7, 000685. [CrossRef]
  37. Feldgarden, M.; Brover, V.; Gonzalez-Escalona, N.; Frye, J.G.; Haendiges, J.; Haft, D.H.; Hoffmann, M.; Pettengill, J.B.; Prasad, A.B.; Tillman, G.E.; et al. AMRFinderPlus and the Reference Gene Catalog Facilitate Examination of the Genomic Links among Antimicrobial Resistance, Stress Response, and Virulence. Scientific Reports 2021 11:1 2021, 11, 1–9. [CrossRef]
  38. Bortolaia, V.; Kaas, R.S.; Ruppe, E.; Roberts, M.C.; Schwarz, S.; Cattoir, V.; Philippon, A.; Allesoe, R.L.; Rebelo, A.R.; Florensa, A.F.; et al. ResFinder 4.0 for Predictions of Phenotypes from Genotypes. Journal of Antimicrobial Chemotherapy 2020, 75, 3491–3500. [CrossRef]
  39. Carattoli, A.; Zankari, E.; Garciá-Fernández, A.; Larsen, M.V.; Lund, O.; Villa, L.; Aarestrup, F.M.; Hasman, H. In Silico Detection and Typing of Plasmids Using PlasmidFinder and Plasmid Multilocus Sequence Typing. Antimicrob Agents Chemother 2014, 58, 3895–3903. [CrossRef]
  40. Shakya, M.; Ahmed, S.A.; Davenport, K.W.; Flynn, M.C.; Lo, C.-C.C.; Chain, P.S.G.G. Standardized Phylogenetic and Molecular Evolutionary Analysis Applied to Species across the Microbial Tree of Life. Sci Rep 2020, 10, 1723. [CrossRef]
  41. Letunic, I.; Bork, P. Interactive Tree Of Life (ITOL) v5: An Online Tool for Phylogenetic Tree Display and Annotation. Nucleic Acids Res 2021, 49, W293–W296. [CrossRef]
  42. Livermore, D.M.; Jones, C.S. Characterization of NPS-1, a Novel Plasmid-Mediated Beta-Lactamase, from Two Pseudomonas Aeruginosa Isolates. Antimicrob Agents Chemother 1986, 29, 99–103. [CrossRef]
  43. Woodford, N.; Fagan, E.J.; Ellington, M.J. Multiplex PCR for Rapid Detection of Genes Encoding CTX-M Extended-Spectrum (Beta)-Lactamases. J Antimicrob Chemother 2006, 57, 154–155. [CrossRef]
  44. Mlynarcik, P.; Chalachanova, A.; Vagnerova, I.; Holy, O.; Zatloukalova, S.; Kolar, M. PCR Detection of Oxacillinases in Bacteria. Microb Drug Resist 2020, 26, 1023–1037. [CrossRef]
  45. Pérez-Pérez, F.J.; Hanson, N.D. Detection of Plasmid-Mediated AmpC Beta-Lactamase Genes in Clinical Isolates by Using Multiplex PCR. J Clin Microbiol 2002, 40, 2153–2162. [CrossRef]
  46. Berçot, B.; Poirel, L.; Nordmann, P. Updated Multiplex Polymerase Chain Reaction for Detection of 16S RRNA Methylases: High Prevalence among NDM-1 Producers. Diagn Microbiol Infect Dis 2011, 71, 442–445. [CrossRef]
  47. Davis, M.A.; Baker, K.N.K.; Orfe, L.H.; Shah, D.H.; Besser, T.E.; Call, D.R. Discovery of a Gene Conferring Multiple-Aminoglycoside Resistance in Escherichia Coli. Antimicrob Agents Chemother 2010, 54, 2666. [CrossRef]
  48. Hidalgo, L.; Hopkins, K.L.; Gutierrez, B.; Ovejero, C.M.; Shukla, S.; Douthwaite, S.; Prasad, K.N.; Woodford, N.; Gonzalez-Zorn, B. Association of the Novel Aminoglycoside Resistance Determinant RmtF with NDM Carbapenemase in Enterobacteriaceae Isolated in India and the UK. Journal of Antimicrobial Chemotherapy 2013, 68, 1543–1550. [CrossRef]
  49. Cattoir, V.; Poirel, L.; Rotimi, V.; Soussy, C.-J.J.; Nordmann, P. Multiplex PCR for Detection of Plasmid-Mediated Quinolone Resistance Qnr Genes in ESBL-Producing Enterobacterial Isolates. Journal of Antimicrobial Chemotherapy 2007, 60, 394–397. [CrossRef]
  50. Wang, M.; Guo, Q.; Xu, X.; Wang, X.; Ye, X.; Wu, S.; Hooper, D.C.; Wang, M. New Plasmid-Mediated Quinolone Resistance Gene, QnrC, Found in a Clinical Isolate of Proteus Mirabilis. Antimicrob Agents Chemother 2009, 53, 1892–1897. [CrossRef]
  51. Cavaco, L.M.; Hasman, H.; Xia, S.; Aarestrup, F.M. QnrD, a Novel Gene Conferring Transferable Quinolone Resistance in Salmonella Enterica Serovar Kentucky and Bovismorbificans Strains of Human Origin. Antimicrob Agents Chemother 2009, 53, 603–608. [CrossRef]
  52. Yamane, K.; Wachino, J.I.; Suzuki, S.; Arakawa, Y. Plasmid-Mediated QepA Gene among Escherichia Coli Clinical Isolates from Japan. Antimicrob Agents Chemother 2008, 52, 1564. [CrossRef]
  53. Ivanov, I.; Sabtcheva, S.; T., S.; Y., I.; M., K.; Kantardjiev, T. A RAPID AND VERSATILE ASSAY FOR SCREENING OF AAC(6’)-IB-CR IN MULTIDRUG-RESISTANT ENTEROCBACTERIACEAE. In Problems of Infectious and Parasitic Diseases; Sofia, 2018; Vol. 46, pp. 5–8.
  54. Ruekit, S.; Wangchuk, S.; Dorji, T.; Tshering, K.P.; Pootong, P.; Nobthai, P.; Serichantalergs, O.; Poramathikul, K.; Bodhidatta, L.; Mason, C.J. Molecular Characterization and PCR-Based Replicon Typing of Multidrug Resistant Shigella Sonnei Isolates from an Outbreak in Thimphu, Bhutan. BMC Res Notes 2014, 7, 95. [CrossRef]
Preprints 104956 g001

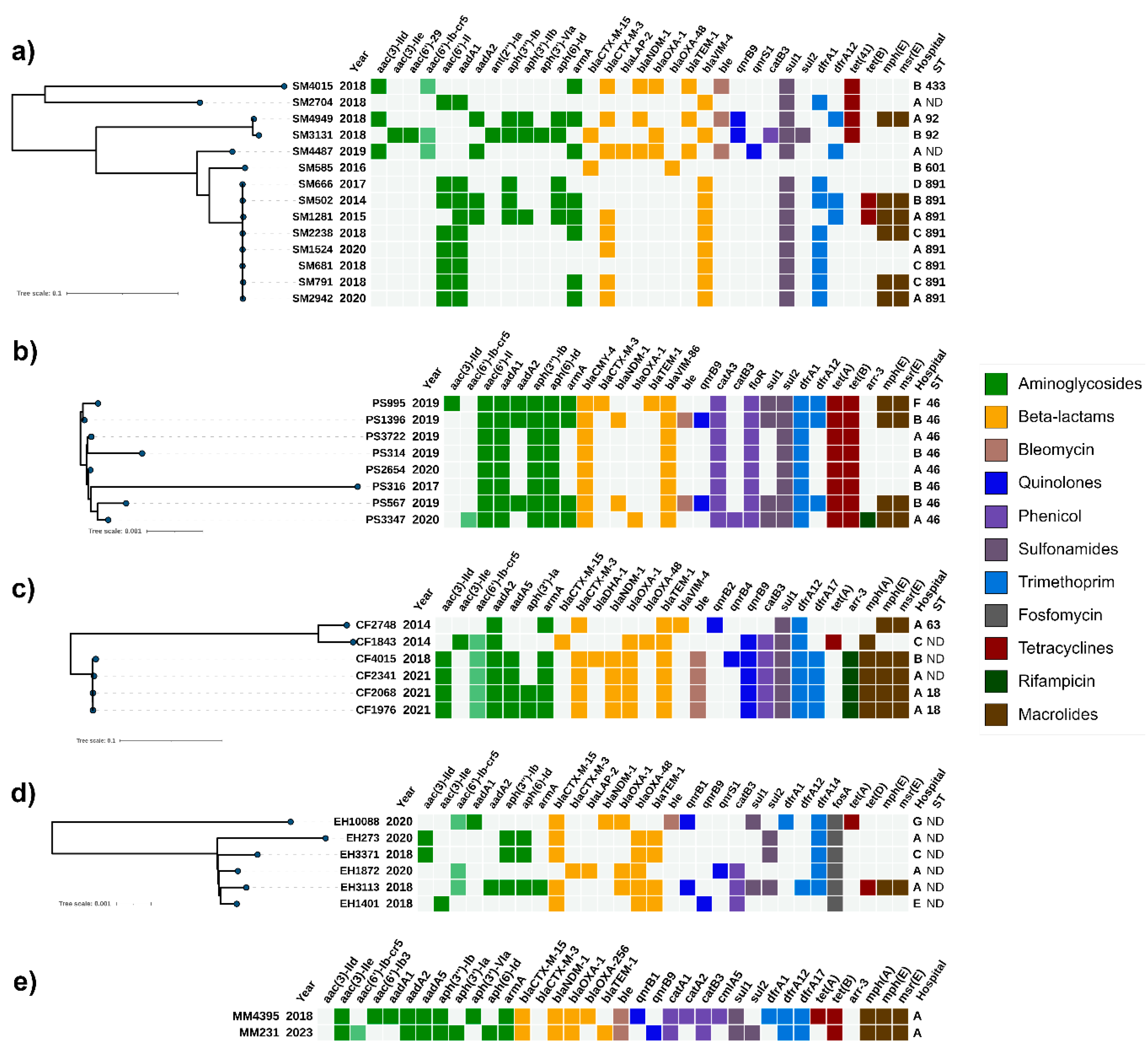

Figure 1. Heatmap representation of the acquired antimicrobial resistance genes of: (a) Serratia marcescens; (b) Providentia stuartii; (c) Citrobacter freundii; (d) Enterobacter hormaechei; (e) Morganella morganii. Phylogenetic trees were constructed based on SNP analysis for a)-d) with PhaME v1.0.4 (see Subsection 4.5). There were only two M. morganii isolates, hence the lack of dendrogram. Drug classes were colored consistently as shown in the legend (right). The only exception from the legend is the aac(6')-Ib-cr5, colored in pale green to indicate the dual resistance. Both dendrograms and heatmaps were displayed and annotated with iTOL v6.8.1 (https://itol.embl.de/about.cgi, accessed on 3 April 2024). Sequence type (ST) was derived for the species with available MLST schemes; ND, not determined either due to missing alleles or imperfect match. SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii.is a figure.
Figure 1. Heatmap representation of the acquired antimicrobial resistance genes of: (a) Serratia marcescens; (b) Providentia stuartii; (c) Citrobacter freundii; (d) Enterobacter hormaechei; (e) Morganella morganii. Phylogenetic trees were constructed based on SNP analysis for a)-d) with PhaME v1.0.4 (see Subsection 4.5). There were only two M. morganii isolates, hence the lack of dendrogram. Drug classes were colored consistently as shown in the legend (right). The only exception from the legend is the aac(6')-Ib-cr5, colored in pale green to indicate the dual resistance. Both dendrograms and heatmaps were displayed and annotated with iTOL v6.8.1 (https://itol.embl.de/about.cgi, accessed on 3 April 2024). Sequence type (ST) was derived for the species with available MLST schemes; ND, not determined either due to missing alleles or imperfect match. SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii.is a figure.
Preprints 104956 g001
Table 1. Distribution of carbapenemase genes among the 36 CP-ESCPM isolates.
Table 1. Distribution of carbapenemase genes among the 36 CP-ESCPM isolates.
Species VIM NDM VIM + NDM OXA-48-like Total
S. marcescens 10 3 1 14
P. stuartii 6 2 8
C. freundii 1 4 1 6
E. hormaechei 1 5 6
M. morganii 2 2
Total 17 (47.2%) 10 (27.8%) 2 (5.6%) 7 (19.4%) 36
Table 2. Characteristics of transconjugants and donor plasmid replicon types.
Table 2. Characteristics of transconjugants and donor plasmid replicon types.
Transconjugant Transferred resistance genes and plasmid incompatibility group Associated
Phenotypic
resistancea 		Donor plasmid replicon type(s)b (WGS)
Carbapenemase gene(s) Additional resistance genes Inc group
(PCR)
TC ─ SM4015/1 blaNDM-1 - IncX - IncX3; IncM2
TC ─ SM4015/2 - armA, blaCTX-M-3, blaOXA-1, aac(6')-Ib-cr IncL/M - IncM2; IncX3
TC ─ SM4949 blaNDM-1 armA, blaCTX-M-3, qnrB IncL/M Sxt IncM2
TC ─ SM4487 - armA, blaCTX-M-3 IncL/M Sxt IncM2; Col
TC ─ SM585 blaOXA-48 - IncL/M - IncL
TC ─ SM502 - armA ND - IncFII; IncHI2; IncHI2A; Col
TC ─ SM1281 - armA, blaCTX-M-3 IncL/M Sxt IncM2; IncFII; IncHI2; IncHI2A CCol
TC ─ SM2238 - armA, blaCTX-M-3 IncL/M - IncM2; IncFII
TC ─ SM791 - armA, blaCTX-M-3 IncL/M - IncM2; IncFII
TC ─ SM2942 - armA, blaCTX-M-3 IncL/M - IncM2; IncFII; Col
TC ─ PS995/1 blaVIM-86 blaCMY-4 IncA/C Sxt Cm Te Tm IncC; IncM2
TC ─ PS995/2 - armA, blaCTX-M-3 IncL/M Sxt IncM2; IncC
TC ─ PS1396 blaVIM-86 , blaNDM-1 armA, blaCMY-4, qnrB IncA/C Sxt Cm Te IncC
TC ─ PS3722 blaVIM-86 blaCMY-4 IncA/C Sxt Cm Te Tm IncC
TC ─ PS314 blaVIM-86 blaCMY-4 IncA/C Sxt Cm Te Tm IncC
TC ─ PS2654 blaVIM-86 blaCMY-4 IncA/C Sxt Cm Te Tm IncC
TC ─ PS316 blaVIM-86 blaCMY-4 IncA/C Sxt Cm Te Tm IncC
TC ─ PS567 blaVIM-86 , blaNDM-1 armA, blaCMY-4, qnrB IncA/C Sxt Cm Te IncC
TC ─ PS3347 blaVIM-86 armA, blaCMY-4, blaOXA-1, aac(6')-Ib-cr IncA/C Sxt Cm Te IncC
TC ─ CF2748 blaVIM-4 armA, blaCTX-M-3 IncL/M Sxt IncM2; IncFIB; IncFII; Col
TC ─ CF1843 blaOXA-48 - IncL/M - IncL; IncFII; IncFIA; Col
TC ─ CF4015 blaNDM-1 armA, blaCTX-M-3, qnrB IncL/M Sxt IncM2; IncFIB; IncR;Col
TC ─ CF2341 blaNDM-1 armA, blaCTX-M-3, qnrB IncL/M Sxt IncM2; IncFIB; IncR;Col
TC ─ CF2068 blaNDM-1 armA, blaCTX-M-3, qnrB IncL/M Sxt IncM2; IncFIB; IncR;Col
TC ─ CF1976 blaNDM-1 armA, blaCTX-M-3, qnrB IncL/M Sxt IncM2; IncFIB; IncR;Col
TC ─ EH10088 blaNDM-1 - ND - Col
TC ─ EH273 blaOXA-48 - IncL/M - IncL; IncFIB; IncX5; Col
TC ─ EH3371 blaOXA-48 - IncL/M - IncL; IncFII; IncFIB; Col
TC ─ EH1872 blaOXA-48 blaCTX-M-3 IncL/M - IncL; IncFII; Col
TC ─ EH3113 blaOXA-48 armA, blaOXA-1, aac(6')-Ib-cr, qnrB IncL/M Sxt IncL; IncFII; IncFIB; Col
TC ─ EH1401 blaOXA-48 - IncL/M - IncL; IncFII; IncFIB; IncX3
TC ─ MM4395 blaNDM-1 armA, blaOXA-1, aac(6')-Ib, qnrB ND Sxt Cm IncT
TC, transconjugant; SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii; “-“, absence of gene or resistance; ND, not determined. a Sxt, trimethoprim-sulfamethoxazole; Cm, chloramphenicol; Te, tetracycline; Tm, tobramycin. b The replicon type of donor plasmid in bold is that corresponding to the incompatibility group of the transconjugant plasmid identified by the PCR-based replicon typing.
Table 3. MIC distributions for carbapenemase-positive ESCPM isolates.
Table 3. MIC distributions for carbapenemase-positive ESCPM isolates.
bla
gene(s)		 No. of isolates Antibiotic
(range tested, mg/L)		 EUCAST
breakpoints
≤S/>R		 Number of isolates with indicated MIC (mg/L) %S
0.25 0.5 1 2 4 8 16 32 64 128
VIM 17 Imipenem (1-8) ≤2/>4 1 16b 0
Meropenem (0.125-128) ≤2/>8 2 8 4 2 1 12
Piperacillin-tazobactam (4/4-64/4) ≤8/>8 7 2 8b 0
Ceftazidime (1-128) ≤1/>4 8 1 1 7b 0
Ceftazidime-avibactam (1/4-16/4) ≤8/>8 17b 0
Aztreonam (1-4) ≤1/>4 4a 3 2 8b 24
Amikacin (4-32) ≤8/>8 2a 6 1 8c 47
Gentamicin (2-4) ≤2/>2 4a 13b 24
Ciprofloxacin (0.25-2) ≤0.25/>0.5 17b 0
Colistin (1-8) ≤2/>2 1a 16c 6
Tigecycline (0.25-4) ≤0.5/>0.5 1a 8 2 6 6
Fosfomycin (16-64) ≤32/>32 5a 5 7b 59
Trimethoprim-sulfamethoxazole (1/19-4/76) ≤2/>4 1 16c 6
NDM 10 Imipenem (1-8) ≤2/>4 10b 0
Meropenem (0.125-128) ≤2/>8 2 3 3 1 1 20
Piperacillin-tazobactam (4/4-64/4) ≤8/>8 10b 0
Ceftazidime (1-128) ≤1/>4 10b 0
Ceftazidime-avibactam (1/4-16/4) ≤8/>8 10c 0
Aztreonam (1-4) ≤1/>4 10b 0
Amikacin (4-32) ≤8/>8 1 10
Gentamicin (2-4) ≤2/>2 1a 9b 10
Ciprofloxacin (0.25-2) ≤0.25/>0.5 1 9c 9c 0
Colistin (1-8) ≤2/>2 5a 5c 50
Tigecycline (0.25-4) ≤0.5/>0.5 4a 1 4 1 50
Fosfomycin (16-64) ≤32/>32 8a 2b 80
Trimethoprim-sulfamethoxazole (1/19-4/76) ≤2/>4 1a 9c 10
OXA-48-like 7 Imipenem (1-8) ≤2/>4 5 1 1 71
Meropenem (0.125-128) ≤2/>8 4 3 57
Piperacillin-tazobactam (4/4-64/4) ≤8/>8 7c 0
Ceftazidime (1-128) ≤1/>4 1 6b 0
Ceftazidime-avibactam (1/4-16/4) ≤8/>8 7a 100
Aztreonam (1-4) ≤1/>4 7b 0
Amikacin (4-32) ≤8/>8 4a 2 1c 86
Gentamicin (2-4) ≤2/>2 2a 5b 29
Ciprofloxacin (0.25-2) ≤0.25/>0.5 7c 0
Colistin (1-8) ≤2/>2 6a 1c 86
Tigecycline (0.25-4) ≤0.5/>0.5 3a 3 1 86
Fosfomycin (16-64) ≤32/>32 2a 5b 29
Trimethoprim-sulfamethoxazole (1/19-4/76) ≤2/>4 2a 5b 29
NDM + VIM 2 Imipenem (1-8) ≤2/>4 2c 0
Meropenem (0.125-128) ≤2/>8 1 1 0
Piperacillin-tazobactam (4/4-64/4) ≤8/>8 2c 0
Ceftazidime (1-128) ≤1/>4 2c 0
Ceftazidime-avibactam (1/4-16/4) ≤8/>8 2c 0
Aztreonam (1-4) ≤1/>4 1 1 0
Amikacin (4-32) ≤8/>8 2c 0
Gentamicin (2-4) ≤2/>2 2b 0
Ciprofloxacin (0.25-2) ≤0.25/>0.5 2c 0
Colistin (1-8) ≤2/>2 2c 0
Tigecycline (0.25-4) ≤0.5/>0.5 2 0
Fosfomycin (16-64) ≤32/>32 2a 100
Trimethoprim-sulfamethoxazole (1/19-4/76) ≤2/>4 2c 0
S, susceptible; R, resistant. Numbers of isolates in bold are susceptible and those in italics are intermediate (susceptible, increased exposure). a MIC less than or equal to indicated value. b MIC greater than or equal to indicated value. c MIC greater than indicated value.
Table 4. Sources of the 36 carbapenemase-producing ESCPM isolates.
Table 4. Sources of the 36 carbapenemase-producing ESCPM isolates.
Species urines tissue and fluid respiratory blood cultures Total
S. marcescens 12 2 14
P. stuartii 1 6 1 8
C. freundii 5 1 6
E. hormaechei 4 1 1 6
M. morganii 2 2
Total 22 9 3 2 36
Table 5. Distribution of 36 carbapenemase producers according to year of isolation.
Table 5. Distribution of 36 carbapenemase producers according to year of isolation.
Species 2014 2015 2016 2017 2018 2019 2020 2021 2023 Total
S. marcescens 1 1 1 1 7 1 2 14
P. stuartii 1 5 2 8
C. freundii 2 1 3 6
E. hormaechei 3 3 6
M. morganii 1 1 2
Total 3 1 1 2 12 6 7 3 1 36
Table 6. Distribution of 36 carbapenemase producers according to submitting hospital.
Table 6. Distribution of 36 carbapenemase producers according to submitting hospital.
Species Hospital Total
A B C D E F G
S. marcescens 6 4 3 1 14
P. stuartii 3 4 1 8
C. freundii 4 1 1 6
E. hormaechei 3 1 1 1 6
M. morganii 2 2
Total 18 9 5 1 1 1 1 36
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
