Abstract
Dual-energy CT (DECT) imaging has broadened the potential of CT imaging by offering multiple postprocessing datasets with a single acquisition at more than one energy level. DECT shows profound capabilities to improve diagnosis based on its superior material differentiation and its quantitative value. However, the potential of dual energy imaging remains relatively untapped, possibly due to its intricate workflow and intrinsic technical limitations of DECT. Knowing the clinical advantages of dual-energy imaging and recognizing its limitations and pitfalls is neces-sary for an appropriate clinical use. The aims of this paper are to review physical and technical basis of DECT acquisition and analysis, to discuss advantages and limitations of DECT in dif-ferent clinical scenarios, to review technical constraints in material labeling and quantification, and to evaluate cutting-edge applications of DECT imaging, including artificial intelligence, qualitative and quantitative imaging biomarkers, and DECT-derived radiomics and radioge-nomics
Keywords:
Subject: Medicine and Pharmacology  -   Other

1. Introduction

Computed tomography (CT) ranks as one of the top five medical developments in the last 50 years. CT imaging has recently been experiencing remarkable growth with advancements in spatial and temporal resolution, radiation dose reduction, artificial intelligence (AI) integration, and new clinical applications. As a result, CT scans will continue to be a cornerstone of modern medical diagnostics and personalized medicine. However, conventional (single-energy) CT has inherent limitations in soft tissue differentiation. Therefore, dual-energy CT (DECT) imaging (a subset of spectral CT) tries to overcome these limitations by acquiring data at two energy levels (tube voltages) allowing the differentiation of materials by using the energy dependence of X-ray attenuation in any material [1,2,3,4,5,6,7,8]. DECT has been considered as the next phase of CT technology development and has emerged as a useful tool with many clinical applications that have evolved over time. DECT shows profound capabilities to improve diagnosis based on its superior material differentiation, but also show technical constraints that must be considered for proper use in daily practice [8,9,10]. The aims of this paper are to review physical and technical basis of DECT acquisition and analysis, to discuss advantages and limitations of DECT in different clinical scenarios, to review technical constraints in material labeling and quantification, and to evaluate cutting-edge applications of DECT imaging, including artificial intelligence, qualitative and quantitative imaging biomarkers, and DECT-derived radiomics and radiogenomics.

2. How DECT Imaging Works?

Conventional CT imaging systems uses an X-ray beam that includes a wide range of photon energies (polychromatic or polyenergetic) for recording the radiation attenuated by the different densities of tissues, expressed in terms of Hounsfield Unit (HU). CT systems measure the linear absorption coefficients of different tissues an X-ray beam passes through. Linear absorption coefficient is a result of the combination of two physical interactions of X-ray photons in the matter: photoelectric absorption (that is predominant under low energy and strongly depends on Z) and Compton scattering (CS) (that is predominant under high energy and depends on the electron density [ρ] of the material). However, single-energy CT systems show an inherent limitation in soft tissue differentiation. On conventional CT, the HU value (or CT number) of a voxel entirely depends on the linear attenuation coefficient (μ), a parameter that describes the fraction of attenuated incident photons in a monoenergetic beam per unit thickness of a material, which has considerable overlap between different body materials. if two different materials show similar coefficients (hemorrhage and iodine, for example), the same HU value will be assigned to both materials, and it will be difficult their differentiation [1,5,6,7,8] [Figure 1].
On the contrary, DECT uses two different x-ray spectra (tube voltages) to acquire two image datasets of the same region allowing the analysis of energy-dependent changes in the attenuation of different materials. The degree that a material will attenuate the X-ray beam is dependent on tissue composition (μ increases with increasing atomic number and increasing physical density of the absorbing material) and photon energy level (increasing with lower photon energy). Each type of material demonstrates a relatively specific change in attenuation between images obtained with a high-energy spectrum and those obtained with a low-energy spectrum. The influence of the effective atomic number (Zeff) on the attenuation (HU) at different energy values is fundamental for reliable material characterization and quantification. Although CS is the dominant interaction on CT imaging, CS does not depend on photon energy level in the range of photons’ energies used in clinical CT. The photoelectric effect (PE) predominates at low energy values and strongly depends on Z of the material as well as on the energy (E) of the photons (probability of photoelectric absorption= Z3/E3). PE is the fundamental basis of DECT imaging [Figure 2].
Materials with high atomic number, such as iodine, calcium, barium, and gadolinium are susceptible to the PE at lower energy levels, which can be exploited to differentiate those materials. On the contrary, lighter atoms, such as most atoms in soft tissues and water, do not present much of a PE in the range of energies used in clinical CT scans. Based on the relatively specific change in attenuation with two different energies, material composition information can be obtained to allow tissue characterization [1,2,3,4,5,6,7,8,9]. In this setting, two materials may have similar attenuation coefficients at single-energy spectrum but may be differentiated on DECT based on their attenuation properties at two different energies [Figure 1]. When CT numbers of a material at low- (70-80 kVp) and high-energy (135-140 kVp) values are plotted along y- and x-axes, the slope is a characteristic of the material, and the location of the value of a given pixel along this slope depends on density. The higher the Zeff (iodine, calcium, barium), the steeper the slope (marked increase of HU values at low energy values). On the contrary, CT numbers of water and soft tissues (which have similar lower Zeff values) are not energy dependent and will change very little when varying the X-ray beam energy. Therefore, these elements will remain close to the identity line (or line of equality) that represents values at which both CT numbers are same. As a result, DECT may differentiate materials if their atomic numbers differ sufficiently. Besides, by consensus, water and air densities are 0 and − 1000 HU, respectively, at all kVp and thus lie on the identity line. [9,10,11] [Figure 3 and Figure 4].
Finally, it must consider that spectral separation is a fundamental feature for improving DECT material labeling. Spectral separation depends on the amount of overlap between the low and high-energy X-ray spectrum. Theoretically, it would be advantageous to use two energy levels as far apart as possible. However, there are some limitations to the energy levels that can be used on DECT imaging. So, at peak energies less than 80 kVp, too few photons are generated and a substantial proportion of them would be absorbed by the body, increasing image noise, and reducing their utility in imaging. On the other side, voltages higher than 140-150 kVp are typically not available on all DECT scanners and result in higher dose of radiation with too little soft tissue contrast [11,12].

2.1. How is DECT Able to Characterize and Quantify Materials?

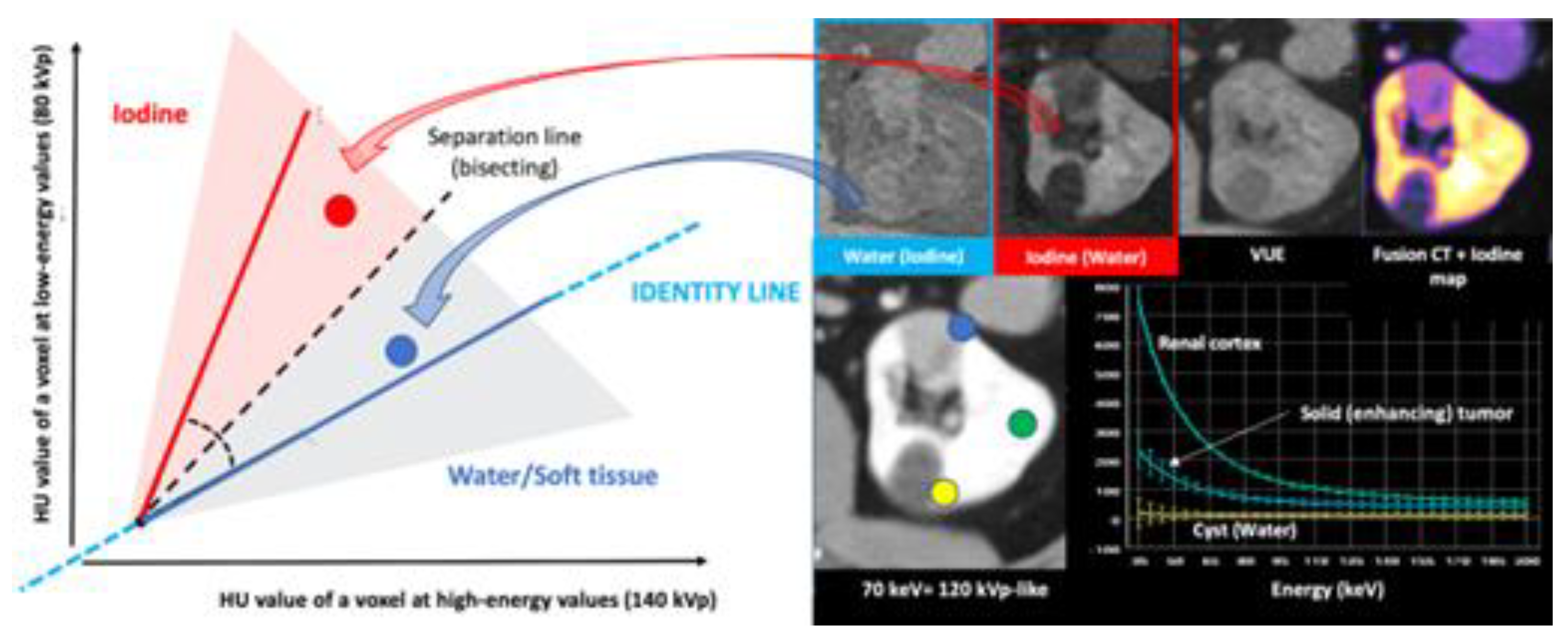

Material decomposition using DECT imaging consider the density (HU) of a voxel with an unknown composition as a result of a linear combination of two or three (in advanced models) materials based on the change in attenuation between the two energy levels. Material decomposition algorithms can be applied to raw data (two-material decomposition) or to the image-space domain (three-material decomposition).
In material differentiation or labeling, two materials with different dual-energy slopes caused by different PE effects can be differentiated. Materials with high Z values (such as iodine, calcium, or barium) can be adequately differentiated from usual body materials (hydrogen, carbon, nitrogen, and oxygen) that present a weak PE at low energy values. This is the fundamental of materials decomposition using DECT. The characteristics of several basic materials like iodine, water, calcium, and fat at different energy levels are well-known and used for analysis. Therefore, it is possible to characterize an unknown material based on their attenuation plot at different energy levels and according to its position in relation to these basic materials [5,6,7,8,9,10,11,12,13]. Decomposition algorithms create material-specific image pairs. Any two materials can be selected for two material DECT decomposition, being iodine-water the most useful one [Figure 5]. Nevertheless, the approach of basis material decomposition differs slightly, depending on the CT system used to acquire the dual-energy data.

2.2. More Image Types are Available with DECT Than with Single-Energy CT

The main advantage of DECT is the capability of offering material- and energy-selective images. The former include material decomposition with material labeling, quantification (distribution maps), and subtraction (iodine, calcium, etc); while the latter include the monoenergetic imaging, spectral curves, Zeff, and effective electron density (Rho-Z maps) [5,11,14].

2.2.1. Material-Selective Images

A given basis material can be detected, labeled and subtracted using DECT. Iodine, calcium, monosodium urate, or fat are frequently used as basis materials in clinical prctice [11,14,15] [Table 1].

2.2.1.1. Material-Labeling

In material-labeling, two materials with different dual-energy slopes caused by their PE effects can be differentiated by using a pre-defined separation line. Basis material images selectively display the material in question in gray scale or with color overlay. The most common images used are iodine maps, which specifically show iodine distribution in tissues with improved differentiation between enhanced and non-enhanced lesions. However, many other pairs of basis materials can be analysed based on DECT, including uric acid/calcium (differentiation of uric acid from calcium in kidney stones and the monosodium urate crystals in the diagnosis and follow-up of gout patients), calcium/water or soft tissue, calcium/hemorrhage, and silicone/soft tissue [2,3,15,16,17,18,19]. Furthermore, multimaterial decomposition algorithms allow quantification of the percentage of fat in a volume of tissue. Fat quantification based on DECT has been used for measuring liver steatosis, fatty bone marrow content, or myosteatosis; for evaluating adipose tissue distribution; and for characterization of adrenal gland lesions [15,16,20] [Table 1].

2.2.1.2. Material-Subtraction

Iodine may be subtracted from material-specific images, generating virtual unenhanced (VUE) images. VUE images have shown image quality comparable to true non-contrast (TUE) images, potentially obviating the need of a TUE acquisition and therefore reducing radiation exposure and scan time [21].
Virtual non-calcium (VNCa) imaging is able to estimate the amount of calcium on a DECT dataset and to subtract bone mineral or calcifications from images. Main VNCa clinical applications are removing of calcified plaques from vessels without subtraction and depicting alterations on the bone marrow and cancellous bone, including bone tumors or bone marrow edema (BME) [19,22]. VNCa suppress the high attenuation of trabecular bone, thus enabling visualization of subtle changes in bone marrow. BME images can be used to identify occult fractures. Visualization of BME can be used to identify fractures or bone focal lesions [19].

2.2.2. Energy-Selective Images

Polychromatic x-ray beams are composed of photons at many energy levels that form the x-ray spectrum. Due to this material-specific information of DECT, the density of each voxel can be extrapolated to a certain energy level to generate virtual monochromatic (VMI) series. They can simulate how CT images would look like if a monochromatic beam of X-rays at a chosen single energy was used for imaging. This type of images may improve image quality increasing contrast-noise ratio and reducing artifacts (such as beam-hardening at higher keV values). When using lower energy levels, the energy level can be shifted close to the k-edge of iodine (36 keV), which may improve the visualization of contrast-enhanced lesions and reduce of the iodine contrast dose administered. This feature can be useful in patients with impaired renal function [1,2,3,4,5,6,7,8] [Table 2].
DECT imaging also allows calculation of mass density (rho) and Zeff information. Z-eff image measures the average atomic number of a tissue, which is fundamental in radiotherapy planning [15]. Besides, prelimminary results suggest that atomic numbers could be useful to discriminate non-enhancing from enhancing renal masses on effective atomic number maps. Mileto, et al [24] concluded that 8.36 value was the optimal threshold with the enhancing masses showing higher values.

2.2.3. Polichromatic-like Images

In addition to the material- and energy-specific images, a mixture of the low- and high-energy acquisitions is used to generate a single set of blended images similar to conventional single-energy CT images (i.e., 120 kVp–like images) to be used for routine diagnosis. They simulate the standard 120 kVp dataset in polychromatic CT combining high-contrast from low-keV images with lower noise at higher keV images [1,2,3,4,5,6,7,8,9].

2.3. Technical Solutions for Acquiring DECT Imaging

The advance in technology has allowed for the development of different CT scanners in the field of DECT. Currently, all major vendors offer CT systems capable of DECT acquisition. However, commercially available DECT platforms have hardware and software differences that may influence the spectral performance and, consequently, lesion quantification and characterization [4,6,7].
Currently available advanced DECT systems fall into two main categories: source-based or detector-based.
  • Source-based DECT systems:
  • -
    Dual-source DECT with two x-ray tubes/detectors arranged perpendicular to each other.
    -
    DECT with rapid tube voltage switching alternating between high and low energies multiple times within the same rotation.
    -
    Detector based DECT systems:
    -
    Dual-layer DECT with a single x-ray tube and two layers of detectors, with a top layer detecting the low-energy photons and the bottom layer detecting high-energy photons.
    Every system shows advantages and disadvantages in clinical practice that must be known [4,6,7,8,9,10] [Figure 6].

    3. Clinical Applications of DECT Imaging: DOs & MAYBEs

    Dual-energy/spectral CT imaging can be considered as CT-plus imaging technique and has evolved into a useful clinical tool. DECT offers numerous advantages over conventional CT such as image optimization, artifact reduction, and the ability to provide additional information regarding tissue composition and enhancement. The multiple image types generated from DECT acquisition had opened a wide range of clinical applications already established. In addition, many new advanced applications have emerged.

    3.1. DOs: Current Clinical Applications of DECT

    DECT offers the potential for an improved lesion detection and characterization, superior determination of material composition, and a more robust quantification. Besides, this technique enables a decrease in the amount of iodine contrast administered and in radiation dose (eliminating the need for a non-contrast phase by generating VUE images) and can also reduce CT artifacts (e.g., beam hardening). Although a complete review of clinical applications of dual energy imaging is out of the scope of this manuscript, DECT has demonstrated clear clinical benefits in many different anatomical areas and clinical scenarios and offers a “solving-problems” tool allowing for an accurate characterization of incidental findings and obviating the need for further imaging, which may potentially reduce healthcare costs. [1,2,3,4,5,6,7,8,9,10] [Figure 7].

    3.2. MAYBEs: Advanced Applications of DECT

    DECT may offer a “one-stop-shop” imaging approach in various organs such as heart and liver. In the case of cardiac imaging, dual-energy cardiac CT allows for a global cardiac assesment combining morphologic and functional analysis. DECT imaging offers high spatial resolution cardiac morphology, coronary plaque imaging and analysis with calcium scoring (including in post-contrast scans) and subtraction of calcium, improved evaluation of stent patency, calculation of fractional flow reserve, dynamic myocardial CT perfusion, assessment of myocardial extracellular space, and calculation of DECT-derived parameters such as iodine contrast uptake [24,25,26] [Figure 8]. Besides, DECT improves image quality and can reduce both radiation and contrast media administration. The generation of iodine perfusion maps is clearly one of the most attractive contributions of cardiac DECT imaging. These maps can outline the iodine distribution within the myocardium, improving the evaluation of perfusion defects in infartc and ischemia. However, it is necessary to emphasize that iodine maps assess myocardial blood volume at a given time, they are not multiphase acquisitions such as dynamic perfusion CT [24,25,26].
    Another field of ​​growing interest for the use of DECT is liver imaging. Advanced applications of liver DECT imaging include the assessment of fat and iron deposits and the calculation of extracellular volume (ECV) (which is related to the degree of liver fibrosis). Although a non-contrast scan is preferred, recent studies have shown that DECT can accurately quantify liver fat even on contrast-enhanced images. In the case of liver iron content, both the attenuation difference of the liver between the low- and high-energy CT images or using and an iron- or fat-specific material decomposition algorithm correlate well with the MR-based assessment of iron or fat accumulation [27,28,29,30] [Figure 9]. The major limitations to the routine use of DECT in diffuse liver diseases are radiation and additional software required for post-processing. Finally, although DECT cannot directly detect or quantify fibrosis in the liver, the degree of hepatic fibrosis is strongly correlated with the ECV. The quantification of ECV at a contrast-enhanced delayed phase (4-5 minute) can be used to estimate the degree of hepatic fibrosis. A normalized iodine concentration of liver (representing the ratio of iodine concentration of liver compared to that of aorta) may reflect the amount of fibrosis based on the extent of iodine uptake [31].
    Advanced applications of DECT may also provide quantitative measurements for radiotherapy planning, such as the Zeff and electron density of tissues for stopping power ratio calculation (SPR). DECT improves the accuracy of the SPR with an uncertainty of 1%–2% in proton range. DECT can be particularly useful for dose delivery techniques with a steeper dose gradient, such as brachytherapy and proton therapy [32]. In particle therapy, SPR is significant for dose calculations because the planning target volume (PTV) margin includes the uncertainty determined based on the SPR. Protons release the maximum energy just before they stop penetration, making an accurate estimation of the SPR essential for therapy planning. Enhanced tumor visualization and delineation or artifact reduction using DECT have the potential to improve volume segmentation, and dose calculation for radiation therapy planning in cancer treatment [Figure 10].
    DECT technology has opened opportunities for new clinical applications, including the characterization of adrenal nodules, the detection of prostate and breast cancer, and the assessment of lymph-nodes (LNs), or the study of body composition.
    • In the case of adrenal imaging, fat fraction had higher sensitivity than VUE attenuation and the traditional threshold of 10 HU or lower for diagnosing adrenal adenomas. Loonis, et al [20] reported a threshold of fat fraction ≥ 23.8% with a 100% specificity and 59% sensitivity [Figure 11]. Besides, DECT-derived parameters can be used to differentiate adrenal adenoma from pheochromocytoma, or metastases based on the effect of lipid components on attenuation [33,34]. Finally, the iodine concentration can also be an imaging marker of dominant adrenal lesions in functional syndromes [35].
    • Breast imaging. DECT seems to be a reliable tool for diagnosis and locoregional staging of breast cancer [36,37,38,39,40] [Figure 12]. Klein, et al [37] found robust cut points for the differentiation of benign and malignant lesions (Zeff < 7.7, iodine content of <0.8 mg/ml). The DECT quantitative parameters may also be useful in predicting breast cancer invasiveness and histopathological and molecular subtypes of breast tumors. In the case of node-staging, the similarity of quantitative DECT parameters between the primary lesion and axillary LNs may predict axillary metastasis in breast cancer [40,41].
    • Currently, there is not a widely reported use of DECT in clinical management of prostate cancer. However, DECT imaging may facilitate the depiction of focal areas of increased enhancement in the periphery of the prostate at contrast-enhanced CT that may represent a clinically significant cancer and deserve further workup [42] [Figure 13].
    • LNs characterization is challenging in oncologic imaging. Apart of morphologic criteria, different DECT parameters have been used including iodine concentration, fat fraction, and similarity to primary tumor [41,43]. Sauter et al [44] have evaluated standard values for of iodine concentration for healthy LNs in different anatomic areas that could be used to differentiate between healthy and pathological LNs. Recent studies have suggested lower iodine concentration in metastatic LNs compared to benign LNs [45]. However, the value of DECT imaging in differentiating malignant from non-malignant LNs seems to be limited and depends on tumor type and technical features such as the used protocols of acquisition and contrast injection [Figure 14].
    • Imaging of body composition is another growing application of DECT imaging that can be used to improve the evaluation of muscle tissue, visceral adipose tissue (VAT), and subcutaneous adipose tissue (SAT) compartments. SAT and VAT assessment is of special interest in diseases related to metabolic syndrome and critically ill patients [46]. Moreover, sarcopenia is associated with a poorer prognosis in cancer patients [47]. Measuring fat fraction of the skeletal muscle by DECT is a new approach for the determination of muscle quality, an important parameter for the diagnostic confirmation of sarcopenia [48]. In the case of bone mineral density analysis, DECT can provide a more detailed analysis when compared with dual x-ray absorptiometry [49] [Figure 15]. Finally, DECT can also be a useful tool for evaluating silicone implants [Figure 16]. Silicone contains the heavier element silicon (Z value=14), whereas soft tissue predominantly comprises lighter elements, depicting the presence of silicone within the soft tissues in cases of silicone gel breast implant rupture and LNs silicone spread [50].

    4. Limitations of DECT Imaging: DON´Ts

    DECT offers information about the presence of iodine uptake in tissues, providing valuable information for key clinical tasks such as the characterization of lesions, assessment of tumor vascularity and tissues perfusion, and monitoring of treatment response. However, despite the great advance of dual-energy imaging, current DECT technology is still limited in many aspects.
    First, although material decomposition algorithms can decompose unknown tissues into selected materials, based on their attenuation plot at different energy levels, these assumptions may also explain many of the clinical limitations of DECT imaging. In the case of two material decomposition algorithms, they assume that everything within the image is composed of different proportions of only two materials and mathematically transform attenuation information into the concentrations of the two preselected materials that would be necessary to produce the measured attenuation level within each image voxel. Algorithms for material decomposition (characterization) and quantification may work perfectly when the entire voxel is composed of only two materials, but human body composition is very heterogeneous and a mixture of different tissues and materialsis possible in the same voxel. In the clinical setting, human tissues usually contains multiple materials and we do not know a priori what exactly the number of materials in it is. Besides, material decomposition algorithms based purely on the physics of the underlying attenuation process have several limitations [9,10,11]. It is challenging to separate materials of relatively close Z-values (e.g., iodine, barium and bone) [Figure 17]. For adequate differentiation of materials, their atomic numbers must be differ sufficiently. Moreover, in two-material decomposition algorithms, the presence of another material can confound assessment. The attenuation of an additional material is assumed to be composed of different proportions of two materials within the basis pair selected. This feature explains the visualization of calcium-containing voxels such as bone with iodine and water material-decomposition maps or in VUE images or the limited value of iodine maps in areas of sclerotic bone.
    Second, main CT vendors have implemented markedly different hardware and software solutions for DECT imaging. So, there is a significant inter-vendor and inter-scanner variability in terms of algorithms for material-labeling and quantification, so studies using different scanners should be interpreted with caution. There are two main mehods of material-decomposition: projection-based and image-based. Projection-based methods commonly provides better accuracy and image quality (artifacts reduction). However, these methods need a perfect match of the projection datasets derived from both spectrum (i.e., the same lines need to be measured at different energy levels), which is usually challeging. On the contrary, image-based methods are less quantitative but are easily applicable to the decomposition of three or more constituent materials. The variability in material-specific decomposition and quantificaction methods among manufacturers remains a limitative feature for dual-energy imaging standardization and comparison of results obtained with two different DECT systems. So, in the case of VUE attenuation values inter-scan variation was higher in elements with high contrast enhancement such as vessels and kidneys [51]
    Third, DECT-derived measurements are relative, not absolute values. It is very important to consider that the different vendors´solutions do not measure parameters in the same manner because the physical bases for image generation and analysis differ significantly between them. As a consecuence, the iodine limit of detection varies across different scanners and vendors [16,52,53]. All DECT systems are able to depict iodine at concentrations between 0.3 and 0.5 mg/mL and to quantify at concentrations of 0.5-1.0 mg/mL depending on the phantom size. However, it must be noted that the limit of iodine quantification (ie, quantifying the amount of iodine present) is greater than the minimum iodine concentrations detectable (ie, depicting the presence of iodine in a lesion), which limits the accuracy and the clinical value of iodine quantification. Perhaps, we can use the limit of detection as a threshold of iodine concentration below which values may not represent true enhancement; but it would be more clinically relevant to establish the iodine concentration above which there is definitive enhancement in a lesion [52,53]. These iodine concentration threshold values for iodine detection and quatification have been calculated based on phantom studies. Although CT phantoms are tissue-mimicking materials used to simulate and evaluate the interactions of ionizing radiation with human body tissues, it is very challenging to simulate the complexity of human tissues with iodine uptake. Therefore, thresholds published in the literature varied significantly between DECT systems. In the case of renal masses, published iodine content thresholds for renal mass enhancement varies between 0.5 mg/mL using a dual source DECT system and 2.0 mg/mL with a rapid kV switching CT [54].
    Fourth, the measurement of iodine concentration also depends on the contrast injection protocol, the time of acquisition or factors from the patient themselves such as cardiac input. The timing of image acquisition must be considered to avoid false-negative errors based on iodine quantification in slower and/or lesser enhancing lesions (i.e., papillary renal cancers). Iodine quantification is not a dynamic parameter, it only represents the amount of iodine contrast uptake within an object in a concrete timing following the administration of iodine contrast [Figure 18].
    In this setting, normalization to vessels could be a solution for a quantative assesment of iodine concentration but the published data are discordant in this regard. Normalization can mitigate variability reducing physiological fluctuations in iodine distribution by using normalised iodine calculation, which represents the iodine concentration in an object divided by the iodine concentration in in a reference vessel such as the aorta [55,56] [Figure 19]. Nevertheless, after normalization, the scanner type still had a significant effect on iodine variability in the pancreas and liver. Lennartz, et al [56] reported that iodine concentration also showed differences in variability between scanner types depending on the organ studied with the least variability in the kidneys and highest variability in the liver [55,56].
    Fifth, material-labeling and quantification accuracy is also influenced by other factors such as body habitus size (larger bodies may reduce the number of photons reaching the detectors and increase the image noise) and artifacts [Figure 20]. Imaging artifacts that downgrade the quality of material decomposition and quantification and tissue characterization can originate from a wide range of different sources: technical features of CT acquisition (e.g., slower scanning speeds with some vendor’s DECT modes), image recontruction algorithms, motion artifacts (which cause temporal misregistration of data from the two energies), or presence of metallic materials [10,57]. In the case of metallic implants, these devices preferentially absorbs low-energy photons and leaves a beam composed with higher-energy photons (beam hardening), which disrupts the calculation of the linear attenuation coefficient and causes streaking (dark bands) and cupping arteficts. Other important artifacts to consider are photon starvation and pseudoenhancemnet. The former results from an insufficient number of low-energy photons reaching the detector causing an inadequate low-kilovoltage data to characterize materials. This artifact may appear in thick parts of the body where there may not be adequate x-ray penetration, such as the shoulders or pelvis, and areas of overlying metal. In the case of pseudoenhancement, iodine content may erroneously be suggested in small non-enhancing lesions embedded in a background with increased iodine concentration due to a a combination of beam hardening and partial voluming [10,57,58].
    Sixth, DECT enables computational removal of iodine content from CT images, generating VUE images. However, algorithms used are not perfect. Attenuation measurements in VUE images may be higher than those calculated in true unenhanced acquisitions (TUE) (especially in the case of fat with differences > 10 UH) and non-reproductible among scanners [Figure 21]. These differences between virtual unenhanced and true unenhanced attenuation values could be problematic in the case of adrenal lesions limiting the adoption of the usual 10 HU threshold for characterization purposes [20,21]. Moreover, incomplete iodine removal in cases of very high iodine concentration may result in false positive findings suggesting malignancy [9,10,11]. Finally, iodine subtraction algorithms are prone to inadvertent subtraction of material with high Z-value like calcium. Calcifications and the size of calcifications tend to be underestimated in VUE images. This feature can reduce conspicuity of calcification in the pancreatic paenchyma in cases of chronic pancreatitis or in renal masses, affecting lesion interpretation.
    Finally, several additional materials, including calcium, fat, and uric acid, can be separated using DECT, but dual-energy findings are sometimes challenging to interpret:
    • VNCa improves CT sensitivity and specificity to assess bone marrow disorders. On VNCa imaging, the bone marrow attenuation mainly reflect the water and fat content on it. However, the optimal cutoff value for discrimination between infiltrated and normal bone marrow (ranging between -80 and 6 HU in the literature) and calcium suppression indices need to be defined [Figure 22]. VNCa imaging also shows limitations in evaluating bone marrow alterations in areas of sclerotic bone (e.g., close to the cortical bone) [22]. Apart of this, any bone marrow process (focal red marrow hyperplasia, malignant infiltrative lesions, etc.) that increases its attenuation can be misinterpreted as edema.
    • DECT-derived fat fraction, a quantitative marker of fat content in the liver, correlates with histopathological exam, the reference standard for steatosis. Pathology assessesment is based on the fraction of hepatocytes containing fatty vesicles: grade 0 (healthy, <5%), grade 1 (mild, 5–33%), grade 2 (moderate, 34–66%), and grade 3 (severe, >66%); while DECT evidences a substantially lower fatty liver content due to the simultaneous presence of fat, water, and soft-tissue in the voxel. Pathologic data can be correlated with DECT-derived fat quantification and a conversion factor may aid in the prediction of the histopathological fat fraction based on fat quantification using DECT [30]. Patients with coexisting hepatic fat and iron overload represent a clinical challenge. In the presence of multiple material elements in the same voxel, it is still not clear whether the presence of fat and iron in the same voxel results in reduced performance of DECT [27].
    • In the case of urates, monosodium urate foci may be either undetectable or underestimated by DECT with low urate burden. This phenomenum has been reported in dense liquid tophi and calcified tophi due to subthreshold CT attenuation and obscuration of urate by calcium [59]. Concerning kidney lithiasis evaluation, inconsistent characterization may occur in tiny stones, as a result of decreased signal from the stone which approaches the level of background noise. Besides, drainage devices composition can also create stone mimics [18,60].
    It is therefore necessary to take into consideration the aforementioned limitations in order to get the most out of DECT technique in clinical practice.

    5. The Future of DECT Imaging

    Future DECT evolution precises the improvement of dual-energy application workflow for extending the clinical value of DECT imaging. An evolving technology impacting nearly every aspect of dul-energy imaging is artificial intelligence (AI). AI will automate many critical aspects of the DECT process: acquisition (patient positioning, timing of acquisition, dose reduction), generation and modification of images (AI algorithms for reconstruction, denosing, and increasing resolution), and automation of time-consuming tasks for radiologists, such as image segmentation and quantitative analysis [61]. Finally, the development of cross-platform analysis methods may significantly decrease between-platform variability allowing technical standardization [62]. All these advancements are set to streamline the routine DECT imaging process.
    Another important feature will be the assessment of the relationships between DECT-derived parameters and biology. DECT provides qualitative and quantitative information about tissue composition and physiology. In the oncologic field, these parameters may play a pivotal role in tumor management, including diagnosis, characterization, grading, assessment of tumor invasiveness, staging, histopathological and molecular typing (ki-67 or PD-L1 expression, HER-2 status, K-RAS mutations, etc.), prognostic and predictive value, treatment planning, response assessment, and follow up [63,64,65,66,67,68,69,70,71,72,73,74]. In this setting, quantitative tumor biomarkers based on DECT include iodine concentration, Zeff values, and HU values [36,37,75,76,77,78].
    • Data on physiological iodine uptake is still sparse. Physiologic iodine uptake values of organs and tissues may change depending on multiple features (body habitus, age, gender, etc.) that should be considered in the clinical use of DECT [37,78].
    • Significant correlations were found between iodine concentration from DECT and perfusion CT-derived parameters such as blood volume and blood flow [75,76], although this correlation may vary at different acquisition times [77]
    • Iodine concentration may be a surrogate marker of changes in tumor perfusion due to therapy [79]. Different iodine-related parameters have been proposed such as concentration of intralesional iodine, vital iodine tumor burden, and (lesion volume × iodine concentration) may be more sensitive than the evaluation criteria based on maximum diameter or change of CT value.
    • Zeff is also a quantitative index for characterization of composition of a voxel, although a biological correlation of these changes to tumor microenvironment is challenging.
    Moreover, computing advances have also facilitated the development of processes for high-throughput extraction of quantitative features that result in the conversion of images into mineable data and the subsequent analysis of voluminous CT image datasets for decision support. Radiomics and radiogenomics represent an innovative quantitative imaging approach that uses computer algorithms to extract and analyze a large number of quantitative features from radiological images [80]. Radiomics- and radiogenomics-based DECT analysis has been investigated for multiple applications in radiology with a particular focus on oncologic imaging. Despite numerous published investigations and applications of radio(geno)mics analysis in the literature in various organ systems, there is so far little to no published data taking advantage of the rich quantitative datasets generated by DECT scans. The clinical value of DECT-derived radio(geno)mics features has been reported for diagnosis of malignancy, depicting genetic, molecular, and histological features in different tumor types; evaluating tumor invasiveness; predicting tumor staging; characterization of malignant lymph nodes, predicting patient outcome and survival, and predicting and evaluating tumor response in different tumor types [81,82,83,84,85,86,87] [Figure 23].
    There are also preliminary data that support the possible value of DECT-derived features as imaging biomarkers in other non-oncologic applications such as the diagnosis of pulmonary embolism, type 2 diabetes mellitus, osteoporosis, liver fibrosis, and carotid stenosis, the assessment of lung interstitial disease or Crohn´s disease activity, or acute pancreatitis, the characterization of adrenal masses, and the location and analysis of kidney stones [88,89,90,91,92,93,94,95,96] [Figure 24].
    The robustness of features has been identified as pivotal for the clinical implementation. In this setting, it has been established the high repeatability of radiomics features when keeping scan parameters and reconstruction conditions constant [97,98]. Unfortunately, most authors have evidenced that, although the repeatability of DECT radiomics features was high between scan–rescans, the inter-reproducibility of radiomics features between conventional CT and DECT, different types of images (VUE and monochromatic images), and among DECT platforms was relatively low [97,98,99,100]. Apart of this, algorithms may influence radiomics reproducibility. Zhong, et al [98] evidenced that the use of deep learning image reconstruction algorithms may alter radiomics features reproducibility compared to conventional iterative reconstruction algorithms.
    Finally, photon-counting CT (PCCT) represents the next in CT technology. PCCT is an emerging technique that uses photon-counting detectors to convert single incoming photons directly into an electrical pulse proportional to the photon’s energy. PCCT has the potential to overcome some of the limitations of DECT imaging improving material decomposition, allowing the use of multiple contrast agents, filtering out the electronic noise of the image, and increasing spatial resolution. Currently, photon-counting technology offers clinical advantages in cardiovascular, thoracic, and musculoskeletal applications. Besides, the combination of ultrahigh spatial resolution and spectral capabilities is expected to result in improved performance of PCCT versus DECT for spectral separation and future applications of this technique to many anatomic regions and clinical scenarios [101,102].

    6. Conclusions

    The introduction of DECT in clinical routine has allowed to overcome some of the limitations of conventional CT. In this setting, the added value of DECT has been widely validated in many clinical scenarios. DECT technology allows creation of numerous imaging datasets, including material- and energy-selective images. DECT imaging improves lesion detection and characterization and facilitates superior determination of material composition and more robust quantification. However, a comprehensive grasp of the underlying basic principles of dual-energy imaging, its present technological constraints, and potential pitfalls (particularly artifacts) is imperative for an accurate interpretation of imaging findings. The potential of DECT imaging remains relatively untapped, future technical developments might expand the full scope of clinical benefits offered by DECT, facilitating its seamless integration into the clinical practice.
