The Impact of Southbound Expansion on Clustered OpenFlow Software Defined Network Controller Synchronisation

Altmetrics

Downloads

101

Views

45

Comments

0

Submitted:

27 May 2024

Posted:

07 June 2024

You are already at the latest version

Alerts
Abstract
The clustering methods of Software Defined Networking (SDN) gained popularity due to their ability to offer improved scalability, consistency, dependability, and load balancing within overlay networks and SDN partitions. This paper delved into the effects of increasing the number of OpenFlow-enabled southbound devices on the establishment and coordination of SDN-Controller clusters. Specifically, we examined the volume of east-west cluster packet communication concerning the number of southbound devices within the topology. Many research studies focused on bandwidth and the number of bytes in East-West communication. While bandwidth referred to the maximum rate at which data could be transferred, and the number of bytes reflected the volume of data being transmitted, the number of packet communications directly influenced the efficiency and responsiveness of network operations. Our investigation encompassed the impact of SDN controllerto- controller communication within the cluster concerning the rising number of OpenFlow switches connected to various topologies, including tree (star-bus network), linear, and torus configurations. This study presented data on communication patterns within Open Network Operating Systems (ONOS) and OpenDaylight (ODL) clusters, revealing differing levels of controller communication with southbound network expansions. We evaluated the scalability of ODL and ONOS controllers by scrutinising the effect of increasing the number of southbound devices on control communication volume. Our analysis revealed varied communication patterns within ONOS and ODL clusters, resulting in different volumes of control communication with southbound expansions. The findings indicated that in small to medium-sized SDNs, ODL outperformed ONOS, notably with faster cluster discovery. Conversely, ONOS demonstrated greater efficiency in larger networks owing to its centralised communication architecture. Finally, we provided recommendations for selecting the most suitable controllers based on the size of southbound networks, aiming to provide practical guidelines for optimal network performance.
Keywords:
Subject: Computer Science and Mathematics  -   Computer Networks and Communications

1. Introduction

The key concept of Software Defined Networking (SDN) involves the separation of the control and data planes within a data network. This decoupling enables next-generation networks to gain enhanced flexibility, programmability, and ease of management [1].
In contrast to conventional network infrastructure and methodologies involving switches and routers, the SDN concept advocates for a centrally administered software program to oversee the network’s control plane. The OpenFlow protocol serves as a means of communication between the SDN controller and network devices for the management of configurations [2]. The OpenFlow protocol is enabling switch communication in SDN, relaying device flow statistics to the controller, and handling unknown flow identification requests. The southbound interface is essential for SDN’s effective network management and control [3]. In the context of SDN, the OpenFlow protocol serves as the widely adopted southbound interface or API that enables control decisions, including device detection, topology management, and flow management [4].
In addition to the southbound interface, there are also northbound and east-west interfaces that play important roles in network management and connectivity. The northbound interface enables communication between the controller and SDN applications, while the east-west interface facilitates traffic exchange between clustered SDN controllers at the control layer. These interfaces enhance scalability, reliability, and programmability within an SDN architecture.
Implementing an architecture that incorporates a centralized control plane or SDN controller operation can introduce the risk of a single point of failure within the SDN network, particularly affecting the Southbound interface. The Southbound interface is critical as it facilitates communication between the SDN controller and the network devices (southbound devices). In a centralized architecture, the SDN controller manages the entire network’s control logic from a single location.
To mitigate these risks, network architects often consider distributed or hybrid control plane architectures. These approaches distribute control logic across multiple controllers, enhancing redundancy and fault tolerance.
However, it is crucial to also consider how these controllers synchronize and communicate with each other. Effective inter-controller communication is essential for maintaining consistency in southbound communication and facilitating seamless failover in case one controller fails. This ensures that the failure of one controller does not incapacitate the entire network and that network operations continue smoothly and efficiently.
Having investigated the influence of expanding numbers of OpenFlow switches integrated into various network topologies, we focused on examining the impact of this communication on controller synchronization and communication. Specifically, we analyzed communication between SDN controllers within a cluster, termed as east-west traffic, across tree (star-bus network), linear, and torus topologies.
ONOS and ODL, chosen for their cutting-edge technology and reputation for providing advanced capabilities in SDN controllers, were utilised in our research. Their esteemed status and value-added features made them crucial tools for conducting comprehensive assessments and analyses in our study.
Consequently, past research has explored using a dispersed or clustered SDN controller architecture to manage dispersed multi-domain SDN systems in data centres, corporations, consumer networks, and other places [5]. Table 1 shows the advantages of a multi-controller clustered architecture in terms of modularity, consistency, and industry readiness. Furthermore, the east-west bound interface, the third interface in a multi-SDN controller or clustered SDN system, enforces rules and protocols.
The terms ’distributed’ and ’clustered’ are used interchangeably to provide simpler explanations in this research [6].

1.1. Research Challenges

In this study, we address the following three key research questions or challenges:
  • What effect does the selection of controller clustering techniques have on control communication volume among controllers across various network topologies?
    To address this research question, we investigate the effect of controller clustering techniques, particularly ODL Cluster and ONOS, on the volume of control communications in three network topologies (Torus, Linear, and Tree). The variation in control communication volume between these two types of controllers for a given network topology is also investigated.
  • What are the key factors that influence the decrease in control communication volume in ODL Cluster Leaderless compared to an ONOS leader-based controller cluster?
    We address this research question by examining the factors that contribute to lower control communication volume per second in the ODL cluster compared to the ONOS controller cluster. This investigation helps identify the reasons behind the observed differences and determine what contributes to them.
  • What challenges did the ODL method face with an increase in the number of southbound devices compared to the ONOS method?
    This question focuses on the challenges specific to ODL Cluster communication when scaling up the number of southbound devices. It aims to understand the reasons behind the exponential increase in cluster communication volume observed in ODL compared to the more gradual increase in ONOS.

1.2. Research Contribution

The main contributions of this paper can be summarized as follows:
  • We provide a comprehensive analysis of the communication patterns observed in ODL and ONOS clusters. In doing so, we offer insights into the behaviors of different cluster coordination operations in Torus, Linear, and Tree network topologies.
  • We evaluate the system performance focusing on the scalability of ODL and ONOS controllers. In doing so, we provide guidelines for selecting the appropriate controller based on the size of the southbound network.
  • We conduct a detailed comparison of the coordination patterns among controller clusters, including the time intervals between each cluster. The differences observed in large-scale network environments and the challenges faced by each controller cluster provide a better understanding of the strengths and limitations of ODL and ONOS SDN clusters.

1.3. Structure of the Article

The remainder of this paper is organised as follows. Section 2 presents related work on SDN controller clustering. The distribution and coordination factors of clustered controllers are discussed in Section 3. Key parameters for cluster communication are discussed in Section 4. The impact of southbound expansion on cluster performance is analysed in Section 5. The scalability aspect of clustered controllers is discussed in Section 6. Section 7 focuses on the southbound implementation in leader-based and leaderless controller clusters. Simulation results are presented in Section 8, and practical system implications are discussed in this section. Finally, the paper is concluded in Section 9.
Table 2. Abbreviations and Definitions.
Table 2. Abbreviations and Definitions.
Abbreviation Definition
API Application Programming Interface
CPU Central Processing Unit
GUI Graphical User Interface
MD-SAL Model-Driven Service Abstraction Layer
ODL OpenDaylight
ONOS Open Network Operating System
RAM Random Access Memory
SDN Software-Defined Networking
SPOF Single Point of Failure
SP Service Provider
TCP Transmission Control Protocol
VM Virtual Machine
WAN Wide Area Network

2. Related Work

The SDN controller clustering approach increases network operations’ agility, extensibility, and flexibility [6]. Moreover, SDN simplifies configuration and device manageability with vendor-neutral configuration approaches.
The research conducted between 2015 and 2019 has laid significant groundwork for understanding and improving Software Defined Network (SDN) architectures. Müge Erel et al. [7] utilized a Mininet-based SDN simulation to demonstrate the scalability of OpenDaylight, offering insights into flow admission with a limited number of topologies. Kim et al. [8] investigated the effectiveness of distributed data stores in OpenDaylight controller clusters, providing valuable findings on load balancing and system performance in large-scale networks. Chaipet and Putthividhya [9] examined scalability issues in single-controller designs, contributing to our understanding of load balancing under various traffic conditions. Abubakar Siddique et al. [10] focused on the scalability and reliability of ONOS clusters, monitoring data transfer rates and volumes, though lacking in detailed topology arrangements. Suh et al. [11] aimed to enhance SDN availability and scalability for service providers, addressing downtime minimization during reconfigurations. Despite being several years old, these studies have had a lasting impact on the field by highlighting critical aspects of SDN scalability, reliability, and performance, which continue to inform and inspire current research efforts.
Building on these foundational studies, recent research has further advanced our understanding of SDN architectures and their practical applications.
Dharmik et al. [12] identify network bandwidth and connectivity as key constraints affecting performance, focusing on throughput and latency. Their study shows that OpenDaylight’s latency is impacted by the number of hosts, while ONOS achieves higher average throughput and lower jitter. However, the evaluation is limited to scenarios using OpenFlow switches within a tree topology.
S.Deepak et al. [13] assert that large-scale SDN networks necessitate the deployment of multiple controllers, which must collaborate effectively to ensure scalability, fault tolerance, and reduced latency. The study identifies propagation delay, dynamic traffic load, and the connection of switches to controllers in a multi-controller environment as critical factors impacting network performance. However, the study would benefit from a focused analysis of the Multi-Domain Partition (MDP) technique, particularly concerning its impact on inter-controller communication.
Shirvar et al. [14] have identified that network throughput, measured as the number of packets per second an SDN controller can handle, significantly impacts the performance of SDN controllers. Throughput can be assessed based on bits per second (bps) or as the number of network packets or flows (e.g., packet-in and packet-out) per second, specifically in the context of SDN. However, the study would be more comprehensive if it included additional scenarios and topologies, such as star and tree topologies.
Niu et al. [15] investigated the scalability and reliability of SDN multi-controller systems. The study revealed that nodes broadcast data through east-west interfaces and collaborate in decision-making processes in both ONOS and ODL. Additionally, the research identified six states in the initial distributed controller communication process. However, the study did not include data pertaining to initial packet communication as an output.
Xu et al. [16] propose a multi-controller deployment strategy for Software-Defined Networking (SDN) using an enhanced clustering algorithm aimed at enhancing network quality within SDN architectures. The study evaluates the clustering algorithm based on factors such as the number of nodes, number of links, controller processing rate, switch request rate, and link propagation rate. However, a more comprehensive analysis could include consideration of the impact of inter-controller communication patterns and packet rates on the clustering algorithm, providing additional insights into its effectiveness.
Our research delves into the effect of expanding southbound communication to encompass multi-SDN controller communication in a data center environment. The focus is specifically on separate ONOS and ODL cluster environments, examining their impact and implications. Each cluster consists of three SDN controllers. OpenFlow 1.3 [17] was used as the southbound protocol in the experiment. The system impact and analysis of each southbound topology were carried out in Mininet emulation software [18], utilizing up to 255 OpenFlow-enabled virtual switches. Additional hardware resources were used to conduct seven Torus Topology scenarios to collect different outputs. Captured data communication was plotted into graphs using the Wireshark protocol analyser [19]. The distribution and coordination factors of clustered controllers are discussed next.

3. Distribution and Coordination Factors of Clustered Controllers

There are two significant qualitative variables in a clustered-controller environment. They are distributed designs and coordination strategies. These two qualitative elements are further split into two kinds of distributed designs (logically centralized and logically distributed) and two types of coordination strategies (leader-based and leaderless) [20].

3.1. Distributed Architectures

The architectural differences or variations in qualitative components of industrial-use SDN controllers are often overlooked in existing literature when formulating findings on controller east-west operations. Therefore, taking architectural changes into account in distributed controller contexts will lead to more significant arguments and findings for future research.
The initial SDN concept has evolved from a single central controller method to dual or multi-SDN controller designs widely used in enterprise-level networks. Due to scalability, performance, reliability, and other considerations, contemporary technological trends focus on distributed controller architectures [21].

3.1.1. Logically Centralized Architecture

The single SDN controller provides the centralized interface for connecting all SDN-capable southbound devices. SDN’s initial premise was logical centralization. However, scalability issues arise when a single controller manages many flows. Some studies [22,23] have developed literature to find a solution by restricting route requests. In addition to scalability issues, a single controller creates a single point of failure for SDN communication. The controller’s failure prevents subsequent southbound flows from being processed.

3.1.2. Logically Distributed Architecture

Multiple controllers work together in a distributed design to overcome the limitations of a single-controller architecture. This method makes it easier for dispersed controller programs to share network burdens.
The ability to share information among dispersed SDN controllers is vital. In recent controller applications, there are two basic coordination strategies available for this purpose [21].

3.2. Coordination Strategies

There are two major coordination strategies: one where a controller (root/master) gathers all network updates (leader) and then distributes them to each controller (non-root/slave), and the other solution uses a peer-to-peer strategy (flat model) to maintain a global topology view of the complete network in each controller [24].

3.2.1. Leader Based Strategy

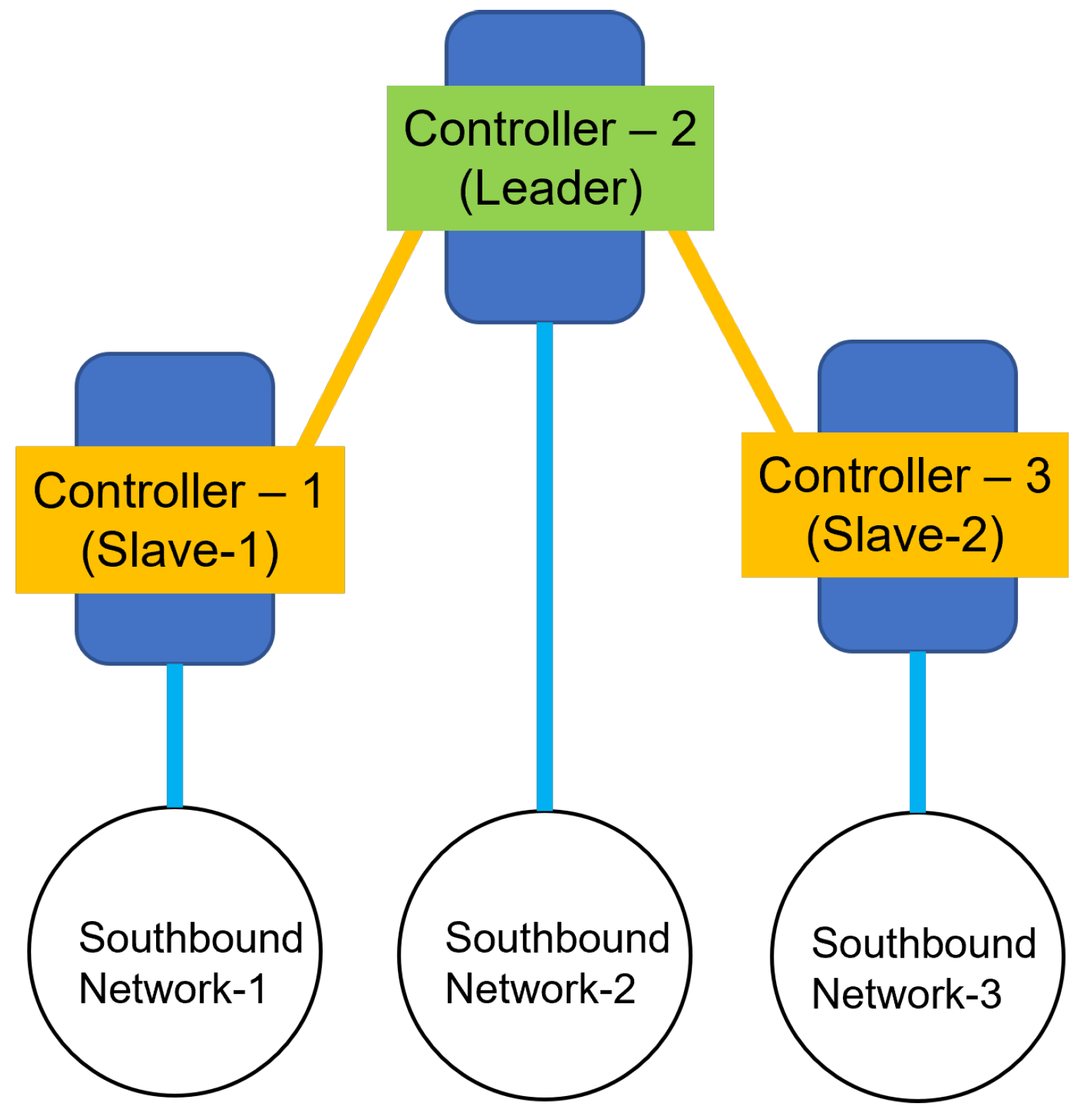

In this leader-based controller communication, there will be a leader, root, or master controller who maintains the global network topology perspective. This controller has read/write access to the global topology and can update it.
The non-leader, non-root, or slave controllers will always communicate with the master controller to update the southbound details of the network, as shown in Figure 1.

3.2.2. Leaderless Strategy

A leaderless or flat approach will connect each controller and share the topology information regularly with each other.

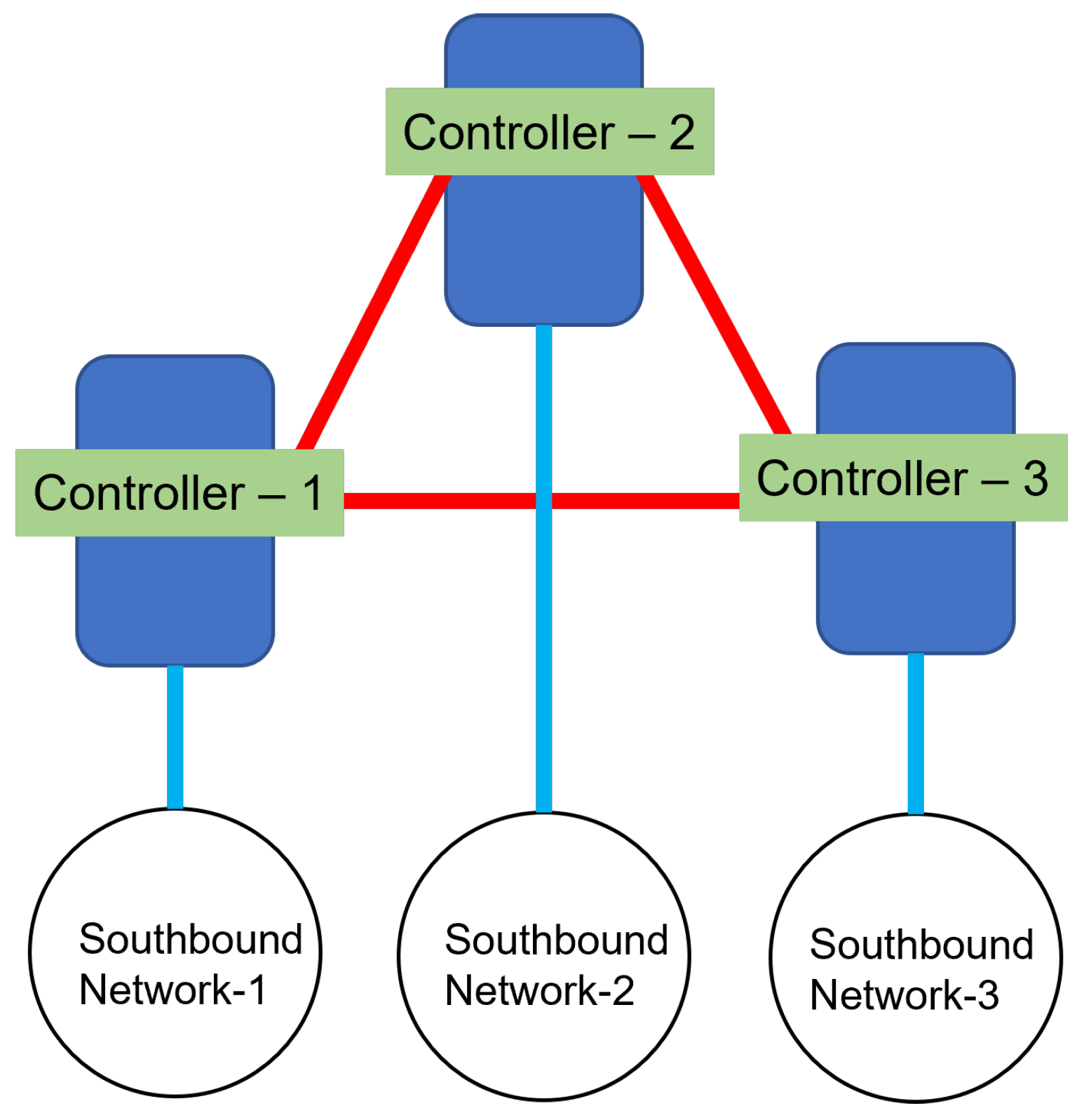

Figure 2 shows that each controller maintains a global network view in local data structures. Subsequently, this information communicates via the east-west interface to another cluster member.

4. Parameters for Cluster Communication

The distributed controller strategy has addressed many of the issues associated with the single-controller approach. However, there are significant challenges with controller discovery and the allocation of southbound devices across different cluster devices.

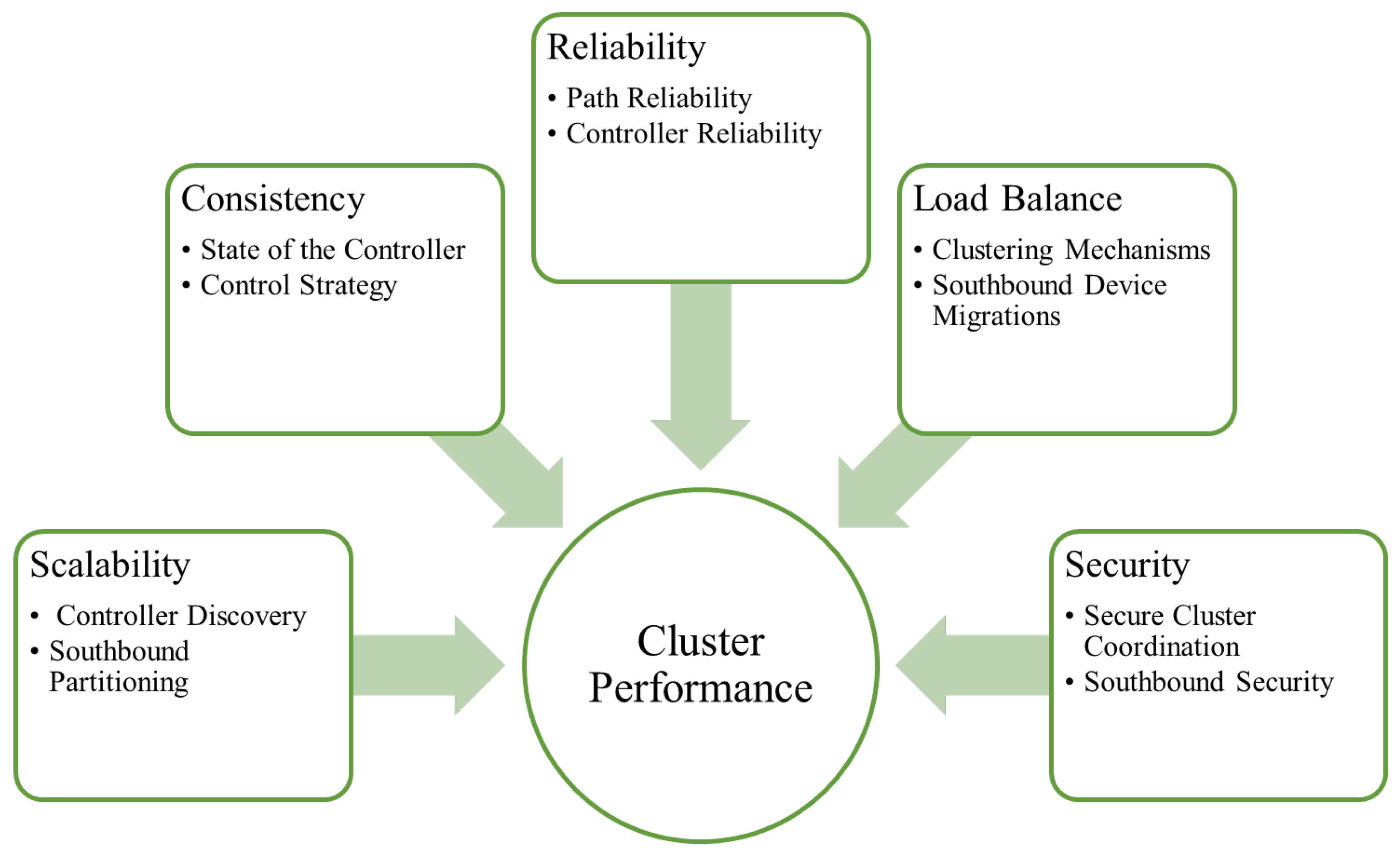

Figure 3 illustrates SDN scalability, consistency, dependability, and load balancing. Different controllers are responsible for different SDN devices, and scalability is critical for maintaining flexibility [25].
Fault tolerance can be improved if the network topology view is consistent. Furthermore, with SDN security, fault tolerance is a crucial influencing factor for dependability [26]. Finally, an unbalanced SDN cluster can result in poor performance, making load balancing a critical component.
The scalability of leader-based and leaderless architectures depends on the number of hosts or users in the network. Horizontal scaling is not always beneficial and may not positively impact the overall efficiency of the control plane. Therefore, inter-controller communication or discovery and southbound partitioning are primary concerns regarding scalability [27].
In a multi-controller SDN architecture, one main concern is controller communication consistency. Each SDN controller in the environment should share information in the Network Information Base (NIB) with all controllers to synchronize network status and maintain network consistency. Otherwise, inaccurate links, degraded routing service quality, and application inconsistencies may occur [28]. Software-Defined Networks maintain high consistency between distributed and asynchronous devices to operate without obsolete status. Especially in SDN, controllers must maintain the actual network status to reduce uncertain behaviors [29].
The reliability of a controller means achieving failure-free operation in the control plane or seamless network operation, even during a control plane disruption. Controller failures can occur due to hardware malfunctions, software bugs, or network disconnections. Single-controller networks may encounter issues with control plane detachment from the data plane, potentially leading to network instability. However, SDN controller clustering provides significant advantages in terms of path and controller reliability. By clustering multiple controllers, redundancy is introduced, allowing for improved fault tolerance and continuous network operation even in the event of controller failures. Additionally, controller clustering enhances path reliability by providing alternate paths for traffic, ensuring smoother network operation.
The security implementation in the SDN controller also raises critical concerns. The centralized control plane creates many security vulnerabilities, including spoofing, denial of service, and privilege hijacking. These vulnerabilities can impact the scalability, consistency, and reliability of the SDN environment [30].
Even in a multi-controller environment that addresses scalability and reliability issues, controller distribution introduces load-balancing concerns in a clustered controller environment. Furthermore, the total time consumed to balance the load in overloaded controllers also affects network performance. Minimising the time required for the load balancing process can improve the network’s performance. Therefore, cluster coordination and southbound device migration significantly impact load-sharing and network performance [31].
In Table 3, ten communication criteria impact SDN performance across five primary metrics. Half of these criteria influence East-West Operations, while the other half affect Southbound Operations. Each element comes with specific technological requirements, and these technical characteristics directly influence the cluster’s main performance metrics.
In Software-Defined Networking (SDN) communications, consistency plays a pivotal role as it directly impacts the effectiveness and reliability of network operations. This is particularly crucial due to the significance of two key criteria: the State of the Controller and the Control Strategy.
The State of the Controller encompasses vital aspects such as Controller Synchronisation and Controller Communication requirements. Controller Synchronization ensures that all controllers within the network maintain synchronised and coherent states, thus avoiding inconsistencies that could lead to operational issues or disruptions. Similarly, Controller Communication requirements facilitate seamless communication and coordination between controllers, enabling them to effectively collaborate in managing network resources and policies.
In this research, our focus is on the State of the Controller, where Controller Synchronization and Controller Communication are the main requirements.

5. Impact of Southbound Expansion for Cluster Performance Influences

In complex network environments like those found in Software-Defined Networking (SDN), the quest for scalability is met with the need to ensure consistency throughout the system. As networks grow larger and more intricate, it becomes necessary to deploy multiple controllers or clustering mechanisms to efficiently manage increased demands. However, this expansion brings about challenges in maintaining uniformity and coherence across the network.
The main challenge lies in finding the right balance between scalability—ensuring the network can handle growing traffic, devices, and services—and consistency, which requires synchronized operations and coherent policies across all controllers or clustered units. Scalability is crucial for adapting to changing network needs and accommodating expanding workloads, while consistency prevents issues like data discrepancies and operational inefficiencies.

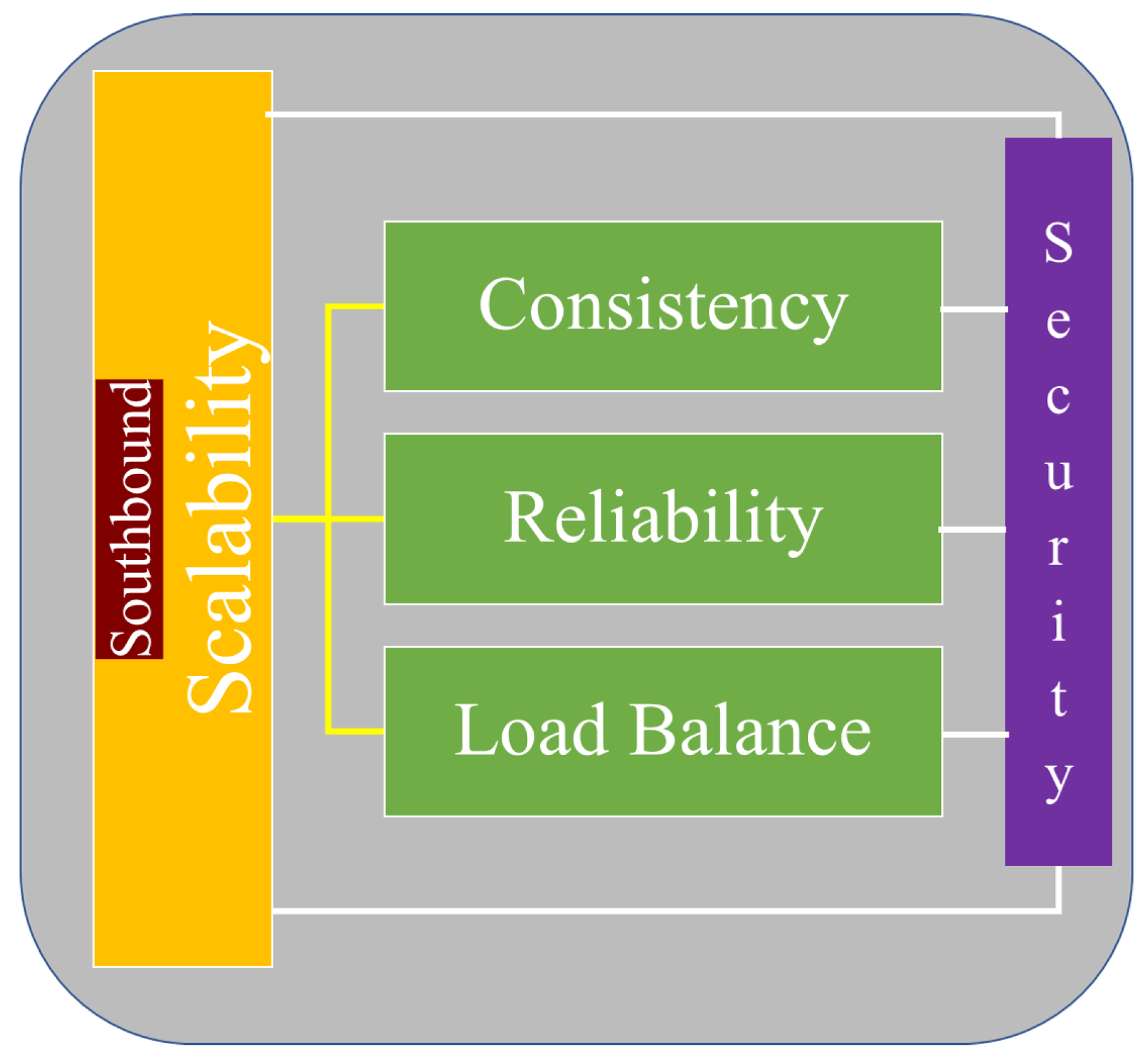

Figure 4 illustrates the various challenges and considerations related to scaling southbound operations in a multi-controller or clustered SDN environment. This visual representation aids in understanding the complex interactions and dependencies involved in managing scalability while maintaining consistency and addressing related concerns such as dependability and load balancing.
The task of managing the enlarged network topology falls to cluster controllers as the network expands southward. Consistency in network topology makes it easier to achieve assured host communication.
Unbalanced distribution of southbound devices across the number of clustered controllers in distributed SDN setups creates load-balancing difficulties.
Furthermore, link failures and security events such as DDoS attacks in the southbound direction can cause failures in all mentioned areas, including the reliability of southbound links [25].
The scalability of southbound operations takes several forms, including increasing the number of southbound devices, adding additional functions to the southbound interface, expanding geographic coverage, accommodating increased traffic volume, and incorporating more peer hardware.
When considering southbound scalability in SDN, academia often focuses on addressing two fundamental research problems: clustered-controller consistency and southbound operational scalability. These challenges are critical for ensuring the stability, efficiency, and effectiveness of SDN deployments, particularly in large-scale or complex network environments.
Clustered-controller consistency refers to ensuring consistency and synchronisation among multiple controllers in a clustered SDN architecture. This is crucial for maintaining network stability and coherence.
Southbound operational scalability focuses on the scalability of the southbound interface, which connects the SDN controllers to the forwarding elements (e.g., switches and routers) in the network. Ensuring that this interface can handle the increasing demands of a growing network while maintaining performance and efficiency is essential for overall network scalability.
Encountering an increase in the number of access-level network hardware or SDN-capable southbound network devices connected to a clustered controller leads to several system performance challenges. These challenges include heightened network utilisation, complexities in load balancing, increased latency, bandwidth limitations, and elevated traffic volumes. Additionally, managing the scalability of SDN networks becomes especially challenging when the southbound network spans multiple geographic locations or network partitions. Furthermore, future scalability and growth of the southbound network will impact various system features and capabilities. Therefore, it is crucial to carefully consider and design operational consistency in the southbound direction [51].

6. Southbound Implementation in Leader-Based/Leaderless Controller Clusters

In OpenFlow enabled SDN controller clusters, Open Network Operating System (ONOS) [52] and OpenDaylight (ODL) [53] have achieved the highest ’Technology Readiness Level’ (TRL) [54]. Both ODL and ONOS are at the ’Proven system’ level.
The ONOS Controller is a service provider-focused effort that aims for high availability, high performance, high scalability, and highly resilient application deployment. To handle all functionalities, ONOS runs in Java and the OSGi runtime bundle with Apache Karaf. ONOS assists service provider networks through various features, with the most essential being an easy-to-use GUI for controlling OpenFlow devices. ONOS also offers real-time network setup and switch management, allowing network application developers to install applications that govern the data plane and southbound traffic.
The leader-based ONOS cluster architecture strongly links member controllers to establish an east-west interface. One controller serves as the ’master,’ while the other two serve as ’slave controllers.’ The ONOS master controller in the cluster is selected using periodic polling technology and is responsible for connecting member controllers. Slave controllers maintain all network status information. If the master fails, the slave controllers will select another master.
The Atomix distributed systems architecture is used for the experimental cluster, in which all controllers exchange cluster characteristics and save modularized information in distinct memory regions. All Atomix nodes broadcast their statuses to other known members during the ONOS propagation to establish the cluster [55].
The operational structure of the leaderless ODL Cluster architecture consists of three layers: the network device layer, coordination and control layer, and application layer.
The network device layer manages southbound activities such as plugins and protocols. The coordination and control layer is responsible for service abstraction and network services. The application layer handles all northbound APIs and apps. Many programmable network functions, such as topology management and forwarding plane operation, are supported by the ODL cluster. It employs the YANG data modelling language to maintain the network services structure.
The Model Driven-Service Abstraction Layer (MD-SAL) procedure in ODL forms a clustered controller with similar services provided by all member controllers. Furthermore, MD-SAL includes a Distributed-Datastore feature for storing network states. Cluster controllers, in particular, maintain data partitions and duplicate each other due to the Distributed Datastore.
ODL uses the Raft protocol to replicate information in each partition, providing strong consistency at the cost of inferior read/write performance. Additionally, the ODL cluster enables the establishment of redundant connections, allowing for load sharing among controllers. The ODL and ONOS cluster controllers exchange heartbeat signals regularly to monitor each cluster’s stability [56]. Therefore, ONOS and ODL SDN cluster applications are implemented to observe changes in the Mininet environment.

6.1. Evaluation Environment Settings

For the system evaluation, we utilized a QuantaPlex T41S-2U Node server environment comprising three separate physical servers. Each Server was designated to host specific virtual machines (VMs) for the installation of ONOS 2.6.0 (with three VMs), OpenDaylight 15.0 (also with three VMs), and Mininet 2.3.0 (with one VM).
These physical servers were equipped with Intel Xeon E5-2603 V3 6-Core 1.60GHz processors, each containing 4 x 16GB DDR4 2400MHz RAM modules, and 16.4 TB of SATA storage. Additionally, they were outfitted with four 10 Gbps SFP network Interface Cards.
The virtual machines were created using VMware ESXi 6.5.0 hypervisor. Each instance of ONOS and OpenDaylight VMs was allocated 8 GB of RAM, 100 GB of storage, and 2 CPUs. The Mininet VM occupied an entire physical server’s resources.

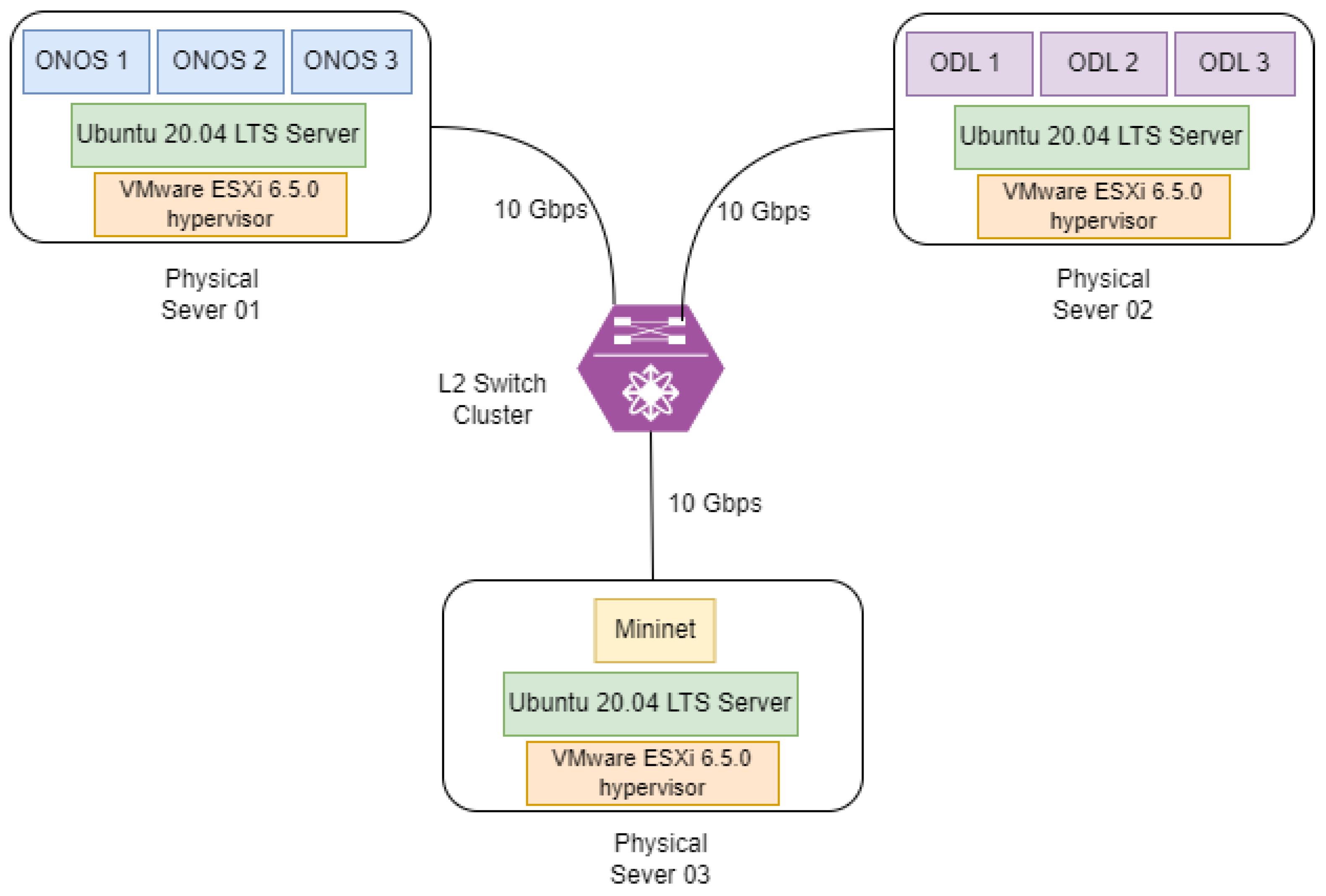

In this evaluation setup (Figure 5), the VMs ran Ubuntu 20.04 LTS server OS, and were provisioned with ONOS 2.6.0, OpenDaylight 15.0.0, and Mininet 2.3.0 for conducting the assessments.
In ONOS Torus Topology configuration, where we employed high-performance cluster hardware with 64 GB RAM, we allocated one physical server for each ONOS instance (Figure 13). Peak level Cluster Communication in ONOS Torus Topology with 64 GB RAM) and separate physical server for Mininet. This ensured optimal performance and resource utilization for the ONOS controllers within the evaluation setup.
In addition, each blade server was connected to a clustered switch environment using Cisco Nexus 9300-EX switches, facilitating 10Gbps fiber channel connections. This setup ensured robust and high-speed communication between the servers, essential for efficient data exchange and coordination within the SDN environment.

6.2. Experimental Topology

We use Mininet to deploy the Southbound OpenFlow-Switch Topology in each experimental scenario in the simulated environment. Devices in scenarios incremented with Mininet capabilities [57]. There were 8 scenarios tested in Linear and Tree types of topology with ONOS and Opendaylight controllers. We have only tested 7 Scenarios for Torus Topology due to hardware limitations.
The experimental ODL and ONOS clusters were deployed on Apache Karaf environments, utilizing identical hardware and software platforms. The key distinction between the clusters lies in their architectural approaches, with the ODL cluster operating under a leaderless Architecture and the ONOS cluster adopting a leader-based Architecture.

7. Results and Discussion

We carried out test-bed measurements using VMware ESXi (6.5) Enterprise platform in a high-end Data Center environment. Both Leader-based (ONOS) and Leaderless (ODL) controller clusters (three controllers per cluster) were tested for three different topologies. For the system performance analysis, we consider Packet-level communication and look at various packets to analyse output data.

7.1. Cluster Initialisation

In the leader-based cluster initialisation process, the ONOS controller cluster exhibited a notable surge in initial communication. As illustrated in Figure 6, the packet transfer rate peaked at over 1200 packets per second during this phase. Notably, during the initial 60 seconds, the ONOS leader and its members engaged in communication averaging less than 30 packets. The establishment of the first leader-member connection occurred within the time interval of 61-121 seconds, followed by the formation of the second leader-member connection between 121-181 seconds. This sequential process of member initialisation was consistently observed, with each member initializing one after another. After the initialisation process, the keep alive communication happened by communicating 200 packets per second communication.

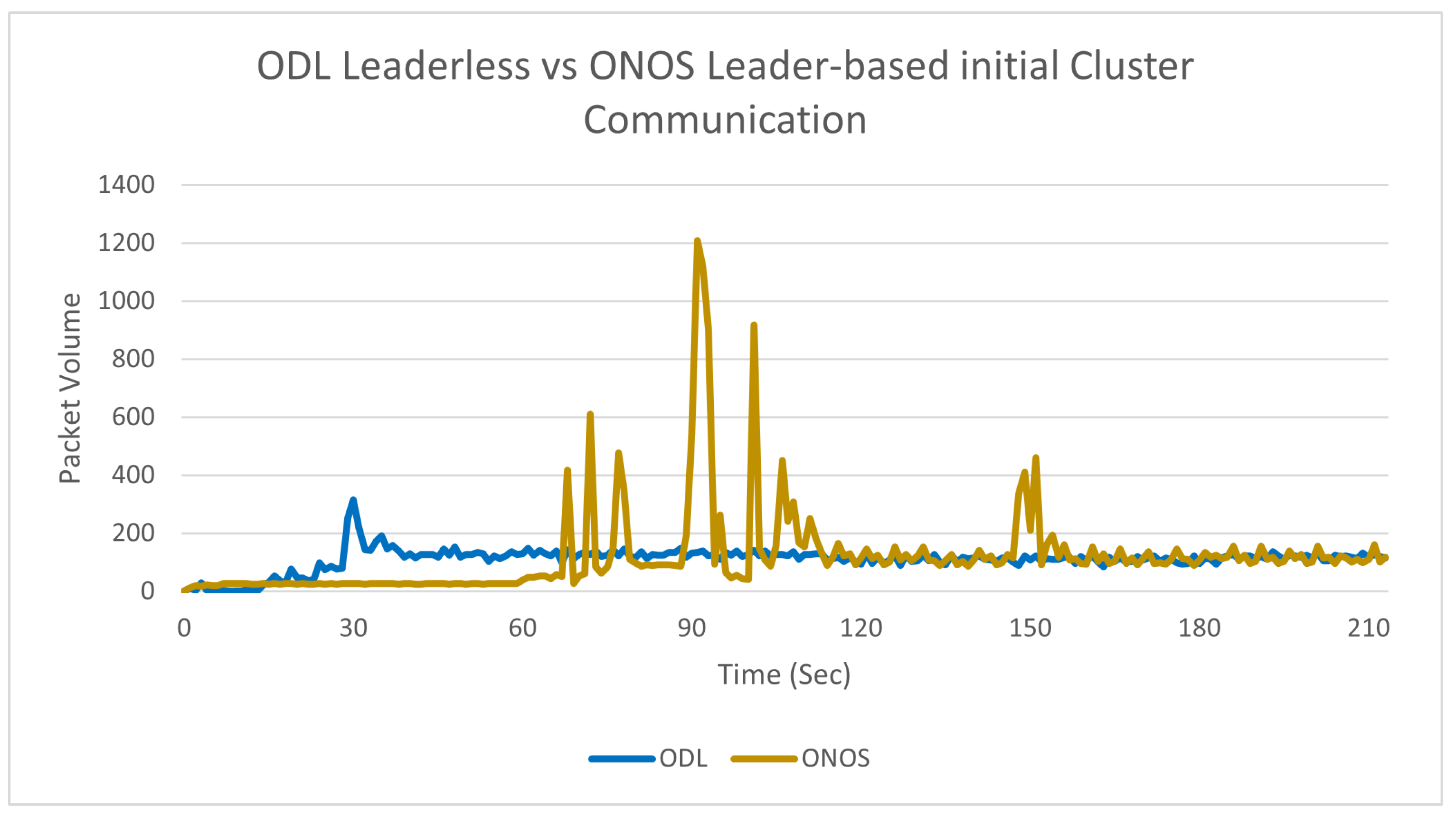

Figure 6 illustrates that during the leaderless Open daylight SDN cluster initialization phase, communication peaks at nearly 170 packets per second, encompassing the initialisation of all three controllers. However, subsequent to the initialization, ODL members maintain a communication rate of less than 200 packets per second. Moreover, the member initialisation process for all three controllers concludes within the 1-61 second time frame, with a maximum communication rate of 300 packets, significantly lower than that observed in ONOS. Beyond the initial minute, the ODL cluster engages in keep-alive message exchanges, with communication rates remaining below 200 packets. During both ONOS and ODL initialisation, communication between servers utilise a maximum of 5 Mbps data transmission capacity, despite the physical network supporting throughput of up to 10 Gbps. Furthermore, the average packet size for each communication event is less than 200 bytes in both cluster scenarios.
Both the ONOS and ODL clusters were implemented under identical environments and technologies, ensuring a consistent basis for comparison between leaderless and leader-based architectures in SDN controller clusters. The deployment environments for both clusters utilised similar setups, including Apache Karaf frameworks and standardised hardware and software platforms. The distinction between the clusters lay in their architectural approaches: ONOS adopted a leader-based architecture where a designated leader node coordinated communication and initialisation among cluster members, whereas ODL implemented a leaderless architecture where all nodes participated in synchronizing network state with minimal overhead. This setup allowed for a direct evaluation of how architectural differences impact cluster initialisation and communication patterns in leaderless and leader-based SDN environments.
Preprints 107556 g007

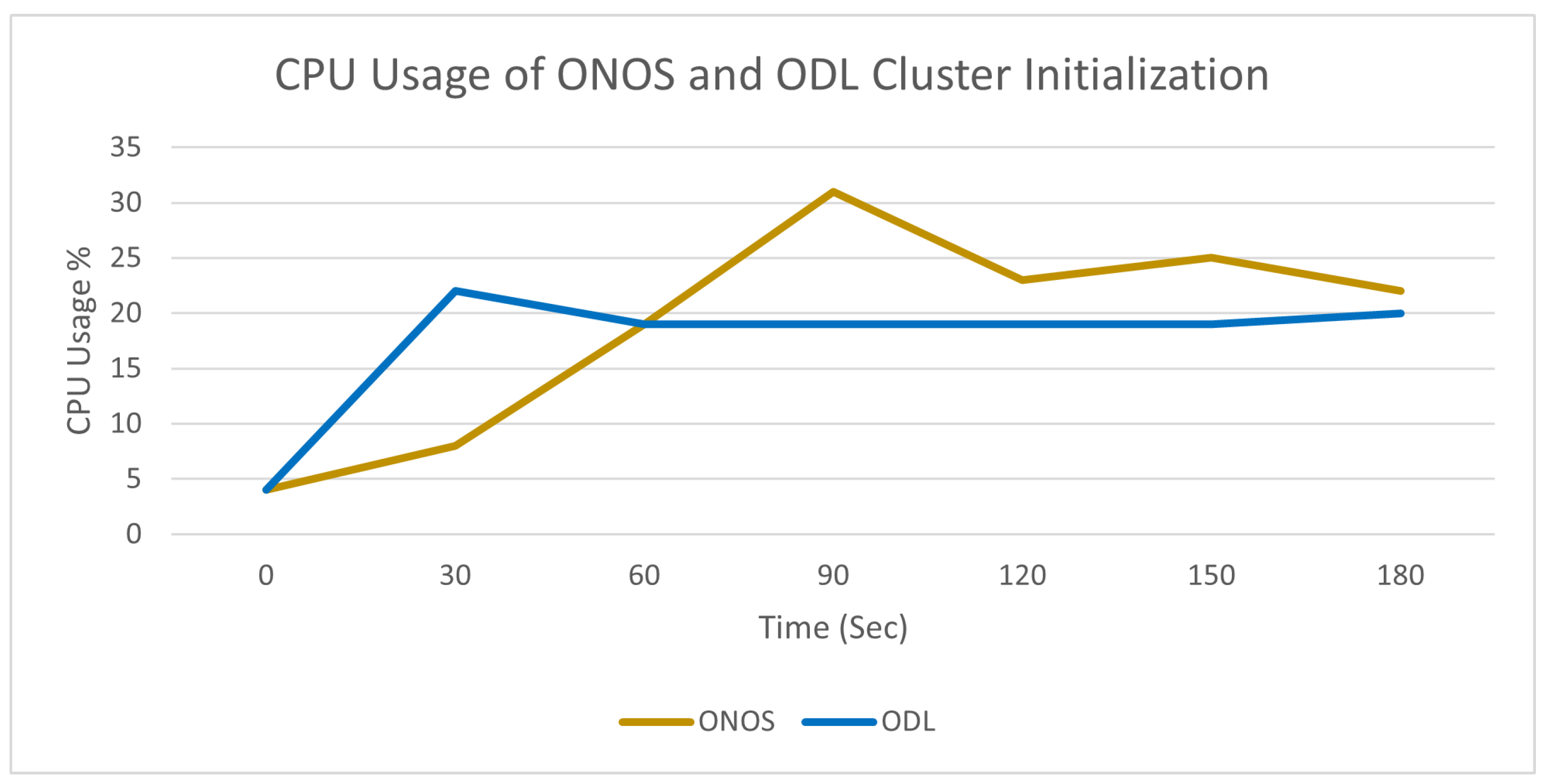

Figure 7. CPU Usage of ONOS and ODL Cluster Initialization
Figure 7. CPU Usage of ONOS and ODL Cluster Initialization
Preprints 107556 g007
Based on these readings, it is evident that there was higher CPU utilization during periods of high-volume packet communication in both ONOS and ODL environments. Notably, the ODL environment exhibited a maximum CPU utilization of 22 percent, while the peak CPU utilization observed in the ONOS environment was higher at 31 percent. This suggests that ONOS may have experienced more intensive processing or resource demands during certain stages of cluster initialization compared to ODL, potentially due to differences in internal packet processing mechanisms or workload distribution.

7.2. Impact of Southbound Expansion in Tree Topology

Eight scenarios were tested using a tree topology to test the expandability of a single OpenFlow switch to 255. Table 4 shows details of the host count and network links simulated in each experiment.
In Mininet, the tree topology is a preset topology option that offers a hierarchical structure resembling a binary tree. This topology distinguishes itself from other typologies by its method of generation, which relies on configuring depth and fan-out values within the Mininet setup. Depth in Mininet refers to the number of hierarchical stages, akin to the levels in a binary tree, while fan-out denotes the number of connections or branches at each stage. Mininet provides users with the flexibility to choose from five different depth and fan-out combinations. In our experiment, we expanded our investigation to include eight distinct depth levels to gather comprehensive results.

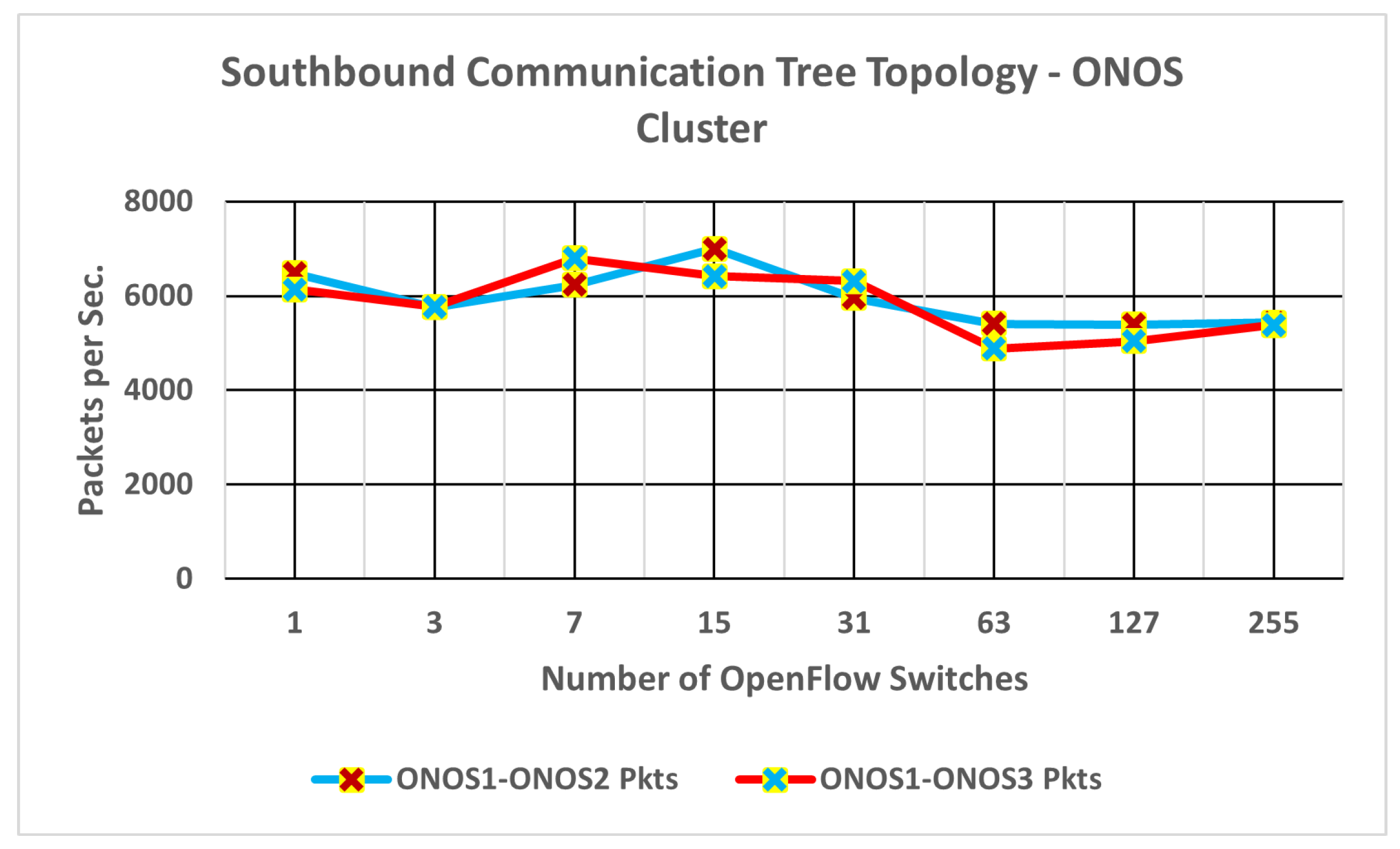

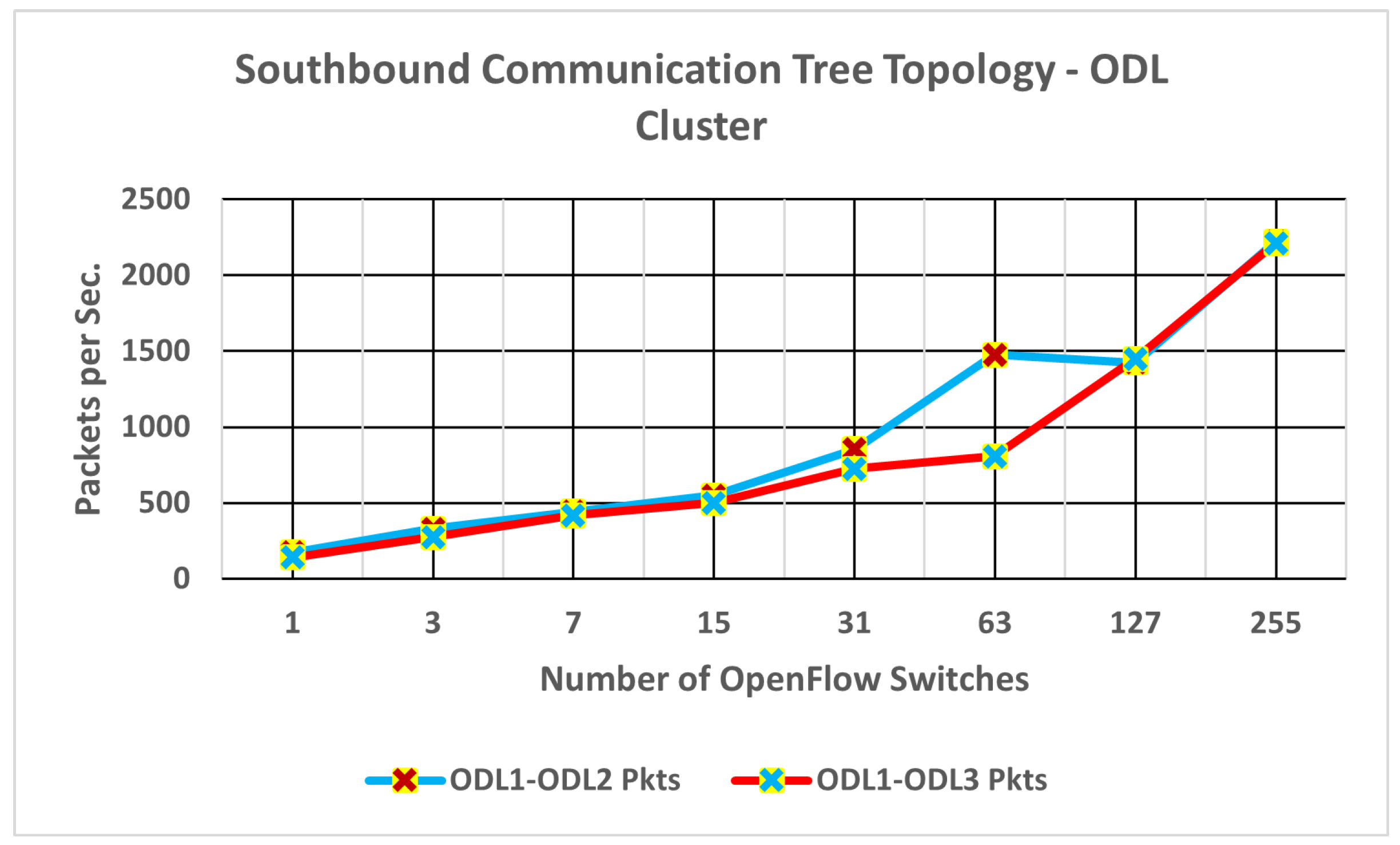

ONOS and ODL graphs (Fig. 8 and Figure 9) indicate that beyond the fifth scenario, there are significant deviations highlighting one of the limitations of Mininet.
However, Leader-based ONOS cluster communication has more than five times higher packet communication in Southbound node expansion for a tree topology. It implies increased resource utilisation and potential delays in cluster coordination and processing power required to efficiently manage the additional data flow. Moreover, if this heightened packet communication persists as the network expands, it may present scalability challenges for leader-based ONOS clusters, necessitating adjustments or optimizations to support larger deployments.

7.3. Impact of Southbound Expansion on Linear Topology

A single host will connect to a single switch in a linear topology, and Mininet has just one connection between OpenFlow switches. As shown in Table 5, there are 8 scenarios that we have tested to identify the cluster synchronisation behaviours in ONOS and ODL clusters.

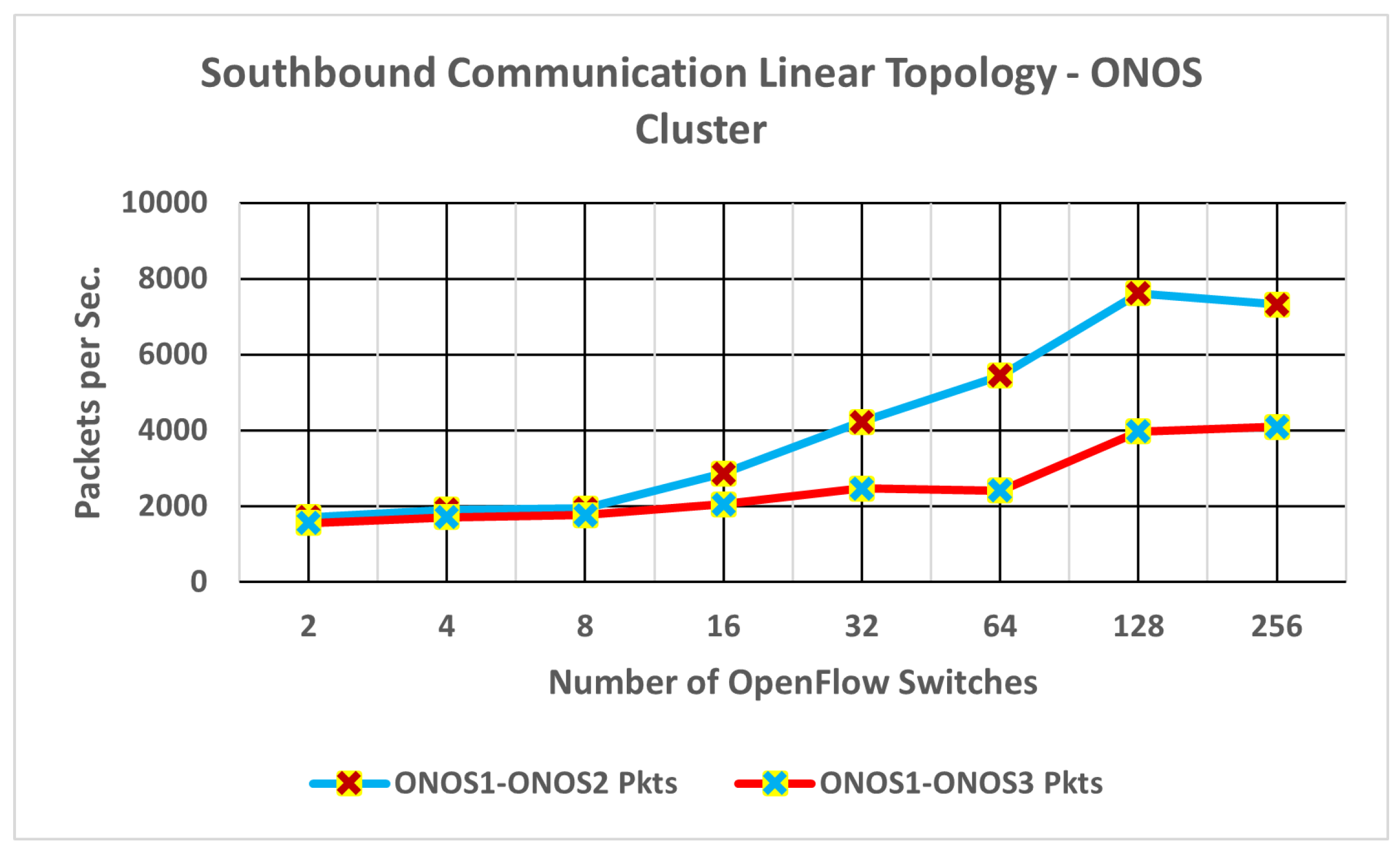

Figure 10 shows the leader-based ONOS cluster produced more than 2000 packet communications in the first three scenarios where the number of OpenFlow switches is minimal. However, Figure 11 shows the leaderless ODL cluster has recorded less than 2000 packet counts even in the last few scenarios. Furthermore, Leaderless scenarios indicate a gradual increment of maximum packet communication, while the leader-based approach has significant stability of the increment after 7th Scenario.
The steady escalation of packet communications in the leaderless technique is accessible in all three controllers in the ODL cluster. However, the ONOS cluster creates a high packet rate between the Master and first slave controller. The second slave controller receives a 50 per cent lesser packet rate than the Master and first slave connection. The hardware resource utilization in the leaderless cluster approach is lower than in the leader-based approach. It is significant compared to other southbound topology scenarios. The notable discrepancy in packet count increments between ODL and ONOS is significant, particularly when ONOS reaches a count of 8000 packets compared to ODL’s 1000 packets. This disparity suggests a substantial difference in the rate of network traffic handling and processing efficiency between the two controller types. The significantly higher packet count reached by ONOS implies a potentially heavier workload or more extensive data processing tasks, whereas the lower count in ODL indicates a comparatively lighter workload or more streamlined operations.

7.4. Impact of Southbound Expansion on Torus Topology

The Torus topology is a mesh-type topology that can be created in the Mininet emulator environment. This topology requires more hardware resources to operate appropriately in a cluster environment. In the Mininet environment, we need more than 9 OpenFlow switches to initiate the southbound topology connections. Table 6 lists the scenarios with 12 to 768 OpenFlow switches.

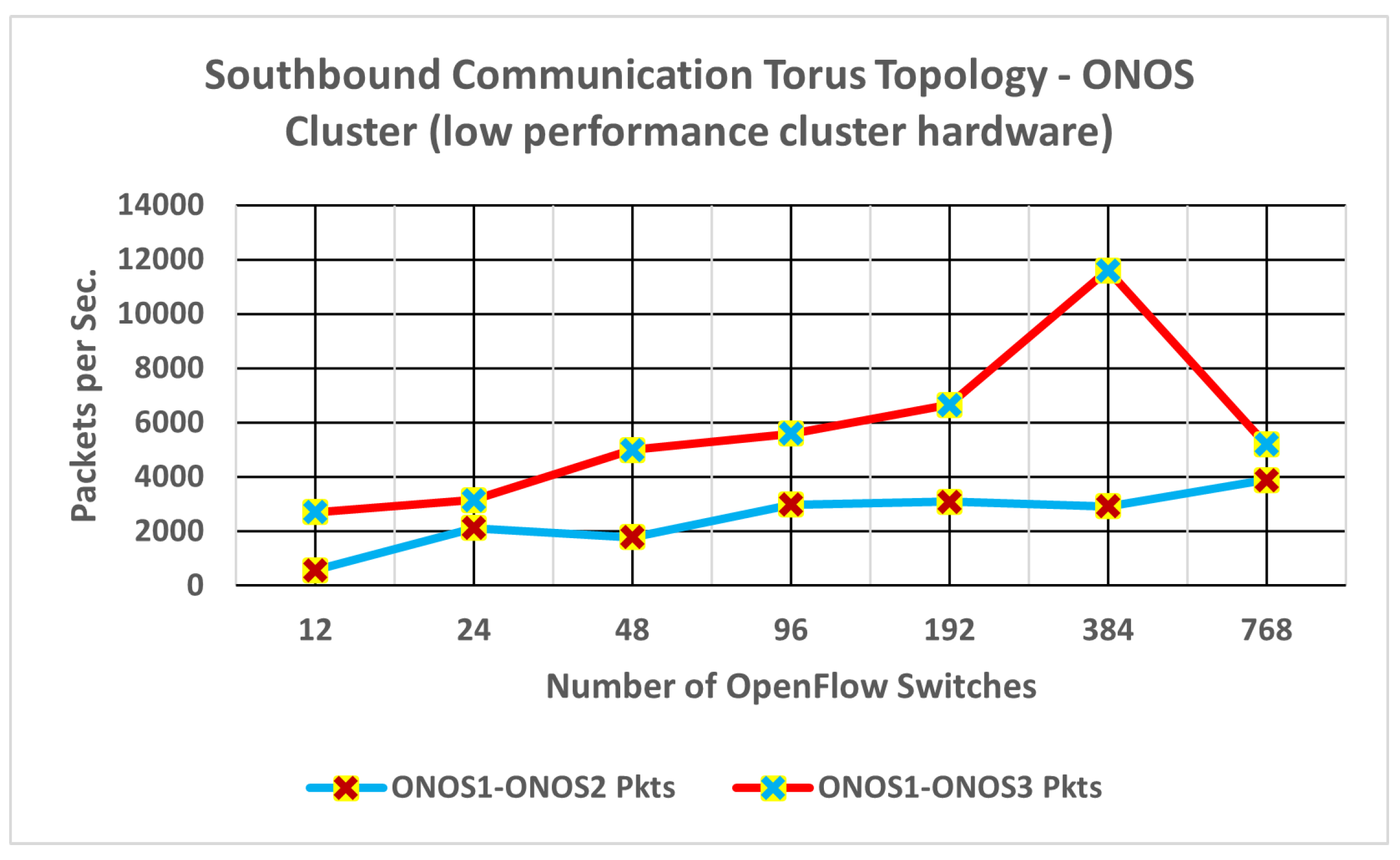

All VMs have 8GB of RAM and three logical CPU cores in our initial data center environment. Up to the 5th scenario, where 192 switches and 192 virtual hosts were connected in a torus topology with 576 virtual links, the maximum CPU utilization reached up to 65 percent. However, in Scenario 6, when the experiment linked 384 OpenFlow switches, the ONOS cluster used more than 95 per cent of its RAM capacity (Fig. 12). The seventh scenario (Fig. 12) indicates an erroneous output due to the high utilization of CPU and RAM in Mininet and ONOS VMs. Therefore, the same scenarios were re-initiated in another high-performance environment with 64GB RAM plus six logical cores.

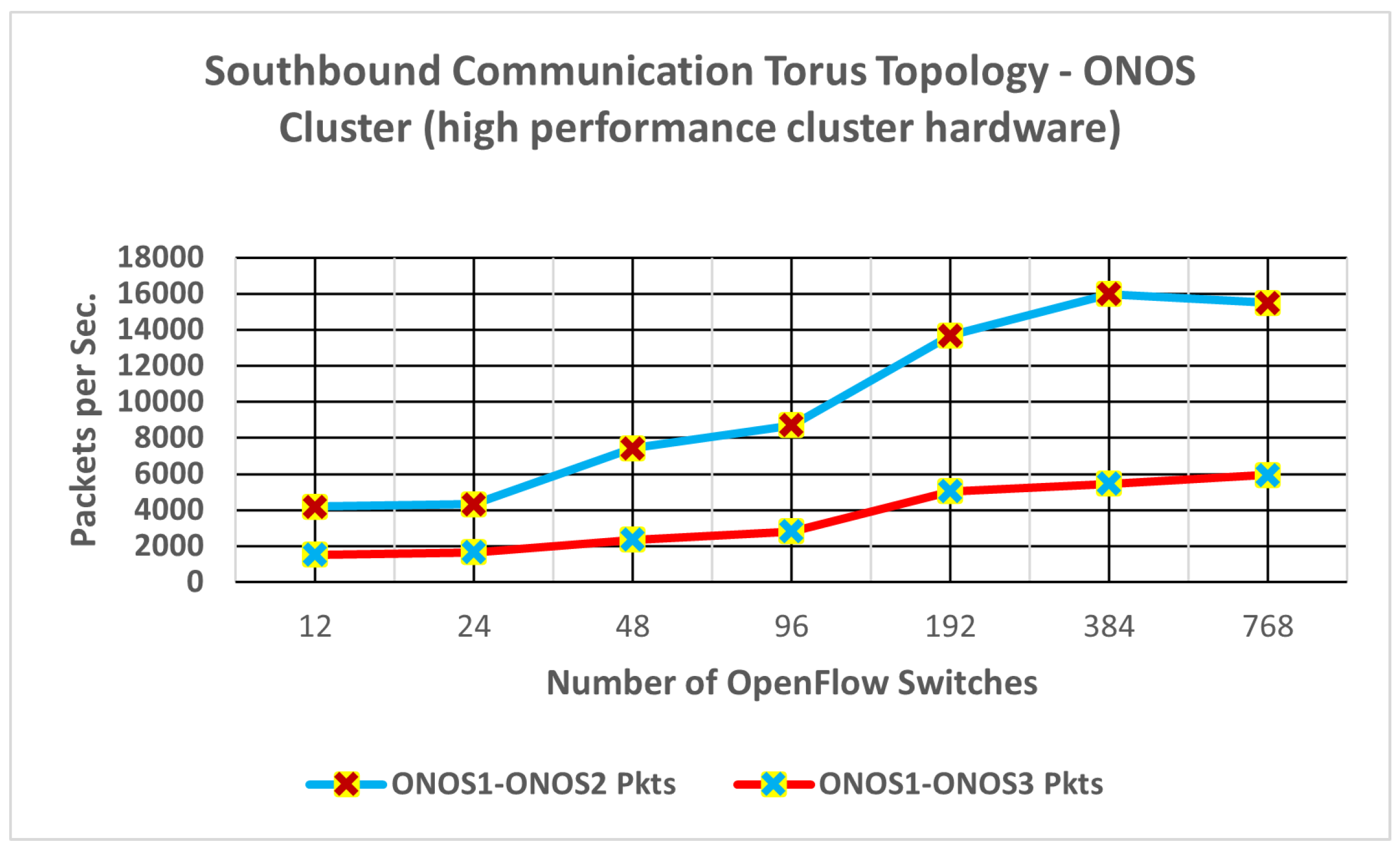

Figure 13 shows the maximum packet communication in the ONOS cluster after increasing hardware resources. The southbound expansions in each experiment scenario (Table 4) produced significant deviation in scenarios 6 and 7 as compared to those shown in Figure 12. Additionally, 4000 packets are communicated between controllers to fulfil synchronization. Furthermore, the same pattern was identified after Scenario 6, similar to scenarios with the Linear and Tree topologies. However, the slave cluster member-2 achieved a lower packet communication, close to 25 percent.
Preprints 107556 g013
Figure 13. Peak level Cluster Communication in ONOS Torus Topology with 64 GB RAM.
Figure 13. Peak level Cluster Communication in ONOS Torus Topology with 64 GB RAM.
Preprints 107556 g013

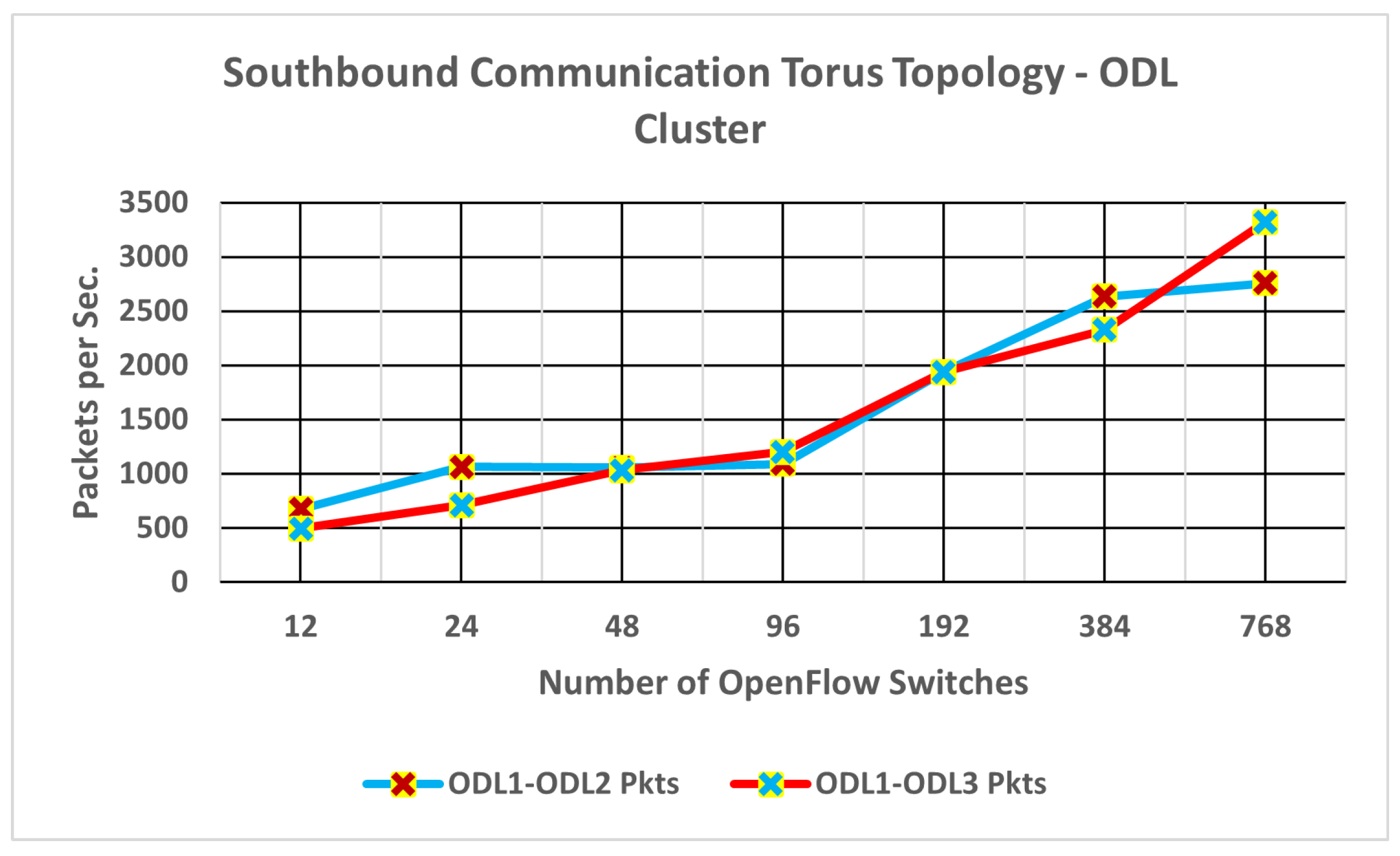

The leaderless ODL Cluster exhibited nearly 3,500 packet synchronizations in scenarios involving 768 OpenFlow switches using the Torus southbound topology. In addition to the observations regarding packet synchronizations, the CPU usage of the leaderless ODL Cluster remained below 50 percent even in the scenario with the highest number of OpenFlow switches connected to the environment. Conversely, the ONOS cluster required approximately 16,000 packets for synchronization. This notable difference underscored efficiency levels in managing network communication and coordination between the two clusters. Despite observing a gradual increment in packet communication between cluster members as the southbound expanded, ODL demonstrated a more streamlined approach compared to ONOS, suggesting potentially superior performance and resource utilization in certain scenarios. (Fig. 14).

8. Conclusions and Future Directions

The impact of increasing the number of southbound devices on system performance is investigated. The leader-based clusters offered higher control communication between the leader and slave members than the leaderless cluster coordination. However, the leader-based architecture is more stable than the leaderless architecture. We observed that the leaderless clusters produced high communication fluctuations even after initializing with zero southbound devices. Results obtained have shown that the different southbound topologies resulted in deviations between the leader-based and leaderless cluster controller environments. We measured the system performance by considering 35 scenarios across three different southbound topologies. We found that both leader-based and leaderless clusters exhibited a consistent increase in cluster communication. The leader-based cluster scenarios produced more cluster communication TCP packets than the leaderless ones. For a small to medium SDN environment, the leaderless cluster (ODL) offered superior performance with less topology discovery and flow installation time than the leader-based (ONOS). The ONOS has a granular communication architecture between the Leader and Follower that allows it to govern all synchronization from a central location. This produces stable and consistent cluster coordination in large-scale, wide-area networks
For a Tree topology, the leaderless cluster communication consistently increased with the number of southbound OpenFlow switches. The leader-based clusters produced 6,000 TCP packets even with a single OpenFlow switch topology. However, there was no continuous increment of cluster communication even though we scaled the southbound up to 255 switches. Therefore, leader-based ONOS clusters exhibit excellent stability in Wide Area Networks.
For a Linear Topology, there were eight scenarios in each cluster architecture. The ONOS cluster communication showed constant communication rates after reaching 128 OpenFlow switches in the Southbound. ODL exhibited low TCP cluster control communications in small-scale topologies; however, the gradual increment is an indication in large-scale networks. Furthermore, the leader-based architecture produced a significantly lower rate of cluster communication between the second slave member and master controller in the cluster after the seventh scenario. We found that the higher southbound volume produces consistent communication in the ONOS cluster. In the ONOS leader-based design, it has been shown that the second follower has a substantially lower rate of communication than the first follower.
While we focus on utilizing readily available resources in Mininet, ONOS, and ODL controller versions, we aim to carry out system evaluation by incorporating diverse and representative network topologies and cluster algorithm communication patterns. This will help us to develop a deeper understanding of SDN technologies and their practical applications in various settings.
ONOS and ODL employ distinct architectural approaches in their implementations of Software-Defined Networking (SDN). ONOS implements a distributed clustering mechanism where the Cluster Service interface manages roles and nodes across the network. In contrast, ODL adopts a centralized clustering model, treating the cluster as a single logical entity with members represented through the Cluster Member interface. This architectural difference extends to packet processing, where ONOS utilizes distributed packet processing across multiple instances, facilitated by the Packet Processor interface. ODL, on the other hand, employs a flat model SDN approach for distributed controller operations.
Furthermore, ONOS manages workload distribution through the LeadershipService, which ensures balanced leadership and distributed processing among controllers. In contrast, ODL employs a flat model approach managed by the WorkloadManager. These architectural distinctions significantly impact CPU utilization and cluster communication patterns within each system.While these differences provide insights into SDN controller performance, further research involving other controller architectures is essential to comprehensively understand their impact in varying network environments.

Author Contributions

Conceptualization, E.D.S.I.H.; methodology, E.D.S.I.H. and N.I.S.; software, E.D.S.I.H. and N.I.S.; validation, E.D.S.I.H. and N.I.S.; formal analysis, E.D.S.I.H. and N.I.S.; investigation, E.D.S.I.H. and N.I.S.; resources, N.I.S. and J.G.; data curation, E.D.S.I.H. and N.I.S.; writing—original draft preparation, E.D.S.I.H.; writing— review and editing, N.I.S. and J.G.; visualization, E.D.S.I.H. and N.I.S.; supervision, N.I.S. and J.G.; project administration, N.I.S. and J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anerousis, N.; Chemouil, P.; Lazar, A.A.; Mihai, N.; Weinstein, S.B. The Origin and Evolution of Open Programmable Networks and SDN. IEEE Communications Surveys Tutorials 2021, 23, 1956–1971. [Google Scholar] [CrossRef]
  2. McKeown, N.; Anderson, T.; Balakrishnan, H.; Parulkar, G.; Peterson, L.; Rexford, J.; Shenker, S.; Turner, J. OpenFlow: Enabling Innovation in Campus Networks. SIGCOMM Comput. Commun. Rev. 2008, 38, 69–74. [Google Scholar] [CrossRef]
  3. Kreutz, D.; Ramos, F.M.V.; Veríssimo, P.E.; Rothenberg, C.E.; Azodolmolky, S.; Uhlig, S. Software-Defined Networking: A Comprehensive Survey. Proceedings of the IEEE 2015, 103, 14–76. [Google Scholar] [CrossRef]
  4. Abd-Allah, A.G.A.; Adly, A.S.; Ghalwash, A. Z. Scalability between Flow Tables & Multiple Controllers in Software Defined Networking. Journal of Computer Science IJCSIS 2019, 17, 23–44. [Google Scholar]
  5. Phemius, K.; Bouet, M.; Leguay, J. DISCO: Distributed multi-domain SDN controllers. 2014 IEEE Network Operations and Management Symposium (NOMS), 2014, pp. 1–4. [CrossRef]
  6. Cox, J.H.; Chung, J.; Donovan, S.; Ivey, J.; Clark, R.J.; Riley, G.; Owen, H.L. Advancing Software-Defined Networks: A Survey. IEEE Access 2017, 5, 25487–25526. [Google Scholar] [CrossRef]
  7. Erel, M.; Teoman, E.; Özçevik, Y.; Seçinti, G.; Canberk, B. Scalability analysis and flow admission control in mininet-based SDN environment. 2015 IEEE Conference on Network Function Virtualization and Software Defined Network (NFV-SDN), 2015, pp. 18–19. [CrossRef]
  8. Kim, T.; Choi, S.G.; Myung, J.; Lim, C.G. Load balancing on distributed datastore in opendaylight SDN controller cluster. 2017 IEEE Conference on Network Softwarization (NetSoft), 2017, pp. 1–3. [CrossRef]
  9. Chaipet, S.; Putthividhya, W. On Studying of Scalability in Single-Controller Software-Defined Networks. 2019 11th International Conference on Knowledge and Smart Technology (KST), 2019, pp. 158–163. [CrossRef]
  10. Muqaddas, A.S.; Giaccone, P.; Bianco, A.; Maier, G. Inter-Controller Traffic to Support Consistency in ONOS Clusters. IEEE Transactions on Network and Service Management 2017, 14, 1018–1031. [Google Scholar] [CrossRef]
  11. Suh, D.; Jang, S.; Han, S.; Pack, S.; Kim, M.S.; Kim, T.; Lim, C.G. Toward Highly Available and Scalable Software Defined Networks for Service Providers. IEEE Communications Magazine 2017, 55, 100–107. [Google Scholar] [CrossRef]
  12. Lunagariya, D.; Goswami, B. A Comparative Performance Analysis of Stellar SDN Controllers using Emulators. 2021 International Conference on Advances in Electrical, Computing, Communication and Sustainable Technologies (ICAECT), 2021, pp. 1–9. [CrossRef]
  13. Sri Deepak Phaneendra, Y.; Prabu, U.; Yasmine, S. A Study on Multi-Controller Placement Problem (MCPP) in Software-Defined Networks. 2023 International Conference on Sustainable Computing and Data Communication Systems (ICSCDS), 2023, pp. 1454–1458. [CrossRef]
  14. Shirvar, A.; Goswami, B. Performance Comparison of Software-Defined Network Controllers. 2021 International Conference on Advances in Electrical, Computing, Communication and Sustainable Technologies (ICAECT), 2021, pp. 1–13. [CrossRef]
  15. Niu, X.; Guan, J.; Gao, X.; Jiang, S. Scalable and Reliable SDN Multi-Controller System Based on Trusted Multi-Chain. 2022 IEEE 33rd Annual International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), 2022, pp. 758–763. [CrossRef]
  16. Xu, H.; Li, Q. SDN Multi Controller Deployment Strategy Based on Improved Spectral Clustering Algorithm. 2022 7th International Conference on Intelligent Computing and Signal Processing (ICSP), 2022, pp. 117–120. [CrossRef]
  17. Hu, F.; Hao, Q.; Bao, K. A Survey on Software-Defined Network and OpenFlow: From Concept to Implementation. IEEE Communications Surveys Tutorials 2014, 16, 2181–2206. [Google Scholar] [CrossRef]
  18. de Oliveira, R.L.S.; Schweitzer, C.M.; Shinoda, A.A.; Prete, L.R. Using Mininet for emulation and prototyping Software-Defined Networks. 2014 IEEE Colombian Conference on Communications and Computing (COLCOM), 2014, pp. 1–6. [CrossRef]
  19. Goyal, P.; Goyal, A. Comparative study of two most popular packet sniffing tools-Tcpdump and Wireshark. 2017 9th International Conference on Computational Intelligence and Communication Networks (CICN), 2017, pp. 77–81. [CrossRef]
  20. Espinel Sarmiento, D.; Lebre, A.; Nussbaum, L.; Chari, A. Decentralized SDN Control Plane for a Distributed Cloud-Edge Infrastructure: A Survey. IEEE Communications Surveys Tutorials 2021, 23, 256–281. [Google Scholar] [CrossRef]
  21. Bannour, F.; Souihi, S.; Mellouk, A. Distributed SDN Control: Survey, Taxonomy, and Challenges. IEEE Communications Surveys Tutorials 2018, 20, 333–354. [Google Scholar] [CrossRef]
  22. Yan, B.; Xu, Y.; Chao, H.J. BigMaC: Reactive Network-Wide Policy Caching for SDN Policy Enforcement. IEEE Journal on Selected Areas in Communications 2018, 36, 2675–2687. [Google Scholar] [CrossRef]
  23. Görkemli, B.; Tatlıcıoğlu, S.; Tekalp, A.M.; Civanlar, S.; Lokman, E. Dynamic Control Plane for SDN at Scale. IEEE Journal on Selected Areas in Communications 2018, 36, 2688–2701. [Google Scholar] [CrossRef]
  24. Amiri, E.; Alizadeh, E.; Raeisi, K. An Efficient Hierarchical Distributed SDN Controller Model. 2019 5th Conference on Knowledge Based Engineering and Innovation (KBEI), 2019, pp. 553–557. [CrossRef]
  25. Hu, T.; Guo, Z.; Yi, P.; Baker, T.; Lan, J. Multi-controller Based Software-Defined Networking: A Survey. IEEE Access 2018, 6, 15980–15996. [Google Scholar] [CrossRef]
  26. Schiff, L.; Schmid, S. Study the Past If You Would Define the Future: Implementing Secure Multi-party SDN Updates. 2016 IEEE International Conference on Software Science, Technology and Engineering (SWSTE), 2016, pp. 111–116. [CrossRef]
  27. Raychev, J.; Kinaneva, D.; Hristov, G.; Zahariev, P. Optimizing SDN Control Plane Scalability by Efficient Switch to Controller Migration. 2019 27th National Conference with International Participation (TELECOM), 2019, pp. 42–45. [CrossRef]
  28. Zhang, B.; Wang, X.; Huang, M. Adaptive Consistency Strategy of Multiple Controllers in SDN. IEEE Access 2018, 6, 78640–78649. [Google Scholar] [CrossRef]
  29. Zhou, W.; Jin, D.; Croft, J.; Caesar, M.; Godfrey, P.B. Enforcing Customizable Consistency Properties in Software-Defined Networks. 12th USENIX Symposium on Networked Systems Design and Implementation (NSDI 15); USENIX Association: Oakland, CA, 2015; pp. 73–85.
  30. Ahmad, S.; Mir, A.H. Scalability, Consistency, Reliability and Security in SDN Controllers: A Survey of Diverse SDN Controllers. Journal of Network and Systems Management 2020, 29, 9. [Google Scholar] [CrossRef]
  31. Zhou, Y.; Wang, Y.; Yu, J.; Ba, J.; Zhang, S. Load balancing for multiple controllers in SDN based on switches group. 2017 19th Asia-Pacific Network Operations and Management Symposium (APNOMS), 2017, pp. 227–230. [CrossRef]
  32. Xiaolan, H.; Muqing, W. An Effective Clustering Algorithm for Controller Deployment in SDN. 2018 Global Wireless Summit (GWS), 2018, pp. 338–342. [CrossRef]
  33. Sallahi, A.; St-Hilaire, M. Optimal Model for the Controller Placement Problem in Software Defined Networks. IEEE Communications Letters 2015, 19, 30–33. [Google Scholar] [CrossRef]
  34. McCauley, J.; Liu, Z.; Panda, A.; Koponen, T.; Raghavan, B.; Rexford, J.; Shenker, S. Recursive SDN for Carrier Networks. 2016, 46, 1–7. [Google Scholar] [CrossRef]
  35. Ran Xu, W.Z. Improving Fairness for Distributed Interactive Applications in Software-Defined Networks. 2020, 2020. [Google Scholar] [CrossRef]
  36. Almadani, B.; Beg, A.; Mahmoud, A. DSF: A Distributed SDN Control Plane Framework for the East/West Interface. IEEE Access 2021, 9, 26735–26754. [Google Scholar] [CrossRef]
  37. Yu, T.; Hong, Y.; Cui, H.; Jiang, H. A survey of Multi-controllers Consistency on SDN. 2018 4th International Conference on Universal Village (UV), 2018, pp. 1–6. [CrossRef]
  38. Carrara, G.R.; Reis, L.H.A.; Albuquerque, C.V.N.; Mattos, D.M.F. A Lightweight Strategy for Reliability of Consensus Mechanisms based on Software Defined Networks. 2019 Global Information Infrastructure and Networking Symposium (GIIS), 2019, pp. 1–6. [CrossRef]
  39. Prajapati, A. AMQP and beyond. 2021 International Conference on Smart Applications, Communications and Networking (SmartNets), 2021, pp. 1–6. [CrossRef]
  40. Liu, Y.F.; Lin, K.C.J.; Tseng, C.C. Dynamic Cluster-based Flow Management for Software Defined Networks. IEEE Transactions on Services Computing 2019, 1–1. [Google Scholar] [CrossRef]
  41. Huang, V.; Chen, G.; Zhang, P.; Li, H.; Hu, C.; Pan, T.; Fu, Q. A Scalable Approach to SDN Control Plane Management: High Utilization Comes With Low Latency. IEEE Transactions on Network and Service Management 2020, 17, 682–695. [Google Scholar] [CrossRef]
  42. Akanbi, O.A.; Aljaedi, A.; Zhou, X.; Alharbi, A.R. Fast Fail-Over Technique for Distributed Controller Architecture in Software-Defined Networks. IEEE Access 2019, 7, 160718–160737. [Google Scholar] [CrossRef]
  43. Vizarreta, P.; Machuca, C.M.; Kellerer, W. Controller placement strategies for a resilient SDN control plane. 2016 8th International Workshop on Resilient Networks Design and Modeling (RNDM), 2016, pp. 253–259. [CrossRef]
  44. Abdelaziz, A.; Fong, A.T.; Gani, A.; Garba, U.; Khan, S.; Akhunzada, A.; Talebian, H.; Choo, K.K.R. Distributed controller clustering in software defined networks. PLOS ONE 2017, 12, 1–19. [Google Scholar] [CrossRef] [PubMed]
  45. Cui, J.; Lu, Q.; Zhong, H.; Tian, M.; Liu, L. A Load-Balancing Mechanism for Distributed SDN Control Plane Using Response Time. IEEE Transactions on Network and Service Management 2018, 15, 1197–1206. [Google Scholar] [CrossRef]
  46. Li, J.Q.; Sun, E.; hua Zhang, Y. Multi-Threshold SDN Controllers Load Balancing Algorithm Based On Controller Load. DEStech Transactions on Computer Science and Engineering 2018. [Google Scholar] [CrossRef] [PubMed]
  47. Dabbagh, M.; Hamdaoui, B.; Guizani, M.; Rayes, A. Software-defined networking security: pros and cons. IEEE Communications Magazine 2015, 53, 73–79. [Google Scholar] [CrossRef]
  48. Qi, C.; Wu, J.; Cheng, G.; Ai, J.; Zhao, S. An aware-scheduling security architecture with priority-equal multi-controller for SDN. China Communications 2017, 14, 144–154. [Google Scholar] [CrossRef]
  49. Pisharody, S.; Natarajan, J.; Chowdhary, A.; Alshalan, A.; Huang, D. Brew: A Security Policy Analysis Framework for Distributed SDN-Based Cloud Environments. IEEE Transactions on Dependable and Secure Computing 2019, 16, 1011–1025. [Google Scholar] [CrossRef]
  50. Dangovas, V.; Kuliesius, F. SDN-Driven Authentication and Access Control System. 2014.
  51. Nguyen-Ngoc, A.; Lange, S.; Zinner, T.; Seufert, M.; Tran-Gia, P.; Aerts, N.; Hock, D. Performance evaluation of selective flow monitoring in the ONOS controller. 2017 13th International Conference on Network and Service Management (CNSM), 2017, pp. 1–6. [CrossRef]
  52. OpenNetworking Foundation. Open Network Operating System (ONOS®) is the leading open source SCN controller for building nex-generation SDN/NFV solution. Oct. 2021. URL: https://opennetworking.org/onos/.
  53. OpenDaylight. OpenDaylight (ODL) is a modular open platform for customizing and automating networks of any size and scale. Oct. 2021. URL: https://www.opendaylight.org/.
  54. Lord, P.; Roy, A.; Keys, C.; Ratnaparkhi, A.; Goebel, D.M.; Hart, W.; Lai, P.; Solish, B.; Snyder, S. Beyond TRL 9: Achieving the Dream of Better, Faster, Cheaper Through Matured TRL 10 Commercial Technologies. 2019 IEEE Aerospace Conference, 2019, pp. 1–17. [CrossRef]
  55. Septian, K.A.; Istikmal; Ginting, I. Analysis of ONOS Clustering Performance on Software Defined Network. 2021 IEEE International Conference on Internet of Things and Intelligence Systems (IoTaIS), 2021, pp. 117–122. [CrossRef]
  56. Suh, D.; Jang, S.; Han, S.; Pack, S.; Kim, T.; Kwak, J. On performance of OpenDaylight clustering. 2016 IEEE NetSoft Conference and Workshops (NetSoft), 2016, pp. 407–410. [CrossRef]
  57. Arahunashi, A.K.; Neethu, S.; Ravish Aradhya, H.V. Performance Analysis of Various SDN Controllers in Mininet Emulator. 2019 4th International Conference on Recent Trends on Electronics, Information, Communication Technology (RTEICT), 2019, pp. 752–756. [CrossRef]
Preprints 107556 g001
Figure 1. Leader Manages the Cluster Coordination.
Figure 1. Leader Manages the Cluster Coordination.
Preprints 107556 g001
Preprints 107556 g002
Figure 2. Controller Federation Manages the Cluster Coordination.
Figure 2. Controller Federation Manages the Cluster Coordination.
Preprints 107556 g002
Preprints 107556 g003
Figure 3. Critical Influences for SDN Cluster Performances.
Figure 3. Critical Influences for SDN Cluster Performances.
Preprints 107556 g003
Preprints 107556 g004
Figure 4. Southbound Scalability matters to Consistency, Reliability, Load Balance and Security
Figure 4. Southbound Scalability matters to Consistency, Reliability, Load Balance and Security
Preprints 107556 g004
Preprints 107556 g005
Figure 5. SDN Topology in Data center Environment
Figure 5. SDN Topology in Data center Environment
Preprints 107556 g005
Preprints 107556 g006
Figure 6. ODL Leaderless vs ONOS Leader-based initial Cluster Communication
Figure 6. ODL Leaderless vs ONOS Leader-based initial Cluster Communication
Preprints 107556 g006
Preprints 107556 g008
Figure 8. Peak level Cluster Communication in ONOS Tree Topology.
Figure 8. Peak level Cluster Communication in ONOS Tree Topology.
Preprints 107556 g008
Preprints 107556 g009
Figure 9. Peak level Cluster Communication in ODL Tree Topology.
Figure 9. Peak level Cluster Communication in ODL Tree Topology.
Preprints 107556 g009
Preprints 107556 g010
Figure 10. Peak level Cluster Communication in ONOS Linear Topology.
Figure 10. Peak level Cluster Communication in ONOS Linear Topology.
Preprints 107556 g010
Preprints 107556 g011
Figure 11. Peak level Cluster Communication in ODL Linear Topology.
Figure 11. Peak level Cluster Communication in ODL Linear Topology.
Preprints 107556 g011
Preprints 107556 g012
Figure 12. Peak level Cluster Communication in ONOS Torus Topology with 8 GB RAM.
Figure 12. Peak level Cluster Communication in ONOS Torus Topology with 8 GB RAM.
Preprints 107556 g012
Preprints 107556 g014
Figure 14. Peak level Cluster Communication in ODL Torus Topology.
Figure 14. Peak level Cluster Communication in ODL Torus Topology.
Preprints 107556 g014
Table 1. Single Controller and Multi-Controller Architectures.
Table 1. Single Controller and Multi-Controller Architectures.
Criteria Single Controller Multi-Controllers
POX Ryu ODL ONOS
First Release in 2011 2012 2013 2014
Architecture Centralized Centralized Distributed Distributed
East-West NA NA Available Available
Language Python Python Java Java
Modularity Poor Medium Very Good Very Good
Consistency No Yes Yes Yes
Updates Poor Medium Very Good Very Good
Industry Proven No No Yes Yes
Table 3. SDN Communication Criteria Analysis and Operational Impact.
Table 3. SDN Communication Criteria Analysis and Operational Impact.
Parameter Criteria Requirement Impact
Scalability Controller Discovery Controller Placement With amicable controller placement,
controller propagation delays
caused by the number of controllers
and cluster topology
should reduce [32].
Control Plane architecture The amount of southbound data,
cluster domain supervision,
and architectural models used
in hierarchical, distributed, or
hybrid method will consider [33].
Southbound Partitioning Topology Partitioning SDN topology that is improperly
partitioned, or not partitioned
at all, causes delays in end-to-end
network services and low priority
bandwidth [34].
Partitioning Method or Algorithm The Greedy algorithm Problem is
caused by overlay network
restrictions and controller limits.
As a result, a manual partitioning
method or a self-adaptive
partitioning technique is
necessary [35].
Consistency State of the Controller Controller Synchronization High performance is achieved by
consistency and coherent
synchronization to preserve state
consistency via Publish/Subscribe
mode, and Load-Variance-
Synchronization [36].
Controller Communication Consensus Protocols and
Shareable Network Information
Bases that make it easier to update
cluster and local information
bases keep the controllers in
good shape [37,38].
Control Strategy Path Prioritization To prioritize pathways, identify
adjacent controllers and provide
3-channel communication with
Publish/subscribe support
(Ex. AMQP) [39].
Flow Management By using independent flow
forwarding methods, cluster flow
allocation cost reduction
allows control consistency schemes
to function effectively [40].
Reliability Path Reliability Reliability Optimization Cluster latency is calculated as a
percentage of path loss. This
problem is mitigated by a variety
of computational ways [41].
Link fail-over design Backup pathways are pre-
configured, and algorithms used
to find the shortest paths [42].
Path Management Different controllers and a
disjointed control path
reliability is managed through
replica in many frameworks [43].
Controller Reliability Controller Selection It has an impact on controller-switch
communication, link latency,
link distance, and
southbound traffic volume [44].
Control Robustness With their connection status,
hardware delays, and throughput
limits, clusters with few controllers
need maximum reachability.
To build a plan based on the
worst-case scenario, an algorithm
is necessary [43,44].
Load Balance Clustering Balance Flow and Load Balance Balance Flow is a feature of
Hierarchical Clusters that allows
to exchange load information
and minimize process load in
controllers. The leader controller
divides traffic and routes
it to several controllers [25].
Southbound Migration Device Migration Switches with robust connections
enable migration with adequate
communication pattern analysis.
There are some process solutions
which are only available
in a few controllers [45].
Load Balance Sharing In a clustered environment, a
distributed architecture for
measuring load statistics,
load balancing, and migration
makes device migration easier
[45,46].
Security Secure Cluster Coordination Compromised Devices Syc-Flood attacks generate a large
number of requests to overburden
cluster controller resources via
genuine inquiries [47].
Attack Probing In SDN cluster setups, enhanced
security resilience over conventional
design is expected, along with
a decreased failure probability
during cyberattacks [48].
Southbound Security Secure Flow Management new techniques need to develop to
secure flow rules in the SDN-cluster
environment, extended firewall
operations and other security
considerations compared to
traditional single controller
environment [49].
Access Control Systems AAA(Authentication, Authorization
and Accounting) and policy
enforcement tools are required
to increase SDN security.
Furthermore, that helps the ability
to connect with legacy monitoring
tools [50].
Table 4. Total Number of Devices and Connections in Simulated Environment (Tree Topology Scenarios).
Table 4. Total Number of Devices and Connections in Simulated Environment (Tree Topology Scenarios).
Scenario OpenFlow Switch Count Host Count Link Count
01 01 02 02
02 03 04 06
03 07 08 14
04 15 16 30
05 31 32 62
06 63 64 126
07 127 128 254
08 255 256 510
Table 5. Total Number of Devices and Connections in Simulated Environment (Linear Topology Scenarios).
Table 5. Total Number of Devices and Connections in Simulated Environment (Linear Topology Scenarios).
Scenario OpenFlow Switch Count Host Count Link Count
01 02 02 03
02 04 04 07
03 08 08 15
04 16 16 31
05 32 32 63
06 64 64 127
07 128 128 255
08 256 256 511
Table 6. Total Number of Devices and Connections in Simulated Environment (Torus Topology Scenarios)
Table 6. Total Number of Devices and Connections in Simulated Environment (Torus Topology Scenarios)
Scenario OpenFlow Switch Count Host Count Link Count
01 12 12 36
02 24 24 72
03 48 48 144
04 96 96 288
05 192 192 576
06 384 384 1152
07 768 768 2304
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
