1. Introduction
Electromagnetically induced transparency (EIT) is a physical phenomenon that occurs in three-level atomic systems, where quantum interference between atomic energy levels and excitation pathways reduces the absorption of probing light, resulting in a very narrow transparency window in the transmission spectra [
1]. In order to more conveniently and flexibly study the EIT phenomenon and expand its applications, researchers have proposed numerous schemes to realize classical analogies of EIT in various model systems [
2,
3]. Among these, the plasmon-induced transparency (PIT) effect in metamaterial structures which combines EIT in optical systems with surface plasmon polaritons (SPPs) has been extensively studied due to its flexible design and ease of implementation [
4,
5]. Previous research has reported that the PIT effect is primarily achieved through the destructive interference phenomenon of bright and dark modes [
6,
7]. The bright mode refers to a resonant mode directly excited by incident light, while the dark mode is a mode not directly excited by incident light but indirectly activated through near-field coupling with the bright mode. The PIT effect exhibits steep dispersion (potentially leading to slow light effects), large nonlinear characteristics, and high spectral sensitivity to the local dielectric environment [
8,
9,
10], all of which open up new avenues for designing novel devices, such as slow light devices [
11], optical sensors [
12], and plasmonic switches [
13]. However, once nanostructures are fabricated, the performance and operating frequency of PIT in metamaterials cannot be flexibly adjusted, hindering their applications in the fields of tunable or reconfigurable devices.
In order to overcome the aforementioned issues, researchers have recently combined active media with metasurfaces to achieve dynamic control of PIT, such as through the use of micro-electro mechanical systems (MEMS) [
14], phase-change materials [
15], nonlinear media [
16], semiconductor materials [
17], two-dimensional (2D) materials [
18], and others. In particular, graphene can function as an excellent platform for the active manipulation of PIT due to its excellent photoelectric characteristics [
19,
20,
21]. In contrast to traditional metal materials with high losses, graphene exhibits high electron mobility, high modulation depth, tunable surface conductivity, and low insertion loss (IL), making it widely utilized in the design of tunable PIT devices. The combination of graphene with metamaterials or metasurfaces can be employed to achieve dynamic tunable PIT effects. For example, by the excitation of the bright mode and dark mode simultaneously in the graphene strips, the controllable PIT window can be realized [
22,
23]. By the excitation of two bright modes simultaneously in the graphene metasurfaces, the tunable PIT window can also be achieved [
24,
25,
26,
27]. Additionally, the dynamic control of double PITs is possible in the graphene-based metasurfaces through the coupling between one bright mode and two dark modes [
28], or two bright modes and one dark mode [
29,
30]. However, PIT arising from the triple bright modes has not been studied in graphene-based metasurfaces.
In this work, we demonstrate that the dual PIT phenomenon can be realized in the terahertz (THz) region through the resonant coupling of triple bright modes in the graphene metasurface. The unit cell of the proposed graphene metasurface contains a graphene central cross (GCC) and a graphene rectangular ring (GRR). The dual PIT phenomenon is attributed to the resonant couplings between the bright mode in the GCC and two nondegenerate bright modes in the GRR with symmetry-breaking. The results of the proposed triple coupled-oscillator model (TCM) are highly consistent with those of the finite-difference time-domain (FDTD) method. As the structural parameters are varied, the dual PIT windows exhibit strong robustness except the length of GRR along the y direction. The transmission window of the dual PIT can be effectively modulated by the carrier mobility of graphene. Finally, we study the modulation degree (MD) and the corresponding IL at different Fermi levels, which demonstrates excellent tunability of the dual PIT windows at multiple frequencies.
2. Structure and Method

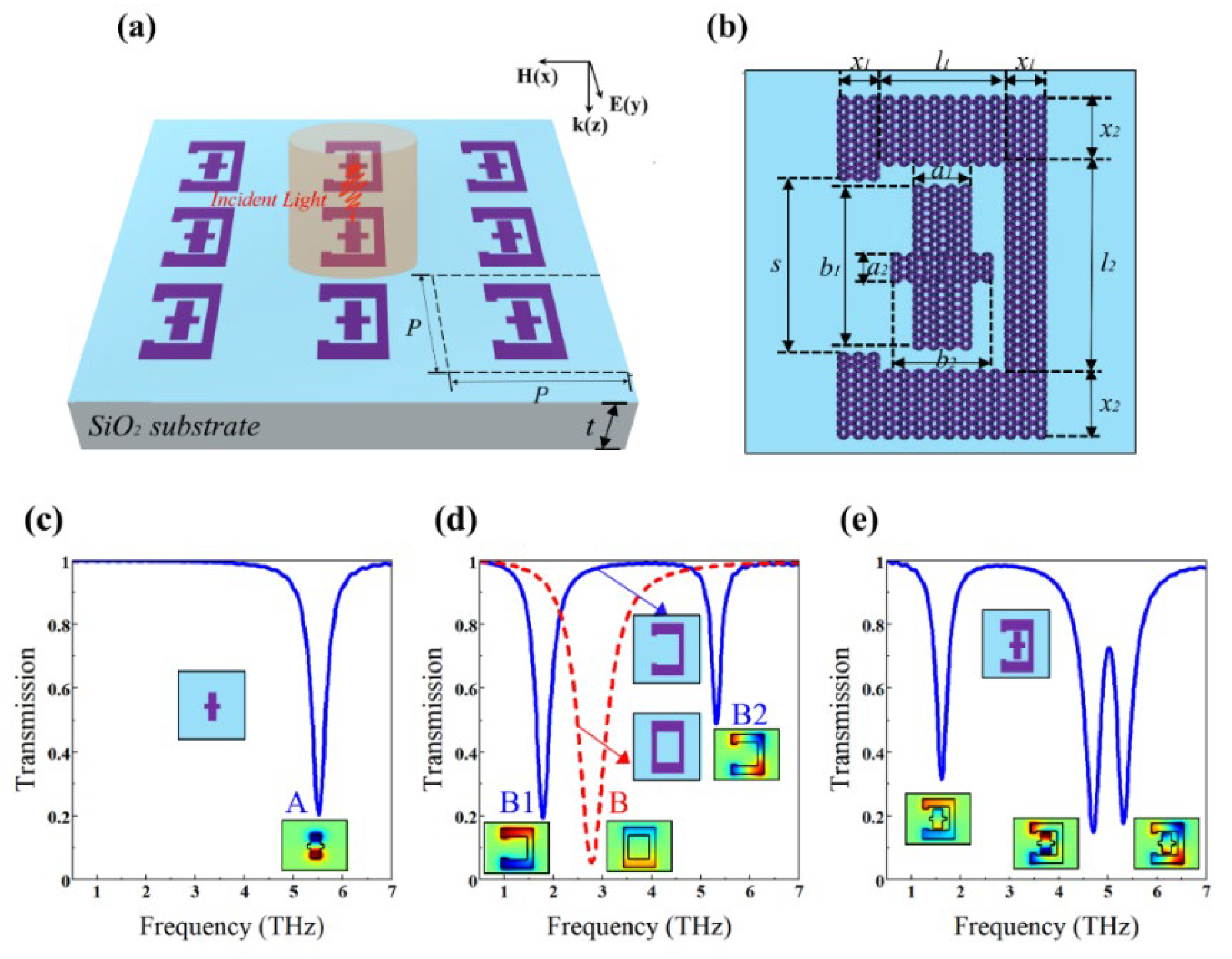

Figure 1a shows the schematic diagram of the proposed graphene metasurface on a silica (SiO
2) substrate under the illumination of a normally incident THz wave. The period of the graphene metasurface is
P; the thickness of the SiO
2 substrate is
t, and its refractive index is 1.96 [
31]. As shown in
Figure 1b, the graphene metasurface consists of two resonators in its unit cell, one is the GCC with length (
b1,
b2) and width (
a1,
a2), the other is the GRR with length (
l1,
l2), width (
x1,
x2) and a cut
s. In principle, the unit cell of the GCC possesses structural symmetry both in the
x and
y directions, while the GRR exhibits structural symmetry only along the
y direction as
s≠0. In this case, besides the resonant mode arising from the GCC, the resonant modes of the GRR will be nondegenerate due to the symmetry breaking with
s≠0 and they can be tuned by
s as well, thus symmetry-engineered PIT is possible in the proposed graphene metasurface through the interaction of the resonant modes of GCC and GRR.
In the THz wavelength region, the monolayer graphene can be regarded as a surface conductivity σ(
ω) with neglectable interband component, and it can be simplified according to the random phase approximation [
32,
33]:
,
where ω is the angular frequency, e is the charge of an electron, EF is the Fermi level, ћ is the reduced Planck constant, and τ is the relaxation time. The intrinsic relaxation time satisfies the relationship τ=μEF/evF2, where vF=c/300 is the Fermi velocity and μ=10000 cm2/Vs is the measured carrier mobility. The Fermi level of graphene is set to 1 eV and the temperature is 300 K.
In the simulation, graphene is modeled as a thin layer with the relative permittivity expressed as εg=1+iσ(ω)/(ε0ωΔ), where Δ=1 nm is the thickness of graphene, and ε0 is the vacuum permittivity. We adopted a commercial software from Ansys Lumerical, in which a FDTD method had been applied to calculate the optical responses and the field distributions of the structure. Periodic boundary conditions are applied in the x and y directions, while perfectly matched layers are applied in the z direction. The grid size is chosen as 10 nm to ensure the accuracy of the calculation.
To well demonstrate the PIT properties of the proposed graphene metasurface, the transmission spectra of the GCC structure and the GRR structure are provided as a comparison, as shown in
Figure 1c,d. As shown in
Figure 1c, the GCC structure can be excited by the incident light directly and it exhibits a distinct transmission dip at 5.51 THz. This indicates that it is a bright mode and we labeled it as Mode A, which is associated with the excitation of the electric dipole (ED) according to the field distribution inserted in the figure. In
Figure 1d, it can be seen that the GRR structure with
s=0 can also be excited directly by the incident light with a resonant dip at 2.78 THz (Mode B), indicating the bright mode feature with the ED mode according to its field distribution. However, Mode B will split into two nondegenerate bright modes of Mode B1 and Mode B2 as
s≠0 due to the symmetry breaking of the structure, which is associated with the cancellation of the short-circuit capacitance of the GRR according to the inductor-capacitor (LC) model [
34], and the resonant locations of Mode B1 and Mode B2 are 1.78 THz and 5.31 THz, respectively. According to their field distributions inserted in the figure, Mode B1 and Mode B2 correspond to the ED and electric quadrupole (EQ) modes, respectively [
35]. In
Figure 1e, for the graphene metasurface consisting of the GCC and GRR in its unit cell, it can be seen two transparent windows (one broadband centered at 2.95 THz and the other narrowband centered at 5.01 THz) can be excited due to the interaction of the triple bright modes, with three dips located at 1.61, 4.70, and 5.31 THz respectively. The electric field inserted in the figures reveals that the resonant dip at 1.61 THz is associated with the resonant coupling between Mode A and Mode B1, the resonant dip at 5.31 THz is originated from the resonant coupling between Mode A and Mode B2, and the resonant dip at 4.70 THz is exhibited the hybrid mode properties among Modes A, B1 and B2. Therefore, the resonant coupling of Modes A, B1 and B2 are responsible for the occurrence of the two transparent windows.
3. Results and Discussion

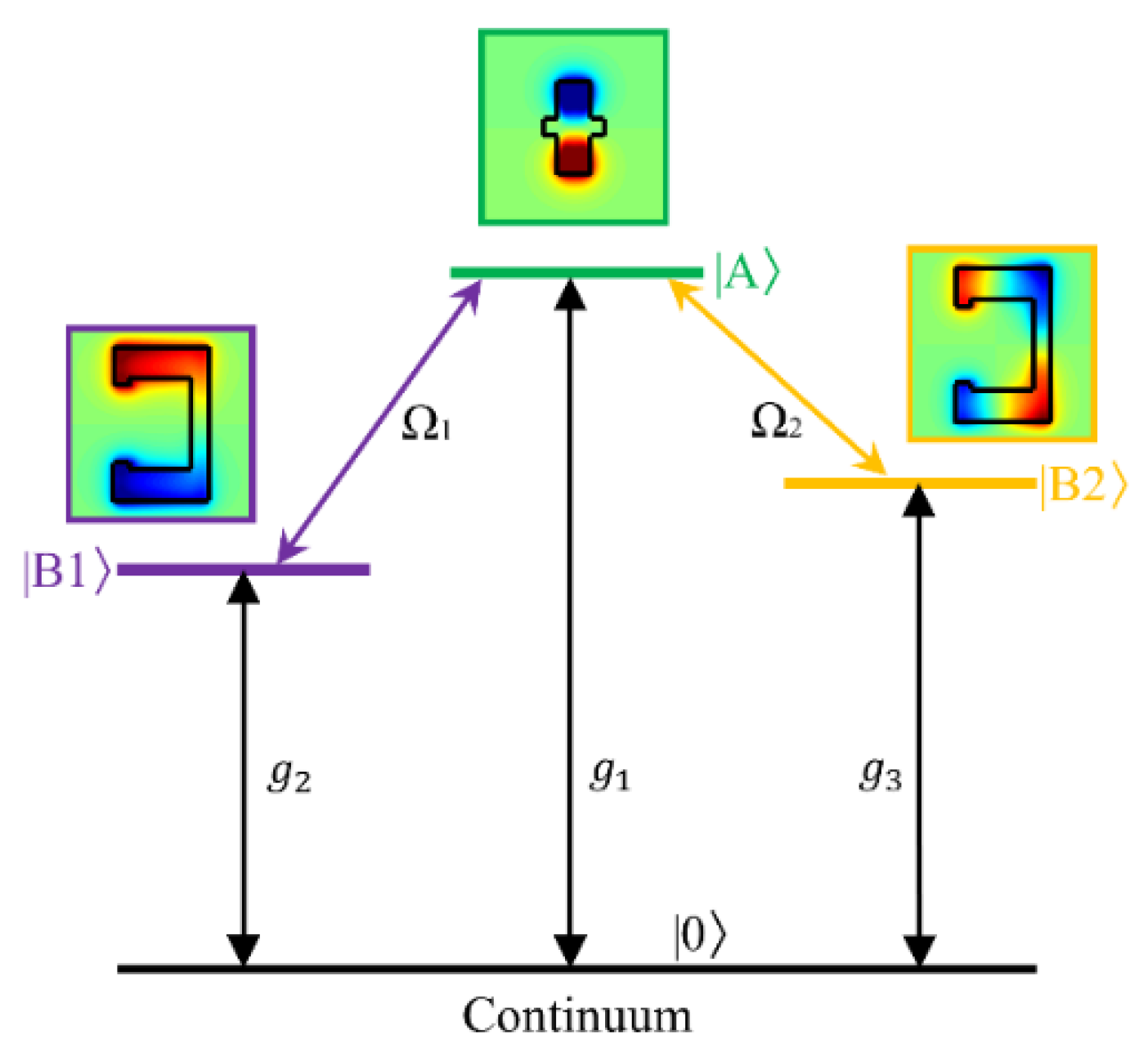

To gain further insights into the physical mechanism behind the two transparent windows, we propose a coupled four-level plasmonic model to describe the dual PIT phenomenon from the phenomenological perspective, as shown in
Figure 2. The GCC can be regarded as the radiative plasmon state |A〉 featuring with the ED mode, and |A〉 is the bright mode as it can be efficiently excited by the incident light of the ground state |0〉. Similarly, the GRR can also be directly excited by the incident light corresponding to the degenerate bright Mode B with
s=0. However, due to the symmetry breaking of the structure of the GRR as
s≠0, Mode B will split into two bright modes of Mode B1 from ED (
i.e., the state |B1〉) and Mode B2 from EQ (
i.e., the state |B2〉). The transition of |0〉→|A〉 can be realized through a direct path of |0〉→|A〉, and two indirect paths of |0〉→|A〉→|B1〉→|A〉 and |0〉→|A〉→|B2〉→|A〉. Therefore, it is possible to create two transmission windows through the interferences between the direct path and the two indirect paths in the coupled four-level plasmonic system.
To demonstrate the validity of the underlying dual PIT phenomenon, we propose the TCM to evaluate the resonant coupling of the triple bright modes according to the two coupled-oscillator theory [
36,
37]. Here the TCM for triple bright modes in the proposed graphene metasurface can be described by the following equations containing three oscillators:
where Mode A, Mode B1, and Mode B2 correspond oscillator 1, oscillator 2, and oscillator 3, respectively; (
x1,
x2,
x3), (
γ1,
γ2,
γ3), and (
ω1,
ω2,
ω3) represent the displacement, damping factor, and resonant frequency of oscillators 1, 2, and 3, respectively.
g1=
Q1/
M1,
g2=
Q2/
M2, and
g3=
Q3/
M3 are the coupling strengths of the bright modes, where (
Q1,
Q2,
Q3) and (
M1,
M2,
M3) represent the effective charge and mass of the oscillators. Ω
1 and Ω
2 represent the coupling strengths between oscillators 1 and 2, and oscillators 1 and 3, respectively. Because Mode B1 and Mode B2 are quasi-orthogonal modes (B1 is even mode while B2 is odd mode), their couplings are sufficiently small and can be ignored. The electric field of the incident terahertz radiation is denoted by
E=
E0eiωt, where
ω represents its frequency.
To solve Equations (2)–(4) and obtain the displacements (
x1,
x2,
x3), we assume the trial solution to be
xn=Nneiωt, and the magnetization
χ can be related to the polarizability
P of the incident terahertz radiation as:
where
A1=
Q1/
Q2,
A2=
Q1/
Q3,
B1=
M1/
M2,
B2=
M1/
M3 D1=
ω12-
ω2+
iωγ1,
D2=
ω22-
ω2+
iωγ2,
D3=
ω32-
ω2+
iωγ3. Also, we have taken there
α1=-
B2/
A22,
α2=-
B1/
A12,
α3=-
D3(1+
B1)/
A1,
α4=-
D2(1+
B2)/
A2,
β=(
B1+
B2)/
A1A2,
η=
D2D3+
B1D2D3/
A12+B2D1D2/
A22. The transmission spectra of the proposed graphene metasurface can be obtained by using the Krammer-Koning relation
T=1-image (
χ).

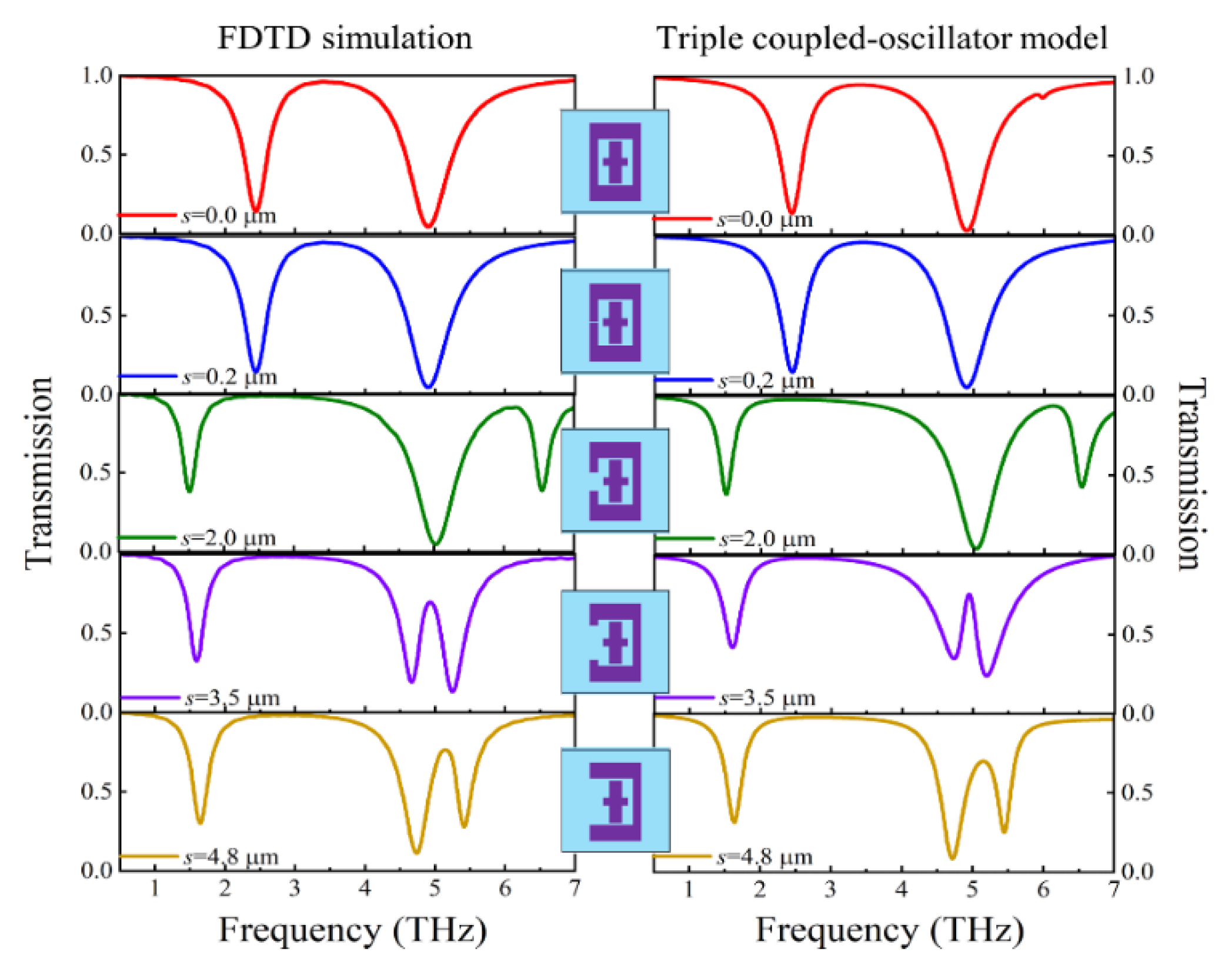

Figure 3 shows the results of the FDTD simulation and the TCM for the graphene metasurface with different cut width
s. As can be seen in
Figure 3, the transmission properties can be engineered by changing the asymmetry parameter of
s, and the PIT can be switched from one window to two windows with the increase of
s. In addition, although
s is varied in a wide range from 0-4.8 μm, the transmission responses of the TCM are in good agreement with those of the FDTD simulation, validating that the proposed model could provide a general strategy to evaluate the dual PIT phenomenon of the graphene metasurface associated with triple bright modes.

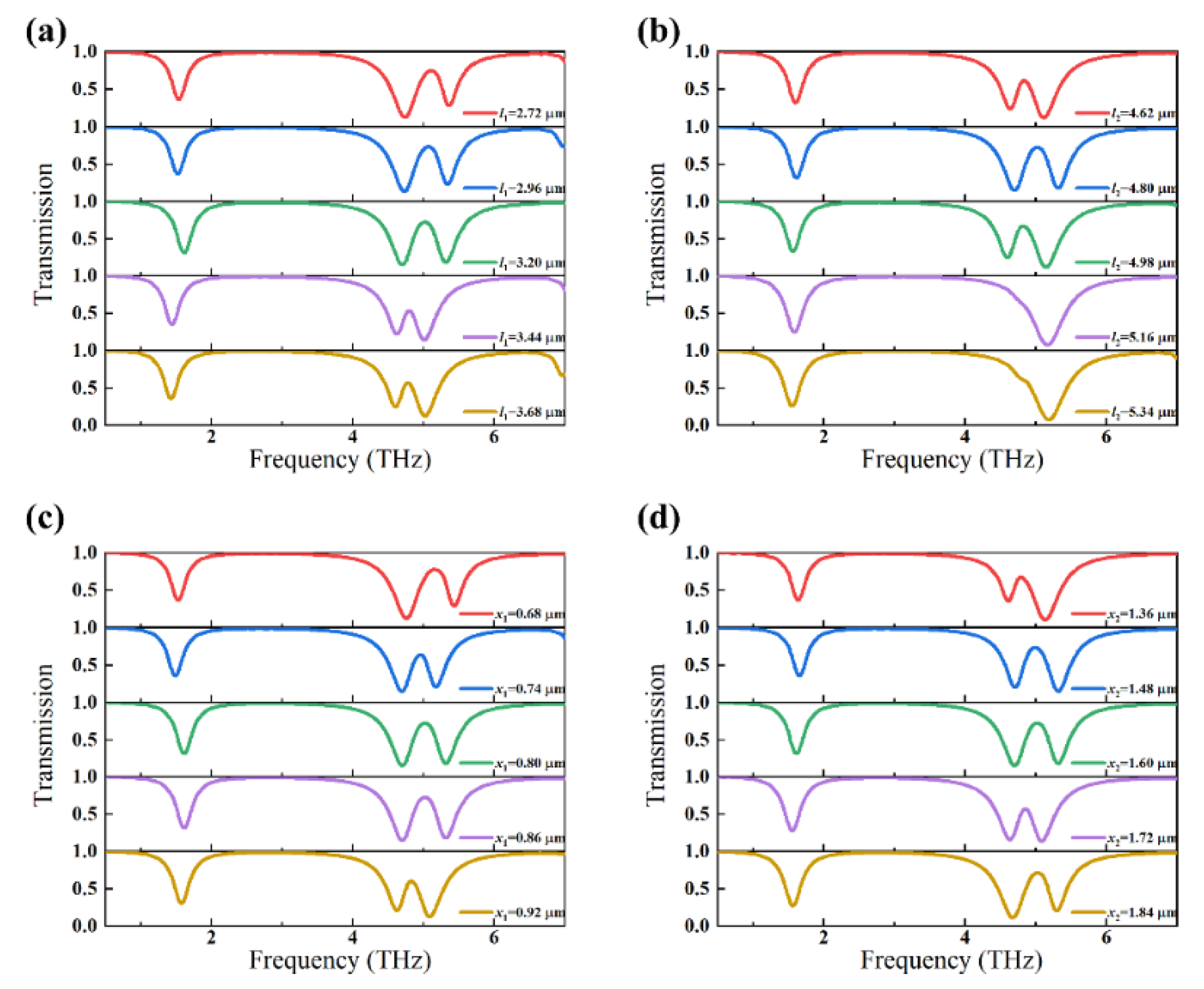

Then, we investigate the influences of the structural parameters (
l1,
l2,
x1,
x2) of the GRR on the transmission responses, as shown in
Figure 4. As can be seen in
Figure 4a, with
l1 increasing the dual PIT phenomenon exhibits a slight red shift. According to the LC theory, the resonant frequency of the graphene metasurface can be estimated as
fi∝1/(
LC)∝1/
Pi, where
Pi is the outer side length of the GRR [
38]. Consequently, the increase in
l1 leads to a larger
Pi, resulting in a decrease in resonant frequencies and a subsequent shift of the dual PIT phenomenon to the low-frequency region. In
Figure 4b, it can be seen that the dual PIT windows will degrade into a single broad transmission window with the increase of
l2. This degradation is attributed to the increasing distance between the GCC and GRR, thereby diminishing their coupling. Ultimately, the hybrid mode around 4.70 THz disappears as
l2 is sufficiently large. In
Figure 4c,d, it can be seen that the dual PIT windows can be maintained almost the same except a slight redshift of the resonance location with the increase of
x1 or
x2. As the variation of
x1 or
x2 is comparably small comparing with
l1, the shift of the resonance locations of the two transmission windows is small comparing with
l1 according to the LC theory. However, the transmission responses are very robust to the variations of the structural parameters of
x1,
x2, or
l1, and the dual PIT phenomenon can be maintained even if they are deviated from the design values of ±15%.

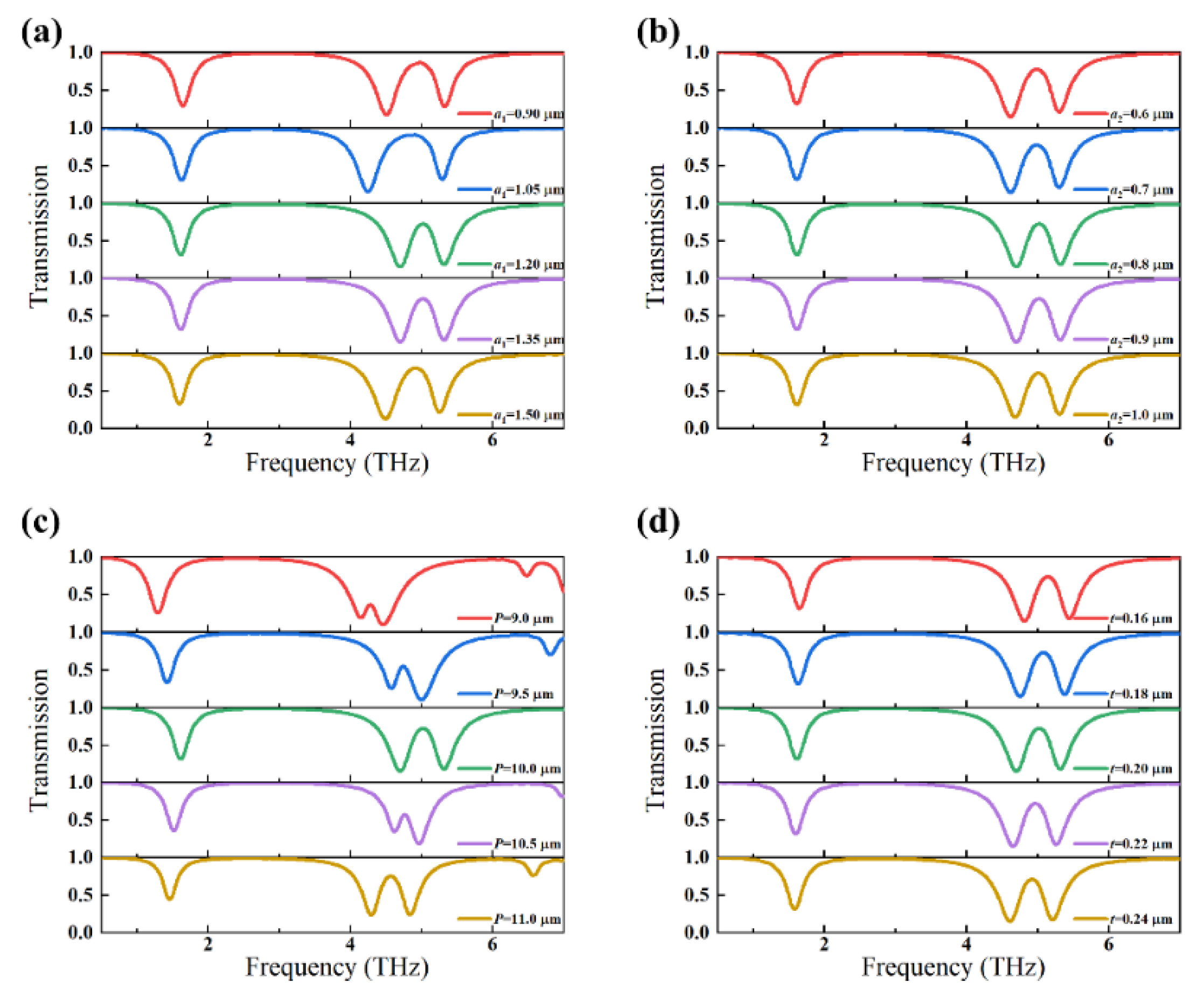

Next, we investigate the influences of the structural parameters (
a1,
a2,
P,
t) on the transmission responses of the graphene metasurface, as shown in
Figure 5. In
Figure 5a,b, it can be seen that the transmission responses of the graphene metasurface are insensitive to the variations of
a1 or
a2. As shown in
Figure 1e, the electric field of resonance is concentrated at the two ends of the GCC along the
y direction, and the variation of
a1 or
a2 has negligible influence on the length of the GCC along the
y direction, thus the transmission responses can be maintained almost the same as
a1 or
a2 is varied. In
Figure 5c, it can be seen that with the increase of
P, the two transmission windows are slightly blueshifted followed by a slight redshift. In
Figure 5d, it can be seen that the dual PIT phenomenon can be maintained almost the same except a slight redshift of the resonance location with the increase of
t, which features the Fabry-Pérot cavity modes confined in the structure [
39].
Besides the influence of structural parameters on the graphene metasurface, the carrier mobility
μ of graphene, which corresponds to the intrinsic loss of graphene, also plays an important role in the transmission responses, and the carrier mobility can be controlled by utilizing chemical doping or electric field tuning [
40,
41].

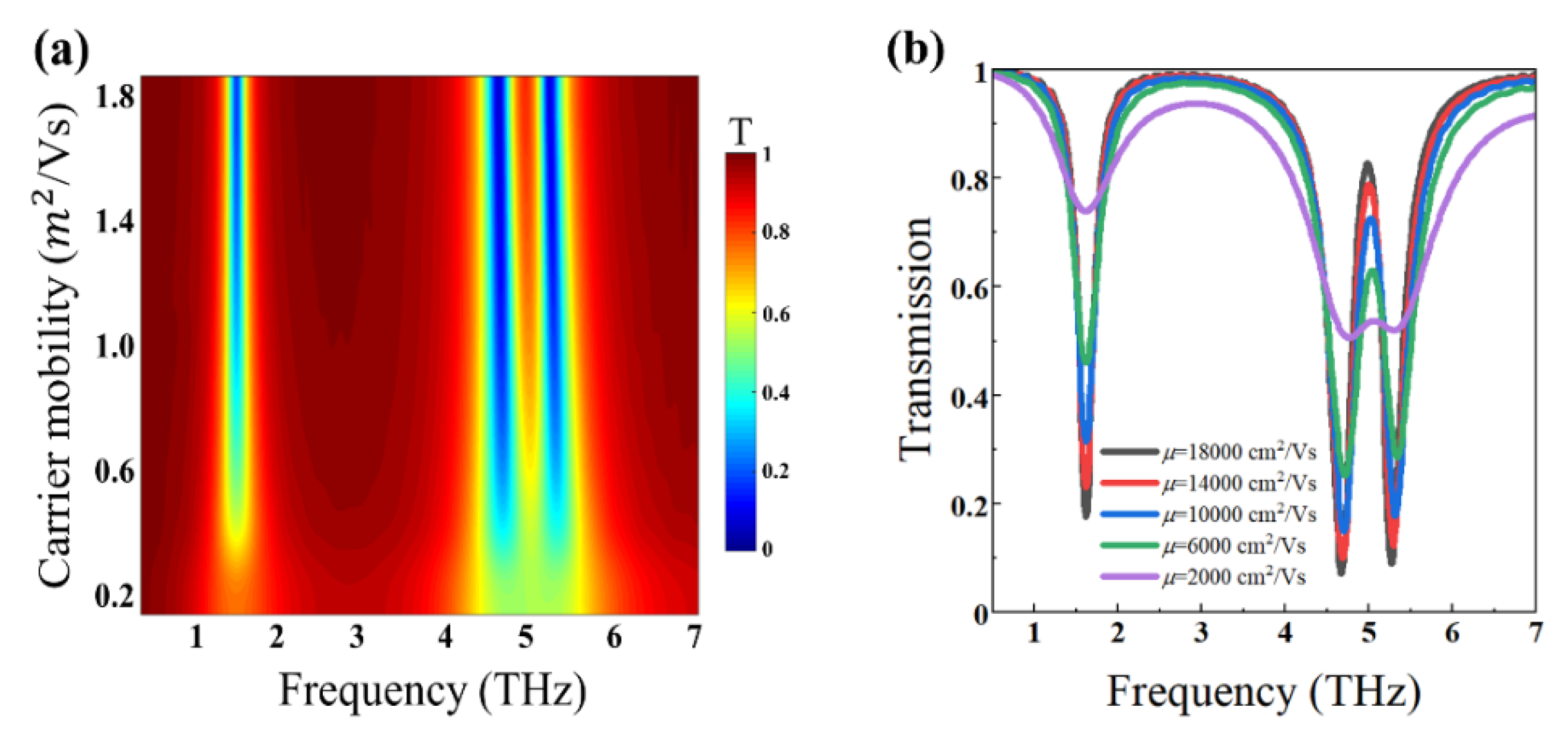

Figure 6 shows transmission responses of the graphene metasurface as
μ is varied in the range from 2000 cm
2/Vs to 18000 cm
2/Vs. As can be seen in
Figure 6a, the variation of
μ has little influence on the location of the transmission windows. However, the dual PIT phenomenon is not obvious if
μ<4000 cm
2/Vs. This is because the intrinsic loss of graphene is sufficiently large if
μ is small, resulting in the increased absorption and reduced transmission efficiency of the structure. In
Figure 6b, it can be seen that the intensity of the dual PIT are reduced as
μ is increased, and the two transmission windows tend to be disappeared with
μ=2000 cm
2/Vs.

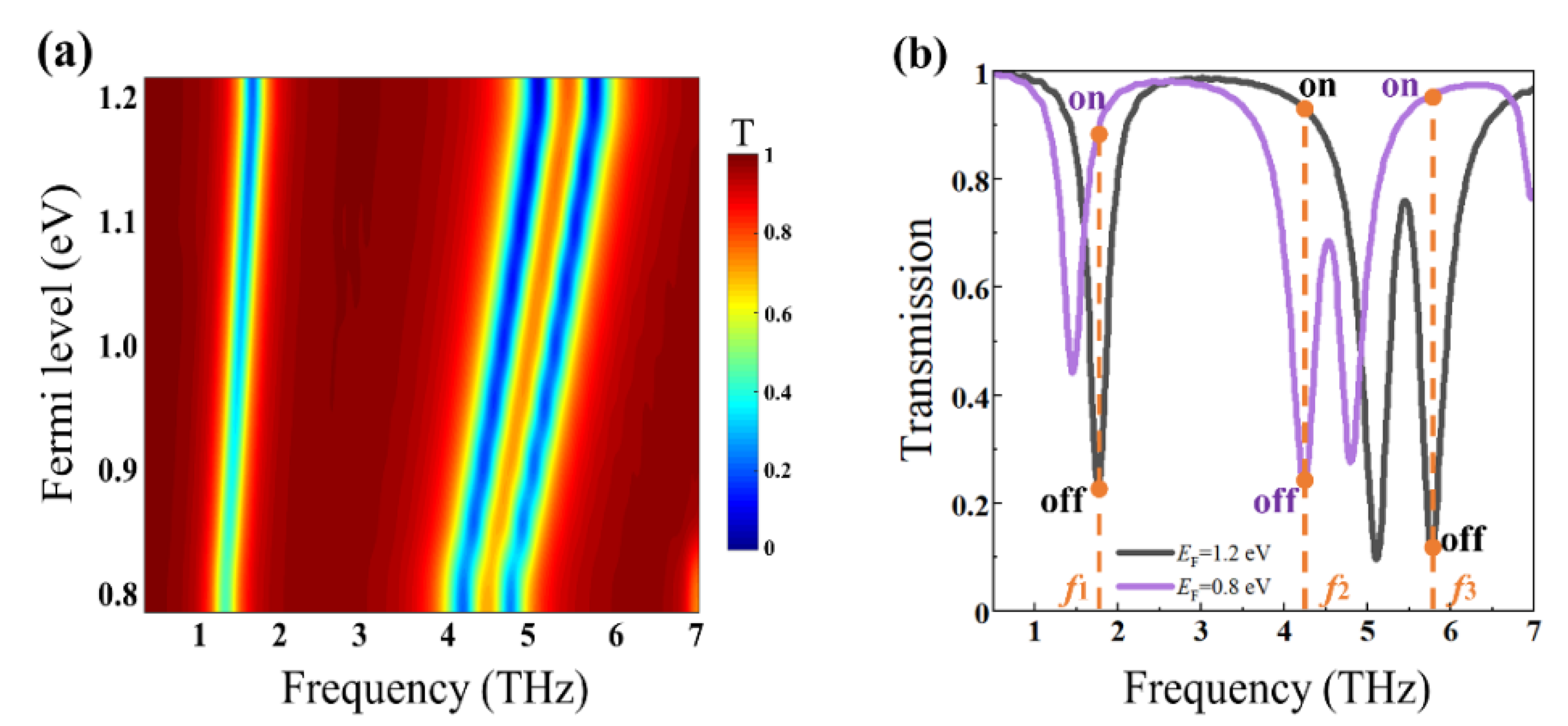

Finally, we demonstrate that the dual PIT windows can be dynamically tuned by altering the Fermi level
EF of the graphene, as shown in
Figure 7. In
Figure 7a, it can be seen that the frequency
f of the resonant dips exhibit the noticeable blueshift with the increase of Fermi level
EF, which is due to the square law of
f∝
EF1/2 [
42].
Figure 7b shows the transmission spectra of the metasurface when
EF is set as 0.8 eV and 1.2 eV. Note significant differences in the transmission amplitude can be achieved at the specified frequencies (
i.e.,
f1=1.76 THz,
f2=4.23 THz, and
f3=5.77 THz), thus the on-off modulation can be realized based on the dual PIT phenomena. Here we define the MD and the corresponding IL to evaluate the tunability of modulation of the graphene metasurface:
where
Ton denotes the maximum transmission amplitude and
Toff denotes the minimum transmission amplitude.
As can be seen in
Figure 7b, when
EF is set to 0.8 eV (the purple line), the transmission amplitudes at frequency
f1 (1.76 THz) and
f3 (5.77 THz) are 0.89 and 0.96, respectively; which can be functioned as the ‘on’ states with the IL of 0.5 dB and 0.19 dB, respectively. When
EF is set to 1.2 eV (the black line), the transmission amplitudes at the frequencies of
f1 and
f3 are 0.22 and 0.11, respectively; which can be functioned as the ‘off’ states. Therefore, the MD at
f1 (1.76 THz) and
f3 (5.77 THz) are 75% and 89%, respectively. Similarly, when
EF increases from 0.8 eV to 1.2 eV, the transmission amplitude at frequency
f2 (4.23 THz) is increased from 0.24 to 0.93, where the MD is 74% and IL is 0.32 dB. Note the MD and IL are comparable with the multilayered graphene metasurfaces [
43,
44] and the hybrid metal-graphene metasurfaces [
45], however, the proposed metasurface does not require the complex patterns such as the multilayered graphene patterns or the hybrid metal-graphene patterns, which may be advantageous for the optoelectric-related applications due to its comparably simple architecture.
