Liu, J., Bing Zhao and Ming Tian. 2024 "Asymmetric Convolution Guided Multipath Fusion Real-Time Semantic Segmentation Networks" Preprints. https://doi.org/10.20944/preprints202407.0234.v1
Abstract

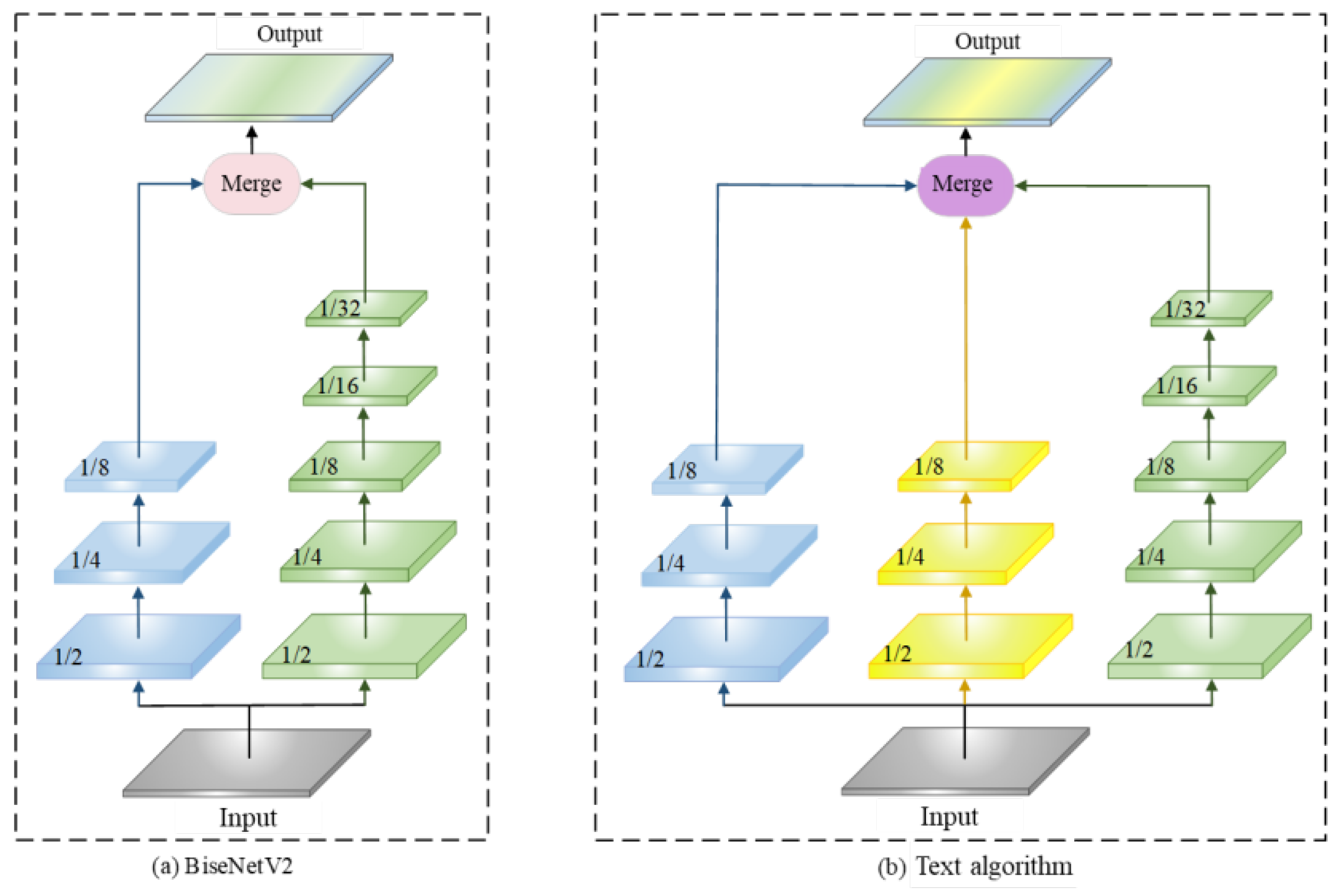

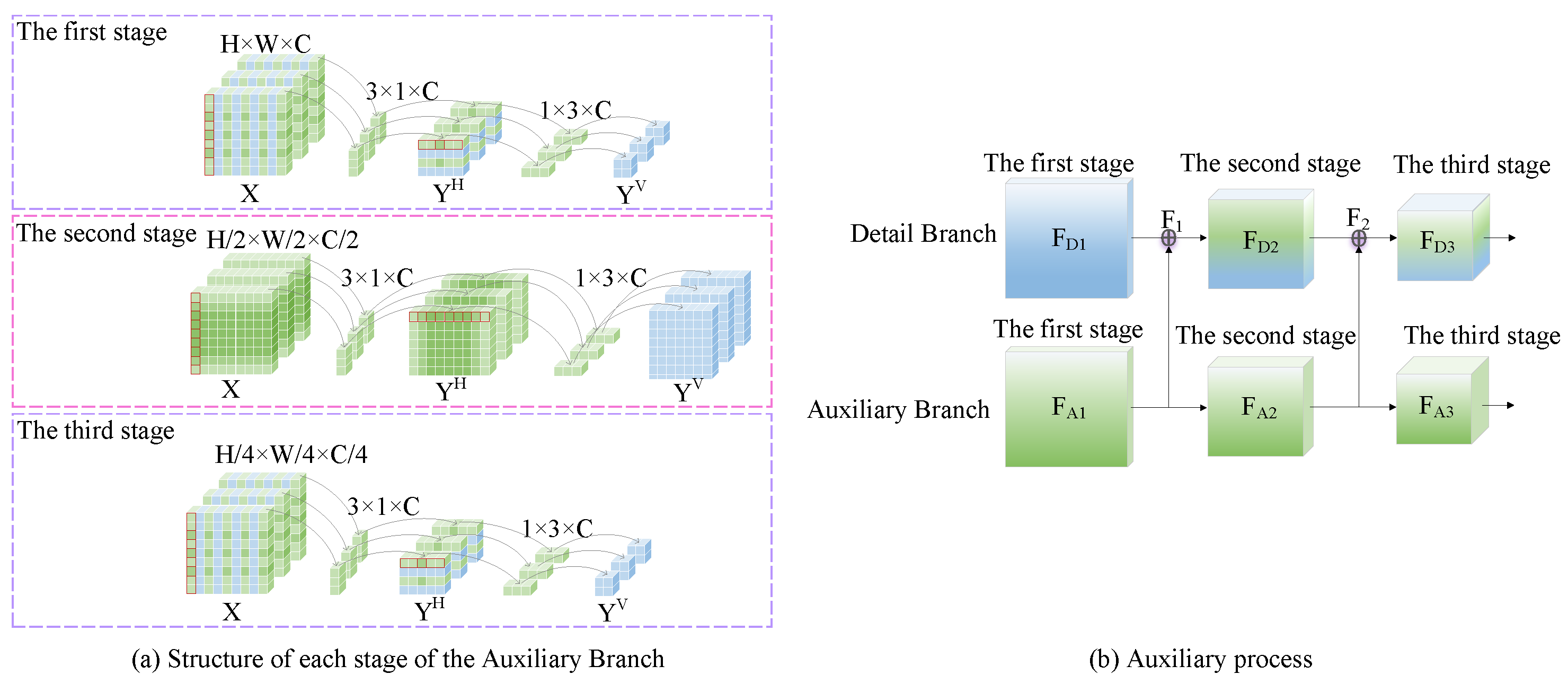

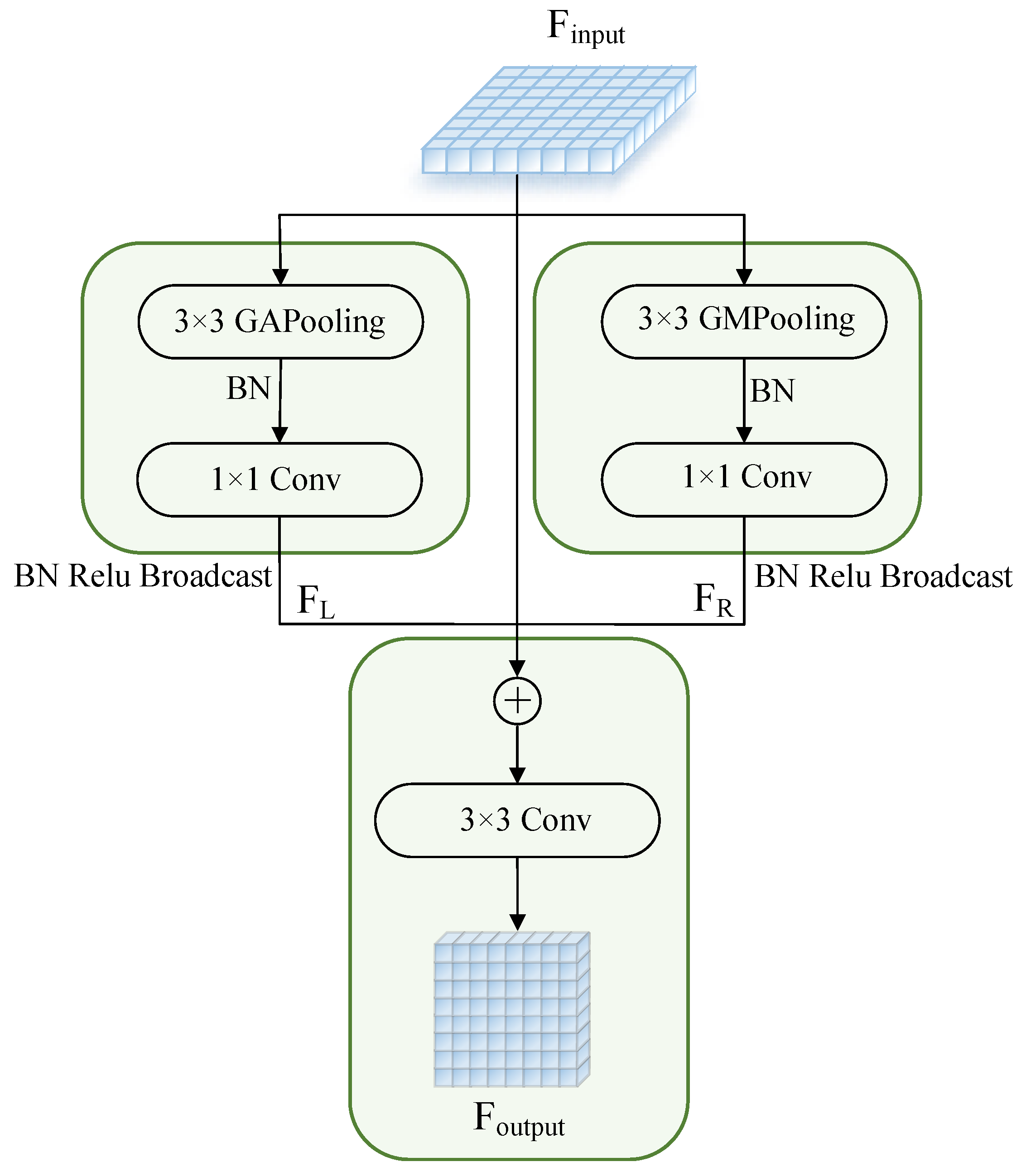

Aiming at the problems of inaccurate segmentation of long object and information loss of small object in real-time semantic segmentation algorithm, this paper proposes a lightweight multi-branch real-time semantic segmentation network based on BiseNetV2. The new auxiliary branch makes full use of spatial details and context information to cover the long object in the field of view. Meanwhile, in order to ensure the inference speed of the model, the asymmetric convolution is used in each stage of the auxiliary branch to design a structure with low computational complexity. In the multi-branch fusion stage, the alignment and fusion module is designed to provide guidance information for deep and shallow feature mapping, so as to make up for the problem of feature misalignment in the fusion of information at different scales, and thus reduce the loss of small target information. In order to further improve the model’s awareness of key information, a global context module is designed to capture the most important features in the input data. The proposed network uses NVIDIA GeForce RTX 3080 Laptop GPU experiment, on the road street view data set Cityscapes and CamVid average occurring simultaneously ratio reached 77.1% and 78.4% respectively, with running speed of 127 frames/s respectively and 112 frames/s. The experimental results show that the proposed algorithm can achieve real-time segmentation and improve the accuracy significantly, showing good semantic segmentation performance
Keywords
Semantic segmentation; Asymmetric convolution; Feature misalignment; High-level semantic information
Subject
Computer Science and Mathematics, Artificial Intelligence and Machine Learning
Copyright:
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
