Picornavirus Evolution: Genomes Encoding Multiple 2ANPGP Sequences – Biomedical and Biotechnological Utility

Alignment of picornavirus proteinase/polymerase sequences reveals this family evolved into five ‘supergroups’. Interestingly, the nature of the 2A region of the picornavirus polyprotein is highly correlated with this phylogeny. Viruses within supergroup 4, the Paavivirinae, have complex 2A regions with many viruses encoding multiple 2A^NPGP sequences. In vitro transcription/translation analyses of a synthetic polyprotein comprising green fluorescent protein (GFP) linked to b-glucuronidase (GUS) via individual 2A^NPGPs showed two main phenotypes: highly active 2A^NPGP sequences - similar to Foot-and-Mouth Disease Virus 2A^NPGP and, surprisingly, a novel phenotype of some 2A^NPGP sequences which apparently terminate translation at the C-terminus of 2A^NPGP - without detectable re-initiation of downstream sequences (GUS). Probing databases with the short sequences between 2A^NPGPs did not reveal any potential ‘accessory’ functions. The novel, highly active, 2A-like sequences we identified substantially expands the toolbox for biomedical / biotechnological co-expression applications.

Keywords:

Subject:

Biology and Life Sciences - Virology

Supplementary Material

supplementary.pdf (707.19KB )

1. Introduction

Picornavirus genomes are single-stranded, positive sense, RNA of some 7.5 to 8.5 kb in length. Their genomes have a common architecture: (i) a long 5’ untranslated region (UTR) comprising an internal ribosome entry site (IRES), conferring a m⁷G cap-independent mode of the initiation of translation, (ii) a long open reading frame (ORF; ~2,200aa ‘polyprotein’) and (iii) a short 3’ UTR preceding a poly(A) tail. In many genera the N-terminal region of the polyprotein comprises a ‘leader’ sequence. The P1 domain of the polyprotein comprises 4 different proteins (1A-1D), 60 copies each of which assemble to form the capsid. Proteins within the P2 (2A, 2B, 2C) and P3 (3A-3D) domains are replication proteins. Early studies showed the 3C protein to be a virus-encoded proteinase (3C^pro), responsible for a ‘primary’ (co-translational) cleavage between the P2 and P3 regions, but also subsequent (‘secondary’) polyprotein processing: 3C^pro being conserved amongst all picornaviruses (for review see [1]).

In the case of entero- and human rhinoviruses, a second virus-encoded proteinase, 2A^pro (~17kDa), was identified and shown to be responsible for a single primary cleavage between the capsid proteins (P1) and P2 domains of the polyprotein – and, shown latterly, also to degrade key cellular proteins thereby enhancing virus replication [2-5]. Simple inspection of the relatively modest number of picornavirus genome sequences available at that time - such as entero- and rhinoviruses, Foot-and-Mouth Disease Virus (FMDV; aphthovirus), Encephalomyocarditis Virus (EMCV; cardiovirus) and Hepatitis A Virus (HAV; hepatovirus) showed their 2A regions to be quite different from one another: indeed, the 2A protein of FMDV was only 18aa long. Research into polyprotein processing mechanisms of these other, non-enterovirus, genera showed that the capsid proteins domain was separated from the replication protein domains by either (i) the 3C proteinase cleaving the polyprotein in this region [6, 7], or, (ii) a proposed ‘ribosome skipping’ mechanism mediated by the 2A oligopeptide sequence proposed to interact with the ribosome exit tunnel, bringing about a discontinuity in the polypeptide backbone at the C-terminus of 2A: not a proteolytic ‘cleavage’ but by ‘skipping’ the synthesis of a specific peptide backbone bond [7-9]. A completely conserved motif at the C-terminus of these 2A sequences (-NPG^↓P-; position of discontinuity of the peptide backbone shown) gives rise to this type of picornavirus 2A being referred-to in the literature as 2A^NPGP. It should be noted, however, that 2A^NPGP (‘2A-like’) sequences are also found in in a wide range of non-picornavirus virus families [10-12] - plus non-LTR retrotransposons [13-15] and some cellular sequences (NOD-like receptor proteins – NLRs) [16, 17]. Our previous work has shown that the ‘ribosome skipping’ activity resides within a ~25aa tract (the 2A C-terminal delimiter being -NPG^↓P) [13, 18]. Cardiovirus 2A proteins are ~143aa long, however, the C-terminal region of the cardiovirus-like 2As shares sequence similarity with the short aphthovirus-like 2As: both possessing the same proposed ribosome-skipping function [19], outlined in Figure 1, Panel A.

It has been shown recently, however, that the cardioviruses EMCV and Theilers Murine Encephalitis Virus (TMEV) 2A proteins are bifunctional in that they also stimulate a programmed ribosomal (-1) frameshift by binding an RNA secondary structure formed closely downstream – the first demonstration of protein-stimulated regulation of programmed ribosomal frameshifting. Here, a shift site occurs just 5’ of a stem-loop structure within the region encoding the 2B protein, producing a truncated 2B’ protein - effectively terminating translation prior to the translation of downstream replication proteins – which comprises some 50% of the entire polyprotein [20-22]. In the case of one genus, the dicipiviruses, however, the P1 region is encoded by an ORF separated from the second ORF (encoding the P2-P3 region) by a second, intergenic, IRES that initiates translation of the downstream ORF [23].

Presently, the family Picornaviridae comprises almost 70 genera, (Knowles www. picornaviridae. com; [24]). Alignment and phylogenetic analyses of the nucleotide sequences corresponding to the uncleaved form ([3CD]) of 3C^pro and the 3D RNA-dependent RNA polymerase (3D^pol) shows five major lineages, or ‘supergroups’ (SG), within the family: the Caphthovirinae (SG1), the Kodimesavirinae (SG2), the Ensavirinae (SG3), the Paavivirinae (SG4), and the Heptrevirinae (SG5) [25].

In the case of supergroups 2 (Kodimesavirinae - 22 genera) and 5 (Heptrevirinae - 7 genera), the separation between capsid and replication proteins is brought about by 3C^pro cleavage. In the case of supergroup 3 (Ensavirinae - 8 genera) this separation is brought about by 2A^pro, a proteinase unique to this supergroup. In supergroup 1 (Caphthovirinae – 16 genera) this separation is brought about, in the vast majority cases, by a single copy of 2A^NPGP. In the case of supergroup 4 (Paavivirinae – 13 genera), different species encode either a single 2A^NPGP, or, multiple copies of 2A^NPGPs.

In the case of the avihepatoviruses, typified by Duck Hepatitis Virus type 1 (DHV-1), the 2A region comprises three proteins (Figure 1, Panel A); (i) 2A1 (20aa) is highly similar to the short aphthovirus 2A sequence – a highly efficient ribosome skipping sequence separating the capsid from replication proteins domains [26], (ii) 2A2 (161aa) has been shown to possess GTPase activity inducing apoptosis [27] and (iii) 2A3 (124aa) possessing similarity with parechovirus 2A, comprising an H-box/NC motif and related to the host-cell H-rev protein family [28], recently shown to promote cell proliferation [29]. In the case of Duck Picornavirus GL/12 (Aalivirus A1) the complexity of the 2A region is increased since it comprises six 2A proteins [30] (Figure 1, Panel A). Here, the 2A1 protein (19aa) is aphthovirus-like, 2A2 is 133aa, 2A3 is 150aa and 2A4 is 131aa: all have C-terminal regions (~25aa) similarity with aphthovirus-like 2A^NPGP sequences. Protein 2A5 has similarity with the avihepatovirus 2A2 protein, whilst 2A6 has similarity with the avihepatovirus 2A3 (parechovirus-like). Recently, the genome of Duck Egg-Reducing Syndrome Virus (DERSV) has been determined [31]. This virus encodes seven 2A proteins with six, highly conserved, 2A^NPGPs.

Since a single iteration of 2A^NPGP is sufficient to separate encapsidation from replication proteins (e.g. SG1), the question arises what function(s) do these ‘additional’ 2A^NPGP- type 2As serve? The polypeptide tracts between successive 2A^NPGPs are between ~50 and ~150aa long and could represent the acquisition of ‘accessory’ polypeptides. Multiple 2A^NPGPs between the capsid and replication polyprotein domains could affect protein biogenesis: a key question being what is the ribosome skipping activity of each of these sequences? Our previous work showed the activity of 2A/2A-like sequences resides within a ~25aa tract - including the N-terminal proline of the 2B downstream protein. In this study we inserted a 2A/2A-like sequence (25aa, in-frame) between green fluorescent protein (GFP: ~27kDa – stop codon deleted) and β-glucuronidase (GUS: ~70kDa), creating a single, long, ORF [9, 13].

It should be noted that certainly not all 2A-like sequences containing the conserved [D-V/I-E-X-NPGP] motif are active in ribosome skipping: the sequence immediately upstream, although not highly conserved, plays an essential role in ‘cleavage’. It is essential, therefore, to perform an assay to determine the activity of each sequence. Here we used an in vitro transcription / translation system - the ‘skipping’ activity of each test sequence was determined by the incorporation of ³⁵S-methionine into each translation product (Figure 1, Panel B). For viruses in supergroup 4, however, amino acid tracts between the 2A^NPGPs are generally short: analysing the 2A region as a single tract could produce a significantly more complex mixture of translation products with either (i) poor resolution on SDS gels, (ii) with low methionine content proving very difficult to detect or (iii) produce translation products too small to be detected. We chose, therefore, to use our GFP/GUS system determine the ‘skipping’ activity of these 2A^NPGPs individually, rather than in their native, concatenated, forms.

2. Materials and Methods

2.1. Bioinformatic Analyses

Picornavirus genome sequences were downloaded from the National Center for Biotechnology Information (NCBI) via the links provided on https://www.picornaviridae.com. The uncleaved form of the proteinase and polymerase ([3CD]) protein sequences were aligned using CLUSTALX [32]. Phylogenetic trees were visualised using FIGTREE (http://tree.bio.ed.ac.uk/software/figtree/). Polyprotein sequences were searched for occurrences of the ‘signature’ -NPGP- motif, completely conserved amongst all 2A-like sequences, to identify 2A^NPGPs. Arbitrarily, 25aa tracts were chosen for further analyses (Table 1). Nucleotide and amino acid sequences of tracts between picornavirus 2A^NPGPs were submitted to NCBI BlastN / BlastP (https://blast.ncbi.nlm.nih.gov/Blast.cgi) for database similarity searches.

2.2. Cloning of 2A^NPGP Sequences into pSTA1

All plasmids were constructed using standard methods and confirmed by automated nucleotide sequencing (Eurofins Genomics, Ebersberg, Germany). Restriction enzymes were purchased from Promega (Southampton, UK) and New England Biolabs (Hitchin, UK), whilst oligonucleotides were obtained from, and automated DNA sequencing by, Eurofins Genomics (Ebersberg, Germany). PCR products encoding each 2A-like sequence were amplified from our pcDNA™ 3.1 mammalian expression vector encoding ([pGFPF2AGUS]; pSTA1) [9] using the T7 “forward” primer (5’-TAATACGACTCACTATAGGG-3’) and “reverse” oligonucleotide primers listed in Table 2, such that a panel of GFP/2A-like PCR products was generated. Each PCR product was restricted with BamHI and ApaI, gel purified, and cloned into pSTA1, similarly restricted. Sequence identities were confirmed by automated DNA sequencing using an oligonucleotide primer corresponding to that encoding a C-terminal region of GFP (5’-CTGTCCACACAATCTGCCC-3’).

2.3. In Vitro Transcription/Translation

Plasmid DNA was linearised with PstI and purified using the Wizard SV system (Promega). Purified, linearised, DNA (200ng) was used to program a Wheat Germ Extract coupled transcription/translation system (Promega) supplemented with L-[³⁵S]-methionine (EasyTag™ Perkin Elmer; 1μl = 10μCi) and the amino acid mixture (minus Met). The final reaction volume was adjusted to 25μl using nuclease-free water. Reactions were incubated at 30^oC for 90 minutes before the addition of 2x SDS-PAGE loading buffer (Jena Bioscience). Translation products were analysed by 4-12 % gradient SDS-PAGE (NuPAGE, Invitrogen) and the distribution of the radiolabel visualised by autoradiography.

3. Results

3.1. Bioinformatic Analyses

NOTE: Alignments and virus polyprotein sequences showing the positions of 2A^NPGPs discussed below are shown in the Supplementary Data. Our alignment of [3CD] amino acid sequences produced the same phylogenetic relationships as the nucleotide sequence alignments reported by Zell and co-workers [25]. Our phylogenetic analyses show that picornaviruses encoding 2A^NPGPs fall into two, distinct, supergroups – the Caphovirinae (SG1) and the Paavivirinae (SG4): viruses within the latter encoding either a single or multiple 2A^NPGPs: indeed, sometimes this being the case for different species within the same genus (Table 1). Interestingly, there is a high correlation between each super-group and the nature of the 2A region - the most plastic amongst picornavirus polyproteins (Figure 2). In the case of supergroup 1 (Caphthovirinae – 16 genera) viruses encode a single copy of 2A^NPGP. The first exception here is Mosavirus B1 which encodes two 2A^NPGPs. In this virus, the first copy of 2A^NPGP appears to occur within the P1 region, whilst the second copy aligns with the single copy of Mosavirus A 2A^NPGP – which lies between the P1 and P2 polyprotein domains. The second exception is Mupivirus (both A1 and A2), neither of which encode a 2A^NPGP.

In the case of supergroup 4 (Paavivirinae – 13 genera), variability is observed between different species within a genus. Here, a genus may comprise viruses which encode either: (i) no 2A^NPGP (Orivirus A1 and A2: alignment with Avisiviruses shows a relative deletion in this region, see Supplementary data), (ii) a single 2A^NPGP (Aquamavirus, Avihepatovirus, Crohivirus, Pasivirus, Shanbavirus), (iii) multiple copies of 2A^NPGPs - Aalivirus, Limnipivirus, Wuhan Carp Picornavirus (WCP - unassigned, but clusters within SG4) NOTE: DERSV is most closely related to Aaliviruses and clusters within the Paavivirinae (Figure 2), (iv) genera comprising viruses encoding either a single or multiple 2A^NPGPs (Avisivirus, Kunsagivirus, Potamipivirus), or, (v) genera comprising viruses encoding either none, or multiple 2A^NPGPs, (Grusopivirus, Parechovirus: see Supplementary data for alignments).

Wenzhou picorna-like virus 48 (WPLV-48; NC_032820) encodes three 2A^NPGP sequences, but is unique in that 2A1 appears to lie between the P1 capsid and P2 replication protein domains, whilst 2A2 and 2A3 occur in the C-terminal region of the polyprotein – downstream of the WPL-48 sequences that align with the C-terminal 3CD region of all other picornaviruses (see Supplementary Data). In our alignment / phylogenetic analyses this region was deleted. Although unassigned, WPLV-48 clustered within SG5 (Figure 2), the Heptrevirinae, which do not encode any 2A^NPGPs (Figure 2). Interestingly, our 3CD alignment shows Wenzhou picorna-like virus 47 (WPLV-47; NC_033150) also clusters within SG5, although does not encode a 2A-like sequence. Like many other viruses in this supergroup, WPLV-47 diverged at an early stage in the evolution of this supergroup.

For viruses with multiple 2A^NPGPs, peptide sequences lying between each 2A^NPGP were used to probe the sequence database: other than similarities with related viruses, no significant matches were detected.

3.2‘. Cleavage’ Activities of 2A-like Sequences

For all cases, in vitro translation profiles are shown in Figure 3 with estimated ‘cleavage’ activities shown in Table 3.

Alignments showing relative insertions/deletions in polyproteins within a genus - plus highlights of the position of 2A^NPGPs are provided in the Supplementary Data.

In the single instance of a virus clustering within SG1, Mosavirus B1 - encoding two 2A^NPGPs, the activity of both sequences was directly comparable to FMDV 2A. The first Mosavirus B1 2A^NPGP occurs within P1, whilst the second aligns with the single 2A^NPGP present within other Mosavirus sequences and corresponds to the junction between P1 and P2 domains of the polyprotein.

In the case of viruses encoding 2A^NPGPs within SG4, however, a more complex pattern of activity was observed. Aalivirus A1/B1 2A^NPGPs show activities comparable to FMDV 2A, although Aalivirus B1 sequences yielded slightly less of the GUS translation product. For both Aalivirus A1 and B1 2A^NPGPs, 2A1-2A4 (A1) and 2A1-2A5 (B1) produced similar translation profiles. Similarly, in the related Grusopivirues different viruses encode different numbers of 2A^NPGPs. Grusopiviruses encode a sequence resembling 2A within the (predicted) P1 capsid protein domain of the polyprotein, although point mutations within the conserved C-terminal consensus of active 2A/2A-like sequences ([D(V/I)ExNPGP]) strongly suggest these are inactive. Alignment of Grusopivirus polyproteins shows relative insertion/deletions within the 2A region is the cause of variable numbers of 2A^NPGPs (see supplementary data). 2A1-2A3 of Grusopivirus A1 and C viruses produced a similar translation profile as FMDV 2A, although GrV-C 2A2 with lower translation of the downstream protein, GUS. Again, relative insertions/deletions within the 2A region caused variable numbers of 2A^NPGPs – notably virus YC-4, which only encodes one 2A^NPGP (see supplementary data). In the case of Avihepatoviruses, related to Aali- and Grusopiviruses, all viruses encode a single 2A^NPGP. Avisivirus A1 and B1 viruses encode two 2A^NPGPs: both active but with no detectable ‘uncleaved’ [GFP2AGUS], and somewhat lower levels of GUS in comparison with FMDV 2A. Avisivirus A1 strain USA-IN1 and Avisivirus C1, however, encode a single 2A^NPGP whilst Oriviruses do not encode a 2A^NPGP - again due to a relative insertions/deletions (see supplementary data). Wuhan Carp Picornavirus (WCP) encodes three 2A^NPGPs: the translation profile produced by each sequence showed the [GFP2A] translation product but, surprisingly, no detectable ‘uncleaved’ [GFP2AGUS] or downstream GUS translation product. A similar translation profile was observed for the two Potamipivirus B1 2A^NPGPs, high [GFP2A] with low/no GUS translation, whilst Potamipivirus A1 encodes a single 2A^NPGP - due to a relative insertions/deletions. The 2A^NPGPs encoded by members of the Limnipivirus genus showed a perhaps surprisingly wide range of translation profiles: whilst Limnipivirus A1 2A1, type B1 2A2, type C1 2A1 and type D1 2A1-3 gave essentially the same translation profile as FMDV 2A, type A1 2A2 and type B1 2A1 produced the upstream translation product [GFP2A], but the downstream product, GUS, was not detected. Both Crohivirus A and B encode a single 2A^NPGP, whilst in the Parechoviruses relative insertions/deletions in this region has produced a variable number of 2A^NPGPs: type A has none, types B, C, D and F have one, whilst types E and RtPV have two. Type E 2A1 only produced a full-length ([GFP2AGUS)] translation product, but type E 2A2 and RtPV 2A1/2A2 produced [GFP2A] as the major translation product with a low level of GUS. Shanba-, Pasi-, Aquama- and Kunsagiviruses encode a single 2A^NPGP, with the exception of Kunsagivirus C, which encodes three 2A^NPGPs – again arising from relative insertions/deletions in this genus. Kunsagivirus C 2A3 aligns with the single 2A^NPGP within types A and B.

Analyses of the ribosome skipping activities showed a mixed pattern (Table 3). Certain genera showed activities similar to the control FMDV 2A^NPGP: Aaliviruses, Avisiviruses, Grusopiviruses, Mosavirus B1 and Parechovirus 2A2. In a number of cases only [GFP2A] could be detected: Kunsagivirus C1 2A1, Limnipivirus A1 2A2, Limnipivirus B1 2A1, Potamivirus B1 2A2, WCP 2A1/2A2/2A3 and WP-LV48 2A1/2A2 and 2A3. In the case of Parechovirus E, 2A1 was inactive whilst Parechovirus E 2A2, along with RtPV 2A1 and 2A2, was similar to FMDV 2A.

4. Discussion

4.1. XX

Our phylogenetic analyses were based upon alignment of 3CD amino-acid sequences and showed a surprisingly high, but not complete, correlation with the nature of the 2A region of the polyprotein. It should be noted, however, that in the interpretation of these data picornavirus mixed infections may show high levels of recombination (reviewed in [33]). Whilst SG1 comprises almost exclusively mammalian viruses, SG4 comprises ‘sub-lineages’ of avian (DERSV, Aali-, Avihepato-, Avisi-, Grusopi-, Kunsagi-, Ori-), fish (WCP, Limnipi-, Potamipi-) and mammalian (Crohi-, Parecho-, Shanba-, Pasi-, Aquama-, Kunsagi-) viruses. The picornavirus 2A region is highly plastic; viruses within SG4 may encode no 2A^NPGPs (e.g. Oriviruses), a single 2A^NPGP (e.g. Aquama- and Pasiviruses), or, multiple 2A^NPGPs. Indeed, viruses within the same genus may encode different numbers of 2A^NPGPs (e.g. Aali-, Avisi-, Kunsagi-, Limnipi-, Parecho- and Potamipiviruses). SG4 polyprotein alignments show relative insertions/deletions within the 2A region determines the variable numbers of 2A^NPGPs (see Supplementary Data).

In the case of SG1 viruses, the single 2A^NPGP sequence is responsible for a highly efficient ‘primary’, co-translational, cleavage between capsid and replication proteins. Our in vitro transcription/translation analyses showed many 2A^NPGP sequences in SG4 to be as active as the FMDV 2A control: Aalivirus A1/B1 2A1-2A4, Grusopivirus A1/C 2A1-2A3, Limnipivirus A1 2A1, B1 2A2, C1 2A1 and D1 2A1-3, and Mosavirus B1 2A1, 2A2. We have shown that somewhat less efficient 2A^NPGP sequences can also be used for other virus genomes to acquire additional functional ‘modules’. For example, different RNA segments/proteins of certain rota- and totiviruses have acquired a [2A-like/dsRNA-binding protein] ‘module’ [10, 34, 35]. In the case of SG4 viruses with multiple iterations of 2A^NPGP, could sequences between 2A^NPGPs comprise ‘accessory’ protein(s)? Protein BLAST was used to probe databases using such sequences. These analyses only produced, however, significant matches against corresponding regions of closely related viruses, providing no indications of accessory functions. As outlined above, it has been shown that cardiovirus 2A proteins, ~143aa long, alongside the ribosome skipping activity, mediate programmed ribosomal frame-shifting at a proximal site within protein 2B, such that the frame-shifted ribosome quickly encounters a stop codon. Therefore, as the infectious cycle progresses and the level of the 2A protein increases, the expression of (downstream) replication proteins is progressively diminished. Remaining aminoacyl-tRNAs can be devoted, therefore, to the production of capsid proteins thereby increasing the yield of particles.

4.2. Implications for our Model of Ribosome Skipping

In our proposed model of 2A^NPGP ribosome skipping, the interaction between 2A^NPGP and the ribosome exit tunnel leads to the C-terminal portion of 2A^NPGP adopting a conformation within the P-site of the peptidyl transferase centre (PTC) such that tRNA^Pro in the A-site cannot form a peptide bond since the imino group is sterically restrained being within a ring structure: the phi angle is constrained. We proposed that the tRNA^Pro exits the A-site allowing release factors 1 and 3 (eRF1/3) to enter this site to hydrolyse the bond between the nascent polypeptide and tRNA^Gly [7-9]. eRF1 exit from the A-site is promoted by eRF3 [36]. For the ‘pseudo-reinitiation’ necessary to allow the elongation cycle to continue: (i) the vacant A-site must be re-occupied by tRNA^Pro and (ii) the tRNA^Pro must be translocated from the A- to P-site by elongation factor 2 (eEF2), thereby allowing (iii) the next aminoacyl-tRNA to enter the A-site to recommence polypeptide elongation – in this case the downstream replication proteins. Should any of these steps be inhibited translation would be terminated at this point without ‘pseudo-reinitiation’ – effectively the phenotype we observed using our reporter system in the case of the Kunsagivirus C1 2A1, Limnipivirus A1 2A2, Limnipivirus B1 2A1, Potamivirus B1 2A2, WCP 2A1/2A2/2A3 and WP-LV48 2A1/2A2 and 2A3 2A-like sequences: we observed synthesis of [GFP2A], but no GUS.

Our model proposes that the C-terminal residues of 2A^NPGP adopt a conformation within the PTC such that a peptide bond with prolyl-tRNA (A-site) cannot be formed: it is possible that certain subset of 2A^NPGP sequences adopt a conformation that also precludes peptidyl-tRNA hydrolysis by eRF1 – halting, rather than stalling, elongation. The translation of sequences upstream of 2A (GFP) without detectable translation of sequences downstream of 2A (GUS) has, perhaps, a parallel with ‘No-go decay’. It has been shown that stalled translation complexes can be ‘rescued’ by the activities of mammalian Pelota /Hbs1/ABCE1 [37]. Pelota is a molecular mimic of eRF1, although (i) lacks the -GGQ- motif of eRF1 – the peptidyl-tRNA ester linkage is, therefore, not hydrolysed by Pelota, and (ii) binds into a vacant A-site in a stop codon independent manner: Hbs1 is a structural homologue of eRF3 [reviewed in 38-40]. ABCE1 promotes dissociation of the ribosome subunits and nascent peptidyl-tRNA is released – peptidyl-tRNA hydrolase (Pth) subsequently releasing tRNA from peptidyl-tRNA by cleaving the peptide/tRNA ester linkage. Consistent with our observations this would produce [GFP2A] alone although, following this analogy, the subsequent decay of cellular mRNA in the no-go decay pathway implies degradation of the virus RNA!

The evidence that 2A^NPGP sequences function within the ribosome arises from two main sources. Firstly, construction of artificial polyproteins comprising two proteins each of which bear N-terminal signal sequences. Here, sequences encoding the p40 and p35 subunits of IL12 were linked via FMDV 2A^NPGP to encode [p402Ap35] (p40 stop codon removed). Both subunits were secreted from the cell to form active IL12: the (formerly) N-terminal signal sequence of p35 was recognised by signal recognition particle (SRP) as a nascent N-terminal feature and p35 secreted from the cell, along with p40 [41]. This property has been observed for many other artificial polyprotein systems e.g. heavy and light chains of monoclonal antibodies, T-cell receptor proteins etc. [see 42]. Secondly, the 2A^NPGP ‘cleavage’ has been mapped to a 20-30aa tract that can be accommodated within the ribosome exit tunnel – one type amongst a family of ribosome arrest peptides (RAPs) [43]. Indeed, the C-terminal portion of a stalled nascent peptide in the ribosome exit tunnel has been shown to modulate selectivity of the A-site [44].

Studies of 2A^NPGP activity using strains of S. cerevisiae with compromised levels of release factor activity showed in strains with eRF1 depleted, a greater proportion of ribosomes translated through the 2A coding sequence, whilst in strains with impaired eRF3 GTPase activity, many ribosomes failing to ‘pseudo-reinitiate’ and translate sequences downstream of 2A^NPGP [45]: these data lead us to develop our model of 2A^NPGP ‘cleavage’ activity. In contrast, however, studies using reconstituted translation systems in vitro did not show any involvement of eRF1/3 [46]. In conclusion, this sub-set of 2A-like sequences that appear to terminate translation at 2A^NPGP poses a conundrum for both (i) our current model of 2A^NPGP-mediated ribosome skipping, and (ii) the effect of such sequences on the replication of Kunsagi-, Limnipi-, Potami-, WCP and WP-LV48 viruses.

4.3. Biotechnological and Biomedical Applications

2A/2A-like sequences have been used in a huge range of biotechnological and biomedical applications: these sequences have been shown to be active in all eukaryotic cell types (amoeba, yeast, fungi, algae, plant, animal) - but not in prokaryotic cells [see 42]. In this paper we report a series of 2A-like sequences that are directly comparable – in some cases superior - to those highly active sequences already in use: those encoded by Aalivirus A1 2A1-2A4, Aalivirus B1 2A1-2A4, Avisivirus A1 2A2, Avisivirus B1 2A1, Grusopivirus A1 2A1-2A3, Grusopivirus C 2A1/2A3, Limnipivirus A1 2A1, Limnipivirus B1 2A2, Limnipivirus C1 2A1, Limnipivirus D1 2A1/2A2 and Mosavirus B1 2A1/2A2.

In the majority of cases, 2A^NPGPs from different viruses have been used to co-express multiple, different, proteins (e.g. components of macromolecular structures, biochemical pathways etc.) from a single ORF: for example, six different genes were co-expressed using five different 2A-like sequences to create autonomous bioluminescent human cells [47]. Alternatively, multiple iterations of the T2A peptide sequence, with different codon usages, were used to co-express nine different proteins comprising the carotenoid and violacein pathways in Pichia pastoris [48]. In both cases, however, constructs were designed to minimise the possibility of gene deletion via homologous recombination. In many cases this co-expression technology has replaced the need for time-consuming, costly, sequential transformations by the ability to link multiple genes into a single, self-processing, construct thereby introducing a ‘trait’ by a single transformation: e.g. production of pluripotent stem cells, cancer gene therapies, CAR T-cell therapies, golden rice development, co-expression of glyphosate tolerance / BT toxins, introduction of novel biosynthetic pathways etc. [42]. Here we describe a series of 2A-like sequences which substantially expand the toolbox for biotechnologists.

Author Contributions

Conceptualisation M.D.R and G.A.L; Methodology (clone construction, in vitro transcription / translation etc.) L.S.R. & G.A.L; Bioinformatic analyses Y-T.L., H-C.W. & M.D.R. .

Funding. This work was supported by the University of St. Andrews.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of interest: The author(s) declare that there are no conflicts of interest.

References

Martĩnez-Salas, E.; Ryan, M.D. Translation and protein processing. In The Picornaviruses Ehrenfeld, E., Domingo, E., Roos, R.P., Eds.; ASM Press: Washington, DC, USA, 2010; pp. 141–161. [Google Scholar]
Yu, S.F.; Benton, P.; Bovee, M.; Sessions, J.; Lloyd, R.E. Defective RNA replication by Poliovirus mutants deficient in 2A protease cleavage activity. J Virol 1995, 69, 247–252. [Google Scholar] [CrossRef] [PubMed]
Toyoda, H.; Nicklin, M.J.; Murray, M.G.; Anderson, C.W.; Dunn, J.J.; Studier, F.W.; Wimmer, E. A second virus-encoded proteinase involved in proteolytic processing of poliovirus polyprotein. Cell 1986, 45, 761–770. [Google Scholar] [CrossRef] [PubMed]
Hsu, Y.-Y.; Liu, Y-N.; Wang, W.; Kao, F.-J.; Kung, S.-H. In vivo dynamics of enterovirus protease revealed by fluorescence resonance emission transfer (FRET) based on a novel FRET pair. Biochem Biophys Res Commun 2007, 353, 939–945. [Google Scholar] [CrossRef] [PubMed]
Lu, J.; Lina, Y.; Zhao, J.; Yu, J.; Chen, Y.; Lin, M.C.; Kung, H.-F.; He, M.-L. Enterovirus 71 disrupts Interferon signaling by reducing the level of Interferon Receptor 1. J Virol 2012, 86, 3767–3776. [Google Scholar] [CrossRef] [PubMed]
Martin, A.; Escriou, N.; Chao, S.-F.; Girard, M.; Lemon, S.M.; Wychowski, C. Identification and site-directed mutagenesis of the primary (2A/2B) cleavage site of the Hepatitis A Virus polyprotein: functional impact on the infectivity of HAV RNA transcripts. Virology 1995, 213, 213–222. [Google Scholar] [CrossRef] [PubMed]
Palmenberg, A.; Neubauer, D.; Skern, T. Genome organization and encoded proteins. In The Picornaviruses Ehrenfeld, E., Domingo, E., Roos, R.P., Eds.; ASM Press: Washington, DC, USA, 2010; pp. 3–17. [Google Scholar]
Ryan, M.D.; Donnelly, M.L.L.; Lewis, A.; Mehrotra, A.P.; Wilkie, J.; Gani, D. A model for nonstoichiometric, co-translational protein scission in eukaroytic ribosomes. Bioorg Chem 1999, 27, 55–79. [Google Scholar] [CrossRef]
Donnelly, M.L.L.; Luke, G.A.; Mehotra, A.; Li, X.; Hughes, L.E.; Gani, D.; Ryan, M.D. Analysis of the aphthovirus 2A/2B polyprotein “cleavage” mechanism indicates not a proteolytic reaction, but a novel translational effect: a putative ribosomal “skip”. J Gen Virol 2001, 82, 1013–1025. [Google Scholar] [CrossRef]
Luke, G.A.; de Felipe, P.; Lukashev, A.; Kallioinen, S.E.; Bruno, E.A.; Ryan, M.D. Occurrence, function and evolutionary origins of “2A-like” sequences in virus genomes. J Gen Virol 2008, 89, 1036–1042. [Google Scholar] [CrossRef]
de Lima, J.G.S.; Teixeira, D.G.; Freitas, T.T.; Lima, J.P.M.S. Evolutionary origin of 2A-like sequences in Totiviridae genomes. Virus Res 2019, 259, 1–9. [Google Scholar] [CrossRef]
de Lima, J.G.S.; Lanza, D.C.F. 2A and 2A-like sequences: Distribution in different virus species and applications in biotechnology. Viruses 2021, 13, 2160. [Google Scholar] [CrossRef]
Donnelly, M.L.L.; Hughes, L.E.; Luke, G.A.; Mendoza, H.; ten Dam, E.; Gani, D.; Ryan, M.D. The “cleavage” activities of foot-and-mouth disease virus 2A site-directed mutants and naturally occurring “2A-like” sequences. J Gen Virol 2001, 82, 1027–1041. [Google Scholar] [CrossRef] [PubMed]
Heras, S.R.; Thomas, M.C.; García-Canadas, M.; de Felipe, P.; García-Perez, J.L.; Ryan, M.D.; Lopez, M.C. L1Tc non-LTR retrotransposons from Trypanosoma cruzi contain functional viral-like self-cleaving 2A sequence in frame with active proteins they encode. Cell Mol Life Sci 2006, 63, 1449–1460. [Google Scholar] [CrossRef] [PubMed]
Odon, V.; Luke, G.A.; Roulston, C.; de Felipe, P.; Ruan, L.; Escuin-Ordinas, H.; Brown, J.D.; Ryan, M.D.; Sukhodub, A. APE-type non-LTR retrotransposons of multicellular organisms encode virus-like 2A oligopeptide sequences, which mediate translational recoding during protein synthesis. Mol Biol Evol 2013, 30, 1955–1965. [Google Scholar] [CrossRef] [PubMed]
Brown, J.D.; Ryan, M.D. Ribosome “Skipping”: “Stop-Carry On” or “Stop-Go” Translation. In Recoding: Expansion of Decoding Rules Enriches Gene Expression Atkins, J.F., Gesteland, R.F., Eds.; Springer: New York, NY, USA, 2010; pp. 101–121. [Google Scholar]
Roulston, C.; Luke, G.A.; de Felipe, P. , Ruan, L.; Cope, J.; Nicholson, J.; Sukhodub, A.; Tilsner, J.; Ryan, M.D. “2A-Like” signal sequences mediating translational recoding: A novel form of dual protein targeting. Traffic 2016, 17, 923–939. [Google Scholar] [CrossRef] [PubMed]
Minskaia, E.; Nicholson, J.; Ryan, M.D. Optimisation of the foot-and-mouth disease virus 2A co-expression system for biomedical applications. BMC Biotechnology 2013, 13, 67. [Google Scholar] [CrossRef]
Donnelly, M.L.L.; Gani, D.; Flint, M.; Monaghan, S.; Ryan, M.D. The cleavage activities of aphthovirus and cardiovirus 2A proteins. J Gen Virol 1997, 78, 13–21. [Google Scholar] [CrossRef]
Loughran, G.; Firth, A.E.; Atkins, J.F. Ribosomal frameshifting into an overlapping gene in the 2B-encoding region of the cardiovirus genome. Proc. Natl Acad. Sci. USA 2011, 108, E1111–E1119. [Google Scholar] [CrossRef]
Napthine, S.; Ling, R.; Finch, L.K.; Jones, J.D.; Bell, S.; Brierley, I.; Firth, A.E. Protein-directed ribosomal frameshifting temporally regulates gene expression. Nat Commun. 2017, 8, 15582. [Google Scholar] [CrossRef]
Napthine, S.; Bell, S.; Hill, C.H.; Brierley, I.; Firth, A.E. Characterization of the stimulators of protein-directed ribosomal frameshifting in Theiler's murine encephalomyelitis virus. Nucleic Acids Res 2019, 47, 8207–8223. [Google Scholar] [CrossRef]
Woo, P.C.Y.; Lau, S.K.P.; Choi, G.K.Y.; Huang, Y.; Teng, J.L.L.; Tsoi, H.-W.; Tse, H.; Yeung, M.L.; Chan, K.-H.; Jin, D.-Y.; Yuen, K.-Y. Natural occurrence and characterization of two internal ribosome entry site elements in a novel virus, canine Picodicistrovirus, in the picornavirus-like superfamily. J Virol 2012, 86, 2797–2808. [Google Scholar] [CrossRef]
Zell, R. Picornaviridae—the ever-growing virus family. Arch Virol. 2018, 163, 299–317. [Google Scholar] [CrossRef] [PubMed]
Zell, R.; Knowles, N.J.; Simmonds, P. A proposed division of the family Picornaviridae into subfamilies based on phylogenetic relationships and functional genomic organization. Arch Virol. 2021, 166, 2927–2935. [Google Scholar] [CrossRef] [PubMed]
Yang, X.; Zeng, Q.; Wang, M.; Cheng, A.; Pan, K.; Zhu, D.; Liu, M.; Jia, R.; Yang, Q.; Wu, Y.; Chen, S.; Zhao, X.; Zhang, S.; Liu, Y.; Yu, Y.; Zhang, L. DHAV-1 2A1 peptide – A newly discovered co-expression tool that mediates the ribosomal “Skipping” function. Front. Microbiol 2018, 9, 2727. [Google Scholar] [CrossRef] [PubMed]
Cao, J.; Ou, X.; Zhu, D.; Ma, G.; Cheng, A.; Wang, M.; Chen, S.; Jia, R.; Liu, M.; Sun, K.; Yang, Q.; Wu, Y.; Chen, X. The 2A2 protein of Duck hepatitis A virus type 1 induces apoptosis in primary cell culture. Virus Genes 2016, 52, 780–788. [Google Scholar] [CrossRef] [PubMed]
Hughes, P.J.; Stanway, G. The 2A proteins of three diverse picornaviruses are related to each other and to the H-rev107 family of proteins involved in the control of cell proliferation. J Gen Virol. 2000, 81, 201–207. [Google Scholar] [CrossRef]
Yang, X.; Cheng, A.; Wang, M.; Jia, R.; Sun, K.; Pan, K.; Yang, Q.; Wu, Y.; Zhu, D.; Chen, S.; Liu, M.; Zhao, X.-X.; Chen, X. Structures and corresponding functions of five types of picornaviral 2A proteins. Front Microbiol. 2017, 8, 1373. [Google Scholar] [CrossRef]
Wang, X.; Liu, N.; Wang, F.; Ning, K.; Li, Y.; Zhang, D. Genetic characterization of a novel duck-origin picornavirus with six 2A proteins. J Gen Virol. 2014, 95, 1289–1296. [Google Scholar] [CrossRef]
Su, X.; Shuo, D.; Luo, Y.; Pan, X.; Yan, D.; Li, X.; Lin, W.; Huang, D.; Yang, J.; Yuan, C.; Liu, Q.; Teng, Q.; Li, Z. An emerging duck egg-reducing syndrome caused by a novel picornavirus containing seven putative 2A peptides. Viruses 2022, 14, 932. [Google Scholar] [CrossRef]
Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; Thompson, J.D.; Gibson, T.J.; Higgins, D.G. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef]
Lukashev, A.N. Recombination among picornaviruses. Rev Med Virol 2010, 20, 327–37. [Google Scholar] [CrossRef]
Dantas, M.D.A.; Cavalcante, G.H.O.; Oliveira, R.A.C.; Lanza, D.C.F. New insights about ORF1 coding regions support the proposition of a new genus comprising arthropod viruses in the family Totiviridae. Virus Res 2016, 211, 159–164. [Google Scholar] [CrossRef] [PubMed]
Shao, Q.; Jia, X.; Gao, Y.; Liu, Z.; Zhang, H.; Tan, Q.; Zhang, X.; Zhou, H.; Li, Y.; Wu, D.; Zhang, Q. Cryo-EM reveals a previously unrecognized structural protein of a dsRNA virus implicated in its extracellular transmission. PLOS Pathog 2021. [Google Scholar] [CrossRef] [PubMed]
Eyler, D.E.; Wehner, K.A.; Green, R. Eukaryotic release factor 3 is required for multiple turnovers of peptide release catalysis by eukaryotic release factor 1. J Biol Chem. 2013, 288, 29530–8. [Google Scholar] [CrossRef] [PubMed]
Pisareva, V.P.; Skabkin, M.A.; Hellen, C.U.; Pestova, T.V.; Pisarev, A.V. Dissociation by Pelota, Hbs1 and ABCE1 of mammalian vacant 80S ribosomes and stalled elongation complexes. EMBO J. 2011, 30, 1804–1817. [Google Scholar] [CrossRef] [PubMed]
Yip, M.C.J.; Shao, S. Detecting and rescuing stalled ribosomes. Trends Biochem Sci. 2021, 46, 731–743. [Google Scholar] [CrossRef]
Powers, K.T.; Szeto, J.A.; Schaffitzel, C. New insights into no-go, non-stop and nonsense-mediated mRNA decay complexes. Curr Opin Struct Biol. 2020, 65, 110–118. [Google Scholar] [CrossRef]
Harigaya, Y.; Parker, R. No-go decay: a quality control mechanism for RNA in translation. Wiley Interdiscip Rev RNA. 2010, 1, 132–141. [Google Scholar] [CrossRef]
Chaplin, P.J.; Camon, E.B.; Villarreal-Ramos, B.; Flint, M.; Ryan, M.D.; Collins, R.A. Production of interleukin-12 as a self-processing 2A polypeptide. J Interferon Cytokine Res. 1999, 19, 235–241. [Google Scholar] [CrossRef]
https://www.st-andrews.ac.uk/ryanlab/page10.htm.
Ito, K.; Chiba, S. Arrest peptides: cis-acting modulators of translation. Annu Rev Biochem. 2013, 82, 171–202. [Google Scholar] [CrossRef]
Ramu, H.; Vázquez-Laslop, N.; Klepacki, D.; Dai, Q.; Piccirilli, J.; Micura, R.; Mankin, AS. Nascent peptide in the ribosome exit tunnel affects functional properties of the A-site of the peptidyl transferase center. Mol Cell. 2011, 41, 321–330. [Google Scholar] [CrossRef]
Doronina, V.A.; Wu, C.; de Felipe, P.; Sachs, M.S.; Ryan, M.D.; Brown, J.D. Site-specific release of nascent chains from ribosomes at a sense codon. Mol Cell Biol. 2008, 28, 4227–4239. [Google Scholar] [CrossRef] [PubMed]
Machida, K.; Mikami, S.; Masutani, M.; Mishima, K.; Kobayashi, T.; Imataka, H. A translation system reconstituted with human factors proves that processing of encephalomyocarditis virus proteins 2A and 2B occurs in the elongation phase of translation without eukaryotic release factors. J Biol Chem. 2014, 289, 31960–31971. [Google Scholar] [CrossRef] [PubMed]
Xu, T.; Ripp, S.; Sayler, G.S.; Close, D.M. Expression of a humanized viral 2A-mediated lux operon efficiently generates autonomous bioluminescence in human cells. PLoS One 2014, 9, e96347. [Google Scholar] [CrossRef] [PubMed]
Geier, M.; Fauland, P.; Vogl, T.; Glieder, A. Compact multi-enzyme pathways in P. pastoris. Chem Commun (Camb). 2015, 51, 1643–1646. [Google Scholar] [CrossRef]

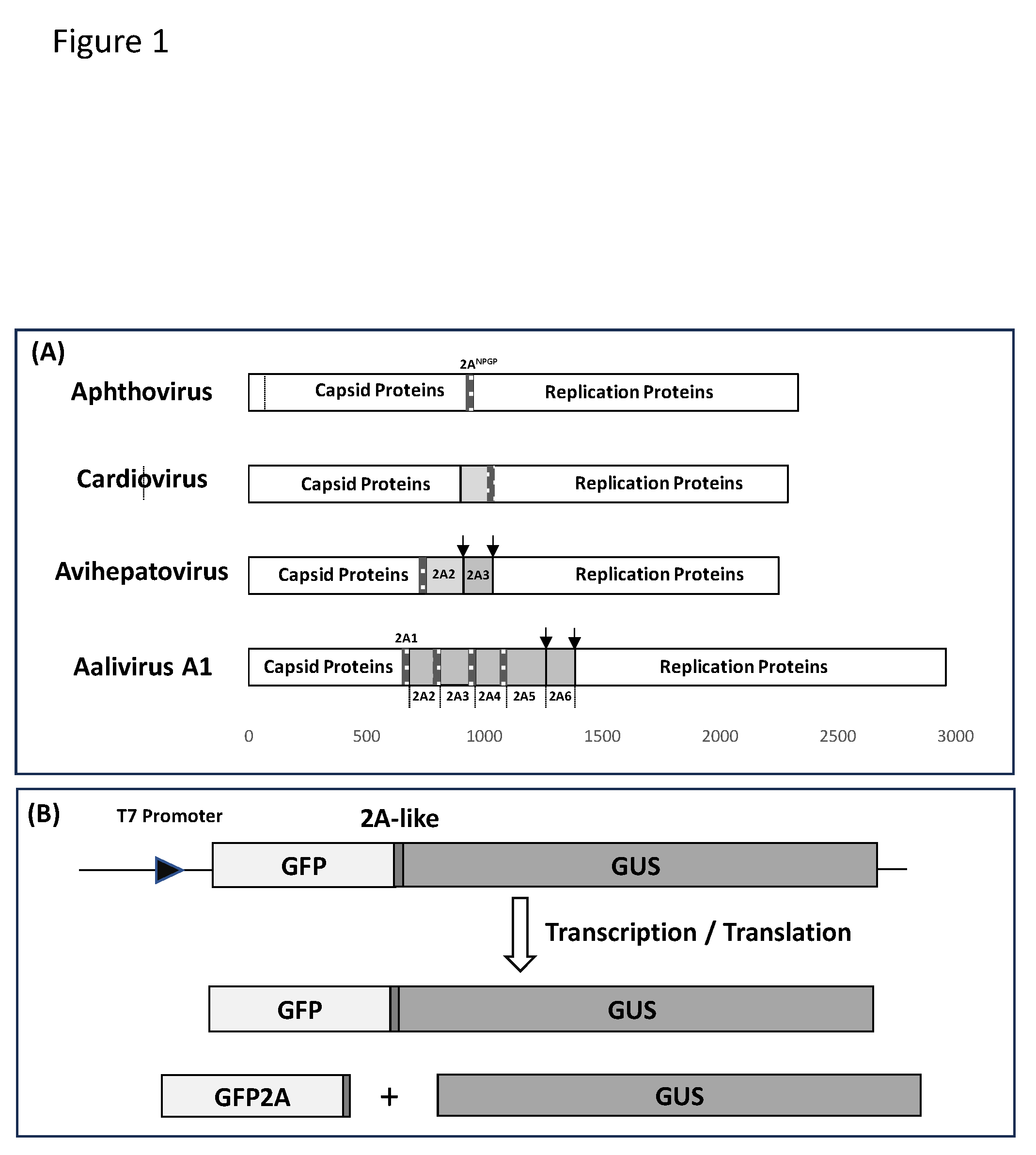

Figure 1. Schematic (drawn to scale) showing the positions of 2A^NPGP sequences (25aa) within the genomes of Aphtho-, Cardio-, Avihepato- and Aalivirus polyproteins (Panel A). The [GFP2AGUS] artificial polyprotein (GFP stop codon removed) used to test the various 2A^NPGP sequences. In the case of FMDV 2A^NPGP, three translation products are observed: ‘uncleaved’ [GFP2AGUS] together with the ‘cleavage’ products [GFP2A] and GUS (Panel B).

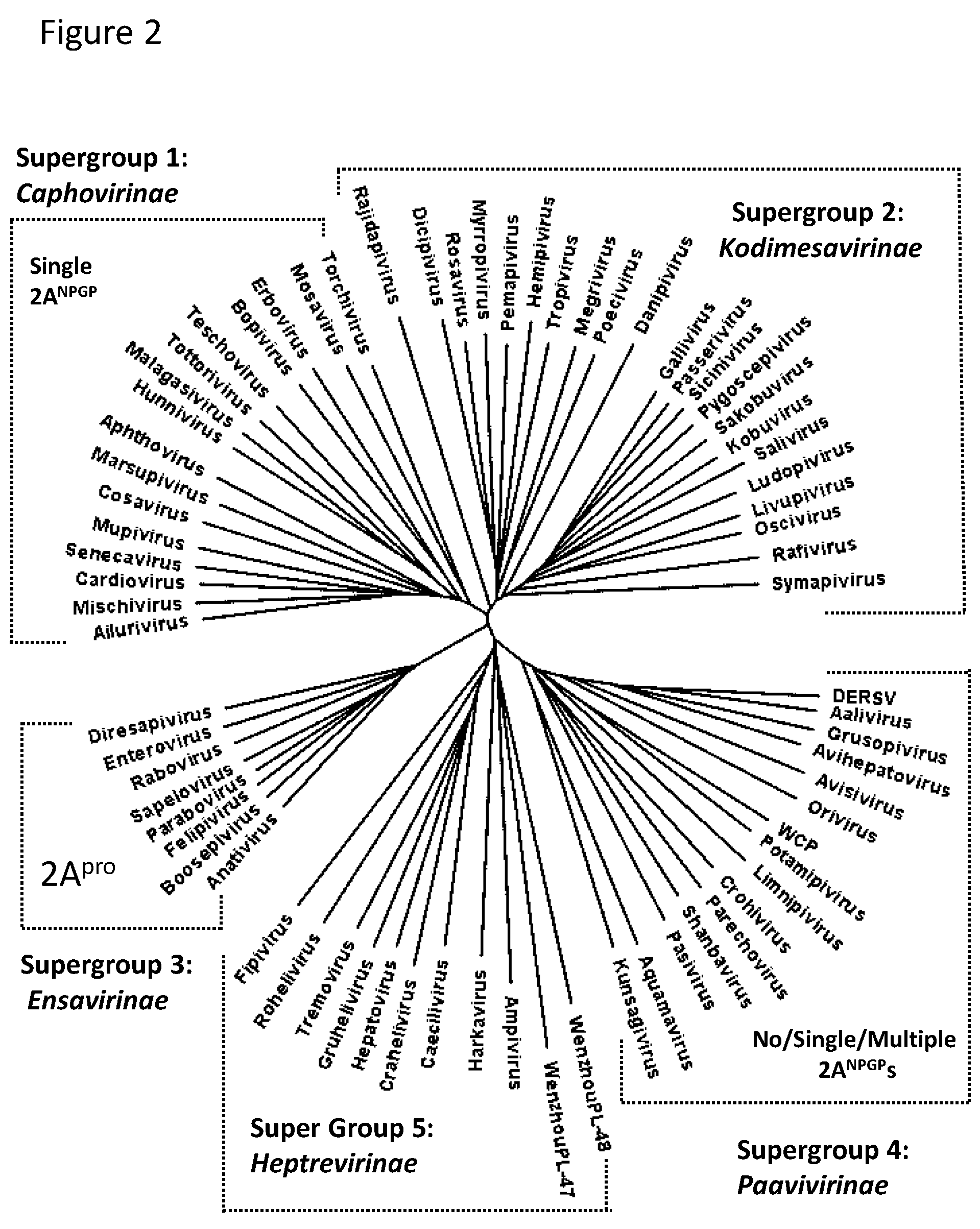

Figure 2. Dendrogram of aligned 3CD amino acid sequences rendered using FigTree. The supergroups indicated are consistent with that of Zell and co-workers [25]. Viruses encoding a 2A proteinase only within supergroup 3, whilst 2A^NPGP sequences are found only within supergroups 1 and 4.

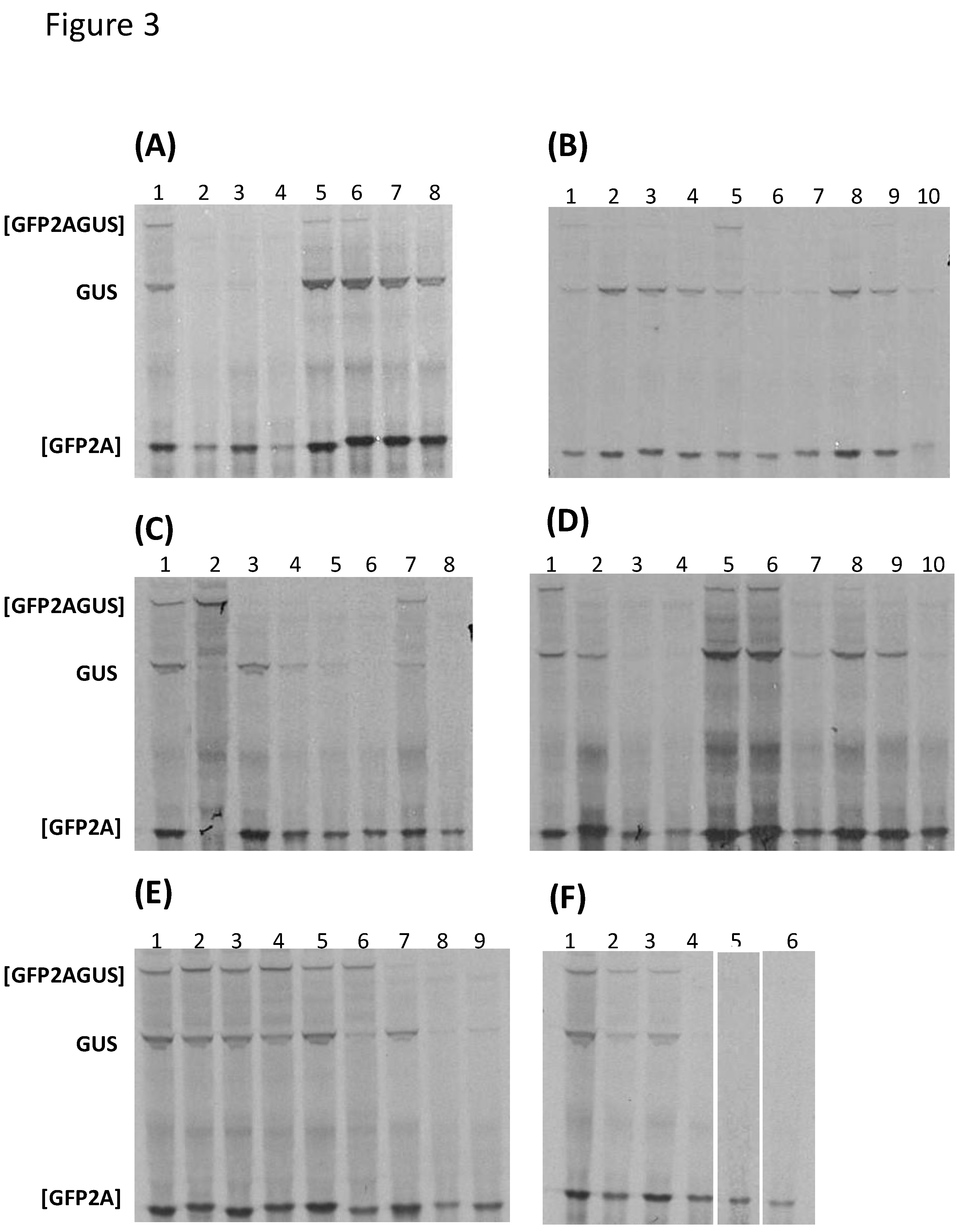

Figure 3. Translation in vitro. Coupled transcription/translation wheat germ extracts were programmed with the plasmid constructs indicated. Translation products were labelled with [³⁵S] methionine, separated on 4-12% gradient SDS polyacrylamide gels, and detected by autoradiography. Lane 1 panels A-F, control construct FMDV 25 encoding [GFP-2A(25aa)-GUS]; positions of the uncleaved [GFP-2A-GUS] and cleavage products [GFP-2A] and GUS are indicated. (A) Lanes 2-4, WP-LV48: 2A1-2A3; lanes 5-8, Aalivirus-A1: 2A1-2A4. (B) Lanes 2-6, Aalivirus-B1: 2A1-2A5; lanes 7 and 8, Avisivirus-A1: 2A1/2A2; lanes 9 and 10, Avisivirus-B1: 2A1/2A2. (C) Lanes 2 and 3, Parechovirus E: 2A1/2A2; lanes 4 and 5, RtPV: 2A1/2A2; lane 6, Potamipivirus A1: 2A1; lanes 7 and 8, Potamipivirus B1: 2A1/2A2. (D) Lanes 2 and 3, Limnipivirus A1: 2A2 and 2A2; lanes 4 and 5, Limnipivirus B1: 2A1 and 2A2; lanes 6 and 7, Limnipivirus C1: 2A1 and 2A2; lanes 8-10, Limnipivirus D1: 2A1, 2A2 and 2A3. (E) Lanes 2-4, Grusopivirus-A1: 2A1, 2A2 and 2A3; lanes 5-7, Grusopivirus-C: 2A1-2A3; lane 8, YC-4; lane 9, Kungsagivirus-C1: 2A1. (F) Lanes 2 and 3, Mosavirus B1: 2A1/2A2; lanes 4-6, WCP: 2A1-2A3.

Table 1. 2A^NPGP amino acid sequences and accession codes.

Genus	Species	2A^NPGP	Amino Acid Sequence	Acc.#
Aphthovirus	FMDV O1K	2A	VAPVKQTLNFDLLKLAGDVESNPGP	GNNYF
Aalivirus (SG4)	AalV- A1	2A1	LLTSEGATNSSLLKLAGDVEENPGP	KJ000696
		2A2	FEMPYDDPEWDRLLQAGDIEQNPGP
		2A3	PIPARPDPQWNNLQQAGDVEMNPGP
		2A4	EHFNQTGGWVPDLTQCGDVESNPGP
	AalV-B1	2A1	ATTLQVSEYLKDLTIDGDVESNPGP	MH453803
		2A2	LKVKKLEGDYVRDLTQEGVEPNPGP
		2A3	SVRVTDAGWVRDLTVDGDVESNPGP
		2A4	VFKCHDKCWVDDLTNCGDVEPNPGP
		2A5	IFKCHEGCWVEDLTVDGDVESNPGP
DERSV-AH204		2A1	TSTAQATSYVKDLTIDGDVESNPGP	UYL81882
		2A2	KTCREVEGSYVKDLTEEGIEPNPGP
		2A3	LLKIGNAAWVRDLTEDGDVEENPGP
		2A4	VYNCHESCWNRDLTIDGDVELNPGP
		2A5	VFKCHEKCWQKDPTQDGDVEQNPGP
		2A6	EFKCHEHCWVRDLTMDGDVEENPGP
Avisivirus (SG4)	AsV-A1	2A1	EVGAYDEVDHRDILMGGDIEENPGP	KC465954
		2A2	EMGVFDETDHRDILLGGDIEENPGP
	AsV-B1	2A1	PQFEKERSAHEDVLLGGDVESNPGP	KF979333
		2A2	SESVQYLEPQIDICVCGDVERNPGP
Grusopivirus (SG4)	GrV-A1	2A1	FEKHVKPWRSQEDLSKEGIEPNPGP	KY312544
		2A2	ITDNRYKETDAKWLSRYGVEMNPGP
		2A3	VTQDLYAATNQDQLSNQGIESNPGP
	GrV-C	2A1	YFEERSPHPTQKELGQFGVETNPGP	MK443503
		2A2	ENNSNYSERDAKHLSRYGIEMNPGP
		2A3	CVCTRWSPTMQSELGKYGIEKNPGP
	YC-4	2A1	PERQYFSPKAKEELSKYGIEPNPGP	KY312543
Kunsagivirus (SG4)	Kuv-C1	2A1	IAAASAQGWQRDLTQDGDVESNPGP	KY670597
		2A2	LGIVISDSVWQRDLPREGVEENPGP
		2A3	SYDPLAPSQWCRDLTCEGIEPNPGP
Limnipivirus (SG4)	A1	2A1	CKEFVRESDNQELLKCGDVESNPGP	JX134222
		2A2	WDLSTGWFHFFRLLRSGDVEQNPGP
	B1	2A1	MDVVDDYPFKRDLTRDGDVESNPGP	KF306267
		2A2	IDLVQAAYSRMRLLLSGDVEQNPGP
	C1	2A1	KLLEQILAYKRDLTACGDVESNPGP	KF874490
		2A2	SRWIHARFARLRLLLSGDVEQNPGP
	D1	2A1	EEEVDWGVGRMRLKMSGDVEENPGP	MG600094
		2A2	AVHLLVTWMRRRLTLSGDIESNPGP
		2A3	DLRAVKSFIESQLMRAGDVERNPGP
Mosavirus (SG1)	B1	2A1	ESRGTGNCDATTISQCGDVETNPGP	KY855435
		2A2	YVRRSANRTAADISQDGDVETNPGP
Parechovirus (SG4)	E	2A1	WFDARTGFKTPLMNPCGDVEENPGP	KY645497
		2A2	QIEKRYGYRFWLLMLCGDVELNPGP
	RtPV	2A1	MLDRRMGYRSRILCQCGDVEENPGP	MF352429
		2A2	WFNKRSGYRSRLLSQCGDVEENPGP
Potamipivirus (SG4)	B1	2A1	LMEKTEEAGWLRDLTREGVEENPGP	MK189163
		2A2	FDDYHQEGGWIRDLTAEGVEPNPGP
Unassigned (SG4)	WCP	2A1	MKEDEAGGWKEDLTEDGDVESNPGP	MG600066
		2A2	EQAIPETTWRRDLTQSGDVESNPGP
		2A3	PGAIPASVWVHDLTTDGDVESNPGP
Unassigned	WP-LV 48	2A1	GPSCYDRNNHCNILLSGDIEENPGP	NC_032820
		2A2	VFNASYLDCFISLLSCGDIESNPGP
		2A3	PIQGLTQRFESTLLLGGDIEENPGP

Table 2. Reverse oligonucleotide primers used to amplify GFP thereby adding each 2A^NPGP 3’ extension: restriction sites used in cloning are indicated in bold typeface.

Genus	Species	2A^NPGP	Reverse Primer Sequence (5’-3’)
Aalivirus	AalV- A1	2A1	GCGCGCGGGCCCTGGATTCTCTTCCACATCTCCAGCTAACTTTAACAGAC TTGAATTTGTGGCTCCCTCTGATGTGAGCAATCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGATTCTGTTCTATGTCTCCAGCCTGGAGCAGCCTGT CCCATTCTGGGTCATCATATGGCATTTCGAATCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCTGGATTCATCTCAACATCACCAGCTTGCTGCAAATTAT TCCATTGTGGGTCAGGCCTGGCTGGAATTGGTCTAGACCCGGACTTGTAT
		2A4	GCGCGCGGGCCCGGGATTGGACTCTACATCACCACACTGCGTCAGATCGG GGACCCATCCCCCTGTCTGGTTGAAGTGCTCTCTAGACCCGGACTTGTAT
	AalV-B1	2A1	GCGCGCGGGCCCAGGATTTGATTCAACATCTCCGTCAATGGTTAAATCTT TCAGATACTCAGACACTTGCAAAGTAGTTGCTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGGTTAGGTTCCACACCCTCTTGAGTTAAATCTCTAA CATAATCTCCCTCAAGTTTCTTAACTTTCAATCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCAGGGTTTGATTCCACATCTCCATCAACTGTGAGGTCTC TCACCCACCCAGCATCTGTTACTCTAACCGATCTAGACCCGGACTTGTAT
		2A4	GCGCGCGGGCCCTGGATTTGGCTCAACATCCCCACAATTCGTCAGGTCGT CAACCCAACATTTATCGTGGCACTTAAAAACTCTAGACCCGGACTTGTAT
		2A5	GCGCGCGGGCCCAGGGTTCGACTCCACATCACCATCAACAGTTAGATCCT CAACCCAACAGCCCTCATGACACTTAAAAATTCTAGACCCGGACTTGTAT
Avisivirus	AsV-A1	2A1	GCGCGCGGGCCCAGGGTTTTCTTCAATGTCACCCCCCATGAGAATGTCTC TGTGGTCCACTTCATCATAAGCTCCAACTTCTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCTGGATTCTCTTCAATGTCACCTCCAAGTAGTATGTCTC TGTGGTCAGTCTCATCAAAGACTCCCATCTCTCTAGACCCGGACTTGTAT
	AsV-B1	2A1	GCGCGCGGGCCCAGGGTTTGATTCTACATCTCCACCTAGCAGAACATCCT CATGGGCTGAGCGCTCCTTTTCAAACTGTGGTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCGGGATTCCTCTCTACATCACCACAAACACAGATATCAA TCTGGGGCTCCAAATATTGAACAGACTCACTTCTAGACCCGGACTTGTAT
Grusopivirus	GrV-A1	2A1	GGGCCCAGGGTTTGGTTCAATTCCCTCCTTAGATAGATCTTCTTGTGATT TCCAAGGTTTCCCATGTTTTTCAAATCTAGACCCGGACTTGTATAGTTC
		2A2	GGGCCCTGGGTTCATTTCCACTCCATATCGGCTCAACCATTTAGCGTCGG TTTCCTTATAACGATTGTCCGTAATTCTAGACCCGGACTTGTATAGTTC
		2A3	GGGCCCAGGATTTGATTCAATGCCTTGATTTGATAACTGATCTTGATTAG TAGCAGCATAAAGATCCTGAGTGACTCTAGACCCGGACTTGTATAGTTC
	GrV-C	2A1	GCGCGCGGGCCCAGGATTAGTTTCTACTCCAAATTGCCCCAATTCCTTCT GAGTTGGATGTGGAGATCTTTCTTCAAAATATCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGATTCATCTCTATGCCATATCGTGATAAGTGTTTGG CATCTCTCTCAGAATAATTTGAGTTGTTCTCTCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCTGGATTCTTCTCAATTCCATACTTACCTAATTCAGACT GCATGGTGGGACTCCACCTAGTGCAAACACATCTAGACCCGGACTTGTAT
	YC-4	2A1	GCGCGCGGGCCCAGGATTAGGCTCGATACCATATTTAGACAGTTCTTCCT TCGCCTTTGGAGAGAAATATTGACGTTCTGGTCTAGACCCGGACTTGTAT
Kunsagivirus	Kuv-C	2A1	GCGCGCGGGCCCAGGATTGCTCTCAACATCACCATCTTGAGTAAGGTCTC TTTGCCAGCCCTGTGCACTAGCCGCGGCAATTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCTGGATTTTCCTCAACACCTTCGCGGGGTAGATCCCGCT GCCACACAGAGTCGGAGATGACAATACCTAATCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCTGGATTAGGCTCGATACCCTCACAAGTCAAATCCCTAC ACCACTGGCTGGGGGCCAGAGGGTCGTAGCTTCTAGACCCGGACTTGTAT
Limnipivirus	A1	2A1	GCGCGCGGGCCCTGGGTTAGACTCCACATCTCCACACTTGAGTAGCTCCT GGTTGTCTGATTCTCTTACAAATTCTTTGCATCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGGTTCTGTTCAACATCTCCGCTCCTCAACAACCGGA AAAAGTGAAACCATCCTGTTGAAAGGTCCCATCTAGACCCGGACTTGTAT
	B1	2A1	GCGCGCGGGCCCTGGGTTGCTCTCAACATCTCCATCACGTGTTAAGTCAC GTTTGAAAGGGTAATCATCAACGACATCCATTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCGGGATTTTGTTCAACGTCCCCCGATAACAACAACCTCA TGCGTGAGTAGGCAGCTTGCACCAAGTCGATTCTAGACCCGGACTTGTAT
	C1	2A1	GCGCGCGGGCCCAGGGTTGGACTCCACATCGCCACAAGCAGTCAAATCTC GCTTGTATGCCAGAATTTGTTCAAGCAGTTTTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGGTTGGACTCCACATCGCCACAAGCAGTCAAATCTC GCTTGTATGCCAGAATTTGTTCAAGCAGTTTTCTAGACCCGGACTTGTAT
	D1	2A1	GCGCGCGGGCCCTGGGTTCTCCTCAACATCACCAGACATCTTCAGCCGCA TCCTGCCCACGCCCCAGTCGACTTCCTCCTCTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCTGGGTTGGATTCAATGTCTCCAGAAAGCGTCAATCGTC TGCGCATCCAAGTAACCAGTAAATGAACAGCTCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCTGGGTTTCTCTCCACGTCACCAGCGCGCATCAATTGAC TTTCAATGAATGACTTCACTGCTCTTAAATCTCTAGACCCGGACTTGTAT
Mosavirus	B1	2A1	GCGCGCGGGCCCAGGATTGGTTTCAACATCCCCGCACTGACTGATAGTCG TCGCATCACAGTTTCCTGTGCCACGAGATTCTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCGGGGTTGGTCTCAACATCTCCATCCTGACTGATATCAG CGGCAGTACGGTTTGCGGACCGCCTGACGTATCTAGACCCGGACTTGTAT
Parechovirus	E	2A1	GCGCGCGGGCCCTGGGTTTTCTTCCACATCACCACAGGGGTTCATTAGGG GTGTTTTAAACCCCGTGCGTGCATCAAACCATCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGATTTAACTCAACATCTCCACAGAGCATTAGCAACC AGAAACGATAGCCATATCGCTTCTCTATCTGTCTAGACCCGGACTTGTAT
	RtPV	2A1	GCGCGCGGGCCCTGGATTTTCCTCGACATCTCCACATTGACAGAGGATTC TGCTCCGATAGCCCATTCTCCTGTCAAGCATTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCAGGATTTTCTTCTACATCACCACATTGAGACAACAATC TTGACCTGTATCCTGATCTTTTGTTGAACCATCTAGACCCGGACTTGTAT
Potamipivirus	A	2A1	GCGCGCGGGCCCTGGATTTGGTTCAACTCCTTCTTGTGTCAGATCTCTGA TCCACATCTTGTCCGTGAGTATTTCGCCAATTCTAGACCCGGACTTGTAT
	B	2A1	GCGCGCGGGCCCGGGGTTCTCCTCAACTCCCTCTCTTGTCAAATCTCTTA GCCATCCTGCTTCTTCTGTTTTCTCCATCAATCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCCGGGTTGGGCTCCACACCCTCAGCAGTGAGGTCCCGTA TCCAACCACCTTCCTGGTGGTAATCATCAAATCTAGACCCGGACTTGTAT
Unassigned	WCP	2A1	CGCGCGGGGCCCAGGGTTACTCTCCACATCACCGTCCTCAGTGAGGTCTT CTTTCCACCCACCAGCTTCATCCTCCTTCATTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCTGGATTGGATTCCACATCACCAGATTGTGTGAGATCTC GACGCCATGTGGTTTCAGGAATTGCTTGCTCTCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCAGGATTGGATTCAACATCACCATCTGTTGTGAGGTCAT GAACCCAGACACTTGCTGGTATGGCACCAGGTCTAGACCCGGACTTGTAT
Unassigned	WP-LV 48	2A1	GCGCGCGGGCCCTGGATTCTCTTCAATATCTCCTGAAAGTAAGATGTTGC AATGATTATTCCTGTCGTAGCAAGATGGACCTCTAGACCCGGACTTGTAT
		2A2	GCGCGCGGGCCCTGGATTTGACTCGATATCCCCACAAGATAATAAGCTGA TGAAACAATCTAAATAACTGGCATTAAAAACTCTAGACCCGGACTTGTAT
		2A3	GCGCGCGGGCCCTGGATTTTCTTCAATATCGCCCCCCAAAAGAAGAGTTG ACTCAAAACGTTGTGTAAGACCTTGTATTGGTCTAGACCCGGACTTGTAT

Table 3. Estimated ‘cleavage’ activities of 2A-like sequences.

Genus	Species	2A^NPGP	[GFP2AGUS]	[GFP2A]	GUS
Aphthovirus	FMDV O1K	2A	+	++++	++
Aalivirus (SG4)	AalV- A1	2A1	+	+++++	+++
		2A2	+	+++++	+++
		2A3	-	+++++	+++
		2A4	-	+++++	+++
	AalV-B1	2A1	-	++++	++
		2A2	-	++++	++
		2A3	-	++++	++
		2A4	+	++++	++
		2A5	-	++++	+
Unassigned	DERSV	2A1-6	ND	ND	ND
Avisivirus (SG4)	AsV-A1	2A1	-	++++	+
		2A2	-	++++	++
	AsV-B1	2A1	-	++++	++
		2A2	-	++	+
Grusopivirus (SG4)	GrV-A1	2A1	+	++++	++
		2A2	+	++++	++
		2A3	+	++++	++
	GrV-C	2A1	+	++++	++
		2A2	+	++++	(+)
		2A3	(+)	++++	++
	YC-4	2A1	-	++++	(+)
Kunsagivirus (SG4)	Kuv-C1	2A1	-	++++	-
		2A2	ND	ND	ND
		2A3	ND	ND	ND
Limnipivirus (SG4)	A1	2A1	-	++++	++
		2A2	-	++++	-
	B1	2A1	-	+++	-
		2A2	++	+++	++++
	C1	2A1	++	++++	++++
		2A2	-	++++	+
	D1	2A1	-	++++	++
		2A2	-	++++	++
		2A3	-	++++	+
Mosavirus (SG1)	B1	2A1	+	++++	++
		2A2	+	++++	++
Parechovirus (SG4)	E	2A1	+	-	-
		2A2	-	++++	+
	RtPV	2A1	-	++++	+
		2A2	-	++++	+
Potamipivirus (SG4)	B1	2A1	(+)	++++	+
		2A2	-	+++	-
Unassigned (SG4?)	WCP	2A1	-	+++	-
		2A2	-	+++	-
		2A3	-	+++	-
Unassigned (SG5?)	WP-LV 48	2A1	-	+++	-
		2A2	-	++++	-
		2A3	-	+++	-

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.

Alerts

MDPI Initiatives

Important Links

Choose an area of interest and we will send you notifications of new preprints at your preferred frequency.

Disclaimer
