1. Introduction

2. Theoretical Framework

3. Methodology

3.2. Experimental Setup

3.2.1. Cool Roof (Reflective Paint) Experimentation

Objective: To evaluate the cooling performance of reflective coatings (cool roofs) applied to building surfaces and assess their impact on the surface and ambient temperatures.

Study Location: Reflective paint was applied to the rooftops and external walls of buildings in selected test sites located in Jinyeong-eup, Gimhae-si. This region is located in the southeastern part of South Korea, in close proximity to urbanized industrial centers such as Busan and Changwon. The region experiences a humid subtropical climate (Cfa), characterized by hot, humid summers and relatively mild winters. Due to its inland location and urban development, the area faces significant heat stress during the summer months, exacerbating the urban heat island (UHI) effect.

Furthermore, the region is particularly vulnerable to the effects of climate change, as increasing global temperatures have led to more frequent and intense heatwaves, contributing to higher energy demands for cooling, as well as exacerbating public health risks, especially for vulnerable populations. The increasing frequency of extreme weather events, including typhoons and heavy rainfall, also compounds the region’s climate vulnerability. These factors make Gimhae-si, and specifically Jinyeong-eup, an ideal location to test the effectiveness of cool roof technology as a potential adaptation strategy for mitigating heat stress and improving urban resilience[34,35].

Experimental Design:

■

Three test sites were selected for comparison.

■

H1: Cool roof and cool wall applied.

■

H2: Cool wall only.

■

H3: Control site (non-applied).

■

Monitoring Equipment: IoT-based temperature and humidity sensors were installed to continuously monitor changes in the temperature and humidity levels before and after the application of reflective coatings.

■

Data Collected:

■

Surface temperatures of rooftops and walls, indoor temperatures, and ambient air temperatures above 1.5M from the surface were measured using T&D TR-71wf Data logger temperature sensors from August 27 to September 1, 2021.

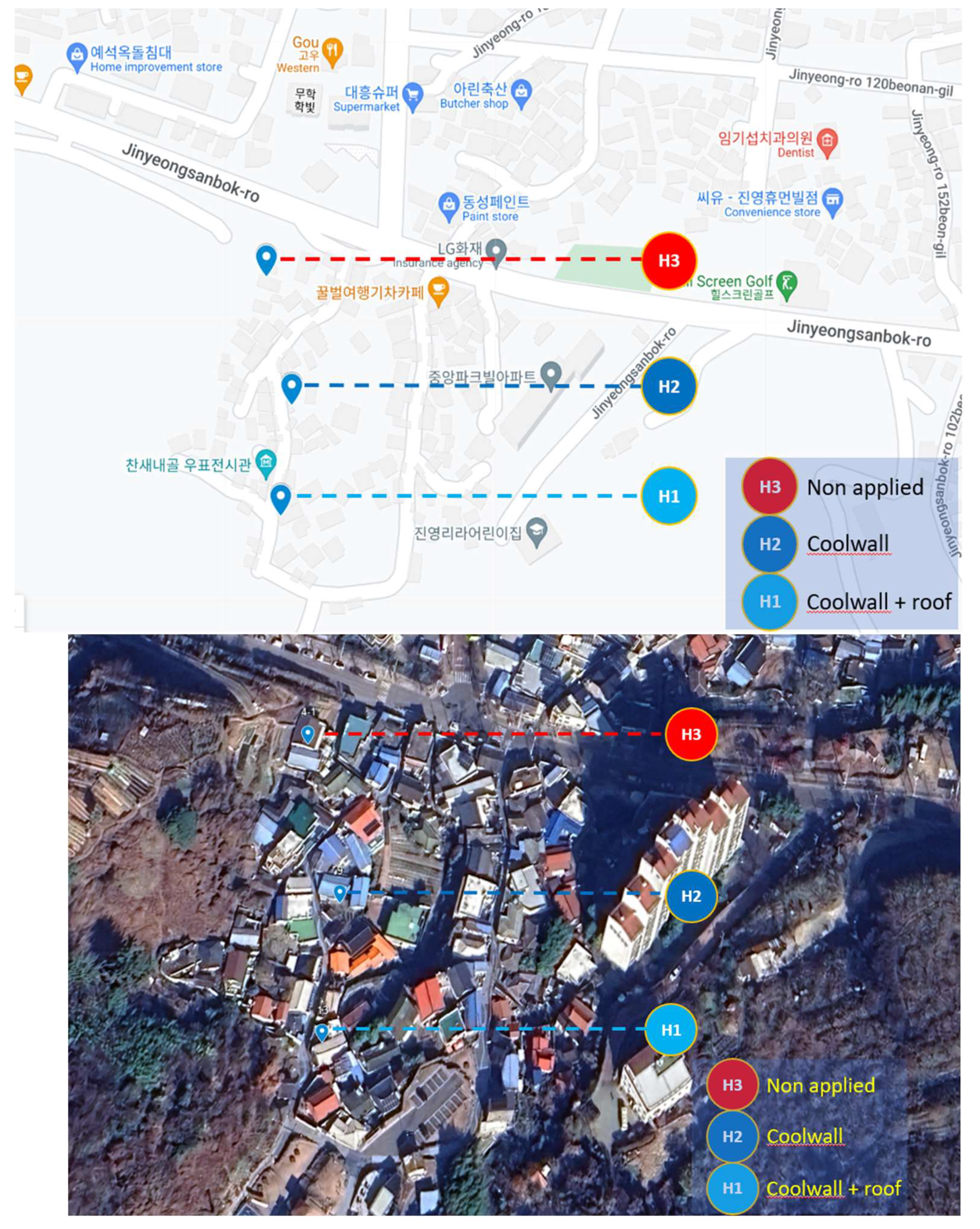

Figure 1. Site Map of Jinyeong-eup, Gimhae-si showing cool wall and roof applications (Source: Google Maps). H1 Representing the Coolwall+roof , H2 Representing the Coolwall and H3 Representing the Non applied site.

Figure 1. Site Map of Jinyeong-eup, Gimhae-si showing cool wall and roof applications (Source: Google Maps). H1 Representing the Coolwall+roof , H2 Representing the Coolwall and H3 Representing the Non applied site.

3.2.2. Cooling Fog Experimentation in Yechun-gun

• Objective: To assess the cooling effects of a cooling fog system installed in a public outdoor space specifically designed to improve thermal comfort for vulnerable populations and high-traffic areas such as playgrounds.
• Study Location: A cooling fog system was deployed at a children's playground in Yechun-gun (also spelled Yecheon-gun), located in the northern part of Gyeongsangbuk-do province, South Korea. This region experiences a temperate climate with four distinct seasons (Dwa, according to the Köppen climate classification), with hot, humid summers and cold winters.
  In recent years, climate change has contributed to a noticeable rise in the frequency and intensity of heatwaves in this region, especially during the summer months, making the area increasingly susceptible to heat-related risks. Yechun-gun is primarily a rural area with a significant aging population, which adds to the vulnerability of the region in terms of climate change adaptation. Elderly residents are particularly at risk from extreme heat, as they are more sensitive to heat stress. The rise in temperatures due to climate change has increased energy demand, particularly for cooling, and has also heightened health risks for both elderly populations and children. These conditions make Yechun-gun a strategic location to deploy cooling technologies such as cooling fog systems, which are designed to mitigate heat stress in public spaces, especially during peak summer months. The implementation of cooling fog systems is particularly crucial in regions like Yechun-gun, where local populations are heavily reliant on outdoor public spaces for daily activities, and where public health infrastructures may not be as readily equipped to handle the intensifying climate conditions[35,36,37].

Table 2. Field Test Sites, Sections, Addresses, and Applications for Coolwall and Coolroof in Jinyeong-eup, Gimhae-si.

Table 2. Field Test Sites, Sections, Addresses, and Applications for Coolwall and Coolroof in Jinyeong-eup, Gimhae-si.

Section	Site	Address	Application
H1		13, Jinyeongsanbok-ro 72beon-gil, Jinyeong-eup, Gimhae-si, Gyeongsangnam-do, South Korea	Coolwall+roof
H2		9, Jinyeongsanbok-ro 72beon-gil, Jinyeong-eup, Gimhae-si, Gyeongsangnam-do, South Korea	Coolwall
H3		4-1, Jinyeongsanbok-ro 72beon-gil, Jinyeong-eup, Gimhae-si, Gyeongsangnam-do, South Korea	Non applied

•

Experimental Design:

Fog System Setup: Fog nozzles were installed at heights between 3 and 4 m, and the system was operated during the hottest hours of the day (12:00–16:00). A nearby control area without cooling fog was used for comparison.

■

Monitoring Equipment: IoT temperature sensors were placed at different distances from the fog system and sunny zone 9m to measure the cooling effect.

■

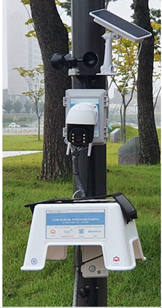

Ecowitt WS69 IoT-based temperature sensors were installed around the cooling fog zone (W1) and a sunny control zone (W2).

■

Data Collected:

Ambient air temperature (measured before and after fogging)

Humidity levels around the system

■

Measurement Period: The IoT sensors monitored temperature and humidity levels from September 13, 2021, focusing on peak afternoon hours.

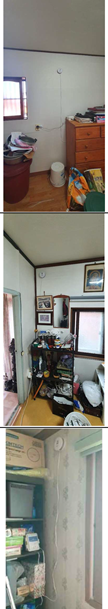

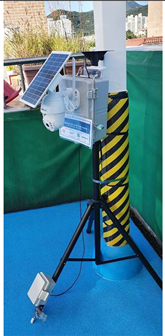

Table 3. Temperature Measurement Sensor Installation.

Table 3. Temperature Measurement Sensor Installation.

Section	Rooftop	Indoor	Application
H1			Coolwall+roof
H2			Coolwall
H3			Non applied

Figure 2. Site Map of Yechun-gun showing cooling fog and sunny zone for the comparison testing (Source: Google Maps).

Figure 2. Site Map of Yechun-gun showing cooling fog and sunny zone for the comparison testing (Source: Google Maps).

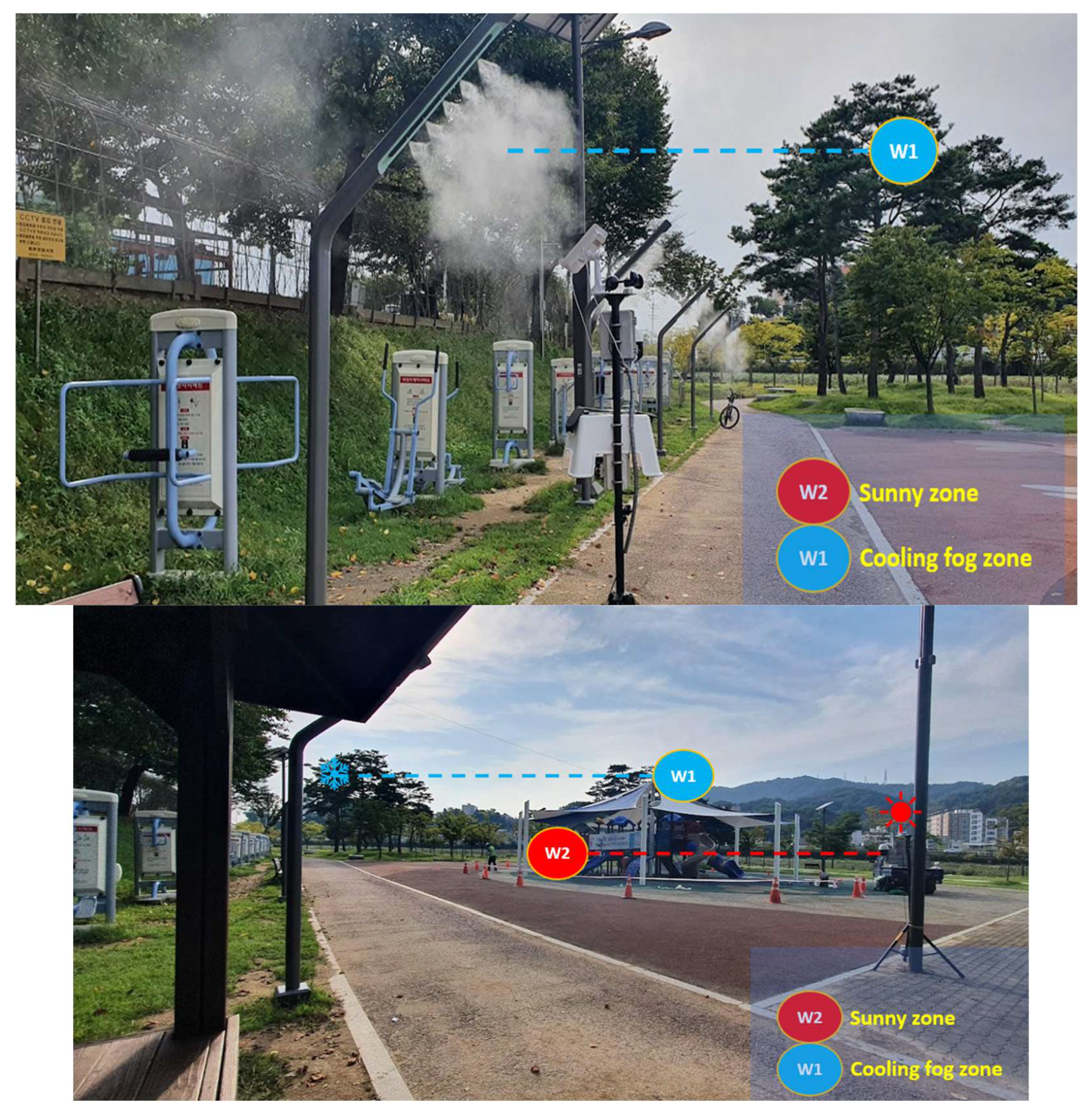

Figure 3. Field Test Site for Testing the Cooling Fog System in Yechun-gun, with W1 Representing the Cooling Fog Zone and W2 Representing the Sunny Zone.

Figure 3. Field Test Site for Testing the Cooling Fog System in Yechun-gun, with W1 Representing the Cooling Fog Zone and W2 Representing the Sunny Zone.

Table 4. Field Test Sites, Sections, Addresses, and Applications for Cooling Fog Zone and Sunny Zone in Yechun-gun.

Table 4. Field Test Sites, Sections, Addresses, and Applications for Cooling Fog Zone and Sunny Zone in Yechun-gun.

Section	Site	Address	Application
W1		Hancheon Sports Park 166-1, Cheongcheon-ri, Yecheon-eup, Yecheon-gun, Gyeongsangbuk-do, South Korea	Cooling fog zone
W2		Hancheon Sports Park 166-1, Cheongcheon-ri, Yecheon-eup, Yecheon-gun, Gyeongsangbuk-do, South Korea	Sunny zone

3.2.3. Shading Structure Experimentation in Geyang-gu

• Objective: To evaluate the impact of shading structures on reducing heat exposure in public outdoor areas, particularly for vulnerable populations, such as children and the elderly.
• Study Location: Shading structures were installed in key public spaces within Geyang-gu, a district in Incheon Metropolitan City, located in the northwestern part of South Korea. Incheon has a coastal climate due to its proximity to the Yellow Sea, with warm, humid summers and cold winters. Geyang-gu, being part of a rapidly urbanizing area, experiences the effects of the urban heat island (UHI) phenomenon, which intensifies the already rising temperatures caused by global climate change.

The region is particularly vulnerable to the impacts of climate change due to its dense population, urban sprawl, and a high concentration of concrete and asphalt surfaces that absorb and radiate heat, contributing to elevated urban temperatures. The elderly population and young children in Geyang-gu are especially at risk from extreme heat, as they are more susceptible to heat-related illnesses. Additionally, the growing frequency of heatwaves in recent years has increased energy demands for cooling, exacerbating environmental and public health issues.

To address these challenges, the installation of shading structures in public spaces, such as playgrounds and rest areas, is seen as a vital adaptation strategy. These structures provide passive cooling by blocking direct solar radiation, reducing heat stress for vulnerable populations, and creating cooler, more comfortable outdoor environments[38,39,40].

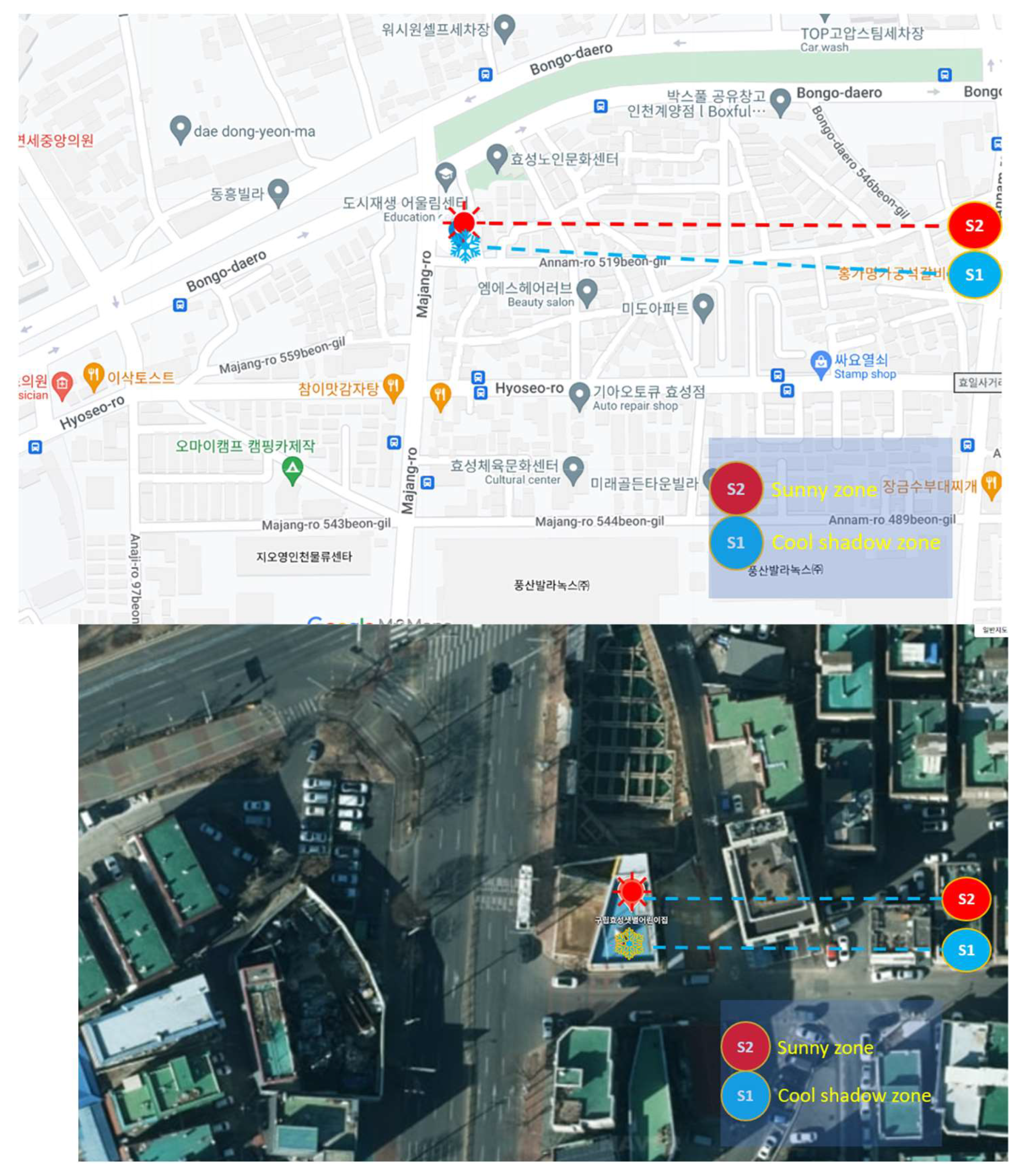

Figure 4. Site Map of Geyang-gu, Incheon-si for the shadow structure applications (Source: Google Maps).

Figure 4. Site Map of Geyang-gu, Incheon-si for the shadow structure applications (Source: Google Maps).

•

Experimental Design:

Shading Setup: Large shading structures were installed in playgrounds and outdoor rest areas to block direct sunlight and provide thermal comfort to pedestrians and children. The shading structures were designed with materials that maximized solar reflectivity and reduced heat absorption.

S1 : Cool shadow zone

S2 : Sunny zone

Monitoring Equipment: T&D TR-71wf Data logger emperature sensors were placed under the shading structures to measure the reduction in ambient temperatures, while control areas without shading were monitored for comparison.

■

Data Collected:

Surface temperature beneath the shading structures and sunny zone

Measurement Period: Data loger’s sensors were installed under the shading structures in a playground. Comparisons were made with nearby unshaded areas from September 30 to October 4, 2021. Sensing data were measured at every 5 minutes.

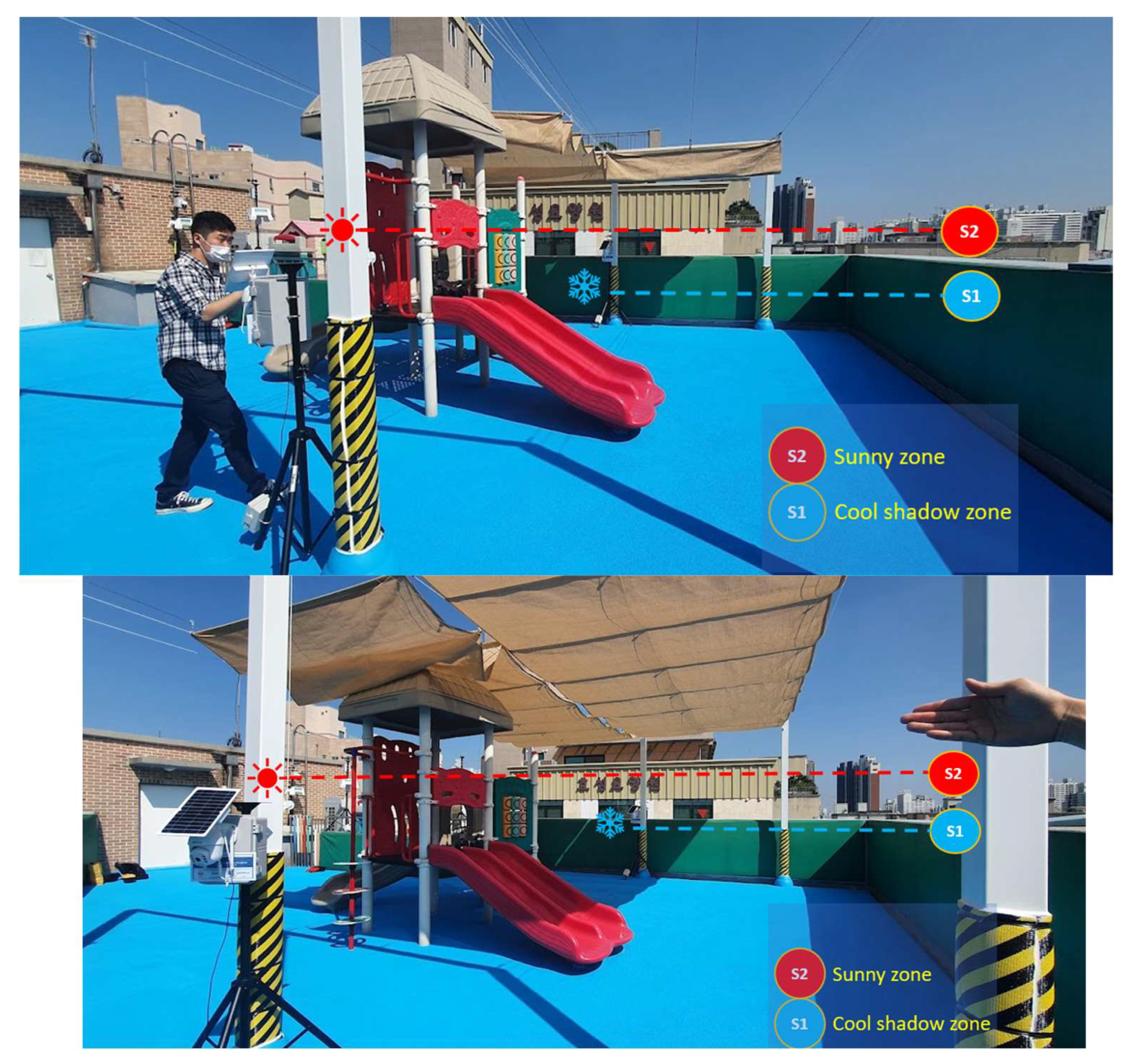

Figure 5. Field Test Site for Testing the Shadow Structure System in Geyang-gu, Incheon-si with S1 Representing the Cool Shadow Zone and S2 Representing the Sunny Zone.

Figure 5. Field Test Site for Testing the Shadow Structure System in Geyang-gu, Incheon-si with S1 Representing the Cool Shadow Zone and S2 Representing the Sunny Zone.

3.2.4. Small water path Experimentation in Sangju-si

• Objective: To assess the cooling effects of waterway shelters designed for passive cooling in public parks, particularly for vulnerable populations such as the elderly and young children
• Study Location: A small water path was constructed and tested in Namsan Park, located in Sangju-si, Gyeongsangbuk-do. Sangju-si is situated in the central part of South Korea and experiences a humid continental climate with hot summers and cold winters. Due to its inland location, Sangju-si is particularly vulnerable to extreme temperatures, with significant heatwaves becoming more frequent during the summer months.
  The combination of high daytime temperatures and prolonged heatwaves has increased the need for effective climate adaptation strategies in the region.
  Sangju-si’s rural demographic, with a considerable portion of the population being elderly, amplifies the region’s climate change vulnerability. Elderly residents are more susceptible to heat stress, while the lack of extensive urban infrastructure means the community relies heavily on natural and built cooling features, such as water paths, to mitigate the effects of extreme heat. The introduction of a 150-meter-long water path in Namsan Park aims to provide passive cooling through evaporative effects, offering relief from the high summer temperatures and improving thermal comfort for park visitors. This feature is particularly important as it creates a cooler microclimate in public spaces frequently used by elderly residents and young children, who are most at risk from heat-related health issues.

The deployment of passive cooling systems, such as small water paths, in regions like Sangju-si is crucial to adapting to the changing climate, helping to alleviate heat stress in outdoor public spaces[40,41,42].

•

Experimental Design:

Small water path installation: Shallow water channels were constructed along the park walkways, offering cooling effects through evaporative cooling. Control areas without water features were included for comparison.

P1 : Small water path

P2 : Sunny Zone

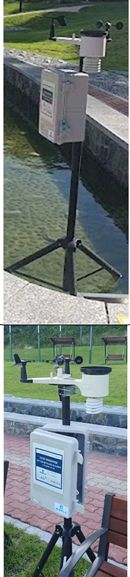

Monitoring Equipment: Ecowitt ws69 temperature and humidity sensors were positioned in the center of the paths and sunny zone which 6 meters away from the path, monitoring temperature differences between areas cooled by water and those sunny zone without water features to compare cooling effects.

■

Data Collected:

Surface temperature of the walkways near the water channels

Air temperature at pedestrian level.

Relative humidity levels and solar radiation data

Measurement Period: Wet-bulb temperature and humidity sensors were positioned along the water path (P1) and in a sunny control zone (P2). Data was collected from August 5 to 8, 2023, with a focus on midday temperature and humidity trends. The data has been uploaded to the server at every 5min.

Table 5. Field Test Sites, Sections, Sensor installment, Addresses, and Applications for Cool Shadow Zone and Sunny Zone in Geyang-gu, Incheon-si.

Table 5. Field Test Sites, Sections, Sensor installment, Addresses, and Applications for Cool Shadow Zone and Sunny Zone in Geyang-gu, Incheon-si.

Section	Sensor installment	Address	Application
S1		Hyo-seong Daycare Center 280, Hyo-seong-dong, Geyang-gu, Incheon, South Korea	Cool shadow zone
S2		Hyo-seong Daycare Center 280, Hyo-seong-dong, Geyang-gu, Incheon, South Korea	Sunny zone

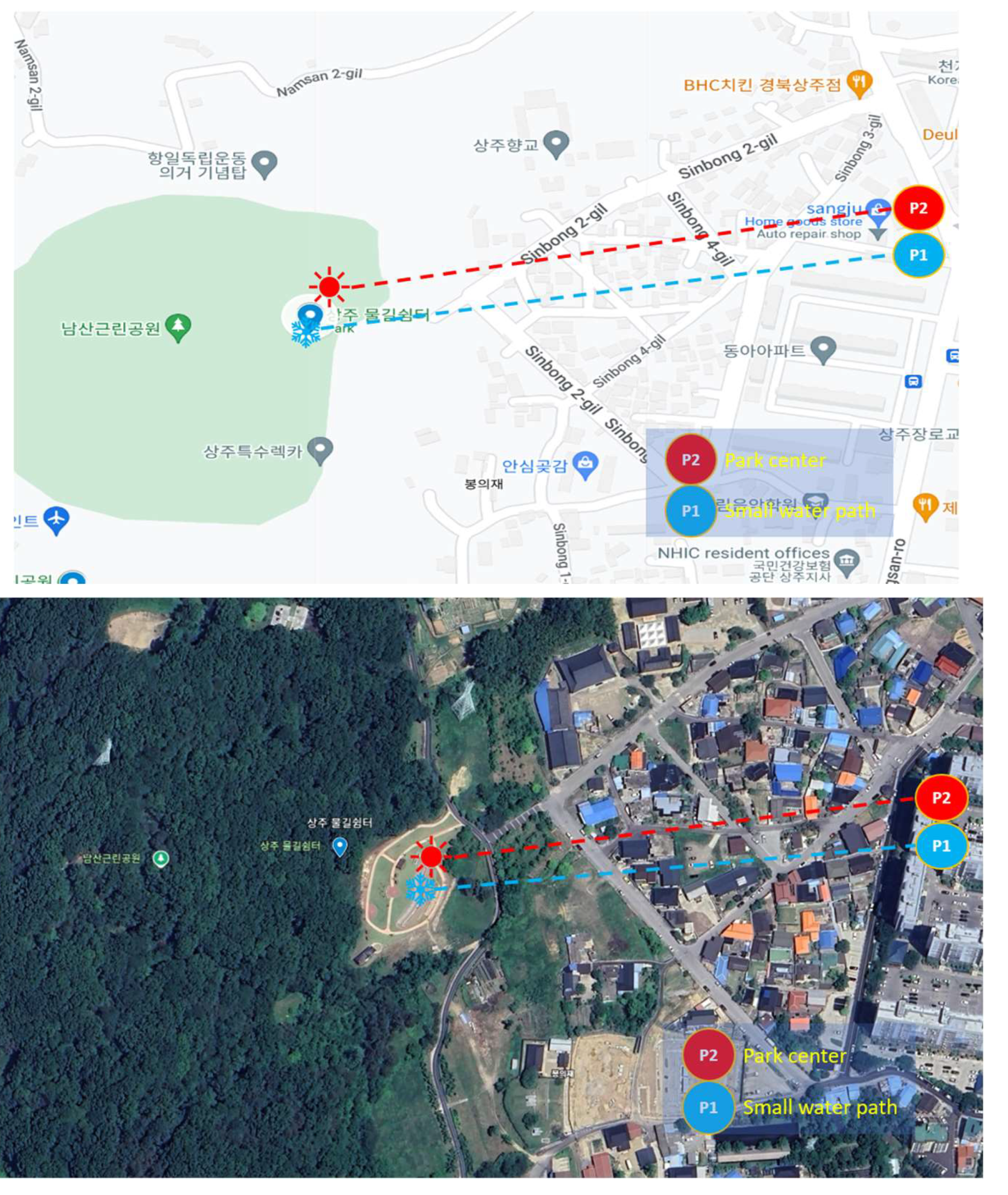

Figure 6. Site Map of Sangju-si for the small water path applications (Source: Google Maps).

Figure 6. Site Map of Sangju-si for the small water path applications (Source: Google Maps).

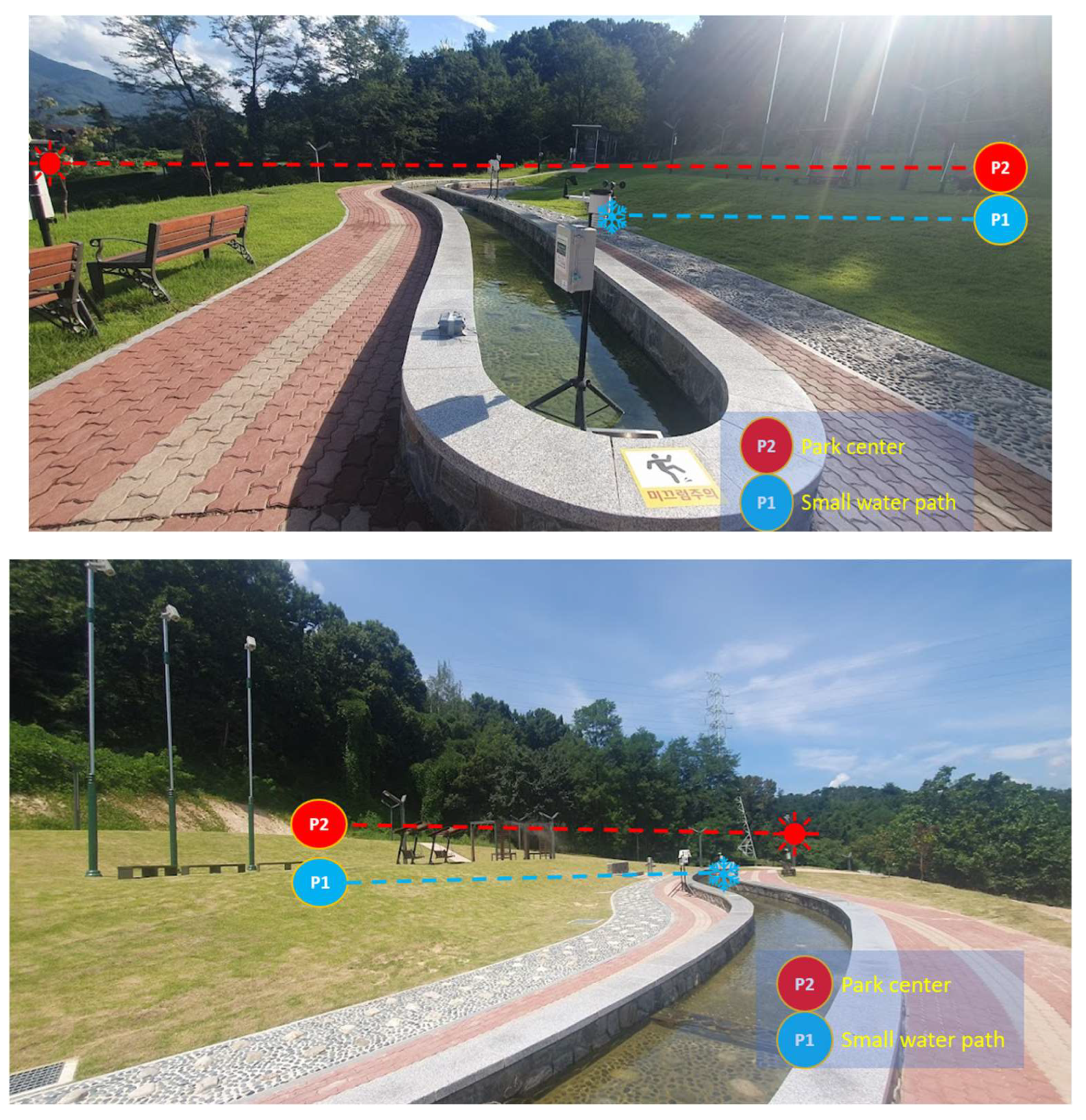

Figure 7. Field Test Site for Testing the Small water path in Sangju-si, with P1 Representing the Small water path and P2 Representing the Sunny Zone.

Figure 7. Field Test Site for Testing the Small water path in Sangju-si, with P1 Representing the Small water path and P2 Representing the Sunny Zone.

3.3. Data Analysis

The data collected from each experimental site were analyzed to evaluate the effectiveness of each cooling technology in reducing heat stress and improving thermal comfort. The following analysis methods were applied:

3.3.1. Temperature Reduction Comparison:

• Surface and Ambient Temperature: The primary method of analysis was the comparison of surface and ambient air temperatures before and after the installation of each technology. For each experimental site, temperature data were gathered using IoT-based sensors and data loggers at key intervals. Sensors recorded the rooftop surface temperatures (for cool roofs) and ambient air temperatures (for cooling fog, shading structures, and small water paths).
• Baseline vs. Post-Installation: Data were collected continuously both before and after the technology implementations. The temperature reduction effects were measured by comparing the baseline (pre-installation) temperatures with post-installation values under similar environmental conditions.
• Peak Heat Hours: Special emphasis was placed on peak heat periods (typically 12:00–16:00), where temperature reductions were most critical. For example, cooling fog and shading structures were assessed for their ability to reduce midday heat, while small water paths and cool roofs were evaluated for their overall daily temperature performance.

3.3.2. Direct and Indirect Temperature Effects:

• Direct Effects: The direct effects refer to the surface and ambient air temperature reductions caused by the technologies themselves. For example, cooling fog reduced ambient air temperatures in W1 (Cooling Fog Zone) by up to 5°C compared to W2 (Sunny Zone).
• Indirect Effects: Indirect effects were particularly relevant for cool roofs, where the impact on indoor temperatures and potential energy savings were analyzed. Buildings treated with reflective coatings not only experienced surface temperature reductions of up to 5°C but also saw indoor temperature reductions, reducing the demand for cooling.

Table 6. Field Test Sites, Sections, Sensor installment, Addresses, and Applications for Small water path and Sunny Zone in Geyang-gu

Table 6. Field Test Sites, Sections, Sensor installment, Addresses, and Applications for Small water path and Sunny Zone in Geyang-gu

Section	Sensor installment	Address	Application
P1		Water Path Rest Area in Namsan Park 3, Namsan-dong, Sangju-si, Gyeongsangbuk-do, South Korea	Small water path
P2		Water Path Rest Area in Namsan Park 3, Namsan-dong, Sangju-si, Gyeongsangbuk-do, South Korea	Sunny zone

3.3.3. Temporal Analysis:

• Daily and Hourly Trends: Temperature data were analyzed in both daily and hourly increments. For example, data collected from August 27 to September 1, 2021 in Gimhae-si showed consistent cooling effects of cool roofs during midday heat, with peak reductions between 12:00 and 15:00.
• Day-to-Night Temperature Gaps: Additionally, nighttime temperatures were analyzed to determine the lasting effects of each cooling technology. Technologies like cool roofs and shading structures maintained lower temperatures even after peak sunlight hours.

3.3.4. Statistical Analysis:

• Mean Temperature Reductions: The mean temperature reduction for each technology was calculated across the monitoring period. These reductions were averaged across multiple sites and compared to control areas without the cooling technologies. For example, the mean temperature reduction from shading structures was up to 10°C during peak hours.
• Comparison of Temperature Gaps: The temperature gaps between treated and control areas were assessed using graphical analysis (as seen in the previous figures). This was particularly relevant for small water paths and shading structures, where the difference between shaded and sunny zones varied throughout the day.

4. Theoretical Framework

4.1. Cool Roof (Reflective Paint) Results

The cool roof (reflective paint) experiment conducted in Gimhae-si demonstrated a significant reduction in surface temperatures on the rooftops and external walls where reflective coatings were applied. The following key results were observed:

4.1.1 Surface Temperature Reduction:

The application of reflective coatings to rooftops led to a surface temperature reduction of up to 3°C compared to non-applied surfaces during peak heat hours (12:00–15:00). Buildings with both cool roof and cool wall treatments exhibited the greatest surface temperature reduction, consistently staying below 40°C, while untreated surfaces exceeded 40°C.

H1 (Coolwall + Roof) also showed the lowest rooftop surface temperatures, suggesting that the reflective coating on the roof effectively reduced overall heat absorption. During peak heat hours, H1 was about 2-3°C cooler than H2 and H3.

H2 (Coolwall) recorded surface temperatures higher than H1 but lower than H3, highlighting the importance of roof treatments. This suggests that while walls play a role in temperature reduction, the roof remains a critical factor in heat absorption and overall cooling. H3 (Non-applied) had the highest surface temperatures, particularly during peak hours, where temperatures often exceeded 40°C. Without reflective coatings, the roof absorbed substantial heat, leading to higher surface temperatures and increased internal and surrounding air temperatures.

4.1.2 Air Temperature Reduction:

Reflective surfaces contributed to an average air temperature reduction of 1-2°C at 1.5 meters above ground level. The largest cooling effects were observed during the hottest parts of the day, demonstrating that reflective coatings can mitigate heat buildup in the surrounding environment.

H1 (Coolwall + Roof) consistently showed the lowest air temperature readings at 1.5 meters compared to H2 (Coolwall) and H3 (Non-applied). The temperature reduction was particularly noticeable during the hottest parts of the day, where H1 remained 1-2°C cooler than H2 and H3. This highlights the efficacy of combining both cool walls and roofs in mitigating heat buildup around buildings. H2 (Coolwall) exhibited slightly higher temperatures compared to H1, but it was generally lower than H3 (Non-applied). This suggests that applying reflective paint only to the walls provided some benefit but was less effective than when both walls and roofs were treated. H3 (Non-applied) displayed the highest air temperatures, especially during afternoon peaks. This implies that without any reflective coatings, the structure absorbed and radiated more heat, leading to increased air temperatures in its vicinity.

The temperature differences between H1, H2, and H3 were most pronounced during peak heat periods (late morning to early afternoon. The cooling effect of H1 (Coolwall + Roof) was most significant during midday when solar radiation was highest, reinforcing the advantage of combining both cool walls and roofs for better temperature mitigation. Nighttime temperatures for all three areas converged, as the impact of direct solar radiation diminished after sunset, reducing the temperature differences.

4.1.3 Key Observations:

The surface temperatures in H1 stayed lower throughout the day, demonstrating the effectiveness of reflective coatings in keeping rooftops cool. This cooling likely reduced heat transfer into the building, enhancing indoor comfort as well.

These findings are consistent with previous research, confirming that cool roofs provide both direct cooling to buildings and secondary benefits by reducing the heat absorption in urban environments. H2 (Coolwall), though effective in lowering wall temperatures, had higher rooftop surface temperatures, emphasizing the need to treat both roofs and walls in heat mitigation strategies. H3 (Non-applied) exhibited the poorest thermal comfort, with much higher surface temperatures contributing to increased air temperatures and heat buildup in the surrounding environment.

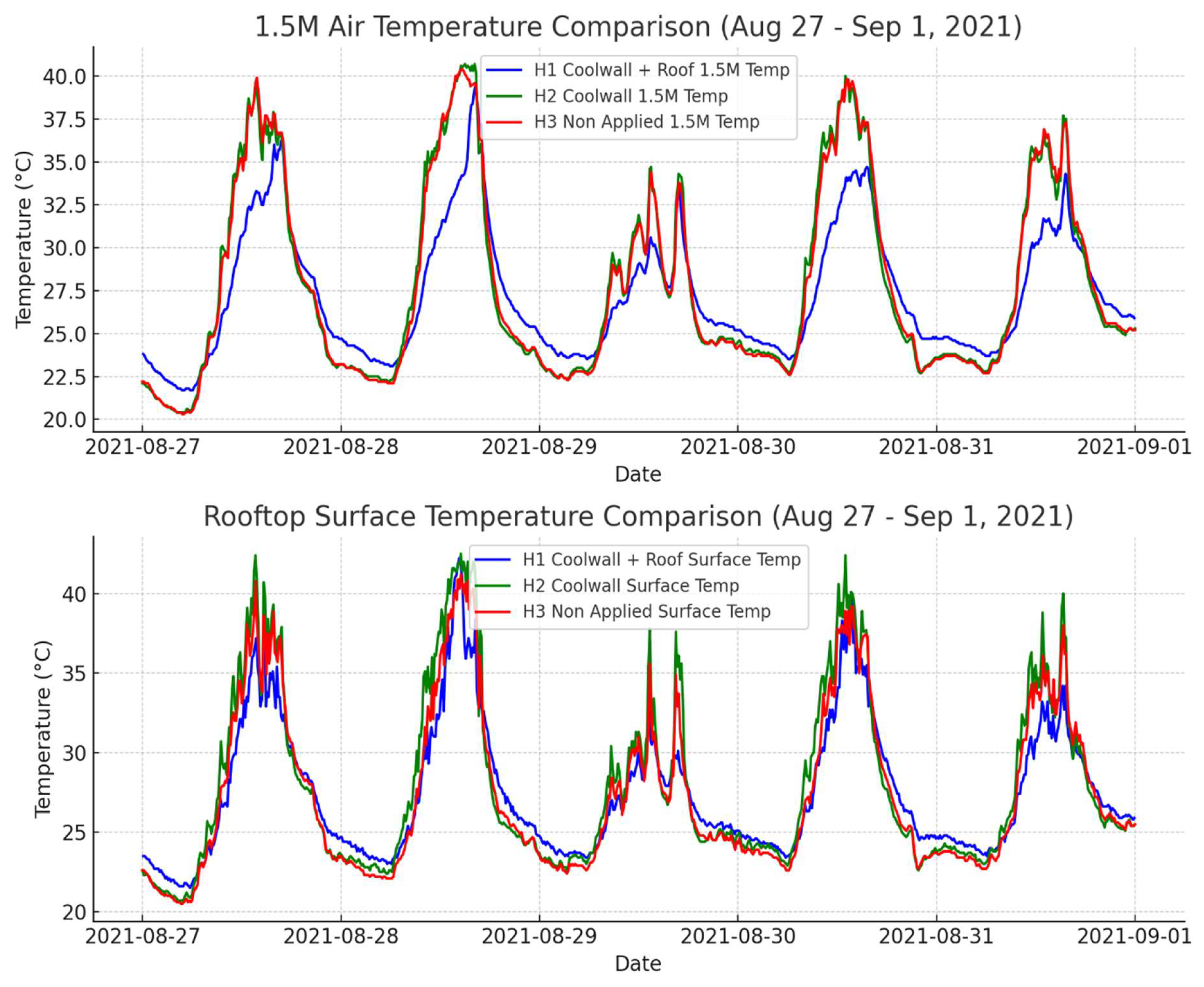

Figure 8. Comparing the 1.5M air temperatures and rooftop surface temperatures for the cool wall (top), cool wall + roof, and non-applied surfaces (bottom) during the period from August 27 to September 1, 2021. The results show significant differences in both air and surface temperatures, with the cool roof and cool wall applications reducing the surface temperature, especially during peak heat times.

Figure 8. Comparing the 1.5M air temperatures and rooftop surface temperatures for the cool wall (top), cool wall + roof, and non-applied surfaces (bottom) during the period from August 27 to September 1, 2021. The results show significant differences in both air and surface temperatures, with the cool roof and cool wall applications reducing the surface temperature, especially during peak heat times.

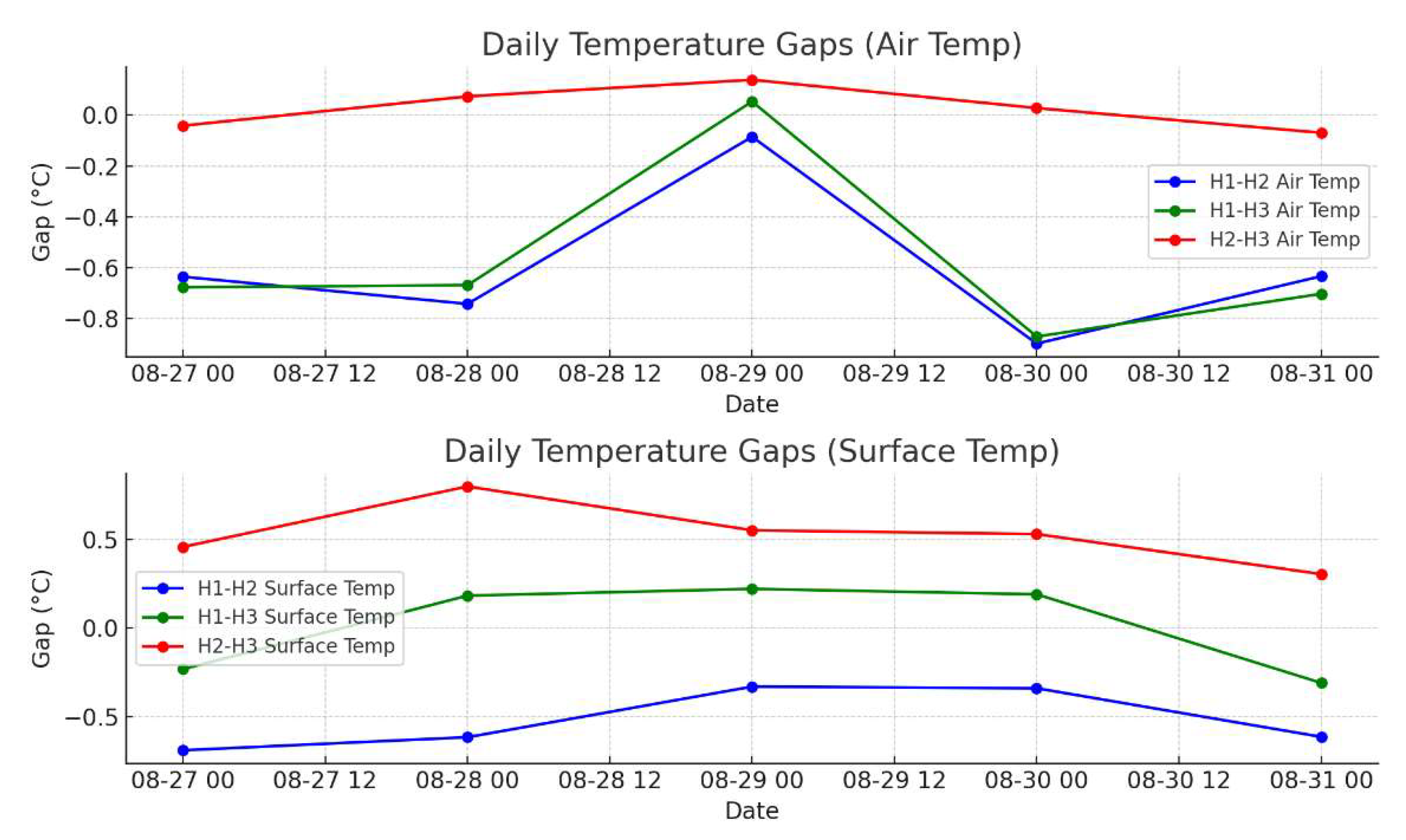

Figure 9. Daily temperature gaps between H1, H2, and H3 for both air temperature (top graph) and surface temperature (bottom graph). These graphs illustrate how the gaps fluctuate over the period from August 27 to August 31, 2021.

Figure 9. Daily temperature gaps between H1, H2, and H3 for both air temperature (top graph) and surface temperature (bottom graph). These graphs illustrate how the gaps fluctuate over the period from August 27 to August 31, 2021.

4.2. Cooling Fog Results in Yechun-gun

The cooling fog system installed in Yechun-gun provided immediate and noticeable reductions in ambient air temperature in the playground where it was deployed. The key findings of the experiment are as follows.

4.2.1 Cooling Fog System Effect on Air Temperature:

The cooling fog system deployed in Yechun-gun demonstrated a clear and immediate reduction in ambient air temperature in the playground zone where it was activated. Before activation, the temperature in the cooling fog zone (W1) remained stable at approximately 35°C, while the sunny zone (W2) showed a slightly lower temperature, averaging around 30°C. After the activation of the cooling fog system at around 14:30, the air temperature in the W1 zone dropped sharply by approximately 1.3°C within the first 30 minutes, reducing the temperature to around 28.8°C. The cooling effect continued until around 15:00, with a total temperature reduction of 3.1°C compared to the pre-activation phase.

4.2.2 Humidity Increase:

In addition to temperature reduction, the cooling fog system significantly increased the relative humidity in the cooling fog zone. Before the system's activation, the humidity in the W1 zone was stable at around 41%, similar to the humidity levels in the W2 sunny zone. Once the system was turned on, the humidity in the W1 zone rose sharply to approximately 60% during the 14:30 to 15:00 period. The maximum humidity increase observed was around 20%, while the W2 zone remained stable at around 50% humidity. This shows that the fog system not only cooled the air but also increased moisture in the environment, improving thermal comfort.

4.2.3 Cooling Efficiency Analysis:

The analysis of the temperature difference between the cooling fog zone (W1) and the sunny zone (W2) further illustrates the cooling system’s efficiency. During the activation period, the temperature difference between the two zones widened, with W1 consistently remaining cooler by approximately 3°C. After the system was turned off at 15:00, the temperature in W1 gradually increased, but the cooling effect lingered, maintaining a lower temperature compared to W2, suggesting a lasting impact even after deactivation.

The overall cooling efficiency can be summarized as:

• Pre-activation temperature difference: W1 was already cooler by approximately 1.8°C due to environmental factors.
• Post-activation cooling effect: An additional 1.3°C temperature reduction was achieved after activation, for a total cooling effect of 3.1°C.

4.2.4 Key Observations:

Temperature Reduction: The cooling fog system led to a significant temperature reduction in the W1 zone, with a total drop of up to 3.1°C during its operational window (14:30–15:00). This cooling effect was observed rapidly within minutes of activation, proving the system's immediate efficiency.

Humidity Increase: The cooling fog system increased the relative humidity in the W1 zone by approximately 20%, further enhancing the cooling sensation and improving comfort in the surrounding area.

Extended Cooling Impact: The cooling effect was sustained even after the system was turned off, as temperatures in W1 remained lower compared to W2, suggesting that the system had a residual cooling impact.

Comparison with Sunny Zone (W2): While W2 experienced a steady temperature decrease due to natural conditions, it did not benefit from the sharp reduction observed in W1, indicating that the cooling fog system was the main driver of temperature reduction in W1.

These findings confirm that the cooling fog system is an effective tool for reducing ambient air temperature and increasing humidity, especially in outdoor recreational spaces like playgrounds. This system can be particularly useful in mitigating the effects of heat during peak afternoon hours, enhancing comfort and safety for users.

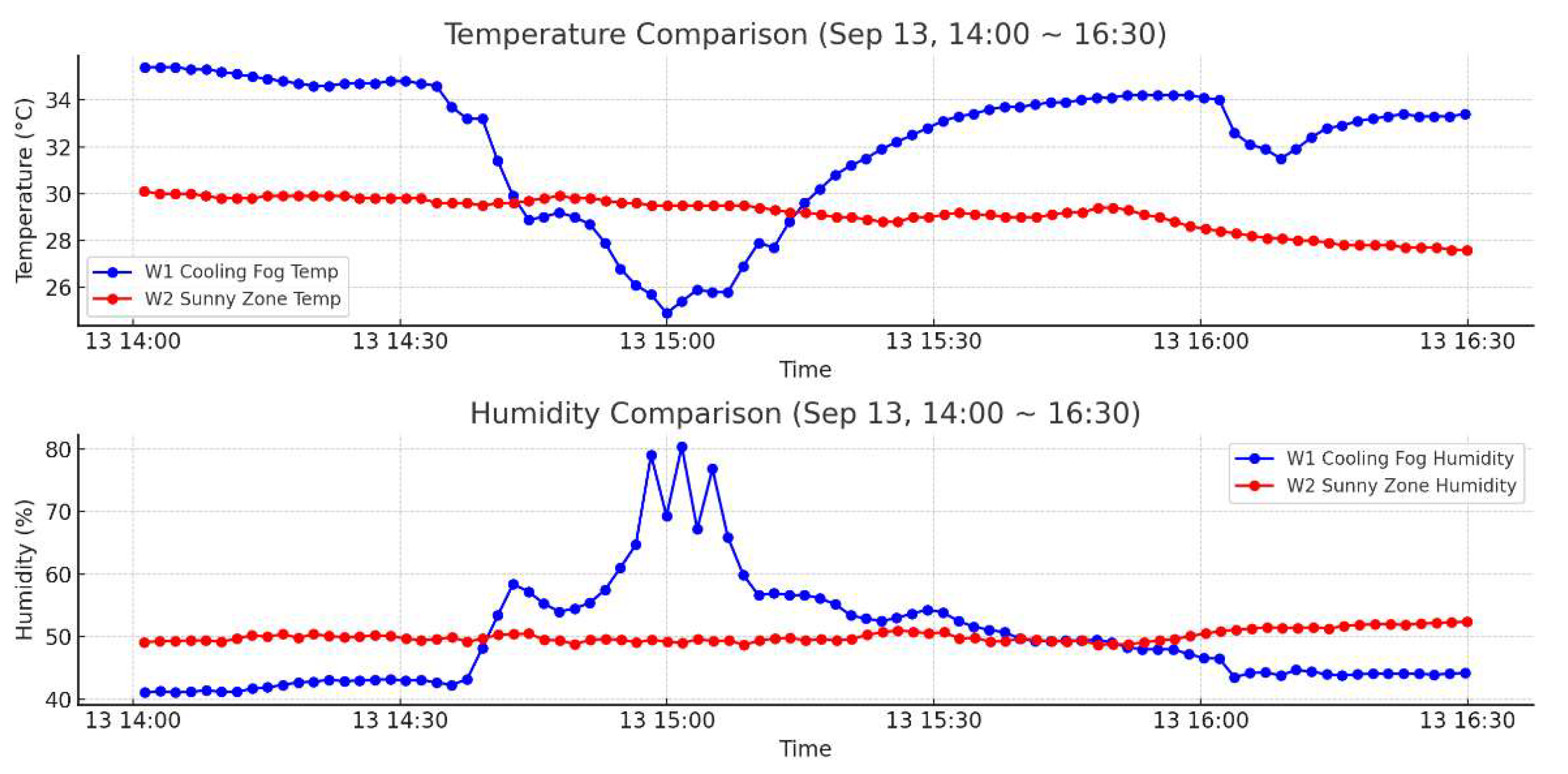

Figure 10. The temperature in the cooling fog zone (W1) dropped noticeably between 14:30 and 15:00, reflecting the cooling effect of the system, while the sunny zone temperature (W2) remained relatively stable (top side). The humidity in the cooling fog zone spiked during the same period, indicating the activation of the fog system, while humidity in the sunny zone remained constant(bottom side). These graphs demonstrate the immediate cooling and humidifying effect of the cooling fog system in the playground.

Figure 10. The temperature in the cooling fog zone (W1) dropped noticeably between 14:30 and 15:00, reflecting the cooling effect of the system, while the sunny zone temperature (W2) remained relatively stable (top side). The humidity in the cooling fog zone spiked during the same period, indicating the activation of the fog system, while humidity in the sunny zone remained constant(bottom side). These graphs demonstrate the immediate cooling and humidifying effect of the cooling fog system in the playground.

4.3. Shading Structure Results in Geyang-gu

The installation of shading structures in public spaces in Geyang-gu has shown promising results in reducing direct solar exposure and lowering air temperatures in shaded areas.

4.3.1 Shading Effect on Surface Temperature:

The installation of shading structures in the public playground of Geyang-gu had a significant effect on reducing surface temperatures in the shaded area (S1) compared to the unshaded sunny area (S2). In the early morning, surface temperatures in both zones remained relatively cool, ranging between 15°C to 20°C.

However, as sunlight exposure increased, the sunny zone (S2) experienced a sharp rise in surface temperature, peaking at approximately 55°C during midday. On the other hand, the surface temperature in the shaded zone (S1) rose more gradually, with maximum temperatures reaching around 45°C. The shading structure helped to maintain surface temperatures in S1 at a significantly lower level, especially during the hottest hours of the day. The maximum observed temperature difference between S1 and S2 was approximately 10°C.

4.3.2 Surface Temperature Reduction Efficiency:

The temperature difference between the shaded zone (S1) and the sunny zone (S2) became most pronounced during the peak sunlight hours, from approximately 12:00 PM to 3:00 PM. While the unshaded surfaces in S2 reached extreme temperatures of up to 55°C, the shaded zone (S1) remained consistently cooler by about 8°C to 10°C.

This effect demonstrates that the shading structure not only reduces direct sunlight exposure but also plays a crucial role in lowering surface temperatures, which is critical for improving the comfort and safety of users in public playgrounds and other outdoor spaces. The shading effect was most effective during midday when solar radiation was at its highest.

4.3.3 Cooling Efficiency Analysis:

The comparison of surface temperatures between the shaded zone (S1) and the sunny zone (S2) reveals the efficiency of the shading structure in mitigating heat. During peak sunlight, S2 surface temperatures spiked rapidly, while S1 surfaces increased at a much slower rate.

Throughout the day, the surface temperature difference between the two zones remained significant, particularly during the hottest parts of the day. The shaded zone (S1) consistently stayed cooler, with temperature reductions ranging from 5°C to 10°C compared to the sunny zone (S2). This difference highlights the effectiveness of the shading structure in cooling surfaces exposed to intense sunlight.

Summary of Cooling Efficiency:

• Pre-peak temperature difference: S1 was cooler by an average of 2°C to 3°C in the morning.
• Peak sunlight cooling effect: S1 surfaces were up to 10°C cooler than S2 during peak sunlight hours.
• Overall cooling efficiency: The shading structure provided a substantial cooling effect, with up to 10°C surface temperature reduction compared to unshaded surfaces.

4.3.4 Key Observations:

• Surface Temperature Reduction: The shading structure led to a notable reduction in surface temperature within the shaded zone (S1). During the hottest part of the day, the temperature in S1 was reduced by as much as 10°C compared to the sunny zone (S2), proving the structure's effectiveness in moderating surface heat.
• Sustained Cooling Impact: Even after peak sunlight hours, the cooling effect in S1 persisted. The surface temperatures in the shaded zone remained significantly lower than those in the sunny zone, indicating a lasting cooling impact provided by the shading structure.
• Comparison with Sunny Zone (S2): While the sunny zone (S2) experienced extremely high surface temperatures during midday (up to 55°C), the shaded surfaces in S1 remained much cooler. This demonstrates that shading is a critical factor in reducing surface temperatures in public spaces, making them safer and more comfortable for users.

These results confirm that shading structures can be highly effective in reducing surface temperatures in outdoor environments, particularly during the peak hours of sunlight. This has important implications for urban heat mitigation strategies, especially in spaces designed for public use, such as playgrounds and recreational areas.

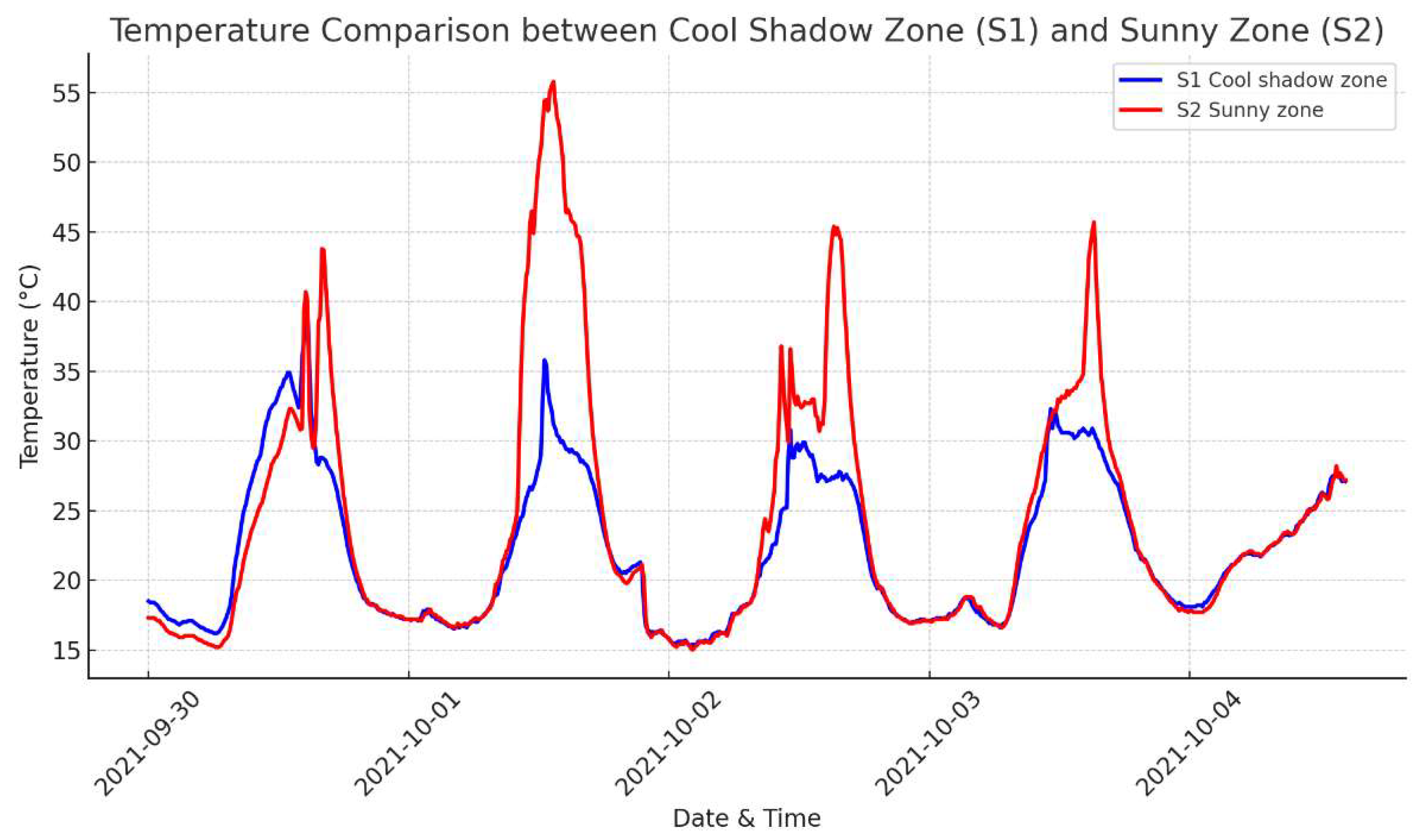

Figure 11. Surface temperature comparison between cool shadow zone(S1) and sunny zone (S2).As seen in the graph, the Sunny Zone experiences significantly higher temperature peaks compared to the Cool Shadow Zone, particularly during daytime hours. This illustrates the impact of shading structures in reducing temperature in public spaces.

Figure 11. Surface temperature comparison between cool shadow zone(S1) and sunny zone (S2).As seen in the graph, the Sunny Zone experiences significantly higher temperature peaks compared to the Cool Shadow Zone, particularly during daytime hours. This illustrates the impact of shading structures in reducing temperature in public spaces.

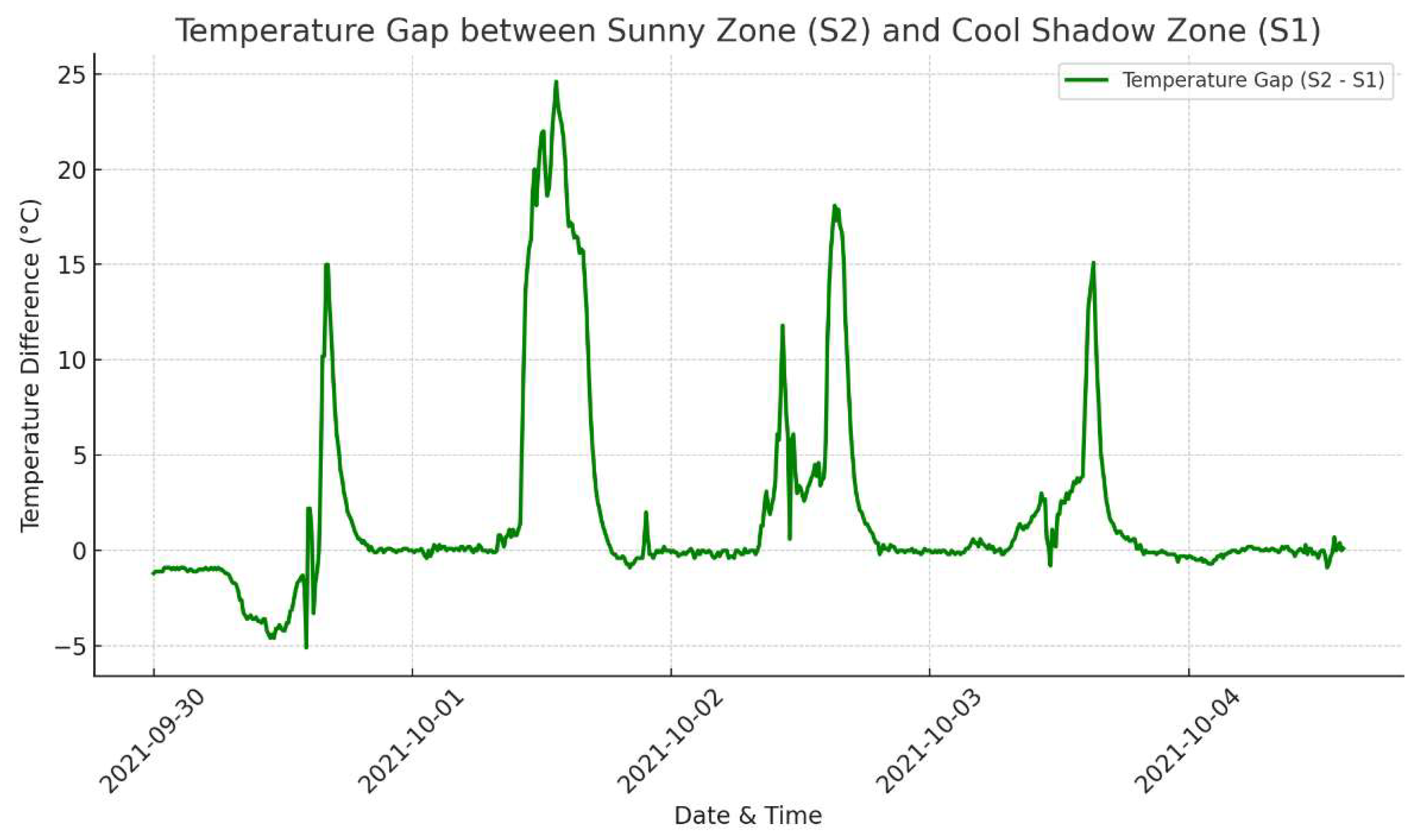

Figure 12. The temperature gap between the Sunny Zone (S2) and the Cool Shadow Zone (S1) over time. The graph illustrates that during peak sunlight hours, the temperature difference can reach up to 25°C, with the Sunny Zone (S2) being significantly hotter than the shaded area (S1). This demonstrates the substantial cooling effect of the shading structure, particularly during the hottest parts of the day.

Figure 12. The temperature gap between the Sunny Zone (S2) and the Cool Shadow Zone (S1) over time. The graph illustrates that during peak sunlight hours, the temperature difference can reach up to 25°C, with the Sunny Zone (S2) being significantly hotter than the shaded area (S1). This demonstrates the substantial cooling effect of the shading structure, particularly during the hottest parts of the day.

4.4. Small water path Results in Sangju-si

The small water path installed in Namsan Park in Sangju-si demonstrates the cooling potential of passive water features in urban parks. The waterway provided a continuous cooling effect throughout summer.

4.4.1 Small Water Path Effect on Air Temperature::

The small water path installed in Namsan Park, Sangju-si, demonstrated a continuous cooling effect on air temperature in the immediate surroundings. Before the cooling effect of the water path became noticeable, temperatures in both the water path zone (P1) and the sunny zone (P2) remained relatively close, with P1 averaging approximately 35°C and P2 at around 36°C in the early afternoon on August 6.

As the day progressed and the water path's cooling influence became more apparent, P1 began to show consistently lower temperatures compared to P2. On average, the temperature in P1 was around 0.5°C to 1°C lower than P2 during the peak daytime hours. This cooling effect was most pronounced in the late afternoon and evening, demonstrating the water path's ability to moderate air temperature, particularly during the hottest periods of the day.

4.2.2 Humidity Increase:

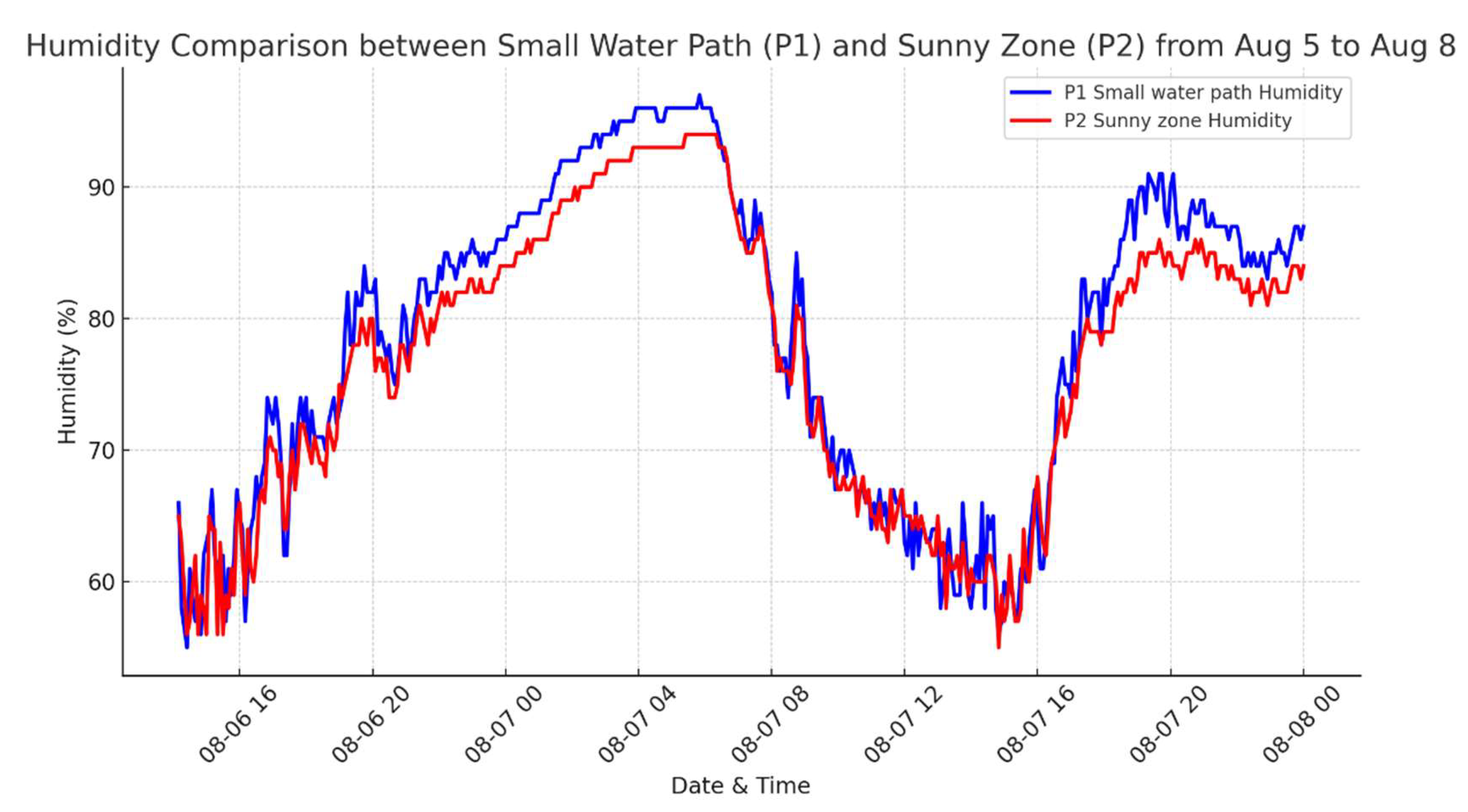

In addition to reducing air temperature, the presence of the small water path led to an increase in relative humidity in the surrounding area. The humidity in the water path zone (P1) remained consistently higher than the sunny zone (P2) throughout the observation period.

In the morning of August 6, the humidity in P1 and P2 was relatively close, with both zones exhibiting levels between 60% and 65%. However, as the day progressed, P1 saw a sharp rise in humidity, peaking at over 90% in the late afternoon, while P2 remained slightly lower, averaging around 85%. This increase in relative humidity around the water path indicates that the feature not only cools the surrounding air but also adds moisture, improving thermal comfort.

4.2.3 Cooling Efficiency Analysis:

The temperature difference between the small water path zone (P1) and the sunny zone (P2) highlights the cooling efficiency of passive water features. During the observation period, P1 consistently remained cooler than P2, with the most significant temperature gap occurring in the late afternoon, where P1 was up to 1.5°C cooler than P2.

This cooling effect was sustained through the evening, as the water path continued to moderate the air temperature. Even during peak heat, the presence of the water path prevented the air in P1 from rising as sharply as in P2, creating a more comfortable environment for park users.

Summary of Cooling Efficiency:

• Initial temperature difference: In the early afternoon, the temperature difference between P1 and P2 was minimal, with P1 being only about 0.5°C cooler.
• Peak cooling effect: The maximum cooling effect was observed in the late afternoon, where P1 was up to 1.5°C cooler than P2.
• Overall cooling impact: The small water path provided a consistent cooling effect, with an average temperature reduction of around 0.5°C to 1°C compared to the sunny zone.

4.2.4 Key Observations:

• Temperature Reduction: The small water path demonstrated a significant temperature reduction effect, with air temperatures in P1 being up to 1.5°C cooler than the sunny zone (P2) during peak sunlight hours. This cooling effect was sustained throughout the day, particularly in the late afternoon.
• Humidity Increase: The relative humidity in the water path zone (P1) was consistently higher than in the sunny zone (P2), with humidity levels in P1 reaching up to 90% during the hottest part of the day, compared to around 85% in P2. This indicates that the water path not only reduced air temperature but also increased moisture in the surrounding area, enhancing comfort.
• Extended Cooling Impact: The cooling effect of the water path was maintained even after peak sunlight hours, suggesting a lasting cooling impact. As temperatures in P2 began to decline naturally, P1 continued to remain slightly cooler, demonstrating the residual cooling benefit of the water path.
• Comparison with Sunny Zone (P2): While both zones experienced similar temperature trends throughout the day, P2 consistently showed higher temperatures, indicating that the small water path was the primary driver of the cooling effect in P1.

These findings confirm that passive water features, such as small water paths, are an effective tool for reducing air temperatures and increasing humidity in urban parks. These features are particularly useful for mitigating the effects of heat during peak afternoon hours, providing a more comfortable and enjoyable environment for park visitors.

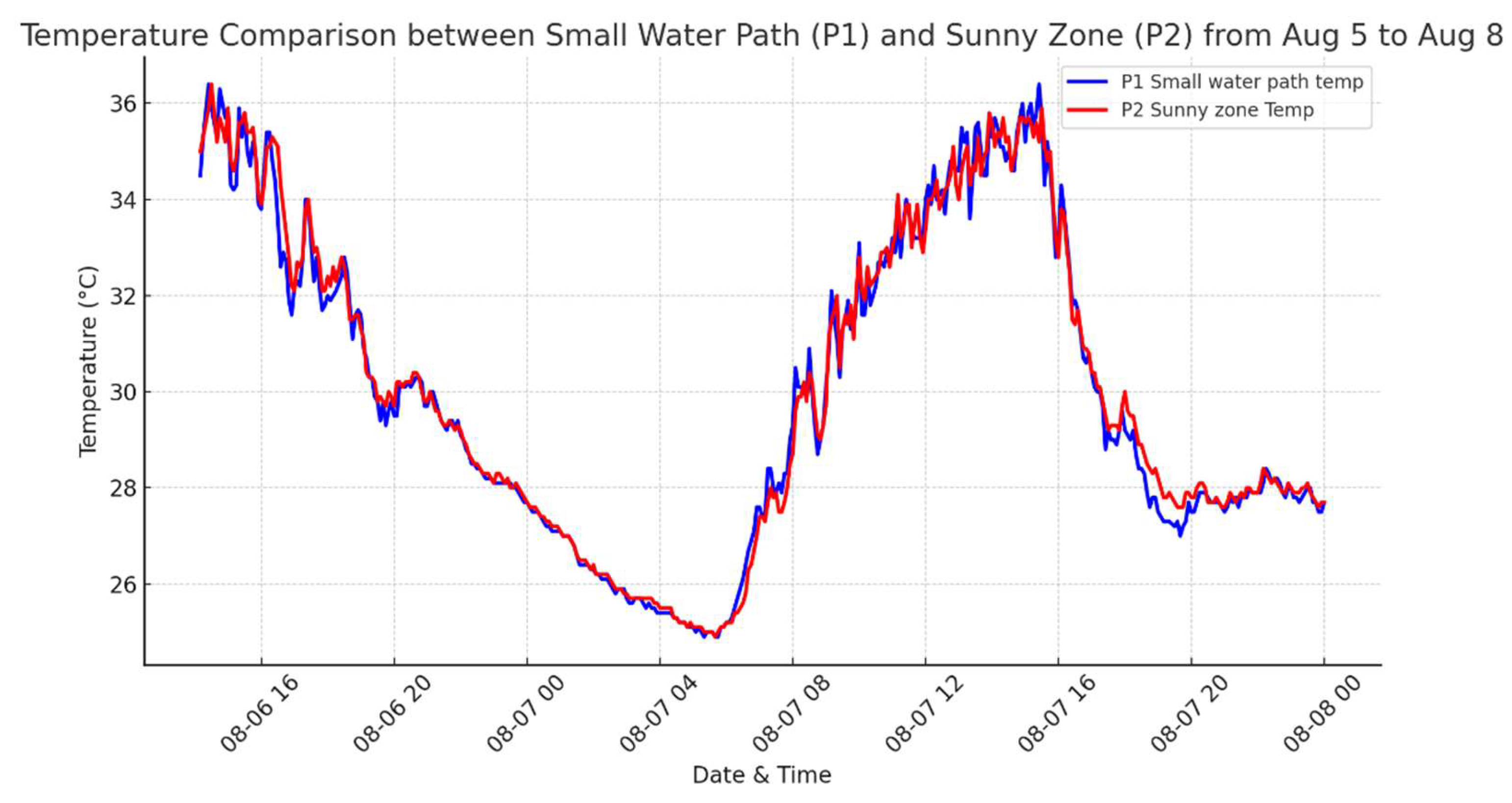

Figure 13. (a) Comparison of hourly air temperature measurements; (b) Comparison of hourly humidity measurements Here is the temperature comparison graph between the Small Water Path (P1) and the Sunny Zone (P2) from August 5 to August 8. The data indicates that the water path (P1) consistently showed lower temperatures than the sunny zone (P2), particularly during the night and early morning hours. However, during peak daylight, the temperatures of both zones remained quite close.

Figure 13. (a) Comparison of hourly air temperature measurements; (b) Comparison of hourly humidity measurements Here is the temperature comparison graph between the Small Water Path (P1) and the Sunny Zone (P2) from August 5 to August 8. The data indicates that the water path (P1) consistently showed lower temperatures than the sunny zone (P2), particularly during the night and early morning hours. However, during peak daylight, the temperatures of both zones remained quite close.

Figure 14. The temperature gap between the Sunny Zone (P2) and the Small Water Path (P1) from August 5 to August 8. The temperature difference fluctuates throughout the day, with P2 (sunny zone) generally being slightly warmer than P1 (water path), especially during the daytime. However, there are periods where P1 is briefly warmer, possibly due to local variations in air temperature.

Figure 14. The temperature gap between the Sunny Zone (P2) and the Small Water Path (P1) from August 5 to August 8. The temperature difference fluctuates throughout the day, with P2 (sunny zone) generally being slightly warmer than P1 (water path), especially during the daytime. However, there are periods where P1 is briefly warmer, possibly due to local variations in air temperature.

Figure 15. Humidity comparison between the Small Water Path (P1) and the Sunny Zone (P2) from August 5 to August 8. The small water path (P1) generally has higher humidity levels compared to the sunny zone (P2), especially during the late afternoon and evening hours. This shows the cooling water path's ability to increase moisture in the air, contributing to a more comfortable environment.

Figure 15. Humidity comparison between the Small Water Path (P1) and the Sunny Zone (P2) from August 5 to August 8. The small water path (P1) generally has higher humidity levels compared to the sunny zone (P2), especially during the late afternoon and evening hours. This shows the cooling water path's ability to increase moisture in the air, contributing to a more comfortable environment.

4.5. Comparative Analysis of Technologies

The results demonstrated that each cooling technology provided measurable benefits in reducing temperatures and improving thermal comfort, albeit in different ways. Cooling fog and shading structures provided immediate relief in high-traffic areas, whereas cool roofs offered long-term reductions in building surface and indoor temperatures. Waterway shelters, such as the small water path, offer a steady cooling effect and enhance the aesthetic and psychological experiences in urban parks.

• Temperature Reduction Comparison.

Cool Roof + Cool Wall: Combined treatments showed a 2-3°C reduction in surface temperature during peak hours, providing the greatest cooling effect on both air and surface temperatures. Shading Structures: 2.5°C reduction in air temperature, with a 50% reduction in solar radiation.

Cool Wall: A 1-2°C reduction in surface temperature, demonstrating that reflective walls are effective, but less so compared to when both roofs and walls are treated.

Cooling Fog: Showed an up to 3.1°C reduction in ambient air temperature during its operational window, making it highly effective for immediate cooling in high-traffic outdoor areas.

Shading Structures: Reduced surface temperatures by up to 10°C during peak sunlight hours, demonstrating significant cooling potential for public playgrounds and parks.

Small Water Path: Provided a 1.5°C reduction in air temperature during peak sunlight hours, with an additional benefit of increased humidity levels that enhanced thermal comfort

• Thermal Comfort and User Feedback:

All technologies contributed to significant improvements in thermal comfort. Cooling fog was particularly effective in outdoor high-traffic areas, while shading structures and small water paths were well-received in parks and public spaces. Cool roofs and walls helped to mitigate heat in and around buildings, contributing to both indoor comfort and energy savings.

These results suggest that a combination of cooling fog, shading structures, and cool roofs could be the most effective solution for mitigating heat stress in urban environments, particularly for vulnerable populations. Small water paths, while offering less dramatic temperature reductions than cooling fog, provide steady, passive cooling solutions that are aesthetically pleasing and were well-received by park visitors.

Table 7. Cooling solutions, their effectiveness in reducing temperatures, and key observations.

Table 7. Cooling solutions, their effectiveness in reducing temperatures, and key observations.

Cooling Solution	Temperature Reduction	Key Observation	Measurement Period
Cool Roof + Cool Wall	2-3°C during peak hours	Combining both cool roof and cool walls showed the best reduction in surface and air temperatures.	27 Aug. 2021 - 1 Sep. 2021
Cool Wall	1-2°C compared to non-applied surfaces	Effective for reducing wall temperatures but less effective compared to combined treatments.	27 Aug. 2021 - 1 Sep. 2021
Cooling Fog System	Up to 3.1°C during operational window	Immediate reduction of ambient air temperature after system activation.	13 Sep. 2021 (2:00 PM – 4:30 PM)
Shading Structure	Up to 10°C during peak sunlight	Consistent cooling effect, especially during the hottest part of the day.	30 Sep. 2021 - 4 Oct. 2021
Small Water Path	Up to 1.5°C during peak sunlight	Moderate temperature reduction with increased humidity levels in the surrounding area.1	5 Aug. 2023 - 8 Aug. 2023

5. Conclusion and Recommendations

References

1. LEAL FILHO, W.; Karimi, A.; Mohajerani, A.; Jeffrey-Bailey, T. Addressing the Urban Heat Island Effect: A Cross-Country Assessment of the Role of Green Infrastructure. Sustainability 2021, 13, 753. [Google Scholar] [CrossRef]
2. Karimi, A.; Mohajerani, A.; Jeffrey-Bailey, T. New Developments and Future Challenges in Reducing and Controlling Heat Island Effect in Urban Areas. Environment, Development and Sustainability 2023, 25, 10485–10531. [Google Scholar] [CrossRef]
3. Mohajerani, A.; Bakaric, J.; Jeffrey-Bailey, T. The Urban Heat Island Effect, Its Causes, and Mitigation, with Reference to the Thermal Properties of Asphalt Concrete. Journal of Environmental Management 2017, 197, 522–538. [Google Scholar] [CrossRef]
4. Almusaed, A.; Almusaed, A. The Urban Heat Island Phenomenon upon Urban Components. In Biophilic and Bioclimatic Architecture: Analytical Therapy for the Next Generation of Passive Sustainable Architecture; Springer, 2011; pp. 139–150.
5. Santamouris, M. Recent Progress on Urban Overheating and Heat Island Research: Integrated Assessment of the Energy, Environmental, Vulnerability, and Health Impact. Synergies with the Global Climate Change. Energy and Buildings 2020, 207, 109482. [Google Scholar] [CrossRef]
6. Singh, N.; Singh, S.; Mall, R.K. Urban Ecology and Human Health: Implications of Urban Heat Island, Air Pollution, and Climate Change Nexus. In Urban Ecology; Elsevier, 2020; pp. 317–334.
7. Harlan, S.L.; Ruddell, D.M. Climate Change and Health in Cities: Impacts of Heat and Air Pollution and Potential Co-Benefits from Mitigation and Adaptation. Current Opinion in Environmental Sustainability 2011, 3, 126–134. [Google Scholar] [CrossRef]
8. Heisler, G.M.; Brazel, A.J. The Urban Physical Environment: Temperature and Urban Heat Islands. Urban Ecosystem Ecology 2010, 55, 29–56. [Google Scholar]
9. Bayram, H.; et al. Impact of Global Climate Change on Pulmonary Health: Susceptible and Vulnerable Populations. Annals of the American Thoracic Society 2023, 20, 1088–1095. [Google Scholar] [CrossRef]
10. Leap, S.R.; et al. Effects of Extreme Weather on Health in Underserved Communities. Annals of Allergy, Asthma & Immunology.
11. Nasrollahi, N.; et al. Heat-Mitigation Strategies to Improve Pedestrian Thermal Comfort in Urban Environments: A Review. Sustainability 2020, 12, 10000. [Google Scholar] [CrossRef]
12. Pisello, A.L.; et al. Facing the Urban Overheating: Recent Developments, Mitigation Potential, and Sensitivity of the Main Technologies. Wiley Interdisciplinary Reviews: Energy and Environment 2018, 7, e294. [Google Scholar] [CrossRef]
13. Kwon, T.; Jo, H.; Lim, Y. Research on the Development of Simulation Equipment for Measuring the Effect of Urban Shade Structures. Journal of Environmental Technology 2022, 23, 169–176. [Google Scholar]
14. Kwon, T.; et al. Analysis of the Effectiveness of a Heat Insulation Project Supporting Vulnerable Populations Through IoT Monitoring Systems: A Case Study of Residential Areas in Jinyeong-eup, Gimhae-si. Journal of Climate Change Research 2022, 13, 383–398. [Google Scholar] [CrossRef]
15. Keim, M.E. Preventing Disasters: Public Health Vulnerability Reduction as a Sustainable Adaptation to Climate Change. Disaster Medicine and Public Health Preparedness 2011, 5, 140–148. [Google Scholar] [CrossRef] [PubMed]
16. Santamouris, M. Cooling the Cities: A Review of Reflective and Green Roof Mitigation Technologies to Fight Heat Island and Improve Comfort in Urban Environments. Solar Energy 2014, 103, 682–703. [Google Scholar] [CrossRef]
17. Lee, Y.Y.; et al. Overview of Urban Heat Island (UHI) Phenomenon Towards Human Thermal Comfort. Environmental Engineering & Management Journal 2017, 16. [Google Scholar]
18. Cotrim Pezzuto, C.; Alchapar, N.L.; Correa Cantaloube, E.N. Urban Cooling Technologies Potential in High and Low Building Densities. Sustainability 2022, 14, 2301. [Google Scholar]
19. Monge-Barrio, A.; Gutiérrez, A. S.-O. Passive Energy Strategies for Mediterranean Residential Buildings: Facing the Challenges of Climate Change and Vulnerable Populations; Springer: Cham, Switzerland, 2018. [Google Scholar]
20. Bom, G. J. (Ed.) . Evaporative Air-Conditioning: Applications for Environmentally Friendly Cooling; World Bank Publications: Washington, DC, 1999. [Google Scholar]
21. Saleh, A.; Al-Nimr, M.A. The Effectiveness of Multi-Stage Dehumidification–Humidification for Improving the Cooling Ability of Evaporative Air Conditioning. Proceedings of the Institution of Mechanical Engineers, Part A: Journal of Power and Energy 2009, 223, 11–20. [Google Scholar] [CrossRef]
22. Rawat, M.; Singh, R.N. A Study on the Comparative Review of Cool Roof Thermal Performance in Various Regions. Energy and Built Environment 2022, 3, 327–347. [Google Scholar] [CrossRef]
23. Zinzi, M.; Fasano, G. Properties and Performance of Advanced Reflective Paints to Reduce the Cooling Loads in Buildings and Mitigate the Heat Island Effect in Urban Areas. International Journal of Sustainable Energy 2009, 28, 123–129. [Google Scholar] [CrossRef]
24. Minangi, F.S.; Alibaba, H.Z. Effect of Shading on Thermal Performance of Dormitory Building in Hot Climate. International Journal of Interdisciplinary Research and Innovation 2018, 6, 610–621. [Google Scholar]
25. Shrestha, S. Fixed External Shading and Daylight Quality: Four Case Studies. MS Thesis, Kansas State University, 2016.
26. Santamouris, M.; Synnefa, A.; Karlessi, T. Using Advanced Cool Materials in the Urban Built Environment to Mitigate Heat Islands and Improve Thermal Comfort Conditions. Solar Energy 2011, 85, 3085–3102. [Google Scholar] [CrossRef]
27. Akbari, H.; Pomerantz, M.; Taha, H. Cool surfaces and shade trees to reduce energy use and improve air quality in urban areas. Solar Energy 2001, 70, 295–310. [Google Scholar] [CrossRef]
28. Mayer, H.; Ali-Toudert, F. Effects of street design on outdoor thermal comfort. Landscape, Environment and Society 2006, 45.
29. Levinson, R.; Akbari, H. Potential Benefits of Cool Roofs on Commercial Buildings: Conserving Energy, Saving Money, and Reducing Emissions of Greenhouse Gases and Air Pollutants. Energy Efficiency 2010, 3, 53–61. [Google Scholar] [CrossRef]
30. Khalili, S.; Fayaz, R.; Zolfaghari, S.A. Analyzing Outdoor Thermal Comfort Conditions in a University Campus in Hot-Arid Climate: A Case Study in Birjand, Iran. Urban Climate 2022, 43, 101128. [Google Scholar] [CrossRef]
31. Lin, J.; Brown, R.D. Integrating Microclimate into Landscape Architecture for Outdoor Thermal Comfort: A Systematic Review. Land 2021, 10, 196. [Google Scholar] [CrossRef]
32. Bowler, D.E.; Buyung-Ali, L.; Knight, T.M.; Pullin, A.S. Urban Greening to Cool Towns and Cities: A Systematic Review of the Empirical Evidence. Landscape and Urban Planning 2010, 97, 147–155. [Google Scholar] [CrossRef]
33. Gunawardena, K.R.; Wells, M.J.; Kershaw, T. Utilising Green and Bluespace to Mitigate Urban Heat Island Intensity. Science of the Total Environment 2017, 584, 1040–1055. [Google Scholar] [CrossRef]
34. Kim, D.; Kang, J.E. Integrating Climate Change Adaptation into Community Planning Using a Participatory Process: The Case of Saebat Maeul Community in Busan, Korea. Environment and Planning B: Urban Analytics and City Science 2018, 45, 669–690. [Google Scholar] [CrossRef]
35. Lee, J.S.; Kim, J.W. Assessing Strategies for Urban Climate Change Adaptation: The Case of Six Metropolitan Cities in South Korea. Sustainability 2018, 10, 2065. [Google Scholar] [CrossRef]
36. Kim, J.; Jung, T.Y. Assessing Health Sector Climate Vulnerability in 226 Local Entities of South Korea Based on Principal Component Analysis. Urban Climate 2023, 49, 101521. [Google Scholar] [CrossRef]
37. Masson-Delmotte, V.P.; et al. Summary for Policymakers. In Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC, Geneva, Switzerland, 2021.
38. Hong, J.W.; et al. Temporal Dynamics of Urban Heat Island Correlated with the Socio-Economic Development Over the Past Half-Century in Seoul, Korea. Environmental Pollution 2019, 254, 112934. [Google Scholar] [CrossRef]
39. Choi, Y.; Lee, Y.H. Urban Effect on Sea-Breeze-Initiated Rainfall: A Case Study for Seoul Metropolitan Area. Atmosphere 2021, 12, 1483. [Google Scholar] [CrossRef]
40. Lee, H.; et al. Climate Change 2023: Synthesis Report, Summary for Policymakers. In Contribution of Working Groups I, II and III to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC, Geneva, Switzerland, 2023.
41. Lee, S.; Paavola, J.; Dessai, S. Deeper Understanding of the Barriers to National Climate Adaptation Policy: The Case of South Korea. Mitigation and Adaptation Strategies for Global Change 2023, 28, 4. [Google Scholar] [CrossRef]
42. Jung, J.G. An Analysis of Regional Climate Change Vulnerability in Korean Agriculture. MS Thesis, Seoul National University, 2019.
