Effects of Different Carbon Sources on Biomethane Production with Clostridium Cellulovorans and Methanogens

1. Introduction

Anaerobic digestion (AD) consists of a series of biochemical processes (i.e., hydrolysis, fermentation (acidogenesis), acetogenesis and methanogenesis) performed by various interacting microorganisms, including bacteria (i.e., acidogens, acetogens) and archaea (methanogens). It is also obvious that the cumulative CH₄ production from the three different substrates varied significantly and was not in agreement with the expected according to the theoretical value calculated (Table 1) (formate 82.35 N mLCH₄/gVS, acetate 273.17 N mLCH₄/gVS, H₂/CO₂ 414.81 N mLCH₄/gVS) [1]. Since methanogenesis is the final step in anaerobic carbon transformation and is of critical concern in thawing permafrost peatland systems where CH₄ release is increasing rapidly, prediction of the magnitude of carbon loss as CO₂ or CH₄ is hampered by our limited knowledge of microbial metabolism of organic matter in these environments [2]. Genome-centric metagenomic analysis of microbial communities provides the necessary information to examine how specific lineages transform organic matter during permafrost thaw [3]. The biomethanation process in nature relies on the microbial interactions between three main metabolic groups of anaerobes such as fermentative, acetogenic, and methanogenic microorganisms [4,5,6]. Whereas the first two groups decompose complex organic matters to acetate, H₂ and CO₂, which are the key precursors for methanogenesis, methanogens further convert these metabolites to CH₄ by two major routes, i.e., acetoclastic pathway and CO₂ reduction pathway [7]. On the other hand, although the growth behavior of a donor bacterium, Sulfurospirillum multivorans in the modified Methanococcus voltae (acceptor) medium with pyruvate alone as substrate was similar to that in the medium originally used for cultivation of S. multivorans, the morphology of S. multivorans cells was unaltered in the M. voltae medium and independent from the type of cultivation—fermentatively or respiratory [8]. In this case, the new medium with lactate as the sole growth substrate instead of formate and acetate could not promote growth for pure S. multivorans cultures. In the corresponding coculture, 15mM lactate was consumed in approximately 2 weeks while methane was produced, indicating lactate fermentation by S. multivorans and H₂ transfer to M. voltae as syntrophic partner. Therefore, the coculture system seems to include system unique advantages, composition, products, and interaction mechanisms.

Elaboration of the underlying mechanism in microbial communities such as the exchange of intermediate metabolites, cell-to-cell electrical connections, communications, etc. would guide the design of artificial microbial consortia and further improve the robustness and stability of the cocultivation systems [9,10,11,12]. Therefore, these artificial microbial consortia interact mutually through the interaction of synergism, commensalism, competition, mutualism, and so on [12]. Diverse microbial communities within the same or different species have been set up to realize more complicated tasks [8,13,14]. In particular, the greatest advantage of coculture systems is that the combination of the metabolic capacity of two or more microorganisms allows for the utilization of more complex substrates and the production of specific products [14]. In addition to treatment of waste-water, biodegradation of textile azo dye and dispose of contaminated soil, recently, cocultivation systems were also applied to produce biofuels, bulk chemicals, and natural products [15,16,17,18,19,20,21,22,23,24,25,26].

Cellulose is most abundant on the Earth and not easily degraded and utilized. In addition to cellulosic sources, various other carbohydrates, carbon monoxide and syngas can also be processed using these systems [27]. The cellulolytic system of Clostridium cellulovorans mainly consists of a cellulosome which synergistically collaborates with non-complexed enzymes [28,29]. By the cocultivation of C. cellulovorans and C. beijerinckii, IBE fermentation was performed using mandarin orange wastes [30]. Moreover, methane was produced from sugar beet pulp [31] and mandarin orange peel [32] under cocultivation with C. cellulovorans and methanogens. Furthermore, two coculture models combining C. cellulovorans with Methanosarcina barkeri Fusaro or M. mazei Gö1 were established for the direct conversion of cellulose to CH₄ [33]. Coculturing C. cellulovorans with M. barkeri or M. mazei not only enabled direct conversion of cellulose to CH₄, but also stabilized pH for C. cellulovorans, resulting in a metabolic shift and enhanced cellulose degradation. The other approach was by implementing nanotechnology in combination with C. cellulovorans through consolidated bioprocessing (CBP) method to produce hydrogen from raw corn cob [34].

In this study, we observed the cocultivation of C. cellulovorans and M. mazei or microbial flora of methane production (MFMP) for the different carbon sources between sugars such as glucose and cellobiose that are the products from cellulose degraded by C. cellulovorans and acetate metabolized from glucose through TCA cycle. Furthermore, pig manure (PM) was used for the C. cellulovorans cultivation and was analyzed with organic acids. In addition, we investigated the cultivation manner of MFMP in comparison with acetate and methanol as the sole carbon source. Finally, 16S rRNA analysis in MFMP was performed by next generation sequencing (NGS) after cultivations with acetate or methanol as a carbon source.

2. Materials and Methods

2.1. Microorganism and Culture Condition

Clostridium cellulovorans 743B (ATCC35296) was grown anaerobically as described previously [28], with pig manure (PM) (Mie University, Tsu, Japan) as a carbon source. M. mazei (DSM# 3647) was purchased from the German Collections of Microorganisms and Cell Cultures (DSMZ, Germany) and was cultivated with the JCM230 medium [35]. 0.5% (w/v) Glucose, 0.5% acetic acid (FUJIFILM Wako Chemicals, Japan), and 0.5% (w/v) cellobiose (Sigma, MO, USA) were used as the sole carbon source in 10 ml or 50 ml of C. cellulovorans media and was anaerobically cultivated. The microbial flora of methane production (MFMP) was obtained from methane fermentation digested liquid on January, 2017 at Gifu in Japan [32]. C. cellulovorans (C.c) was precultured with 0.5% cellobiose for 12 h at 37 °C and M. mazei (M.m) and MFMP were done with 0.5% glucose for 12 h at 37 °C, respectively. Co-cultivation was performed as approximately 1000 RLU of C.c cells and approximately 20000 RLU of MFMP cells (C.c : MFMP=1:20) and approximately 1000 RLU of C.c cells and approximately 3000 RLU of M.m cells (C.c:M.m=1:3), respectively.

2.2. 16S rRNA Sequencing

Samples were crashed by Shake Master Neo (bms, Tokyo, Japan) and DNA was extracted by Fast DNA spin kit (MP Bio, CA, USA). iSeq 100 (Illumina, CA, USA) was used for sequencing under the condition of 2 × 150 bp. The 16S Metagenomics App performs taxonomic classification of 16S rRNA targeted amplicon reads using a version of the GreenGenes taxonomic database curated by Illumina. The primer sequences used in the protocol are: PCR1_Forward (50 bp): 5’–TCGTCGGCAGCGTCAGATGTGTATAAGAGACAGCCTACGGGNGGCWGCAG–3’ and PCR1_Reverse (55 bp): 5’–GTCTCGTGG GCTCGGAGATGTGTATAAGAGACAGGACTACHVGGGTATCTAATCC–3’, respectively The 16S rRNA sequences of MFMP previously reported [31] has been deposited in the DDBJ database (accession no. DRR160954).

2.3. Gas and Organic Acid Concentrations

The total gas amount and the concentration of organic acids were measured as previously described [31]. The produced gas after the cultivation was recovered by downward displacement of water by a syringe (Terumo, Tokyo, Japan) and measured by gas chromatography (Shimadzu, Kyoto, Japan). The concentration of organic acids was measured by high-performance liquid chromatography (Shimadzu, Kyoto, Japan) with UV detector.

3. Results

3.1. Cultivation of C. cellulovorans with Pig Manure

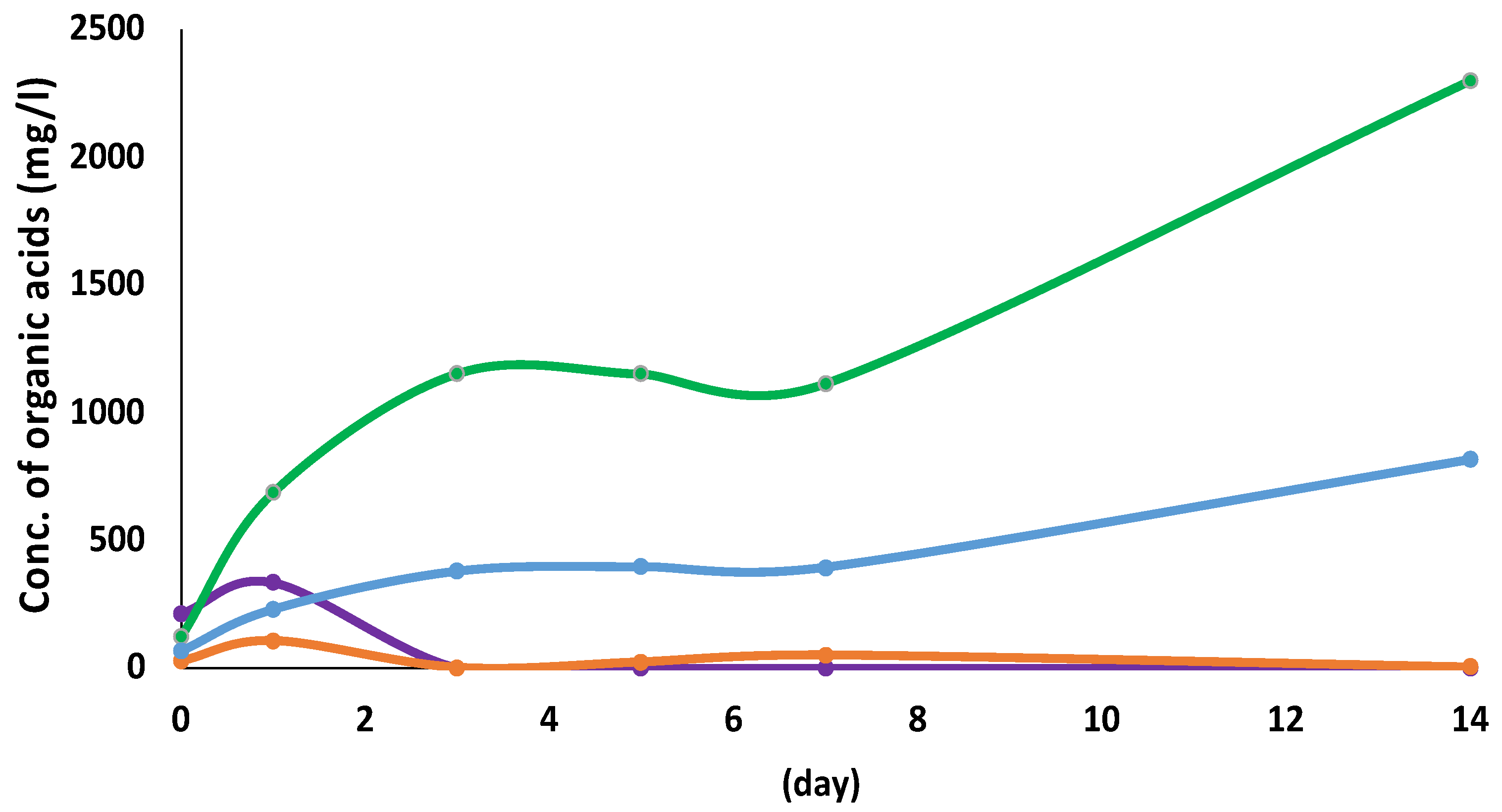

In order to promote the utilization of pig manure (PM) as an unused biomass, the cultivation of C. cellulovorans was carried out. PM was pretreated with 0.45 mm filter to remove the inhibitor for bacterial cell growth and 0.5% (w/v) pretreated PM was used as the sole carbon source in the C. cellulovorans medium. C. cellulovorans was inoculated into the PM medium and then organic acids were measured by HPLC. The result suggested C. cellulovorans was able to grow in the 0.5% PM medium and acetate and butyrate were increased, while formate and lactate were decreased after once increased at 1 day cultivation (Figure 1). Total concentrations of acetate and butyrate at 14 days was approximately 2300 mg/L and 820 mg/L, respectively, resulting that PM would be an excellent biomass for methanogenesis.

3.2. Co-Cultivation of C. cellulovorans with Methanogens or M. mazei

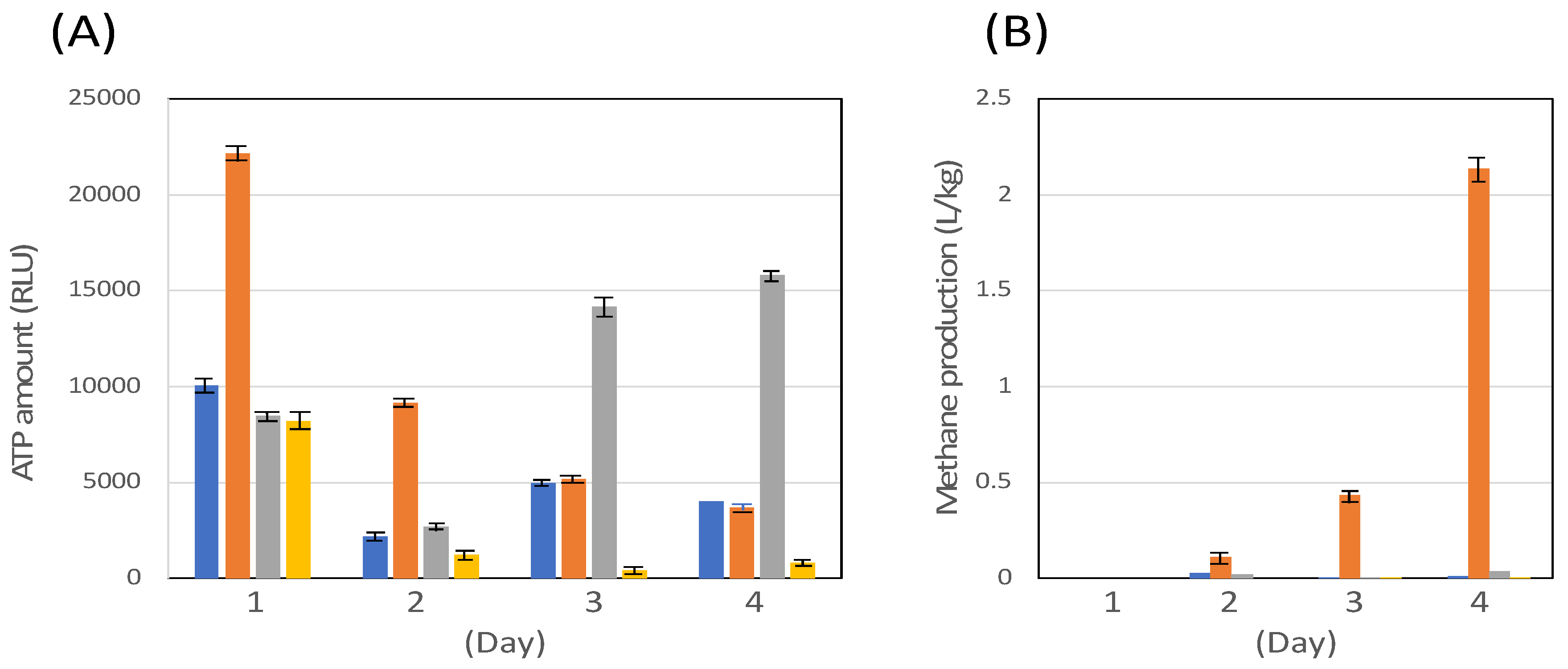

CH₄ production by coculturing C. cellulovorans–methanogens (MFMP) was examined with 0.5% (w/v) glucose, 0.5% (w/v) cellobiose, and 0.5% (v/v) acetate, respectively, while cocultivation of C. cellulovrorans–M. mazei was done with 0.5% cellobiose as the sole substrate. As shown in Figure 2A, the cell growth in each coculture was observed and different patterns. On the other hand, the cocultivation of C. cellulovorans-MFMP showed CH₄ production only with 0.5% acetate, whereas the cocultivation of C. cellulovorans-M. mazei with the 0.5% cellobiose medium led to no methanogenesis during the cultivation period, resulting that M. mazei could never use cellobiose for its growth (Figure 2B). These results suggested methanogenesis promotes not sugars such as glucose or cellobiose but acetate as the carbon source.

3.3. Effect of Carbon Sources with Methanogens

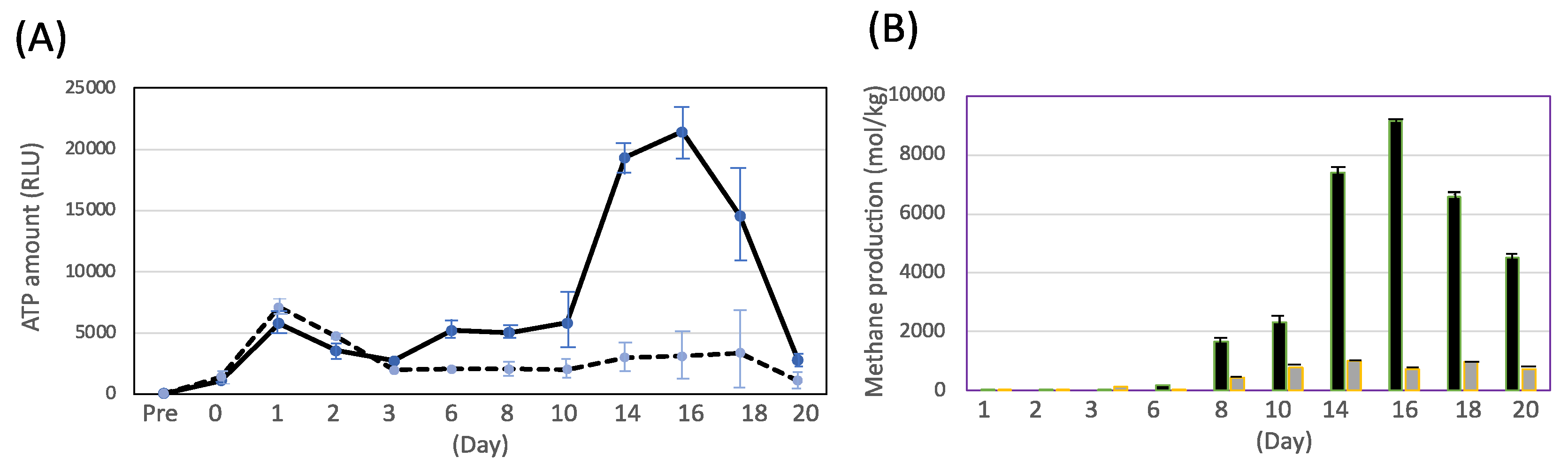

In order to produce CH₄ efficiently, MFMP was examined with the culture media of 1.0% (v/v) acetate and 1.0% (v/v) methanol, respectively (Figure 3). The cell growth in the medium of 1.0% acetic acid was a peak at 1 day, while that in the medium of 1.0% methanol was a peak at 16 days (Figure 3A). On the other hand, CH₄ production on the methanol medium was increased from 8 days, and then the maximum production of methane was a peak at 16 days (Figure 3B). In case of the acetic acid medium, CH₄ production was lower than that of the methane medium, resulting in the difference of metabolic pathway of methanogenesis in MFMP. These results indicated methanogenesis easily occurs for not acetate but methanol and the production of methane by 1.0% methanol was 8 times higher than that by 1.0% acetate.

3.4. Identification of Methanogens for Different Carbon Sources

MFMP was precultivated with 0.5% glucose medium for 12 h at 37°C and then 1,000 RLU of MFMP cells was inoculated into the C. cellulovorans medium containing 1% acetate or 1% methanol at 37°C for 72 h. After DNA extraction from the growth cells of each medium, 16S rRNA analyses were carried out by next generation sequencer. As shown in Table 2, Methanofollis was a majority of archaea and was 0.211% in 1% acetate medium for 72 h cultivation. On the other hand, Methanofollis in 1% methanol medium was found, i.e., 0.007% for 24 h cultivation and 0.490% for 72 h cultivation, respectively. On the other hand, Methanosarcina barkeri was a typical methanogen and was 0.011% for 24 h cultivation and 0.015% for 72 h cultivation, respectively, in 1% acetate medium. Interestingly, for 72 h cultivation 0.004% of M. mazei was found in 1% methanol medium, while 0.571% of M. barkeri was detected in the same medium. These results indicated the growth of methanogens was dependent on the carbon sources and their growth trend of individual methanogens seemed remarkably different under the sole carbon sources.

4. Discussion

In Japan, around 25.31 million tons of food waste was generated in 2018 from food manufacturing, retail, and consumer households [36]. Appropriate food waste management practices should be implemented to minimize the environmental impacts and maximize social and economic benefits. Since recycling food waste as compost and animal feed is preferred in Japan, composting of food waste still presents high-quality demand by farmers, relatively low price, and a shortage of cropland for application [37,38,39]. Therefore, since the most successful application so far at the commercial scale has been anaerobic digestion (AD), which has been widely adopted for waste treatment, pig manure (PM) is a plentiful source of organic compounds that can be used as feedstock in AD. Namely, recycling food waste into fermented liquid feed (FLF) for pigs that contains several nutrients required for bacterial growth was considered a possible alternative for many years. Also, PM has a high buffering capacity, which possibly protects AD against failures due to the accumulation of volatile fatty acids (VFAs) [40,41,42]. It was reported that the effect of varying PM with food waste mixing ratio was evaluated on methane yield, suggesting that the feedstock composition of 60:40 (volatile solid basis) enhanced methane yield significantly [43]. On the other hand, the other group reported that using vegetable processing wastes as co-substrate with a feedstock ratio of 50:50 (dry weight basis) could improve methane yield up to 3-fold [44]. Thus, since several potential co-substrates have been examined to assess the effect of varying feedstock composition on increasing methane yield and improving the AD process performance, the VFAs of the C. cellulovorans medium containing PM were measured in this study. As a result, acetic acid (approx. 2300 mg/mL) and butyric acid (approx. 820 mg/mL) were accumulated for 14 days, respectively (Figure 1). As another possibility to efficient methane production, since the high ammonia concentration might inhibit bacterial activity in AD [45,46,47,48,49], PM was pretreated with 0.45 mm filtration before inoculation of C. cellulovorans in this study. Therefore, by adjusting the carbon-to-nitrogen (C/N) ratio, co-digestion of PM with organic waste containing high carbon dilute seemed to improve the inhibitory effect of ammonia and to enhance the macro and micronutrient balance in the feedstocks [50,51]. Besides, cow manure (CM) is rich in nutrients and can provide strong buffer capacity, and thus, CM seems more robust than other manures in AD [52]. Therefore, the alleviation of ammonia inhibition when CM is used in AD seems not that urgent and should not be the priority of co-digestion. Additionally, CM is categorized as lignocellulosic waste due to its high amount of lignocellulose (50% in dry matter), which is relatively low in other types of manure [53]. Hence, to make full use of CM to produce more methane via co-digestion, attention should be paid to how to improve the degradation of recalcitrant lignocellulose in CM. In addition, the current study determined biogas production in single-stage and two-stage AD using sheep manure (SP) as substrate and yak rumen fluid as the inoculum. Yak rumen fluid is rich in hydrolytic bacteria [54] and, consequently, its inclusion should improve the degradation of lignocellosic biomass, leading to high biogas production.

Pathways related to methanogenesis and relevant energy conservation systems were reconstructed in all archaeal the metagenome-assembled genomes (MAGs) [55]. The holistic microbial community activity could be evaluated by the average RPKM of genes in each KEGG module [56]. Thus, in order to maintain the methanogenic activity of the microbial community, a syntrophic behavior is needed to synthesize numerous metabolites. An overall shift of the microbial activity was observed in the majority of the KEGG modules after H₂ addition. Moreover, H₂ also enhanced the activity of the glyoxylate cycle and the biosynthesis of lipids and specific amino acids. Besides H₂, also formate, similarly formed during fermentative metabolism, is an important electron carrier in e.g. syntrophic fatty acid-degrading methanogenic consortia [57]. In fact, formate was low concentration and immediately consumed in the PM medium (Figure 1). Therefore, other anaerobes may use both H₂ and formate as an electron donor for sulfate respiration or methanogenesis.

Clostridium coculture systems are typically used to produce biofuels such as H₂ and CH₄, solvents, and organic acids [58]. Because cellulosic materials are commonly found in nature [18], the specific metabolic capacities of cellulolytic strains and producers in coculture systems have attracted significant attention and offered many long-term prospects for development. Furthermore, since the combination of genome-centric metagenomics and metatranscriptomics successfully revealed individual functional roles of microbial members in methanogenic microcosms, these results assigned a multi-trophic role to Methanosarcina ssp., suggesting its ability to perform simultaneous methanogenesis from acetate, CO₂ and methanol/methylamine [55]. MFMP used in this study originally consisted of C. butyricum (0.005%) identified as the same genus of C. celulovorans and M. mazei (1.34%) found among methanogens [32]. Furthermore, other methanogens such as Methanosaetaceae, Methanosaeta, and Methanospirillaceae were also identified in MFMP. The genus Methanosaeta, which utilizes only acetate, was a large portion of ratio next to Methanosarcina. On the other hand, 1% acetate or 1% methanol was used as the sole carbon source for MFMP cultivation in this study. As a result, Methanofollis (0.211%) was dominant in the 1% acetate medium for 72 h cultivation, whereas Methanosarcina siciliae (1.178%), M. barkeri (0.571%), and Methanofollis (0.490%) were major species in the 1% methanol medium for 72 h cultivation (Table 2). It is thought that all methanogens are physiologically specialized and able to scavenge the electrons from H₂, formate, acetate, and methanol, having CH₄ as the final product [49]. The Clostridium coculture system can also produce CH₄ in addition to producing H₂ and solvents, in particular the coculture of cellulolytic Clostridia and methanogens including M. barkeri Fusaro, M. mazei, and Methanothermobacter thermautotrophicus, the methanogens utilized H₂ and CO₂, acetate, and even formate that was generated by the cellulolytic Clostridia from cellulose to produce CH₄ [33,59]. In this study, CH₄ production by cellobiose was not found in the cocultivation of C. cellulovorans-M. mazei (C.c : M.m = 1:3), while only acetate led to methanogenesis in the cocultivation of C. cellulovorans-MFMP (Figure 2). In addition, since M. barkeri was more dominant than M. mazei in MFMP cultivation according to the 16S rRNA analysis (Table 2), it seemed that Methanosarcina spp. may play a key methanogenesis in MFMP. So far, it has been reported that CH₄ production was investigated with sugar beet pulp [16] and mandarin orange peel [17] in the cocultivation of C. cellulovorans-MFMP (C.c : MFMP= 1:20). Therefore, carbon sources such as acetic acid and methanol were compared by the production of CH₄ in this study. As expected, CH₄ production from methanol was approximately eight times higher than that from acetic acid, with related to the cell growth of MFMP (Figure 3). Thus, methanogens seemed to be altered in their flora dependent on the sole carbon source.

5. Conclusions

In this study, C. cellulovorans was cultivated with PM and cocultivation of C. cellulovoroans-M. mazei or C. cellulovorans-MFMP was performed with different carbon sources. Since the cultivation of C. cellulovorans with PM had much acetic acid, it was thought to be one of excellent biomass for methane production. On the other hand, methanol was a best carbon source for CH₄ production with MFMP. Regarding next generation sequence analysis of MFMP, Methanofollis (0.211%) was dominant in the 1% acetic acid medium for 72 h cultivation, whereas Methanosarcina siciliae (1.178%), M. barkeri (0.571%), and Methanofollis (0.490%) were major species in 1% methanol medium for 72 h cultivation. Therefore, it seemed Methanosarcina spp. may play a key methanogenesis in MFMP.
