Dark Matter in the Milky Way as the F-Type of Vacuum Polarization around Eicheon

1. Introduction

Observation of the stellar orbits around the center of the Milky Way [1,2], detecting the gravitational waves from the black hole/black hole and black hole/neutron star coalescence (for an overview, see, for instance, the catalog [3]), radio-astronomy observation of the “black hole shadows” in the centers of galaxies [4,5] are widely considered as the direct evidence of an extremely compact astrophysical object (ECO) existence with a radius of an order of the Schwarzschild one. The observable properties of such object are well-described by an exact Schwarzschild (or more precisely, Kerr) solution of the general relativity (GR) equations [6,7]. A principal question is whether the Schwarzschild solution interprets reality quite adequately. Indeed, there are a lot of theoretical attempts to describe ECO whose properties approach those of an ordinary GR black hole sufficiently far from the event horizon (so-called horizonless “exotic compact objects” [8]). Some of them are based on the modified theories of gravity (for the comprehensive reviews, see [9,10], and one may add an additional alternative approach based on the relativistic theory of gravity with a massive graviton [11]).

The question about the nature of ECO is also related to the need for dark matter to explain the galactic rotational curves [12,13]. In particular, the first observation of the DM density around the stellar-mass ECO appears [14]. It was conjectured that the primordial black holes could be considered the candidates to DM [15].

Besides, there is a plethora of DM candidates [16]. However, could we advance without extraordinary physics but only by taking a vacuum polarization into account correctly [17]? Conventional answer is “No” in the frame of the renormalization technique of quantum field theory on a curved background [18,19]. Still, this approach demands covariance of the mean value of the energy-momentum tensor over the vacuum state [18]. This demand has no solid foundation because it is known that there is no vacuum state invariant relative to the general transformation of coordinates. On the contrary, an argument was put forward that the preferred conformally-unimodular metric (CUM) could describe a vacuum polarization and resolve the problem of dark matter [17,20]. In this metric, a black hole as an object having a horizon is absent. Its disappearance results from the coordinate transformation relating the Schwarzschild-type metric to CUM, which selects some shell over the horizon and draws it into a node. As a result, a point mass without a horizon arises in a CUM. It is an idealized picture. In reality, one must know the equation of the state of a substance forming such ECO (named “eicheon” [21]).

Here, aiming at understanding the eicheon nature, we will use an approximation of the constant energy density and a trial “equation of state” relating the maximal pressure and the energy density. Recently, ECOs without a horizon have been discussed intensively (e.g., [22,23,24,25]). A zoo of exotic ECO, such as bosonic stars [26], gravastars [27], and other exotic stars [28,29], was proposed and theoretically explored. Also, the approaches based on constructing the nonsingular black-hole metrics in the spacetimes of different dimensions were proposed (e.g., see [30,31]). In our approach, we construct eicheon, and, after determining its properties, describe an eicheon surrounded by “dark radiation” to explain the rotational curves of the Milky Way. “Dark radiation” is one of the two kinds of vacuum polarisation considered in [17], namely polarization of the F-type. Finally, to be closer to observations, we introduce a baryonic matter into the model by smearing the galactic disk of the Milky Way.

2. What is “eicheon”?

Eicheon is a horizon-free object which appears instead of a black hole in CUM. As an idealized structure, eicheon represents a solution of a gravitational field of a point mass in CUM. In the metric of a Schwarzschild type, it looks like a massive shell situated over the Schwarzschild radius. In the real world, where there is no infinite density and pressure, the eicheon could be modeled in the Schwarzschild-type metric by a layer of finite width over the horizon as it is shown in Figure 1. In CUM, it looks like a solid ball [21,32]. A constant density model is convenient for understanding the main features of the eicheon.

CUM for a spherically symmetric space-time is written as

$$d{s}^2=a^2(d{\eta }^2-{\tilde{\gamma }}_{ij}d{x}^{i}d{x}^j)=e^{2\alpha }\left(d{\eta }^2-e^{-2\lambda }{\left(d\mathit{x}\right)}^2-(e^{4\lambda }-e^{-2\lambda }){\left(\mathit{x}d\mathit{x}\right)}^2/r^2\right),$$

(1)

where $r=\left|\mathit{x}\right|$, $a=exp\alpha$, and $\lambda$ are the functions of $\eta ,r$. The matrix ${\tilde{\gamma }}_{ij}$ with the unit determinant is expressed through $\lambda (\eta ,r)$. The interval (1) could be also rewritten in the spherical coordinates:

$$\begin{array}{c}\hfill x=rsin\theta cos\varphi ,y=rsin\theta sin\varphi ,z=rcos\theta \end{array}$$

(2)

to give

$$d{s}^2=e^{2\alpha }\left(d{\eta }^2-d{r}^2{e}^{4\lambda }-e^{-2\lambda }{r}^2\left(d{\theta }^2+{sin}^2\theta d{\varphi }^2\right)\right).$$

(3)

However, let us discuss eicheon properties in the Schwarzschild-type metric, which is more convenient for a reader

$$d{s}^2=B\left(R\right)d{t}^2-A\left(R\right)d{R}^2-R^{2}d\mathsf{\Omega }.$$

(4)

In this metric, the Volkov-Tolman-Oppenheimer (TOV) equation for a layer reads as:

$$p^{\prime }\left(R\right)=-\frac{3}{4\pi M_p^2{R}^2}\mathcal{M}\left(R\right)\rho \left(R\right)\left(1+\frac{4\pi R^{3}p\left(R\right)}{\mathcal{M}\left(R\right)}\right)\left(1+\frac{p\left(R\right)}{\rho \left(R\right)}\right){\left(1-\frac{3\mathcal{M}\left(R\right)}{2\pi M_p^{2}R}\right)}^{-1},$$

(5)

where the function

$$\mathcal{M}\left(R\right)=4\pi {\int }_{R_i}^R\rho \left(R^{\prime }\right)R^{\prime 2}d{R}^{\prime }$$

(6)

and the reduced Planck mass $M_p=\sqrt{\frac{3}{4\pi G}}=1.065\times {10}^{-8}kg$. We will model a layer of constant density $\rho$ so that $\mathcal{M}\left(R\right)$ is reduced to

$$\mathcal{M}\left(R\right)=\frac{4\pi }{3}\rho \left(R^3-R_i^3\right).$$

(7)

It is convenient to measure distances in units of the Schwarzschild radius $r_g=\frac{3m}{2\pi M_p^2}$, and density and pressure in the units $M_p^2{r}_g^{-2}$. In these units, it follows from (7) and $m=\mathcal{M}\left(R_f\right)$ that

$$\rho =\frac{1}{2(R_f^3-R_i^3)}.$$

(8)

The TOV equation (5) is reduced to

$$p^{\prime }=\frac{(p+\rho )\left(3p{R}^3+\rho \left(R^3-R_i^3\right)\right)}{R\left(2\rho \left(R^3-R_i^3\right)-R\right)}$$

(9)

and has to be solved with the boundary condition $p\left(R_f\right)=p\left(\sqrt[3]{R_i^3+\frac{1}{2\rho }}\right)=0$, where the second equality follows from (8). Let us simplify a problem further and assume that $R_i=1$ in the Schwarzschild radius units. Even in this case, there is no analytical solution of the equation (9), but the most interesting quantity is a maximal pressure $p_{max}=p\left(1\right)$, which could be approximated by the expression

$$p_{max}\approx \frac{\sqrt{\rho }}{\sqrt{6}}-\frac{1}{3}+\frac{11}{36\sqrt{6}\sqrt{\rho }}-\frac{35}{864\sqrt{6}{\rho }^{3/2}}$$

(10)

as is shown in Figure 2.

If to supplement Eq. (10) by the “equation of state”, which connects the maximal pressure with the density, then it is possible to determine the pressure and density. For instance, the “equation of state” corresponding to a degenerate relativistic fermion gas

$$p_{max}=\rho /3$$

(11)

gives no solution because of Eqs. (10) and (11) are incompatible.

The equation of state of the nonrelativistic degenerate Fermi gas is written in physical units as

$${\tilde{p}}_{max}=\frac{1}{5}{\left(\frac{3{\pi }^2}{m_N^4}\right)}^{2/3}{\tilde{\rho }}^{5/3},$$

(12)

where $m_N$ is a particle mass, and the tilde denotes that the quantity is expressed in the physical units. When $\rho$ is large, one could use only the first term in Eq. (10), and its equating to the pressure from (12) gives the following expression

$$\frac{M_p{r}_g^{-1}\sqrt{\tilde{\rho }}}{\sqrt{6}}=\frac{3^{2/3}{\pi }^{4/3}}{5}{\left(\frac{1}{m_N^4}\right)}^{2/3}{\tilde{\rho }}^{5/3},$$

(13)

allowing us to find the physical density

$$\tilde{\rho }=\frac{{\left(\frac{5}{3}\right)}^{6/7}{2}^{3/7}{m_N}^{16/7}{M_p}^{18/7}}{3{\pi }^{2/7}{m}^{6/7}},$$

(14)

which decreases with an increase of mass m of the eicheon. Dimensionless density is found by dividing (14) by $M_p^2{r}_g^{-2}$ and reads

$$\rho =\frac{\sqrt[7]{3}{5}^{6/7}{m}^{8/7}{m}_N^{16/7}}{2^{11/7}{\pi }^{16/7}{M}_p^{24/7}}.$$

(15)

It grows with the increase of m, so that approximation $p_{max}\approx \sqrt{\rho /6}$ becomes justified at some mass according to (10). Respectively, the width of the eicheon shell decreases: $\Delta R=\sqrt[3]{1+\frac{1}{2\rho }}-1\approx \frac{1}{6\rho }$ and becomes very thin at large m. Certainly, we measure the relative width in units of gravitational radius $r_g$. For instance, if take the eicheon mass equal to the Sun mass $m=M_{\odot }=1.989\times {10}^{30}kg$ and $m_N$ equals the neutron mass, then dimensional density $\tilde{\rho }=1.56431\times {10}^{16}kg/m^3$, while the dimensionless $\rho$ equals 7.65017. This eicheon has rather thick skin $\Delta R\approx 0.022$ and, in principle, can be distinguished from a conventional black hole. One more example is the eicheon of a large mass $40\times {10}^9{M}_{\odot }$. In this case, the physical density is much lower and we could consider the “equation of state” for a cold hydrogen plasma, where the pressure is created by a degenerate electron gas, and the dimensional density satisfies

$$\frac{M_p{r}_g^{-1}\sqrt{\tilde{\rho }}}{\sqrt{6}}=\frac{3^{2/3}{\pi }^{4/3}}{5}{\left(\frac{1}{m_e^4}\right)}^{2/3}{\left(\frac{\tilde{\rho }{m}_e}{m_N}\right)}^{5/3},$$

(16)

so that

$$\tilde{\rho }=\frac{{\left(\frac{5}{3}\right)}^{6/7}{2}^{3/7}{m_e}^{6/7}{m_N}^{10/7}{M_p}^{18/7}}{3{\pi }^{2/7}{m}^{6/7}}.$$

(17)

The dimensionless density is given by

$$\rho =\frac{\sqrt[7]{3}{5}^{6/7}{m}^{8/7}{m_e}^{6/7}{m_N}^{10/7}}{2^{11/7}{\pi }^{16/7}{M_p}^{24/7}}.$$

(18)

Numerically, these values are $\tilde{\rho }=20337kg/m^3$, $\rho =1.6\times {10}^{10}$. The eicheon skin is very thin $\Delta R\sim \frac{1}{6\rho }\sim {10}^{-11}$. Such eicheon is indistinguishable from a conventional black hole. At the same time, it is rather “mellow” by virtue of (17). Certainly, there is no paradox here because $\Delta R$ is measured in the units of $r_g$, which is large in the case considered. Finally, we can estimate eicheon in the center of the Milky Way using the formulas (16), (17), (18). For $m=4.154\times {10}^6{M}_{\odot }$ they give $\rho \approx 446000$, $\Delta R\approx 3.7\times {10}^{-7}$ and $\tilde{\rho }\approx 5.3\times {10}^{7}kg/m^3$ that is lesser than the white dwarf mean density $\tilde{\rho }\approx 4\times {10}^{8}kg/m^3$ [33].

3. Vacuum polarization around of eicheon

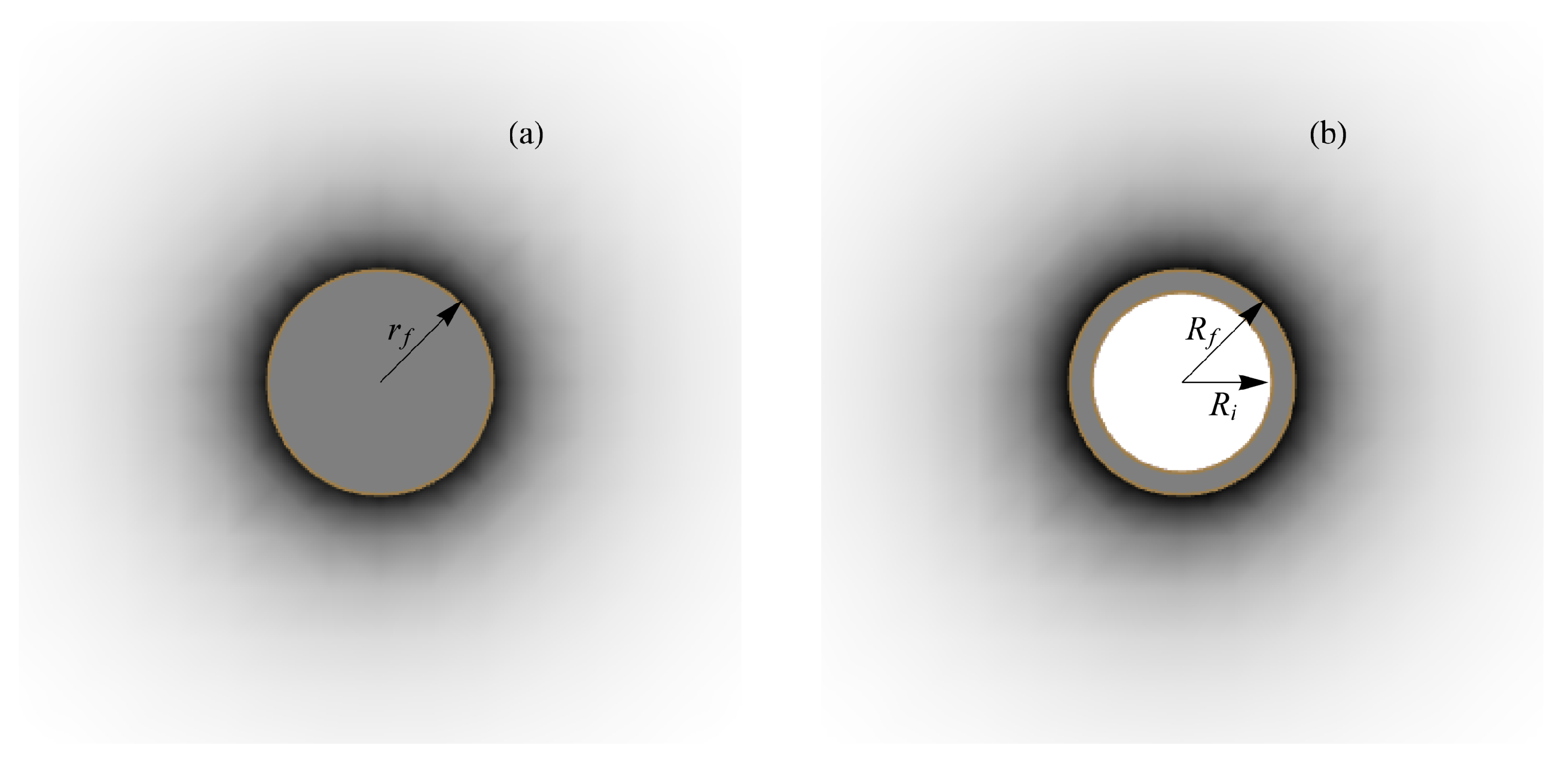

As was shown any mass eicheons exist because the inner $R_i$ and the outer $R_f$ radii (see Figure 1b ) of this spherical shell exceed the Schwarzschild radius and the Buchdahl’s bound [34] $m<4R/9G$ is not reached.

Considering the vacuum polarization for an arbitrary curved space-time background is a highly complex problem. Instead, one could consider scalar perturbations of CUM:

$$d{s}^2={(1+\mathsf{\Phi }(\eta ,\mathit{x}))}^2\left(d{\eta }^2-\left(\left(1+\frac{1}{3}\sum _{m=1}^3{\partial }_m^{2}F(\eta ,\mathit{x})\right){\delta }_{ij}-{\partial }_i{\partial }_{j}F(\eta ,\mathit{x})\right)d{x}^{i}d{x}^j\right)$$

(19)

and calculate a spatially nonuniform energy density and pressure arising due to vacuum polarization in the eikonal approximation [17].

As was shown [17], the energy density and pressure of vacuum polarization corresponding to the F-type of metric perturbations (19) have the radiation equation of state. That gives a possibility to use a hypothetical “dark radiation” in some nonlinear models. One could use it in the TOV equation as a heuristic picture. For a radiation substance alone, a singular solution of the TOV equation exists that is devoid of physical meaning [35]. However, the situation changes cardinally in CUM in the presence of the nonsingular eicheon. This gives a possibility to set a boundary condition for a radiation fluid at $r=0$ and obtain a nonsingular solution, including the dark radiation. In the Schwarzschild type metric (4), the boundary condition is set at the radial coordinate of an inner shell $R=R_i$, which corresponds to the point $r=0$ in CUM (see Figure 1) .

The system of equations (see Appendix A ) in the metric (4), implies three substances: the eicheon of the constant density ${\rho }_1$, the dark radiation density ${\rho }_2$, and the density ${\rho }_3$ of baryonic matter of the galactic disk and bulge:

$$\left\{\begin{array}{c}\left\{\begin{array}{c}{p}_1^{\prime }=-\frac{3(p_1+{\rho }_1)\left(\mathcal{M}+4\pi R^3\left(p_1+\frac{{\rho }_2}{3}\right)\right)}{4\pi R\left(R-\frac{3\mathcal{M}}{2\pi }\right)},{\mathcal{M}}^{\prime }=4\pi R^2({\rho }_1+{\rho }_2),\\ {\rho }_2^{\prime }=-\frac{3{\rho }_2\left(\mathcal{M}+4\pi R^3\left(p_1+\frac{{\rho }_2}{3}\right)\right)}{\pi R\left(R-\frac{3\mathcal{M}}{2\pi }\right)},\end{array}\right.R_i<R<R_f,\\ {\rho }_2^{\prime }=-\frac{3{\rho }_2\left(\mathcal{M}+4\pi R^3\frac{{\rho }_2}{3}\right)}{\pi R\left(R-\frac{3\mathcal{M}}{2\pi }\right)},{\mathcal{M}}^{\prime }=4\pi R^2({\rho }_2+{\rho }_3),R>R_f.\end{array}\right.$$

(20)

where the baryonic matter of a disk with ${\rho }_3$ is considered as some external matter density. According to (20), there are two equations for the pressure and "dark radiation" density inside the eicheon and a single equation for “dark radiation” density outside the eicheon.

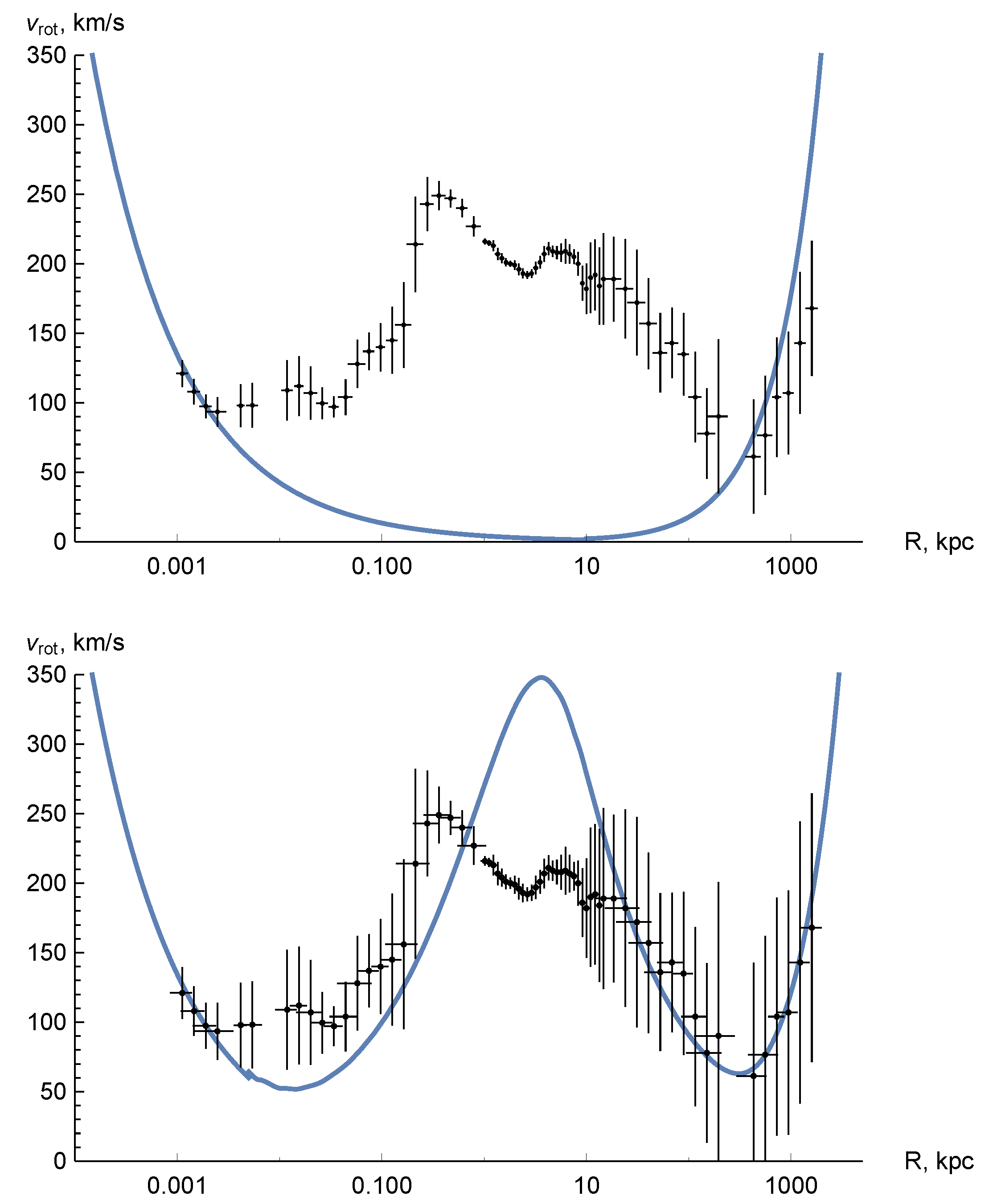

As is shown in the upper panel of Figure 3, the eicheon without galactic disk and bulge contributes at a small distance, and the dark radiation contributes at large distances. The density of dark radiation depends on the eicheon structure, which was considered in the previous section. It is convenient to introduce a universal quantity of a dark radiation density for the Milky Way at the radius of a photon sphere $R=3/2$, namely ${\rho }_2^{*}\equiv {\rho }_2(3/2)=9.3\times {10}^{-32}=1.1\times {10}^{-29}kg/m^3$. Moreover, it remains a single parameter, because the eicheon mass in the dimensionless units equals $m=2\pi /3$. Thus a dark matter tail is reproduced by virtue of the universal equations

$${\rho }_2^{\prime }=-\frac{3{\rho }_2\left(\mathcal{M}+4\pi R^3\frac{{\rho }_2}{3}\right)}{\pi R\left(R-\frac{3\mathcal{M}}{2\pi }\right)},{\mathcal{M}}^{\prime }\left(R\right)=4\pi R^2{\rho }_2,\mathcal{M}(3/2)=2\pi /3,{\rho }_2(3/2)={\rho }_2^{*},R>3/2.$$

(21)

That is a spherically symmetric model where the amount of dark radiation is adjusted to fit the observations. To consider the baryonic matter, one could smear a baryonic galactic disk on a sphere and view the resulting mass density as some external non-dynamical density in the TOV equations for the eicheon and dark radiation. This external density creates an additional gravitational potential.

Let us consider the surface density of matter in a galactic disk:

$$\wp =\frac{M_D}{2\pi R_D^2}{e}^{-R/R_D},$$

(22)

and write the mass $dM$ corresponding to the radial distance $dR$

$$dM=\frac{M_D}{R_D^2}{e}^{-R/R_D}RdR=\frac{M_D}{R_D^{2}R}{e}^{-R/R_D}{R}^{2}dR.$$

(23)

According to (23), the smeared 3-dimensional density has the form:

$${\rho }_3=\frac{M_D}{4\pi R_D^{2}R}{e}^{-R/R_D}.$$

(24)

The result of the calculations for the Milky Way rotational curve is shown in the lower panel of Figure 3. As one can see, the simple model with smeared disk describes the baryonic matter roughly, but the observed rotational curve has a more complicated structure.

4. Discussion and conclusion

We have shown that the F-type vacuum polarization in the Milky Way could explain DM, which mimics a sort of “dark radiation.” Namely the presence of ECO, or eicheon, in the center of the galaxy provides a nonsingular solution for dark radiation. The eicheon resembles a black hole for an external observer but has no horizon. Our model proposed is spherically symmetric. However, the appropriate approximation of the distribution of baryonic matter in a galaxy by smearing the disk over a sphere allows for obtaining the qualitative agreement of the rotational curves with the observed ones.

Let us remind the principles of calculation. We have considered the vacuum polarization of F-type in the conformally unimodular metric (19) and find that it has a radiation equation of state. Then, we solve the TOV equation for incompressible fluid and dark radiation and obtain a nonsingular solution. To consider the baryonic matter, we smear a galactic disk and use the resulting density as some external density. Interestingly, the Milky Way’s dark radiation tail can be described by a single parameter: density of dark radiation at the radius of a photon sphere of the eicheon. The numerical value of this density is $1.1\times {10}^{-29}kg/m^3$. The spatially uniform residual energy density of vacuum fluctuations, which remain after compensation of its main part by the constant in the Friedman equation [36], is of the order of critical density $\sim \times {10}^{-26}kg/m^3$. Thus, the relative spatial nonuniformity of dark radiation is estimated as ${10}^{-3}$. Indeed, this is a very heuristic analysis because we use the amount of the dark radiation at a photon radius of the eicheon $R=3/2r_g$. Still, this amount rapidly decreases at $R>3/2r_g$ and increases at $R<3/2r_g$. In this light, it is interesting to obtain a general picture of matter structure formation in the universe by the solution of the system of the equations for the perturbations of the metric and the matter, including vacuum polarisation of both types [17].
